ASSEMBLY INSTRUCTIONS
Top Mounting Plate
CAUTION
INSPECT CONTENTS IMMEDIATELY AND FILE CLAIM WITH DELIVERING
CARRIER FOR ANY DAMAGE
. SAVE YOUR BOX AND ALL PACKING MATERIALS.
YOU ARE RESPONSIBLE FOR DAMAGE TO YOUR UNIT IF RETURNED IMPROPERLY PACKED.
EG10052 Revised 09/23
Step 2 - Install top mounting plate (TMP) clips
down into opening.
TMP
clip
opening
TMP

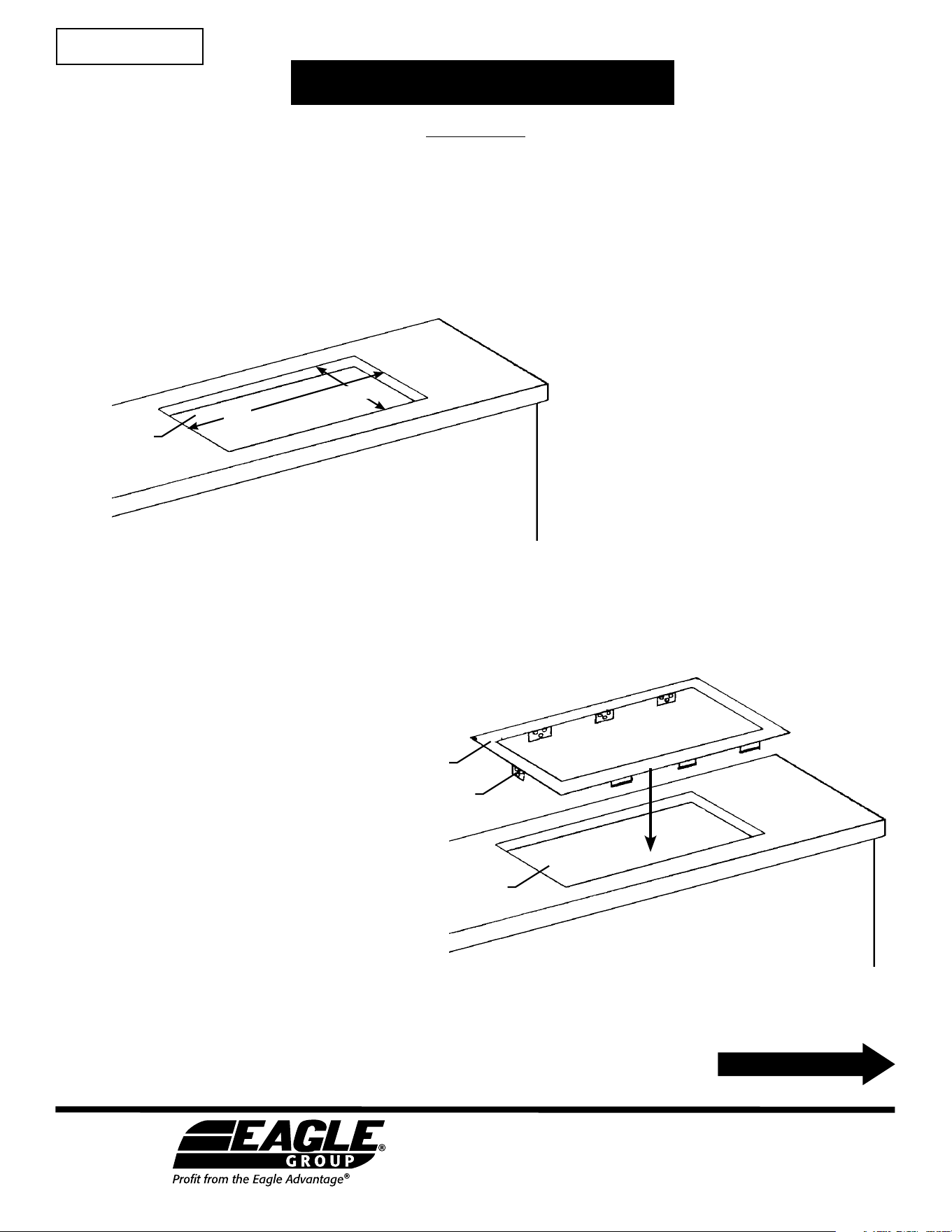

Step 1 - Cut out 14
1
⁄2˝ x 22
1
⁄2˝ opening in countertop.
14
1
⁄2˝
22
1
⁄2˝
opening
Eagle Foodservice Equipment, Eagle MHC, and SpecFAB
®
are divisions of Eagle Group. ©2023 by the Eagle Group
• 100 Industrial Boulevard, Clayton, Delaware 19938-8903 U.S.A.
• Phone: 302/653-3000 • 800/441-8440
• Fax: 302/653-2065 • www.eaglegrp.com
INSTRUCTION SHEET
#309592
(continued on back page)
TMP
Step 4 - Apply a bead of silicone rubber where TMP edge meets formica top.
• With clean cloth, wipe off excess silicone before it cures.
• Silicone can be purchased at a local hardware store.
• Silicone must be approved for use in food zone.
SILICONE RUBBER
TMP
formica
top
(underside view)
screw
plywood
clip

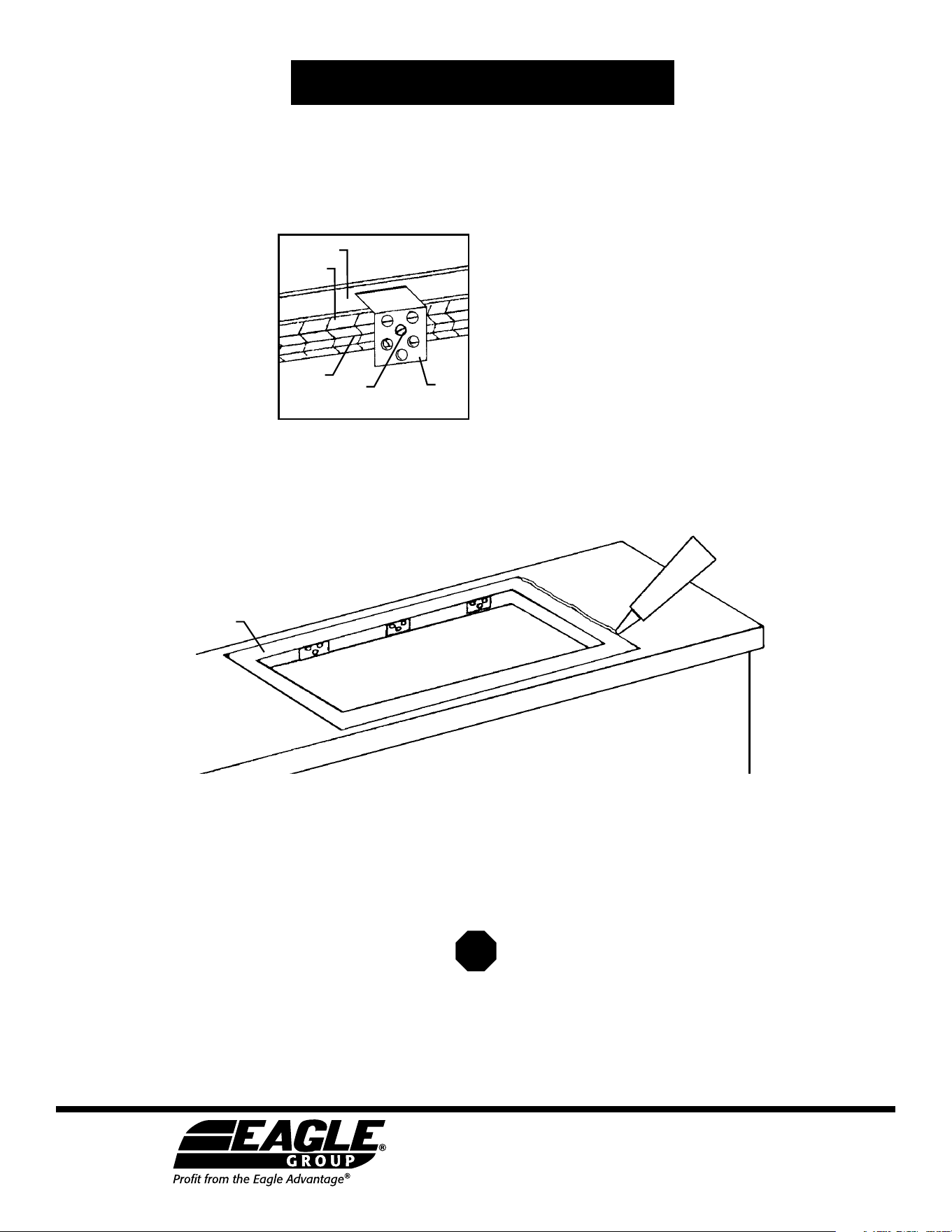

Step 3 - Fasten TMP into place.
Insert screws through clips, and tighten screws into plywood.
Step 5 - Mount 1220 unit into TMP according to instructions.
Eagle Foodservice Equipment, Eagle MHC, and SpecFAB
®
are divisions of Eagle Group. ©2023 by the Eagle Group
• 100 Industrial Boulevard, Clayton, Delaware 19938-8903 U.S.A.
• Phone: 302/653-3000 • 800/441-8440
• Fax: 302/653-2065 • www.eaglegrp.com
(End)
