Swing Gate Rack
Rev. 20170517
Important information-
Keep this information for further reference.
WARNING
Different wall materials require different type of an-
choring devices. Use anchoring devices suitable for
the walls which you are using in your application. For
advice on suitable anchoring systems, contact your
local specialist.
Limitations of Liability: In no event will NavePoint, LLC. (or its ofcers, directors, employees or agents) be liable for any damages, whether direct or
indirect, special, punitive, incidental or consequential damages (including, but not limited to, lost prots or revenue, loss of use, lost business op-
portunities or loss of goodwill) or for the costs of procuring substitute products, arising out of or in connection with the use of the product, whether
such liability arises from any claim based upon contract, warranty, tort (including negligence), product liability or otherwise, whether or not seller
has been advised of the possibility of such loss or damage. In no event will seller’s total cumulative liability, from all causes of action and all theories
of liability, exceed the total amounts actually paid to seller by customer under the order that gives rise to any liability hereunder.
The information contained in this document is subject to change
without notice.
NavePoint makes no warranty of any kind with regard to this
material, including, but not limited to the implied warranties of
merchantability and tness for a particular purpose.
NavePoint shall not be liable for errors contained herein or for
incidental or consequential damages in connection with the
furnishing, performance, or use of this material.
NavePoint assumes no responsibility for the use, application, or
reliability of the software or hardware that you install into the
product. Always install the heaviest equipment in the bottom.
It is highly recommended that installation of this product be
performed by a qualied and experienced installer. Improper
installation of this product could result in damage to the
product, other equipment, or personal injury. NavePoint cannot
be held responsible for damage to equipment or personal
injury resulting from improper use, installation or the misuse of
information presented in this document.
Examine the package for any damaged or loose parts. If
anything is damaged or missing, contact NavePoint for
assistance. Do not attempt to install or use cabinet if it has
been damaged.
Thank you for purchasing a NavePoint product. NavePoint intends this manual to guide you through
a smooth installation of the product. NavePoint assumes that you are qualied in the servicing of
computer equipment and trained in recognizing any hazards that may occur in the installation of this
product. If you have any questions regarding the installation or use of your product, please call us at
888.505.1363.
2. Attach Vertical Bar (Part C) onto side of Mounting
Frame (Part A) with 4 x M5 Screws (Part H-2). Repeat
step to connect the second Vertical Bar (Part C) to the
other Mounting Frame (Part A).
3. Secure Front Hinged Frame Piece (Part D) to the built
frame, make sure the latch pins click into place.
A
H-1
C
B
D
C
H-2
(H-1)
(H-2)

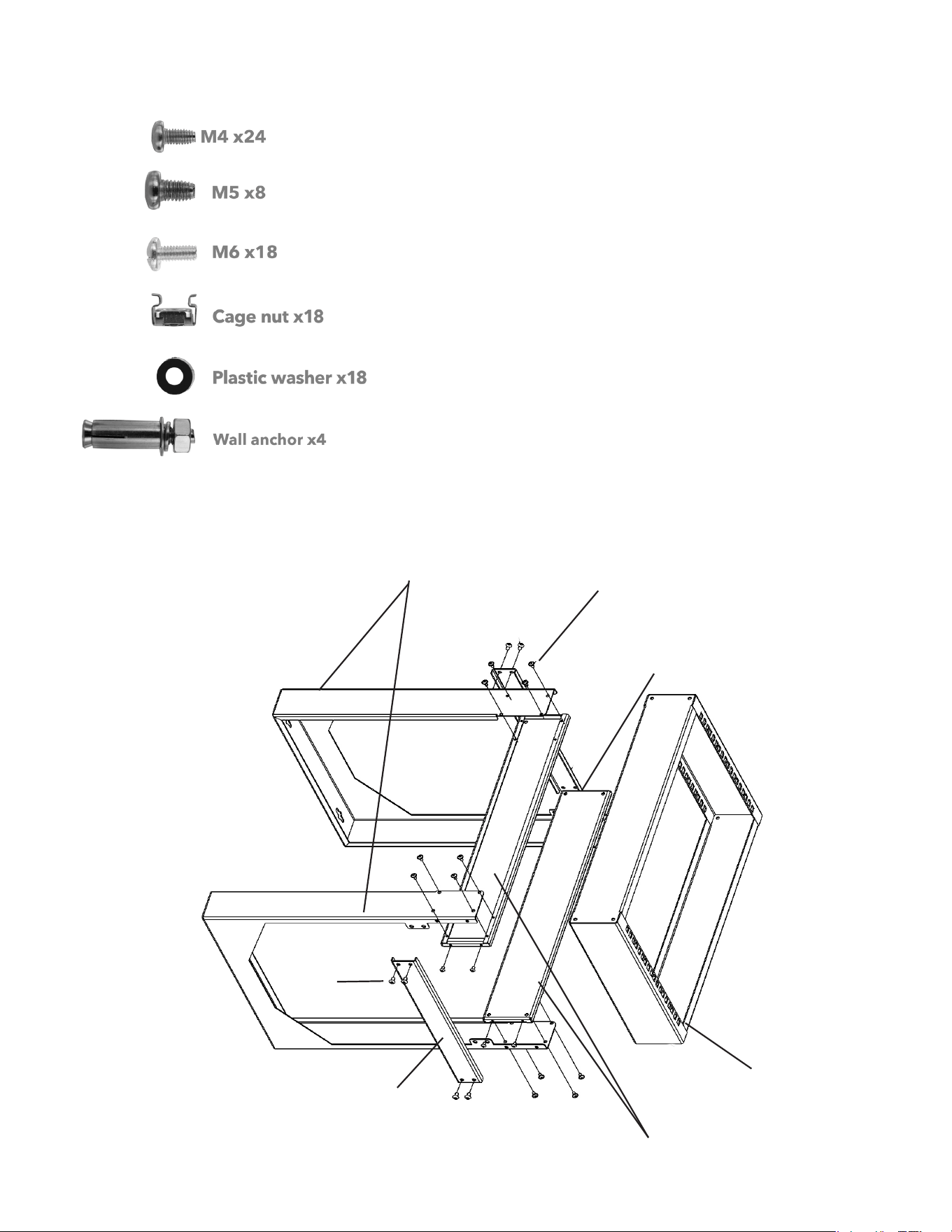

1. Attach Cross Connecting Bar (Part B) to Mounting Frames
(2 x Part A) with 12 x M4 Screws (Part H-1).
Repeat step to connect the second Cross Connecting Bar (Part
B) to Mounting Frames (2 x Part A).
