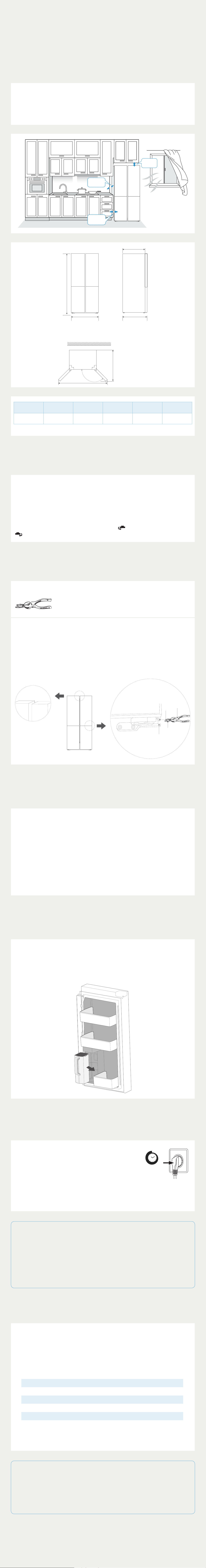

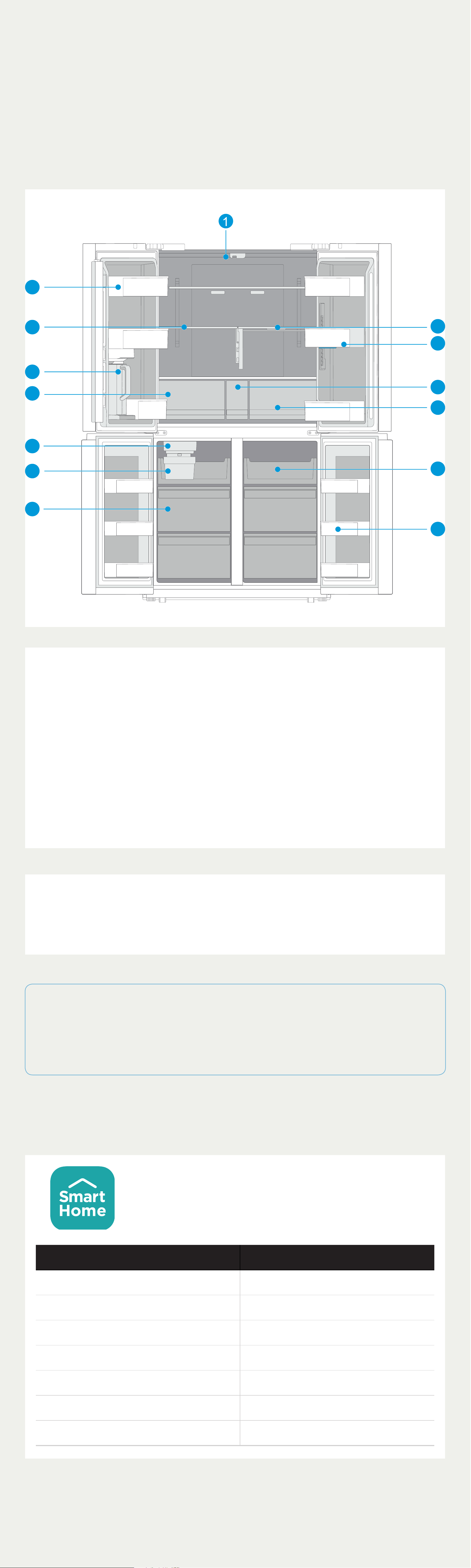

Product Overview
Product Introduction
INFINITE DOOR BIN
2
3
5
9
10
12
13
14
11
7
8
4
6
1 LED Light 2 Fridge Door Bin
3 Glass Shelf 4 Water Pitcher
5 Variable Temperature Zone 6 Ice Maker
7 Ice Storage Box 8 Freezer Drawer
9 Infinite Shelf 10 Infinite Door Bin
11 Water Tank 12 Crisper Drawer
13 Freezer Tray 14 Freezer Door Bin
• For the most ecient use of energy, please keep the all internal
items such as trays, drawers, shelves and ice cube box on the
position supplied by manufacturer.
• | Attention
Dierences: Due to technical changes and dierent models, some
of the illustrations in this manual may dier from your model.
Technical Parameters
Wireless network module MWB-S-WB01
Standard IEEE 802.11b/g/n
Antenna Type Printed PCB antenna
Frequency Band 2400-2483.5 MHz
Operating Temperature 0 °C - 85 °C /32 °F - 185 °F
Operation Humidity: 10% - 85%
Maximum Transmission Power <20 dBm
Power Input DC5V/500mA
Product Installation
Space requirement diagram
Inadequate clearance from adjacent items may result in the
degradation of freezing capability and increased electricity costs.
Allow over 100 mm of clearance at both sides and the top, and 50-
75 mm at the back when installing the appliance.
BACK
50-75mm
SIDES
>100mm
TOP
>100mm
C
C1
130°
E
D
A
B
A B C C1 D E
908 1775 736 635 1055 1538
Notice: All dimensions in mm
Leveling feet
• To avoid vibration, the appliance must be leveled.
• If required, adjust the leveling feet (located on both sides of the
bottom front) to compensate for the uneven floor.
• The front should be slightly higher than the rear to aid in door closing.
• Leveling feet can be turned easily by tipping the cabinet slightly.
• Turn the leveling feet counter clockwise to raise the unit, clockwise
to lower it.
Aligning the Doors
Tools to be provided by the user
Pliers
If the top edges of the refrigerator doors are not aligned, adjust the
height of the lower door with a pair of pliers.
• Lift the lower door until it is level with the higher door.
• Using a pair of pliers, carefully insert the supplied fastener ring(s)
into the gap between the hinge grommet and the lower hinge. The
number of fastener rings needed depends on the size of the gap.
Pliers
Fastener ring
Shaft
sleeve
Lower hinge
Moving the Appliance
• Remove all items from inside the appliance.
• Pull the power plug out, insert and fix it into the power plug hook at
the rear or on top of the appliance.
• Pull the power plug out, insert and fix it into the power plug hook at
the rear or on top of the appliance.
• Move the appliance with more than two people carefully. When
transporting the appliance over a long distance, keep the appliance
upright.
• After installing the appliance, connect the power plug into a socket
outlet to switch on the appliance.
Installing the Water Pitcher
• Take the water pitcher out of the packaging.
• Open the door of the refrigerator compartment, and then install
the water pitcher onto the holder. Push it straight in as shown in the
illustration.
Connecting the appliance
After installing the product, please let it stay
for more than 2 hours before turning on the
power, otherwise it will lead to a decrease
in cooling capacity or a damage to the
product.
Allow the appliance to run empty for 24
hours so the compartment can cool to the
appropriate temperature.
2 h
• | CAUTION
The refrigerator should always be plugged into its own individual
electrical outlet which has a voltage rating that matches the rating
plate.
WARNING: When positioning the appliance, ensure the supply cord
is not trapped or damaged.
Ambient Temperature
Depending on the climate class, this refrigerator is intended to
be used at an ambient temperature range as specified in the
following table.
The product may not operate properly at temperatures outside
of the specific range.
You can find the climate class on the product label.
Climate Class Ambient Temperature
SN +10 °C to +32 °C
N +16 °C to +32 °C
ST +16 °C to +38 °C
T +16 °C to +43 °C
If you have any doubts regarding installation, please turn
to the vendor, to our customer service or to the nearest
Authorised Service Centre.
• | Tips
The cooling performance and power consumption of the
refrigerator may be aected by the ambient temperature, the
door-opening frequency, and the location of the refrigerator. We
recommend adjusting the temperature settings as appropriate.

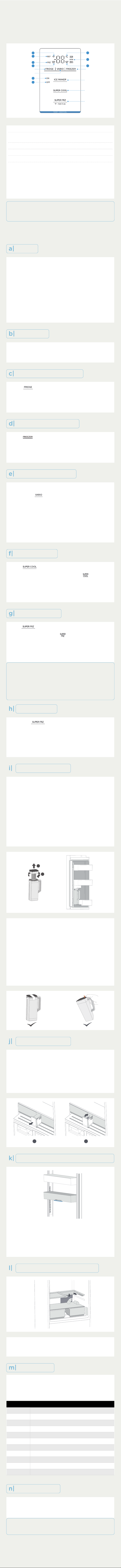

Product Operation
Control panel
2
1
3
4
8
9
6
7
5
C
B
A
D
E
F
Icons Buttons
1 Wireless network A
Refrigerator temperature
adjustment
2 Refrigerator B Variable temperature zone
3 Freezer C Freezer temperature adjustment
4 Super cool mode D Ice maker
5 Celsius (°C) E Super cool
6
Variable temperature zone
settings
F Super freeze
7 Super freeze mode
8 Ice maker on
9 Ice maker o
• | Attention
Dierences: Due to technical changes and dierent models, some of the
illustrations in this manual may dier from your model.
Operation Instruction
Display
• When the refrigerator is powered on for the first time, the display
screen will fully illuminate for 3 seconds, accompanied by a start-
up chime. After this, the display will enter normal operation mode.
By default, the temperatures for the refrigerator and freezer
compartments are set to 5°C and -20°C respectively, and the
variable temperature zone is preset to “DRINK”.
• In the event of a fault, the corresponding fault code will be shown
on the display. If there are no issues, the set temperature of the
refrigerator compartment will be displayed.
• If the door is closed and no button is pressed for 10 seconds,
the display will lock automatically. After 30 seconds, the display
will turn o. Pressing any button will illuminate the display. If a
fault occurs and the fault code is visible, the display will remain
illuminated for 30 seconds before turning o.
Lock/Unlock
• The screen will automatically lock after 10 seconds of inactivity. To
unlock the screen, simply press any button.
• Alarm sounds can be muted even when the screen is locked.
Refrigerator temperature setting
Press the button to adjust the temperature of refrigerator
compartment. Each time you press the button, the temperature
increases or decreases by 1°C.
The temperature range for the refrigerator compartment is 2°C – 8°C.
The new setting will take eect after 10 seconds (screen locked).
Freezer temperature setting
Press the button to adjust the temperature of freezer
compartment. Each time you press the button, the temperature
increases or decreases by 1°C.
The temperature range for the freezer compartment is -24°C – -16°C.
The new setting will take eect after 10 seconds (screen locked).
Variable temperature zone
You can change the temperature setting of the variable temperature
zone to best suit the type of food stored in this zone. To adjust this
setting, press the button to select the variable temperature
zone, then continue to press the button until the desired icon (6) is lit
on the display.
• VEG&FRUIT: Ideal for keeping fruits and vegetables fresh, this
setting operates at 5°C.
• DRINK: Perfect for chilling drinks like soft drinks and beer, this
setting operates at 2°C.
• MEAT&FISH: Best for storing dairy products, raw meat and fish,
this setting operates at 0°C. The new setting will take eect after
10 seconds (screen locked).
Super cool mode
Press the button to enter/exit the super cool mode.
When super cool mode is set, the temperature of the refrigerator
compartment is automatically set to 2°C, and the
icon is lit.
The Super Cool mode will be automatically exited after 6 hours.
Super Cool mode will automatically exit if you adjust the temperature
of refrigerator compartment. When exited, the refrigerator
compartment will return to the temperature that was set before
entering super cool mode.
Super freeze mode
Press the button to enter/exit the super freeze mode. When
super freeze mode is set, the freezer compartment temperature is
automatically set to -24°C, and the
icon is lit.
The Super Freeze mode will be automatically exited after 40
hours. Super freeze mode will automatically exit if you adjust the
temperature of freezer compartment. When exited, the freezer
compartment will return to the temperature that was set before
entering super freeze mode.
• | Attention
The super freeze function is designed to preserve the nutritional value
of the food in the freezer. It can freeze the food in the shortest time. If a
large amount of food is frozen at one time, it is recommended that the
user turn on the super freeze function and put the food in. At this time,
the freezing speed of the freezer compartment is increased, which can
quickly freeze the food, eectively locking in the nutrients of the food and
optimizing storage.
Forced AP mode
Press and hold for 3 seconds to force the refrigerator’s
wireless network module into AP mode (“AP” appears in the
temperature display area). After the module enters AP mode and is
successfully configured, it will automatically exit AP mode and the
temperature display area will return to its normal display.
If the module is not successfully configured within 10 seconds after
entering AP mode, it will forcibly exit AP mode, and the temperature
display will return to its normal display.
Using the Water Pitcher
To ensure that the water pitcher works properly, place the pitcher
correctly on the pitcher holder and close the refrigerator door.
The pitcher has a cold brew function. You can put tea leaves or fruit
in the filter and enjoy your favorite fruity water.
To get cold brew water
• Grasp the handle slot on the lid and pull up to open the lid.
• Rotate the filter element and remove it from the lid.
• Place tea leaves or fruit in the filter element according to your
taste.
• Fill the water pitcher with water.
• Close the door and after a while you can enjoy the cool, fruity
water.
1
2
Tips:
• We recommend drinking fruit soaked water within 24 hours. After
this time, the water may spoil.
• The water pitcher must be washed after drinking the soaked
water. If the water pitcher is not used for a long time, it also needs
to be cleaned.
• To prevent the water pitcher from overflowing or leaking, make
sure the lid is properly inserted.
• Do not fill the water pitcher with hot water.
• Do not expose the water pitcher to high temperatures.
• When pouring water from the pitcher it is recommended to press
the lid with your thumb.
Refilling the Water Tank
• When the water level is low, gently pull out the water tank.
• Open the water tank cover by pushing it open.
• Fill the tank with water up to the maximum water level mark.
• After filling, close the cover securely and slide the water tank back
into place.
• Note: You may remove the water tank completely if you prefer to
fill it outside the refrigerator.
1 2
How to Remove and Install the Infinite Door Bin
• First, take out the regular bottle shelf above the Infinite Door Bin.
• Hold the blue handle and lift the Infinite Door Bin up along the
track until it passes the bottle shelf’s hanging hook. Then pull the
bin out.
• To put the bin back, hold the blue handle and slide it down along
the hanging hook until it stops. The bin is now securely in place.
Precautions for the Infinite Glass Shelf
To avoid collision with the items on the lower shelf during the process
of adjusting the sliding shelf backwards, do not place any items
tightly under the rear of the sliding shelf.
Fault indication
The following warnings appearing on the control panel indicate
corresponding faults of the refrigerator. Though the refrigerator may
still have refrigerator and freezing function with the following faults,
the user shall contact a maintenance specialist for maintenance, so as
to ensure normal use of the refrigerator.
Fault Code Fault Description
E1 Refrigerator chamber temperature sensor fault
E2 Freezer chamber temperature sensor fault
E3 Variable temperature zone sensor fault
E5 Freezer chamber defrosting sensor fault
E6 Communication error
C8 Human body sensing module communication error
E7 Ambient temperature sensor fault
EH Humidity sensor fault
EE Freezer ice maker sensor fault
E0 Freezer ice maker initialization failure
EP Freezer ice maker fails to turn over ice
Changing the light
Any replacement or maintenance of the LED lamps is intended to
be made by the manufacturer, its service agent or similar qualified
person.
• | Attention
This product contains a light source of energy eciency class (G+F).
Maintenance Tips
Overall cleaning
•
Disconnect the appliance from the electrical supply before
undertaking any routine maintenance. Allow at least 5 minutes
before restarting the appliance, as frequent starting may
damage the compressor.
•
Do not use mechanical devices or other means to accelerate
the defrosting process, other than those recommended by the
manufacturer.
•
Do not try to repair, disassemble or modify the appliance by
yourself. In case of repair please contact our customer service.
•
Eliminate the dust on the back of the unit at least once in
the year to avoid hazard by fire, as well as increased energy
consumption.
•
Check the door gasket regularly to make sure there are no
debris. Clean the door gasket with a soft cloth dampened with
soapy water or diluted detergent.
•
The interior of the product should be cleaned regularly to
avoid odor.
•
Use a soft cloth or sponge to clean the inside of the product,
with two tablespoons of baking soda and a quart of warm
water. Then rinse with water and wipe clean. After cleaning,
open the door and let it dry naturally before turning on the
power.
•
For areas that are dicult to clean in the product (such as
narrow sandwiches, gaps or corners), it is recommended to
wipe them regularly with a soft rag, soft brush, etc. and when
necessary, combined with some auxiliary tools (such as thin
sticks) to ensure no contaminants or bacterials accumulation
in these areas.
•
Wipe the outer surface of the product with a soft cloth
dampened with soapy water, detergent, etc., and then wipe
dry.
•
Do not use hard brushes, clean steel balls, wire brushes,
abrasives (such as toothpastes), organic solvents (such as
alcohol, acetone, Isoamyl acetate, etc.), boiling water, acid
or alkaline items, which may damage the fridge surface and
interior. Boiling water and organic solvents such as benzene
may deform or damage plastic parts.
•
Do not rinse directly with water or
other liquids during cleaning to avoid
short circuits or aect electrical
insulation after immersion.
• | Notes:
The appliance shall run continuously once it is started. Generally, the
operation of the appliance shall not be interrupted;otherwise the service
life may be impaired
Defrosting
Although this appliance automatically defrosts, a layer of frost may
occur on the freezer compartment’s interior walls if the freezer door
is opened frequently or kept open too long. If the frost is too thick,
choose a time when the supply of food stocks are low and proceed
as follows:
1.
Remove existing food and accessories baskets, unplug the
appliance from the mains power and leave the doors open.
Ventilate the room thoroughly to accelerate the thawing
process.
2.
When defrosting is completed, clean your freezer as described
above.
• | CAUTION!
Don’t use sharp objects to remove frost from the freezer. Only after the
interior completely dry should the appliance be switched back on and
plugged back into the mains socket

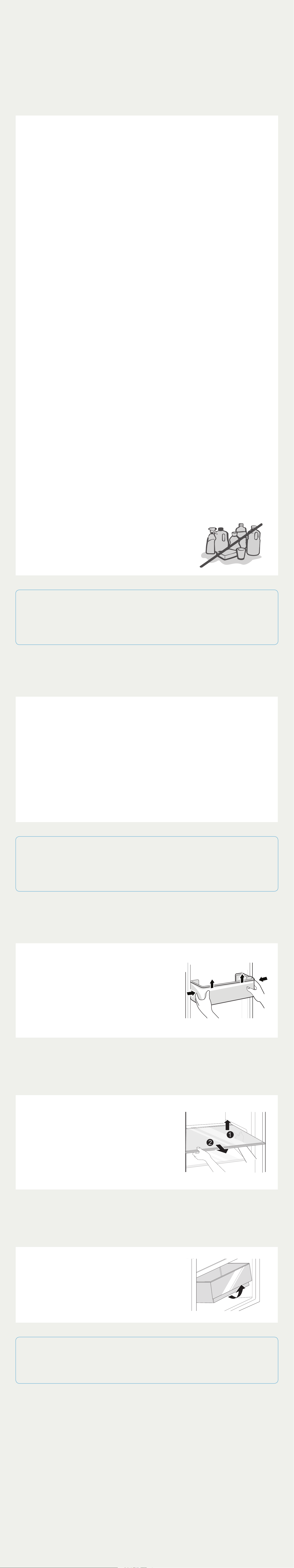

Cleaning of door tray
According to the direction arrow in
the figure below, use both hands to
squeeze the tray, and push it upward,
then you can take it out.
After washing the tray having been
taken out, you can adjust its installing
height in accordance with your
requirement.
Cleaning of glass shelf
As the innermost part of the
refrigerator liner where contacting the
shelves has a backstop, you shall raise
the shelves upward, then you can be
able to take it out.
Adjust or clean the shelves according
to your requirement.
Cleaning the vegetable drawer
Remove the contents of the drawer.
Hold the handle of the vegetable
drawer and pull it out completely until
it stops.
Lift the vegetable drawer up and
remove it by pulling it out.
• | Notes:
Differences: Due to technical changes and different models, some of the
illustrations in this manual may differ from your model.
Maintenance Tips

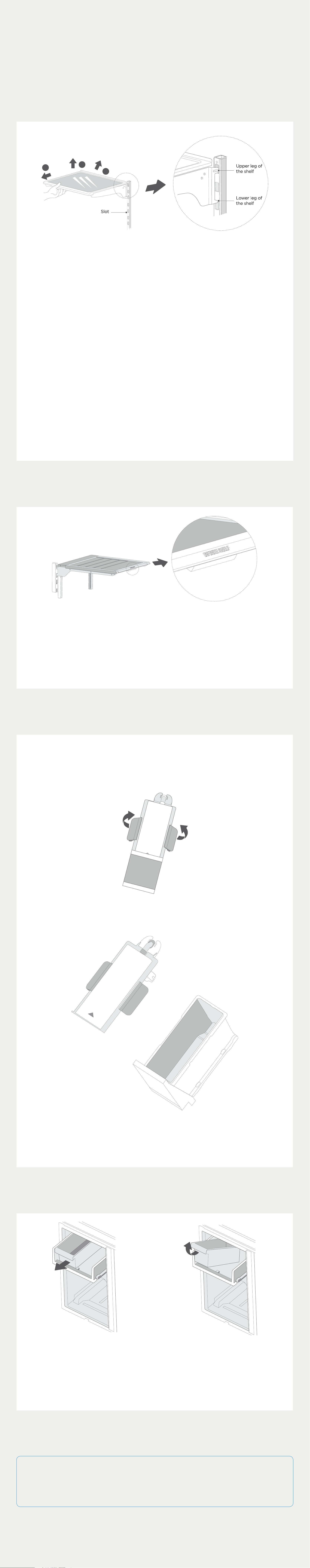

Cleaning the Glass Shelves
1
2
3
To remove the shelves:
•
Remove the left shelf first, then the right shelf.
•
Gently pull the left and right shelves apart to unlock their
connection.
•
Hold the front edge of the shelf, and tilt the shelf inward until
the lower leg comes free from the slot on the support bracket.
•
Uplift the whole shelf until it cannot rise anymore.
•
Take out the shelf horizontally.
To install the shelves after cleaning:
•
Install the right shelf first, then the left shelf.
•
Insert the upper leg of the shelf into one of the top slots on
the support bracket.
•
Insert the lower leg into the third slot down on the support
bracket.
•
Gently pull the left and right shelves apart until the positioning
slots lock together. Make sure both shelves are level and
aligned.
Adjusting the Infinite Shelf
•
Press the trigger to unlock the shelf, then push the shelf inward to
the desired space. Release the trigger and the shelf will be locked.
•
You can pull the shelf out without pressing the trigger, but the
shelf locking part will make a normal movement sound, don’t
worry! It is recommended to press the trigger to pull the shelf out
for a smoother operation.
Cleaning the Water Tank
•
Remove the water tank from the refrigerator and put it on a
countertop.
•
Open both the left and right side covers by folding them outward.
•
Remove the water tank cover and place it on the table.
•
Rinse and clean the inside of the water tank with clean water.
•
After cleaning, reattach the water tank cover and snap the two
side covers back into place.
Cleaning the Ice Storage Box
•
Pull out the ice storage drawer in the direction of the arrow.
•
Remove the ice storage box from the drawer.
•
Clean the ice storage box thoroughly, then dry it completely.
•
Put the ice storage box back into the drawer securely.
ATTENTION
When you are cleaning the tank and if cleaning solution is used, you
should better put the water box to its original position, and fill the
water box, then you shall drain 5 to 6 cups of water, in case there is any
rudimentaldirt of water dispenser after you used cleaning solution.
Troubleshooting
You may try to solve the following simple problems by yourself.
If them cannot be solved, please contact the after-sales
department.
Failed
operation
• Check whether the appliance is connected to power
or whether the plug is in well contact
• Check whether the voltage is too low
• Check whether there is a power failure or partial
circuits have tripped
Odor
• Odorous foods shall be tightly wrapped
• Check whether there is any rotten food
• Clean the inside of the refrigerator
Long-time
operation of
the compressor
• Long operation of the refrigerator is normal in
summer
• when the ambient temperature is high It is not
suggestible having too much food in the appliance at
the same time
• Food shall get cool before being put into the
appliance
• The doors are opened too frequently
Light fails to
get lit
• Check whether the refrigerator is connected to power
supply and whether the illuminating light is damaged
• Have the light replaced by a specialist
Door can not
be properly
closed
• The door is stuck by food packages Too much food is
placed
• The refrigerator is tiltedr.
Loud noises
• Check whether the floor is level and whether the
refrigerator is placed stably
• Check whether accessories are placed at proper
locations
Door seal fails
to be tight
• Remove foreign matters on the door seal
• Heat the door seal and then cool it for restoration
• (or blow it with an electrical drier or use a hot towel
for heating)
Water pan
overflows
• There is too much food in the chamber or food stored
contains too much water,resulting in heavy defrosting
• The doors are not closed properly, resulting in
frosting due to entry of air and increased water due
to defrosting
Hot housing
• Heat dissipation of the built-in condenser via the
housing, which is normal When housing becomes
hot due to high ambient temperature, storage of too
much food or shutdown of the compressor is shut
down, provide sound ventilation to facilitate heat
dissipation
Surface
condensation
• Condensation on the exterior surface and door
seals of the refrigerator is normal when the ambient
humidity is too high. Just wipe the condensate with a
clean towel.
Abnormal noise
• Buzz: The compressor may produce buzzes during
operation, and the buzzes are loud particularly upon
start or stop. This is normal.
• Creak: Refrigerant flowing inside of the appliance
may produce creak, which is normal.

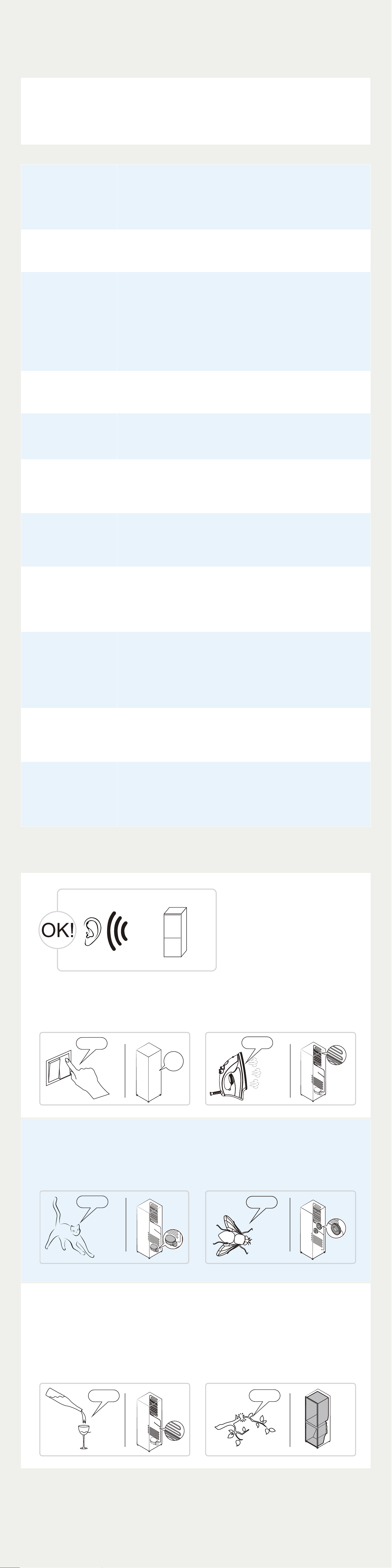

Do you hear these abnormal sounds as below? Usually these sounds
are normal.
S
S
SRR
R
!
HISSS!
BLUBB!
C
L
IC
K
!
BRRR!
CRA
CK!
CLICK: Some electrical parts in
the refrigerator, such as electric
valve will make this noise when
working. This is normal.
HISSS: When the refrigerant
flows into the evaporator, it will
make this noise. This is normal.
CLICK！
CLICK！
HISSS!
HISSS!
BRRR: The compressor will make
this noise when working, and the
buzzes are loud particularly upon
start or stop. This is normal.
SSSRRR: The fan motor in the No
frost refrigerator will make this
noise when working. This is normal.
BRRR!
BRRR!
SSSRRR!
SSSRRR!
SSSRRR!
SSSRRR!
BLUBB: Refrigerant flowing
through the pipes in the
refrigerator will make this noise.
This is normal.
CRACK: Cracking sound or broken
ice sound: the overall structure of
the refrigerator, air duct frost will
be with the thermal expansion
and contraction of the expansion
sound, these are also normal
physical phenomenon.
BLUBB!
BLUBB!
CRACK!
CRACK!
Tips & Tricks
Storing food
Freezer compartment
The freezer compartment is designated for the low-temperature
freezing of food, long-term storage of frozen food, and for the
production of ice cubes.
Do not put fresh and frozen food next to each other. The frozen food
may thaw.
When freezing large amounts of fresh food (such as meat, fish or
chopped meat), please divide them into several small pieces before
putting in, so that they can be quickly frozen and pick up easily.
Abide by the storage times recommended by food manufacturers on
the packages, there is no information on the packaging, food should
not be stored frozen for longer than three months from the date of
purchase.
When purchasing frozen food, make sure that it was frozen at a
suitable temperature and that the packaging is not damaged.
Frozen food should be kept in suitable individual packages to ensure
that adjacent food cannot be contaminated. Consume thawed and
defrosted foods immediately, do not refreeze them.
In case of prolonged power failure or malfunction of the appliance,
remove the stored frozen food and check whether they are still edible,
then store them in a suciently cool place or in another appliance.
To defrost food, remove it from the freezer and let it defrost at room
temperature or in the refrigerator. To defrost food quickly, you can use
the defrost function on your microwave, for example.
If you only want to defrost part of a pack, remove the portion you
need and immediately close the rest of the pack. In this way, you will
avoid “freezer burn” and will reduce ice formation on the remaining
foods.
Refrigerator compartment
The Refrigerator compartment is the ideal storage location for ready
meals, cakes and pastries, preserved food, condensed milk, milk,
cheese, spreads, sauces, dips and eggs.
The freshness at point of purchase is important for the shelf-life of your
food. In principle, the fresher the produce when placed in the crisper
drawers, the longer it stays fresh. Therefore, when buying food, always
pay attention to the degree of freshness.
Never put warm foods in the fridge compartment. These should first
cool down at room temperature and then be placed so as to ensure
adequate air circulation in the fridge compartment.
Meat and clean fish (packed in a package or plastic foil) can be placed
in the fridge compartment, which can be used in 1–2 days.
Fruit and vegetables without packaging can be placed in the part
designated for fresh fruit and vegetables
.
• | Notes:
Storage of too much food during operation after the initial connection to
power may adversely affect the freezing effect of the refrigerator.
Storage times and temperature
Note: Overlong storage or storage at inappropriate freezing
temperature may cause a quality loss or spoiled foods, which causes
food waste, is inedible and may cause food poisoning. The minimum
temperature in most cases should be -18°C or colder. Follow the
maximum recommended storage times below:
•
Stew, ice cream, sausages, bread: 2-6 months.
•
Fish, shrimp, lamb, meat: 4-8 months.
•
Vegetables, fruits, poultry, beef: 6-12 months.
Tips for energy saving
Do not place the appliance near cookers, radiators or other heat sources.
If the ambient temperature is high, the compressor will run more frequently
and for longer, resulting in increased energy consumption.
Ensure that there is sucient ventilation at the base of the appliance, on
the sides of the appliance and at the back of the appliance.
Please also observe the spacing dimensions in the chapter “Installation”.
An evenly filled refrigerator/freezer compartment contributes to optimal
energy use.
Allow warm food to cool before placing it in the refrigerator/freezer
compartment. Food that has already cooled down increases energy
eciency.
Allow frozen food to defrost in the refrigeration compartment The coldness
of the frozen food reduces the energy consumption in the refrigerator
compartment and thus increases the energy eciency.
Setting the temperature no colder than necessary contributes to optimal
energy use.
The door gaskets of your appliance must be perfectly intact so that
the doors close properly and energy consumption is not increased
unnecessarily.
Coldest zone in the
refrigerator

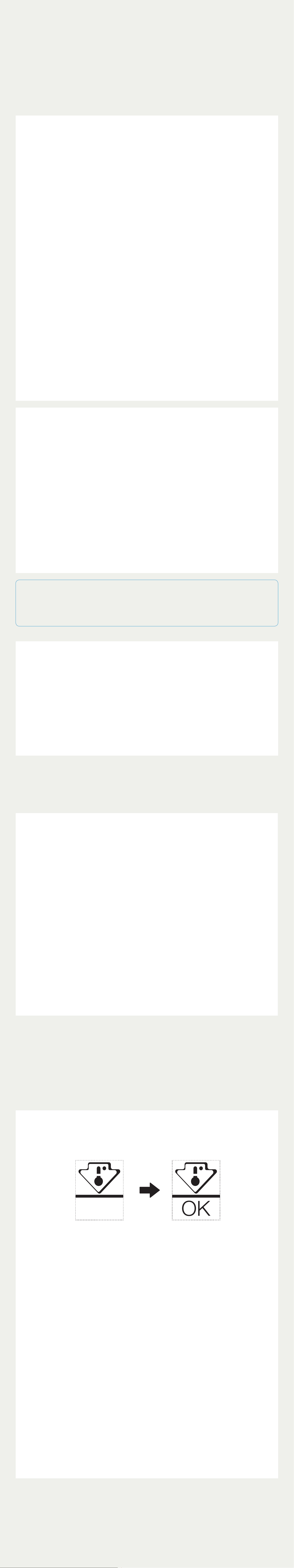

OPTIONAL: OK-temperature indicator
The OK-temperature indicator can be used to determine temperatures
below +4°C. Gradually reduce the temperature if the sign does not
indicate “OK”.
To ensure the temperature in this area, do not change the positioning
of the shelf. Inforced air refrigerators (equipped with a fan or No Frost
models),the symbol of the coldest zone is not represented because
the temperature inside is homogeneous.
Temperature indicator setting
To help you set your refrigerator well, it is equipped with a temperature
indicator that will monitor the average temperature in the coldest
zone.
WARNING: This indicator is intended to work only with your
refrigerator, do not use it in another refrigerator (in fact, the coldest
zone is not the same), or for any other use.
Checking the temperature in the coldest zone
With the temperature indicator, you can check regularly that the
temperature of the coldest zone is correct. Indeed, the internal
temperature of the refrigerator depends on several factors such as the
ambient temperature of the room, the amount of food stored and the
frequency of door opening. Take these factors into consideration when
setting the device.
When the indicator shows « OK », this means that your thermostat is
well adjusted and the internal temperature correct.
If the indicator of temperature turns WHITE, this means that the
temperature is too high; in this case, increase the refrigerator
temperature control setting and wait for 12 hours before performing
a new visual inspection of the indicator. When fresh food has been
introduced or the door has been left open, it is possible for the
indicator of temperature to turn WHITE after a while.
