EasyKey
6000 series
DDL603E
Smart Lever Door
Lock
User
manual
Register your produc t(s) to get
support from below link:
www. philips.com/support
1
Contents
1 Important info 02
2 Installation 03
5 How to use your 17
EasyKey
6 Other functions 20
7 Meaning and use of 21
indicators
8 Troubleshooting 23
4 How to set up your 10
EasyKey
Security
Caution
Disposal of used
products and batteries
Packaging list
Exploded views
Before installation
Instructions
Safehandle function
Restore to factory settings
One-key mute mode
Door lock status indicator
Mute mode indicator
System lockup indicator
Alerts on Philips Easykey
How to charge Philips Easykey in an
emergency
How to replace batteries
-Before setup
-Modify master PIN code
-User settings
-Deletion of user information
-System settings
-Extended functions
-System query
-Local query
-App binding instruction
Unlocking
Unlock from outside
-With Key tag
-With ngerprint
-With PIN code
Unlock from inside
-With handle
Locking
-Lock from outside
-Lock from inside
Interior lockout
Mechanical key opening3 Get to know your 09
EasyKey
Front escutcheon
Rear escutcheon
2
1.Important info
Security
◆Before using Philips EasyKey, please read
and understand all instructions. Damage
caused by non-compliance with the
instructions will not be covered by warranty.
◆Use only the manufacturer-specied
accessories/components.
◆Use only the alkaline batteries the
product is equipped with, or use the same
specification type of alkaline batteries.
◆Do not forcibly disassemble this
product to avoid triggering an alarm
or damaging the product.
◆Do not scrape the ngerprint sensor
with sharp objects, otherwise it may
cause permanent damage.
◆Do not expose products to environments
where there is water leakage or splashing.
◆Do not expose the product to
corrosive substances to prevent
damaging the protective cover.
◆Do not hang objects on the handle, in case
it might aect the normal use of the lock.
◆Pleae clean the product with a soft cloth.
◆Do not remove the battery during
setting up and operating.
◆Please let a professional technician
to install the door lock and follow the
installation guidelines provided.Do not
disassemble the lock by yourself. Keep the
relevant sealed stickers properly. Do not
easily disclose the password information.
◆Please modify the default master
PIN code immediately after installation
and conguration, and keep the
mechanical key properly.
◆Please replace all the batteries immediately
if there is a low battery alarm. Please
make sure to correctly match the poles
(+/-) when installing the batteries.
Caution
◆Do not place the battery near
a re to avoid an explosion.
◆Do not use any emergency power
supply that does not meet the safety
requirements to power up the product.
◆Do not connect the 2 poles of the
batteries with metals to avoid short
circuit which may lead to an explosion.
◆Please make sure any component
replacement is executed by Philips,
Philips authorized service center
or professional technicians.
◆Do not use accessories or parts that have
been produced by other manufacturers or
have not been specically recommended
by Philips. Use of such accessories and
parts may void your warranty.
Disposal of used products
and batteries
◆You can have your locks reclaimed at
Philips authorized service centers. You
will receive corresponding compensation
if your products meet our conditions.
◆Please learn by yourself the local electronic
product classication and collection system.
◆Please abide by local regulations
and do not mix used products with
ordinary domestic waste.
◆Proper disposal of used products can
help to avoid potential negative impacts
on the environment and human health.
◆This product contains batteries which can not
be disposed of together with domestic waste.
◆Please learn the local regulations concerning
battery classication and collection by
yourself. Proper disposal of used batteries
can help to avoid negative impacts on
environment and human health.
3
2.Installation

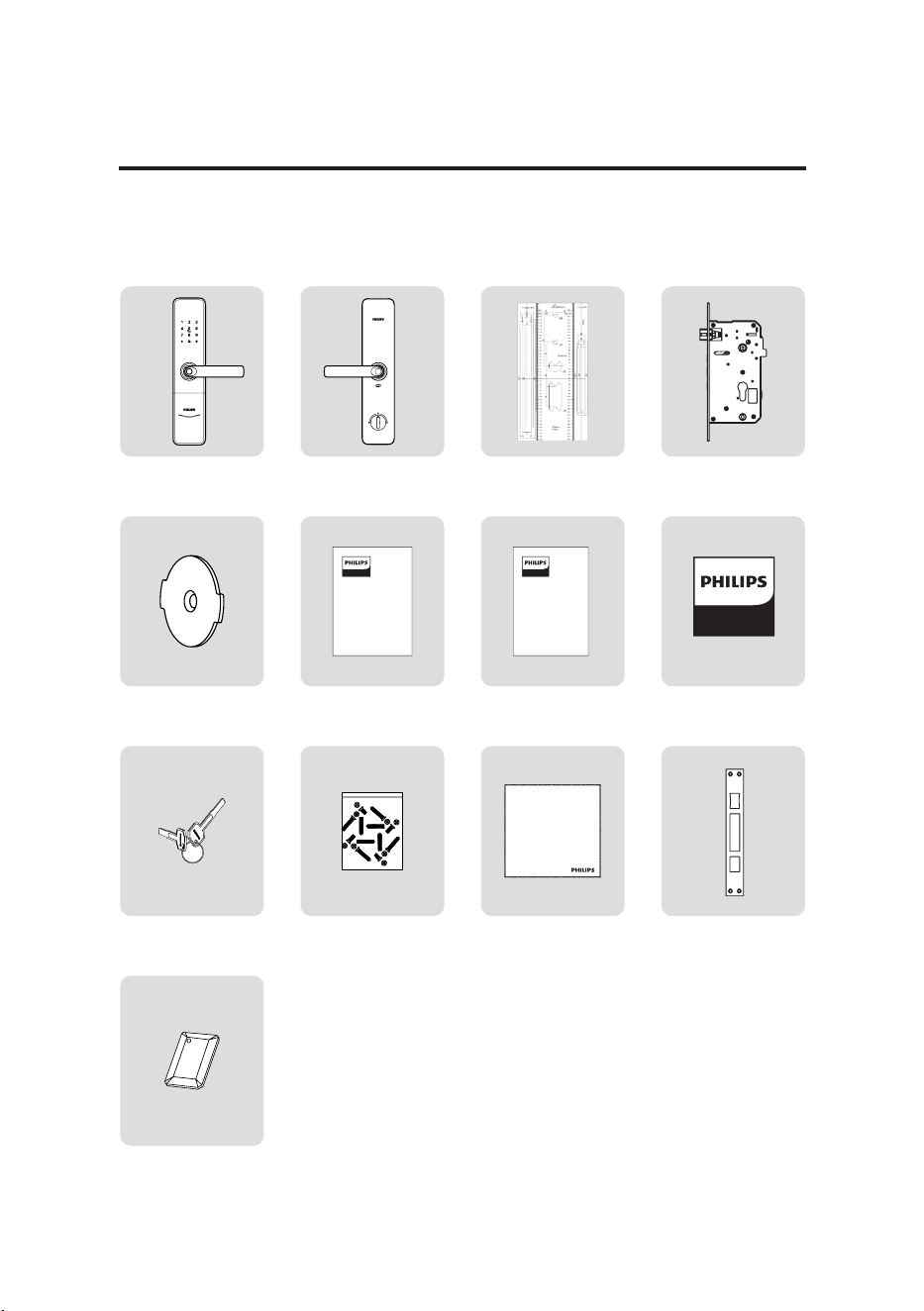

⑨Mechanical key
⑬Key tag
⑩Installation kit ⑪Cleaning pad ⑫Strike
⑤Mounting plate ⑥User manual ⑦Warranty card ⑧Quality certicate
①Front escutcheon
with silicone pad
②Rear escutcheon
with silicone pad
③Drilling template ④Mortise
Packaging list
This packaging list is for reference only. Please refer to the actual packaging contents.
User
Manual
Easy
Key
Warranty
Card
Easy
Key
EasyKey
4
1.Rear cover x1
2.Anchor screw x3
3.Rear escutcheon x1
4.Compressed spring x2
5.Mounting plate x1
6.Square shaft x2
7.Mor tise x1
8.Threaded pipe x3
9.Front escutcheon x1
10.Anchor screw of mortise x4
11.Anchor screw of lock cylinder x1
12.Lock cylinder x1

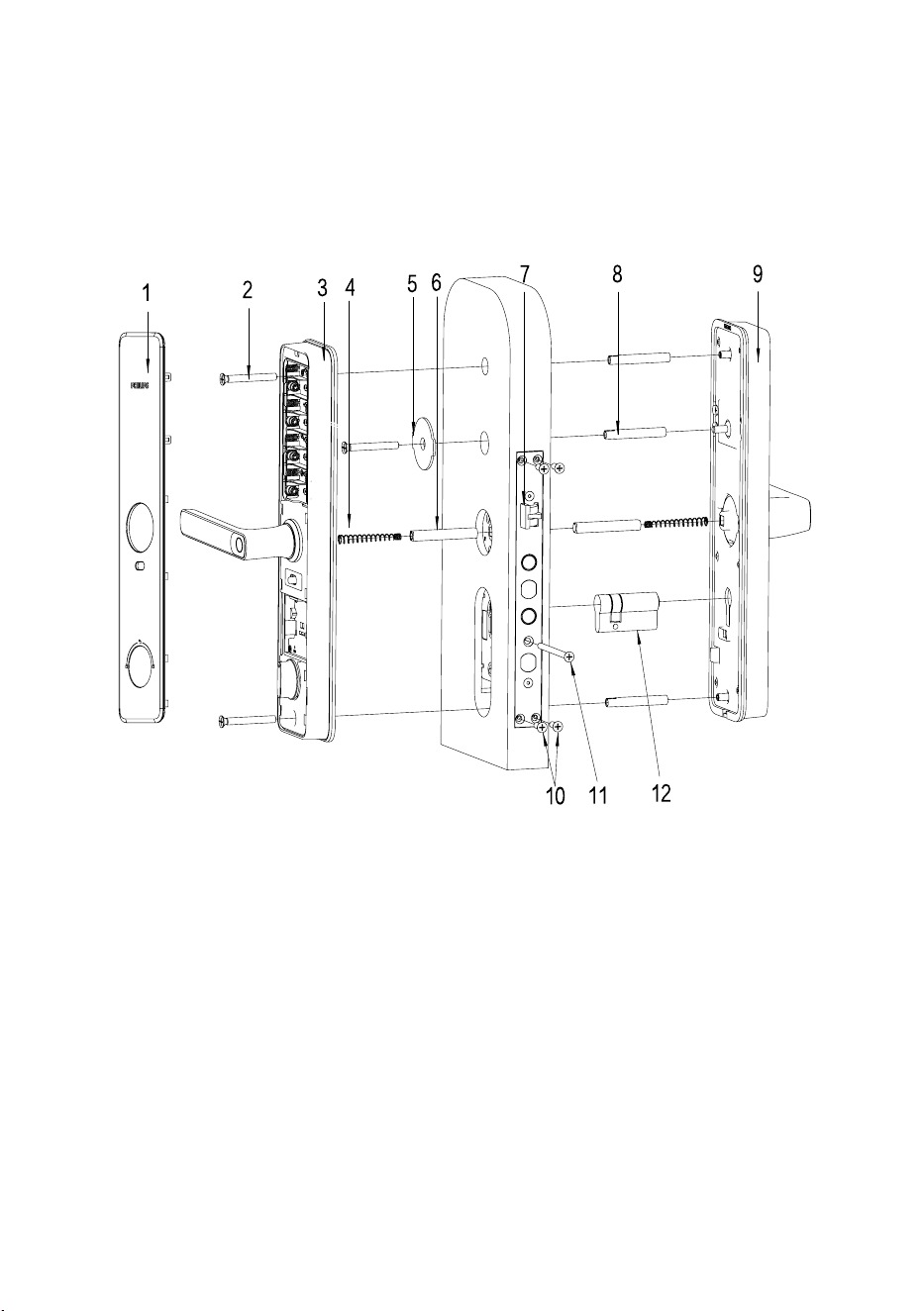

Exploded views
5
Before installation

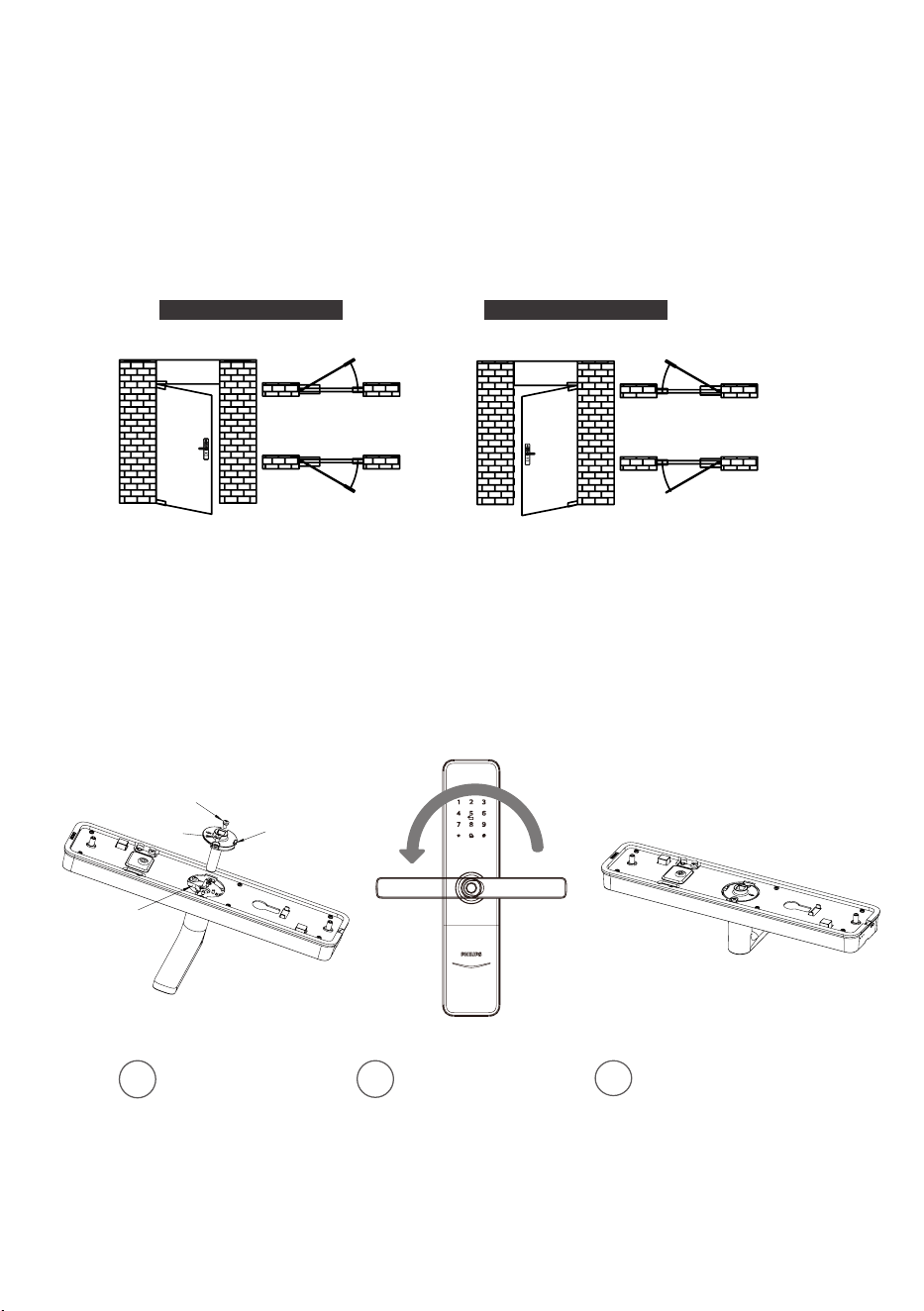

Step 1 | Conrm door swing direction
This product is suitable for the door going in four directions: left
outward, right inward, right outward and left inward.
Left
inward
Right
inward
Indoor Indoor
Indoor Indoor
Outdoor
Outdoor
Outdoor Outdoor
Left
outward
Right
outward
Left-handed door Right-handed door

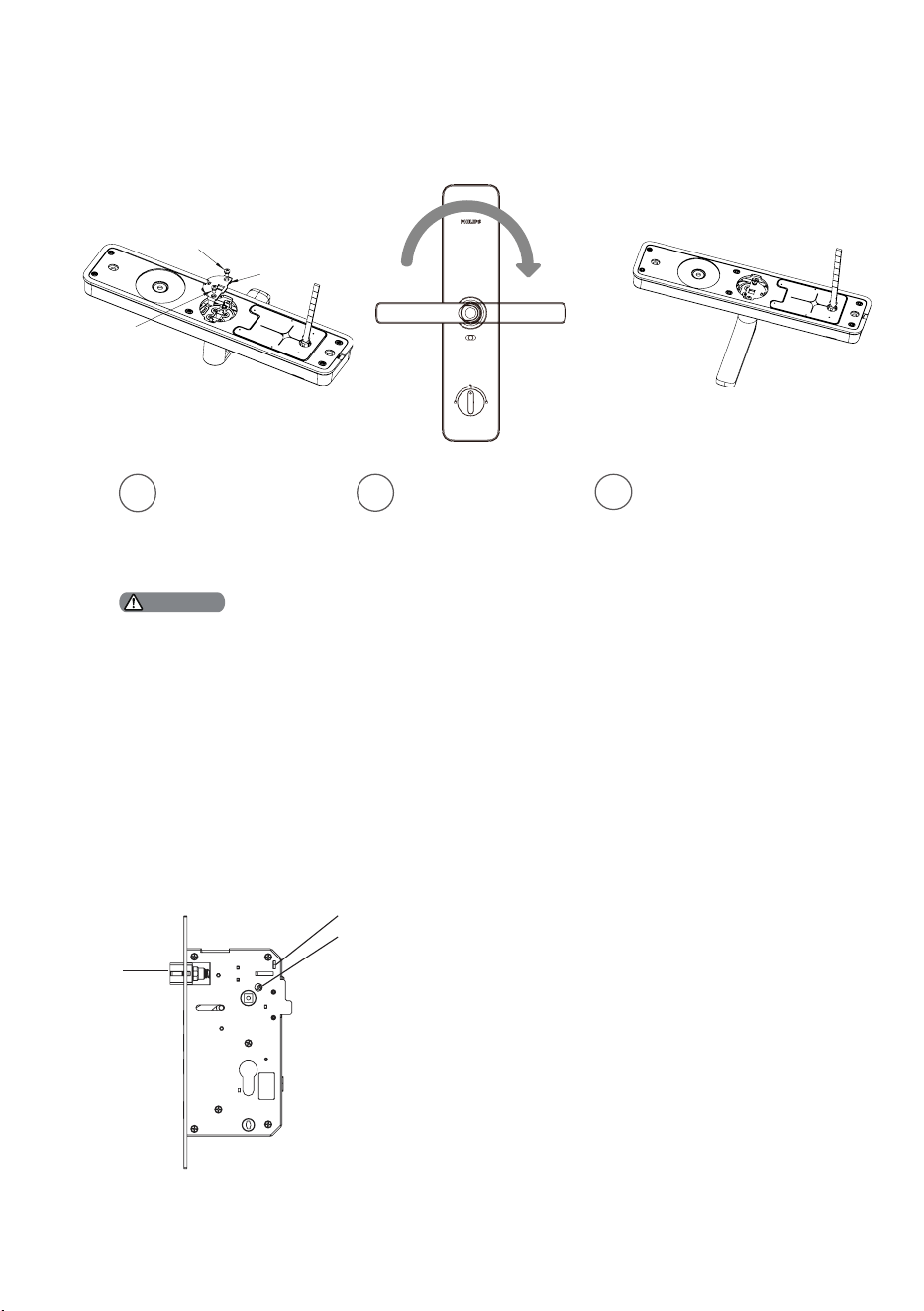

Step 2 | Change the front handle direction
Unscrew two screws
and remove direction
reversing stand and
cover.
1
Rotate the handle
to 180 degrees for
optimal placement.
2
Make sure the cable is
in the same position
as the one showed in
the picture one. Then
put the direction
reversing stand back
and tighten the
screws.
3
Screw
Direction
reversing stand
Screw
Cable
6

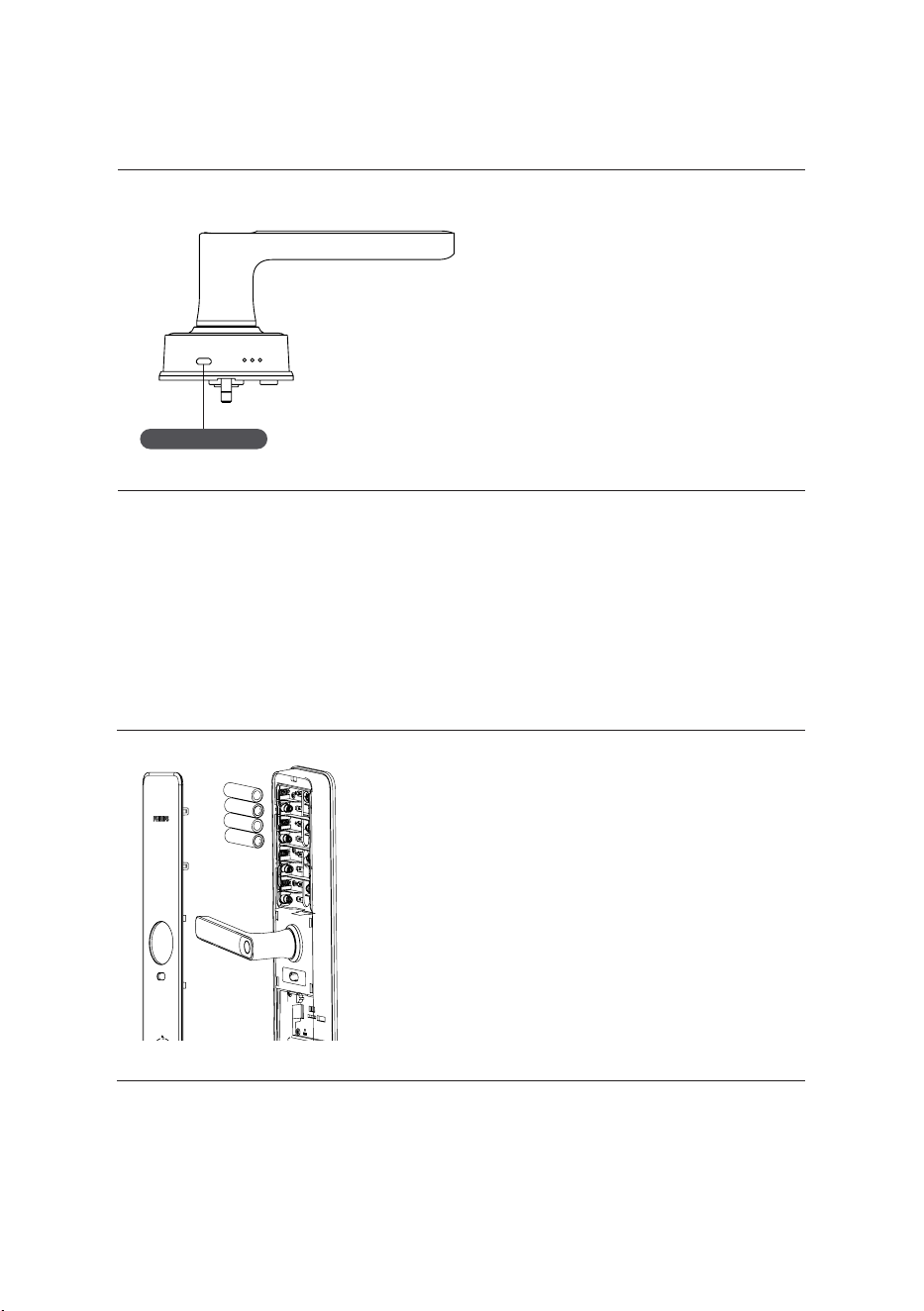

Step 3 | Change the direction of latch bolt
Change the direction of the latch bolt to suit your door swing direction. If the slant
of the latch bolt faces the outside door, then it is the inward opening door. If the
slant of the latch bolt faces the inside door, then it is the outward opening door.
1. Push the inverting tailpiece to the top.
2. Press the latch bolt down to the mortise surface,
then rotate it 180 degrees and pull it out.
3. Push the tailpiece to the bottom.
4. Change the direction of the directional screw based
on the door swing direction.
(The directional screw must be installed on the interior
door that is equipped with rear escutcheon)
Unscrew two screws
and remove the
direction reversing
stand.
1
Rotate the handle
to 180 degrees for
optimal placement.
2
Put the direction
reversing stand back and
tighten the screws.
3
Screw
Screw
Direction
reversing stand
1. Please choose the proper installation kit to suit your door thickness.The default installation
kit is applicable for a door thickness of 60-90mm. If your door thickness does not within this
range, please feel free to contact us.
2. The bar shall be cut to an optimal length as per the thickness of door.
Change the rear handle direction
Attention
Latch bolt
Inverting tailpiece
Screw
7
Instructions
The following instructions only apply to right-handed doors. For left-handed doors,
please read [Before installation] carefully and make necessary adjustments.
1

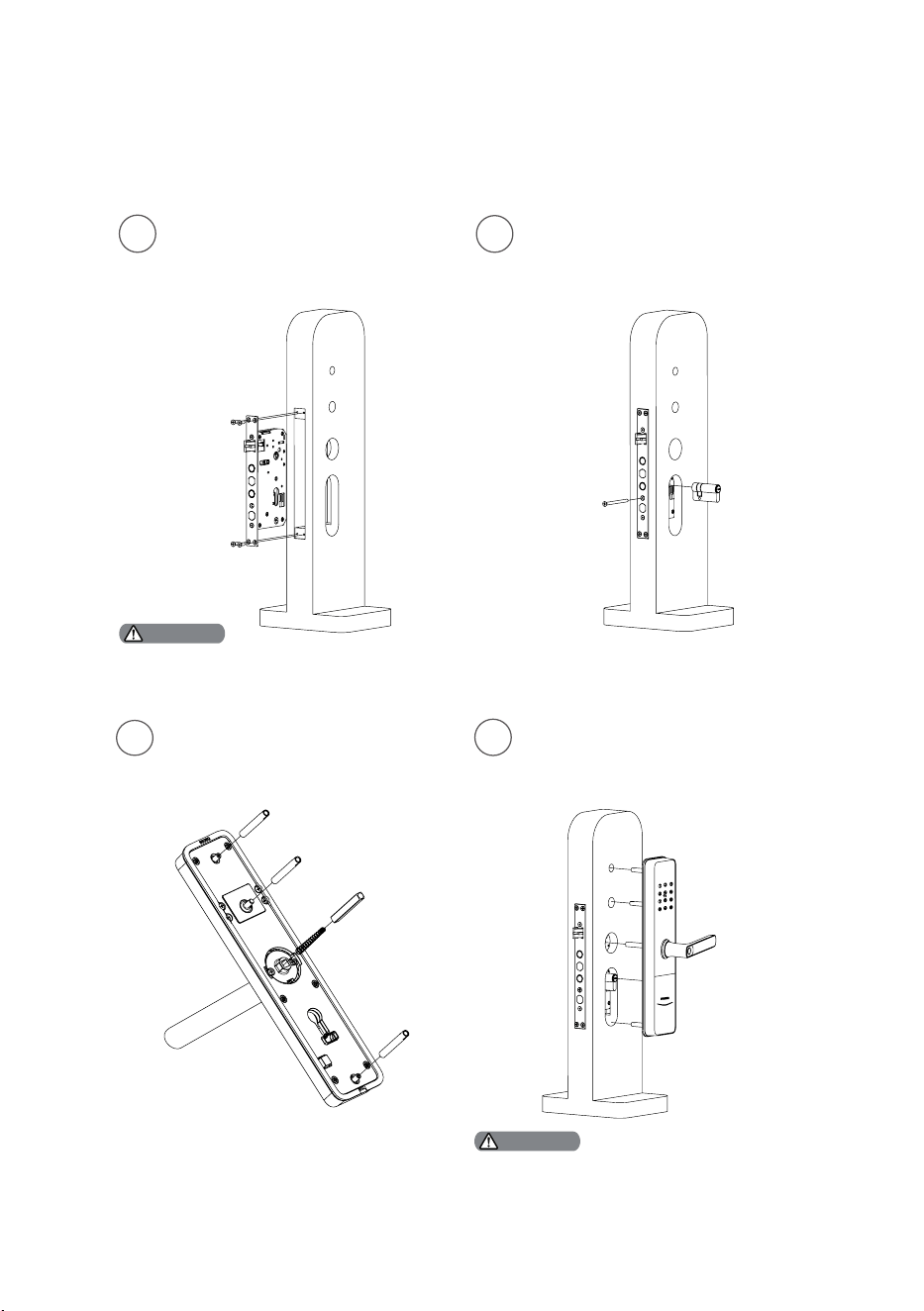

Mark the hole for drilling with drilling
template and drill the marked hole,
then mount the mortise into the hole
and fasten it with anchor screw.
Insert the gourd lock cylinder into
the corresponding position and
fasten it with screw.
2
The mortise cable should through the hole
showed on the picture.
Attention
3
4
Install the threaded pipes and place
the compressed spring and square
shaft into the hole of the lever.
Pull the connector through the
hole and align the square shaft
and threaded pipes on the front
escutcheon with the holes.
Anti-dismantling component should be ush
against the door or an alert would be triggered
when Philips easykey is electried.
Attention
8
5
6
Make sure the mounting plate is
installed as shown in the picture and
fasten it with screw.
The bar can be cut to an optimal length
based on door thickness and then insert it
into the hole on the mortise.
Put the compressed spring and
square shaft to the rear escutcheon.
Align the square shaft and bar with
the hole on the mortise. Connect
the connector of front escutcheon
and mortise to the connector port of
rear escutcheon and hide the extra
connector in the door hole. Then
fasten the rear escutcheon with
screws.
Attention
7

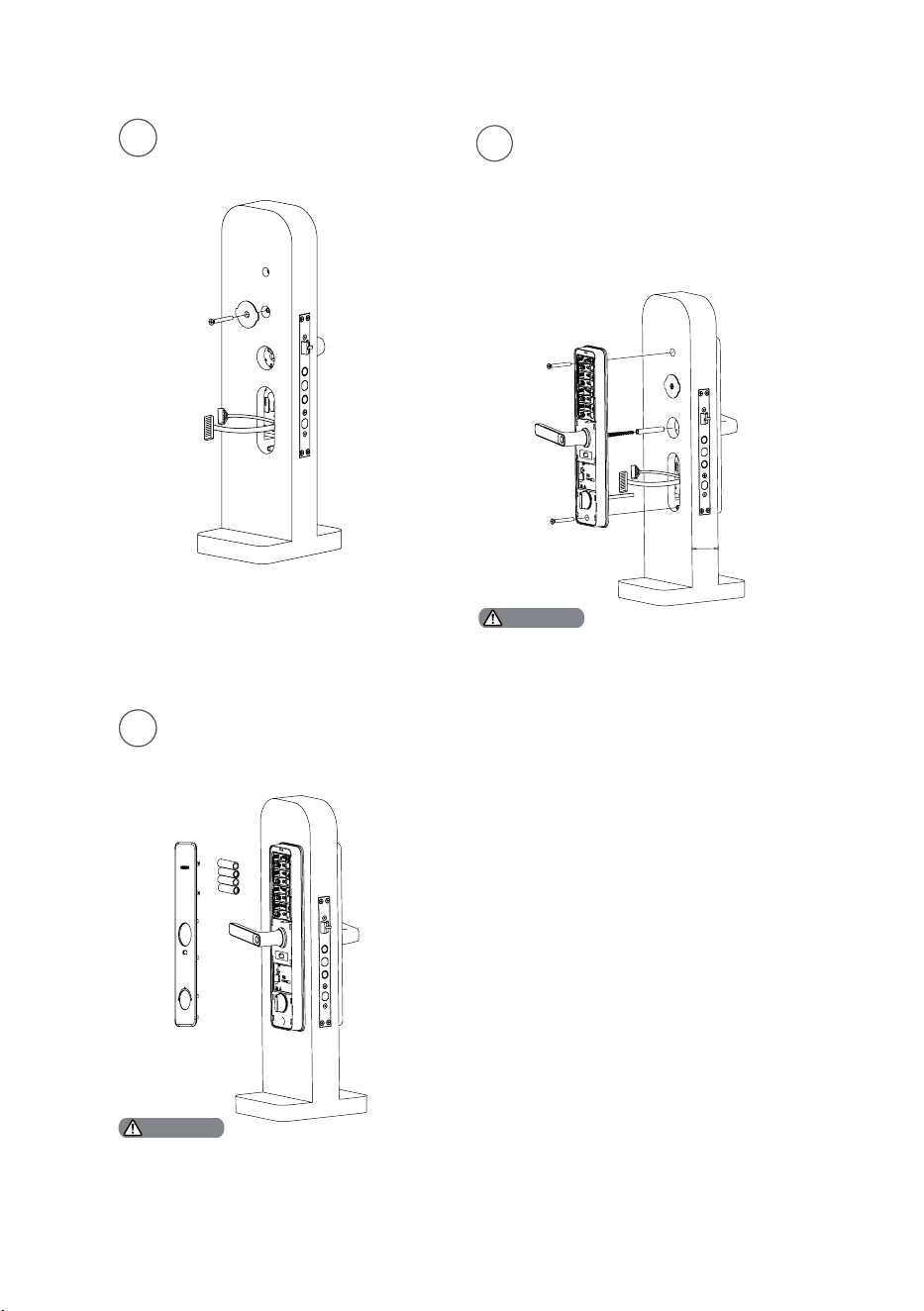

Install four AA batteries followed by
rear cover. Then, test the locking and
unlocking function and repeat these
steps if required.
49.4
Please make sure the rear cover is rmly fastened in the
installation process, preventing it from falling when
closing door.
Attention
9

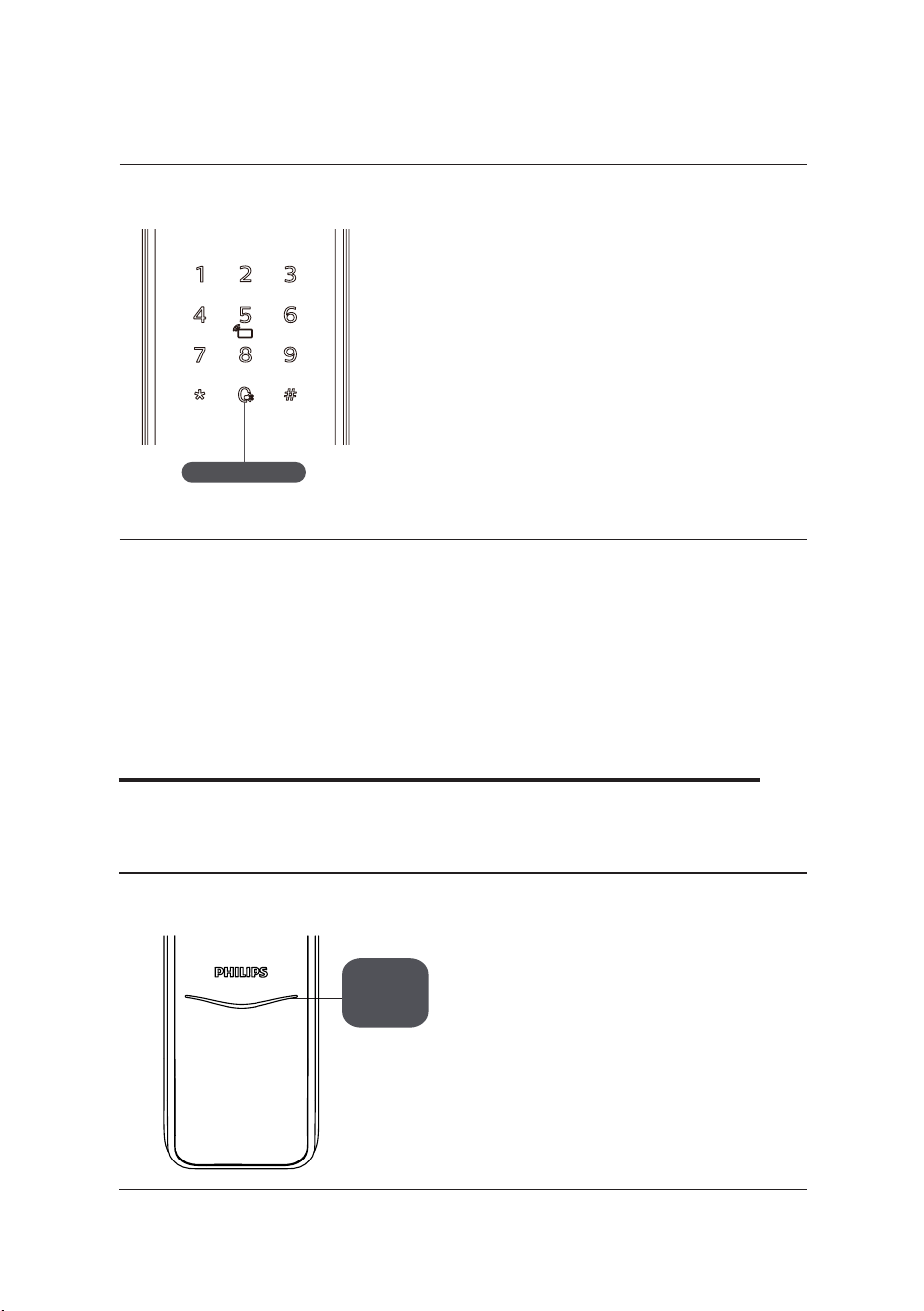

Door status indicator
Keypad
Keytag reader
Mute key
Fingerprint sensor
Handle
Keyhole
USB interface
Battery cover
Handle
Safehandle switch
Extended moudle interface
Burning port
Reset button (Restore to
default settings)
Rotary knob
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8

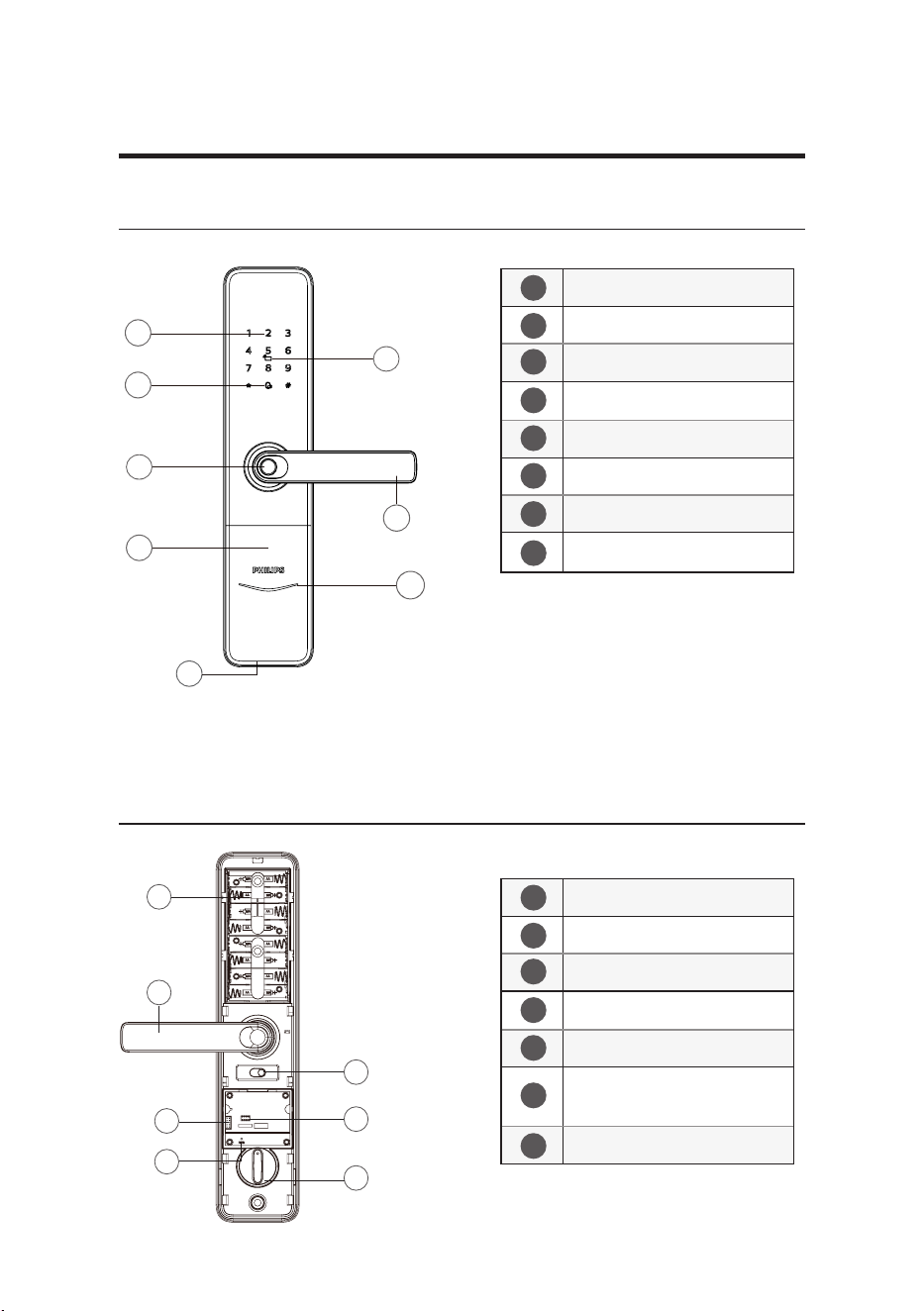

3.Get to know your EasyKey
Front escutcheon
Rear escutcheon
6
5
4
7
1
8
3
2
1
2
3
4
5
7
6
10
4.How to set up your EasyKey
Before setup
◆Philips EasyKey comes with two modes: General mode and Dual verication mode
General mode
Dual verication mode
Unlock with any registered
identity information
Unlock with the combination of two dierent
verications among PIN code, Key tag and ngerprint.
◆You can record the user information in the following table for future query.
00
01
02
03
04
05
06
07
08
09
User code
Name Fingerprint PIN Code Key tag
◆Icon annotation
Master
PIN code
One-time
user PIN
code
User
code
00-99
User PIN
code
User
code
00 -19
Fingerprint # key * key Keytag
1.Press [*] key to return to the previous menu.
2. The default master PIN code is 12345678.
Attention
Fingerprint and Key tag are optional. Actual unlocking methods may vary depending on the feature of
product, please refer to the actual product.
Attention
◆
User code
If you want to delete a specic user's information, you could delete the related user code in
the system.
11

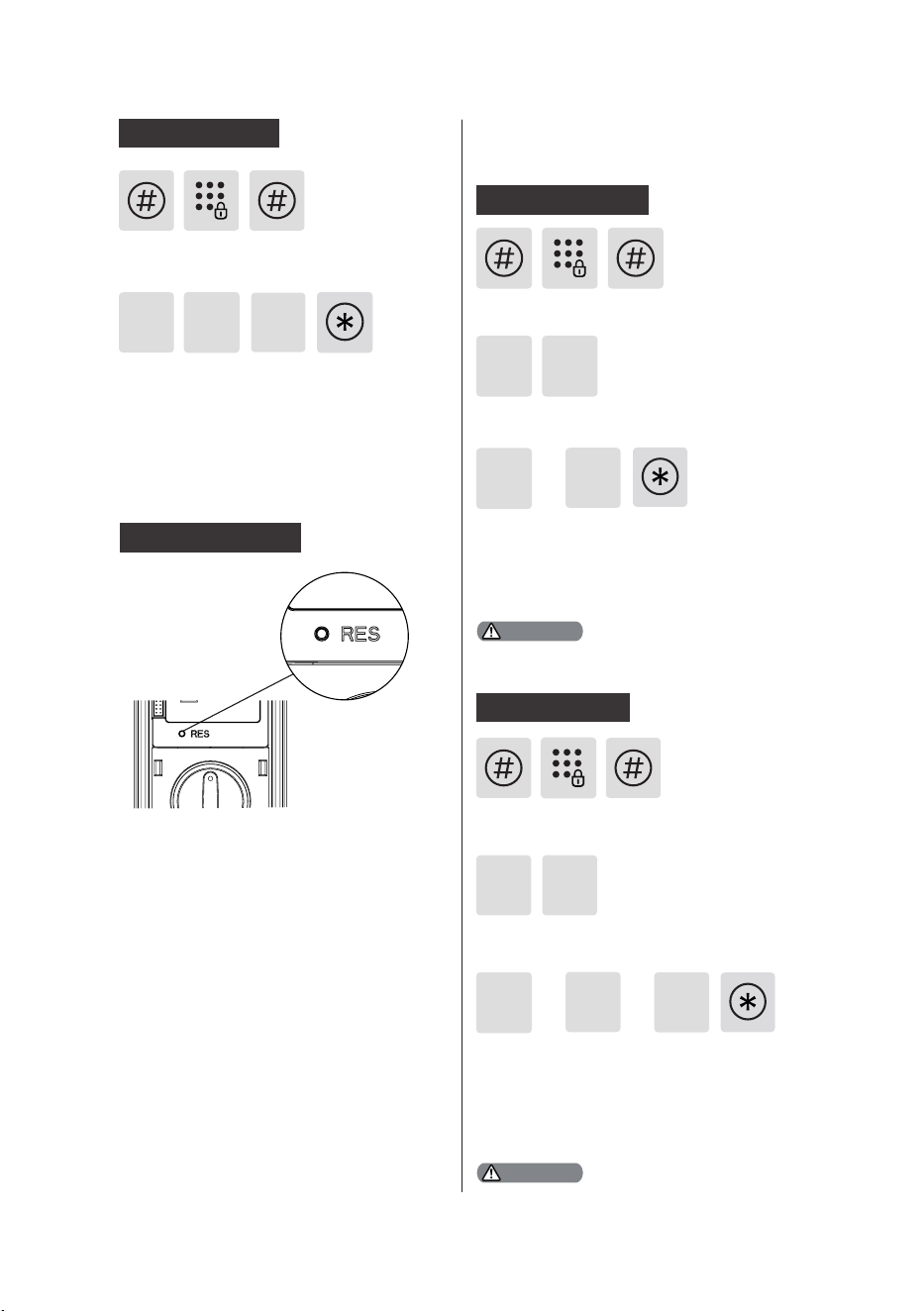

◆How to enter master mode:
Enter [#] before you enter any other
numbers, then enter master PIN code and
conrm with [#].
Enter the new master PIN code and conrm
with [#].Re-enter the new master PIN code
and conrm with [#].After hearing a voice
prompt of “Succeeded”, press [*] several
times until you exit master mode.
Press [1] to modify master PIN code.
1
Press [#], enter master PIN code and conrm
with [#].
Modify master PIN code
User settings

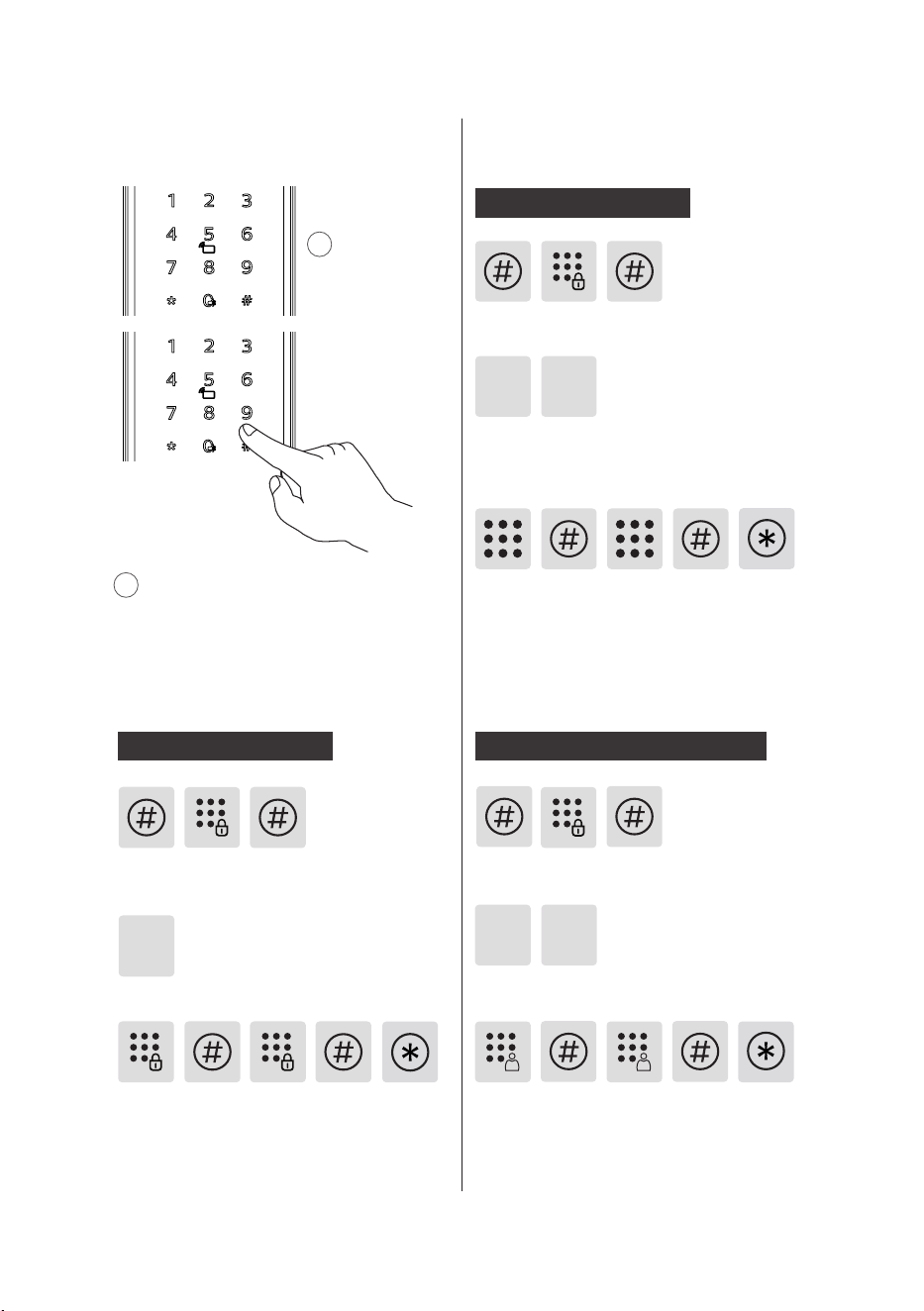

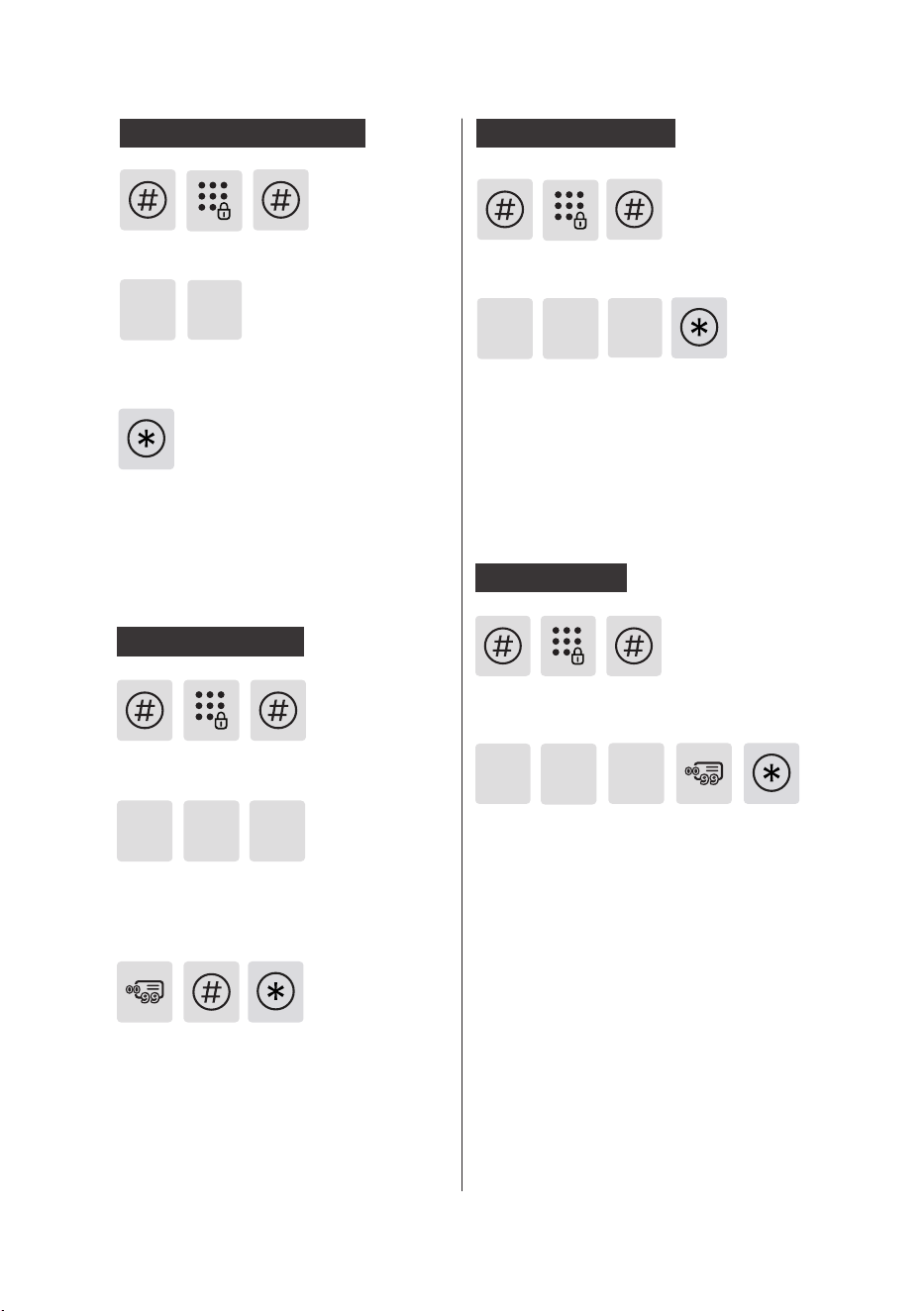

Press [#], enter master PIN code and
conrm with [#].
Press [2] to enter user registration, then press [1]
to register a new user PIN code, which will be
automatically numbered and broadcasted by the
system.
1
Register a user PIN code
Enter a user PIN code of 6 to 12 digits,and
conrm with [#]. Then re-enter the user
PIN code and conrm with [#]. After
hearing a voice prompt of “Succeeded”,
press [*] several times until you exit master
mode.
Enter a one-time user PIN code of 6 to
12 digits and conrm with [#]. Re-enter
the one-time user PIN code and conrm
with [#]. After hearing a voice prompt of
“Succeeded”, press [*] several times until
you exit master mode.
Enter [2] to enter user settings, then enter [2] again
to add a one-time PIN code.
2 2
Register a one-time user PIN code
Press [#], enter master PIN code and
conrm with [#].
2
1
Light up the
keypad
2
12
Press [#], enter master PIN code and conrm
with [#].
Place your nger on the ngerprint
sensor. When you hear a voice prompt
of “Move your nger and put on
again", lift your nger and repeat
the process. After you hear a voice
prompt of “Succeeded", keep pressing [*]
until you nally exit the master mode.
Press [2] to enter user settings, then press [3] to enter
fingerprint registration. The system will automatically
number the fingerprint and broadcast the number.
2
3
Register a ngerprint
2
4
Press [#], enter master PIN code and conrm
with [#].
Enter [2] to enter user registration and
enter [4] to add a key tag, then the
system will automatically number it
and generate a voice prompt.
Hold the key tag on the reader until you
hear a “Dong” sound. When hearing a voice
prompt of “Succeeded”, keep pressing [*]
until you nally exit the master mode.
Register a keytag
Deletion of user
information

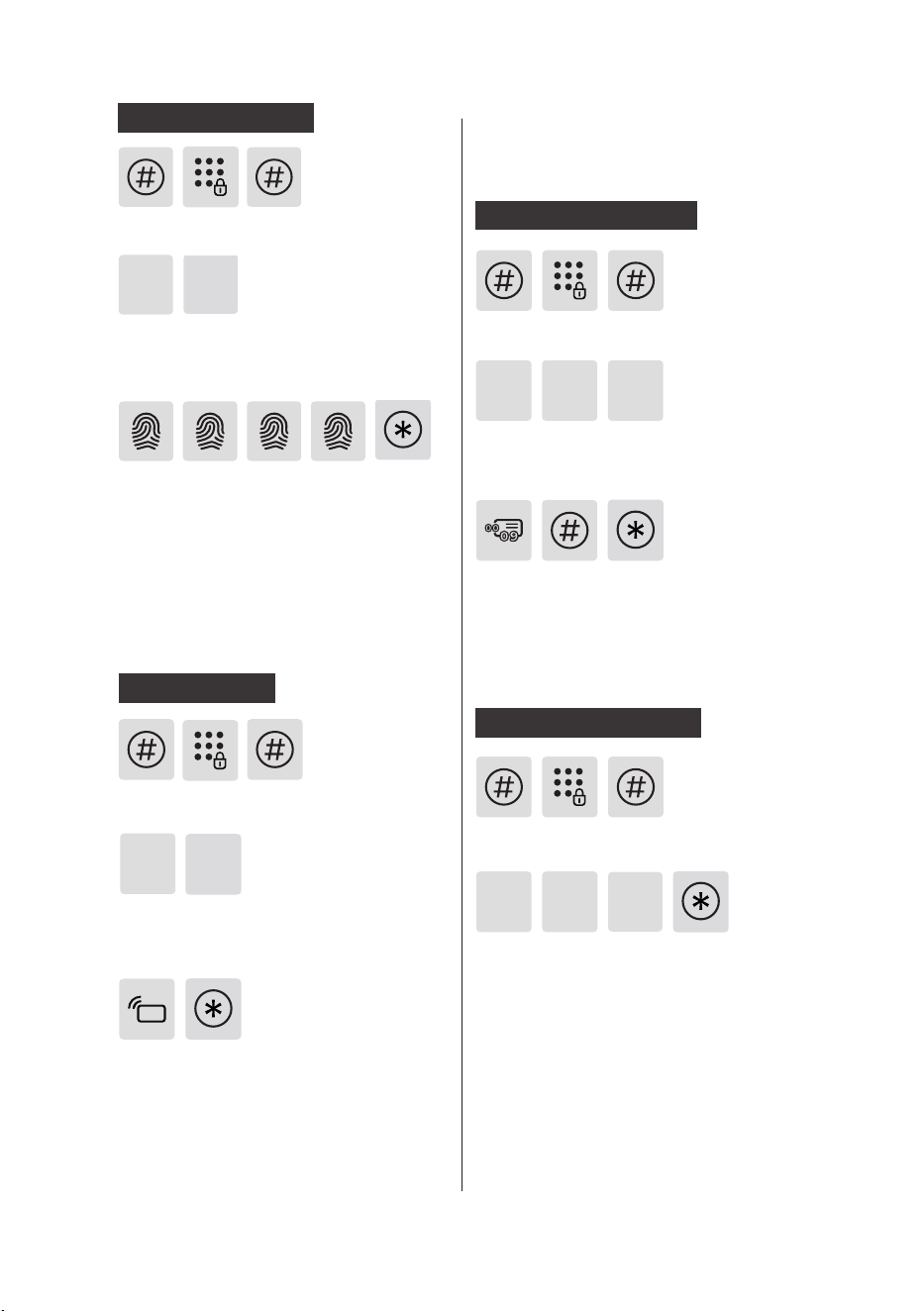

Delete a user PIN code
Press [3] to enter user deletion, then press [1] to enter
user PIN code deletion. Press [1] again to delete a
single user PIN code.
Press [#], enter master PIN code and conrm
with [#].
1 13
Enter a two-digit user code (from 00 to 19)
which a PIN code is to be deleted and then
conrm with [#]. After hearing a voice prompt
of “Succeeded”, keep pressing [*] until you
nally exit the master mode.
13
2
Delete all user PIN codes
Press [#], enter master PIN code and conrm
with [#].
Press [3] to enter user deletion, then press [1] to enter
user PIN code deletion. Press [2] to delete all user PIN
codes. After hearing a voice prompt of "Succeeded",
press [*] several times until you exit master mode.
13
3
删除一次性用户密码
2
Delete a one-time PIN code
Press [#], enter master PIN code and conrm
with [#].
Enter [3] to enter user record deletion
and enter [2] to delete one-time PIN
code.
After hearing a voice prompt of “Succeeded”,
press [*] several times until you exit master
mode.
3 3 1
Delete a ngerprint
Press [#], enter master PIN code and conrm
with [#].
Enter [3] to enter user record deletion
and enter [3] to enter ngerprint
deletion, then enter [1] to delete a
single ngerprint.
Enter a two-digit user code (from 00 to 99)
which a ngerprint is to be deleted and
then conrm with [#]. After hearing a voice
prompt of “Succeeded”,
keep pressing [*] until you nally exit the
master mode.
3 3
2
Delete all ngerprints
Press [#], enter master PIN code and conrm
with [#].
Press [3] to enter user deletion, then press
[3] again to enter ngerprint deletion. Press
[2] to delete all ngerprints. After hearing a
voice prompt of "Succeeded", press [*] several
times until you exit master mode.
3
4
1
Delete a keytag
Press [#], enter master PIN code and conrm
with [#].
Enter [3] to enter the deletion of user
information and enter [4] to enter the
deletion of keytag, then enter [1] to delete
a single keytag. Enter a two-digit user code
(from 00-99) which a key tag is to be deleted
or place a keytag to be deleted against the
keytag reader. After hearing a voice prompt
of “Succeeded", keep pressing [*] until you
nally exit the master mode.
14
3
4
2
Delete all keytags
Press [#], enter master PIN code and conrm
with [#].
Press [3] to enter the deletion of user
information and enter [4] to enter the
deletion of keytag, then enter [2] to delete
all keytags. After hearing a voice prompt
of “Succeeded", keep pressing [*] until you
nally exit the master mode.
System initialization
Remove the battery cover, then double
press the [RES] hole with a sharp
object. When you hear a voice prompt
of “Restoring to default settings", it
means that all user information is emptied.
4
or
2
1
1

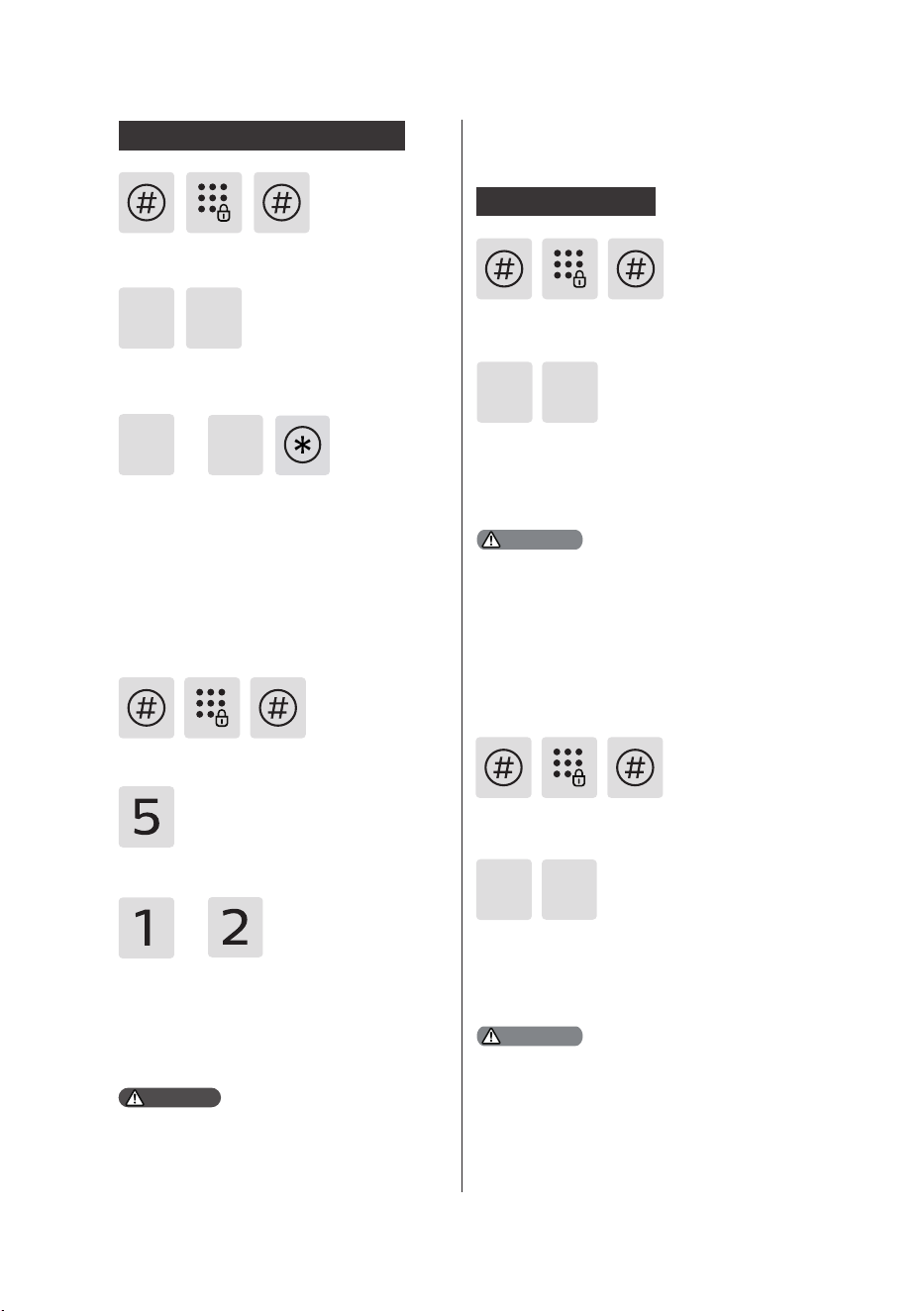

Language settings
Press [#], enter master PIN code and conrm
with [#].
Press [4] to enter system settings, then press
[1] to enter language settings.
For Chinese, press [1]; For English, press [2];
For Spanish, press [3]; For Russian, press [4];
For Arabic, press [5]. After hearing a voice
prompt of ”Succeeded”, press [*] until you
nally exit the master mode.
The default language is English.
Attention
24
3
or or
2
1
Volume settings
Press [#], enter master PIN code and conrm
with [#].
Press [4] to enter system settings, then press
[2] to enter volume settings.
Choose the volume as needed: For
high volume, press [1]; for low volume,
press [2]; for mute mode, press [3].
After hearing a voice prompt of
“Succeeded”, keep pressing [*] until you
nally exit the master mode.
The default volume is “high volume”.
Attention
System settings
15
or
2
1
Press [#], enter master PIN code and
conrm
with [#].
Enter [4] to go into system settings, then enter [3] to
go into dual verification mode.
For single verification, press [1]; for dual verification,
press [2]. After hearing a voice prompt of
“Succeeded”, press [*] several times until you exit
master mode.
4
Switch to dual verication mode
3
Press [6] to enter system query, then press
[2] to get the software version automatically
broadcasted.
2
6
Directly enter 114# to go into the local query.
Press [#], enter master PIN code and
conrm
with [#].
Enter [6] to go into system query, then
enter [1] to check the security code
and the system will automatically
broadcast the product series number.
Directly enter 400# to go into system query.
6
1
Security code query
System Query
Local Query
Attention
Attention
Press [#], enter master PIN code and
conrm
with [#].
Extended functions
Enter [#] and enter master PIN code,
then conrm with [#].
Enter [5] to go into extended functions.
Enter [1] to join a network. Enter [2] to
exit a network. Before entering into
the extended function settings, please
download and open the TmallGenie
APP on your mobile phone.
or
Extended functions are applicable to
Wi-Fi enabled product. Please follow
the below instructions to connect to
Wi-Fi network.
Attention
16
Lock pairing
The door locks only support
connecting to the 2.4Ghz Wi-Fi router
(5Ghz Wi-Fi is not supported). Please
make sure that the visual distance
between the router and the door
lock terminal is less than 10 meters,
otherwise, the signal might be poor.
Make sure the door lock terminal
has been installed with batteries
or connected to the power supply.
Make sure the door lock terminal
has been installed with batteries
or connected to the power supply.
Sign in to the App, click to “Add
a device” on the Homepage,
choose [Bluetooth Smart Door
Lock] to enter the pairing page,
then complete the pairing process
according to the App prompts.
Click the [#] on the smart door
lock terminal and enter the
master PIN code, re-click the
[#] to enter master mode, press
[5], then press[1] to enter the
Networking Distribution Mode,
then you will hear a voice prompt
of “Connecting, please wait a
moment”.
Sign in to the App, click to “Add a
device” on the Homepage, choose
[Wi-Fi lock/Facial recognition
lock/Video lock] to enter the
pairing page, then complete the
pairing process according to the
App prompts.
①
①
②
②
③
1. For Bluetooth smart door lock(s)
2. For Wi-Fi smart door lock(s), facial
recognition smart door lock(s) and
video smart door lock(s)
Attention
App binding instruction
Download the App
Due to the functions vary in dierent
models, please consult the ocial
authorized seller to conrm whether
the product(s) you purchased
support(s) networking.
Please scan the QR code above to
download the App and install it.
Attention
17
5.How to use your EasyKey

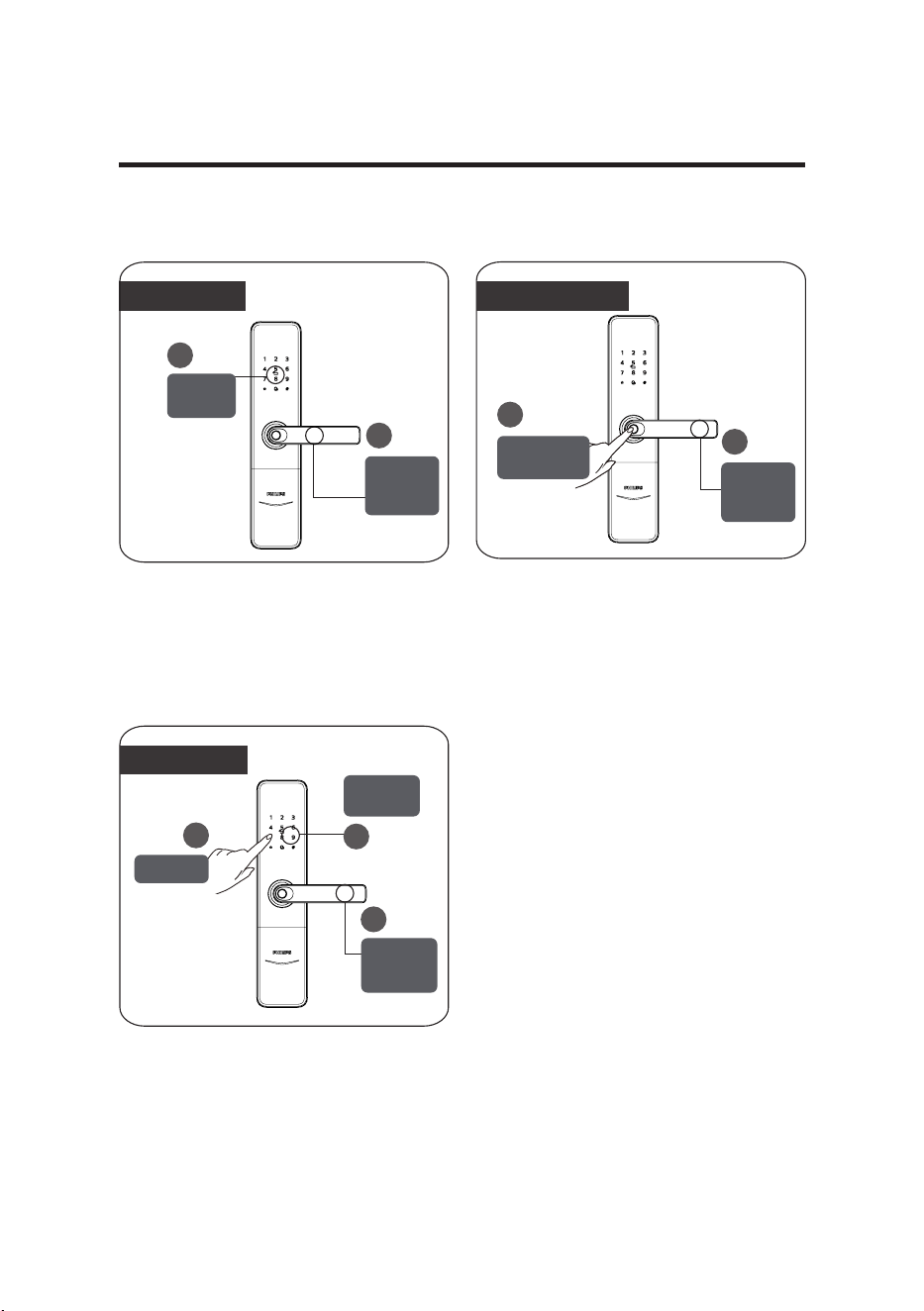

Unlocking | Unlock from outside
2
2
3
1
With Keytag
With PIN code
With ngerprint
①Place the registered keytag against the
keytag reader.
②When you hear a voice prompt of
“Door opened”, turn the handle down to
unlock the door.
①Touch the digit input area to light up the
keypad.
② Enter the registered PIN code and
confirm with [#].
③After hearing a voice prompt of “Door
opened”, turn the handle down to unlock
the door.
①Place the registered finger on the
fingerprint sensor.
②When you hear a voice prompt of
“Door opened”, turn the handle down to
unlock the door.
1
下
压
执
1
2
Keytag
reader
Keypad
Enter PIN
code
Turn the
handle
down
Fingerprint
sensor
Turn the
handle
down
Turn the
handle
down
18

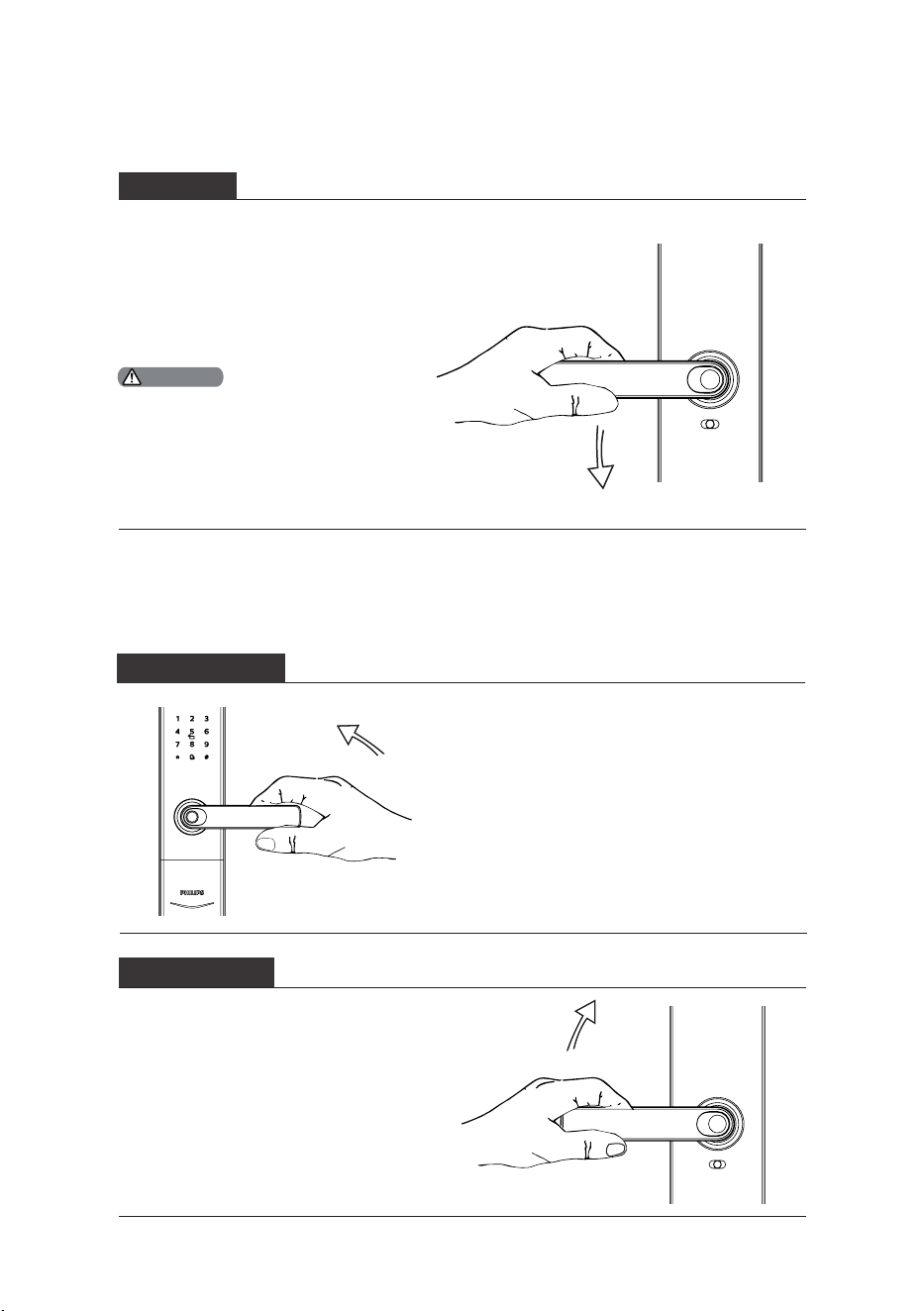

Unlocking | Unlock from inside
With handle
Philips EasyKey employs indoor
fast opening mortise, allowing you
to directly press down the handle
to unlock the door.
When opening the door from inside,
please make sure the safe handle switch
is toggled to green scale and the safe
handle function is disabled.
Attention
After the door is closed, lifting
the handle can have the latch
bolt poped up, locking the door.
After the door is closed, lifting the handle
can have the latch bolt poped up, locking
the door.
Locking | Lock from outside/inside
Lock from outside
Lock from inside
Interior lockout
After the door is locked, turning the rotary knob
to the "lock" icon at the left or right side of the
rotary knob as showed in the left image can
enable the inside deadlock.
Twisting the rotary knob to the "unlock" icon can
release the inside deadlock mode.

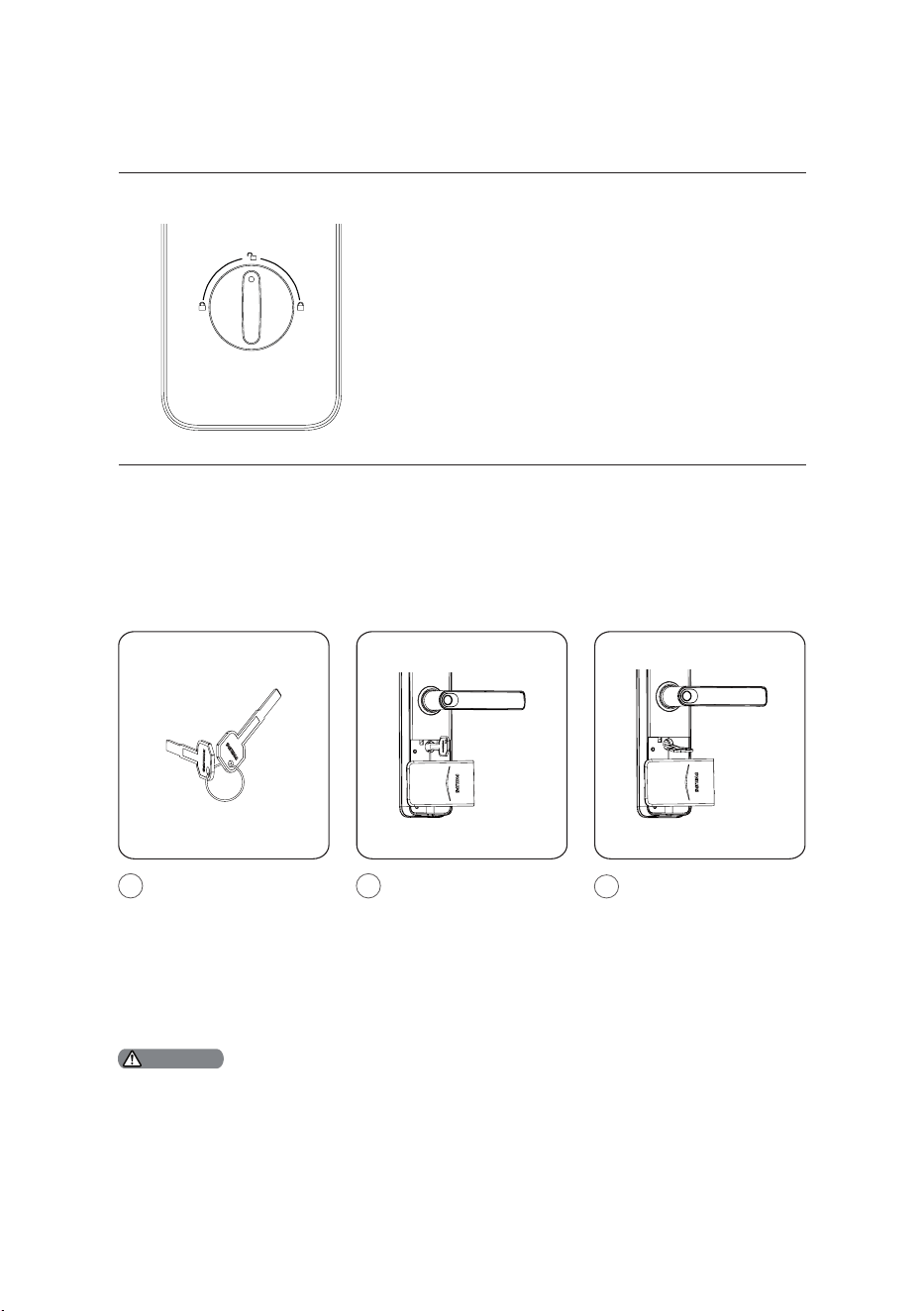

Mechanical key opening
Find the mechanical key
in the Philips Easykey
box.
It is recommended not to use mechanical keys daily unless there is an emergency,
such as the dead battery, forgotten PIN code or system malfunction.
Open the mechanical
key cover. Lift it up and
rotate it 90°.
Insert the mechanical
key into the keyhole and
make sure it remains in
the horizontal position
as shown in the image.
Rotate it clockwise or
counter clockwise by
around a full circle and a
half to unlock the door.
1
2
3
Attention
20
Safehandle function
Function:
When safe handle function is enabled, you
could lock up the handle from inside, and
doors can’t be unlocked from inside.
How to use:
1. Enable safe handle function: Toggle the
switch to red scale.
2. Disable safe handle function: Toggle
the switch to green scale.
6.Other functions
Safe handle switch

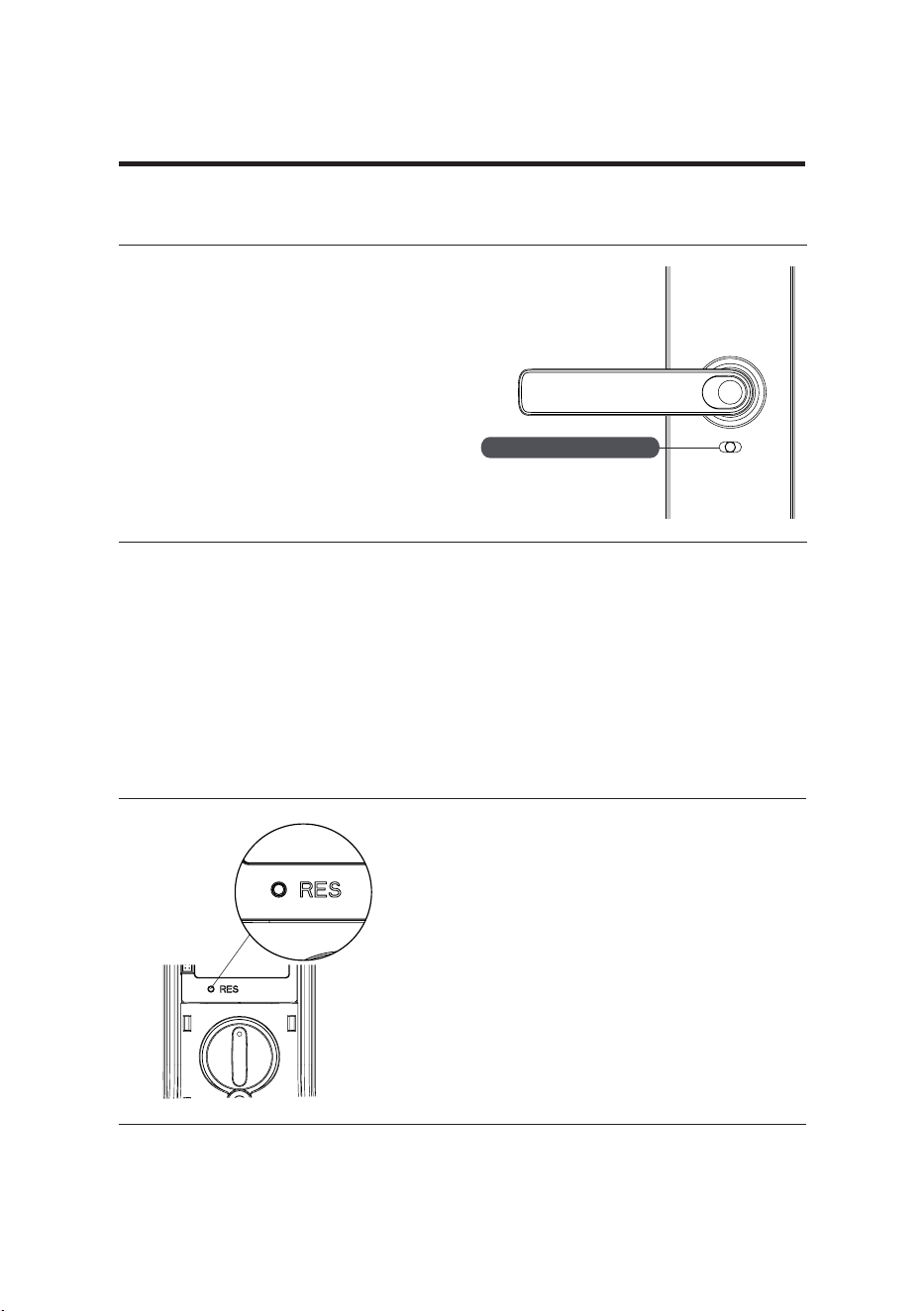

Restore to factory settings
Function:
Empty all user information and restore to
factory settings.
How to use:
Double click the [RES] button with a sharp
object. Then the door lock will be restored to
factory settings and all the user information
will be emptied.
21
One-key mute mode
Mute button
Function:
Turning o the voice guide with only one
key, which is applicable to the scenes where
you don’t want to disturb your families.
How to use:
1. Mute: When the system is awake, long press
the mute button for 2 seconds to enter one-
time mute mode. The button will glow white.
2. Unmute: When the system is awake, long
press the mute button for 2 seconds to restore
the voice guide. The button will glow white.
Lock status indicator
7.Meaning and use of indicators
门
锁
状
态
提
示
灯
Lock
status
indicator
The meanings of different light colors
Blue: After the system wakes up, the light
will glow blue, indicating that you can
operate the lock.
Green:After the door is unlocked, the
light will glow green, indicating that the
door is open.
Red:After the door is locked, the light
will glow red, indicating that the door is
closed.
22
Mute mode indicator

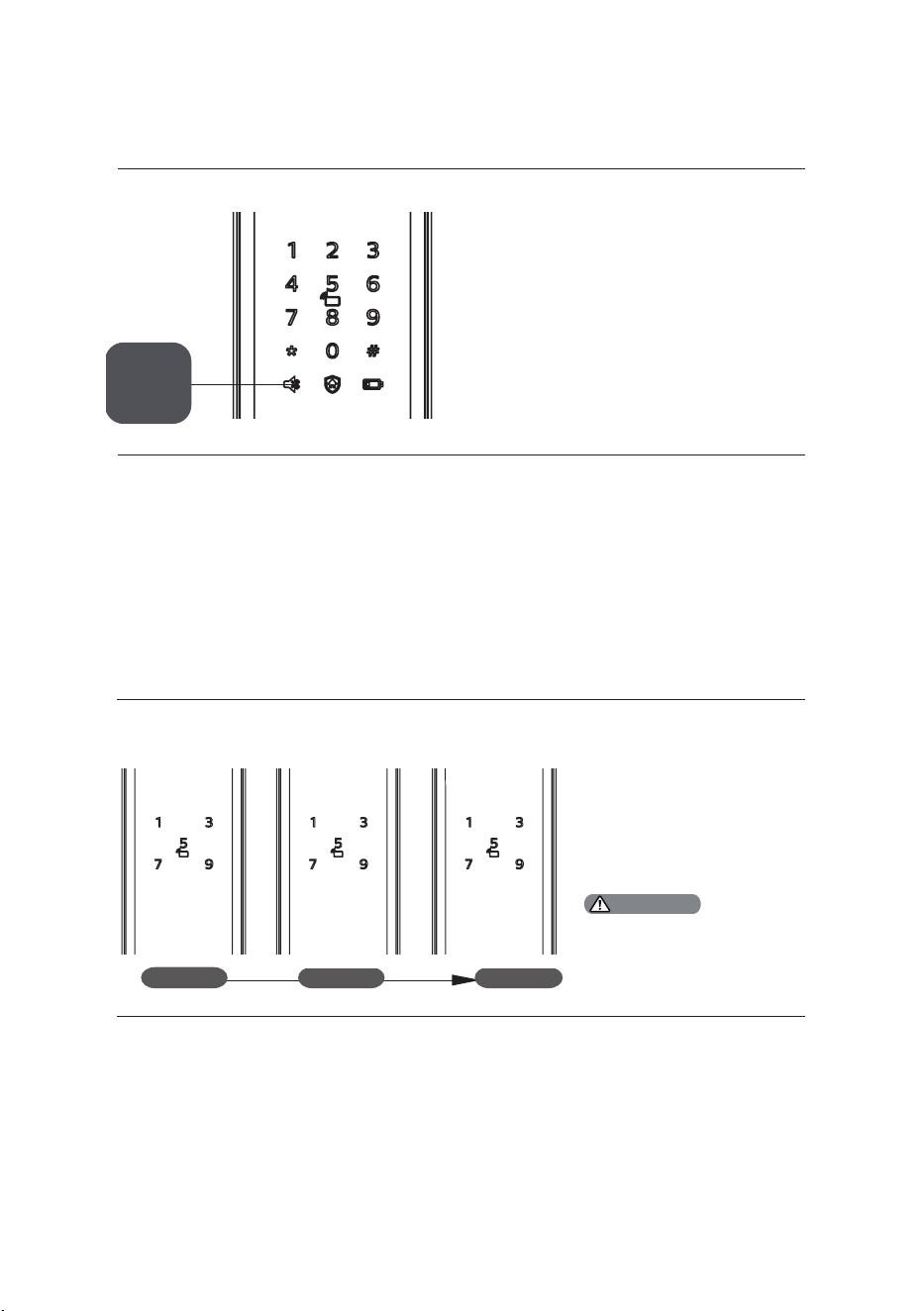

The meanings of light colors:
White: The mute mode is on or o.
Mute
button
System lockup indicator
Flash three times Flash twice Flash once
3 minutes 2 minutes 1 minute
Only when waking up the
outside escutcheon or verifying
the identity of the user would
the numbers appear.
Attention
If there are consecutive
incorrect inputs of any of the
ngerprint, PIN code, or key
tag 5 times within 5 minutes,
the system will lock up for 3
minutes.
23
Alerts on Philips Easykey
Way to trigger: When the system wakes up, it will
automatically check the battery voltage. If the
voltage is too low, then an alert will be triggered
to remind you to replace the batteries.
Way to be alerted: A voice prompt of“Low
battery voltage, please replace all batteries” will
be given when unlocking the door.
Way to turn o: The alert will be automatically
turned o.

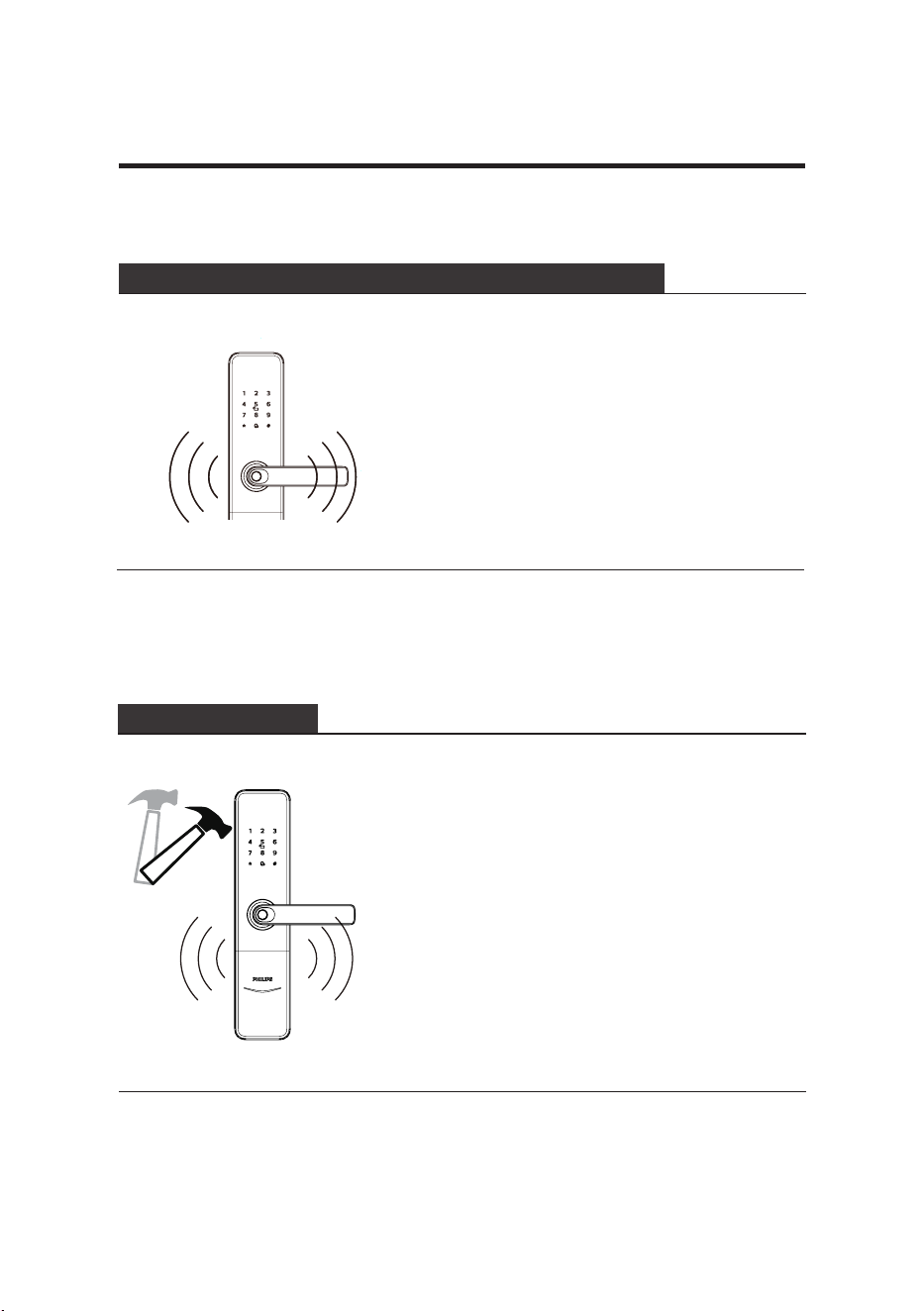

Way to trigger: The front escutcheon is pried open
and there is a gap between the door frame and the
door lock.
Way to be alerted: Repeat alerts
Way to turn o: Alert will be turned o
automatically or close after verifying the identity
of the users. And the normal way to unlock the
door from inside or outside could also turn o the
alert.
8.Troubleshooting
Anti-dismantling alert
Low battery alert, reminding you to replace the batteries in time
24
How to charge Philips Easykey in an emergency
When the battery voltage is low and
the door cannot be opened from
outside, you can power up the lock by
plugging 5V power bank into the
micro USB. After the door is unlocked,
please replace the batteries instantly.
USB interfaces
How to replace batteries
To keep the batteries running longer and save
you from replacing the batteries repeatedly,
Philips Easykey is powered by four AA batteries
and can contain eight batteries at the same time.
Remove the batteries by loosening the buckles
on the lower part of rear escutcheon and draging
the rear escutcheon upward.
Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V.
and are used under license. This product has been manufactured by and is sold under the
responsibility of Shenzhen Conex Intelligent Technology Co., Ltd., and Shenzhen Conex
Intelligent Technology Co., Ltd. is the warrantor in relation to this product.
