IMPORTANT! READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
Product introduction-------------------------------------------2
Product Specification----------------------------------------2
Product Features----------------------------------------------2

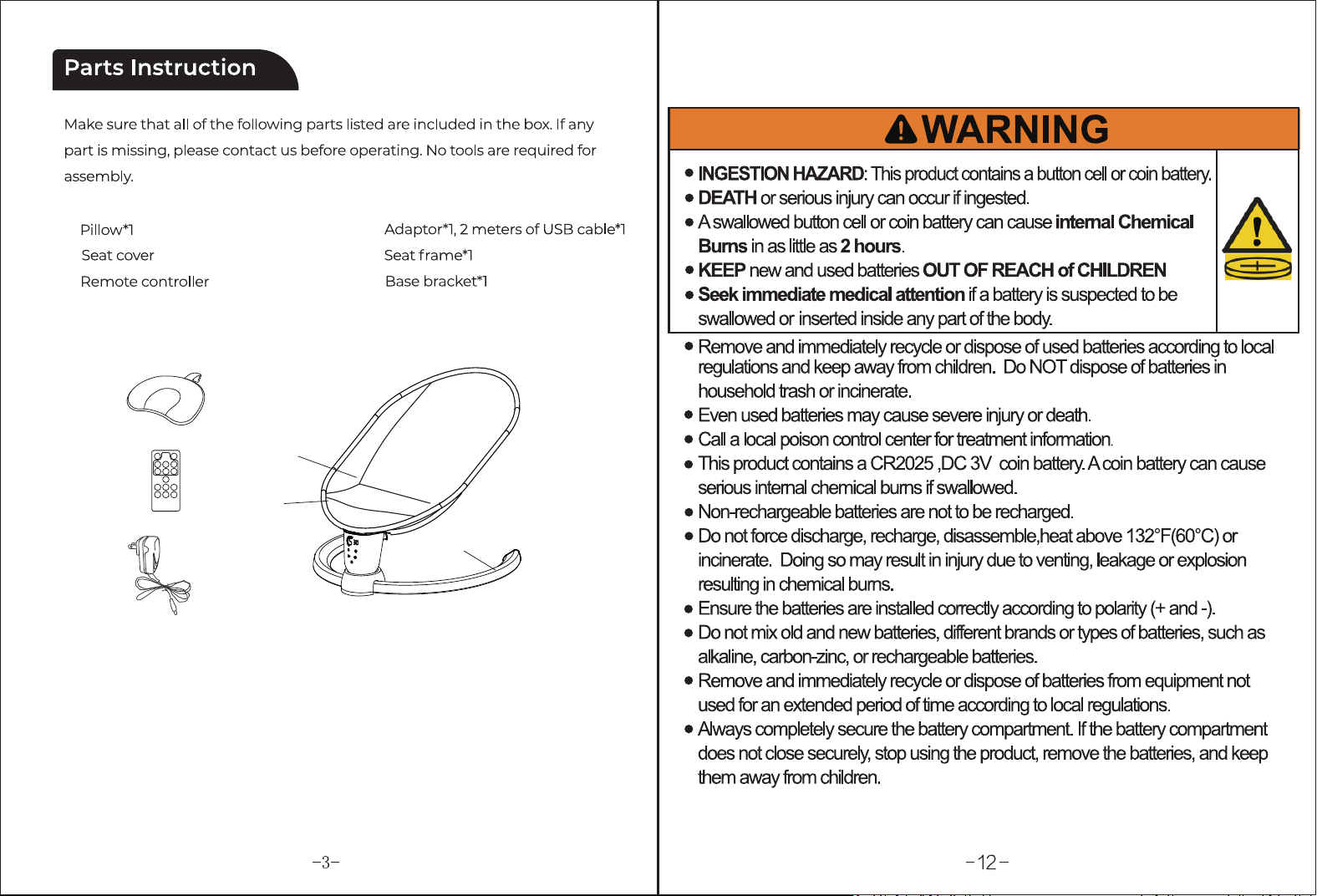

Parts instruction-------------------------------------------------3
Instruction--------------------------------------------------------4
For Base Bracket-----------------------------------------------4
For Pillow and Seat Cover------------------------------------4
Safety Belt Instruction----------------------------------------5
Assemble Instructions----------------------------------------6
User instruction--------------------------------------------------7
Button Description--------------------------------------------7
Button instruction--------------------------------------------7
Power supply---------------------------------------------------8
Motion Lock----------------------------------------------------8
Remote Control------------------------------------------------8
CAUTION-----------------------------------------------------9
WARNING-----------------------------------------------------10

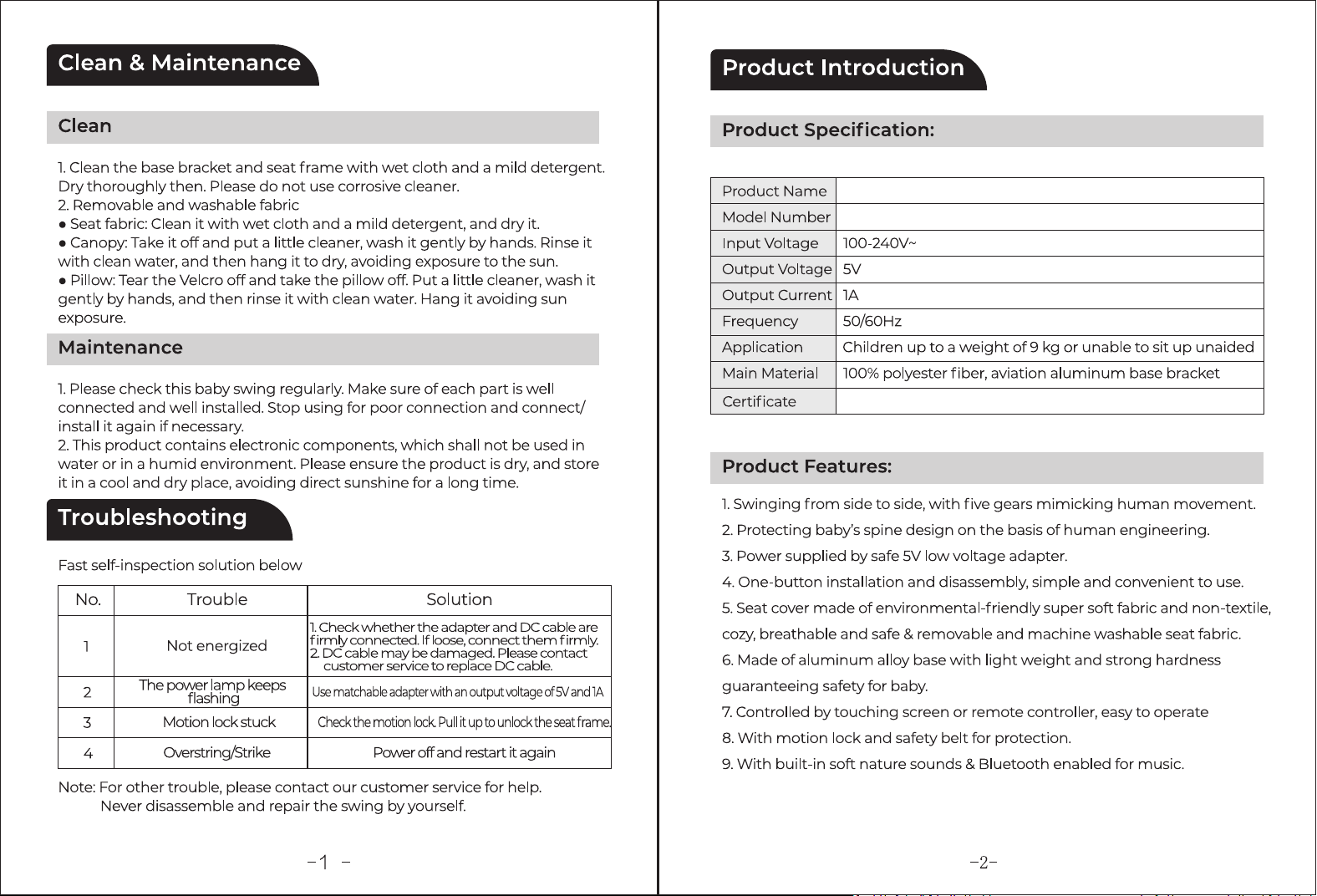

Clean & Maintenance------------------------------------------11
Clean-----------------------------------------------------------11
Maintenance-------------------------------------------------11
Troubleshooting------------------------------------------------11
DD723

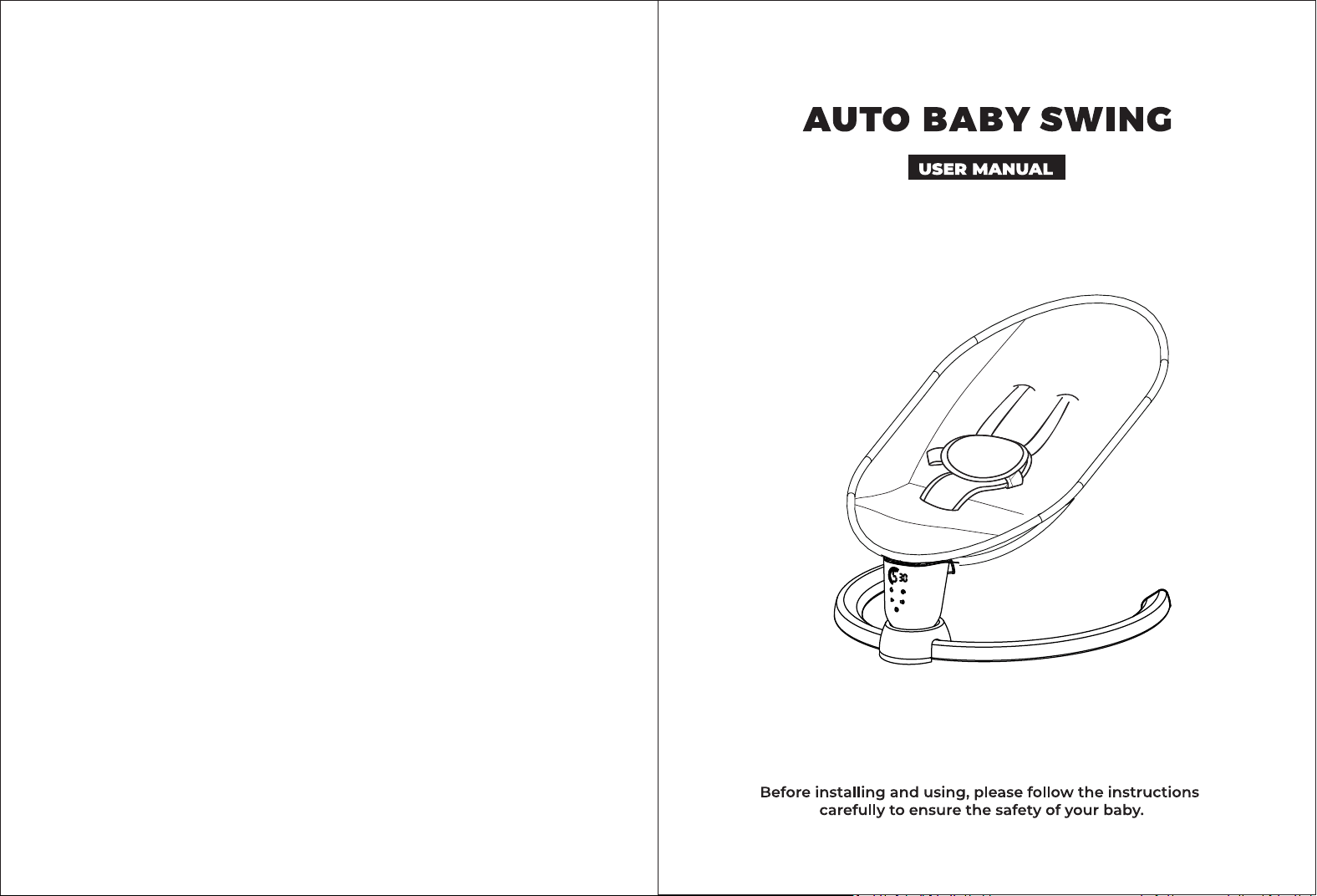

Auto Baby Swing
ASTM F2088
3
1.
2.
3.
4.
5.
6.
1.
2.
3.
4.
5.
6.
Press the unlock button to
unload the swing.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Note: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for
help.
Caution: Changes or modifications not expressly approved by
the party responsible for compliance could void the user’s
authority to operate the equipment.
This equipment complies with FCC radiation exposure limits set
forth for an uncontrolled environment. This transmitter must not
be co-located or operating in conjunction with any other antenna
or transmitter.
Assemble Instructions
WARNING:
Guardian should take good care of your child,prohibit
to play accessories and avoid to get hurt or swallow！
1.Press the steel clips,insert the upper seat frame into the hole of the down frame,ensure the
clips bounce up,a clear "click" will be heard when correctly inserted.
2.Insert left and right tube into main engine,ensure that the foot tube is aligned with the screw
hole of the main engine in the bottom.
3.Fix 4 screws into the foot tube.
· FALL and STRANGULATION HAZARDS: Infants
have suffered head injuries Falling from swings and
have strangled in straps
ALWAYS use restraints. Adjust to fit snugly.·
STOP · using product when baby starts trying to sit
up or has reached 20 lb, whichever comes first.
· Stay near and watch baby during use. This product
is not safe for sleep or unsupervised use. if baby falls
asleep, remove baby as soon as possible and place
baby on a firm, flat sleep surface such as a crib or
bassinet.
Button instruction
Button Description
Power On/Off Key:Touch this button and the indicator light is on.Touch it
again to turn the swing off.
Swing Gear Setting:Touch the button to adjust swing settings.There are five
gears of the swing.
the swinging angle is:0x-0°,1x-18°,2x-21°,3x-23°,4x-25°,5x-31°,the swing
angle will be smaller after loading
Note:1.When gear 0 under no timer setting,the gear indicator light and timer
light are both on;
2.Automaticlly back to Gear 0 when inspected unusual swinging or
strike by something.
Timer Setting:Touch the button 1-3 times to choose the swing time.
8/15/30minutes.
Music Play:Touch the button to play the built-in music.Touch it again to turn
the sound off.
Volume Up/Down:
Touch the button in 1 second to adjust the volume,
Touch the button in 2-3 second to play next song.
Power On/Off Key
Music Play/Pause Key
Music Switch & Volume Up/Down Key
Five Swing gears
Timer setting,3 preset option
Open the Bluetooth connection of the mobile phone
to "BT_BABY", and the song can be played directly
after the connection is successful.
lock
Unlock
