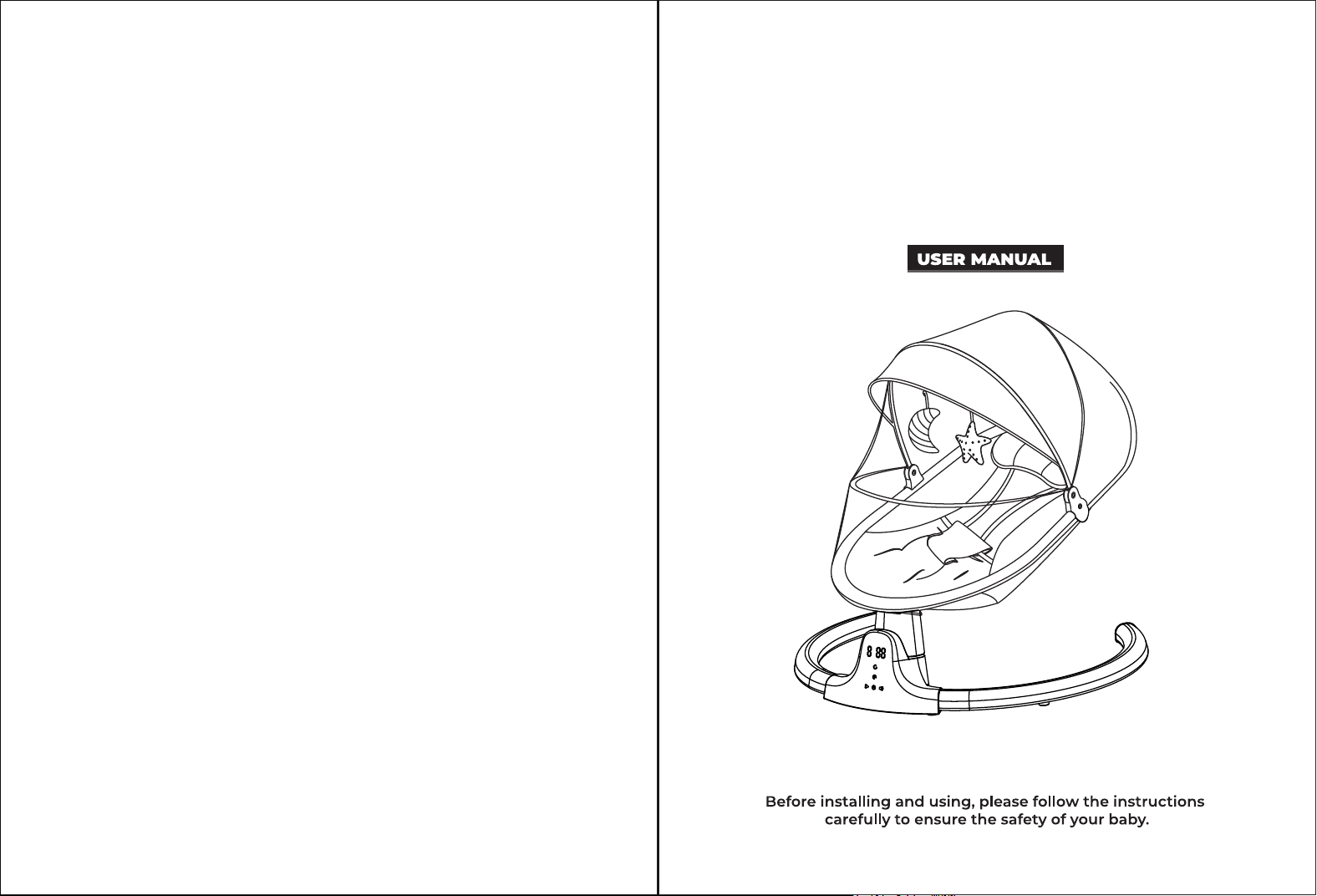

Multi-Function
Electric Swing
IMPORTANT! READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
Product introduction-------------------------------------------2
Product Specification----------------------------------------2
Product Features----------------------------------------------2
Parts instruction-------------------------------------------------3
Instruction--------------------------------------------------------4
For Base Bracket-----------------------------------------------4
For Pillow and Seat Cover------------------------------------4

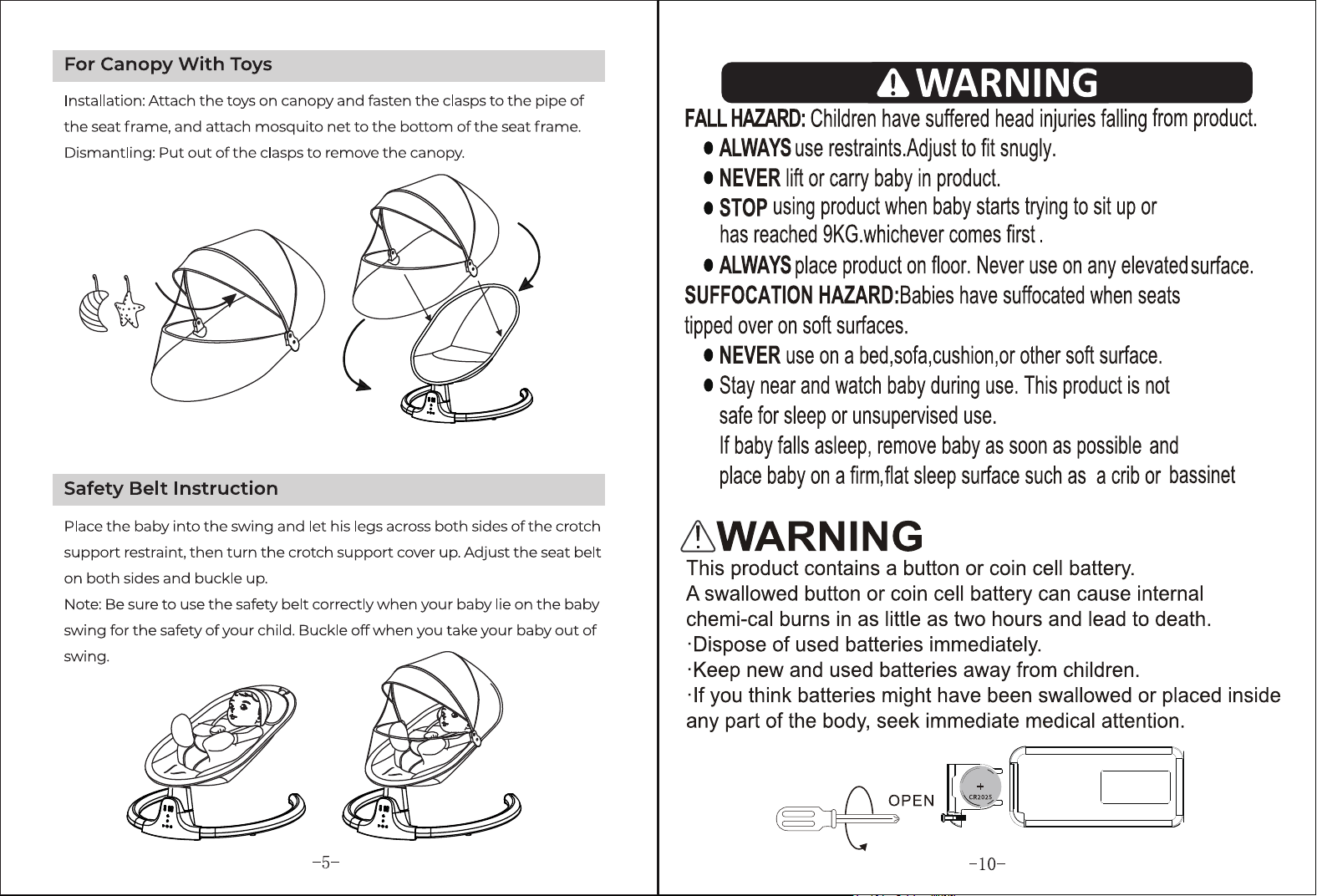

Safety Belt Instruction----------------------------------------5
Assemble Instructions----------------------------------------6
User instruction--------------------------------------------------7
Button Description--------------------------------------------7
Motion Lock----------------------------------------------------7
Remote Control------------------------------------------------7
Power supply---------------------------------------------------8
Button instruction--------------------------------------------8
CAUTION-----------------------------------------------------8
WARNING--------------------------------------------------9-12
Clean & Maintenance------------------------------------------13
Clean-----------------------------------------------------------13
Maintenance-------------------------------------------------13
Troubleshooting------------------------------------------------13
ASTM F2088, ASTM F3084
Multi-Function Electric Swing
DD721
1 3
PartsInstruction
Makesurethatallofthefollowingpartslistedareincludedinthebox.Ifany
partismissing,pleasecontactusbeforeoperating.Notoolsarerequiredfor
assembly.
1)Plushtoy*2
2)Pillow&BodyPad*1
3)Mosquitonetwithcanopy*1
4)Seatcover
5)Remotecontroller
6)Adaptor*],2metersofUSBcable*1
7)Seatframe*1
8)Basebracket*1
1 2
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Note: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for
help.
Caution: Changes or modifications not expressly approved by
the party responsible for compliance could void the user’s
authority to operate the equipment.
This equipment complies with FCC radiation exposure limits set
forth for an uncontrolled environment. This transmitter must not
be co-located or operating in conjunction with any other antenna
or transmitter.
WARNING:
Guardian should take good care of your child,prohibit
to play accessories and avoid to get hurt or swallow！
Assemble Instructions
1.Press the steel clips,insert the upper seat frame into the hole of the down frame,ensure the
clips bounce up,a clear "click" will be heard when correctly inserted.
2.Insert left and right tube into main engine,ensure that the foot tube is aligned with the screw
hole of the main engine in the bottom.
3.Fix 4 screws into the foot tube.
· FALL and STRANGULATION HAZARDS: Infants
have suffered head injuries Falling from swings and
have strangled in straps
ALWAYS use restraints. Adjust to fit snugly.·
STOP · using product when baby starts trying to sit
up or has reached 20 lb, whichever comes first.
· Stay near and watch baby during use. This product
is not safe for sleep or unsupervised use. if baby falls
asleep, remove baby as soon as possible and place
baby on a firm, flat sleep surface such as a crib or
bassinet.
Power On/Off Key: Touch this button and the indicator light is on.
Touch it again to turn the swing off.
Swing Gear Setting:Touch the button to adjust swing settings.There are five gears of the swing.
the swinging angle is:0x-0°,1x-18°,2x-21°,3x-23°,4x-25°,5x-31°,the swing
angle will be smaller after loading
Note:1.When gear 0 under no timer setting,the gear indicator light and timer light are both on;
2.Automaticlly back to Gear 0 when inspected unusual swinging or strike by something.
Timer Setting:Touch the button 1-3 times to choose the swing time. 8/15/30minutes.
Music Play:Touch the button to play the built-in music.Touch it again to turn the sound off.
Volume Up/Down: Touch the button in 1 second to adjust the volume,
Touch the button in 2-3 second to play next song
Button Description
Power On/Off Key
Music Play/Pause Key
Music Switch & Volume Up/Down Key
Five Swing gears
Timer setting,3 preset option
- The supply terminals are not to be short-circuited.
- Not connected more than recommended number of power supplied .
- The product should only be used with a transformer for product.
- The product shall be used with the transformer supplied.
- The transformer is not a product.
- Product liable to be cleaned with liquid are to be disconnected from
the transformer before cleaning.
Transformers used with the product are to be regularly examined for
damage to the cord, plug, enclosure and other parts, and in the event
of such damage, they shall not be used.
AUTO
AUTO
Connect Bluetooth:
Pairing Steps
Turn on Bluetooth on your smartphone → Search for device
"BT_BABY" → Tap to connect.
The swing will beep → Bluetooth connected successfully (Range: ≤10 meters).
When Bluetooth is connected: Automatically plays audio from your phone.
Disconnect
Turn off Bluetooth on your phone OR Power off the swing.
