⪺⩸濢滺
㗐宨濢滶滵滺ē捜䃈䴸ⷩ⇰炜㧣≍既滶炜椑棬按
Best Care for Ever !
Manufacturer: Zhongshan City Cironbaby Co.,Ltd.
Address: No.6,Yongxing North Road,Yongxing Industrial Zone, Henglan Town,
Zhongshan City,Guangdong,China
Model: CR018B
User Manual
Or scan the QR code below:
https:www.larexcare.com
larexbabycare Larex Baby Care Larex Baby Care
Electric Baby Swing
For tutorial videos, customer service, extended
12-month warranty, and more information, please visit:
Please scan the QR code beside:
20 Ib
the product
the product

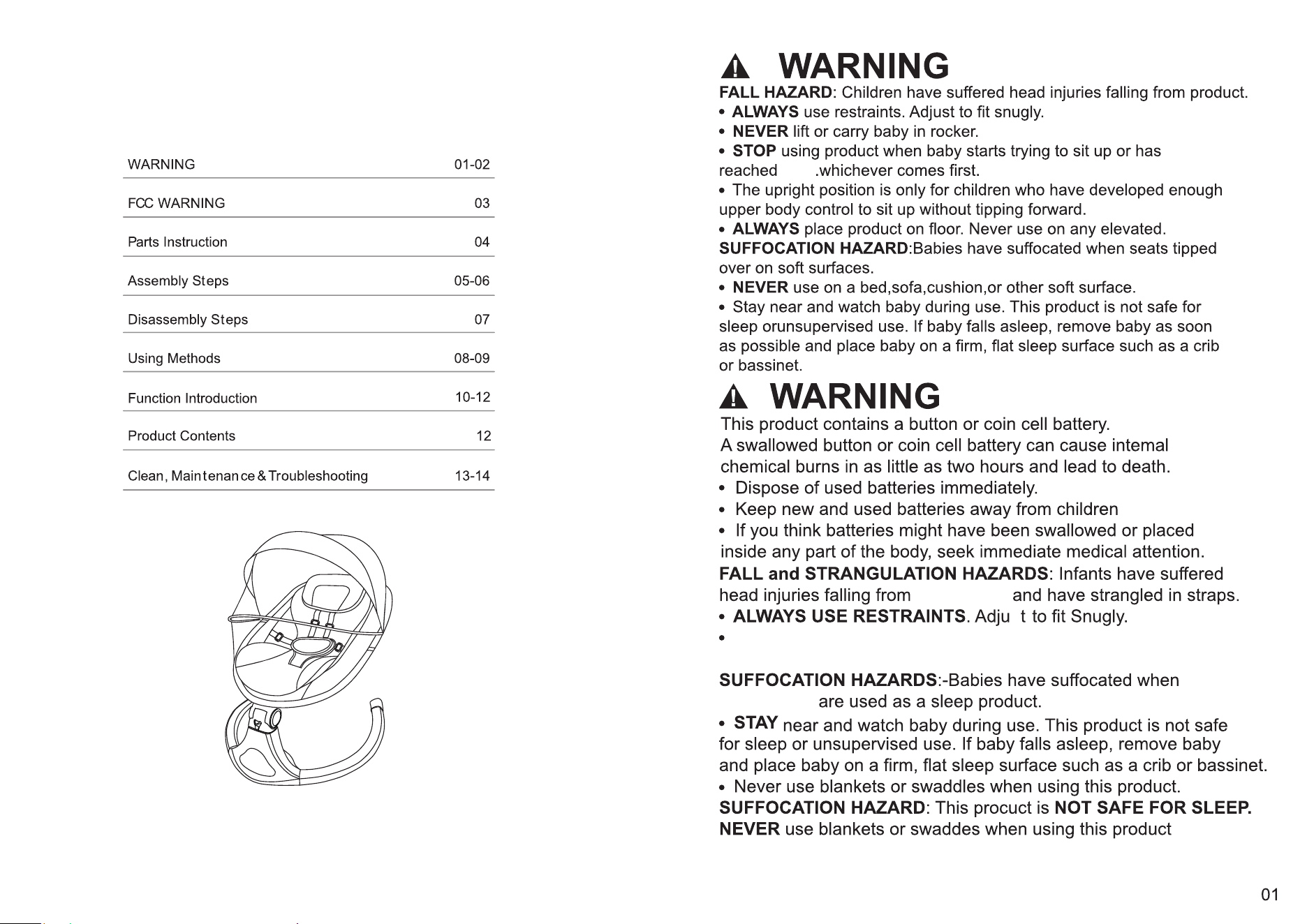

STOP using product when baby starts trying to sit up
or has reached 20 lb, whichever comes first.
s
3
not
FCC compliance statement
FCC Radiation Exposure statement
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated
with minimum distance 0 cm between the radiator and your body. This
transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more
of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
03 04
1. Unfold the backrest to the same level.
Connecting A with B together and installing
securely.
2. Put the seat cover on the seat frame
and zip up the top and bottom sections
to secure it.
3. Assemble the base bracket to the touch panel base.Tighten with screws to secure.
4. Insert the seat's frame into the base support post.
WARNING: After completing the installation of the seat, please check the seat to
ensure that it is well locked before using it.
insert the seat into the mainframe base,then rotate the seat left and right slightly,then press down the
seat DIWHUDOLJQPHQWWKHQ䇡QLVKWKHVHDWLQVWDOODWLRQ
Seat installation details: Keep the same direction of seat D hole and mainframe base D iron shaft,then
Note: &RQQHFWRQHVLGH䇡UVWWKHQWKHRWKHUVLGH3OHDVH
ensure the buttons on the back of the frame are fully
closed after connecting.
Assembly StepsParts Instruction
Make sure that all of the following parts listed are included in the box. If any part
is missing, please contact us before operating.
Remote controller
Adaptor*1
USB cable*1
Reversible
headrest
Screws*4
Screwdrivers*1
Canopy with
mosquito net
Touch screen panel base
Reversible body pad
Seat cover seat frame
Base bracket
A
B
A
B
Seat D hole and mainframe base D iron
shaft keep the same direction
05 06
7.Attach the canopy to the seat frame.
Snap the two canopy brackets onto
either side of the seat frame to secure.
8.Canopy installation. Secure the clamps
to the tubes of the seat frame. Attach the
mosquito net to the seat frame.
Disassembly Steps
5.Place the reversible body pad onto
the seat, then thread the harness strap
through the top and bottom slot of
the body pad.( The top slot has two
options, you can choose one of the two. )
6. Place the headrest onto the seat,
then pull the hook-and-loop strap
through the ring. Fold to secure.
1.Pull out the clasp to remove the
canopy.
2.Pull the velcro to separate the
headrest and thread the harness
strap through the slot of the body
pad to remove the body pad.
3. Push the iron sheet in and then
lift the seat from the support post.
4.Find the left and right side buttons
on the back of the seat frame,press
GRZQ䇡UPO\RQRQHRIWKHEXWWRQV
DQGSXOO䇡UPO\DZD\WKHQSUHVVWKH
button on the other side and pull
䇡UPO\DZD\)ROGWKHVHDWIUDPH
A
B
B
Press
07 08

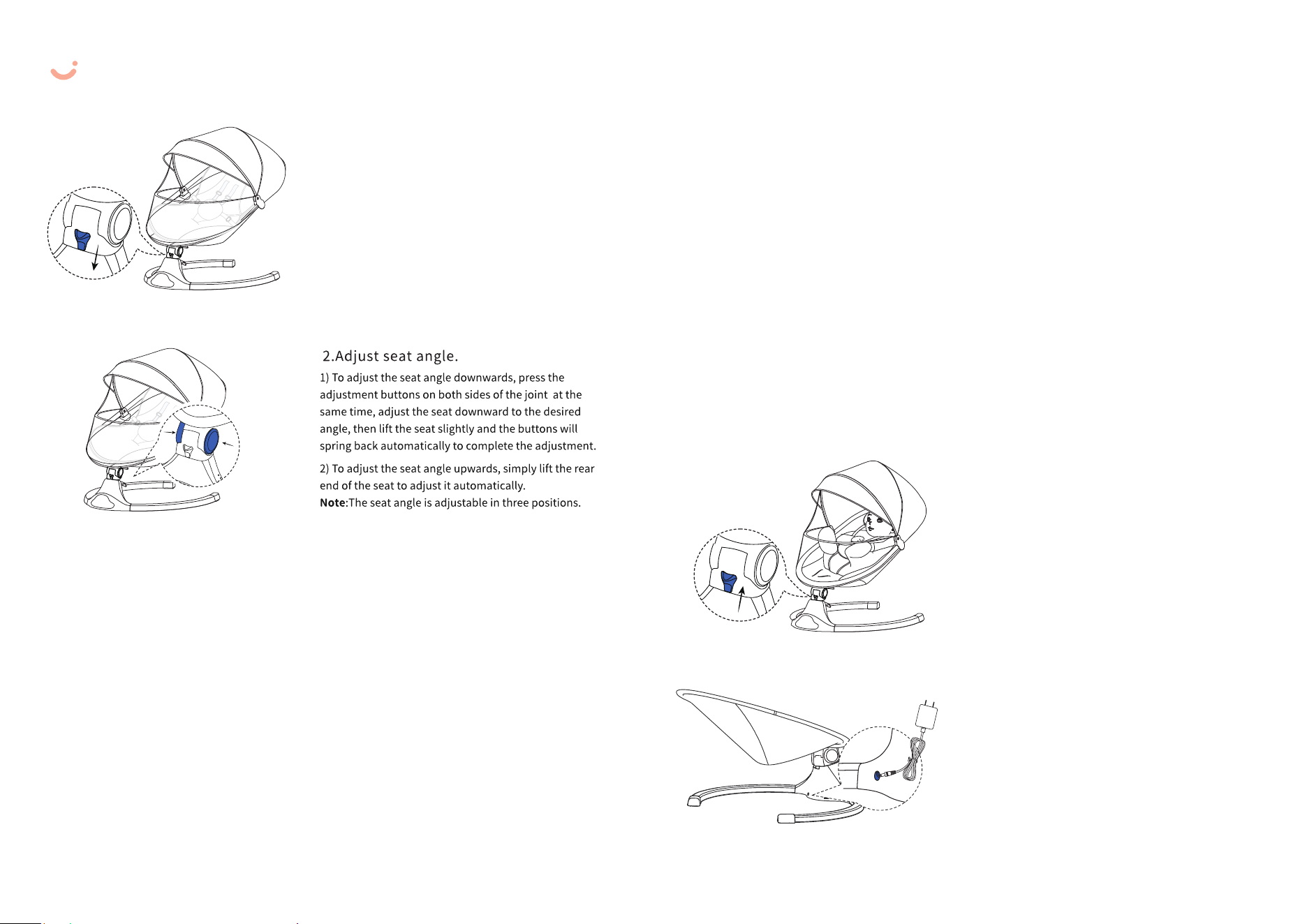

1.Push the motion down to lock the
seat frame to prevent the seat from
moving.
IMPORTANT: Always set the swing on a flat, stable
surface. Never use the seat without safely
buckling your child into the harness.
Using Methods
3.Put the baby in the seat and then fasten the seat belt.Adjust the strap
length if necessary. Cover the buckle bag well.
Shoulder belt install details:
5.Connect the power cord to the port
on the back of the display panel. Then
plug the cord into an electrical outlet.
NOTE: The swing does not operatHR䇠RIbatteries.
The power cord is the only source of power. Only use
the original adapter. If the adapter is missing please
email us at [email protected]
4.After the baby is secure, pull the
motion lock up to unlock the seat
frame.
09 10
Control the unit's functions with the buttons indicated below:
Caution: To ensure the safety of the baby, the swing amplitude and speed will slowly
increase when setting the initial gear.
Power Switch: Plug in and the indicator light is on.
Press the button to turn the swing on/o䇠.
Timing button: Touch the button to set time to 8mins, 15mins, 30mins, or cancel.
7KHXQLWZLOOWXUQR䇠DXWRPDWLFDOO\ZKHQWKHWLPHU䇡QLVKHV
*There are 4 levels of volume available, long touch the button for 2 seconds to select one, cycling
through them in sequence.
Swing Speeds Setting: Touch the button to make swing settings. There are 䇡ve
swing gears available. After 5 gears, the speed resets to zero.
Music Play/Pause:Touch the button to play the built-in music. Touch it again to turn
WKHPXVLFR䇠
Next Tune: Touch the button to play the next song.
Function Introduction
Panel Function
Volume Adjustment: Touch the button to adjust the volume.
Remote Function
Power on/o䇠
Time setting
USB music/
Built-in music
olume up
Play/
Gear up
pause
Last song
ext song
Gear down
olume down
MUSIC
Timer
USB
Music
VOL+ VOL-
V
N
V
1) Plug the USB device into the USB interface port to play the music inside the
USB device.
2) Unplug the USB device and turn on the music button to play the music built
into the product.
MP3 Function
USB interface port
Swing Speeds
Timer
11 12
1. Clean the base bracket and seat frame with a wet cloth and a mild detergent.
Dry thoroughly then. Please do not use corrosive cleaner.
2.Removable and washable fabric
• Seat fabric: Clean it with a wet cloth and a mild detergent.Do not bleach, air dry.
• Canopy. TakHLWR䇠and put a little cleaner, wash it gently by hands. Rinse it with
clean water, and then hang it to dry, avoiding exposure to the sun.
Product Name Electric Baby Swing
Model No.
Input Voltage
9䊈+]$
Applicable Age
0-6 MONTH
Application
Children up to a weight of 9 kg
and unable to sit up unaided
Output Voltage
DC5.8V/1A
Main Material
SRO\HVWHU䇡EHU
Aviation aluminum base bracket
Standard
ASTM F2088-25, ASTM F3084-25
Product Contents
Clean
1. Please check this baby swing regularly. Make sure each part is well-connected
and well-installed. Stop using it for poor connection and connect/install it again
if necessary.
2. This product contains electronic components, which shall not be used in water or
a humid environment. Please ensure the product is dry, and store it in a cool and
dry place, avoiding direct sunshine for a long time.
Maintenance
Fast self-inspection solution below.
Note: For other issues, please contact our customer service for help.
Never disassemble and repair the swing by yourself.
No.
1
2
3
4
Trouble
Not energized
The power lamp keeps
flashing
1. Check whether the adapter and DC cable are
䇡rmly connected. If loose, connect them 䇡rmly.
2. The DC cable may be damaged, Please contact
customer service to replace the DC cable.
Use a matchable adapter with an output
voltage of 5V and 1A.
Motion lock stuck
Check the motion lock. Put it up to unlock
the seat frame.
Overstring/Strike
3RZHUR䇠DQGUHVWDUWLWDJDLQ
Solution
Troubleshooting
Bluetooth Function
Turn on the Bluetooth fuction in your phone to search the name of "swing chair",
the product could play the music inside your phone after successful Bluetooth
connection.
Bluetooth
Turn on bluetooth
Mobile phone name
Search bluetooth device
Paired device
swing chair
CR018B
13
LAREX's Swing includes a 1-year limited warranty against defects from the date of
purchase. In the event of a malfunction or defect during the in-warranty period, we
will replace the product under warranty. Upon receipt of the product and proof of
purchase with a valid date of purchase,we will send you a new one freely.Please send
the defective unit, proof of purchase and a description of the problem you have
encountered to our customer service email: support@larexcare.com
Note:This warranty does not cover claims resulting from misuse, abuse, alteration, inflicted damage,
accidental damage, normal wear and tear, involvement in an accident, and/or failure to comply with the
instructions on assembly, maintenance and use.
ONE-YEAR LIMITED WARRANTY
Customer Service
Thank you for purchasing our products. If you have any questions or suggestions
about this product, feel free to contact our customer service at
support@larexcare.com
Phone:+1-855 6740 880 (US) Mon-Fri8am-5pm (PST)
Contact US
