APP
soundcore
Apple and the Apple logo are trademarks of
Apple Inc.
Google Play and the Google Play
logo are
trademarks of Google Inc.
Download the soundcore app to enhance your experience (3D Surround Sound, Ambient Sound modes,
adaptive noise control, HearID Sound, equalizer tuning, custom controls, firmware update, and more).
Click this link to download: http://dl-soundcore.soundcore.com/qcdl?flow=soundcore
If your earbuds cannot connect with the soundcore app, update it to the latest version in your mobile
app store.
WEARING
XL
M
XS S L
Choose the Ear Tips that fit your ears best and take a fit test in the soundcore app to ensure you get the
best ANC peormance.
CHARGING
3
1 2
< 30%
30% - 70%
70% - 95%
96% - 99%
100%
10min=4hr
3hr
1. Tear o the insulation sticker on the earbuds before first use.
2. Place the earbuds in the charging case and close it.
• Fully dry o the earbuds and the USB-C charging port before charging.
3. Connect the charging case to the power supply by using a certified USB-C charging cable.
Alternatively, position the charging case at the center of your wireless charger for wireless charging.
• Fully charge both the earbuds and the charging case before the first use. When they are fully
charged, the LED indicators will turn o.
POWERING ON AND PAIRING
ON
1
soundcore
Space A40
soundcore
Space A40
2
3
s
Pairing
Connected
5% - 30%
<5%
30% - 70%
>70%
2s
Open the charging case, the earbuds will automatically power on and enter Bluetooth pairing mode.
Select "soundcore Space A40" from your device's Bluetooth list when connecting for the first time.
MULTIPOINT CONNECTION
soundcore
Space A40
soundcore
Space A40
1
2
L R
3s
3s
The earbuds can connect with two devices at the same time so you can switch between them
eortlessly. Wear the earbuds, then press and hold the touchpad on both earbuds for 3 seconds
simultaneously.
Select "soundcore Space A40" from your device's Bluetooth list to connect.
1
2
3
In the soundcore app, go to settings and select Dual Connections > Connect New Device.
MANUAL PAIRING
1
2
3s
PAIRING
To manually enter Bluetooth pairing mode, place the earbuds in the charging case and leave the case
open, then press and hold the button on the charging case for 3 seconds until the LED indicators flash
white in sequence continuously.
CONTROLS
MONOTWSTWS
ANC Transparency
Normal
×2
R
×2
L
×2
L/R
L/R
2s2s
ANC Transparency
Normal
2s2s
L/R
2s2s
×2
×2
2s2s 2s2s
×2: Tap twice 2s: Tap and hold for 2 seconds
* You can also customize controls in the soundcore app.
TWS mode Mono mode
Play / Pause Tap twice (R) Tap twice
Next track Tap twice (L) /
Answer / End a call Tap twice (L/R) Tap twice
Reject a call Tap and hold for 2 seconds (L/R) Tap and hold for 2 seconds
Switch ambient sound modes
(ANC / Transparency /
Normal)
Tap and hold for 2 seconds (L/R) Tap and hold for 2 seconds
NOISE CANCELLATION
To reduce unwanted ambient noise, select a noise cancellation mode in the soundcore app.
• Adaptive Mode: Automatically switch to the most suitable noise cancelling equalizer for dierent user
scenarios.
• Manual Mode: Set the level of noise cancellation manually.
Based on the SGS Lab testing result, the deepest band of noise reduction is up to 38dB, and the
comprehensive noise reduction is up to 23dB. Key word of “Reduces Noise By Up to 98%*”

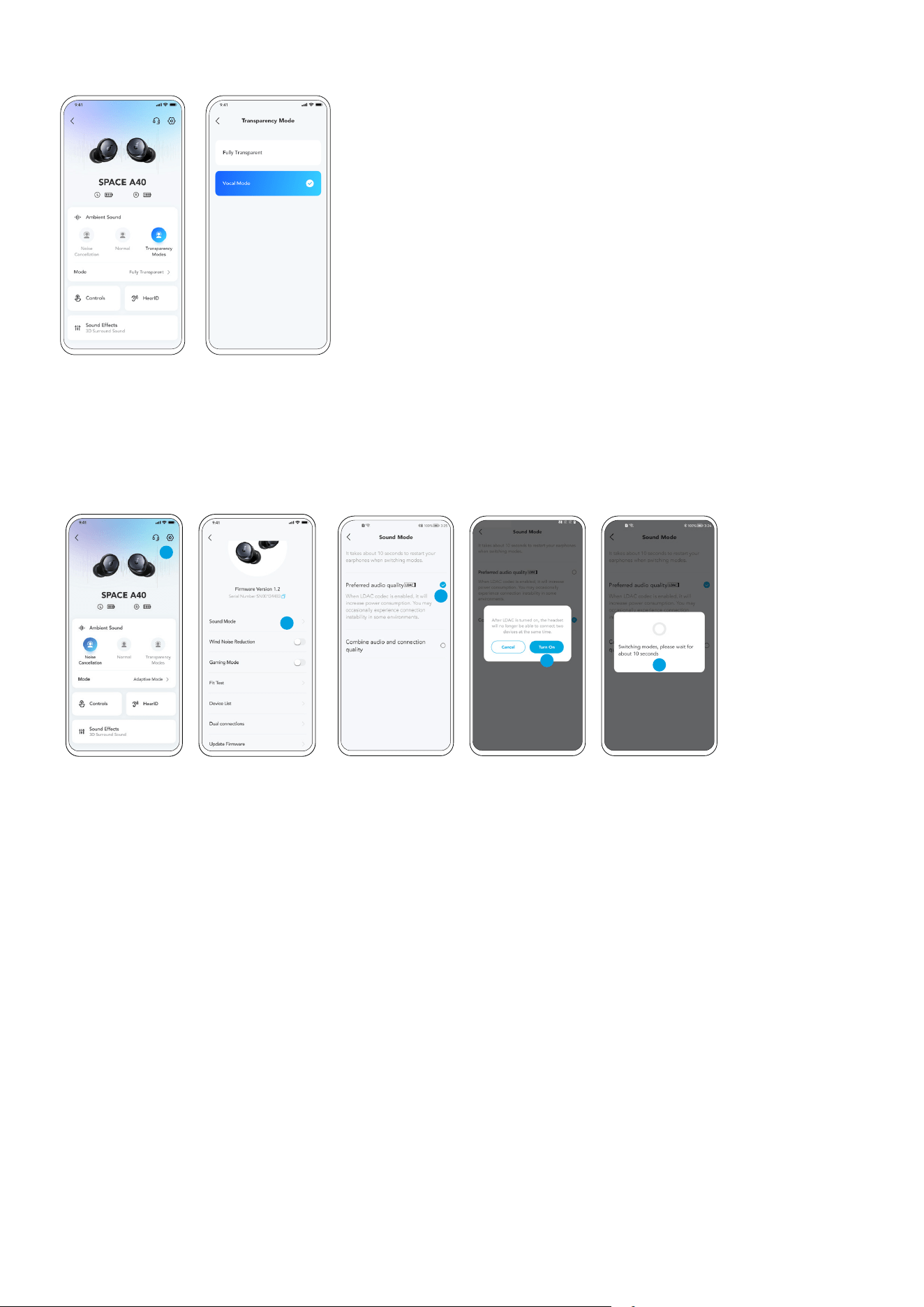

TRANSPARENCY
To stay aware of your surroundings while listening to music, select a transparency mode in the
soundcore app.
• Fully Transparent: Hear all ambient sounds.
• Vocal Mode: Voices stand out more clearly from other ambient sounds.
LDAC
1
2
3
4
5
• Use devices powered by Android 8.0 or later to experience LDAC quality sound.
• LDAC provides higher quality sound, increases power consumption, and reduces playtime.
• Enable LDAC in a low-inteerence environment to ensure a stable Bluetooth connection.
1. Go to settings in the soundcore app.
2. Click on "Sound Mode".
3. Select "Preferred audio quality" to switch to LDAC codec.
4. You will be notified that the earbuds do not support LDAC when connected to two devices. Select
"Turn on" to continue.
5. It takes about 10 seconds to switch audio codecs. You may be requested to update the earbuds'
firmware if available.
POWERING OFF
2
1
Return the earbuds to the charging case and close the case.
The earbuds will automatically power o aer 30 minutes if they are not connected. The duration can
be set in the soundcore app.
RESET
1
10s
2
×3
Reset if the earbuds have issues pairing with each other or with other devices.
Delete the pairing history from your Bluetooth device first. Place the earbuds in the charging case and
leave the case open. Then press and hold the button on the case for 10 seconds until the LED indicators
on the case flash white 3 times and then flash in sequence.
LED LIGHT GUIDE
5% - 30%
<5%
30% - 70%
>70%
Pairing
Connected
2s
Steady white
Flashing white
Flashing white in sequence
Light o
FIRMWARE UPDATE
1
2
You will be informed once the new version of firmware is detected when you connect the earbuds with
the app. Ensure the earbuds are placed in the charging case and the case remains open until the
firmware update is completed. During the update, ensure the earbuds are being charged and avoid
any usage.
SPECS
Specifications are subject to change without notice.
Input 5V 0.65A
Rated output power 2.2mW
Battery capacity 53mAh x 2 (earbuds); 800mAh (charging case)
Charging time 2 hours
Playtime (with ANC o)
Up to 10 hours (Total 50 hours with the charging
case)
Playtime (with ANC on) Up to 8 hours (Total 40 hours with the charging case)
Driver unit 10mm dynamic driver
Frequency response 20Hz-20KHz
Impedance 16Ω
Waterproof level (Earbuds) IPX4
Bluetooth version 5.3
Bluetooth range 10m / 33
Customer Service
service@soundcore.com
support.mea@soundcore.com (For Middle East and Africa Only)
support@anker.com (
日本
)
+1 (800) 988 7973 (US/Canada)
+44 (0) 1604 936200 (UK)
+49 (0) 69 9579 7960 (DE)
03 4455 7823 (
日本
)
+86 400 0550 036 (
中国
)
+82 02-1661-9246 (
한국
)
+971 529750842 (Middle East & Africa)
+971 8000320817 (UAE)
+966 8008500030 (KSA)
+965 22069086 (Kuwait)
+20 8000000826 (Egypt)
+61 3 8331 4800 (Australia)
+90 (850) 460 14 14 (Türkiye)
+8 (800) 511-86-23 (Russia)
+91 18003138831 (India)
Note: The 'x' of SN Code: xxxxxxxxxxxxxxxx is a variable, see below table.
Variable 'x' Range of variable Content
Eighth 8,9,A,B,C...
Denotes the year, 8 means 2018, 9
means 2019, A means 2020, B means
2021, C means 2022, and so on.
Ninth and tenth 01,02,03...
Denotes weeks, 01 means the first
week in this year, 02 means the
secondary week in this year, and so
on.
Eleventh 1-7
Denotes date, 1 means Monday, 2
means Tuesday..., 7 means Sunday
and so on.
The last five 00001-99999 Denotes serial No.
Hereby, Anker Innovations Limited declares that this device is in compliance with The Product Security
and Telecommunications Infrastructure (Security Requirements for Relevant Connectable Products)
Regulations 2023. For the Statement of Compliance, visit the website: https://uk.soundcore.com/pages/
psti-related.
1. Power consumption in standby mode: ≤0.5W
2. Powermanagement: ≤20min
3. Information of applicable adapter:
Brand: ANKER
Manufacturer: Anker Innovations Limited
Model: A2337
Input: 100-240Vac, 1A, 50-60Hz
Output: 5V 3A / 9V 3A / 12V 2.5A / 15V 2A / 20V 1.5A (30W Max)
Default Open Port: Classic Bluetooth
Port Description: Aer the device is powered on, Classic Bluetooth visibility (or pairing mode) is
automatically enabled, providing Bluetooth pairing (or control) services. The Bluetooth service is
disabled when the device is powered o.
