USE AND CARE GUIDE
BLAIRE 52 INCH CEILING FAN
To reduce the risk of electrical shock,
this fan must be installed with an isolating wall
control/switch.
2
Installation .....................................................................
Table of Contents ..........................................................2
Safety Information .........................................................2
Warranty .........................................................................4
Pre-Installation ..............................................................
4
7
Assembly .......................................................................
8
Table of Contents
13
Operation
Care and Cleaning
15
Troubleshooting
16
......................................................................
.......................................................
...........................................................
Safety Information
READ AND SAVE THESE INSTRUCTIONS.
WARNING: To reduce the risk of personal injury, do not
WARNING:
WARNING: To avoid possible electrical shock,
turn the electricity off at the main fuse box before
wiring.
CAUTION: To reduce the risk of personal injury,
use only the screws provided with the outlet box.
CAUTION: To avoid personal injury or damage to the fan
and other items, use caution when working around or
cleaning the fan.
bend the blade brackets when installing the brackets,
balancing the blades, or cleaning the fan. Do not insert
foreign objects in between rotating fan blades.
To reduce the risk of fire, electric shock
or personal injury, mount to outlet box marked
“acceptable for fan support of 35 lbs (15.9 kg)
or less” and use screws provided with the outlet box.
The fan must be mounted with a minimum
of 7 ft (2.1 m) clearance from the trailing edge of the
blades to the floor.
CAUTION:
Changes or modifications not expresslyCAUTION:
approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
WARNING:
To reduce the risk of electrical shock or fire,
do not use this fan with any solid-state fan speed
control device. It will permanently damage the
WARNING:
electronic circuitry.
To reduce the risk of electric shock, ensure electricity has been
turned off at the circuit breaker or fuse box before you begin.
All wiring must be in accordance with the National Electrical
Code “ANSI/NFPA 70” and local electrical codes. Electrical
installation should be performed by a qualied licensed
electrician.
The outlet box and support structure must be securely mounted
and capable of reliably supporting a minimum of 35 lbs (15.9 kg).
Use only UL Listed outlet boxes marked “Acceptable for Fan
Support of 35 lbs (15.9 kg) or less.”
Do not place objects in the path of the blades.
Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be
suitable for most cleaning.
After making electrical connections, spliced conductors should
be turned upward and pushed carefully up into the outlet box.
The wires should be spread apart with the grounded conductor
and the equipment-grounding conductor on one side of the
outlet box and ungrounded conductor on the other side of the
outlet box.
All set screws must be checked and retightened where
necessary before installation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and
can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment. This
device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Company Name: Eurofase Inc.
Company Address: 60 Industrial Parkway, Unit 802, Cheektowaga, NY 14227-2713
Telephone Number: 905-695-2055
Fax: 905-695-2056
Safety Information (continued)
3
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
4
Warranty
Pre-InstallationPre-Installation

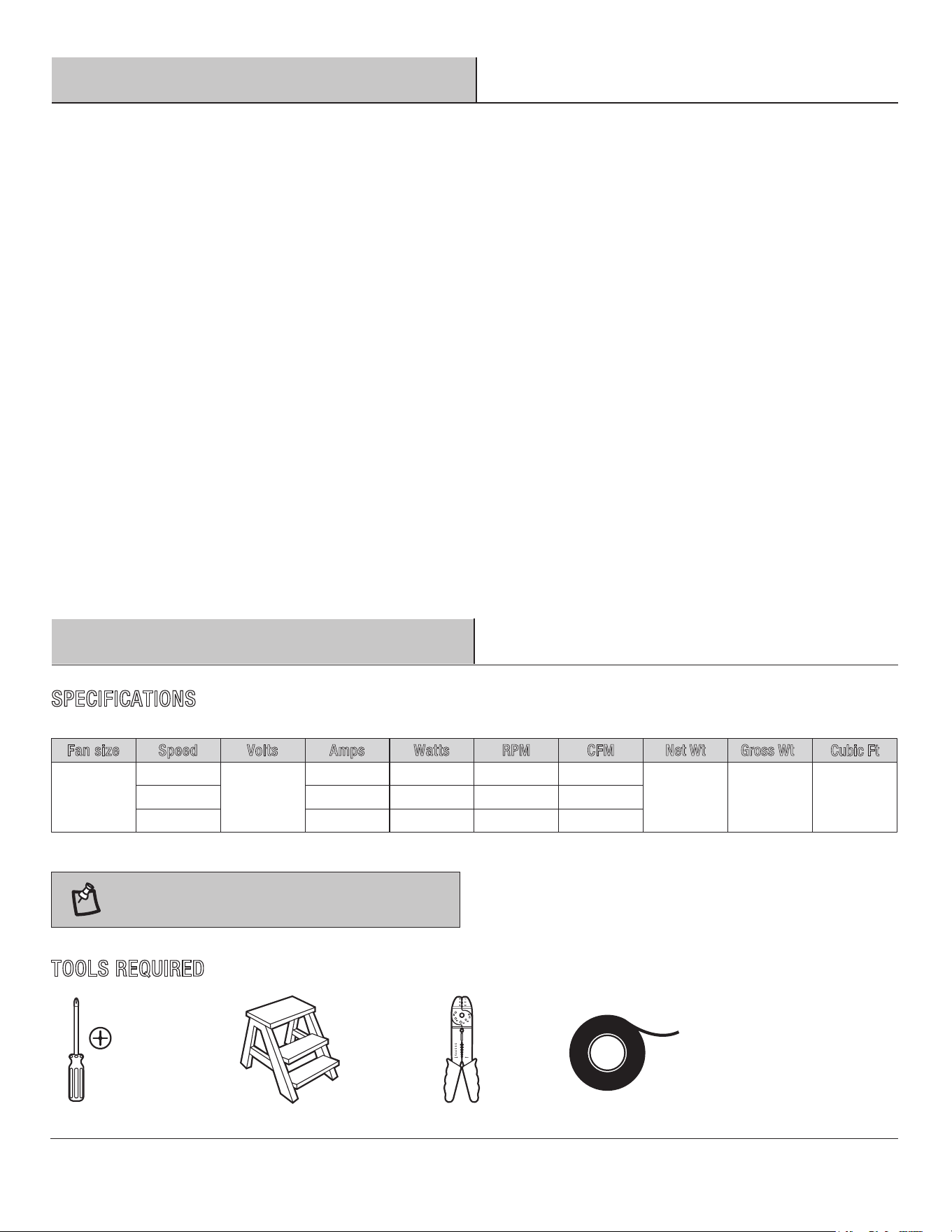

SPECIFICATIONS
TOOLS REQUIRED
Phillips
screwdriver
Electrical
Tape
Wire
stripper
Step
ladder
NOTE: These are approximate measures. They do not
include amps and wattage used by the light kit.
52 in.
LOW
MED
HIGH
120
Fan
size Watts RPM CFMSpeed Volts Amps
2.68 cu ft
Net Wt
Gross Wt
Cubic Ft
0.066 2.74 76 2544
0.167 9.26 122 4165
0.405 25.89 176 5925
4.83 kg
(10.65 lbs)
8.24 kg
(18.17 lbs)
Contact the Customer Service Team at 1-855-HD-HAMPTON or visit www.HamptonBay.com.
We warrant the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period
of lifetime after the date of purchase by the original purchaser. We also warrant that all other fan parts, excluding any glass or acrylic
blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of three years after the
date of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or
superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All
costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper installa-
tion or by affixing any accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not cover
any changes in brass finish, including rusting, pitting, corroding, tarnishing or peeling. Brass finishes of this type give their longest useful
life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a defect.
Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. We hereby disclaim
any and all warranties, including but not limited to those of merchantability and fitness for a particular purpose to the extent permitted by
law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as specified in the express warranty.
Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall
not be liable for incidental, consequential, or special damages arising out of or in connection with product use or performance except as
may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential damages, so the above
exclusion or limitation may not apply to you. This warranty gives specific legal rights, and you may also have other rights which vary from
state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the warranty
must be paid by the customer.
5
Pre-Installation (continued)

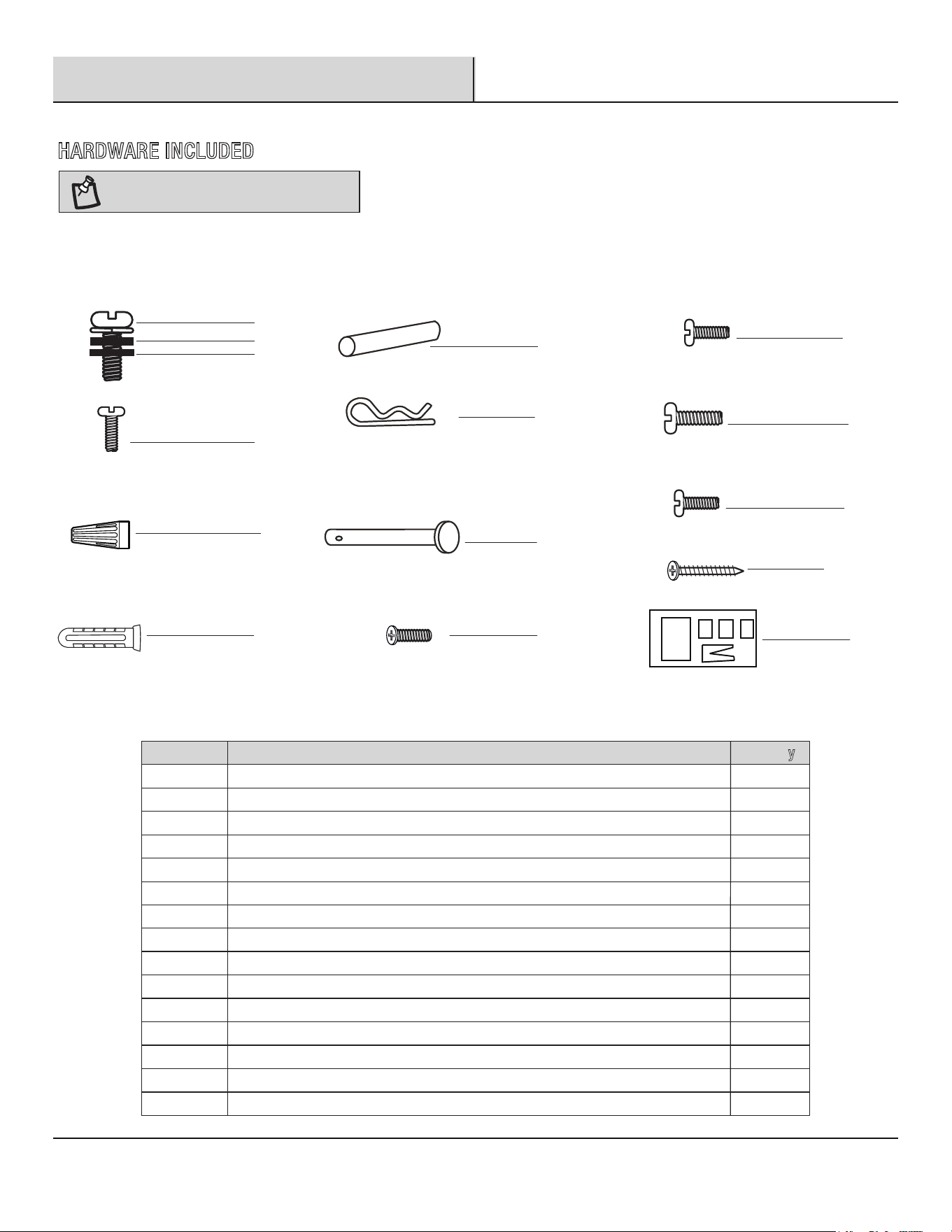

HARDWARE INCLUDED
NOTE:
Hardware not shown to actual size.
AA
BB
CC
GG
HH
II
JJ
KK
DD
EE
FF
LL-1 & LL-2
OO
NN
MM
AA
BB
CC
DD
EE
FF
GG
HH
Blade screw with spring washer (6 preassembled)
(6 preassembled)
Part Description
7
Q
uantity
II
JJ
KK
Wire nuts
Rubber washer (6 preassembled)
Flywheel screw
7
Metal washer (6 preassembled) 7
7
3
1
1
1
1
2
2
2
2
1
Cross pin (not to scale) (preassembled)
Hitch pin (preassembled)
Hanger ball set screw (preassembled)
Fan motor assembly coupling set screw (preassembled)
Mounting bracket screw (preassembled)
Lock pin (not to scale) (preassembled)
Dry Wall Anchors (Orange)
MM
4Drywall/Wood Screw (short&long)
Machine Screw
Blade Balancing Kit
LL-1 & LL-2
NN
OO
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
6
Pre-Installation (continued)

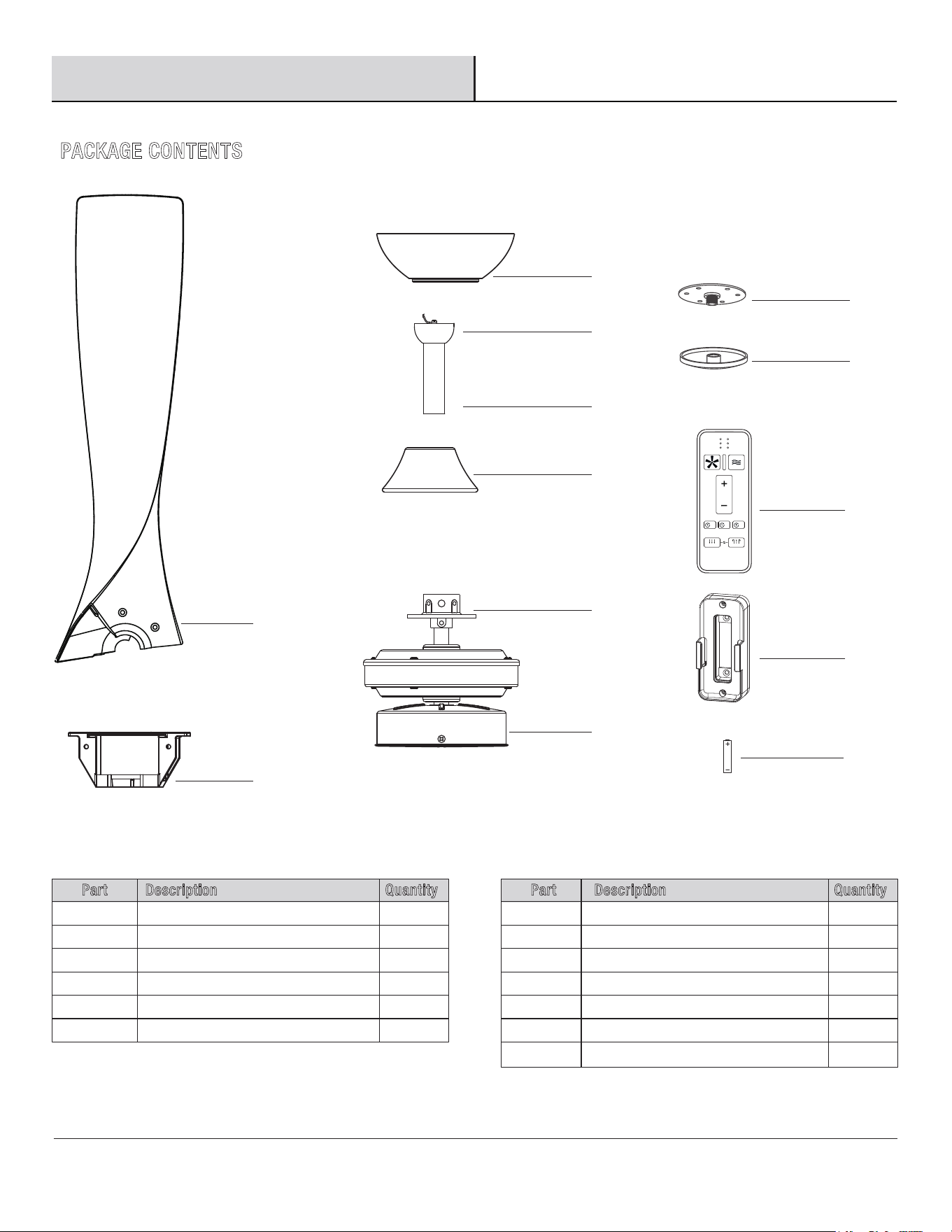

PACKAGE CONTENTS
D
F
H
G
B
A
C
I
J
K
L
D
E
F
Hanger ball (preassembled)
Downrod (preassembled)
1
1
1
Part
A
B
C
Qu
antity
3
1
1
D
escription
Blade
Mounting bracket
Canopy
Fan motor assembly
Flywheel
Finial
1
Coupling cover
H
I
J
Part
G
Qu
antityDescription
L
K
Remote control
1
2
1
1
1
Wall mounting bracket
E
M
ON/OFF BREEZE
6 SPEED
SUMMER
WINTER
FAN DIRECTION
HOLD 3 SEC
HR
2
HR
4
HR
8
TIMER
Battery AAA 1.5 V
M 1Motor collar
7
WARNING: To reduce the risk of fire, electric shock, or
personal injury, mount the fan to an outlet box marked
acceptable for fan support. An outlet box commonly used for
the support of lighting fixtures may not be acceptable for fan
support and may need to be replaced. If in doubt, consult a
qualified electrician.
Installation

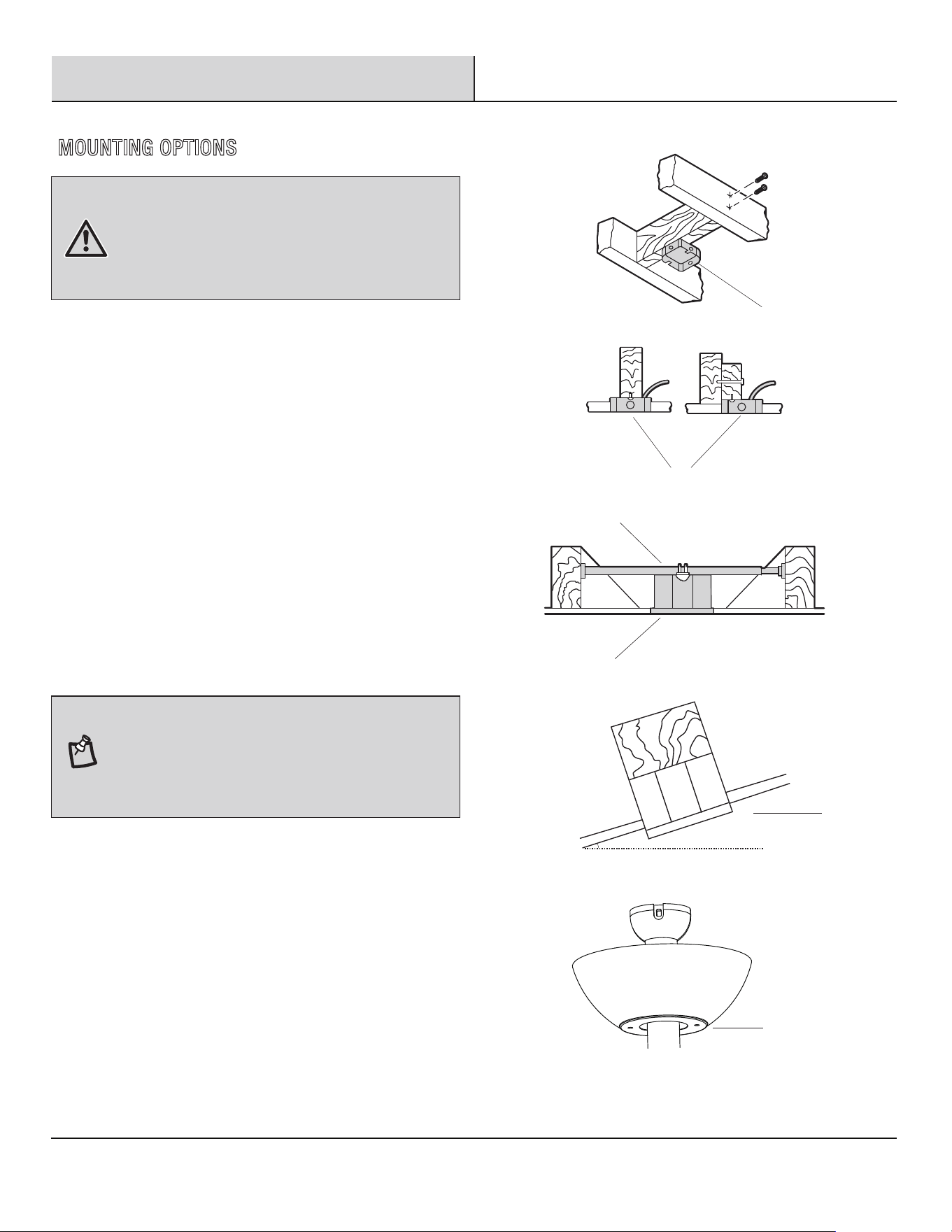

MOUNTING OPTIONS
1
1
1
3
Make sure you are using an approved UL Listed outlet box
and it is installed correctly.
□
□
□
□
NOTE:
You may need a longer downrod to maintain proper
blade clearance when installing on a steep, sloped ceiling.
The maximum angle allowable is 18°. If the canopy touches
the downrod, take off and remove the decorative ring from
the canopy bottom and turn the mounting bracket 180°
before attaching the canopy to the mounting plate (2).
decorative ring
2
18°
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Disconnect the power by removing the fuses or turning off
the circuit breakers.
Secure the outlet box (1) (not included) directly to the
building structure. Use appropriate fasteners and materials
(not included). The outlet box and its bracing must be able
to fully support the weight of the moving fan (at least 35
lbs). Do not use a plastic outlet box.
The illustrations to the right show three different ways to
mount the outlet box (not included).
To hang your fan where there is an existing xture but no
ceiling joist, you may need an installation hanger bar(3) (not
included), as shown.
8

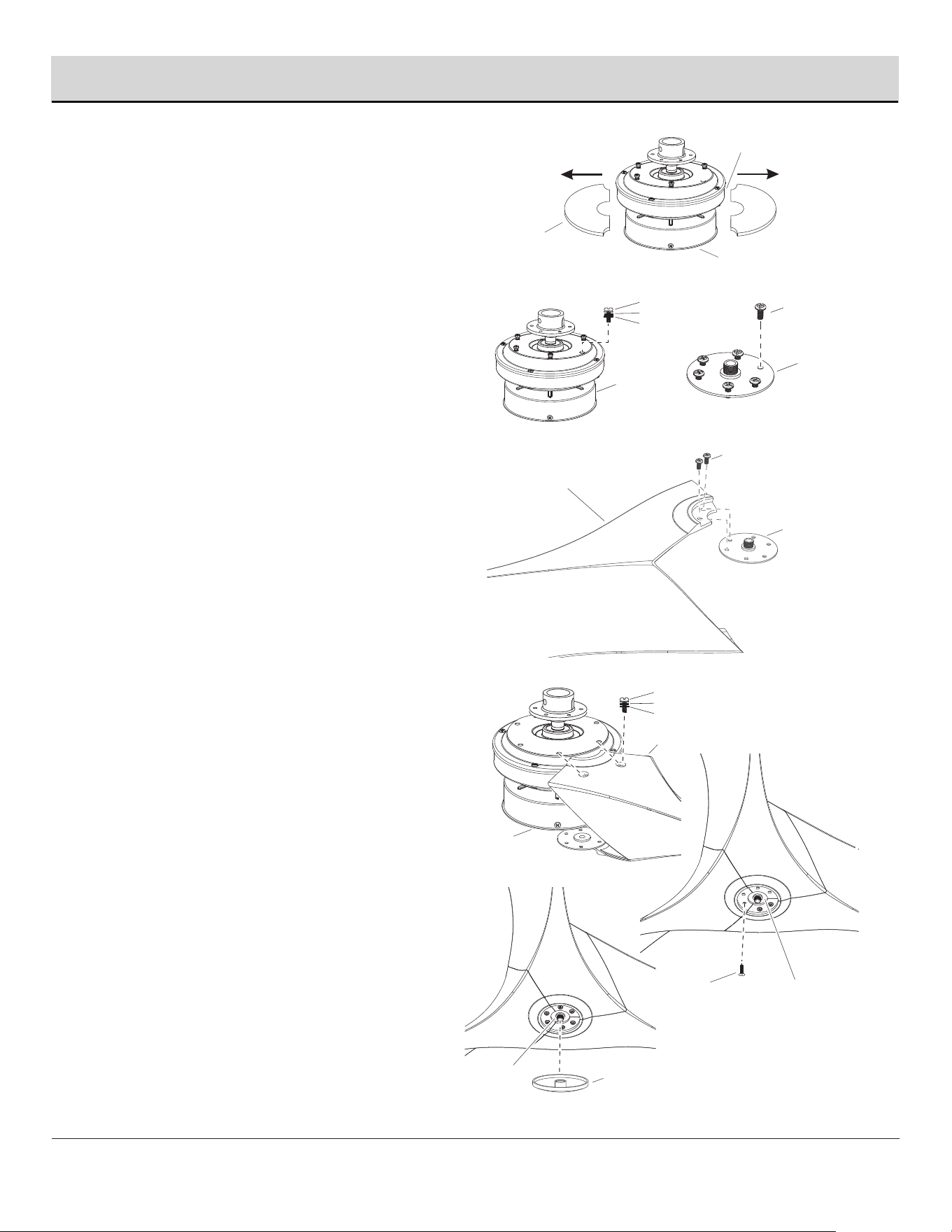

Assembly — Attaching the Fan Blade
G
A
G
H
H
H
H
DD
A
I
DD
DD
□
Remove the six blade screws with spring washers (AA),
metal washers (BB) and rubber washers (CC) from the
fan motor assembly (G).
□
Please remove the paper boards between the motor and
the wire box before assembly. This paper board is used
for protection only.
Fastening the blade assemblies
to the fan motor assembly
1
□
Remove the six flywheel screws (DD) from the flywheel
(H).
□
Attach the flywheel (H) to one of the three blades (A) using
two flywheel screws (DD).
□
Attach the blade (A) with the flywheel (H) to the fan motor
assembly (G) using two blade screws with spring washers
(AA), two metal washers (BB) and two rubber washers (CC).
Attach the other blades (A) to the fan motor assembly (G).
□
Reinstall the four flywheel screws (DD) to the flywheel (H).
□
Screw the finial (I) to the flywheel (H). Ensure the finial (I)
is tight.
paper board
wire box
motor
AA
BB
CC
AA
BB
CC
9

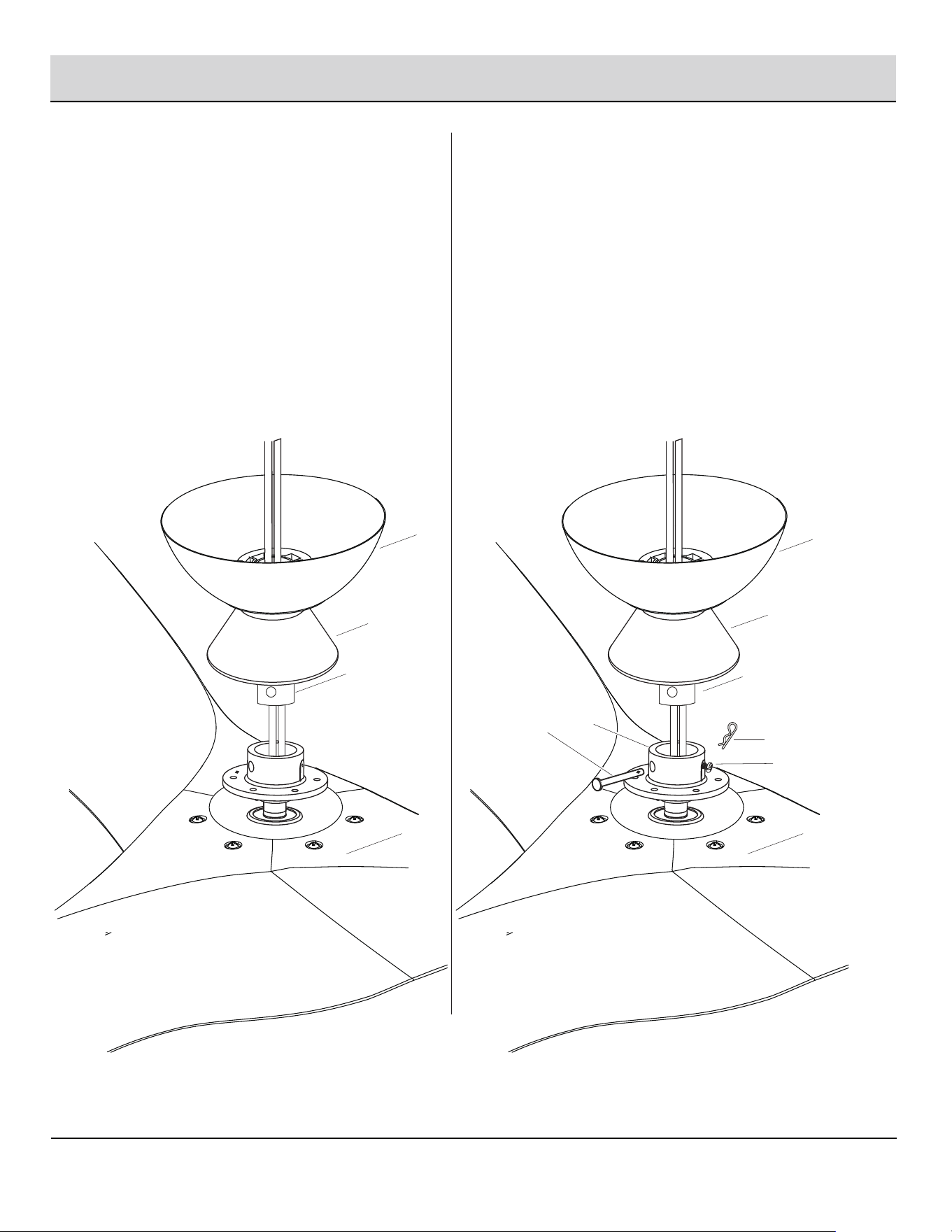

Assembly — Hanging the Fan
□
□
□
□
Loosen the two fan motor assembly coupling set screws (JJ)
from the fan motor assembly (G) coupling.
Thread the downrod (E) into the fan motor assembly (G) coupling.
Align downrod (E) and motor collar (M) holes, insert lock pin (HH) and
secure it with the hitch pin (GG).
Tighten the fan motor assembly coupling set screws (JJ).
Attaching the downrod to the
fan motor assembly
3
JJ
HH
M
GG
G
□

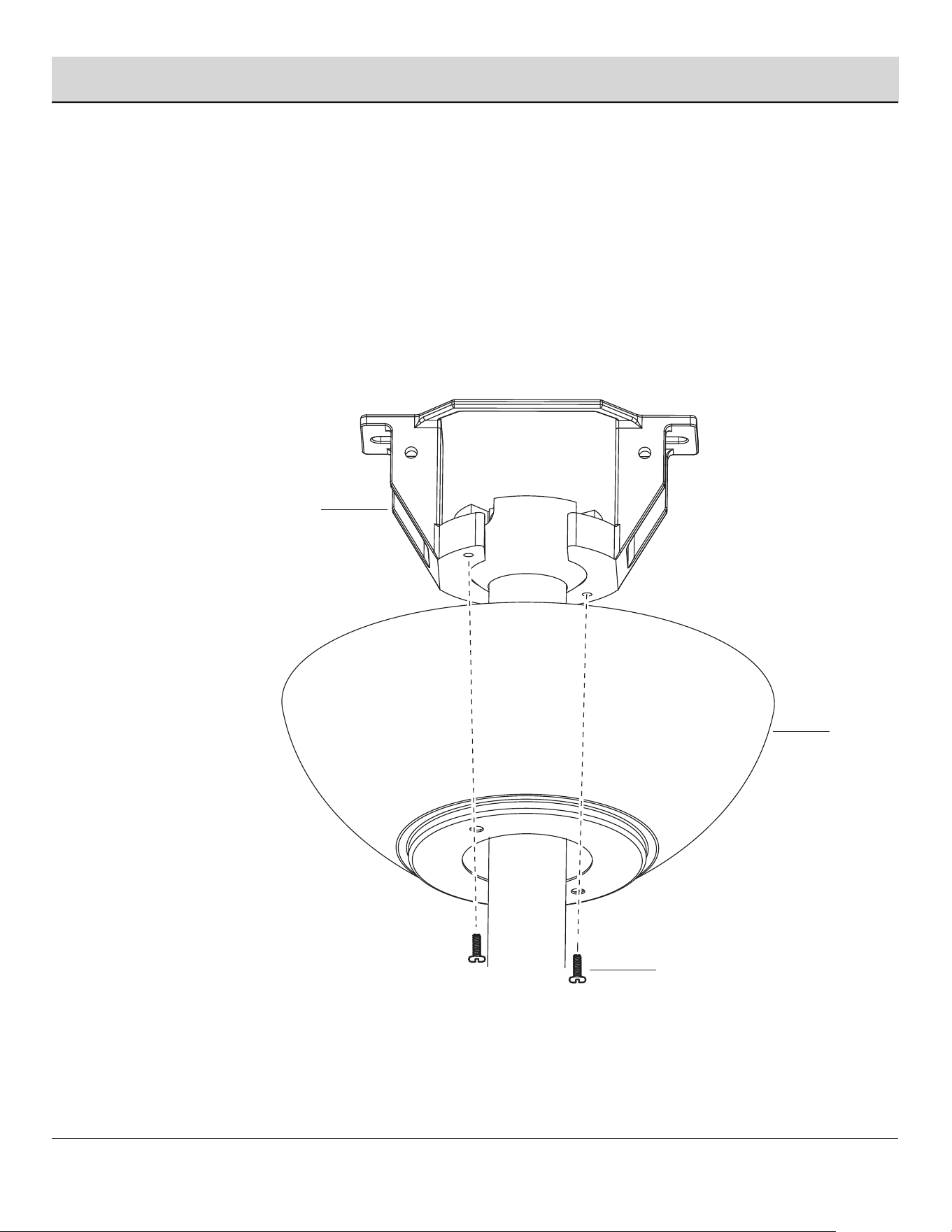

Slip the coupling cover (F) and canopy (C) onto the downrod
(E).
□ Carefully feed the fan wires up through the downrod (E).
Attaching the coupling cover and
canopy to the downrod
2
G
C
E
E
C
F
F
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
10
Assembly — Hanging the Fan (continued)
4
Attaching the mounting bracket to
the outlet box
□

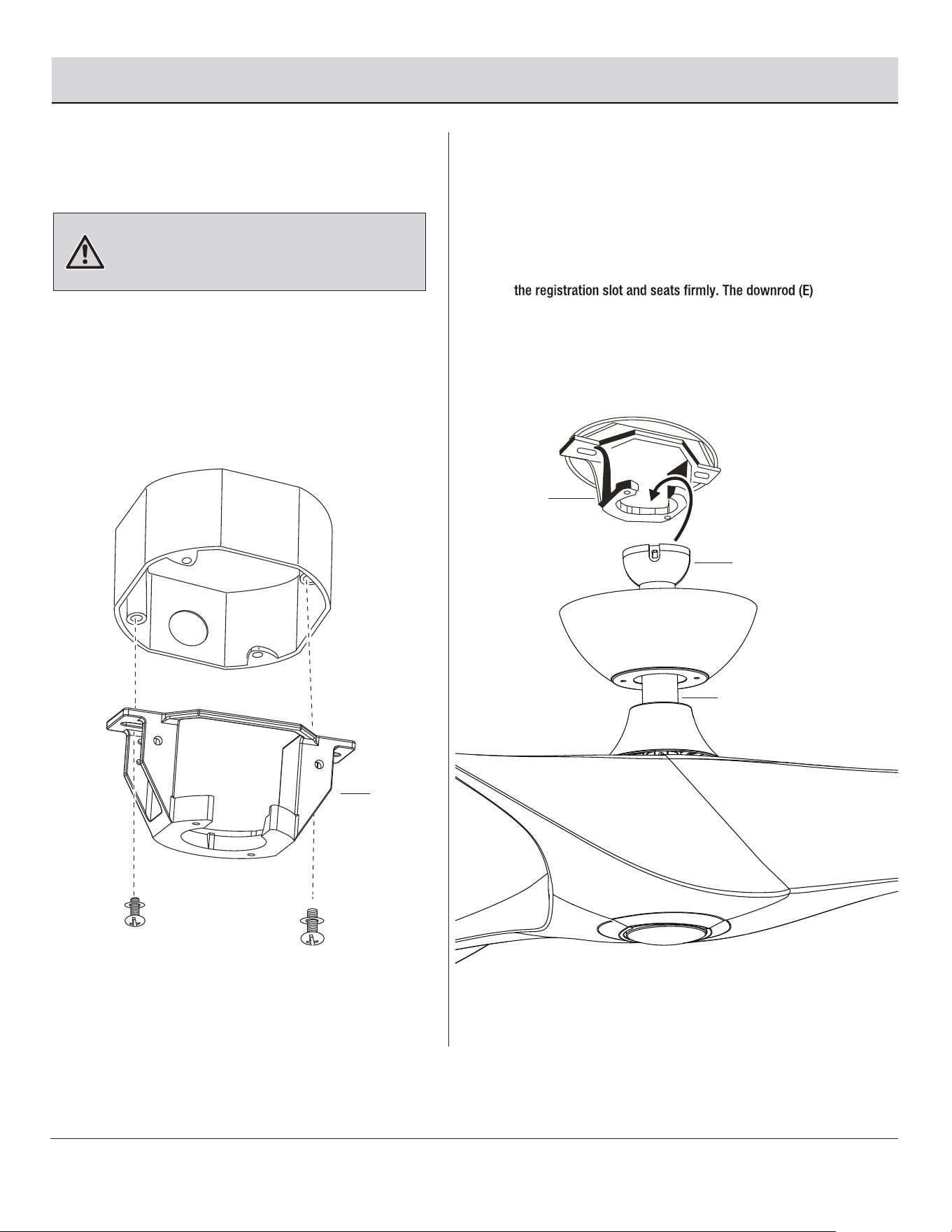

Secure the mounting bracket (B) to the ceiling outlet box
with the screws and washers provided with your outlet
box.
WARNING: To reduce the risk of fire, electric shock, or
other personal injury, mount the fan only to an outlet box or
supporting system marked acceptable for fan support and
use the mounting screws provided with the outlet box.
B
E
B
5
Hanging the fan assembly into the
mounting bracket
D
□
□
Lift the fan assembly into position, and place the hanger
ball (D) into the mounting bracket (B).
Rotate the fan assembly until the check groove drops into
should not rotate if this is done correctly.
11
Assembly — Hanging the Fan (continued)
6
Making the electrical connections
WARNING: To avoid possible electrical shock, ensure the
electricity is turned off at the circuit breaker or main fuse box
before wiring.
WARNING: Check to see that all connections are tight,
including the ground, and that no bare wire is visible at the
wire nuts, except for the ground wire.

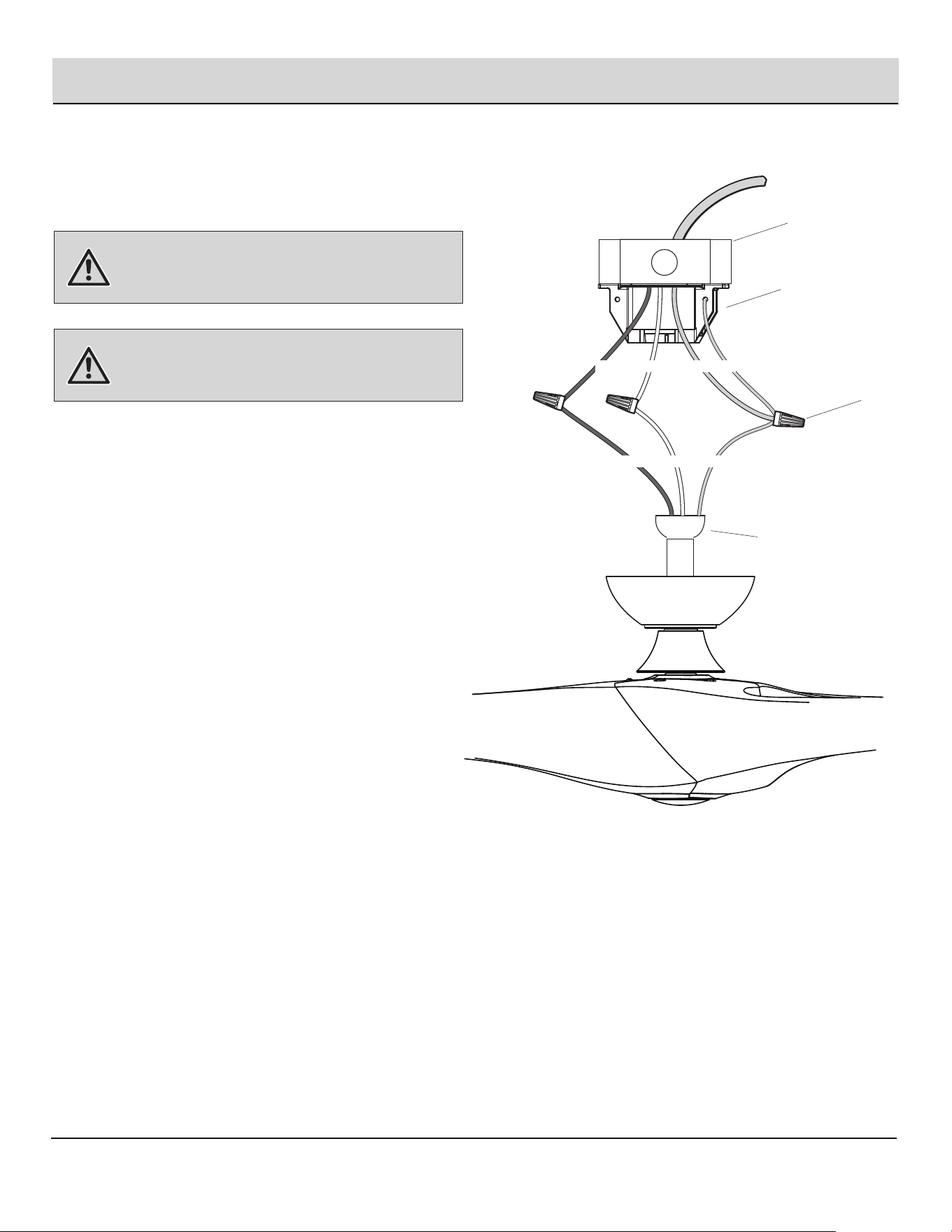

Follow the steps below to connect the fan to your house
supply wires. Secure the wire nuts (EE ) supplied with your
fan by wrapping the connections with electrical tape.
□ Connect the black (hot) wire from the ceiling to the
black wire from the fan.
□ Connect the white (neutral) wire from the ceiling to
the white wire from the fan.
□
Connect the ground conductor of the 120-volt supply
from the ceiling (this may be a bare wire or a wire with
green colored insulation) to the green ground lead(s) of
the fan. When using standard ceiling mounting, there
are two green grounding leads: one from the mounting
bracket (B) and one from the hanger ball (D).
□ Secure the wire connections with plastic wire nuts
(EE ).
□ After connecting the wires, spread them apart so that
the green and white wires are on one side of the
outlet box (1) and the black wire is on the other side.
Carefully tuck the wire connections up into the outlet
box (1).
1
B
EE
D
Black White
Green
Black White
Green
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
12
Assembly — Attaching the Canopy
KK
C
7
Securing the fan motor assembly to the mounting bracket
□
Remove two mounting bracket screws (KK) from the mounting bracket (B).
□
Attach the canopy (C) to the mounting bracket (B) by using the two mounting bracket screws (KK) previously removed.
□
Tighten the mounting bracket screws (KK).
B
13
Operation
Pressing SUMMER mode ( ) for 3 seconds sets fan to down direction.
Pressing WINTER mode ( ) for 3 seconds sets fan to up direction.
□
□
□
□
□
□
□
□
Press the TIMER (4) (2H/4H/8H) buttons to automatically turn the fan off after 2, 4 or 8 hours.
Holding the TIMER (4) for 3 seconds will cancel Timer mode.
Press button (3)
+ to increase speed and - to decrease speed. You can select fan speed 1-6.
Press and release the ON/OFF ( ) button (1), the fan will turn ON and OFF accordingly.
Press and release the BREEZE ( ) button (2) to activate the Comfort Breeze mode.
Press and release the button to cycle through speeds 1-5. Holding the BREEZE button (2)
for 3 seconds will cancel Comfort Breeze mode.
NOTE:
On start up, your ceiling fan will oscillate back and forth. This is NORMAL OPERATION for a DC ceiling fan as it goes through its
calibration cycle. The fan is NOT DEFECTIVE.
NOTE: You must turn the fan on prior to using the timer function.
Install two 1.5V AAA batteries(L) into the remote control (J). To prevent damage to
the remote control, remove the battery if not used for long periods of time.
WARNING: Do not short-circuit, disassemble, heat up,
connect improperly, or dispose of used batteries in fire. Do
not recharge or mix batteries with used or other battery
types. Immediately remove used batteries.
WARNING: a) The cells shall be disposed of properly,
including keeping them away from children; and
b) Even used cells may cause injury.
WARNING: Chemical Burn Hazard. Keep batteries away
from children. Always completely secure the battery
compartment. If the battery compartment does not close
securely, stop using the product, remove the batteries, and
keep it away from children. If you think batteries might have
been swallowed or placed inside any part of the body, seek
immediate medical attention.
The buttons must be pressed when the fan is in operation.
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
J
ON/OFF BREEZE
6 SPEED
SUMMER
WINTER
FAN DIRECTION
HOLD 3 SEC
HR
2
HR
4
HR
8
TIMER
21
3
4
5
LED light

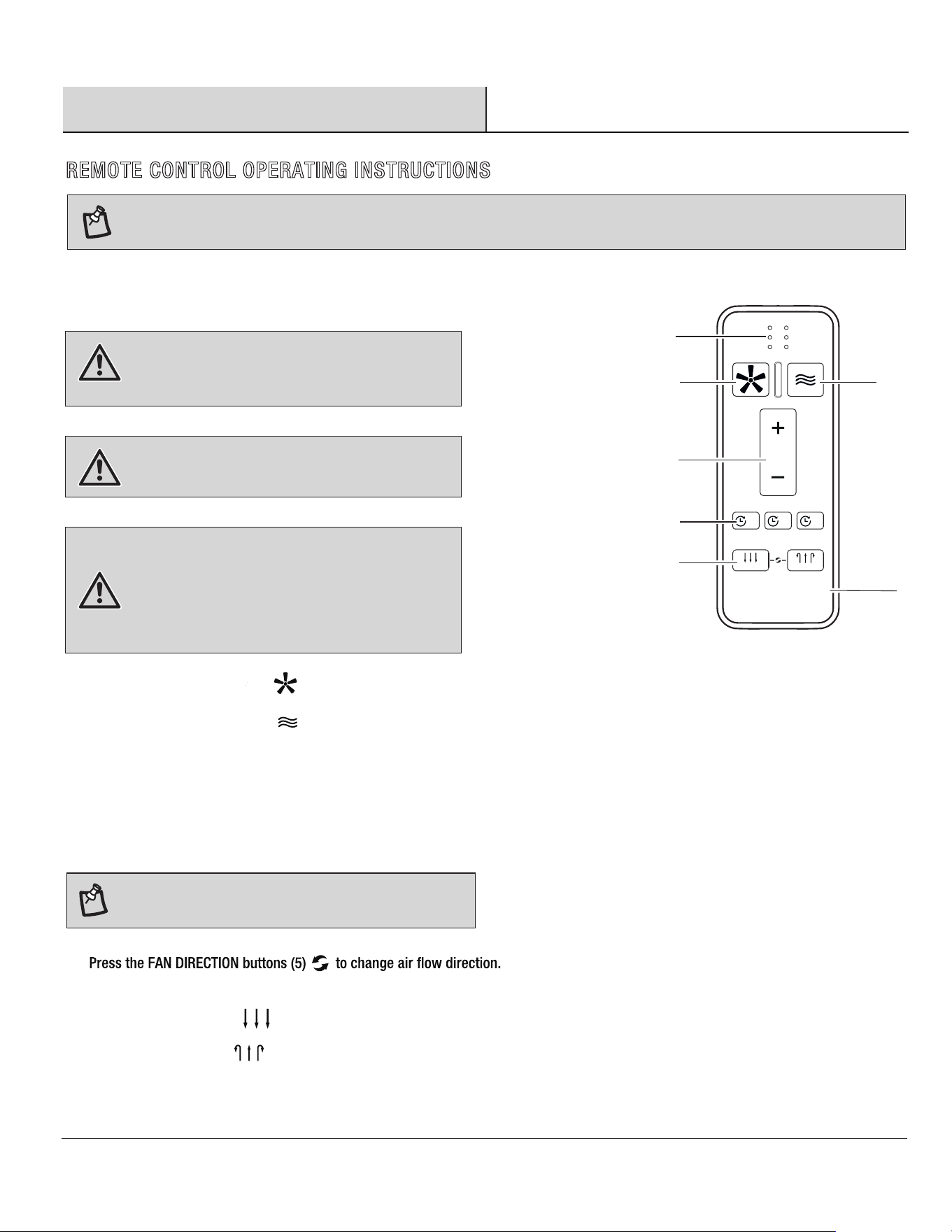

REMOTE CONTROL OPERATING INSTRUCTIONS
Should you desire to use another remote control (J) unit with your
new fan, install one using the steps below:
Turn the main power source off to begin the learning process.
□
Wait for at least 1 minute before restoring the power to the unit.
□
Within 30 seconds of turning the fan’s AC power ON,
press and hold the ON/OFF button (1) for 5
seconds to enter the learning function. Once the
receiver has detected the set frequency, the fan will
beep and will begin spinning using its last speed
settings.
□
14
Operation (continued)

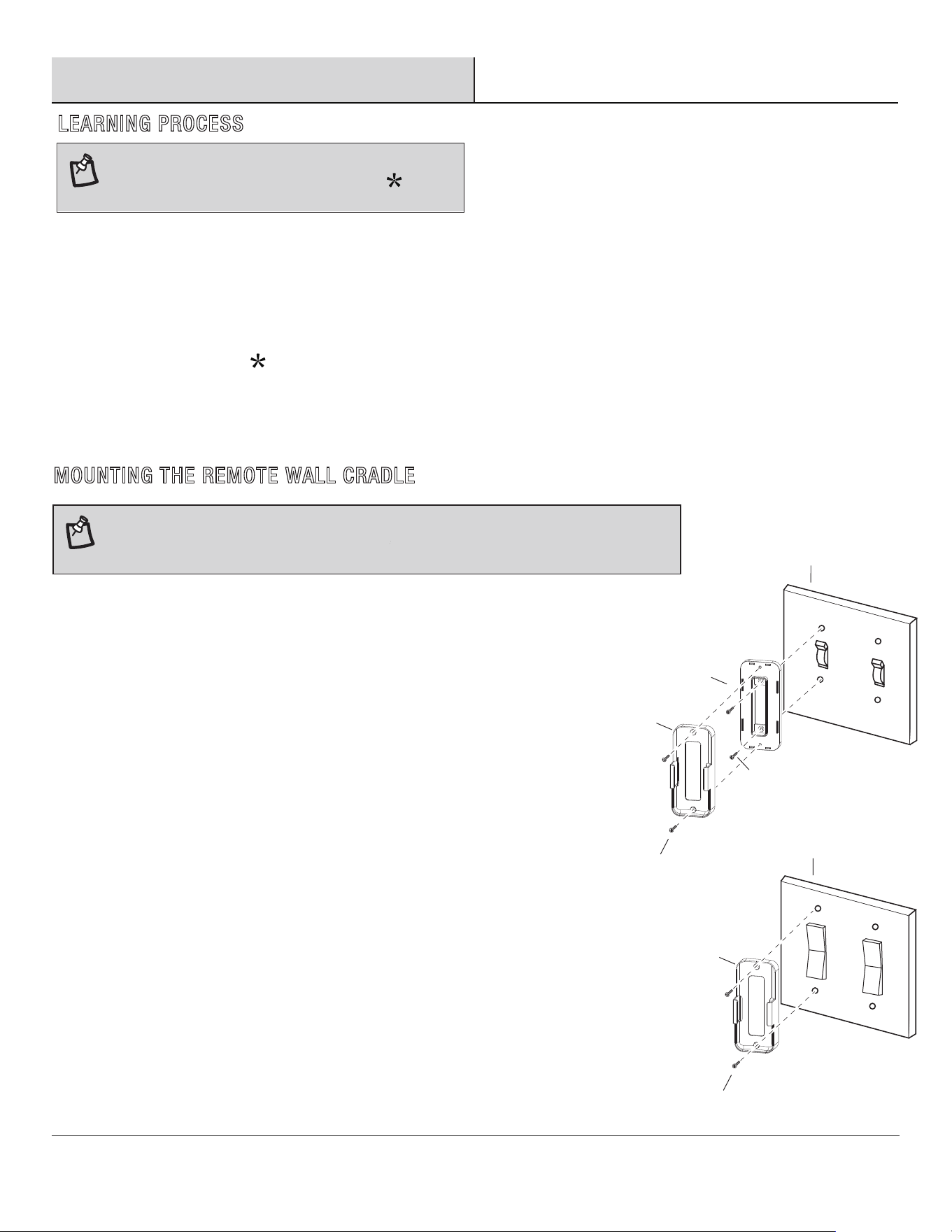

MOUNTING THE REMOTE WALL CRADLE
LEARNING PROCESS
NOTE: After the AC power is on, do not press any other button
on the remote control before pressing the ON/OFF( ) button.
Doing so will cause the procedure to fail.
NOTE: The remote wall cradle is designed to allow you to access an existing switch. The remote wall
cradle can be mounted on the wall or to the face plate of a standard toggle switch or a paddle switch.
Follow the instructions below for the option that best suits your needs.
1. Attaching over a standard toggle switch
2. Attaching over a paddle switch
Remove the two screws from the toggle switch face plate.
□
Place the toggle switch spacer over the toggle switch face plate and align the
two large holes of the toggle switch spacer with the holes in the face plate.
Secure the toggle switch spacer to the face plate using the two included
machine screws (LL-1).
Attach the remote wall cradle to the toggle switch spacer using the included two
short tapered screws (NN). Screw a short tapered screw (NN) into the top hole
and bottom hole of the wall cradle and into the toggle switch spacer until tight.
□
Remove the two screws from the paddle switch face plate.
□
Place the remote wall cradle over the paddle switch and align the two holes of
the remote wall cradle with the holes in the face plate. Secure the remote wall
cradle to the face plate using the two included machine screws (LL-1).
□
□
NN
Spacer
Toggle switch face plate
Paddle switch face plate
Remote Cradle
LL-1
Remote Cradle
LL-1
Care and Cleaning
□ Check the support connections, brackets, and blade
attachments twice a year. Ensure they are secure.
Because of the fan’s natural movement, some
connections may become loose over time. It is not
necessary to remove the fan from the ceiling.
□ Clean your fan periodically. Use only a soft brush or
lint-free cloth to avoid scratching the finish. The plating is
sealed with a lacquer to minimize discoloration or
tarnishing.
□ (Optional) Apply a light coat of furniture polish to the blades.
□ (Optional) Cover small scratches with a light application of
shoe polish.
Do
□ Do not use water when cleaning. Water could damage the
motor, or possibly cause an electrical shock.
□ Do not apply oil to your fan or motor. The motor has
permanently lubricated, sealed ball bearings.
Do not
WARNING: Make sure the power is off before cleaning
your fan.
NOTE: Screw wall anchors are included for extra support. The
included screws are designed to screw easily into the wall. If you
would like a more permanent or secure hold, install the wall
anchors prior to attaching the wall cradle to the wall.
3. Attaching to the wall
Position the remote wall cradle in the desired position and attach to the wall
using the included two long tapered screws (LL-2).
□
Operation (continued)
LL-2
Remote Cradle
15
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Troubleshooting
WARNING: Ensure the power is off at the electrical
panel box before you attempt any repairs. Refer to the section
“Making the Electrical Connections” on page 11.
□ Do not connect the fan with wall mounted variable speed control(s).
□
□ Check that all blades and blades screws are secure.
□ Most fan wobble problems are caused when blade levels are unequal. Check this level by selecting a
point on the ceiling above the tip of one of the blades. Measure from a point on the center of each blade
to the point on the ceiling. Rotate the fan until the next blade is positioned for measurement. Repeat for
each blade. Measurements deviation should be within 1/8 in. Run the fan for 10 minutes.
□ Use the enclosed blade balancing kit (OO) if the blade wobble is still noticeable.
The fan wobbles.
The remote control is
not working.
Problem Solution
□ Check main and branch circuit fuses or breakers.
□ Check line wire connections to the fan and switch wire connections in the switch housing.
□
Check to make sure the remote control and receiver are set to the same frequency after the
learning process.
Check to make sure the remote control and receiver are set to the same frequency after the learning process.
□ Make sure all motor housing screws are snug.
□
□ Make sure wire nut connections are not rattling against each other or the interior wall of the switch
housing.
□ Allow a 24-hour "breaking-in" period. Most noises associated with a new fan disappear during this
time.
□ Make sure there is a short distance from the ceiling to the canopy. It should not touch the ceiling.
□ Make sure your outlet box is secure and rubber isolator pads are used between the mounting bracket
and outlet box.
The fan will not start.
The fan sounds noisy.
The fan moves backwards
and forwards when turned
on.
This is normal start-up procedure for DC motor fans. The partial movement during start-up is the result of
the DC motor aligning the internal magnetic poles for proper motor operation. This design saves electricity
and allows the fan to operate more quietly than standard AC motor fans.
□
16
Retain this manual for future use.
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
