USE AND CARE GUIDE
KEMPER II 52 INCH CEILING FAN
Model #AL663A-LN
THANK YOU
THANK YOU
1-855-HD-HAMPTON
HAMPTONBAY.COM
Questions, problems, missing parts? Before returning to the store,
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday
call Hampton Bay Customer Service
Operation ......................................................................
Remote Control Operating Instructions ..................................
Reverse Switch Operating Instructions ..................................
Care and Cleaning .......................................................
Troubleshooting ...........................................................
Service Parts ................................................................
15
15
16
16
17
18
Table of Contents
2
Table of Contents ..........................................................
Safety Information .........................................................
Warranty .........................................................................
Pre-installation ..............................................................
Specications ..........................................................................
Tools Required .........................................................................
Hardware Included ..................................................................
Package Contents ....................................................................
Installation .....................................................................
Assembly ........................................................................
Attaching the Fan Blades .........................................................
Hanging the Fan .....................................................................
Attaching the Motor Housing ..................................................
2
3
4
4
4
4
5
6
7
8
8
10
14
READ AND SAVE THESE INSTRUCTIONS
Safety Information
3
WARNING: To reduce the risk of electric shock, this fan
must be installed with an isolating wall control/switch.
WARNING: To reduce the risk of personal injury, do not
bend the blade arms (also referred to as anges), when
installing the brackets, balancing the blades or cleaning the
fan.
WARNING: Do not insert foreign objects between rotating
fan blades.
WARNING: To reduce the risk of re, electric shock or
personal injury, mount the fan to the outlet box marked
acceptable for fan support with the screws provided with the
outlet box.
CAUTION: To reduce the risk of personal injury, use only
the screws provided with the outlet box.
1. To reduce the risk of electric shock, ensure electricity has
been turned off at the circuit breaker or fuse box before
beginning.
2. All wiring must be in accordance with the National Electrical
Code “ANSI/NFPA 70-1999” and local electrical codes.
Electrical installation should be performed by a qualied
licensed electrician.
3. The outlet box and support structure must be securely
mounted and capable of reliably supporting a minimum of 35
lbs (15.9 kg) or less. Use only UL-listed outlet boxes marked
“FOR FAN SUPPORT.”
4. The fan must be mounted with a minimum of 7 ft. (2.1m)
clearance from the trailing edge of the blades to the oor.
5. Avoid placing objects in the path of the blades.
6. To avoid personal injury or damage to the fan and other
items, be cautious when working around or cleaning the fan.
7. Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be
suitable for most cleaning.
8. After making electrical connections, spliced conductors
should be turned upward and pushed carefully up into the
outlet box. The wires should be spread apart with the
grounded conductor and the equipment-grounding conductor
on one side of the outlet box and ungrounded conductor on
the other side of the outlet box.
9. All setscrews must be checked and retightened where
necessary before installation.
10. Suitable for use with solid-state speed control (UC7067RYD
only).
11. This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must
accept any interference received, including interference that
may cause undesired operation.
Warning: Changes or modications to this unit not expressly
approved by the party responsible for compliance could void
the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for
help.
The following responsible party designated in FCC §2.909 is
responsible for this declaration:
Model Number: AL663A-LN
Company Name: TAL INTERNATIONAL CORPORATION
Company Address: 2919 E. Philadelphia St., Ontario, CA 91761, U.S.A.
Full Name: James Lai Title: Manager
Telephone Number: (909) 923-2888 Fax: (909) 923-8337
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
SPECIFICATIONS
SPECIFICATIONS
NOTE: These are approximate measures. They do not
include amps and wattage used by the light kit.
Warranty
4
Pre-InstallationPre-Installation
52 in.
Low
Medium
High
120
Fan size
Fan size
Watts
Watts
RPM
RPM
CFM
CFM
Speed
Speed
Volts
Volts
Amps
Amps
2.07 cu. ft.
N.W.
N.W.
G.W.
G.W.
C.F.
C.F.
6.68 kgs
(14.70 lbs.)
7.9 kgs
(17.38 lbs.)
0.29
0.43
0.5
11.12
30.94
59.57
64
120
166
1736
3429
5017
The manufacturer warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the
factory for a period of lifetime after the date of purchase by the original purchaser. The manufacturer warrants the light kit (excluding any
glass), to be free from defects in workmanship and material at the time of shipment from the factory for a period of three years after the
date of purchase by the original purchaser. The manufacturers also warrants that all other fan parts, excluding any glass or acrylic blades,
to be free from defects in workmanship and material at the time of shipment from the factory for a period of one year after the date of
purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or
superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All
costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper
installation or by afxing any accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not
cover any changes in brass nish, including rusting, pitting, corroding, tarnishing or peeling. Brass nishes of this type give the longest
useful life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a
defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. We hereby
disclaim any and all warranties, including but not limited to those of merchantability and tness for a particular purpose to the extent
permitted by law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as specied in the
express warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to
you. The retailer shall not be liable for incidental, consequential, or special damages arising out of or in connection with product use or
performance except as may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential
damages, so the above exclusion or limitation may not apply to you. This warranty gives specic legal rights, and you may also have other
rights which vary from state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a
claim on the warranty must be paid by the customer.
Contact the Customer Service Team at 1-855-HD-HAMPTON or visit www.hamptonbay.com.

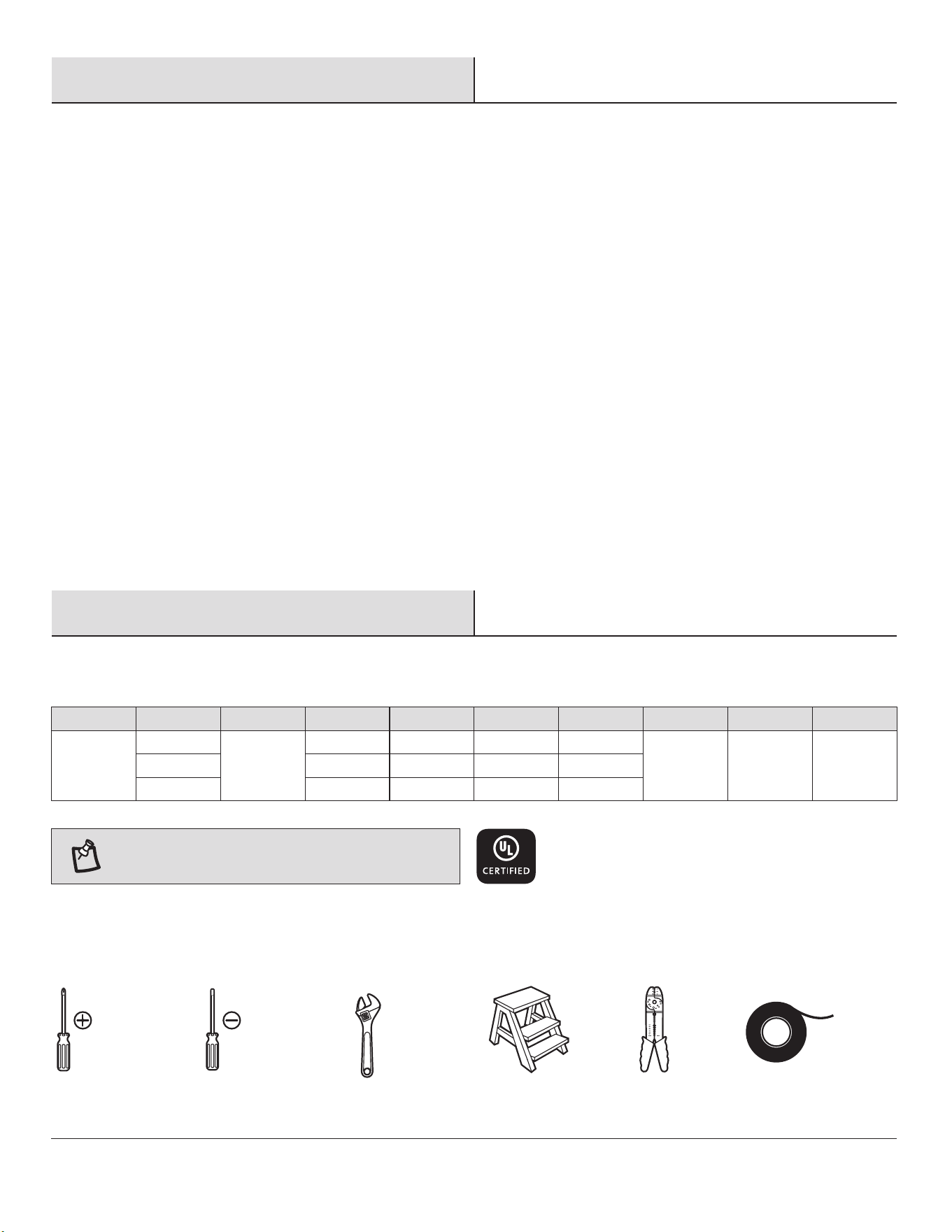

TOOLS REQUIRED
TOOLS REQUIRED
Phillips
screwdriver
Flat blade
screwdriver
Step
ladder
Wire
stripper
Electrical
tape
Adjustable
wrench
Pre-Installation (continued)

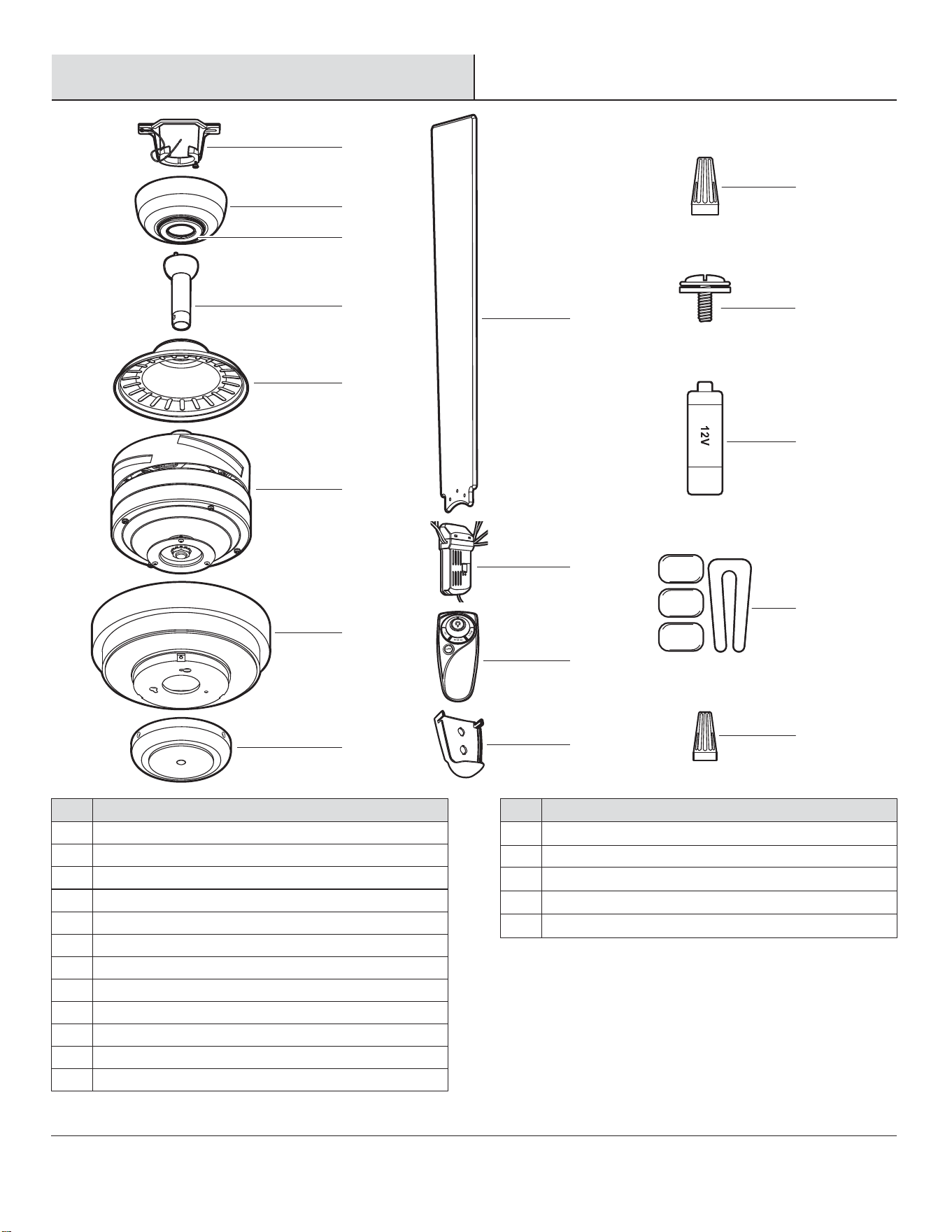

HARDWARE INCLUDED
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
5 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
AA
BB
CC
DD
EE
Plastic wire nut
Blade attachment screws with ber washer
12V battery
Balancing kit
Plastic wire nut
Part
Part
Description
Description
3
13
1
1
6
Quantity
Quantity
AA
DD
BB
EE
CC

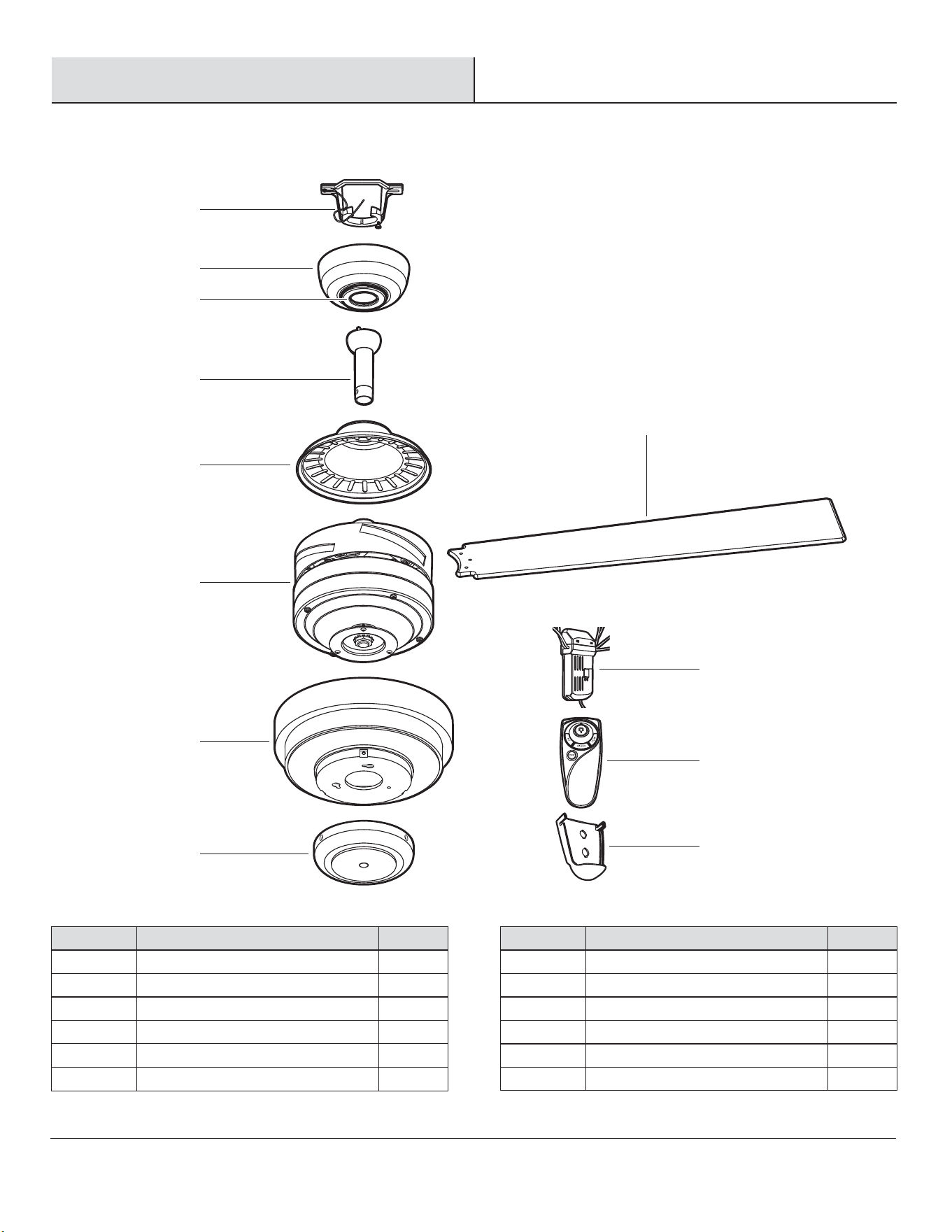

PACKAGE CONTENTS
PACKAGE CONTENTS
Pre-Installation (continued)
6
Part
Part
G
H
I
J
K
L
Description
Description
Motor housing
Decorative cover
Blade
Receiver
Remote control
Remote control holder
Quantity
Quantity
1
1
4
1
1
1
Part
Part
A
B
C
D
E
F
Quantity
Quantity
1
1
1
1
1
1
Description
Description
Mounting bracket (preassembled)
Canopy
Canopy bottom cover (preassembled)
Hanger ball / downrod assembly
Coupling cover
Fan motor assembly
K
J
I
L
A
D
E
F
G
H
B
C

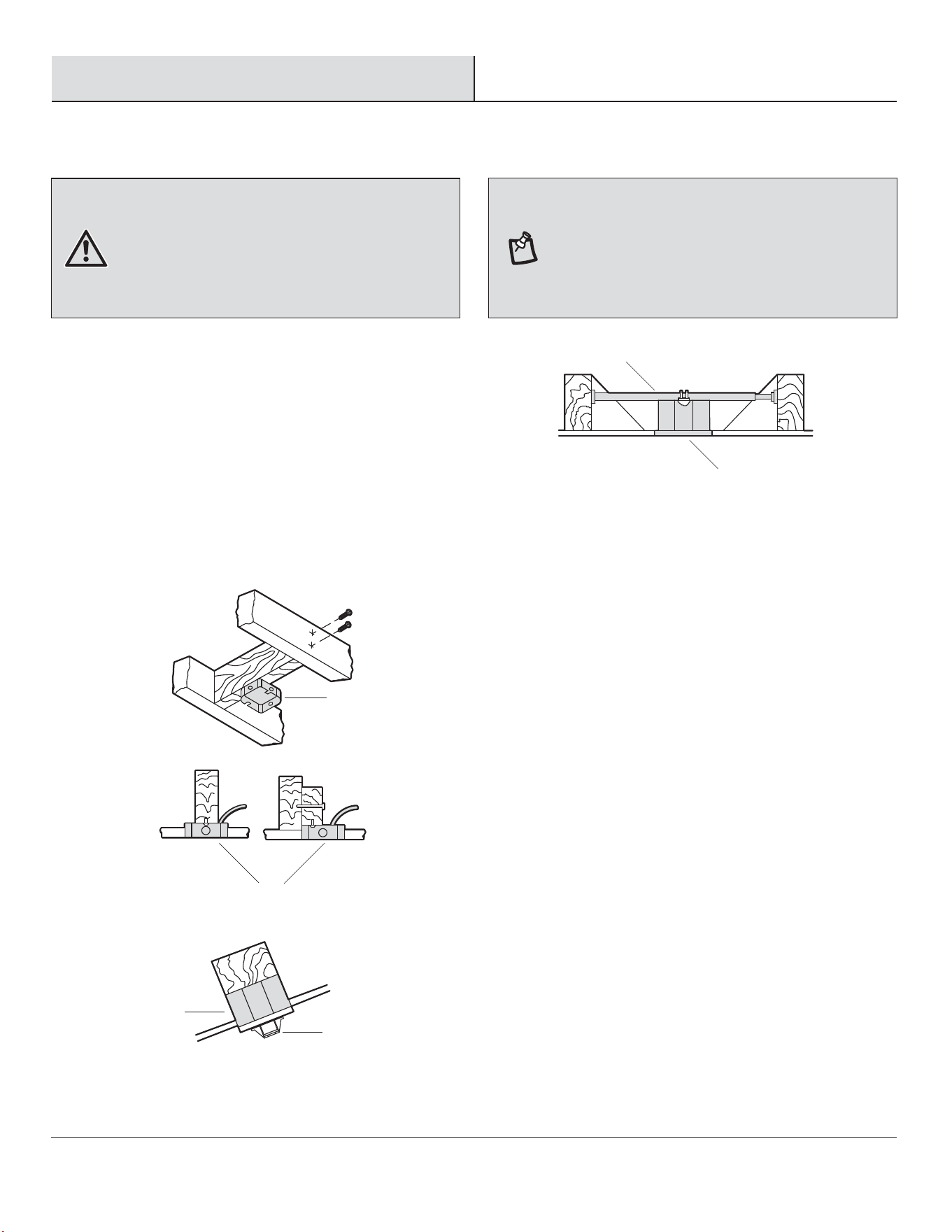

To hang your fan where there is an existing fixture but no ceiling
joist, you may need an installation hanger bar (not included) as
shown above.
If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
□ Disconnect the power by removing the fuses or turning off
the circuit breakers.
□ Secure the outlet box (not included) directly to the
building structure. Use appropriate fasteners and materials
(not included). The outlet box and its bracing must be able
to fully support the weight of the moving fan (at least 35
lbs.). Do not use a plastic outlet box.
The illustrations below show three different ways to mount the
outlet box (not included).
Outlet Box
Outlet Box
Hanger Bar
Outlet Box
Recessed
Outlet
Box
Ceiling
Mounting
Bracket
Installation
MOUNTING OPTIONS
MOUNTING OPTIONS
WARNING: To reduce the risk of fire, electric shock, or
personal injury, mount the fan to an outlet box marked
acceptable for fan support using the screws provided with the
outlet box. An outlet box commonly used for the support of
lighting fixtures may not be acceptable for fan support and
may need to be replaced. If in doubt, consult a qualified
electrician.
NOTE: You may need a longer downrod to maintain proper
blade clearance when installing on a steep, sloped ceiling.
The maximum angle allowable is 18° away from horizontal. If
the canopy (B) touches the hanger ball / downrod assembly
(D), turn the canopy (B) 180° before attaching the canopy (B)
to the mounting bracket (A).
7
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
8
Assembly
WARNING: To reduce the risk of personal injury, do not
bend the blades (I) while installing, balancing the blades (I), or
cleaning the fan.
WARNING: Do not insert foreign objects between rotating
fan blades (I).

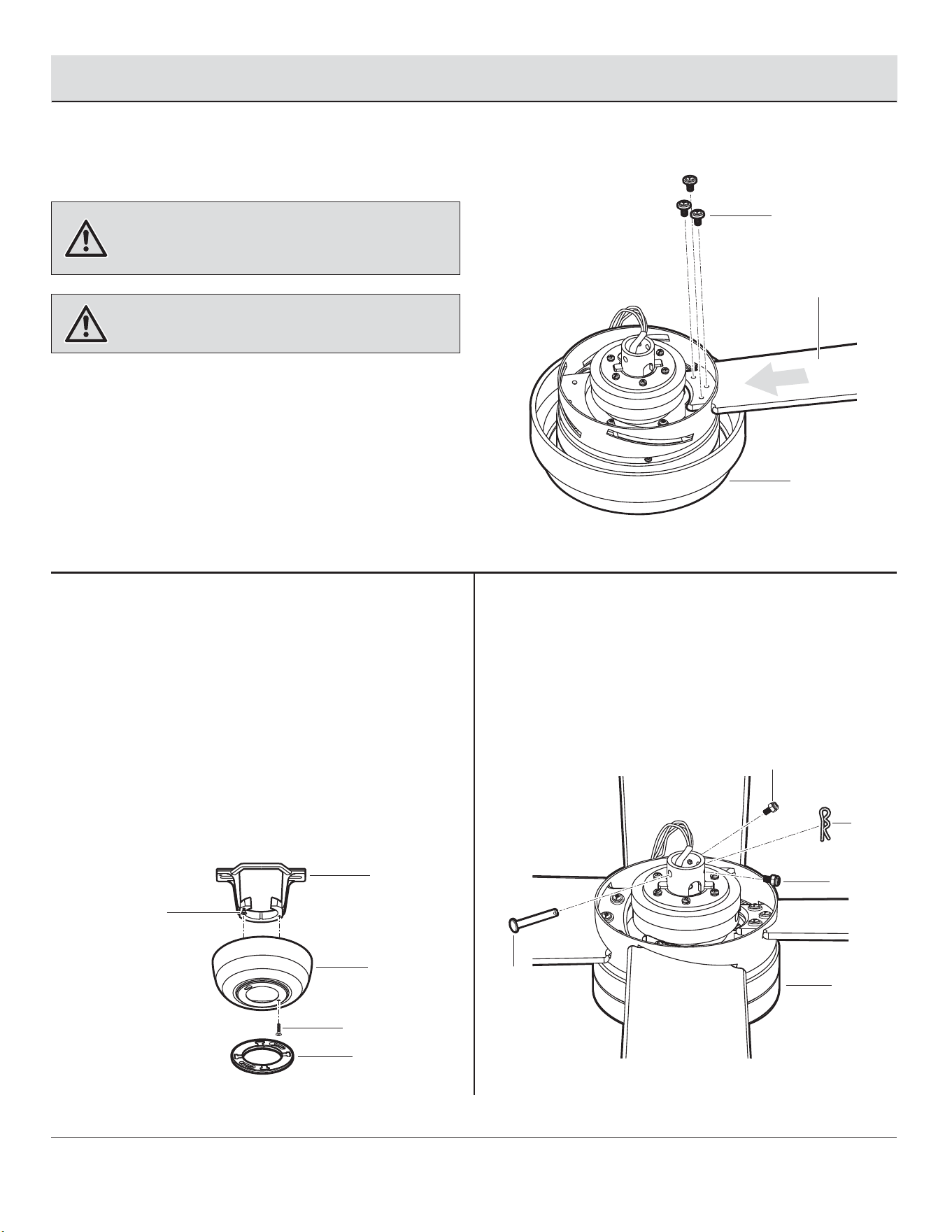

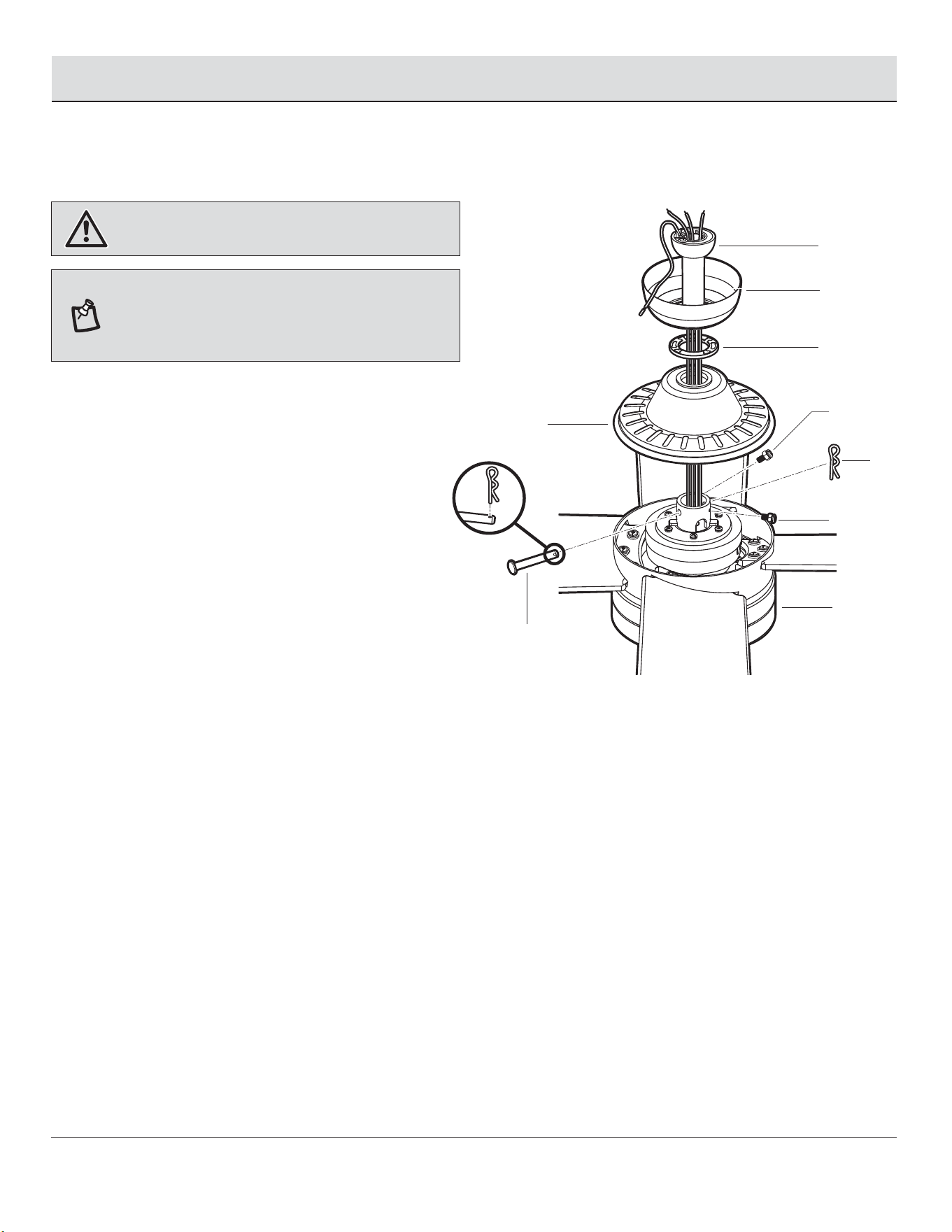

1
Attaching the fan blades
□ Insert the blade (I) through the slots in the top band.
Align the holes from the blade to the holes from the
top housing and secure in place with screws (BB)
provided.
□ Repeat this procedure with the remaining blades (I).
2
Preparing the canopy
□ Remove the canopy bottom cover (C) from the canopy
(B) by turning the canopy bottom cover (C)
counterclockwise.
□ Remove the mounting bracket (A) from the canopy (B)
by removing the non-slotted canopy mounting screw
(FF) from the bottom of the canopy (B) and loosening
the slotted canopy mounting screw (FF) a half turn
from the screw head. Next, turn the canopy (B)
counterclockwise to remove the mounting bracket (A)
from the canopy (B).
FF
A
B
C
FF
3
Preparing the motor
□ Remove the cotter pin (GG), and clevis pin (HH), and
loosen the two collar setscrews (II) from the motor
collar.
F
GG
II
II
HH
BB
F
I
Assembly
4
Assembling the fan
□ Route the wires exiting from the top of the fan motor
assembly (F) through the coupling cover (E) and the
canopy bottom cover (C). Ensure the slot openings
are on top.
□ Route the wires through the canopy (B) and then
through the hanger ball / downrod assembly (D).
□ Align the holes at the bottom of the hanger ball /
downrod assembly (D) with the holes in the collar on
top of the fan motor assembly (F).
□ Carefully insert the clevis pin (HH) through the holes
in the collar and the hanger ball / downrod assembly
(D). Be careful not to jam the clevis pin (HH) against
the wiring inside the hanger ball / downrod assembly
(D).
□ Insert the cotter pin (GG) through the hole near the
end of the clevis pin (HH) until it snaps into the
locked position.
□ Tighten the two collar setscrews (II) on top of the fan
motor assembly (F) rmly.
WARNING: Failure to properly install the cotter pin (GG)
could result in the fan loosening and possibly falling.
NOTE: If a longer downrod is needed (not included), take
out the screw located in the hanger ball, lower the hanger
ball and remove the pin. Remove all three pieces from the
downrod, and assemble them onto the new longer downrod
before proceeding step 3.
9
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
HH
C
E
D
B
F
II
GG
II
WARNING: The tab in the ring must rest in the groove of
the hanger ball (D). Failure to properly seat the tab in the
groove could cause damage to the wiring.
5

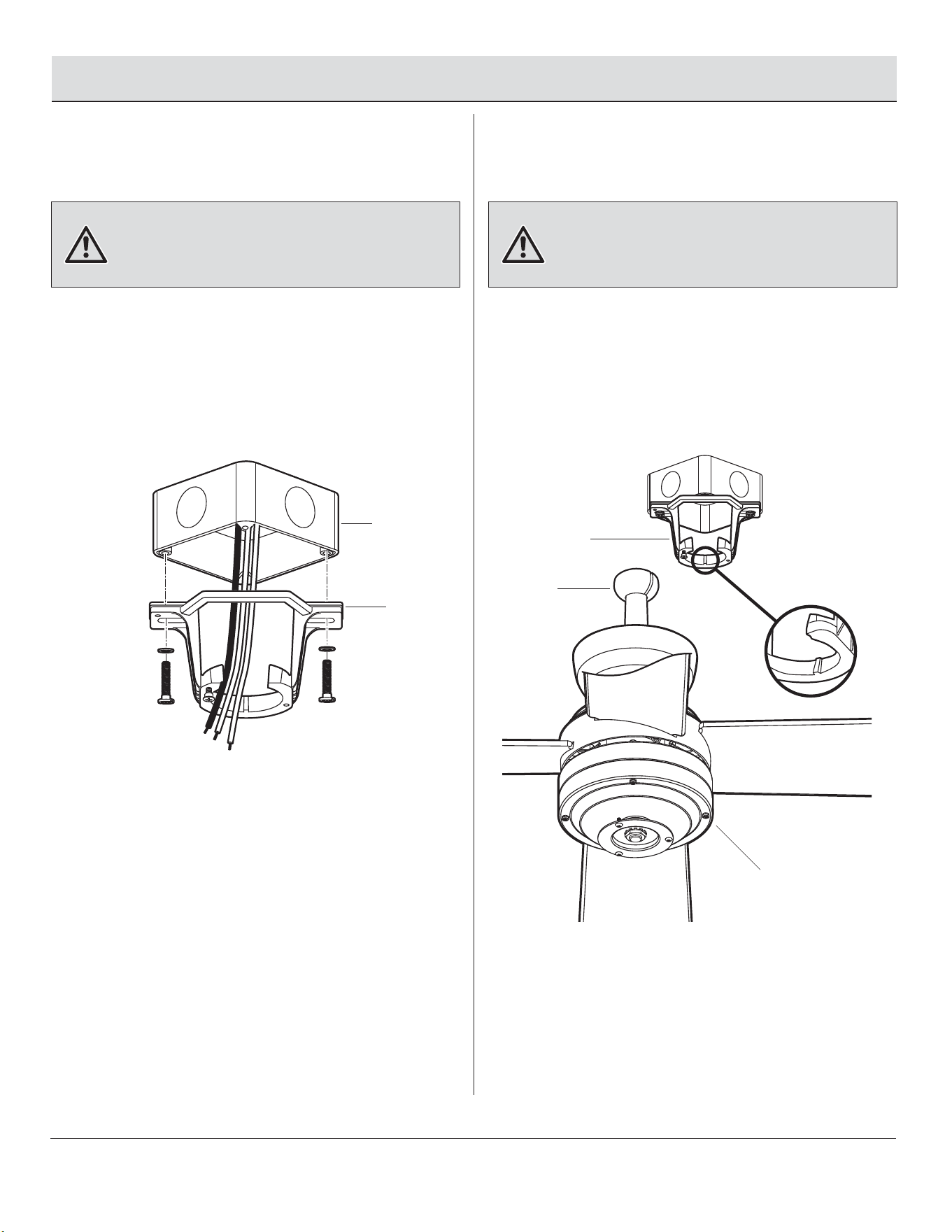

Installing the mounting bracket
to the electrical box
□ Pass the 120-volt supply wires through the center
hole in the mounting bracket (A).
□ Install the mounting bracket (A) to the outlet box with
the screws and washers provided with the outlet box.
□ Securely tighten the two mounting screws.
Hanging the fan from the mounting
bracket
6
Assembly — Hanging the Fan
A
WARNING: To reduce the risk of re, electric shock or
other personal injury, mount the fan only to an outlet box or
supporting system marked acceptable for fan support and
use the mounting screws provided with the outlet box.
□ Carefully lift the fan motor assembly (F) up to the
mounting bracket (A) and seat the hanger ball /
downrod assembly (D) in the mounting bracket (A)
socket. Make sure the tab on the mounting bracket
(A) socket is properly seated in the groove in the
hanger ball / downrod assembly (D). This will help to
balance the ceiling fan.
F
D
A
Outlet
Box
10
Assembly — Hanging the Fan (continued)
7

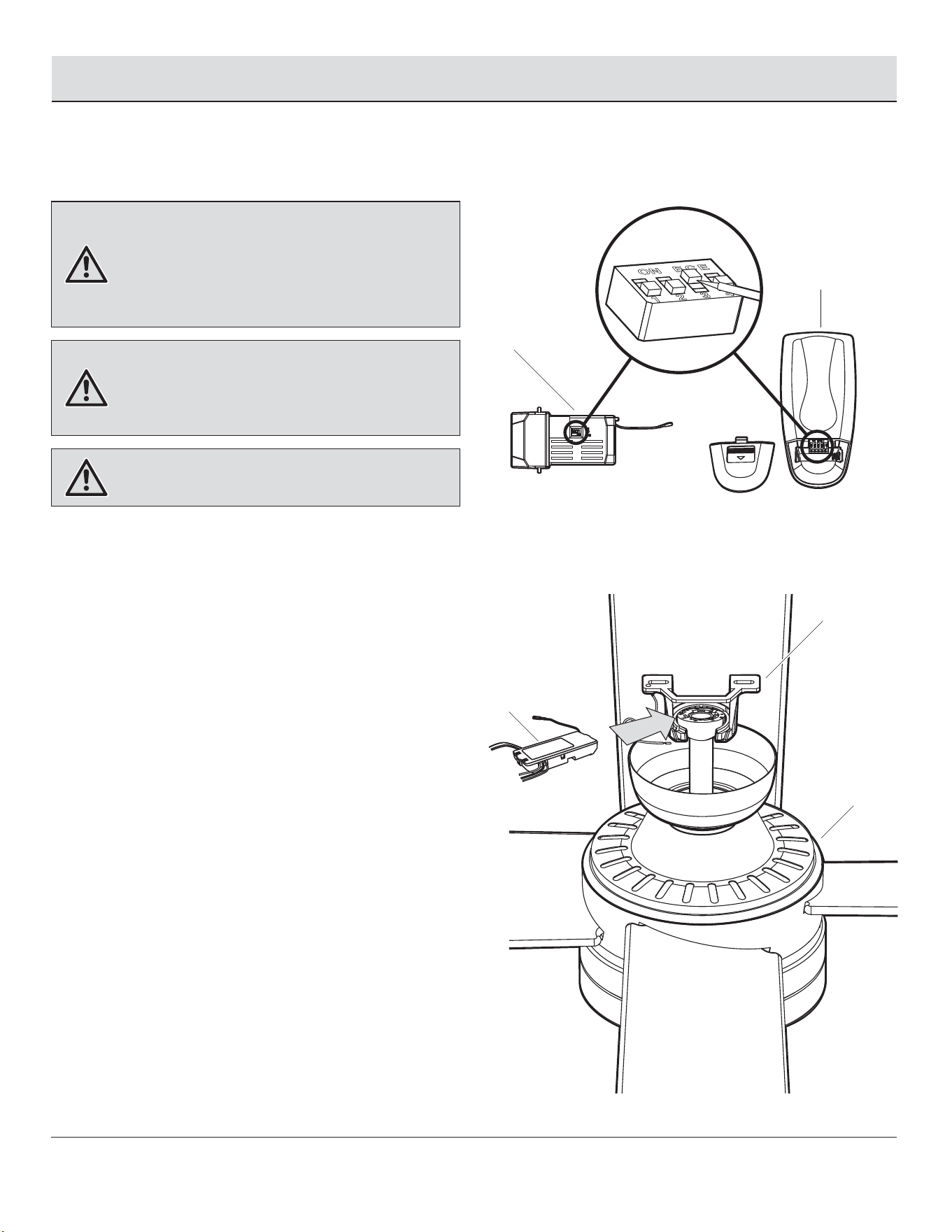

Preparing the receiver and
remote control
NOTE: The frequencies on your receiver and remote control
have been preset at the factory. Before installing the receiver,
make sure the dip switches on the receiver and remote
control are set to the same frequency. The dip switches on
the remote control are located inside the battery
compartment.
NOTE: The battery will weaken with age and should be
replaced before leaking takes place as this will damage the
remote control. Dispose of the used battery properly and keep
the battery out of the reach of children.
11
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
J
WARNING: To avoid possible electrical shock, be sure
electricity is turned off at the main fuse box before wiring.
If you feel you do not have enough electrical wiring
knowledge or experience, have your fan installed by a
licensed electrician.
This remote control unit is equipped with 16 code
combinations to prevent possible interference from or to
other remote units. The frequency switches on your
receiver (J) and remote control (K) have been preset at the
factory. Please recheck to make sure the switches on the
remote control (K) and the receiver (J) are set to the same
position. Any combination of settings will operate the fan
as long as the switches in the remote control (K) and
receiver (J) are set to the same position.
□ After checking the switches, insert the receiver (J)
into the mounting bracket (A) with the at side of the
receiver (J) facing the ceiling.
K
F
J
A
Assembly — Hanging the Fan (continued)
8

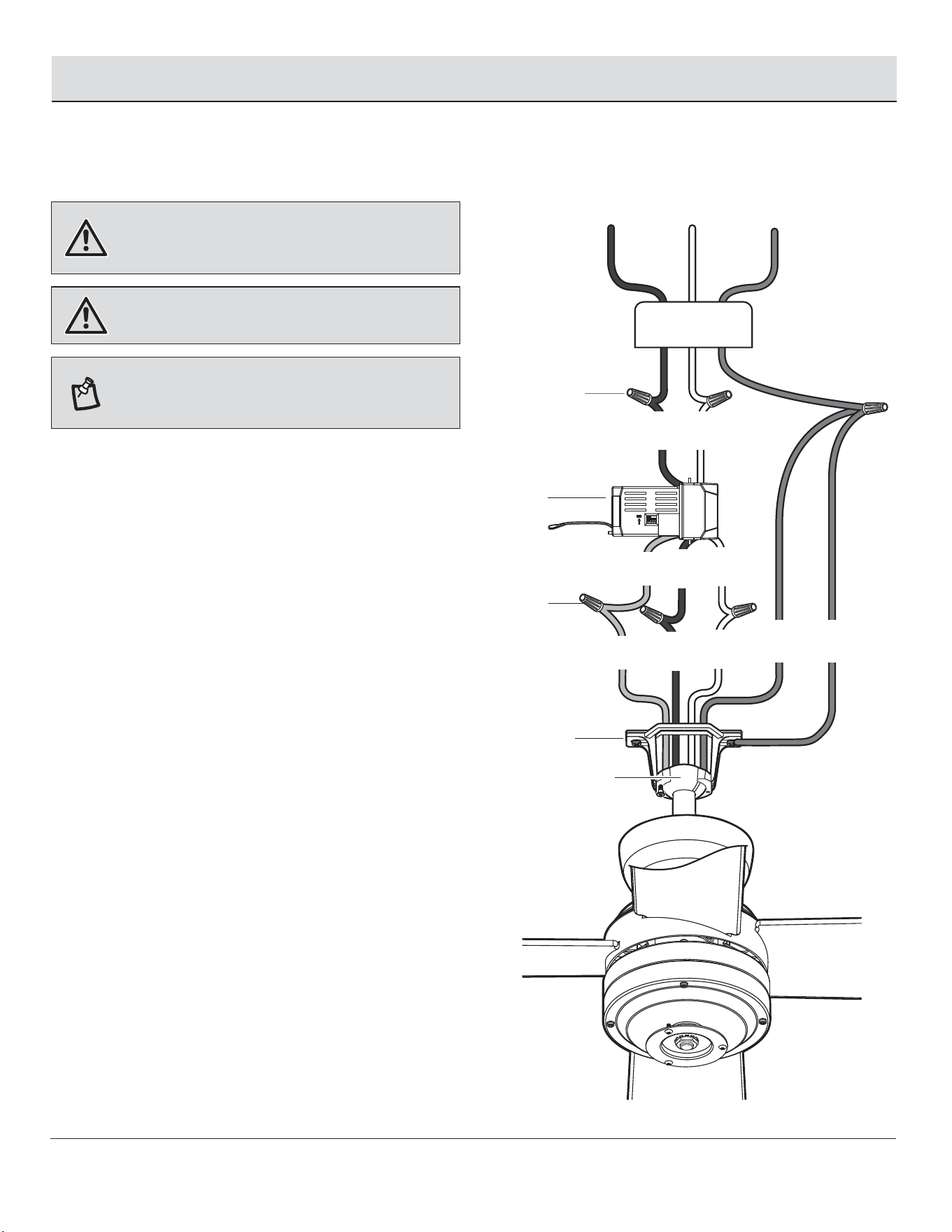

Making the electrical connections
WARNING: Check to see that all connections are tight,
including ground, and that no bare wire is visible at the wire
nuts (except for the ground wire).
NOTE: The fan must be installed at a maximum distance of
20 ft. from the remote control for proper signal transmission
between the remote control and the fan's receiving unit.
WARNING: To reduce the risk of electric shock, this fan
must be installed with an isolating wall control / switch.
12
If you feel you do not have enough electrical wiring knowledge
or experience, have your fan installed by a licensed electrician.
Follow the steps below to connect the fan to your household
wiring. Use the plastic wire nuts (AA or EE) with your fan.
Secure the plastic wire nuts (AA or EE) with electrical tape.
Make sure there are no loose strands or connections.
□ Make wire connections from the fan to the receiver (J)
and outlet box as follows, using the wire nuts (EE).
From Fan To Receiver
Blue Wire --------------------- Blue Wire "For Light"
Black Wire -------------------- Black Wire "To Motor L"
White Wire -------------------- White Wire "To Motor N"
□ Make wire connections from the receiver (J) and fan to
the outlet box as follows, using the wire nuts (AA).
From Receiver To Outlet Box
Black Wire "AC in L" ---------- Black Wire (Hot)
White Wire "AC in N" --------- White Wire (Neutral)
From Fan To Outlet Box
Green Wires* ----------------- Green or Bare Wire (Ground)
* There are two green grounding leads: one from the mounting
bracket (A) and one from the hanger ball/downrod assembly (D).
□ Turn the wire nut connections upward, spreading them
apart so the green (ground) and white wires will be on
one side of the outlet box and the black and blue wires
will be on the other side. Carefully tuck the connections
up into the outlet box.
AA
J
Blue
White
White
Black
EE
Green
Black
Black
Ground
White
conductor
Blue
White
Black
A
Green
Outlet Box
D
Assembly — Hanging the Fan (continued)
□ Make sure connections are neatly tucked into the
ceiling outlet box.
□ Slide the canopy (B) up to the mounting bracket (A)
and place the key hole on the canopy (B) over the
loose canopy mounting screw (FF) on the mounting
bracket (A). Turn the canopy (B) clockwise until the
canopy (B) locks in place at the narrow section of the
key holes.
□ Align the circular hole on the canopy (B) with the
remaining hole on the mounting bracket (A). Secure
by tightening two canopy mounting screws (FF).
WARNING: Make sure the tab on the mounting bracket (A)
properly sits in the groove in the hanger ball / downrod
assembly (D) before attaching the canopy (B) to the mounting
bracket (A) by turning the canopy until it drops into place.
NOTE: Adjust the canopy mounting screws (FF) as
necessary until the canopy (B) and canopy bottom cover (C)
are snug.
□ Attach the canopy bottom cover (C) to the canopy
mounting screw (FF) heads by inserting the screw heads
into the key slots on the canopy bottom cover (C) and
rotating the canopy bottom cover (C) clockwise.
B
FF
C
B
FF
A
C
FF
13
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
9
Installing the canopy
10
Attaching the canopy
bottom cover
14
11
Assembly — Attaching the Motor Housing
12

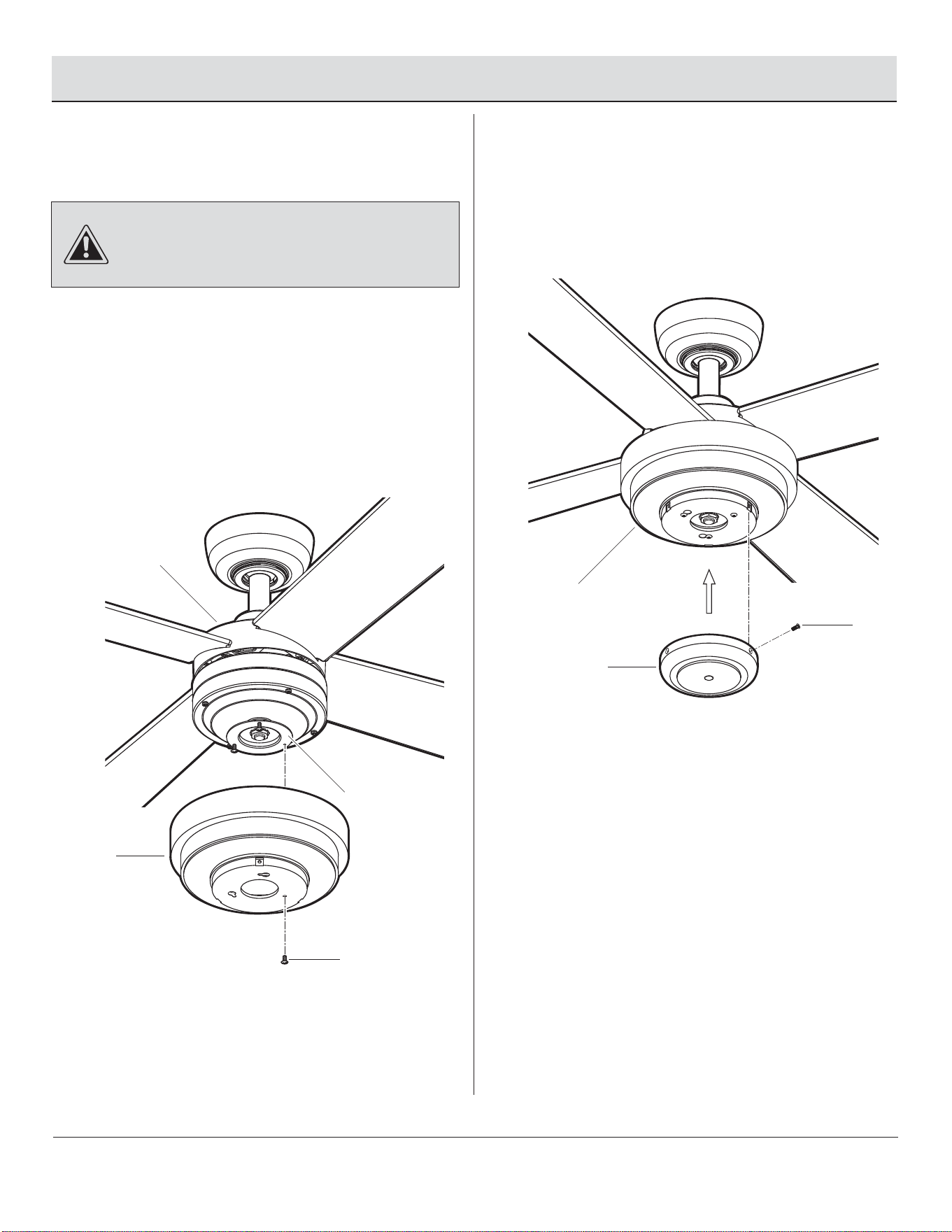

Attaching the Motor Housing
CAUTION: Before starting installation, disconnect the
power by turning off the circuit breaker or removing the fuse
at the fuse box. Turning power off using the fan switch is not
sufficient to prevent electric shock.
Installing the Decorative Cover
□ Remove 1 of 3 screws (JJ) from the mounting ring
(KK) and loosen the other 2 screws (JJ). (Do not
remove)
□ Place the key holes on the motor housing (G) over the
2 screws (JJ) previously loosened from the mounting
ring (KK). Turn motor housing (G) until it locks in
place at the narrow section of the key holes. Secure
by tightening the 2 screws (JJ) previously loosened
and the one previously removed.
G
F
H
JJ
KK
G
□ Install the decorative cover (H) to the motor housing
(G) with the screws (LL) provided.
LL
Operation

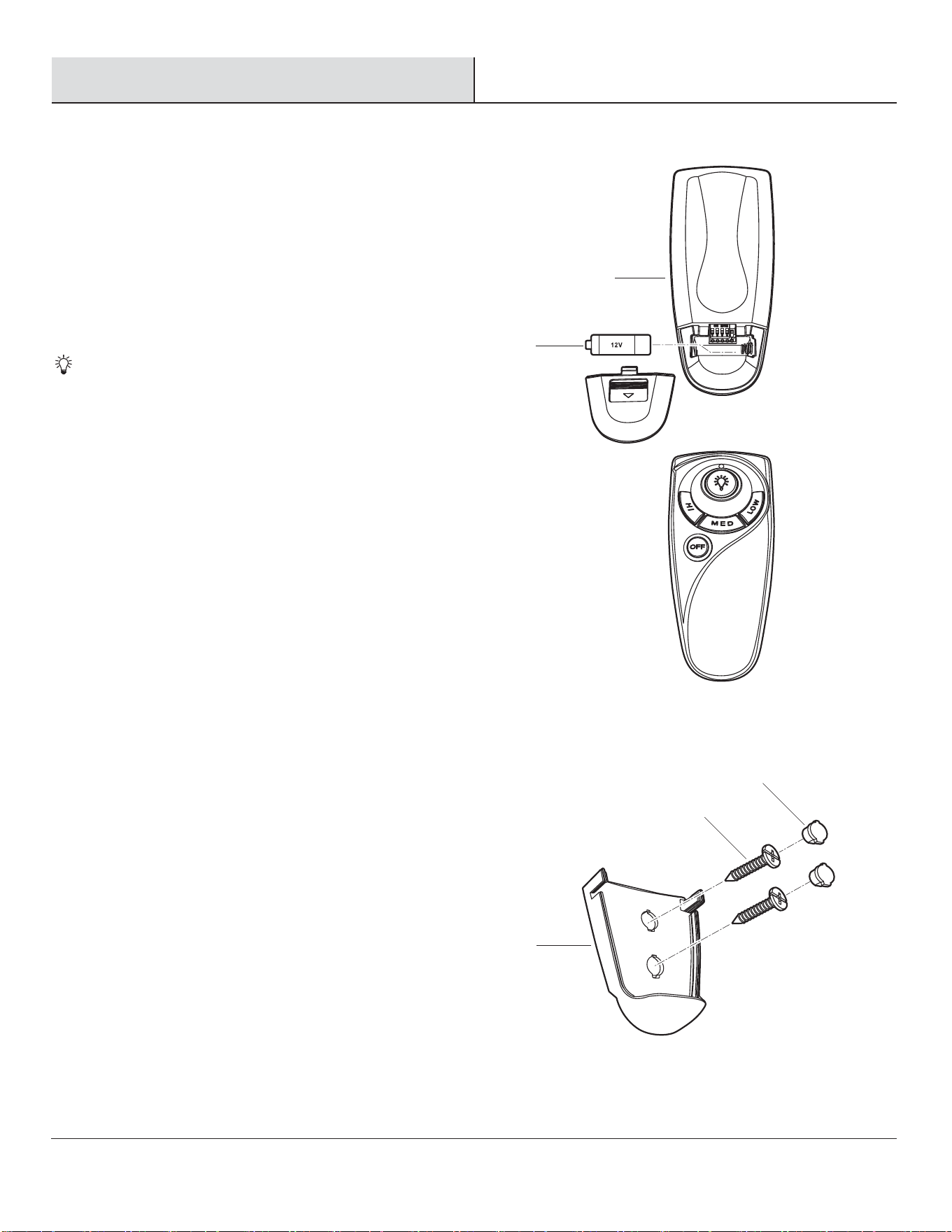

REMOTE CONTROL OPERATING INSTRUCTIONS
REMOTE CONTROL OPERATING INSTRUCTIONS
INSTALLING THE REMOTE CONTROL HOLDER
INSTALLING THE REMOTE CONTROL HOLDER
L
NN
MM
K
CC
□ Remove the two remote control holder plugs (MM) from the
remote control holder (L). Note that the plugs have unique
tabs that allow them to t only in one hole.
□ Attach the remote control holder (L) with the two remote
control holder mounting screws (NN).
□ Replace the two remote control holder plugs (MM) each into
its own hole.
□ Install the 12V MN21/A23 battery (CC) (included) into the
remote control (K). To prevent damage to the remote control
(K), remove the battery if not used for long periods.
15
□ Restore power to the ceiling fan and test for proper operation.
HI, MED, LOW buttons: set the fan speed.
OFF button: turns the fan off.
button: turns the light on or off and also controls the brightness
setting. Press and release this button to turn the light on or off.
Press and hold the button to set the desired brightness. The light
button has an auto-resume, it will stay at the same brightness as
the last time it was turned off.
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
16

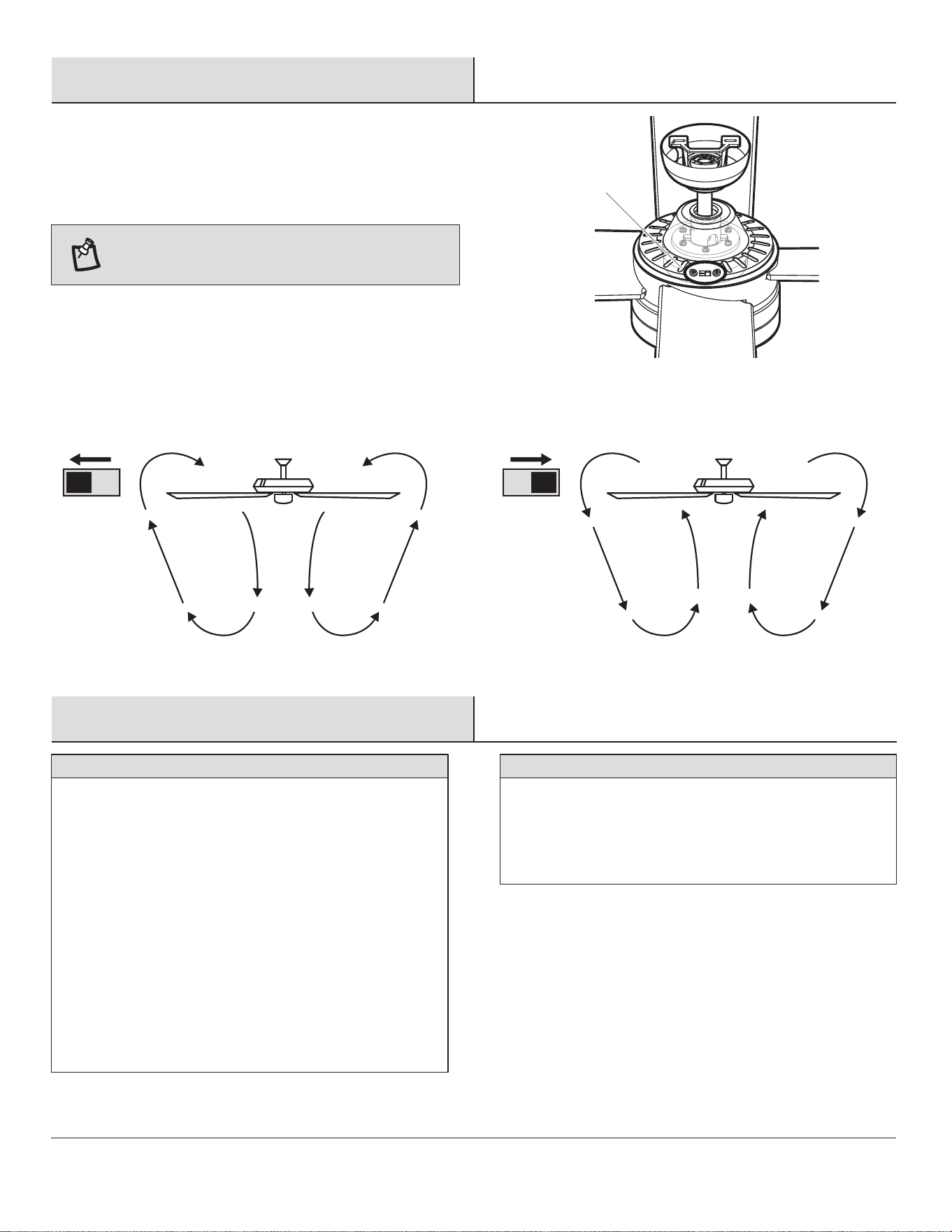

Care and Cleaning
□ Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure.
Because of the fan’s natural movement, some
connections may become loose over time. It is not
necessary to remove the fan from the ceiling.
□ Clean your fan periodically. Use only a soft brush or
lint-free cloth to avoid scratching the nish. The plating is
sealed with a lacquer to minimize discoloration or
tarnishing.
□ (Optional) Apply a light coat of furniture polish to the wood
blades.
□ (Optional) Cover small scratches with a light application of
shoe polish.
Do
Do
□ Use water when cleaning. Water could damage the motor,
or the wood, or possibly cause an electrical shock.
□ Apply oil to your fan or motor. The motor has
permanently-lubricated sealed ball bearings.
Do not
Do not
Operation (continued)
NOTE: Wait for the fan to stop before reversing the direction
of the blade rotation.
REVERSE SWITCH OPERATING INSTRUCTIONS
REVERSE SWITCH OPERATING INSTRUCTIONS
The reverse switch is located on the top of the fan housing. Slide
the switch to the left for warm weather operation. Slide the switch
to the right for cool weather operation.
Warm weather - (Counterclockwise Direction) A downward air ow
creates a cooling effect. This allows you to set your air conditioner
on a warmer setting without affecting your comfort.
Cool weather - (Clockwise Direction) An upward air ow moves
warm air off the ceiling. This allows you to set your heating unit on
a cooler setting without affecting your comfort.
Reverse switch
Troubleshooting
□ Do not connect the fan with wall mounted variable speed control(s).
□ Make sure the frequency switches are set correctly.
The fan wobbles.
The remote control is
not working.
Problem
Problem
Solution
Solution
□ Check the main and branch circuit fuses or breakers.
□ Check the line wire connections to the fan and switch wire connections in the switch housing.
□ Check to make sure the frequency switches from the remote control and receiver are set to the same
frequency.
□ Make sure all motor housing screws are snug.
□ Make sure the screws that attach the fan blade to the motor hub are tight.
□ Make sure the wire nut connections are not rattling against each other or the interior wall of the switch
housing.
□ Allow a 24-hour "breaking-in" period. Most noises associated with a new fan disappear during this
time.
□ If using the ceiling light kit, make sure the glassware is secured tightly.
□ Make sure there is a short distance from the ceiling to the canopy. It should not touch the ceiling.
□ Make sure your ceiling box is secure and that rubber isolator pads are used between the mounting
bracket and outlet box.
The fan will not start.
The fan sounds noisy.
WARNING: Make sure the power is off at the electrical
panel box before you attempt any repairs. Refer to step 7
“Making the electrical connections” on page 12.
17 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
□
□
□
Check that all blade and blade arm screws are secure.
Most fan wobble problems are caused when blade levels are unequal. Check this level by selecting a
point on the ceiling above the tip of one of the blades. Measure from a point on the center of each blade
to the point on the ceiling. Rotate the fan until the next blade is positioned for measurement. Repeat for
each blade. Measurement deviations should be within 1/8 in. Run the fan for ten minutes.
Use the enclosed blade balancing kit if the blade wobble is still noticeable.
Part
Part
A
B
C
D
E
F
G
H
I
J
K
L
Description
Description
Mounting bracket (preassembled)
Canopy
Canopy bottom cover (preassembled)
Hanger ball / downrod assembly
Coupling cover
Fan motor assembly
Motor housing
Decorative cover
Blade
Receiver
Remote control
Remote control holder
Part
Part
AA
BB
CC
DD
EE
Description
Description
Plastic wire nut
Blade attachment screws with Fiber washer
12V battery
Balancing kit
Plastic wire nut
Service Parts
18
AA
BB
CC
DD
EE
I
J
K
L
A
D
E
G
H
B
C
F
1-855-HD-HAMPTON
HAMPTONBAY.COM
Retain this manual for future use.
Questions, problems, missing parts? Before returning to the store,
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday
call Hampton Bay Customer Service
