MILWAUKEE ELECTRIC TOOL CORPORATION
13135 W. LISBON RD., BROOKFIELD, WI 53005
Drwg. 1
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 43-98-0011 Rotary Knob (1)
2 34-40-0241 O-Ring (1)
3 06-82-0127 2.9 x 19 ST Screw (1)
6 23-66-0069 Rotary Switch (1)
7 23-45-0100 Potentiometer Assembly (1)
8 42-52-0021 Cap (1)
9 34-40-0242 O-Ring (1)
10 43-98-0012 Turning Knob Assembly (1)
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
11 23-33-0066 Outlet Receptacle (1)
12 23-35-0141 Control Panel Kit (1)
13 43-62-0211 Handle Kit (1)
14 06-82-0129 K50 x 45 Screw (3)
15 42-92-0301 Top Cover (1)
16 06-82-0132 5 x 18 Screw (17)
17 31-21-0300 Hatch Door (1)
18 45-56-0045 Cord Strap Kit (1)
19 42-68-0135 Hatch Door Clamp Kit (1)
20 42-92-0302 Hatchback Lower Cover (1)
21 43-72-0005 Hose/Cable Hook (2)
22 14-46-1141 Control Panel Label Kit (1)
23 12-20-0117 Service Nameplate (Not Shown) (1)
BULLETIN NO.
SERVICE PARTS LIST
CATALOG NO.
WIRING INSTRUCTION
REVISED BULLETIN
DATE
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
May 2017
8960-20
EXAMPLE:
Component Parts (Small #) Are Included
When Ordering The Assembly (Large #).
00
0
STARTING
SERIAL NO.
8 GALLON DUST EXTRACTOR
J08A
54-05-8960
1
6
1413
9
10
7
7
11
8
3
2
12
16
21
16
16
17
18
19
20
16
ø
2
1
ø
2
7
ø
3
2
ø
3
6
ø
3
8
22
15
Page 1 Cabinet and Control Panel
Page 2 Filter Cleaning System
Page 2 Suction Unit, Floater/Reed Sensor, Flow
Sensor, Buzzer and PCBA
Page 3 Baseplate
Page 4 30L Container
Page 5 Hose, Attachments and Filters

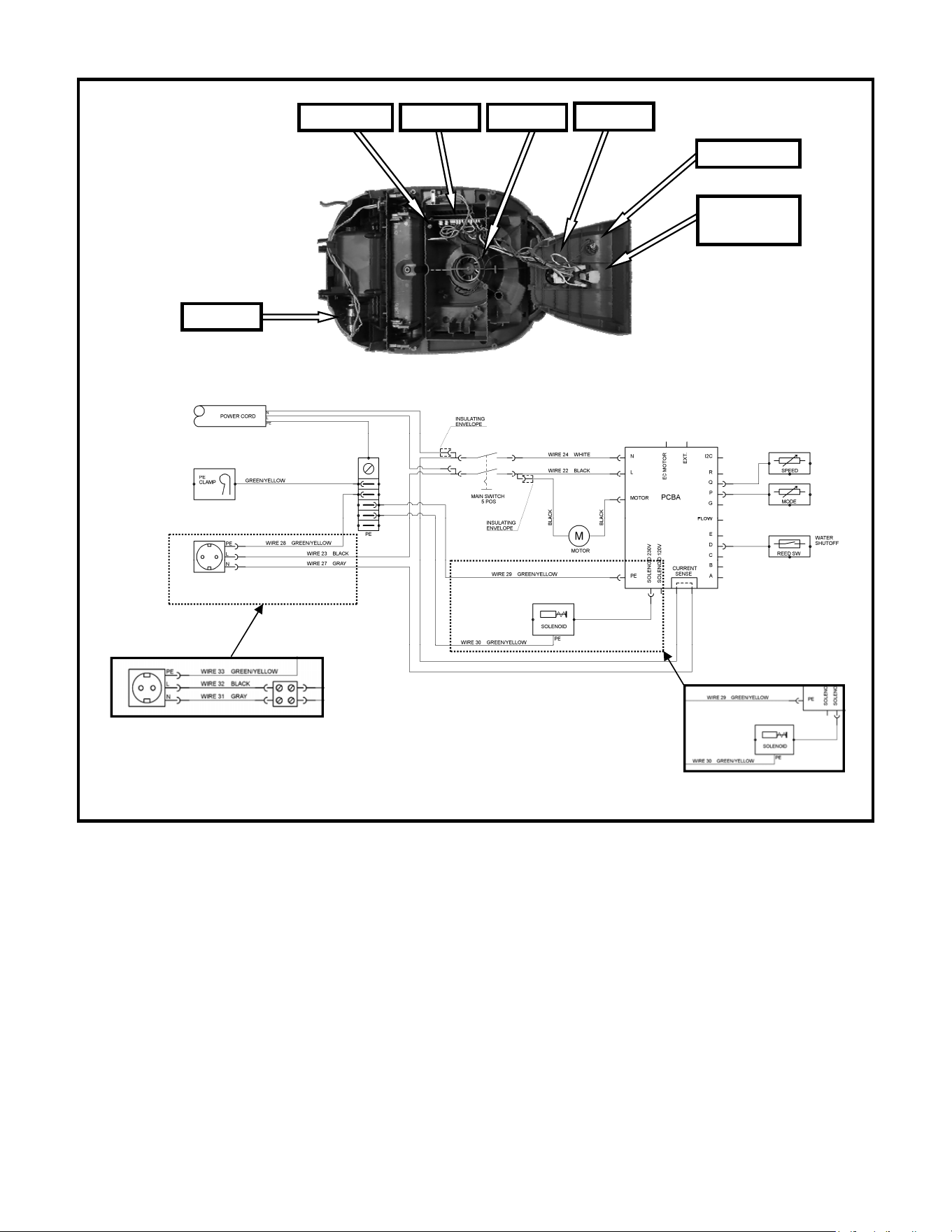

Page 6 Wiring Diagram
See Page 6
AS AN AID FOR SERVICING, REFER TO REPAIR INSTRUCTION MANUAL 58-92-8960
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 42-92-0303 Hatch Door Frame Assembly (1)
2 06-82-0129 5 x 18 Screw (15)
3 23-84-0110 Soleenoid Kit (1)
4 06-82-0137 PT35 x 18 Screw (2)
5 42-68-0500 Cord Clamp (1)
6 43-44-0125 Hatch Door Filter Gasket Kit (1)
7 49-90-1953 Main Filter (1)
1
3
7
6
5
2
4
2
1
13
12
2 4 14
8
3 10
11
5
6
7

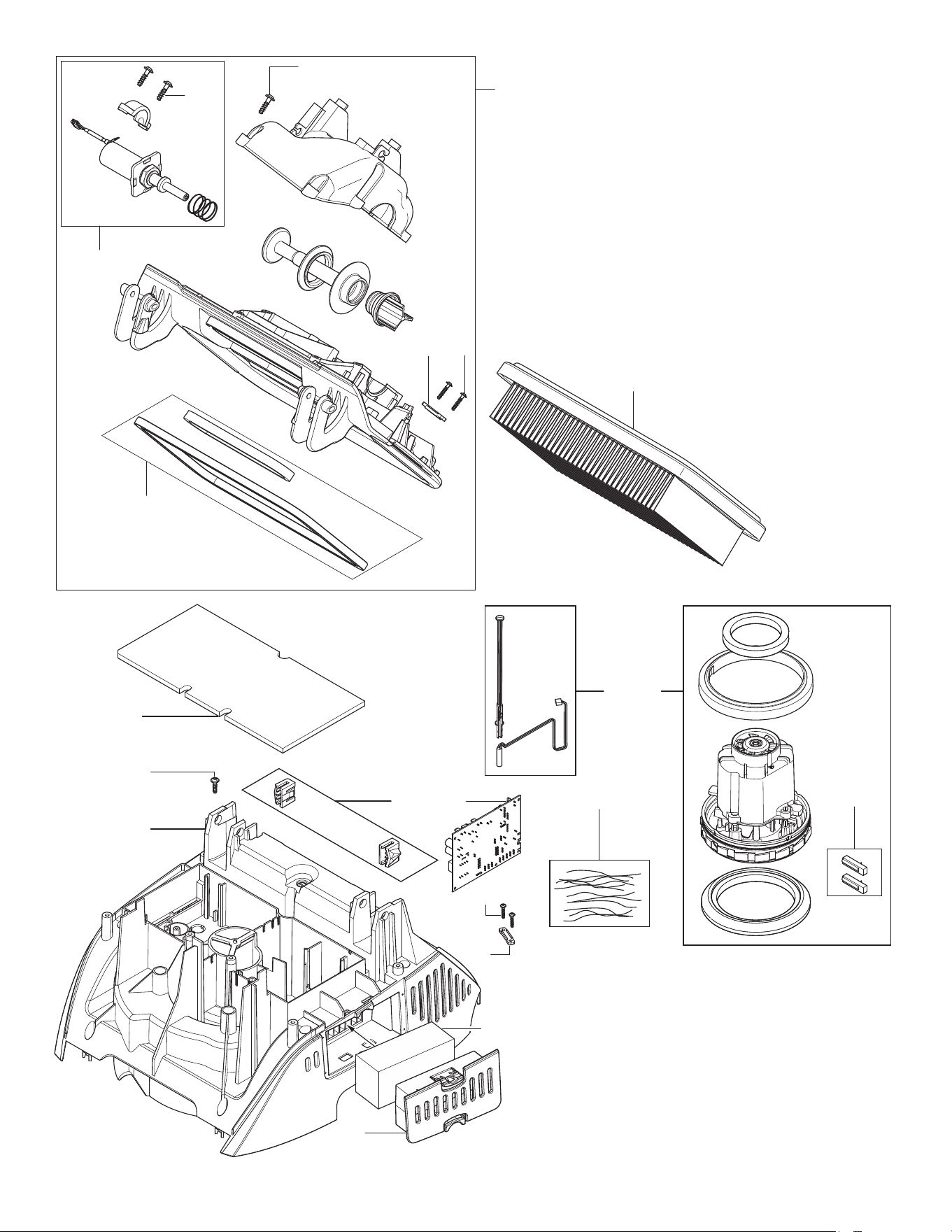

FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 44-52-0005 Foam Pad (1)
2 43-70-0033 Hatch Door Hinge (Set of two) (1)
3 23-45-2005 Reed Sensor Assembly (1)
4 22-09-0465 Circuit Board Assembly (1)
5 06-82-0137 3.5 x 18 Screw (2)
6 42-68-0501 Cord Clamp (1)
7 44-52-0425 Filter Block (1)
8 42-92-0304 Filter Cover (1)
10 23-30-0550 Motor Kit (1)
11 22-18-0595 Carbon Brush Assembly (Set of two) (1)
12 42-14-0315 Air Guide Housing (1)
13 06-82-0129 5 x 18 Screw (9)
14 23-94-0570 Wire Harness/Capacitor Kit (1)

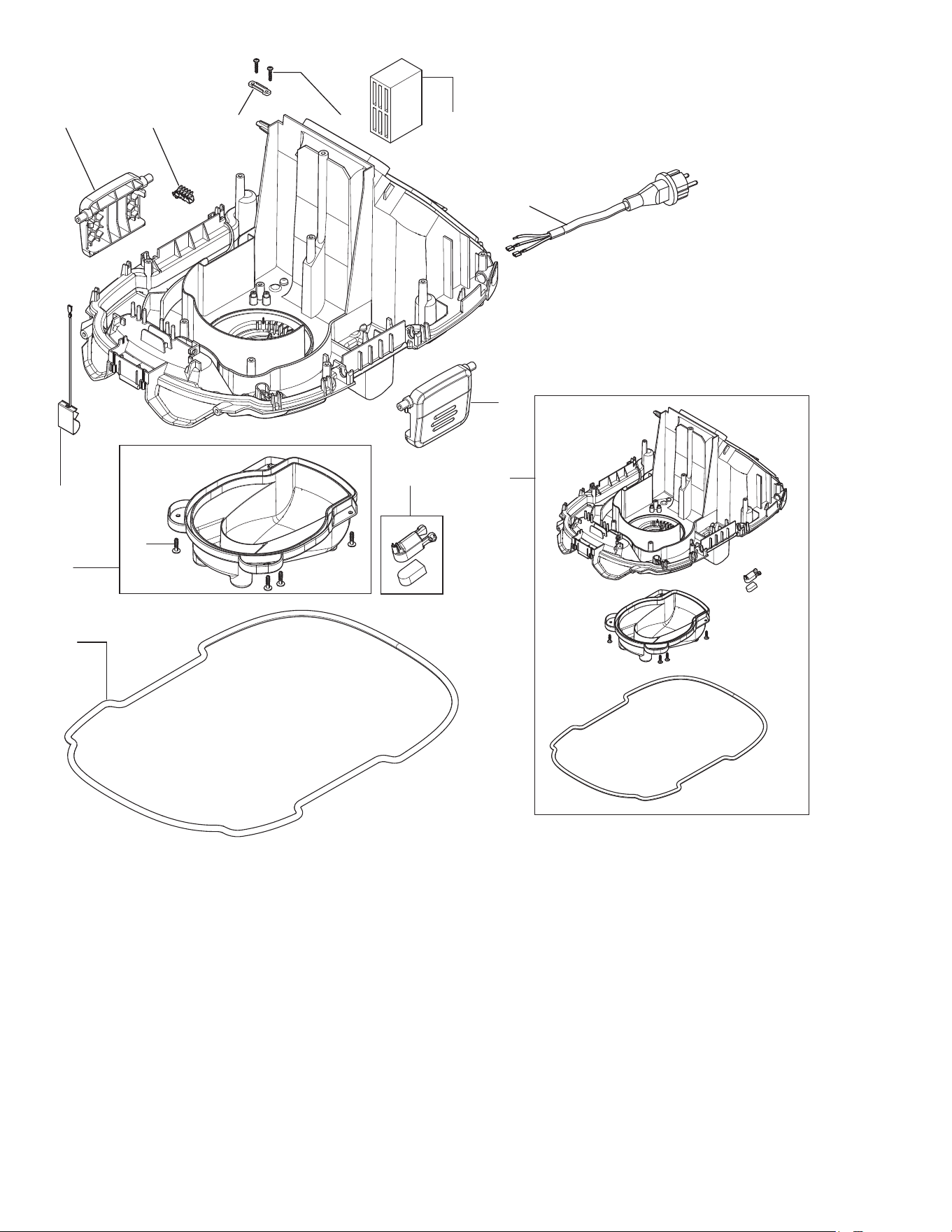

FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 43-31-0025 Sound Filter (1)
2 06-82-0137 3.5 x 18 Screw (2)
3 42-68-0501 Cord Clamp (1)
4 43-72-0340 Distribution Strip (1)
5 42-68-0502 Container Clamp (2)
6 22-64-0935 Power Cord (1)
7 42-20-0375 Base Plate Assembly Kit (1)
8 23-94-0395 Anti-Static Ground Clip Assembly (1)
9 44-26-0022 Floater with Magnet (1)
10 06-82-0139 K50 x 18 PT Screw (4)
11 42-92-0305 Air Flow Cover Kit (1)
12 43-44-0995 Container Gasket (1)
5 4 3 2 1
8
11
12
9
10
6
5
7
4
1
3
9 10
11
5
6
8
7

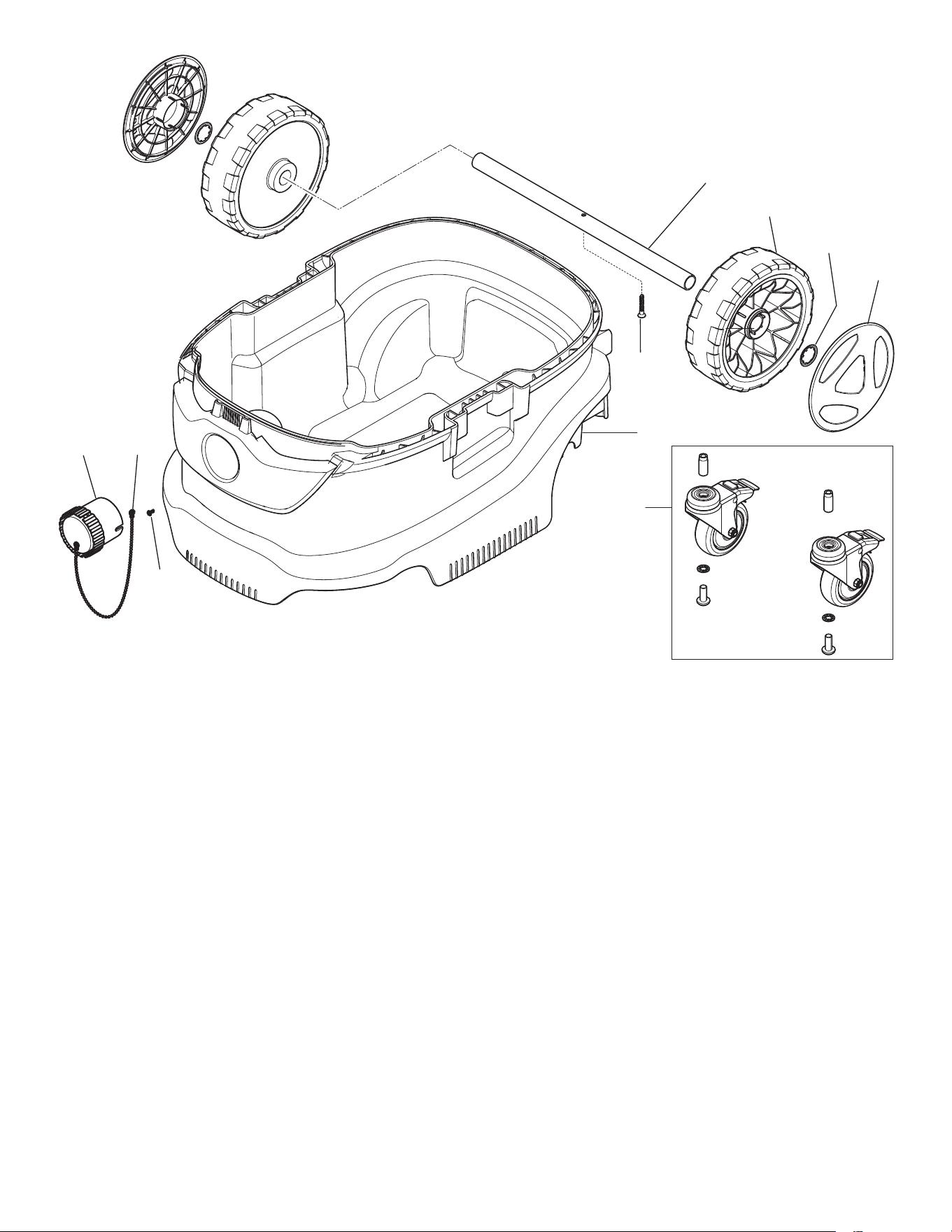

FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 45-66-0160 30L Container (1)
3 45-94-0505 Castor Wheel Kit (Set of two) (1)
4 06-82-0146 K50 x 35 Screw (1)
5 42-12-0310 Wheel Axle (1)
6 45-94-0507 Rear Wheel (2)
7 34-80-2985 Clamping Ring (2)
8 42-52-0180 Wheel Cap (2)
9 44-68-0015 Hose Inlet Plug (1)
10 42-60-0205 150mm Bead Chain (1)
11 06-82-0147 KA35 x 8 Screw (1)

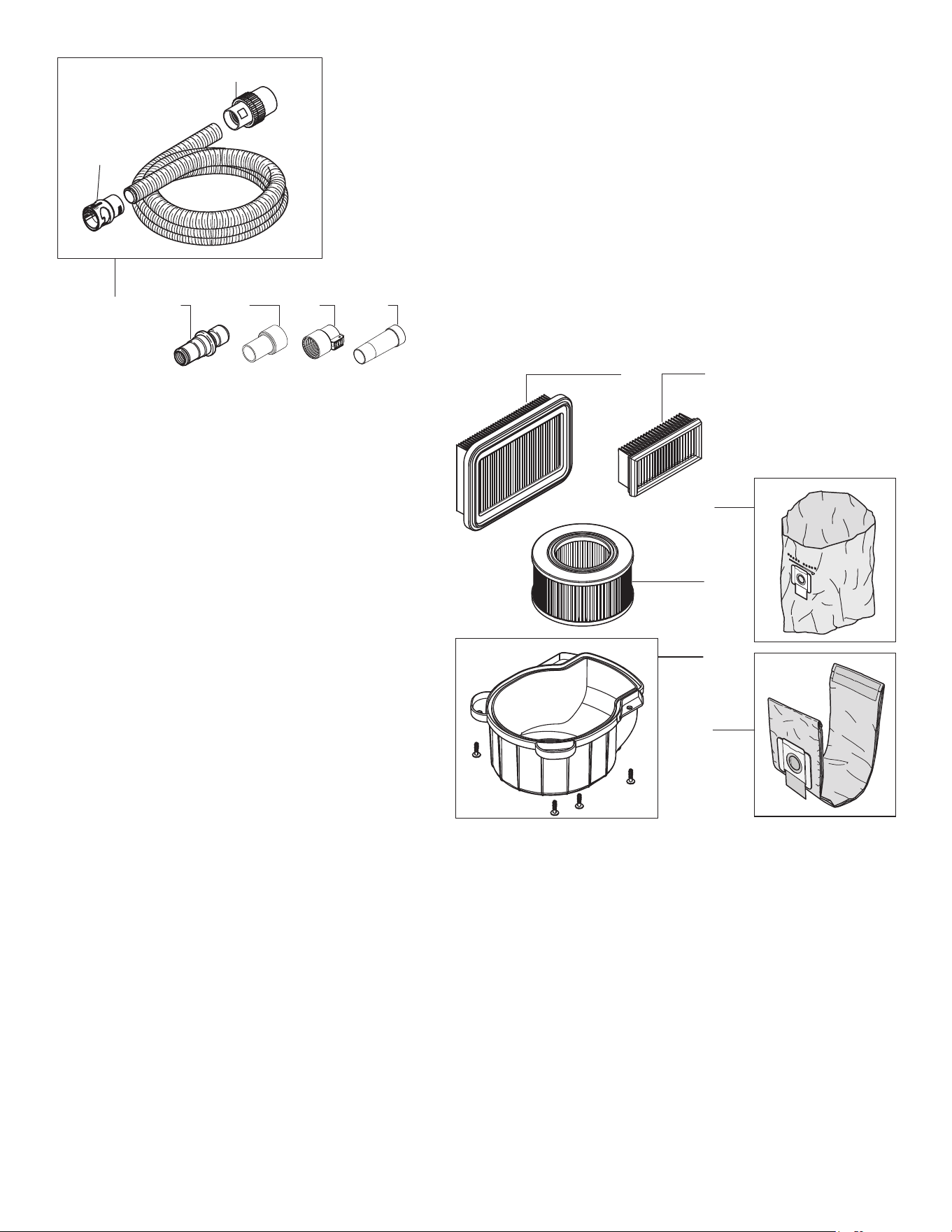

FIG. PART NO. DESCRIPTION OF PART NO. REQ.
2 43-75-0300 Hose (1)
3 42-04-0260 Quick System Hose Sleeve (1)
4 42-04-0265 Hose Sleeve (1)
7 49-90-1957 Power Tool Adapter (1)
17 49-90-1958 Vacuum Hose Adapter (1)
18 49-90-1959 DEK26 Adapter (1)
19 49-90-1960 DE Adapter (1)
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 49-90-1953 Main Filter (1)
2 43-31-0005 Motor Cooling Air Filter (1)
3 49-90-1952 HEPA FILTER (1)
4 42-92-0306 HEPA Filter Cover Kit (1)
5 49-90-1954 Disposable Filter Bag - 5 Pack (1)
7 49-90-1955 Fleece Filter Bag - 5 Pack (1)
x5
x5
5
3
4
7
1 2
4
3
2 7 17 18 19
Solenoid
Speed
Socket
Motor PCBA
Reed switch
Main switch /
Mode selector
For 100-120V
For 120V US
