Hampton Bay YG098B-NM Lodge 52 in. LED Nutmeg Ceiling Fan User Manual

USE AND CARE GUIDE

THANK YOU

1-855-HD-HAMPTON

HAMPTONBAY.COM

Questions, problems, missing parts? Before returning to the store,

8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday

call Hampton Bay Customer Service

Visual instruction of how to install this fan:

Visit www.homedepot.com and enter either the Item or Model number to nd

this fan and click the link of visual instruction in the product overview section.

Item #1005 228 605

Model #

YG098B-NM

LODGE 52 IN. CEILING FAN

Table of Contents ..........................................................

Safety Information .........................................................

Warranty .........................................................................

Pre-installation ..............................................................

Specications ..........................................................................

Tools Required .........................................................................

Hardware Included ..................................................................

Package Contents ....................................................................

Installation .....................................................................

Assembly ........................................................................

Hanging the Fan .....................................................................

Attaching the Fan Blades .......................................................

Installing the Light Kit ............................................................

Operation ......................................................................

Remote Control Operating Instructions ..................................

Reverse Switch Operating Instructions...................................

Care and Cleaning .......................................................

Troubleshooting ..........................................................

Service Parts ...............................................................

Table of Contents

READ AND SAVE THESE INSTRUCTIONS

Safety Information

WARNING: To reduce the risk of electric shock, this fan

must be installed with an isolating wall control/switch.

WARNING: To reduce the risk of personal injury, do not

bend the blade arms (also referred to as anges), when

installing the brackets, balancing the blades or cleaning the

fan.

WARNING: Do not insert foreign objects between rotating

fan blades.

WARNING: To reduce the risk of re, electric shock or

personal injury, mount the fan to the outlet box marked

acceptable for fan support with the screws provided with the

outlet box.

CAUTION: To reduce the risk of personal injury, use only

the screws provided with the outlet box.

However, there is no guarantee that interference will not occur

in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of

the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for

help.

1. To reduce the risk of electric shock, ensure electricity has

been turned off at the circuit breaker or fuse box before

beginning.

2. All wiring must be in accordance with the National Electrical

Code “ANSI/NFPA 70-1999” and local electrical codes.

Electrical installation should be performed by a qualied

licensed electrician.

3. The outlet box and support structure must be securely

mounted and capable of reliably supporting a minimum of 50

lbs (22.7 kg) or less. Use only UL-listed outlet boxes marked

“FOR FAN SUPPORT.”

4. The fan must be mounted with a minimum of 7 ft (2.1m)

clearance from the trailing edge of the blades to the oor.

5. Avoid placing objects in the path of the blades.

6. To avoid personal injury or damage to the fan and other

items, be cautious when working around or cleaning the fan.

7. Do not use water or detergents when cleaning the fan or fan

blades. A dry dust cloth or lightly dampened cloth will be

suitable for most cleaning.

8. After making electrical connections, spliced conductors

should be turned upward and pushed carefully up into the

outlet box. The wires should be spread apart with the

grounded conductor and the equipment-grounding conductor

on one side of the outlet box and ungrounded conductor on

the other side of the outlet box.

9. All setscrews must be checked and retightened where

necessary before installation.

10. Suitable for use with solid-state speed control (MR181B-3

only).

11. This device complies with part 15 of the FCC Rules. Operation

is subject to the following two conditions: (1) This device may

not cause harmful interference, and (2) this device must

accept any interference received, including interference that

may cause undesired operation.

WARNING: Changes or modications to this unit not

expressly approved by the party responsible for compliance

could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to Part 15

of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and

can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful

interference to radio communications.

HAMPTONBAY.COM

Please contact 1-855-HD-HAMPTON for further assistance.

The following responsible party designated in FCC §2.909 is

responsible for this declaration:

Model Number: YG098B-NM

Company Name: TAL INTERNATIONAL CORPORATION

Company Address: 2919 E. Philadelphia St., Ontario, CA 91761, U.S.A.

Full Name: James Lai Title: Manager

Telephone Number: (909) 923-2888 Fax: (909) 923-8337

Warranty

The manufacturer warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the

factory for a period of lifetime after the date of purchase by the original purchaser. The manufacturer warrants the light kit (excluding any

glass), to be free from defects in workmanship and material at the time of shipment from the factory for a period of three years after the

date of purchase by the original purchaser. The manufacturers also warrants that all other fan parts, excluding any glass or acrylic blades,

to be free from defects in workmanship and material at the time of shipment from the factory for a period of one year after the date of

purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or

superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All

costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper

installation or by afxing any accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not

cover any changes in brass nish, including rusting, pitting, corroding, tarnishing or peeling. Brass nishes of this type give the longest

useful life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a

defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. We hereby

disclaim any and all warranties, including but not limited to those of merchantability and tness for a particular purpose to the extent

permitted by law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as specied in the

express warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to

you. The retailer shall not be liable for incidental, consequential, or special damages arising out of or in connection with product use or

performance except as may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential

damages, so the above exclusion or limitation may not apply to you. This warranty gives specic legal rights, and you may also have other

rights which vary from state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a

claim on the warranty must be paid by the customer.

Contact the Customer Service Team at 1-855-HD-HAMPTON or visit www.hamptonbay.com.

Pre-InstallationPre-Installation

SPECIFICATIONS

NOTE: These are approximate measures. They do not

include amps and wattage used by the light kit.

52 in.

Low

Medium

High

120

0.27

0.48

0.57

13.27

43.04

66.09

125

158

1927

4284

5529

Fan size

Watts

RPM

CFM

Speed

Volts

Amps

14.70kgs

(32.34 lbs)

17.85 kgs

(39.27 lbs)

4.85 cu. ft.

N.W.

G.W.

C.F.

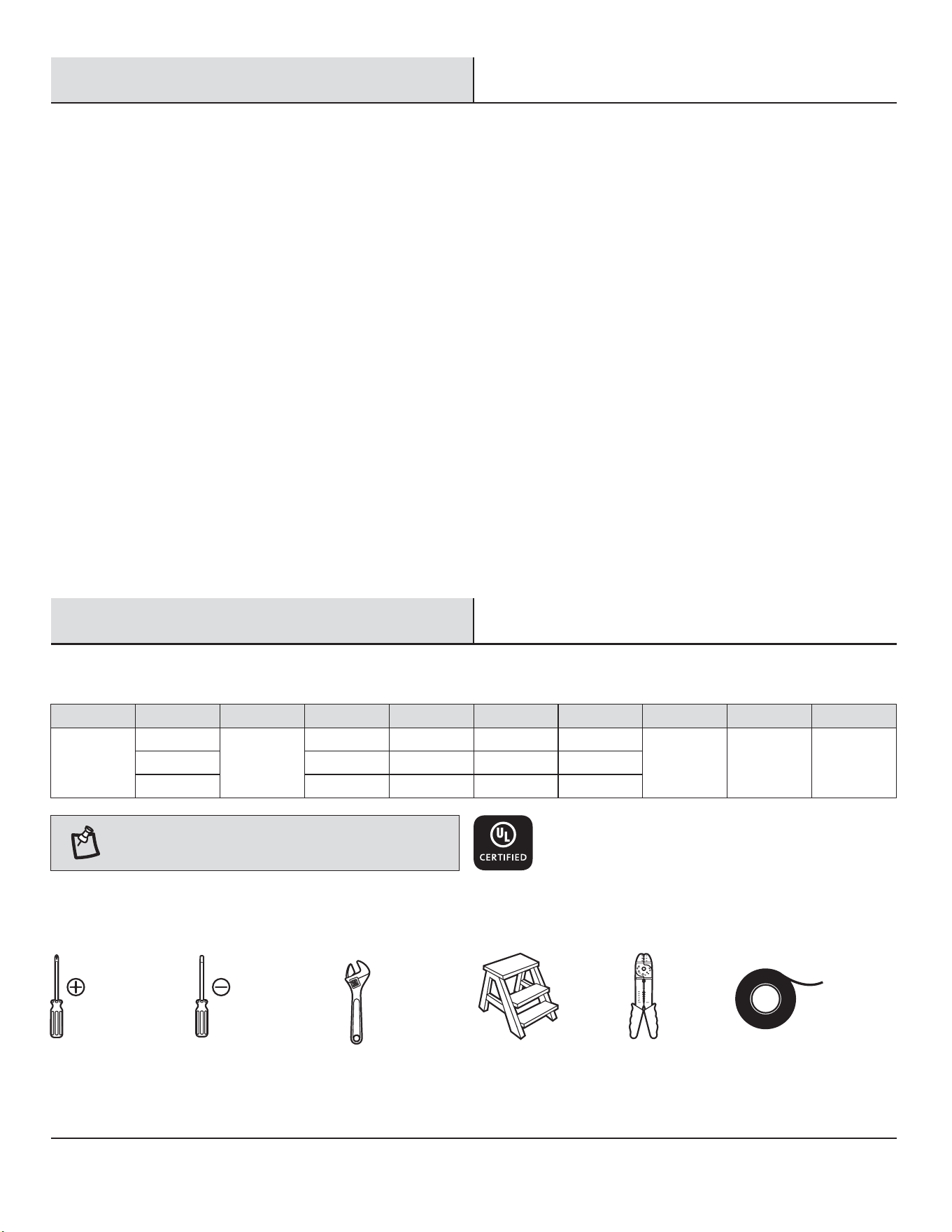

TOOLS REQUIRED

Phillips

screwdriver

Flat blade

screwdriver

Step

ladder

Wire

stripper

Electrical

tape

Adjustable

wrench

Pre-Installation (continued)

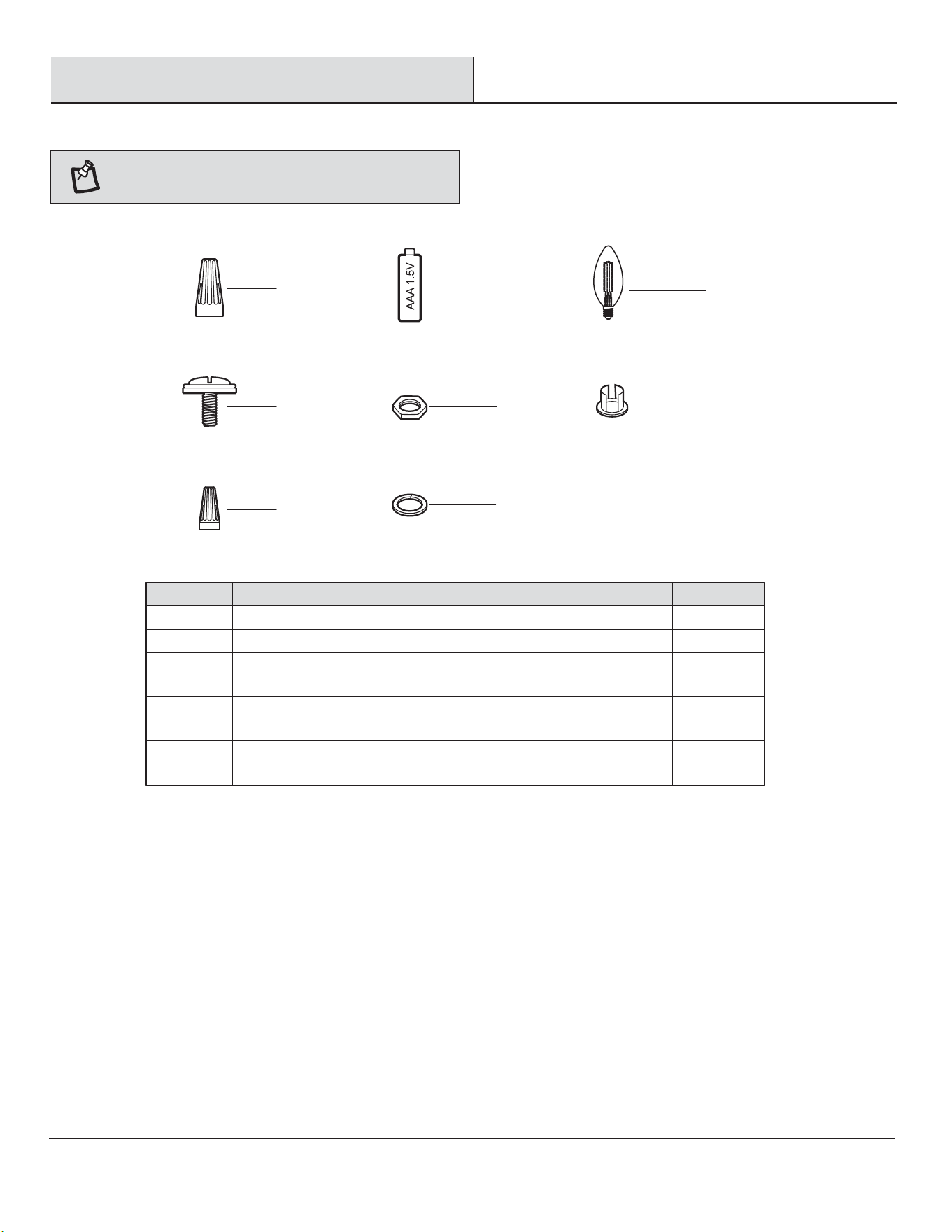

HARDWARE INCLUDED

NOTE: Hardware not shown to actual size.

5 HAMPTONBAY.COM

Please contact 1-855-HD-HAMPTON for further assistance.

Plastic wire nut

Blade attachment screw and ber washer

Plastic wire nut

1.5V AAA battery

Nut

Lock washer

4-Watt LED bulb

Plastic plug (extra)

Part

Description

Quantity

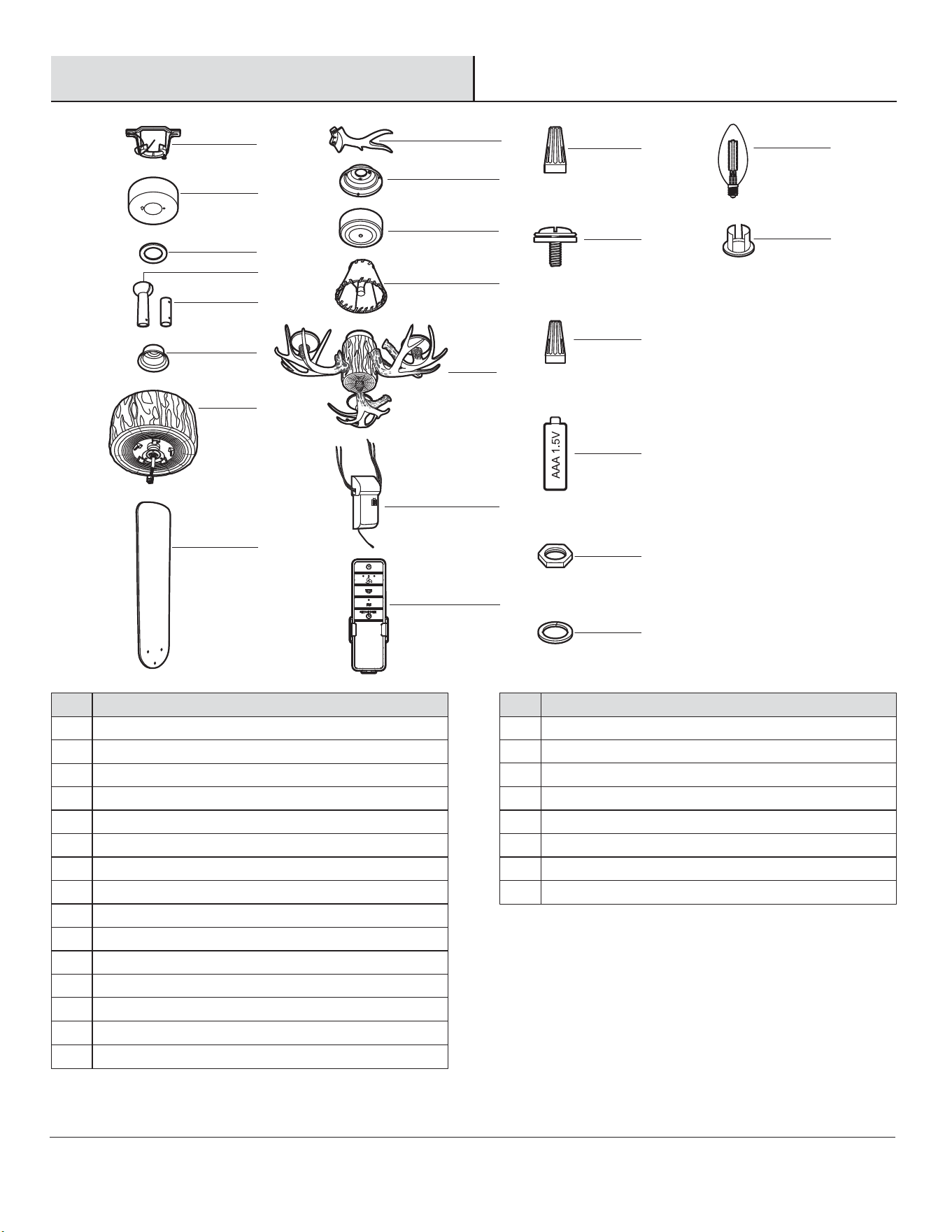

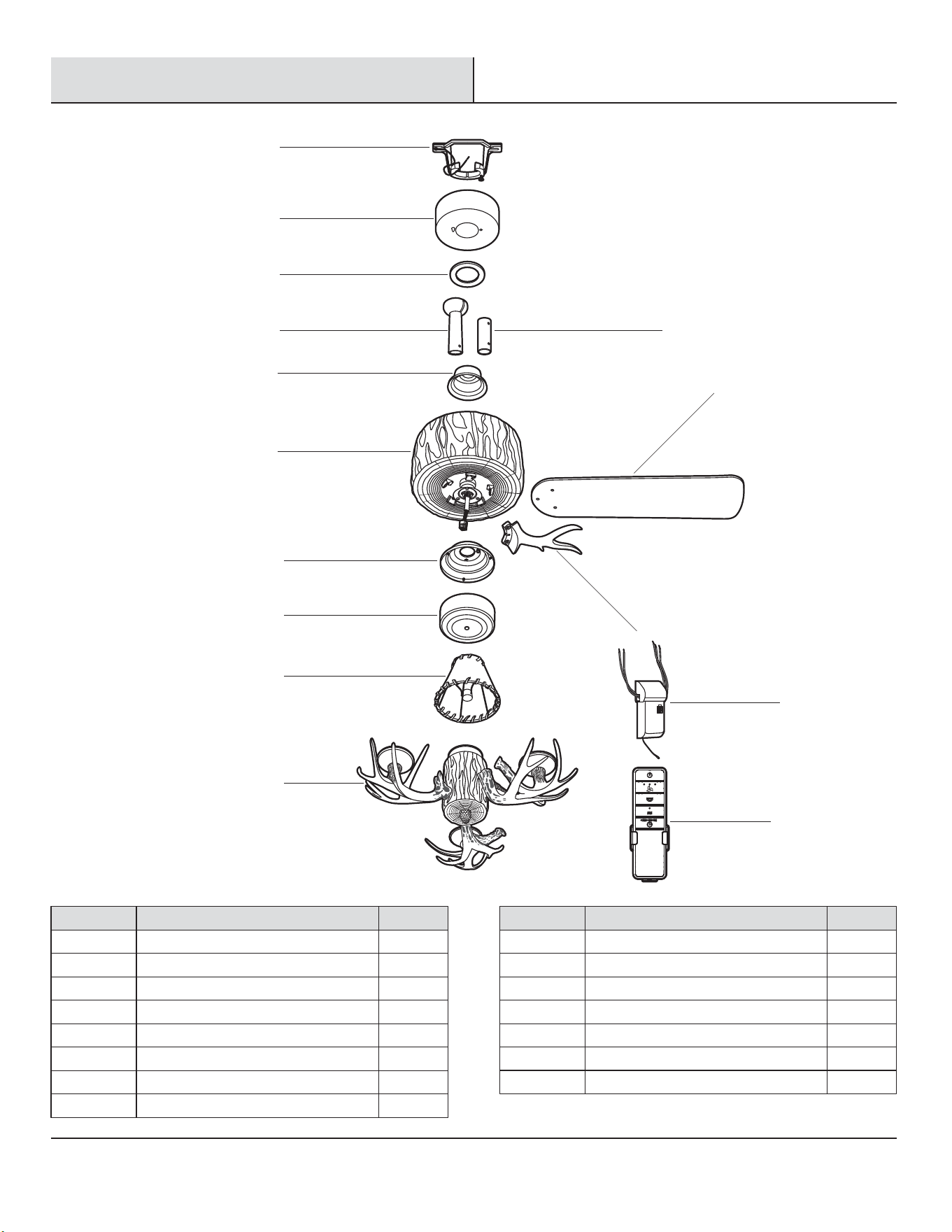

PACKAGE CONTENTS

Pre-Installation (continued)

Part

Description

Blade arm

Mounting plate

Switch housing

Light shade

Light kit

Receiver

Remote control

Quantity

Part

Quantity

Description

Mounting bracket (preassembled)

Canopy

Canopy bottom cover (preassembled)

Hanger ball/downrod assembly (6”)

Extra downrod (4”)

Coupling cover

Fan motor assembly

Blade

To hang your fan where there is an existing ﬁxture but no ceiling

joist, you may need an installation hanger bar (not included) as

shown above.

If your ceiling fan does not have an existing UL-listed mounting

box, then install one using the following instructions:

□ Disconnect the power by removing the fuses or turning off

the circuit breakers.

□ Secure the outlet box (not included) directly to the

building structure. Use appropriate fasteners and materials

(not included). The outlet box and its bracing must be able

to fully support the weight of the moving fan (at least 50

lbs.). Do not use a plastic outlet box.

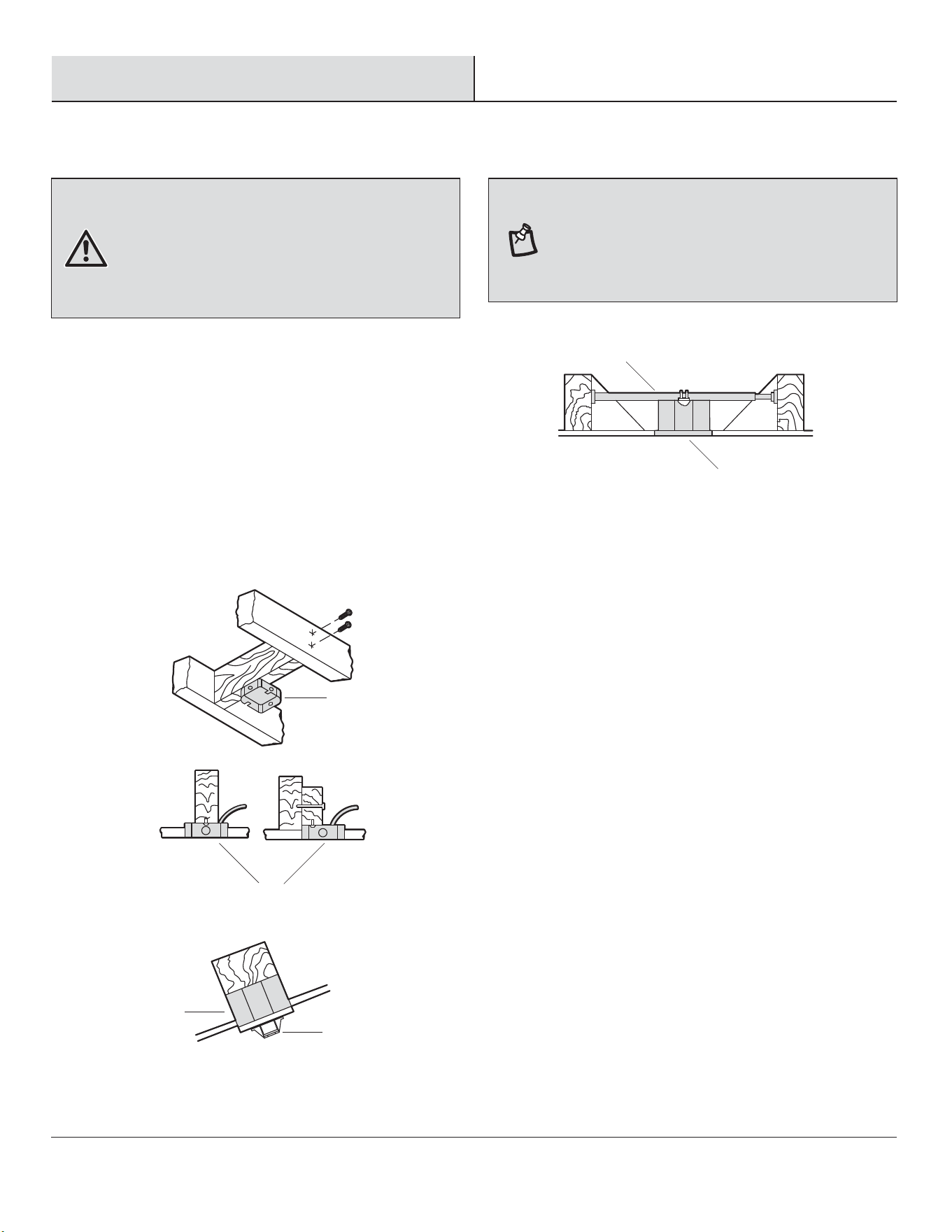

The illustrations below show three different ways to mount the

outlet box (not included).

Outlet Box

Hanger Bar

Outlet Box

Recessed

Outlet

Box

Ceiling

Mounting

Bracket

Installation

MOUNTING OPTIONS

WARNING: To reduce the risk of ﬁre, electric shock, or

personal injury, mount the fan to an outlet box marked

acceptable for fan support using the screws provided with the

outlet box. An outlet box commonly used for the support of

lighting ﬁxtures may not be acceptable for fan support and

may need to be replaced. If in doubt, consult a qualiﬁed

electrician.

NOTE: You may need a longer downrod to maintain proper

blade clearance when installing on a steep, sloped ceiling.

The maximum angle allowable is 18° away from horizontal. If

the canopy touches the downrod, then remove the decorative

canopy bottom cover (C) and turn the canopy (B) 180° before

attaching the canopy (B) to the mounting bracket (A).

7 HAMPTONBAY.COM

Please contact 1-855-HD-HAMPTON for further assistance.

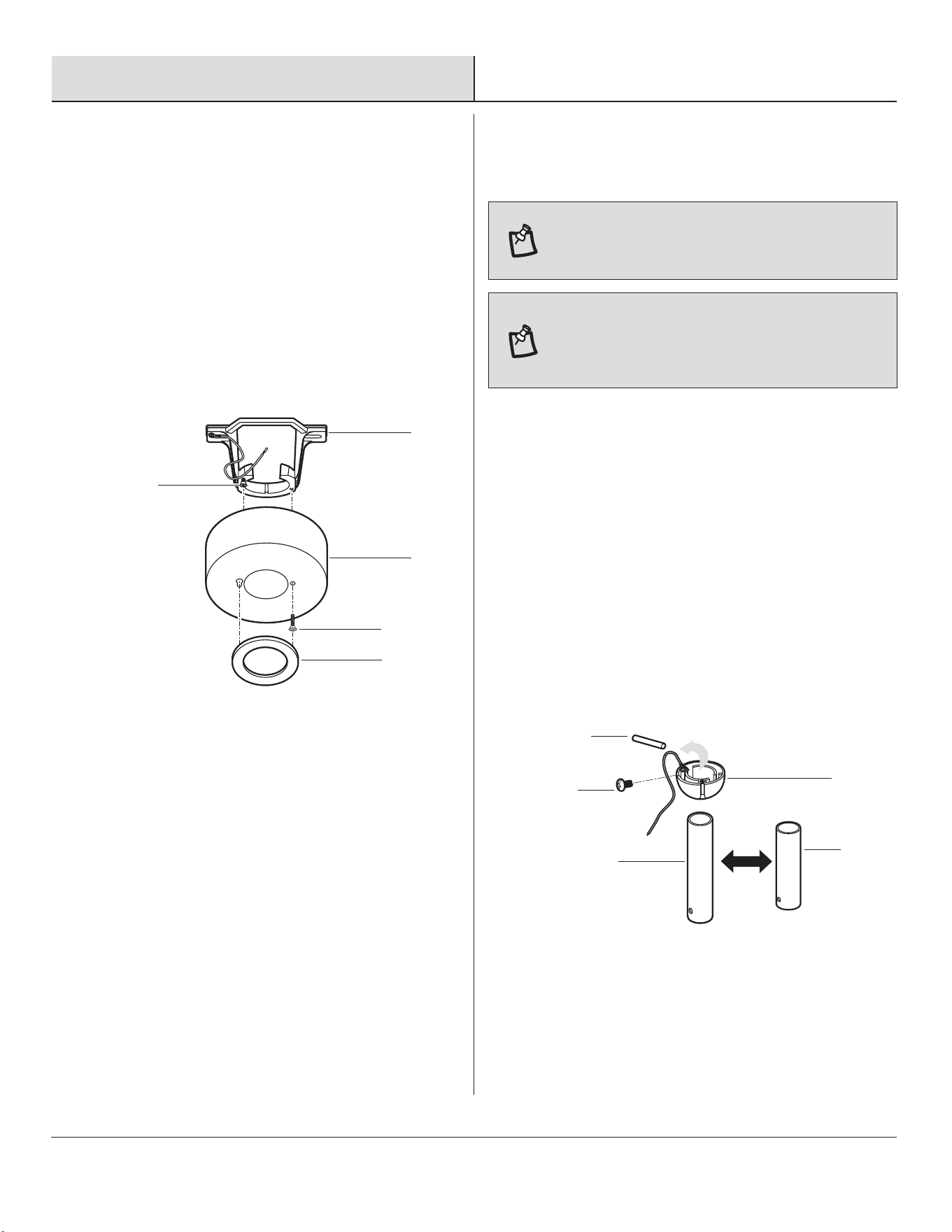

Preparing the canopy

Changing the downrod (Optional)

Assembly

□ Remove the canopy bottom cover (C) from the canopy

(B) by turning the canopy bottom cover (C)

counterclockwise.

□ Remove the mounting bracket (A) from the canopy (B)

by removing the non-slotted canopy mounting screw

(II) from the bottom of the canopy (B) and loosening

the slotted canopy mounting screw (II) a half turn

from the screw head. Next, turn the canopy (B)

counterclockwise to remove the mounting bracket (A)

from the canopy (B).

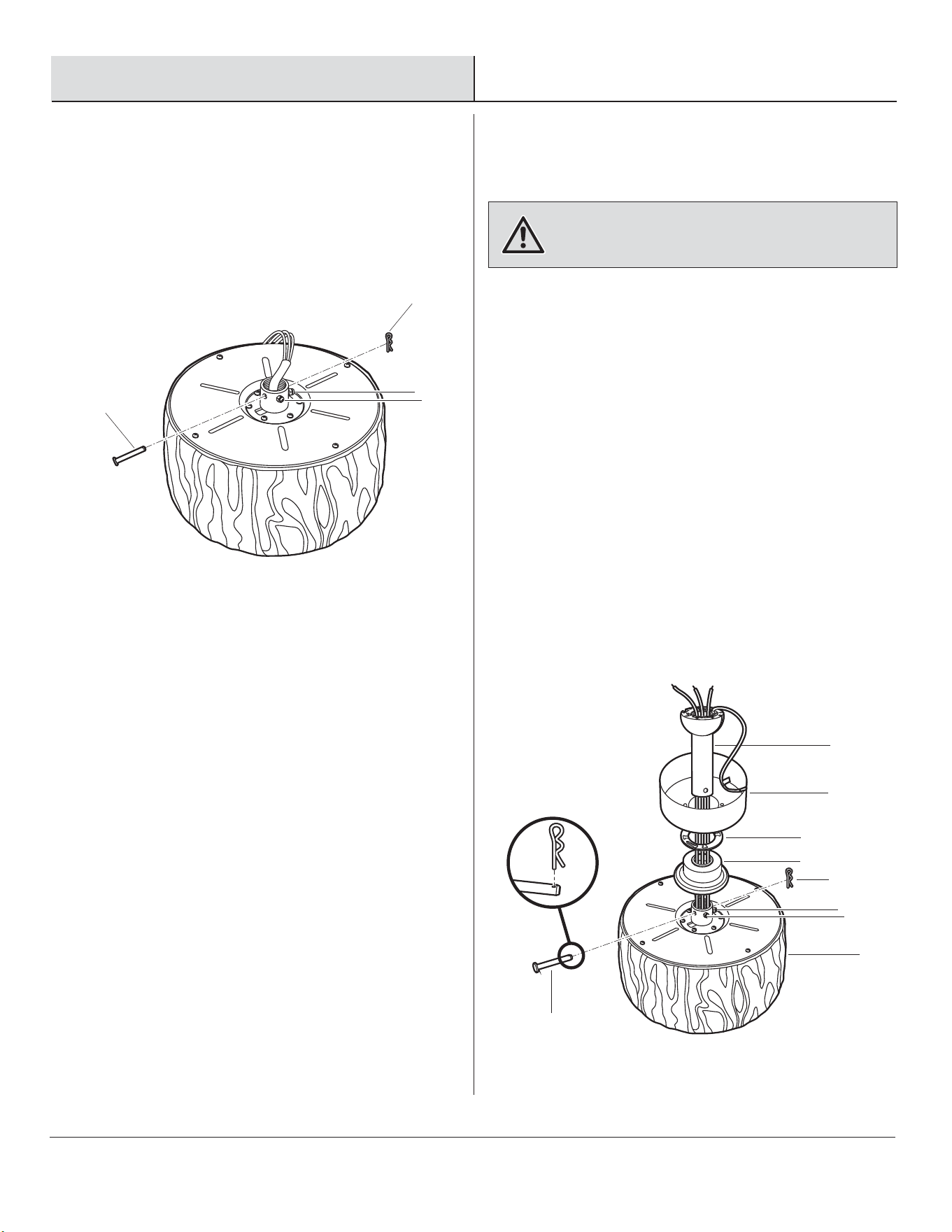

□ Remove the hanger ball (JJ) from the 6" downrod (KK)

by loosening the setscrew (LL) at the top of the 6"

downrod (KK) which holds the hanger ball (JJ) to the

6" downrod (KK).

□ Slide the hanger ball (JJ) down the 6" downrod (KK)

and remove the cross pin (MM).

□ Insert the cross pin (MM) in the holes at the top of the

4" downrod (E) and slide the hanger ball (JJ) up the

4" downrod (E). Make sure the cross pin (MM) is

properly seated in the grooves in the top of the

hanger ball (JJ).

□ Tighten the setscrew (LL) rmly.

NOTE: Your fan comes with a 6" downrod (KK) attached to

the hanger ball (JJ). In addition you have been provided with

a 4" downrod (E) to use if desired. If you choose to use the 4"

downrod (E), perform the following steps.

NOTE: If a longer downrod is needed (not included), take

out the screw located in the hanger ball, lower the hanger

ball and remove the pin. Remove all three pieces from the

downrod, and assemble them onto the new longer downrod

before proceeding step 3.

Preparing the motor

Assembling the fan

Assembly

9 HAMPTONBAY.COM

Please contact 1-855-HD-HAMPTON for further assistance.

□ Remove the cotter pin (NN) and clevis pin (OO) , and

loosen the two collar setscrews(PP) from the motor

collar.

□ Route the wires exiting from the top of the fan motor

assembly (G) through the coupling cover (F). Ensure

the slot openings are on top.

□ Route the wires through the canopy bottom cover (C),

canopy (B) and then through the hanger ball/downrod

assembly (D).

□ Align the holes at the bottom of the hanger

ball/downrod assembly (D) with the holes in the collar

on top of the fan motor assembly (G). Carefully insert

the clevis pin (OO) through the holes in the collar and

the hanger ball/downrod assembly (D). Be careful not

to jam the clevis pin (OO) against the wiring inside the

hanger ball/downrod assembly (D).

□ Insert the cotter pin (NN) through the hole near the

end of the clevis pin (OO) until it snaps into the locked

position.

□ Tighten the two collar setscrews (PP) on top of the

fan motor assembly (G) rmly.

WARNING: Failure to properly install the cotter pin (NN)

could result in the fan becoming loose and possibly falling.

PPOO

Attaching the mounting bracket

to the electrical box

Hanging the fan from the

mounting bracket

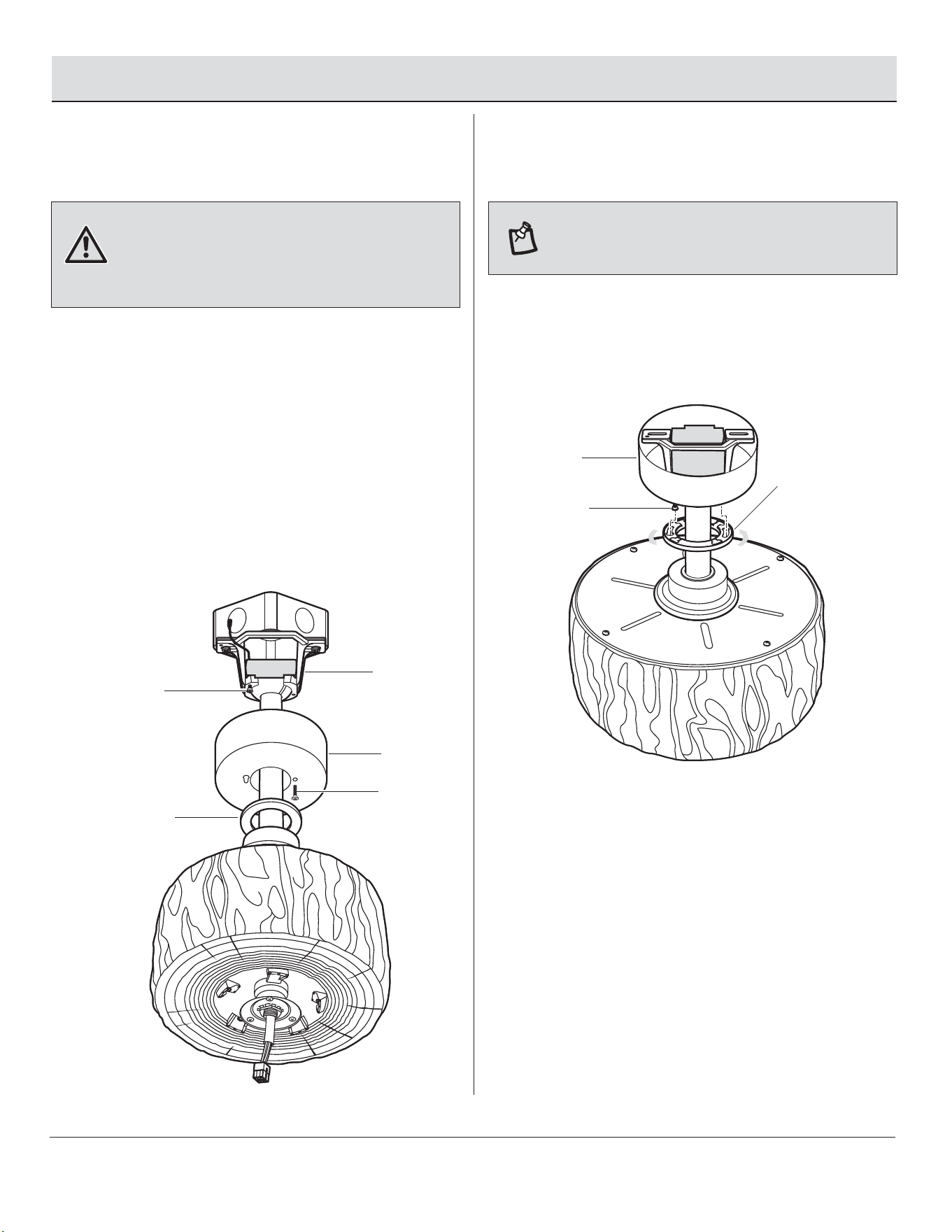

□ Pass the 120-volt supply wires through the center

hole in the mounting bracket (A).

□ Attach the mounting bracket (A) to the outlet box with

the screws and washers provided with the outlet box.

□ Securely tighten the two mounting screws.

□ Carefully lift the fan motor assembly (G) up to the

mounting bracket (A) and seat the hanger

ball/downrod assembly (D) in the mounting bracket

(A) socket. Make sure the tab on the mounting

bracket (A) socket is properly seated in the groove in

the hanger ball/downrod assembly (D). This will help

to balance the ceiling fan.

WARNING: To reduce the risk of re, electric shock or

other personal injury, mount the fan only to an outlet box or

supporting system marked acceptable for fan support and

use the mounting screws provided with the outlet box.

WARNING: The tab in the ring must rest in the groove of

the hanger ball/downrod assembly (D). Failure to properly

seat the tab in the groove could cause damage to the wiring.

Assembly — Hanging the Fan

Assembly — Hanging the Fan (continued)

Preparing the receiver and

remote control

11 HAMPTONBAY.COM

Please contact 1-855-HD-HAMPTON for further assistance.

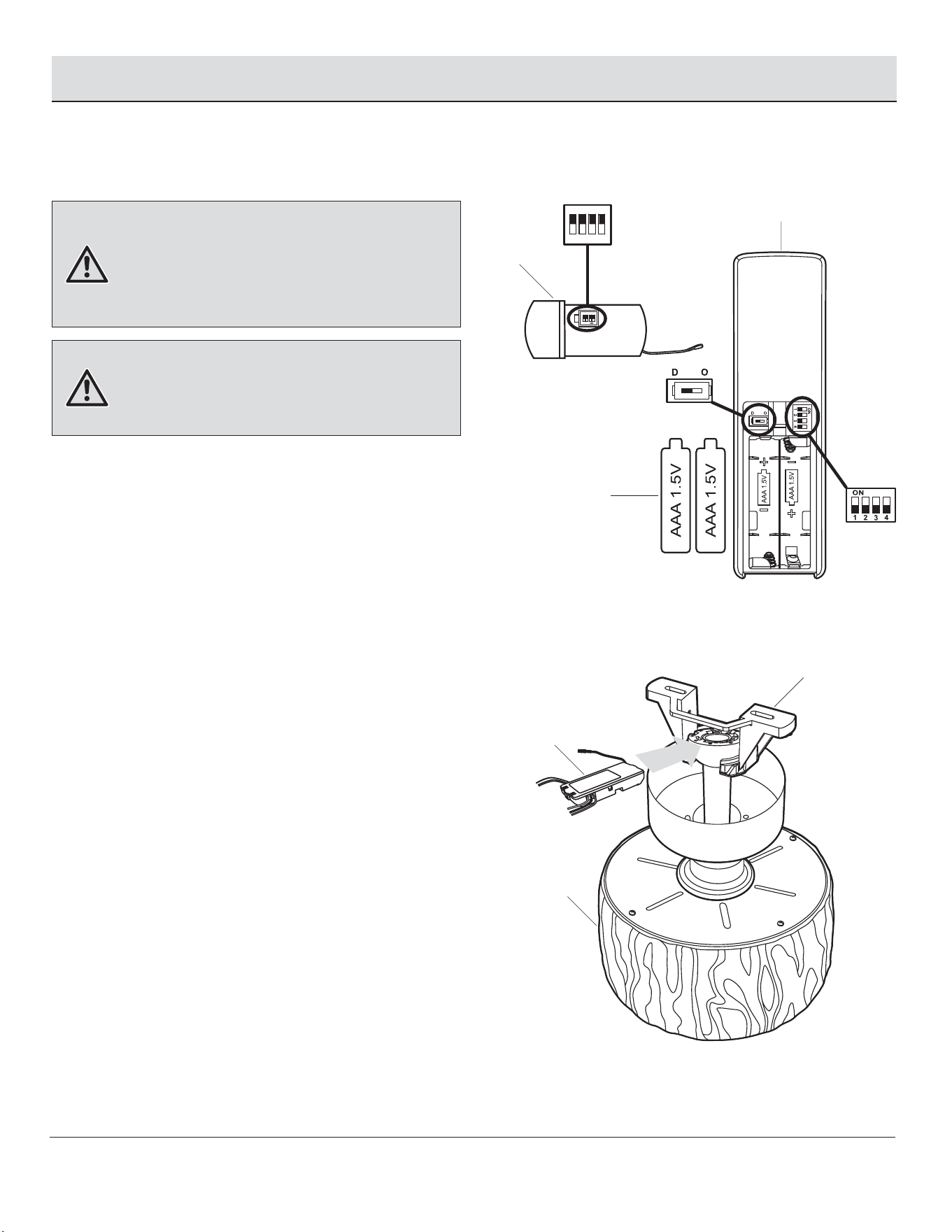

NOTE: The frequencies on your receiver and remote control

have been preset at the factory. Before installing the receiver,

make sure the dip switches on the receiver and remote

control are set to the same frequency. The dip switches on

the remote control are located inside the battery

compartment.

NOTE: The battery will weaken with age and should be

replaced before leaking takes place as this will damage the

remote control. Dispose of the used battery properly and keep

the battery out of the reach of children.

Setting the Code on the Remote:

□ Remove the battery cover on the back of the remote

control (O) by pressing rmly on the arrow and

sliding the cover off.

□ Slide the code switches to your choice of either up or

down. The factory setting is up.

□ The switch marked O/D controls the dimming

function of the lights. If using non-dimmable bulbs,

use a ballpoint pen or small screwdriver to set the

switch to O to disable the dimming function. If using

dimmable bulbs, set the switch to D to enable the

dimming function.

□ Install two AAA batteries (DD) (included).

□ Replace the battery cover on the remote control (O).

Setting the Code on the Receiver:

□ Slide the code switches on the receiver (N) to the

same positions as set on the remote control (O).

□ After checking the switches, insert the receiver (N)

into the mounting bracket (A) with the at side of the

receiver (N) facing the ceiling.

3412

DIP

DIPON

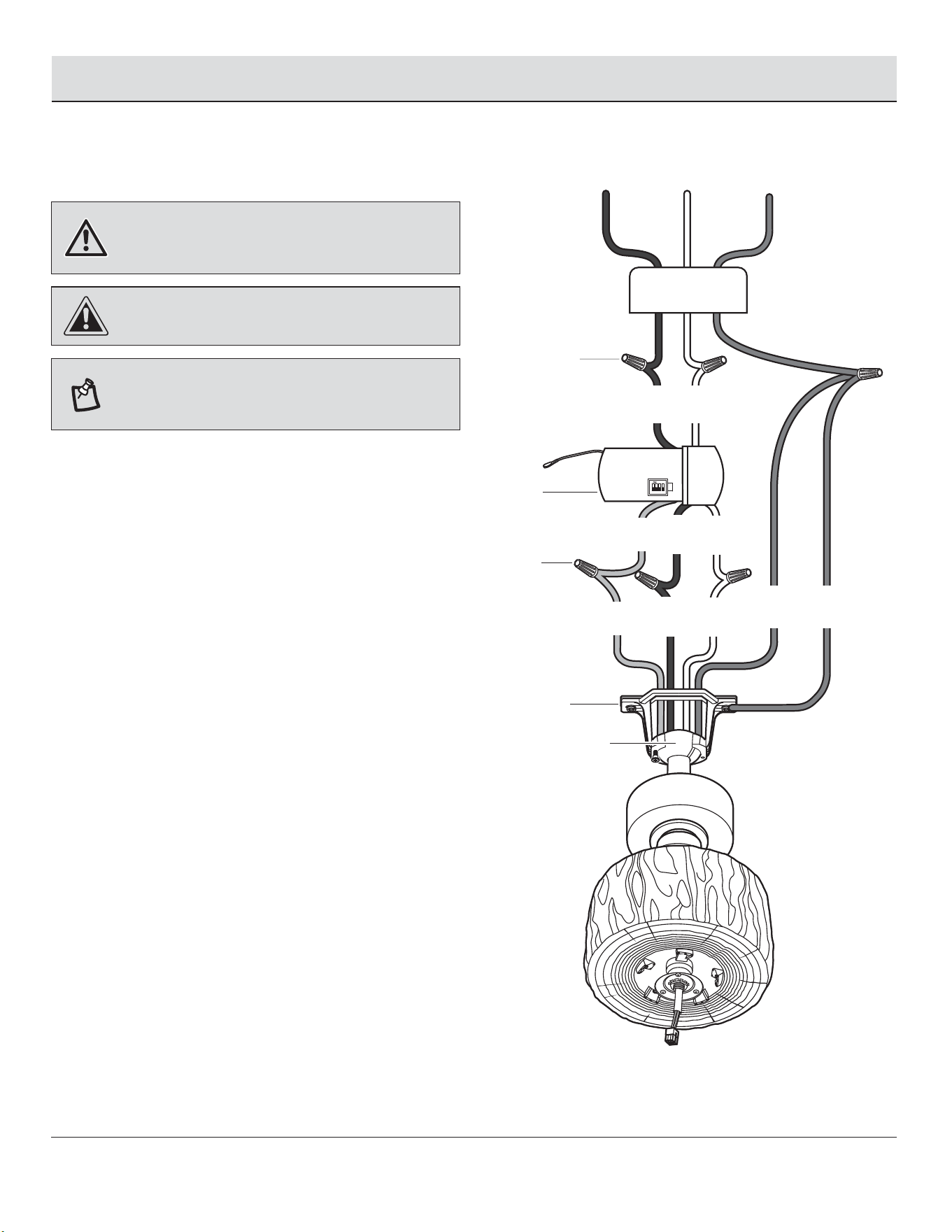

Making the electrical connections

Assembly — Hanging the Fan (continued)

WARNING: Check to see that all connections are tight,

including ground, and that no bare wire is visible at the wire

nuts, except for the ground wire.

NOTE: The fan must be installed at a maximum distance of

20 ft. from the remote control for proper signal transmission

between the remote control and the fan's receiving unit.

CAUTION: Do not use with a wall light dimmer switch.

Blue

White

Black

Green

Black

Ground

White

conductor

Blue

White

Black

Green

Outlet Box

3412

DIP

If you feel you do not have enough electrical wiring knowledge

or experience, have your fan installed by a licensed electrician.

Follow the steps below to connect the fan to your household

wiring. Use the plastic wire nuts (AA or CC) with your fan.

Secure the plastic wire nuts (AA or CC) with electrical tape.

Make sure there are no loose strands or connections.

□ Make wire connections from the fan to the receiver (N)

and outlet box as follows, using the wire nuts (CC).

From Fan To Receiver

Blue Wire --------------------- Blue Wire "For Light"

Black Wire -------------------- Black Wire "To Motor L"

White Wire -------------------- White Wire "To Motor N"

□ Make wire connections from the receiver (N) and fan to

the outlet box as follows, using the wire nuts (AA).

From Receiver To Outlet Box

Black Wire "AC in L" --------- Black Wire (Hot)

White Wire "AC in N" --------- White Wire (Neutral)

From Fan To Outlet Box

Green Wires* ----------------- Green or Bare Wire (Ground)

* There are two green grounding leads: one from the mounting

bracket (A) and one from the hanger ball/downrod assembly (D).

□ Turn the wire nut connections upward, spreading them

apart so the green (ground) and white wires will be on

one side of the outlet box and the black and blue wires

will be on the other side. Carefully tuck the connections

up into the outlet box.

Installing the canopy

□ Make sure connections are neatly tucked in the ceiling

outlet box.

□ Slide the canopy (B) up to the mounting bracket (A) and

place the key hole on the canopy (B) over the loose

canopy mounting screw (II) on the mounting bracket (A).

Turn the canopy (B) clockwise until the canopy (B) locks

in place at the narrow section of the key holes.

□ Align the circular hole on the canopy (B) with the

remaining hole on the mounting bracket (A). Secure the

canopy mounting screw (II) previously removed in the

hole, and tighten the two canopy mounting screw (II).

WARNING: Make sure the tab on the mounting bracket (A)

properly sits in the groove in the hanger ball/downrod

assembly (D) before attaching the canopy (B) to the mounting

bracket (A) by turning the canopy housing until it drops into

place.

NOTE: Adjust the canopy mounting screws (II) as necessary

until the canopy (B) and canopy bottom cover (C) are snug.

Attaching the canopy

bottom cover

□ Attach the canopy bottom cover (C) to the canopy

mounting screw (II) heads on the bottom of the

canopy (B) by inserting the screw heads into the key

slots in the canopy bottom cover (C) and rotating the

canopy bottom cover (C) clockwise.

Assembly — Hanging the Fan (continued)

13 HAMPTONBAY.COM

Please contact 1-855-HD-HAMPTON for further assistance.

Fastening the blade

assemblies to the motor

Attaching the blades to

the blade arms

Removing the rubber

packing mounts

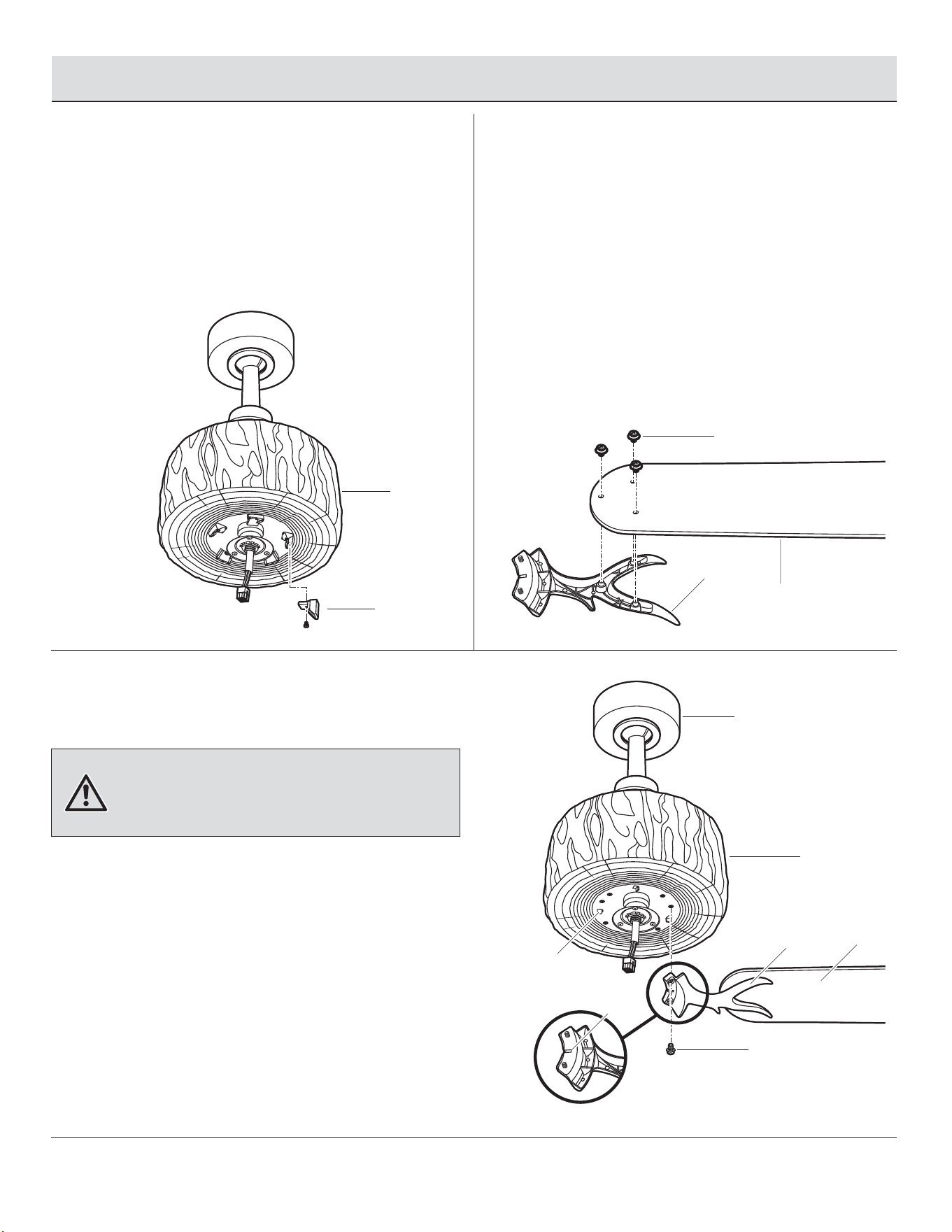

□ The fan motor assembly (G) is shipped with rubber

packing mounts (QQ) to prevent movement during

transportation. Remove the ve rubber packing

mounts (QQ) from the fan motor assembly (G) and

discard prior to attaching the blade arms (I).

WARNING: To reduce the risk of personal injury, do not

bend the blade arms (I) while installing, balancing the blades

(H), or cleaning the fan. Do not insert foreign objects between

rotating fan blades (H).

□ Attach the blades (H) to the blade arms (I) using the

three blade attachment screws and ber washers

(BB). Start a screw and ber washer (BB) into the

blade arm (I), but do not tighten.

□ Repeat for the two remaining blade attachment

screws and ber washers (BB).

□ Tighten each screw securely starting with the center

screw. Make sure the blade (H) is straight.

□ Repeat these steps for the remaining blades (H).

□ Fasten the blade assemblies to the fan motor

assembly (G) by lining up the slots of the blade arms

(RR) with the tabs on the motor (SS).

□ Tighten the two blade arm screws and lock washers

(TT) already installed in the blade arms (I).

□ Repeat this procedure for the remaining blade arms

(I).

Assembly — Attaching the Fan Blades

Attaching the mounting plate

to the mounting ring

□ Remove one of the three mounting plate screws (UU)

from the mounting ring (VV) and loosen the other two

screws (UU). (Do not remove.)

□ Place the key holes in the mounting plate (J) over the

two screws (UU) previously loosened from the

mounting ring (VV). Turn the mounting plate (J) until

the mounting plate (J) locks in place at the narrow

section of the key holes.

□ Secure by tightening the two mounting plate screws

(UU) previously loosened and the one previously

removed.

Attaching the light kit to the

switch housing

Assembly — Installing the Light Kit

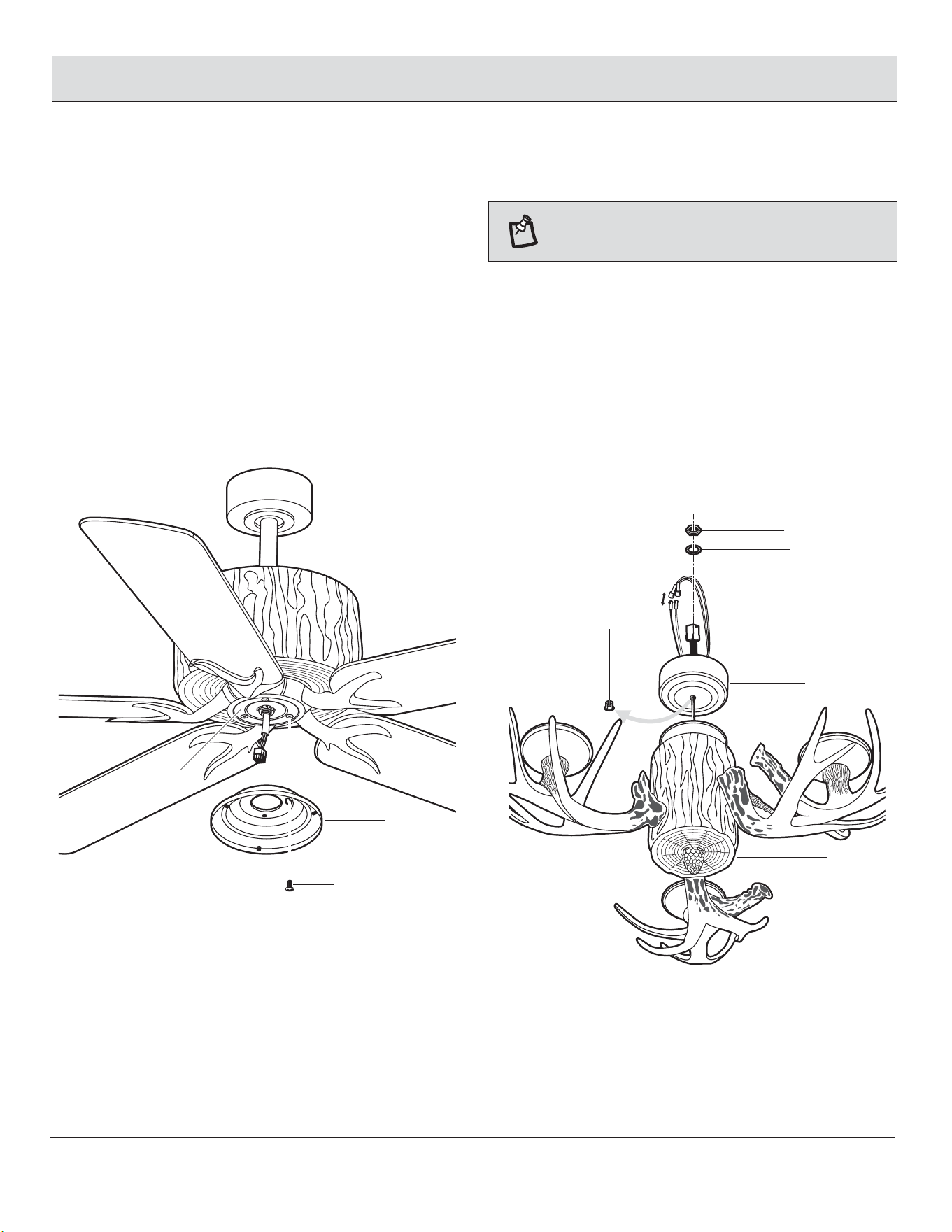

□ Remove the plug (HH) from the switch housing (K).

□ Carefully feed the light kit wires (black and white)

through the hole in the switch housing (K).

□ Attach the light kit (M) to the switch housing (K) using

the nut (EE) and lock washer (FF). Tighten securely to

prevent the light kit (M) from vibrating loose.

□ Make the polarized plug connections:

- White to white

- Blue to black

NOTE: If you do not plan to install the light kit with your fan

at this time, skip step 15, 16 and 17.

15 HAMPTONBAY.COM

Please contact 1-855-HD-HAMPTON for further assistance.

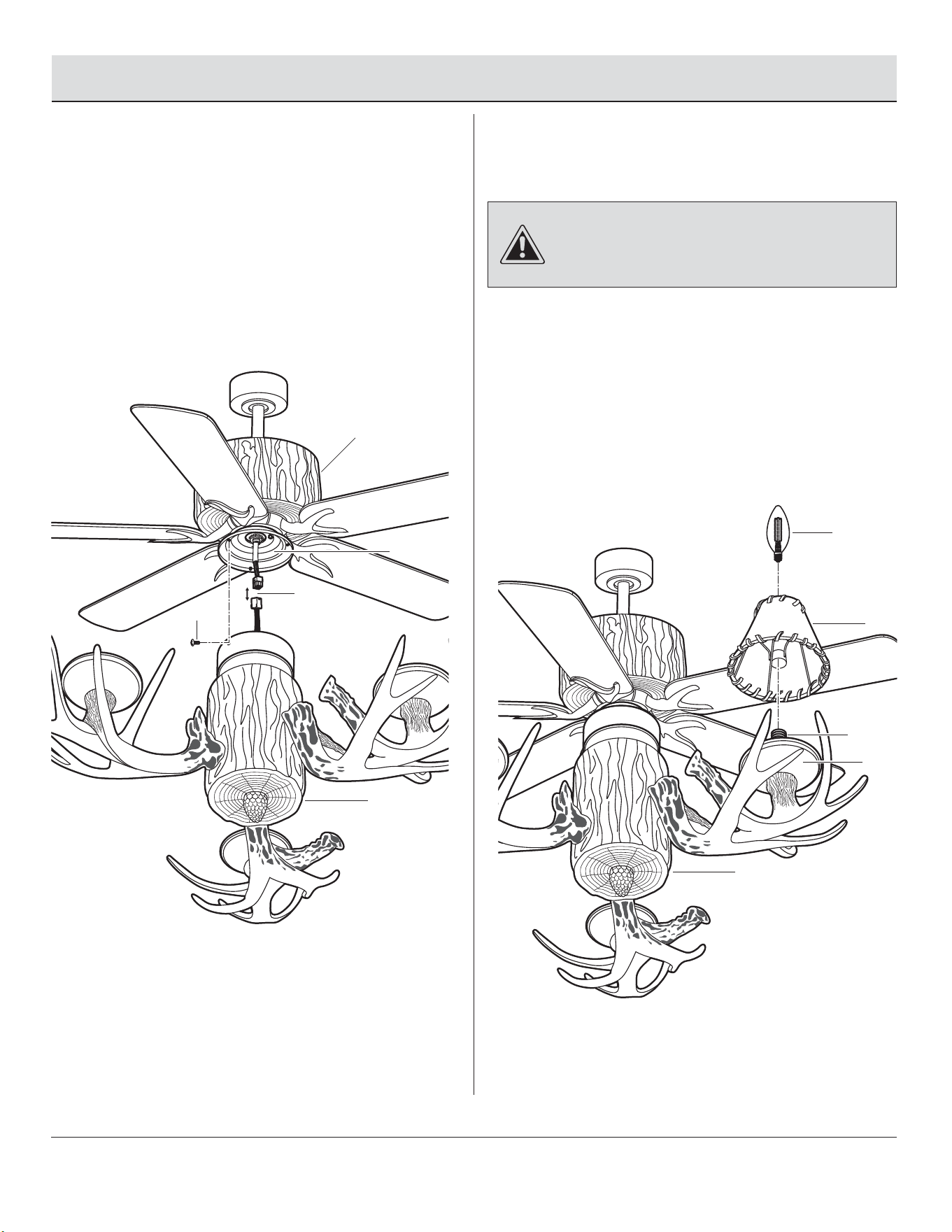

□ Place the light shade (L) on the top of bulb holder

(YY), be sure to position the metal arms on the top of

sockets (ZZ) correctly, the incorrect installation may

cause the touch of light shade (L) and light kit (M) and

scratch the light shade (L).

□ Install 3 x 4-W LED bulbs (GG) (included).

□ Restore power and your light kit is ready for

operation.

Attaching the light kit to

the mounting plate

CAUTION: Before starting installation, disconnect the

power by turning off the circuit breaker or removing the fuse

at the fuse box. Turning power off using the fan switch is not

sufcient to prevent electric shock.

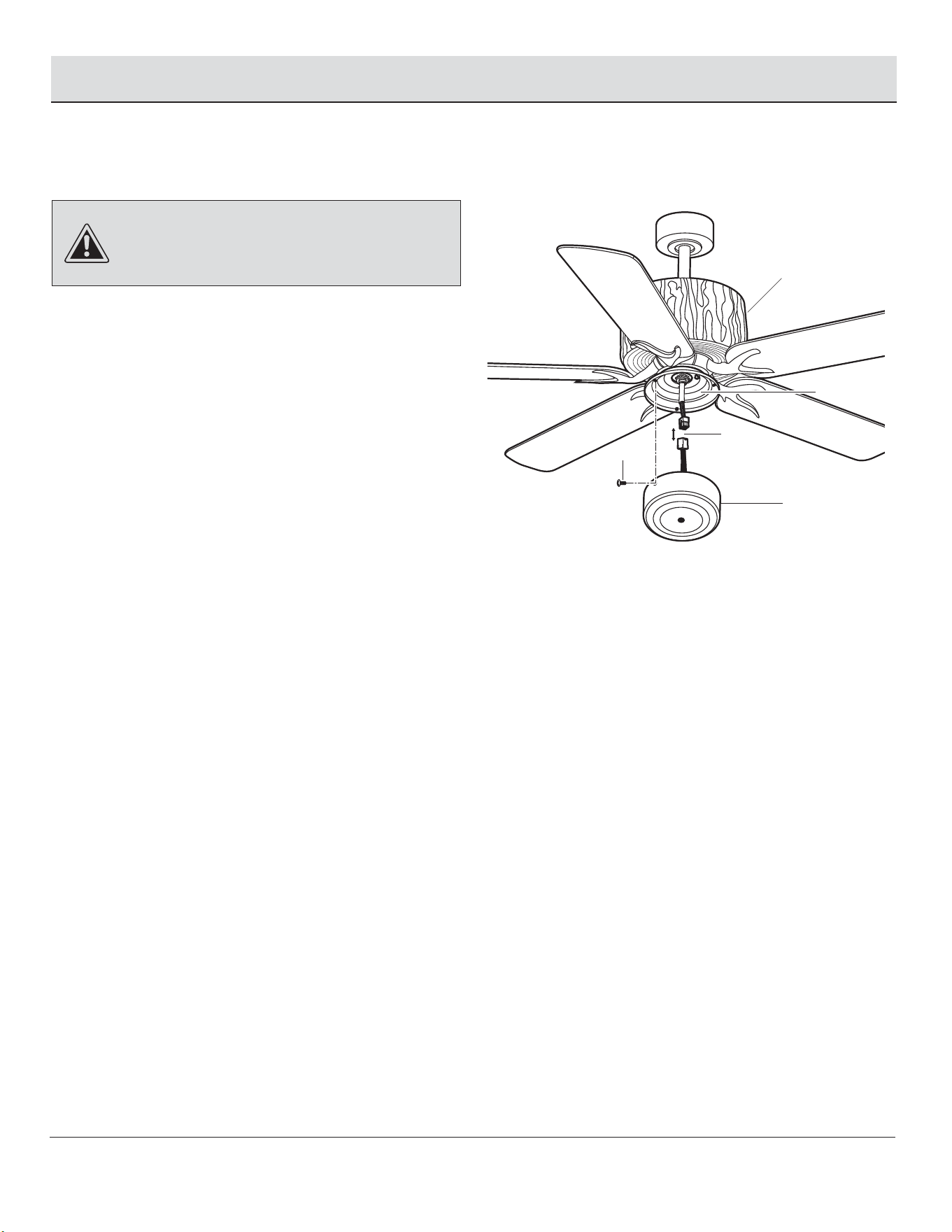

Installing the the light shade

Assembly — Installing the Light Kit (continued)

□ While holding the light kit assembly (M) under the fan

motor assembly (G), snap together the wire

connection plugs (WW).

□ Carefully push all wires back into the switch housing.

Install the light kit assembly (M) onto the mounting

plate (J) with the three switch housing mounting

screws (XX) provided. Be sure to tighten all screws.

17 HAMPTONBAY.COM

Please contact 1-855-HD-HAMPTON for further assistance.

Installing the fan without the

light kit (optional)

Assembly — Installing the Light Kit (continued)

□ While holding the switch housing (K) under the fan

motor assembly (G), snap together the wire

connection plugs (WW).

□ Carefully push all wires back into the switch housing

(K). Install the switch housing (K) onto the mounting

plate (J) with the three switch housing mounting

screws (XX) provided. Be sure to tighten all screws.

CAUTION: Before starting installation, disconnect the

power by turning off the circuit breaker or removing the fuse

at the fuse box. Turning power off using the fan switch is not

sufcient to prevent electric shock.

Operation

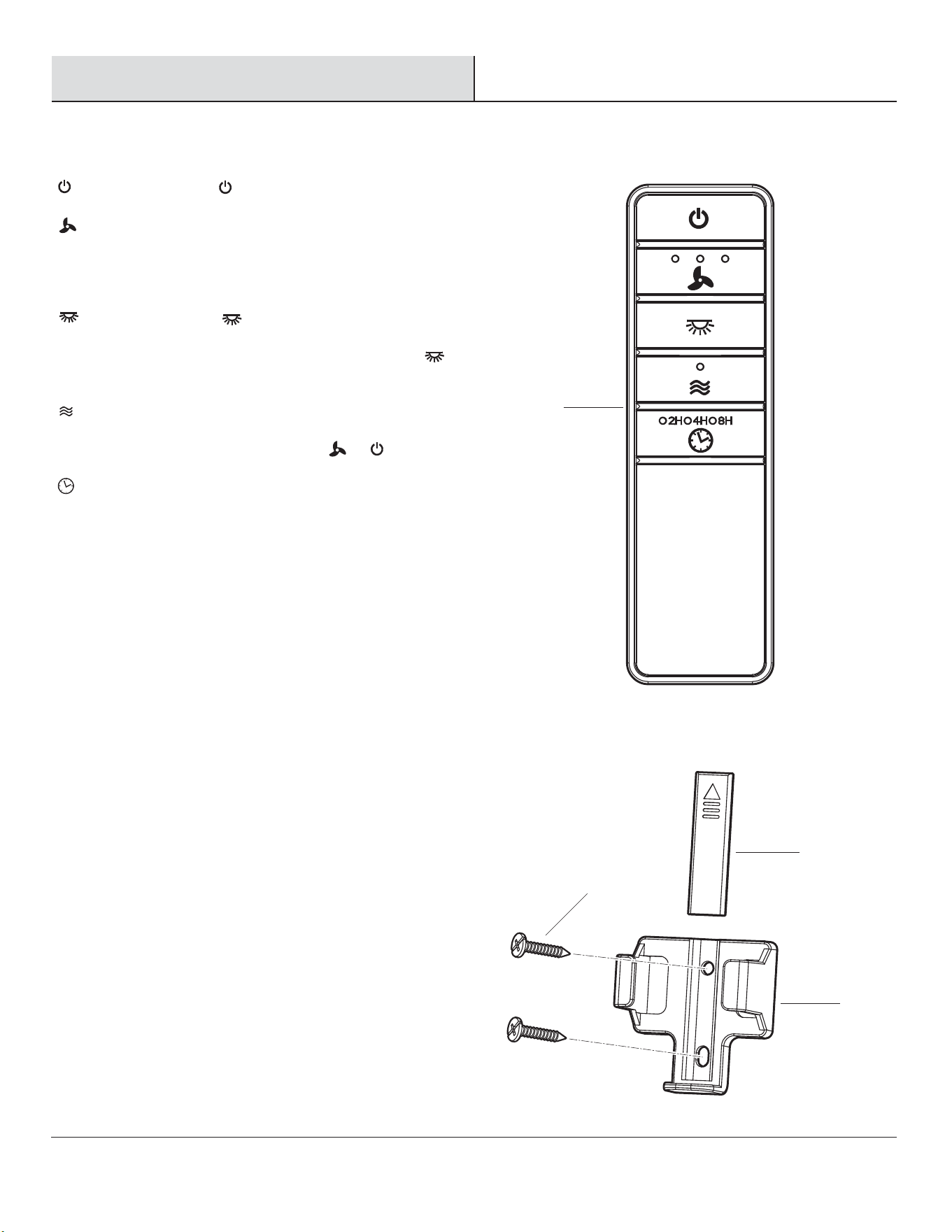

REMOTE CONTROL OPERATING INSTRUCTIONS

- Press and release the button to turn the fan on or off.

- Press and release 1 time - turns the fan on high speed.

- Press and release 2 times - turns the fan on medium speed.

- Press and release 3 times - turns the fan on low speed.

- Press and release 4 times - turns the fan off.

- Press and release the button to turn the light on or off.

If you are using dimmable bulbs and you have previously set O/D dip

switch in your remote to the “D” position, press and hold the

button to activate the dimmer function.

- Press and hold this button for 3 seconds to enable Comfort

Breeze

; this will change your fan speed randomly, simulating a

relaxing breeze. To cancel this feature press or .

- While the fan is on press 1 time - turns on a 2 hour run timer.

- While the fan is on press 2 times - turns on a 4 hour run timer.

- While the fan is on press 3 times - turns on an 8 hour run timer.

INSTALLING THE REMOTE CONTROL HOLDER

□ Attach the remote control holder (AAA) with the two remote

control holder mounting screws (BBB).

□ Replace the remote control holder cover (CCC) into remote

control holder (AAA).

BBB

CCC

AAA

19 HAMPTONBAY.COM

Please contact 1-855-HD-HAMPTON for further assistance.

Care and Cleaning

□ Check the support connections, brackets, and blade

attachments twice a year. Make sure they are secure.

Because of the fan’s natural movement, some

connections may become loose over time. It is not

necessary to remove the fan from the ceiling.

□ Clean your fan periodically. Use only a soft brush or

lint-free cloth to avoid scratching the nish. The plating is

sealed with a lacquer to minimize discoloration or

tarnishing.

□ (Optional) Apply a light coat of furniture polish to the wood

blades.

□ (Optional) Cover small scratches with a light application of

shoe polish.

□ Use water when cleaning. Water could damage the motor,

or the wood, or possibly cause an electrical shock.

□ Apply oil to your fan or motor. The motor has

permanently-lubricated sealed ball bearings.

Do not

Operation (continued)

NOTE: Wait for the fan to stop before reversing the direction

of the blade rotation.

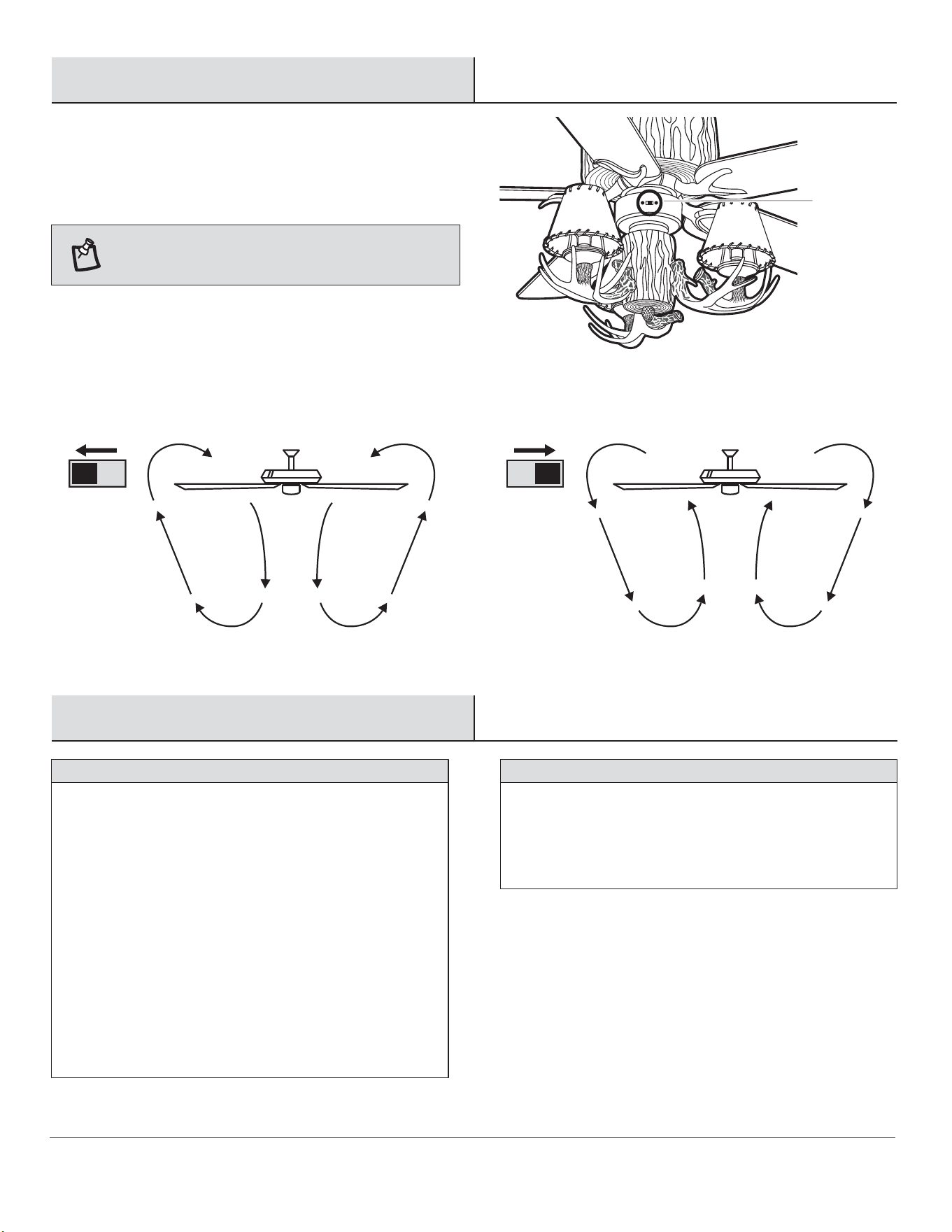

REVERSE SWITCH OPERATING INSTRUCTIONS

The reverse switch is located on the on the surface of the switch

housing. Slide the switch to the left for warm weather operation.

Slide the switch to the right for cool weather operation.

Warm weather - (Counterclockwise Direction) A downward air ow

creates a cooling effect. This allows you to set your air conditioner

on a warmer setting without affecting your comfort.

Cool weather - (Clockwise Direction) An upward air ow moves

warm air off the ceiling. This allows you to set your heating unit on

a cooler setting without affecting your comfort.

Reverse

switch

□ Do not connect the fan with wall mounted variable speed control(s).

□ Make sure the frequency switches are set correctly.

The fan wobbles.

The remote control is

not working.

Troubleshooting

Problem

Solution

□ Check the main and branch circuit fuses or breakers.

□ Check the line wire connections to the fan and switch wire connections in the switch housing.

□ Check to make sure the frequency switches from the remote control and receiver are set to the same

frequency.

□ Make sure all motor housing screws are snug.

□ Make sure the screws that attach the fan blade arm to the motor hub are tight.

□ Make sure the wire nut connections are not rattling against each other or the interior wall of the switch

housing.

□ Allow a 24-hour "breaking-in" period. Most noises associated with a new fan disappear during this

time.

□ If using the ceiling light kit, make sure the screws securing are tight. Check that the light bulb is also

secure.

□ Make sure there is a short distance from the ceiling to the canopy. It should not touch the ceiling.

□ Make sure your ceiling box is secure and that rubber isolator pads are used between the mounting

bracket and outlet box.

The fan will not start.

The fan sounds noisy.

WARNING: Make sure the power is off at the electrical

panel box before you attempt any repairs. Refer to step 8

“Making the electrical connections” on page 12.

□

Verify that all blades and blade bracket screws are secure (most fan wobble problems are caused by

loose parts). Once the fan is properly installed, run the ceiling fan for 10 minutes to let the fan

self-adjust.

If wobble occurs after running the fan for 10 minutes, verify blade level using the following process:

- Select a point on the ceiling above the tip of one of the blades, then select any fan blade and

measure from the center of the selected blade to the point on the ceiling. Rotate the fan until the next

blade is positioned and repeat the measurement using the same point from the ceiling for every blade.

Measurement deviations should be within 1/8 in..

- If all deviations are less than 1/8 in. and the fan continues to wobble, please call Customer Service

(1-855-HD-HAMPTON) to order a complimentary Blade Balancing Kit.

- If deviation is greater than 1/8 in. , please call Customer Service (1-855-HD-HAMPTON) to order

complimentary replacements of your brackets.

21 HAMPTONBAY.COM

Please contact 1-855-HD-HAMPTON for further assistance.

Part

Description

Mounting bracket (preassembled)

Canopy

Canopy bottom cover (preassembled)

Hanger ball/downrod assembly (6”)

Extra downrod (4”)

Coupling cover

Fan motor assembly

Blade

Blade arm

Mounting plate

Switch housing

Light shade

Light kit

Receiver

Remote control

Part

Description

Plastic wire nut

Blade attachment screw and ber washer

Plastic wire nut

1.5V AAA battery

Nut

Lock washer

4-Watt LED bulb

Plastic plug (extra)

Service Parts

1-855-HD-HAMPTON

HAMPTONBAY.COM

Retain this manual for future use.

Questions, problems, missing parts? Before returning to the store,

8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday

call Hampton Bay Customer Service

Hampton Bay YG098B-NM Lodge 52 in. LED Nutmeg Ceiling Fan

Product's Documents

Instructions / Assembly

Specifications

Hampton Bay YG098B-NM Questions and Answers
