Parts List
Number: 71334
Issued: 7-18-2011
Revised: 3-xx-2022
hoshizakiamerica.com
Condensing Unit
Models
SRC-14H
2
CONTENTS
Auxiliary Codes ...................................................................................................................... 3
Note About Ordering Parts .................................................................................................... 3
A. Main Assembly & Refrigeration Circuit .............................................................................. 4
B. Control Box Assembly ........................................................................................................ 6
C. Accessories & Labels ........................................................................................................ 7
3
Auxiliary Codes
SRC-14H
A-0 June 2011
B-0 January 2012
B-1 February 2012
C-0 January 2013
D-0 January 2014
E-0 February 2015
F-0 January 2016
G-0 April 2017
Auxiliary Code Breakdown
The auxiliary code is the rst two characters in the serial number. The rst character
indicates the year. Years progress or regress in alphabetical order. The series runs from
"A" through "V" and the letters "I" and "O" are skipped. The second character indicates
signicant part changes within a year. Base is "0" and this number advances for each
change. In cases where there is a letter in parentheses, this designates the month. This
is the last character in the serial number. The series runs from "(A)" through "(M)" and the
letter "(I)" is skipped. This designation is only included when identifying a parts change
within an auxiliary code.
Note About Ordering Parts
Most assemblies cannot be ordered as complete units; parts in the assemblies generally
must be ordered separately.
4

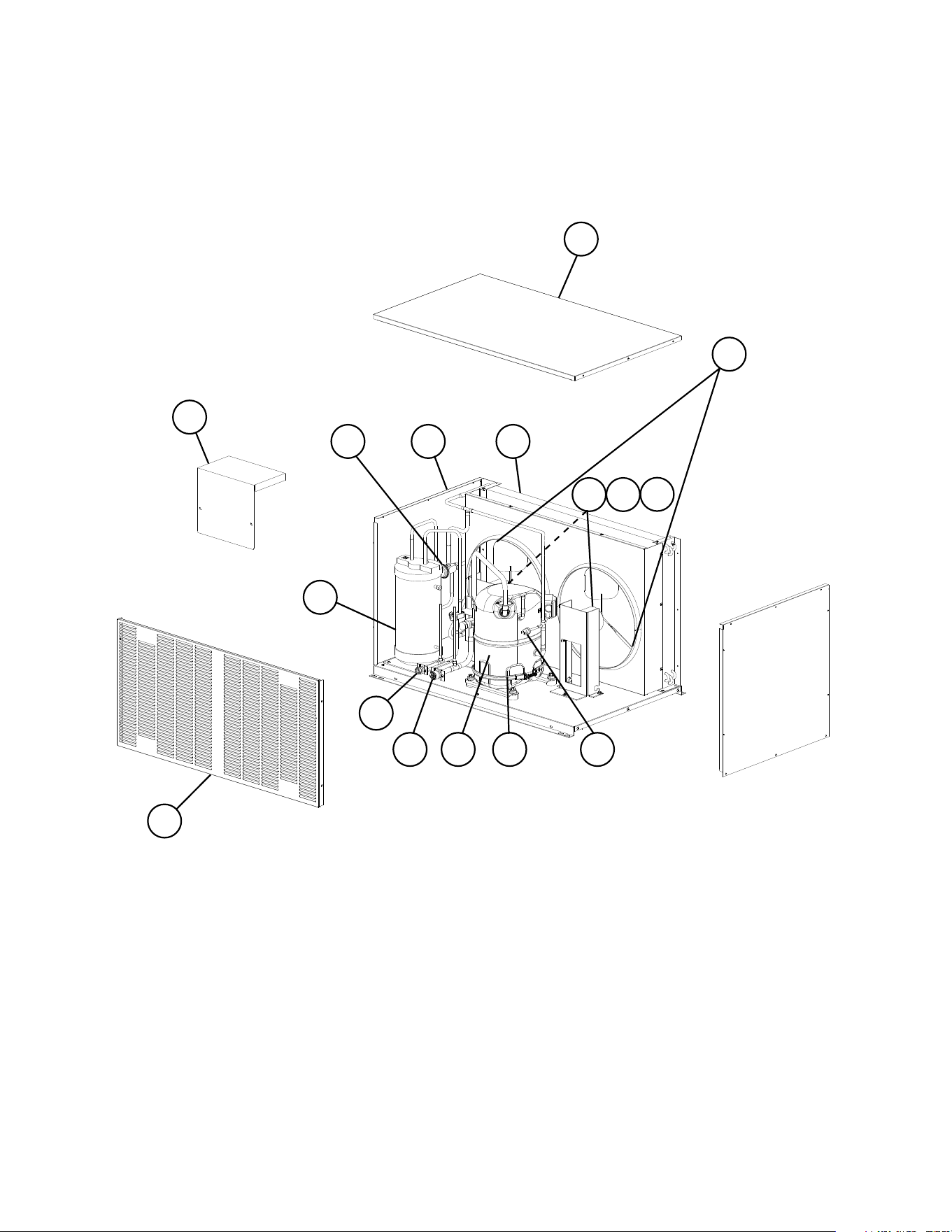

A. Main Assembly & Refrigeration Circuit
SRC-14H
A-0 to G-0
1
2 9
6
11
10
13
12
14
5 5a
5b
8
3
4
7
5
Title: A. Main Assembly & Refrigeration Circuit Model: SRC-14H
Index
No.
Description
Material or
Model Number Part Number
Required Number
A-0
to
B-0
B-1
to
B-1
(K)
B-1
(L)
to
G-0
Condensing Unit
1 Top Panel 3A5858-01 1 1 1
2 Side Panel 3A5855-01 2 2 2
3 Louver Panel 213968-01 1 1 1
4 Control Box Cover 3A3182-01 1 1 1
5 Fan Motor 4A3201-01 2 2 2
5a Split Lock Washer 7L22I0832 8 8 -
5b Self Locking Nut 7N21I0832 8 8 8
6 Fan Blade 4A1493-01 2 2 2
Refrigeration Circuit
7 Compressor
(B-1 and later utilize external
crankcase heater-item 8)
4A4134-02 1 -
4A4134-03 1 1
8 Crankcase Heater 4A5397-02 1 1
9 Condenser 104777-02 1 1 1
10 Receiver 438209-01 1 1 1
11 High-Pressure Switch 463180-05 1 1 1
12 Headmaster (Condensing
Pressure Regulator)
4A0229-01 1 1 1
13 Liquid Line Coupling 426554-01 1 1 1
14 Suction Line Coupling 448569-01 1 1 1
6

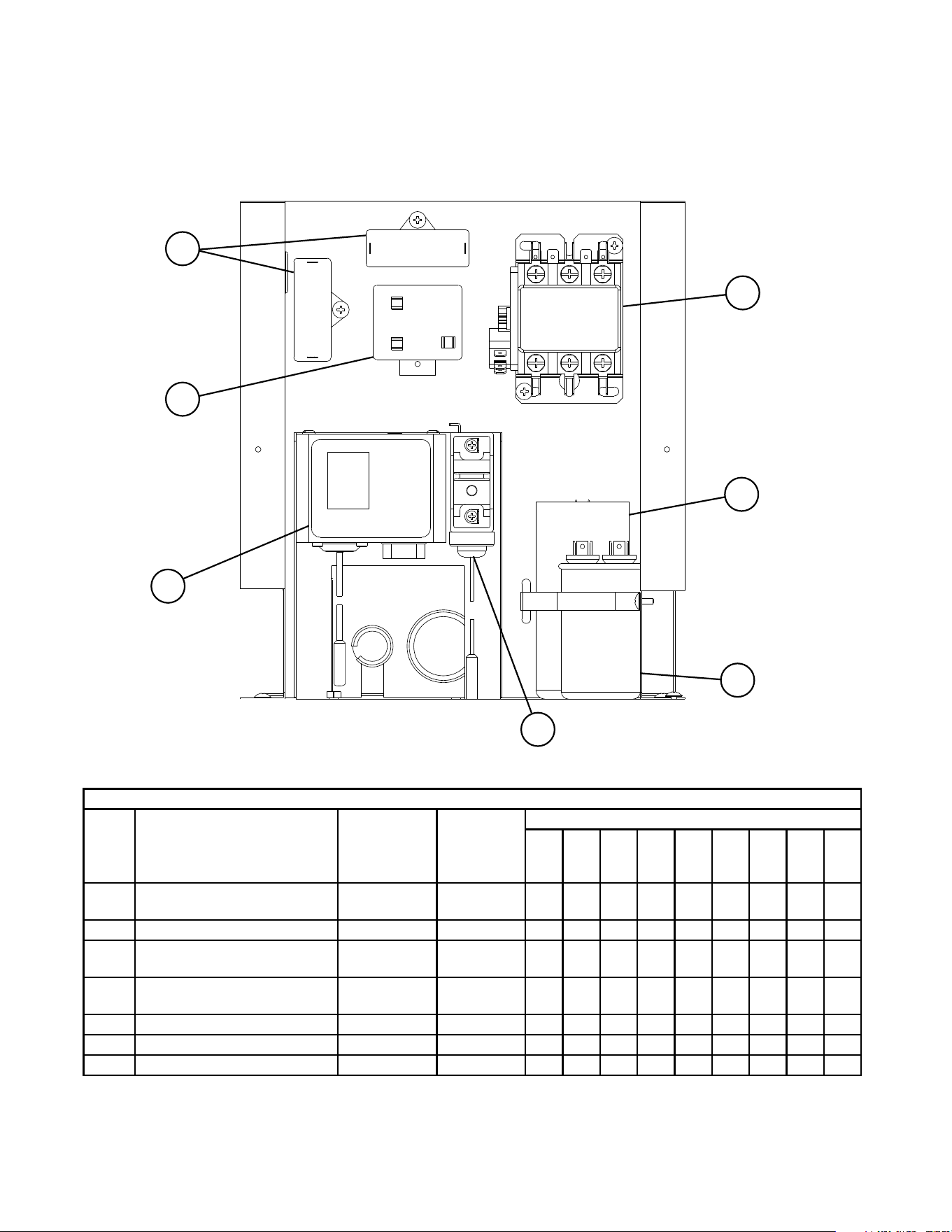

B. Control Box Assembly
SRC-14H
A-0 to G-0
1
2
3
4
5
Title: B. Control Box Assembly Model: SRC-14H
Index
No. Description
Material or
Model Number Part Number
Required Number
A-0
to
G-0
1 Fan Motor Capacitor 10MFD,
250VAC
443192-01 2
2 Magnetic Contactor 4A0794-01 1
3 Start Capacitor 145-174MFD,
220VAC
3A0076-11 1
4 Run Capacitor 30MFD,
370VAC
3A2005-03 1
5 Start Relay 4A1107-13 1
6 Control Low-Pressure Switch SP-5629 4A5353G01 1
7 Safety Low-Pressure Switch 4A3497-01 1
6
7
7

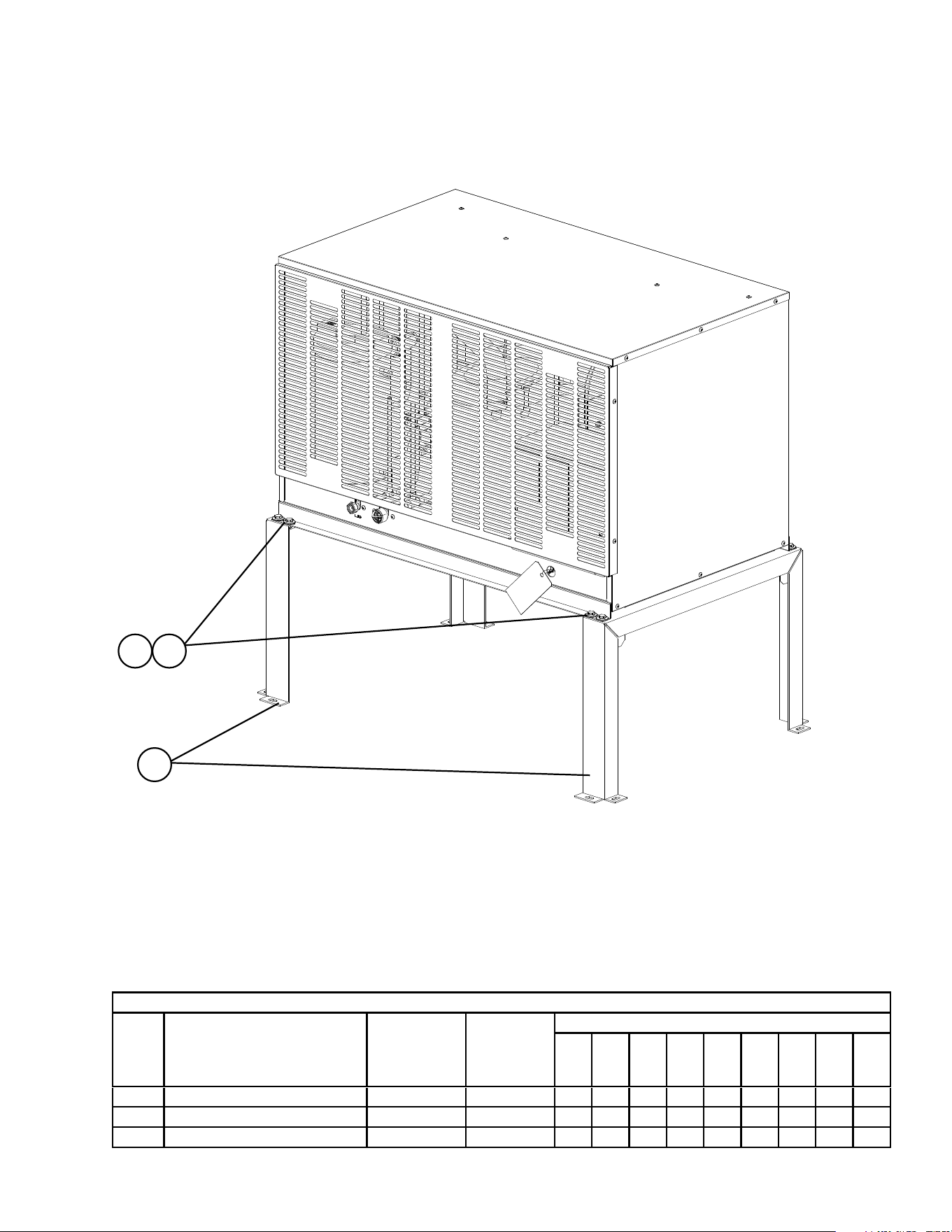

C. Accessories & Labels
SRC-14H
A-0 to G-0
1
1a 1b
Title: C. Accessories & Labels Model: SRC-14H
Index
No. Description
Material or
Model Number Part Number
Required Number
A-0
to
G-0
1 Leg 2A3166G01 2
1a Hex Head Bolt w/ Washer 8×16, SS 7B0230816 8
1b Hex Nut M8, SS 7N12-0800 8
