Models
SRK-10H
Condensing Unit
Serenity Series
Parts List
Number: 71312
Issued: 12-22-2010
Revised: 5-4-2016
hoshizakiamerica.com
2
CONTENTS
Auxiliary Codes ...................................................................................................................... 3
Note About Ordering Parts .................................................................................................... 3
A. Main Assembly & Refrigeration Circuit .............................................................................. 4
B Control Box Assembly ........................................................................................................ 6
C. Accessories & Labels ........................................................................................................ 7
3
Auxiliary Codes
SRK-10H
V-0 August 2010
A-0 January 2011
B-0 June 2012
C-0 January 2013
C-1 August 2013
D-0 January 2014
E-0 April 2015
F-0 January 2016
Auxiliary Code Breakdown
The auxiliary code is the rst two characters in the serial number. The rst character
indicates the year. Years progress or regress in alphabetical order. The series runs from
"A" through "V" and the letters "I" and "O" are skipped. The second character indicates
signicant part changes within a year. Base is "0" and this number advances for each
change. In cases where there is a letter in parentheses, this designates the month. This is
the last character in the serial number. The series runs from "(A)" through "(M)" and the
letter "(I)" is skipped. This designation is only included when identifying a parts change
within an auxiliary code.
Note About Ordering Parts
Most assemblies cannot be ordered as complete units; parts in the assemblies generally
must be ordered separately.
4

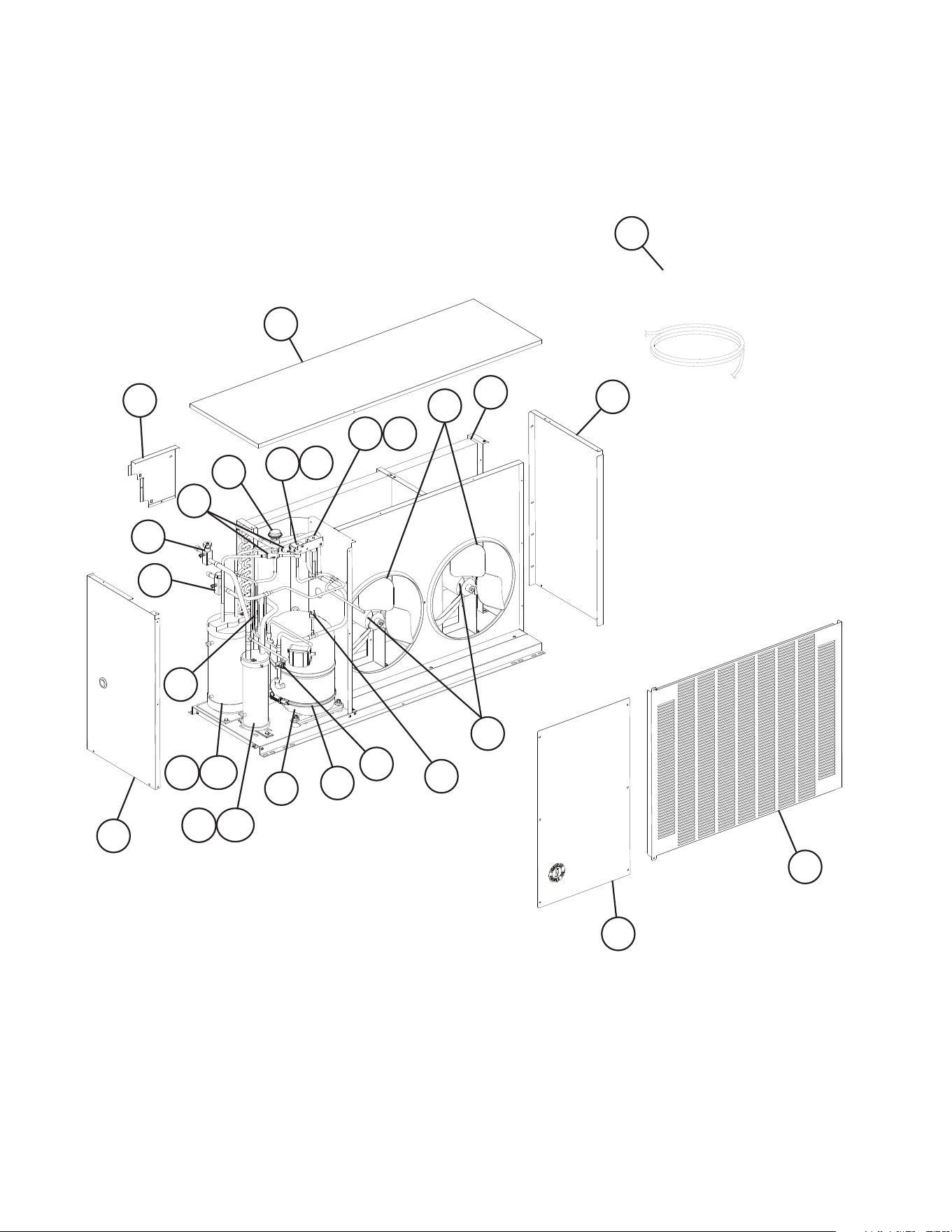

A. Main Assembly & Refrigeration Circuit
SRK-10H
V-0 to F-0
2
5
21
22
20
8
12
3
7
18
10
19
4
6
1
16
17
15 17
11
9
23
24
13
13a
14
14a
5
Title: A.Main Assembly & Refrigeration Circuit Model: SRK-10H
Index
No. Description
Material or
Model Number Part Number
Required Number
V-0
to
A-0
B-0
to
C-0
C-1
to
F-0
Main Assembly
1 Front Panel 3A3293-01 1 1 1
2 Top Panel 2A3242-01 1 1 1
3 Right Side Panel 3A3291-01 1 1 1
4 Left Side Panel 2A4981-01 1 1 1
5 Refrigerant Access Panel 4A4739-01 1 1 1
6 Louver Panel 2A3241-01 1 1 1
7 Fan Motor 4A3201-01 2 2 2
8 Fan Blade 4A3614-01 2 2 2
9 Wire Kit 4A5657-02 1
Refrigeration Circuit
10 Compressor
(B-0 and later utilize external
crankcase heater - item 11)
4A1539-02 1 -
4A1539-03 1 1
11 Crankcase Heater 4A5397-02 1 1
12 Condenser 1A0980-01 1 1 1
13 Accumulator 3A4276-01 1 1 1
13a Bolt 5x12 7B0230512 2 2 2
14 Receiver 438209-01 1 1 1
14a Bolt 5x12 7B0230512 2 2 2
15 Hot Gas Valve Body 4A3978-01 1 1 1
16 Liquid Line Valve Body 4A3276-01 1 1 1
17 Valve Coil 4A3277-01 2 2 2
18 High-Pressure Switch 463180-01 1 1 1
19 Discharge Line Thermostat 440664-01 1 1 1
20 Headmaster (C.P. R.) 4A0229-02 1 1 1
21 Check Valve 4A1373-01 1 1 1
22 Strainer 441569-02 2 2 2
23 Suction Line Shutoff Valve 4A3490-01 1 1 1
24 Liquid Line Shutoff Valve 4A2215-01 1 1 1
6

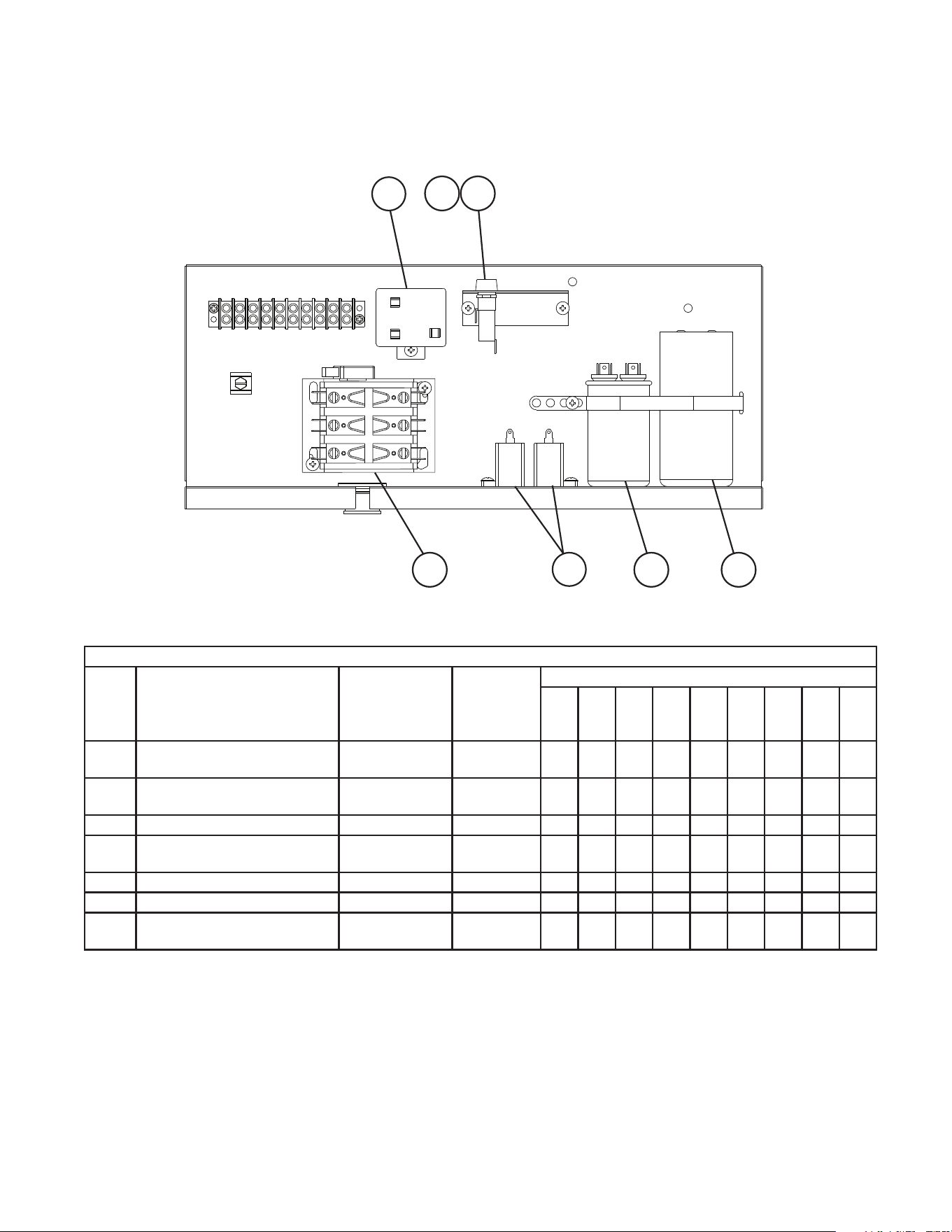

B Control Box Assembly
SRK-10H
V-0 to F-0
Title: B. Control Box Assembly Model: SRK-10H
Index
No. Description
Material or
Model Number Part Number
Required Number
V-0
to
F-0
1 Start Capacitor 145-174MFD,
220VAC
3A0076-11 1
2 Run Capacitor 30MFD,
370VAC
3A2005-03 1
3 Start Relay 4A1107-13 1
4 Fan Motor Capacitor 10MFD,
250VAC
443192-01 2
5 Magnetic Contactor 4A0794-01 1
6 Fuse Holder 4A5443-01 1
7 Fuse AGC-10A,
250VAC
4A0893-07 1
1
6
25
3
4
7
7

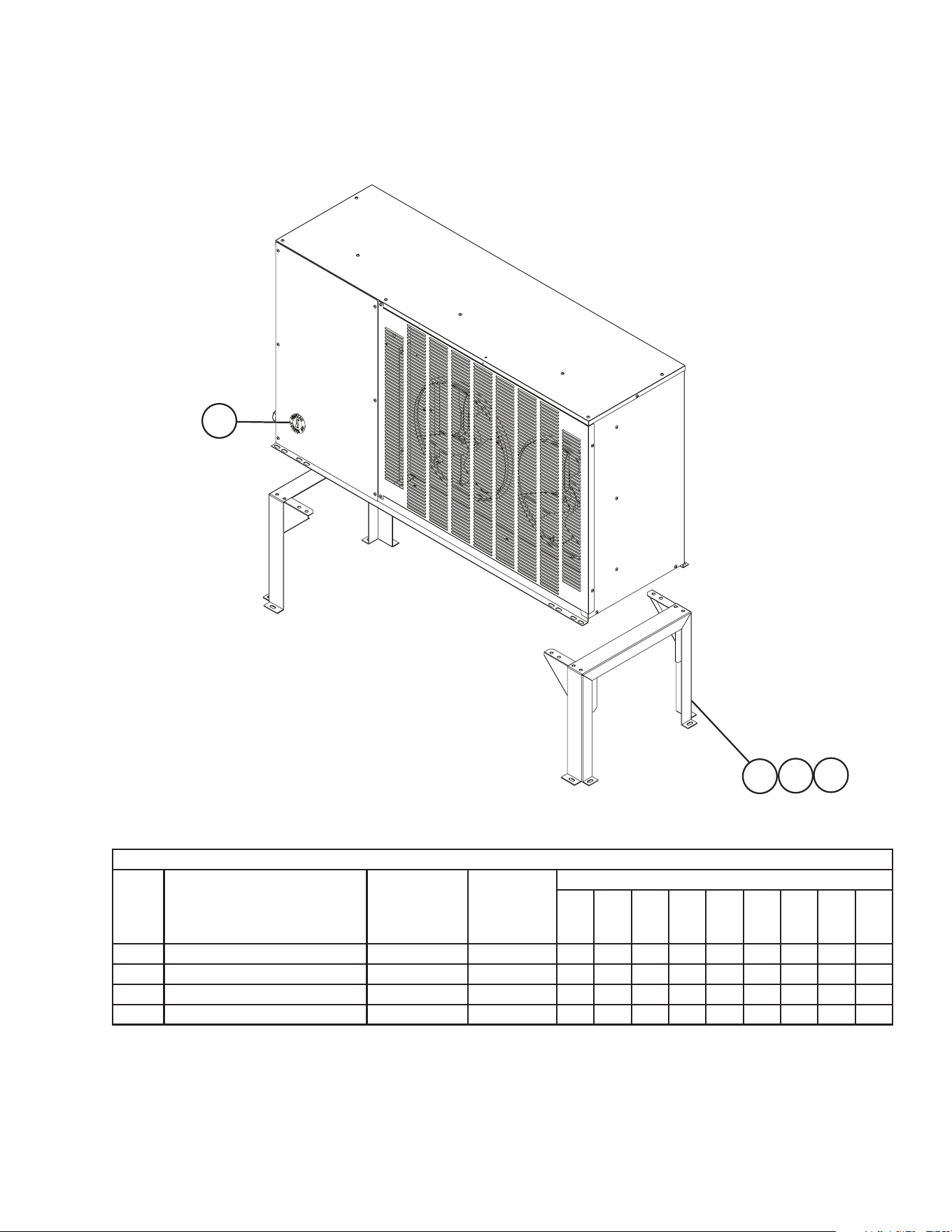

C. Accessories & Labels
SRK-10H
V-0 to F-0
Title: C. Accessories & Labels Model: SRK-10H
Index
No. Description
Material or
Model Number Part Number
Required Number
V-0
to
F-0
1 Penguin Label HA (R) 4A0526-01 1
2 Leg 3A3716G01 2
2a Hex Bolt Assembly w/Washers 8×16, SS 7B0230816 16
2b Hex Nut M8, SS 7N12-0800 16
2a
2
2b
1
