Parts List
Number: 71408
Issued: 4-18-2018
Revised: 3-24-2022
hoshizakiamerica.com
Condensing Unit
Models
SRC-10J
2
CONTENTS
Auxiliary Codes ...................................................................................................................... 3
Note About Ordering Parts .................................................................................................... 3
A. Main Assembly & Refrigeration Circuit .............................................................................. 4
B. Control Box Assembly ........................................................................................................ 6
C. Accessories & Labels ........................................................................................................ 7
3
Auxiliary Codes
SRC-10J
G-0 September 2017
H-0 April 2018
J-0 January 2019
K-0 January 2020
L-0 January 2021
M-0 February 2022
Auxiliary Code Breakdown
The auxiliary code is the rst two characters in the serial number. The rst character
indicates the year. Years progress or regress in alphabetical order. The series runs from
"A" through "V" and the letters "I" and "O" are skipped. The second character indicates
signicant part changes within a year. Base is "0" and this number advances for each
change. In cases where there is a letter in parentheses, this designates the month. This
is the last character in the serial number. The series runs from "(A)" through "(M)" and the
letter "(I)" is skipped. This designation is only included when identifying a parts change
within an auxiliary code.
Note About Ordering Parts
Most assemblies cannot be ordered as complete units; parts in the assemblies generally
must be ordered separately.
4

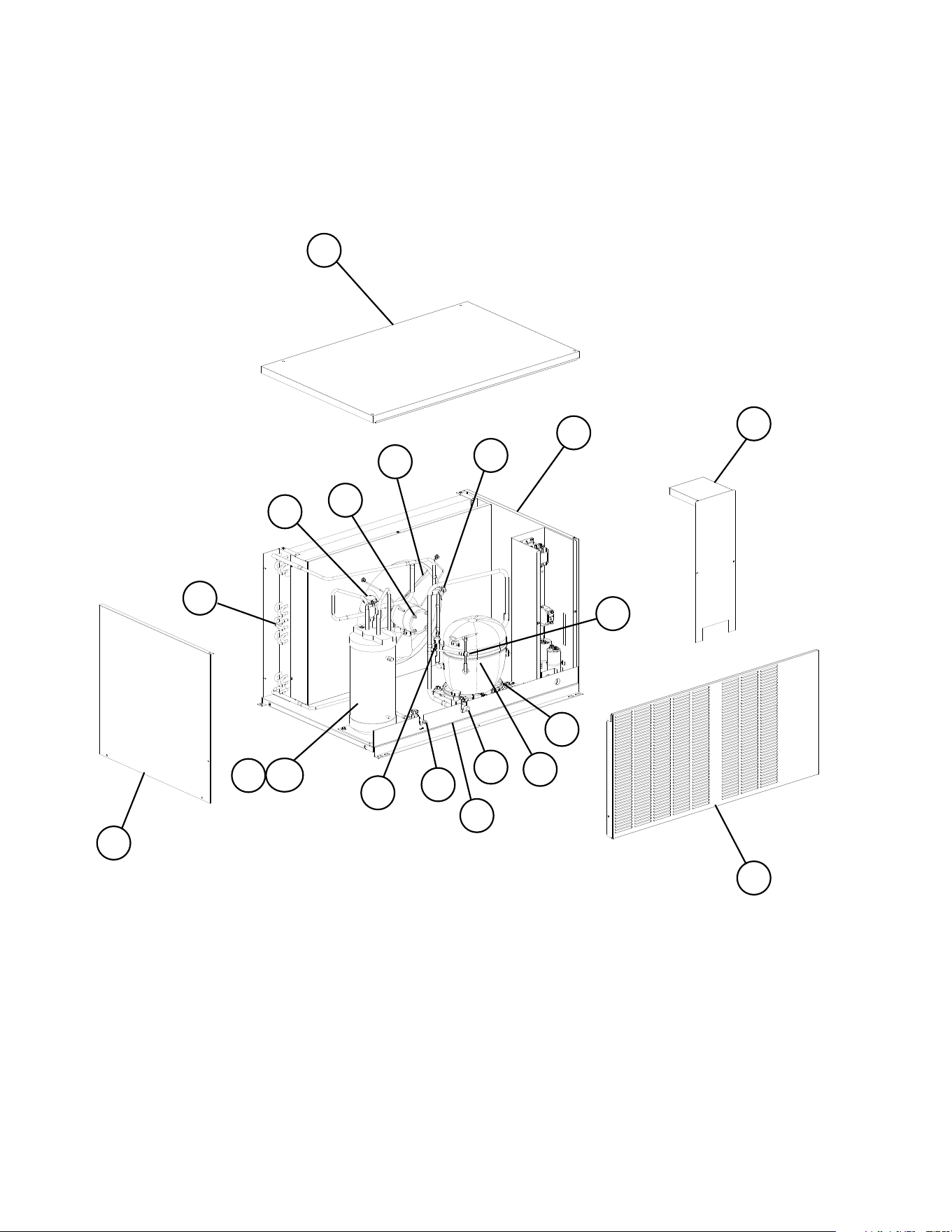

A. Main Assembly & Refrigeration Circuit
SRC-10J
G-0 to M-0
1
2
3
4
5
6
7
8
9
11
10
13
14
15
16
17
15
12
12a
5
Title: A. Main Assembly & Refrigeration Circuit Model: SRC-10J
Index
No.
Description
Material or
Model Number Part Number
Required Number
G-0
to
M-0
Main Assembly
1 Top Panel 3A9269-01 1
2 Right Side Panel 3A9293-01 1
3 Left side Panel 3A9292-01 1
4 Louver Panel 3A9281-01 1
5 Control Box Cover 3A9574-01 1
6 Front Frame 3A9268-01 1
Refrigeration Circuit
7 Compressor 3A6900-02 1
8 Crankcase Heater 4A5091-01 1
9 Condenser 104777-02 1
10 Fan Motor 4A6115-02 1
11 Fan Blade 4A1493-01 1
12 Receiver 4A6214-01 1
12a Hex Bolt 7B0230512 3
13 High-Pressure Switch 463180-04 1
14 Headmaster (C.P.R) 4A0229-06 1
15 Liquid Line Shut Off Valve 4A3491-01 2
16 Suction Line Shut Off Valve 4A3490-01 1
17 Access Valve 457729-01 1
6

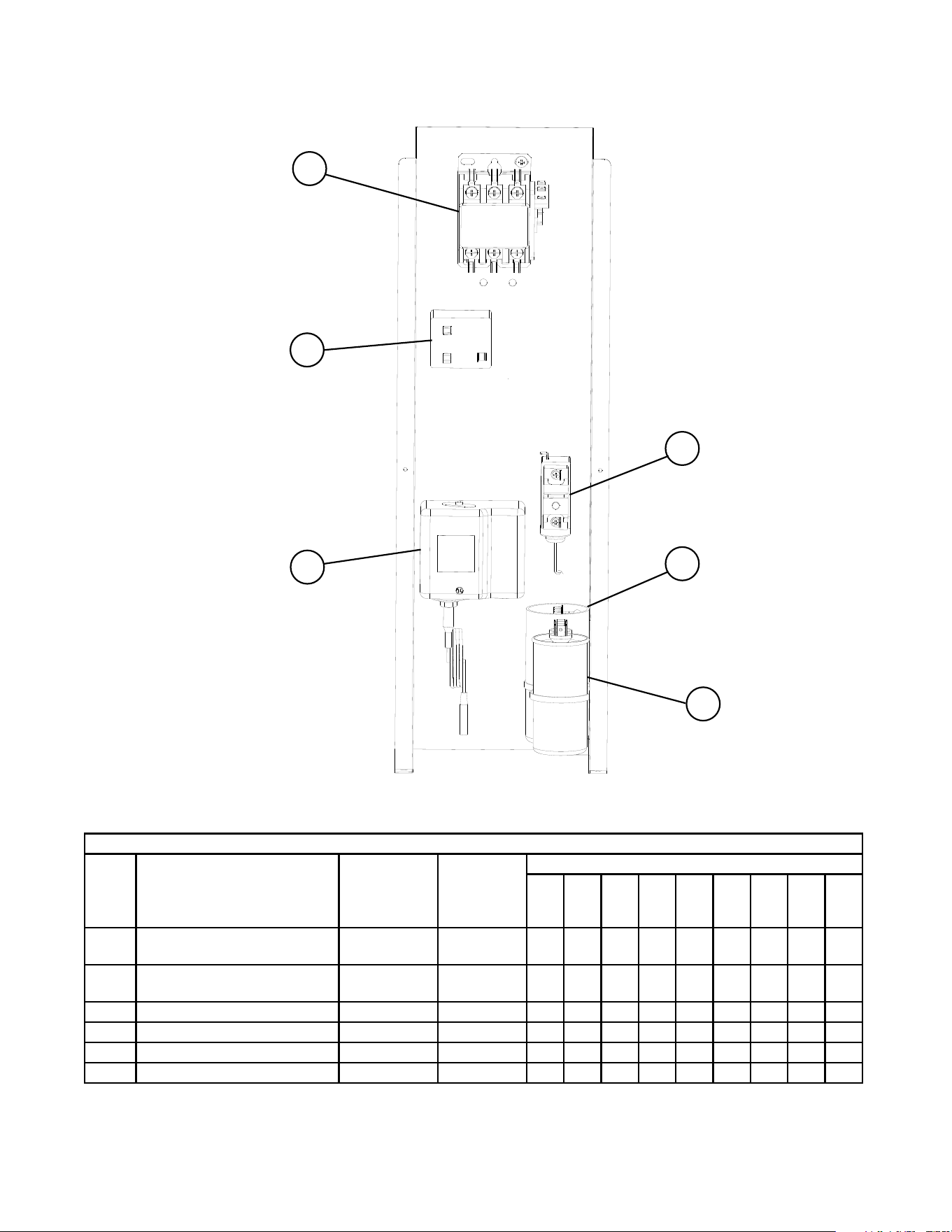

B. Control Box Assembly
SRC-10J
G-0 to M-0
Title: B. Control Box Assembly Model: SRC-10J
Index
No. Description
Material or
Model Number Part Number
Required Number
G-0
to
M-0
1 Run Capacitor 30MFD,
440VAC
3A2005-14 1
2 Start Capacitor 108-130MFD,
330VAC
3A0076-22 1
3 Magnetic Contactor 4A0794-01 1
4 Start Relay 4A1107-07 1
5 Control Low-Pressure Switch 4A6065-01 1
6 Safety Low-Pressure Switch 4A3497-01 1
1
2
3
4
5
6
7

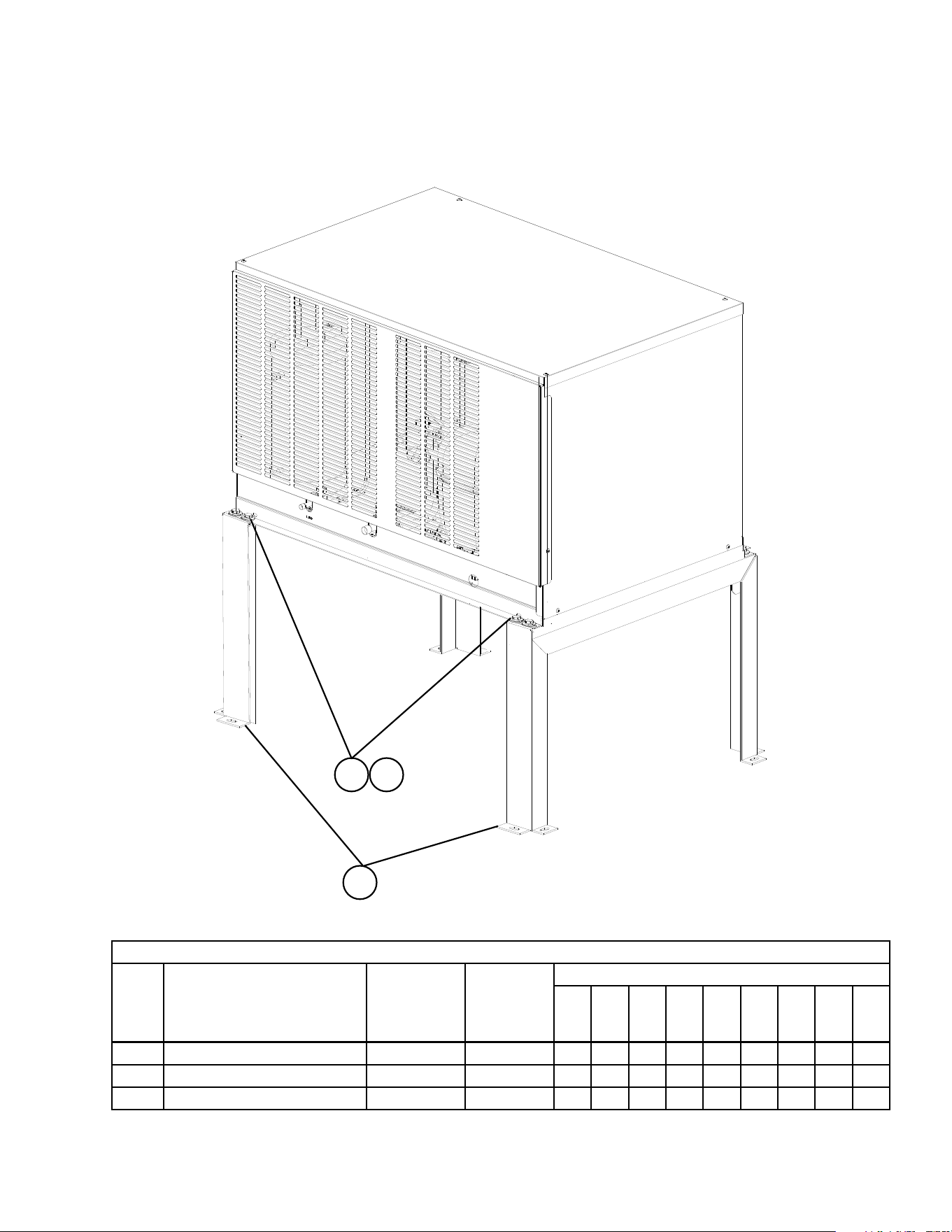

C. Accessories & Labels
SRC-10J
G-0 to M-0
Title: C. Accessories & Labels Model: SRC-10J
Index
No. Description
Material or
Model Number Part Number
Required Number
G-0
to
M-0
1 Leg 2A8580G01 2
1a Hex Head Bolt w/ Washer 8×20, SS 7B0130820 8
1b Hex Nut M8, SS 7N11-0800 8
1
1a 1b
