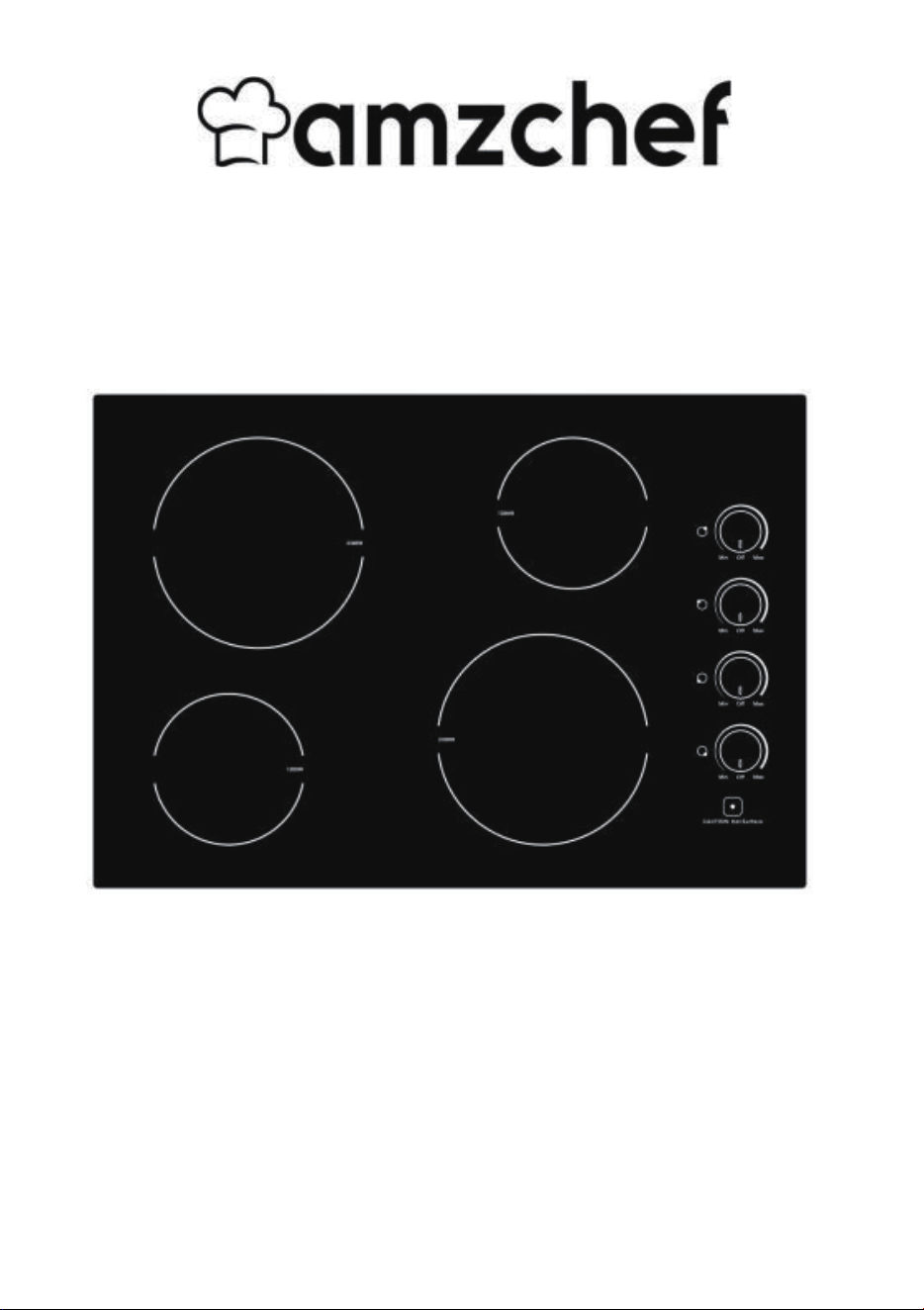

INSTRUCTION MANUAL
Ceramic Cooker Hob
YL-EC4-307007
240V~, 60Hz
PLEASE READ INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY
RETAIN THIS MANUAL FOR FUTURE REFERENCE
BRAND:AMZCHEF
2
Contents
1. Safety Warnings..................................................................................... 3
2. Product Overview and Parameters.................................................. 11
3. How to choose right cookware......................................................... 12
4. Use Instruction..................................................................................... 13
5. Cooking Guidelines …......................................................................... 14
6. Care and Cleaning.......................................................................16
7. Technical Specification..................................................................... 17
8. Installation instruction......................................................................... 17
9. Warranty…............................................................................................. 21
3
Safety Warnings
Installation
Cut Hazard
• Take care - panel edges are sharp.
• Failure to use caution could result in injury or
c
uts.
Important safety instructions
• Read these instructions carefully before installing or
using this appliance.
• No combustible material or products should be placed
on this appliance at any time.
• Please make this information available to the person
responsible for installing the appliance as it could
Electrical Shock Hazard
• Disconnect the appliance from the mains electricity
supply before carrying out any work or maintenance
on it.
• Connection to a good earth wiring system is essential
and mandatory.
• Alterations to the domestic wiring system must only
be made by a qualified electrician.
• Failure to follow this advice may result in electrical
shock or death.
• Proper Installation – Be sure your appliance is
properly installed and grounded by a qualified
technician.
Your safety is important to us. Please read this
information before using your cooktop.
reduce your installation costs.
• In order to avoid a hazard, this appliance must be
installed according to these instructions for
installation.
• This appliance is to be properly installed and earthed
only by a suitably qualified person.
• This appliance should be connected to a circuit which
incorporates an isolating switch providing full
disconnection from the power supply.
• Failure to install the appliance correctly could
invalidate any warranty or liability clai
ms.
Op eration and maintenance
Electric al Shock Haza rd
•
Do not cook on a broken or cracked cooktop. If the
cooktop surface should break or crack,switch the
appliance off immediately at the mains power supply
(wall switch) and contact a qualified technician.
• Switch the cooktop off at the wall before cleaning or
maintenance.
• Failure to follow this advice may result in electrical
shock or death.
Health Hazard
4
•
This appliance complies with electromagnetic safety
standards.
Hot Surface Hazard
• During use, accessible parts of this appliance will
become hot enough to cause burns
.
• Do not let your body, clothing or any item other than
suitable cookware contact the Induction glass until
the surface is cool.
5
• Keep children away.
•
Metallic objects such as knives, forks, spoons and lids
get hot
• Handles of saucepans may be hot to touch. Check
zones that are on. Keep handles out of reach of
• Failure to follow this advice could result in burns and
scalds.
Cut Hazard
•
The razor-sharp blade of a cooktop scraper is
exposed when the safety cover is retracted.Use with
extreme care and always store safely and out of reach of
children.
• Failure to use caution could result in injury or cuts.
Important safety instructions
• Never leave the appliance unattended when in use.
Boilover causes smoking and greasy spillovers that
may ignite.
• Never use your appliance as a work or storage
surface.
• Never leave any objects or utensils on the
a
ppliance.
• Never use your appliance for warming or heating the
room.
• After use, always turn off the cooking zones and the
cooktop as described in this manual (i.e. by using the
touch controls).
• Do not allow children to play with the appliance or sit,
stand, or climb on it.
children.
saucepan handles do not overhang other cooking
should not be placed on the hob surface since they can
• Do not store items of interest to children in cabinets
above the appliance. Children climbing on the cooktop
could be seriously injured.
• Children or persons with a disability which limits their
ability to use the appliance should have a responsible
and competent person to instruct them in its use. The
instructor should be satisfied that they can use the
appliance without danger to themselves or their
surroundings.
• Do not repair or replace any part of the appliance
unles
s specifically recommended in the manual. All
other servicing should be done by a qualified technician.
• Do not use a steam cleaner to clean your cooktop.
•WARNING: The appliance and its accessible parts
become hot during use.
6
• Do not place or drop heavy objects on your cooktop.
• Do not stand on your cooktop.
• Do not use pans with jagged edges or drag pans
across the Induction glass surface as this can
scratch the glass.
• Do not use scourers or any other harsh abrasive
cleaning
agents to clean your cooktop, as these can
scratch the Induction glass
.
• If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard
.
•This appliance is intended to be used in household
and similar applications such as: -staff kitchen areas
in shops, offices and other working environments; -
farm houses; -by clients in hotels, motels and other
residential type environments ; -bed and breakfast
type environments.
7
Care should be taken to avoid touching heating
elements.
Children less than 8 years of age shall be kept away
unless continuously supervised.
•This appliance can be used by children aged from 8
years and above and persons with reduced
physical,sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning use of the
appliance in a safe way and understand the hazards
involved.
•Children shall not play with t
he appliance. Cleaning
and user maintenance shall not be made by children
without supervision.
•WARNING: Unattended cooking on a hob with fat or
oil can be dangerous and may result in fire.NEVER try
to extinguish a fire with water, but switch off the
appliance and then cover flame e.g. with a lid or a fire
blanket.
•WARNING: Danger of fire: do not store items on the
cooking surfaces.
• Warning: If the surface is cracked, switch off the
appliance to avoid the possibility of electr
ic shock, for
hob surfaces of glass-ceramic or similar material which
protect live parts
•The appliance is not intended to be operated by
means of an external timer or separate remote-control
system.
8
•To avoid stain or damage to the glass cooktop, use
only cleaning products made especially for ceramic
glass.
•When the power of the cooktop is turned on, do not
touch the glass surfece to avoid injury even if the hot
surface indicator is turned off.
•The surface of glass cooktop still may be hot even if
the hot surface indicator is turned off, extreme care
should be taken to avoid injury.
• Do Not Leave Children Alone – Children should not
be left alone or unattended in
area where a
ppliance is in use. They should never be
allowed to sit or stand on any
part of the appliance.
• Wear Proper Apparel – Loose-fitting or hanging
garments should never be worn
while using the appliance.
• User Servicing – Do not repair or replace any part of
the appliance unless
specifically recommended in the manual. All other
servicing should be referred to a
qualified technician.
• Storage in or on Appliance – Flammable materials
should not be stored in an oven or near surface un
its.
• Do Not Use Water on Grease Fires – Smother fire or
flame or use dry chemical or foam-type extinguisher.
• Use Only Dry Potholders – Moist or damp potholders
on hot surfaces may result in burns from steam. Do not
let potholder touch hot heating elements. Do not use a
9
towel or other bulky cloth.
• Use Proper Pan Size – This appliance is equipped
with one or more surface units of different size. Select
utensils having flat bottoms large enough to cover the
surface unit heating element. The use of undersized
utensils will expose a portion of the heating element to
direct contact and may result in ignition of clothing.
Proper relationship of utensil to burner will also improve
efficiency.
• Make Sure Reflector Pans or Drip Bowls Are in Place
– Absence of these pans or bowls during cooking may
subject wiring or components underneath to damage.
• Protective Liners – Do not use aluminum foil to line
surface unit drip bowls or oven bottoms, except as
suggested in the manual. Improper installation of these
liners may result in a risk of electric shock, or fire.
• Glazed Cooking Utensils – Only certain types of glass,
glass/ceramic, ceramic,
earthenware, or other glazed utensils are suitable for
range-top service without breaking
due to the sudden change in temperature.
• Utensil Handles Should Be Turned Inward and Not
Extend Over Adjacent Surface Units – To reduce the
risk of burns, ignition of flammable materials, and
spillage due to unintentional contact with the utensil,
the handle of a utensil should be positioned so that it is
turned inward, and does not extend over adjacent
surface units.
• Clean Cook-Top With Caution – If a wet sponge or
10
cloth is used to wipe spills on a hot cooking area, be
careful to avoid steam burn. Some cleaners can
produce noxious
fumes if applied to a hot surface.
•WARNING-Do not store items of interest to children in
cabinets above a range or on the backguard of a range
– children climbing on the range to reach items could
be seriously injured.
• DO NOT TOUCH SURFACE UNITS OR AREAS
NEAR UNITS – Surface units may be hot even though
they are dark in color. Areas near surface units may
become hot
enough to cause
burns. During and after use, do not touch, or let
clothing or other flammable materials contact surface
units
or areas near units until they have had sufficient time to
cool. Among these areas are (identification of
areas – for example, the cook-top and surfaces facing
the cook-top).
Co ngratulations on the purchase of your new Ceramic Hob.
We recommend that you spend some time to read this Instruction / Installation Manual in
order to fully understand how to i
nstall correctly and operate it.
For installation, please read the installation section.
Read all the safety instructions carefully before use and keep this Instruction / Installation
Manual for future reference.
11

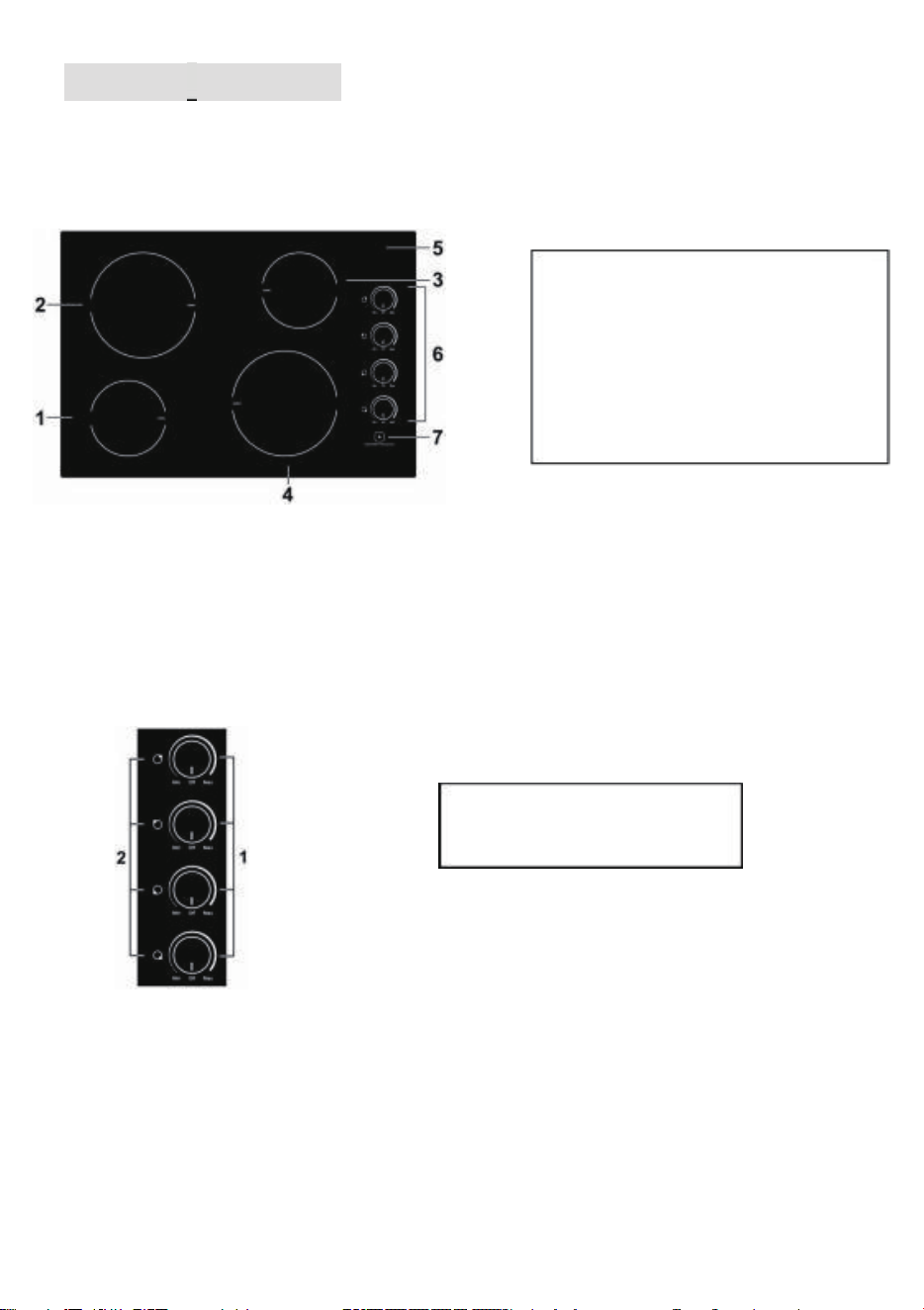

Product Overview
Top View
1. max. 1200 W zone
2 . max. 2300 W zone
3 . max. 1200 W zone
4. max. 2300 W zone
5 . Glass Plate
6. Knob Control
7. Hot Surface Indicator
Control Panel
1. Knob control
2. Power level display
Product Information
This ceramic cooker hob can meet different kinds of cuisine demands because of
resistance wire heating, really the optimal choice for modern families.
Wo rking Principle
This ceramic cooker hob directly employs resistance wire heating, and adjust the
output power by the power regulation with the mechanical controls.
Before using your New Ceramic Hob
• Read this guide, taking special note of the ‘Safety Warnings’ section.
• Remove any protective film that may still be on your ceramic hob.
Choosing the right Cookware
Make sure that the base of your pan is smooth, sits flat against the glass, and is the
same size as the cooking zone. Always centre your pan on the cooking zone.
Always lift pans off the ceramic hob – do not slide, or they may scratch the glass.
12
Do not use cookware with jagged edges or a curved base.

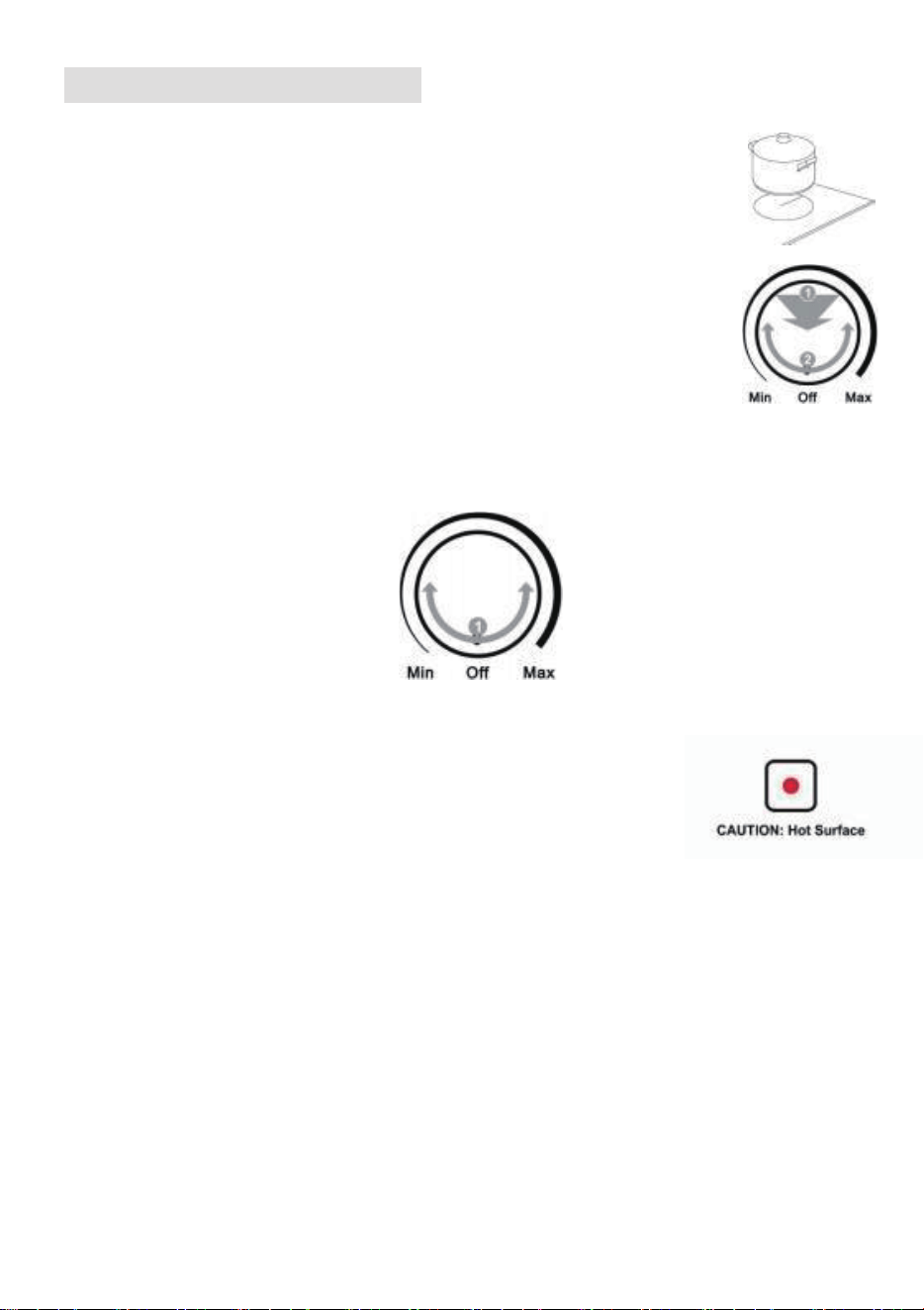

Using your Ceramic Hob
To start cooking
• Make sure the bottom of the pan and the surface
o
f the cooking zone are clean and dry.
2. Press the knob in and Turn in either direction to the setting you want.
When you have finished cooking
1. Turn the cooking zone off by turning the power regulating control to “OFF“ level to turn
off the control.
Hot surface indicator
• Comes on when the unit is turned on or hot to the touch.
• Stays on even after the unit is turned off.
• Red led indicator will show cooking zone is hot
to touch and it will disappear when the surface has
cooled down to under about 60℃ .
Ov er-Temperature Protection
A temperature sensor equipped can monitor the temperature inside the ceramic hob.
When an excessive temperature is monitored, the ceramic hob will stop operation
automatically.
Res idual He at Warning
When the hob has been operating for some time, there will be some
residual heat. The hot surface indicator appears to warn you to keep
away from it.
13
1. Place a suitable pan on the cooking zone that you wish to use.
Cooking Guidelines
Cooking Tips
• When food comes to the boil, reduce the power setting.
• Using a lid will reduce cooking times and save energy by retaining the heat.
• Minimise the amount of liquid or fat to reduce cooking times.
• Start cooking on a high setting and reduce the setting when the food has heated
through.
Simmering, cooking rice
• Simmering occurs below boiling point, at around 85˚C, when bubbles are just rising
occasionally to the surface of the cooking liquid. It is the key to delici
ous soups and
tender stews because the flavours develop without overcooking the food. You should
also cook egg-based and flourthickened sauces below boiling point.
• Some tasks, including cooking rice by the absorption method, may require a setting
higher than the lowest setting to ensure the food is cooked properly in the time
recommended.
Searin g steak
To cook juicy flavoursome steaks:
1. Stand the meat at room temperature for about 20 minutes before cooking.
2. Heat up
a heavy-based frying pan.
3. Brush both sides of the steak with oil. Drizzle a small amount of oil into the hot pan
and then lower the meat onto the hot pan.
4. Turn the steak only once during cooking. The exact cooking time will depend on the
thickness of the steak and how cooked you want it. Times may vary from about 2
– 8 minutes per side. Press the steak to gauge how cooked it is – the firmer it feels
the more ‘well done’ it will be.
5. Leave the steak to rest on a warm plate for a few minutes t
o allow it to relax and
become tender before serving.
For stir-frying
1. Choose a ceramic compatible flat-based wok or a large frying pan.
2. Have all the ingredients and equipment ready. Stir-frying should be quick. If cooking
large quantities, cook the food in several smaller batches.
3. Preheat the pan briefly and add two tablespoons of oil.
4. Cook any meat first, put it aside and keep warm.
5. Stir-fry the vegetables. When they are hot but still crisp, turn the cooking zone
to a
lower setting, return the meat to the pan and add your sauce.
6. Stir the ingredients gently to make sure they are heated through.
7. Serve immediately.
14
Heat Settings
Heat setting
Suitability
Low
• delicate warming for small amounts of food
• melting chocolate, butter, and foods that burn quickly
• gentle simmering
• slow warming
Medium
• reheating
• rapid simmering
• cooking rice
• pancakes
• sauteing
• cooking pasta
High
• stir-frying
• searing
• bringing soup to the boil
• boiling water
15
16
Care and Cleaning
What?
How?
Important!
Everyday soiling on glass
(fingerprints, marks, stains
left by food or non-sugary
spillovers on the glass)
1. Switch the power to the cooktop
off.
2. Apply a cooktop cleaner while
the glass is still warm (but not
hot!)
3. Rinse and wipe dry with a clean
cloth or paper towel.
4. Switch the power to the cooktop
back on.
• When the power to the cooktop is
switched off, there will be no ‘hot
surface’ indication but the cooking
zone may still be hot! Take extreme
care.
• Heavy-duty scourers, some nylon
scourers and harsh/abrasive cleaning
agents may scratch the glass. Always
read the label to check if your cleaner
or scourer is suitable.
• Never leave cleaning residue on the
cooktop: the glass may become
stained.
Boilovers, melts, and
hot sugary spills on
the glass
Remove these immediately with a
fish slice, palette knife or razor
blade scraper suitable for ceramic
glass cooktops, but beware of hot
cooking zone surfaces:
1. Switch the power to the cooktop
off at the wall.
2. Hold the blade or utensil at a 30°
angle and scrape the soiling or
spill to a cool area of the
cooktop.
3. Clean the soiling or spill up with
a dish cloth or paper towel.
4. Follow steps 2 to 4 for ‘Everyday
soiling on glass’ above.
• Remove stains left by melts and
sugary food or spillovers as soon
as possible. If left to cool on the
glass, they may be difficult to
remove or even permanently
damage the glass surface.
• Cut hazard: when the safety cover
is retracted, the blade in a scraper
is razor-sharp. Use with extreme
care and always store safely and
out of reach of children.
Spillovers on the
touch controls
1. Switch the power to the cooktop
off.
2. Soak up the spill
3. Wipe the touch control area with
a clean damp sponge or cloth.
4. Wipe the area completely dry
with a paper towel.
5. Switch the power to the cooktop
back on.
• The cooktop may beep and turn
itself off, and the touch controls
may not function while there is
liquid on them. Make sure you wipe
the touch control area dry before
turning the cooktop back on.
17
Hints and Tips
Problem
Possible causes
What to do
The cooktop cannot
Be turned on.
No power.
Make sure the cooktop is connected to
the power supply and that it is switched
on.
Check whether there is a power outage in
your home or area. If you’ve checked
everything and the problem persists, call
a qualified technician.
The glass is being
scratched.
Rough-edged cookware.
Use cookware with flat and smooth
bases. See ‘Choosing the right
cookware’ .
See ‘Care and cleaning’.
Unsuitable, abrasive scourer or
cleaning products being used.
Some
crackling
noises.
This may be caused by the
construction of your cookware
(layers of different metals
vibrating differently).
This is normal for cookware and
does not indicate a fault.
Technical Specification
Cooking Hob
YL-EC4-307007
Cooking Zones 4 Zones
Supply Voltage
240V~,60Hz
Installed Electric Power
7000W
Product Size L×W×H(in)
30.7 x 21.3 x 2.8
Building-in Dimensions A×B (in)
29.76 x 20.31
Weight and Dimensions are approximate. Because we continually strive to improve
our products we may change specifications and designs without prior notice.
Instal lation
Selection of installation equipment
1. Save for the local electrical inspector’s use.
2. To eliminate the risk of burns or fire by reaching over heated surface units,cabinet
storage space located above the surface units should be avoided. If cabinet storage is to
be provided, the risk can be reduced by installing a range hood that projects horizontally
a minimum of 5inches beyond the bottom of the
make
clicking
pans
or
cabinets.

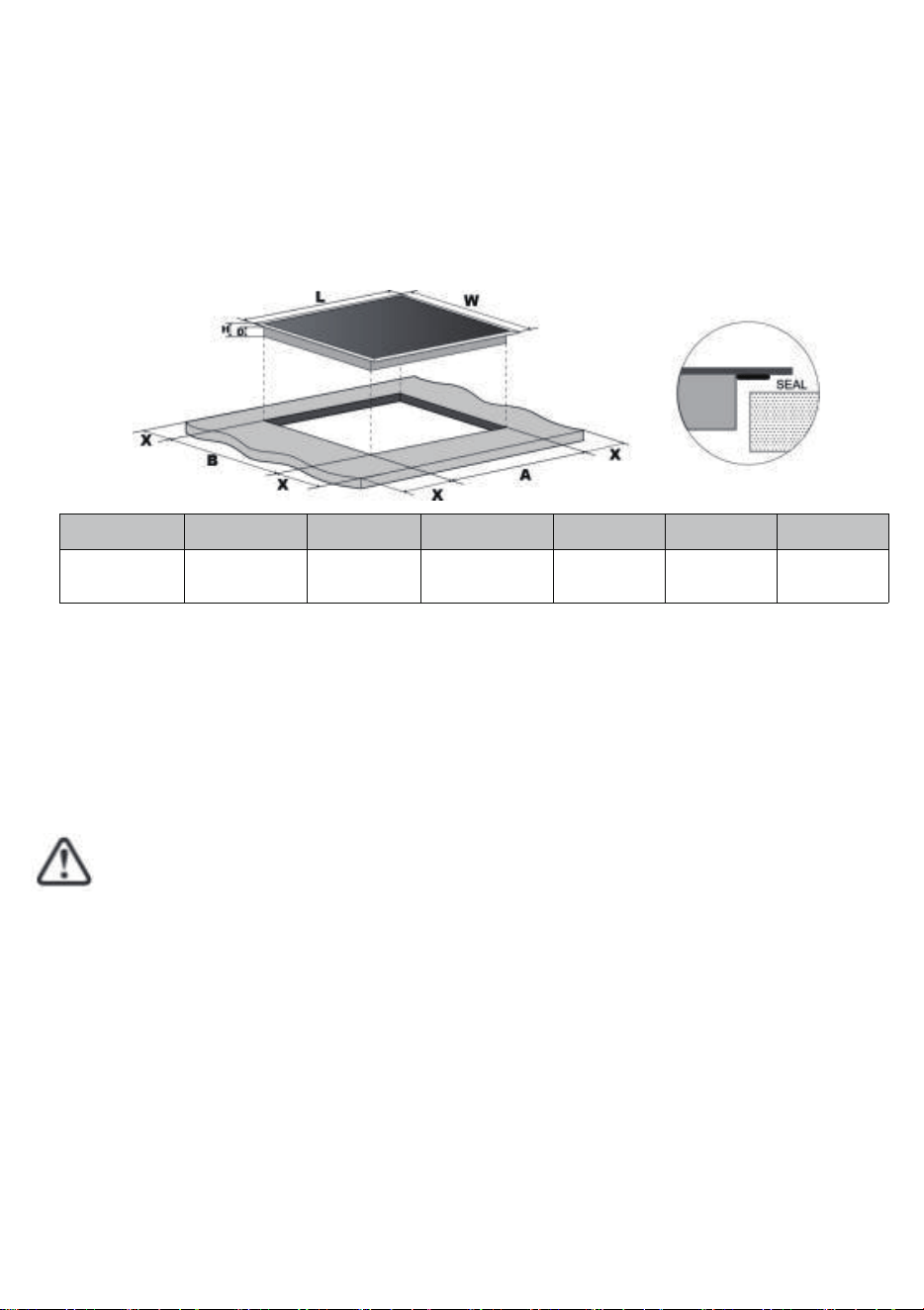

3. Cut out the work surface according to the sizes shown in the drawing.
For the purpose of installation and use, a minimum of 5 cm space shall be preserved
around the hole.
Be sure the thickness of the work surface is at least 30mm. Please select heat- resistant
work surface material to avoid larger deformation caused by
the heat radiation from the hotplate. As shown below:
L(in) W(in) H(in) D(in) A(in) B(in) X(mm)
30.7
21.3
2.8
2.6
29.76-
29.84
20.31-
20.39
2.0mini

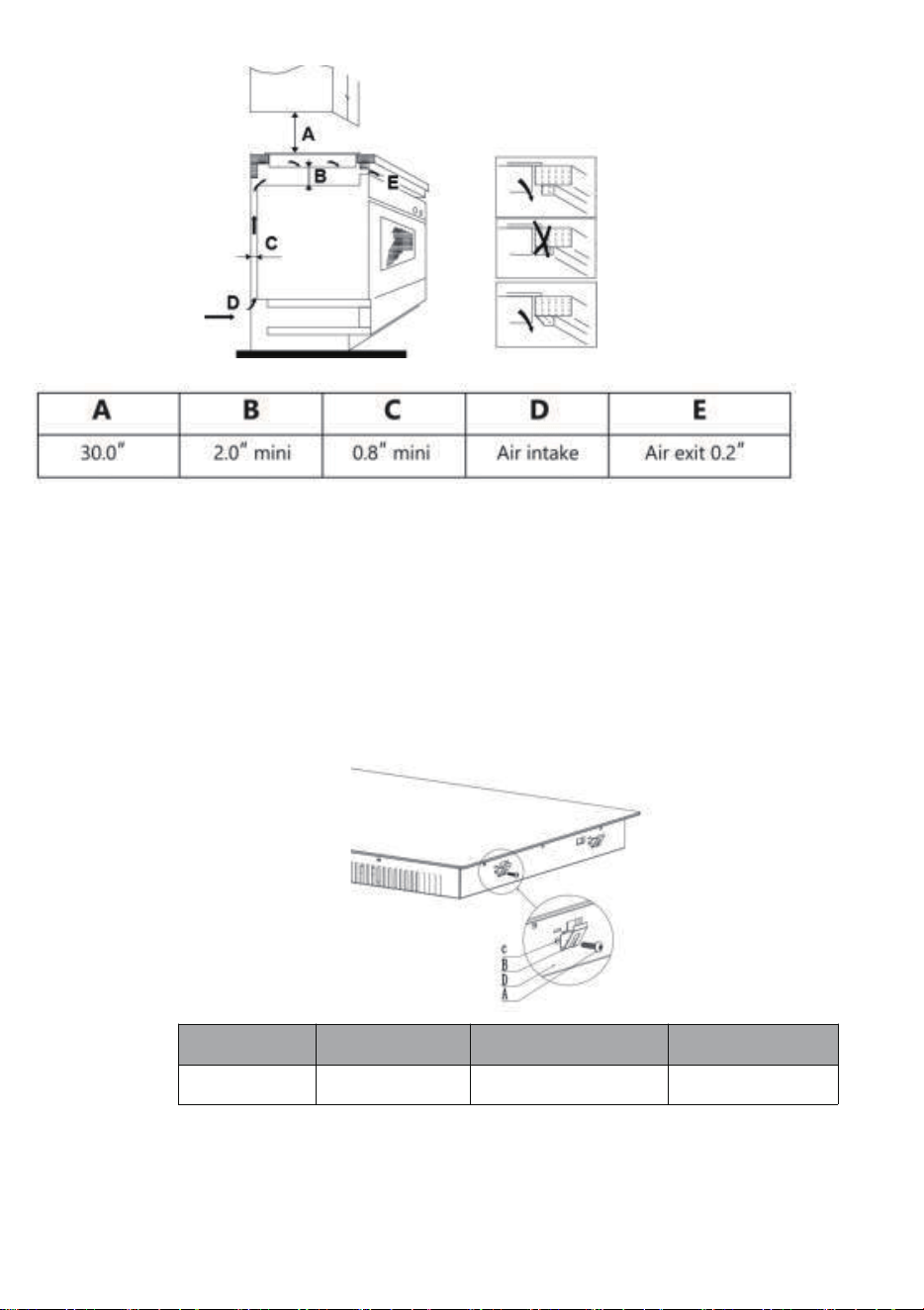

Under any circumstances, make sure the ceramic cooker hob is well ventilated and
the air inlet and outlet are not blocked. Ensure the ceramic cooker hob is in good work
state. As shown below
Note:
A = 30 in minimum clearance between the top of the cooking surface and the bottom of
an unprotected wood or metal cabinet;
or A = 24 in minimum when bottom of wood or metal cabinet is protected by not less
than 1/4-inch-thick flame-retardant mill board covered with not less than No. 28 MSG
s
heet steel, 0.015-inch-thick stainless steel, 0.024-inch- thick aluminum, or 0.020-inch-
thick copper.
18
*It will be easier to install by putting the power cord end into the embedded position first.
Before locatin g th e fixing brackets
1. The unit should be placed on a stable, smooth surface (use the packaging). Do not apply
force onto the controls protruding from the hob.

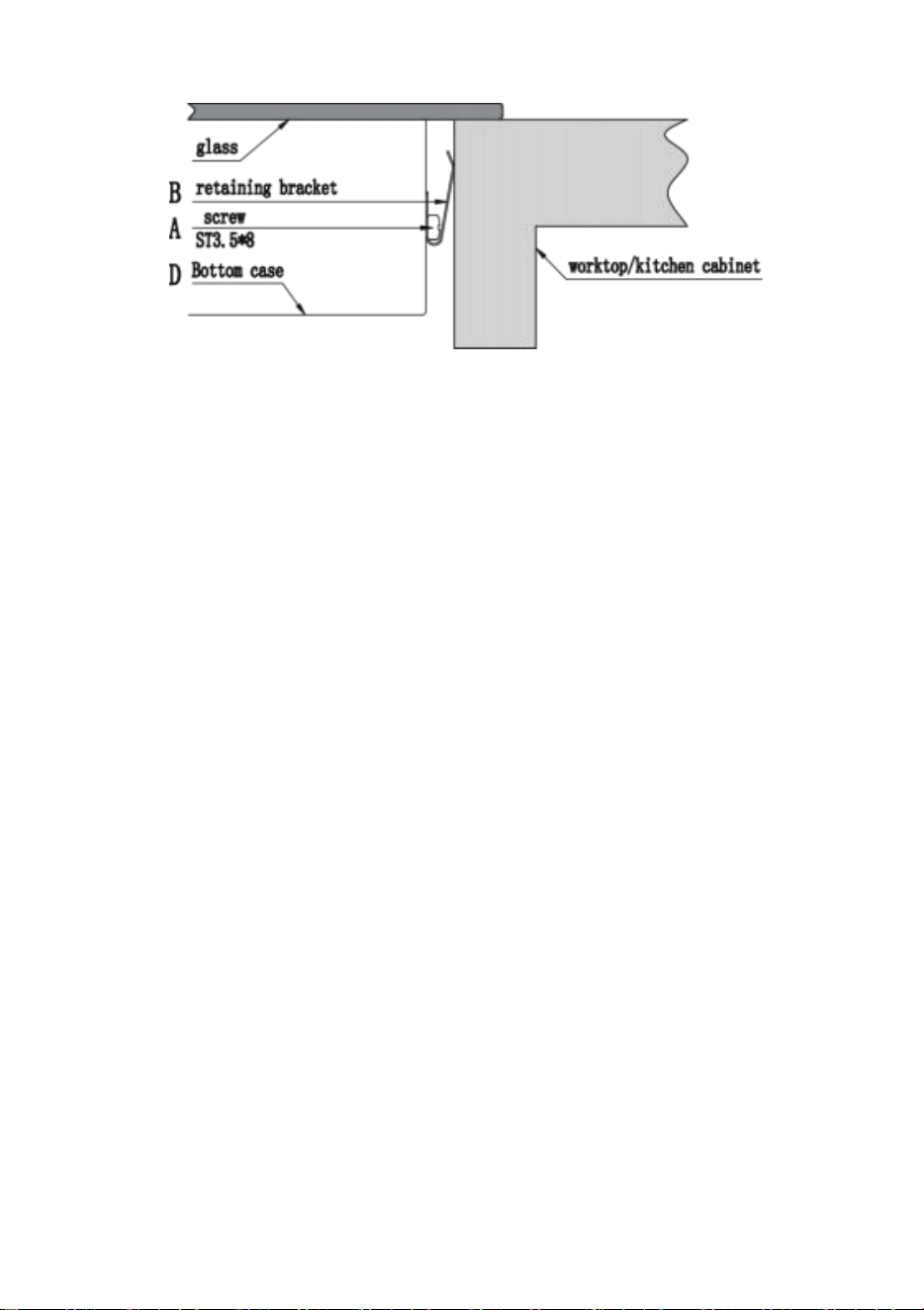

2. Fix the hob on the work surface by screw four brackets on the bottom of hob (see picture)
after installation.
A B
C
D
screw bracket Screw hole Bottom/housing
19
Cautions
1. The ceramic cooker hob must be installed by qualified personnel or technicians. We
have professionals at your service. Please never conduct the operation by yourself.
2. The ceramic cooker hob shall not be mounted to cooling equipment, dishwashers
and rotary dryers.
3. The ceramic cooker hob shall be installed such that better heat radiation can be
ensured to enhance its reliability.
4. The wall and induced heating zone above the work surface shall withstand h
eat.
5. To avoid any damage, the sandwich layer and adhesive must be resistant to heat.
6. A steam cleaner is not to be used.
7. This ceramic can be connected only to a supply with system impedance no
more than 0.427 ohm. In case necessary, please consult your supply
authority for system impedance information.

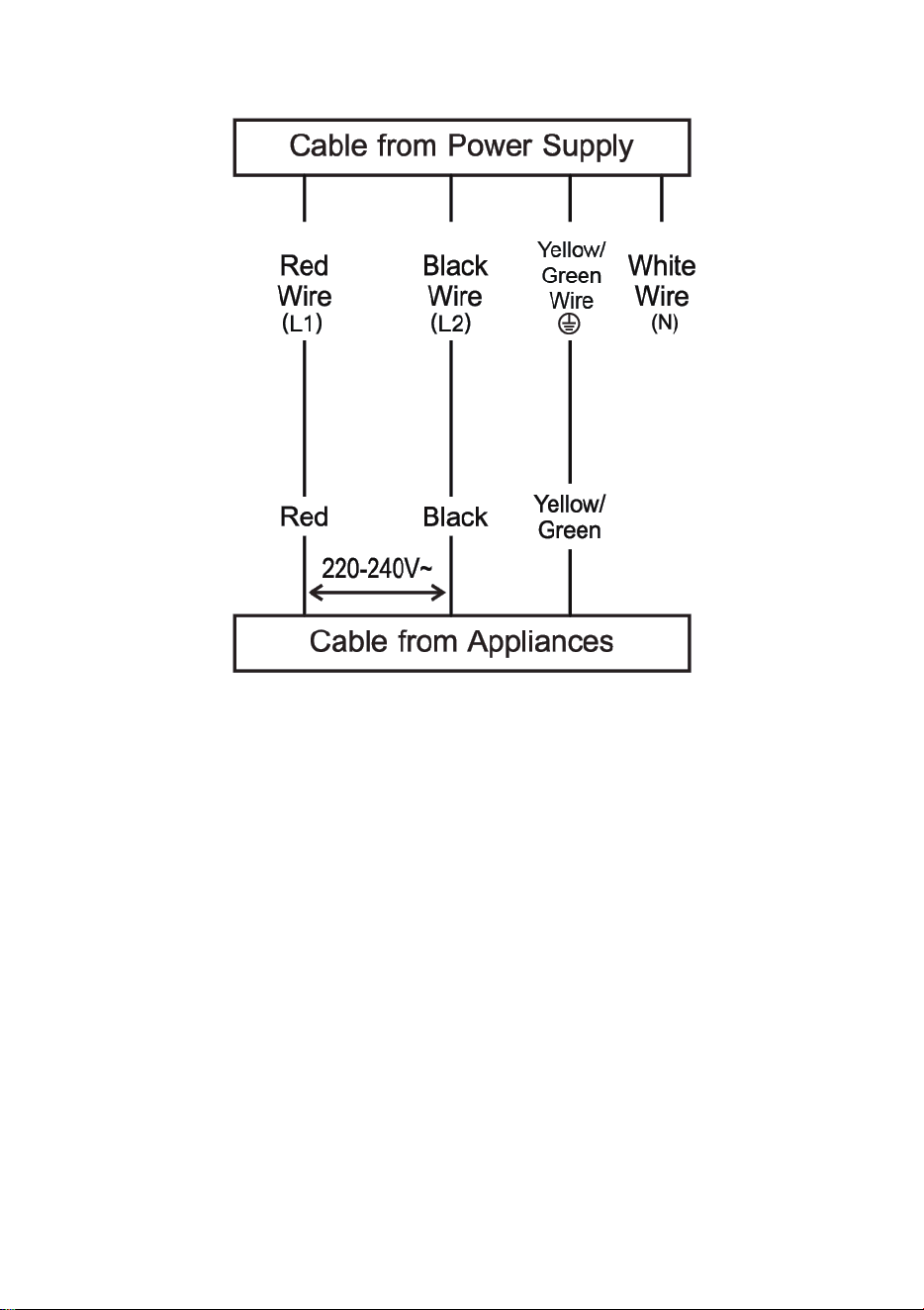

Connecting the hob to the mains power supply
The power supply should be connected in compliance with the relevant standard,
or a single-pole circuit breaker. The method o
f connection is shown below.
20
1. If the cable is damaged or needs replacing, this should be done by
an after-sales technician using the proper tools, so as to avoid any
accidents.
2. If the appliance is being connected directly to the mains supply, an omnipolar
circuit breaker must be installed with a minimum gap of 3mm between the
contacts.
3. The installer must ensure that the correct electrical connection has been made and
that it complies with safety regulations.
4. The cable must not be bent or compress
ed.
5. The cable must be checked regularly and only replaced by a properly qualified person.
21
Manufacturer:Zhongshan Youlong Kitchen Appliances Co., LTD
Add.: Building B, E and part 3 of Building F, No. 103, Sanxin Road, Sanjiao, Zhongshan,
Guangdong, P. R. China
Contact：Tracy Tel：+8618680277793
E-Mail：[email protected]
22
