Induction Cooker
Brand:amzchef
Model:FS-IRC121G
Content
Safety Precautions
Key Feature
Product Configuration
Specifications
Temperature/Power Settings
Operation Steps
Choosing the Right Cookware for Induction
Troubleshooting
Error Codes
Maintenance
Warranty
1
3
3
4
4
4
6
7
8
8
9
Safety Precautions
Please read this manual carefully. Please keep the instruction and installation manual as well as
the appliance certificate in a safe place for later use or for subsequent owners.
■ This appliance is intended for private domestic use and the household environment only. The
appliance must only be used for the preparation of food and beverages. The cooking process
must be supervised. A short cooking process must be supervised without interruption. Only use
the appliance in enclosed spaces.
■ This appliance is intended for use up to a maximum height of 2000 meters above sea level.
■ Do not use covers. These can cause accidents, due to overheating, catching fire or materials
shattering, for example. Do not use inappropriate child safety shields or hob guards. These can
cause accidents.
■ This appliance may be used by children over the age of 8 years old and by persons with
reduced physical, sensory or mental capabilities or by persons with a lack of experience or
knowledge if they are supervised or instructed by a person responsible for their safety how to
use the appliance safely and have understood the associated hazards.Cleaning and user
maintenance shall not be made by children without supervision.
■ Warnings and important instructions appearing in this guide are not meant to cover all
possible conditions and situations that may occur. Common sense, caution, and care must be
exercised when installing, maintaining, or operating your appliance.
■ This appliance is intended to be used in household and similar applications such as:
‒ staff kitchen areas in shops, offices and other working environments;
‒ farm houses;
‒ by clients in hotels, motels and other residential type environments;
‒ bed and breakfast type environments.
Note: We advise that you exercise caution using or standing near an induction
hob while it is in operation, if you wear a pacemaker or a similar medical
device. Consult your doctor or the device manufacturer concerning its conformity
or any possible incompatibilities.
CAUTION! HOT SURFACE.
Risk of fire!
■ Hot oil and fat can ignite very quickly. Never leave hot fat or oil unattended. Never use water to
put out burning oil or fat. Switch off the hotplate. Extinguish flames carefully using a lid, fire
blanket or something similar.
■ The hotplates become very hot. Never place combustible items on the hob. Never place objects
on the hob.
■ The appliance gets hot. Do not keep combustible objects or aerosol cans in drawers directly
underneath the hob.
Risk of burns!
1
■ The hotplates and surrounding area (particularly the hob surround, if fitted) become very hot.
Never touch hot surfaces. Keep children at a safe distance.
■ The hotplate heats up but the display does not work. Switch off the circuit breaker in the fuse
box. Contact the after-sales service.
■ Metal objects on the hob quickly become very hot. Never place metal objects (such as knives,
forks, spoons and lids) on the hob.
■ Never placing metal objects with a diameter or length of less than 80 mm on the hob.
Risk of electric shock!
■ Incorrect repairs are dangerous. Repairs may only be carried out by trained engineers. If the
appliance is faulty, unplug the mains plug or switch off the fuse in the fuse box. Contact the
after-sales service.
■ Do not use any high-pressure cleaners or steam cleaners, which can result in an electric
shock.
■ A defective appliance may cause electric shock. Never switch on a defective appliance.
Unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact
the after-sales service.
■ Cracks or fractures in the glass ceramic may cause electric shocks. Switch off the circuit
breaker in the fuse box. Contact the after-sales service.
■ When the appliance is not in use and before cleaning, unplug the appliance from the outlet
firstly.
Risk of injury!
■ Saucepans may suddenly jump due to liquid between the pan base and the hotplate. Always
breaker in the fuse box. Contact the after-sales service.
Causes of damage
■ Rough pot and pan bases scratch the ceramic.
■ Avoid boiling pots dry. This may cause damage.
■ Never place hot pots or pans on the control panel, the display area or the surround. This may
cause damage.
■ Damage can occur if hard or pointed objects fall on the hob.
■ Aluminium foil and plastic containers melt on hot hotplates. Oven protective foil is not
suitable for your hob.
■ Appliances are not intended to be operated by means of an external timer or separate
remote-control system.
2
Product Configuration
Caution: The pan will remain hot for a period after using from the heating area.
1.Bakelite handle
2.Metal lid
3.Grill pan
4.Induction
�
� �
�
�
��
� � ��
Button for turn on and off the machine
Grill function for long grill pan and child lock mode
Use to set up timer mode
Power/Temperature level and time data display
Button for select Power or Temperature setting
Knob for adjust the power or temperature
Key Feature
1. Compact size induction cooker with Grill function. Accessories: grill pan with metal lid.
2. Cooking can be performed anywhere with power supply, thanks to the light weight.
3. The elegant design allows the cooker as a decoration for the kitchen.
4. Smart touch and knob control with LED display.
5. There are no open flames or hot elements. Induction cooker will start only once the
appropriate cookware has been placed on the surface and stops immediately when the
cookware is removed. No more burned fingers or hands and safer around young children
3
Specifications
Model
Rated Voltage
Power
FS-IRC121G
120V~ 60Hz
1800W
Temperature / Power Settings
1. The level by Temperature setting mode for Grill function:
2. The power distribution for each side when single stove working by power setting mode:
(P0: Power setting mode)
Left stove
Power (W)
Right stove
Power (W)
P1
400 Intermittent
P1
400 Intermittent
Left stove
Temperature (℉)
Right stove
Temperature (℉)
C1 C2 C3 C4 C5 C6 C7
284 302 320 338 356 374 392
C1 C2 C3 C4 C5 C6 C7
284 302 320 338 356 374 392
Operation Steps
Power on Mode
Plug in AC cord, the buzzer alerts, all LED and display flash for 1 second. Display shows “C”,
the machine turns to the power on mode.
Standby mode
1)In the power on mode, press “ ” button, ON/OFF BUTTON indicator light up, the
machine enters the standby mode, display shows “on”.
2)The machine will shut down if no function is selected within 30 seconds in standby mode.
Left Power P� P� P� P� P� P� P� P� P�
Right Power P�~P� P�~P� P�~P� P�~P� P�~P� P�~P� P�~P� P�~P� P�~P�
4
Function
1)In the standby mode, press “ ” button it will enter the Grill function, grill indicator light up,
and the default setting is temperature level C5(410℉). The left and right stoves will work synchro-
nously in the same level in order to keep the pan temperature consistently. If you press “ ”
button in the Grill function, the Grill function will be cancelled and the machine will shut down.
2)The Grill function needs to use the matching grill pan. Use the rotary knob to adjust the level,
increase by clockwise rotation and decrease by counterclockwise rotation. And the level by
Temperature setting mode for Grill function: C1(248℉)-C2(284℉)-C3(320℉)-C4(356℉)-C5(410℉).
3)In the standby mode, the machine will enter the power setting mode by rotating knob. Use the
left(or right ) rotary knob to adjust the power level of the left t(or right )stove, the default heating
power of the left stove is P7(900W). The power of the left and right stoves will increase by clockwise
rotation and decrease by counterclockwise rotation of the knob.
4)In the standby mode, press left (or right) “ ” button, POWER indicator light up, the left (or
right) display shows “P0”; press left (or right) “ ” button again, the left (or right) stove will enter
Frying function temperature setting mode, the left (or right) display shows “C0”, use the left (or
right) rotary knob to control the temperature level of left (or right) stove: C1(284℉)-C2(302
℉)-C3(320℉)-C4(338℉)-C5(356℉)-C6(374℉)-C7(392℉). Press left (or right) “ ” button again
under Frying function, the left (or right) stove will enter power setting mode, the left (or right)
display shows “P0”. Use the left (or right) rotary knob to control the heating power of left (or right)
stove: P1(400W Intermit-
tent-P2(400W)-P3(500W)-P4(600W)-P5(700W)-P6(800W)-P7(900W)-P8(1000W)-P9(1100W).
Timer
1)Press “ ” button to enter the timer mode, timer indicator light up, display shows “00”. The
setting from 1 minute to 99 minutes.
2)In the Function mode, press “ ” button the corresponding timer lights will light up, both of
the left and right stove LED display show “00” with blinking. Use the rotary knob “min” or “max” to
control the timer, adding 1 minute each time by clockwise rotation and maximum to 99 minutes,
subtracting 1 minute each time by counterclockwise rotation and minimum to 0 minute. After 5
seconds no change, the machine will confirm the selection, the LED display will stop blinking and
start the countdown. When the countdown ends, the machine will turn off automatically.
3)In the timer mode and timer indicator light up, long press “ ” button for 3 seconds to cancel
the timer and timer indicator light will be off.
Lock
In any Function mode, long press the “ ” button, the machine will enter the locking mode and
the LED display shows “L”. In the locking mode, no operation will be responded except the “ ”
button. If you press the “ ”button for 3 seconds, the machine will be unlocked and keep same
status as before. (If you direct press the “ ”button under the locking mode, you should press
the “ ”button for 3 seconds again, and the machine will be unlocked and turn on. )
5
Shut down
1)In Function mode, press the “ ” button the left and right stoves can be turned off at the same
time.
2)In “ ” function, rotate to the “P0” or “C0” level respectively to close the corresponding stove.
3)Display shows “C” when the machine shut down.
4)The fan will continue to work for 1 minute to dissipate heat after the cooking is finished.
After Heat Code
After the machine shut down, if the surface temperature is higher than 140℉, the display will show
“H” to instruction customer to prevent touch burning.
Choosing the Right Cookware for Induction
1. Material required:
1) Steel cast iron, enameled cast iron, stainless steel, flat-bottom pans/pots with bottom diameter
of 12cm to 26cm.
2) Suggested to use the required pot, do not try to use other pot instead (especially pressure
sensors, vessels.)
2.Please kindly according to tine below requirement if necessary to use if the vessel is not
equipped.
1)Pan/pot must be suitable for induction cooker.
2)Pan/pot should be tried out if ifs bought by self, to see if there are unusual phenomena.
3)Pan/pot bought by self should be flat and come with the cover with gas vent.
6

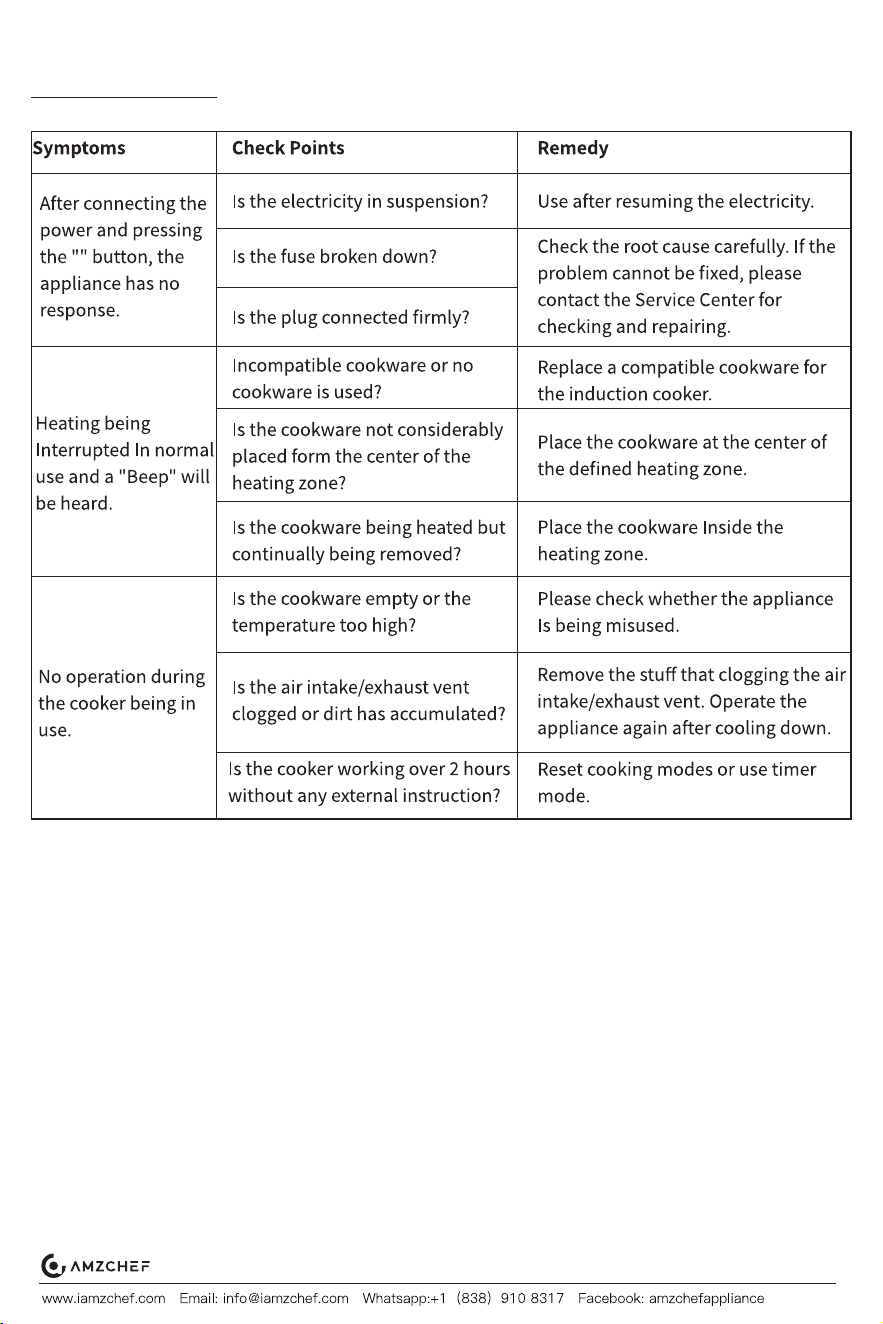

Troubleshooting
7

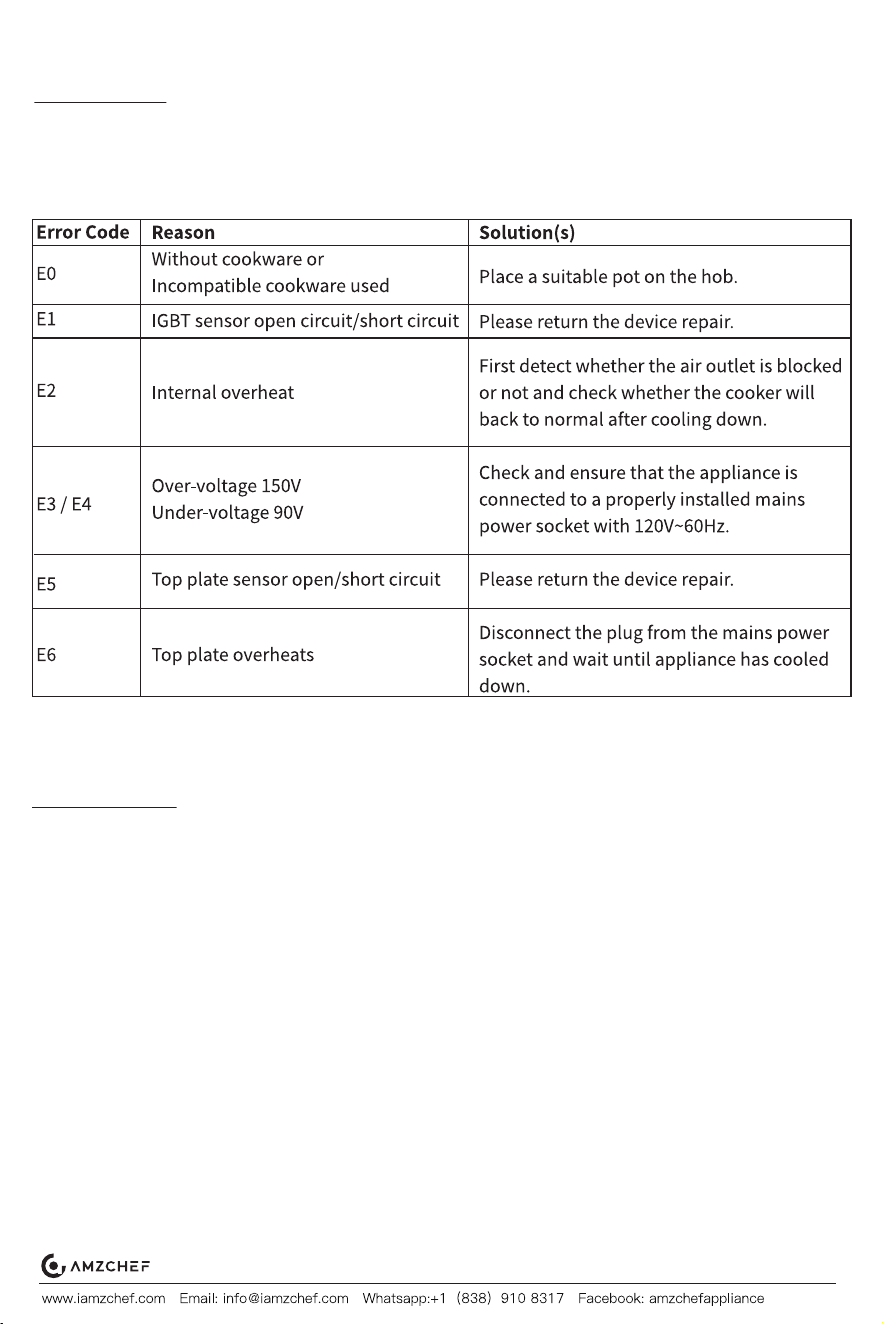

Error Codes
When the cooker experiences unsuitable operations from you or by other means. the cooker stops
functioning exhibiting relevant codes on the display screen. This is meant only for the protection of
the cooker and guidance to you.
Maintenance
1. Clean the induction cooker after each used.
2. Disconnect plug and wait the unit has cooled down before cleaning.
3. If the surface plate gets dirty, clean it with wet cloth.
4. Maintain the unit clean, avoid the insects go inside to keep the unit performance well.
5. For ventilated areas, clean with a toothbrush or cotton swab to make sure the air outlet is clear.
6. If something wrong with the unit, repaired by professionals only.
MANUFACTURER: ZHONGSHAN FANSHENG ELECTRIC APPLIANCES CO., LTD
ADDRESS: 4/F NO 10 BUILDING, NO 268, DONGFU 3RD ROAD SUICHENG VILLAGE,DONGFENG
TOWN,ZHONGSHAN CITY,GUANGDONG,CHINA
Contact：Kelly Tel： +1（838）900 9806 E-Mail：[email protected]
