Instruction Manual
Induction Cooker Hob
BRAND:amzchef
MODEL:ID1800
120V~, 50-60Hz 1800W
PLEASE READ INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY
RETAIN THIS MANUAL FOR FUTURE REFERENCE
Contents
Safety Warnings
Product Overview
Product Information
Choosing the right Cookware
Using your Induction Hob
Cooking Guidelines
Heat Settings
Care and Cleaning
Troubleshooting
Technical Specification
Installation
Warranty
1
4
5
5
6
10
11
12
13
14
14
16
1
Safety Warnings
Your safety is important to us. Please read this information before using your cooktop.
Installation
Electrical Shock Hazard
• Disconnect the appliance from the mains electricity supply before carrying out any work or
maintenance on it.
•
Connection to a good earth wiring system is essential and mandatory.
• Alterations to the domestic wiring system must only be made by a qualified electrician.
• Failure to follow this advice may result in electrical shock or death.
Cut Hazard
• Take care - panel edges are sharp.
•
Failure to use caution could result in injury or cuts.
Important safety instructions
• Read these instructions carefully before installing or using this appliance.
•
No combustible material or products should be placed on this appliance at any time.
• Please make this information available to the person responsible for installing the
appliance as it could reduce your installation costs.
• In order to avoid a hazard, this appliance must be installed according to these instructions
for installation.
•
This appliance is to be properly installed and earthed only by a suitably qualified person.
• This appliance should be connected to a circuit which incorporates an isolating switch
providing full disconnection from the power supply.
•
Failure to install the appliance correctly could invalidate any warranty or liability claims.
Operation and maintenance Electrical Shock Hazard
•
Do not cook on a broken or cracked cooktop. If the cooktop surface should break or crack,
switch the appliance off immediately at the mains power supply (wall switch) and contact a
qualified technician.
•
Switch the cooktop off at the wall before cleaning or maintenance.
• Failure to follow this advice may result in electrical shock or death.
Health Hazard
•
This appliance complies with electromagnetic safety standards.
Hot Surface Hazard
2
• During use, accessible parts of this appliance will become hot enough to cause burns.
• Do not let your body, clothing or any item other than suitable cookware contact the
Induction glass until the surface is cool.
• Metallic objects such as knives, forks, spoons and lids should not be placed on the hob
surface since they can get hot
•
Keep children away.
•
Handles of saucepans may be hot to touch. Check saucepan handles do not overhang
other cooking zones that are on. Keep handles out of reach of children.
•
Failure to follow this advice could result in burns and scalds.
Cut Hazard
•
The razor-sharp blade of a cooktop scraper is exposed when the safety cover is retracted.
Use with extreme care and always store safely and out of reach of children.
• Failure to use caution could result in injury or cuts.
Important safety instructions
• Never leave the appliance unattended when in use. Boilover causes smoking and greasy
spillovers that may ignite.
• Never use your appliance as a work or storage surface.
• Never leave any objects or utensils on the appliance.
• Never use your appliance for warming or heating the room.
•
After use, always turn off the cooking zones and the cooktop as described in this manual
(i.e. by using the touch controls).
• Do not allow children to play with the appliance or sit, stand, or climb on it.
• Do not store items of interest to children in cabinets above the appliance. Children climbing
on the cooktop could be seriously injured.
• Do not leave children alone or unattended in the area where the appliance is in use.
• Children or persons with a disability which limits their ability to use the appliance should
have a responsible and competent person to instruct them in its use. The instructor should be
satisfied that they can use the appliance without danger to themselves or their surroundings.
• Do not repair or replace any part of the appliance unless specifically recommended in the
manual. All other servicing should be done by a qualified technician.
• Do not use a steam cleaner to clean your cooktop.
•
Do not place or drop heavy objects on your cooktop.
•
Do not stand on your cooktop.
•
Do not use pans with jagged edges or drag pans across the Induction glass surface as this
can scratch the glass.
3
• Do not use scourers or any other harsh abrasive cleaning agents to clean your cooktop, as
these can scratch the Induction glass.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
•
This appliance is intended to be used in household and similar applications such as: -staff
kitchen areas in shops, offices and other working environments;
-farm houses; -by clients in hotels, motels and other residential type environments ; -bed and
breakfast type environments.
•
WARNING: The appliance and its accessible parts become hot during use.
Care should be taken to avoid touching heating elements.
Children less than 8 years of age shall be kept away unless continuously supervised.
•
This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be
made by children without supervision.
•
WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result
in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover
flame e.g. with a lid or a fire blanket.
• WARNING: Danger of fire: do not store items on the cooking surfaces.
• WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of
electric shock, for hob surfaces of glass-ceramic or similar material which protect live parts
• A steam cleaner is not to be used.
• The appliance is not intended to be operated by means of an external timer or separate
remote-control system.
Congratulations on the purchase of your new Ceramic Hob.
We recommend that you spend some time to read this Instruction / Installation Manual in
order to fully understand how to install correctly and operate it.
For installation, please read the installation section.
Read all the safety instructions carefully before use and keep this Instruction / Installation
Manual for future reference.
4
Product Overview

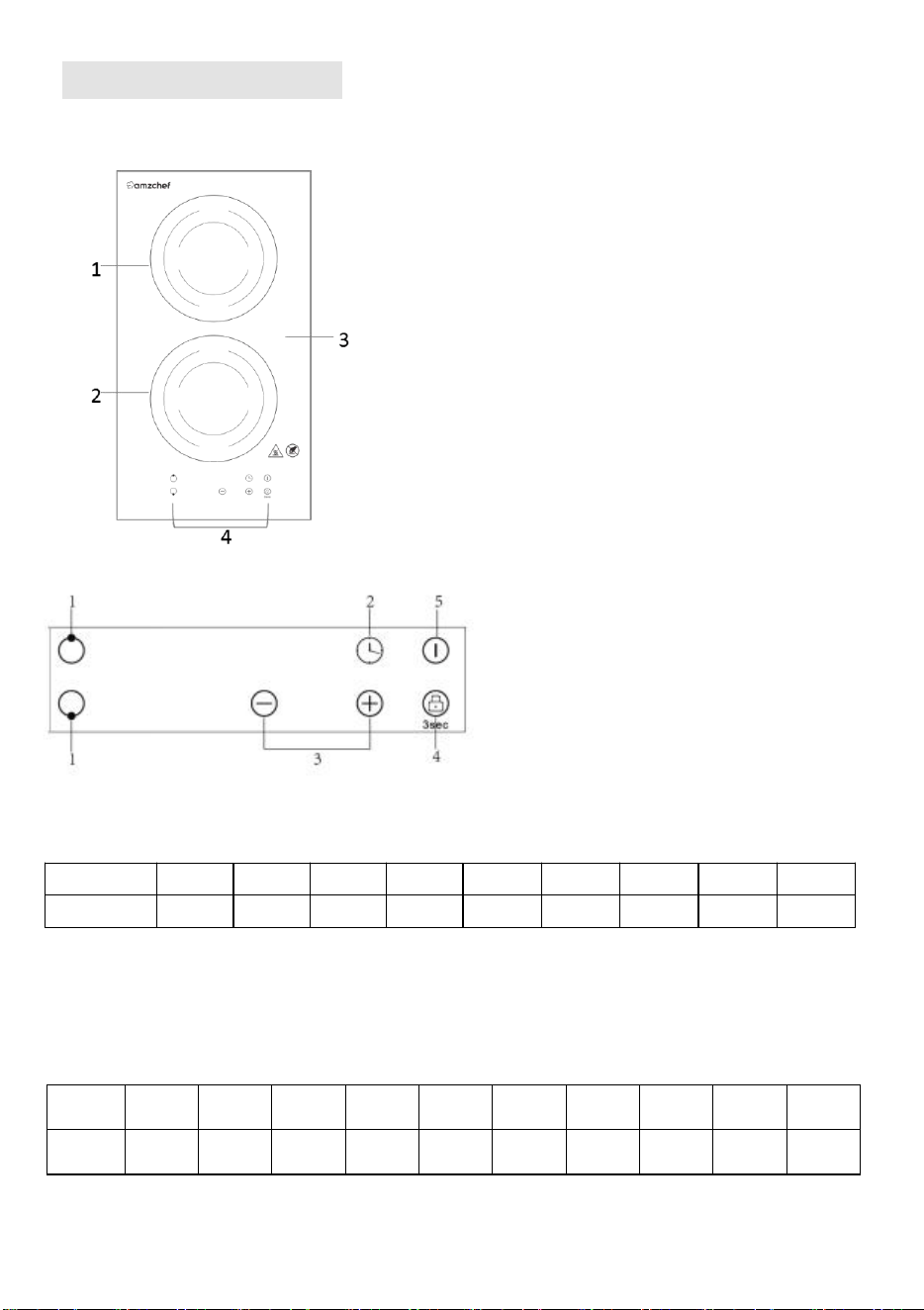

Top View
Control Panel
1.max. 1800W zone
2.max. 1800W zone
3.Glass plate
4.Control panel
Level and Power Conversion table
Power Sharing Feature:
Power sharing technology is a safety and efficiency feature. It is designed to avoid electrical
hazards and increase efficiency by allowing the burners to share power between them.
The upper and lower work at the same time(Power Sharing)
level
1
2
3
4
5
6
7
8
9
Power(W)
200
400
600
800
1000
1200
1400
1600
1800
Upper
0
1
2
3
4
5
6
7
8
9
Lower
9
8
7
6
5
4
3
2
1
0
1. Upper/lower zone selection
2. Timer Setting
3. Power/Timer regulation controls
4. Child lock
5. ON/OFF mode
5
Product Information
The microcomputer induction cooker hob can meet different kinds of cuisine demands
because of electromagnetic induction technology, micro-computerized control and multi-
power selection, really the optimal choice for modern families.
The induction cooker focus on customer needs and is use-friendly. The hob has safe and
reliable performances, making your life comfortable and enabling to fully enjoy the pleasure
from life.
Before using your New Induction Hob
• Read this guide, taking special note of the ‘Safety Warnings’section.
• Remove any protective film that may still be on your induction hob.
Using the Touch Controls

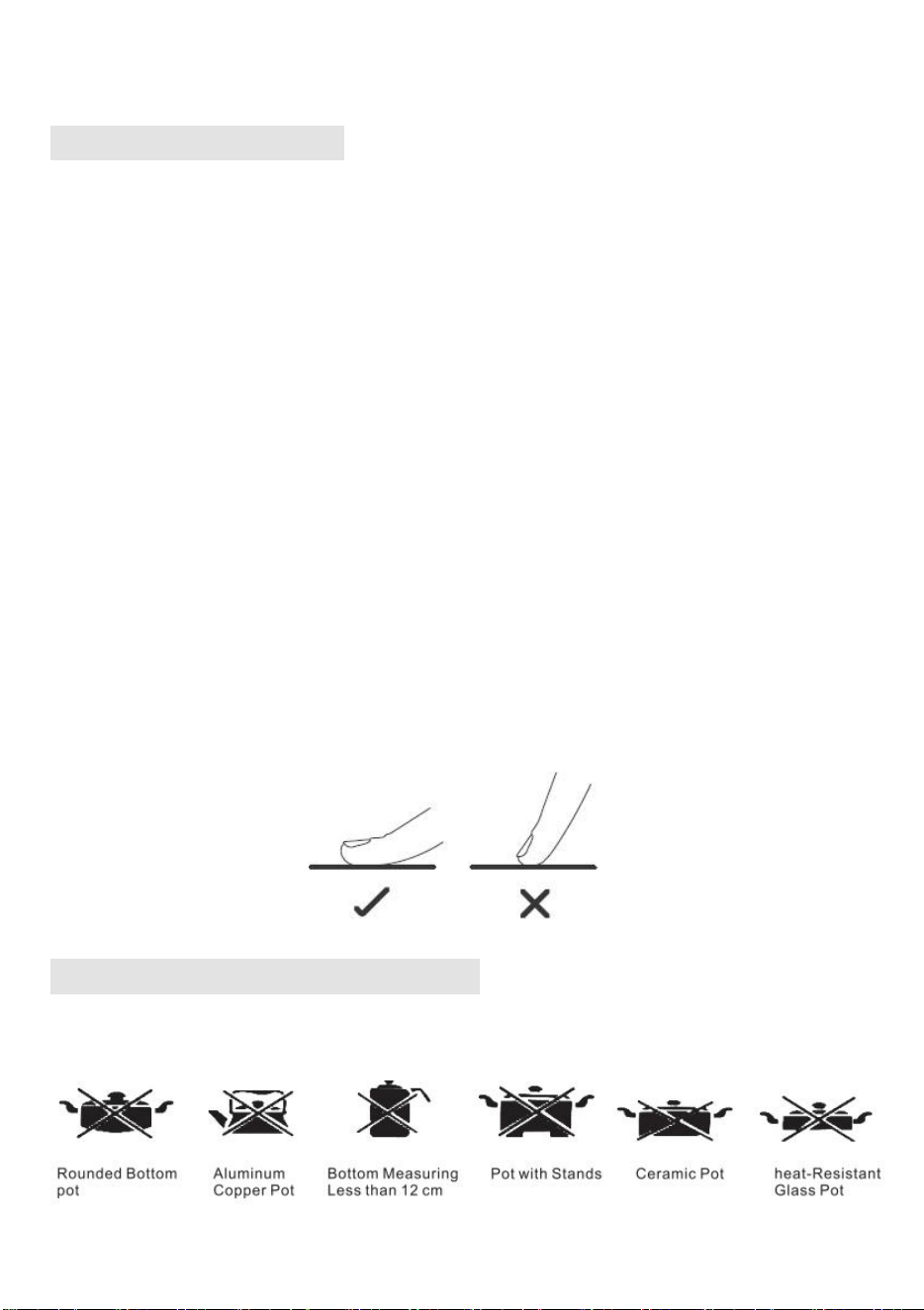

• It adopts sensor touch control,so you don’t need to apply anypressure.
• Use the ball of your finger, not itstip.
• You will hear a beep each time a touch is registered.
• Make sure the controls are always clean, dry, and that there is no object (e.g. a utensil or a
cloth) covering them. Even a thin film of water may make the controls difficult to operate.
Choosing the right Cookware
Do not use heat-resistant glass, ceramic container, copper, aluminum pans/pots.Rounded-bottom
pans/pots with bottom measuring.
6

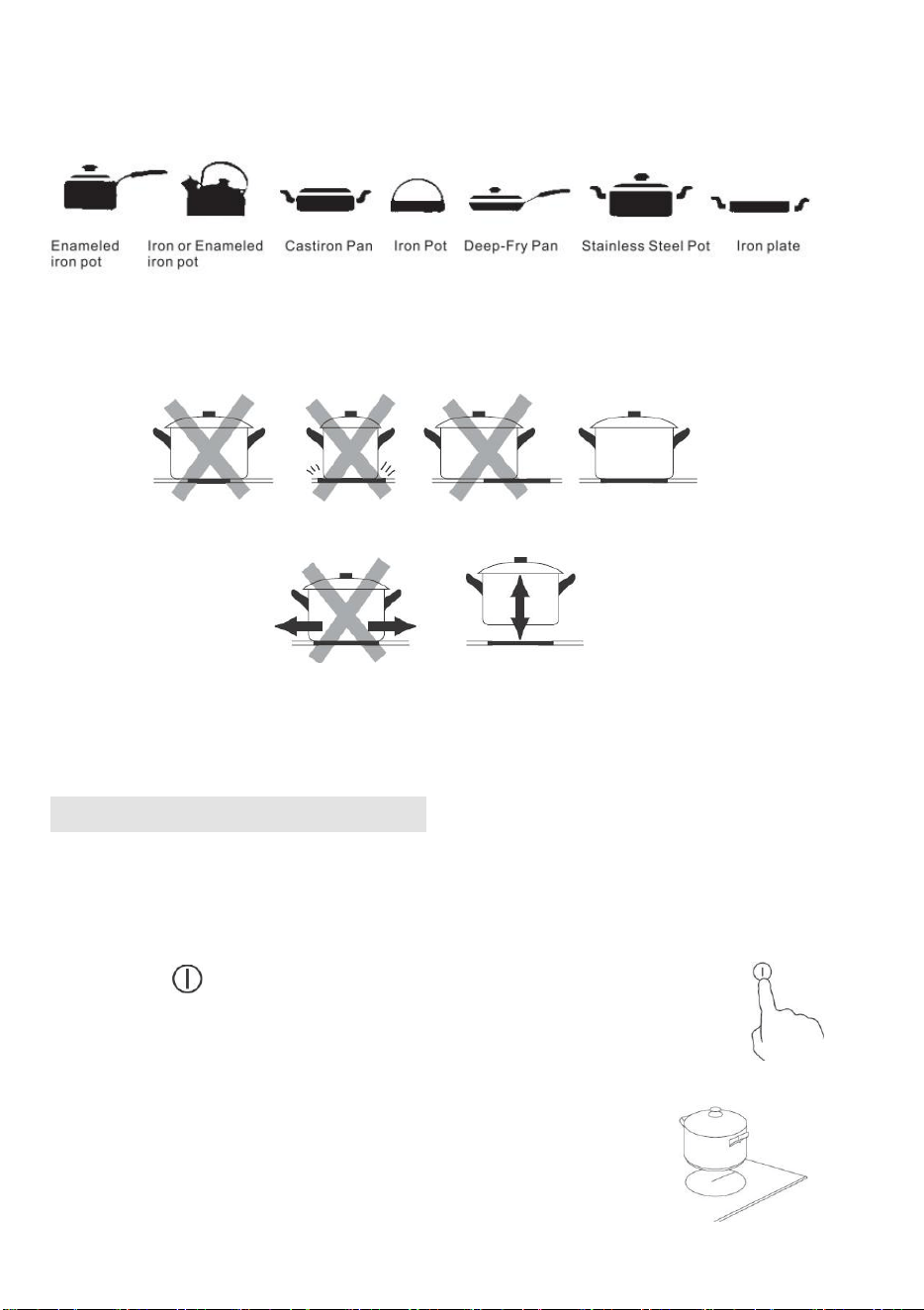

This cooktop is compatible with magnetic cookwares, such as cast iron, enameled
iron,stainless steel, steel,flat-bottom pans/pots.
Make sure that the base of your pan is smooth, sits flat against the glass, and is the same
size as the cooking zone. Always centre your pan on the cooking zone.
Always lift pans off the induction hob – do not slide, or they may scratch the glass.
Do not use heat-resistant glass, ceramic container, copper, aluminum pans/pots.Rounded-bottom
pans/pots with bottom measuring
Tip:Never use pans smaller than 100mm (4") and larger than 250mm (10").
Using your Induction Hob

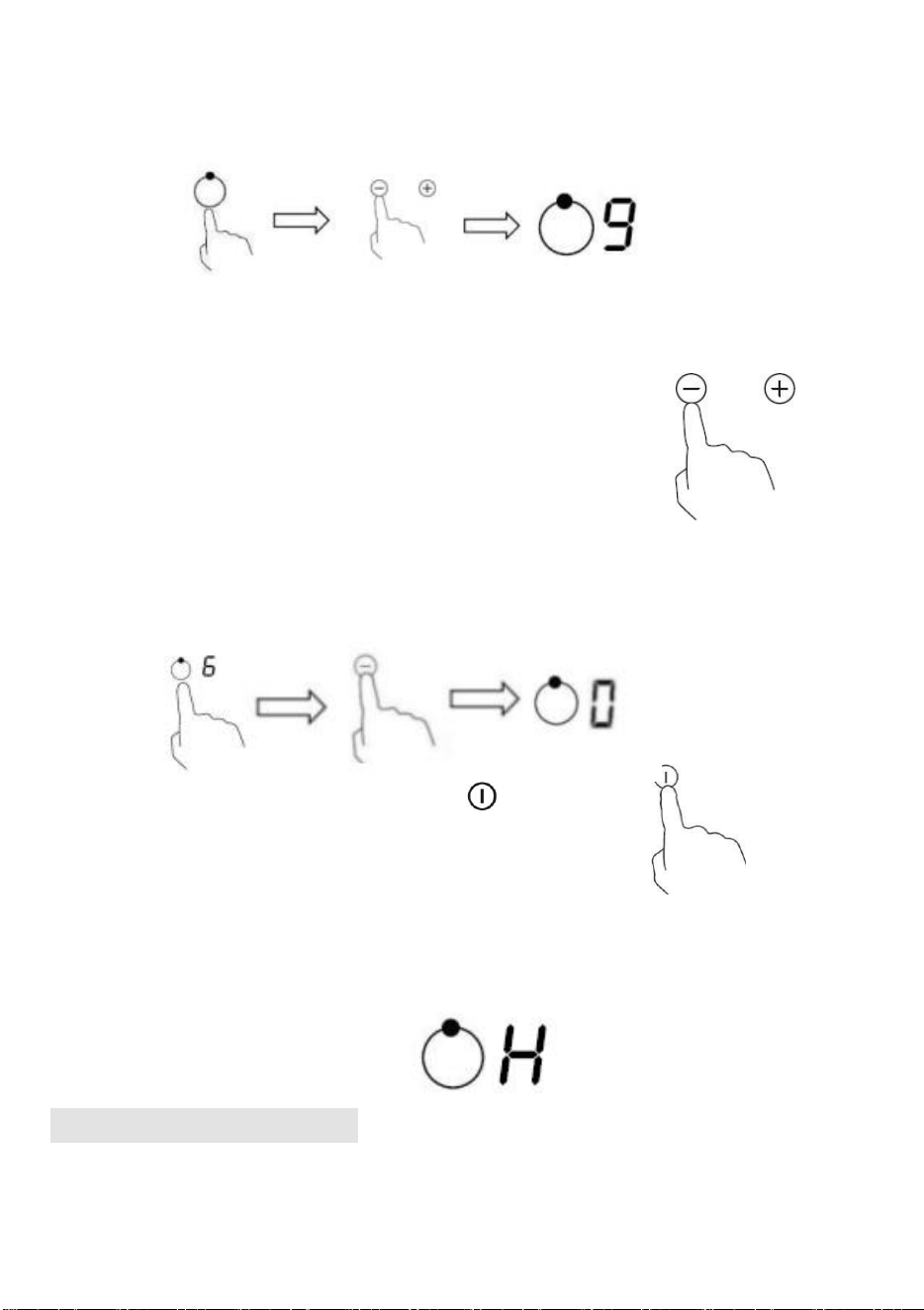

To start cooking
• After power on, the buzzer beeps once, all the indicators light up for 1 second then go
out.The indicators show “OF” and the indicator of ON/OFF will flash.
1. Touch the control，all the indicators show “-” or “- -“, indicating
that the ceramic hob has entered the state of standby mode.The indicator
of ON/OFF will keep light up.
2. Place a suitable pan on the cooking zone that you wish to use.
• Make sure the bottom of the pan and the
surface of the cooking zone are clean and dry.
7
3. Touching the heating zone selection control, and a indicator next to
the key will flash and show “0”.
4. Select a heating level by touching the “+” or “-” control.
•The Initial setting of heating levels is P9.
•You can modify the heating setting at any time during cooking.
•If you don’t choose a heat level within 1 minute, the induction
hob will automatically switch off. You will need to start again at
step 1.
When you have finished cooking
1. Touching the heating zone selection control that you wish to switch off.Turn the cooking
zone off by touching the “-” until decrease down to “0”.
2. Turn the whole cooktop off by touching the “ ”control.
3. Beware of hot surfaces
“H” will show which cooking zone is hot to touch. It will disappear when the surface has
cooled down to a safe temperature. It can also be used as an energy saving function if you
want to heat further pans, use the hotplate that is still hot.
Locking the Controls
• You can lock the controls to prevent unintended use (for example children accidentally
turning the cooking zones on).
8
• When the controls are locked, all the controls except the ON/OFF control are disabled.
To lock the controls
Touch and hold the key lock control for 3 seconds. The timer indicator will show “Lo”.
To unlock the controls
1. Make sure the induction hob is turned on.
2. Touch and hold the key lock control for 3 seconds.
3. You can now start using your induction hob.
1.when the hob is in the lock mode, all the controls are disable except the
ON/OFF .(In the locked state, press the OFF button. If there is a hob that is
cooking, it will be switched off simultaneously.)
2.When directly turn off the hob under lock mode, you shall
unlock the hob first in the next operation, otherwise the hob will
show "Lo".
Over-Temperature Protection
A temperature sensor equipped can monitor the temperature inside the induction hob. When
an excessive temperature is monitored, the induction hob will stop operation automatically.
Residual Heat Warning
When the hob has been operating for some time, there will be some residual heat. The letter
“ H ”appears to warn you to keep away from it.
Auto Shutdown
Another safety feature of the hob is auto shut down. This occurs whenever you forget to
switch off a cooking zone. When you forgot the turn off the hob,It will automatic shut down
according to timer and power levels. The default shutdown times are shown in
the table below:
Using the Timer
Setting the timer to turn one cooking zone off
Power level
1
2
3
4
5
6
7
8
9
Default working timer (hour)
8
8
8
4
4
4
2
2
2
9

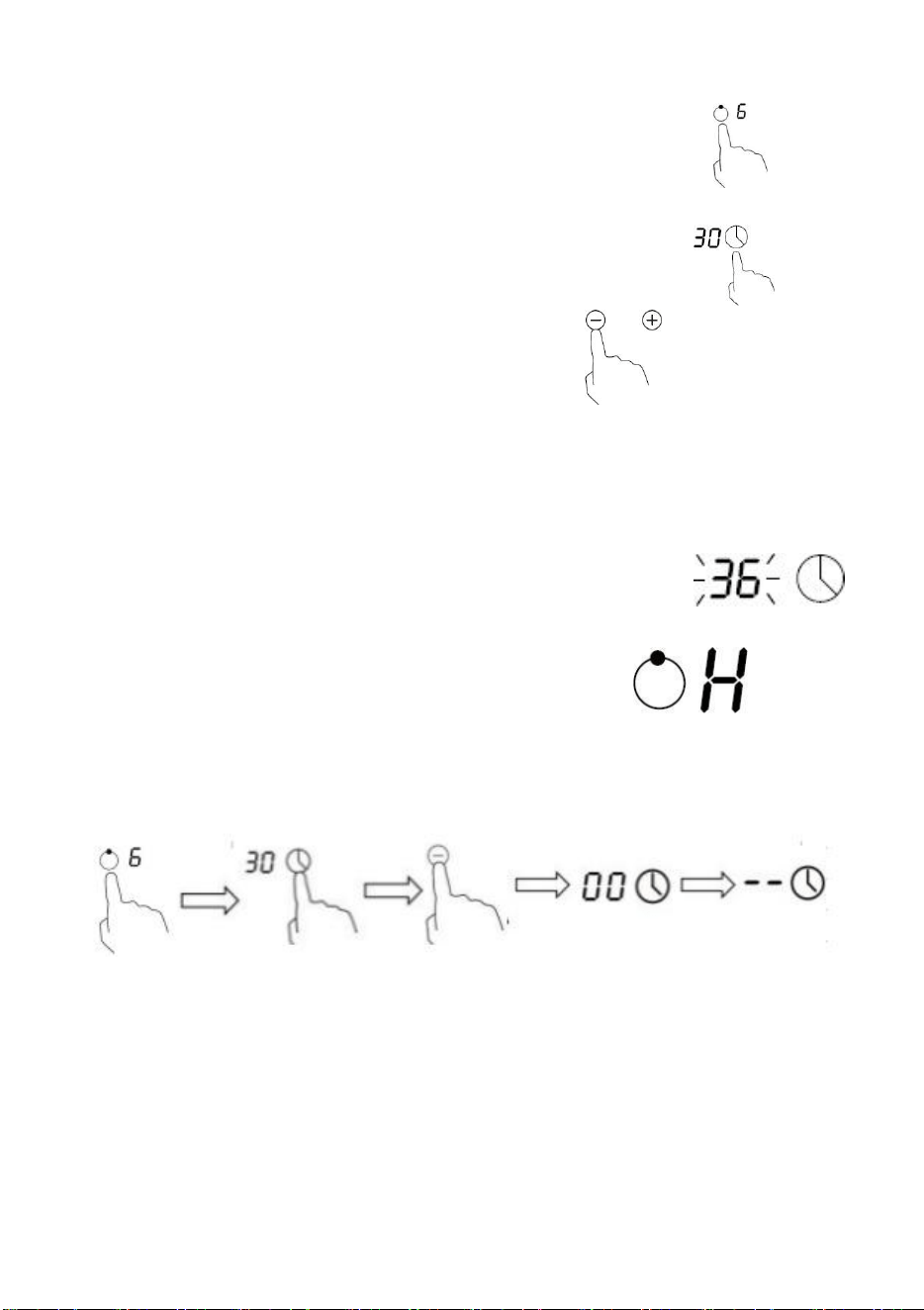

1. Touching the heating zone selection control that you want to set the
timer for. (e.g. zone 1#)
2. Touch timer control, the minder indicator will start flashing and “30”
will show in the timer display.
3. Set the time by touching the “-” or “+” control of the timer.
Hint:
Touch the “-” or “+” control of the timer once will decrease or increase by 1 minute.
Touch and hold the “-” or “+” control of the timer will decrease or increase by 10 minutes.
If the setting time exceeds 99 minutes, the timer will automatically return to 0 minute.
4. When the time is set, the indicator will flash for 5 seconds and
then begin to count down. The display will show the remaining time.
5. When cooking timer expires, the corresponding
cooking zone will be automatically switch off and show “H”.
6. Cancel timer：Select the heating zone, and then touch the “Timer”,decrease the time by
touching “-” to “0” or just touch the “Timer” key again.

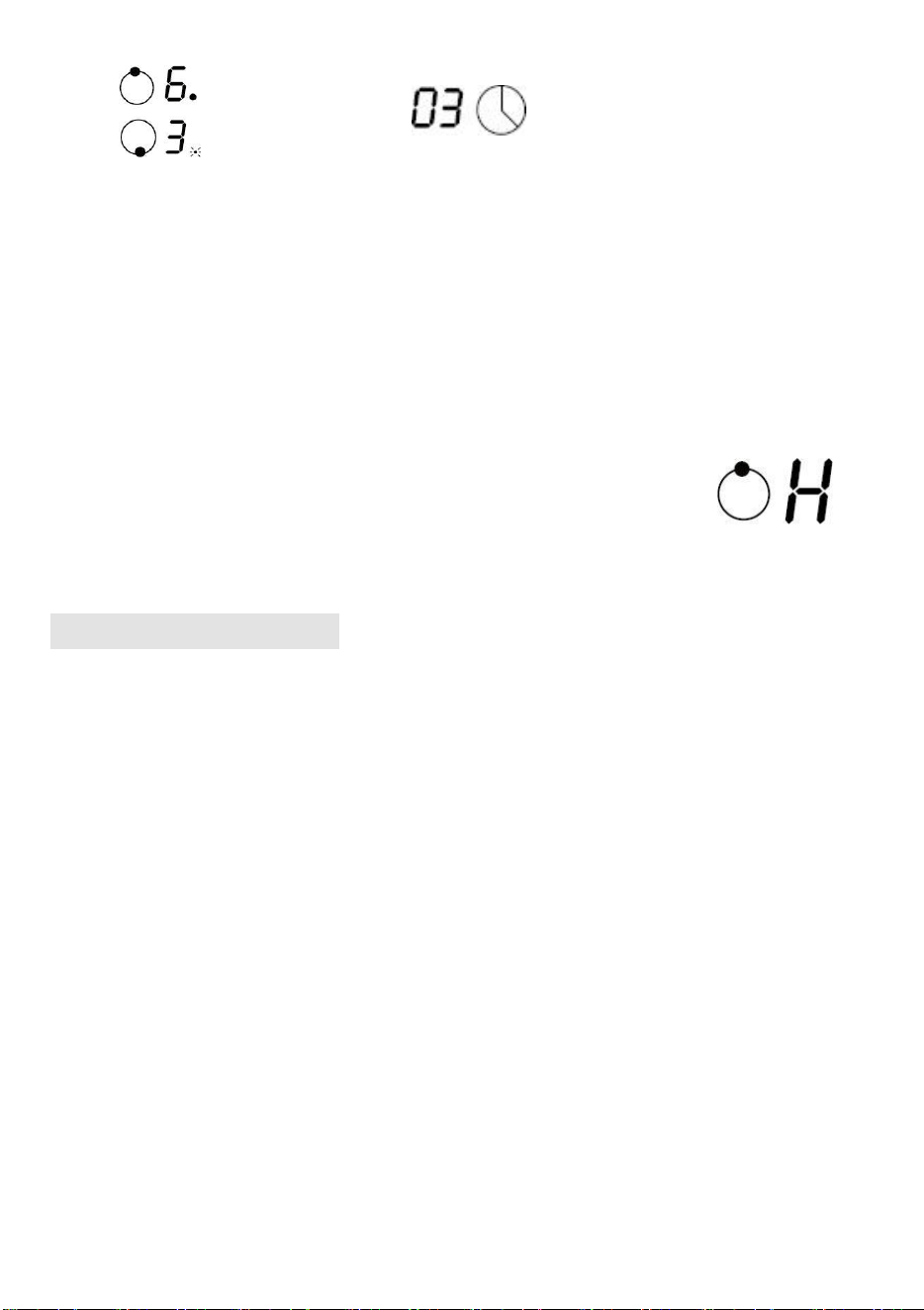

Setting the timer to turn more than one cooking zone off
1. If more than one heating zone use this function, the timer indicator will show the shortest
time.
(e.g. zone 1# setting time of 3 minutes, zone 2# setting time of 6 minutes, the timer indicator
shows “3”.)
10
(set to 6 minutes)
(set to 3 minutes)
2. Select a heating zone, set the power level by touching “+” or”-”, and then touch the “Timer”
to adjust the time by touching “+” or”-”
3. Select another heating zone, set the power level by touching “+” or”-”, and then touch the
“Timer” to adjust the time by touching “+” or”-”
NOTE: The flashing red dot next to power level means the timer indicator.
If you want to check the set time of other heating zone, touch the heating zone selection
control. The timer will indicate its set time.
4. When cooking timer expires, the corresponding cooking zone will be
switch off automatically and show “H”.
NOTE: If you want to change the time after the timer is set, you have to start from step 1.
Cooking Guidelines
Cooking Tips
• When food comes to the boil, reduce the power setting.
• Using a lid will reduce cooking times and save energy by retaining theheat.
• Minimiser the amount of liquid or fat to reduce cooking times.
• Start cooking on a high setting and reduce the setting when the food has heated through.
Simmering, cooking rice
• Simmering occurs below boiling point, at around 85˚C, when bubbles are just rising
occasionally to the surface of the cooking liquid. It is the key to delicious soups and tender
stews because the flavours develop without overcooking the food. You should also cook egg-
based and flour thickened sauces below boiling point.
• Some tasks, including cooking rice by the absorption method, may require a setting higher
than the lowest setting to ensure the food is cooked properly in the timerecommended.
Searing steak
To cook juicy flavoursome steaks:
1. Stand the meat at room temperature for about 20 minutes before cooking.
2. Heat up a heavy-based frying pan.
3. Brush both sides of the steak with oil. Drizzle a small amount of oil into the hot pan and
then lower the meat onto the hot pan.
11
4. Turn the steak only once during cooking. The exact cooking time will depend on the
thickness of the steak and how cooked you want it. Times may vary from about 2 – 8 minutes
per side. Press the steak to gauge how cooked it is – the firmer it feels the more ‘well done’ it
will be.
5. Leave the steak to rest on a warm plate for a few minutes to allow it to relax and become
tender before serving.
For stir-frying
1. Choose an compatible flat-based wok or a large fryingpan.
2. Have all the ingredients and equipment ready. Stir-frying should be quick. If cooking
large quantities, cook the food in several smaller batches.
3. Preheat the pan briefly and add two tablespoons of oil.
4. Cook any meat first, put it aside and keep warm.
5. Stir-fry the vegetables. When they are hot but still crisp, turn the cooking zone to a lower
setting, return the meat to the pan and add your sauce.
6. Stir the ingredients gently to make sure they are heated through.
7. Serve immediately.
Heat Settings
Heat setting
Suitability
1 - 2
• delicate warming for small amounts of food
• melting chocolate, butter, and foods that burn quickly
• gentle simmering
• slow warming
3 - 4
• reheating
• rapid simmering
• cooking rice
5 - 6
• pancakes
7 - 8
• sauteing
• cooking pasta
9
• stir-frying
• searing
• bringing soup to the boil
• boiling water
12
Care and Cleaning
What?
How?
Important!
Everyday soiling on
glass (fingerprints,
marks, stains left by
food or non-sugary
spillovers on the glass)
1. Switch the power to the
cooktop off.
2. Apply a cooktop cleaner
while the glass is still
warm (but not hot!)
3. Rinse and wipe dry with a
clean cloth or paper
towel.
4. Switch the power to the
cooktop back on.
• When the power to the cooktop
is switched off, there will be no
‘hot surface’ indication but the
cooking zone may still be hot!
Take extreme care.
• Heavy-duty scourers, some
nylon scourers and
harsh/abrasive cleaning
agents may scratch the glass.
Always read the label to check
if your cleaner or scourer is
suitable.
• Never leave cleaning residue
on the cooktop: the glass may
become stained.
Boilovers, melts, and
hot sugary spills on
the glass
Remove these immediately
with a fish slice, palette knife
or razor blade scraper
suitable for ceramic glass
cooktops, but beware of hot
cooking zone surfaces:
1. Switch the power to the
cooktop off at the wall.
2. Hold the blade or utensil at
a 30° angle and scrape
the soiling or spill to a
cool area of the cooktop.
3. Clean the soiling or spill up
with a dish cloth or paper
towel.
4. Follow steps 2 to 4 for
‘Everyday soiling on glass’
above.
• Remove stains left by melts and
sugary food or spillovers as
soon
as possible. If left to cool on
the
glass, they may be difficult to
remove or even permanently
damage the glass surface.
• Cut hazard: when the safety
cover
is retracted, the blade in a
scraper
is razor-sharp. Use with
extreme
care and always store safely
and
out of reach of children.
Spillovers on the
touch controls
1. Switch the power to the
cooktop off.
2. Soak up the spill
3. Wipe the touch control
area with a clean damp
sponge or cloth.
4. Wipe the area completely
dry
with a paper towel.
5. Switch the power to the
cooktop back on.
• The cooktop may beep and turn
itself off, and the touch controls
may not function while there is
liquid on them. Make sure you
wipe the touch control area dry
before turning the cooktop back
on.
13
Troubleshooting
Problem
Possible causes
What to do
The cooktop cannot
Be turned on.
No power.
Make sure the cooktop is
connected to the power supply and
that it is switched on.
Check whether there is a power
outage in your home or area. If
you’ve checked everything and the
problem persists, call a qualified
technician.
The touch controls
are unresponsive.
The controls are locked.
Unlock the controls. See section
‘Using your ceramic cooktop’ for
instructions.
The touch controls
are difficult to
operate.
There may be a slight film of
water over the controls or you
may be using the tip of your
finger when touching the
controls.
Make sure the touch control area is
dry and use the ball of your finger
when touching the controls.
The glass is being
scratched.
Rough-edged cookware.
Unsuitable, abrasive scourer
or
cleaning products being used.
Use cookware with flat and smooth
bases. See ‘Choosing the right
cookware’.
See ‘Care and cleaning’.
Some pans make
crackling or clicking
noises.
This may be caused by the
construction of your cookware
(layers of different metals
vibrating differently).
This is normal for cookware and
does not indicate a fault.
Problem code and solution
Problem
Possible causes
What to do
U
There is no pot/pan or
unsuitable pot/pan on
induction hob.
Put a pot/pan on the hob or change a
suitable pot/pan.
E1
The voltage is too high
(>145V)
You can switch off the electric ceramic hob
first. Wait for the voltage to return to normal
before switching on.
E2
The voltage is too low
(<90V)
You can switch off the electric ceramic hob
first. Wait for the voltage to return to normal
before switching on.
F3 / F4
Temperature sensor of
the induction coil short
circuit or open circuit.
Please contact with qualified service
center.
F9 / FA
Temperature sensor of
the IGBT short circuit
or open circuit.
Please contact with qualified service
center.
14
Technical Specification
Cooking Hob
ID1800
Cooking Zones
2 Zones
Supply Voltage
120V~,50-60Hz
Installed Electric Power
shared 1800W
Product Size L×W×H(mm)
288X520X62
Building-in Dimensions A×B (mm)
270X500
Weight and Dimensions are approximate. Because we continually strive to improve our
products we may change specifications and designs without prior notice.
Manufacturer: Zhongshan Daofey Electrical Co.,Ltd Add: No.16 Jingtian Street, Donghe Road, Xiaoli
Community, Dongfeng Town,Zhongshan City, Guangdong, China.
Contact：Emily Tel： +1（838）910 8317 E-Mail：info@iamzchef.com
Installation
Selection of installation equipment

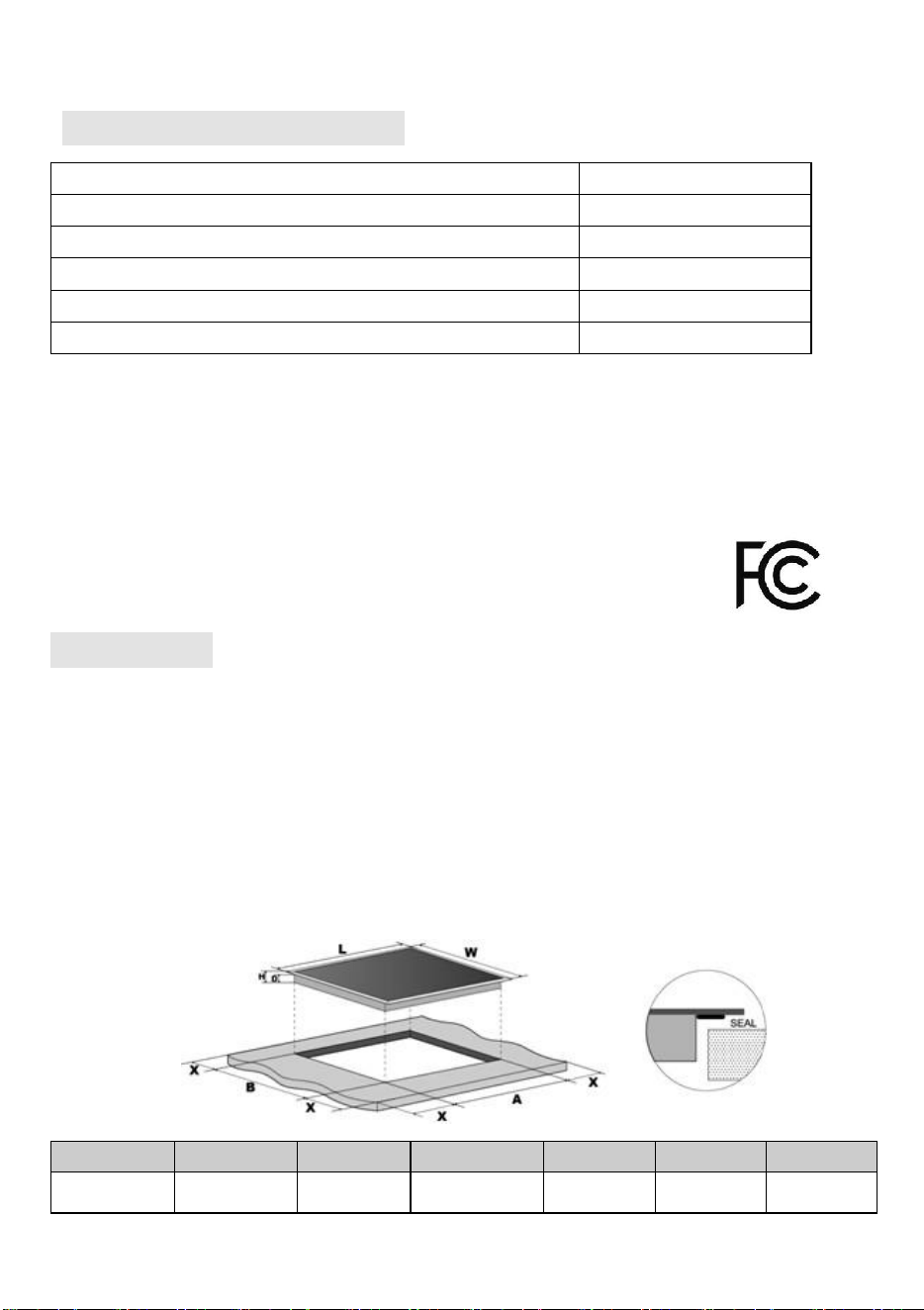

Cut out the work surface according to the sizes shown in the drawing.
For the purpose of installation and use, a minimum of 5 cm space shall be preserved around
the hole.
Be sure the thickness of the work surface is at least 30mm. Please select heat- resistant work
surface material to avoid larger deformation caused by the heat radiation from the hotplate.
As shown below:
L(mm)
W(mm)
H(mm)
D(mm)
A(mm)
B(mm)
X(mm)
288
520
62
57
268-270
498-500
50 mini
15

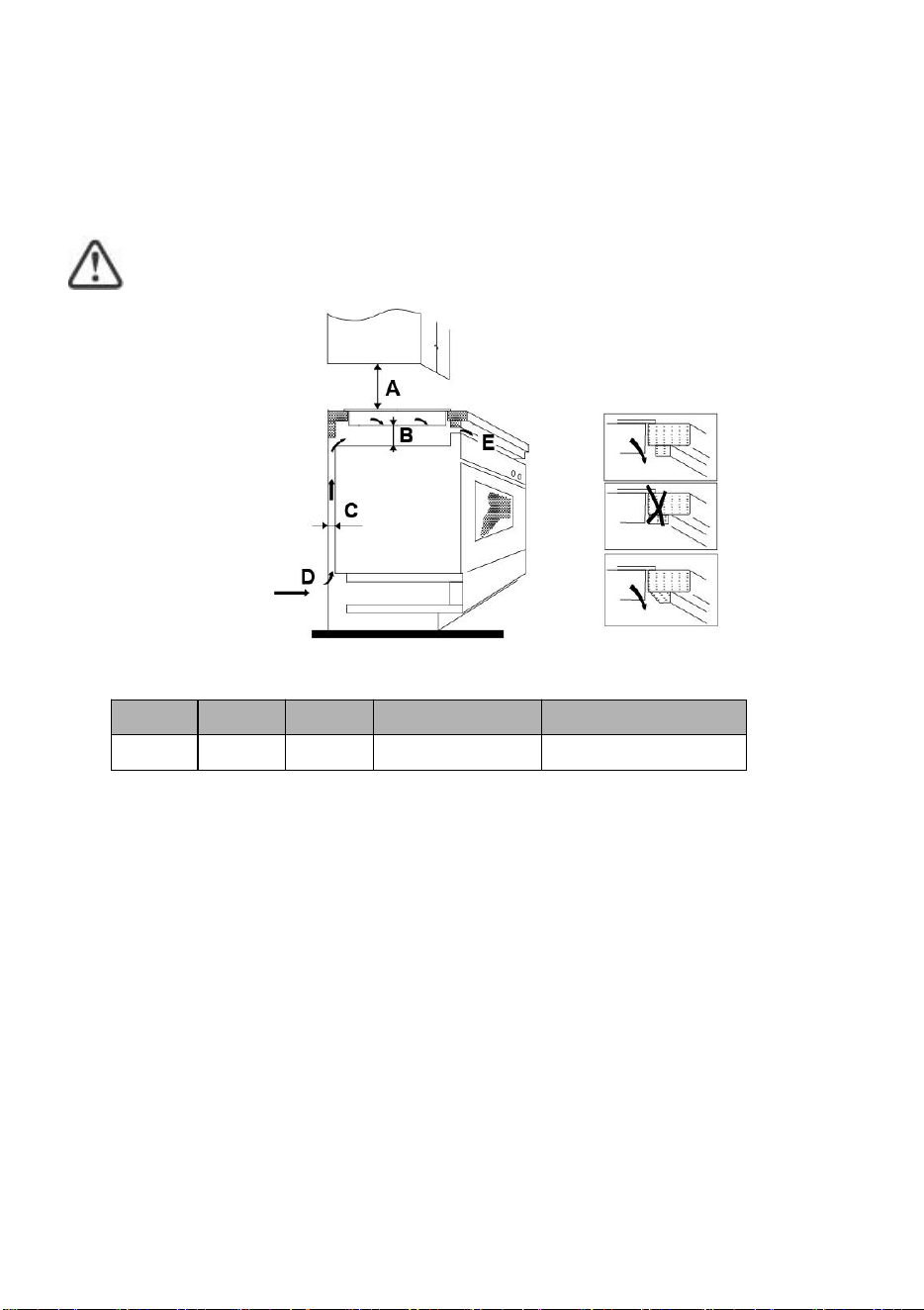

Under any circumstances, make sure the induction cooker hob is well ventilated and the air
inlet and outlet are not blocked. Ensure the induction cooker hob is in good work state. As
shown below
Note: The safety distance between the hotplate and the cupboard above the
hotplate should be at least 760mm.
Cautions
1. The induction cooker hob must be installed by qualified personnel or technicians. We
have professionals at your service. Please never conduct the operation by yourself.
2. The induction cooker hob shall not be mounted to cooling equipment, dishwashers and
rotary dryers.
3. The induction cooker hob shall be installed such that better heat radiation can be ensured
to enhance its reliability.
4. The wall and induced heating zone above the work surface shall withstand heat.
5. To avoid any damage, the sandwich layer and adhesive must be resistant to heat.
6. A steam cleaner is not to be used.
7. This ceramic can be connected only to a supply with system impedance no more than
0.427 ohm. In case necessary, please consult your supply authority for system impedance
information.
A(mm)
B(mm)
C(mm)
D
E
760mini
50 mini
20 mini
Air intake 50mm
Air exit 50 mm
16
