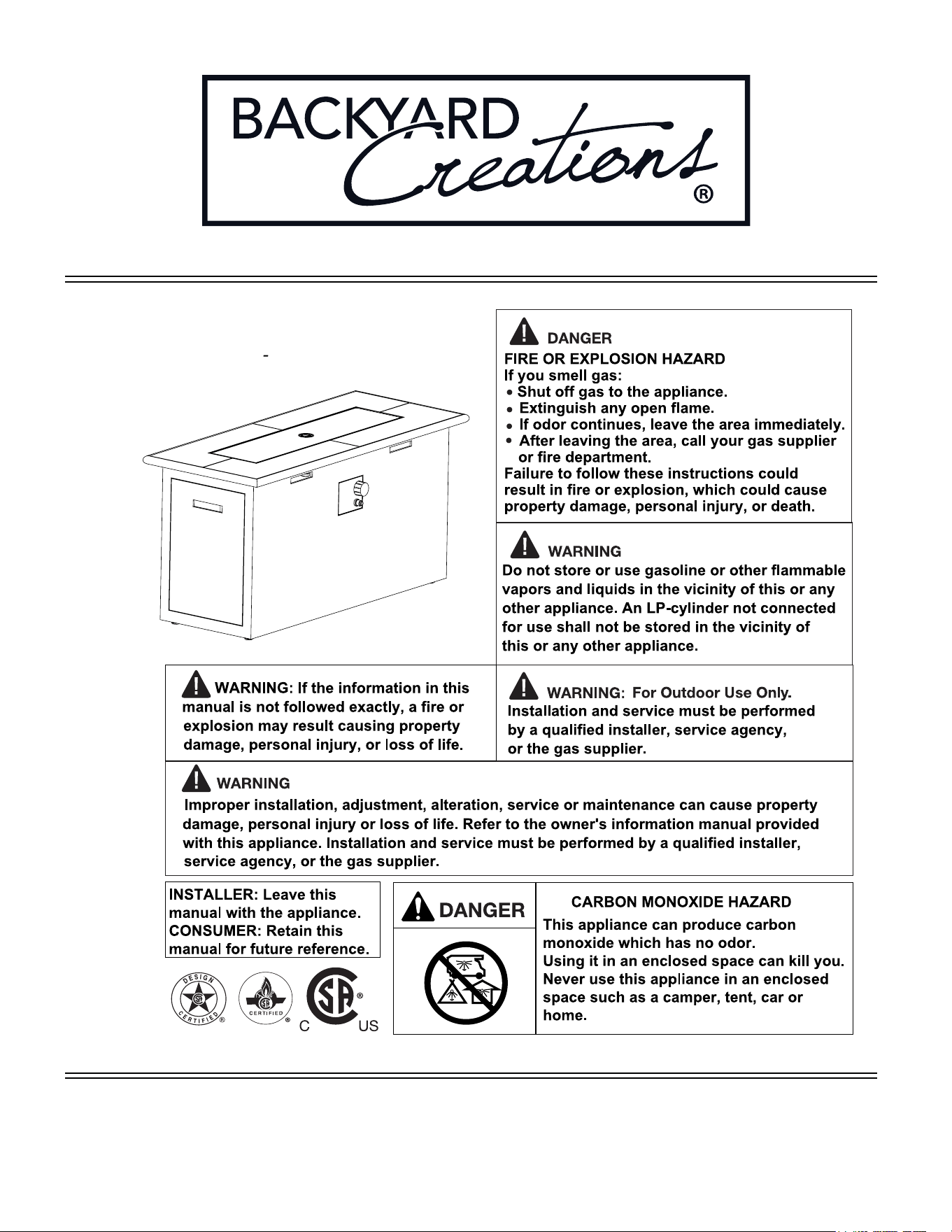

Page 1
HARRINGTON BEACH GAS FIRE TABLE
ITEM# 52699
MODEL# 259
5281
Questions, problems, missing parts? Before returning to your retailer,
call our customer service department at 1-877-447-4768,
8:00 a.m. - 4:30 p.m., CST, Monday-Friday or email us at
Page 2

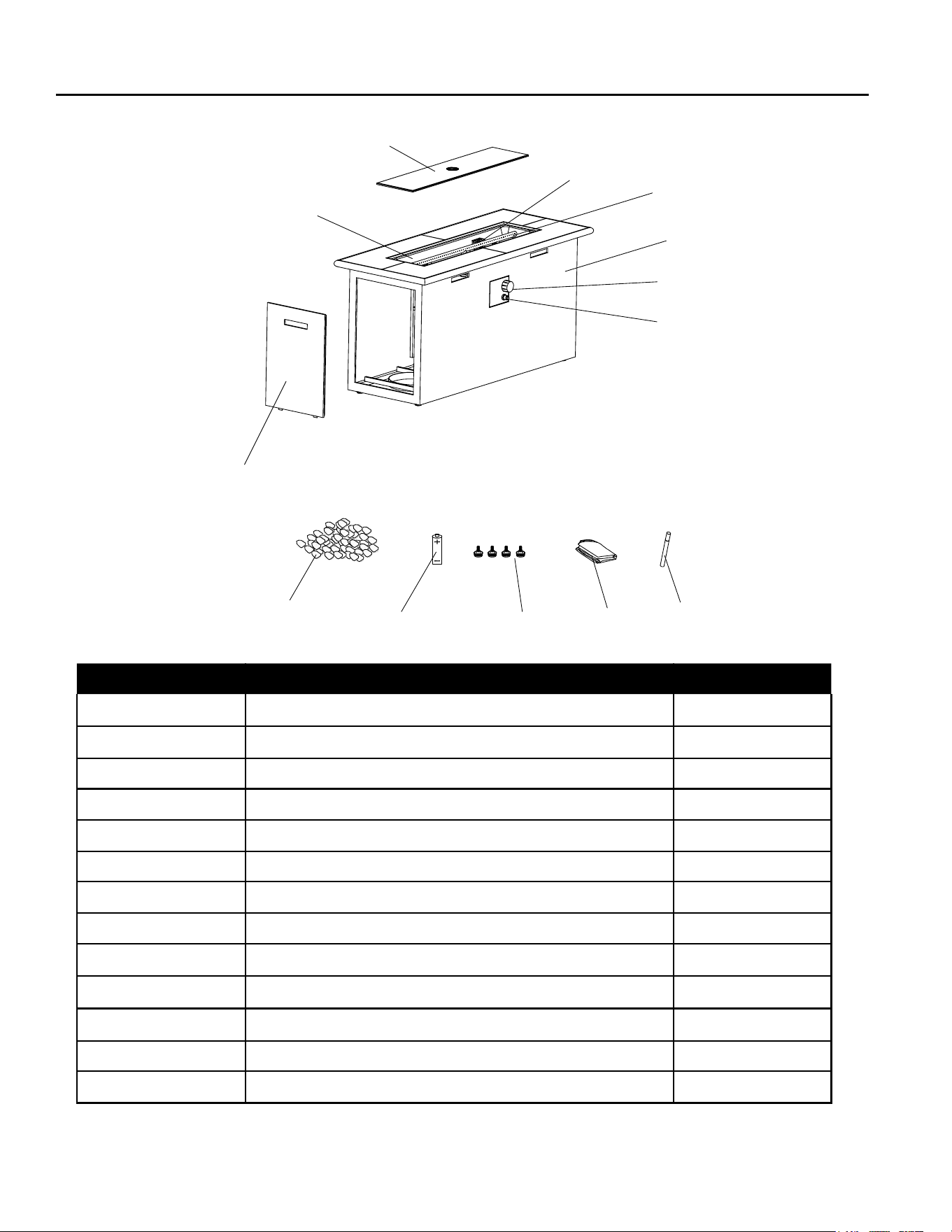

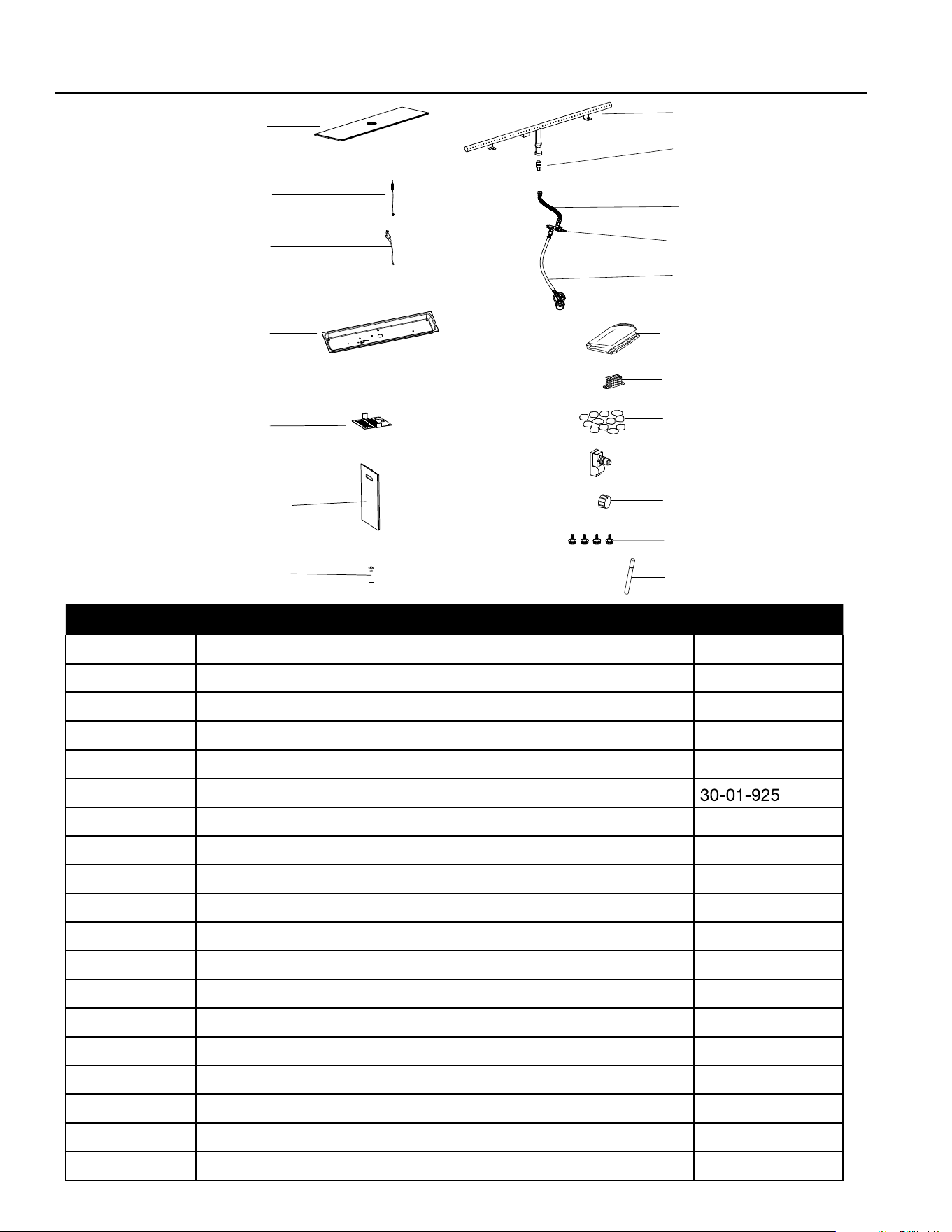

PACKAGE CONTENTS
J
I
G
H
K
E
A
B
C
D
L
O F
A
B
C
D
E
F
G
H
I
J
K
L
M
Item Description
Firebowl (burner plate)
Body
Door
Burner (preassembled)
Guard (preassembled)
Lava Rocks
Protective Cover
Battery (AAA)
Control Knob (preassembled)
Electronic lgniter (preassembled)
Feet (preassembled)
Touch-Up Pen
1
1
1
1
1
1 box
1
1
1
1
3
1
Qty
Lid
1
Part No.
M
Item Description Qty
A Firebowl 1
B Body 1
C Door 1
D Burner (preassembled)) 1
E Guard (preassembled)) 1
F Lava Rocks 1 box
G Protective Cover 1
H Battery (AAA) 1
I Control Knob (preassembled) 1
J Electronic Igniter (preassembled) 1
K Feet (preassembled) 4
L Lid 1
M Touch-up Pen 1
Page 3

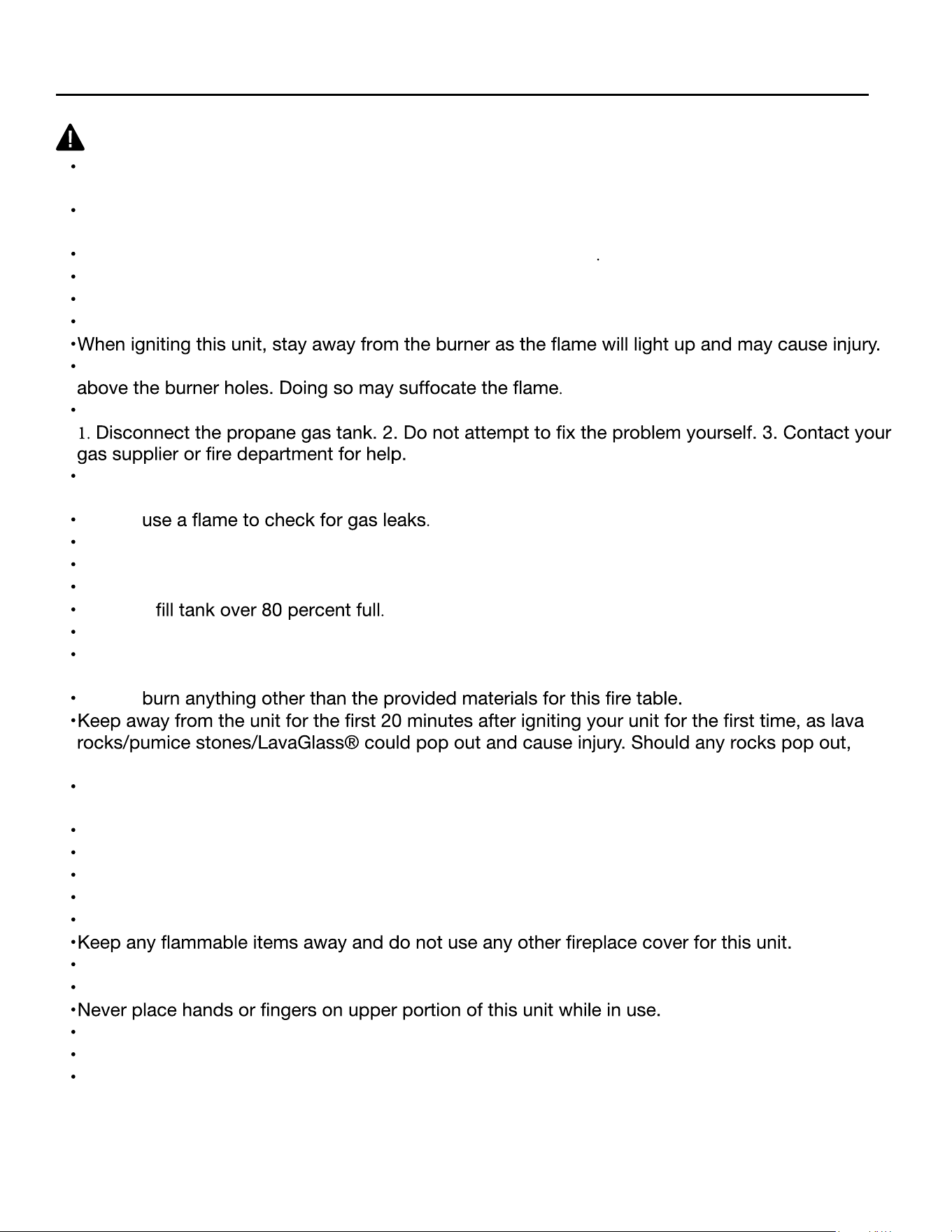

SAFETY INFORMATION
WARNING
The installation of this unit must adhere to local codes or Propane Storage and Handling Code,
CSA B149.2.
THIS UNIT IS INTENDED FOR OUTDOOR USE ONLY! This product shall be used outdoors, in a
ventilated space and shall not be used in any enclosed area.
This unit is to be used with propane gas only! (sold separately)
Do not attach a remote gas supply to this unit.
Only use propane gas for this unit.
Solid fuels shall not be burned in this appliance.
LP GAS WARNING: Do not use any more than 1/4in depth lava rocks/pumice stones/LavaGlass®
If the propane gas tank is leaking gas, you may hear, see, or smell a hiss. Do the following:
Applying too much propane may result in gas pooling and will not burn. Allow fresh air into the unit
so that the remaining gas may escape.
Do not
Manifold pressure: 11 inch w.c. (2.74kPa).
Use LP propane tanks with the following dimensions: diameter 12 in, height 18 in - capacity 20 lbs.
You must use a propane tank that has a collar to protect the gas valve.
DO NOT
The tank system must be set up for vapor withdrawal.
Discontinue use if any part of the propane tank is damaged. Rust and dents may be hazardous
and should be inspected by a gas supplier.
Do not
discard them.
Always ensure that lava rocks/pumice stones/LavaGlass® are completely dry before use. Failure
to do so will cause them to crack or pop.
Do not operate unit until all parts are fully assembled.
Do not paint or color any part of this heating unit.
Unit may be hot while in use, do not attempt to move it while in use.
Never leave this heating unit unattended while in use.
This unit is not intended for cooking.
Keep a safe distance to avoid burning skin or clothing.
Do not sit or rest hands or feet on this heating unit.
Keep all electrical cords and fuel supply hose away from heated surfaces.
Cover must be removed when burner is in operation.
Combustible material should not be within 60 inches of the top of the unit, or within 48 inches
Page 4

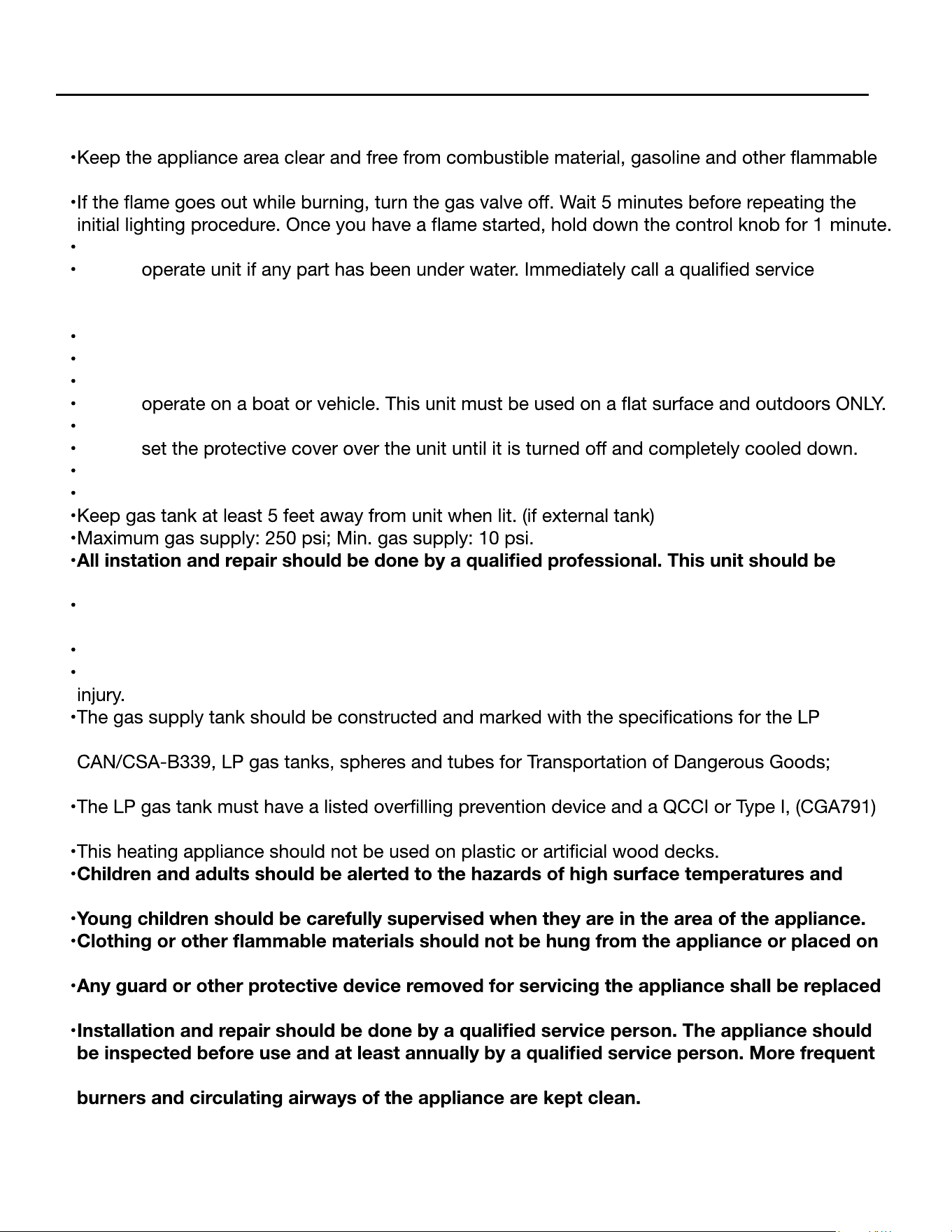

SAFETY INFORMATION
around the entire unit.
vapors and liquids.
Do not add water into the unit.
Do not
technician to inspect the appliance and replace any part of the control system and any gas control
that has been under water.
Do not disconnect any part while unit is in use.
Do not store a spare propane tank on or near this unit.
If the heating unit is indoors, detach the propane tank and leave outdoors.
Do not
Always remove protective cover before operating (if applicable).
Do not
Check for leaks after not using the unit for long periods of time.
Children should never operate this unit. Children must be supervised while near this unit.
inspected annually and cleaned regularly.
Inspect all elements of this heating unit before each use. If there is damage, the burner must be
replaced.
Keep the hose out from any pathways to eliminate any accidental damage. (if external tank)
Be aware of the hazards of high temperatures and stay away from the unit to avoid any burns or
gas tanks of the U.S. Department of Transportation or the National Standard of Canada
Commission.
LP gas connection.
should stay away to avoid burns or clothing ignition.
or near the appliance.
prior to operating the appliance.
cleaning may be required as necessary. It is imperative that the control compartment,
-

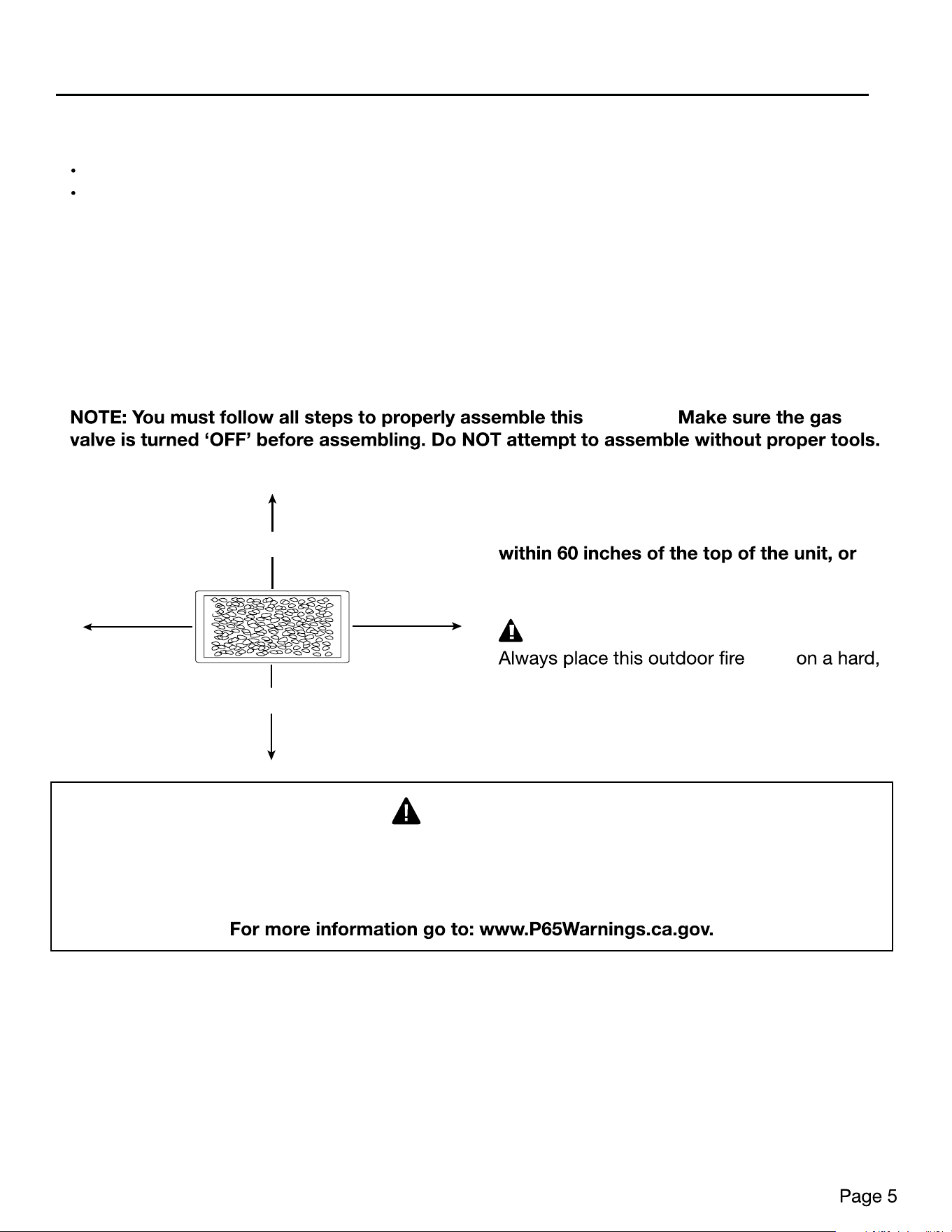

SAFETY INFORMATION
IF APPLICABLE:
Allow heating item to cool completely before placing on lid.
DO NOT use heating item while lid is installed. Always remove the lid while heating item is in use.
Only use the regulator and hose assembly provided with this unit. Replacement parts must be
supplied directly by manufacturer.
Inspect the burner before use of this unit. If the burner shows any kind of damage, do not operate
the appliance. For assistance with repair or replacement of the burner or any other parts, call
manufacturer at 1.877.447.4768.
Combustible materials should not be
within 48 inches around the entire unit.
DANGER
level, non-combustible surface such as
concrete, rock or stone.
Min. Clearance
48 in (121.9 cm)
Min. Clearance
48 in (121.9 cm)
Min. Clearance
48 in (121.9 cm)
Min. Clearance
48 in (121.9 cm)
WARNING
FUELS USED IN LIQUEFIED PROPANE GAS APPLIANCES,AND THE PRODUCTS OF
COMBUSTION OF SUCH FUELS, CAN EXPOSE YOU TO CHEMICALS INCLUDING BENZENE,
WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND CAUSE BIRTH
DEFECTS OR OTHER REPRODUCTIVE HARM.
fire table.
table
Page 6
ASSEMBLY INSTRUCTIONS
1. Check that the control knob (I) for the gas supply
system is turned to the ‘OFF’ position before starting
any assembly.
2. Remove door from body (B) and place propane
gas tank (not included) into the metal stand
inside of the body (B).
3. Turn the cylinder valve on the tank clockwise
to close the propane tank. Attach the
preassembled regulator from the body (B) to the
cylinder valve by turning the regulator coupling
nut clockwise. Make sure it is fastened securely
and tighten connection by hand only.
WARNING
Please inspect the rubber O ring in the
propane tank valve to ensure it is not
worn before attaching regulator. Worn
rubber O ring can cause leaks, explosions
O
F
F
I
B
CYLINDER
VALVE
PRESSURE
EVLAV FEILER
BLEED-OFF
VALVE
BLACK COUPLING NUT
REGULA TOR
turn clockwise to connect
turn clockwise
to
reseal
RUBBER O RING
Page 7
ASSEMBLY INSTRUCTIONS
4. Once the tank is attached to the regulator, make
sure the propane gas tank sits on the metal stand
inside body (B) completely. Turn the preassembled
wing screw on the outer part of metal stand
clockwise to secure the propane gas tank tightly.
Replace door (C) onto the body (B).

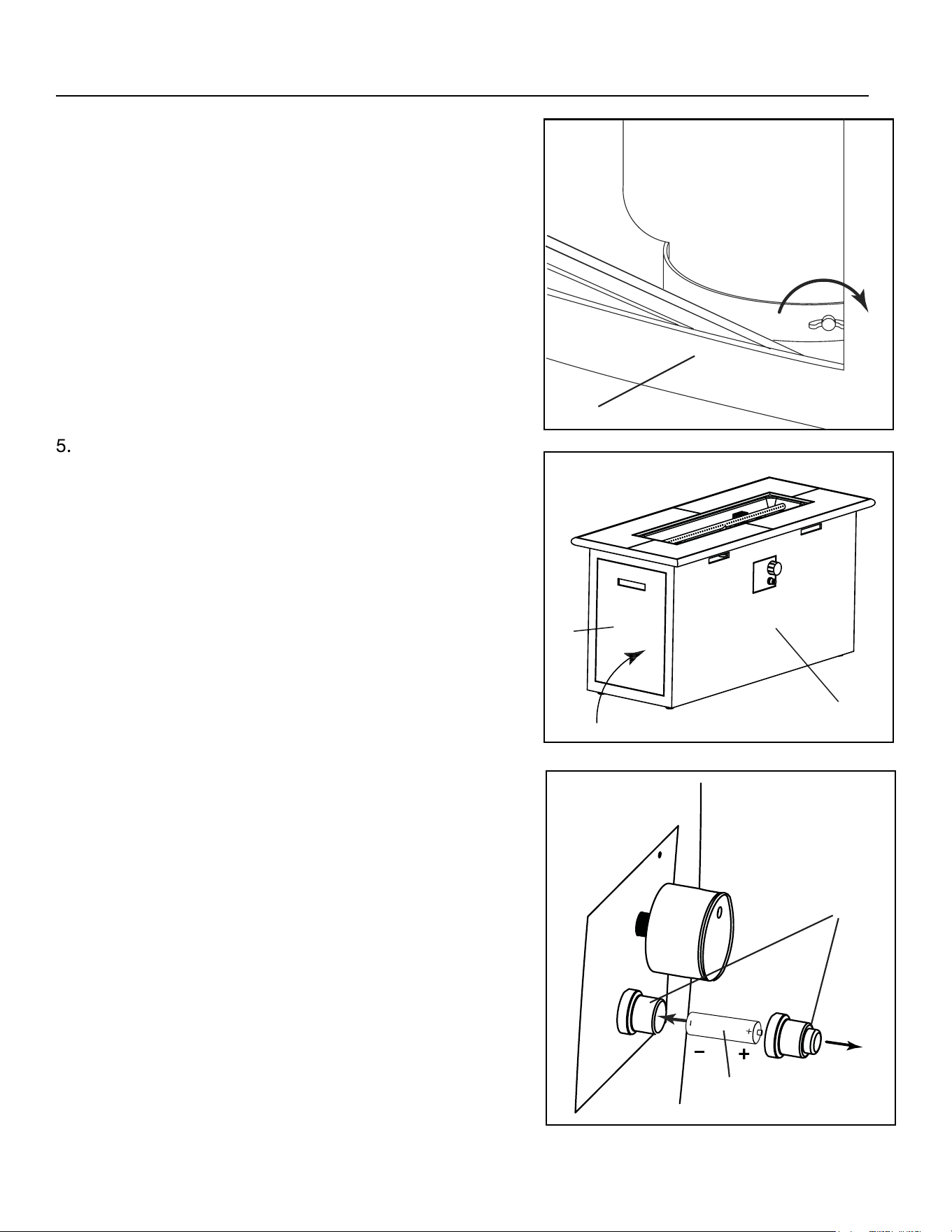

6. Remove the rubber cap on the electronic igniter (J)
by unscrewing and slide battery (H) into the battery
slot. Make sure the positive side of the battery faces
outwards. Screw the electronic igniter cap (J) over the
battery tightly.
B
B
C
J
H
Page 8
7.
WARNING
To ensure proper function, the guard (E) on this
burner (D) should be free of lava rocks at all times.
Keep away from the unit and allow the unit to burn
20 minutes for the time use.
Always ensure that lava rocks/pumice stones/
LavaGlass® are completely dry before use. Failure
to do so will cause them to crack or pop.
ASSEMBLY INSTRUCTIONS

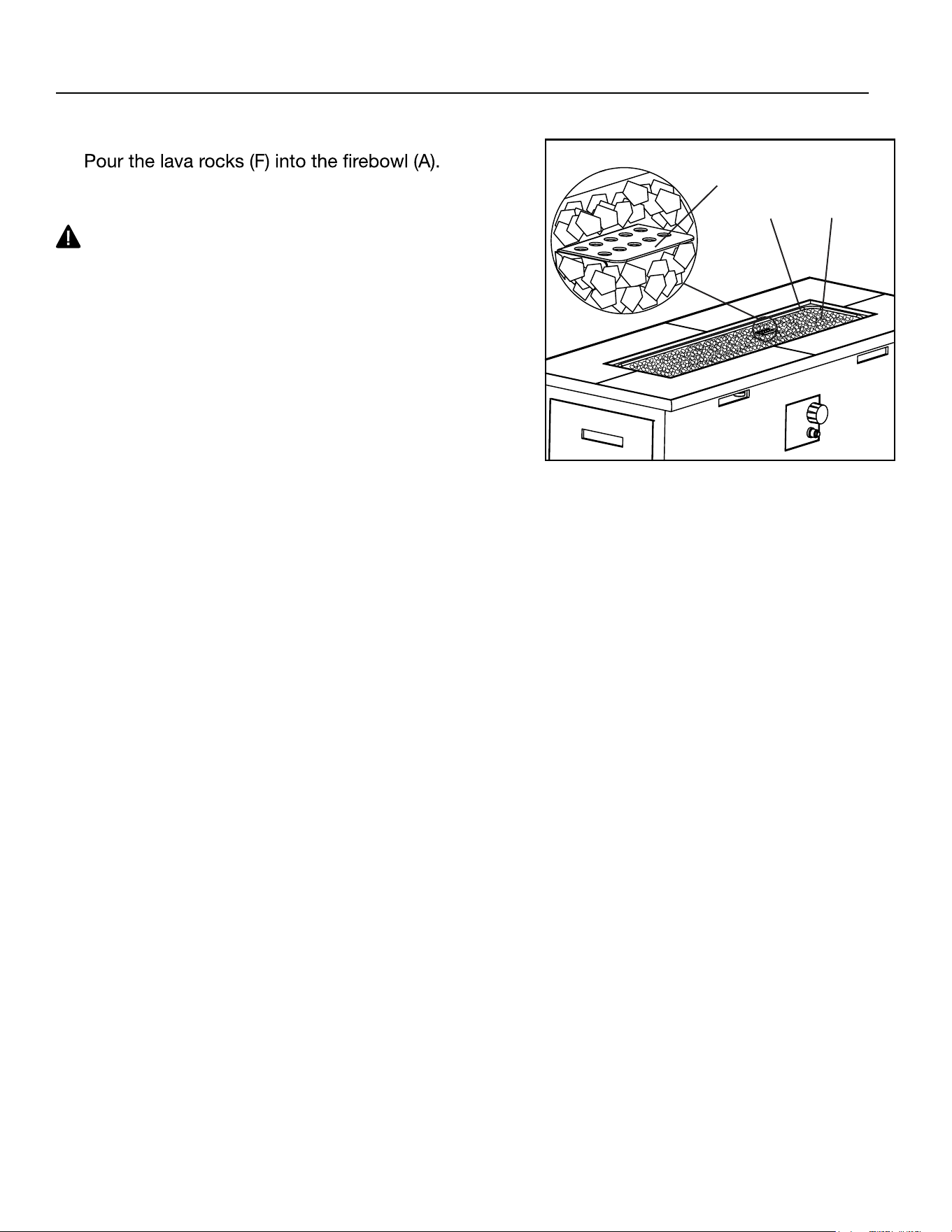

F
A
E
Page 9

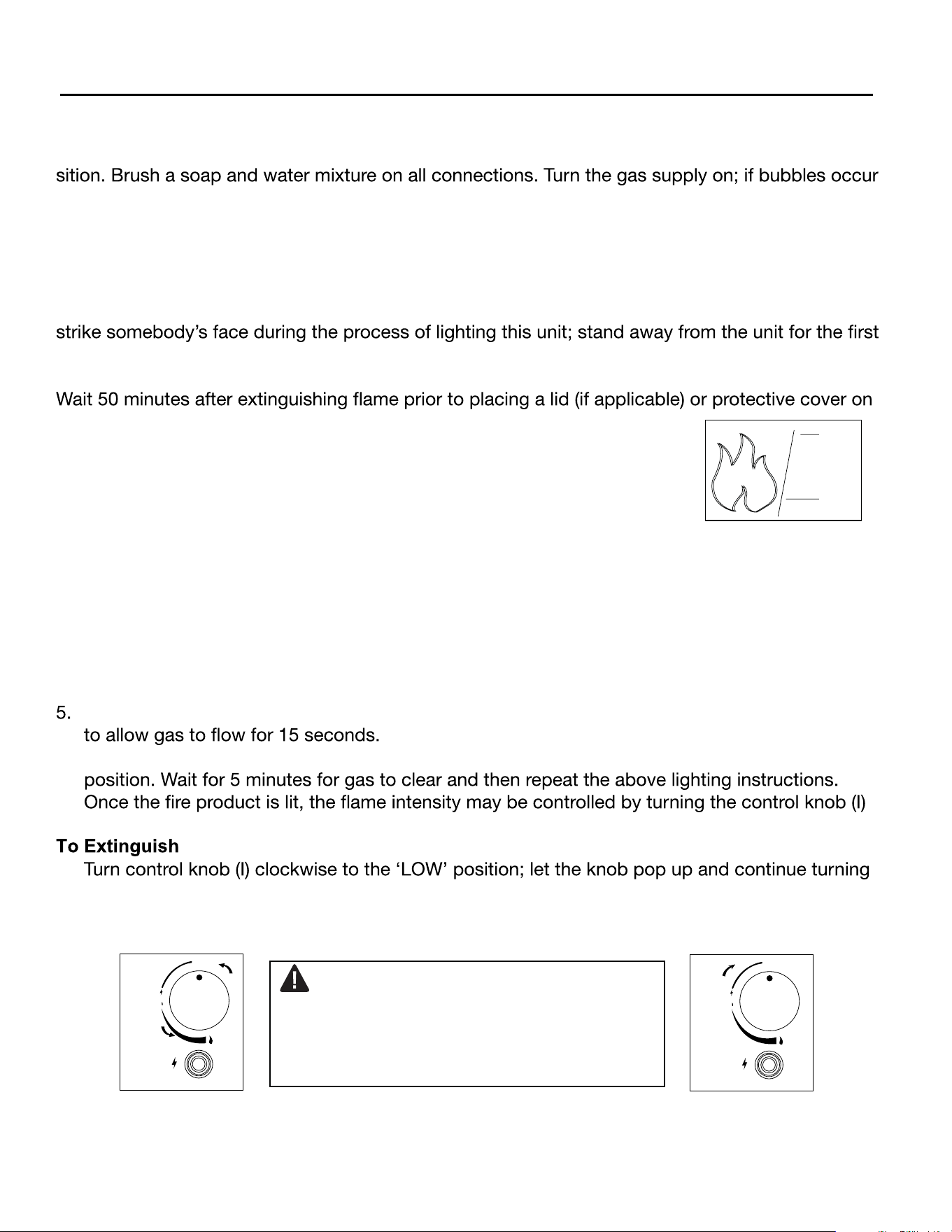

OPERATION
Before performing a leak test, be sure that no sparks can occur and you are in a spacious outdoor
area. Connect the propane gas tank to the regulator and turn the valve on the unit to the ‘OFF’ po-
on any connection there may be a leak. IF YOU SMELL GAS OR A LEAK IS DISCOVERED TURN
THE GAS VALVE OFF, DISCONNECT PROPANE GAS TANK AND DO NOT USE THE APPLIANCE
UNTIL THE LEAK IS REPAIRED.
Do not use the heating unit without inspecting the gas hose. If there are signs of wear or abrasion
you must replace the hose (if applicable). Pumice stones/lava rocks/LavaGlass® could pop up and
20 minutes after igniting. Flame should be a yellow/blue color and between 2 - 10 inches in height.
fire table.
To Light
1. Make sure the control knob (I) is in the ‘OFF’ position.
2. Remove door (C) and slowly open the valve on the propane gas tank by turning the knob counter-
clockwise.
3. Replace the door (C) on the body (B).
4. Push and hold in the electronic igniter (J) to create sparks within the electrode, continue to hold.
Push in the control knob (I) and turn to the ‘LOW’ position. Keep holding down the control knob (I)
6. If ignition doesn’t occur within a few seconds, release the control knob (I) and rotate to the ‘OFF’
7.
between the ‘LOW’ and ‘HIGH’ positions.
1.
the control knob (I) to the ‘OFF’ position.
2. Close the cylinder valve on the propane gas tank if you don’t intend to use it for a long time.
in.
10
25
2
5
cm
in.
cm
WARNING
If the burner does not ignite with the burner
control valve open, gas will continue to flow
out of the burner and could accidentally ignite
causing injury orp roperty damage.
OFF
LOW
IGNITER
HIGH
OFF
LOW
IGNITER
HIGH
Page 10

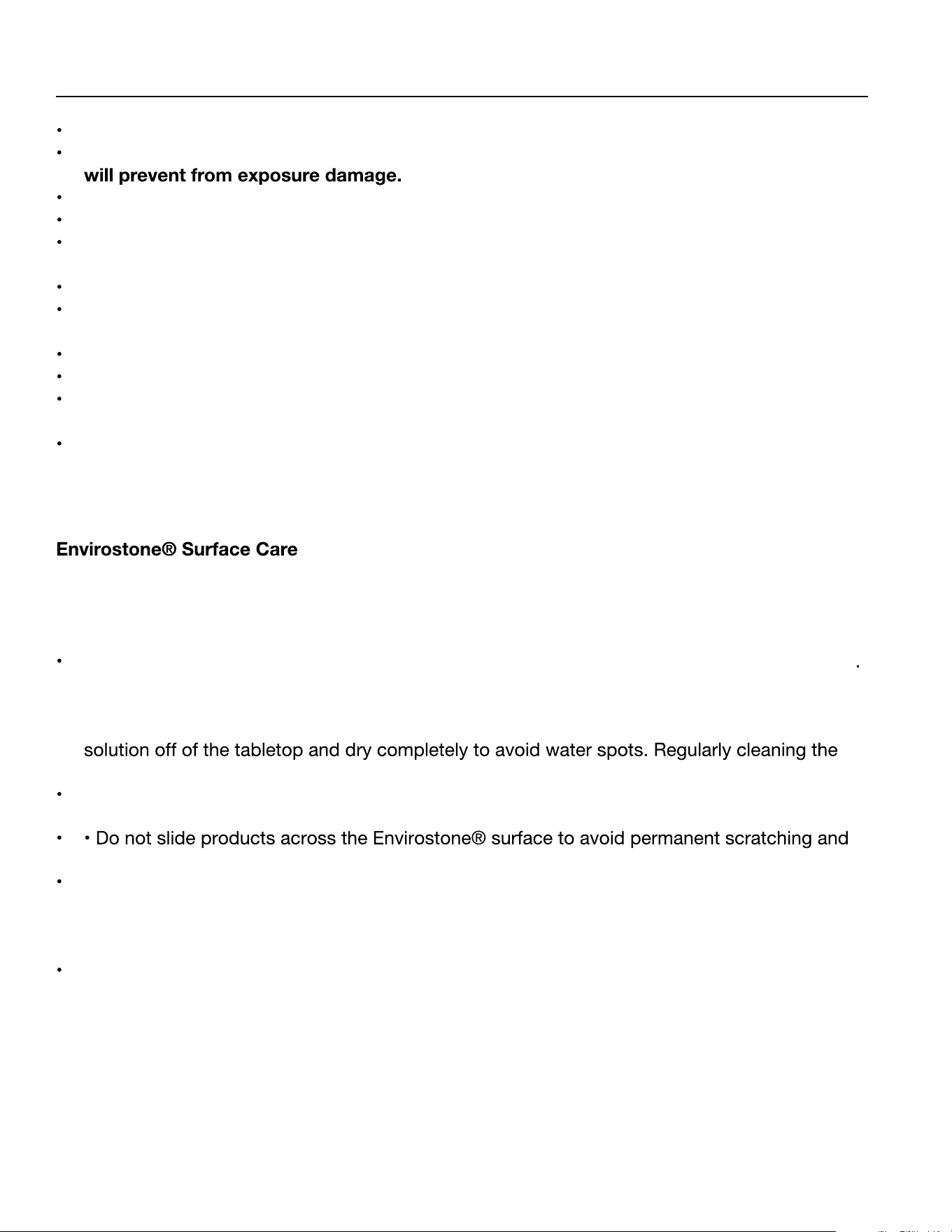

CARE AND MAINTENANCE
Before performing any maintenance always disconnect propane gas tank.
Store your product indoors during winter months. Avoiding extreme cold temperatures
Keep the heating item free and clear from combustible materials.
Visually inspect burner for obstructions and keep tank enclosure free and clear from debris.
Use a soft brush to get rid of the mild stains, loose dirt and soil after the burner and pumice
stones/lava rocks/LavaGlass® are completely cooled down. Wipe down with a soft cloth.
Harsh weather conditions may cause stubborn stains, discoloration and possibly rust pitting.
Permanent damage may occur if powder or solvent comes in contact with painted or plastic
components on this fire table.
Keep the fire table stored away from direct sunlight.
If storing this unit inside, disconnect the propane gas tank from the gas valve.
Not using manufacturer approved or supplied parts/accessories may result in a defective
condition and void the warranty of this fire table.
Always place lid (if applicable) or protective cover on fire table when not in use.
Our Envirostone® material has been sealed with a patented treatment to prevent staining and
moisture absorption, but it does require proper maintenance to ensure the integrity of the surface.
Please see below for recommendations on maintaining your Envirostone® surface for years of
pleasure:
Clean any spills immediately to prevent permanent Envirostone® surface staining or damage
Blot any liquid spills with a clean, dry cloth to avoid spreading of the spill to the rest of the
table. Clean your Envirostone® surface with a soft, clean cloth or sponge. Mix a solution of
warm clean water and mild dish soap to remove any surface dirt or mild spills. Rinse all soap
Envirostone® surface will aid in a longer lasting product.
Do not use petroleum-based or abrasive cleaning products. Do not use any harsh brushes
when cleaning the Envirostone® surface.
damage.
Always use protective mats such as coasters or placemats when eating on an Envirostone®
surface. These protective products will help absorb sweating on cool beverages and will block
out any heat rings from appearing beneath a warm mug or plate. When placing hot dishes on
an Envirostone® surface, always use mats or hot pads.
Envirostone® surface must be covered at all times when not in use. Cover your product with
an outdoor furniture cover when not in use to protect it from the elements. Store your product
indoors during winter months. Avoiding extreme cold temperatures will prevent cracking of the
tabletop.
Page 11
TROUBLESHOOTING

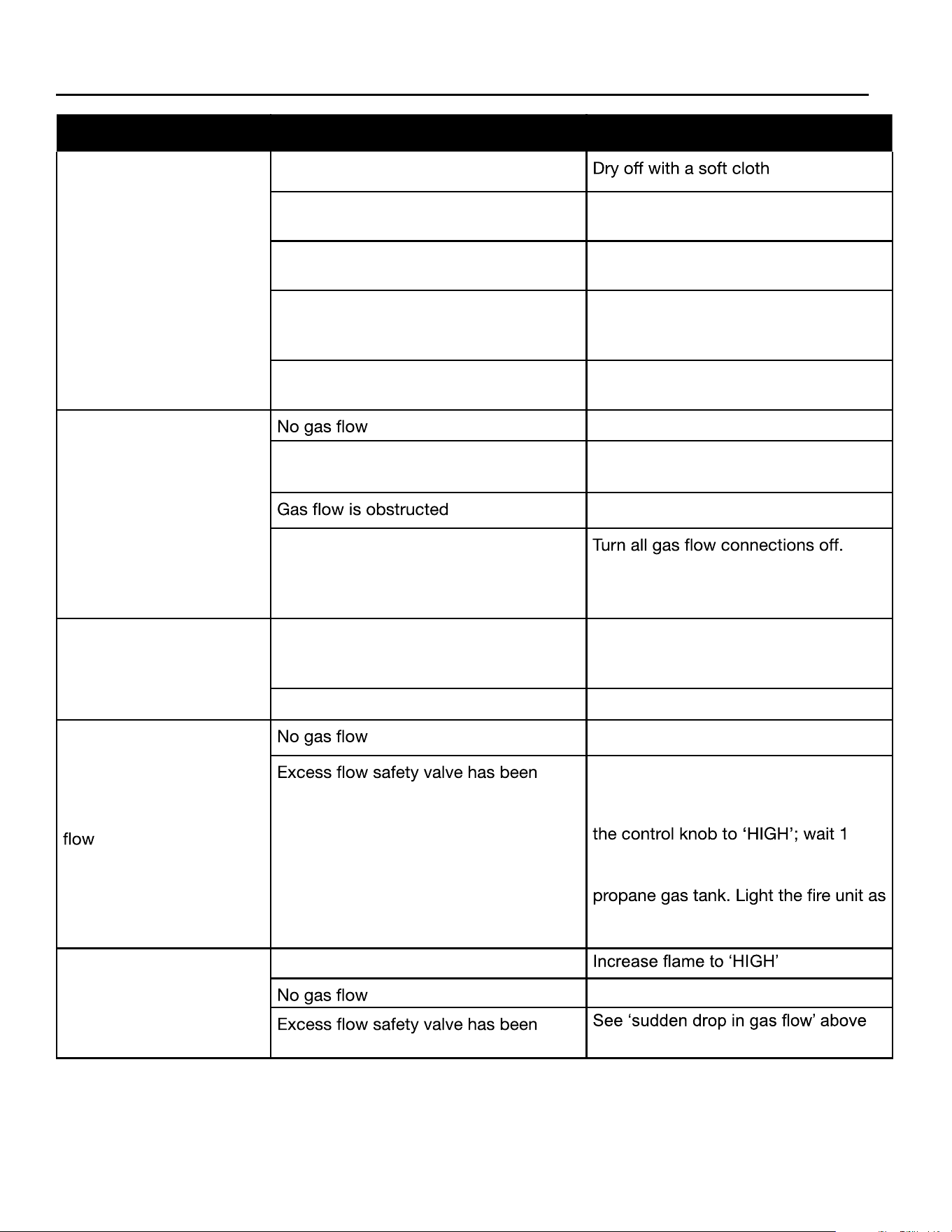

Problem Cause Solution
Fire table won’t light
Igniter pin and burner are wet
Igniter battery is incorrectly inserted Check which direction the battery is
inserted
Igniter pin is broken Contact Manufacturer for a
replacement part
Electrode wire is loose or disconnected Reconnect wire to the igniter box
located inside the unit behind the
igniter box
Electrode wire is shorting between
valve and igniter pin
Contact Manufacturer for a
replacement part
Burner won’t light
while using a match
Check that the gas tank isn’t empty
Regulator isn’t connected securely to
the tank
Tighten regulator connection to the
gas tank
Check all hoses for kinks and bends
Burner ports are clogged
Insert an opened paperclip (or similar
item) into each of the burner ports to
clear them out.
Fire table emits a lot
of black smoke
Flame is obstructed at burner ports Check that all burner ports are free of
any small lava rocks/pumice stones/
Lava-Glass® pieces
Regulator hose is kinked Straighten hose of all bends or kinks
Sudden drop in gas
Check that the gas tank isn’t empty
activated
Turn the control knob to the ‘OFF’
position. Close the tank valve and
disconnect propane gas tank. Turn
minute. Turn the control knob back
to the ‘OFF’ position. Reconnect
indicated in the ‘To Light’ section of
this manual.
Flame blows out easily
High or gusting winds
Check that the gas tank isn’t empty
activated
Page 12
REPLACEMENT PARTS LIST
Gas Hose
Corrugated Pipe1
Nozzle
Thermocouple
Electrode
Heat shield
D
O
N
I
J
E
G
M
F
A
C
D
E
F
H
I
J
K
L
M
N
O
P
Q
R
S
Item Description
1
Qty
Part No.
L
A
1
1
1
1
1
1
1
4
1
1
1
1
1
1
1
c
T
R
Q
P
1
G
1
H
Firebowl (burner plate)
Door
Burner (preassembled)
Guard (preassembled)
Lava Rocks
Protective Cover
Battery (AAA)
Control Knob (preassembled)
Electronic lgniter (preassembled)
Feet (preassembled)
Touch-Up Pen
Lid
K
S
1 box
Valve
T
PART DESCRIPTION PART #
A Firebowl 30-01-921
C Door 30-01-922
D Burner 30-01-923
E Guard 30-01-924
F Lava Rock 30-06-999-B
G Protective Cover
H Battery AAA 30-01-926
I Control Knob 30-07-641-B
J Electronic Igniter 30-07-642-B
K Feet 30-07-643-B
L Lid 30-01-927
M Touch-Up Pen 30-01-928
N Thermoocouple 30-01-929
O Electrode 30-01-930
P Gas Hose 30-01-931
Q Valve 30-07-648-B
R Corrugated Pipe 30-01-932
S Nozzle 30-07-649-B
T Heat Shield 30-01-933
Page 13
WARRANTY
CONTACT
This product has a one-year warranty against manufacturing defects in workmanship, or materials.
The manufacturer warranty will be voided by, and manufacturer disclaims any responsibility for, the
following actions:
Use of any component part not manufactured or approved by Manufacturer.
Use and installation other than what is listed in this manual.
Please contact the manufacturer for replacement parts.
If you have any questions or concerns, please contact manufacturer at the below resources:
Toll free phone 1-877-447-4768 | Monday - Friday, 8:00 am - 4: 30 pm CST
Email [email protected]
Website www.ghpgroupinc.com
