USE AND CARE GUIDE
BANNERET 52 IN. CEILING FAN
Item #1003 823 909
Model #YG730-NI
THANK YOU
THANK YOU
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
Visual instruction of how to install this fan:
Visit www.homedepot.com and enter either the Item or Model number to nd
this fan and click the link of visual instruction in the product overview section.
Table of Contents
2
Table of Contents ..........................................................
Safety Information .........................................................
Warranty .........................................................................
Pre-installation ..............................................................
Specications ..........................................................................
Tools Required .........................................................................
Hardware Included ..................................................................
Package Contents ....................................................................
Installation .....................................................................
Assembly ........................................................................
Hanging the Fan .......................................................................
Attaching the Fan Blades .......................................................
Installing the Light Kit ............................................................
2
3
4
4
4
4
5
6
7
8
8
12
13
READ AND SAVE THESE INSTRUCTIONS
Operation .....................................................................
Pull Chain Operating Instructions ..........................................
Reverse Switch Operating Instructions ..................................
Care and Cleaning .......................................................
Troubleshooting ..........................................................
Service Parts ................................................................
15
15
15
16
16
18
Safety Information
WARNING: To reduce the risk of electrical shock or re, do
not use this fan with any solid-state fan speed control device.
It will permanently damage the electronic circuitry.
WARNING: To reduce the risk of personal injury, do not
bend the blade arms (also referred to as anges), when
installing the brackets, balancing the blades or cleaning the
fan.
WARNING: Do not insert foreign objects between rotating
fan blades.
WARNING: To reduce the risk of re, electric shock or
personal injury, mount the fan to the outlet box marked
acceptable for fan support with the screws provided with the
outlet box.
CAUTION: To reduce the risk of personal injury, use only
the screws provided with the outlet box.
3
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for
help.
1. To reduce the risk of electric shock, ensure electricity has
been turned off at the circuit breaker or fuse box before
beginning.
2. All wiring must be in accordance with the National Electrical
Code “ANSI/NFPA 70-1999” and local electrical codes.
Electrical installation should be performed by a qualied
licensed electrician.
3. The outlet box and support structure must be securely
mounted and capable of reliably supporting a minimum of 35
lbs (15.9 kg) or less. Use only UL-listed outlet boxes marked
“FOR FAN SUPPORT.”
4. The fan must be mounted with a minimum of 7 ft (2.1m)
clearance from the trailing edge of the blades to the oor.
5. Avoid placing objects in the path of the blades.
6. To avoid personal injury or damage to the fan and other
items, be cautious when working around or cleaning the fan.
7. Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be
suitable for most cleaning.
8. After making electrical connections, spliced conductors
should be turned upward and pushed carefully up into the
outlet box. The wires should be spread apart with the
grounded conductor and the equipment-grounding conductor
on one side of the outlet box and ungrounded conductor on
the other side of the outlet box.
9. All setscrews must be checked and retightened where
necessary before installation.
10. This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must
accept any interference received, including interference that
may cause undesired operation.
WARNING: Changes or modications to this unit not
expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications.
SPECIFICATIONS
SPECIFICATIONS

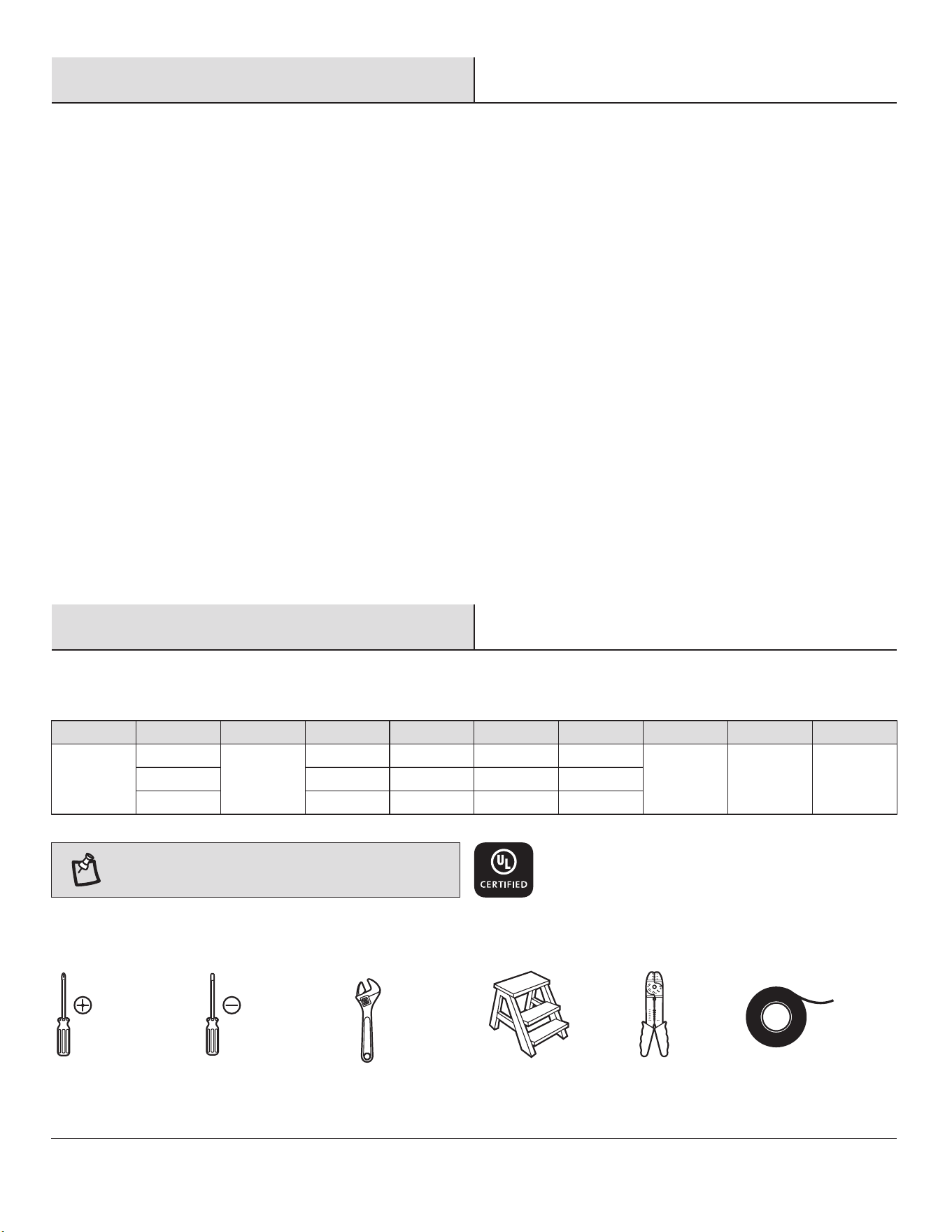

TOOLS REQUIRED
TOOLS REQUIRED
NOTE: These are approximate measures. They do not
include amps and wattage used by the light kit.
Warranty
4
Pre-InstallationPre-Installation
52 in.
Low
Medium
High
120
Fan size
Fan size
Watts
Watts
RPM
RPM
CFM
CFM
Speed
Speed
Volts
Volts
Amps
Amps
3.52 cu. ft.
N.W.
N.W.
G.W.
G.W.
C.F.
C.F.
0.22
0.38
0.5
11.61
33.6
60.5
63
118
160
1694
3288
4524
10.8 kg
(23.76 lbs.)
12.96 kg
(28.51 lbs.)
The manufacturer warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the
factory for a period of lifetime after the date of purchase by the original purchaser. The manufacturer warrants the light kit (excluding any
glass), to be free from defects in workmanship and material present at time of shipment from the factory for a period of ve years after
the date of purchase by the original purchaser. The manufacturer also warrants that all other fan parts, excluding any glass or acrylic
blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the
date of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or
superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All
costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper
installation or by afxing any accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not
cover any changes in brass nish, including rusting, pitting, corroding, tarnishing or peeling. Brass nishes of this type give the longest
useful life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a
defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. We hereby
disclaim any and all warranties, including but not limited to those of merchantability and tness for a particular purpose to the extent
permitted by law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as specied in the
express warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to
you. The retailer shall not be liable for incidental, consequential, or special damages arising out of or in connection with product use or
performance except as may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential
damages, so the above exclusion or limitation may not apply to you. This warranty gives specic legal rights, and you may also have other
rights which vary from state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a
claim on the warranty must be paid by the customer.
Contact the Customer Service Team at 1-800-986-3460 or visit www.HOMEDEPOT.COM/HOMEDECORATORS
Phillips
screwdriver
Flat blade
screwdriver
Step
ladder
Wire
stripper
Electrical
tape
Adjustable
wrench
AA
BB
CC
DD
EE
FF
GG
HH
Plastic wire nut
Canopy mounting screw with lock washer (preassembled)
Blade attachment screw and ber washer
Blade arm screw with lock washer (preassembled)
Light kit mounting plate screw (preassembled)
Light kit mounting screw (preassembled)
9 Watt LED medium base bulb
Pull chain and fob
Part
Part
Description
Description
3
4
16
10
3
3
2
2
Quantity
Quantity
Pre-Installation (continued)

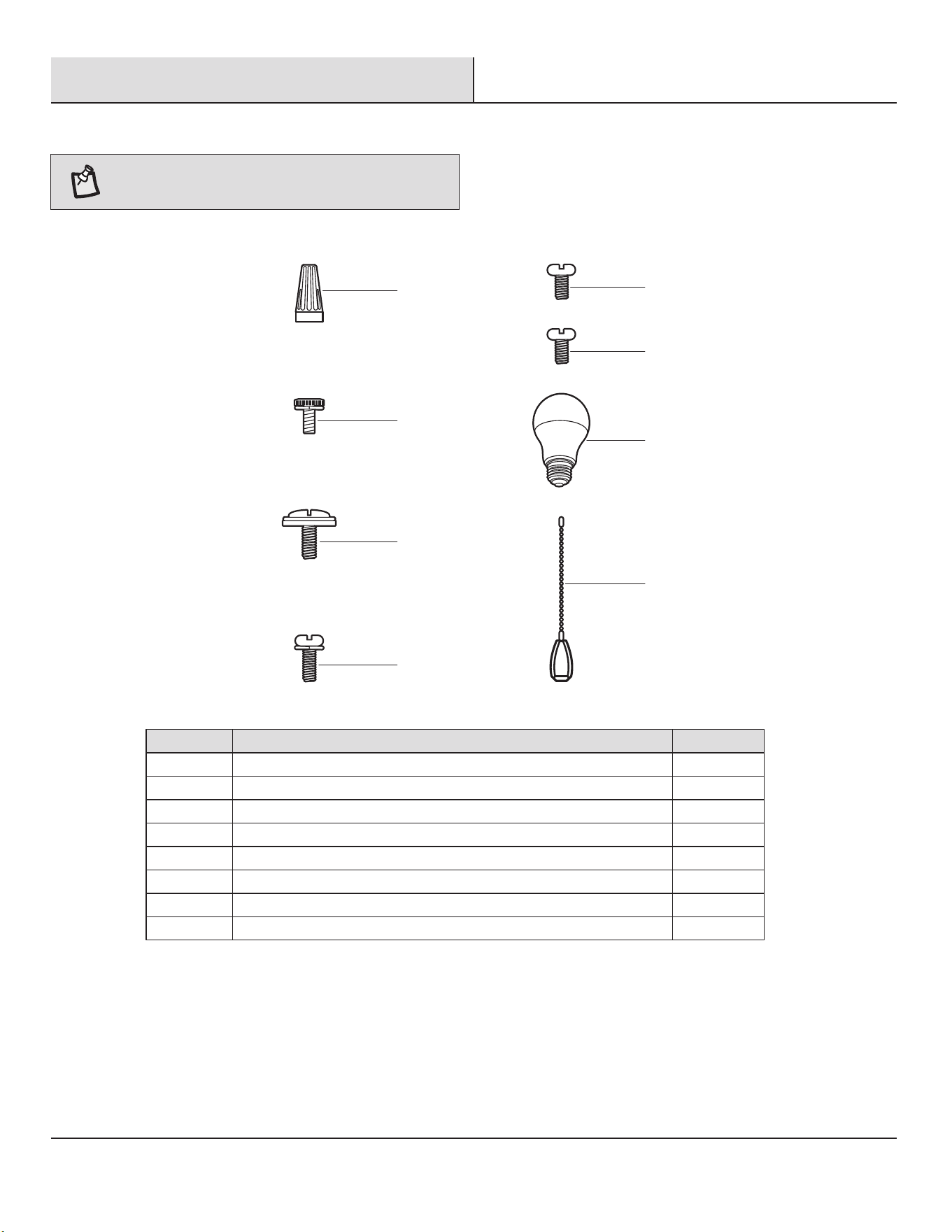

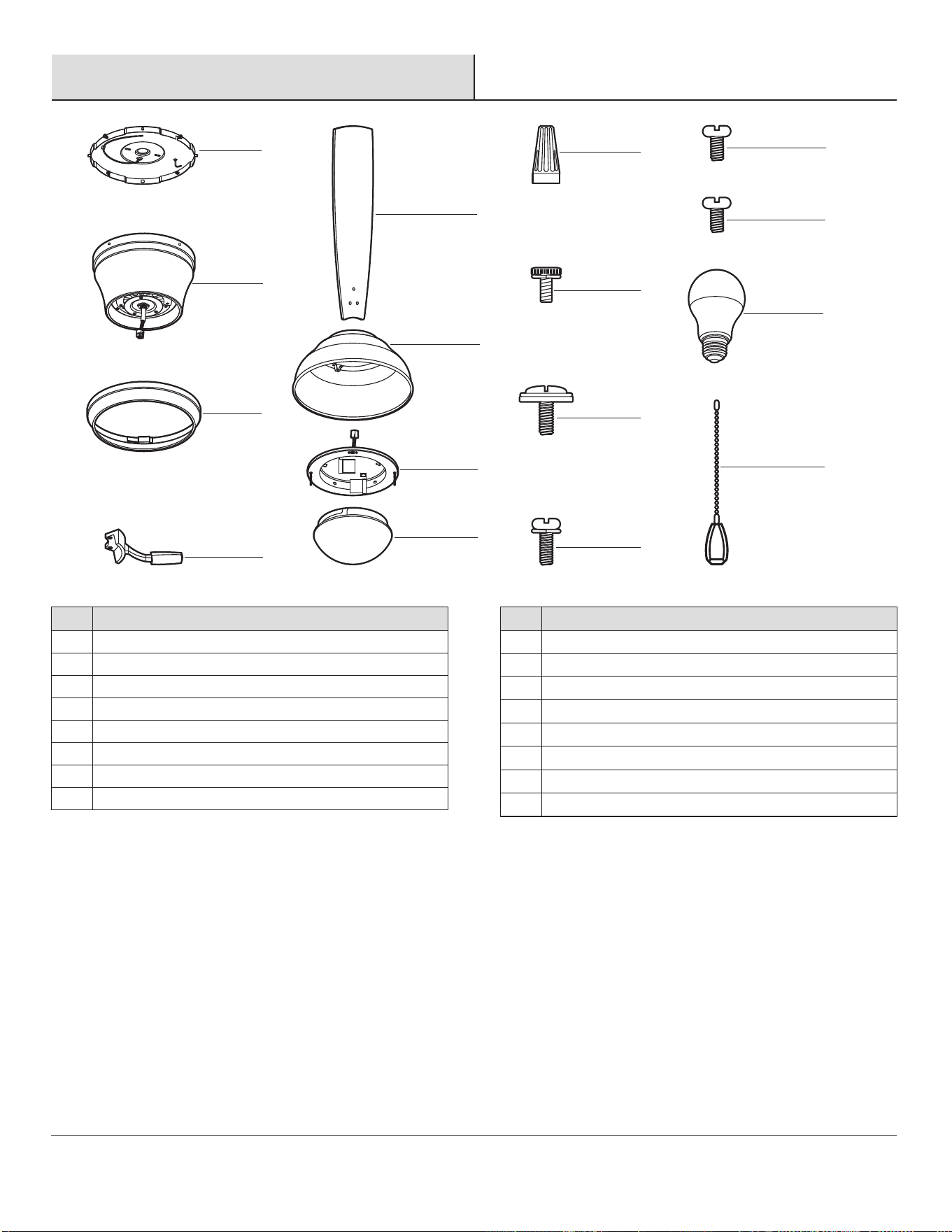

HARDWARE INCLUDED
HARDWARE INCLUDED
5
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
AA
EE
FF
GG
HH
BB
CC
DD
NOTE: Hardware not shown to actual size.

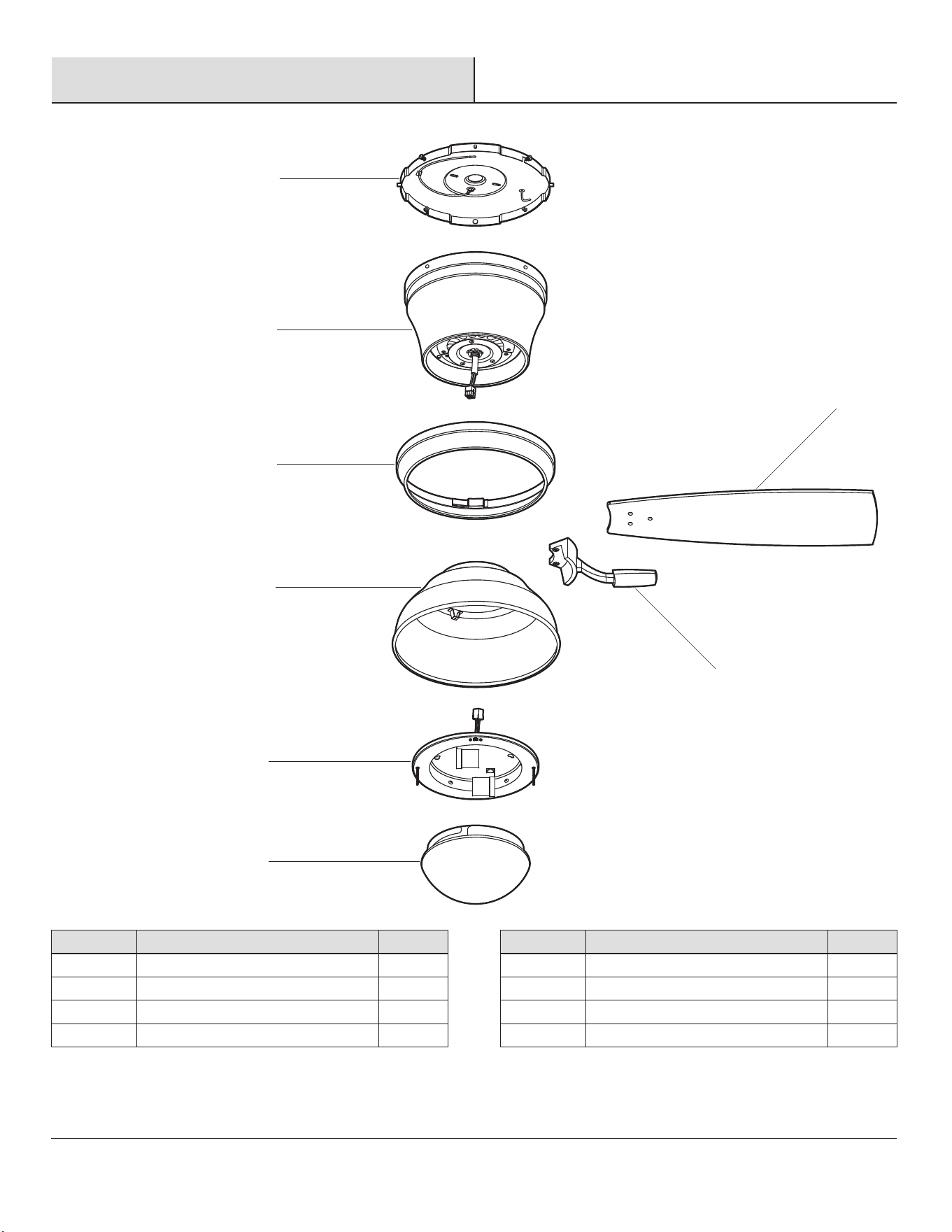

PACKAGE CONTENTS
PACKAGE CONTENTS
Part
Part
E
F
G
H
Description
Description
Blade
Light kit mounting plate
Light kit
Glass shade
A
B
C
F
G
H
E
D
Pre-Installation (continued)
6
Part
Part
A
B
C
D
Quantity
Quantity
1
1
1
5
Quantity
Quantity
5
1
1
1
Description
Description
Mounting bracket
Fan motor assembly
Canopy ring
Blade arm

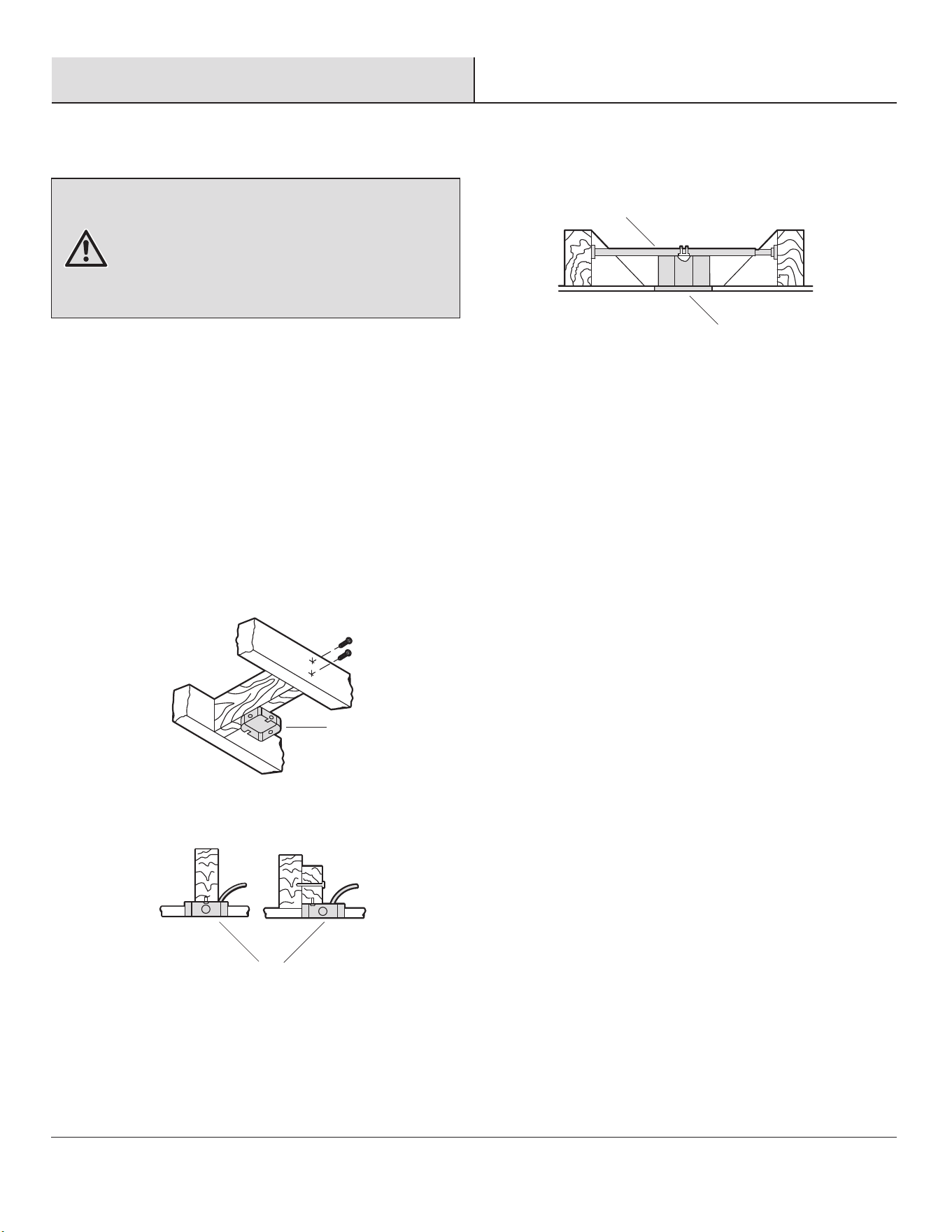

To hang your fan where there is an existing xture but no ceiling
joist, you may need an installation hanger bar (JJ) (not included)
as shown above.
If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
□ Disconnect the power by removing the fuses or turning off
the circuit breakers.
□ Secure the outlet box (II) (not included) directly to the
building structure. Use appropriate fasteners and materials
(not included). The outlet box and its bracing must be able
to fully support the weight of the moving fan (at least 35
lbs.). Do not use a plastic outlet box.
The illustrations below show two different ways to mount the
outlet box (II) (not included).
WARNING: To reduce the risk of re, electric shock, or
personal injury, mount the fan to an outlet box marked
acceptable for fan support using the screws provided with the
outlet box. An outlet box commonly used for the support of
lighting xtures may not be acceptable for fan support and
may need to be replaced. If in doubt, consult a qualied
electrician.
II
II
JJ
II
Installation
MOUNTING OPTIONS
MOUNTING OPTIONS
7 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly — Hanging the Fan
1
Installing the mounting bracket
to the electrical box
Hanging the fan to the
mounting bracket

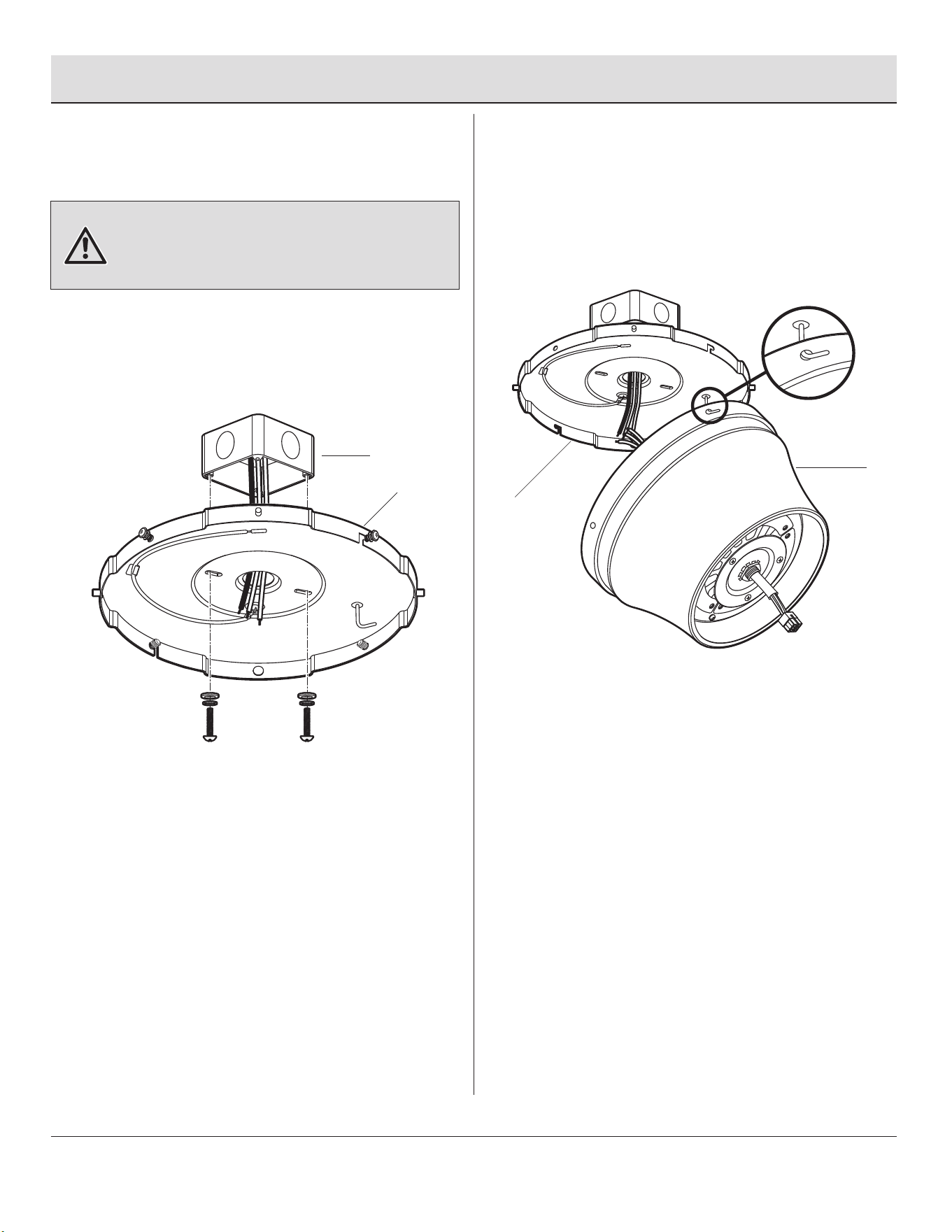

□ Attach the mounting bracket (A) to the outlet box (II)
(not included) with two screws and washers provided
with the outlet box (II). Ensure the mounting bracket
(A) is tight and secured.
WARNING: To reduce the risk of re, electric shock or
other personal injury, mount the fan only to an outlet box or
supporting system marked acceptable for fan support and
use the mounting screws provided with the outlet box.
□ Lift the fan into position by hanging the fan motor
assembly (B) onto the hook from the ceiling mounting
bracket (A) allowing it to hang freely.
A
II
A
B
2
8
II
A
9
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

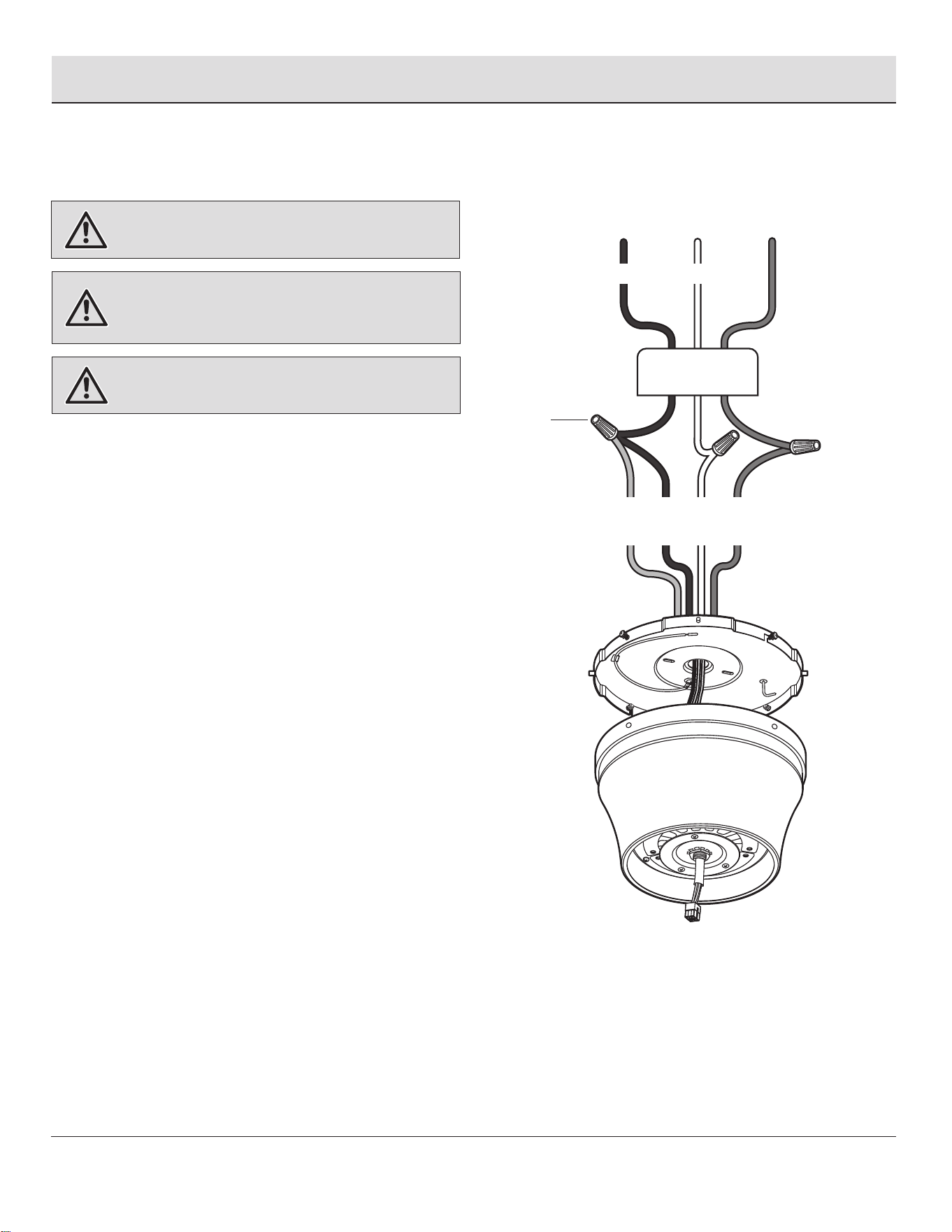

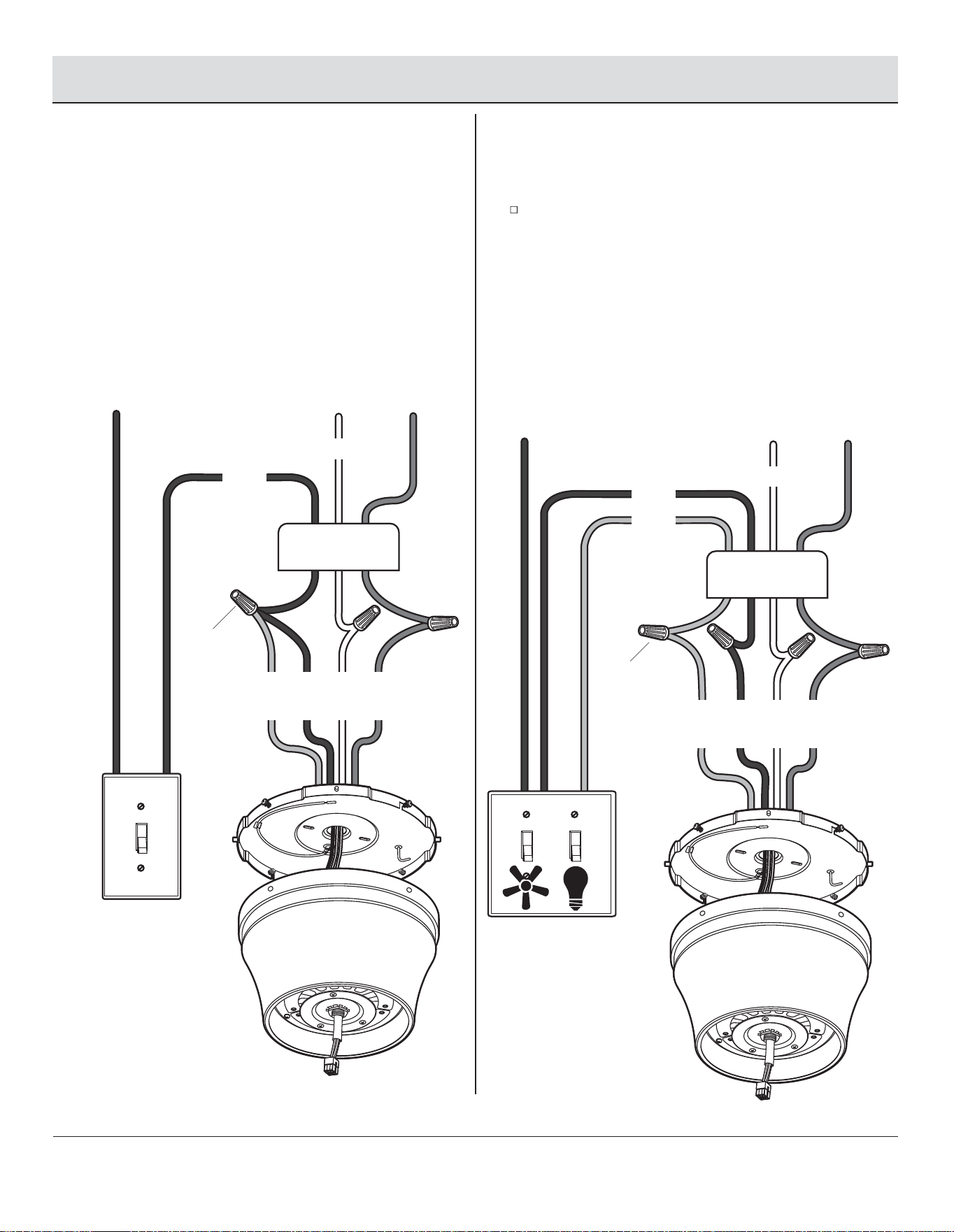

Making the electrical connections
WARNING: Check to see that all connections are tight,
including ground, and that no bare wire is visible at the wire
nuts (except for the ground wire).
WARNING: To reduce the risk of re or electric shock, do
not use this fan with any solid-state speed control device.
WARNING: To avoid possible electrical shock, be sure
electricity is turned off at the main fuse box before wiring.
Assembly — Hanging the Fan (continued)
3a
AA
NeutralHot
Black
Ground
conductor
White
Blue
Black
Green
White
II
If you feel you do not have enough electrical wiring
knowledge or experience, have your fan installed by a
licensed electrician.
Follow the steps below to connect the fan to your household
wiring. Use the plastic wire nuts (AA) with your fan. Secure
the plastic wire nuts (AA) with electrical tape. Make sure there
are no loose strands or connections.
□ Make wire connections as follows, using the wire nuts
(AA).
From Fan To Outlet Box
Black + Blue Wires ---------- Black Wire (Hot)
White Wire ------------------- White Wire (Neutral)
Green Wire-------------------- Green or Bare Wire (Ground)
□ Turn the wire nut connections upward, spreading them
apart so the green (ground) and white wires will be on
one side of the outlet box (II) and the black and blue
wires will be on the other side. Carefully tuck the
connections up into the outlet box (II).
Assembly — Hanging the Fan (optional)
3b
Single Switch Connections
3c
Dual Switch Connections
□ On a single switch the fan and light can be turned on or
off together. Make wire connections as follows, using the
wire nuts (AA). Wall switch not included.
From Fan To Outlet Box
Black + Blue Wires ---------- Black Wire (Hot)
White Wire ------------------- White Wire (Neutral)
Green Wire ------------------- Green or Bare Wire (Ground)
AA
SINGLE SWITCH
NeutralAC IN
Black
Ground
conductor
White
Blue
Black
Green
White
II
AA
Neutral
Ground
conductor
White
Blue
Black
Green
White
AC IN
Black
Red
DUAL SWITCH
II
10
On a dual switch the fan and light can be turned on or off
separately. Make wire connections as follows, using the
wire nuts (AA). Wall switch not included.
From Fan To Outlet Box
Black Wire (for Fan) --------- Black Wire (Hot #1)
Blue Wire (for Light) --------- Red Wire (Hot#2 but maybe be
in another color other than
black, white or green)
White Wire ------------------- White Wire (Neutral)
Green Wire ------------------ Green or Bare Wire (Ground)
Attaching the fan motor assembly
to the mounting bracket
45
Tightening screws and attaching
the canopy ring

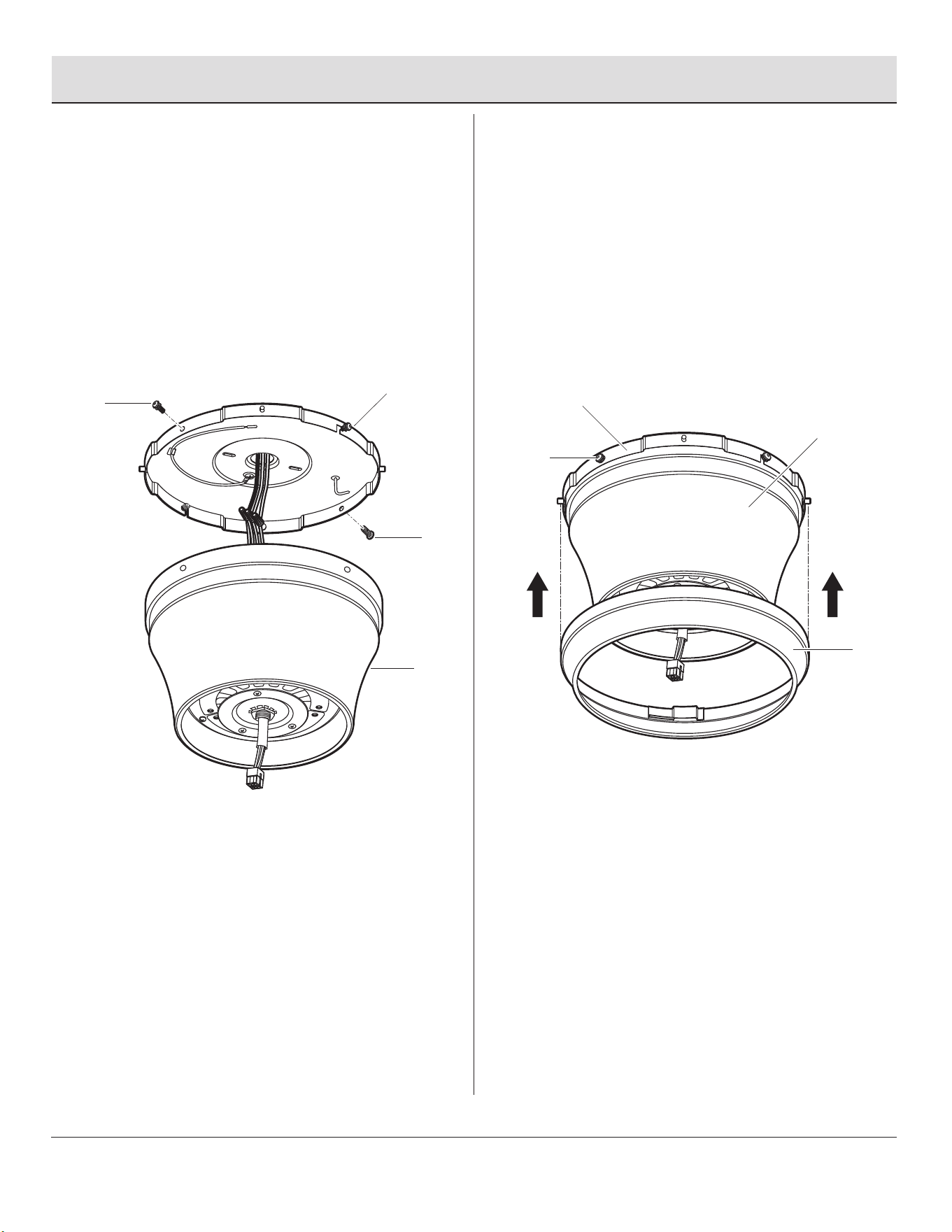

□ Loosen two of the four mounting bracket screws (BB)
from the mounting bracket (A), and remove the other
two screws (BB).
□ Remove the fan motor assembly (B) from the mounting
bracket (A) hook, and engage the key holes with the
two mounting bracket screws (BB) previously
loosened.
□ Install the two mounting bracket screws (BB)
previously removed, and tighten all four mounting
bracket screws (BB).
□ Raise the canopy ring (C) up against the mounting
bracket (A). The four supports inside the fan motor
assembly (B) should be placed against the four studs
on the mounting bracket (A). Twist the canopy ring (C)
clockwise until snug.
C
B
A
Assembly — Hanging the Fan (continued)
A
B
BB
BB
BB
11
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly — Attaching the Fan Blades
6
Attaching the blades to the
blade arms
7
CC
E
D

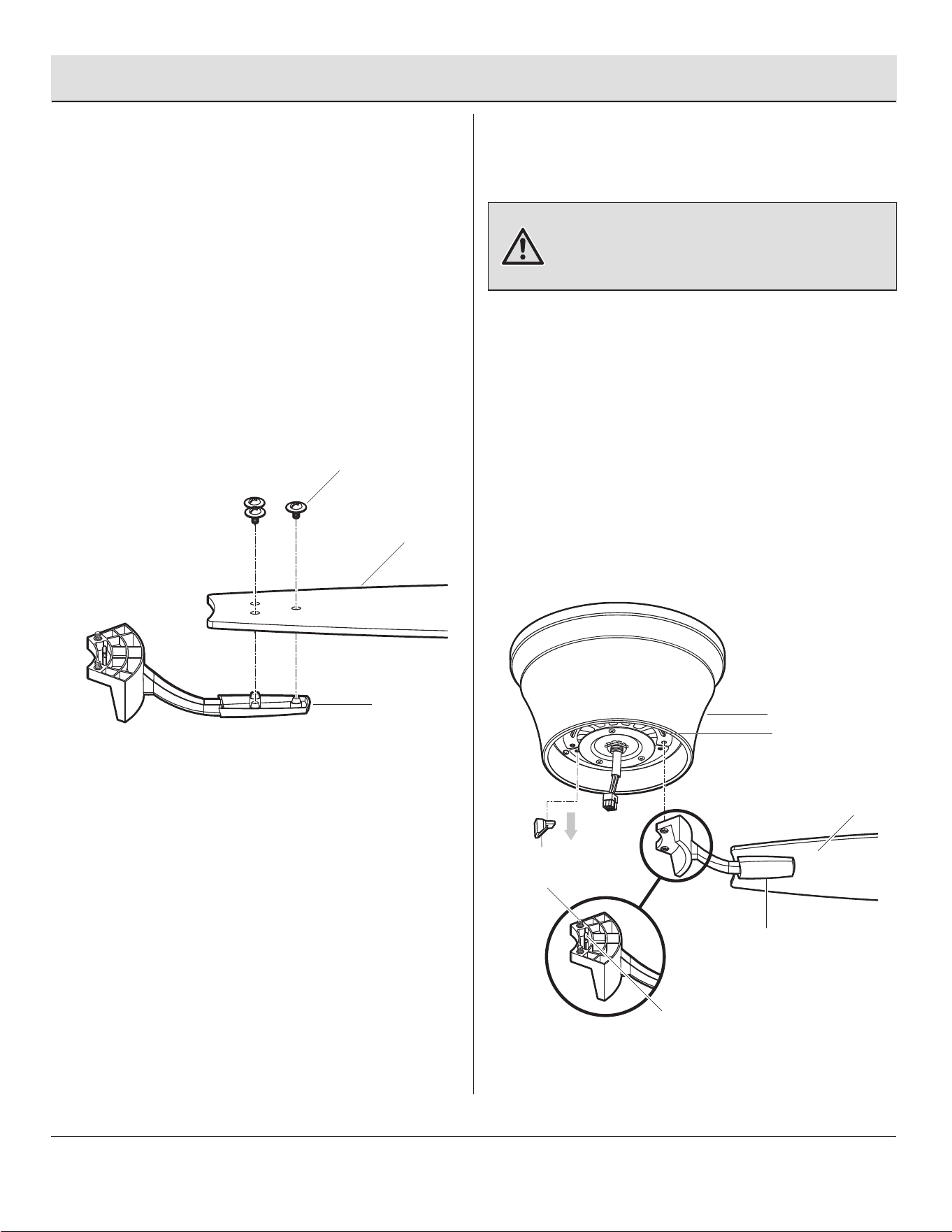

□ Attach the blades (E) to the blade arms (D) using the
three blade attachment screws and ber washers
(CC). Start a screw and ber washer (CC) into the
blade arm (D), but do not tighten.
□ Repeat for the two remaining blade attachment
screws and ber washers (CC).
□ Tighten each screw securely starting with the center
screw. Make sure the blade (E) is straight.
□ Repeat these steps for the remaining blades (E).
Fastening the blade
assemblies to the motor
WARNING: To reduce the risk of personal injury, do not
bend the blade arms (D) while installing, balancing the blades
(E), or cleaning the fan. Do not insert foreign objects between
rotating fan blades (E).
□ The fan motor assembly (B) is shipped with rubber
packing mounts (KK) to prevent movement during
transportation. Remove the ve rubber packing
mounts (KK) from the fan motor assembly (B) and
discard prior to attaching the blade arms (D).
□ Fasten the blade assemblies to the fan motor
assembly (B) by lining up the slots (LL) of the motor
with the tabs (MM) on the blade arms.
□ Tighten the two blade arm screws with lock washers
(DD) already installed in the blade arms (D).
□ Repeat this procedure for the remaining blade arms
(D).
B
E
D
KK
LL
DD
MM
12
8
B

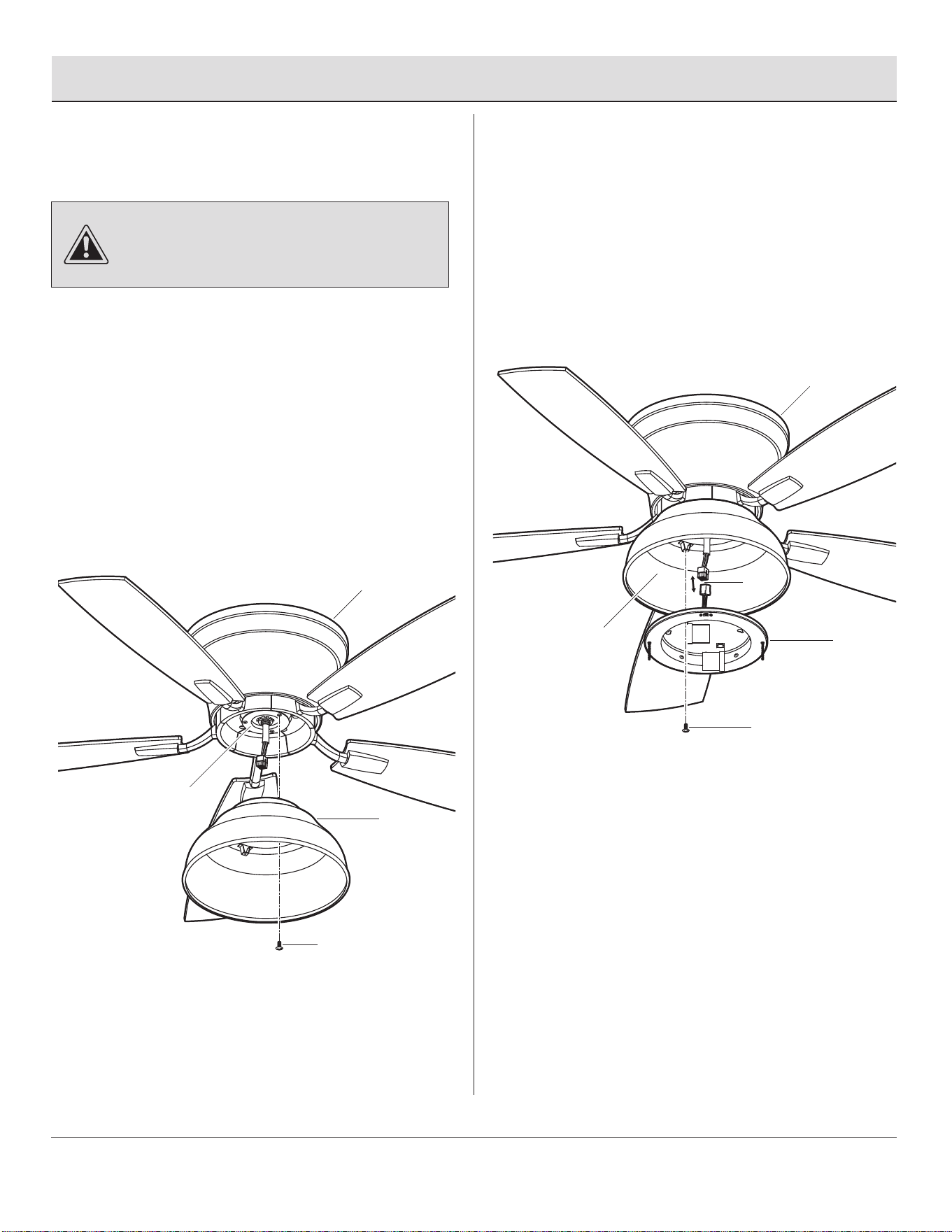

Attaching the light kit mounting
plate to the mounting ring
□ Remove one of the three light kit mounting plate
screws (EE) from the mounting ring (LL) and loosen
the other two screws (EE). (Do not remove)
□ Place the key holes in the light kit mounting plate (F)
over the two screws (EE) previously loosened from
the mounting ring (NN), and turn the light kit
mounting plate (F) until the light kit mounting plate
(F) locks in place at the narrow section of the key
holes.
□ Securely tighten the two light kit mounting plate
screws (EE) previously loosened and the one (EE)
previously removed.
EE
F
NN
CAUTION: Before starting installation, disconnect the
power by turning off the circuit breaker or removing the fuse
at the fuse box. Turning power off using the fan switch is not
sufcient to prevent electric shock.
Assembly — Installing the Light Kit
9
Attaching the light kit to
the light kit mounting plate
□ While holding the light kit (G) under the fan, snap
together the wire connection plugs (OO).
□ Carefully push all wires back into the light kit
mounting plate (F). Install the light kit (G) onto the
light kit mounting plate (F) with the three light kit
mounting screws (FF) provided. Be sure to tighten all
screws.
F
FF
G
OO
B
13
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
10
Installing the light bulbs
and glass shade
Assembly — Installing the Light Kit (continued)
CAUTION: Before starting installation, disconnect the
power by turning off the circuit breaker or removing the fuse
at the fuse box. Turning power off using the fan switch is not
sufcient to prevent electric shock.

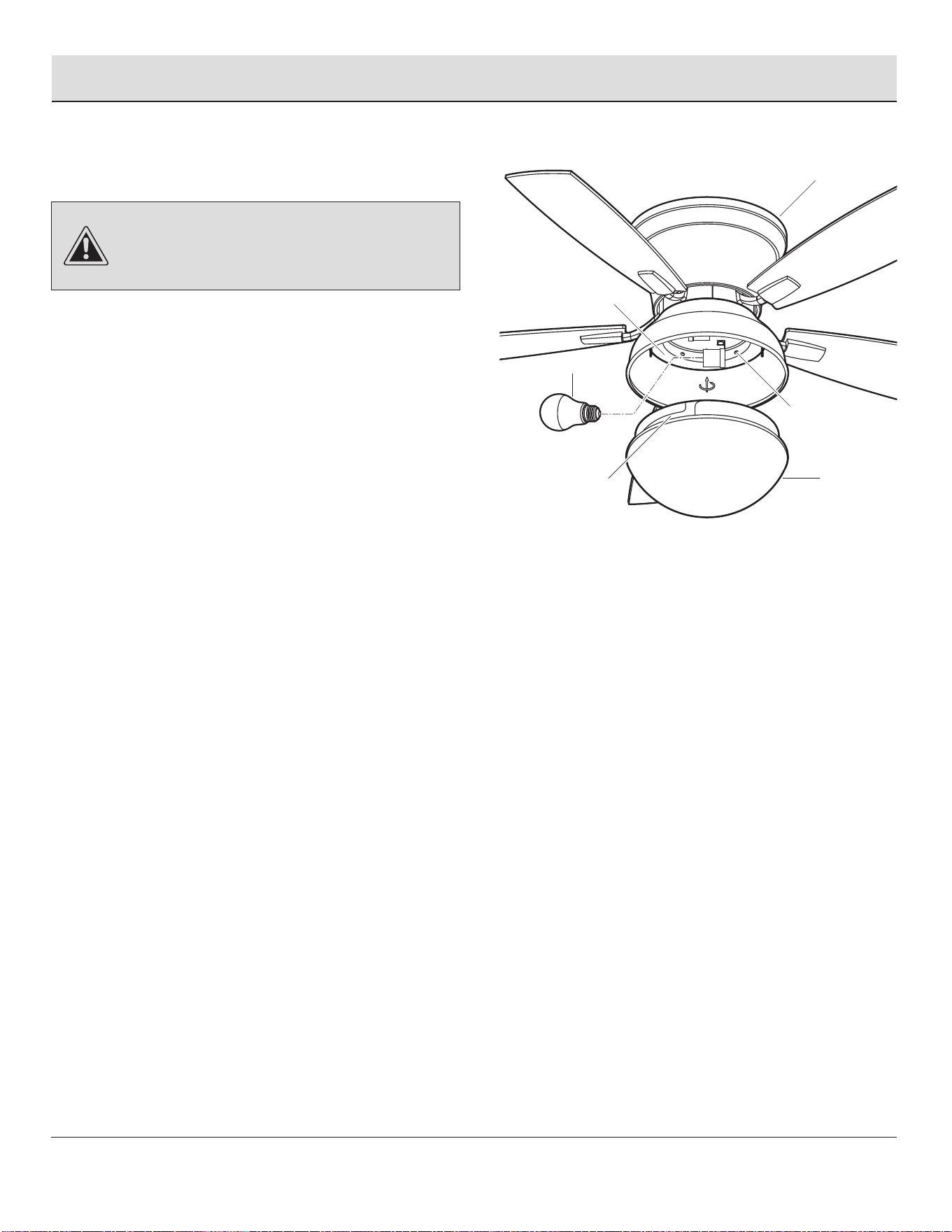

□ Install the 9W LED bulb (GG) (included).
□ Position the notches (QQ) in the outer rim of the glass
shade (H) so they line up with the tabs (PP) on the
inside of the rim on the light kit (G). Carefully lift the
glass (H) up inside the light kit (G) and secure it to the
fan by turning the glass shade (H) clockwise until
snug. DO NOT OVERTIGHTEN.
B
H
GG
G
PP
QQ
14
Operation
PULL CHAIN OPERATING INSTRUCTIONS
PULL CHAIN OPERATING INSTRUCTIONS

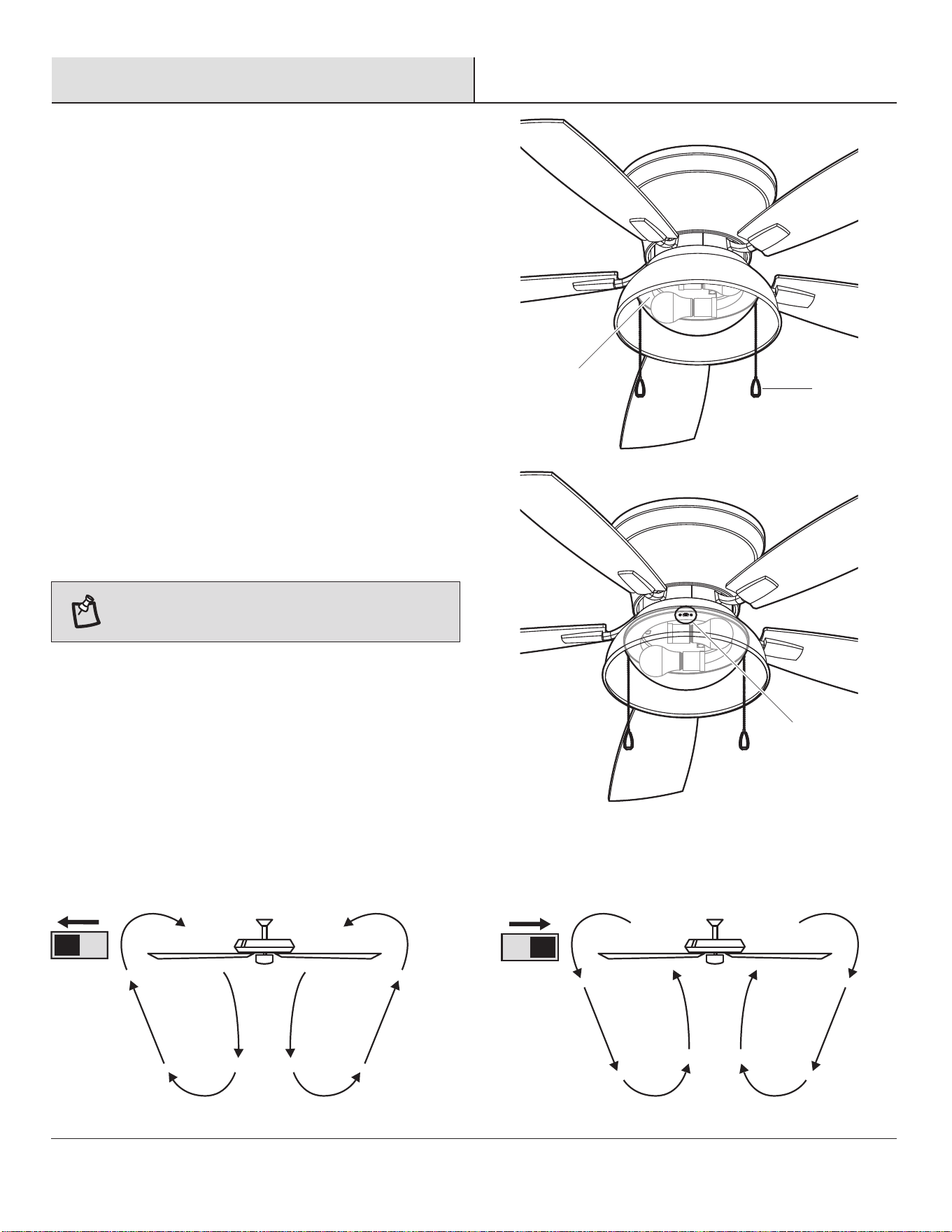

Install two pull chains and fobs (HH) onto the pull chains located in
the light kit (G). Turn on the power and check the operation of the
fan.
The pull chain controls the fan speed as follows:
1 pull - High, 2 pulls - Medium, 3 pulls - Low, and 4 pulls - Off.
Speed settings for warm or cool weather depend on factors such
as the room size, ceiling height, and numbers of fans.
To turn the light kit on or off, pull the chain that is attached to
the light kit (G).
HH
G
NOTE: Wait for the fan to stop before reversing the direction
of the blade rotation.
The reverse switch is located on the surface of the switch housing.
Slide the switch to the left for warm weather operation. Slide the
switch to the right for cool weather operation.
Warm weather - (Counterclockwise Direction) A downward air ow
creates a cooling effect. This allows you to set your air conditioner
on a warmer setting without affecting your comfort.
Cool weather - (Clockwise Direction) An upward air ow moves
warm air off the ceiling. This allows you to set your heating unit on
a cooler setting without affecting your comfort.
Reverse switch
15
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
REVERSE SWITCH OPERATING INSTRUCTIONS
REVERSE SWITCH OPERATING INSTRUCTIONS
Care and Cleaning
Troubleshooting
Problem
Problem
Solution
Solution
Do
Do
□ Use water when cleaning. Water could damage the motor,
or the wood, or possibly cause an electrical shock.
□ Apply oil to your fan or motor. The motor has
permanently-lubricated sealed ball bearings.
Do not
Do not
□ Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure.
Because of the fan’s natural movement, some
connections may become loose over time. It is not
necessary to remove the fan from the ceiling.
□ Clean your fan periodically. Use only a soft brush or
lint-free cloth to avoid scratching the nish. The plating is
sealed with a lacquer to minimize discoloration or
tarnishing.
□ (Optional) Apply a light coat of furniture polish to the wood
blades.
□ (Optional) Cover small scratches with a light application of
shoe polish.
WARNING: Make sure the power is off at the electrical
panel box before you attempt any repairs. Refer to step 3
“Making the electrical connections” on page 9.
□ Check the main and branch circuit fuses or breakers.
□ Check the line wire connections to the fan and switch wire connections in the switch housing.
□ Make sure all motor housing screws are snug.
□ Make sure the screws that attach the fan blade arm to the motor hub are tight.
□ Make sure the wire nut connections are not rattling against each other or the interior wall of the switch
housing.
□ Allow a 24-hour "breaking-in" period. Most noises associated with a new fan disappear during this
time.
□ If using the ceiling light kit, make sure the screws securing the glassware are tight. Check that the light
bulbs are also secure.
□ Make sure there is a short distance from the ceiling to the canopy. It should not touch the ceiling.
□ Make sure your ceiling box is secure and that rubber isolator pads are used between the mounting
bracket and outlet box.
The fan will not start.
The fan sounds noisy.
16
□
Verify that all blades and blade bracket screws are secure (most fan wobble problems are caused by
loose parts). Once the fan is properly installed, run the ceiling fan for 10 minutes to let the fan
self-adjust.
If wobble occurs after running the fan for 10 minutes, verify blade level using the following process:
- Select a point on the ceiling above the tip of one of the blades, then select any fan blade and
measure from the center of the selected blade to the point on the ceiling. Rotate the fan until the next
blade is positioned and repeat the measurement using the same point from the ceiling for every blade.
Measurement deviations should be within 1/8 in..
- If all deviations are less than 1/8 in. and the fan continues to wobble, please call Customer Service
(1-800-986-3460) to order a complimentary Blade Balancing Kit.
- If deviation is greater than 1/8 in. , please call Customer Service (1-800-986-3460) to order
complimentary replacements of your brackets.
Problem
Problem
Solution
Solution
The fan wobbles.
Troubleshooting (continued)
17
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Part
Part
A
B
C
D
E
F
G
H
Description
Description
Mounting bracket
Fan motor assembly
Canopy ring
Blade arm
Blade
Light kit mounting plate
Light kit
Glass shade
Part
Part
AA
BB
CC
DD
EE
FF
GG
HH
Description
Description
Plastic wire nut
Canopy mounting screw with lock washer (preassembled)
Blade attachment screw and ber washer
Blade arm screw with lock washer (preassembled)
Light kit mounting plate screw (preassembled)
Light kit mounting screw (preassembled)
9 Watt LED medium base bulb
Pull chain and fob
Service Parts
A
E
F
G
H
D
AA
BB
CC
DD
B
C
GG
FF
EE
HH
18
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
Retain this manual for future use.
