THANK YOU
USE AND CARE GUIDE
72 IN. DANETREE
INDOOR/COVERED OUTDOOR CEILING FAN
We appreciate the trust and condence you have placed in Hampton Bay through the purchase of this ceiling fan. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for
your home improvement needs. Thank you for choosing Hampton Bay!
1-855-HD-HAMPTON
HAMPTONBAY.COM
Questions, problems, missing parts? Before returning to the store,
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday
call Hampton Bay Customer Service
Visual instruction of how to install this fan:
Visit www.homedepot.com and enter either the Item or Model number to nd
this fan and click the link of visual instruction in the product overview section.
Item #1008 698 231
1008 697 659
Model #N243B-BN
N243B-NI
Table of Contents ..................................
Safety Information .................................
Warranty .........................................
Pre-installation ....................................
Installation .......................................
Assembly ........................................
Operation ........................................
Care and Cleaning .................................
Troubleshooting ...................................
2
Table of Contents
2
2
3
3
6
7
13
16
16
READ AND SAVE THESE INSTRUCTIONS
Safety Information
NOTE: Suitable for use in DAMP locations.
To reduce the risk of electric shock, ensure electricity has been
turned off at the circuit breaker or fuse box before beginning.
All wiring must be in accordance with the National Electrical
Code “ANSI/NFPA 70” and local electrical codes. Electrical
installation should be performed by a qualied licensed
electrician.
The outlet box and support structure must be securely mounted
and capable of reliably supporting a minimum of 35 lb (15.9 kg)
or less. Use only UL Listed outlet boxes marked “FOR FAN
SUPPORT.”
The fan must be mounted with a minimum of 7 ft (2.1 m)
clearance from the trailing edge of the blades to the oor.
Avoid placing objects in the path of the blades.
To avoid personal injury or damage to the fan and other items,
be cautious when working around or cleaning the fan.
Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be
suitable for most cleaning.
After making electrical connections, spliced conductors should
be turned upward and pushed carefully up into the outlet box.
The wires should be spread apart with the grounded conductor
and the equipment-grounding conductor on one side of the
outlet box and ungrounded conductor on the other side of the
outlet box.
All set screws must be checked and retightened where
necessary before installation.
Suitable for use with solid-state speed control (MR205A-TR
only).
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
WARNING: To reduce the risk of personal injury, do not bend
the blade arms (also referred to as anges), when installing
the brackets, balancing the blades or cleaning the fan.
WARNING: Do not insert foreign objects between rotating
fan blades.
WARNING: To reduce the risk of re, electric shock or
personal injury, mount the fan to an outlet box marked
acceptable for fan support with the screws provided with the
outlet box.
CAUTION: To reduce the risk of personal injury, use only
the screws provided with the outlet box.
WARNING: To reduce the risk of electric shock, this fan
must be installed with an isolating wall control/switch.
The following responsible party designated in FCC §2.909 is
responsible for this declaration:
Model Number: N243B-BN, N243B-NI
Company Name: TAL INTERNATIONAL CORPORATION
Company Address: 2919 E. Philadelphia St., Ontario, CA 91761, U.S.A.
Telephone Number: (909) 923-2888 Fax: (909) 923-8337

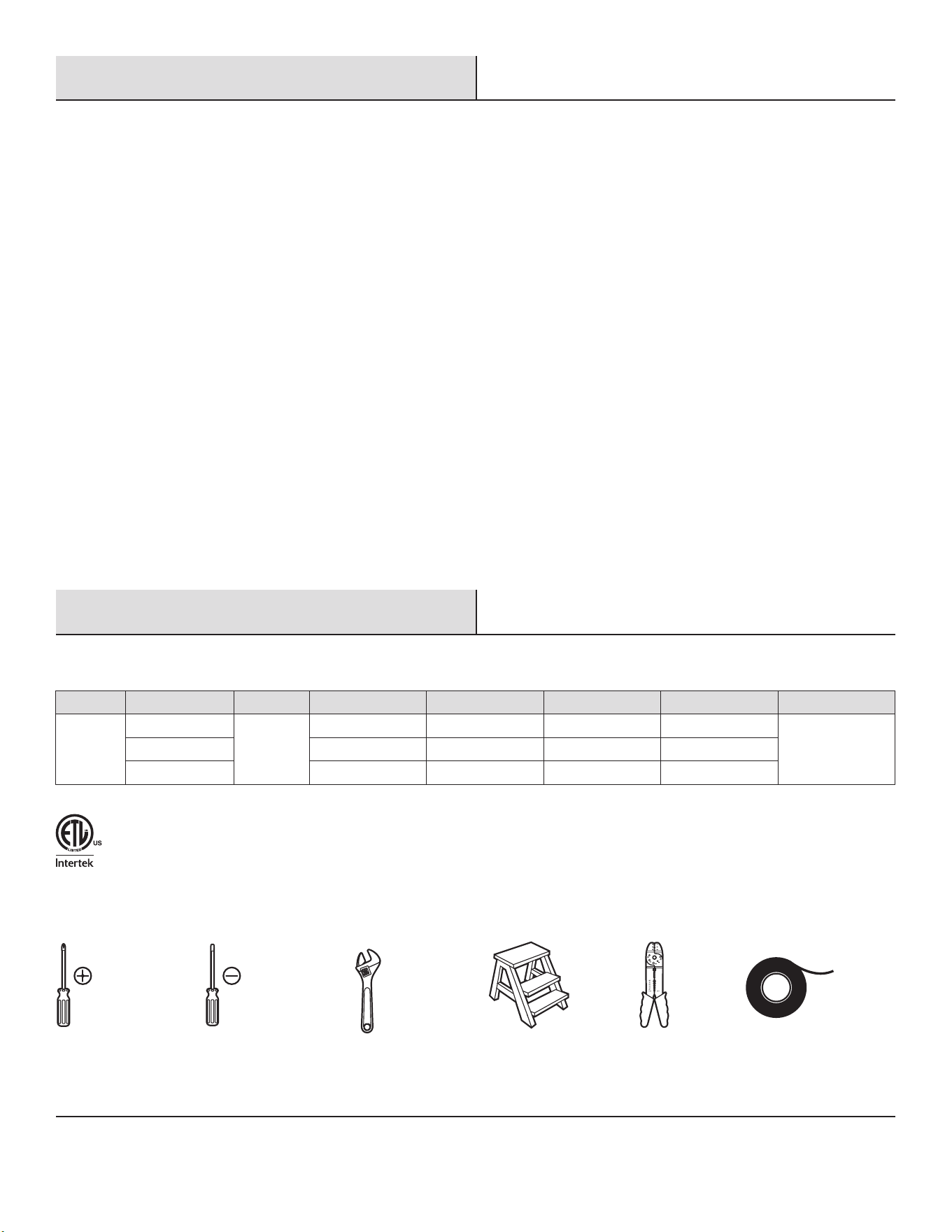

Pre-Installation
SPECIFICATIONS
TOOLS REQUIRED
Warranty
Phillips
screwdriver
Flat blade
screwdriver
Step
ladder
Wire
stripper
Electrical
tape
Adjustable
wrench
3
72 in. 120
Fan size Watts RPM CFMSpeed Volts Amps N.W.
0.09
0.25
0.60
6.25
18.00
37.72
48
70
88
4439
6632
9002
7.47 kg
(16.43 lb)
The manufacturer warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the
factory for a period of lifetime after the date of purchase by the original purchaser. The manufacturer warrants the light kit (excluding any
glass), to be free from defects in workmanship and material at the time of shipment from the factory for a period of three years after the
date of purchase by the original purchaser. The manufacturers also warrants that all other fan parts, excluding any glass or acrylic blades,
to be free from defects in workmanship and material at the time of shipment from the factory for a period of one year after the date of
purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or
superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All
costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper
installation or by afxing any accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not
cover any changes in brass nish, including rusting, pitting, corroding, tarnishing or peeling. Brass nishes of this type give the longest
useful life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a
defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. We hereby
disclaim any and all warranties, including but not limited to those of merchantability and tness for a particular purpose to the extent
permitted by law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as specied in the
express warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to
you. The retailer shall not be liable for incidental, consequential, or special damages arising out of or in connection with product use or
performance except as may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential
damages, so the above exclusion or limitation may not apply to you. This warranty gives specic legal rights, and you may also have other
rights which vary from state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a
claim on the warranty must be paid by the customer.
Contact the Customer Service Team at 1-855-HD-HAMPTON or visit www.hamptonbay.com.
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Low (Speed 1)
Medium (Speed 5)
High (Speed 9)
4
NOTE: Hardware not shown to actual size.
HARDWARE INCLUDED
Pre-Installation (continued)
AA
BB
CC
DD
AA
BB
CC
DD
Plastic wire nut
Blade attachment screw and bber washer
1.5V AAA battery
3-pin extension cord
Part Description
3
21
2
1
Quantity
5
Part
F
G
H
I
J
Description
Fan motor assembly
Blade
Blade arm assembly
Receiver
Remote control
Quantity
1
5
1
1
1
Part
A
B
C
D
E
Quantity
1
1
1
1
1
Description
Mounting bracket (preassembled)
Canopy
Canopy bottom cover (preassembled)
Hanger ball/downrod assembly
Coupling cover

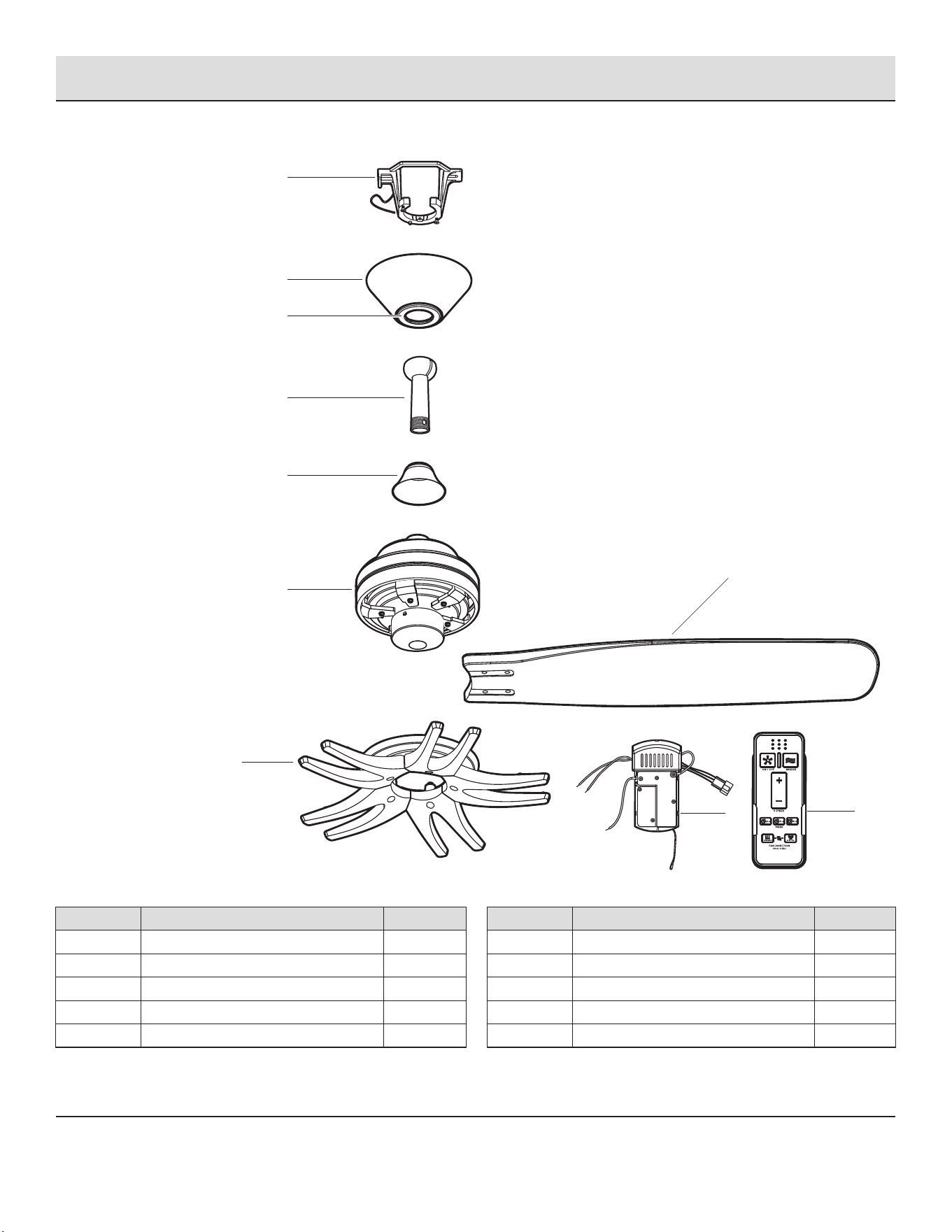

PACKAGE CONTENTS
Pre-Installation (continued)
A
D
E
F
H
G
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
C
B
J
I
6
If your ceiling fan does not have an existing UL Listed mounting
box, then install one using the following instructions:
Disconnect the power by removing the fuses or turning off
the circuit breakers.
Secure the outlet box (not included) directly to the building
structure. Use appropriate fasteners and materials (not
included). The outlet box and its bracing must be able to fully
support the weight of the moving fan (at least 35 lb.). Do not
use a plastic outlet box.
The illustrations below show three different ways to mount the
outlet box (not included).
To hang your fan where there is an existing xture but no ceiling
joist, you may need an installation hanger bar (not included) as
shown above.
Outlet Box
Outlet Box
Hanger Bar
Outlet Box
Recessed
Outlet
Box
A
WARNING: To reduce the risk of re, electric shock, or
personal injury, mount the fan to an outlet box marked
acceptable for fan support using the screws provided with the
outlet box. An outlet box commonly used for the support of
lighting xtures may not be acceptable for fan support and
may need to be replaced. If in doubt, consult a qualied
electrician.
MOUNTING OPTIONS
Installation
NOTE: You may need a longer downrod to maintain proper
blade clearance when installing on a steep, sloped ceiling.
The maximum angle allowable is 18° away from horizontal. If
the canopy (B) touches the hanger ball/downrod assembly (D),
remove the decorative canopy bottom cover (C) and turn the
canopy (B) 180° before attaching the canopy (B) to the mounting
bracket (A).
7

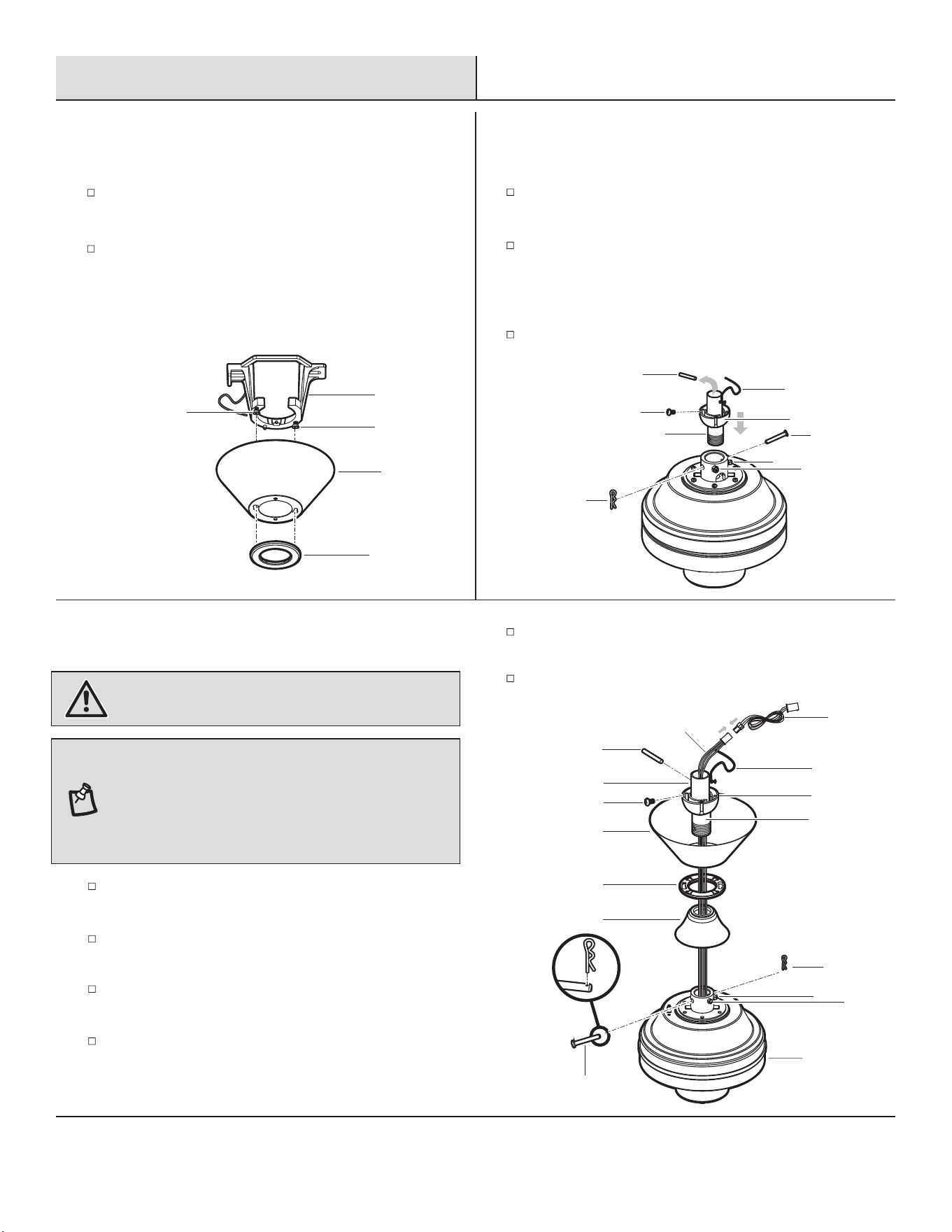

Assembly
1
Preparing the canopy Preparing the motor
2
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
EE
A
B
C
EE
3
Assembling the fan
Remove the canopy bottom cover (C) from the canopy (B) by
turning the canopy bottom cover (C) counterclockwise.
Remove the mounting bracket (A) from the canopy (B) by
loosening canopy mounting screws (EE) a half turn from the
screw head. Next, turn the canopy (B) counterclockwise to
remove the mounting bracket (A) from the canopy (B).
Remove the cotter pin (FF) and clevis pin (GG), and loosen
the two collar set screws (HH) from the motor collar.
Take out the set screw (II) located in the hanger ball (JJ),
lower the hanger ball (JJ) and remove the cross pin (KK).
Remove the hanger ball (JJ) from the hanger ball/downrod
assembly (D).
Remove the ground lead (LL) from the downrod assembly (D).
II
D
KK
JJ
LL
FF
GG
HH
HH
Carefully feed the motor wires up through the downrod
(MM). Thread the downrod (MM) into the collar.
Align the holes and replace the clevis pin (GG) and cotter pin
(FF). Tighten the two collar set screws (HH).
Slip the coupling cover (E), the canopy bottom cover (C), and
the canopy (B) onto the downrod (MM).
Carefully reinstall the hanger ball (JJ) and the ground lead
(LL) onto the downrod (MM).
WARNING: Failure to properly install the cotter pin (FF)
could result in the fan loosening and possibly falling.
NOTE: If a longer downrod is needed (not included), take out
the screw located in the hanger ball, lower the hanger ball and
remove the pin. Remove all three pieces from the downrod, and
assemble them onto the new longer downrod before proceeding
to the downrod installation. Be sure to snap together 3-pin
connectors, the male plug (NN) from the fan and female plug
from the extension cord (DD).
GG
F
B
C
E
D
FF
HH
HH
LL
II
KK
NN
DD
JJ
MM
Replace the cross pin (KK) and make sure it is in the correct
position.
Tighten the set screw (II) and make sure wires are not twisted.
8

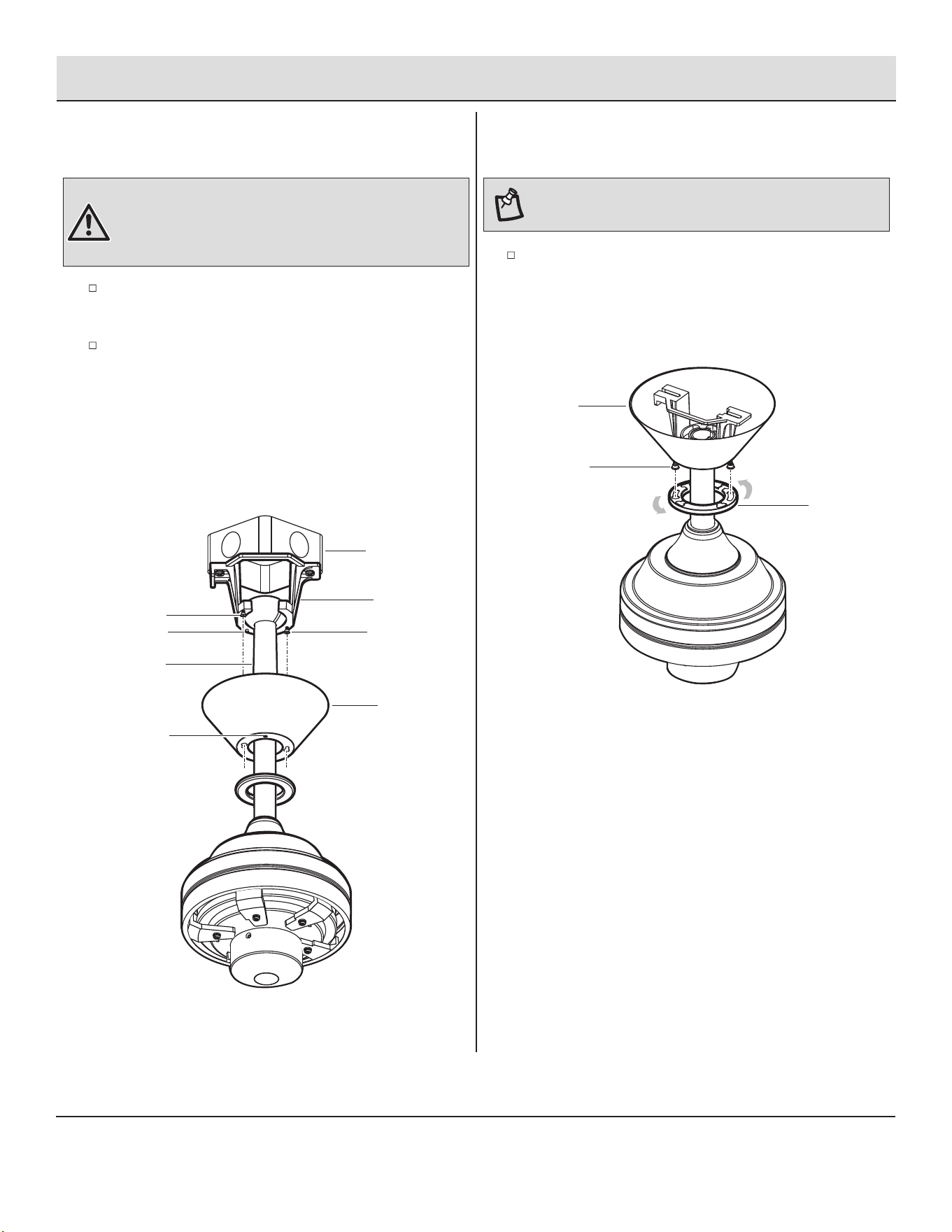

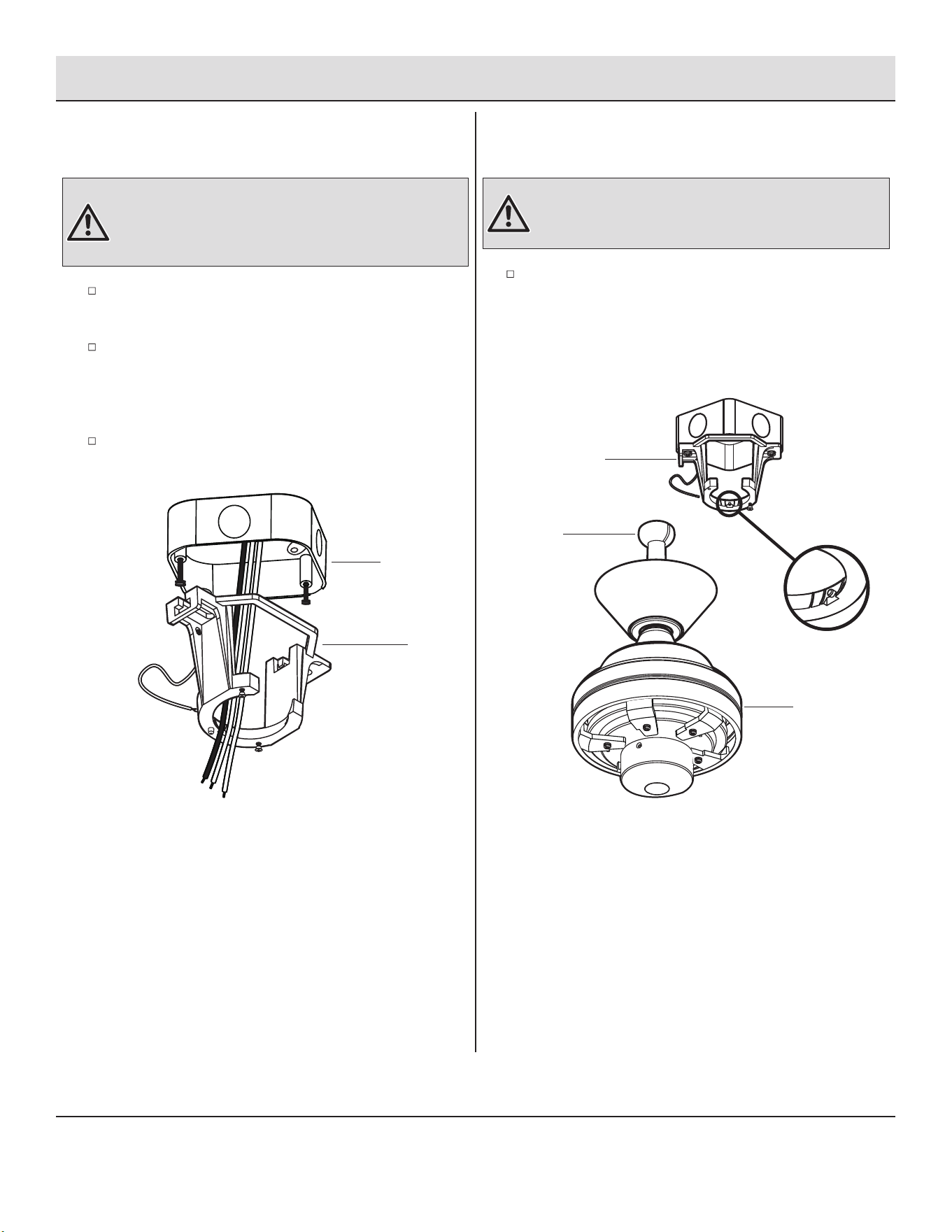

Assembly — Hanging the Fan
4
Attaching the mounting bracket to the
electrical box
Hanging the fan on the mounting
bracket
5
Carefully lift the fan motor assembly (F) up to the mounting
bracket (A) and seat the hanger ball/downrod assembly (D)
in the mounting bracket (A) socket. Make sure the tab on the
mounting bracket (A) socket is properly seated in the groove
in the hanger ball/downrod assembly (D). This will help to
balance the ceiling fan.
WARNING: To reduce the risk of re, electric shock or other
personal injury, mount the fan only to an outlet box or supporting
system marked acceptable for fan support and use the mounting
screws provided with the outlet box.
WARNING: The tab in the ring must rest in the groove of
the hanger ball/downrod assembly (D). Failure to properly
seat the tab in the groove could cause damage to the wiring.
Outlet Box
A

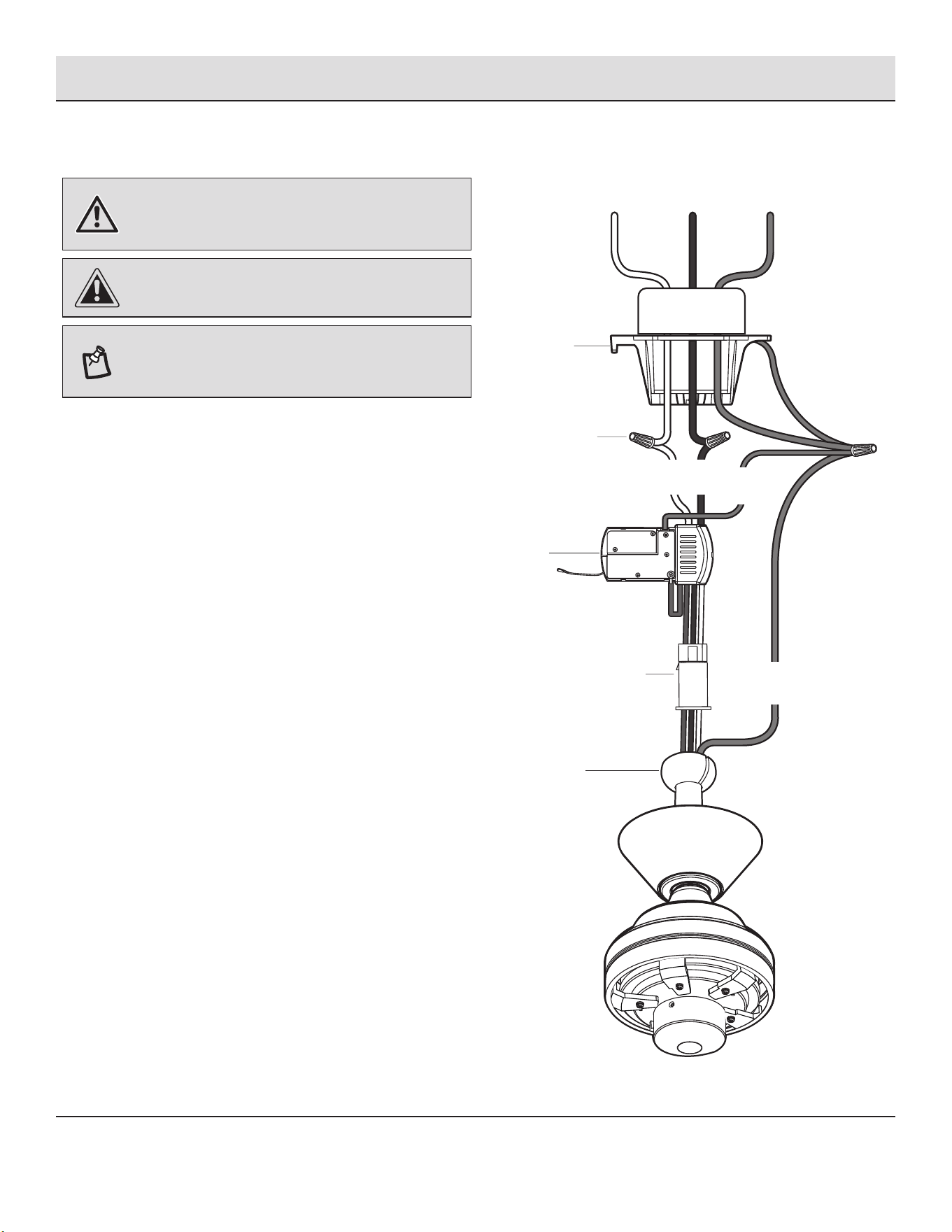

Pass the 120-volt supply wires through the center hole in
the mounting bracket (A).
Attach the mounting bracket (A) on the outlet box by sliding
the mounting bracket (A) over the screws provided with the
outlet box. Note that the at side of the mounting bracket
(A) is toward the outlet box.
Securely tighten the two mounting screws.
D
F
A
Assembly — Hanging the Fan (continued)
6
Making the electrical connections
9 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
WARNING: Check to see that all connections are tight,
including ground, and that no bare wire is visible at the wire
nuts, except for the ground wire.
NOTE: The fan must be installed at a maximum distance of
20 ft. from the remote control for proper signal transmission
between the remote control and the fan's receiving unit.
CAUTION: To reduce the risk of electric shock, this fan
must be installed with an isolating wall control/switch.
If you feel you do not have enough electrical wiring knowledge
or experience, have your fan installed by a licensed electrician.
Follow the steps below to connect the fan to your household
wiring. Use the plastic wire nuts (AA) with your fan. Secure
the plastic wire nuts (AA) with electrical tape. Make sure
there are no loose strands or connections.
□ Insert the receiver (I) into the mounting bracket (A) with
the at side of the receiver (I) facing the ceiling.
□ Make wire connections from the fan to the receiver (I).
From fan To receiver
3-pin connector--------------- 3-pin connector
□ Make wire connections from the receiver (I) and fan to
the outlet box as follows, using the wire nuts (AA).
From receiver To outlet box
Black wire "AC in L" ---------- Black wire (hot)
White wire "AC in N" --------- White wire (neutral)
From fan and receiver To outlet box
Green wires* ---------------- Green or bare wire (ground)
* There are three green grounding leads: one from the mounting
bracket (A), one from the hanger ball/downrod assembly (D)
and one from the receiver
(I).
□ Turn the wire nut connections upward, spreading them
apart so the green (ground) and white wires will be on
one side of the outlet box and the black wire will be on
the other side. Carefully tuck the connections up into
the outlet box.
AA
I
White
Green
Black
Black
Ground
White
conductor
Outlet Box
D
A
3-pin
connector
Green
10
Assembly — Hanging the Fan (continued)
7
Attaching the canopy
WARNING: Make sure the tab on the mounting bracket (A)
properly sits in the groove in the hanger ball (D) before attaching
the canopy (B) to the mounting bracket (A) by turning the canopy
housing until it drops into place.
Make sure connections are neatly tucked into the ceiling
outlet box.
Slide the canopy (B) up to the mounting bracket (A) and
place the key holes on the canopy over the loose canopy
mounting screws (EE) on the mounting bracket (A). Turn the
canopy clockwise until it locks in place at the narrow
section of the key holes. Make sure the positioning pin (OO)
on the mounting bracket falls into one of two holes (PP) on
the canopy, and then tighten the two canopy mounting
screws (EE).
Attach the canopy bottom cover (C) to the canopy by inserting
the screw heads into the key slots in the canopy bottom cover
(C) and rotating it clockwise.
NOTE: Adjust the canopy mounting screws (EE) as necessary
until the canopy (B) and canopy bottom cover (C) are snug.
B
EE
C
Attaching the canopy bottom cover
8
Outlet Box
EE
A
B
EE
D
OO
PP
11
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Assembly — Attaching the Fan Blades
Attaching the blade arm assembly to
the motor
10
F
H
RR

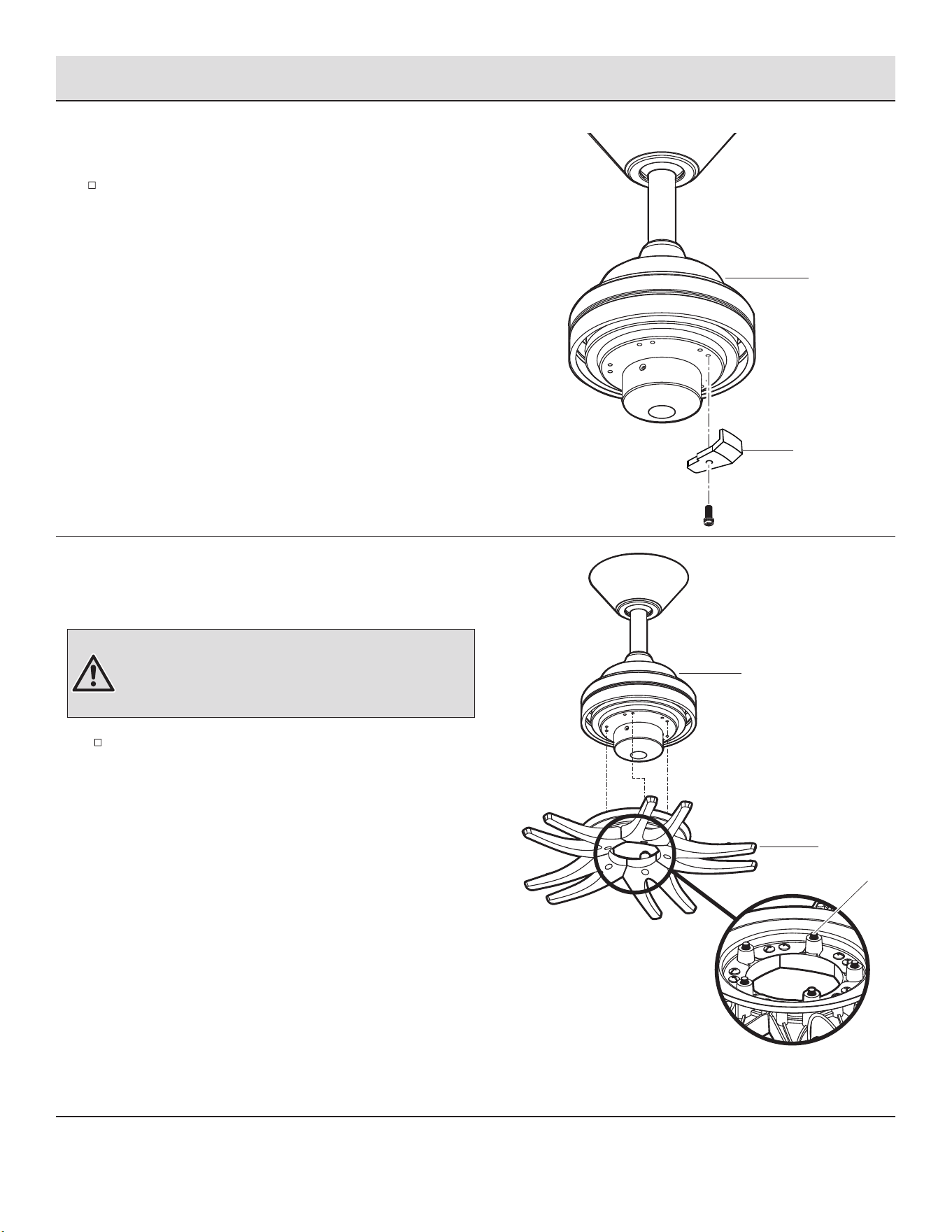

Fasten the blade arm assembly (H) to the fan motor assembly
(F), tighten the ve blade arm screws with lock washers
(RR) already installed in the blade arm assembly (H).
WARNING: To reduce the risk of personal injury, do not bend
the blade arms (H) while installing, balancing the blades (G),
or cleaning the fan. Do not insert foreign objects between
rotating fan blades (G).
9
Removing the rubber packing mounts
The fan motor assembly (F) is shipped with rubber packing
mounts (QQ) to prevent movement during transportation.
Remove the six rubber packing mounts (QQ) from the fan
motor assembly (F) and discard prior to attaching the blade (G).
F
QQ
12

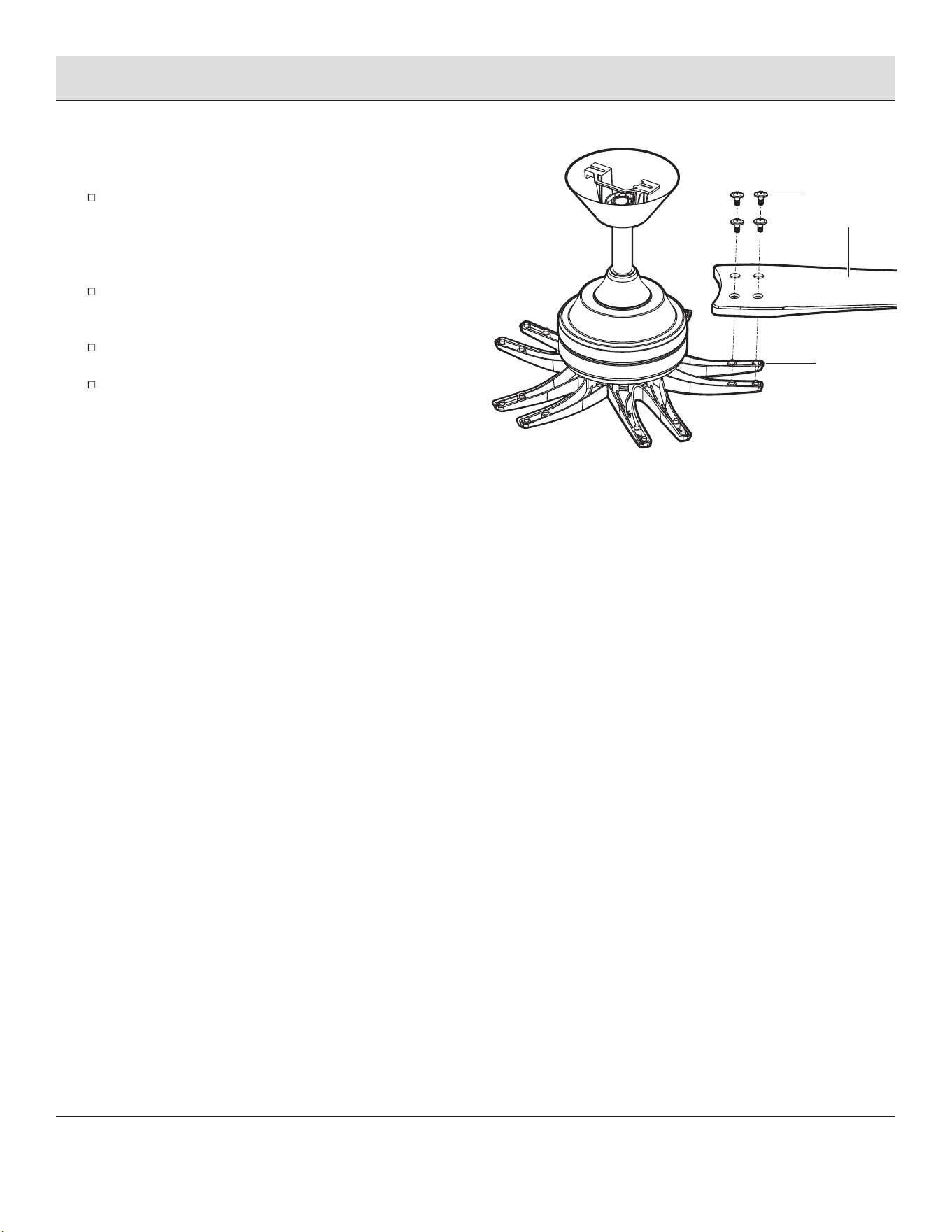

Attach the blades (G) to the blade arm assembly (H) using
the four blade attachment screws and bber washers (BB).
Insert a blade attachment screw and bber washer (BB) into
the blade arm assembly (H), but do not tighten.
Repeat for the three remaining screws and rubber washers
(BB).
Tighten each screw and make sure the blade (G) is straight.
Repeat these steps for the remaining blades.
Fastening the blades to blade arm
assembly
11
BB
H
G
Assembly — Attaching the Fan Blades (continued)
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
13
Operation
LEARN
1
+
0
LEARN
1
+
0

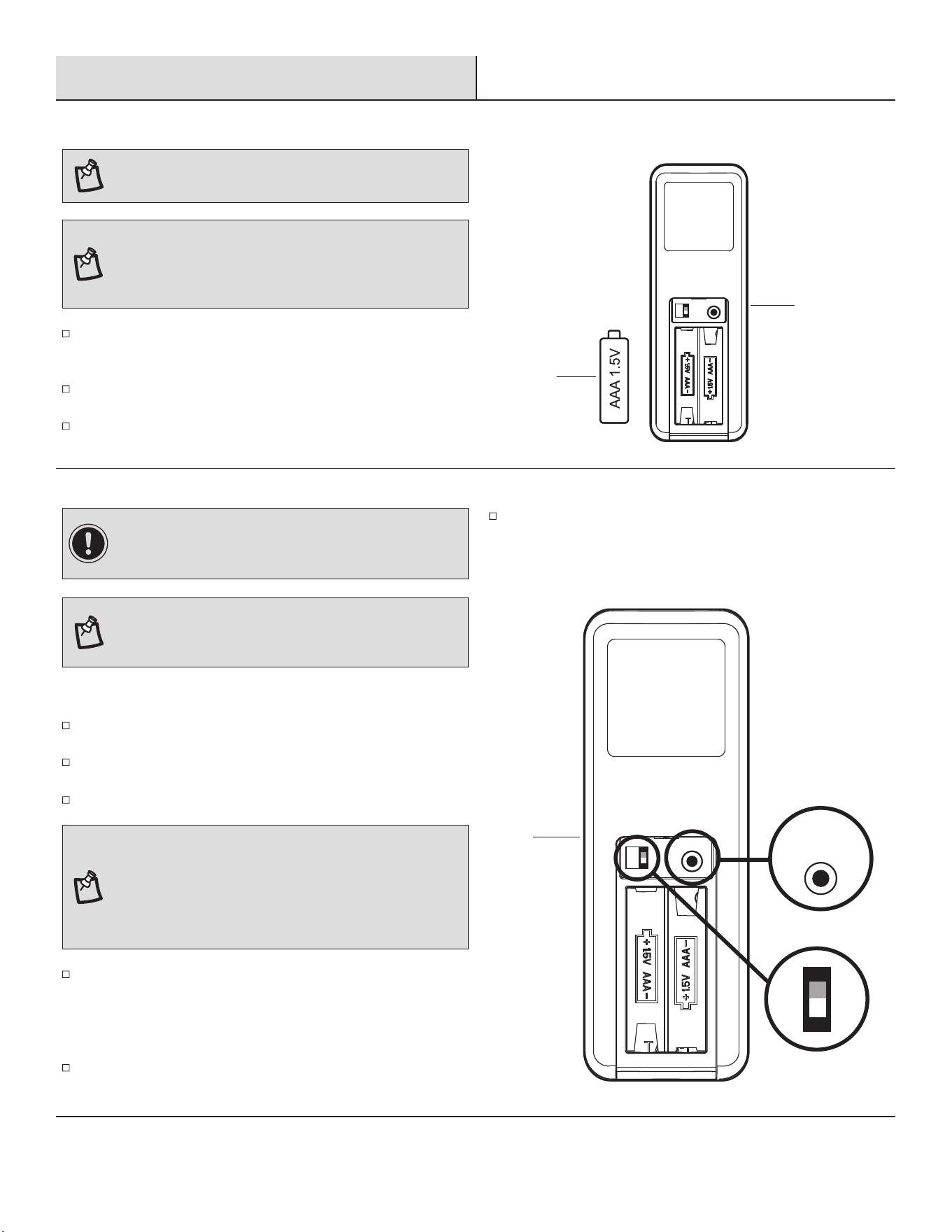

SETTING UP THE TRANSMITTER
NOTE: Batteries will weaken with age and should be replaced
before leaking takes place as this will damage the remote
control. Dispose of used batteries properly and keep them out
of the reach of children.
LEARNING PROCESS
Remove the battery cover by pressing rmly on the arrow and
sliding the cover off.
Install two 1.5V AAA batteries (CC) (included).
Replace the battery cover on the remote control (J).
NOTE: If installing multiple fans on separate remotes, only
the fan being programmed should have AC power turned ON.
All other fans, even if they have already been programmed,
should have AC power OFF so they do not memorize other
remotes during the learning process. Separate the fan power
switches by approximately 2 meters.
Within 30 seconds of turning AC power on, press and release
the "LEARN" button located in the remote's battery compartment
to enter the learning function. The down light of your fan, if
applicable, will blink, and the fan blades will start to spin.
The fan will now accept commands from the added remote.
Ensure AC power to the fan is OFF to begin the learning process.
Slide the dip switch in the battery compartment to the "1" position.
Turn the fan’s AC power ON.
To add a remote to your fan’s memory, use the steps below:
CC
J
J
LEARN
1
+
0
NOTE: The remote has been pre-paired in the factory for your
convenience.
IMPORTANT: If you have two or more fans, please follow
steps below to control each fan independently. Also follow
steps below to re-pair the remote and the receiver when needed.
NOTE: The dip switch in the battery compartment has been
set on “0” position for your convenience. If you want to
re-pair the remote, please set the dip switch on “1” position.
If you would like to set the dip switch back to the "0" position
after a learning, please re-pair the remote by following the
learning process again.
14
Operation (continued)

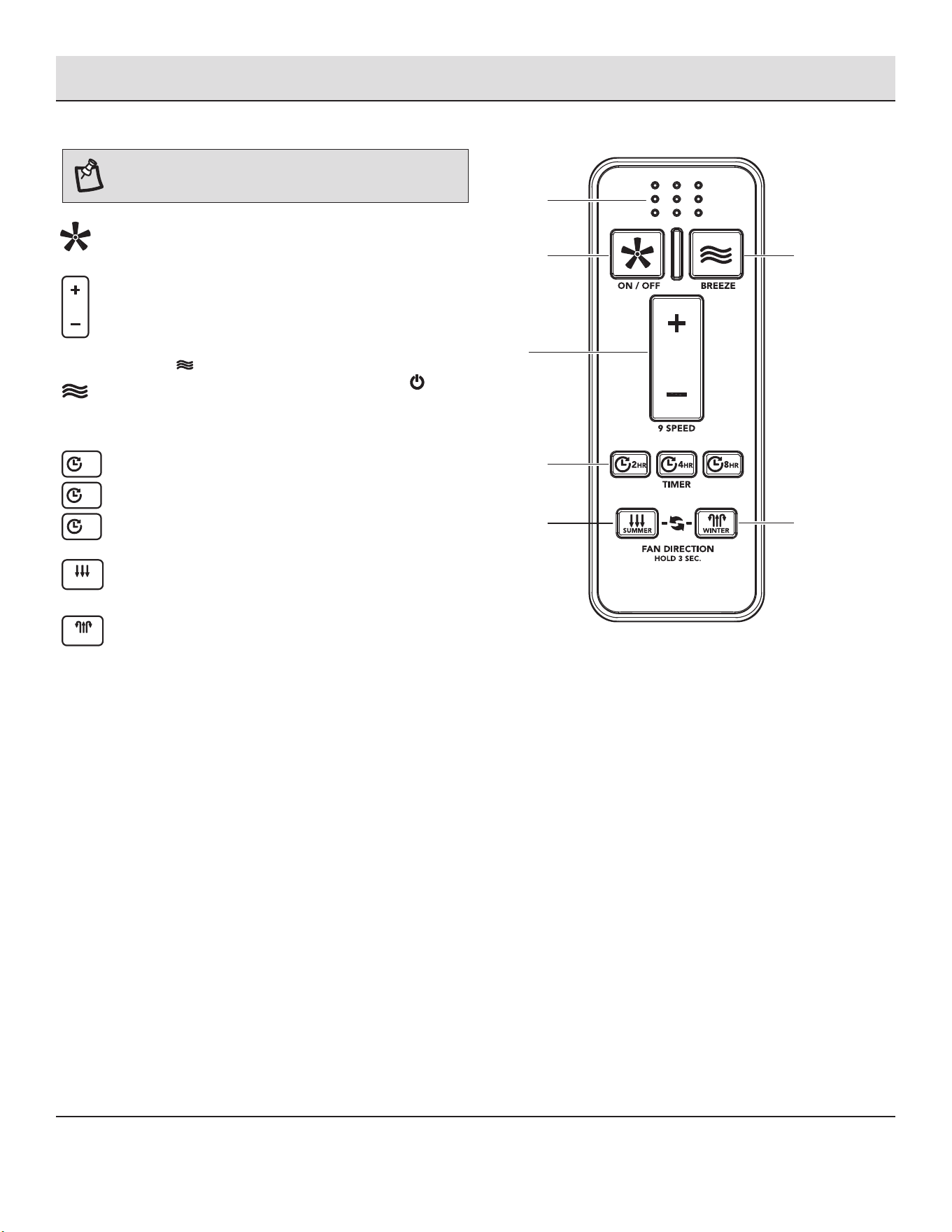

OPERATING YOUR FAN AND REMOTE CONTROL
NOTE: The fan will store the last used speed setting for the
next time it is turned on.
Pressing the button will activate the Comfort Breeze
TM
mode.
If you are using Comfort Breeze
TM
mode, pressing the button
or the fan speed buttons will cancel Comfort Breeze
TM
mode
and resume normal fan operation.
Pressing the timer button will automatically turn fan off
after 2, 4, or 8 hours. To cancel the timer settings, press
and hold the button three seconds and the signal light will
ash.
2HR
4HR
8HR
Fan ON/OFF button: Press and release this button to turn the
fan on or off.
Fan 9 SPEED button: Press and release the “+” button to
increases the fan speed. Press and release the “-” button to
decreases the fan speed.
Forward
, press and hold the button three seconds and the
signal light will ash.
SUMMER
Reverse
, press and hold the button three seconds and the
signal light will ash.
WINTER
Fan on/off
Fan on/
Increases /
decreases
fan speed
Comfort Breeze
TM
Timer
Signal light
Reverse
Forward
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
15
Operation (continued)

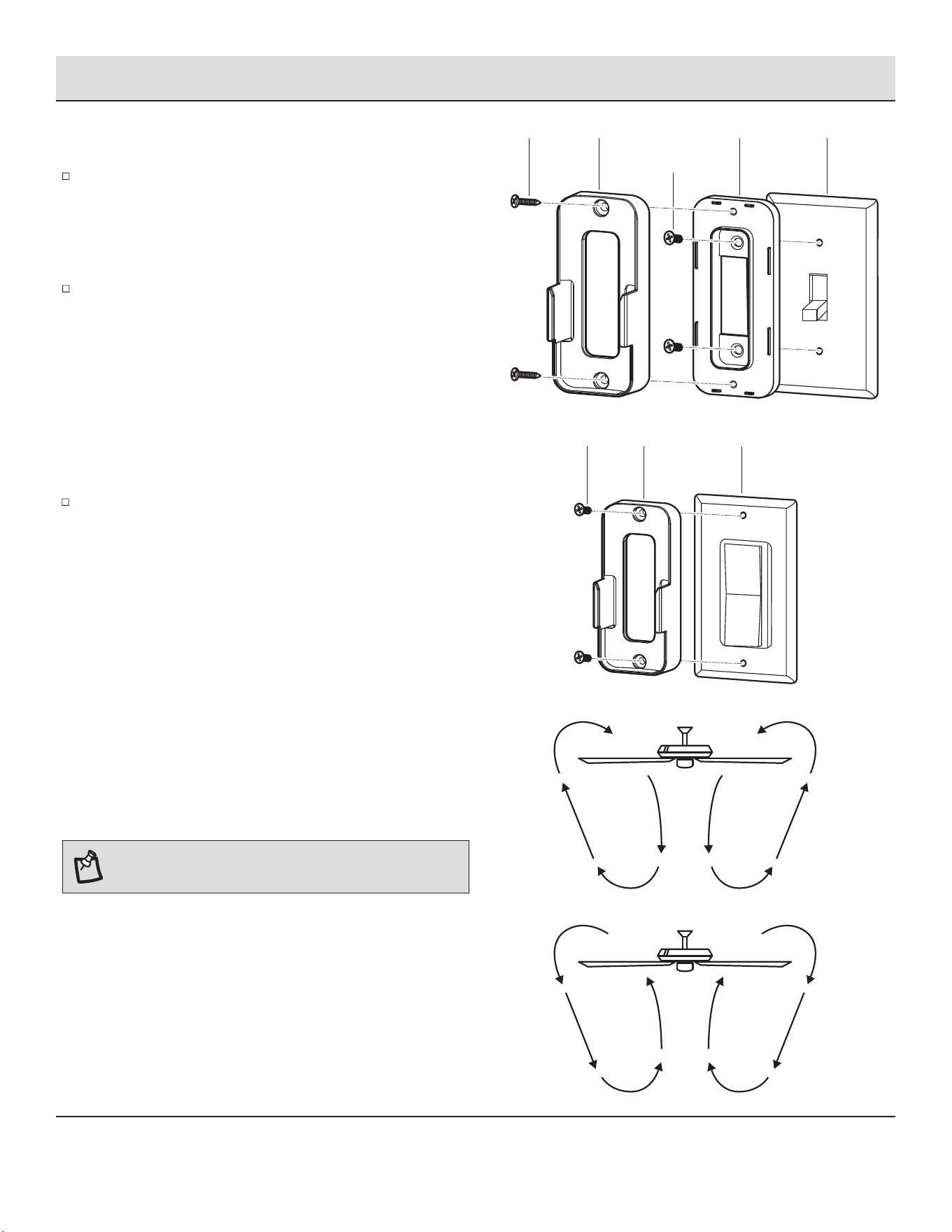

To install the remote control bracket (SS), remove the two
screws holding the switch cover plate (TT). Do not remove the
cover plate (TT). Orient the bracket (SS) by lining up the two
mounting holes with those on the cover plate (TT). Insert and
tighten the screws (UU).
Then install the remote control holder (VV), orient the remote
control holder (VV) by lining up the two mounting holes with
those on the remote control bracket (SS). Insert and tighten the
screws (WW).
INSTALLING THE REMOTE CONTROL HOLDER
To install the remote control holder (VV), orient the remote control
holder (VV) by lining up the two mounting holes with those on the
cover plate (XX). Insert and tighten the screws (UU).
FOR ROCKER-STYLE STYLE COVER PLATE
VV
UU
XX
TT
SS
UU
VVWW
WARM/COOL WEATHER OPERATING
INSTRUCTIONS
NOTE: The fan reverse buttons must be pressed while the
fan is running.
Speed settings for warm or cool weather depend on factors such as
the room size, ceiling height, numbers of fans.
Warm weather - (Counterclockwise Direction) A downward air ow
creates a cooling effect. This allows you to set your air conditioner
on a warmer setting without affecting your comfort.
Cool weather - (Clockwise Direction) An upward air ow moves warm
air off the ceiling. This allows you to set your heating unit on a cooler
setting without affecting your comfort.
16
Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. Because of the fan’s
natural movement, some connections may become loose over time. It is not necessary to remove the fan from the ceiling.
Clean your fan periodically. Use only a soft brush or lint-free cloth to avoid scratching the nish. The plating is sealed with a lacquer to
minimize discoloration or tarnishing.
(Optional) Apply a light coat of furniture polish to the wood blades.
(Optional) Cover small scratches with a light application of shoe polish.
Do
Care and Cleaning
Use water when cleaning. Water could damage the motor, or the wood, or possibly cause an electrical shock.
Apply oil to your fan or motor. The motor has permanently-lubricated sealed ball bearings.
Do not
Troubleshooting
Problem Solution
The fan will not start.
Check the main and branch circuit fuses or breakers.
Check the line wire connections to the fan and switch wire connections in the switch housing.
Check to make sure the frequency switches from the remote control and receiver are set to the same
frequency.
Turn the AC power off, and turn the AC power on after 10 seconds.
Reset the transmitter by going through the transmitter “LEARNING PROCESS”.
The fan sounds noisy.
Make sure all motor housing screws are snug.
Make sure the screws that attach the fan blade to the motor hub are tight.
Make sure the wire nut connections are not rattling against each other or the interior wall of the switch
housing.
Allow a 24-hour "breaking-in" period. Most noises associated with a new fan disappear during this time.
If using the ceiling light kit, make sure the glassware is secured tightly.
Make sure there is a short distance from the ceiling to the canopy. It should not touch the ceiling.
Make sure your ceiling box is secure and that rubber isolator pads are used between the mounting
bracket and outlet box.
The remote control is
not working.
Do not connect the fan with wall mounted variable speed control(s).
Make sure the frequency switches are set correctly.
Reset the transmitter by going through the transmitter “LEARNING PROCESS”.
The fan wobbles.
Fan moves backwards and
forwards when turned on.
This is normal start-up procedure for DC motor fans. The partial movement during start-up is the result
of the DC motor aligning the internal magnetic poles for proper motor operation. This design saves
electricity and allows the fan to operate much quieter than standard AC motor fans.
Verify that all blades and blade bracket screws are secure (most fan wobble problems are caused by
loose parts). Once the fan is properly installed, run the ceiling fan for 10 minutes to let the fan
self-adjust.
If wobble occurs after running the fan for 10 minutes, verify blade level using the following process:
Select a point on the ceiling above the tip of one of the blades, then select any fan blade and measure
from the center of the selected blade to the point on the ceiling. Rotate the fan until the next blade is
positioned and repeat the measurement using the same point from the ceiling for every blade.
Measurement deviations should be within 1/8 in..
If all deviations are less than 1/8 in. and the fan continues to wobble, please call Customer Service
(1-855-HD-HAMPTON) to order a complimentary blade balancing kit.
If deviation is greater than 1/8 in., please call Customer Service (1-855-HD-HAMPTON) to order
complimentary replacements of your brackets.
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
Retain this manual for future use.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
WARNING: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
