THANK YOU
USE AND CARE GUIDE
52 IN. ANSELL
INDOOR CEILING FAN
We appreciate the trust and condence you have placed in Hampton Bay through the purchase of this ceiling fan. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for
your home improvement needs. Thank you for choosing Hampton Bay!
1-855-HD-HAMPTON
HAMPTONBAY.COM
Questions, problems, missing parts? Before returning to the store,
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday
call Hampton Bay Customer Service
Visual instruction of how to install this fan:
Visit www.homedepot.com and enter either the Item or Model number to nd
this fan and click the link of visual instruction in the product overview section.
Item #1008 698 493
Model #AK450A-EB
Table of Contents ..................................
Safety Information .................................
Warranty .........................................
Pre-installation ....................................
Installation .......................................
Assembly ........................................
Operation ........................................
Care and Cleaning .................................
Troubleshooting ...................................
2
Table of Contents
2
2
3
3
6
7
16
18
18
READ AND SAVE THESE INSTRUCTIONS
To reduce the risk of electric shock, ensure electricity has been
turned off at the circuit breaker or fuse box before beginning.
All wiring must be in accordance with the National Electrical
Code “ANSI/NFPA 70” and local electrical codes. Electrical
installation should be performed by a qualied licensed
electrician.
The outlet box and support structure must be securely mounted
and capable of reliably supporting a minimum of 35 lb (15.9 kg)
or less. Use only UL Listed outlet boxes marked “FOR FAN
SUPPORT.”
The fan must be mounted with a minimum of 7 ft (2.1 m)
clearance from the trailing edge of the blades to the oor.
Avoid placing objects in the path of the blades.
To avoid personal injury or damage to the fan and other items,
be cautious when working around or cleaning the fan.
Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be
suitable for most cleaning.
After making electrical connections, spliced conductors should
be turned upward and pushed carefully up into the outlet box.
The wires should be spread apart with the grounded conductor
and the equipment-grounding conductor on one side of the
outlet box and ungrounded conductor on the other side of the
outlet box.
All setscrews must be checked and retightened where
necessary before installation.
Suitable for use with solid-state speed control (AP-3RDL only).
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Safety Information
The following responsible party designated in FCC §2.909 is
responsible for this declaration:
Model Number: AK450A-EB
Company Name: TAL INTERNATIONAL CORPORATION
Company Address: 2919 E. Philadelphia St., Ontario, CA 91761, U.S.A.
Telephone Number: (909) 923-2888 Fax: (909) 923-8337
WARNING: To reduce the risk of personal injury, do not bend
the blade arms (also referred to as anges), when installing
the brackets, balancing the blades or cleaning the fan.
WARNING: Do not insert foreign objects between rotating
fan blades.
WARNING: To reduce the risk of re, electric shock or
personal injury, mount the fan to an outlet box marked
acceptable for fan support with the screws provided with the
outlet box.
CAUTION: To reduce the risk of personal injury, use only
the screws provided with the outlet box.
WARNING: To reduce the risk of electric shock, this fan
must be installed with an isolating wall control/switch.
Pre-Installation
SPECIFICATIONS
TOOLS REQUIRED
Warranty
Phillips
screwdriver
Flat blade
screwdriver
Step
ladder
Wire
stripper
Electrical
tape
Adjustable
wrench
52 in.
Low
Medium
High
120
Fan size Watts RPM CFMSpeed Volts Amps N.W.
0.28
0.40
0.56
13.00
29.92
59.10
63
113
158
2005
3354
4854
8.20 kg
(18.04 lb)
NOTE: These are approximate measures. They do not
include amps and wattage used by the light kit.
The manufacturer warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the
factory for a period of lifetime after the date of purchase by the original purchaser. The manufacturer warrants the light kit (excluding any
glass), to be free from defects in workmanship and material at the time of shipment from the factory for a period of three years after the
date of purchase by the original purchaser. The manufacturer also warrants that all other fan parts, excluding any glass or acrylic blades,
to be free from defects in workmanship and material at the time of shipment from the factory for a period of one year after the date of
purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or
superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All
costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper
installation or by afxing any accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not
cover any changes in brass nish, including rusting, pitting, corroding, tarnishing or peeling. Brass nishes of this type give the longest
useful life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a
defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. We hereby
disclaim any and all warranties, including but not limited to those of merchantability and tness for a particular purpose to the extent
permitted by law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as specied in the
express warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to
you. The retailer shall not be liable for incidental, consequential, or special damages arising out of or in connection with product use or
performance except as may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential
damages, so the above exclusion or limitation may not apply to you. This warranty gives specic legal rights, and you may also have other
rights which vary from state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a
claim on the warranty must be paid by the customer.
Contact the Customer Service Team at 1-855-HD-HAMPTON or visit www.hamptonbay.com.
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
3
4
NOTE: Hardware not shown to actual size.
AA
BB
CC
DD
EE
FF
Plastic wire nut
Blade attachment screw and ber washer
7.5 Watt LED bulb
23A 12V battery
Extension cord
Plastic plug
Part Description
3
16
2
1
1
1
Quantity

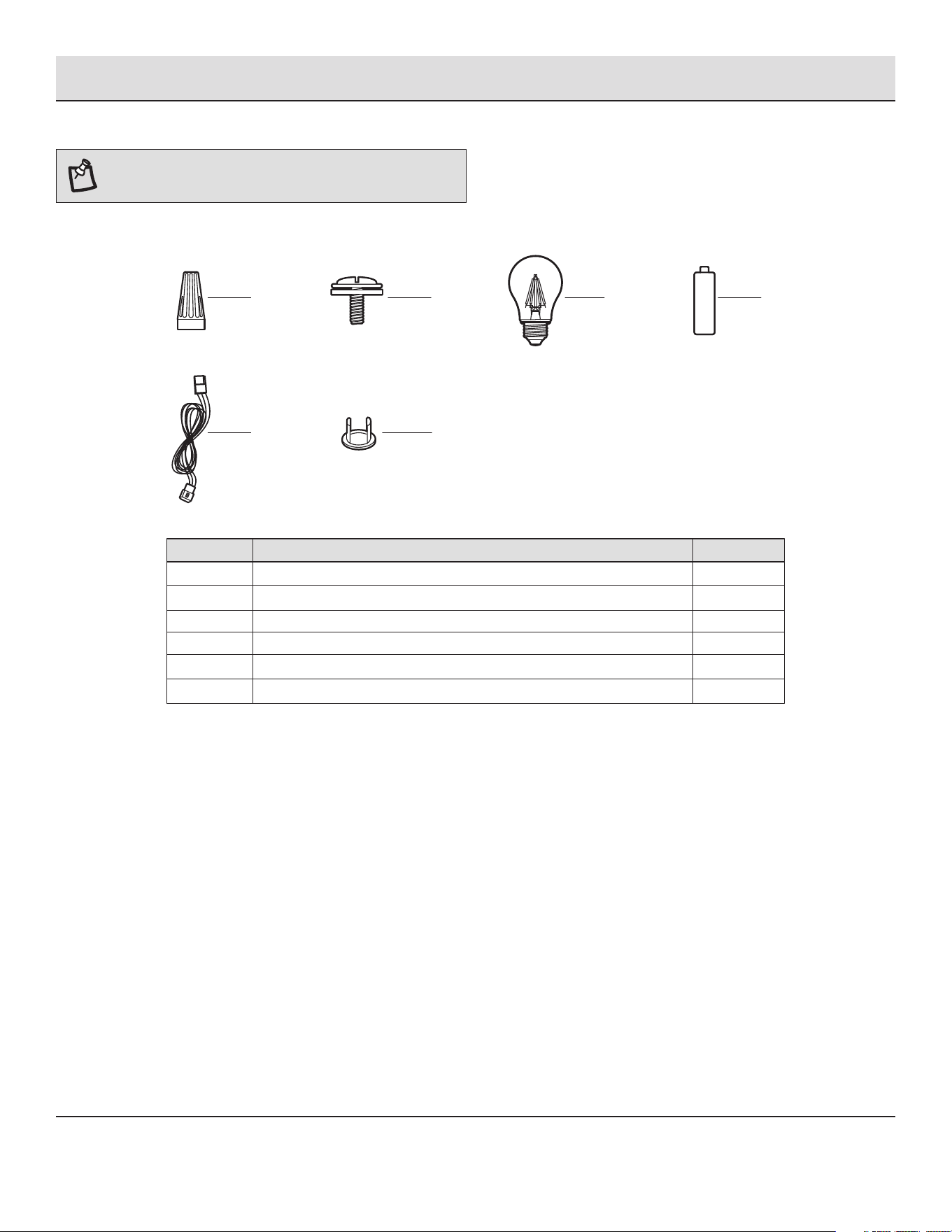

HARDWARE INCLUDED
Pre-Installation (continued)
AA
EE
BB DDCC
23A 12V
FF
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
5
Part
F
G
H
I
J
Description
Blade
Blade arm
Light kit
Receiver
Remote control
Quantity
5
5
1
1
1
Part
A
B
C
D
E
Quantity
1
1
1
1
1
Description
Mounting bracket (preassembled)
Canopy
Canopy bottom cover (preassembled)
Hanger ball/downrod assembly
Fan motor assembly

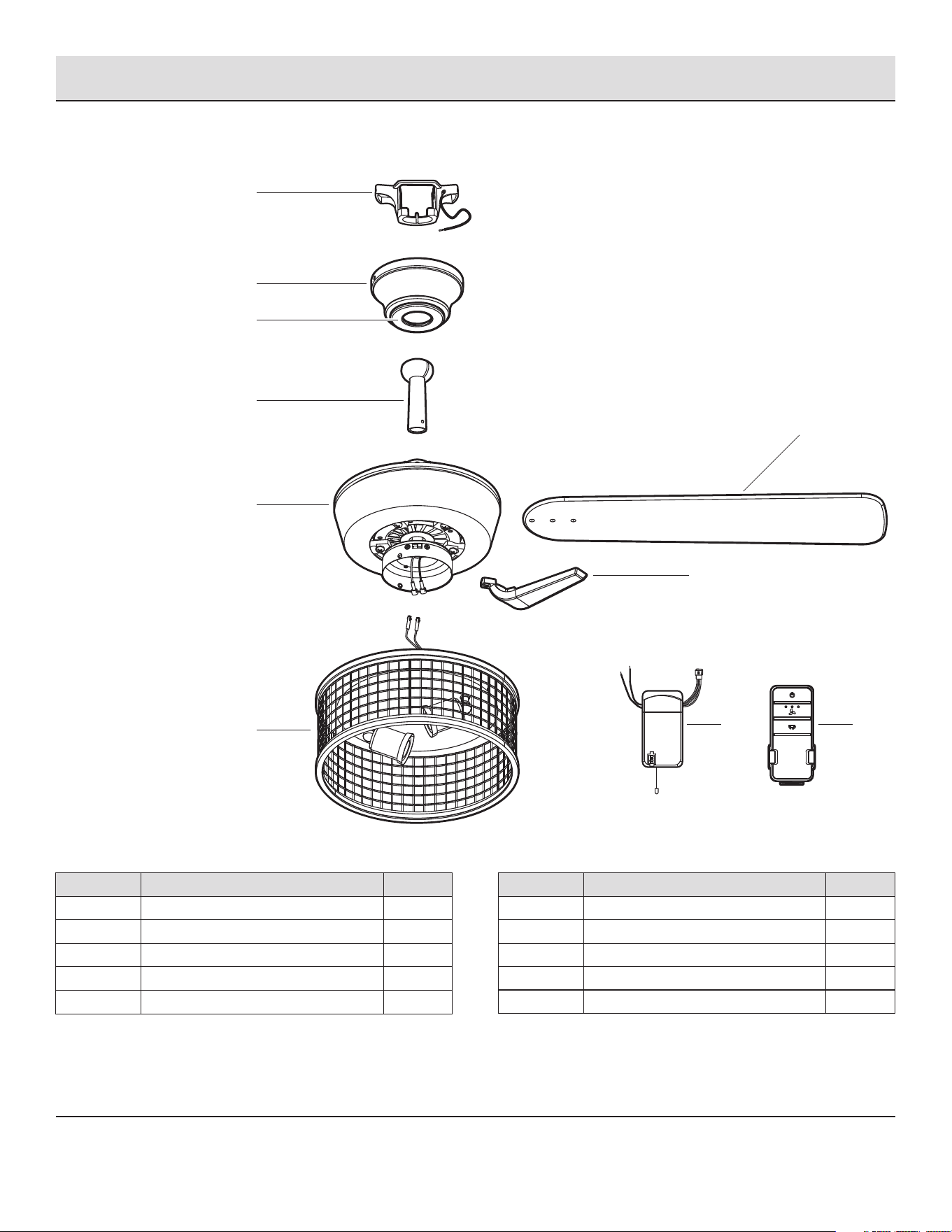

PACKAGE CONTENTS
Pre-Installation (continued)
A
F
G
J
D
E
H
B
C
I
6
If your ceiling fan does not have an existing UL Listed mounting
box, then install one using the following instructions:
Disconnect the power by removing the fuses or turning off
the circuit breakers.
Secure the outlet box (not included) directly to the building
structure. Use appropriate fasteners and materials (not
included). The outlet box and its bracing must be able to fully
support the weight of the moving fan (at least 35 lb). Do not
use a plastic outlet box.
The illustrations below show three different ways to mount the
outlet box (not included).
To hang your fan where there is an existing xture but no ceiling
joist, you may need an installation hanger bar (not included) as
shown above.
Outlet Box
Outlet Box
Hanger Bar
Outlet Box
Recessed
Outlet
Box
A
WARNING: To reduce the risk of re, electric shock, or
personal injury, mount the fan to an outlet box marked
acceptable for fan support using the screws provided with the
outlet box. An outlet box commonly used for the support of
lighting xtures may not be acceptable for fan support and
may need to be replaced. If in doubt, consult a qualied
electrician.
MOUNTING OPTIONS
Installation
NOTE: You may need a longer downrod to maintain proper
blade clearance when installing on a steep, sloped ceiling.
The maximum angle allowable is 18° away from horizontal. If
the canopy (B) touches the hanger ball/downrod assembly (D),
remove the decorative canopy bottom cover (C) and turn the
canopy (B) 180° before attaching the canopy (B) to the mounting
bracket (A).
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
7

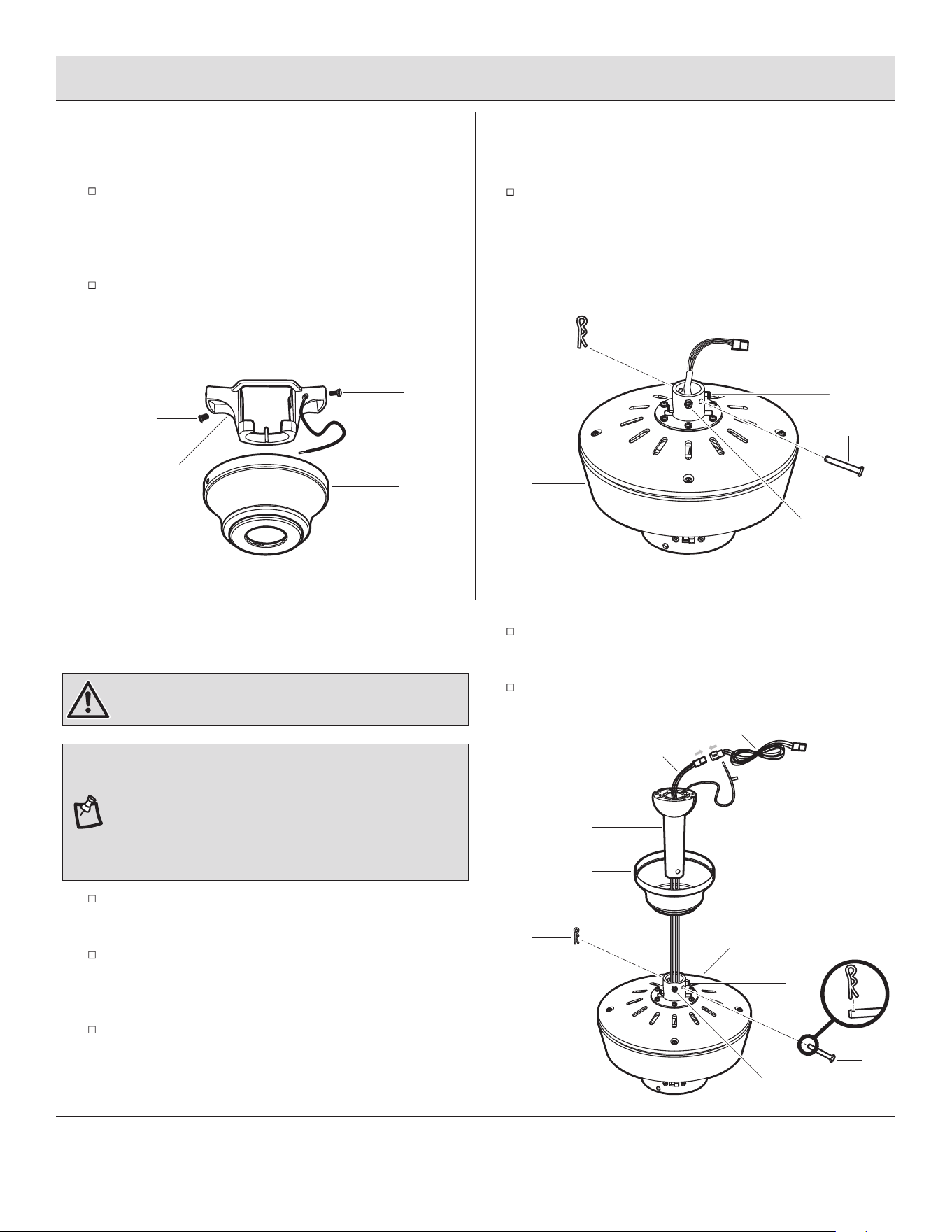

Assembly — Standard Ceiling Mounting

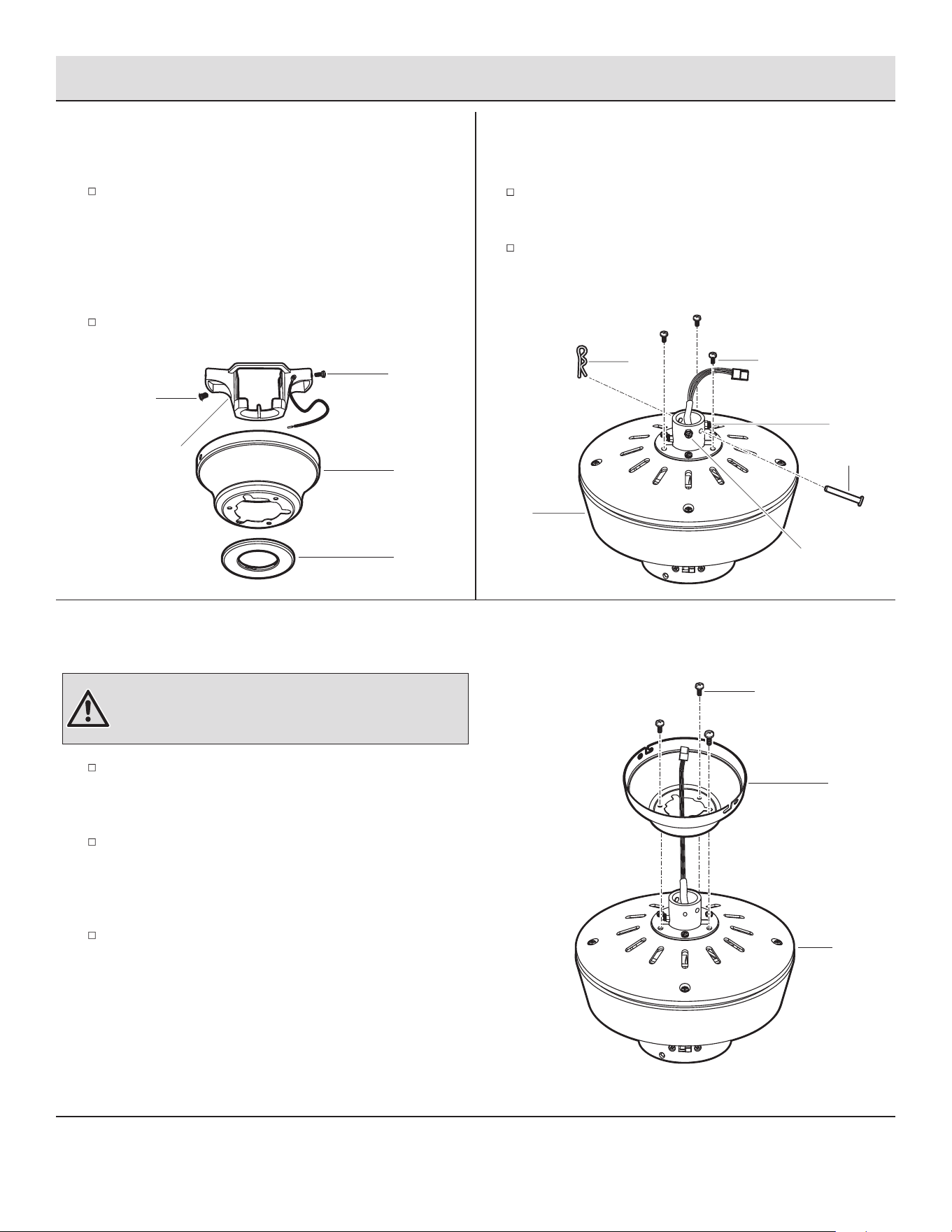

1
Preparing the canopy
3
Assembling the fan
WARNING: Failure to properly install the cotter pin (HH) could
result in the fan loosening and possibly falling.
Route the wires through the canopy (B) and then through
the hanger ball/downrod assembly (D).
Align the holes at the bottom of the hanger ball/downrod
assembly (D) with the holes in the collar on top of the fan
motor assembly (E).
Carefully insert the clevis pin (II) through the holes in the
collar and the hanger ball/downrod assembly (D). Be careful
not to jam the clevis pin (II) against the wiring inside the
hanger ball/downrod assembly (D).
Preparing the motor
2
Remove the cotter pin (HH) and clevis pin (II), and loosen the
two collar set screws (JJ) from the fan motor assembly (E)
collar.
Insert the cotter pin (HH) through the hole near the end of the
clevis pin (II) until it snaps into the locked position.
Firmly tighten the two collar set screws (JJ) on top of the fan
motor assembly (E).
A
GG
GG
B
Remove the two non-slotted canopy mounting screws with
lock washers (GG) from the canopy (B), and loosen the
slotted canopy mounting screws with lock washers (GG) on
the canopy (B).
Remove the canopy (B) from the mounting bracket (A) by
turning the canopy (B) counterclockwise.
E
JJ
JJ
HH
II
E
D
B
HH
JJ
JJ
II
EE
NOTE: If a longer downrod is needed (not included), take out
the screw located in the hanger ball, lower the hanger ball and
remove the pin. Remove all three pieces from the downrod, and
assemble them onto the new longer downrod before proceeding
to the downrod installation. Be sure to snap together the 3-pin
connectors, the male plug (JJ) from the fan and female plug
from the extension cord (EE).
KK
8

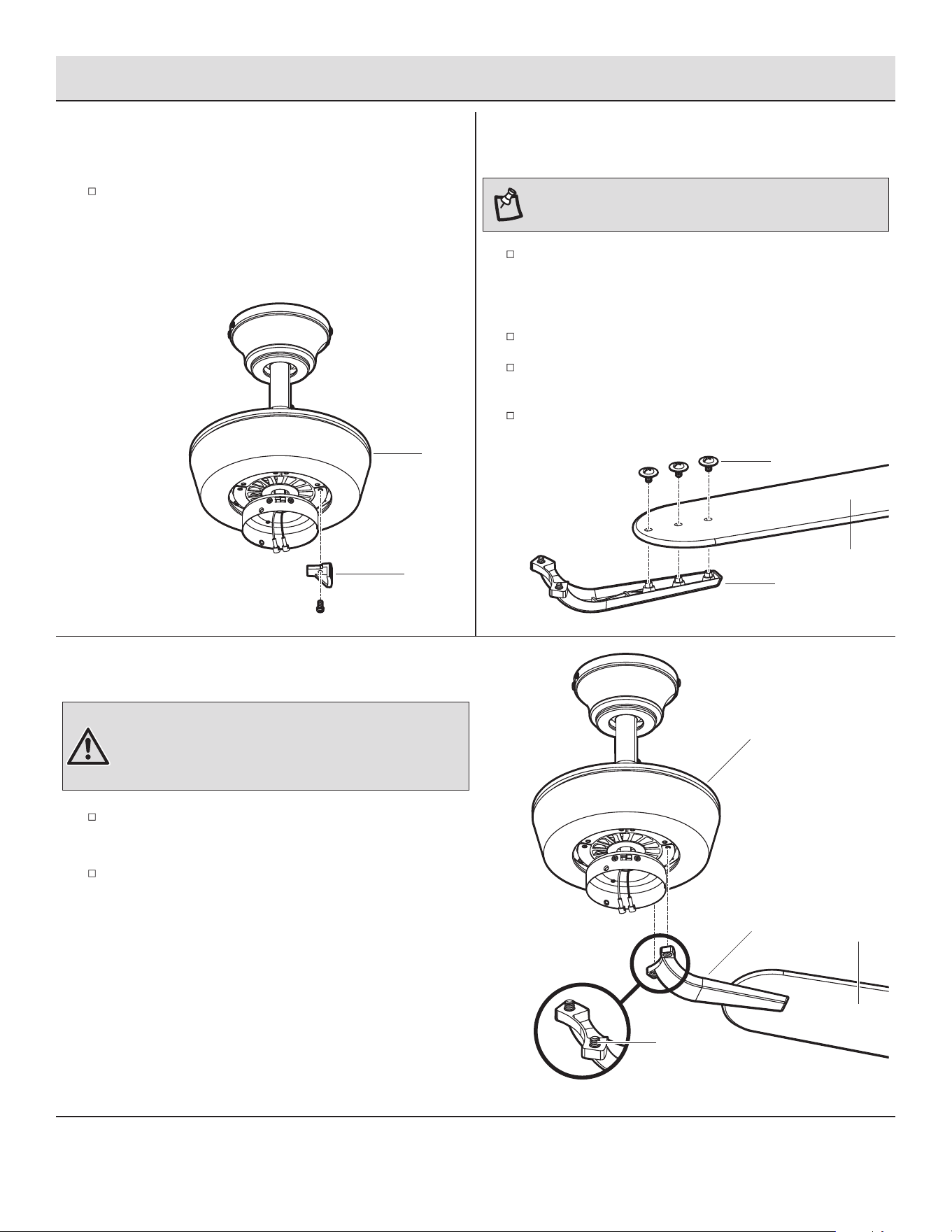

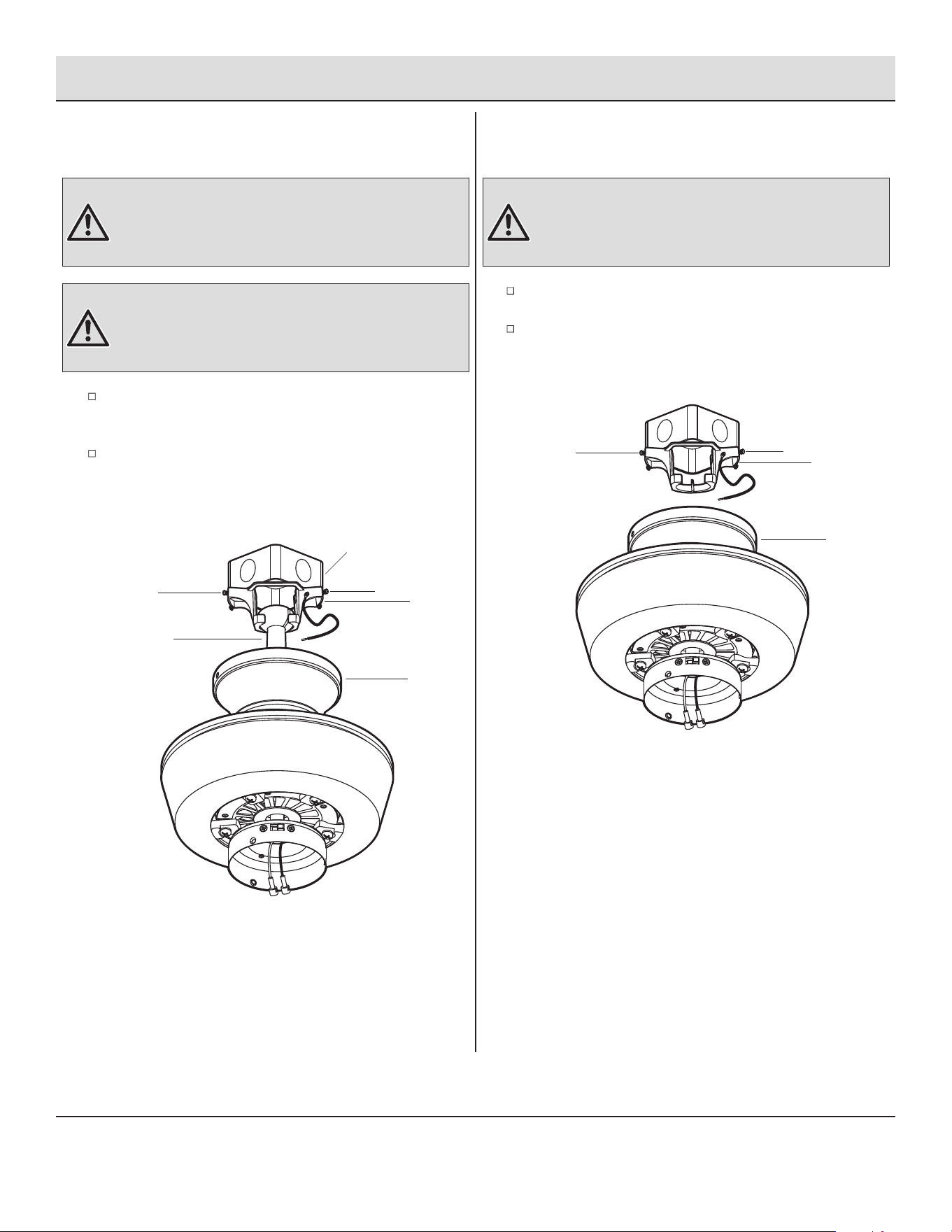

Assembly — Close-to-Ceiling Mounting
1
Preparing the canopy
3
Assembling the fan
Preparing the motor
2
A
GG
GG
B
C
Remove the mounting bracket (A) from the canopy (B) by
loosening the four canopy mounting screws with lock
washers (GG) on the top of the canopy (B). Remove the two
non-slotted canopy mounting screws with lock washers (GG)
and loosen the slotted canopy mounting screws with lock
washers (GG).
Remove the canopy bottom cover (C) from the canopy (B).
Remove the cotter pin (HH) and clevis pin (II), and two collar
set screws (JJ) from the fan motor assembly (E) collar.
Remove three of the six collar mounting screws with lock
washers (LL) (every other one) from the collar on top of the
fan motor assembly (E).
WARNING: Failure to completely tighten the three collar
mounting screws with lock washers (LL) could result in the fan
becoming loose and possibly falling.
Make sure the slot openings are on top, and then proceed to
place the canopy (B) over the collar at the top of the fan
motor assembly (E).
Align the mounting holes in the bottom of the canopy (B)
with the holes in the top of the fan motor assembly (E).
Fasten using the three collar mounting screws with lock
washers (LL) previously removed.
Tighten the collar mounting screws with lock washers (LL)
securely.
E
LL
E
JJ
JJ
HH
II
LL
B
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
9
Assembly — Hanging the Fan
WARNING: To reduce the risk of re, electric shock or
other personal injury, mount the fan only to an outlet box or
supporting system marked acceptable for fan support and
use the mounting screws provided with the outlet box.
4
Attaching the fan to the electrical box
Pass the 120-volt supply wires through the center hole in the
mounting bracket (A).
Attach the mounting bracket (A) on the outlet box by sliding
the mounting bracket (A) over the screws provided with the
outlet box. When using “close-to-ceiling” mounting, it is
important that the mounting bracket (A) be level. If necessary,
use leveling washers (not included) between the mounting
bracket (A) and the outlet box. Note that the at side of the
mounting bracket (A) is toward the outlet box.
Securely tighten the two mounting screws.
5b
5a
Hanging instructions for
standard mounting
Hanging instructions for
close-to-ceiling mounting
WARNING: The tab in the ring must rest in the groove of
the hanger ball (D). Failure to properly seat the tab in the
groove could cause damage to the wiring.
WARNING: The hook is only to hold the fan while attaching
wiring. Failure to hang as instructed may result in the tab
breaking causing the fan to fall. The hook must pass from the
inside to the outside of the canopy (B).
Carefully lift the fan motor assembly (E) up to the mounting
bracket (A) and seat the hanger ball (D) in the mounting
bracket (A) socket. Make sure the tab on the mounting
bracket (A) socket is properly seated in the groove in the
hanger ball (D). This will help to balance the ceiling fan.
Carefully lift the fan motor assembly (E) up to the mounting
bracket (A) and hang the fan on the hook provided using
one of the holes at the outer rim of the canopy (B).
D
E
A
E
B
A
B
A
Outlet Box
10
Assembly — Hanging the Fan (continued)
6

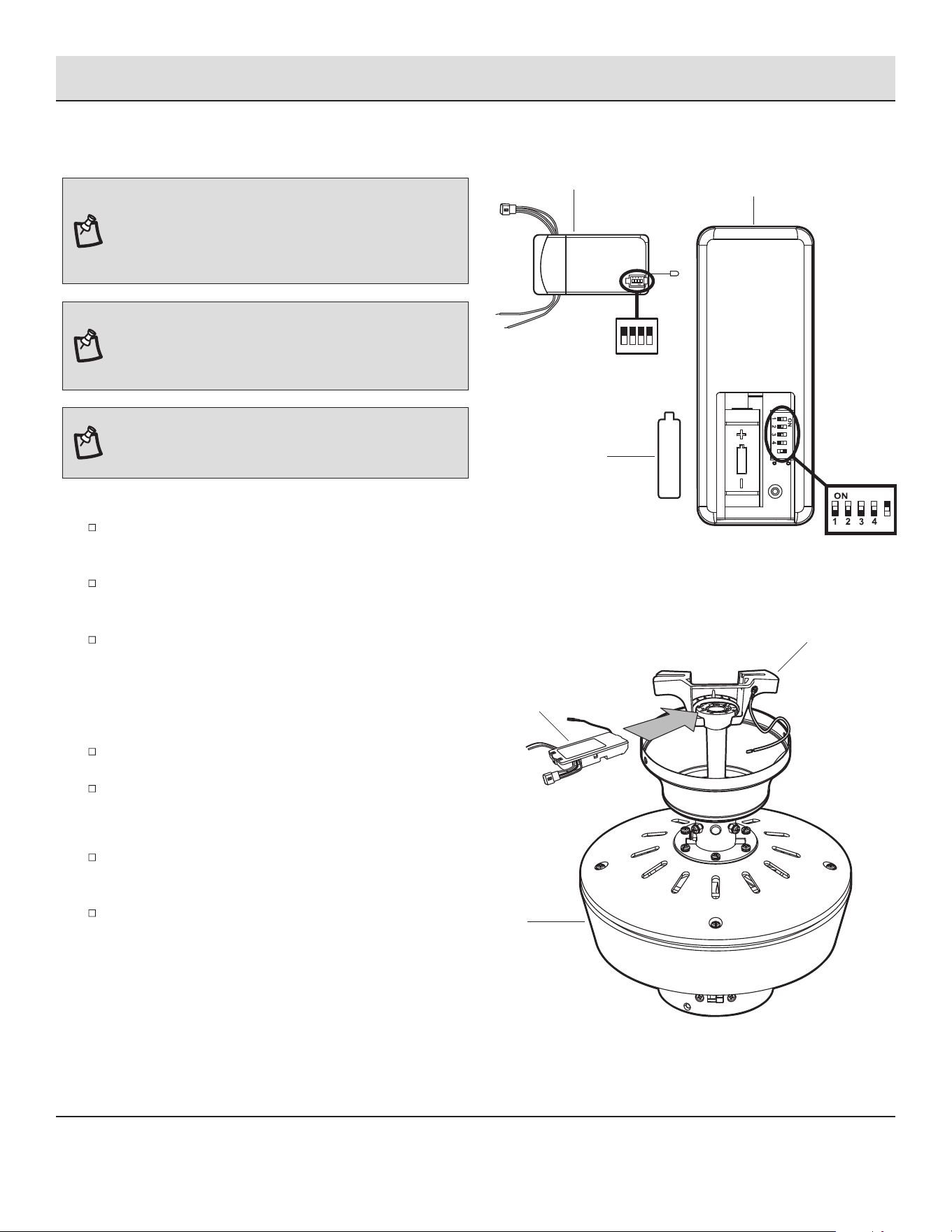

Preparing the receiver and remote
control
NOTE: The frequencies on your receiver and remote control
have been preset at the factory. Before installing the receiver,
make sure the dip switches on the receiver and remote control
are set to the same frequency. The dip switches on the remote
control are located inside the battery compartment.
NOTE: The battery will weaken with age and should be
replaced before leaking takes place as this will damage the
remote control. Dispose of the used battery properly and keep
the battery out of the reach of children.
NOTE: The frequency switches on the receiving unit are
covered with a rubber cover, remove the rubber cover and then
replace it after making any changes to the frequency switches.
Setting the Code on the Remote:
Setting the Code on the Receiver:
Slide the code switches on the receiver (I) to the same
positions as set on the remote control (J).
After checking the switches, insert the receiver (I) into the
mounting bracket (A) with the at side of the receiver (I)
facing the ceiling.
Remove the battery cover on the back of the remote control
(J) by pressing rmly on the arrow and sliding the cover off.
Slide the code switches to your choice of either up or down.
The factory setting is up.
The switch marked O/D controls the dimming function of the
lights. If using non-dimmable bulbs, use a ballpoint pen or
small screwdriver to set the switch to O to disable the dimming
function. If using dimmable bulbs, set the switch to D to enable
the dimming function.
Install the 23A 12V battery (DD) (included).
Replace the battery cover on the remote control (J).
E
I
A
J
DD
23A 12V
23A 12V
O
D
O
D
I
3 41 2
ON
3-Pin connectors
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
11
Assembly — Hanging the Fan (continued)
WARNING: Check to see that all connections are tight,
including ground, and that no bare wire is visible at the wire
nuts (except for the ground wire).
WARNING: To reduce the risk of electric shock, this fan must
be installed with an isolating wall control/switch.
If you feel you do not have enough electrical wiring knowledge
or experience, have your fan installed by a licensed electrician.

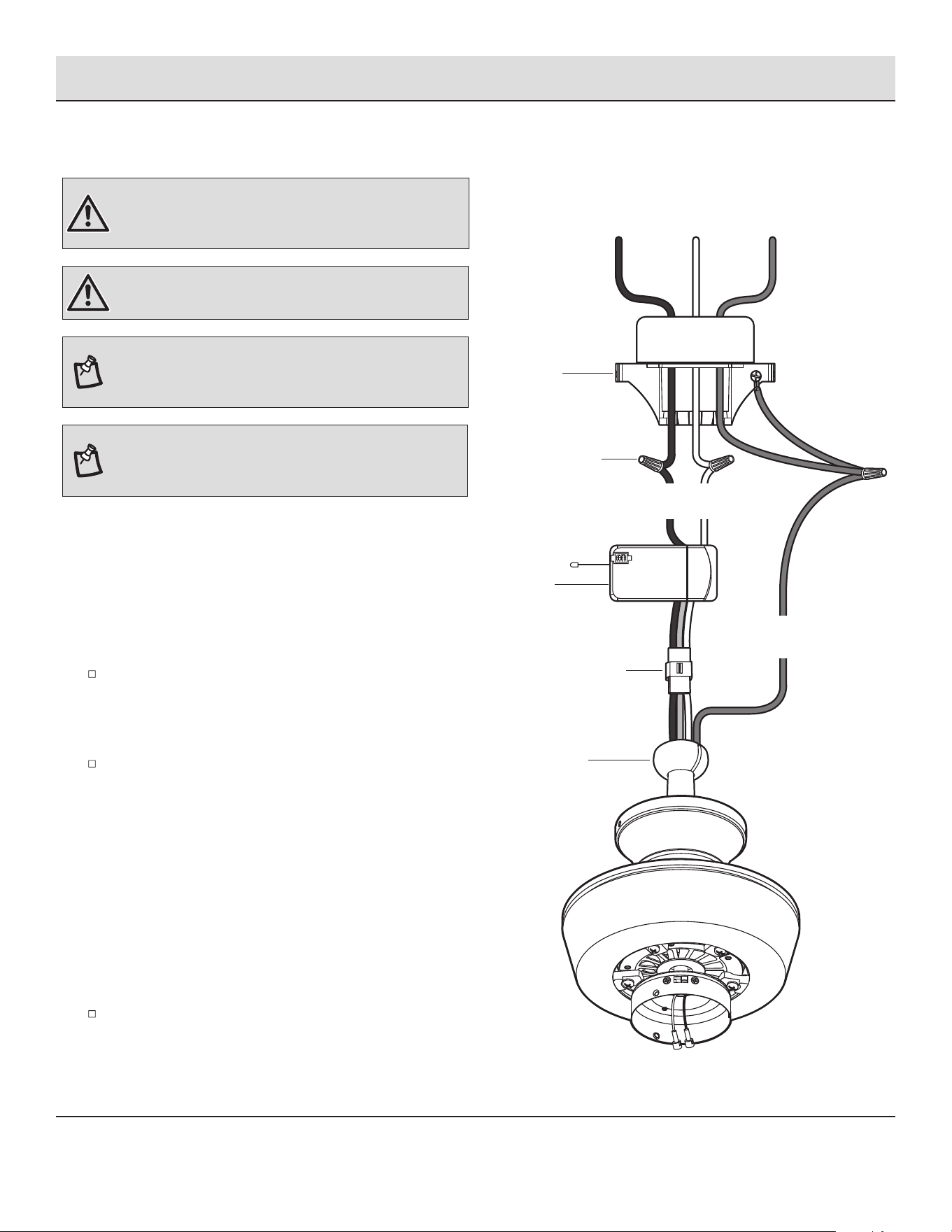

Follow the steps below to connect the fan to your household
wiring. Use the plastic wire nuts (AA) with your fan. Secure the
plastic wire nuts (AA) with electrical tape. Make sure there are
no loose strands or connections.
Make wire connections from the fan to the receiver (I).
From Fan To Receiver
3-Pin Connector -------------- 3-Pin Connector
Make wire connections from the receiver (I) and fan to the
outlet box as follows, using the wire nuts (AA).
From Receiver To Outlet Box
Black wire "AC in L" -------- Black wire (Hot)
White wire "AC in N" -------- White wire (Neutral)
From Fan To Outlet Box
Green wires* ---------------- Green or bare wire (Ground)
* There are two green grounding leads: one from the mounting
bracket (A) and one from the hanger ball/downrod assembly (D) if
installed.
Turn the wire nut connections upward, spreading them
apart so the green (ground) and white wires will be on one
side of the outlet box and the black and blue wires will be
on the other side. Carefully tuck the connections up into the
outlet box.
7
Making the electrical connections
NOTE: The fan must be installed at a maximum distance of
20 ft. from the remote control for proper signal transmission
between the remote control and the fan's receiving unit.
AA
Black
Ground
conductorWhite
A
D
I
NOTE: If a longer downrod (not included) is needed, use the
extension cord (EE) to connect with the motor wires and
receiver.
White
Black
Green
Outlet Box
12
Assembly — Hanging the Fan (optional)
Standard ceiling mounting
7a
Close-to-ceiling mounting
7b
WARNING: Make sure the tab on the mounting bracket (A)
properly sits in the groove in the hanger ball (D) before attaching
the canopy (B) to the mounting bracket (A) by turning the canopy
(B) until it drops into place.
WARNING: The locking slots of the canopy (B) are provided
only as an aid to mounting. Do not leave the fan assembly
unattended until all four canopy mounting screws with lock
washers (GG) are engaged and rmly tightened.
WARNING: The locking slots of the canopy (B) are provided
only as an aid to mounting. Do not leave the fan assembly
unattended until all four canopy mounting screws with lock
washers (GG) are engaged and rmly tightened.
GG
A
GG
GG
A
GG
D
Slide the canopy (B) up to the ceiling. Make sure you have
placed the wires safely into the outlet box.
Secure the canopy (B) to the mounting bracket (A) with the
four canopy mounting screws with lock washers (GG) included
with your fan.
Remove the fan from the hook on the mounting bracket (A).
Secure the canopy (B) to the mounting bracket (A) with the
four canopy mounting screws with lock washers (GG) provided.
Outlet Box
B
B
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
13
Assembly — Attaching the Fan Blades
8
Removing the rubber packing mounts
The fan motor assembly (E) is shipped with rubber packing
mounts (MM) to prevent movement during transportation.
Remove the ve rubber packing mounts (MM) from the fan
motor assembly (E) and discard prior to attaching the blade
arms (G).
E
G
Attaching the blades to the blade arms
9
Attach the blades (F) to the blade arms (G) using the three
blade attachment screws and ber washers (BB). Insert a
blade attachment screw and ber washer (BB) into the blade
arm (G), but do not tighten.
Repeat for the two remaining screws and ber washers (BB).
Tighten each screw securely starting with the center screw.
Make sure the blade (F) is straight.
Repeat these steps for the remaining blades.
10
Fastening the blade assemblies to
the motor
Align motor holes to blade arms (G) and secure with screws
and lock washers (NN) provided, tighten screws securely.
Repeat this procedure for the remaining blade arms (G).
WARNING: To reduce the risk of personal injury, do not bend
the blade arms (G) while installing, balancing the blades (F),
or cleaning the fan. Do not insert foreign objects between
rotating fan blades (F).
BB
G
F
NOTE: Your fan blades are reversible. Select the blade side
nish which best accentuates your decor.
F
NN
E
MM
Remove the three light kit mounting screws (OO) from the
light kit (H) and keep these screws.
While holding the light kit (H) under your fan motor assembly
(E), locate two single white and blue wires in the switch
housing labeled "FOR LIGHT". Make the polarized plug
connections (PP):
White to white
Blue to black
Carefully push all wires back into the switch housing. Install
the light kit (H) onto the switch housing with the three light
kit mounting screws (OO) provided. Be sure to tighten all
screws.
14
Assembly — Installing the Light Kit
Attaching the light kit to the switch
housing
11

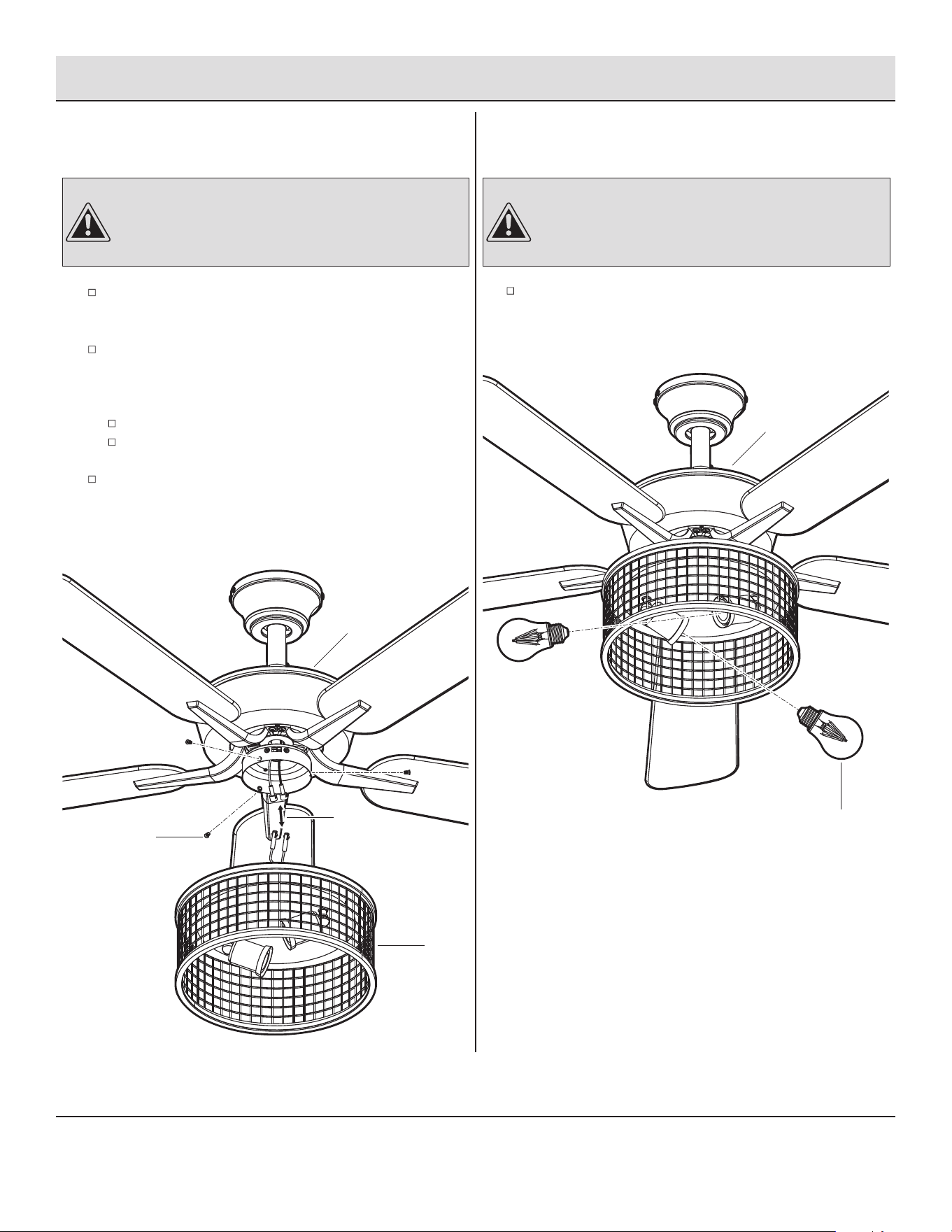

Installing the light bulbs
12
E
OO
H
PP
Install two 7.5 watt LED bulbs (CC) (included).
CAUTION: Before starting the installation, disconnect the
power by turning off the circuit breaker or removing the fuse
at the fuse box. Turning power off using the fan switch is not
sufcient to prevent electric shock.
CAUTION: Before starting the installation, disconnect the
power by turning off the circuit breaker or removing the fuse
at the fuse box. Turning power off using the fan switch is not
sufcient to prevent electric shock.
E
CC
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
15
Disassemble the switch housing cover (QQ) from the light
kit (H). You can keep the light kit (H) for future use.
Attach the plastic plug (FF) to the switch housing cover (QQ).
Install the switch housing cover (QQ) to the switch housing
with light kit mounting screws (OO) provided.
Assembly — Installing the Light Kit (continued)

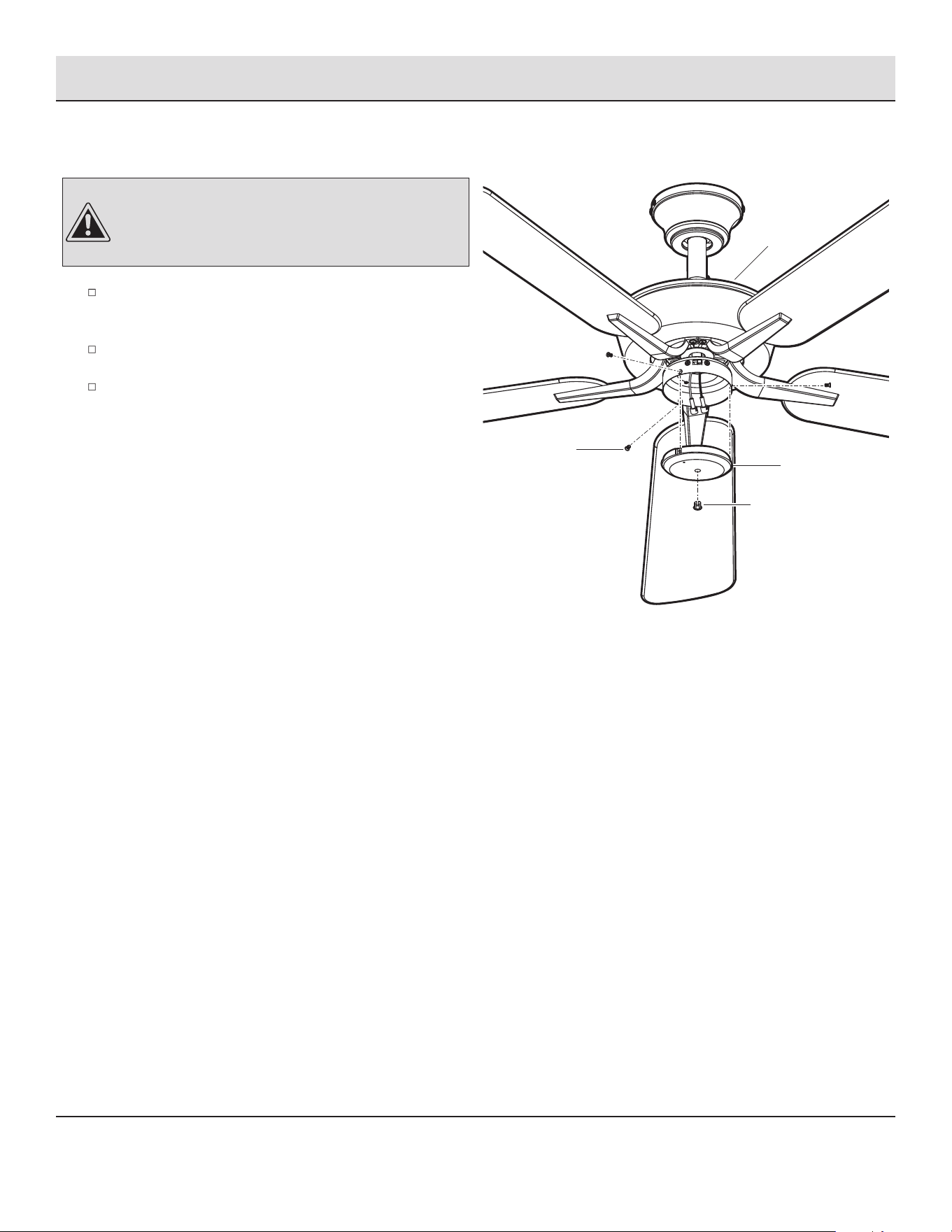

Installing the fan without the light
kit (optional)
13
CAUTION: Before starting the installation, disconnect the
power by turning off the circuit breaker or removing the fuse
at the fuse box. Turning power off using the fan switch is not
sufcient to prevent electric shock.
E
OO
QQ
FF
16
Installation
Operation

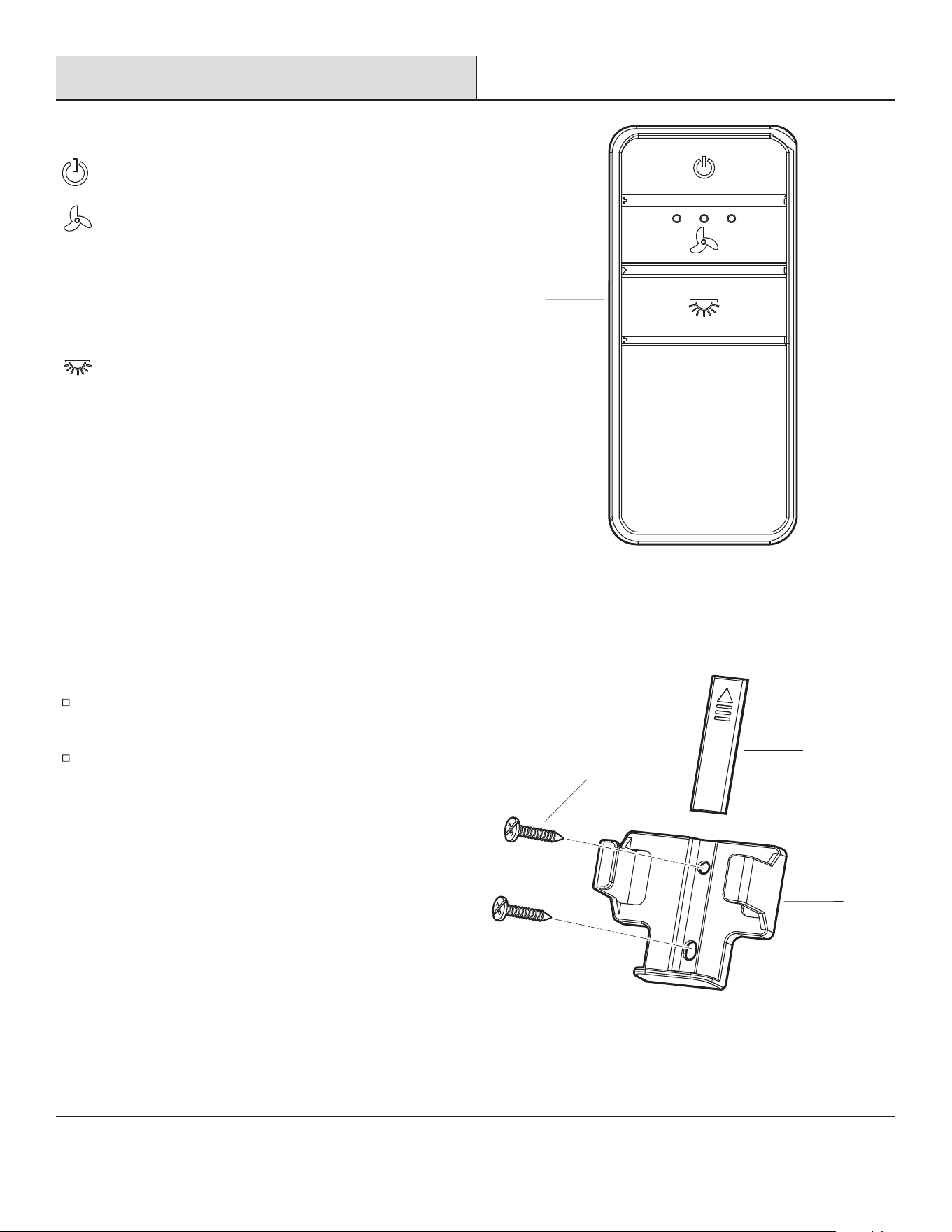

REMOTE CONTROL OPERATING INSTRUCTIONS
J
INSTALLING THE REMOTE CONTROL HOLDER
Attach the remote control holder (RR) with the two remote control
holder mounting screws (SS).
Replace the remote control holder cover (TT) into the remote
control holder (RR).
SS
TT
RR
Power ON/OFF: Press and release the power button to turn the
fan and light on or off.
Fan speed: LEDs on the fan speed button will illuminate to the
corresponding speed.
Light ON/OFF
Press and release 1 time: turns the fan on high speed.
Press and release 2 times: turns the fan on medium speed.
Press and release 3 times: turns the fan on low speed.
Press and release 4 times: turns the fan off.
Press and release the button to turn the light on or off.
Press and hold the button to activate the dimmer function.
17 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.

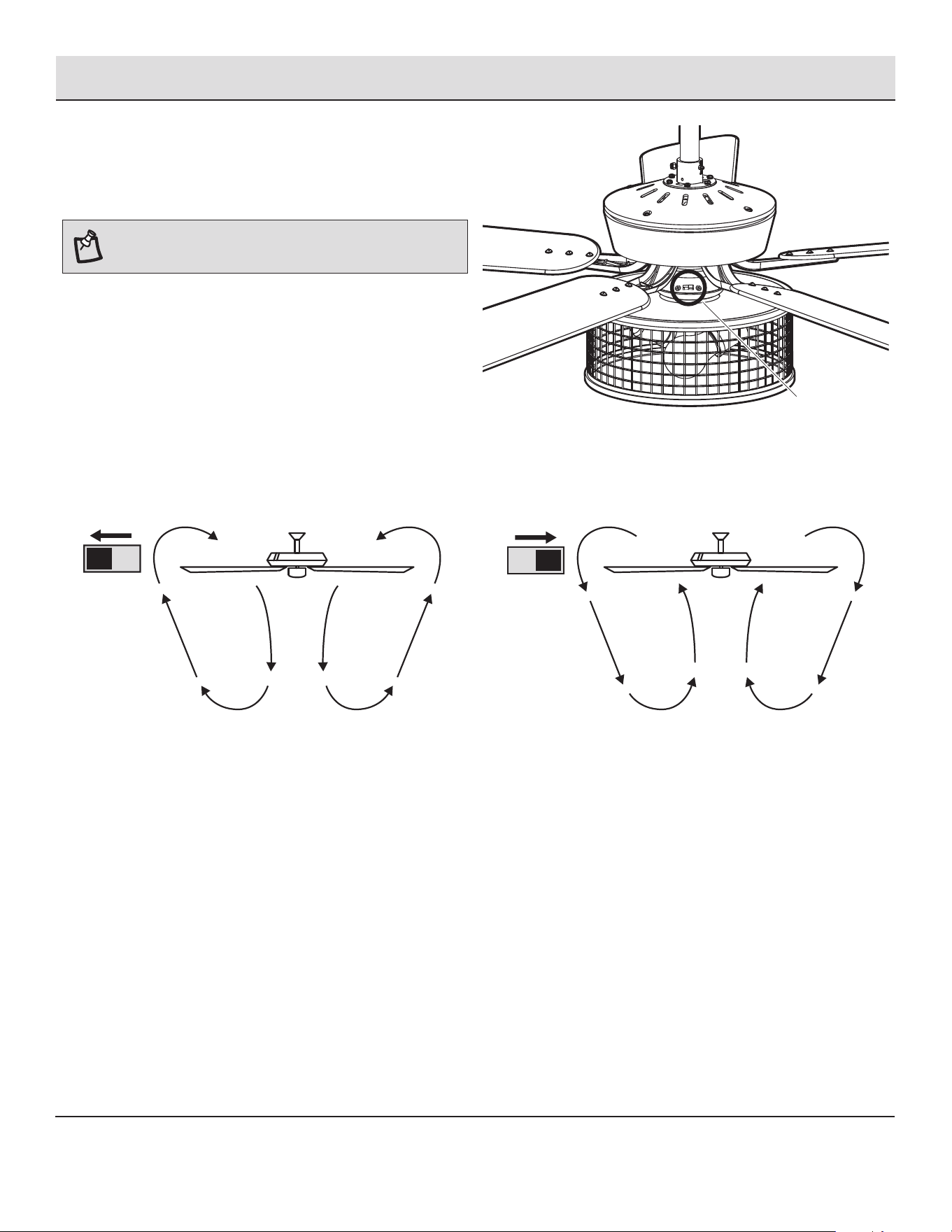

The reverse switch is located on the surface of the switch housing.
Slide the switch to the left for warm weather operation. Slide the
switch to the right for cool weather operation.
Operation (continued)
REVERSE SWITCH OPERATING INSTRUCTIONS
NOTE: Wait for the fan to stop before reversing the direction
of the blade rotation.
Warm weather - (Counterclockwise Direction) A downward air ow
creates a cooling effect. This allows you to set your air conditioner
on a warmer setting without affecting your comfort.
Cool weather - (Clockwise Direction) An upward air ow moves warm
air off the ceiling. This allows you to set your heating unit on a cooler
setting without affecting your comfort.
Reverse switch
Verify that all blades and blade bracket screws are secure (most fan wobble problems are caused by loose
parts). Once the fan is properly installed, run the ceiling fan for 10 minutes to let the fan self-adjust.
If wobble occurs after running the fan for 10 minutes, verify blade level using the following process:
Select a point on the ceiling above the tip of one of the blades, then select any fan blade and measure
from the center of the selected blade to the point on the ceiling. Rotate the fan until the next blade is
positioned and repeat the measurement using the same point from the ceiling for every blade.
Measurement deviations should be within 1/8 in.
If all deviations are less than 1/8 in. and the fan continues to wobble, please call Customer Service
(1-855-HD-HAMPTON) to order a complimentary Blade Balancing Kit.
If deviation is greater than 1/8 in., please call Customer Service (1-855-HD-HAMPTON) to order complimentary
replacements of your brackets.
Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. Because of the fan’s
natural movement, some connections may become loose over time. It is not necessary to remove the fan from the ceiling.
Clean your fan periodically. Use only a soft brush or lint-free cloth to avoid scratching the nish. The plating is sealed with a lacquer to
minimize discoloration or tarnishing.
(Optional) Apply a light coat of furniture polish to the wood blades.
(Optional) Cover small scratches with a light application of shoe polish.
Do
Care and Cleaning
Use water when cleaning. Water could damage the motor, or the wood, or possibly cause an electrical shock.
Apply oil to your fan or motor. The motor has permanently-lubricated sealed ball bearings.
Do not
Troubleshooting
Do not connect the fan with wall mounted variable speed control(s).
Make sure the frequency switches are set correctly.
The fan wobbles.
The remote control is
not working.
Problem Solution
Check the main and branch circuit fuses or breakers.
Check the line wire connections to the fan and switch wire connections in the switch housing.
Check to make sure the frequency switches from the remote control and receiver are set to the same
frequency.
Make sure all motor housing screws are snug.
Make sure the screws that attach the fan blade to the motor hub are tight.
Make sure the wire nut connections are not rattling against each other or the interior wall of the switch
housing.
Allow a 24-hour "breaking-in" period. Most noises associated with a new fan disappear during this time.
If using the ceiling light kit, make sure the glassware is secured tightly.
Make sure there is a short distance from the ceiling to the canopy. It should not touch the ceiling.
Make sure your ceiling box is secure and that rubber isolator pads are used between the mounting
bracket and outlet box.
The fan will not start.
The fan sounds noisy.
18
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
Retain this manual for future use.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
WARNING: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
