Technical Support and E-Warranty Certificate www.vevor.com/support
TRAILER COUPLER
MODEL: SS-TC-04C / SS-TC-07C
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 1 -
MODEL: SS-TC-04C / SS-TC-07C
Have product questions? Need technical support? Please feel free to
contact us:
TechnicalSupport and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
TRAILER COUPLER
- 2 -
SAFETY INSTRUCTIONS
1. Safety chains must be used.
2. Be sure to take good protection during welding work.
3. Be sure to check that the bolts are tight.
4. Be sure to match the corresponding trailer ball.
5. After towing for 50 miles, check coupler for tightness on ball. Always
check tighness before towing. Be sure coupler handle is in locked
position.
6. Do not exceed the gross trailer weight capacity.
MODEL AND PARAMETERS
Model
SS-TC-04C
SS-TC-07C
Capacity
3500lbs
5000lbs
Ball Size
2inch
2inch
Applicable Channel
Diameter/Length
2inch
3inch
Color
Silvery White
Silvery White
- 3 -

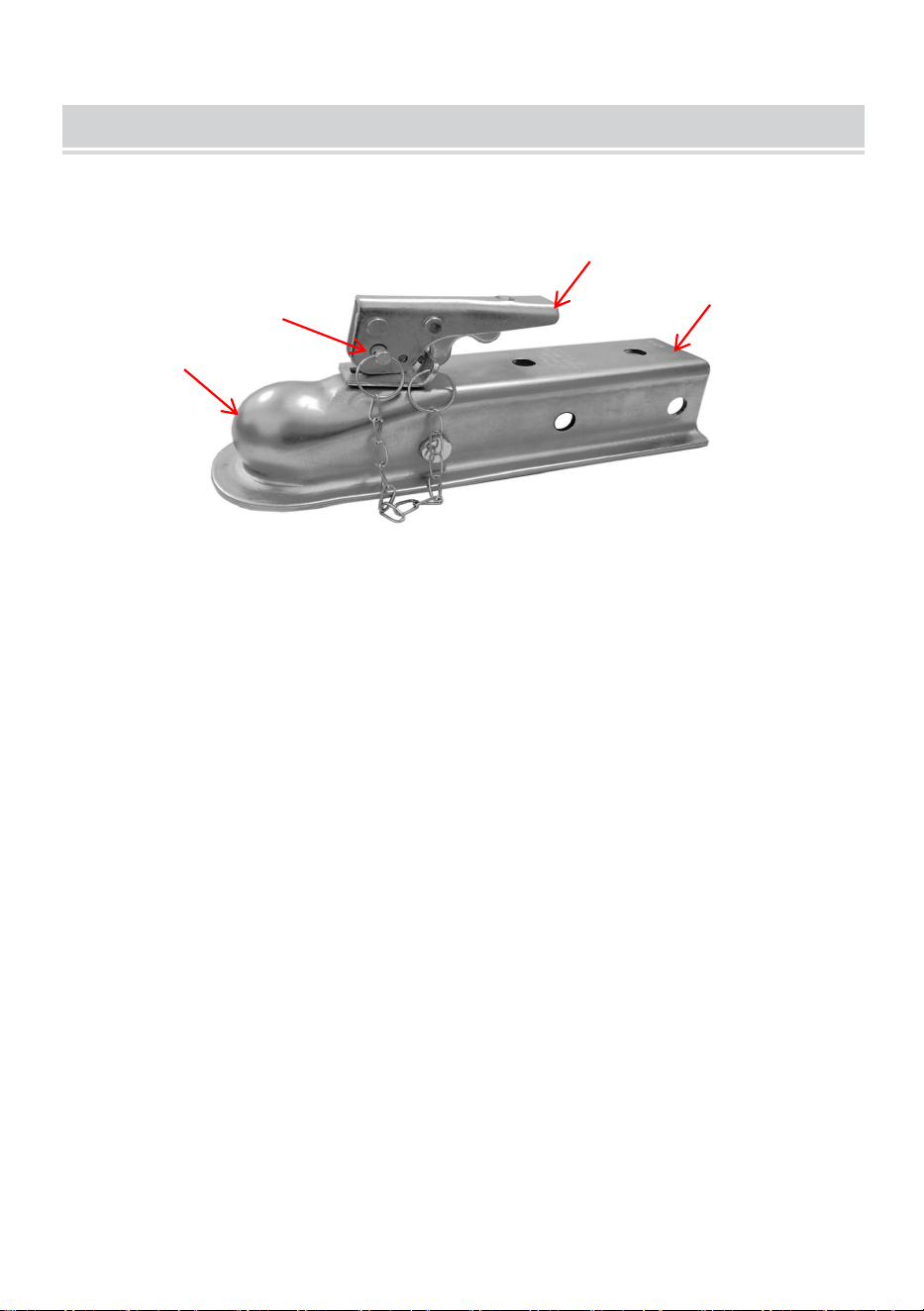

STRUCTURE DIAGRAM
Take SS-TC-04C for example.
1.Ball Socket 2.Safety Pin 3.Handle 4.Channel
1
2
3
4
- 4 -
COMPONENTS
No.
Name
Qty
1
Trailer Coupler
1
3
User Manual
1

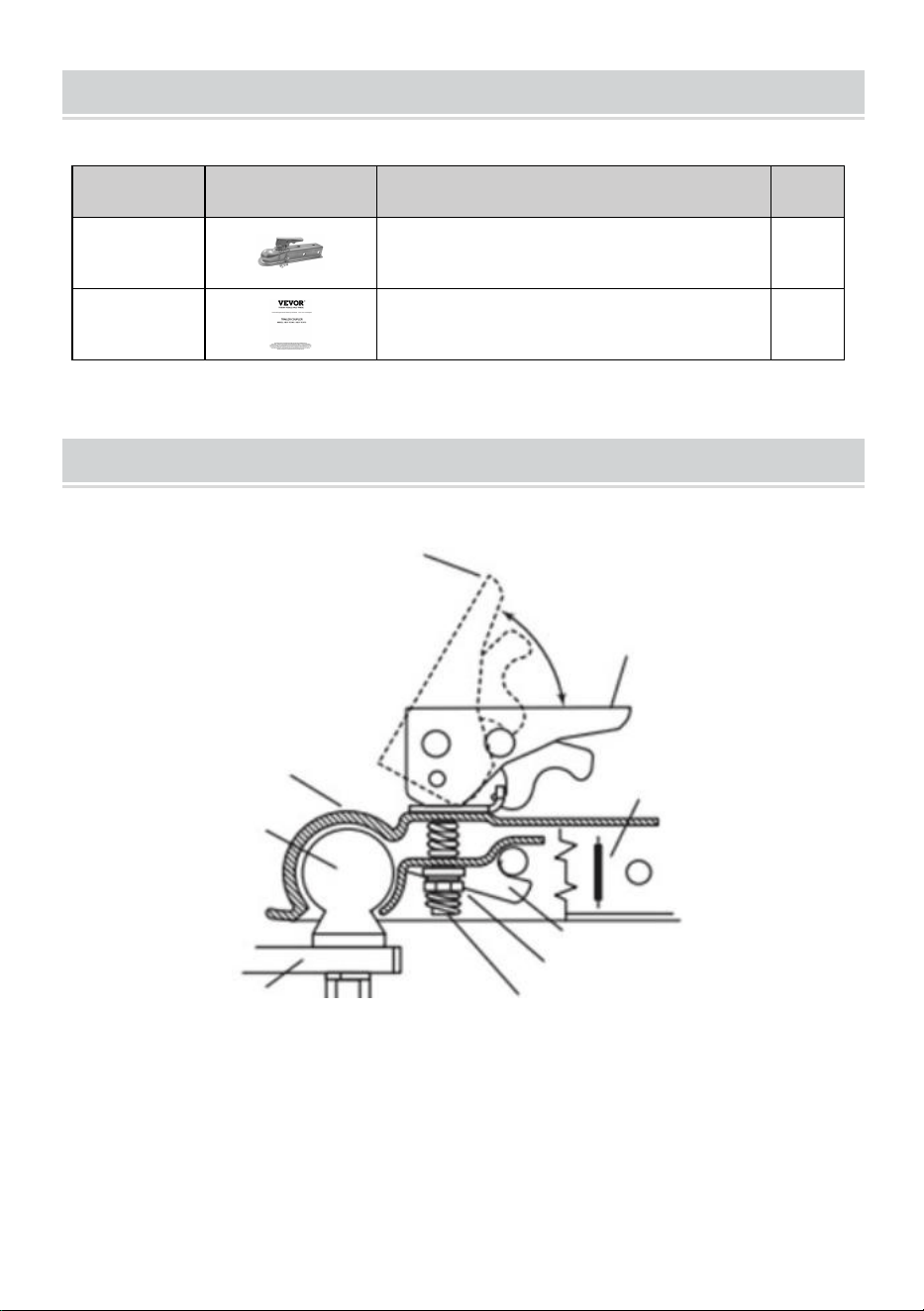

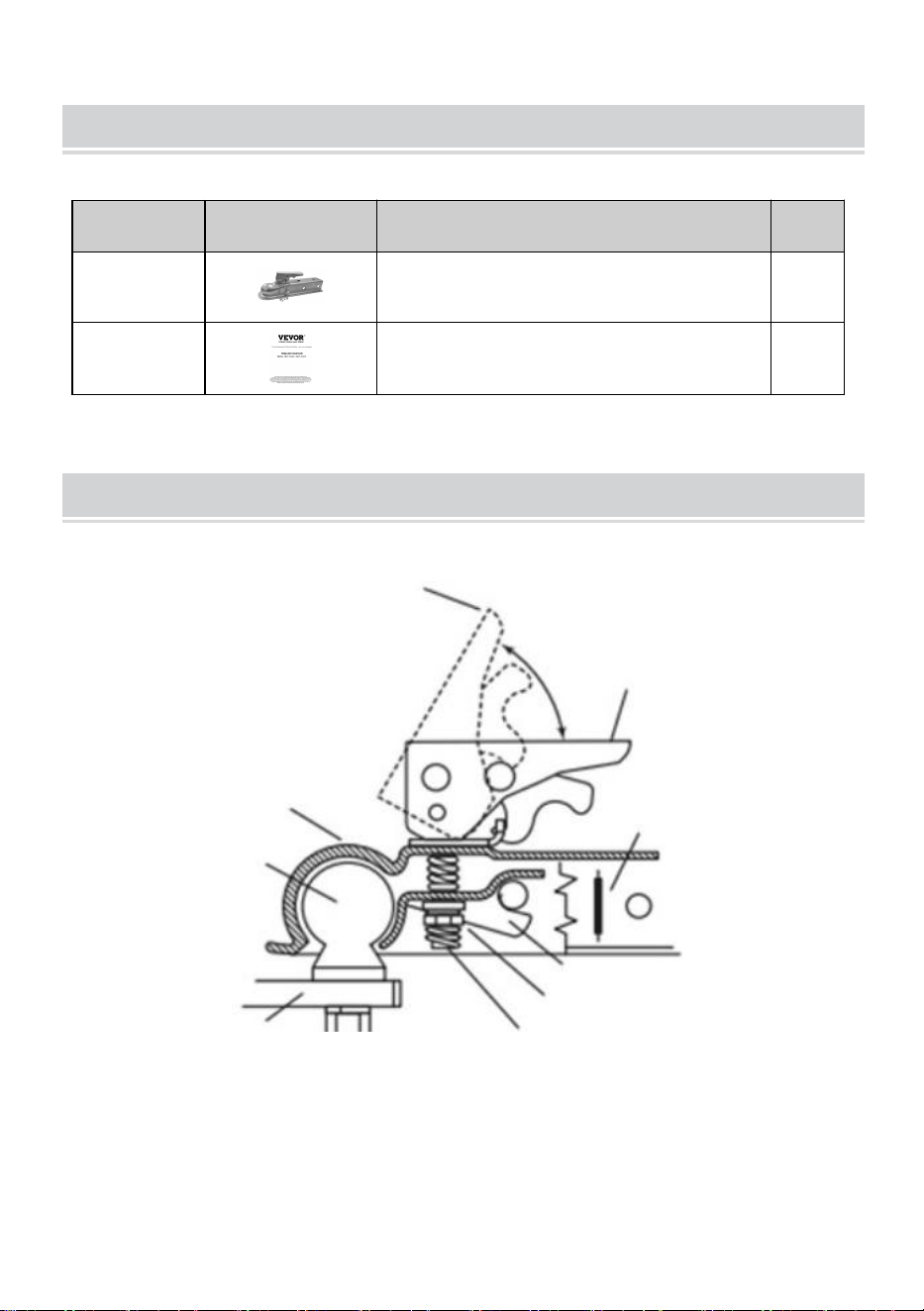

OPERATION
To open, pull up on coupler handle and rotate forward. Place coupler on
ball. When ball is completely nested in ball socket, rotate coupler handle
backward until handle is in locked position. Plug in the safety latch.
After towing for 50 miles, check coupler for tightness on ball. Always check
tighness before towing. Be sure coupler handle is in locked position.
Hitch
Ball
Ball Socket
Under Jaw
Tension Spring
Locknut
Coupler
Handle Locked Position
Handle Open Position
- 5 -

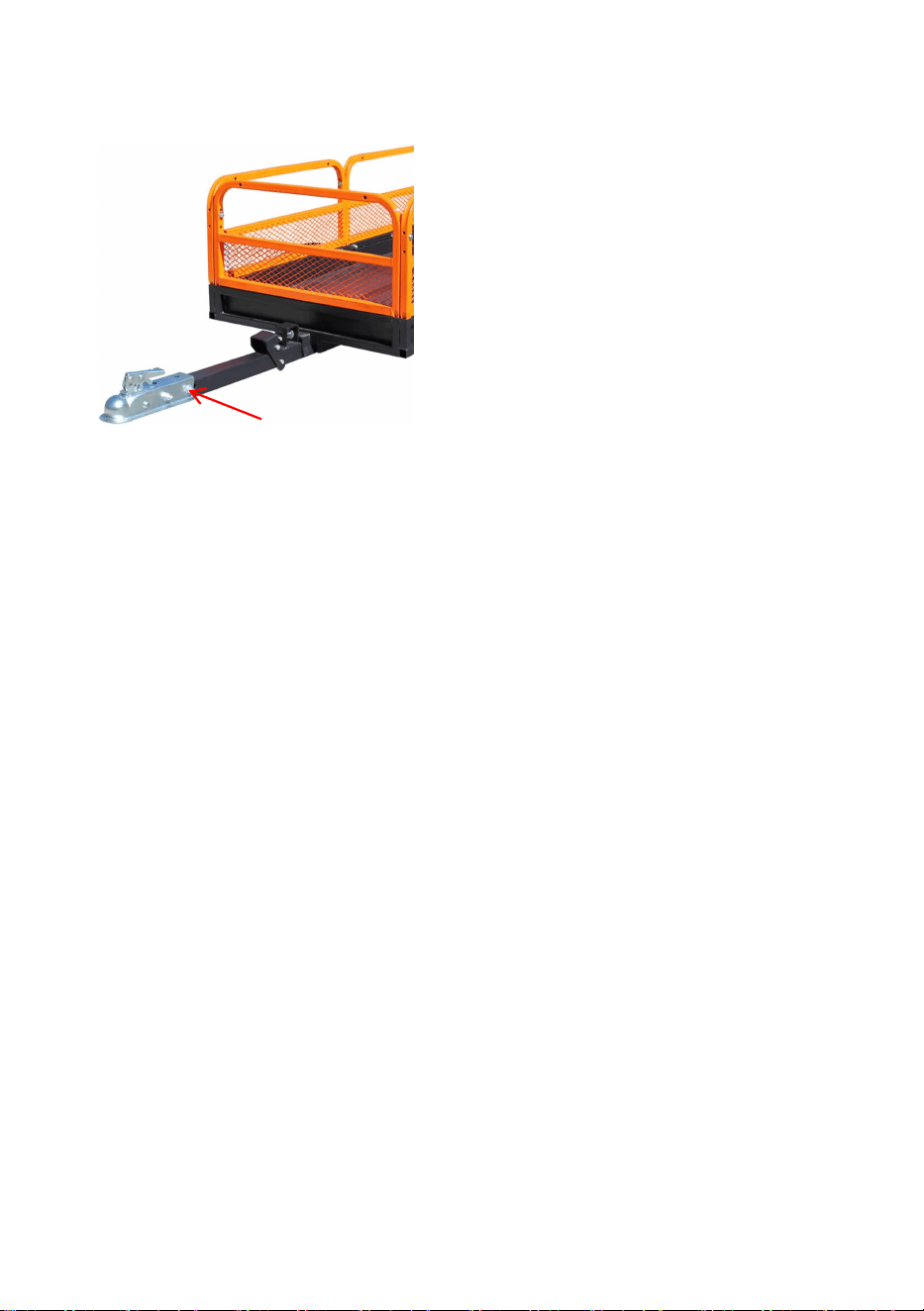

Installation:
Bolted Connection(Holes:Φ0.535in；Hole spacing：3in)
- 6 -
MAINTENANCE
1. Please check that the bolts are tight before each use.
2. Do not overload.
3. Pay attention to rust prevention.
MADE IN CHINA
- 2 -
Assistance technique et certificat de garantie électronique
www.vevor.com/support
ATTELAGE DE REMORQUE
MODÈLE : SS-TC-04C / SS-TC-07C
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 1 -
MODÈLE : SS -TC-04C / SS-TC-07C
Have product questions? Need technical support? Please feel free to
contact us:
TechnicalSupport and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
TRAILER COUPLER
- 2 -
SAFETY INSTRUCTIONS
7. Des chaînes de sécurité doivent être utilisées.
8. Assurez-vous de prendre une bonne protection lors des travaux de
soudage.
9. Assurez-vous de vérifier que les boulons sont bien serrés .
10. Assurez-vous de faire correspondre la boule de remorque
correspondante.
11. Après avoir remorqué sur 50 miles, vérifiez que le coupleur est bien
serré sur la boule. Vérifiez toujours le serrage avant de remorquer.
Assurez-vous que la poignée du coupleur est en position verrouillée.
12. Ne pas dépasser la capacité de poids brut de la remorque.
MODEL AND PARAMETERS
Modèle
SS -TC- 04C
SS-TC-07C
Capacité
35 00 livres
5000 livres
Taille de la balle
2 pouces
2 pouces
Diamètre / longueur
du canal applicable
2 pouces
3 pouces
Couleur
Blanc argenté
Blanc argenté
- 3 -
STRUCTURE DIAGRAM
Prenons l’exemple
du SS -T C- 04C
.
1.Douille à rotule 2.Goupille de sécurité 3.Poignée 4.Canal
1
2
3
4
- 4 -
COMPONENTS
Non.
Nom
Qua
1
Attelage de remorque
1
3
Manuel d'utilisation
1
OPERATION
Pour ouvrir, tirez sur la poignée du coupleur et faites-la tourner vers l'avant.
Placez le coupleur sur la boule. Lorsque la boule est complètement
emboîtée dans la douille à boule, faites tourner la poignée du coupleur
vers l'arrière jusqu'à ce que la poignée soit en position verrouillée.
Hitch
Ball
Ball Socket
Under Jaw
Tension Spring
Locknut
Coupler
Handle Locked Position
Handle Open Position
- 5 -
Branchez le loquet de sécurité.
Après avoir remorqué sur 50 miles, vérifiez que le coupleur est bien serré
sur la boule. Vérifiez toujours le serrage avant de remorquer.
Assurez-vous que la poignée du coupleur est en position verrouillée.

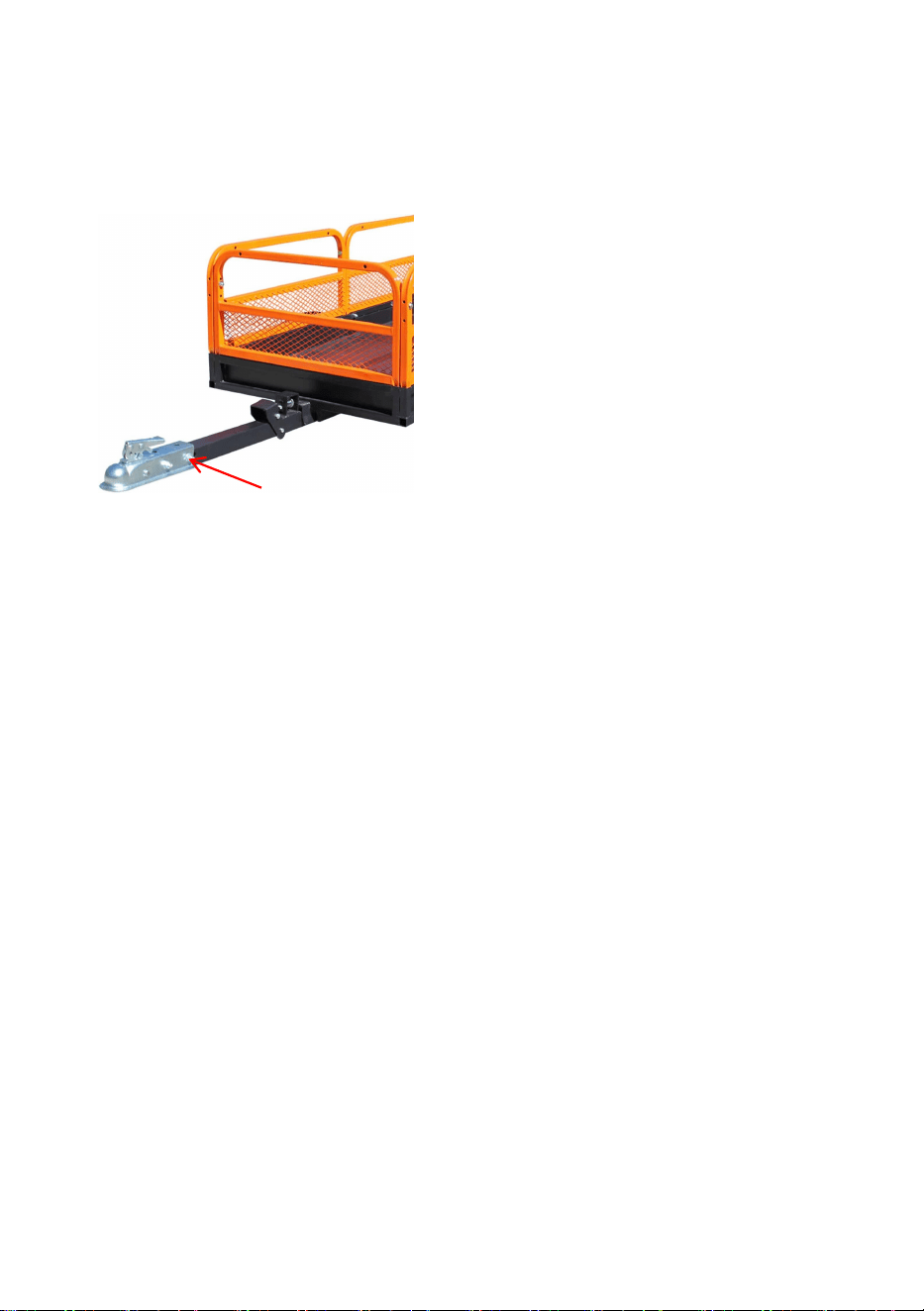

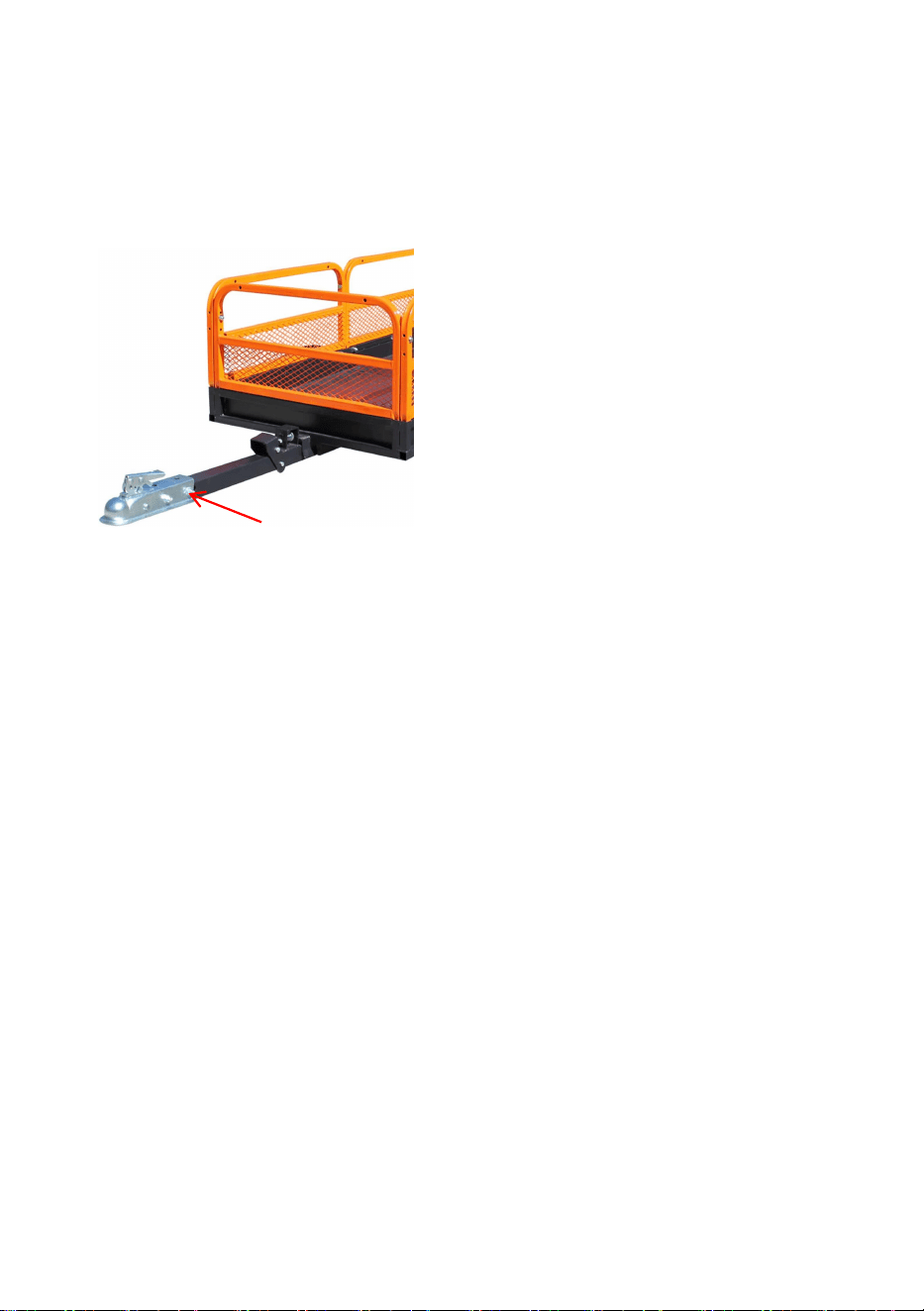

Installation :
Bolted Connection(Holes:Φ0.535in；Hole spacing：3in)
- 6 -
MAINTENANCE
1. Veuillez vérifier que les boulons sont bien serrés avant chaque
utilisation.
2. Ne pas surcharger.
3. Faites attention à la prévention de la rouille.
FABRIQUÉ EN CHINE
- 7 -
- 2 -
Technischer Support und E-Garantie-Zertifikat www.vevor.com/support
ANHÄNGERKUPPLUNG
MODELL: SS-TC-04C / SS-TC-07C
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 1 -
MODELL: SS -TC-04C / SS-TC-07C
Have product questions? Need technical support? Please feel free to
contact us:
TechnicalSupport and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
TRAILER COUPLER
- 2 -
SAFETY INSTRUCTIONS
13. Es müssen Sicherungsketten verwendet werden.
14. Achten Sie bei Schweißarbeiten unbedingt auf guten Schutz.
15. Überprüfen Sie unbedingt, ob die Schrauben fest angezogen sind .
16. Achten Sie auf die passende Anhängerkupplung.
17. Nach 50 Meilen Schleppen prüfen Sie, ob die Kupplung fest auf der
Kugel sitzt. Prüfen Sie vor dem Schleppen immer, ob die Kupplung
fest sitzt. Stellen Sie sicher, dass der Kupplungsgriff verriegelt ist.
18. Überschreiten Sie nicht das zulässige Gesamtgewicht des
Anhängers.
MODEL AND PARAMETERS
Modell
SS -TC- 04C
SS-TC-07C
Kapazität
35 00 Pfund
5000 Pfund
Ballgröße
2 Zoll
2 Zoll
Anwendbarer
Kanaldurchmesser /
2 Zoll
3 Zoll
Farbe
Silberweiß
Silberweiß
- 3 -

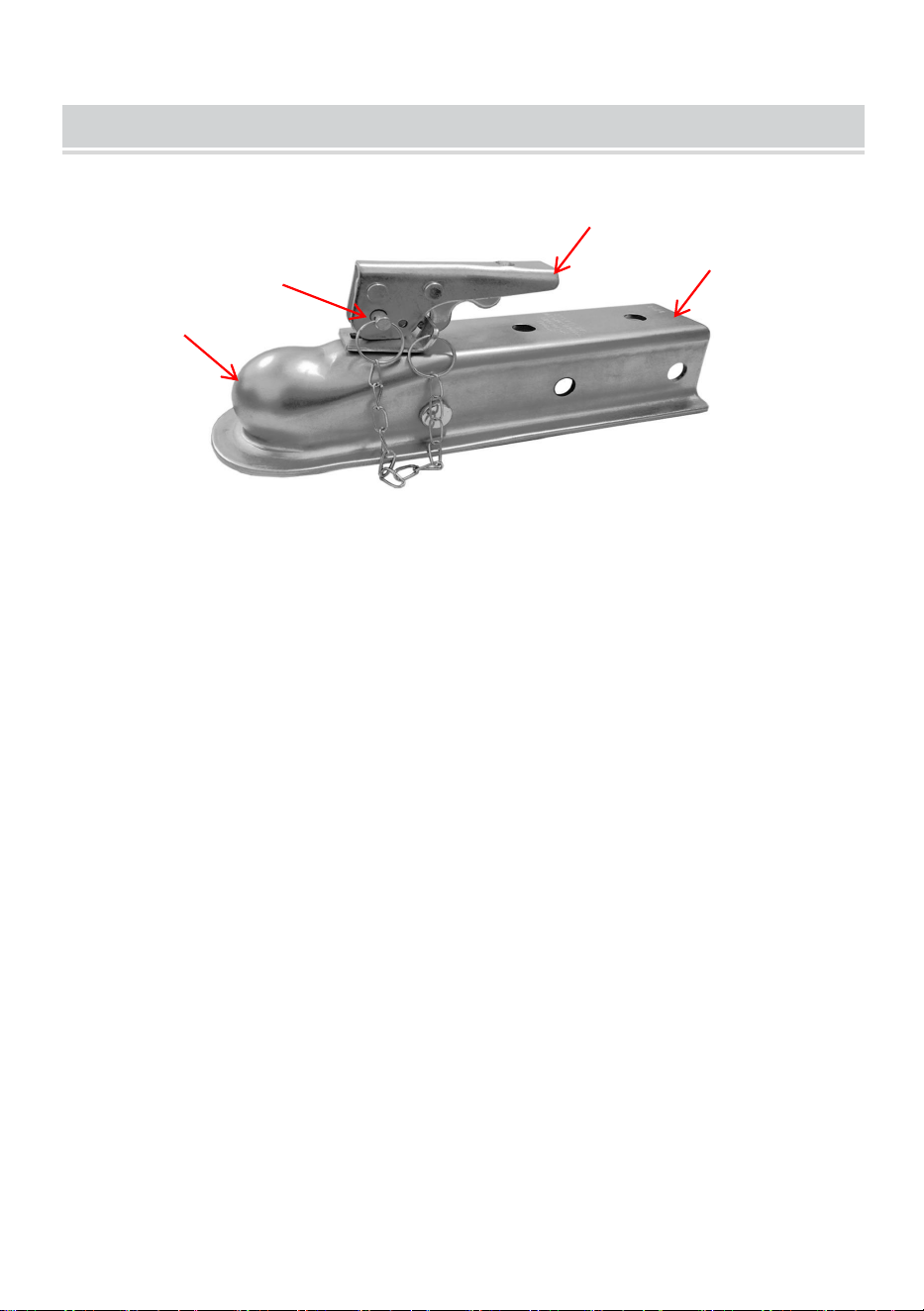

STRUCTURE DIAGRAM
Nehmen Sie zum Beispiel SS - TC- 04C .
1. Kugelpfanne 2. Sicherheitsstift 3. Griff 4. Kanal
1
2
3
4
- 4 -
COMPONENTS
NEIN.
Name
Men
1
Anhängerkupplung
1
3
Bedienungsanleitung
1
OPERATION
Zum Öffnen den Kupplungsgriff nach oben ziehen und nach vorne drehen.
Kupplung auf die Kugel setzen. Wenn die Kugel vollständig in der
Kugelpfanne sitzt, Kupplungsgriff nach hinten drehen, bis er in verriegelter
Position ist. Sicherheitsriegel einstecken.
Nach 50 Meilen Schleppen prüfen Sie, ob die Kupplung fest auf der Kugel
Hitch
Ball
Ball Socket
Under Jaw
Tension Spring
Locknut
Coupler
Handle Locked Position
Handle Open Position
- 5 -
sitzt. Prüfen Sie vor dem Schleppen immer, ob die Kupplung fest sitzt.
Stellen Sie sicher, dass der Kupplungsgriff verriegelt ist.

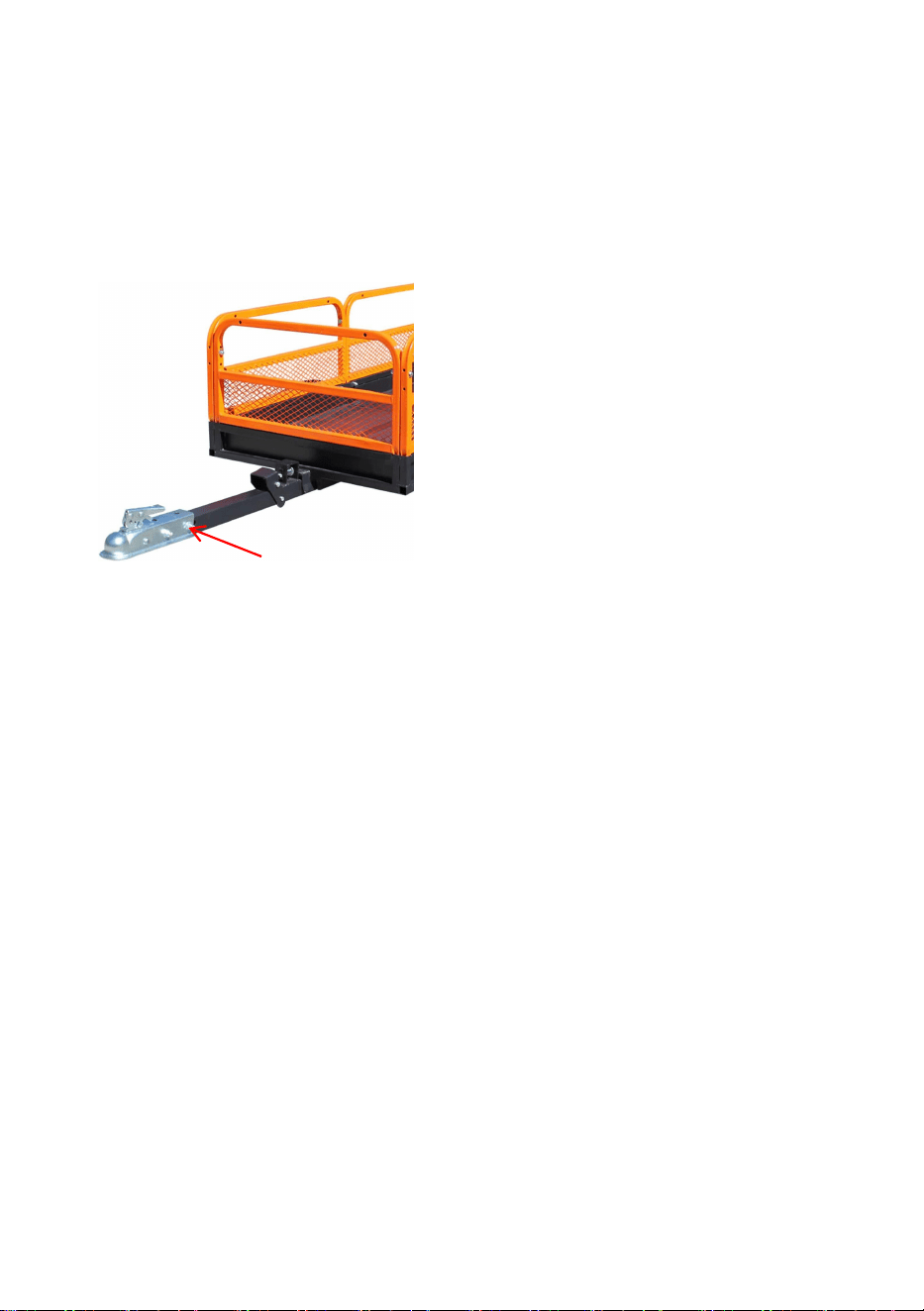

Installation :
Bolted Connection(Holes:Φ0.535in；Hole spacing：3in)
- 6 -
MAINTENANCE
1. Bitte überprüfen Sie vor jedem Gebrauch, ob die Schrauben fest sitzen.
2. Nicht überladen.
3. Achten Sie auf Rostschutz.
IN CHINA HERGESTELLT
- 7 -
- 2 -
Supporto tecnico e certificato di garanzia elettronica www.vevor.com/support
ATTACCO PER RIMORCHIO
MODELLO: SS-TC-04C / SS-TC-07C
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 1 -
MODELLO: SS -TC-04C / SS-TC-07C
Have product questions? Need technical support? Please feel free to
contact us:
TechnicalSupport and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
TRAILER COUPLER
- 2 -
SAFETY INSTRUCTIONS
19. È obbligatorio utilizzare catene di sicurezza.
20. Assicuratevi di indossare una buona protezione durante i lavori di
saldatura.
21. Assicuratevi di controllare che i bulloni siano ben serrati .
22. Assicuratevi di abbinare la sfera del rimorchio corrispondente.
23. Dopo aver trainato per 50 miglia, controllare che l'accoppiatore sia
ben stretto sulla sfera. Controllare sempre che sia ben stretto prima di
trainare. Assicurarsi che la maniglia dell'accoppiatore sia in posizione
bloccata.
24. Non superare la portata massima del rimorchio.
MODEL AND PARAMETERS
Modello
SS -TC- 04C
Codice articolo:
SS-TC-07C
Capacità
35 00 libbre
5000 libbre
Dimensioni della
palla
2 pollici
2 pollici
Diametro / Lunghezza
del canale applicabile
2 pollici
3 pollici
Colore
Bianco argenteo
Bianco argenteo
- 3 -

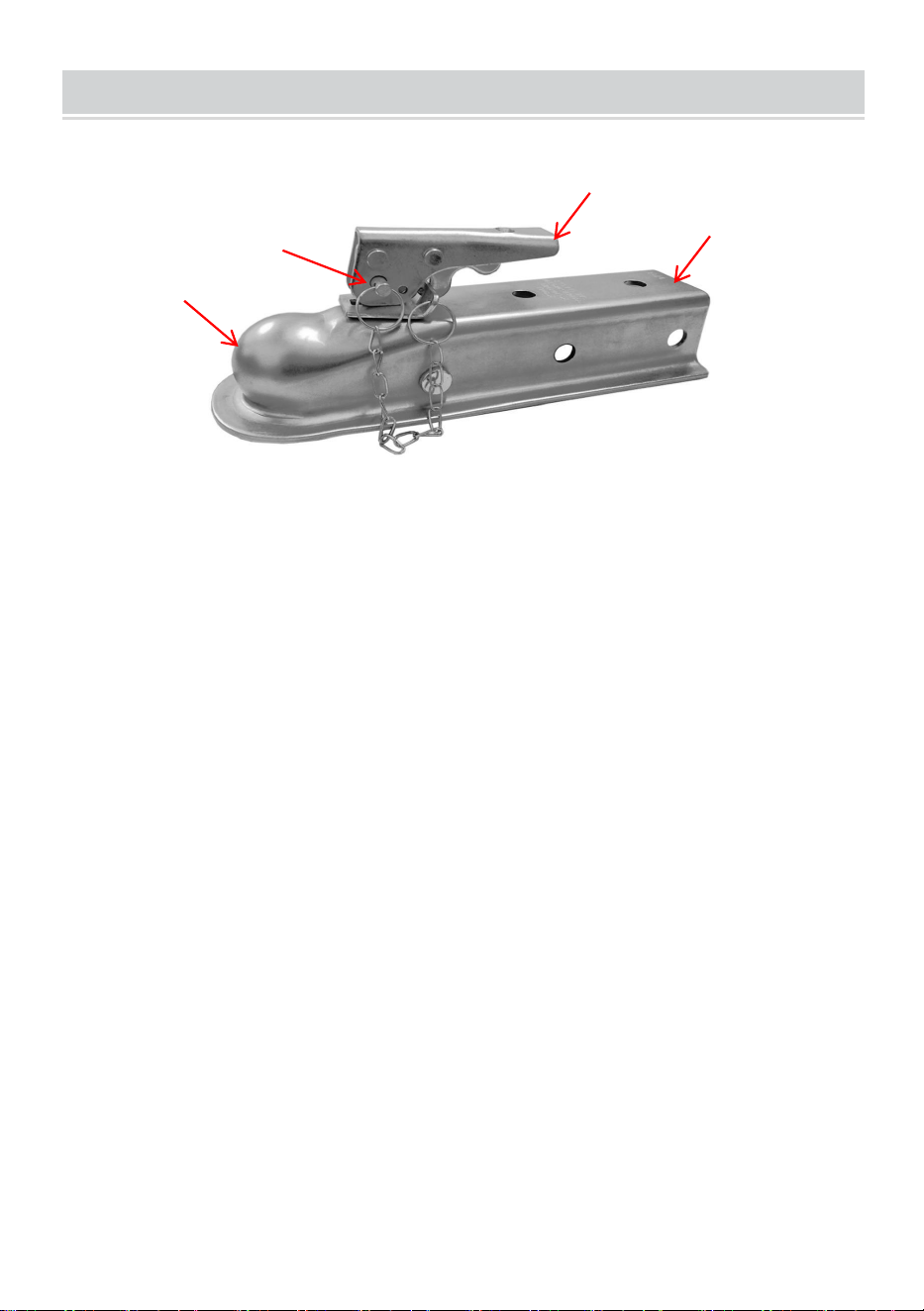

STRUCTURE DIAGRAM
Prendiamo ad esempio SS -T C- 04C .
1. Presa a sfera 2. Perno di sicurezza 3. Maniglia 4. Canale
1
2
3
4
- 4 -
COMPONENTS
NO.
Immagine
Nome
Qua
1
Attacco per rimorchio
1
3
Manuale d'uso
1
OPERATION
Per aprire, tirare verso l'alto la maniglia dell'accoppiatore e ruotare in
avanti. Posizionare l'accoppiatore sulla sfera. Quando la sfera è
completamente annidata nella sede della sfera, ruotare la maniglia
dell'accoppiatore all'indietro finché la maniglia non è in posizione di blocco.
Inserire il fermo di sicurezza.
Hitch
Ball
Ball Socket
Under Jaw
Tension Spring
Locknut
Coupler
Handle Locked Position
Handle Open Position
- 5 -
Dopo aver trainato per 50 miglia, controllare che l'accoppiatore sia ben
stretto sulla sfera. Controllare sempre che sia ben stretto prima di trainare.
Assicurarsi che la maniglia dell'accoppiatore sia in posizione bloccata.
Installazione :
Bolted Connection(Holes:Φ0.535in；Hole spacing：3in)
- 6 -
MAINTENANCE
1. Controllare che i bulloni siano ben serrati prima di ogni utilizzo.
2. Non sovraccaricare.
3. Prestare attenzione alla prevenzione della ruggine.
MADE IN CHINA
- 7 -
- 2 -
Soporte técnico y certificado de garantía electrónica www.vevor.com/support
ACOPLAMIENTO DE REMOLQUE
MODELO: SS-TC-04C / SS-TC-07C
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 1 -
MODELO: SS -TC-04C / SS-TC-07C
Have product questions? Need technical support? Please feel free to
contact us:
TechnicalSupport and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
TRAILER COUPLER
- 2 -
SAFETY INSTRUCTIONS
25. Se deben utilizar cadenas de seguridad.
26. Asegúrese de llevar una buena protección durante los trabajos de
soldadura.
27. Asegúrese de comprobar que los tornillos estén bien apretados .
28. Asegúrese de hacer coincidir la bola de remolque correspondiente.
29. Después de remolcar durante 50 millas, verifique que el enganche
esté bien apretado en la bola. Siempre verifique que esté bien
apretado antes de remolcar. Asegúrese de que la manija del
enganche esté en la posición bloqueada.
30. No exceda la capacidad de peso bruto del remolque.
MODEL AND PARAMETERS
Modelo
SS -TC- 04C
SS-TC-07C
Capacidad
35 00 libras
5000 libras
Tamaño de la pelota
2 pulgadas
2 pulgadas
Diámetro / longitud
del canal aplicable
2 pulgadas
3 pulgadas
Color
Blanco plateado
Blanco plateado
- 3 -
STRUCTURE DIAGRAM
Tomemos como ejemplo SS -T C- 04C .
1. Casquillo esférico 2. Pasador de seguridad 3. Mango 4. Canal
1
2
3
4
- 4 -
COMPONENTS
No.
Imagen
Nombre
Cant
1
Acoplamiento de remolque
1
3
Manual de usuario
1
OPERATION
Para abrir, tire hacia arriba de la manija del acoplador y gírela hacia
adelante. Coloque el acoplador sobre la bola. Cuando la bola esté
completamente encajada en el receptáculo de la bola, gire la manija del
acoplador hacia atrás hasta que la manija esté en la posición bloqueada.
Conecte el pestillo de seguridad.
Hitch
Ball
Ball Socket
Under Jaw
Tension Spring
Locknut
Coupler
Handle Locked Position
Handle Open Position
- 5 -
Después de remolcar durante 50 millas, verifique que el enganche esté
bien apretado en la bola. Siempre verifique que esté bien apretado antes
de remolcar. Asegúrese de que la manija del enganche esté en la posición
bloqueada.
Instalación :
Bolted Connection(Holes:Φ0.535in；Hole spacing：3in)
- 6 -
MAINTENANCE
1. Compruebe que los tornillos estén bien apretados antes de cada uso.
2. No sobrecargue.
3. Preste atención a la prevención de la oxidación.
HECHO EN CHINA
- 7 -
- 2 -
Wsparcie techniczne i certyfikat e-gwarancji www.vevor.com/support
SPRZĘG PRZYCZEPY
MODELE: SS-TC-04C / SS-TC-07C
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 1 -
MODEL: SS -TC-04C / SS-TC-07C
Have product questions? Need technical support? Please feel free to
contact us:
TechnicalSupport and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
TRAILER COUPLER
- 2 -
SAFETY INSTRUCTIONS
31. Należy stosować łańcuchy bezpieczeństwa.
32. Podczas prac spawalniczych należy zadbać o odpowiednią ochronę.
33. Sprawdź dokładnie, czy śruby są dobrze dokręcone .
34. Pamiętaj o dopasowaniu odpowiedniej kuli przyczepy.
35. Po holowaniu przez 50 mil sprawdź szczelność zaczepu na kuli.
Zawsze sprawdzaj szczelność przed holowaniem. Upewnij się, że
uchwyt zaczepu jest w pozycji zablokowanej.
36. Nie przekraczać dopuszczalnej masy całkowitej przyczepy.
MODEL AND PARAMETERS
Model
SS -TC- 04C
SS-TC-07C
Pojemność
35 00 funtów
5000 funtów
Rozmiar piłki
2 cale
2 cale
Średnica / długość
kanału, który ma
2 cale
3 cale
Kolor
Srebrzystobiały
Srebrzystobiały
- 3 -
STRUCTURE DIAGRAM
Weźmy na przykład SS -T C- 04C .
1.Gniazdo kulowe 2.Kołek zabezpieczający 3.Uchwyt 4.Kanał
1
2
3
4
- 4 -
COMPONENTS
NIE.
Zdjęcie
Nazwa
Ilość
1
Sprzęg przyczepy
1
3
Instrukcja obsługi
1
OPERATION
Aby otworzyć, pociągnij za uchwyt sprzęgu i obróć do przodu. Umieść
sprzęg na kuli. Gdy kula jest całkowicie osadzona w gnieździe kuli, obróć
uchwyt sprzęgu do tyłu, aż uchwyt znajdzie się w pozycji zablokowanej.
Podłącz zatrzask bezpieczeństwa.
Hitch
Ball
Ball Socket
Under Jaw
Tension Spring
Locknut
Coupler
Handle Locked Position
Handle Open Position
- 5 -
Po holowaniu przez 50 mil sprawdź szczelność zaczepu na kuli. Zawsze
sprawdzaj szczelność przed holowaniem. Upewnij się, że uchwyt zaczepu
jest w pozycji zablokowanej.
Instalacja :
Bolted Connection(Holes:Φ0.535in；Hole spacing：3in)
- 6 -
MAINTENANCE
1. Przed każdym użyciem sprawdź, czy śruby są dokręcone.
2. Nie przeciążaj.
3. Zwróć uwagę na ochronę przed rdzą.
WYKONANO W CHINACH
- 7 -
- 2 -
Technische ondersteuning en e-garantiecertificaat www.vevor.com/support
AANHANGWAGENKOPPELING
MODEL: SS-TC-04C / SS-TC-07C
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 1 -
MODEL: SS -TC-04C / SS-TC-07C
Have product questions? Need technical support? Please feel free to
contact us:
TechnicalSupport and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
TRAILER COUPLER
- 2 -
SAFETY INSTRUCTIONS
37. Er moeten veiligheidskettingen worden gebruikt.
38. Zorg ervoor dat u goede bescherming draagt tijdens
laswerkzaamheden.
39. Controleer of de bouten goed vastzitten .
40. Zorg ervoor dat je de juiste trailerbal gebruikt.
41. Controleer na 50 mijl slepen of de koppeling stevig op de kogel zit.
Controleer altijd de stevigheid voordat u gaat slepen. Zorg ervoor dat
de koppelingshendel in de vergrendelde positie staat.
42. het maximaal toegestane totaalgewicht van de aanhanger niet .
MODEL AND PARAMETERS
Model
SS -TC- 04C
SS-TC-07C
Capaciteit
35 00 pond
5000 pond
Balgrootte
2 inch
2 inch
Toepasselijke
kanaaldiameter /
2 inch
3 inch
Kleur
Zilverwit
Zilverwit
- 3 -
STRUCTURE DIAGRAM
Neem bijvoorbeeld SS -T C- 04C .
1. Kogelgewricht 2. Veiligheidsspeld 3. Handvat 4. Kanaal
1
2
3
4
- 4 -
COMPONENTS
Nee.
Afbeelding
Naam
Hoe
1
Aanhangwagenkoppeling
1
3
Gebruiksaanwijzing
1
OPERATION
Om te openen, trek aan de koppelingshendel en draai naar voren. Plaats
de koppeling op de kogel. Wanneer de kogel volledig in de kogelhouder zit,
draai de koppelingshendel naar achteren totdat de hendel in de
vergrendelde positie staat. Sluit de veiligheidsgrendel aan.
Controleer na 50 mijl slepen of de koppeling stevig op de kogel zit.
Hitch
Ball
Ball Socket
Under Jaw
Tension Spring
Locknut
Coupler
Handle Locked Position
Handle Open Position
- 5 -
Controleer altijd de stevigheid voordat u gaat slepen. Zorg ervoor dat de
koppelingshendel in de vergrendelde positie staat.
Installatie :
Bolted Connection(Holes:Φ0.535in；Hole spacing：3in)
- 6 -
MAINTENANCE
1. Controleer voor elk gebruik of de bouten goed vastzitten.
2. Overbelast niet.
3. Let op roestpreventie.
Gemaakt in China
- 7 -
- 2 -
Teknisk support och e-garanticertifikat www.vevor.com/support
SLÄPVAGNSKOPPLING
MODELL: SS-TC-04C / SS-TC-07C
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 1 -
MODELL: SS -TC-04C / SS-TC-07C
Have product questions? Need technical support? Please feel free to
contact us:
TechnicalSupport and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
TRAILER COUPLER
- 2 -
SAFETY INSTRUCTIONS
43. Säkerhetskedjor måste användas.
44. Se till att ta bra skydd under svetsarbeten.
45. Se till att kontrollera att bultarna är åtdragna .
46. Se till att matcha motsvarande trailerkula.
47. Efter bogsering i 50 miles, kontrollera att kopplingen är tät på kulan.
Kontrollera alltid tätheten innan bogsering. Se till att
kopplingshandtaget är i låst läge.
48. Överskrid inte släpvagnens totalvikt.
MODEL AND PARAMETERS
Modell
SS -TC- 04C
SS-TC-07C
C kapacitet
35 00 pund
5000 pund
Kulstorlek
2 tum
2 tum
Tillämplig
kanaldiameter / L
2 tum
3 tum
Färg
Silvervit
Silvervit
- 3 -
STRUCTURE DIAGRAM
Ta SS -T C- 04C till exempel .
1.Bolhylsa 2.Säkerhetsstift 3.Handtag 4.Kanal
1
2
3
4
- 4 -
COMPONENTS
Inga.
Namn
Anta
1
Släpvagnskoppling
1
3
Användarmanual
1
OPERATION
För att öppna, dra upp kopplingshandtaget och rotera framåt. Placera
kopplingen på kulan. När kulan är helt inkapslad i kulhylsan, vrid
kopplingshandtaget bakåt tills handtaget är i låst läge. Sätt i
säkerhetsspärren.
Efter bogsering i 50 miles, kontrollera att kopplingen är tät på kulan.
Hitch
Ball
Ball Socket
Under Jaw
Tension Spring
Locknut
Coupler
Handle Locked Position
Handle Open Position
- 5 -
Kontrollera alltid tätheten innan bogsering. Se till att kopplingshandtaget är
i låst läge.
I nstallation :
Bolted Connection(Holes:Φ0.535in；Hole spacing：3in)
- 6 -
MAINTENANCE
1. Kontrollera att bultarna är åtdragna före varje användning.
2. Överbelasta inte.
3. Var uppmärksam på att förhindra rost.
GJORT I KINA
- 7 -
