Technical Support and E-Warranty Certificate www.vevor.com/support
COFFEE MAKER
MODEL:CM5400A-UL
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 1 -
MODEL:CM5400A-UL
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
COFFEE MAKER
- 2 -
Warning-To reduce the risk of injury, user must read
instructions manual carefully.
IMPORTANT SAFEGUARDS
Before using the electrical appliance, the following basic precautions should always be
followed including the following:
1. Read all instructions.
2. Before using check that the voltage of wall outlet corresponds to rated voltage
marked on the rating plate.
3. This appliance has been incorporated with a grounded plug. Please ensure the
wall outlet in your house is well earthed.
4. To protect against fire, electric shock and injury to persons do not immerse cord,
plug, in water or other liquid.
5. Remove the plug from the wall outlet before cleaning and when not in use. Allow
the appliance to cool down completely before removing, attaching components, or
cleaning.
6. Do not operate any appliance with a damaged cord or plug or after the
appliance malfunctions, or is dropped or damaged in any manner. Return
appliance to the nearest authorized service facility for examination, repair or
electrical or mechanical adjustment.
7. The use of accessory attachments not recommended by the appliance
manufacturer may result in fire, electric shock or injury to persons.
8. Place appliance on flat surface or table, do not hang power cord over the edge
of table or counter.
9. Ensure the power cord does not touch the hot surface of the appliance.
10.Do not place the coffee machine on a hot surface or beside the fire to avoid
damage.
11. To disconnect, remove plug from wall outlet. Always hold the plug. But never
pull the cord.
12. Do not use appliance for other than intended use and place it in a dry
environment.
13. Close supervision is necessary when your appliance is being used near
children.
- 3 -
14. Be careful not to get burned by the steam.
15. Do not touch the hot surface of appliance (such as steam wand, and the steel
mesh just boiling). Use handle or knobs.
16. Do not let the coffee maker operate without water.
17. Do not remove the metal funnel when appliance in brewing coffee or making
steam.
18. Connect plug to wall outlet before using and turn any switch off before plug is
removed from wall outlet.
19. This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning use
of the appliances by a person responsible for their safety.
20. Children should be supervised to ensure that they do not play with the
appliance.
21. This appliance is intended to be used in household and similar applications
such as:
– staff kitchen areas in shops, offices and other working environments;
– farm houses;
– by clients in hotels, motels and other residential type environments;
– bed and breakfast type environments.
22. Do not use outdoors.
23. Save these instructions.
24. If you do not use the product for a long time, you need to turn on the power and
then release steam for 3 minutes before leaving this product.
25. If you cut off power during steam release, residual heat will make product
continue to release steam for a length of time, the product will stop releasing
steam immediately once you turn off steam knob.

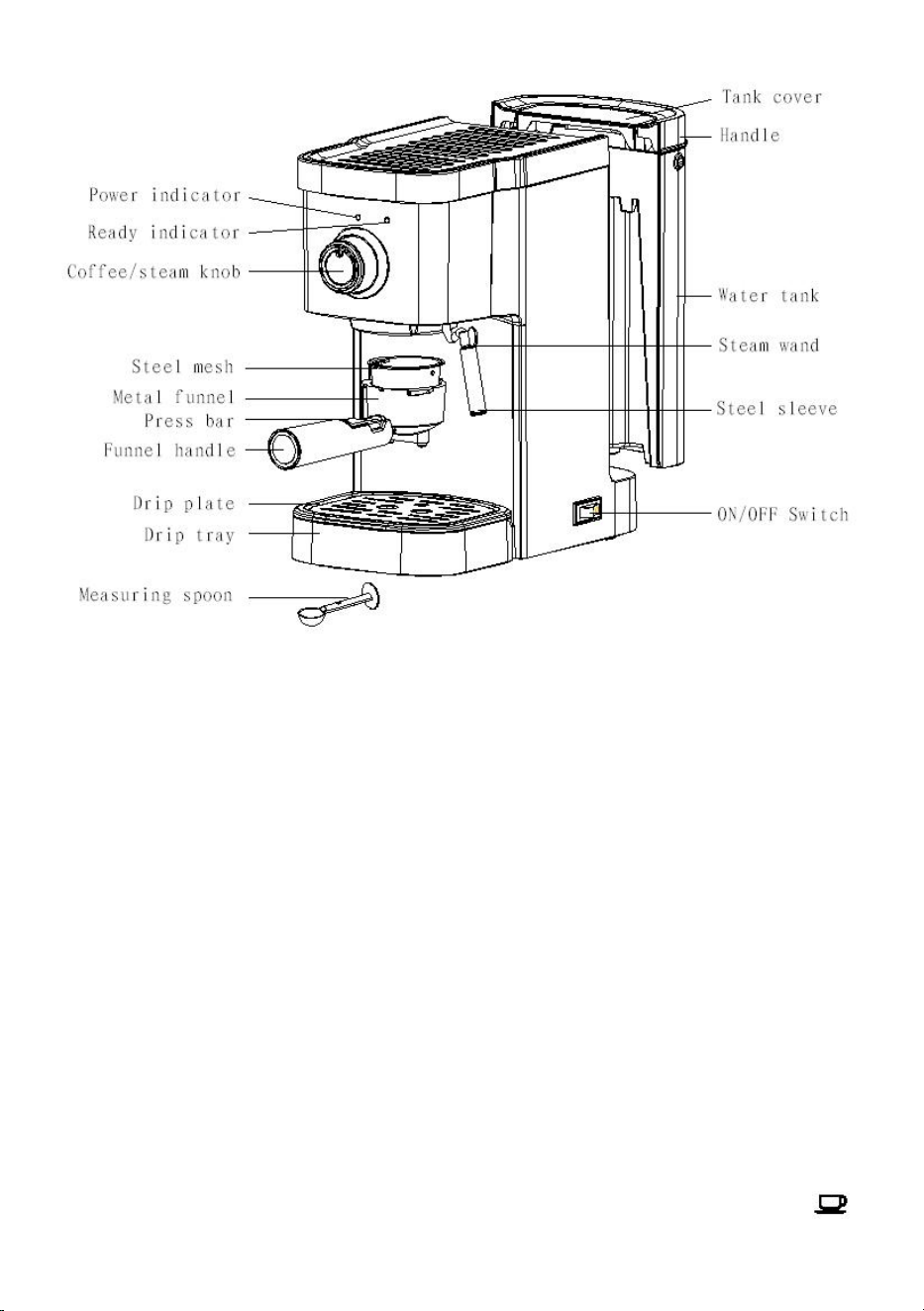

KNOW YOUR COFFEE MAKER
(Product may be subject to change without prior notice)
- 4 -
BEFORE THE FIRST USE
To ensure the first cup of coffee tastes excellent, you should rinse the coffee maker
with warm water as follows:
1. Pour water into water tank, the water level should not exceed the “MAX” mark
in the tank. Then close the water tank cover.
Note: the appliance is supplied with a detachable tank for easy cleaning, you can
fill the tank with water firstly, and then put the tank into the appliance.
2. Set steel mesh into metal funnel (no coffee in steel mesh).
3. Place an espresso cup (your cup) on drip plate. Make sure the coffee/steam
knob is on the middle position.
Note: the appliance is not equipped with jug, please use your jug or coffee cup.
4. Connect to power source, press the ON/OFF switch. The red indicator will
flashing.
5. The appliance begins to be pre-heated until the red indicator becomes solid, it
shows the pre-heating is finished. Turning the coffee/steam knob to the “ ”
- 5 -
position, and water will flow out.
6. After about 30s, turn the coffee/steam knob to the middle position to stop
brewing, you can pour the water in container out then clean them thoroughly, now
you can start brewing.
Note: There may be noise when pumping the water on the first time, it is normal,
the appliance is releasing the air in the appliance. After about 20s, the noise will
disappear.
PRE-HEATING
To make a cup of good hot Espresso coffee, we recommend you preheat the
appliance before making coffee, including the funnel, steel mesh, and cup, so the
cold parts can not influence the coffee flavor.
1. Remove the detachable tank and open the tank cover to fill it with desired
water, the water level should not exceed the “MAX” mark in the tank. Then place t
he tank into the appliance properly.
2. Set steel mesh into metal funnel, make sure the tube on the funnel aligns with
groove in the appliance, then insert the funnel into the appliance from the “ ”
position, and you can fix them into coffee maker firmly through turn it anticlockwise
until it is at the“ ” position.
3. Place an espresso cup (your cup) on removable drip plate.
4. Then connect the appliance to power supply source. Make sure the
coffee/steam knob is on the middle position.
5. Press the ON/OFF switch, the red indicator will flashing.
6. When the red indicator becomes solid, you should turn the coffee/steam knob
to the “ ” position, there will be hot water flowing out. After about 30s, close the
coffee/steam knob by turning the coffee/steam knob again to the middle position”.
The pre-heating is finished.
MAKE ESPRESSO COFFEE
1. Remove the funnel by turning it in clockwise, .Add ground coffee to steel mesh
with coffee spoon, a spoon ground coffee power can make about a cup of
top-grade coffee, then press the ground coffee powder tightly with the coffee
- 6 -
spoon.
2. Set steel mesh into metal funnel, make sure the tube on the funnel aligns with
groove in the appliance, then insert the funnel into the appliance as indicating of
“ ” mark, and you can fix them into coffee maker firmly through turning it
anticlockwise until it is at the “ ” position .
3. Pour out the hot water in the cup. Then place the hot cup (yourself cup) on drip
plate.
4. At the time, the red indicator becomes solid, you should turn the knob to the
“ ” position, waiting for a moment, there will be coffee flowing out. During
making coffee, the white indicator will be illuminated.
5. You should turn the knob to the middle position manually when desired coffee
(about 60ml of two cups) is obtained or the colour of coffee changes weak
obviously, your coffee is ready now.
WARNING: Do not leave the coffee maker unattended during making the coffee,
as you need operate manually sometimes!
6. After finishing making the coffee, you can take the metal funnel out through turn
clockwise, then pour the coffee residue out with the steel mesh pressed by press
bar.
7. Press the power switch to cut off the power source.
8. Let them cool down completely, then rinse under running water.
FROTHING MILK/ MAKE CAPPUCCINO
You get a cup of cappuccino when you top up a cup of espresso with frothing milk.
Note: during making steam, the metal funnel must be assembled in position.
Method:
1. Prepare espresso first with container big enough according to the part “MAKE
ESPRESSO COFFEE”.
2. Turn the coffee/steam knob to the middle position, waiting for until the red
indicator becomes solid.
3. Fill a jug with about 100 grams of milk for each cappuccino to be prepared, you
are recommended to use whole milk at refrigerator temperature (not hot!).
4. Note: In choosing the size of jug, it is recommended the diameter is not less
than 70±5mm, and bear in mind that the milk increases in volume by 2 times,
make sure the height of jug is enough.
- 7 -
5. Insert the plastic sleeve into the milk about two centimetre, then turn the
coffee/steam knob to the “ ” position, steam will come out from the steam outlet.
Froth milk in the way moving vessel round from up to down. During making steam,
the white indicator will be illuminated.
6. Warning: Be sure to operate carefully as the steam may result in scald to
person.
7. When the required purpose is reached, you can turn the coffee/steam knob to
the middle position.
8. Note: Clean steam outlet with wet sponge immediately after steam stops
generating, but care not to hurt!
9. Pour the frothed milk into the espresso prepared, now the cappuccino is ready.
Sweeten to taste and if desired, sprinkle the froth with a little cocoa powder.
10. Press the power switch to cut off the power source.
Note：If you want to make coffee again after frothing milk. You should turn the
knob to the “ ” position and place an cup on drip plate, the pump will pump
water for one cup, then turn the knob to the middle position, you can brew coffee
again.
PRODUCING STEAM TO HEAT LIQUIDS
The steam wand can be used singly for milk or to make hot beverages like
chocolate and water.
Method:
1. Remove the detachable tank and fill it with desired water, the water level should
not exceed the “MAX” mark in the tank. Then place the tank into the appliance
properly.
2. Then connect the appliance to power supply source.
3. Press the ON/OFF switch, and the red indicator will flash.
4. Turning the coffee/steam knob to the middle position , When the red indicator
becomes solid, it shows the heating is finish.
5. Dip the steam wand with plastic sleeve into the liquid to be heated or the
intended froth milk. Turn the coffee/steam knob to the “ ” position and start
making steam.
6. When the required temperature is reached or the frothing milk is obtained, you
can turn the coffee/steam knob to the middle position.
- 8 -
7. Press the ON/OFF switch to cut off the power source.
AUTOMATICALLY POWER-OFF FUNCTION
1. After pressing power switch, if there is no any operation within 25 minutes, the
unit will power off automatically.
2. After pressing the power switch, if there is no operation after the pump has
worked for 90 while brewing coffee, the pump will stop working automatically.
3. After pressing the power switch, if there is no operation after the pump has
worked for 180 seconds during froth milk, the pump will stop working automatically.
CLEAN AND MAINTENANCE
1. Cut off power source and let the coffee maker cool down completely before
cleaning.
2. Clean housing of coffee maker with moisture-proof sponge often and clean
water tank, drip tray and drip plate regularly then dry them.
Note: Do not clean with alcohol or solvent cleanser. Never immerse the housing in
water for cleaning.
3. Detach the metal funnel by turning it clockwise, get rid of coffee residue inside,
then you can clean it with cleanser, but at last you must rinse with clear water.
4. Clean all the attachments in the water and dry thoroughly.
CLEANING MINERAL DEPOSITS
1. To make sure your coffee maker operating efficiently, internal piping is cleanly
and the peak flavor of coffee, the coffee machine needs to be descaled, cleaned
and maintained periodically. The red indicator and white indicator will blink
alternately when the coffee machine has performed the coffee-brewing or
milk-frothing function for 150 cycles, which means that the coffee machine needs
to be performed cleaning.
2. Fill the tank with water and descaler to the MAX level ( the scale of water and
descaler is 4:1, the detail refers to the instruction of descaler. Please use
“household descaler”, you can use the citric acid (obtainable from chemist’s or
drug stores) instead of the descaler (the one hundred parts of water and three
- 9 -
parts of citric acid).
3. Turn the knob to “ ” setting, the pump starts to pump water and it will stop
running after pumping for about 60 seconds, then turn the knob to middle setting,
leave the descaler in the appliance for at least 5 minutes.
4. Fill the water tank with water and descaler to the MAX level.
5. Turn the knob to “ ” setting, the pump starts to pump water and it will stop
running after pumping for about 60 seconds, then turn the knob to middle setting.
6. Then brew coffee (no coffee powder) with tap water in the MAX level, repeat the
steps of 2-5 for 2 times (it is not necessary to wait for 5 minutes in step of 3).
7. After finish the above operation, the red indicator and white indicator will not
blink alternately, and the cleaning is finished.
8. If do not want to perform cleaning when the cleaning warning appears, quickly
turn the knob to “ ”, then turn the knob to middle, and then turn the knob to “ ”
setting and turn the knob to middle setting again, which shall be finished within 3
seconds, then the cleaning warning can be canceled.
TROUBLE SHOOTING
Symptom
Cause
Corrections
Water leaks
from the bottom
of coffee maker.
There is much water in
the drip tray.
Please clean the drip tray.
The coffee maker is
malfunction.
Please contact with the authorized
service facility for repairing.
Water leaks out
of outer side of
filter.
There is some coffee
powder on filter edge.
Get rid of them.
Acid (vinegar)
taste exists in
Espresso
coffee.
No clean correctly after
cleaning mineral
deposits.
Clean coffee maker per the
content in “before the first use” for
several times.
The coffee powder is
stored in a hot, wet
place for a long time.
The coffee powder
turns bad.
Please use fresh coffee powder, or
store unused coffee powder in a
cool, dry place. After opening a
package of coffee powder, reseal it
tightly and store it in a refrigerator
to maintain its freshness.
- 10 -
The coffee
maker cannot
work any more.
The power outlet is not
plugged well.
Plug the power cord into a wall
outlet correctly, if the appliance still
does not work, please contact with
the authorized service facility for
repairing.
The steam
cannot froth.
The white indicator is
not illuminated.
Only after the white indicator is
illuminated, the steam can be used
to froth.
The container is too big
or the shape is not fit.
Use high and narrow cup.
You have used
skimmed milk
Use whole milk or half-skimmed
milk
Made In China
