CHEST
FREEZER
USER MANUAL
Item #4902983/4902982
Model #BD-150B-E/BD-200B-E
12. Do not store explosive substances such as aerosol cans with a flammable
propellant in this appliance.
DANGER: Risk of child entrapment. Before you throw away your old
refrigerator or freezer:
* Take off the doors.
* Leave the shelves in place so that children may not easily climb inside.
SAVE THESE INSTRUCTIONS
For Future Reference Please
13. WARNING: keep ventilation openings, in the appliance enclosure or in the
builtin structure, clear of obstruction.
14. WARNING: do not use mechanical devices or other means to accelerate
the defrosting process, other than those recommended by the manufacturer.
15. WARNING: do not damage the refrigerant circuit.
16. WARNING: do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the type recommended by the
manufacturer.
..........................................................................

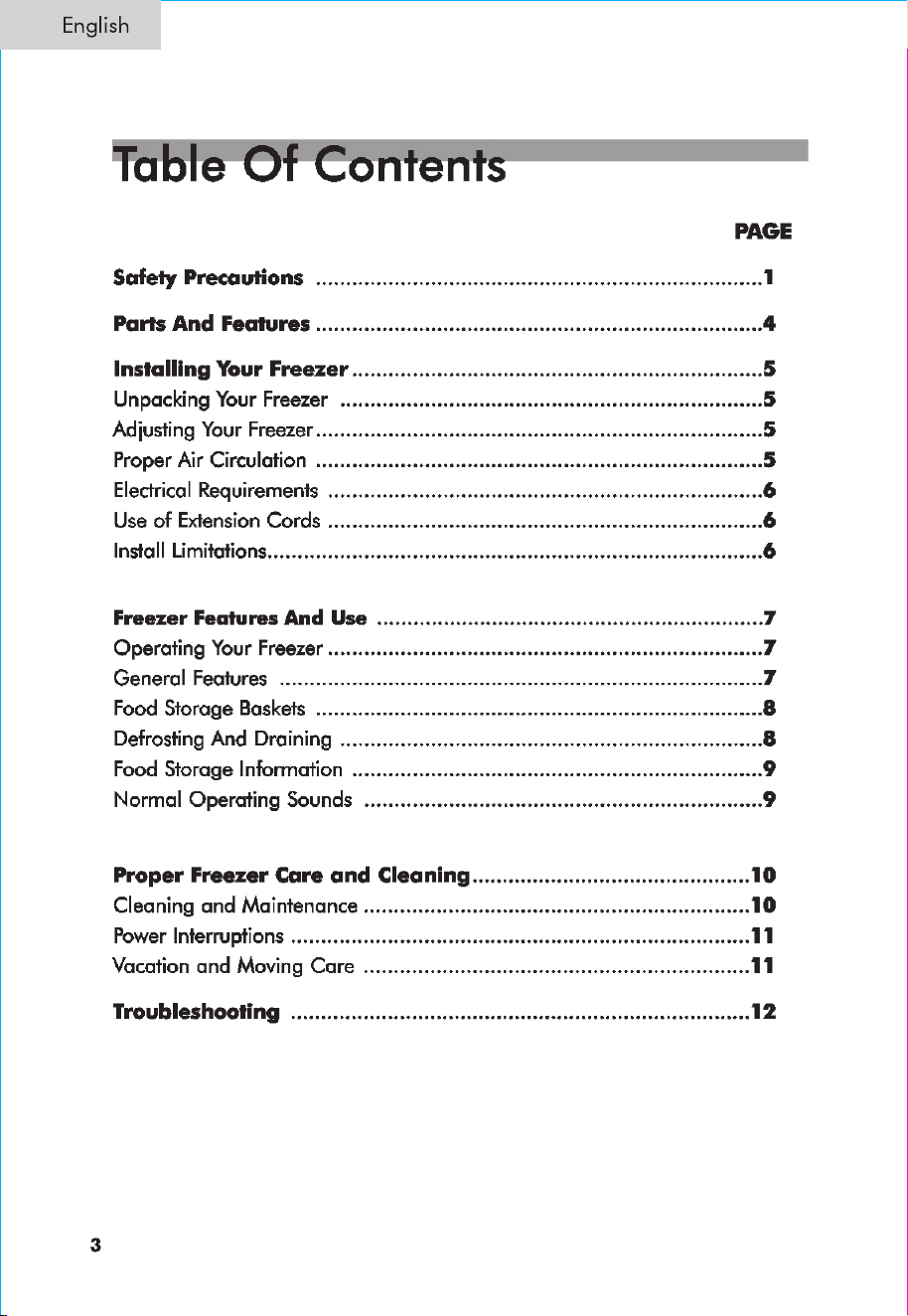

Product Specifications ..............................................................13
4
1. Temperature Control Adjustment 2. Plastic Removable Storage Basket
3. Exterior Drain Dial 4. Compressor on Indicator (green)
3
4
1
2
5
24 600
6
This appliance is intended to be used in household and similar applica-
tions such as
- staff kitchen areas in shops, offices and other working environments;
- farm houses and by clients in hotels, motels and other residential type
environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.
7
0
6
1
7
2
4
3
5

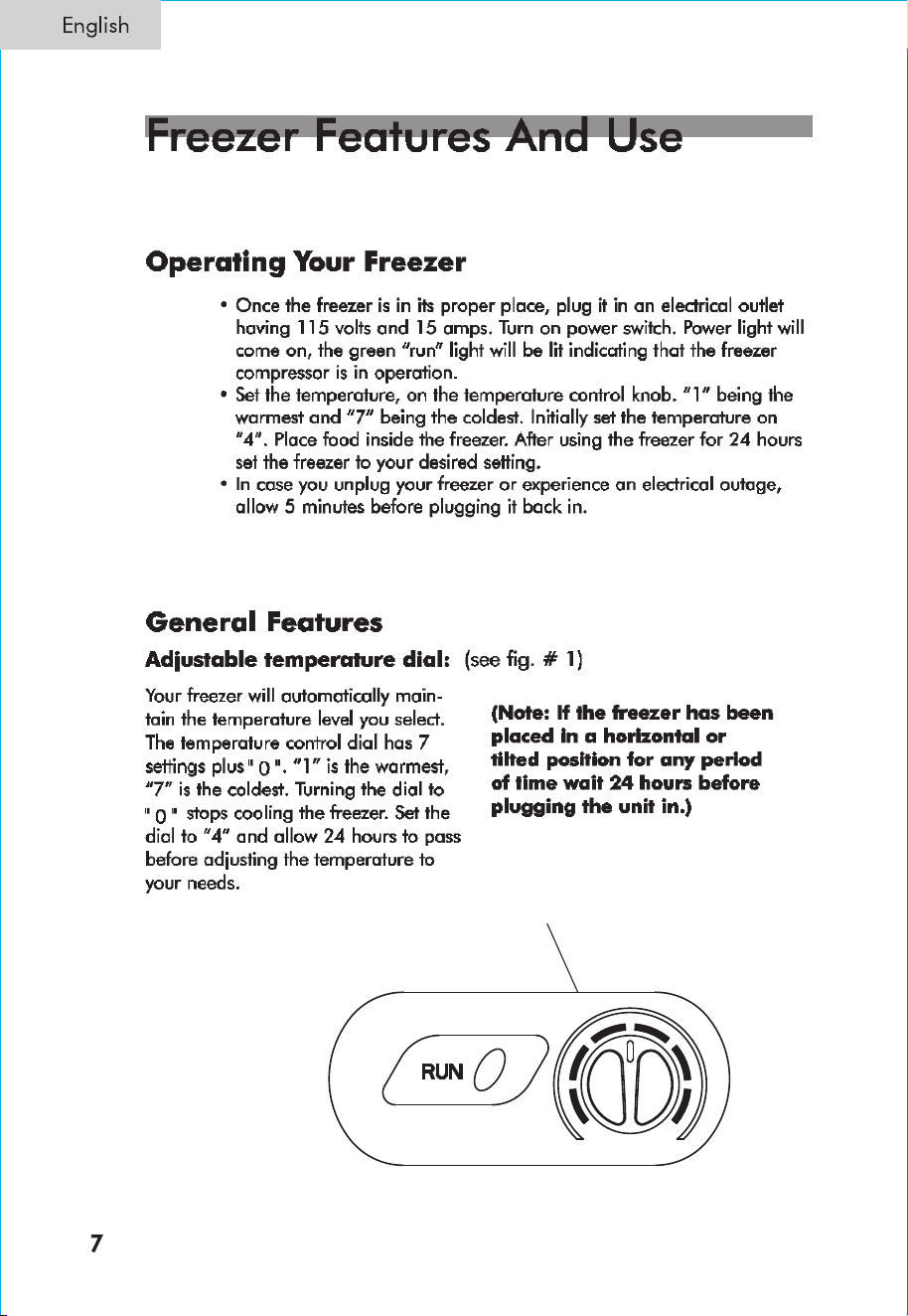

temperature control dial
fig. #1
8
9
10
11
DANGER - Risk Of Fire Or Explosion. FLAMMABLE REFRIGERANT Used. To Be Repaired
Only By Trained Service Personnel. Do Not Puncture Refrigerant Tubing.
CAUTION - Risk Of Fire Or Explosion. FLAMMABLE REFRIGERANT Used.Consult Repair
Manual/Owner's Guide Before Attempting To Service ThisProduct. All Safety Precautions
Must be Followed.
CAUTION - Risk Of Fire Or Explosion. Dispose Of Properly In Accordance With The
Applicable Federal Or Local Regulations. FLAMMABLE REFRIGERANT Used.
CAUTION - Risk Of Fire Or Explosion Due To Puncture Of Refrigerant Tubing; Follow
Handling Instructions Carefully. FLAMMABLE REFRIGERANT Used.
DANGER - Risk Of Fire Or Explosion. FLAMMABLE REFRIGERANT Used. Do Not Use
Mechanical Devices To Defrost Refrigerator. Do Not Puncture Refrigerant Tubing.
12
13
PRODUCT SPECIFICATIONS
Model No.
BD-150B-E BD-200B-E
CAPACITY OF CHEST FREEZER IN CU FT 5.0 7.0
TEMPERATURE CONTROL TYPE MECHANICAL MECHANICAL
TEMPERATURE RANGE -4 ~6.8 (-14 ~-20 ) -4 ~6.8 (-14 ~-20 )
DEPTH (EXCLUDING HINGE) (IN) 20.8 20.8
DEPTH (INCLUDING HINGE) (IN) 21.8 21.8
HEIGHT WITH DOOR OPEN 45 DEGREES (IN) 45.3 45.3
HEIGHT WITH DOOR OPEN 90 DEGREES (IN) 53.1 53.1
PRODUCT WIDTH (IN.) 27.3 35.4
PRODUCT DEPTH (IN.) 21.8
21.8
PRODUCT HEIGHT (IN.) 32.9 32.9
℉ ℉ ℃ ℃ ℉ ℉ ℃ ℃
：
：
：
：
：
：
：
