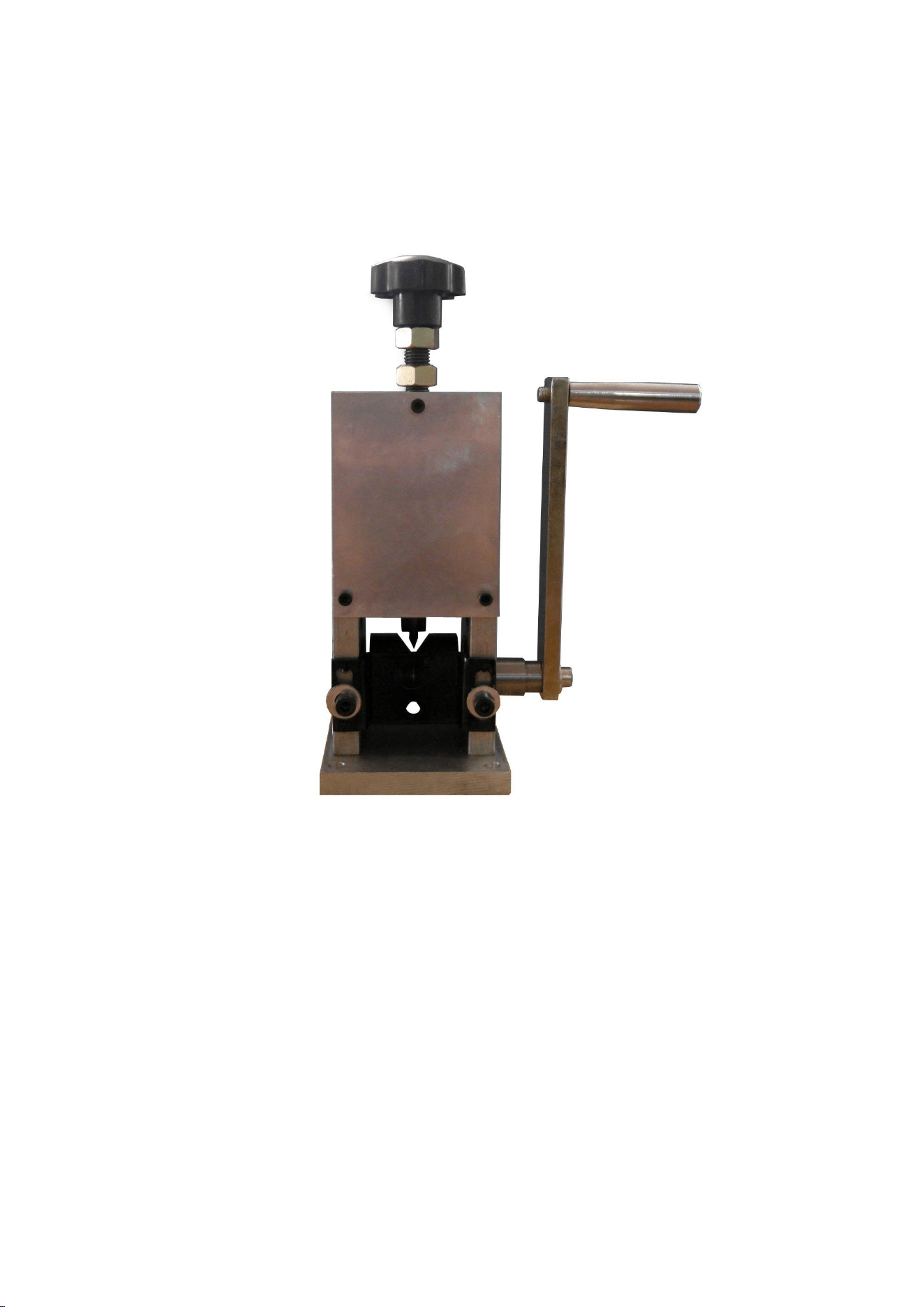

Aluminum alloy wire stripper machine
Specifications
Capacity: Φ1.5mm~ 25mm
Size: 15cm X 13cm X 31cm
Weight：5.5kg
It’s easy to operate with hand crank or drill driven, portable and convenient,
energy saving, nice appearance; u can get copper wire after the single blades
stripping.

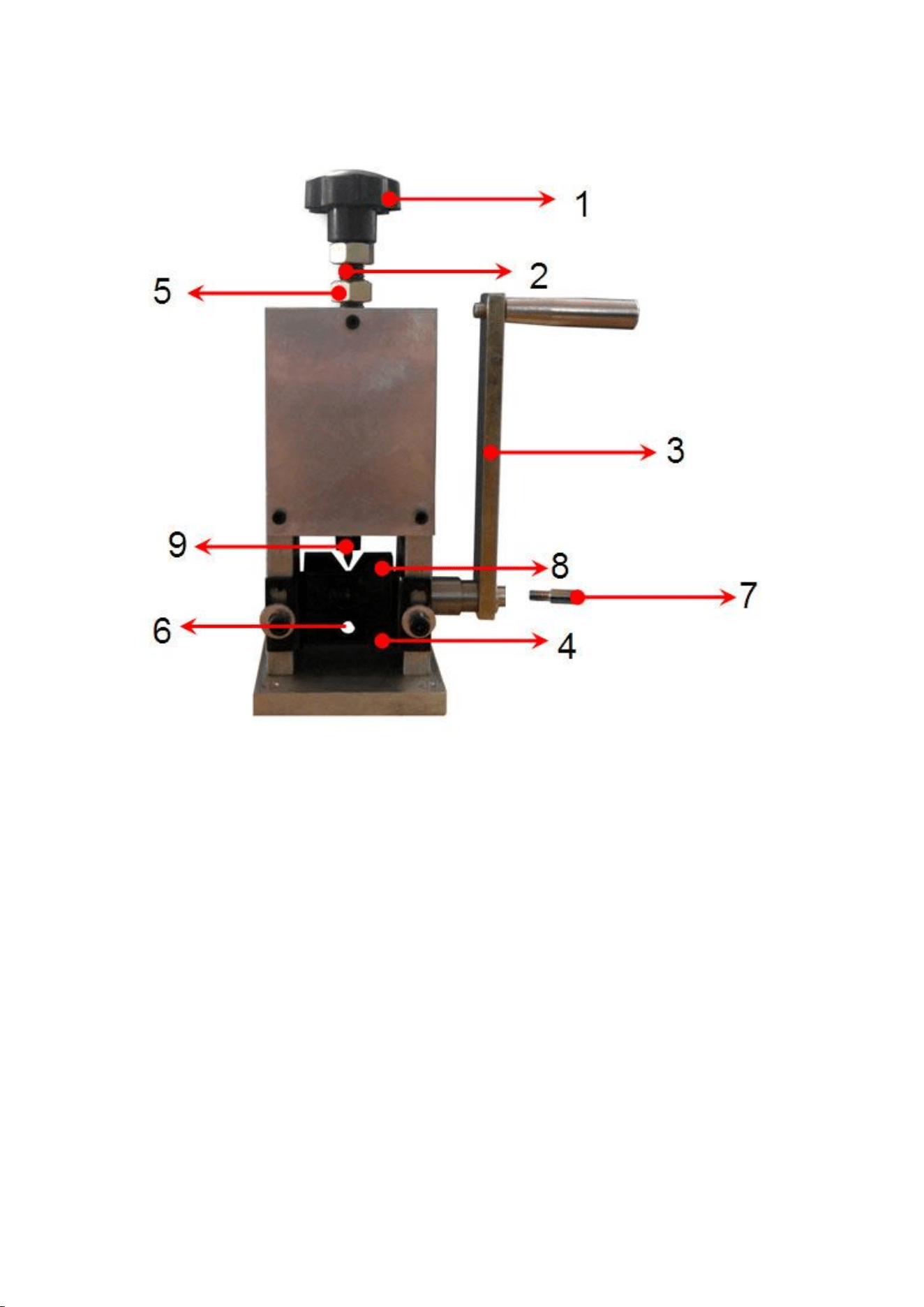

Structure
1：plastic regulating nut
2：blades regulating nut
3：hand crank
4：feeding panel
5：blades fixed screw
6：feeding hole
7：drill operated rod
8：shaft
9：blades
Operation
1:Adjust distance between blades and shaft in accordance
with the cable size (the insulating layer stripped but not hurt
the inner conductor)
2:Feeding:strip the cables through feeding hole( u can adjust
the feeding hole according cable size to the proper position
which cables can enter into but not swing)
3:Stripping:(hand operated) rotate hand crank in order to
peeling, if can’t peel:
㈠、 too small wire diameter
㈡、 the blades center not in line with groove
center( adjust the blades core)
㈢、 blades edge is too dull( sharpen the blades)

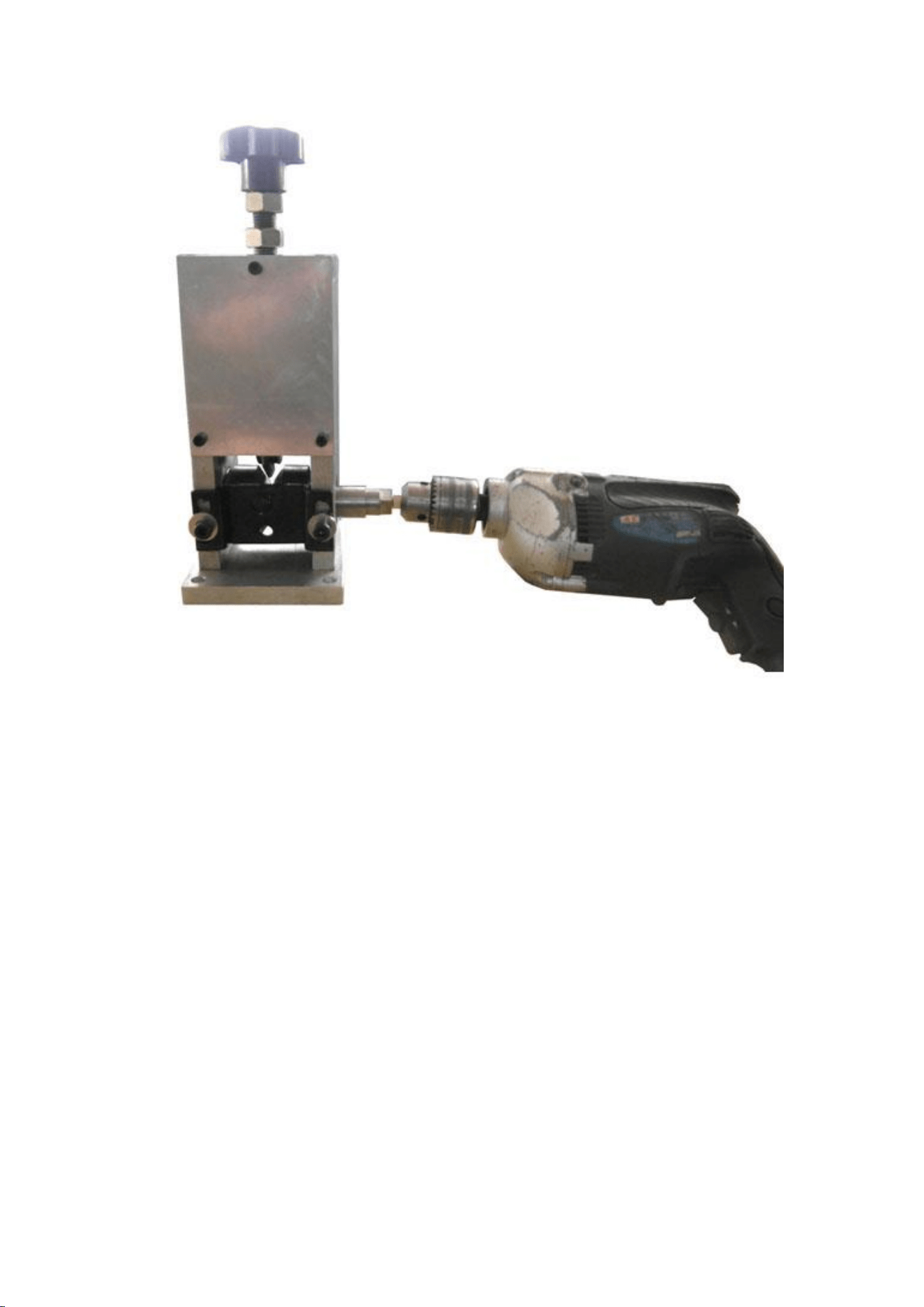

Drill operated picture
Drill driven: If u want drill driven in operation,
pull down the hand crank first, then install the
drill driven rod with drill, u can begin to strip the
cables)
Notice: don’t input ur hands into the machine
in any circumstance.
