ELECTRIC OVEN
IC OVEN
MODEL: EO19K/EO-19K
OPERATION MANUAL
Before operating this appliance, please read these instructions completely
1
PARTS IDENTIFICATION
1.Heating element 2.Glass door 3.Rack support
4.Inner case 5.Door Handle 6.Housing
7.Temperature knob 8.Indicator li
g
ht 9.Heater select knob
10.Time knob 11.Stand 12 Wire rack
13.Tray handle 14. .Baking tray
CIRCUIT
SPECIFICATION
Model NO. EO19K/EO-19K
Power suppl
y
220-240V 50/60Hz
Power consume 1380W
Packa
g
e measurement 470*355*360mm
Net weight 5.5KGS
2

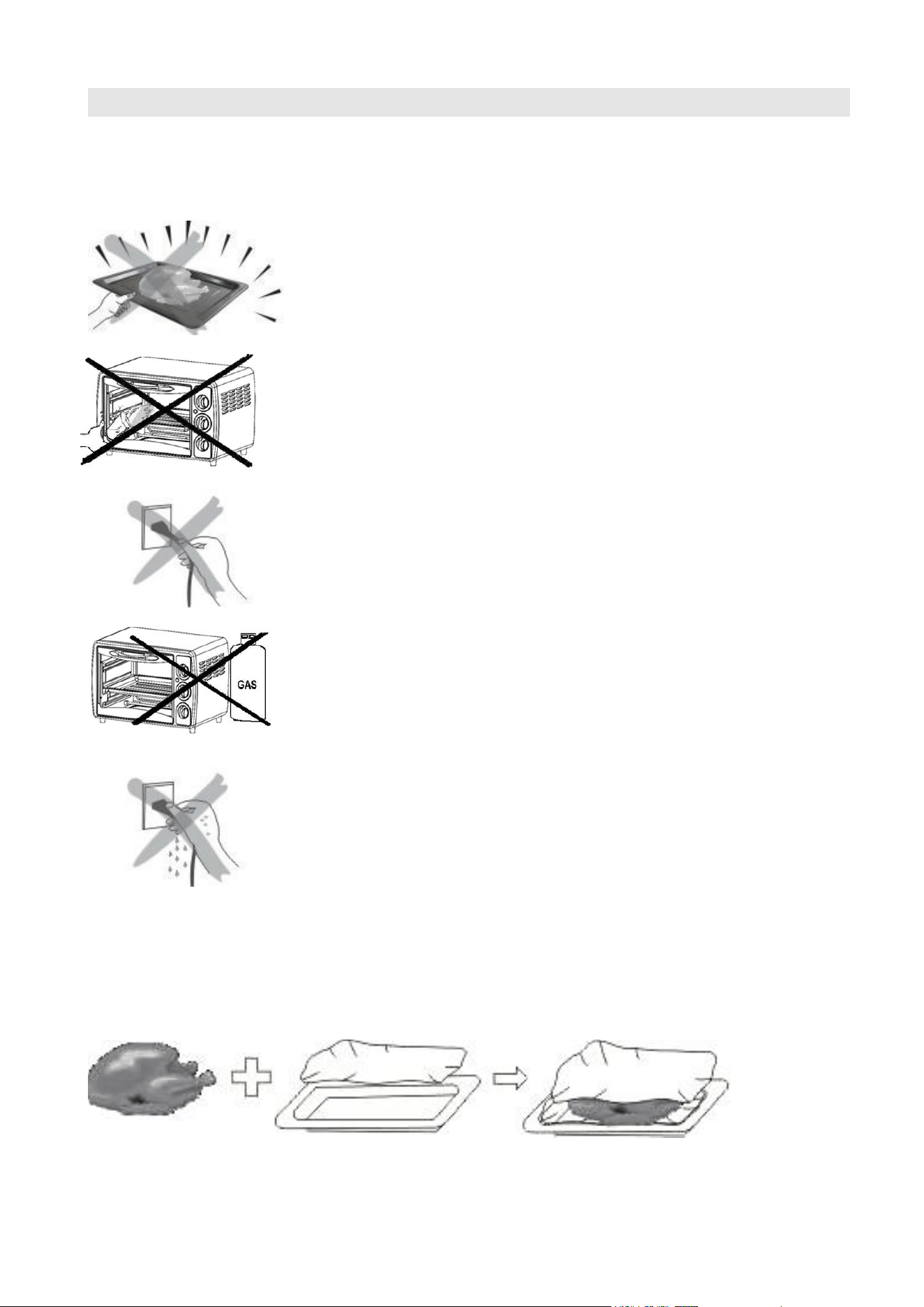

CAUTIONS
Special indication:
The accessory image varies from different models. Please refer to
the actual model you buy.
Always use the tray handle when inserting or
removing the tray .Touching these will cause
severe burns.
When hot, do not apply water to the glass window, it
may cause the glass to break.
When unplugging the cord, always take hold of the
plug itself. Never pull on the cord. Doing so could
break the wires inside the cord.
Do not position the unit close to a gas burner or
other source of high temperature or do not direct
an electric fan & etc during USE. By doing so could
prevent correct temperature control.
Do not wet the power cord nor handle the unit with
wet hands. Always unplug the cord after use, or
whenever the unit is to be left unattended. A
malfunction while the plug is inserted into the outlet
could cause a fire.
When cooking oil-splashing dishes such as roast chicken, it is
recommended to put 2 sheets of aluminum foils on a tray in order to
diminish oil splashing. Put one on a tray. Then oil will drip to a gap
between foils.
3

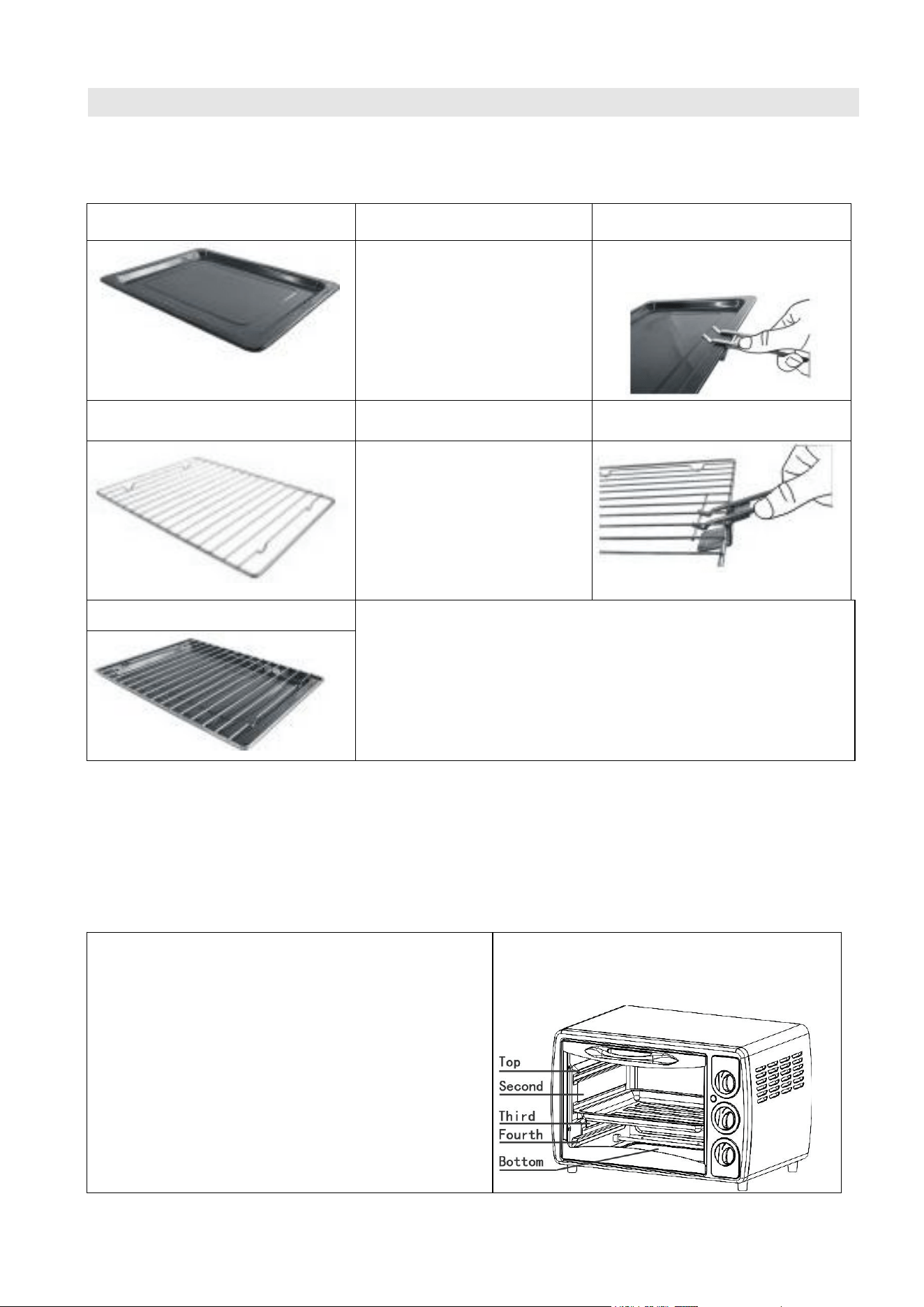

USE INDICATION
Special indication: the parts and accessory varies from differen
t
models. Please refer the image to the real item you buy.
Bake tray and bake grill
Bake tray How to use tray handle
Roast Chicken,
Hamburg steak,
Gratin, Sponge cake,
almost all other
oven-cooked foods
Wire rack
Baked potatoes, Dry
food
Bake tray and Wire rack
For food which will drip/boiled fish, etc
The trays are not perfectly square.
Note:
Be careful when removing pudding and other hot liquids.
Rack Support
You can adjust the tray at 4 different
positions according to the dishes you
want to cook.
4

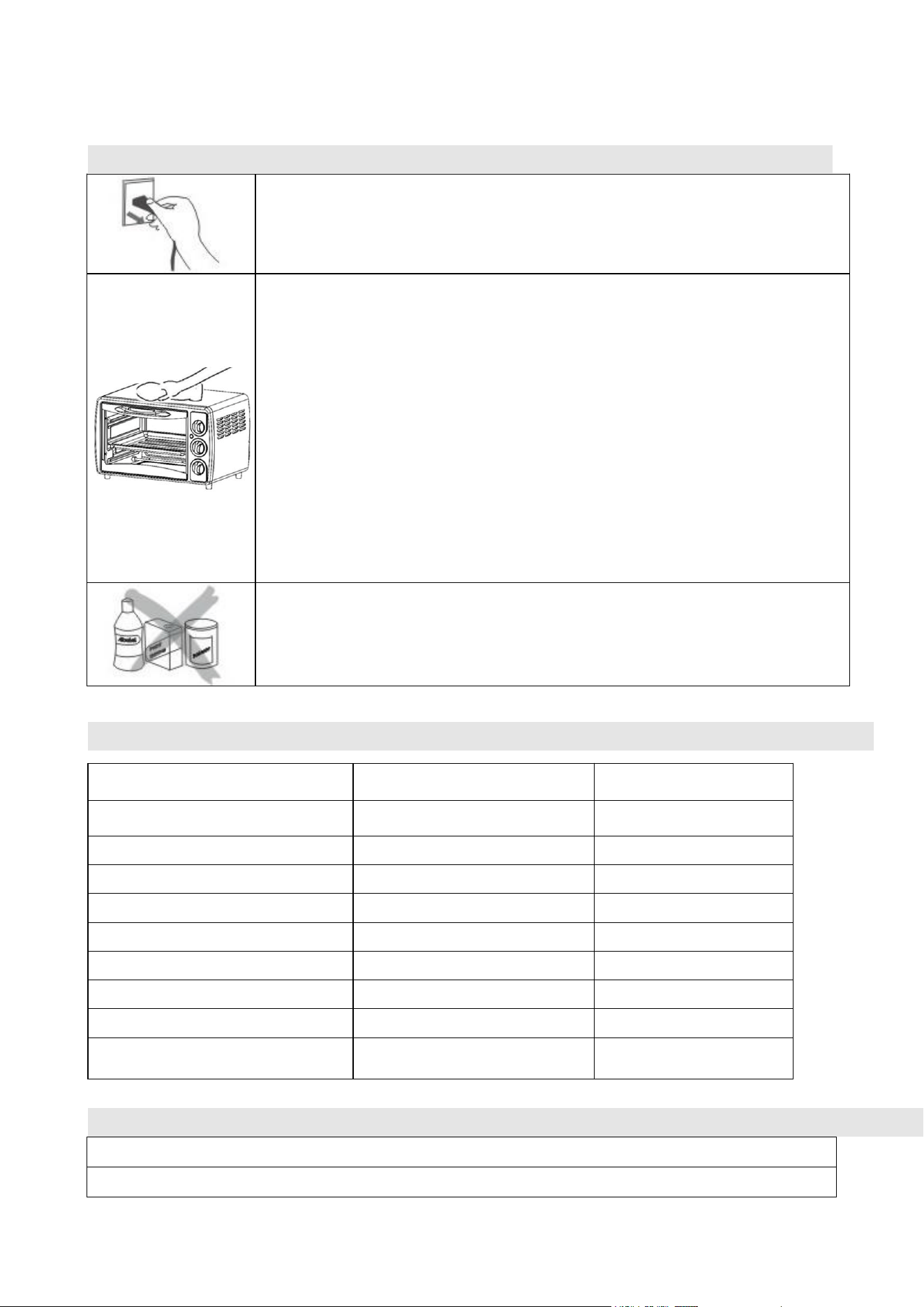

METHOD OF CLEANING
Take off the plug and cool down before cleaning.
Use dry cloth to clean outer surface of oven and glass
window. When cleaning inside of oven, mopping with
cloth can be applied. Never wash it with water as it
may cause current leakage when electric parts are
wet.
Bake tray, bake grill and tray handle can wash with
soft cotton (or sponge) and neutral cleaner. Then rinse
thoroughly with clean water, then wipe dry. Do not use
hard brush that will scratch the interior surface of the
oven, and to protect the tray, bake grill and tray
handle.
Do not use the toxic and abrasive cleaners such a
s
gasoline, polishing powder, solvent.
BAKING REFERENCE OF COMMON FOOD
TYPE OF FOOD TEMPERTURE TIME
Bread 180 9-13
Cake 180 25-35
Fish 250 10-15
Chicken/Duck 220-250 30-45
Pancake 160 7-10
Beef 250 8-15
Egg/Peanut 125-150 6-10
Hot Dog 200 6-10
Hamburger 240 10-14
OPERATING INSTRUCTIONS
Before using the unit for the first time:
Heat the empty oven.
5
(1) Insert the tray and bake grill.
(2)Set the heater operating switch to "UPPER & LOWER", set the
temperature control dial to "250℃" and heat the empty oven for
about 10 minutes.
Note:
There may be some smoke and a burning smell at first use, but this
is not a malfunction.

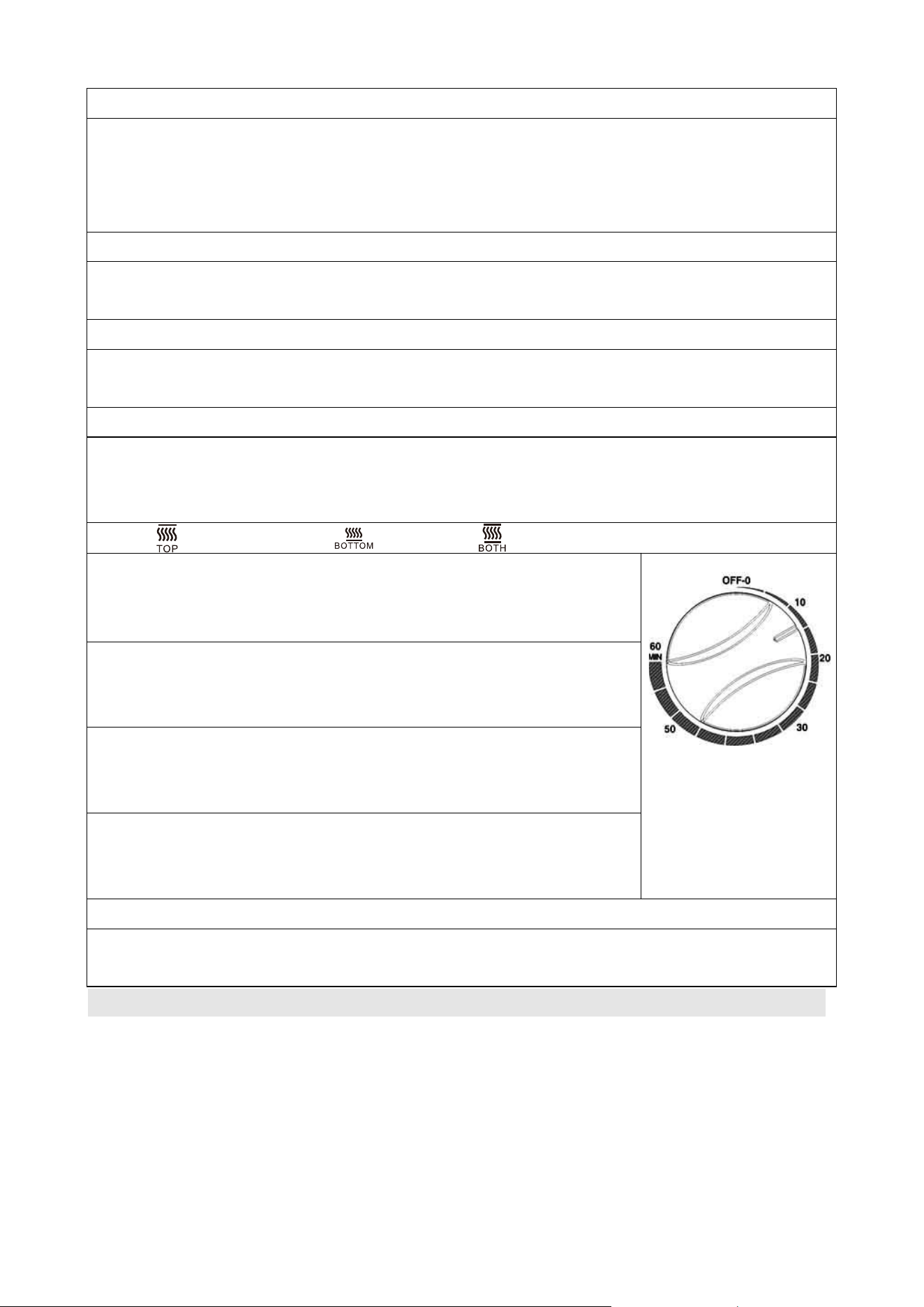

Temperature (switch):
Set the Temperature
for the dishes which you are going to
cook.
(Heater select) Switch:
Select “ TOP ” or “BOTTOM” or " BOTH" according to the
dishes
you are goin
g to cook. You can observe whether the heaters
are working or no
t by observing the front Indicator light.
TOPP ( ) , BOTT
OM ( )
, BOTH
1. Set the arrow on the timer knob to the number
which indicates the cooking time (minutes)
according to the dishes you are going to cook.
2. Set the Timer switch by turning it clockwise.
The oven will turn off automatically at the end of
the selected time and a bell will ring
• When setting the Timer to less than 5 min., turn it
to more than 6 min. and then back to the selected
time
.
3. The oven can be turned off manually during
cooking by turni
ng the Timer counter-clockwise to
the "0FF" position.
Note:
If the inside of the oven is dirty, cooking may take slightly longer than
usual.

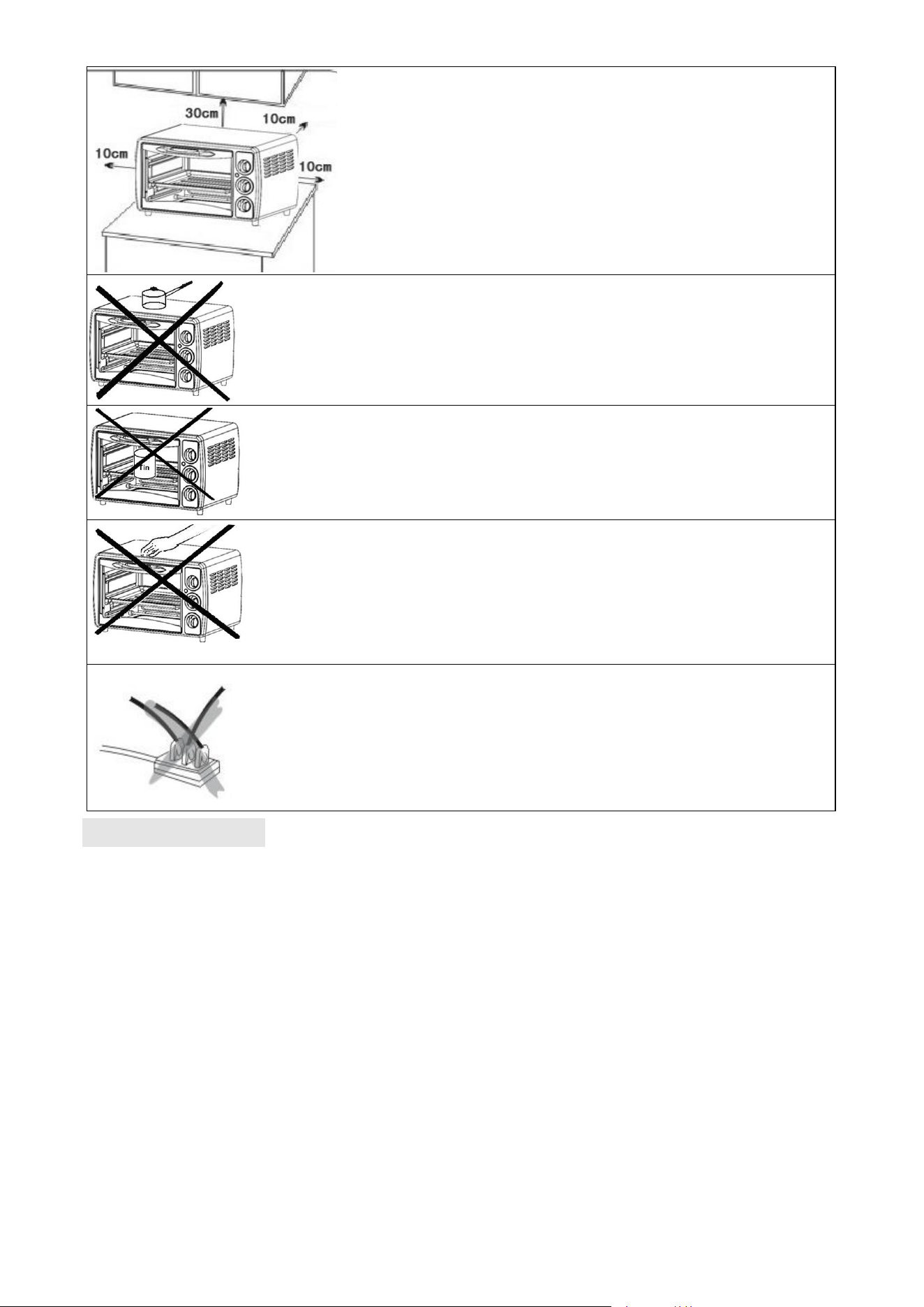

CAUTIONS
( )
(switch)
40
6
If the oven is positioned to close to a wall,
the wall will be burned or stained. Be sure
the curtain & etc, are not in contact with the
body.
Do not put anything between the bottom of
the body and the surface on which it is set,
an object so placed could be burned.
Do not put anything on the oven while using it, the
heat could cause deformation, cracking, etc.
Any bottled or tinned food can not be heated directly
as the bottle or tin would be broken out and scald the
person.
Be careful! Not to burn yourself during use or
immediately after use. The metal parts and glass
window of the door become extremely hot during
use. Be careful not to touch them when opening and
closing the door.
AC power must be taken from a properly wired
outlet. Insert the plug completely into the socket. If it
is not, it could become abnormally hot. Do not use
an electric light outlet. Never connect multiple plugs
to the same outlet
MAINTENANCE
1. Other than cleaning mentioned in this instruction manual, no
additional maintenance or serving of this appliance is required.
2. Repairs, when necessary, must be performed at an authorized
service facility.
3. This appliances is intended to be used in household and
similar applications such as:
-staff
kitchen areas
in shops,offices and others working
environments;
houses;
-by
clients in
hotels,motels
and other residential
type
environments;
-bed and
breakfast type environments.
-farm
7

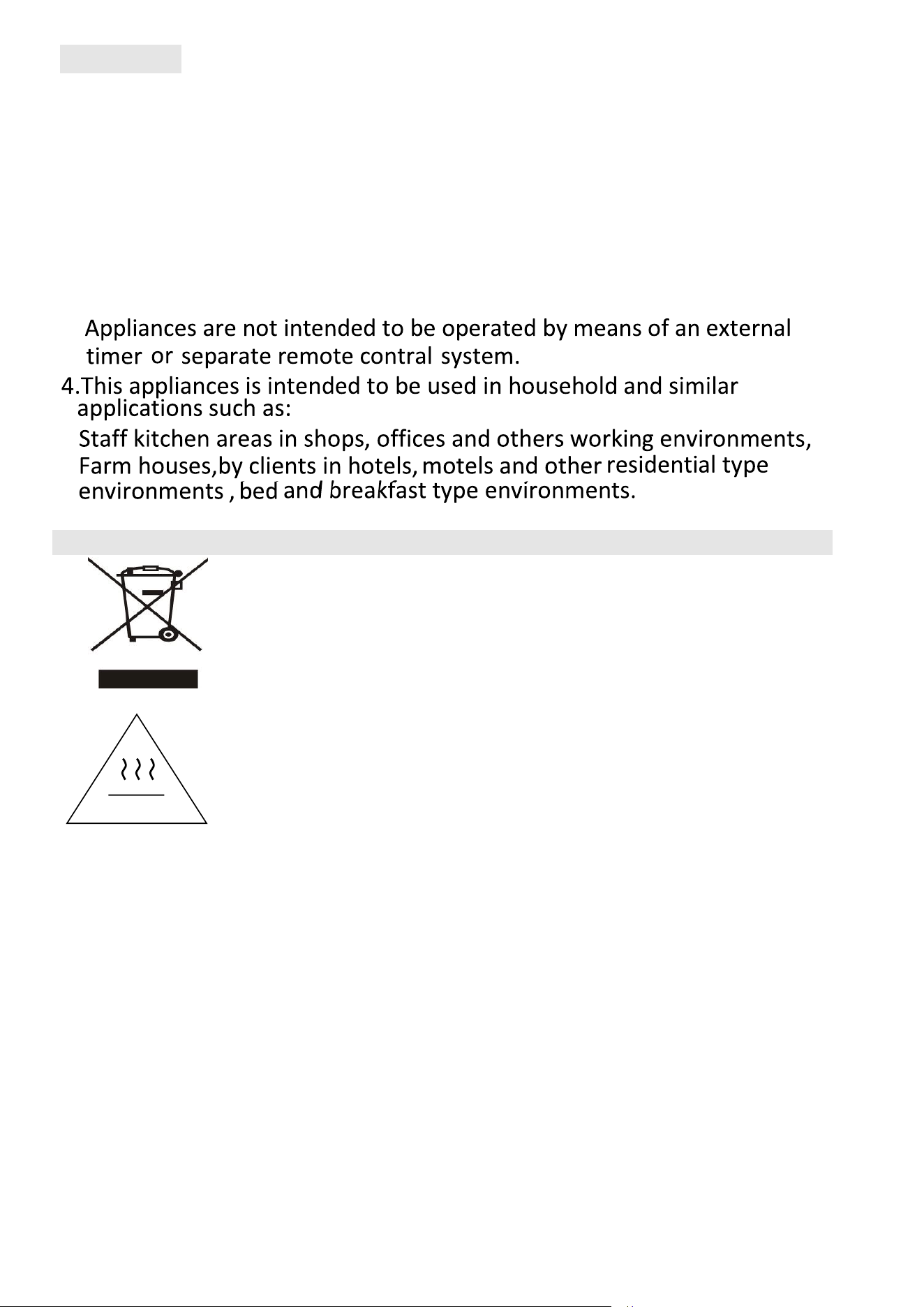

SPECIAL WARNING
Recycling symbol, don’t dispose of the product with
household refuse.
Caution: The temperature of the accessible surface
may be high when the appliance is operating.
WARNING
1.
If
the supply cord is
damaged,
the manufacturer or its
service
agent or
a similarly qualified
person
in order to avoid
a hazer must
replace it.
2.
This appliance is
not
intended
for
use by persons (including
children) with reduced physical, sensory or mental capabilities,
or
lack
of
experience
and knowledge, unless they have
been
given
supervision
or
instruction concerning use
of
the appliance
by a
person responsible
for
their
safety.
Children should
be supervised
to
ensure that
they
do not play with the appliance.
