USE AND CARE GUIDE
HAWKINS II 44 IN. CEILING FAN
THANK YOU
THANK YOU
1-855-HD-HAMPTON
HAMPTONBAY.COM
Questions, problems, missing parts? Before returning to the store,
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday
call Hampton Bay Customer Service
#1004 207 440
Item #1004 207 434
Model #
YG204C-BN
#YG204C-ORB
Visual instruction of how to install this fan:
Visit www.homedepot.com and enter either the Item or Model number to nd
this fan and click the link of visual instruction in the product overview section.
2
Table of Contents ..........................................................
Safety Information .........................................................
Warranty .........................................................................
Pre-installation ..............................................................
Specications ..........................................................................
Tools Required ..........................................................................
Hardware Included ..................................................................
Package Contents ....................................................................
Installation .....................................................................
Assembly ........................................................................
Hanging the Fan .......................................................................
Attaching the Fan Blades .......................................................
Installing the Light Kit ............................................................
2
3
4
4
4
4
5
6
7
8
8
12
13

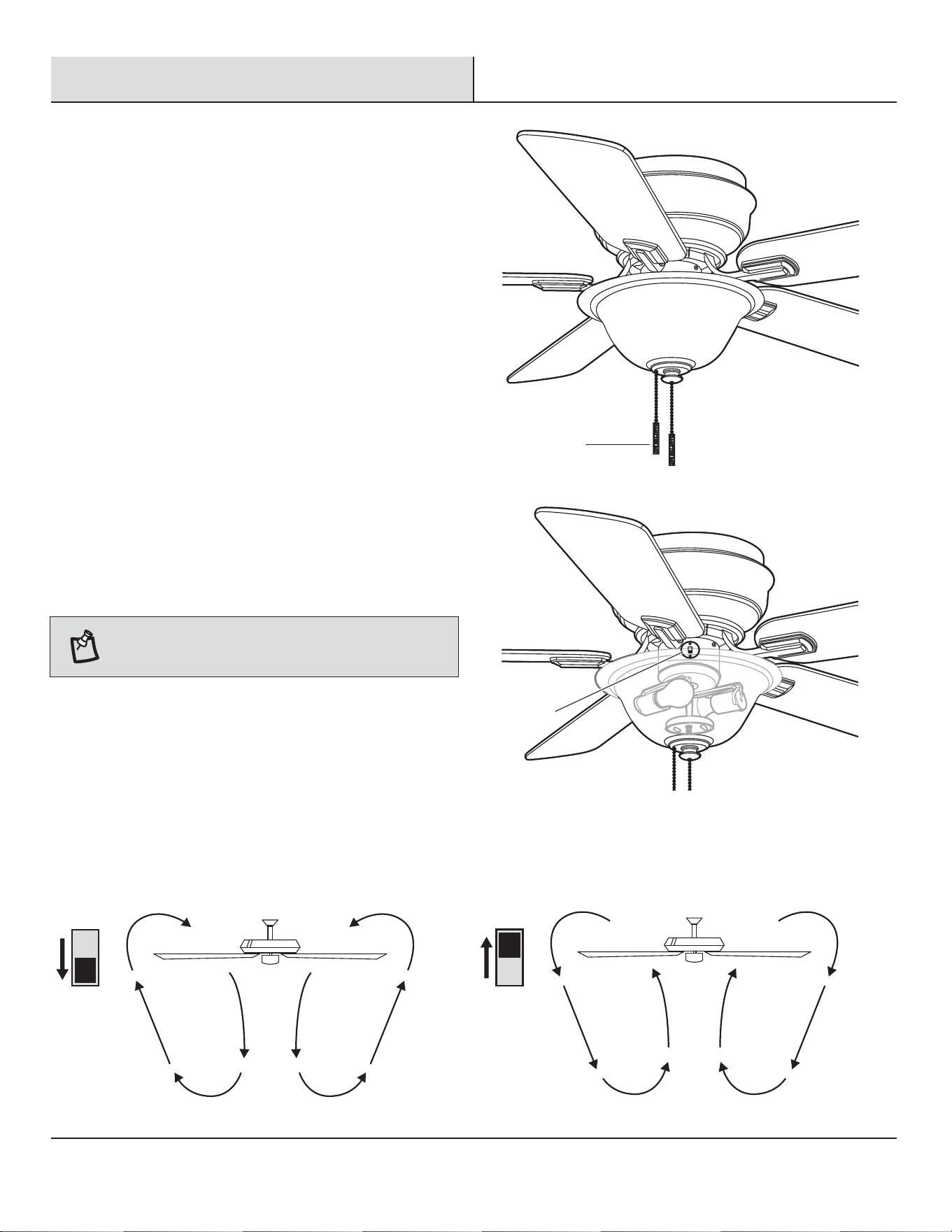

Operation ......................................................................
Pull Chain Operating Instructions ..........................................
Reverse Switch Operating Instructions ..................................
Care and Cleaning .......................................................
Troubleshooting ..........................................................
Service Parts ...............................................................
15
15
15
16
17
18
Table of Contents
READ AND SAVE THESE INSTRUCTIONS
Safety Information
3 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
WARNING: To reduce the risk of electrical shock or fire, do
not use this fan with any solid-state fan speed control device.
It will permanently damage the electronic circuitry.
WARNING: To reduce the risk of personal injury, do not
bend the blade arms (also referred to as flanges), when
installing the brackets, balancing the blades or cleaning the
fan.
WARNING: Do not insert foreign objects in-between rotating
fan blades.
CAUTION: To reduce the risk of personal injury, use only
the screws provided with the outlet box.
WARNING: To reduce the risk of fire, electric shock or
personal injury, mount the fan to the outlet box marked
acceptable for fan support with the screws provided with the
outlet box.
1. To reduce the risk of electric shock, ensure electricity has
been turned off at the circuit breaker or fuse box before
beginning.
2. All wiring must be in accordance with the National Electrical
Code “ANSI/NFPA 70-1999” and local electrical codes.
Electrical installation should be performed by a qualified
licensed electrician.
3. The outlet box and support structure must be securely
mounted and capable of reliably supporting a minimum of 35
lbs (15.9 kg) or less. Use only UL-listed outlet boxes marked
“FOR FAN SUPPORT.”
4. The fan must be mounted with a minimum of 7 ft (2.1m)
clearance from the trailing edge of the blades to the floor.
5. Avoid placing objects in the path of the blades.
6. To avoid personal injury or damage to the fan and other
items, be cautious when working around or cleaning the fan.
7. Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be
suitable for most cleaning.
8. After making electrical connections, spliced conductors
should be turned upward and pushed carefully up into the
outlet box. The wires should be spread apart with the
grounded conductor and the equipment-grounding conductor
on one side of the outlet box and ungrounded conductor on
the other side of the outlet box.
9. All setscrews must be checked and retightened where
necessary before installation.
10. This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must
accept any interference received, including interference that
may cause undesired operation.
Warning: Changes or modifications to this unit not expressly
approved by the party responsible for compliance could void
the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for
help.

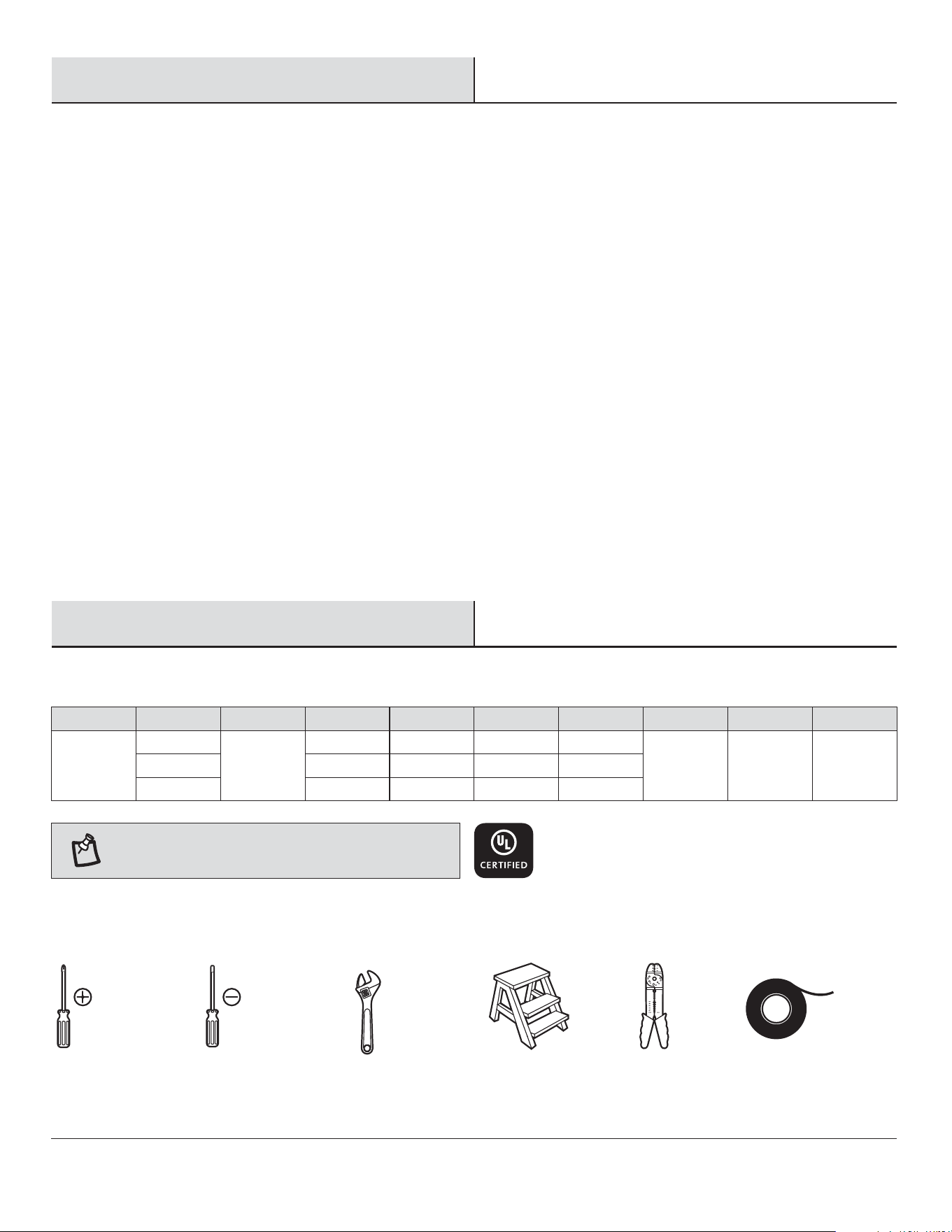

SPECIFICATIONS
SPECIFICATIONS
TOOLS REQUIRED
TOOLS REQUIRED
NOTE: These are approximate measures. They do not
include amps and wattage used by the light kit.
Warranty
4
Pre-InstallationPre-Installation
44 in.
Low
Medium
High
120
Fan size
Fan size
Watts
Watts
RPM
RPM
CFM
CFM
Speed
Speed
Volts
Volts
Amps
Amps
1.37 cu. ft.
N.W.
N.W.
G.W.
G.W.
C.F.
C.F.
0.21
0.33
0.45
10.75
27.19
54.43
80
132
182
1428
2245
3055
6.44 kg
(14.17 lbs.)
8.14 kg
(17.91 lbs.)
The manufacturer warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the
factory for a period of lifetime after the date of purchase by the original purchaser. The manufacturer warrants the light kit (excluding any
glass), to be free from defects in workmanship and material at the time of shipment from the factory for a period of three years after the
date of purchase by the original purchaser. The manufacturers also warrants that all other fan parts, excluding any glass or acrylic blades,
to be free from defects in workmanship and material at the time of shipment from the factory for a period of one year after the date of
purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or
superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All
costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper
installation or by afxing any accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not
cover any changes in brass nish, including rusting, pitting, corroding, tarnishing or peeling. Brass nishes of this type give the longest
useful life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a
defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. We hereby
disclaim any and all warranties, including but not limited to those of merchantability and tness for a particular purpose to the extent
permitted by law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as specied in the
express warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to
you. The retailer shall not be liable for incidental, consequential, or special damages arising out of or in connection with product use or
performance except as may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential
damages, so the above exclusion or limitation may not apply to you. This warranty gives specic legal rights, and you may also have other
rights which vary from state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a
claim on the warranty must be paid by the customer.
Contact the Customer Service Team at 1-855-HD-HAMPTON or visit www.hamptonbay.com.
Phillips
screwdriver
Flat blade
screwdriver
Step
ladder
Wire
stripper
Electrical
tape
Adjustable
wrench
AA
BB
CC
DD
EE
FF
GG
HH
II
JJ
Plastic wire nut
Blade arm screw with lock washer (preassembled)
Nut (preassembled)
Washer (preassembled)
Light kit mounting screw (preassembled)
Metal nut (preassembled)
Glass cap (preassembled)
Decorative nut (preassembled)
Pull chain and fob
9 watt LED bulb
Part
Part
Description
Description
3
10
4
4
3
1
1
1
2
2
Quantity
Quantity
Pre-Installation (continued)

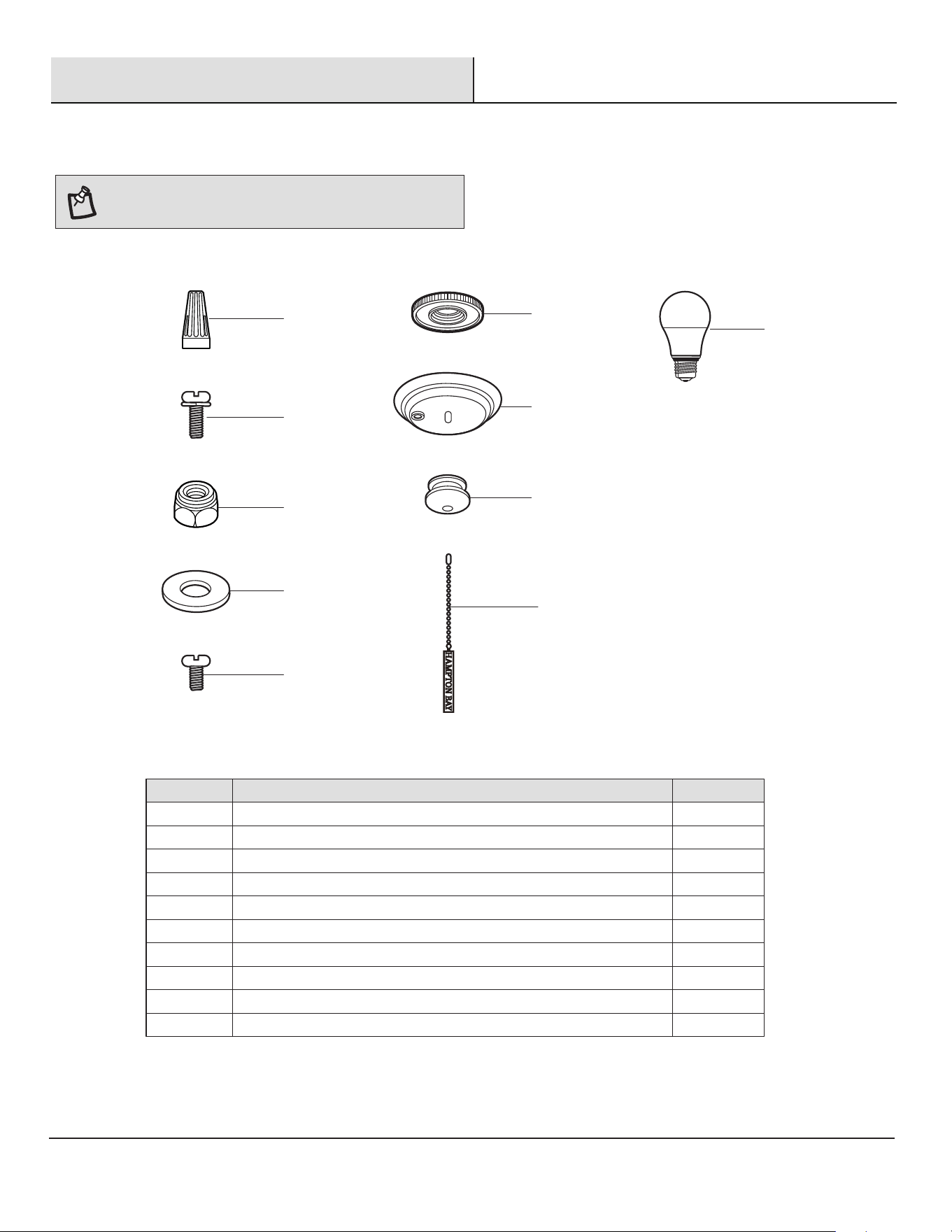

HARDWARE INCLUDED
HARDWARE INCLUDED
5 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
AA
FF
JJ
GG
HH
II
BB
CC
DD
EE
NOTE: Hardware not shown to actual size.

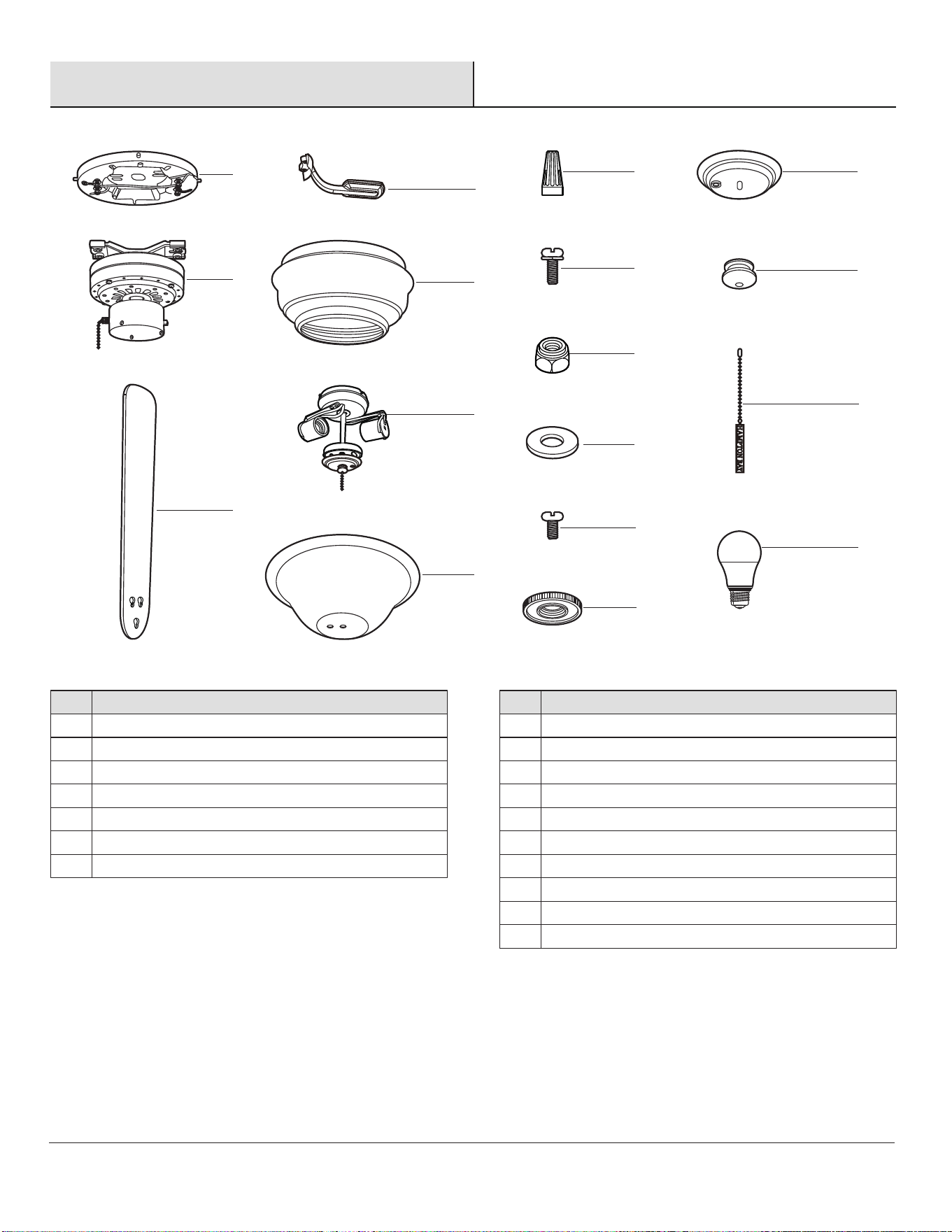

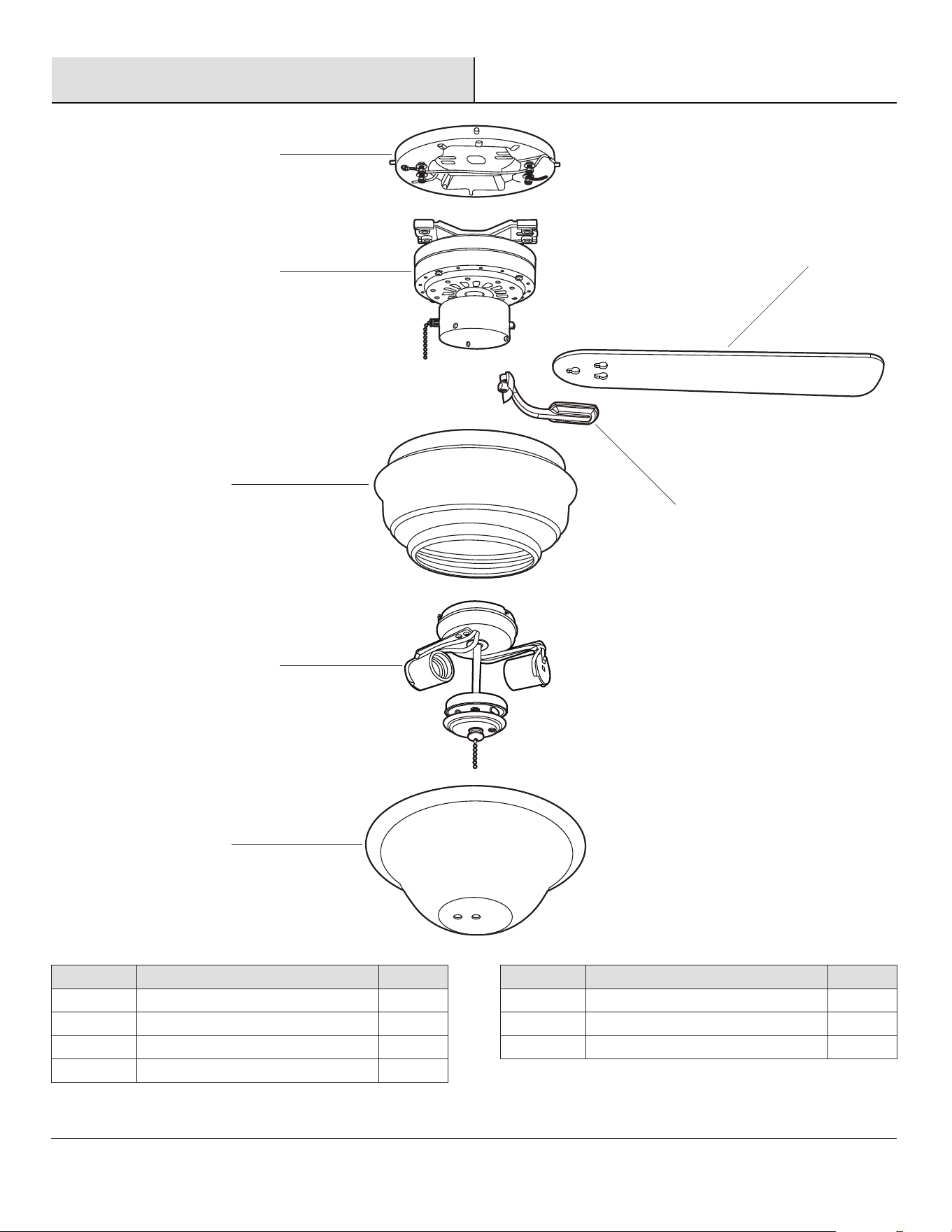

PACKAGE CONTENTS
PACKAGE CONTENTS
Part
Part
E
F
G
Description
Description
Motor housing
Light kit
Glass shade
Pre-Installation (continued)
6
Part
Part
A
B
C
D
Quantity
Quantity
1
1
5
5
Quantity
Quantity
1
1
1
Description
Description
Mounting bracket
Fan motor assembly
Blade
Blade arm
A
B
F
E
G
C
D

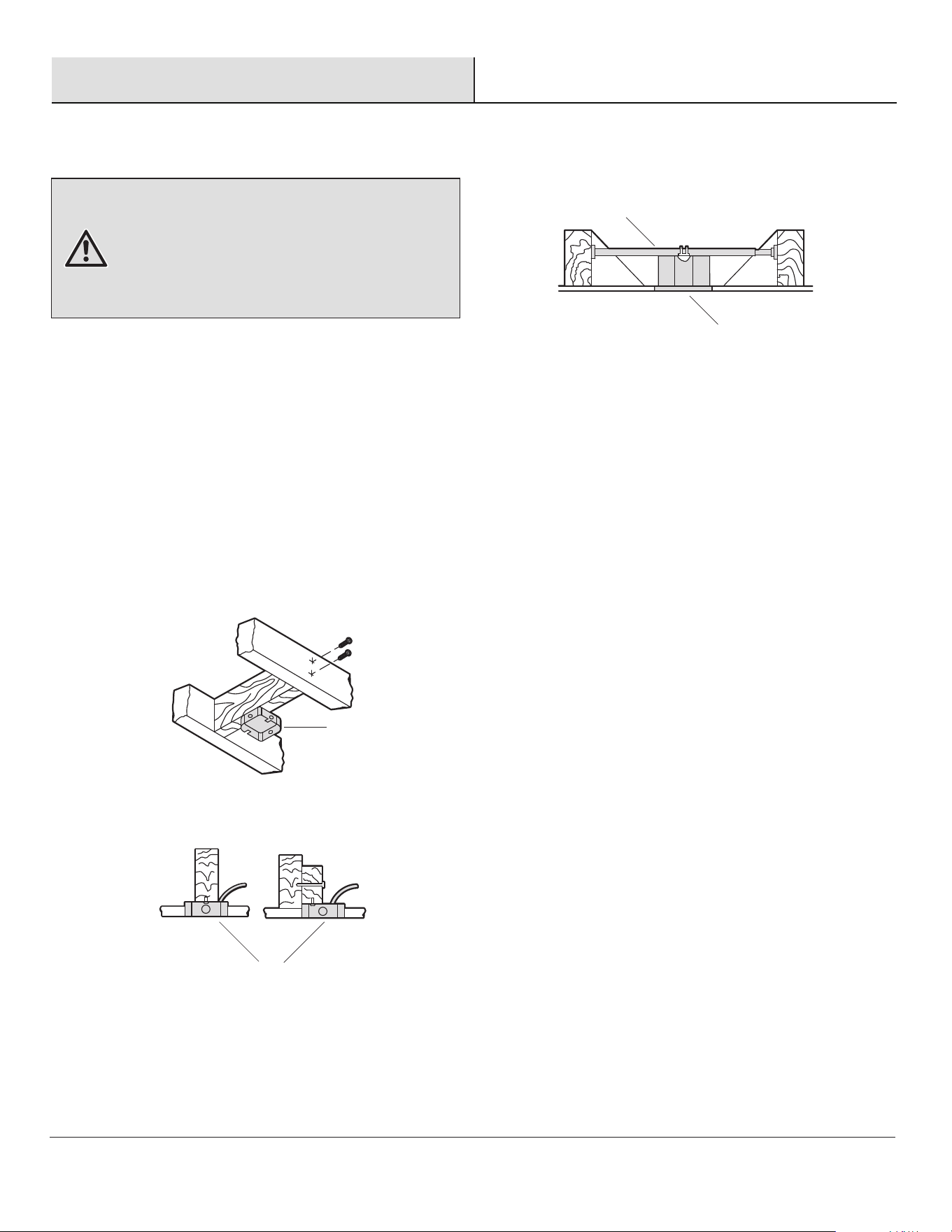

To hang your fan where there is an existing fixture but no ceiling
joist, you may need an installation hanger bar (LL) (not included)
as shown above.
If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
□ Disconnect the power by removing the fuses or turning off
the circuit breakers.
□ Secure the outlet box (KK) (not included) directly to the
building structure. Use appropriate fasteners and materials
(not included). The outlet box and its bracing must be able
to fully support the weight of the moving fan (at least 35
lbs.). Do not use a plastic outlet box.
The illustrations below show two different ways to mount the
outlet box (KK) (not included).
WARNING: To reduce the risk of fire, electric shock, or
personal injury, mount the fan to an outlet box marked
acceptable for fan support using the screws provided with the
outlet box. An outlet box commonly used for the support of
lighting fixtures may not be acceptable for fan support and
may need to be replaced. If in doubt, consult a qualified
electrician.
KK
KK
LL
KK
Installation
MOUNTING OPTIONS
MOUNTING OPTIONS
7 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.

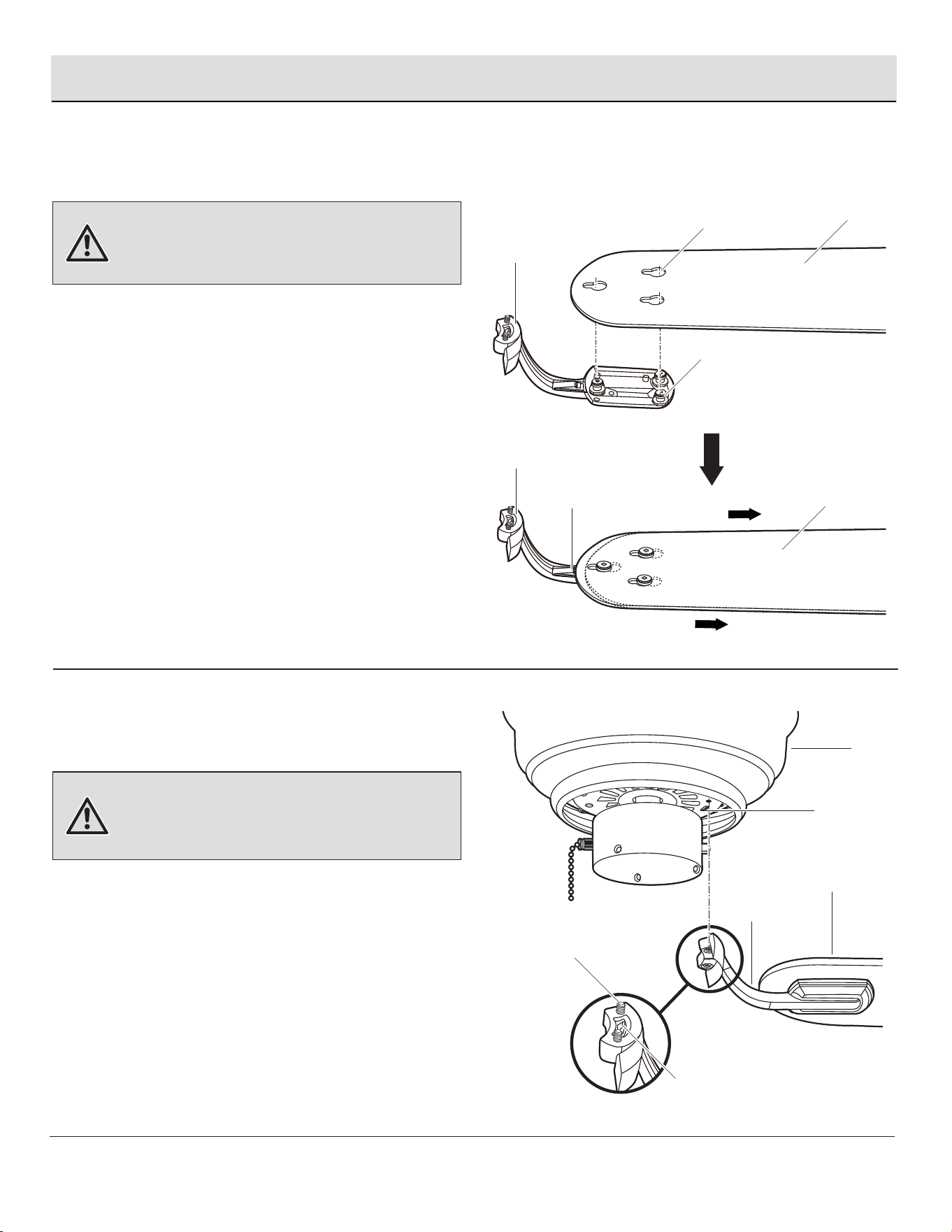

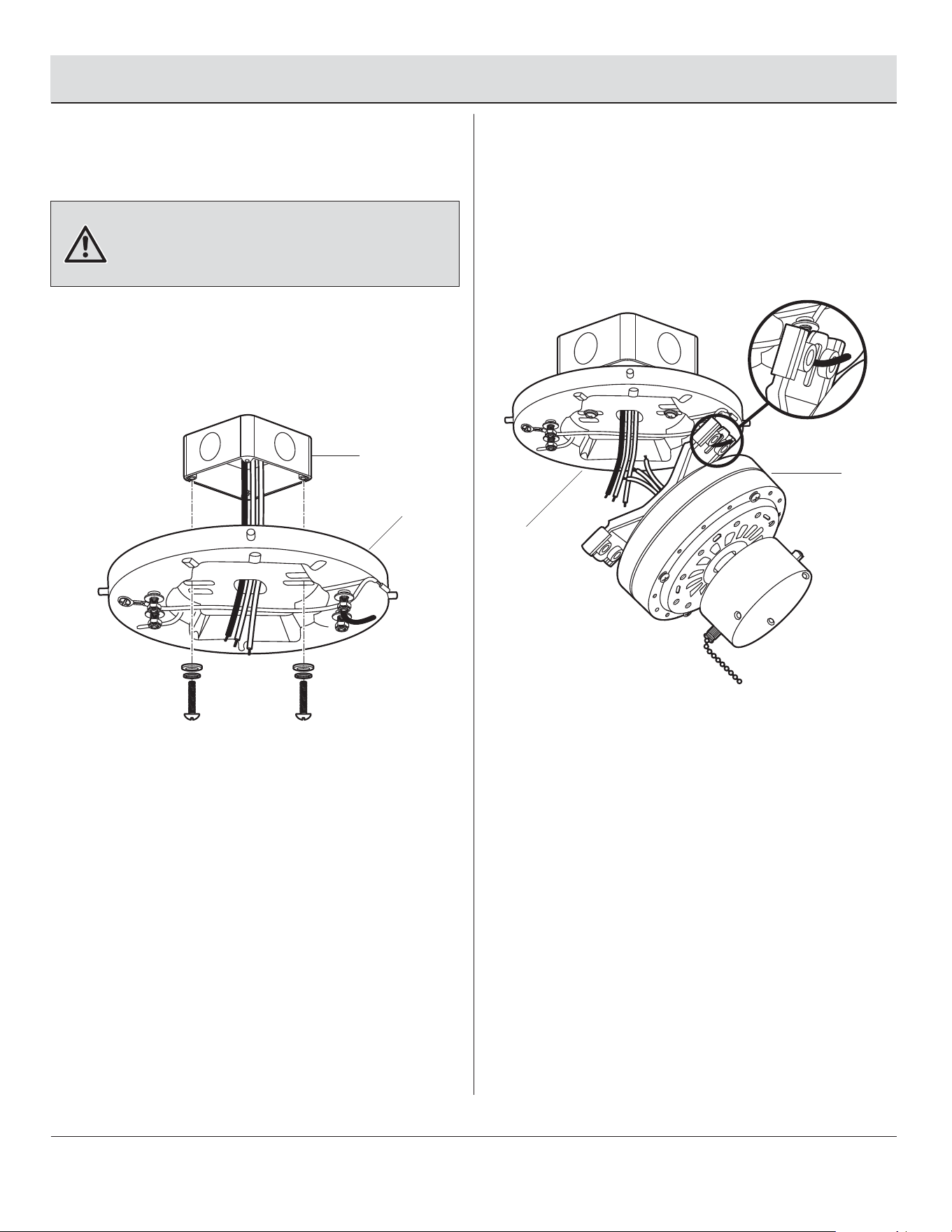

Assembly — Hanging the Fan
1
Installing the mounting bracket
to the electrical box

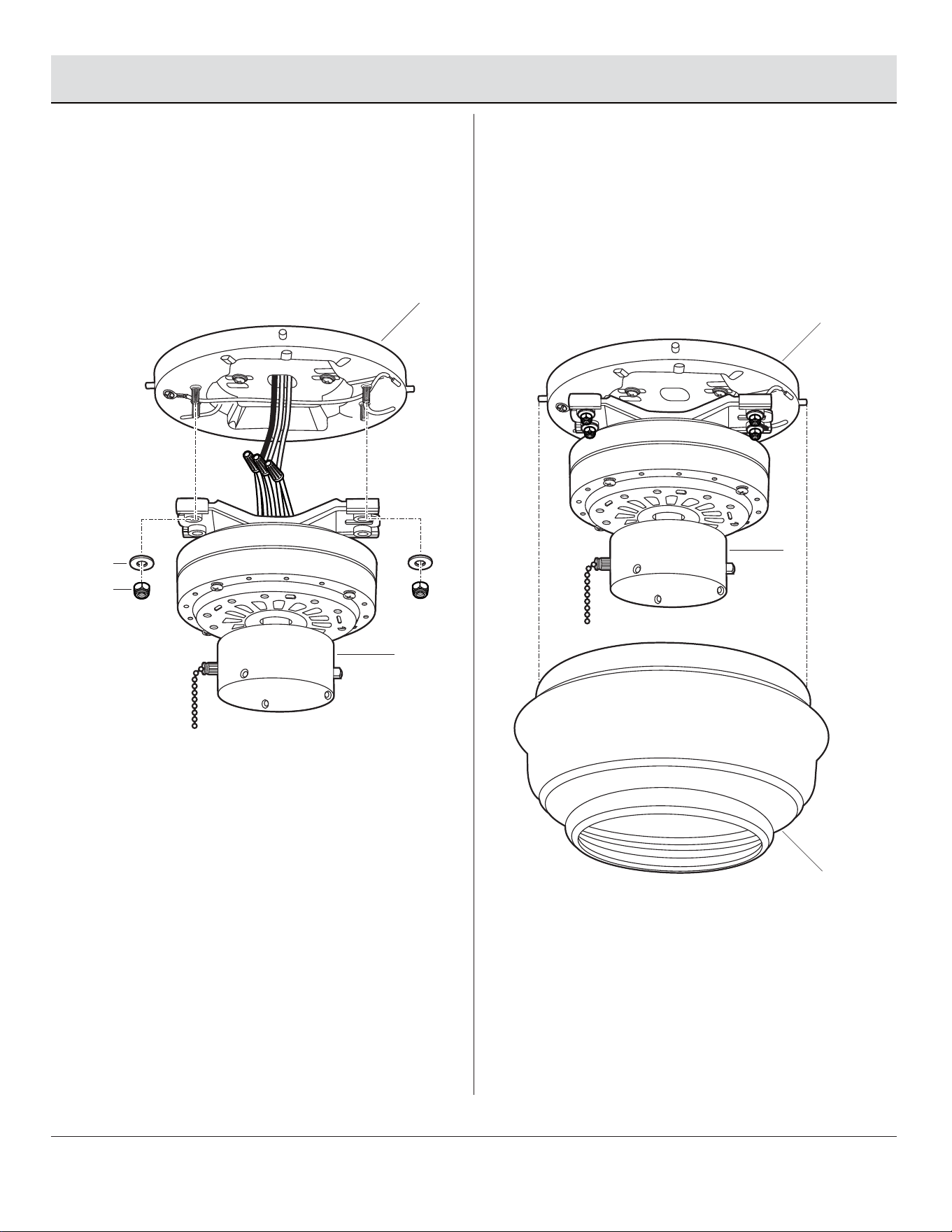

Hanging the fan to the
mounting bracket
□ Attach the mounting bracket (A) to the outlet box (KK)
(not included) with two screws and washers provided
with the outlet box (KK). Ensure the mounting bracket
(A) is tight and secured.
WARNING: To reduce the risk of re, electric shock or
other personal injury, mount the fan only to an outlet box or
supporting system marked acceptable for fan support and
use the mounting screws provided with the outlet box.
□ Lift the fan into position by hanging the fan motor
assembly (B) onto the hook from the mounting
bracket (A) allowing it to hang freely.
A
B
2
A
KK
8
AA
NeutralHot
Black
Ground
conductor
White
Blue
Black
Green
Green
White
KK

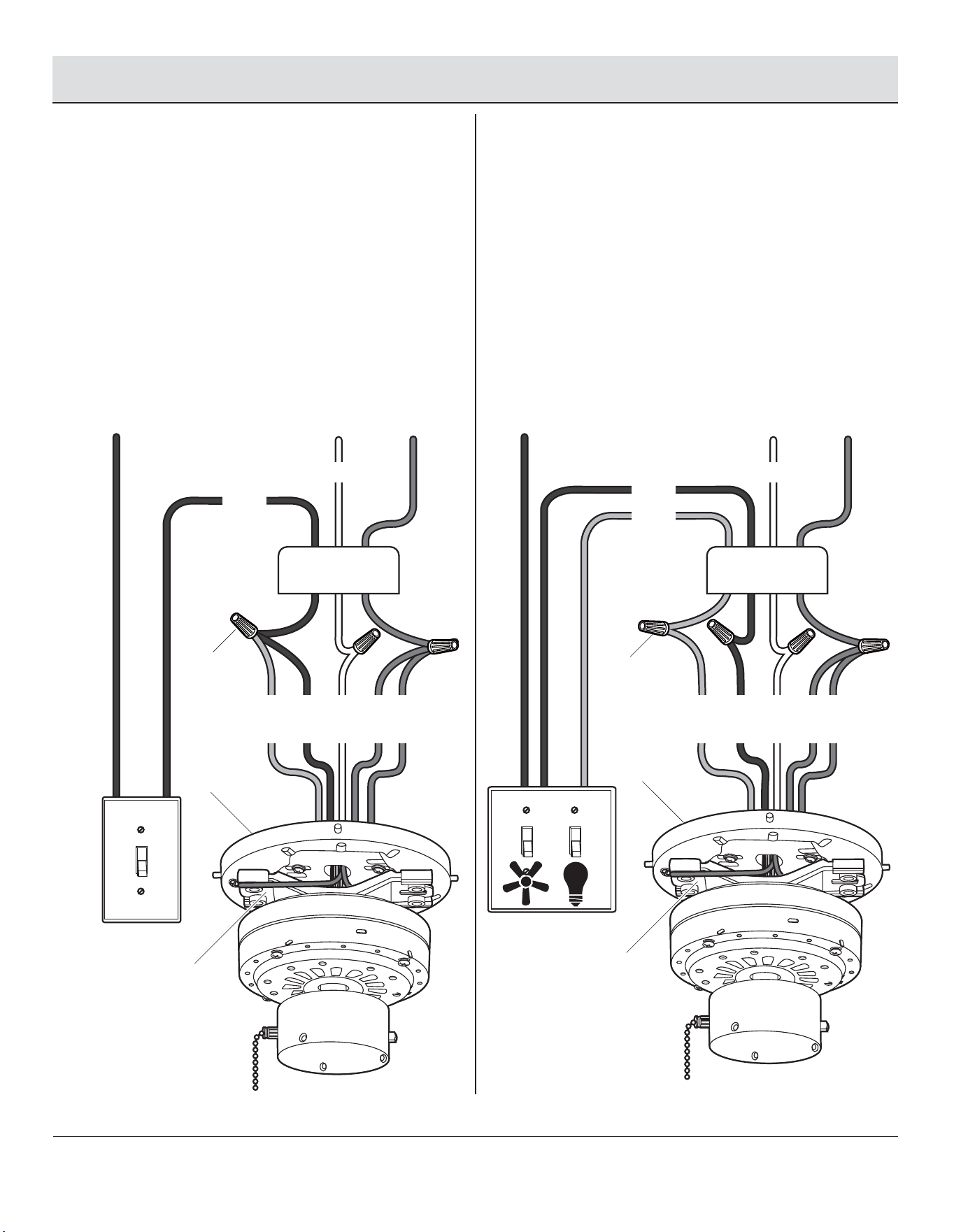

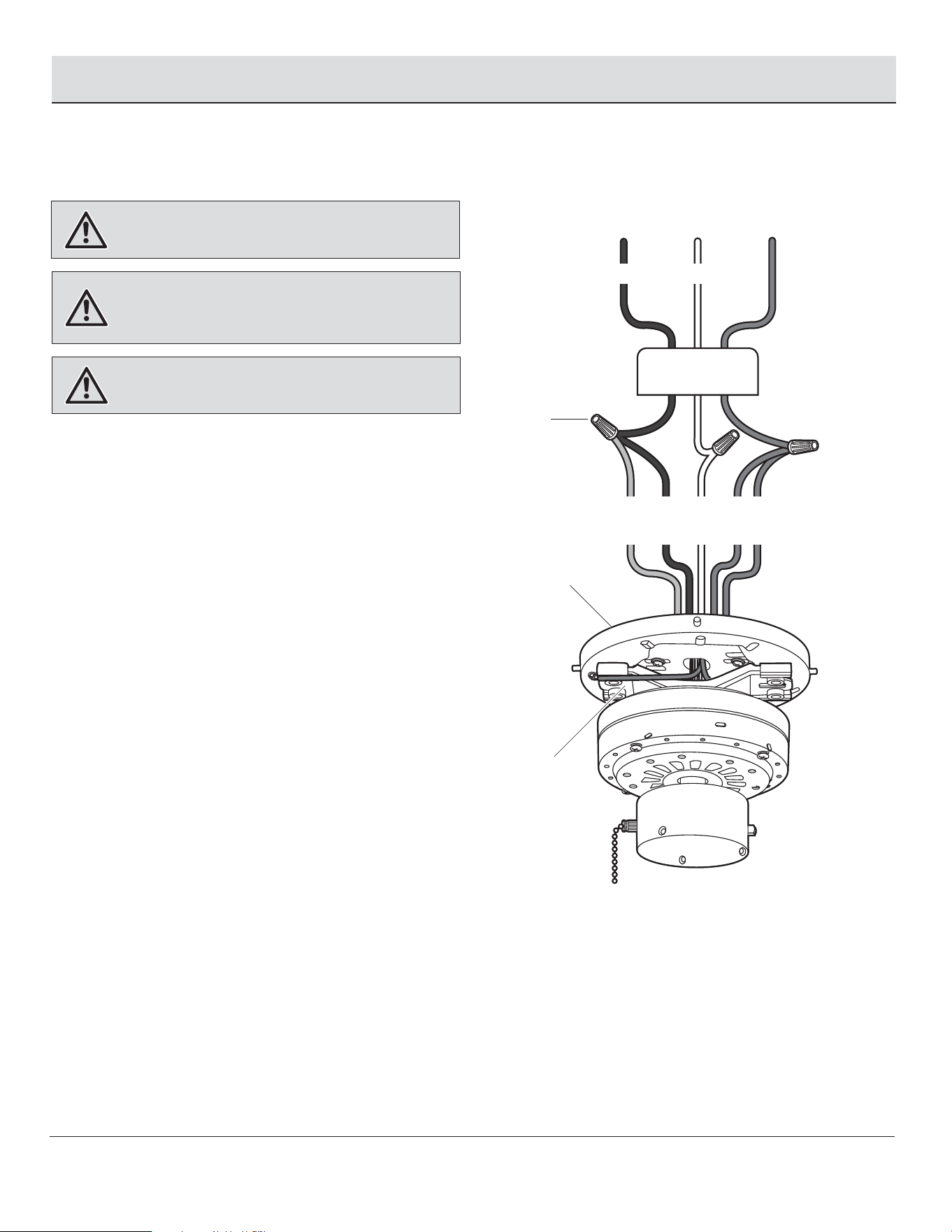

Making the electrical connections
WARNING: Check to see that all connections are tight,
including ground, and that no bare wire is visible at the wire
nuts (except for the ground wire).
WARNING: To reduce the risk of re or electric shock, do
not use this fan with any solid-state speed control device.
WARNING: To avoid possible electrical shock, be sure
electricity is turned off at the main fuse box before wiring.
Assembly — Hanging the Fan (continued)
3a
9 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
If you feel you do not have enough electrical wiring knowledge
or experience, have your fan installed by a licensed
electrician.
Follow the steps below to connect the fan to your household
wiring. Use the plastic wire nuts (AA) with your fan. Secure the
plastic wire nuts (AA) with electrical tape. Make sure there are
no loose strands or connections.
□ Make wire connections as follows, using the wire nuts
(AA).
From Fan To Outlet Box
Black + Blue Wires ---------- Black Wire (Hot)
White Wire ------------------- White Wire (Neutral)
Green Wires ----------------- Green or Bare Wire (Ground)
* There are two green grounding leads: one from the mounting
bracket (A) and one from the mounting bar (MM).
□ Turn the wire nut connections upward, spreading them
apart so the green (ground) and white wires will be on
one side of the outlet box (KK) and the black and blue
wires will be on the other side. Carefully tuck the
connections up into the outlet box (KK).
A
MM
Assembly — Hanging the Fan (optional)
3b
Single Switch Connections
3c
Dual Switch Connections
□ On a single switch the fan and light can be turned on or
off together. Make wire connections as follows, using the
wire nuts (AA). Wall switch not included.
From Fan To Outlet Box
Black + Blue Wires ---------- Black Wire (Hot)
White Wire ------------------- White Wire (Neutral)
Green Wires ----------------- Green or Bare Wire (Ground)
□ On a dual switch the fan and light can be turned on or off
separately. Make wire connections as follows, using the
wire nuts (AA). Wall switch not included.
From Fan To Outlet Box
Black Wire (for Fan) --------- Black Wire (Hot #1)
Blue Wire (for Light) --------- Red Wire (Hot #2)
White Wire ------------------- White Wire (Neutral)
Green Wires ----------------- Green or Bare Wire (Ground)
AA
SINGLE SWITCH
NeutralAC IN
Black
Ground
conductor
White
Blue
Black
Green
Green
White
KK
AA
Neutral
Ground
conductor
White
Blue
Black
Green
Green
White
AC IN
Black
Red
DUAL SWITCH
KK
10
A
MM
A
MM
B
A
4
Finishing the fan
installation
□ Move the fan motor assembly (B) into position over
the four mounting bracket studs and secure with the
provided washers (DD) and nuts (CC).
5
Attaching the motor housing
to the mounting bracket
□ Raise the motor housing (E) up against the mounting
bracket (A). The four supports inside the motor
housing (E) should be placed against the four studs
on the mounting bracket (A). Twist the motor housing
(E) clockwise until snug.
A
B
E
DD
CC
Assembly — Hanging the Fan (continued)
11 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Assembly — Attaching the Fan Blades
Attaching the blades to the
blade arms
7
Fastening the blade
assemblies to the motor
B
D
C
QQ
BB
RR
WARNING: To reduce the risk of personal injury, do not
bend the blade arms (D) while installing, balancing the blades
(C), or cleaning the fan. Do not insert foreign objects between
rotating fan blades (C).
□ Fasten the blade assemblies to the fan motor
assembly (B) by lining up the slots of the motor (RR)
with the tabs on the blade arms (QQ).
□ Tighten the two blade arm screws with lock washers
(BB) already installed in the blade arms (D).
□ Repeat this procedure for the remaining blade arms
(D).
6
□ Hold the blade (C) with hands close to the blade arm
(D), align the key-slot holes (NN) with the blade arm
posts (OO) and press the blade down firmly. Ensure
the key-slot holes (NN) are properly seated on the
blade arm posts (OO).
□ Firmly slide the blade (C) away from the blade arm (D)
until the blade (C) engages in the spring locking
mechanism (PP). Make sure the spring of the spring
locking mechanism (PP) is upward and the butt of the
spring locking mechanism (PP) is against the edge of
the blade.
C
NN
OO
D
C
D
PP
To install the blade to the blade arm:
□ Press down the spring locking mechanism (PP) to
release the blade (C) from the blade arm (D). Slide the
blade (C) toward the blade arm (D) until the blade (C)
disengages from the spring locking mechanism (PP).
Carefully push the blade (C) up to detach from the
blade arm (D).
To detach the blade from the blade arm:
WARNING: Failure to properly seat the blades (C) on the
blade arms (D) and engage in the spring locking mechanism
(OO) could result in the fan blades (C) loosening and possibly
falling.
12
8

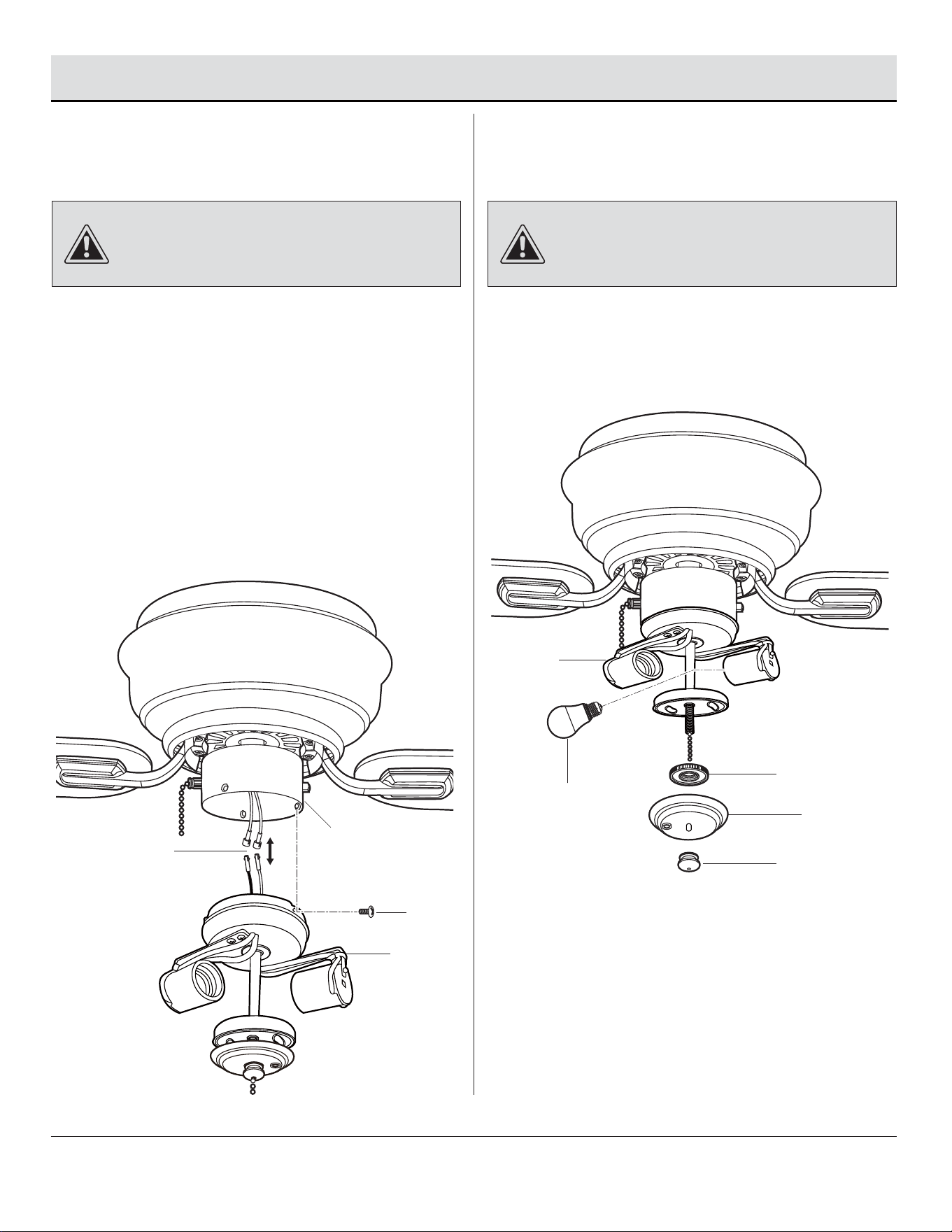

Attaching the light kit to the
switch housing
9
Installing the light bulbs
F
SS
EE
B
□ Install two 9 watt LED bulbs (JJ) (included).
□ Remove the decorative nut (HH), glass cap (GG) and
the metal nut (FF) from the light kit (F).
CAUTION: Before starting installation, disconnect the
power by turning off the circuit breaker or removing the fuse
at the fuse box. Turning power off using the fan switch is not
sufficient to prevent electric shock.
CAUTION: Before starting installation, disconnect the
power by turning off the circuit breaker or removing the fuse
at the fuse box. Turning power off using the fan switch is not
sufficient to prevent electric shock.
Assembly — Installing the Light Kit
□ Remove the three light kit mounting screws (EE) from the
light kit (F) and keep these screws.
□ While holding the light kit (F) under your fan motor
assembly (B), locate two single white and blue wires in
the switch housing labeled "FOR LIGHT". Make the
polarized plug connections (SS):
- White to white
- Blue to black
□ Carefully push all wires back into the switch housing.
Install the light kit (F) onto the switch housing with the
three light kit mounting screws (EE) provided. Be sure to
tighten all screws.
JJ
F
GG
FF
HH
13 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
10

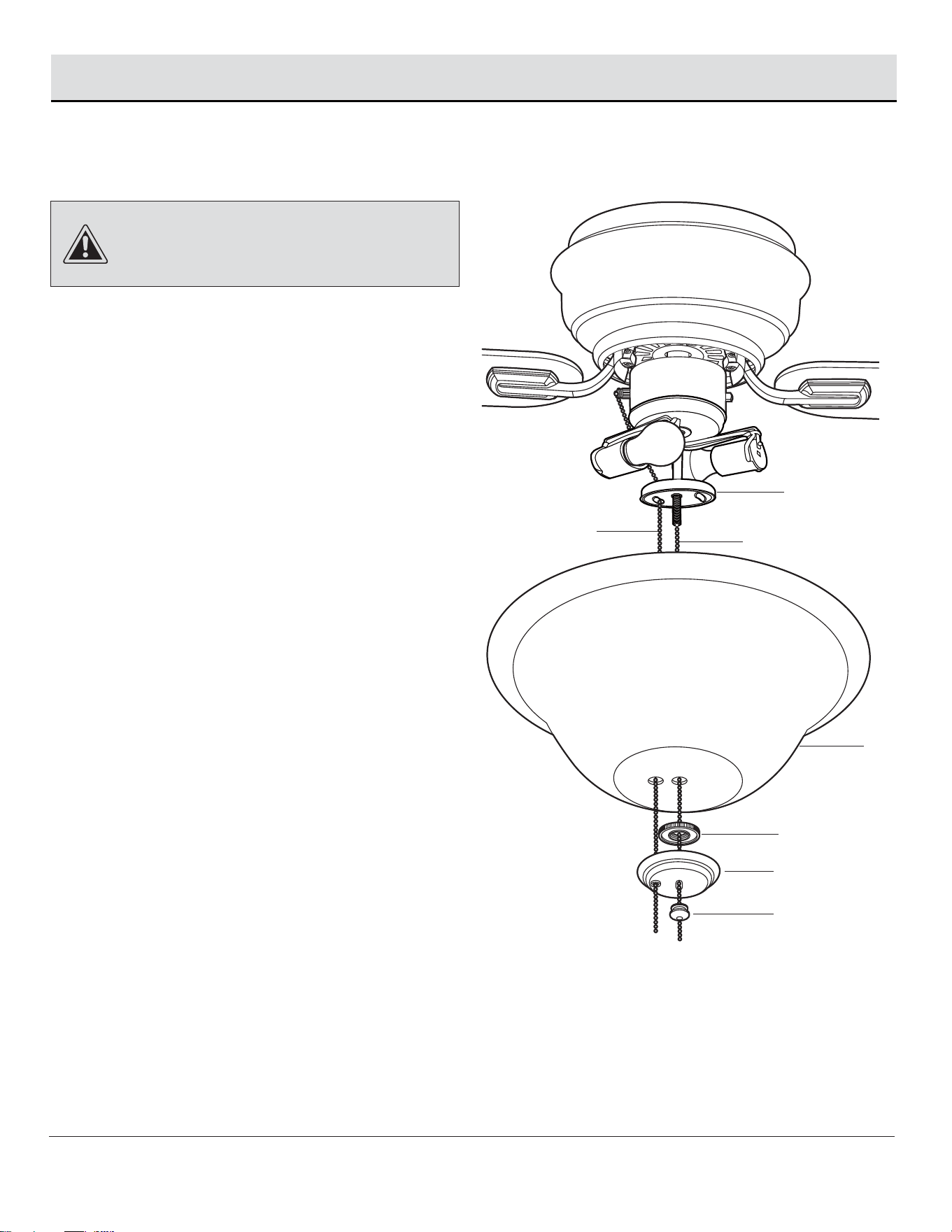

Installing the glass shade
CAUTION: Before starting the installation, disconnect the
power by turning off the circuit breaker or removing the fuse
at the fuse box. Turning power off using the fan switch is not
sufficient to prevent electric shock.
□ While holding the glass shade (G), slip the pull chain
(TT) from the switch housing into the outside hole in
the glass shade (G).
□ Feed the pull chain (UU) from the light kit stem
through the eyelet on the glass shade (G).
□ Place the glass shade (G) over the light kit stem.
Secure the glass shade (G) with the metal nut (FF)
(rubber side on the top).
□ Fit the glass cap (GG) onto the light kit stem and then
slip the pull chain (TT) through the hole on the side of
the glass cap (GG).
□ Feed the pull chain (UU) from the light kit stem
through the glass cap (GG) and the decorative nut
(HH), and then thread the decorative nut (HH) on
securely. Do not overtighten.
Assembly — Installing the Light Kit (continued)
FF
GG
HH
G
F
TT
UU
14
Operation
PULL CHAIN OPERATING INSTRUCTIONS
PULL CHAIN OPERATING INSTRUCTIONS
Install two pull chains and fobs (II) onto the pull chains located in the
switch housing and light kit. Turn on the power and check the operation of
the fan.
The pull chain controls the fan speed as follows:
1 pull - High, 2 pulls - Medium, 3 pulls - Low and 4 pulls - Off.
Speed settings for warm or cool weather depend on factors such as the
room size, ceiling height, number of fans, and so on.
To turn the light On or Off, pull the chain that is attached to the light
kit.
NOTE: Wait for the fan to stop before reversing the direction
of the blade rotation.
REVERSE SWITCH OPERATING INSTRUCTIONS
REVERSE SWITCH OPERATING INSTRUCTIONS
The reverse switch is located on the surface of the switch housing.
This switch controls directions: forward (switch down) or reverse
(switch up).
Warm weather - (Counterclockwise Direction) A downward air ow
creates a cooling effect. This allows you to set your air conditioner
on a higher setting without affecting your comfort.
Cool weather - (Clockwise Direction) An upward air ow moves
warm air off the ceiling. This allows you to set your heating unit on
a lower setting without affecting your comfort.
II
Reverse
switch
15 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Care and Cleaning
□ Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure.
Because of the fan’s natural movement, some
connections may become loose over time. It is not
necessary to remove the fan from the ceiling.
□ Clean your fan periodically. Use only a soft brush or
lint-free cloth to avoid scratching the nish. The plating is
sealed with a lacquer to minimize discoloration or
tarnishing.
□ (Optional) Apply a light coat of furniture polish to the wood
blades.
□ (Optional) Cover small scratches with a light application of
shoe polish.
Do
Do
□ Use water when cleaning. Water could damage the motor,
or the wood, or possibly cause an electrical shock.
□ Apply oil to your fan or motor. The motor has
permanently-lubricated sealed ball bearings.
Do not
Do not
16
Troubleshooting
The fan wobbles.
Problem
Problem
Solution
Solution
□ Check the main and branch circuit fuses or breakers.
□ Check the line wire connections to the fan and switch wire connections in the switch housing.
□ Make sure all motor housing screws are snug.
□ Make sure the screws that attach the fan blade arm to the motor hub are tight.
□ Make sure wire nut connections are not rattling against each other or the interior wall of the switch
housing.
□ Allow a 24-hour "breaking-in" period. Most noises associated with a new fan disappear during this
time.
□ If using the ceiling light kit, make sure the glassware are secured tight. Check that the light bulb is also
secure.
□ Make sure there is a short distance from the ceiling to the canopy. It should not touch the ceiling.
□ Make sure your ceiling box is secure and rubber isolator pads are used between the mounting bracket
and outlet box.
The fan will not start.
The fan sounds noisy.
WARNING: Make sure the power is off at the electrical
panel box before you attempt any repairs. Refer to step 3
“Making the electrical connections” on page 9.
□
Verify that all blades and blade bracket screws are secure (most fan wobble problems are caused by
loose parts). Once the fan is properly installed, run the ceiling fan for 10 minutes to let the fan
self-adjust.
If wobble occurs after running the fan for 10 minutes, verify blade level using the following process:
- Select a point on the ceiling above the tip of one of the blades, then select any fan blade and
measure from the center of the selected blade to the point on the ceiling. Rotate the fan until the next
blade is positioned and repeat the measurement using the same point from the ceiling for every blade.
Measurement deviations should be within 1/8 in..
- If all deviations are less than 1/8 in. and the fan continues to wobble, please call Customer Service
(1-855-HD-HAMPTON) to order a complimentary Blade Balancing Kit.
- If deviation is greater than 1/8 in. , please call Customer Service (1-855-HD-HAMPTON) to order
complimentary replacements of your brackets.
17 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Service Parts
AA
BB
CC
DD
EE
FF
GG
A
B
C
Part
Part
A
B
C
D
E
F
G
Description
Description
Mounting bracket
Fan motor assembly
Blade
Blade arm
Motor housing
Light kit
Glass shade
Part
Part
AA
BB
CC
DD
EE
FF
GG
HH
II
JJ
Description
Description
Plastic wire nut
Blade arm screw with lock washer (preassembled)
Nut (preassembled)
Washer (preassembled)
Light kit mounting screw (preassembled)
Metal nut (preassembled)
Glass cap (preassembled)
Decorative nut (preassembled)
Pull chain and fob
9 watt LED bulb
E
D
F
G
HH
II
JJ
18
1-855-HD-HAMPTON
HAMPTONBAY.COM
Retain this manual for future use.
Questions, problems, missing parts? Before returning to the store,
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday
call Hampton Bay Customer Service
