Visual instruction of how to install this fan:
Visit www.homedepot.com and enter either the Item or Model number to nd
this fan and click the link of visual instruction in the product overview section.

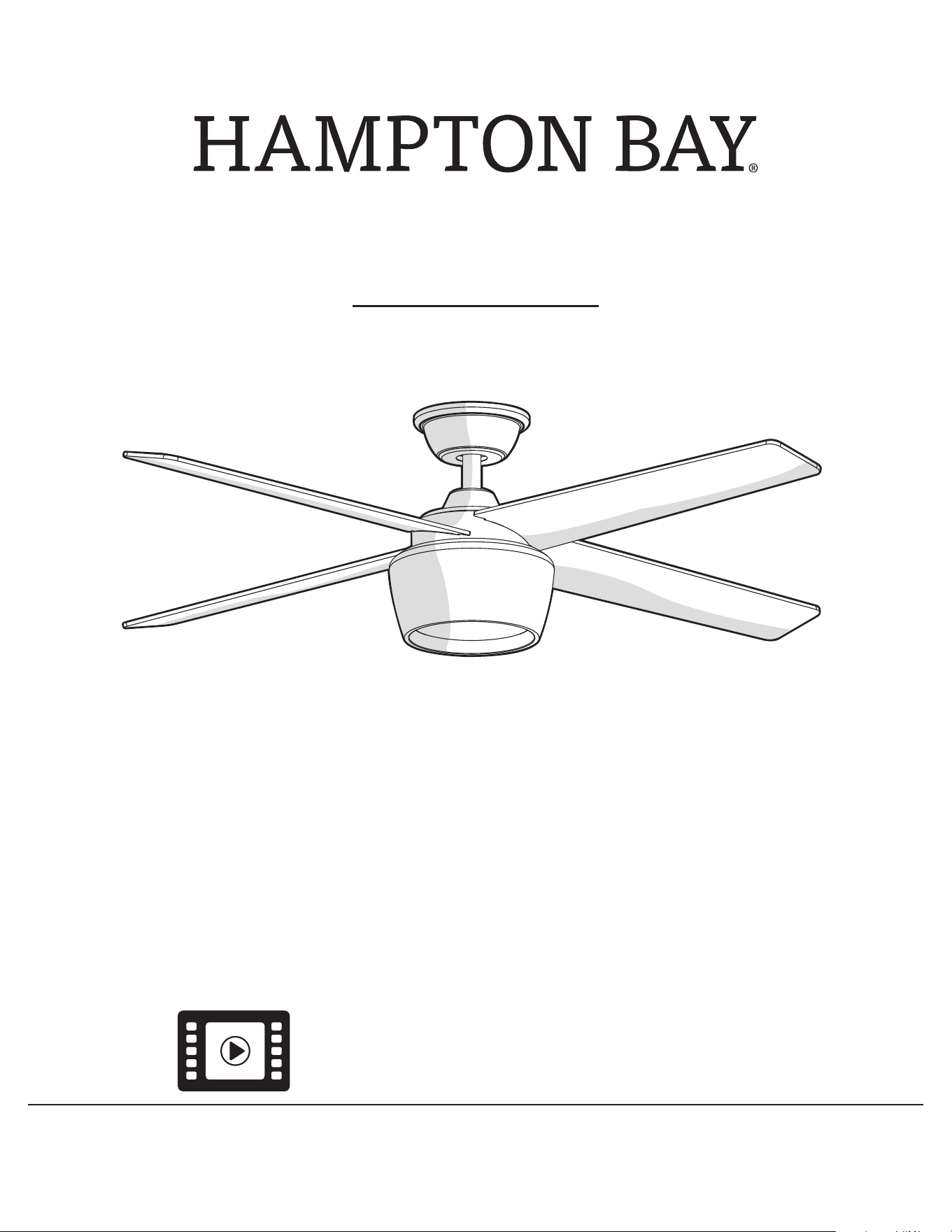

USE AND CARE GUIDE
HAVENSTONE 52 IN. CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
We appreciate the trust and condence you have placed in Hampton Bay through the purchase of this ceiling fan.
We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for
your home improvement needs. Thank you for choosing Hampton Bay!
Item #1005 729 948
1005 711 234
Model #YG763-BN
YG763-MBK
2
Table of Contents
Table of Contents ..........................................................
Safety Information .........................................................
Warranty .........................................................................
Pre-Installation ..............................................................
Tools Required .........................................................................
Hardware Included ..................................................................
Package Contents ....................................................................
Installation ......................................................................
Assembly ........................................................................
2
3
4
4
4
4
5
6
7
8
Attaching the Fan Blades .........................................................

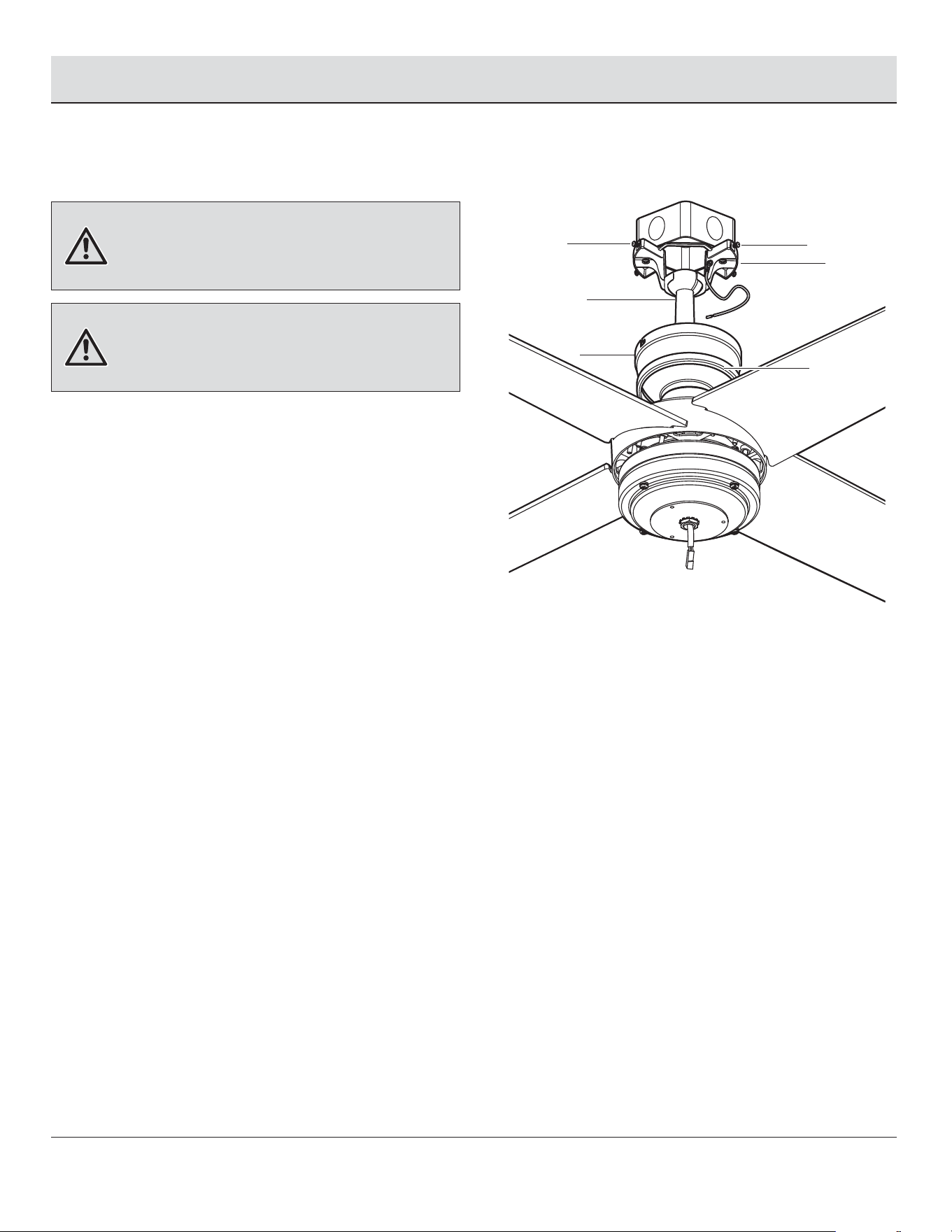

Hanging the Fan .....................................................................

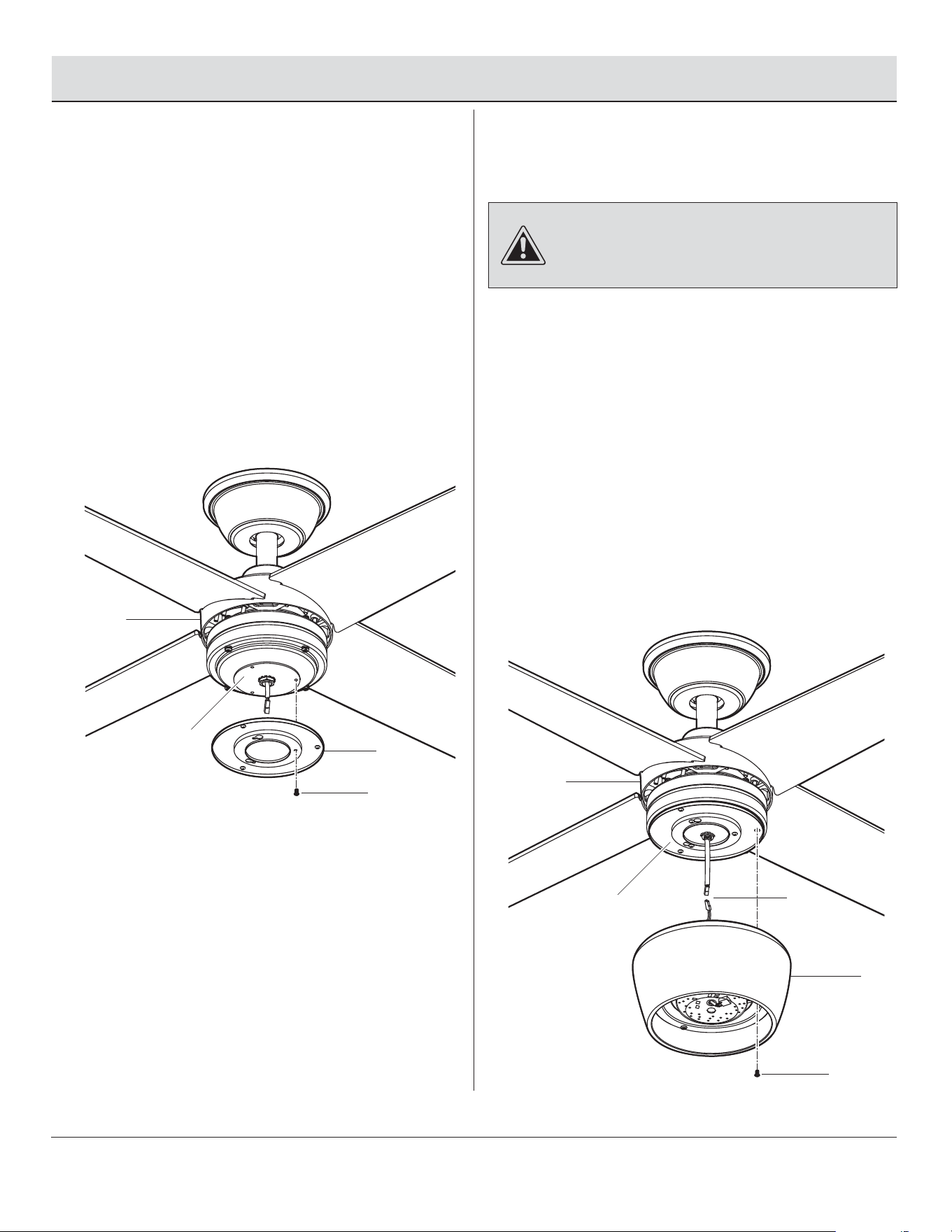

Installing the Light Kit ............................................................
8
14
10
Operation ......................................................................

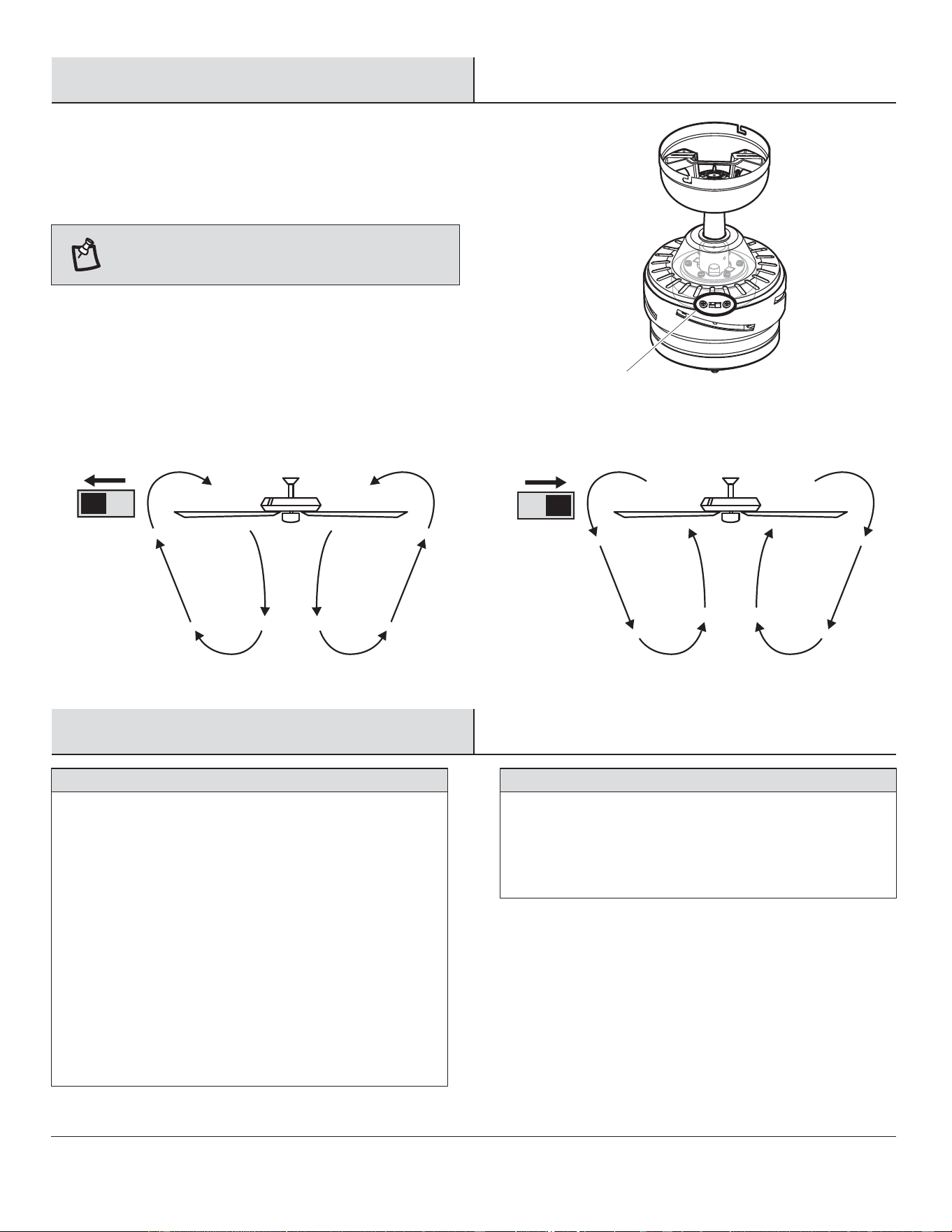

Reverse Switch Operating Instructions ..................................
Care and Cleaning .......................................................
Troubleshooting ...........................................................
Service Parts ................................................................
16
17

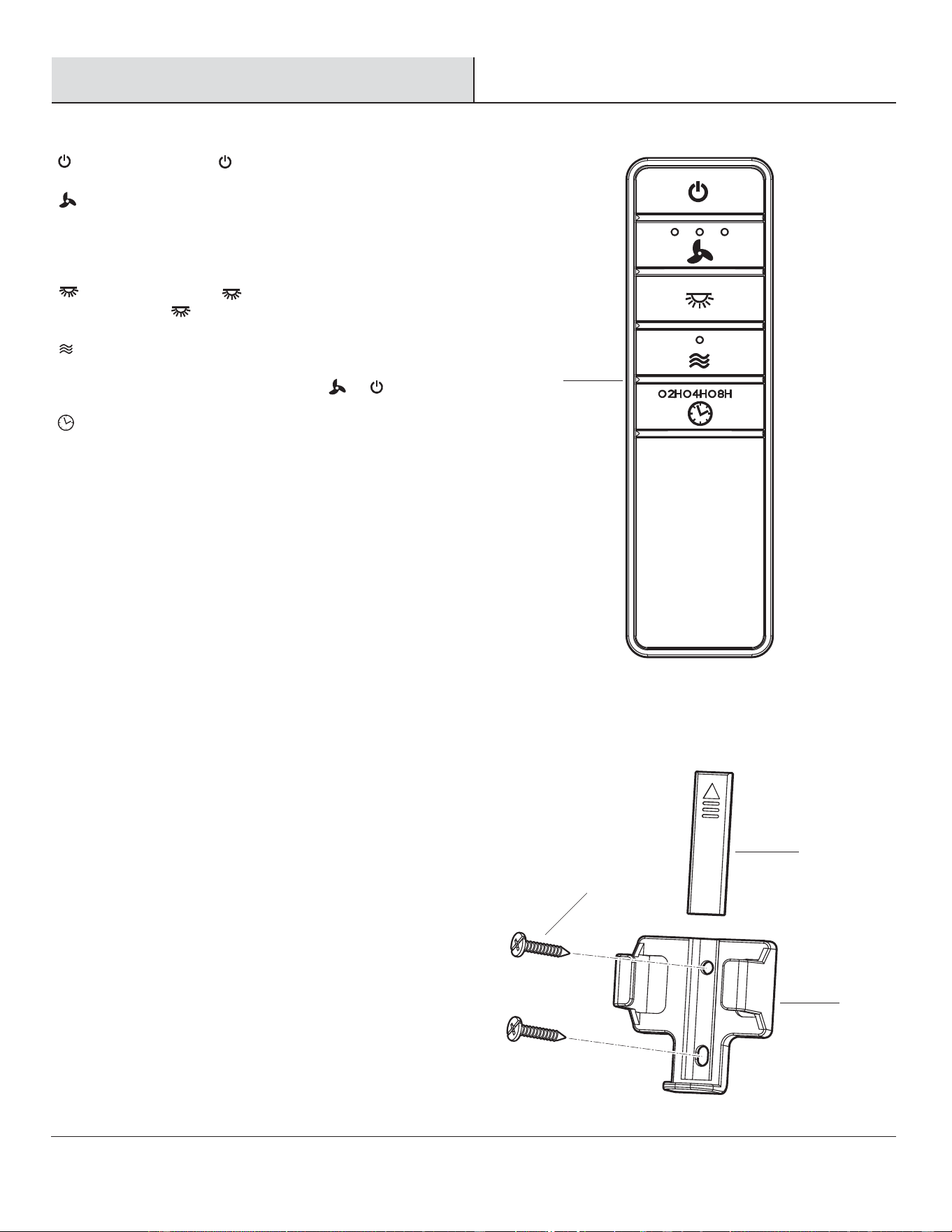

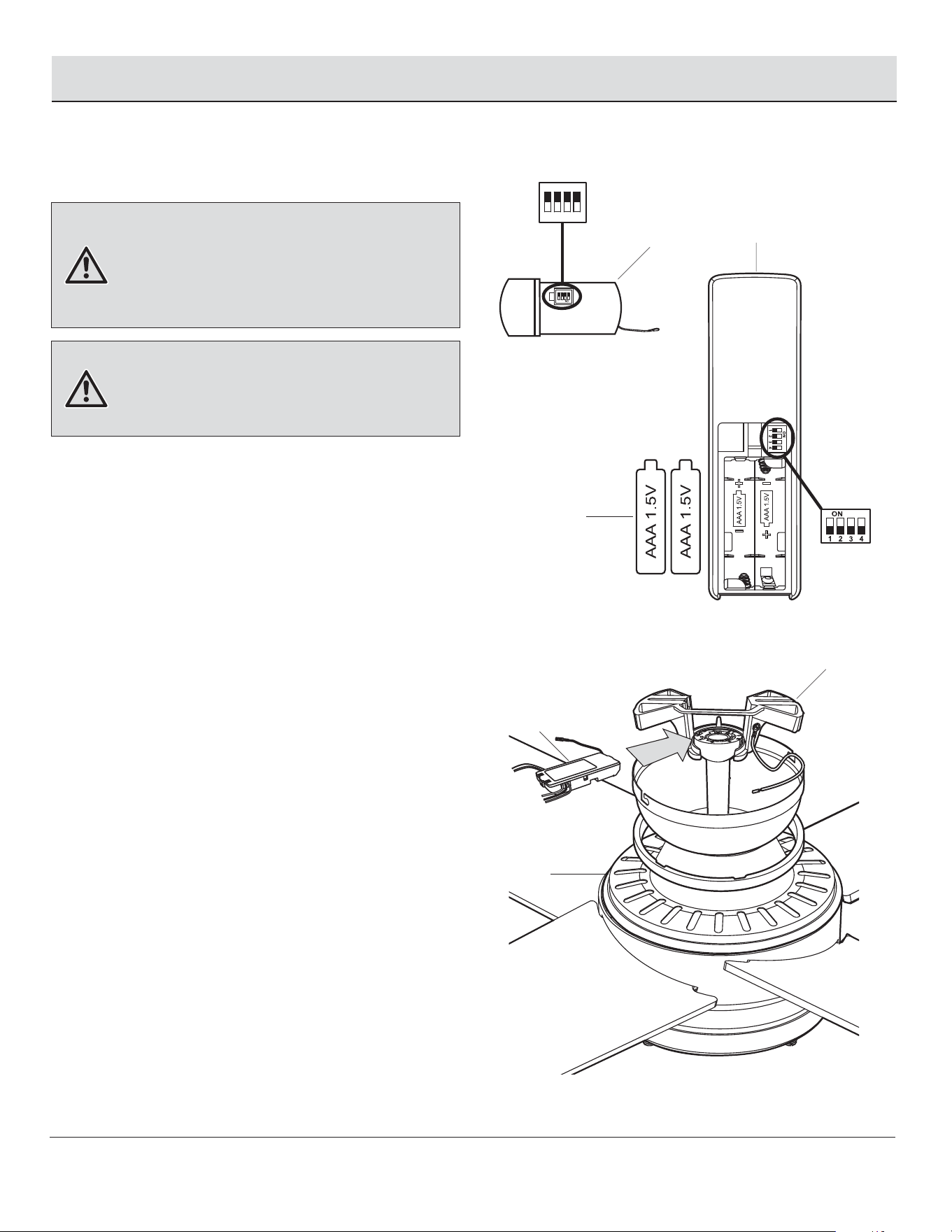

Remote Control Operating Instructions ..................................16
17
18
19
READ AND SAVE THESE INSTRUCTIONS
Safety Information
3
WARNING: To reduce the risk of electric shock, this fan
must be installed with an isolating wall control/switch.
WARNING: To reduce the risk of personal injury, do not
bend the blade arms (also referred to as anges), when
installing the brackets, balancing the blades or cleaning the
fan.
WARNING: Do not insert foreign objects between rotating
fan blades.
WARNING: To reduce the risk of re, electric shock or
personal injury, mount the fan to the outlet box marked
acceptable for fan support with the screws provided with the
outlet box.
CAUTION: To reduce the risk of personal injury, use only
the screws provided with the outlet box.
However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for
help.
1. To reduce the risk of electric shock, ensure electricity has
been turned off at the circuit breaker or fuse box before
beginning.
2. All wiring must be in accordance with the National Electrical
Code “ANSI/NFPA 70-1999” and local electrical codes.
Electrical installation should be performed by a qualied
licensed electrician.
3. The outlet box and support structure must be securely
mounted and capable of reliably supporting a minimum of 35
lbs (15.9 kg) or less. Use only UL-listed outlet boxes marked
“FOR FAN SUPPORT.”
4. The fan must be mounted with a minimum of 7 ft. (2.1m)
clearance from the trailing edge of the blades to the oor.
5. Avoid placing objects in the path of the blades.
6. To avoid personal injury or damage to the fan and other
items, be cautious when working around or cleaning the fan.
7. Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be
suitable for most cleaning.
8. After making electrical connections, spliced conductors
should be turned upward and pushed carefully up into the
outlet box. The wires should be spread apart with the
grounded conductor and the equipment-grounding conductor
on one side of the outlet box and ungrounded conductor on
the other side of the outlet box.
9. All setscrews must be checked and retightened where
necessary before installation.
10. Suitable for use with solid-state speed control (MR181B-3
only.)
11. This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must
accept any interference received, including interference that
may cause undesired operation.
WARNING: Changes or modications to this unit not
expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications.
The following responsible party designated in FCC §2.909 is
responsible for this declaration:
Model Number: YG763-MBK, YG763-BN
Company Name: TAL INTERNATIONAL CORPORATION
Company Address: 2919 E. Philadelphia St., Ontario, CA 91761, U.S.A.
Full Name: James Lai Title: Manager
Telephone Number: (909) 923-2888 Fax: (909) 923-8337
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Pre-InstallationPre-Installation
SPECIFICATIONS
SPECIFICATIONS
NOTE: These are approximate measures. They do not
include amps and wattage used by the light kit.

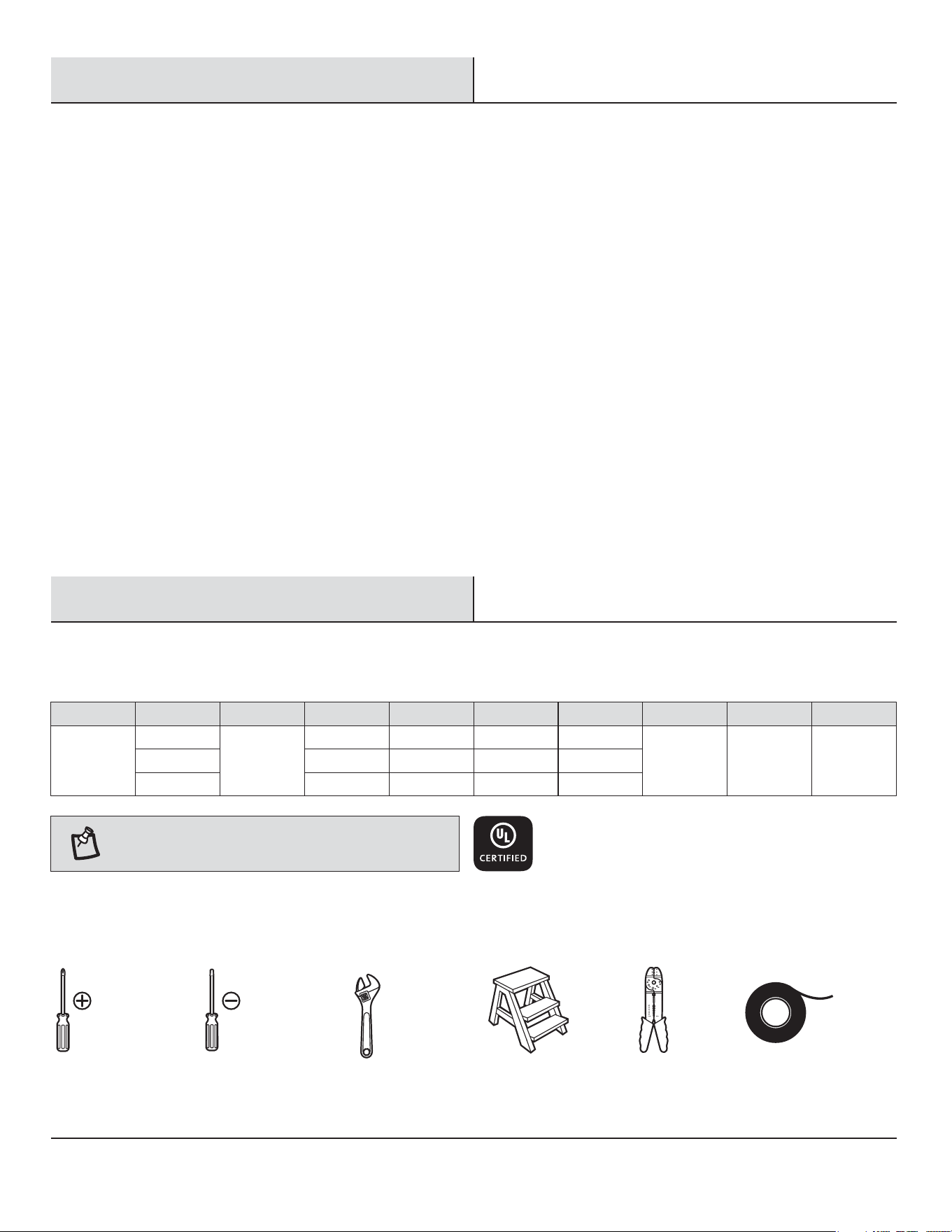

TOOLS REQUIRED
TOOLS REQUIRED
Warranty
4
52 in.
Low
Medium
High
120
0.32
0.47
0.64
13.19
29.55
66.04
69
116
175
1924
3363
4899
Fan size
Fan size
Watts
Watts
RPM
RPM
CFM
CFM
Speed
Speed
Volts
Volts
Amps
Amps
6.9 kg
(15.18 lbs.)
9.2 kg
(20.24 lbs.)
2.05 cu. ft.
N.W.
N.W.
G.W.
G.W.
C.F.
C.F.
The manufacturer warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the
factory for a period of lifetime after the date of purchase by the original purchaser. The manufacturer warrants the light kit (excluding any
glass), to be free from defects in workmanship and material at the time of shipment from the factory for a period of three years after the
date of purchase by the original purchaser. The manufacturers also warrants that all other fan parts, excluding any glass or acrylic blades,
to be free from defects in workmanship and material at the time of shipment from the factory for a period of one year after the date of
purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or
superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All
costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper
installation or by afxing any accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not
cover any changes in brass nish, including rusting, pitting, corroding, tarnishing or peeling. Brass nishes of this type give the longest
useful life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a
defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. We hereby
disclaim any and all warranties, including but not limited to those of merchantability and tness for a particular purpose to the extent
permitted by law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as specied in the
express warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to
you. The retailer shall not be liable for incidental, consequential, or special damages arising out of or in connection with product use or
performance except as may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential
damages, so the above exclusion or limitation may not apply to you. This warranty gives specic legal rights, and you may also have other
rights which vary from state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a
claim on the warranty must be paid by the customer.
Contact the Customer Service Team at 1-855-HD-HAMPTON or visit www.hamptonbay.com.
Phillips
screwdriver
Flat blade
screwdriver
Step
ladder
Wire
stripper
Electrical
tape
Adjustable
wrench
Pre-Installation (continued)

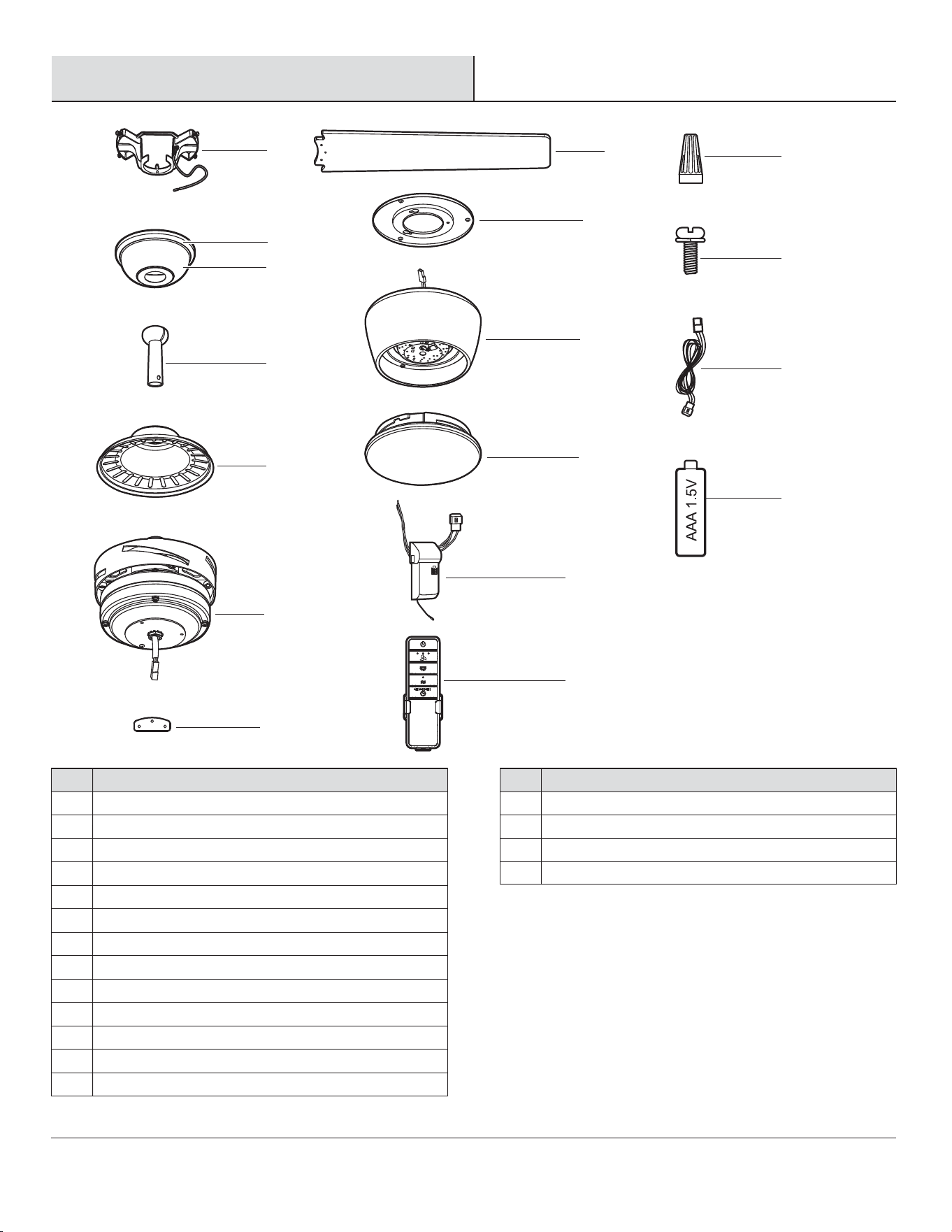

HARDWARE INCLUDED
HARDWARE INCLUDED
AA
BB
CC
DD
Plastic wire nut
Blade attachment screw with lock washer
Extension cord
1.5V AAA battery
Part
Part
Description
Description
3
13
1
2
Quantity
Quantity
5 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
NOTE: Hardware not shown to actual size.
AA BB CC
DD

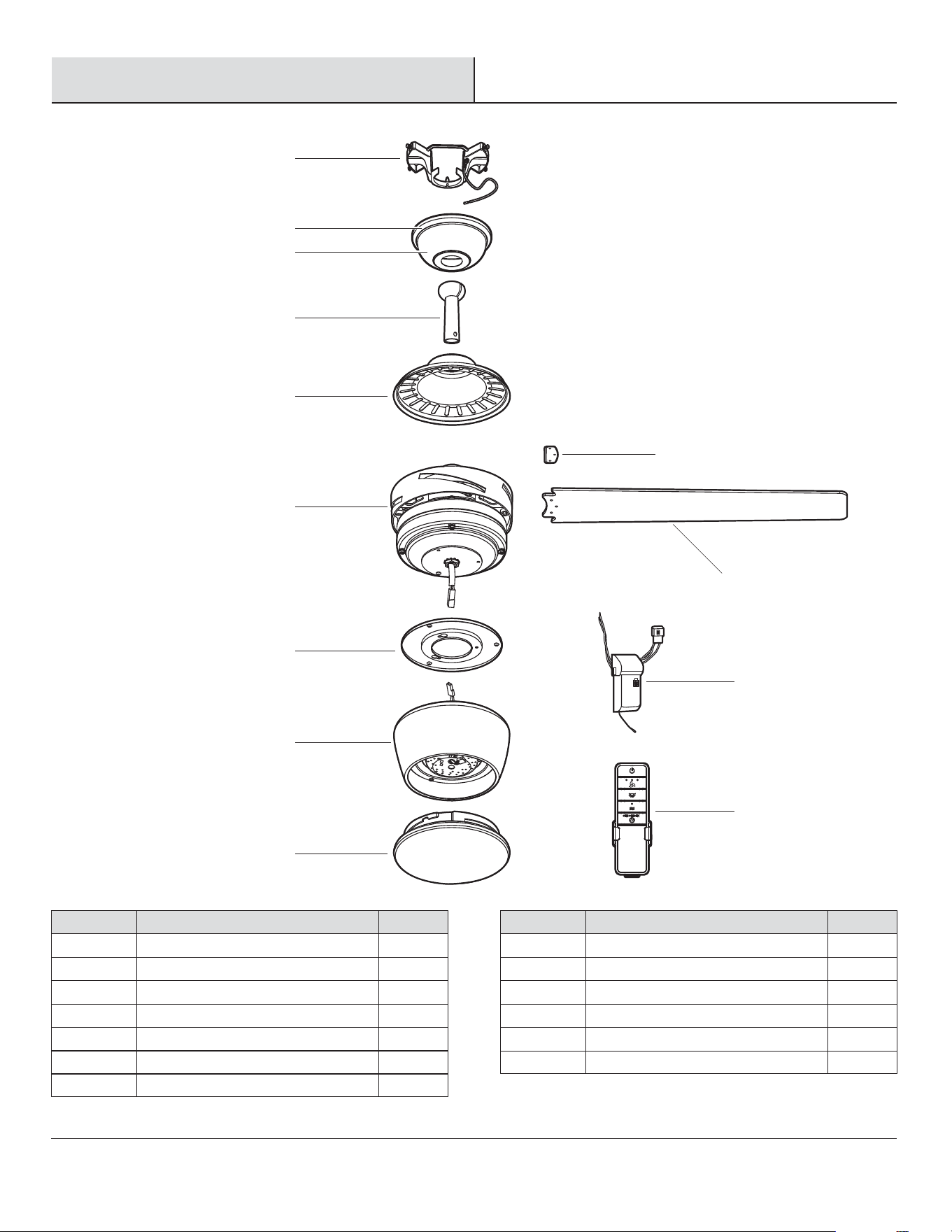

PACKAGE CONTENTS
PACKAGE CONTENTS
Pre-Installation (continued)
6
Part
H
I
J
K
L
M
Description
Description
Blade
Light kit mounting plate
20W LED Light kit
Plastic shade
Receiver
Remote control
Quantity
Quantity
4
1
1
1
1
1
Part
Part
A
B
C
D
E
F
G
Quantity
Quantity
1
1
1
1
1
1
4
Description
Description
Mounting bracket (preassembled)
Canopy ring (preassembled)
Canopy
Hanger ball/downrod assembly
Coupling cover
Fan motor assembly
Blade support plate
A
H
D
E
J
K
L
G
M
F
I
B
C
7 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
To hang your fan where there is an existing xture but no ceiling
joist, you may need an installation hanger bar (not included) as
shown above.
If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
□ Disconnect the power by removing the fuses or turning off
the circuit breakers.
□ Secure the outlet box (not included) directly to the
building structure. Use appropriate fasteners and materials
(not included). The outlet box and its bracing must be able
to fully support the weight of the moving fan (at least 35
lbs.). Do not use a plastic outlet box.
The illustrations below show three different ways to mount the
outlet box (not included).
Outlet Box
Outlet Box
Hanger Bar
Outlet Box
Recessed
Outlet
Box
Ceiling
Mounting
Bracket

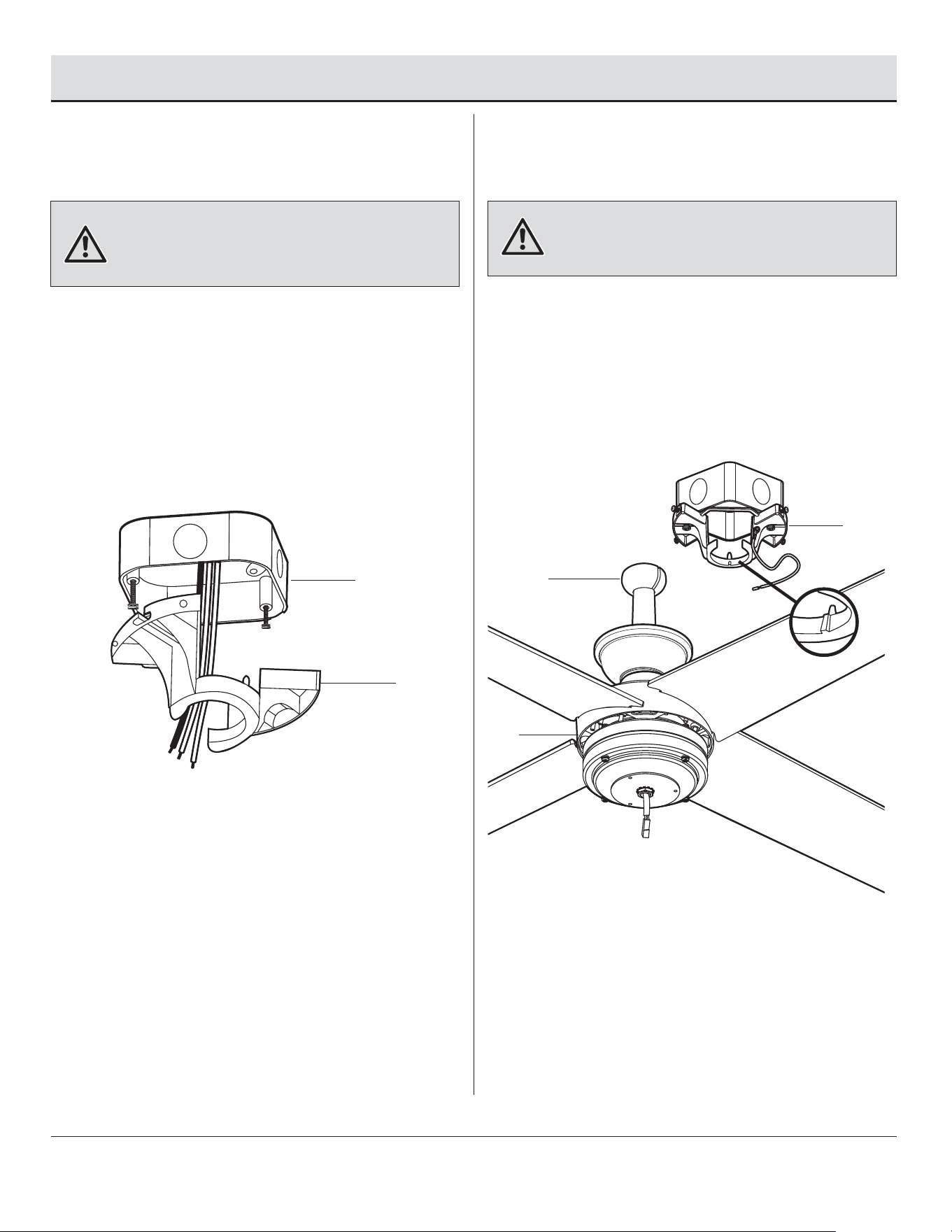

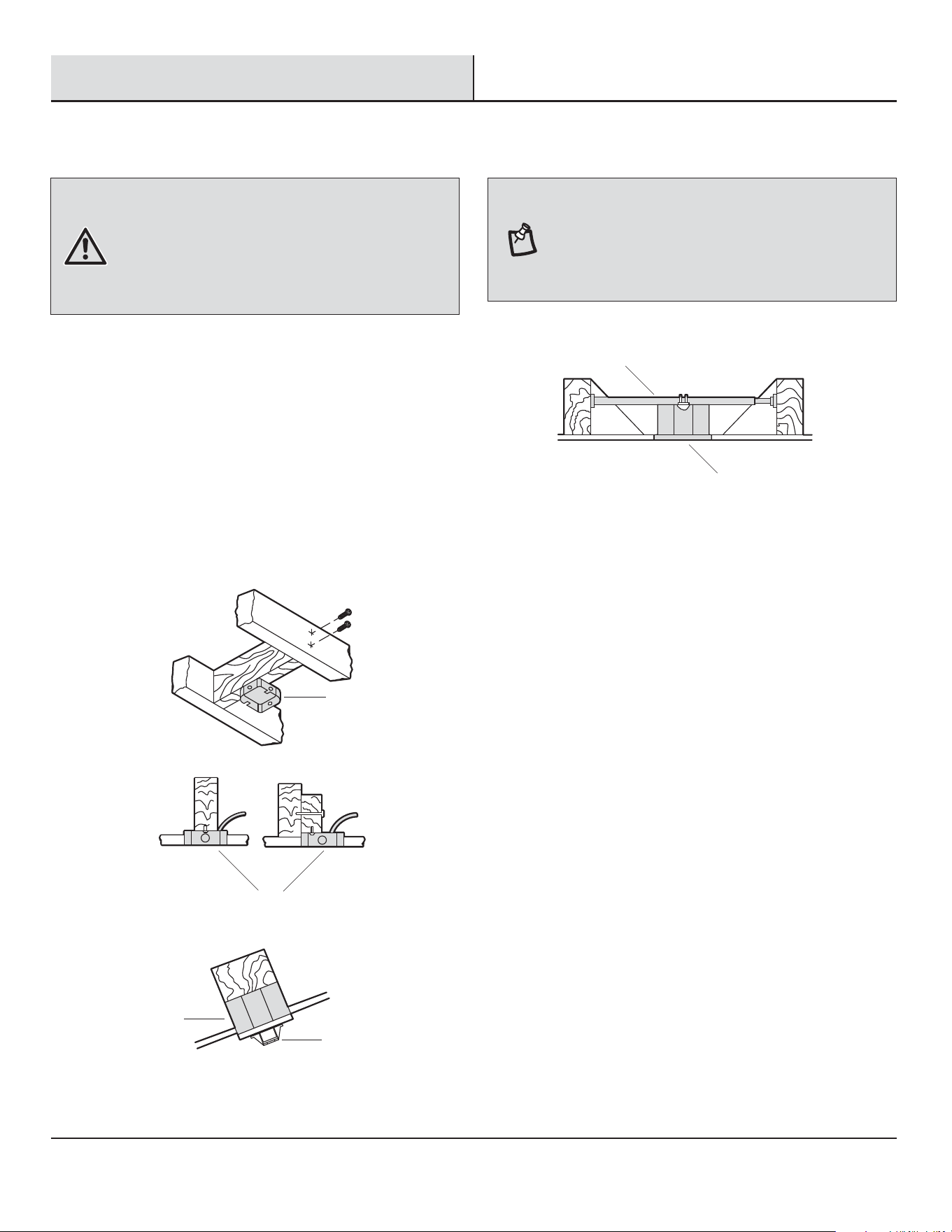

Installation
MOUNTING OPTIONS
MOUNTING OPTIONS
WARNING: To reduce the risk of re, electric shock, or
personal injury, mount the fan to an outlet box marked
acceptable for fan support using the screws provided with the
outlet box. An outlet box commonly used for the support of
lighting xtures may not be acceptable for fan support and
may need to be replaced. If in doubt, consult a qualied
electrician.
NOTE: You may need a longer downrod to maintain proper
blade clearance when installing on a steep, sloped ceiling. The
maximum angle allowable is 18° away from horizontal. If the
canopy (C) touches the hanger ball/downrod assembly (D),
then turn the canopy (C) 180° before attaching the canopy (C)
to the mounting bracket (A).
8

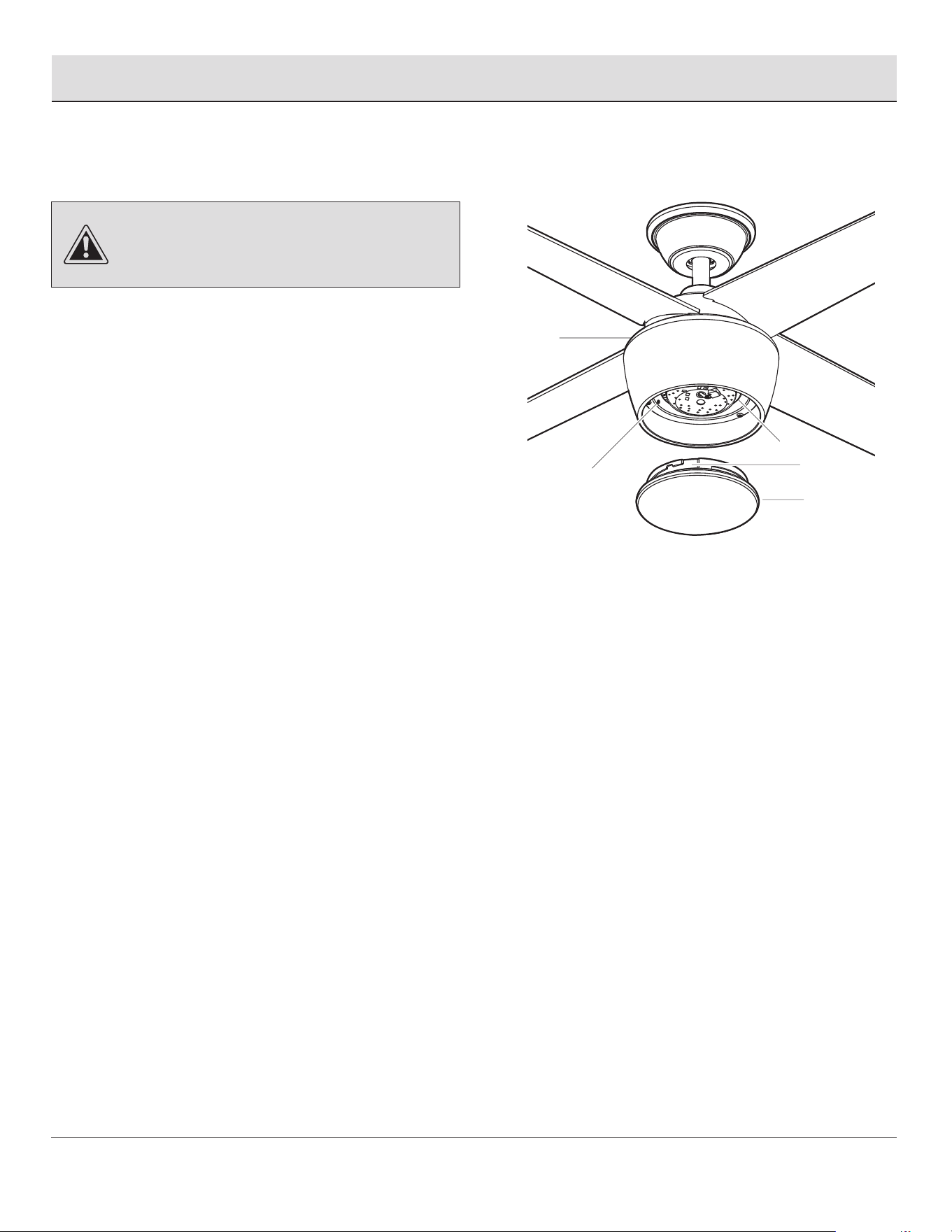

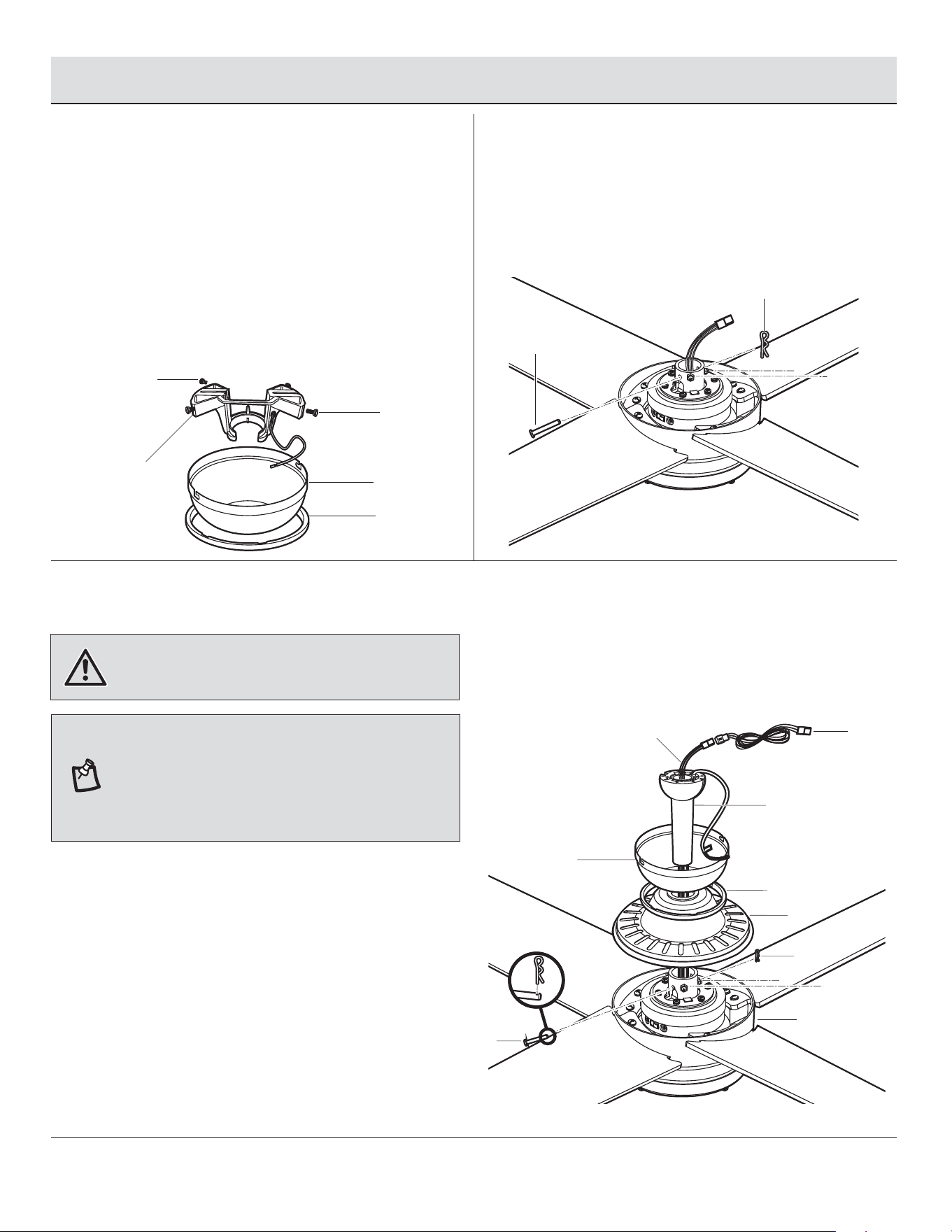

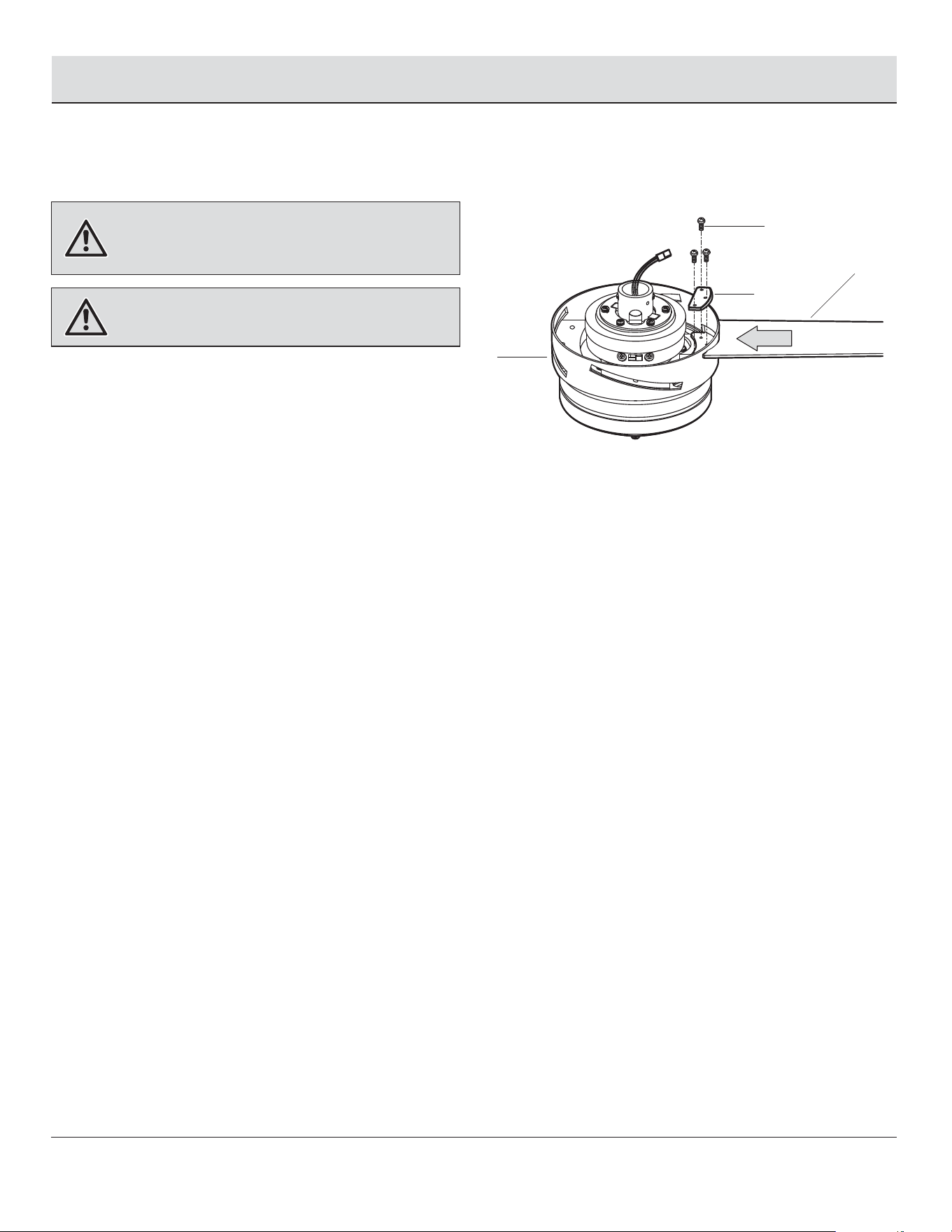

Assembly — Attaching the Fan Blades
□ Insert the blade (H) through the slot in the housing.
Align the holes in the blade (H) and the fan motor
assembly (F), secure the blade in place with blade
support plate (G) and screws with lock washers (BB).
□ Repeat this procedure for remaining blades (H).
WARNING: To reduce the risk of personal injury, do not
bend the blades (H) while installing, balancing the blades (H),
or cleaning the fan.
WARNING: Do not insert foreign objects between rotating
fan blades (H).
1
Attaching the Fan Blades
BB
G
H
F
Assembly
2
Preparing the canopy
3
Preparing the motor
4
Assembling the fan
□ Remove the canopy ring (B) from the canopy (C).
□ Remove the two non-slotted canopy mounting screws
with lock washers (EE) from the canopy (C), and
loosen the slotted canopy mounting screws with lock
washers (EE) on the canopy (C).
□ Remove the canopy (C) from the mounting bracket (A)
by turning the canopy (C) counterclockwise.
A
EE
EE
C
B
□ Remove the cotter pin (FF), and clevis pin (GG), and
loosen the two collar setscrews (HH) from the motor
collar.
□ Route the wires exiting from the top of the fan motor
assembly (F) through the coupling cover (E). Ensure the
slot openings are on top.
□ Route the wires through the canopy (C) and then through
the hanger ball/downrod assembly (D).
□ Align the holes at the bottom of the hanger ball/downrod
assembly (D) with the holes in the collar on top of the
fan motor assembly (F).
□ Carefully insert the clevis pin (GG) through the holes in
the collar and the hanger ball/downrod assembly (D). Be
careful not to jam the clevis pin (GG) against the wiring
inside the hanger ball/downrod assembly (D).
□ Insert the cotter pin (FF) through the hole near the
end of the clevis pin (GG) until it snaps into the locked
position.
□ Tighten the two collar setscrews (HH) on top of the
fan motor assembly (F) rmly.
WARNING: Failure to properly install the cotter pin (FF)
could result in the fan becoming loose and possibly falling.
9 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
NOTE: If a longer downrod (not included) is needed, take
out the screw located in the hanger ball, lower the hanger
ball and remove the pin. Remove all three pieces from the
downrod and assemble them onto the new longer downrod
before proceeding to the downrod installation. Be sure to
snap together the 3-PIN connectors, the male plug (II) from the
fan and female plug from the extension cord (CC).
HH
HH
GG
FF
FF
C
E
HH
B
F
HH
II
D
GG
CC
D
F
Assembly — Hanging the Fan
10
5
Installing the mounting bracket
to the electrical box
Hanging the fan to the mounting
bracket
□ Carefully lift the fan motor assembly (F) up to the
mounting bracket (A) and seat the hanger
ball/downrod assembly (D) in the mounting bracket
(A) socket. Make sure the tab on the mounting
bracket (A) socket is properly seated in the groove in
the hanger ball/downrod assembly (D). This will help
to balance the ceiling fan.
6
WARNING: To reduce the risk of re, electric shock or
other personal injury, mount the fan only to an outlet box or
supporting system marked acceptable for fan support and
use the mounting screws provided with the outlet box.
WARNING: The tab in the ring must rest in the groove of
the hanger ball/downrod assembly (D). Failure to properly
seat the tab in the groove could cause damage to the wiring.
□ Pass the 120-volt supply wires through the center
hole in the mounting bracket (A).
□ Attach the mounting bracket (A) on the outlet box by
sliding the mounting bracket (A) over the screws
provided with the outlet box. Note that the at side of
the mounting bracket (A) is toward the outlet box.
□ Securely tighten the two mounting screws.
A
A
Outlet box
Assembly — Hanging the Fan (continued)
7
F
L
A
Preparing the receiver and
remote control
Setting the Code on the Remote:
□ Remove the battery cover on the back of the remote
control (M) by pressing rmly on the arrow and
sliding the cover off.
□ Slide the code switches to your choice of either up or
down. The factory setting is up.
□ Install two AAA batteries (DD) (included).
□ Replace the battery cover on the remote control (M).
Setting the Code on the Receiver:
□ Slide the code switches on the receiver (L) to the
same positions as set on the remote control (M).
□ After checking the switches, insert the receiver (L)
into the mounting bracket (A) with the at side of the
receiver (L) facing the ceiling.
NOTE: The frequencies on your receiver and remote control
have been preset at the factory. Before installing the receiver,
make sure the dip switches on the receiver and remote
control are set to the same frequency. The dip switches on
the remote control are located inside the battery
compartment.
NOTE: The battery will weaken with age and should be
replaced before leaking takes place as this will damage the
remote control. Dispose of the used battery properly and keep
the battery out of the reach of children.
11 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
M
DD
3
412
3412
DIP
DIPON
L
AA
3-Pin
connectors
L
White
Green
Black
Black
Ground
White
conductor
A
D
Green
Outlet Box
White
Blue
Black
White
Blue
Black
3412
DIP
8

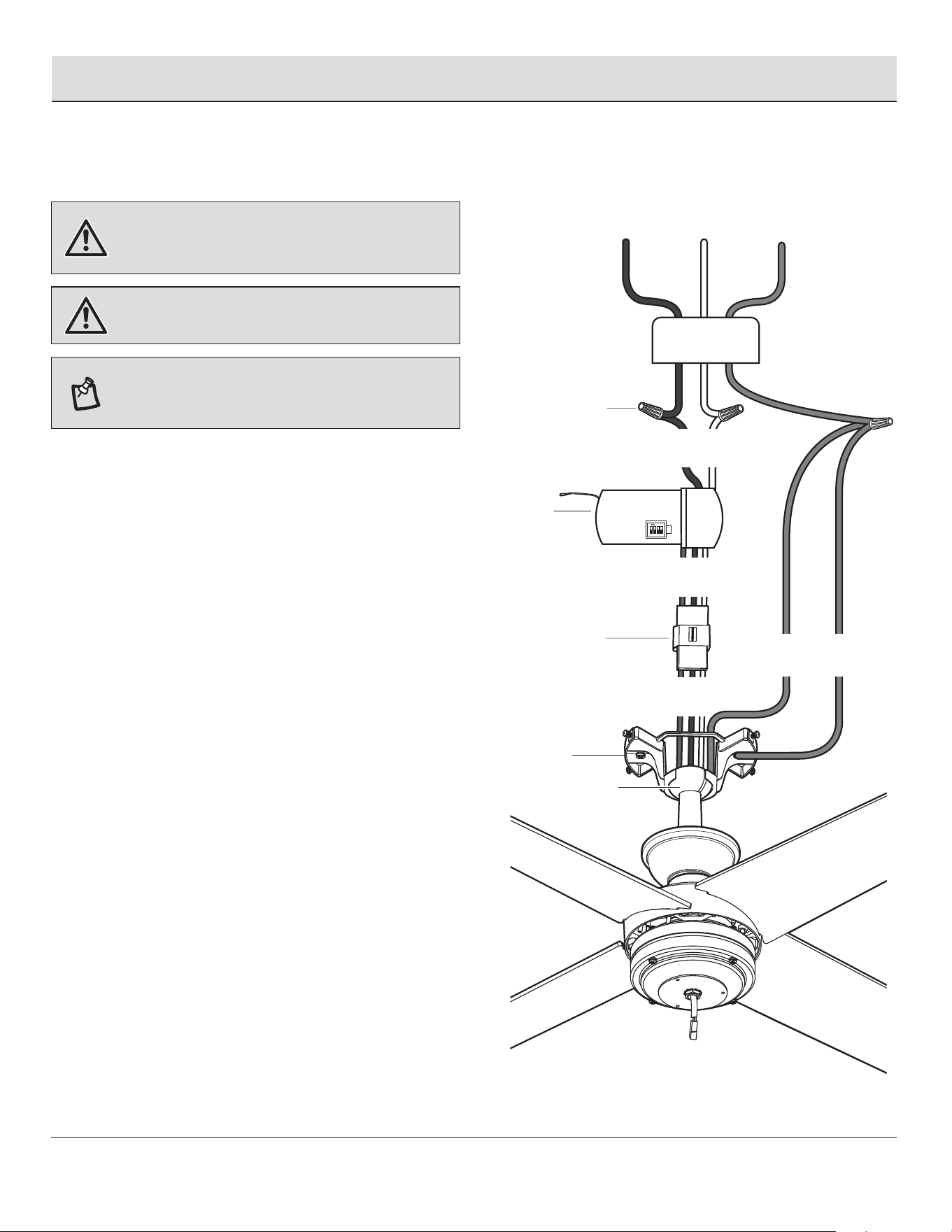

Making the electrical connections
Assembly — Hanging the Fan (continued)
WARNING: Check to see that all connections are tight,
including ground, and that no bare wire is visible at the wire
nuts, except for the ground wire.
NOTE: The fan must be installed at a maximum distance of
20 ft. from the remote control for proper signal transmission
between the remote control and the fan's receiving unit.
12
If you feel you do not have enough electrical wiring knowledge
or experience, have your fan installed by a licensed electrician.
Follow the steps below to connect the fan to your household
wiring. Use the plastic wire nuts (AA) with your fan. Secure the
plastic wire nuts (AA) with electrical tape. Make sure there are
no loose strands or connections.
□ Insert the receiver (L) into the mounting bracket (A) with
the at side of the receiver (L) facing the ceiling.
□ Make wire connections from the fan to the receiver (L).
From Fan To Receiver
3-Pin Connector--------------- 3-Pin Connector
□ Make wire connections from the receiver (L) and fan to
the outlet box as follows, using the wire nuts (AA).
From Receiver To Outlet Box
Black Wire "AC in L" ---------- Black Wire (Hot)
White Wire "AC in N" --------- White Wire (Neutral)
From Fan To Outlet Box
Green Wires* ----------------- Green or Bare Wire (Ground)
* There are two green grounding leads: one from the mounting
bracket (A) and one from the hanger ball/downrod assembly (D).
□ Turn the wire nut connections upward, spreading them
apart so the green (ground) and white wires will be on
one side of the outlet box and the black wire will be on
the other side. Carefully tuck the connections up into the
outlet box.
WARNING: To reduce the risk of electric shock, this fan
must be installed with an isolating wall control/switch.
Assembly — Hanging the Fan (continued)
9
Installing the canopy
WARNING: The locking slots of the canopy (C) are provided
only as an aid to mounting. Do not leave the fan assembly
unattended until all four canopy mounting screws with lock
washers (EE) are engaged and rmly tightened.
WARNING: Make sure the tab on the mounting bracket (A)
properly sits in the groove in the hanger ball (D) before
attaching the canopy (C) to the mounting bracket (A) by
turning the canopy (C) until it drops into place.
□ Make sure connections are neatly tucked into the
ceiling outlet box.
□ Slide the canopy (C) up to the ceiling. Make sure you
have placed the wires safely into the outlet box.
□ Secure the canopy (C) to the mounting bracket (A)
with the four canopy mounting screws with lock
washers (EE) included with your fan.
□ Slide the canopy ring (B) over the canopy (C) and
tighten by turning the ring (B).
EE
A
EE
D
C
13 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
B
14
10
Attaching the light kit
mounting plate to the mounting
ring
Assembly — Installing the Light Kit
11
Attaching the light kit to
the light kit mounting plate
□ Remove one of the three light kit mounting plate
screws (JJ) from the mounting ring (KK) and loosen
the other two screws. (Do not remove.)
□ Place the key holes in the light kit mounting plate (I)
over the two screws (JJ) previously loosened from
the mounting ring (KK). Turn the light kit mounting
plate (I) until the light kit mounting plate (I) locks in
place at the narrow section of the key holes.
□ Securely tighten the two light kit mounting plate
screws (JJ) previously loosened and the one (JJ)
previously removed.
CAUTION: Before starting installation, disconnect the
power by turning off the circuit breaker or removing the fuse
at the fuse box. Turning power off using the fan switch is not
sufcient to prevent electric shock.
□ Remove one of the three light kit mounting screws (LL)
from the light kit mounting plate (I) and loosen the
other two screws (LL). (Do not remove.)
□ While holding the 20W LED light kit (J) under the fan
motor assembly (F), snap together the wire connection
plugs (MM) :
- White to white
- Black to black
□ Place the key holes in the 20W LED light kit (J) over the
two mounting screws (LL) previously loosened from
the light kit mounting plate (I). Turn the 20W LED light
kit (J) until the 20W LED light kit (J) locks in place at
the narrow section of the key holes. Secure by
tightening the two light kit mounting screws (LL)
previously loosened and the one previously removed.
F
I
JJ
KK
F
J
LL
I
MM
12
Installing the plastic shade
Assembly — Installing the Light Kit (continued)
CAUTION: Before starting installation, disconnect the
power by turning off the circuit breaker or removing the fuse
at the fuse box. Turning power off using the fan switch is not
sufcient to prevent electric shock.
□ Position the notches (NN) in the outer rim of the
plastic shade (K) so they line up with the tabs (OO) on
the inside of the rim on the 20W LED light kit (J).
Carefully lift the plastic shade (K) up inside the 20W
LED light kit (J) and secure it to the fan by turning the
plastic shade (K) clockwise until snug. DO NOT
OVERTIGHTEN.
F
OO
NN
K
J
15
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
16
Operation
REMOTE CONTROL OPERATING INSTRUCTIONS
REMOTE CONTROL OPERATING INSTRUCTIONS
M
- Press and release the button to turn the fan on or off.
- Press and release 1 time - turns the fan on high speed.
- Press and release 2 times - turns the fan on medium speed.
- Press and release 3 times - turns the fan on low speed.
- Press and release 4 times - turns the fan off.
- Press and release the button to turn the light on or off.
Press and hold the button to activate the dimmer function.
- Press and hold this button for 3 seconds to enable Comfort
Breeze
TM
; this will change your fan speed randomly, simulating a
relaxing breeze. To cancel this feature press or .
- While the fan is on press 1 time - turns on a 2 hour run timer.
- While the fan is on press 2 times - turns on a 4 hour run timer.
- While the fan is on press 3 times - turns on an 8 hour run timer.
INSTALLING THE REMOTE CONTROL HOLDER
INSTALLING THE REMOTE CONTROL HOLDER
□ Attach the remote control holder (PP) with the two remote
control holder mounting screws (QQ).
□ Replace the remote control holder cover (RR) into the remote
control holder (PP).
QQ
RR
PP
17
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Operation (continued)
Care and Cleaning
□ Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure.
Because of the fan’s natural movement, some
connections may become loose over time. It is not
necessary to remove the fan from the ceiling.
□ Clean your fan periodically. Use only a soft brush or
lint-free cloth to avoid scratching the nish. The plating is
sealed with a lacquer to minimize discoloration or
tarnishing.
□ (Optional) Apply a light coat of furniture polish to the wood
blades.
□ (Optional) Cover small scratches with a light application of
shoe polish.
Do
Do
□ Use water when cleaning. Water could damage the motor,
or the wood, or possibly cause an electrical shock.
□ Apply oil to your fan or motor. The motor has
permanently-lubricated sealed ball bearings.
Do not
Do not
NOTE: Wait for the fan to stop before reversing the direction
of the blade rotation.
REVERSE SWITCH OPERATING INSTRUCTIONS
REVERSE SWITCH OPERATING INSTRUCTIONS
The reverse switch is located on the inside of the motor housing.
Slide the switch to the left for warm weather operation. Slide the
switch to the right for cool weather operation.
Warm weather - (Counterclockwise Direction) A downward air ow
creates a cooling effect. This allows you to set your air conditioner
on a warmer setting without affecting your comfort.
Cool weather - (Clockwise Direction) An upward air ow moves
warm air off the ceiling. This allows you to set your heating unit on
a cooler setting without affecting your comfort.
Reverse switch
18
Troubleshooting
□ Do not connect the fan with wall mounted variable speed control(s).
□ Make sure the frequency switches are set correctly.
The fan wobbles.
The remote control is
not working.
Problem
Problem
Solution
Solution
□ Check the main and branch circuit fuses or breakers.
□ Check the line wire connections to the fan and switch wire connections in the switch housing.
□ Check to make sure the frequency switches from the remote control and receiver are set to the same
frequency.
□ Make sure all motor housing screws are snug.
□ Make sure the screws that attach the fan blade to the motor hub are tight.
□ Make sure the wire nut connections are not rattling against each other or the interior wall of the switch
housing.
□ Allow a 24-hour "breaking-in" period. Most noises associated with a new fan disappear during this
time.
□ If using the ceiling light kit, make sure the glassware is secured tightly.
□ Make sure there is a short distance from the ceiling to the canopy. It should not touch the ceiling.
□ Make sure your ceiling box is secure and that rubber isolator pads are used between the mounting
bracket and outlet box.
The fan will not start.
The fan sounds noisy.
WARNING: Make sure the power is off at the electrical
panel box before you attempt any repairs. Refer to step 8
“Making the electrical connections” on page 12.
□
Verify that all blades and blade bracket screws are secure (most fan wobble problems are caused by
loose parts). Once the fan is properly installed, run the ceiling fan for 10 minutes to let the fan
self-adjust.
If wobble occurs after running the fan for 10 minutes, verify blade level using the following process:
- Select a point on the ceiling above the tip of one of the blades, then select any fan blade and
measure from the center of the selected blade to the point on the ceiling. Rotate the fan until the next
blade is positioned and repeat the measurement using the same point from the ceiling for every blade.
Measurement deviations should be within 1/8 in..
- If all deviations are less than 1/8 in. and the fan continues to wobble, please call Customer Service
(
1-855-HD-HAMPTON) to order a complimentary Blade Balancing Kit.
- If deviation is greater than 1/8 in. , please call Customer Service (
1-855-HD-HAMPTON) to order
complimentary replacements of your brackets.
19
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Part
Part
A
B
C
D
E
F
G
H
I
J
K
L
M
Description
Description
Mounting bracket (preassembled)
Canopy ring (preassembled)
Canopy
Hanger ball/downrod assembly
Coupling cover
Fan motor assembly
Blade support plate
Blade
Light kit mounting plate
20W LED Light kit
Plastic shade
Receiver
Remote control
Part
Part
AA
BB
CC
DD
Description
Description
Plastic wire nut
Blade attachment screw with lock washer
Extension cord
1.5V AAA battery
Service Parts
I
H
J
K
L
AA
BB
CC
DD
M
A
D
E
F
G
B
C
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
Retain this manual for future use.
