This comprehensive Planning Guide provides you with the framework and tools to achieve your desired design outcome with Fisher & Paykel appliances. In this guide, you will
find a range of conceptual, detailed, and dimensional product information to bring your ideas to life and create spaces that truly reflect your vision.
CONCEPT DESIGN PAGE DEVELOPED AND DETAILED DESIGN PAGE DEVELOPED AND DETAILED DESIGN PAGE
Design Choices
2.1m High refrigeration overview 4
Purchase decision 5
Minimal configuration 6
Integrated framed 7
Specification Guide
Specification Guide - K Models 9
Specification Guide - E Models 10
Accessories
Handles 12
Stainless steel panels and toe kicks 14
Data Sheets
46cm Freezer 16
61cm Single door 17
61cm Refrigerator Freezer 18
61cm Wine cabinet 19
76cm Single door 20
76cm Refrigerator Freezer 21
91cm Refrigerator Freezer 22
Planning Considerations
Hinge articulation 24
Panel variation examples 25
Door swing clearances 26
Door opening & gap clearances 27
Cavity Preparation
Single cavity dimensions 29
Dual and triple cavity dimensions 30
Multiple model cavity dimensions 31
Varied model cavity dimensions 32
Custom Door Panel Preparation
Toe kick and panels - low and high options 34
46cm Single door freezer 35
61cm Single door refrigerators and freezers 36
61cm Refrigerator Freezer 37
61cm Single door wine cabinet 38
76cm Single door refrigerators and freezers 39
76cm Refrigerator Freezers 40
91cm Refrigerator Freezer 41
Services
46cm Freezer 43
61cm Models 44
76cm Models 45
91cm Refrigerator freezer 46
CONTENTS
CONTENTS
i
i
© FISHER & PAYKEL LIMITED 2025 PAGE 390003524D PLANNING GUIDE INTEGRATED REFRIGERATION 2.1M - VERSION 4 - MARCH 2025
DESIGN CHOICES
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 4PLANNING GUIDE INTEGRATED REFRIGERATION 2.1M - VERSION 4 - MARCH 202590003524D © FISHER & PAYKEL LIMITED 2025
Product
Model
1 61cm Wine Cabinet
91 bottle capacity, optional display capability. Two
independent temperature zones, four wine modes.
RS6121VL2K1, RS6121VR2K1
2 61cm Integrated Refrigerator
Custom panel ready, with 351L capacity
RS6121SRK1
3 61cm Integrated Refrigerator with water
Custom panel ready, 351L with internal water
dispenser.
RS6121SRHE1, RS6121SLHE1
RS6121SRHK1
4 76cm Integrated Refrigerator
Custom panel ready, with 463L capacity
RS7621SRK1
5 76cm Integrated Refrigerator with water
Custom panel ready, 463L with internal water
dispenser.
RS7621SRHE1, RS7621SLHE1
RS7621SRHK1
2.1M CAVITY HEIGHT MODELS
2.1M Refrigeration overview
PRODUCT SPECIFICATIONS | REFRIGERATION
REFRIGERATION
FREEZERREFRIGERATOR FREEZER
Product
Model
6 61cm Integrated Refrigerator-Freezer
Custom panel ready, 477L internal ice maker and
water dispenser.
RS6121WRUE1, RS6121WLUE1
RS6121WRUK1, RS6121WLUK1
7 76cm Integrated Refrigerator-Freezer
Custom panel ready, 477L, internal ice maker
and water dispenser.
RS7621WRUE1, RS7621WLUE1
RS7621WRUK1, RS7621WLUK1
8 91cm Integrated Refrigerator-Freezer
Custom panel ready, 477L, internal ice maker
and water dispenser.
RS9121WRUVE1, RS9121WLUVE1
Product
Model
9 46cm Freezer with Ice
Custom panel ready, 242L and internal ice
maker.
RS4621FRJE1, RS4621FLJE1
RS4621FRJK1
!0 61cm Integrated Freezer with ice
Custom panel ready, 368L and internal ice
maker and water dispenser.
RS6121FRJE1, RS6121FLJE1
RS6121FRJK1
!1 76cm Integrated Freezer with ice
Custom panel ready, 477L and internal ice
maker.
RS7621FRJE1, RS7621FLJE1
RS7621FRJK1
1 2 3 4 5 6 7 8 9 !0 !1
<< CONTENTS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 5PLANNING GUIDE INTEGRATED REFRIGERATION 2.1M - VERSION 4 - MARCH 202590003524D © FISHER & PAYKEL LIMITED 2025
DOOR SWING
900 or 1150
DESIGN CHOICES | PURCHASE DECISION
Purchase decision
OVERVIEW
INTEGRATED PANEL OPTIONS STAINLESS STEEL PANEL OPTIONS
PANEL HEIGHT
Panel heights can vary from
1970mm to 2080mm.
FINISH: Match or contrast
with your kitchen cabinets.
TOE KICK HEIGHT
Toe kick heights from 52mm
to 152mm.
FINISH: Match or contrast
with your kitchen cabinets
PANEL
2029mm high, left or right
hinging.
FINISH: Stainless Steel.
CUSTOM HANDLE
Select Fisher & Paykel
handles.
HANDLES: Select handles to
suit your cabinetry.
TOE KICK HEIGHT
100mm high, lengths
available from 457mm to
1828mm.
FINISH: Stainless Steel.
HINGING
Left or right*
ALL MODELS
*Some models require a hinge
conversion kit
CUSTOM HANDLES
Select Fisher & Paykel
handles or customize handles
to match your kitchen style.
ASSISTED OPENING
ACCESSORY:
Push or pull-to-open
functionality, check
fisherpaykel.com for
availablity.
<< CONTENTS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 6PLANNING GUIDE INTEGRATED REFRIGERATION 2.1M - VERSION 4 - MARCH 202590003524D © FISHER & PAYKEL LIMITED 2025
DESIGN CHOICES | PRODUCT CONFIGURATION
4
3
2
1
INTEGRATED MINIMAL

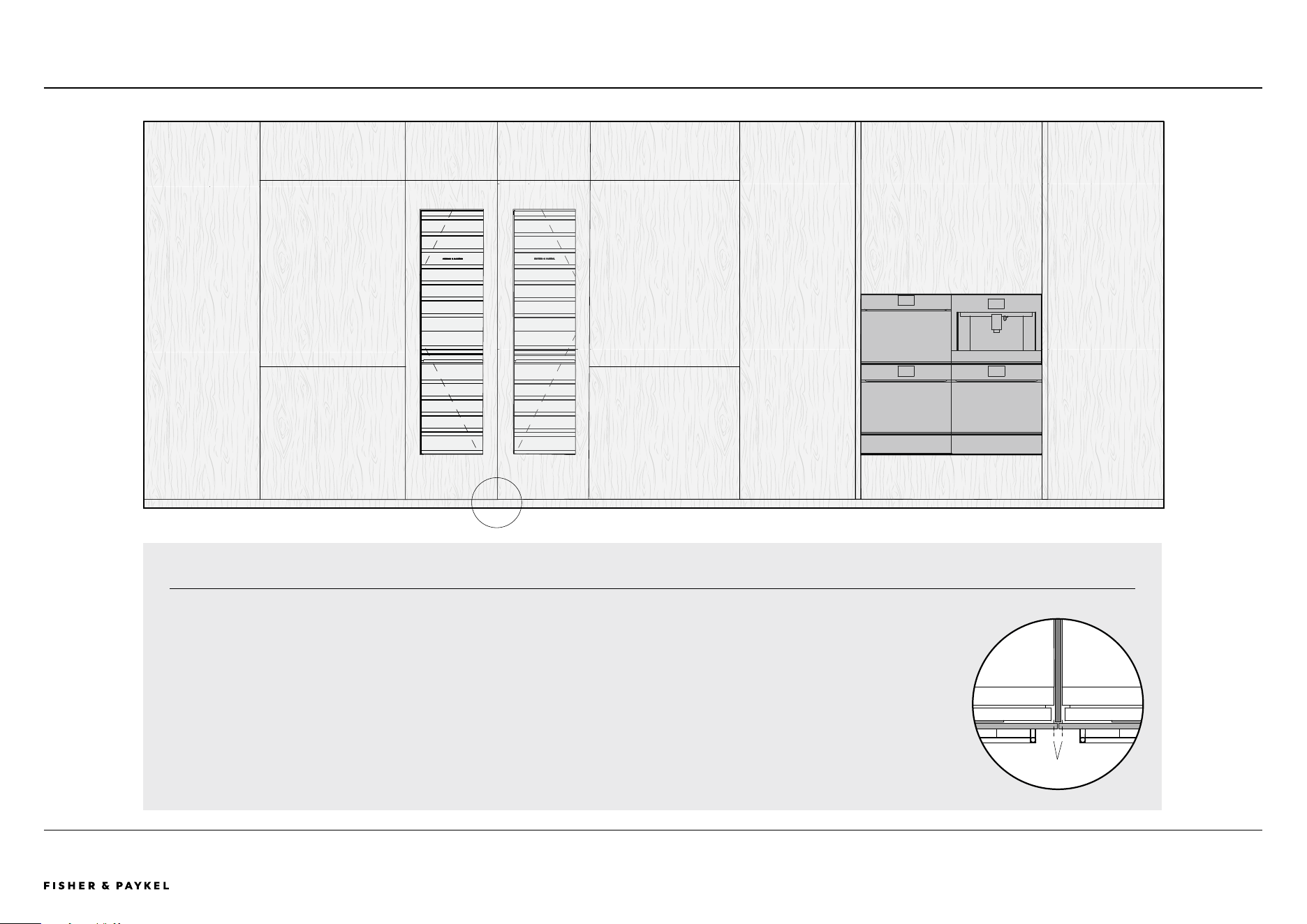

Minimal configuration
INTEGRATED MINIMAL
1 91cm Refrigerator Freezer with ice, water
2 61cm Wine cabinet
3 61cm Wine cabinet
4 91cm Refrigerator Freezer
5 61cm handless combination microwave oven
(OM60NMTNB), handleless oven (OB60SMPTNB1) and warming drawer (WB60SMB1-SET)
6 61cm Built-in coffee maker (EB60MSB1), 61cm handleless oven (OB60SMPTNB1) and vacuum drawer (VB60SMB1-SET)
In this configuration:
Ceiling height: 2400mm Product cavity height: 2.1m Toe kick: 51mm Panel height: 2080mm, Panel gap and opening clearance: 3mm
5 6
The maximum
number of appliances
per cavity is three.
If two cavities are
required, a spacer
with wider panels
can be used.
Line of standard
panel width
<< CONTENTS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 7PLANNING GUIDE INTEGRATED REFRIGERATION 2.1M - VERSION 4 - MARCH 202590003524D © FISHER & PAYKEL LIMITED 2025
DESIGN CHOICES | PRODUCT CONFIGURATION INTEGRATED FRAMED
1 2
4

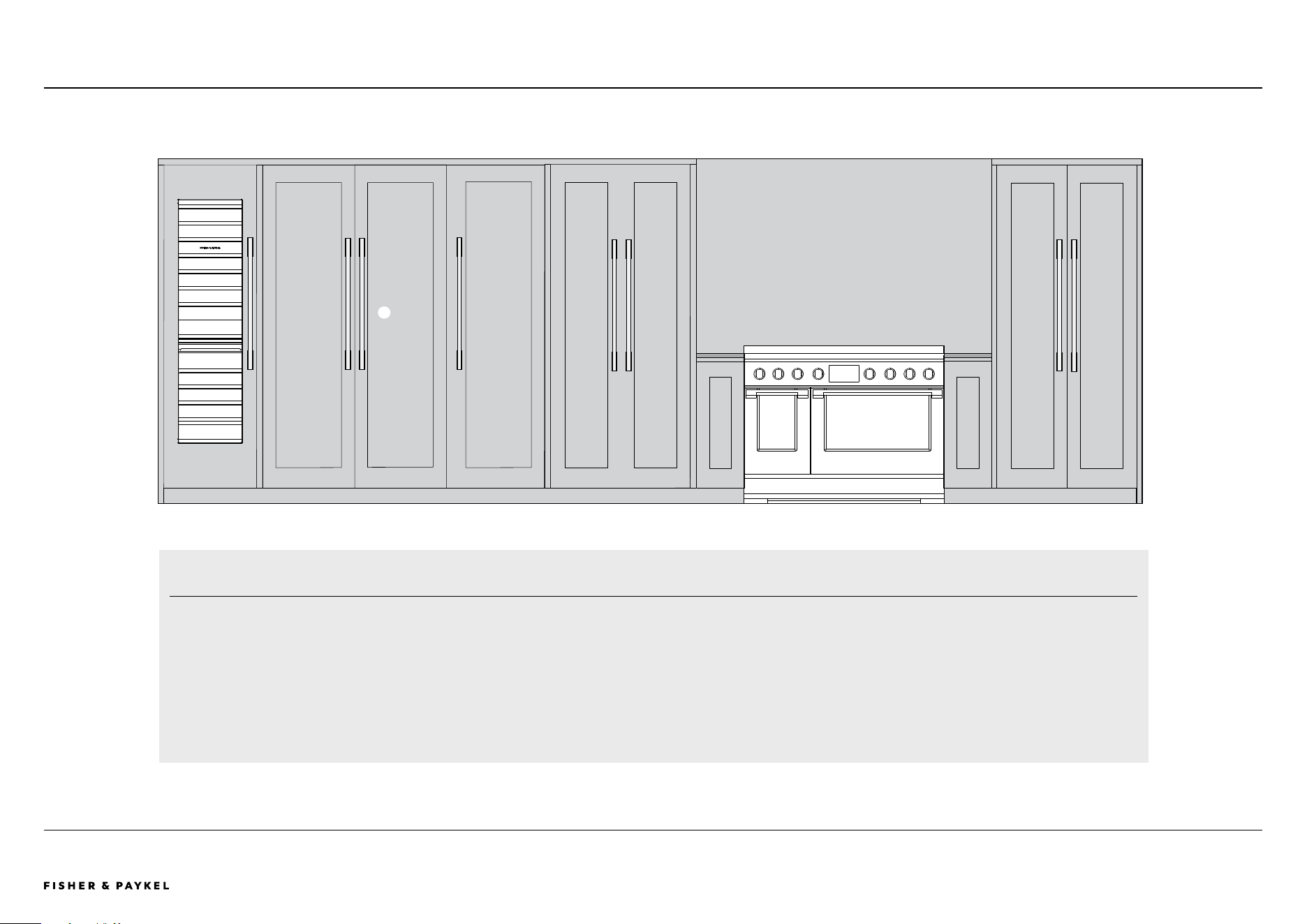

Integrated framed
INTEGRATED FRAMED
1 61cm Wine cabinet
2 61cm Freezer with ice
3 61cm Refrigerator with water
4 61cm Wine cabinet
5 Free-standing RIV-486 professional Induction range
6 Professional round handles aluminium
In this configuration:
Product cavity height: 2.1m Toe kick: 102mm Panel height: 2029mm, Panel gap and opening clearance: 3"
6
5
3
<< CONTENTS
© FISHER & PAYKEL LIMITED 2025 PAGE 890003524D PLANNING GUIDE INTEGRATED REFRIGERATION 2.1M - VERSION 4 - MARCH 2025
SPECIFICATION GUIDE
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 9PLANNING GUIDE INTEGRATED REFRIGERATION 2.1M - VERSION 4 - MARCH 202590003524D © FISHER & PAYKEL LIMITED 2025
SPECIFICATION GUIDE | Integrated Refrigeration 2.1m High
Specification Guide - K Models
RS6121FRJE1, RS6121SRHE1 - with Custom Door Panel
OVERVIEW
These Integrated Columns oer seamless design, flexible
installation, and the ability to customize to match existing
cabinetry. Features include two Variable Temperature
Zones, bright LED lighting, and ActiveSmart™ technology
for optimal freshness. With options for internal ice makers,
joining kits, and premium finishes, these models provide
lasting durability and a sleek design.
FEATURES
1 Customize with kitchen cabinetry or a stainless steel door
panel accessory
2 Seamless fit with only ⅛” gaps, featuring no visible hinges
or grilles
3 Mix and match columns, install separately or pair together
4 Two Variable Temperature Zones with options for Fridge,
Pantry, Chill, Freeze, Soft Freeze, and Deep Freeze modes
5 Flexible installation with left or right hinge options
6 Intuitive, easy-to-use touchscreen interface with Wi-Fi
compatibility
7 ActiveSmart™ technology maintains ideal temperature for
fresher food
8 Bright LEDs illuminate ceiling, shelves, bins, and tray
9 Joining kit for pairing units; front adjustable levelling feet
for easy installation
!0 Premium finish with robust materials for long-lasting
durability and sleek aesthetic
PRODUCT OVERVIEW
REFRIGERATION
RS6121VL2K1, RS6121VR2K1
Integrated Column Wine Cabinet, 61cm
RS6121SRK1
Integrated Column Refrigerator, 61cm
RS6121SRHK1
Integrated Column Refrigerator, 61cm, Water
RS7621SRK1
Integrated Column Refrigerator, 76cm
RS7621SRHK1
Integrated Column Refrigerator, 76cm, Water
FREEZER
RS4621FRJK1
Integrated Column Freezer, 46cm, Ice
RS6121FRJK1
Integrated Column Freezer, 61cm, Ice
RS7621FRJK1
Integrated Column Freezer, 76cm Ice & Water
REFRIGERATOR FREEZER
RS6121WRUK1, RS6121WLUK1
Integrated Refrigerator Freezer, 61cm, Ice & Water
RS7621WRUK1, RS7621WLUK1
Integrated Refrigerator Freezer, 76cm, Ice & Water
All models can achieve opposite hinge location using hinge kits
RS6121FRJE1, RS6121SRHE1 - with Custom Door Panel
<< CONTENTS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 10PLANNING GUIDE INTEGRATED REFRIGERATION 2.1M - VERSION 4 - MARCH 202590003524D © FISHER & PAYKEL LIMITED 2025
SPECIFICATION GUIDE | Integrated Refrigeration 2.1m High
Specification Guide - E Models
RS6121FRJE1, RS6121SRHE1 - with Custom Door Panel
RS9121WRUVE1 - with Custom Door Panel
OVERVIEW
Experience the pinnacle of refrigeration design with our
most advanced Columns. Featuring elegant interiors and
options for ice and water, these models embody premium
functionality and style. Engineered for energy eciency,
they seamlessly integrate alone or paired. Available in
various sizes, they ensure a perfect fit for any kitchen.
PRODUCT OVERVIEW
REFRIGERATION
RS6121SRHE1, RS6121SLHE1
Integrated Column Refrigerator, 61cm, Water
RS7621SRHE1, RS7621SLHE1
Integrated Column Refrigerator, 76cm, Water
FREEZER
RS4621FRJE1, RS4621FLJE1
Integrated Column Freezer, 46cm, Ice
RS6121FRJE1, RS6121FLJE1
Integrated Column Freezer, 61cm, Ice
RS7621FRJE1, RS7621FLJE1
Integrated Column Freezer, 76cm, Ice
REFRIGERATOR FREEZER
RS6121WRUE1, RS6121WLUE1
Integrated Refrigerator Freezer, 61cm, Ice & Water
RS7621WRUE1, RS7621WLUE1
Integrated Refrigerator Freezer, 76cm, Ice & Water
RS9121WRUVE1, RS9121WLUVE1
Integrated Refrigerator Freezer, 91cm, Ice & Water
FEATURES
1 Premium interior for a refined look and feel, this model is
the highlight of our Integrated Columns collection
2 Designed for optimal energy performance and maximum
efficiency
3 Mix and match columns, install separately or pair together
4 Seamless fit with only ⅛” gaps, featuring no visible hinges
or grilles
5 Customize with kitchen cabinetry or a stainless steel door
panel accessory
6 Two Variable Temperature Zones with options for Fridge,
Pantry, Chill, Freeze, Soft Freeze, and Deep Freeze modes
7 Intuitive, easy-to-use touchscreen interface with Wi-Fi
compatibility
8 Flexible installation with left or right hinge options
9 Joining kit for pairing units; front adjustable levelling feet
for easy installation
!0 ActiveSmart™ technology maintains ideal temperature for
fresher food
<< CONTENTS
© FISHER & PAYKEL LIMITED 2025 PAGE 1190003524D PLANNING GUIDE INTEGRATED REFRIGERATION 2.1M - VERSION 4 - MARCH 2025
ACCESSORIES
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 12PLANNING GUIDE INTEGRATED REFRIGERATION 2.1M - VERSION 4 - MARCH 202590003524D © FISHER & PAYKEL LIMITED 2025
HANDLESPRODUCT SPECIFICATIONS | ACCESSORIES
SINGLE DOOR MODELS FINISH MODELS
1 Contemporary Square Fine
Aluminium AHD5RDSF
Black AHD5RDSFB
2 Contemporary Round
Aluminium AHSRD84
3 Classic Handle
Aluminium AHCLRDSF
4 Professional Round
Aluminium AHC-RD84
Brass AHP3RDSFBA
Dark Copper AHP3RDSFDC
HANDLES
61CM REFRIGERATOR FREEZER MODELS
AHD5RD6121W
AHD5RD6121WB
AHSRD6121W
AHCLRD6121W
AHCRD6121W
AHP3RD6121WBA
AHP3RD6121WDC
76CM REFRIGERATOR FREEZER MODELS
AHD5RD7621W
AHD5RD7621WB
AHSRD7621W
AHCLRD7621W
AHCRD7621W
AHP3RD7621WBA
AHP3RD7621WDC
91CM REFRIGERATOR FREEZER MODELS
AHD5RD9121W
AHD5RD9121WB
AHSRD9121W
AHCLRD9121W
AHCRD9121W
AHP3RD9121WBA
AHP3RD9121WDC
Round
Prof round
Round
Prof round
Round
Prof round
1
2
4
Handles
Round
Prof round
Round
Prof round
Round
Prof round
Round
Prof round
3
55mm
41mm
16mm
120 mm
16mm
17mm
41mm
17mm
57mm
25mm
37mm
44mm
22mm
20mm
<< CONTENTS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 13PLANNING GUIDE INTEGRATED REFRIGERATION 2.1M - VERSION 4 - MARCH 202590003524D © FISHER & PAYKEL LIMITED 2025
HANDLE SPECIFICATIONSPRODUCT SPECIFICATIONS | ACCESSORIES
Handles
A
B
C
D
SOCKET SCREWS
M5 X 25mm Pan Head Socket Screw
(4 per handle) suits standard 19mm panel. Thicker
panels may require counterboring or longer screws.
VERTICAL HANDLE (DOOR)
HORIZONTAL HANDLE (DRAWER)
Contemporary Handles
Professional Round Handle
40mm
7mm
Professional Round Handle
Contemporary Handles
661mm
727mm
30mm
30mm
E
F
SINGLE DOOR MODELS
Vertical Handle
mm
A
Length between outer screws 712
B
Length between screws 773
61CM REFRIGERATOR FREEZER MODELS
Vertical Handle
mm
A
Length between inner screws 587
B
Length between outer screws 647
Horizontal Handle
C
Length between inner screws 353
D
Length between outer screws 414
E
Overall length - Professional Round 367
F
Overall length - Contemporary 494
76CM REFRIGERATOR FREEZER MODELS
Vertical Handle
mm
A
Length between inner screws 587
B
Length between outer screws 647
Horizontal Handle
C
Length between inner screws 506
D
Length between outer screws 566
E
Overall length - Professional Round 580
F
Overall length - Contemporary 646
91CM REFRIGERATOR FREEZER MODELS
Vertical Handle
mm
A
Length between inner screws 587
B
Length between outer screws 647
Horizontal Handle
C
Length between inner screws 658
D
Length between outer screws 718
E
Overall length - Professional Round 748
F
Overall length - Contemporary 798
<< CONTENTS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 14PLANNING GUIDE INTEGRATED REFRIGERATION 2.1M - VERSION 4 - MARCH 202590003524D © FISHER & PAYKEL LIMITED 2025

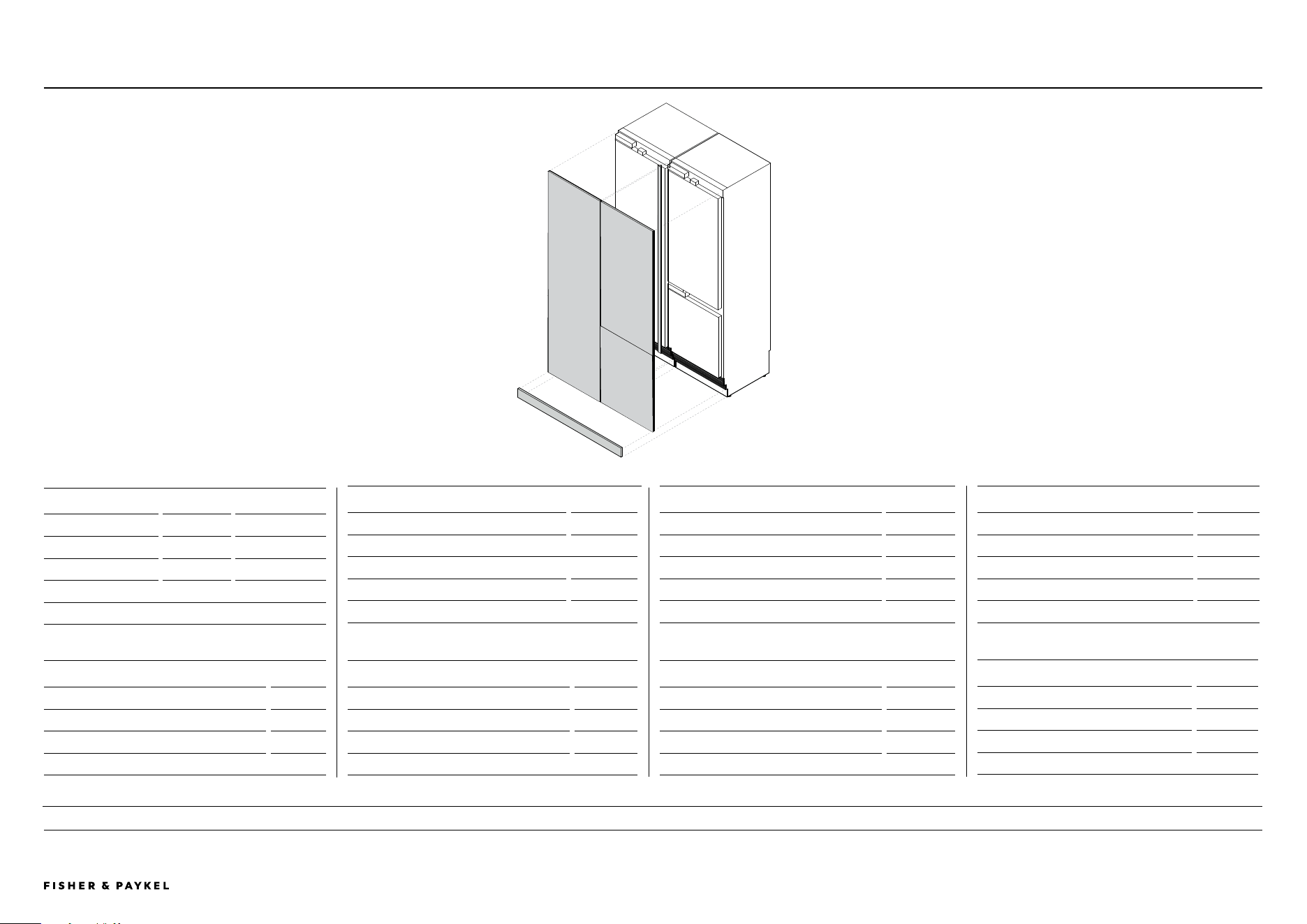

PANELS AND Toe kickSPRODUCT SPECIFICATIONS | ACCESSORIES
SINGLE DOOR MODEL LEFT MODEL RIGHT
46cm Models
RD4621L10D RD4621R10D
61cm Models
RD6121L10D RD6121R10D
76cm Models
RD7621L10D RD7621R10D
1 STAINLESS STEEL PANELS
61CM REFRIGERATOR FREEZER MODEL
Left hand hinging
RD6121WLD
Right hand hinging
RD6121WRD
61CM WINE CABINET MODEL
Left hand hinging
RD6121VL4
Right hand hinging
RD6121VR4
76CM REFRIGERATOR FREEZER MODEL
Left hand hinging
RD7621WLD
Right hand hinging
RD7621WRD
91CM REFRIGERATOR FREEZER MODEL
Left hand hinging
RD9121WLD
Right hand hinging
RD9121WRD
SINGLE TOE KICK MODEL
46cm Models
AKRS04610
61cm Models
AKRS06110
76cm Models
AKRS7610
91cm Models
AKRS3604
2 STAINLESS STEEL TOE KICKS
MULTIPLE MODEL
61cm + 61cm + 76cm (1980mm)
AKRS19810
45.7cm + 76cm + 76cm (1980mm)
AKRS19810
61cm + 76cm + 76cm (2130mm)
AKRS21310
61cm + 61cm + 91cm (2130mm)
AKRS21310
DOUBLE TOE KICK MODEL
46cm Models
N/A
61cm Models
AKRS12210
76cm Models
AKRS15210
91cm Models
AKRS7204
TRIPLE TOE KICK MODEL
46cm Models
N/A
61cm Models
AKRS18310
76cm Models
N/A
91cm Models
N/A
All Models
AJ-RS84LR A joiner kit is supplied with freezer models: RS7621FRJK1, RS7621FRJE1, RS6121FRJK1, RS6121FRJE1, RS4621FRJK1, and wine models: RS6121VR2K1, RS6121VL2K1
3 JOINER KITS* (FOR MULTIPLE PRODUCT INSTALLATION)
1
2
3
Stainless steel panels and toe kicks
PANELS AND Toe kickSPRODUCT SPECIFICATIONS | ACCESSORIES
<< CONTENTS
© FISHER & PAYKEL LIMITED 2025 PAGE 1590003524D PLANNING GUIDE INTEGRATED REFRIGERATION 2.1M - VERSION 4 - MARCH 2025
DATA SHEETS
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm
(1/16''). Please read the Installation Guide for detailed information on
installing the product. For full installation instructions visit fisherpaykel.com

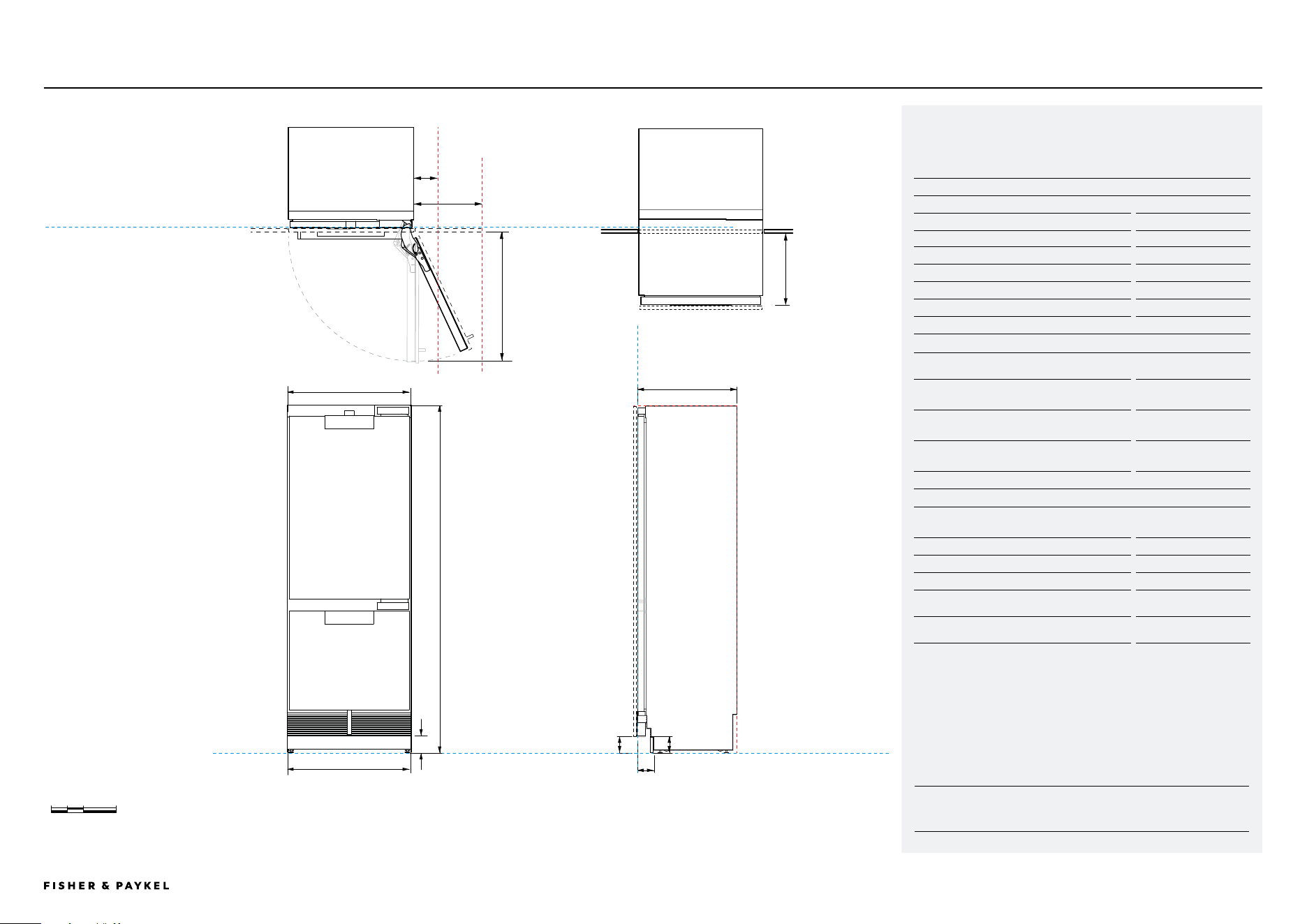

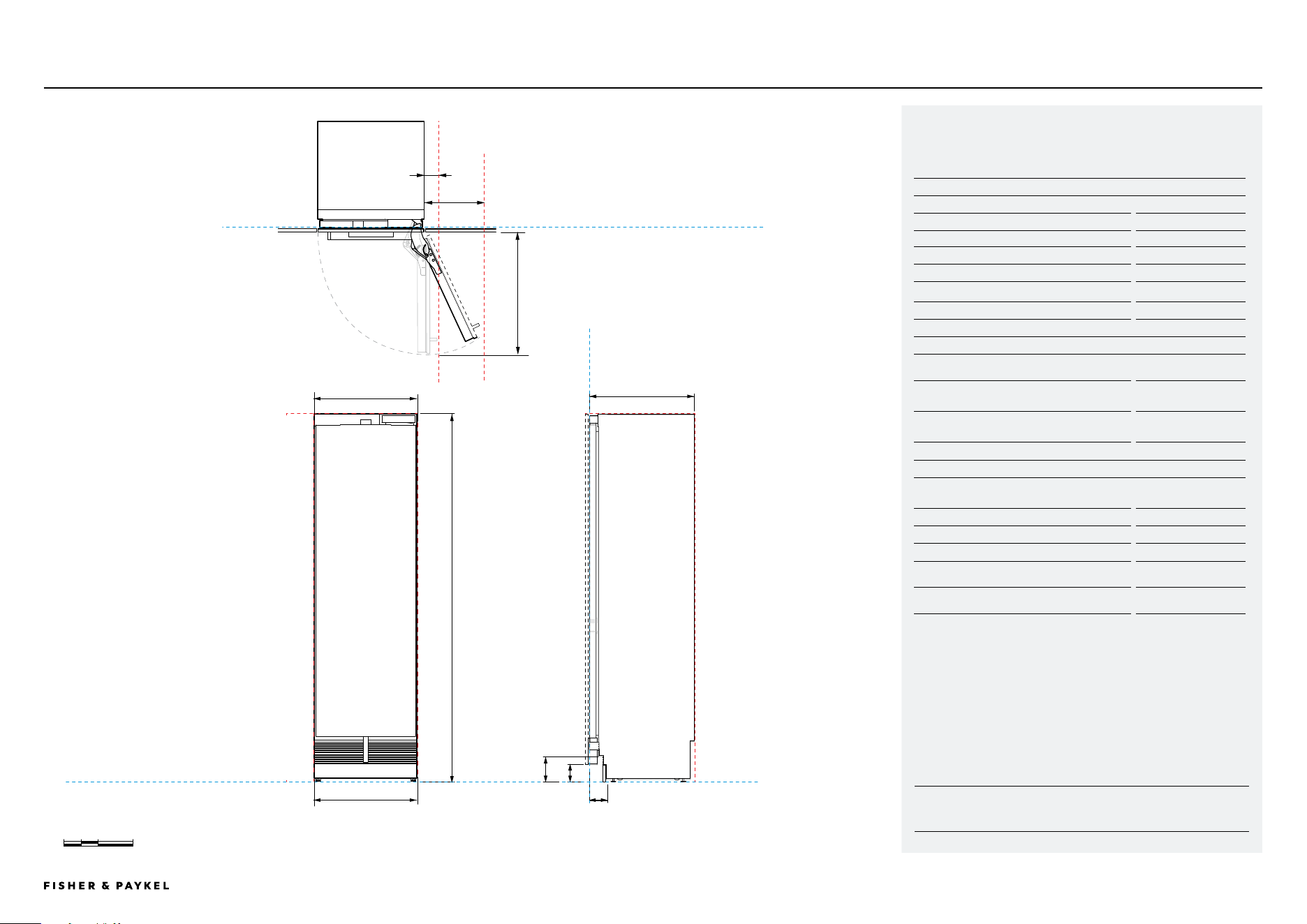

PAGE 1690003524D PLANNING GUIDE INTEGRATED REFRIGERATION 2.1M - VERSION 4 - MARCH 2025 © FISHER & PAYKEL LIMITED 2025
Model no:
RS4621FRJE1, RS4621FRJK1
Product Dimensions
mm
a Overall height
2134
B Overall width
451
c Overall depth (excluding door panels)
610
D Floor to bottom of door
102
E Depth of toe kick (excluding panels)
73 - 102
F Height of toe kick*
50 - 152
G Width of toe kick
454
Door/Drawer Opening Dimensions*
H Minimum door clearance** to adjacent wall
(90° – reduced internal access)
110
I Minimum door clearance** to adjacent wall*
(115° – full internal access)
292
J Depth of door (90° open) measured from
front of door
508
Clearance Dimensions*
Minimum cabinetry gap
clearance from edge of
door panel
3
Cavity overall height
2134
Cavity overall width (single)
457
Cavity overall width (dual)
915
Minimum overall depth (shallow) of cavity when
services are located outside of cavity***
635
Minimum overall depth (deep) of cavity when
services are located at rear of cavity***
650
* Custom panels to be manufactured & fitted by cabinet maker.
** 100mm tall stainless steel toe kick panel available. Adjust the height
of the door panel accordingly.
***Assumes a door panel depth of 19mm.

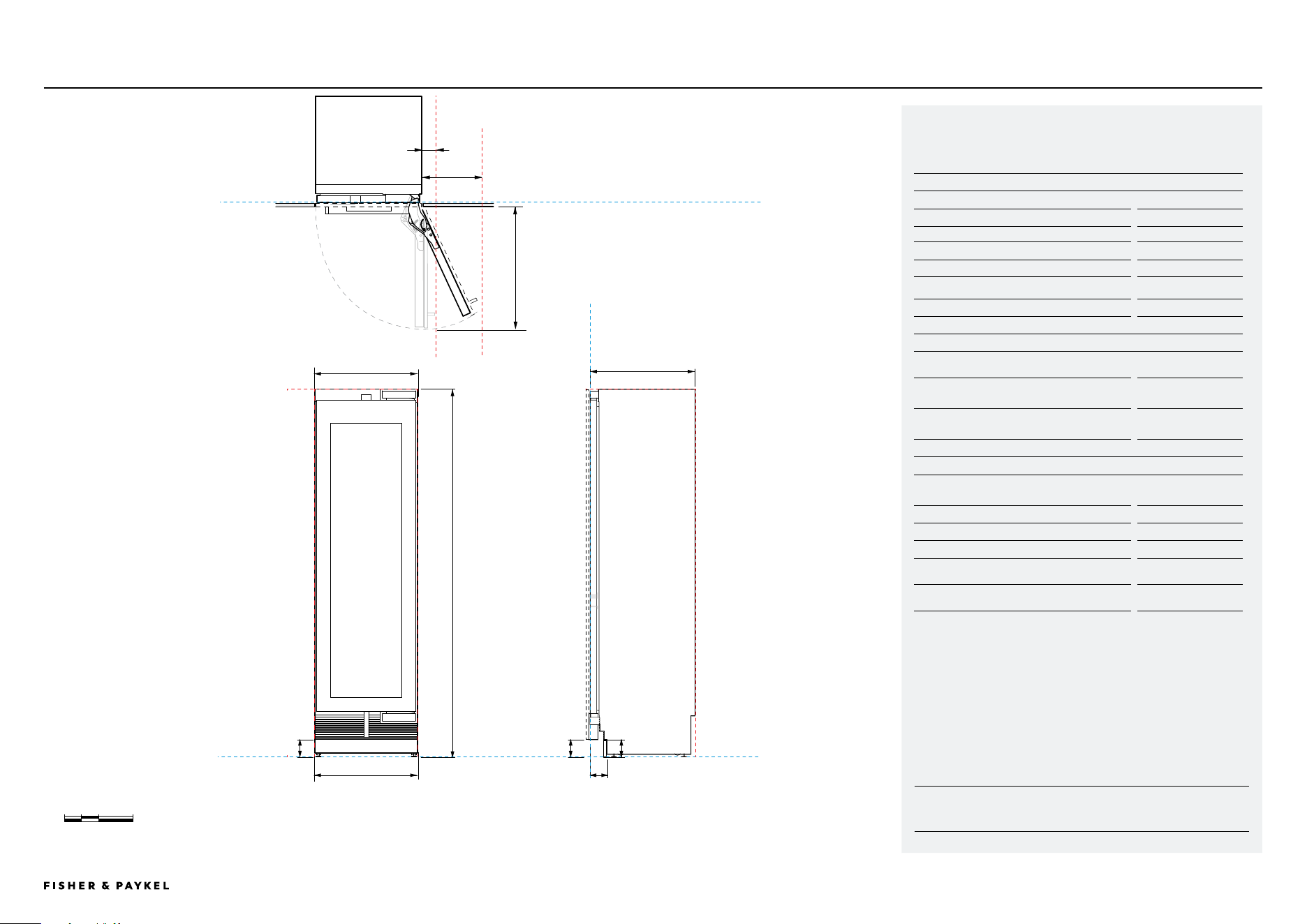

46cm Freezer

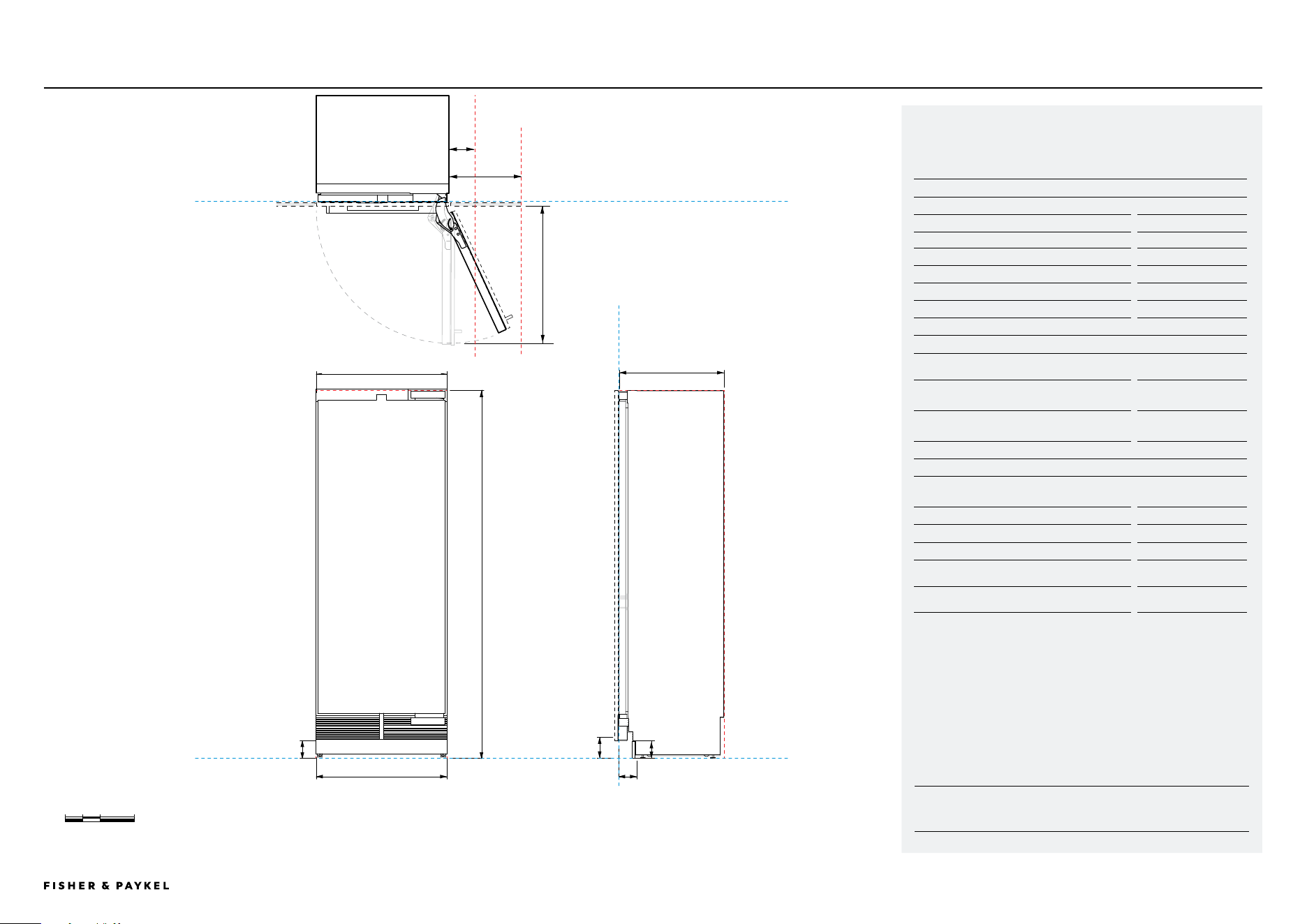

DATA SHEET | 46CM FREEZER RS4621FRJE1, RS4621FRJK1
INDICATES CABINETRY / PRODUCT DATUM -------------------------
INDICATES CABINETRY CLEARANCES --------------------------------
0 100 200 400
millimetres
C
A
B
F
D
I
H
J
PROFILE VIEWFRONT VIEW
PLAN VIEW
DATUM: FRONT OF CHASSIS
DATUM: FRONT OF CHASSIS
CLEARANCE: DOOR AT 115⁰
CLEARANCE: DOOR AT 90⁰
2134mm
451mm
E
G
<< CONTENTS
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm
(1/16''). Please read the Installation Guide for detailed information on
installing the product. For full installation instructions visit fisherpaykel.com

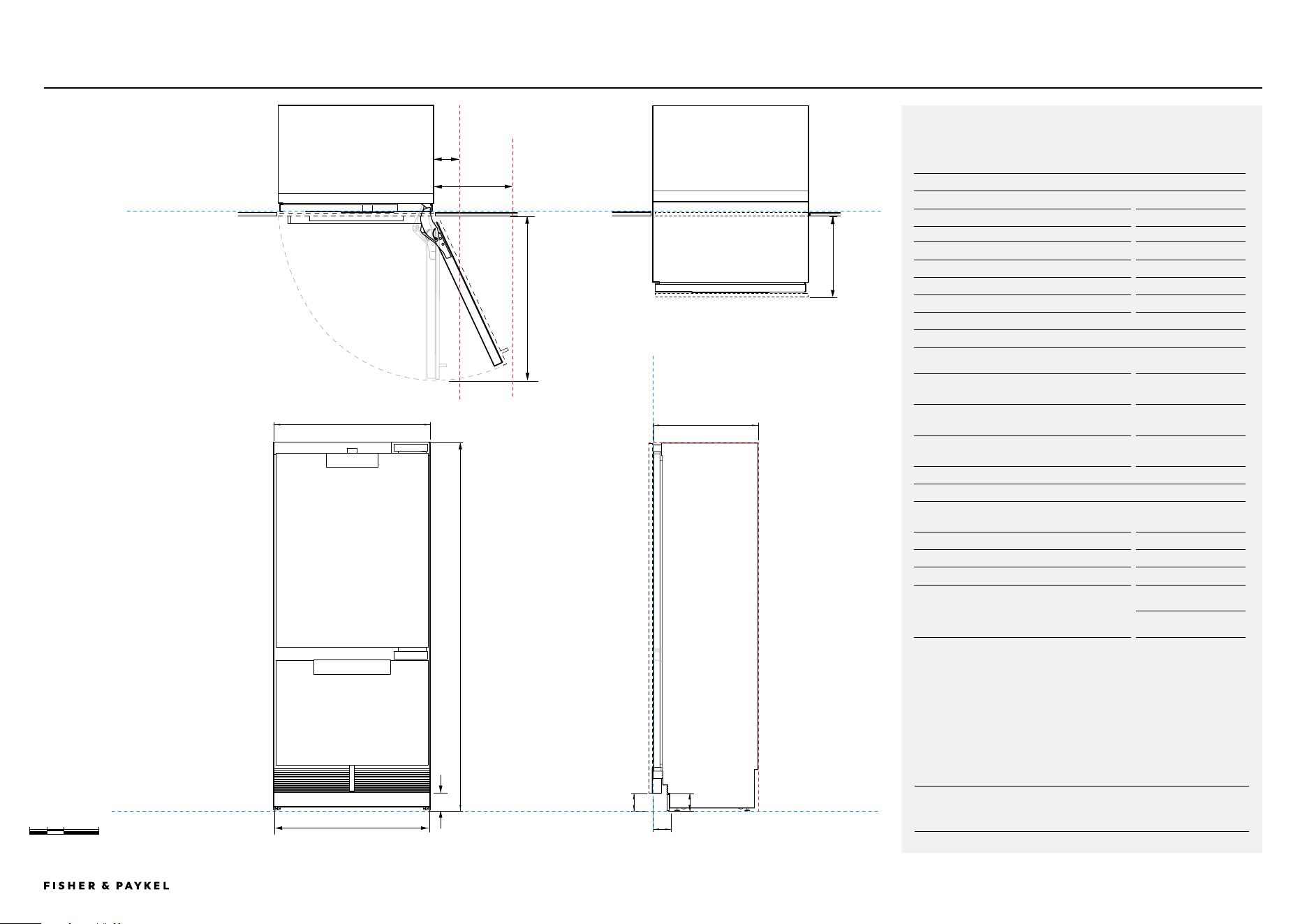

PAGE 1790003524D PLANNING GUIDE INTEGRATED REFRIGERATION 2.1M - VERSION 4 - MARCH 2025 © FISHER & PAYKEL LIMITED 2025
Model no:
RS6121SRHE1, RS6121SLHE1 RS6121FRJE1, RS6121FLJE1, RS6121SRK1
RS6121SRHK1, RS6121SRHK1
Product Dimensions*
mm
a Overall height
2134
B Overall width
603
c Overall depth (excluding door panels)
610
D Floor to bottom of door
102
E Depth of toe kick (excluding panels)
73 - 102
F Height of toe kick**
50 - 152
G Width of toe kick
606
Door/Drawer Opening Dimensions*
H Minimum door clearance** to adjacent wall*
(90° – reduced internal access)*
110
I Minimum door clearance** to adjacent wall*
(115° – full internal access)
356
J Depth of door (90° open) measured from
front of door
660
Clearance Dimensions*
Minimum cabinetry gap clearance from edge of
door panel
3
Cavity overall height
2134
Cavity overall width (single)
610
Cavity overall width (dual)
1219
Minimum overall depth (shallow) of cavity when
services are located outside of cavity***
635
Minimum overall depth (deep) of cavity when
services are located at rear of cavity***
650
* Custom panels to be manufactured & fitted by cabinet maker.
** 100mm tall stainless steel toe kick panel available. Adjust the height
of the door panel accordingly.
***Assumes a door panel depth of 19mm.
61cm Single door
DATA SHEET | 61CM SINGLE DOOR
RS6121SRHE1, RS6121SLHE1 RS6121FRJE1, RS6121FLJE1, RS6121SRK1 RS6121SRHK1, RS6121SRHK1
INDICATES CABINETRY / PRODUCT DATUM -------------------------
INDICATES CABINETRY CLEARANCES --------------------------------
0 100 200 400
millimetres
C
A
B
F
D
I
H
J
PROFILE VIEWFRONT VIEW
PLAN VIEW
DATUM: FRONT OF CHASSIS
DATUM: FRONT OF CHASSIS
CLEARANCE: DOOR AT 115⁰
CLEARANCE: DOOR AT 90⁰
2134mm
603
E
G
<< CONTENTS
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm
(1/16''). Please read the Installation Guide for detailed information on
installing the product. For full installation instructions visit fisherpaykel.com

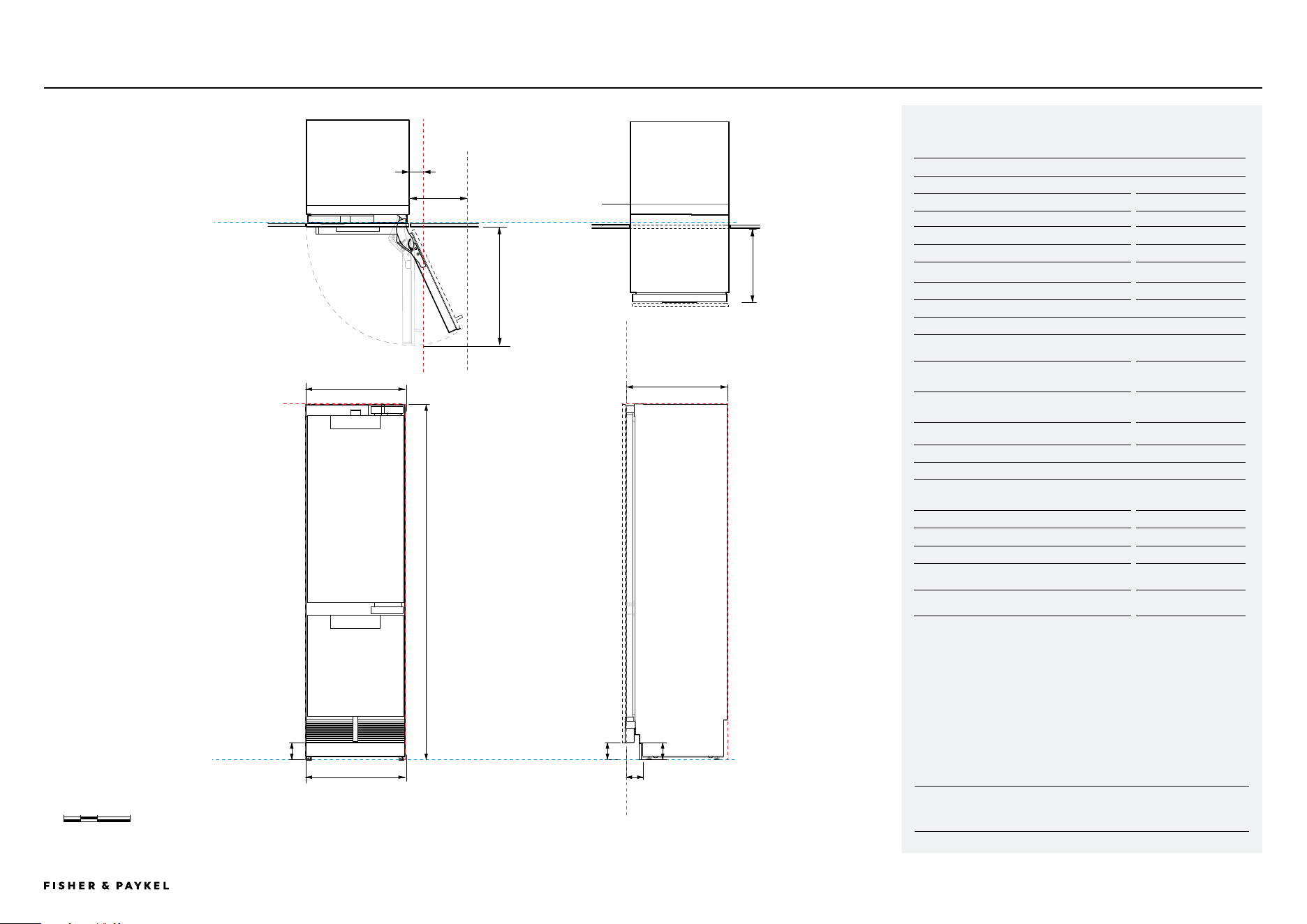

PAGE 1890003524D PLANNING GUIDE INTEGRATED REFRIGERATION 2.1M - VERSION 4 - MARCH 2025 © FISHER & PAYKEL LIMITED 2025
61cm Refrigerator Freezer
DATA SHEET | 61CM REFRIGERATOR FREEZER RS2484WLUE1, RS6121WRUE1, RS2484WLUK1, RS6121WRUK1,
INDICATES CABINETRY / PRODUCT DATUM -------------------------
INDICATES CABINETRY CLEARANCES --------------------------------
0 100 200 400
millimetres
C
A
B
F
D
I
H
J
PROFILE VIEWFRONT VIEW
PLAN VIEW
DATUM: FRONT OF CHASSIS
DATUM: FRONT OF CHASSIS
CLEARANCE: DOOR AT 115⁰
CLEARANCE: DOOR AT 90⁰
2134mm
603
E
G
606
K
Model no:
RS2484WLUE1, RS6121WRUE1, RS2484WLUK1, RS6121WRUK1
Product Dimensions*
mm
a Overall height
2134
B Overall width
603
c Overall depth (excluding door panels)
610
D Floor to bottom of door
102
E Depth of toe kick (excluding panels)
73 - 102
F Height of toe kick
50 - 152
G Width of toe kick
606
Door/Drawer Opening Dimensions*
H Minimum door clearance to adjacent wall (90°
– reduced internal access)
110
I Minimum door clearance to adjacent wall (115°
– full internal access)
356
J Depth of door (90° open) measured from
front of door
660
K Depth of drawer measured from front of door
400
Clearance Dimensions*
Minimum cabinetry gap
clearance from edge of
door panel
3
Cavity overall height
2134
Cavity overall width (single)
610
Cavity overall width (dual)
1219
Minimum overall depth (shallow) of cavity when
services are located outside of cavity***
635
Minimum overall depth (deep) of cavity when
services are located at rear of cavity***
650
* Custom panels to be manufactured & fitted by cabinet maker.
** 100mm tall stainless steel toe kick panel available. Adjust the height
of the door panel accordingly.
***Assumes a door panel depth of 19mm.
D
<< CONTENTS
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm
(1/16''). Please read the Installation Guide for detailed information on
installing the product. For full installation instructions visit fisherpaykel.com
PAGE 1990003524D PLANNING GUIDE INTEGRATED REFRIGERATION 2.1M - VERSION 4 - MARCH 2025 © FISHER & PAYKEL LIMITED 2025
Model no:
RS6121VL2K1, RS6121VR2K1
Product Dimensions*
mm
a Overall height
2134
B Overall width
603
c Overall depth (excluding door panels)
610
D Floor to bottom of door
102
E Depth of toe kick (excluding panels)
73 - 102
F Height of toe kick**
50 - 152
G Width of toe kick
606
Door/Drawer Opening Dimensions*
H Minimum door clearance to adjacent wall* (90°
– reduced internal access)
110
I Minimum door clearance to adjacent wall* (115°
– full internal access)
356
J Depth of door (90° open) measured from
front of door
660
Clearance Dimensions*
Minimum cabinetry gap clearance from edge of
door panel
3
Cavity overall height
2134
Cavity overall width (single)
610
Cavity overall width (dual)
1219
Minimum overall depth (shallow) of cavity when
services are located outside of cavity***
635
Minimum overall depth (deep) of cavity when
services are located at rear of cavity***
650
* Custom panels to be manufactured & fitted by cabinet maker.
** 100mm tall stainless steel toe kick panel available. Adjust the height
of the door panel accordingly.
***Assumes a door panel depth of 19mm.
61cm Wine cabinet
DATA SHEET | 61CM WINE CABINET RS6121VL2K1, RS6121VR2K1
INDICATES CABINETRY / PRODUCT DATUM -------------------------
INDICATES CABINETRY CLEARANCES --------------------------------
0 100 200 400
millimetres
C
A
B
FD
I
H
J
PROFILE VIEWFRONT VIEW
PLAN VIEW
DATUM: FRONT OF CHASSIS
DATUM: FRONT OF CHASSIS
CLEARANCE: DOOR AT 115⁰
CLEARANCE: DOOR AT 90⁰
2134mm
603mm
E
G
606mm
D
<< CONTENTS
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm
(1/16''). Please read the Installation Guide for detailed information on
installing the product. For full installation instructions visit fisherpaykel.com
PAGE 2090003524D PLANNING GUIDE INTEGRATED REFRIGERATION 2.1M - VERSION 4 - MARCH 2025 © FISHER & PAYKEL LIMITED 2025
Model no:
RS7621SRHE1, RS7621SLHE1, RS7621FRJE1, RS7621FLJE1,
RS7621SRK1, RS7621SRHK1, RS7621FRJK1
Product Dimensions
mm
a Overall height
2134
B Overall width
756
c Overall depth (excluding door panels)
610
D Floor to bottom of door
102
E Depth of toe kick (excluding panels)
73 - 102
F Height of toe kick**
50 - 152
G Width of toe kick
759
Door/Drawer Opening Dimensions*
H Minimum door clearance to adjacent wall (90°
– reduced internal access)
110
I Minimum door clearance to adjacent wall (115°
– full internal access)
419
J Depth of door (90° open) measured from
front of door
813
Clearance Dimensions*
Minimum cabinetry gap
clearance from edge of
door panel
3
Cavity overall height
2134
Cavity overall width (single)
762
Cavity overall width (dual)
1525
Minimum overall depth (shallow) of cavity when
services are located outside of cavity***
635
Minimum overall depth (deep) of cavity when
services are located at rear of cavity***
650
* Custom panels to be manufactured & fitted by cabinet maker.
** 100mm (3 15/16") tall stainless steel toe kick panel available. Adjust the
height of the door panel accordingly.
***Assumes a door panel depth of 19mm (3/4").
76cm Single door
DATA SHEET | 76CM SINGLE DOOR
RS7621SRHE1, RS7621SLHE1, RS7621FRJE1, RS7621FLJE1, RS7621SRK1, RS7621SRHK1, RS7621FRJK1
INDICATES CABINETRY / PRODUCT DATUM -------------------------
INDICATES CABINETRY CLEARANCES --------------------------------
0 100 200 400
millimetres
C
A
B
FD
I
H
J
PROFILE VIEWFRONT VIEW
PLAN VIEW
DATUM: FRONT OF CHASSIS
DATUM: FRONT OF CHASSIS
CLEARANCE: DOOR AT 115⁰
CLEARANCE: DOOR AT 90⁰
2134mm
756mm
E
G
759
D
<< CONTENTS
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm
(1/16''). Please read the Installation Guide for detailed information on
installing the product. For full installation instructions visit fisherpaykel.com
PAGE 2190003524D PLANNING GUIDE INTEGRATED REFRIGERATION 2.1M - VERSION 4 - MARCH 2025 © FISHER & PAYKEL LIMITED 2025
Model no:
RS7621WRUE1, RS7621WLUE1, RS7621WRUK1, RS7621WLUK1
Product Dimensions
mm
a Overall height
2134
B Overall width
756
c Overall depth (excluding door panels)
610
D Floor to bottom of door
102
E Depth of toe kick (excluding panels)
73 - 102
F Height of toe kick**
50 - 152
G Width of toe kick
759
Door/Drawer Opening Dimensions*
H Minimum door clearance to adjacent wall (90°
– reduced internal access)
110
I Minimum door clearance to adjacent wall (115°
– full internal access)
419
J Depth of door (90° open) measured from
front of door
813
K Depth of drawer (open) measured from front
of drawer *
400
Clearance Dimensions*
Minimum cabinetry gap clearance from edge of
door panel
3
Cavity overall height
2134
Cavity overall width (single)
762
Cavity overall width (dual)
1525
Minimum overall depth (shallow) of cavity when
services are located outside of cavity***
635
Minimum overall depth (deep) of cavity when
services are located at rear of cavity***
650
* Custom panels to be manufactured & fitted by cabinet maker.
** 100mm tall stainless steel toe kick panel available. Adjust the height
of the door panel accordingly.
***Assumes a door panel depth of 19mm.
76cm Refrigerator Freezer
DATA SHEET | 76CM REFRIGERATION/FREEZER RS7621WRUE1, RS7621WLUE1, RS7621WRUK1, RS7621WLUK1
INDICATES CABINETRY / PRODUCT DATUM -------------------------
INDICATES CABINETRY CLEARANCES --------------------------------
0 100 200 400
millimetres
C
A
B
F
D
I
H
J
PROFILE VIEWFRONT VIEW
PLAN VIEW
DATUM: FRONT OF CHASSIS
DATUM: FRONT OF CHASSIS
CLEARANCE: DOOR AT 115⁰
CLEARANCE: DOOR AT 90⁰
2134mm
756mm
E
G
759mm
K
D
<< CONTENTS
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm
(1/16''). Please read the Installation Guide for detailed information on
installing the product. For full installation instructions visit fisherpaykel.com
PAGE 2290003524D PLANNING GUIDE INTEGRATED REFRIGERATION 2.1M - VERSION 4 - MARCH 2025 © FISHER & PAYKEL LIMITED 2025
Model no:
RS9121WRUVE1, RS9121WLUVE1
Product Dimensions
mm
a Overall height
2134
B Overall width
908
c Overall depth (excluding door panels)
610
D Floor to bottom of door
102
E Depth of toe kick (excluding panels)
73 - 102
F Height of toe kick**
50 - 152
G Width of toe kick
910
Door/Drawer Opening Dimensions*
H Minimum door clearance to adjacent wall (90°
– reduced internal access)
110
I Minimum door clearance to adjacent wall (115°
– full internal access)
435
J Depth of door (90° open) measured from
front of door
967
K Depth of drawer (open) measured from front
of drawer *
400
Clearance Dimensions*
Minimum cabinetry gap
clearance from edge of
door panel
3
Cavity overall height
2134
Cavity overall width (single)
914
Cavity overall width (double)
1829
Minimum overall depth (shallow) of cavity when
services are located outside of cavity***
Minimum overall depth (deep) of cavity when
services are located at rear of cavity***
635
650
* Custom panels to be manufactured & fitted by cabinet maker.
** 100mm (3 15/16") tall stainless steel toe kick panel available. Adjust the
height of the door panel accordingly.
***Assumes a door panel depth of 19mm (3/4").
91cm Refrigerator Freezer
DATA SHEET | 91CM REFRIGERATION RS9121WRUVE1, RS9121WLUVE1
INDICATES CABINETRY / PRODUCT DATUM -------------------------
INDICATES CABINETRY CLEARANCES --------------------------------
0 100 200 400
millimetres
C
A
B
FD
I
H
J
PROFILE VIEWFRONT VIEW
PLAN VIEW
DATUM: FRONT OF CHASSIS
DATUM: FRONT OF CHASSIS
CLEARANCE: DOOR AT 115⁰
CLEARANCE: DOOR AT 90⁰
2134mm
908mm
E
G
910mm
K
D
<< CONTENTS
© FISHER & PAYKEL LIMITED 2025 PAGE 2390003524D PLANNING GUIDE INTEGRATED REFRIGERATION 2.1M - VERSION 4 - MARCH 2025
PLANNING CONSIDERATIONS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 24PLANNING GUIDE INTEGRATED REFRIGERATION 2.1M - VERSION 4 - MARCH 202590003524D © FISHER & PAYKEL LIMITED 2025

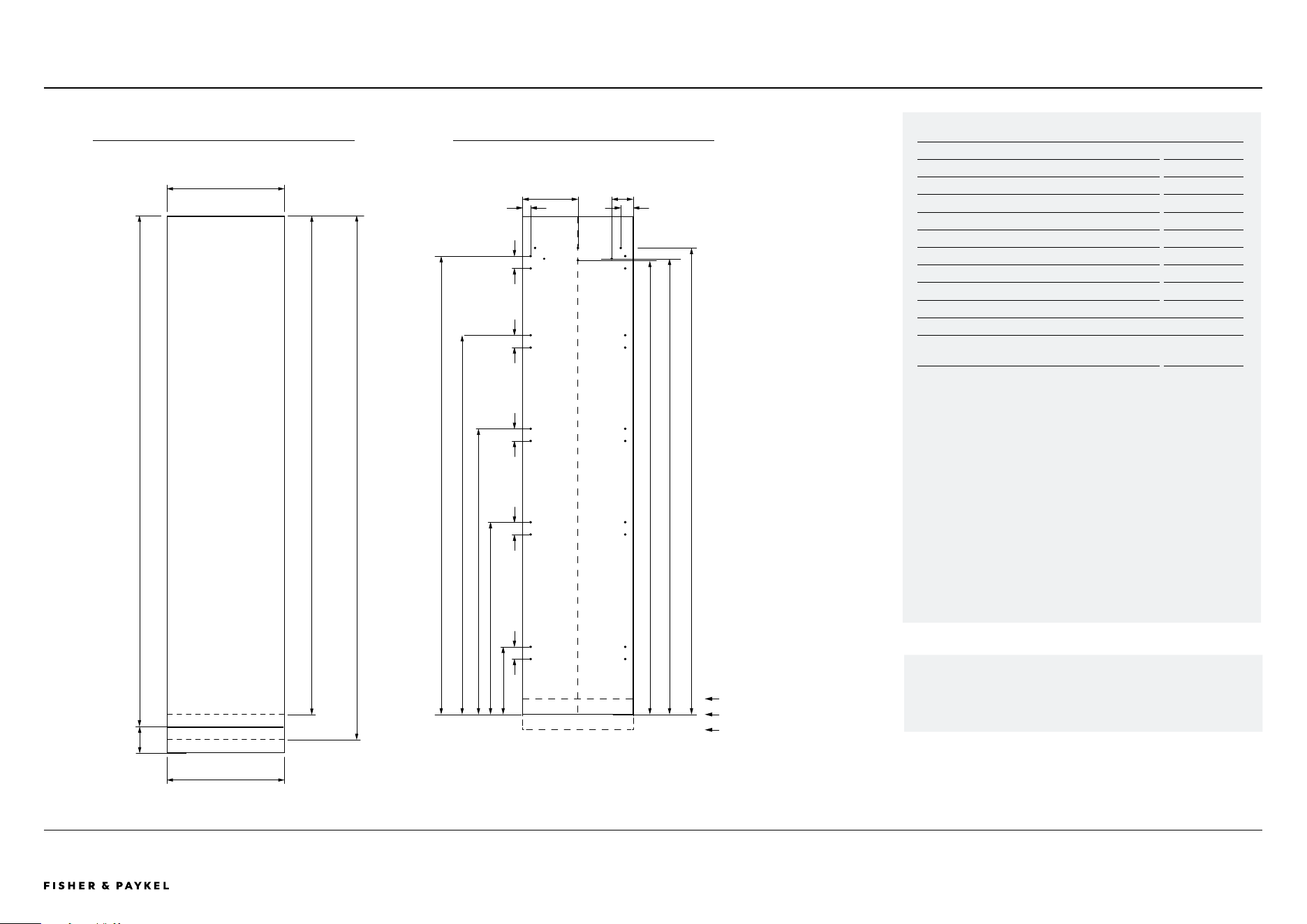

ALL MODELSPLANNING GUIDE | HINGE ARTICULATION
DOOR HINGE - HETTICH K05
Left hand hinge models are a mirrored
version of shown.
WEIGHT LIMITS
SINGLE PANEL MODELS MAXIMUM WEIGHT
RS1884 Max 20kg
RS2484 Max 25kg
RS2484V Wine cabinet Max 8kg
RS3084 Max 30kg
DOUBLE PANEL MODELS MAXIMUM WEIGHT
RS2484W Top panel Max 15kg
RS2484W Bottom panel Max 9kg
RS3084W Top panel Max 18kg
RS3084W Bottom panel Max 11kg
RS3684W Top panel Max 21kg
RS3684W Bottom panel Max 13.5kg
Note: Door weight's includes weight of handle.

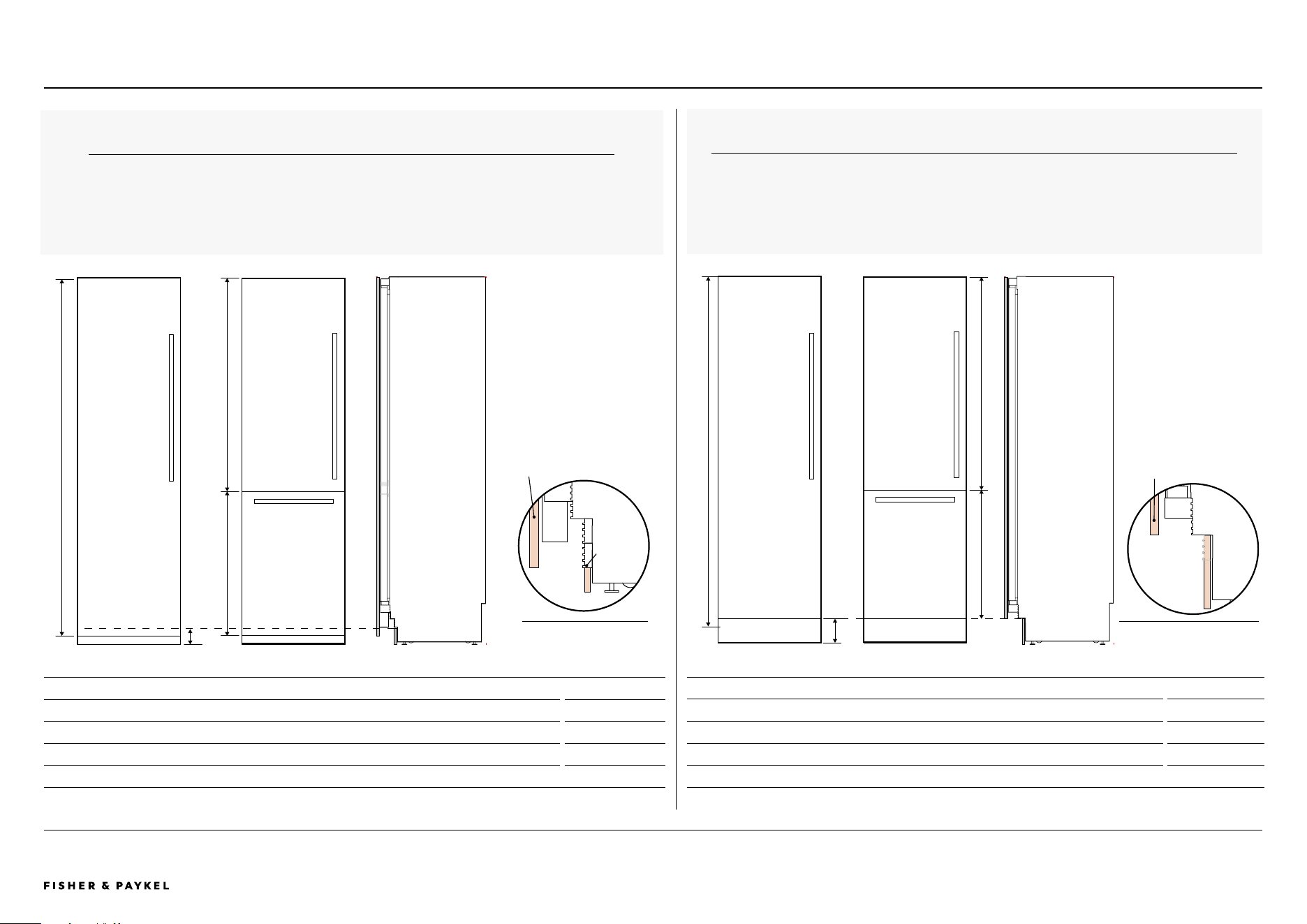

CUSTOM FRONT PANEL
a
Panel thickness: 19mm.
b
Gap between door and adjacent cabinetry: Min 3mm
C
Gap between cabinet side and door at 115° open: 36mm
D
Gap between adjacent cabinet and door at 115°: 42mm

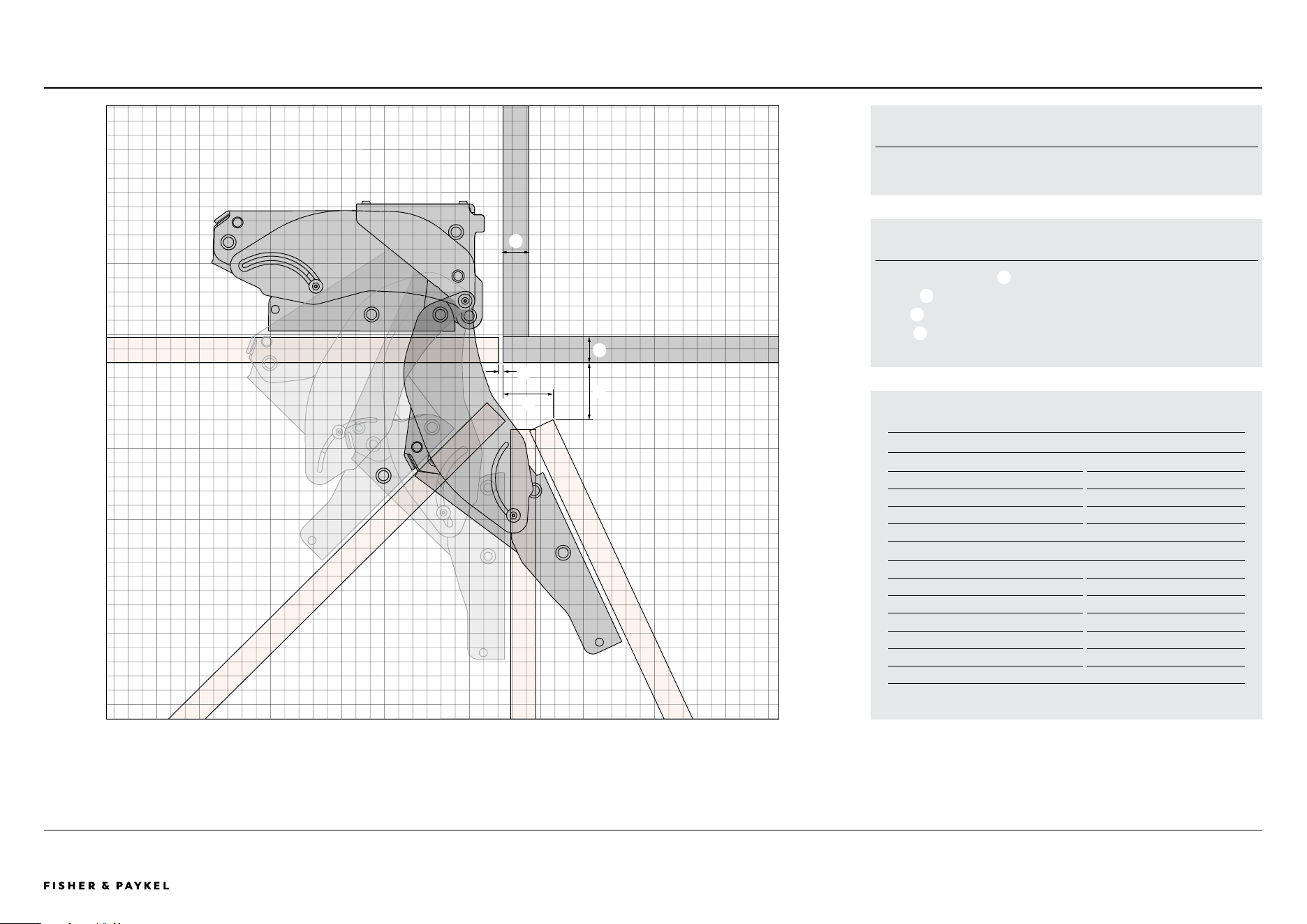

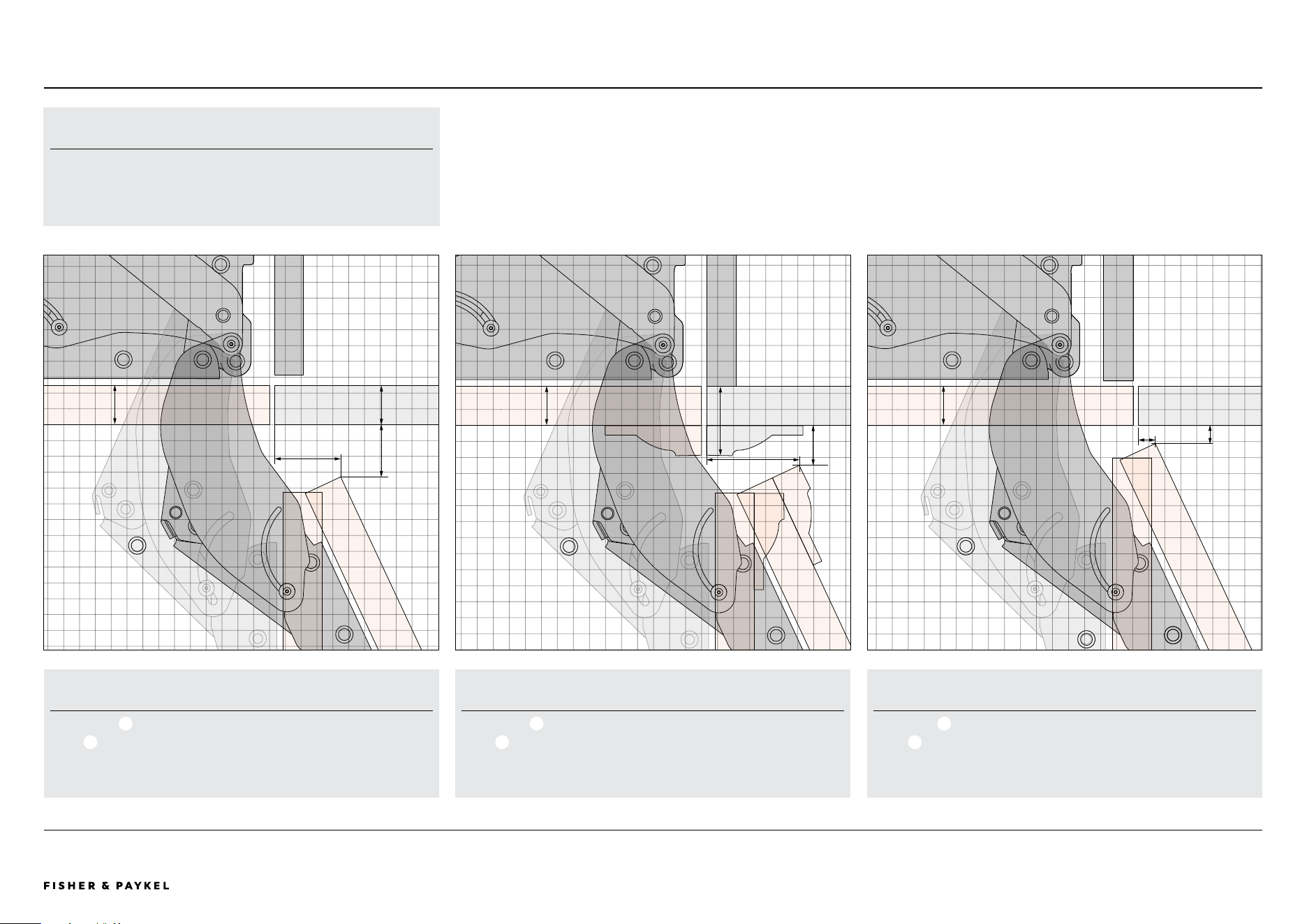

Hinge articulation
DOOR CLOSED
DOOR FULLY OPEN 115°
DOOR
90° OPEN
DOOR
45° OPEN
TOP VIEW
FRONT OF CABINETRY
a
a
b
1 SQUARE = 10mm
C
D
<< CONTENTS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 25PLANNING GUIDE INTEGRATED REFRIGERATION 2.1M - VERSION 4 - MARCH 202590003524D © FISHER & PAYKEL LIMITED 2025

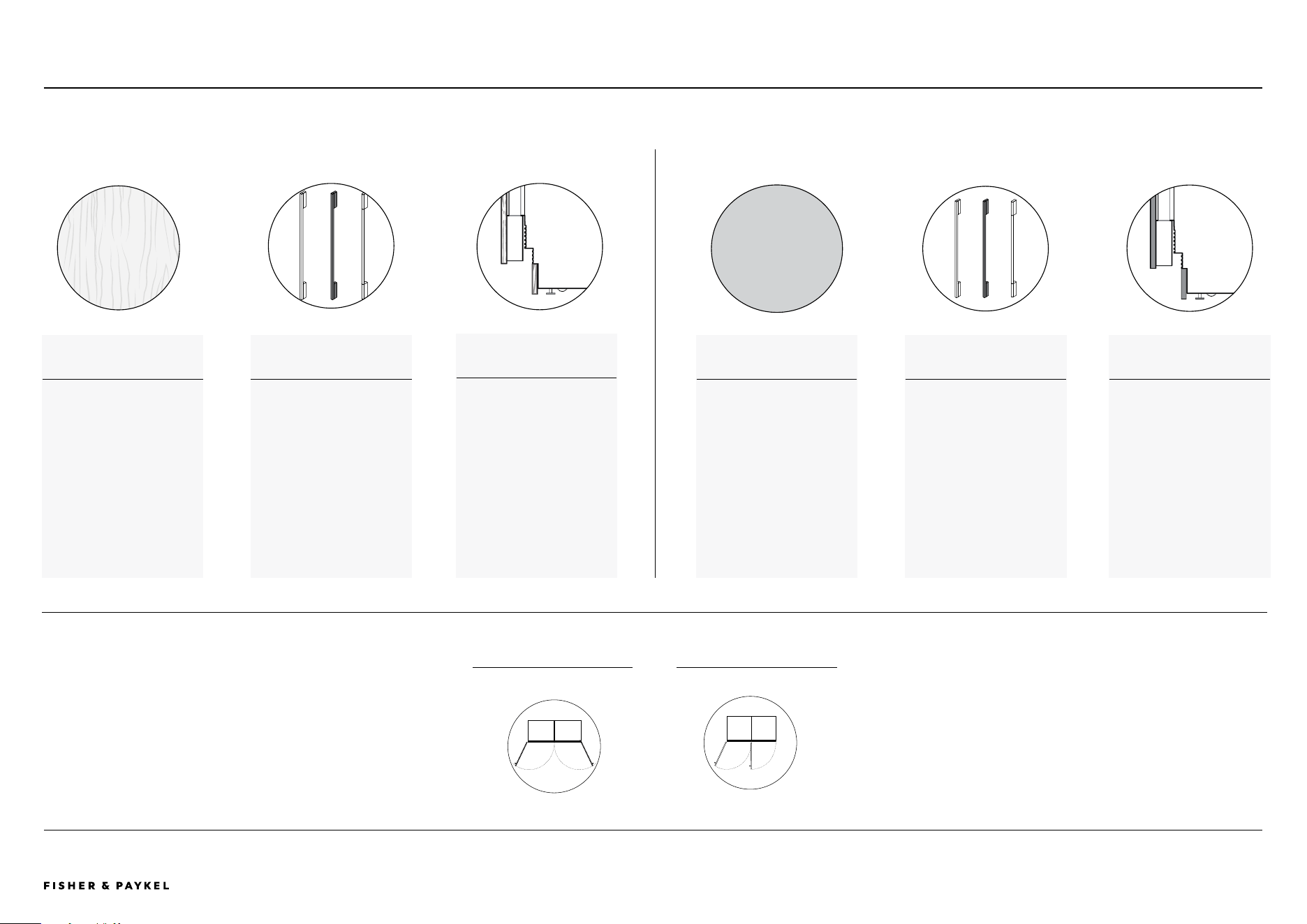

PANEL VARIATION EXAMPLESPLANNING GUIDE | HINGE ARTICULATION
25mm OVERLAY DOOR PANEL
a
Door edge distance to cabinet side : 14mm
b
Gap between door corner and adjacent cabinetry: 12mm
NOTE: Panel widths must be adjusted.
25mm DOOR PANEL WITH 19mm FRAMING
a
Door edge distance to cabinet side : 60mm
b
Gap between door corner and adjacent cabinetry: 26mm
25mm DOOR PANEL
a
Door edge distance to cabinet side : 42mm
b
Gap between door corner and adjacent cabinetry: 34mm
1 SQUARE = 1/2" (12.7mm)
SUPPORT
For additional design planning and installation support please contact
the Fisher & Paykel design support team.
designsupport@fisherpaykel.com
Panel variation examples
A
B
B
A
A
B
1 SQUARE = 10mm
25mm (1")
46mm (1 3/4" )
25mm (1") 25mm (1") 25mm (1")
<< CONTENTS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 26PLANNING GUIDE INTEGRATED REFRIGERATION 2.1M - VERSION 4 - MARCH 202590003524D © FISHER & PAYKEL LIMITED 2025

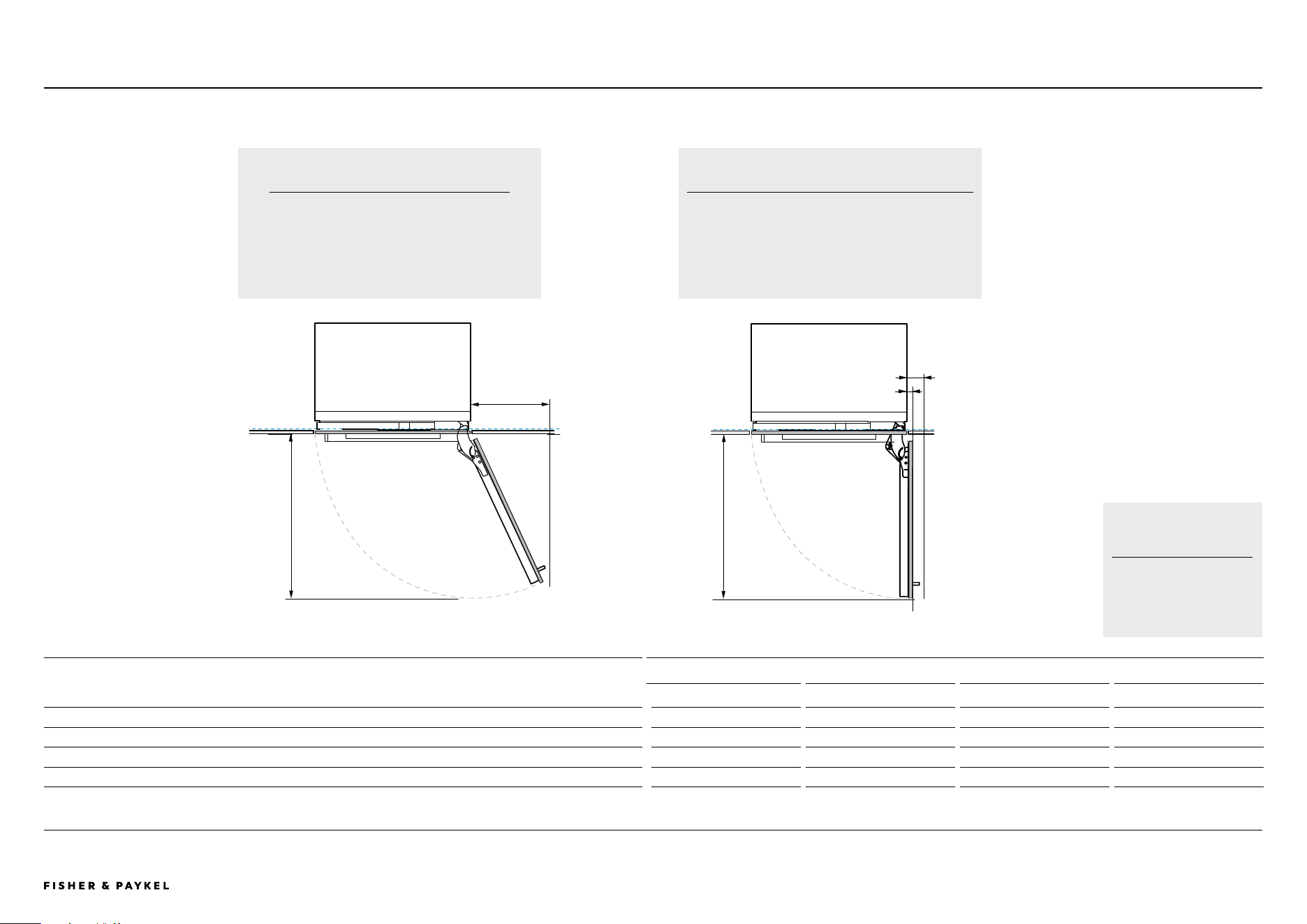

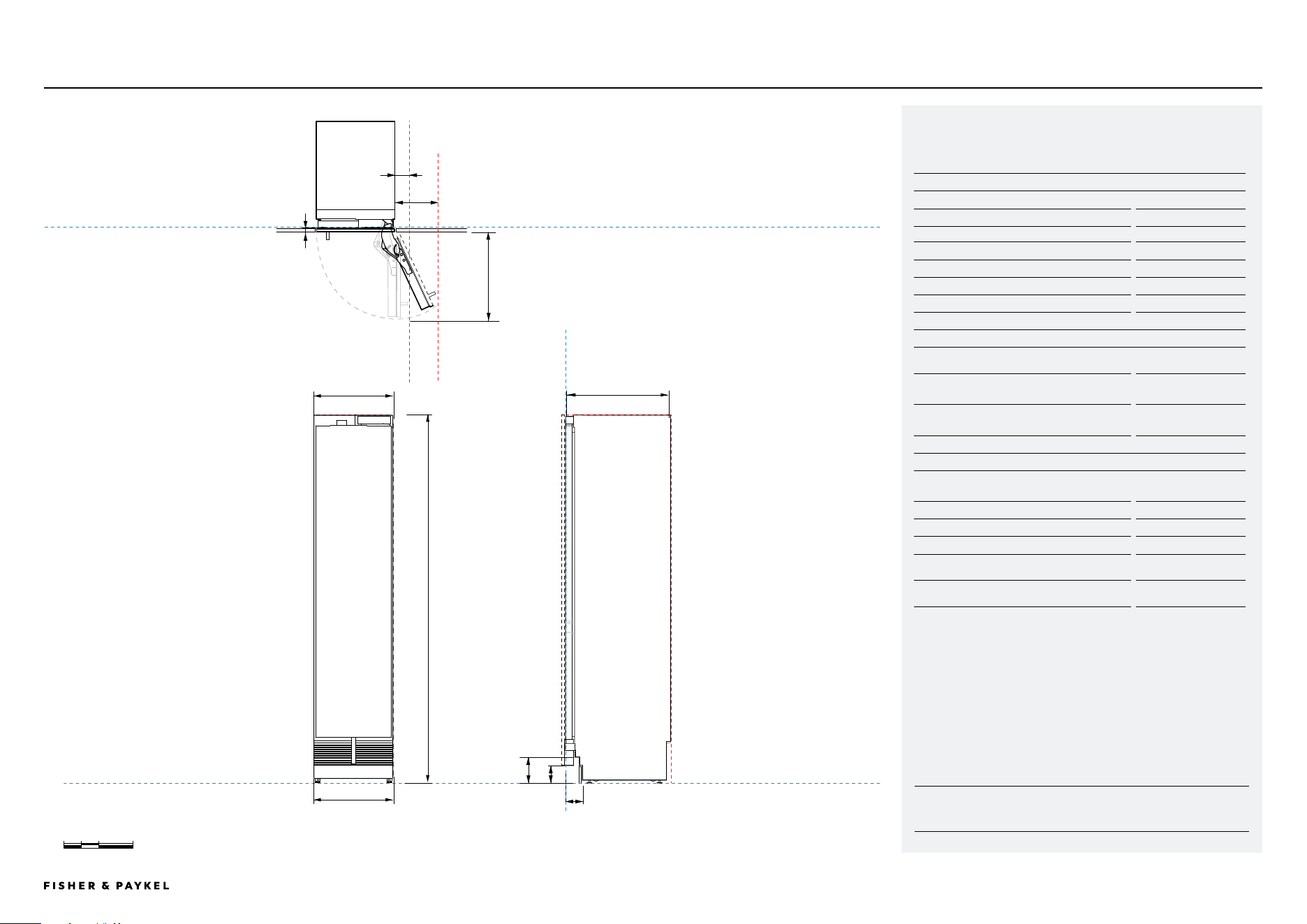

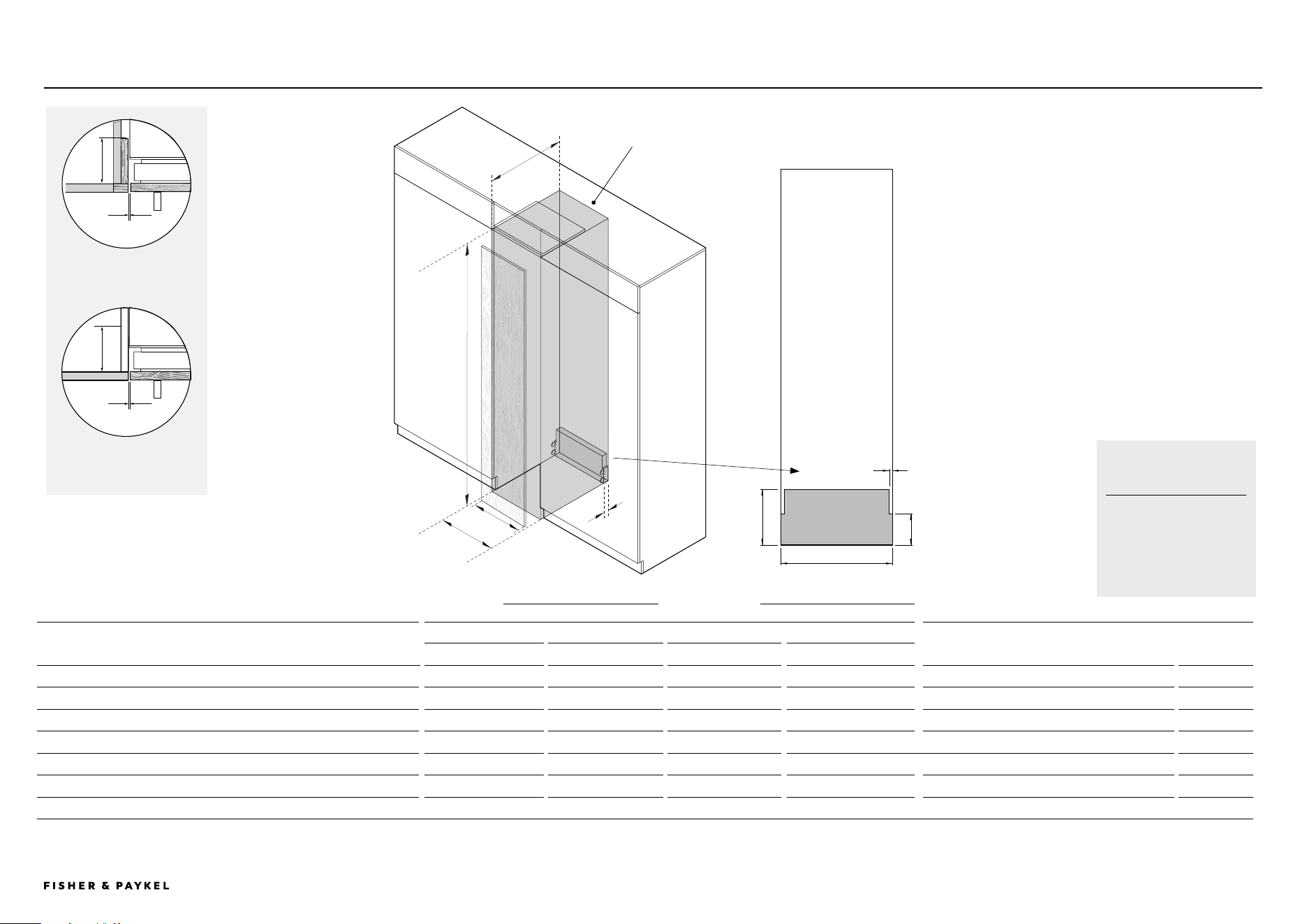

DOOR SWING
PLANNING GUIDE | DOOR SWING CLEARANCE
115° INTERNAL ACCESS
115° door opening - full internal access
Minimum dimensions shown are for a 41mm handle
depth. Custom door panel and handle details need to
be taken into account
90° INTERNAL ACCESS
Use hinge limiting pin to restrict door opening to 90° where
necessary
Minimum dimensions shown are for a 41mm handle depth.
Custom door panel and handle details need to be taken into
account

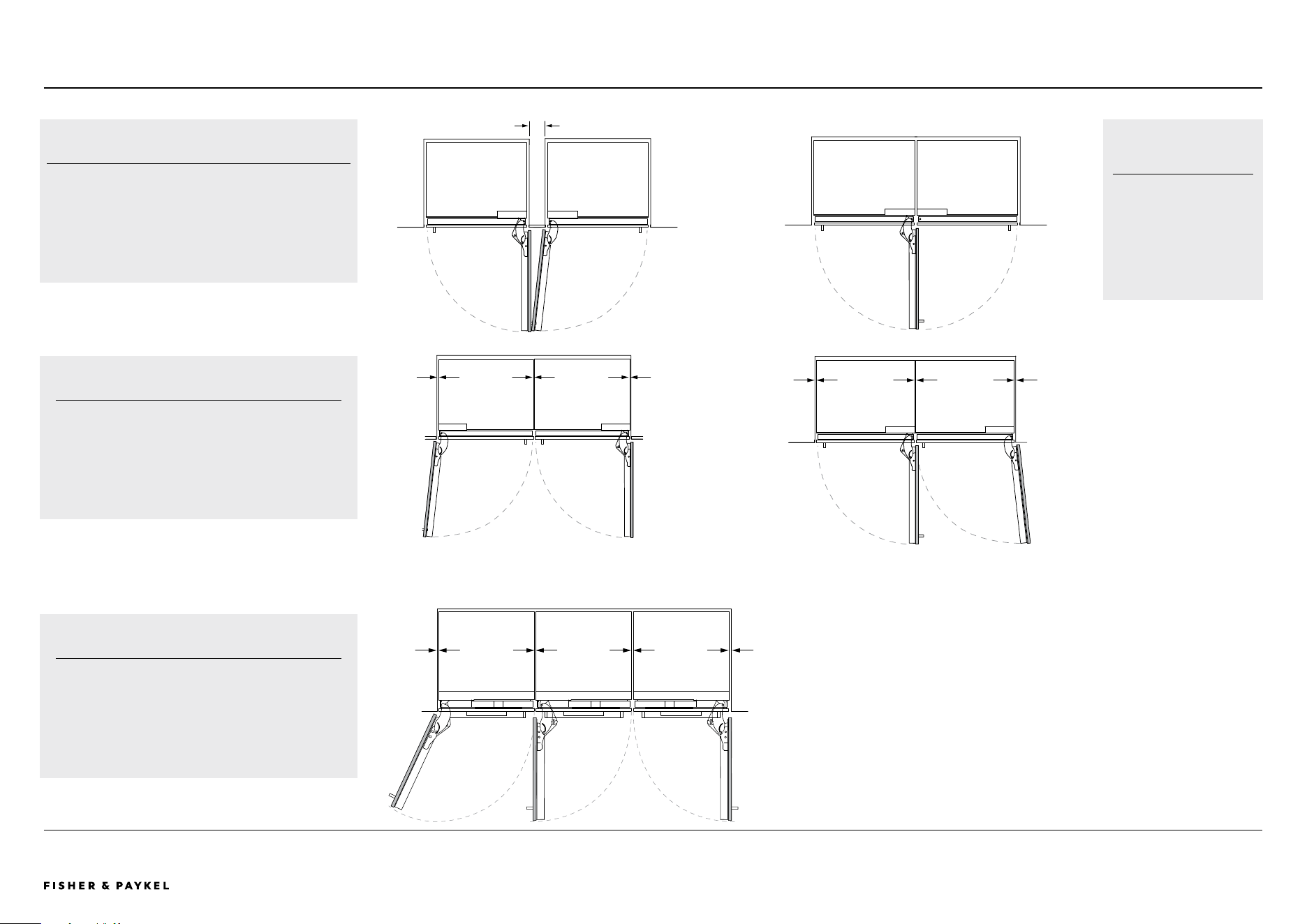

MINIMUM DOOR CLEARANCES
mm mm mm mm
A Door swing depth min 508 min 660 min 813 min 967
B Clearance for handle (at 900)* min 110 min 110 min 110 min 110
C Clearance for handless (at 900)* 19mm** 19mm** 19mm** 19mm**
D Clearance for handle (at 1150) min 292 min 356 min 435 min 356
* Limiting pins are required for a 900 door swing.
NOTE: Dimensions assume a panel depth of 19mm (3/4"). Thicker panels will require a wider gap between panels.
Door swing clearances
ADDITIONAL NOTES
Dimensions assume a panel
depth of 19mm.
A
A
B
C
D
<< CONTENTS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 27PLANNING GUIDE INTEGRATED REFRIGERATION 2.1M - VERSION 4 - MARCH 202590003524D © FISHER & PAYKEL LIMITED 2025
cc c
cc c
d
d d
d

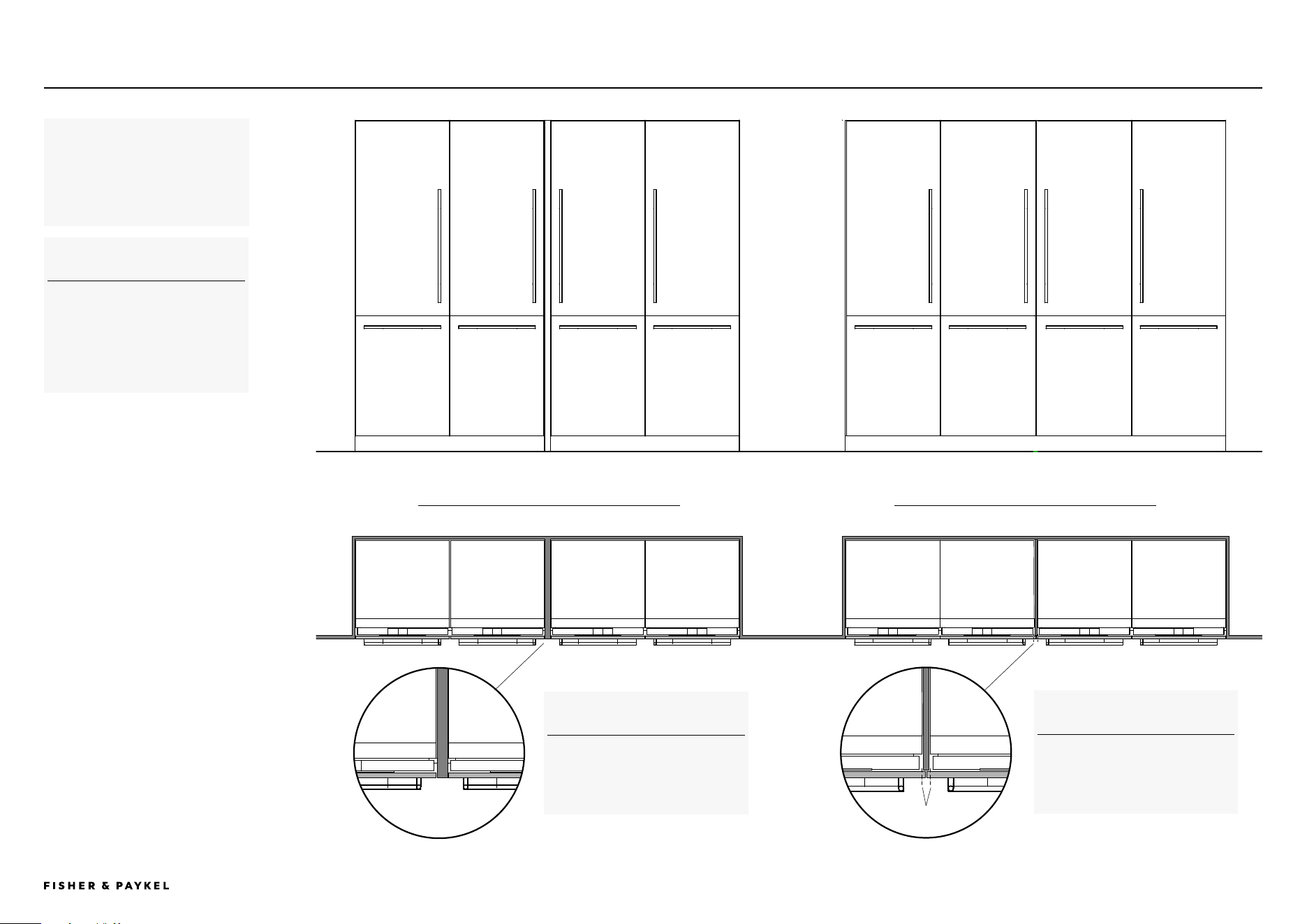

HINGE TO HINGE
A Both doors open at the same time - requires space between
models
B Only allows a single door open at a time when there is a
3mm gap between products
Min. 100mm (3 5/16")
A B
DUAL INSTALLATION
c Stainless steel door panels (gaps equalized during
installation).
c Custom door panels - width of custom door panel increases
to maintain 3mm gap across multiple products
MULTIPLE INSTALLATION
d Stainless steel door panels (gaps equalized during
installation).
d Custom door panels - width of custom door panel increases
to maintain 3mm gap across multiple products
ADDITIONAL NOTES
Use hinge limiting pin to
restrict door opening to 90°
where necessary.
Dimensions assume a panel
depth of 19mm.
DOOR OPENING AND PANEL GAPSPLANNING GUIDE | DOOR OPENING CLEARANCE
Door opening & gap clearances
<< CONTENTS
© FISHER & PAYKEL LIMITED 2025 PAGE 2890003524D PLANNING GUIDE INTEGRATED REFRIGERATION 2.1M - VERSION 4 - MARCH 2025
CAVITY PREPARATION
PAGE 2990003524D PLANNING GUIDE INTEGRATED REFRIGERATION 2.1M VERSION 4 - MARCH 2025 © FISHER & PAYKEL LIMITED 2025
SPECIFICATIONS | CAVITY DIMENSIONS SINGLE
Single cavity dimensions
ADDITIONAL NOTES
Dimensions assume a panel
depth of 19mm. Adjust
dimension C for thicker
panels.
FRAMED
CABINETRY
CAVITY DIMENSIONS
46cm Model 61cm Models
76cm Models 91cm Models
SUPPLY AREA
mm mm mm mm mm
A Overall height of cavity
2134
2134 2134
2134
G Overall depth of supply area
25
B Overall width of cavity
457 610 762 914
H Overall height of supply area
229
C Minimum overall depth of cavity (services located at rear of cavity)
650 650 650 650
I Width of notch in supply area (both sides)
13
C Minimum overall depth of cavity (services located at outside of cavity)
635 635 635 635
J Height of sides of supply area (both sides)
127
D Custom door panel widths
451 603 756 908
E Minimum gap from edge of door panel to cabinetry
3 3 3 3
F Minimum required finished return
102 102 102 102
*Assumes a door panel thickness of 19mm.
UNFRAMED
CABINETRY
A
B
C
Alternative area
above cavity for
electrical connection
j
F
F
E
E
Electrical and
Plumbing supply area
H
G
I
B
D

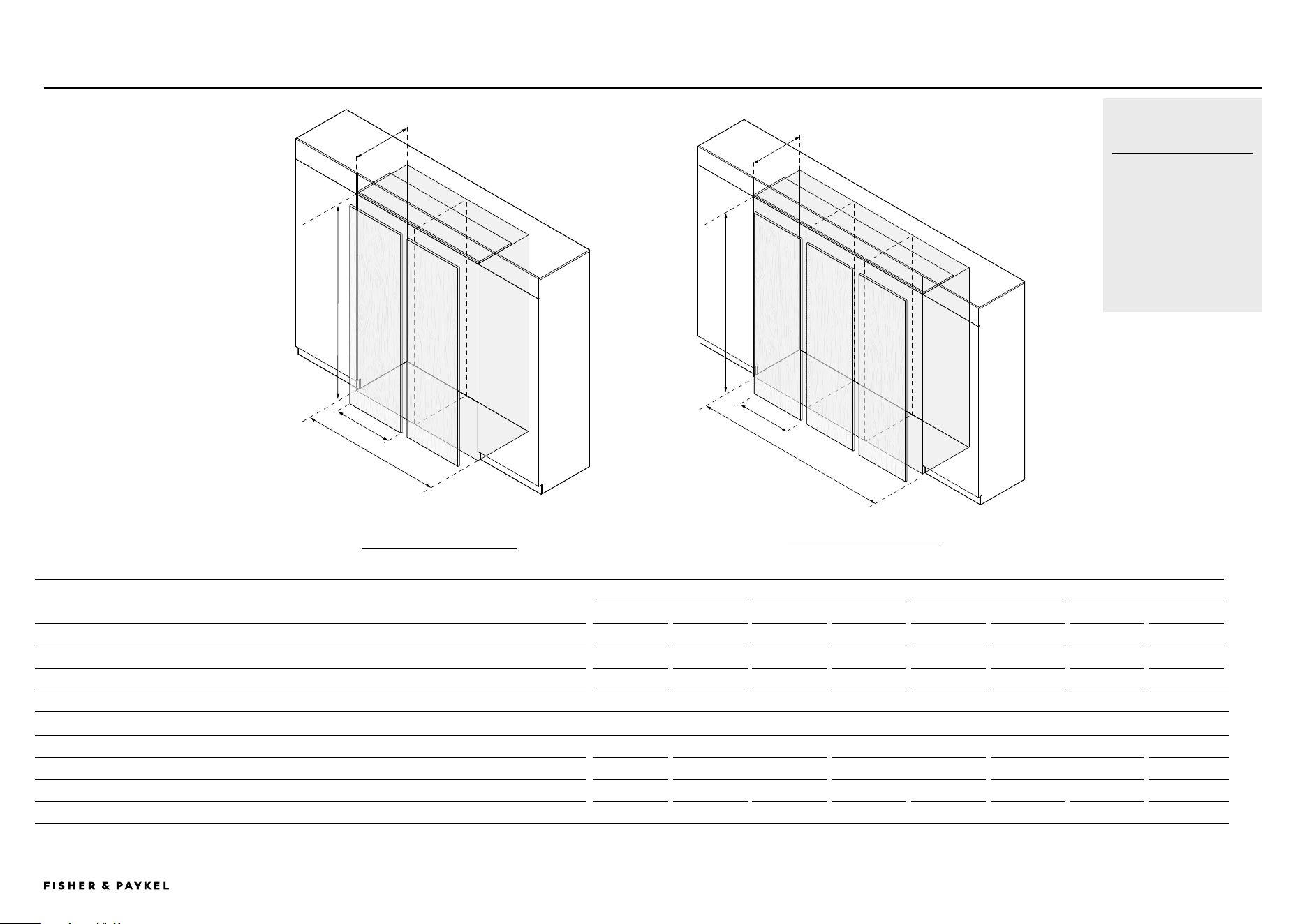

ISO VIEW BACK OF CAVITY
<< CONTENTS
PAGE 3090003524D PLANNING GUIDE INTEGRATED REFRIGERATION 2.1M VERSION 4 - MARCH 2025 © FISHER & PAYKEL LIMITED 2025
SPECIFICATIONS | CAVITY DIMENSIONS DUAL AND TRIPLE
Dual and triple cavity dimensions
ADDITIONAL NOTES
Dimensions assume a panel
depth of 19mm. Adjust
dimensions C or F for thicker
panels.
A maximum of three products
per cavity.
E
G
F
A
B
C
CAVITY DIMENSIONS DUAL INSTALL
46cm Model 61cm Models
76cm Models 91cm Models
mm mm mm mm
A Overall height of cavity
2134 2134 2134 2134
B Overall width of cavity
915 1219 1525 1829
C Minimum overall depth of cavity*
635 635 635 635
D Custom door panel widths
453 605 758 910
CAVITY DIMENSIONS TRIPLE INSTALL
E Overall height of cavity
2134 2134 2134 2134
F Overall width of cavity
1371 1829 2286 2742
G Minimum overall depth of cavity*
635 635 635 635
H Custom door panel widths
453 605 758 910
*Assumes a door panel thickness of 19mm (¾").
DUAL INSTALL
TRIPLE INSTALL
D
H
<< CONTENTS
PAGE 3190003524D PLANNING GUIDE INTEGRATED REFRIGERATION 2.1M VERSION 4 - MARCH 2025 © FISHER & PAYKEL LIMITED 2025
SPECIFICATIONS | CAVITY DIMENSIONS MULTIPLE MODELS MULTIPLE MODEL CAVITY
Multiple model cavity dimensions
The maximum amount of appliances
per cavity is three.
For more than three models a visual
or hidden spacer can be used.
SUPPORT
For additional design planning and
installation support please contact
the Fisher & Paykel design support
team
designsupport@fisherpaykel.com
DOUBLE CAVITY WITH VISUAL SPACER DOUBLE CAVITY WITH HIDDEN SPACER
HIDDEN SPACER
If overlaying panels to hide the
cavity spacer, allow for extra panel
width.
VISUAL SPACER
Standard panel widths can be used
with a visual cavity spacer.
Line of standard
panel width
<< CONTENTS
PAGE 3290003524D PLANNING GUIDE INTEGRATED REFRIGERATION 2.1M VERSION 4 - MARCH 2025 © FISHER & PAYKEL LIMITED 2025
SPECIFICATIONS | CAVITY DIMENSIONS MULTIPLE MODELS VARIED MODEL CAVITY
Varied model cavity dimensions
To calculate the total cavity width
for installing different models:
Add the widths of each panel for
dual or triple installations.
Add 3mm for every gap between the
appliances and the gaps between the
appliances and the cabinet walls.
SUPPORT
For additional design planning and
installation support please contact
the Fisher & Paykel design support
team
designsupport@fisherpaykel.com
PANEL WIDTHS
46cm Model 61cm Models 76cm Models 91cm Models
mm mm mm mm
B Overall width of panel for dual or multiple install
453 605 758 910
*Assumes a door panel thickness of 3/4" (19mm).
3mm
3mm 3mm
Cavity = 1675mm (65 15/23")
3mm 3mm 3mm
3mm 3mm
Cavity = 2590mm (101 31/32")
46cm Freezer
Panel = 453mm
61cm Refrigerator
Panel = 605mm
61cm Refrigerator
Panel = 605mm
76cm Refrigerator
Panel = 758mm
91cm Refrigerator Freezer
Panel = 910mm
91cm Refrigerator Freezer
Panel = 910mm
<< CONTENTS
© FISHER & PAYKEL LIMITED 2025 PAGE 3390003524D PLANNING GUIDE INTEGRATED REFRIGERATION 2.1M - VERSION 4 - MARCH 2025
CUSTOM DOOR PANEL PREPARATION
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 34PLANNING GUIDE INTEGRATED REFRIGERATION 2.1M - VERSION 4 - MARCH 202590003524D © FISHER & PAYKEL LIMITED 2025
PRODUCT SPECIFICATIONS | Toe kick AND PANEL OPTIONS
102mm
toe kick
with extra
grill
51MM HIGH TOE KICK WITH
EXTRA GRILL
152MM TOE KICK - LOWER GRILL
REMOVED
A
B
C
D
100mm TK
2029mm panel
152mm TK
2029mm panel
100mm or 152 TK visiual
50
2080mm panel
100mm or 152 TK visiual
50
1978
mm panel
A
B
C
D
Toe kick and panels - low and high options
Panel height 81 ⅞"
51MM TOE KICK WITH EXTENDED PANEL OPTIONS
The standard toe kick height is 102mm and the standard panel height is 2029mm. For refrigerator
freezers the standard toe kick height is 102mm and the drawer panel height is 771mm. For single doors,
A 51mm high toe kick can be achieved by installing a 2080mm panel with an extra grill installed.
152MM TOE KICK WITH SHORTENED PANEL OPTIONS
The standard toe kick height is 102mm and the standard panel height is 2029mm. For refrigerator
freezers the standard toe kick height is 102mm and the drawer panel height is 771mm. For single doors,
a 152mm toe kick with a 1978mm high panel can be achieved by removing the lower grill and the airflow
divider.
Panel height 1978mm
LOW AND HIGH TOE KICKS
100mm TK
2029mm panel
152mm TK
2029mm panel
100mm or 152 TK visiual
50
2080mm panel
100mm or 152 TK visiual
50
1978
mm panel
100mm TK
2029mm panel
152mm TK
2029mm panel
100mm or 152 TK visiual
50
2080mm panel
100mm or 152 TK visiual
50
1978
mm panel
LOW TO FLOOR - PANEL & LOW Toe kick mm
A Panel height - single door
2080
B Toe kick height
50
C Door height
1254
D Drawer height
822
HIGH ABOVE FLOOR - PANEL & HIGH Toe kick mm
A Panel height - single door
1978
B Toe kick height
152
C Door height
1254
D Drawer height
721
<< CONTENTS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 35PLANNING GUIDE INTEGRATED REFRIGERATION 2.1M - VERSION 4 - MARCH 202590003524D © FISHER & PAYKEL LIMITED 2025
46cm Single door freezer
SPECIFICATIONS | CUSTOM PANEL DETAILS RS4621FLJE1, RS4621FLJK1
276
784
1165
1546
1869
33
226
51
88
1858
1902
50 1/16” 50 50 50
1836
A
E
D
F
B C

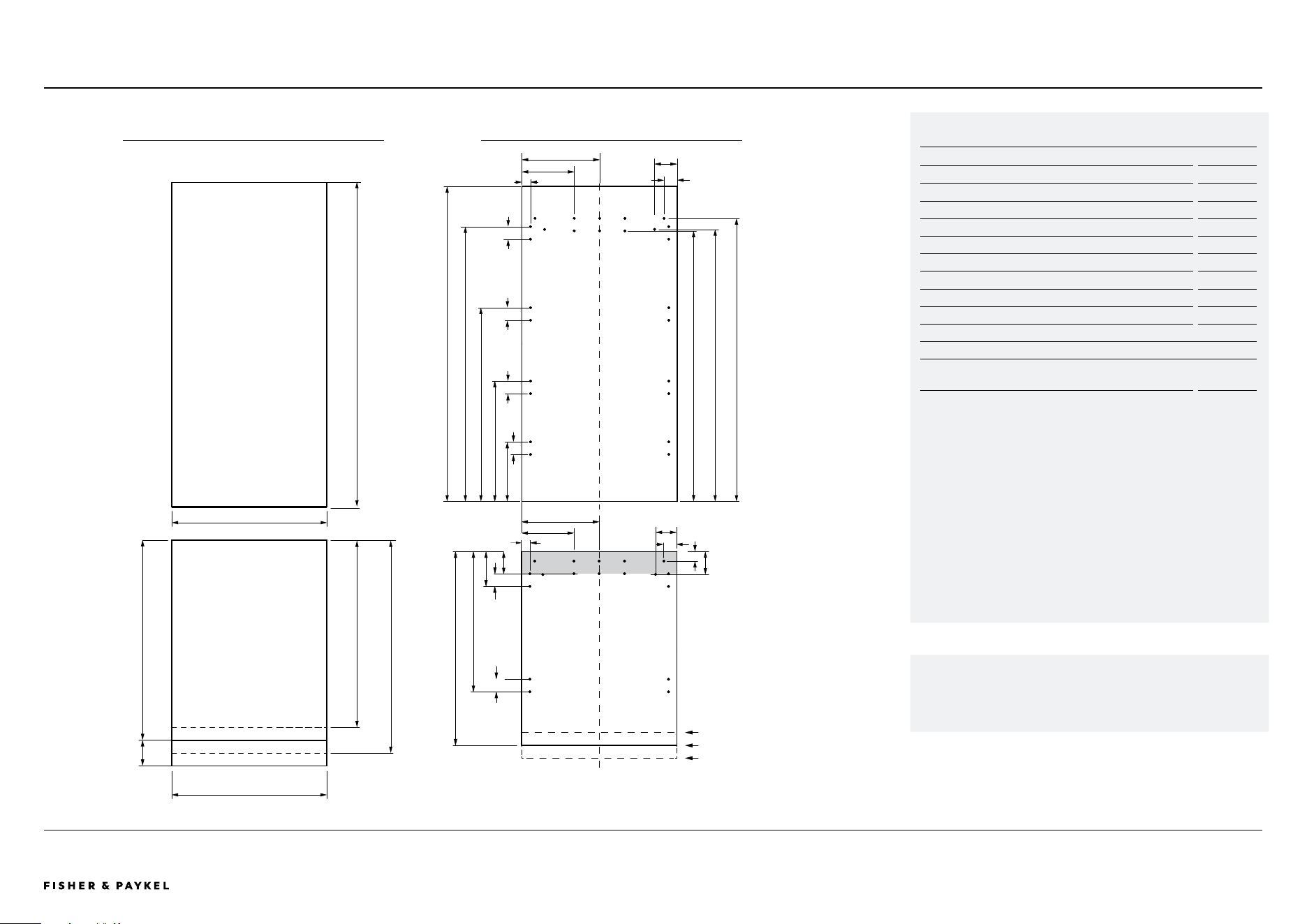

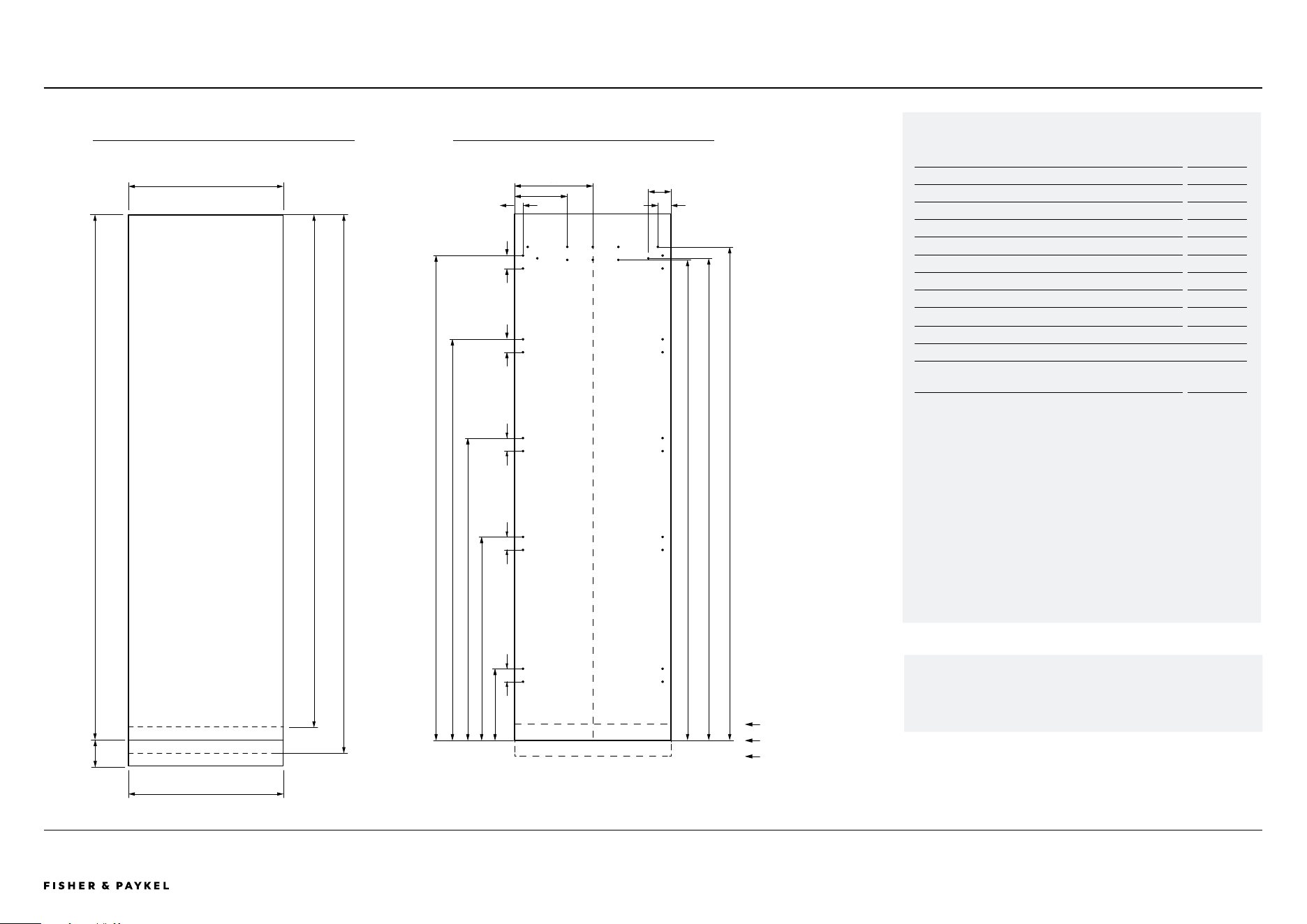

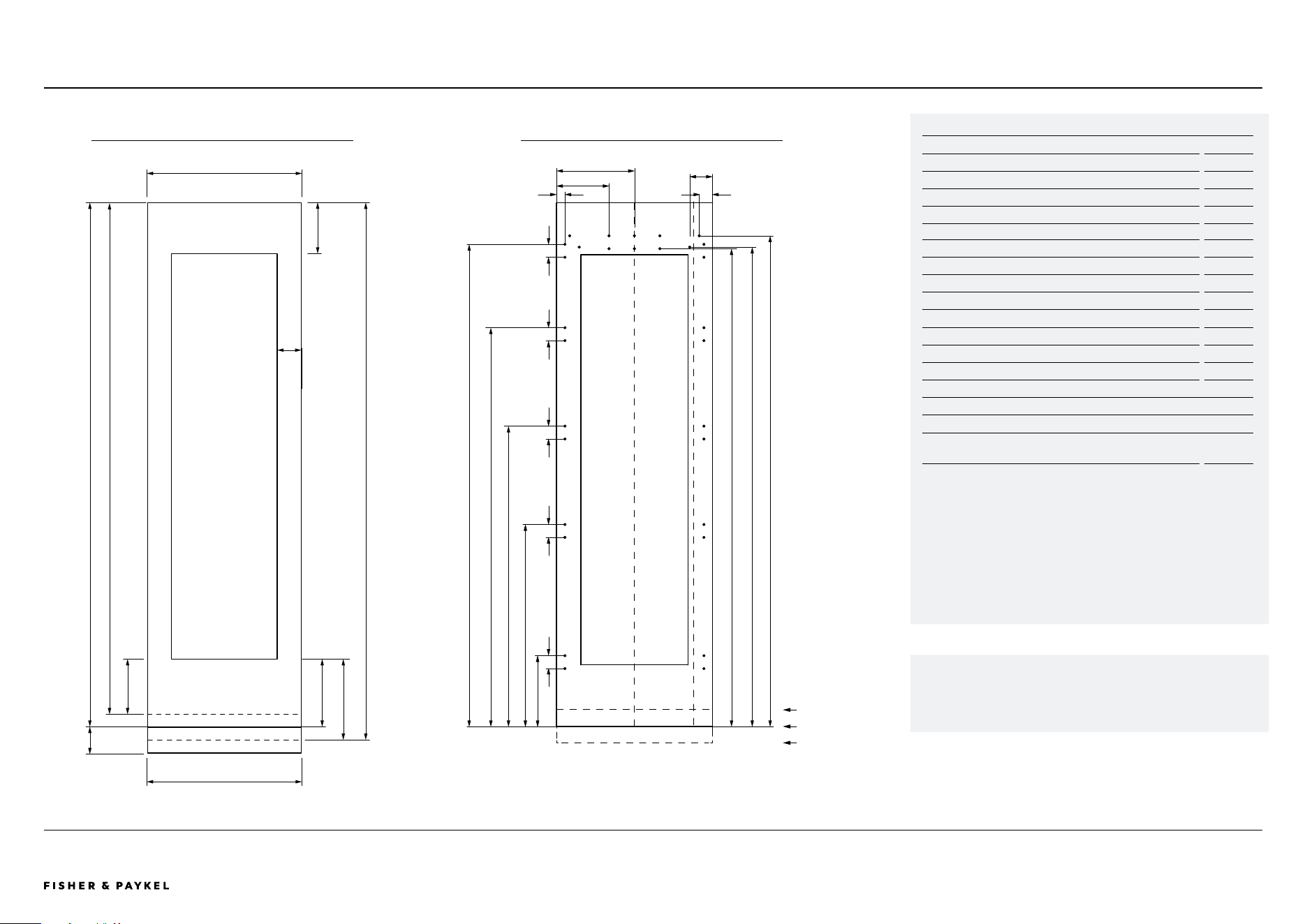

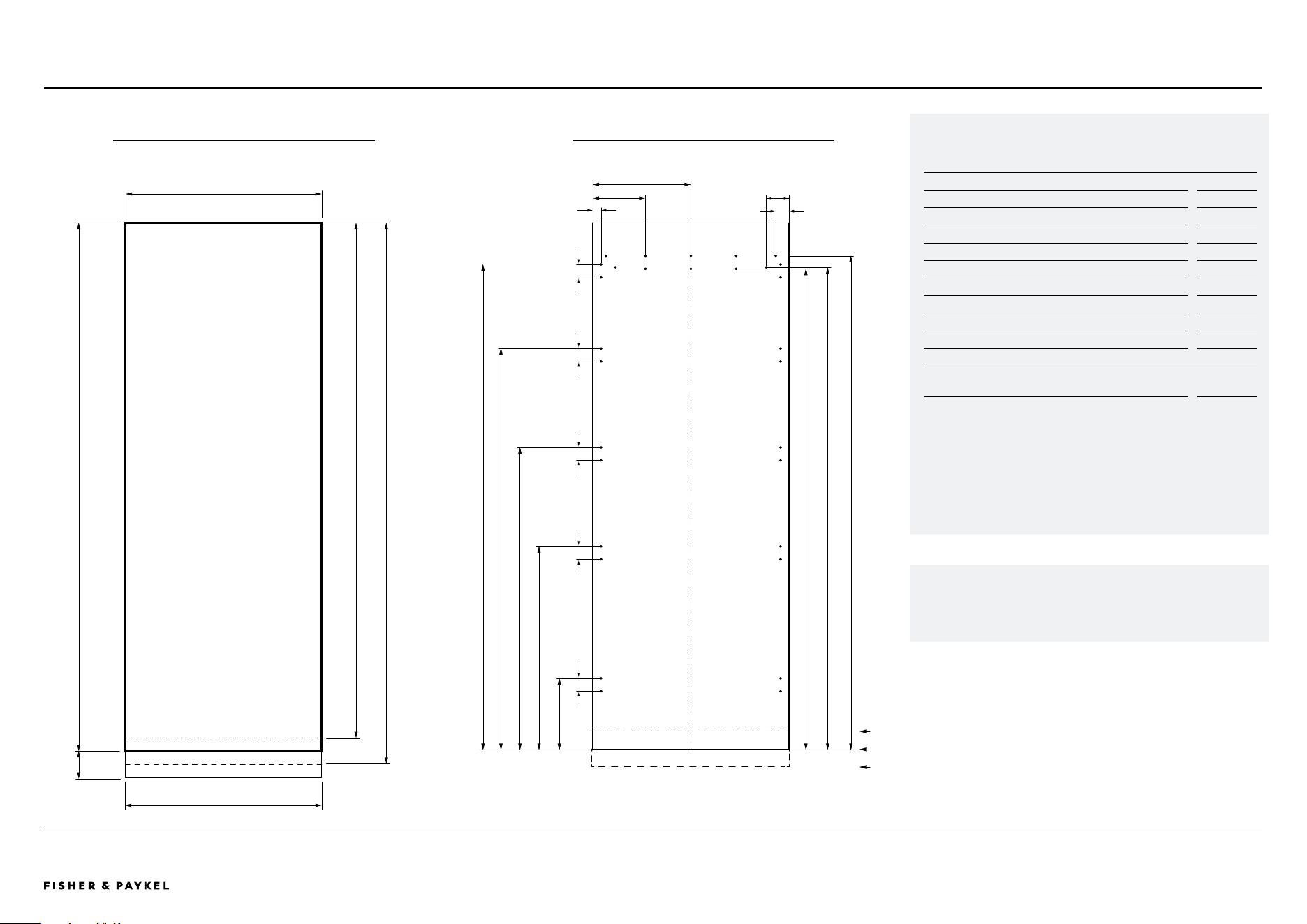

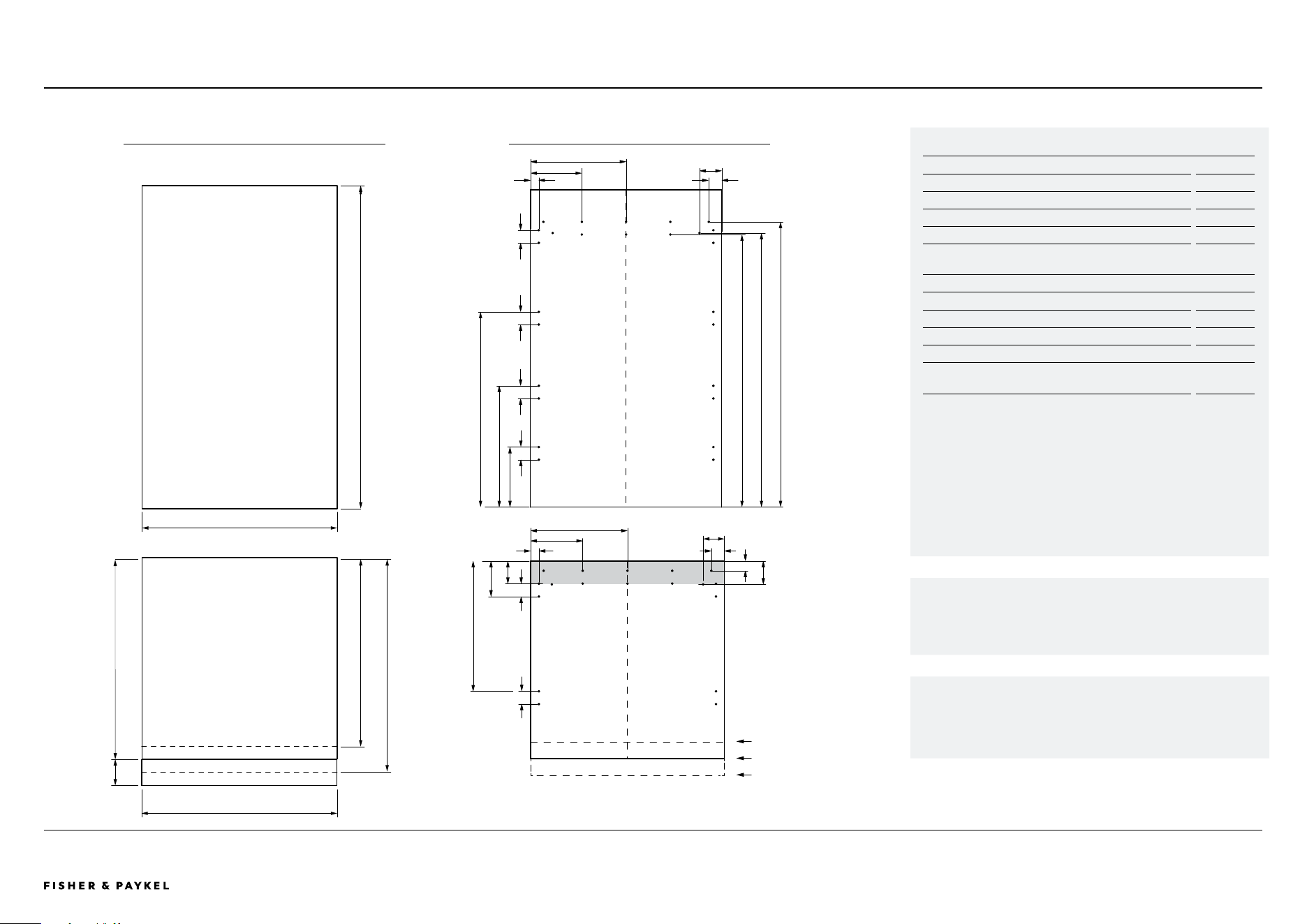

PANEL DIMENSIONS MOUNTING HOLES
Dimensions apply for the preparation and installation of Custom
door panels.
Dwg and Dxf files of the panel preparation can be downloaded
from www.fisherpaykel.com
The thickness of the custom door panel can vary provided that the
screws do not penetrate beyond the full depth of the door panel.
Toe kick height 6"
Toe kick height 4"
Toe kick height 2"
18x Pilot holes recommended for bracket attachment.
(Do not penetrate front surface).
Do not place pilot holes for handle attachment in marked areas to avoid
clashing with panel attachment brackets
Model no: RS4621FLJE1, RS4621FLJK1
Custom Panel Dimensions
mm
A Height of door panel (standard 100mm from floor)
2029
B Height of door panel (152mm from floor)*
1978
C Height of door panel (50mm from floor)*
2080
D Width of single panel
451
Width of dual/multiple panels
453
E Width of toe kick
454
F Toe kick height**
50 - 152
Panel thickness
min 19
Clearance Dimensions*
Minimum cabinetry gap
clearance from edge of door
panel
3
*Custom door panels, toe kick and handles to be manufactured / fitted by a
cabinet maker.
**Toe kick can height can vary depending on panel height and ventillation.
<< CONTENTS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 36PLANNING GUIDE INTEGRATED REFRIGERATION 2.1M - VERSION 4 - MARCH 202590003524D © FISHER & PAYKEL LIMITED 2025
61cm Single door refrigerators and freezers
SPECIFICATIONS | CUSTOM PANEL DETAILS
RS6121SRHE1, RS6121SLHE1, RS6121FRJE1, RS6121FLJE1, RS6121SRK1,
RS6121SLK1, RS6121SRHK1, RS6121SLHK1, RS6121FRJK1, RS6121FLJK1
D
203
301
276
784
1165
1546
33
50 50 50 5050
1869
1858
1902
1836
51
88
PANEL DIMENSIONS MOUNTING HOLES
Dimensions apply for the preparation and installation of Custom
door panels.
Dwg and Dxf files of the panel preparation can be downloaded
from www.fisherpaykel.com
The thickness of the custom door panel can vary provided that the
screws do not penetrate beyond the full depth of the door panel.
22x Pilot holes recommended for bracket attachment. (Do not penetrate
front surface).
Do not place pilot holes for handle attachment in marked areas to avoid
clashing with panel attachment brackets.
A
E
F
B C
Model no: RS6121SRHE1, RS6121SLHE1, RS6121FRJE1, RS6121FLJE1,
RS6121SRK1, RS6121SLK1, RS6121SRHK1, RS6121SLHK1, RS6121FRJK1,
RS6121FLJK1
Custom Panel Dimensions
mm
A Height of door panel (standard 100mm from floor)
2029
B Height of door panel (152mmm from floor)
1978
C Height of door panel (50mm from floor)
2080
D Width of single panel
603
Width of dual/multiple panels
605
E Width of toe kick
606
F Toe kick height**
50 - 152
Panel thickness
min 19mm
Clearance Dimensions*
Minimum cabinetry gap clearance from edge of door panel
3
*Custom door panels, toe kick and handles to be manufactured / fitted by a
cabinet maker.
**Toe kick can height can vary depending on panel height and ventillation.
Toe kick height 152mm
Toe kick height 102mm
Toe kick height 51mm
<< CONTENTS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 37PLANNING GUIDE INTEGRATED REFRIGERATION 2.1M - VERSION 4 - MARCH 202590003524D © FISHER & PAYKEL LIMITED 2025
61cm Refrigerator Freezer
SPECIFICATIONS | CUSTOM PANEL DETAILS RS6121WRUE1, RS6121WRUK1, RS6121WLUE1, RS6121WLUK1
Toe kick height 152mm
Toe kick height 102mm
Toe kick height 51mm
1277
1082
1099
771
479
187
1254
82
5133
50
50
139
558
301
203
771
91
38
88
1077
203
301
33
50 50
50
51
88
50
F
A
B
E
G
C D
PANEL DIMENSIONS MOUNTING HOLES
Dimensions apply for the preparation and installation of Custom
door panels.
Dwg and Dxf files of the panel preparation can be downloaded
from www.fisherpaykel.com
The thickness of the custom door panel can vary provided that the
screws do not penetrate beyond the full depth of the door panel.
22x Pilot holes recommended for bracket attachment. (Do not penetrate
front surface).
Do not place pilot holes for handle attachment in marked areas to avoid
clashing with panel attachment brackets.
Model no: RS6121WRUE1, RS6121WRUK1, RS6121WLUE1, RS6121WLUK1
Custom Panel Dimensions
mm
A Height of door panel
1254
B Height of drawer panel
771
C Height of door panel (152mm from floor)
721
D Height of drawer panel (50mm from floor)
822
E Width of single panel
603
Width of dual/multiple panels
605
F Width of toe kick
606
G Toe kick height**
50 - 152
Panel thickness
min 19mm
Clearance Dimensions*
Minimum cabinetry gap clearance from edge of door panel
3
*Custom door panels, toe kick and handles to be manufactured / fitted by a
cabinet maker.
**Toe kick can height can vary depending on panel height and ventillation.
<< CONTENTS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 38PLANNING GUIDE INTEGRATED REFRIGERATION 2.1M - VERSION 4 - MARCH 202590003524D © FISHER & PAYKEL LIMITED 2025
61cm Single door wine cabinet
SPECIFICATIONS | CUSTOM PANEL DETAILS RS6121VL2K1, RS6121VR2K1
Toe kick height 152mm
Toe kick height 102mm
Toe kick height 51mm
276
784
1165
1546
33
50 50 50 5050
1869
203
301
1858
1902
1836
51
88
F
K
A
D
G
E
H
B
C
I
J
PANEL DIMENSIONS MOUNTING HOLES
Dwg and Dxf files of the panel preparation can be downloaded
from www.fisherpaykel.com
The thickness of the custom door panel can vary provided that the
screws do not penetrate beyond the full depth of the door panel.
22x Pilot holes recommended for bracket attachment. (Do not penetrate
front surface).
Do not place pilot holes for handle attachment in marked areas to avoid
clashing with panel attachment brackets.
Model no: RS6121VL2K1, RS6121VR2K1
Custom Panel Dimensions all models*
mm
A Height of door panel (standard 100mm from floor)
2029
B Height of door panel (152mmm from floor)
1978
C Height of door panel (50mm from floor)
2080
D Width of single panel
603
Width of dual/multiple panels
605
E Width of toe kick
606
F Width of side frames single install
94
Width of side frames dual install
95
G Height of top frame
200 - 302
H Height of lower frame
240
I Height of lower panel (152mm from floor)
189
J Height of lower panel (50mm from floor)
291
K Toe kick height**
50 - 152
Panel thickness
min 19mm
Clearance Dimensions*
Minimum cabinetry gap
clearance from edge of door panel
3
*Custom door panels, toe kick and handles to be manufactured / fitted by a
cabinet maker.
**Toe kick can height can vary depending on panel height and ventillation.
<< CONTENTS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 39PLANNING GUIDE INTEGRATED REFRIGERATION 2.1M - VERSION 4 - MARCH 202590003524D © FISHER & PAYKEL LIMITED 2025
76cm Single door refrigerators and freezers
SPECIFICATIONS | CUSTOM PANEL DETAILS
RS7621SRHE1, RS7621SLHE1, RS7621FRJE1, RS7621FLJE1, RS7621SRK1,
RS7621SLK1, RS7621SRHK1, RS7621SLHK1, RS7621FRJK1, RS7621FLJK1
276
784
1165
1546
1869
33
203
378
1851
1833
1902
51
88
50 50 50 50
50
A
E
D
Dwg and Dxf files of the panel preparation can be downloaded
from www.fisherpaykel.com
The thickness of the custom door panel can vary provided that the
screws do not penetrate beyond the full depth of the door panel.
B C
F
PANEL DIMENSIONS MOUNTING HOLES
22x Pilot holes recommended for bracket attachment. (Do not penetrate
front surface).
Do not place pilot holes for handle attachment in marked areas to avoid
clashing with panel attachment brackets.
Model no: RS7621SRHE1, RS7621SLHE1, RS7621FRJE1, RS7621FLJE1,
RS7621SRK1, RS7621SLK1, RS7621SRHK1, RS7621SLHK1, RS7621FRJK1,
RS7621FLJK1
Custom Panel Dimensions all models*
mm
A Height of door panel (standard 100mm from floor)
2029
B Height of door panel (152mmm from floor)
1978
C Height of door panel (50mm from floor)
2080
D Width of single panel
756
Width of dual/multiple panels
758
E Width of toe kick
759
F Toe kick height**
50 - 152
Panel thickness
min 19mm
Clearance Dimensions*
Minimum cabinetry gap
clearance from edge of door panel
3
*Custom door panels, toe kick and handles to be manufactured / fitted by a
cabinet maker.
**Toe kick can height can vary depending on panel height and ventillation.
Toe kick height 152mm
Toe kick height 102mm
Toe kick height 51mm
<< CONTENTS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 40PLANNING GUIDE INTEGRATED REFRIGERATION 2.1M - VERSION 4 - MARCH 202590003524D © FISHER & PAYKEL LIMITED 2025
76cm Refrigerator Freezers
SPECIFICATIONS | CUSTOM PANEL DETAILS RS7621WRUE1, RS7621WLUE1, RS7621WRUK1, RS7621WLUK1
A
F
G
E
Dwg and Dxf files of the panel preparation can be downloaded
from www.fisherpaykel.com
The thickness of the custom door panel can vary provided that the
screws do not penetrate beyond the full depth of the door panel.
B
C D
PANEL DIMENSIONS MOUNTING HOLES
50
187
480
771
33
203
378
51
88
1082
1127
50 50 50
89
139
508
38
91
33
203
378
51
82
50
50
1077
10x Pilot holes recommended for bracket attachment. (Do not penetrate
front surface).
Ensure handle is mounted 65mm from edge of panel to the centre — this
will avoid interference with bracket.
Cut-outs in the hanging bracket are applicable for Fisher and Paykel
handles only.
If locating a custom handle in the shaded area shown above, ensure
handle screw headsare countersunk into the back of the door panel to
avoid interference with the hanging bracket.
Model no: RS7621WRUE1, RS7621WLUE1, RS7621WRUK1, RS7621WLUK1
Custom Panel Dimensions*
mm
A Height of door panel refrigerator
1254
B Height of drawer panel (standard)
771
C Height of drawer panel (152mm from floor)
721
D Height of drawer panel (50mm from floor)
822
E Width of single panel
756
Width of dual/multiple panels
758
F Width of toe kick
759
G Toe kick height**
50 - 152
Panel thickness
min 19mm
Clearance Dimensions*
Minimum cabinetry gap
clearance from edge of door panel
3
*Custom door panels, toe kick and handles to be manufactured / fitted by a
cabinet maker.
**Toe kick can height can vary depending on panel height and ventillation.
Toe kick height 152mm
Toe kick height 102mm
Toe kick height 51mm
<< CONTENTS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 41PLANNING GUIDE INTEGRATED REFRIGERATION 2.1M - VERSION 4 - MARCH 202590003524D © FISHER & PAYKEL LIMITED 2025

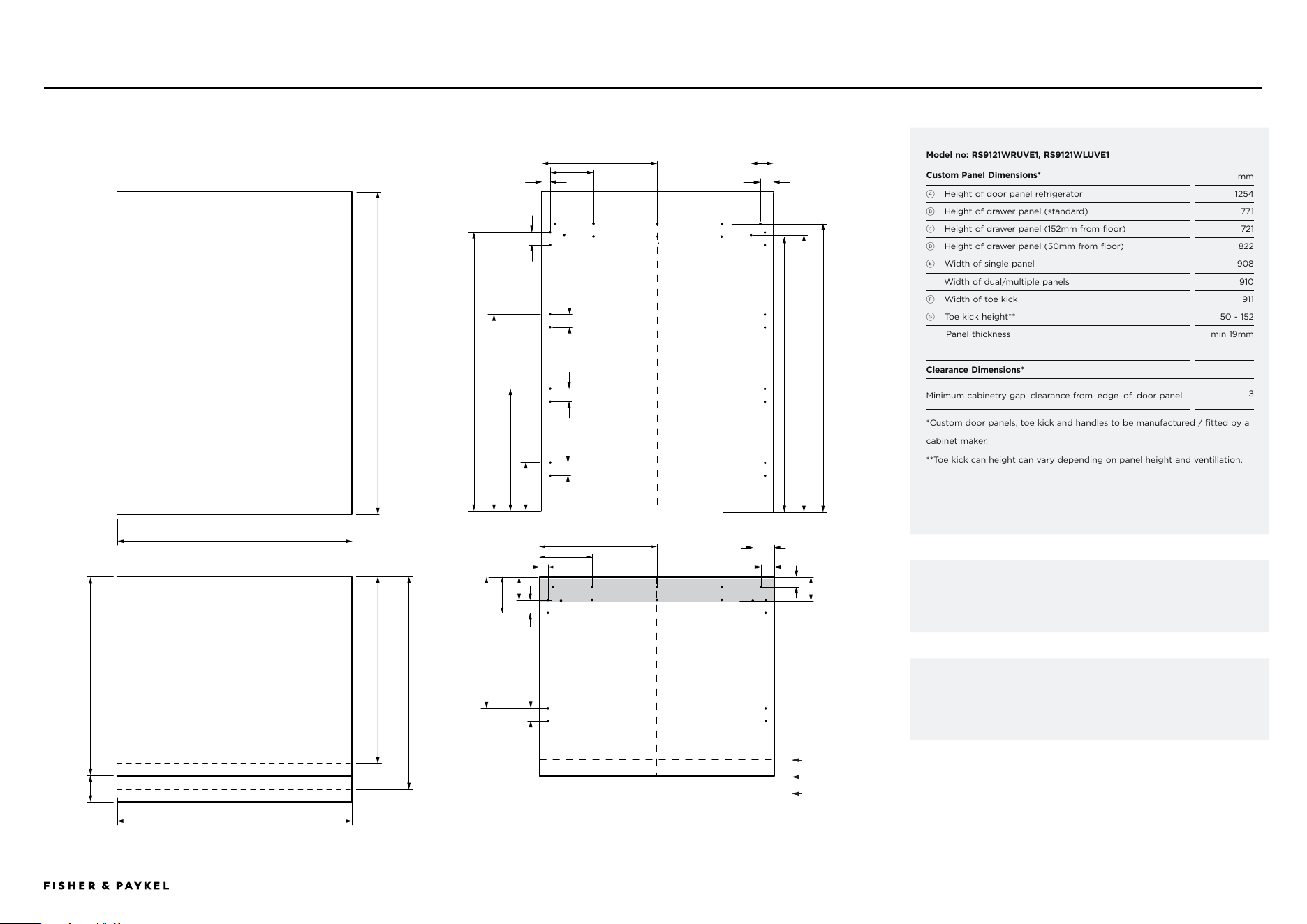

91cm Refrigerator Freezer
SPECIFICATIONS | CUSTOM PANEL DETAILS RS9121WRUVE1, RS9121WLUVE1
Model no: RS9121WRUVE1, RS9121WLUVE1
Custom Panel Dimensions*
mm
A Height of door panel refrigerator
1254
B Height of drawer panel (standard)
771
C Height of drawer panel (152mm from floor)
721
D Height of drawer panel (50mm from floor)
822
E Width of single panel
908
Width of dual/multiple panels
910
F Width of toe kick
911
G Toe kick height**
50 - 152
Panel thickness
min 19mm
Clearance Dimensions*
Minimum cabinetry gap
clearance from edge of door panel
3
*Custom door panels, toe kick and handles to be manufactured / fitted by a
cabinet maker.
**Toe kick can height can vary depending on panel height and ventillation.
Toe kick height 152mm
Toe kick height 102mm
Toe kick height 51mm
A
F
B
E
Dwg and Dxf files of the panel preparation can be downloaded
from www.fisherpaykel.com
The thickness of the custom door panel can vary provided that the screws
do not penetrate beyond the full depth of the door panel.
G
C D
10x Pilot holes recommended for bracket attachment.
(Do not penetrate front surface).
Ensure handle is mounted 65mm from edge of panel to the
centre — this will avoid interference with bracket.
Cut-outs in the hanging bracket are applicable for Fisher and Paykel
handles only.
If locating a custom handle in the shaded area shown above, ensure
handle screw headsare countersunk into the back of the door panel to
avoid interference with the hanging bracket.
PANEL DIMENSIONS MOUNTING HOLES
187
478
771
1095
33
203
454
51
88
1077
1083
1127
89
139
508
38
91
33
203
454
51
82
50 50
50
50
50
50
<< CONTENTS
© FISHER & PAYKEL LIMITED 2025 PAGE 4290003524D PLANNING GUIDE INTEGRATED REFRIGERATION 2.1M - VERSION 4 - MARCH 2025
SERVICES
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm
(1/16''). Please read the Installation Guide for detailed information on
installing the product. For full installation instructions visit fisherpaykel.com
PAGE 4390003524D PLANNING GUIDE INTEGRATED REFRIGERATION 2.1M - VERSION 4 - MARCH 2025 © FISHER & PAYKEL LIMITED 2025
46cm Freezer
SPECIFICATIONS | ELECTRICAL AND PLUMBING RS4621FLJE1, RS4621FLJK1
RIGHT HAND SIDELEFT HAND SIDE
Water inlet hose - 1314mm (51 ¾")
Power cord (excluding plug) - 2096mm (82 ½")
Water inlet hose - 1010mm (39 ¾")
Power cord (excluding plug) - 2122mm (83 9/16")
Power cord
315mm1 (2 ⅜")
Water inlet hose
130mm (5 ⅛")
Electrical / Plumbing Specifications
Specifications
Electrical
Supply
230 V, 50 Hz
Service
10 A circuit
Plumbing
Supply
AU/NZ
1/2" (12.7mm) comp. stainless steel braided
with hose adopter
GB/EU/CN
3/4" (19mm) comp. stainless steel braided
with hose adopter
Pressure
min 150 kPa (22 psi)
max 827 kPa (120 psi) @ 20°C (68°F)
NOTE: Connections may be located in an adjacent cabinet to either side of
the fridge.
<< CONTENTS
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm
(1/16''). Please read the Installation Guide for detailed information on
installing the product. For full installation instructions visit fisherpaykel.com
PAGE 4490003524D PLANNING GUIDE INTEGRATED REFRIGERATION 2.1M - VERSION 4 - MARCH 2025 © FISHER & PAYKEL LIMITED 2025
61cm Models
SPECIFICATIONS | ELECTRICAL AND PLUMBING 61CM MODELS
RIGHT HAND SIDELEFT HAND SIDE
Water inlet hose - 2196mm (87 7/16")
Power cord (excluding plug) - 2384mm (93 ⅞")
Water inlet hose - 1878mm (73 15/16")
Power cord (excluding plug) - 2412mm (94 15/16")
Power cord
315mm1 (2 ⅜")
Water inlet hose
130mm (5 ⅛")
Electrical / Plumbing Specifications
Specifications
Electrical
Supply
230 V, 50 Hz
Service
10 A circuit
Plumbing
Supply
AU/NZ
1/2" (12.7mm) comp. stainless steel braided
with hose adopter
GB/EU/CN
3/4" (19mm) comp. stainless steel braided
with hose adopter
Pressure
min 150 kPa (22 psi)
max 827 kPa (120 psi) @ 20°C (68°F)
NOTE: Connections may be located in an adjacent cabinet to either side of
the fridge.
<< CONTENTS
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm
(1/16''). Please read the Installation Guide for detailed information on
installing the product. For full installation instructions visit fisherpaykel.com
PAGE 4590003524D PLANNING GUIDE INTEGRATED REFRIGERATION 2.1M - VERSION 4 - MARCH 2025 © FISHER & PAYKEL LIMITED 2025
76cm Models
SPECIFICATIONS | ELECTRICAL AND PLUMBING 76CM MODELS
RIGHT HAND SIDE
LEFT HAND SIDE
Water inlet hose* - 1759 mm (69 ¼")
Power cord (excluding plug) - 1943 mm (76 ½" )
Water inlet hose* - 1733 mm (68 7/32")
Power cord (excluding plug) - 1970 mm (77 9/16")
Power cord
315mm1 (2 ⅜")
Water inlet hose
130mm (5 ⅛")
Electrical / Plumbing Specifications
Specifications
Electrical
Supply
230 V, 50 Hz
Service
10 A circuit
Plumbing
Supply
AU/NZ
1/2" (12.7mm) comp. stainless steel braided
with hose adopter
GB/EU/CN
3/4" (19mm) comp. stainless steel braided
with hose adopter
Pressure
min 150 kPa (22 psi)
max 827 kPa (120 psi) @ 20°C (68°F)
NOTE: Connections may be located in an adjacent cabinet to either side of
the fridge.
<< CONTENTS
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm
(1/16''). Please read the Installation Guide for detailed information on
installing the product. For full installation instructions visit fisherpaykel.com
PAGE 4690003524D PLANNING GUIDE INTEGRATED REFRIGERATION 2.1M - VERSION 4 - MARCH 2025 © FISHER & PAYKEL LIMITED 2025
91cm Refrigerator freezer
SPECIFICATIONS | ELECTRICAL AND PLUMBING 91CM MODEL
RIGHT HAND SIDE
LEFT HAND SIDE
Water inlet hose* - 2100mm (82 11/16")
Power cord (excluding plug) - 1665mm (69 9/16")
Water inlet hose* - 48 ⅓2" (1220 mm)
Power cord (excluding plug) - 1805 mm (71 1/16" )
Power cord
315mm (2 ⅜")
Water inlet hose
130mm (5 ⅛")
Electrical / Plumbing Specifications
Specifications
Electrical
Supply
230 V, 50 Hz
Service
10 A circuit
Plumbing
Supply
AU/NZ
1/2" (12.7mm) comp. stainless steel braided
with hose adopter
GB/EU/CN
3/4" (19mm) comp. stainless steel braided
with hose adopter
Pressure
min 150 kPa (22 psi)
max 827 kPa (120 psi) @ 20°C (68°F)
NOTE: Connections may be located in an adjacent cabinet to either side of
the fridge.
<< CONTENTS
© FISHER & PAYKEL LIMITED 2025 PAGE 4790003524D PLANNING GUIDE INTEGRATED REFRIGERATION 2.1M - VERSION 4 - MARCH 2025
