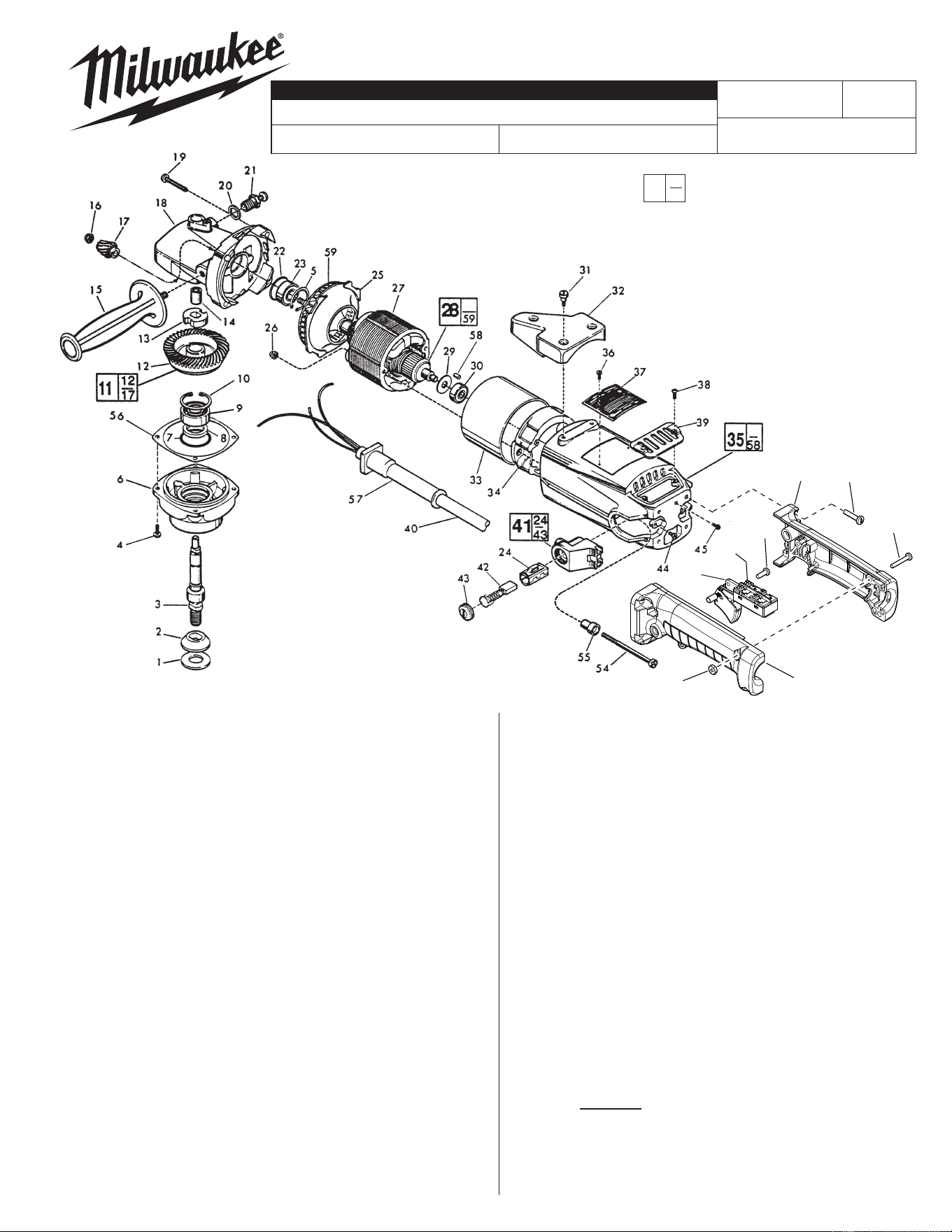

SERVICE PARTS LIST
MILWAUKEE ELECTRIC TOOL CORPORATION
13135 W. Lisbon Road, Brookfi eld, WI 53005
Drwg. 4
EXAMPLE:
Component Parts (Small #) Are Included
When Ordering The Assembly (Large #)
FIG. PART NO. DESCRIPTION OF PART QTY.
1 45-88-8465 Spindle Washer (1)
2 49-05-0060 Washer Flange (1)
3 38-50-5560 Spindle Shaft (1)
4 06-82-8880 10-24 x 5/8" Pan Hd. Taptite, T-25 (4)
5 34-80-2600 Internal Retaining Ring (1)
6 28-14-1735 Lower Gear Case (1)
7 34-40-1550 O-Ring (1)
8 45-06-0330 Felt Seal (1)
9 02-04-1745 Ball Bearing (1)
10 34-80-2960 Retaining Ring - Internal (1)
11 14-46-4300 Bevel Gear Kit (1)
12 32-05-2201 Spiral Bevel Gear (1)
13 42-74-0080 Spindle Locking Cog (1)
14 02-50-2428 Needle Bearing (1)
15 43-62-1265 Side Handle (1)
16 06-57-0500 1/4 - 28 Locking Hex Nut (1)
17 32-60-1291 Spiral Bevel Pinion (1)
18 28-14-2035 Upper Gear Case (1)
19 06-82-5716 1/4-20 x 1-1/4"
Pan Hd. Taptite, T-30
(4)
20 45-88-5320 Flat Washer (1)
21 44-20-0235 Spindle Lock Assembly (1)
22 34-40-1375 O-Ring (1)
23 02-04-0195 Ball Bearing (1)
24 22-20-0360 Brush Tube (2)
25 42-14-0300 Baffl e (1)
26 06-57-3005 10-32 Locking Hex Nut (2)
27 18-70-0260 120 Volt Field (1)
28 16-70-0300 120 Volt Armature (1)
29 45-06-0390 Dust Seal (1)
30 02-04-0913 Ball Bearing (1)
31 45-04-0720 Shoulder Screw (3)
32 31-70-0150 Tool Rest (1)
33 23-16-0950 Insulating Sleeve (1)
34 31-55-0110 Coil Shield (1)
35 28-50-6351 Motor Housing (1)
36 06-82-5270 6-32 x 1/4" Pan Hd. Taptite, T-15 (2)
37 12-99-0408 Nameplate Blank (1)
38 06-82-3792 8-32 x 3/8" Flat Hd. Taptite, T-15 (2)
FIG. PART NO. DESCRIPTION OF PART QTY.
39 31-15-0310 Cover Plate (1)
40 22-64-3000 Cord Set (1)
41 22-22-0401 Brush Holder Assembly (2)
42 22-18-0730 Carbon Brush Assembly (2)
43 23-44-0170 Brush Retaining Cap (2)
44 06-82-7252 8-32 x 3/8" Pan Hd. T-20 (2)
45 06-95-5200 8-32 x 5/16" Slot Hex Hd. Screw (1)
46 06-82-5574 10-24 x 7/8" Pan Hd. Taptite, T-25 (4)
47 06-82-2378 10-24 x 1" Pan Hd. T-25 (3)
48 31-44-0602 Right Handle Half (1)
49 06-82-7409 8-16 x 1/2" Pan Hd. Plastite, T-20 (1)
50 23-66-1801 Switch (1)
51 05-78-0305 M 3.5 Switch Screw, T-15 (4)
52 31-44-0603 Left Handle Half (1)
53 06-55-1050 10-24 Hex Nut (3)
54 06-82-9600 10-32 x 3-3/16" Field Screw, T-25 (2)
55 31-86-0160 Insulating Bushing (2)
56 45-14-0225 Shim - Blue .005 Thick (1)
45-14-0210 Shim - Red .010 Thick (1)
57 44-76-0170 Cord Protector (1)
58 45-30-0070 Ball Bearing Retaining Slug (1)
59 22-84-0800 Fan (1)
FIG. NOTES
13 Dimple Side To Fig. 12.
56 As Required (Max. .015").
4 Apply type 242 Blue Loctite to threads.
FIG. LUBRICATION
18 Important! Completely clean out old grease from the
upper gearcase and replace with 2 Oz. Type "Y" Grease,
No. 49-08-5270.
BULLETIN NO.
54-38-0385
00
0
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
STARTING
SERIAL
WIRING INSTRUCTION
58-01-1309
7" / 9" SANDER - 6000 R.P.M.
REVISED BULLETIN
54-38-0384
DATE
Jan. 2014
CATALOG NO. 6066 or 6066-6 753C
= Part number change from previous
service parts list.
