MILWAUKEE ELECTRIC TOOL CORPORATION
13135 W. Lisbon Road, Brookeld, WI 53005

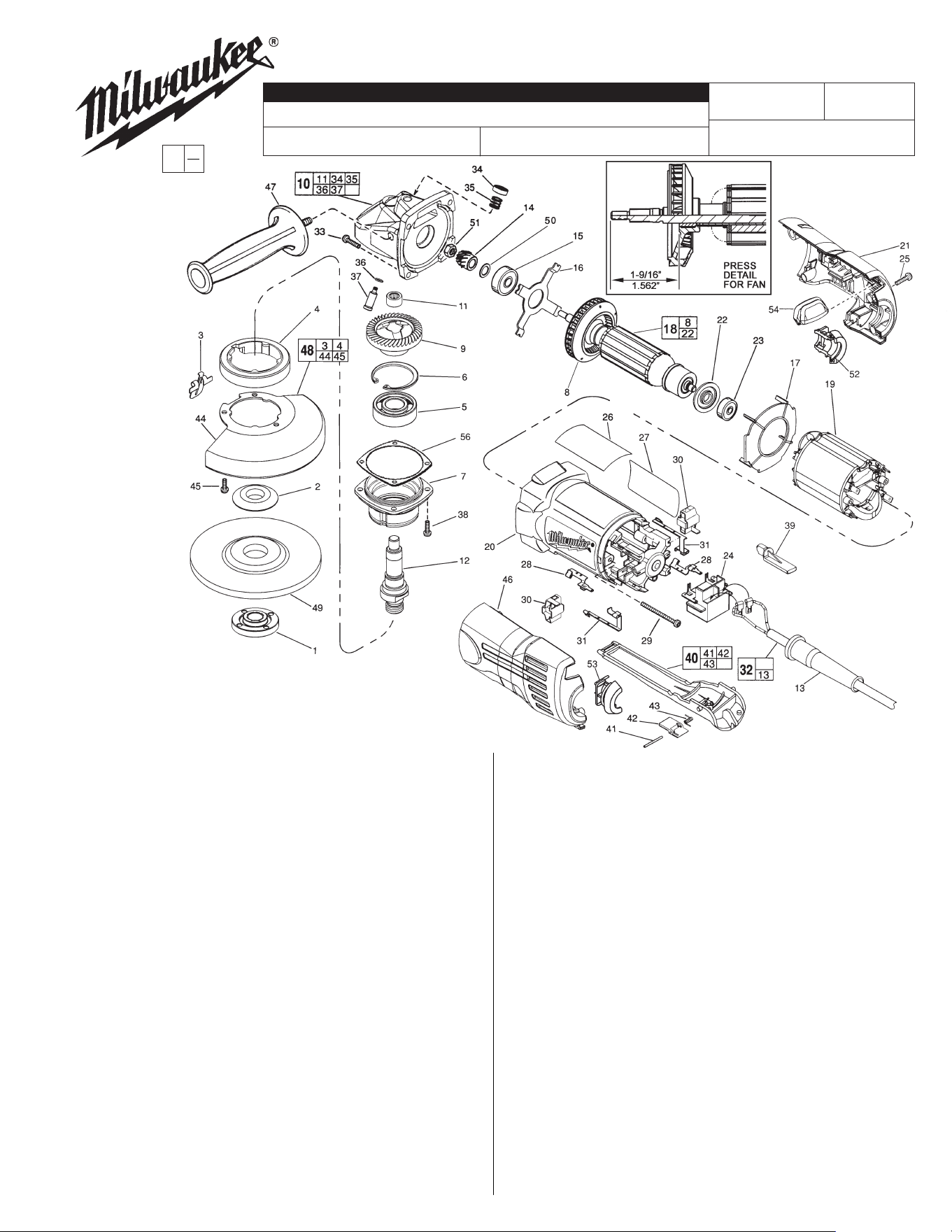

Drwg. 4
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 49-05-0110 Flange Nut (1)
2 49-05-0125 Flange (1)
3 44-20-0325 Lock Lever (1)
4 45-36-1551 Spacer (1)
5 02-04-1745 Ball Bearing (1)
6 34-80-2960 Retaining Ring - Internal (1)
7 28-52-0222 Spindle Hub (1)
8 22-84-0960 Fan Assembly (1)
9 32-05-1310 P.M. Gear (1)
10 28-14-0705 Gear Case Assembly (1)
11 02-50-2423 Needle Bearing (1)
12 38-50-5212 Spindle (1)
13 44-76-0210 Cord Protector (1)
14 32-60-1310 Pinion Gear (1)
15 02-04-0852 Ball Bearing (1)
16 44-66-5345 Bearing Retainer Plate (1)
17 42-14-0400 Bafe (1)
18 16-10-2007 Armature (1)
19 18-10-2005 Field (1)
20 31-50-1125 Motor Housing (1)
21 31-44-0660 Right Cover (1)
22 23-16-0101 Commutator Insulator (1)
23 02-04-2080 Ball Bearing (1)
24 23-66-2401 Switch (1)
25 06-82-7271 6-19 x 7/8" Pan Hd. Plastite T-15 (4)
26 12-20-6155 Service Nameplate Kit (1)
27 10-98-7091 Warning Label (1)
28 23-74-1206 Brush Terminal (2)
29 06-82-7421 6-19 x 3-1/4" Pan Hd. Slt. Plast. T-15 (2)
30 22-20-1010 Brush Holder Assy. (Incl. Carbon Brush) (2)
31 23-74-1201 Switch Terminal (2)
32 22-64-0845 Cord Set Assembly (1)
33 06-82-7326 8-16 x 1" Pan Hd. Slt. Plast. T-20 (4)
34 31-12-0205 Cap (1)
35 40-50-8650 Compression Spring (1)
36 34-40-4300 O-Ring (1)
37 44-60-0845 Lock Pin (1)
38 06-82-5316 8-32 x 1/2" Pan Hd. Slt. Tapt. T-20 (4)
39 31-53-0080 Plug (1)
40 31-92-0320 Paddle Assembly (1)
41 06-65-1915 Pin (1)
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
42 42-42-0390 Lock-Off Button (1)
43 40-50-8750 Torsion Spring (1)
44 28-41-1025 Hood (1)
45 06-82-7251 8-16 x 3/8" Pan Hd. Slt. Plast. T-20 (3)
46 31-44-0665 Left Cover (1)
47 49-15-0310 Side Handle (1)
48 49-12-0366 Guard Assembly (1)
49 --------------- 5" Disc - Select From Catalog (1)
50 45-14-0280 Pinion Shim (1)
51 06-55-3850 10-32 Hex Nut (1)
52 31-17-0265 Cord Clamp Half-Right (1)
53 31-17-0260 Cord Clamp Half-Left (1)
54 31-53-0150 Plug (1)
56 43-44-1080 Gasket (1)
49-96-7205 Spanner Wrench (1)
FIG. LUBRICATION:
9,14 Type "Y" Grease, No. 49-08-5270, Must Be Applied
To All Gear Teeth.
10 9-12 Grams Type "Y" Grease, No. 49-08-5270.
FIG. NOTES:
7 Position The Spindle Hub With The Side That Has The
Word "Back" Orientated Toward The Rear Of The Tool.
11 Press .09" Below Casting Surface With Lettering Readable
After Assembly.
32 Tuck All Cord Leads Away From Vent Openings. Cord Leads
Are Interchangeable On Switch Connections.
6155-20
54-38-1328
949D
5" SUPER MAG GRINDER
EXAMPLE:
Component Parts (Small #)
Are Included When Ordering
The Assembly (Large #).
REVISED BULLETIN
DATE
Nov. 2005
SERVICE PARTS LIST
BULLETIN NO.
WIRING INSTRUCTION
CATALOG NO.
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
STARTING
SERIAL NUMBER
0
0
0
54-38-1327
