User Manual
WA65F WA75F WA86F
The colour and the appearance may differ depending on the product, and the content in the
manual is subject to change without prior notice to improve the performance.
Recommended hours of use per day of this product is under 12 hours. If the product is used
for longer than 12 hours a day, the warranty may be void.
Interactive Display
2
Table of contents
Before using the product
Safety precautions 4
Safety symbols 4
Storage 5
Electricity and safety 5
Installation 5
Operation 6
Precautions for use 8
Preparations
Checking the components 9
Parts 10
Tray
Ports
12
11
Before installing the product (Installation
guide) 13
Installing the wall mount 14
Using the wall mount kit
Wall mount kit specifications (VESA)
14
15
Connecting to a network 16

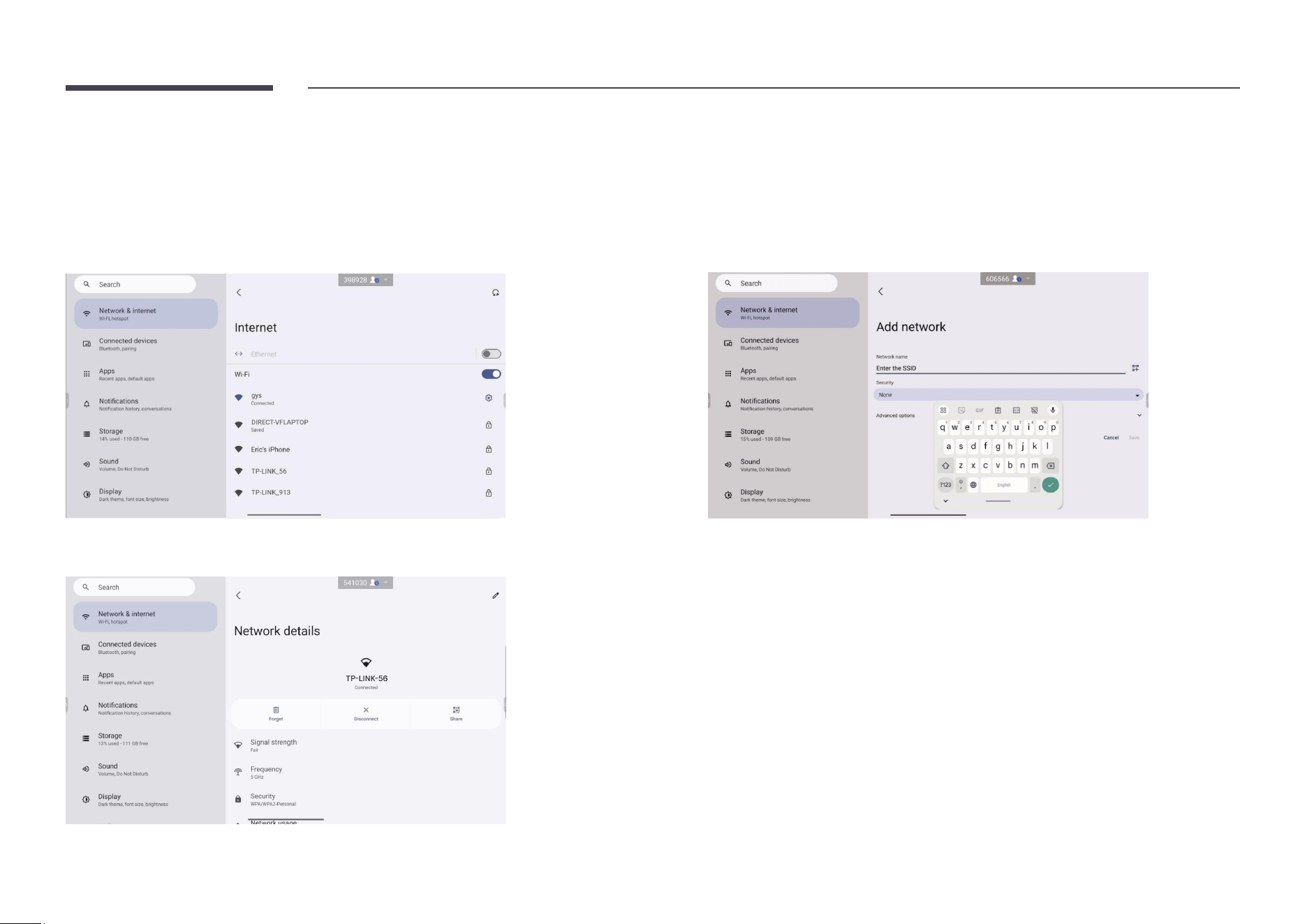

Network settings (Wired) 16
Network settings (Wireless) 18
Writing
20
Whiteboard
Whiteboard - Entry 20
Pen
21
Screen elements 21
Write 22
Extension function of the pen 22
Erasing 22

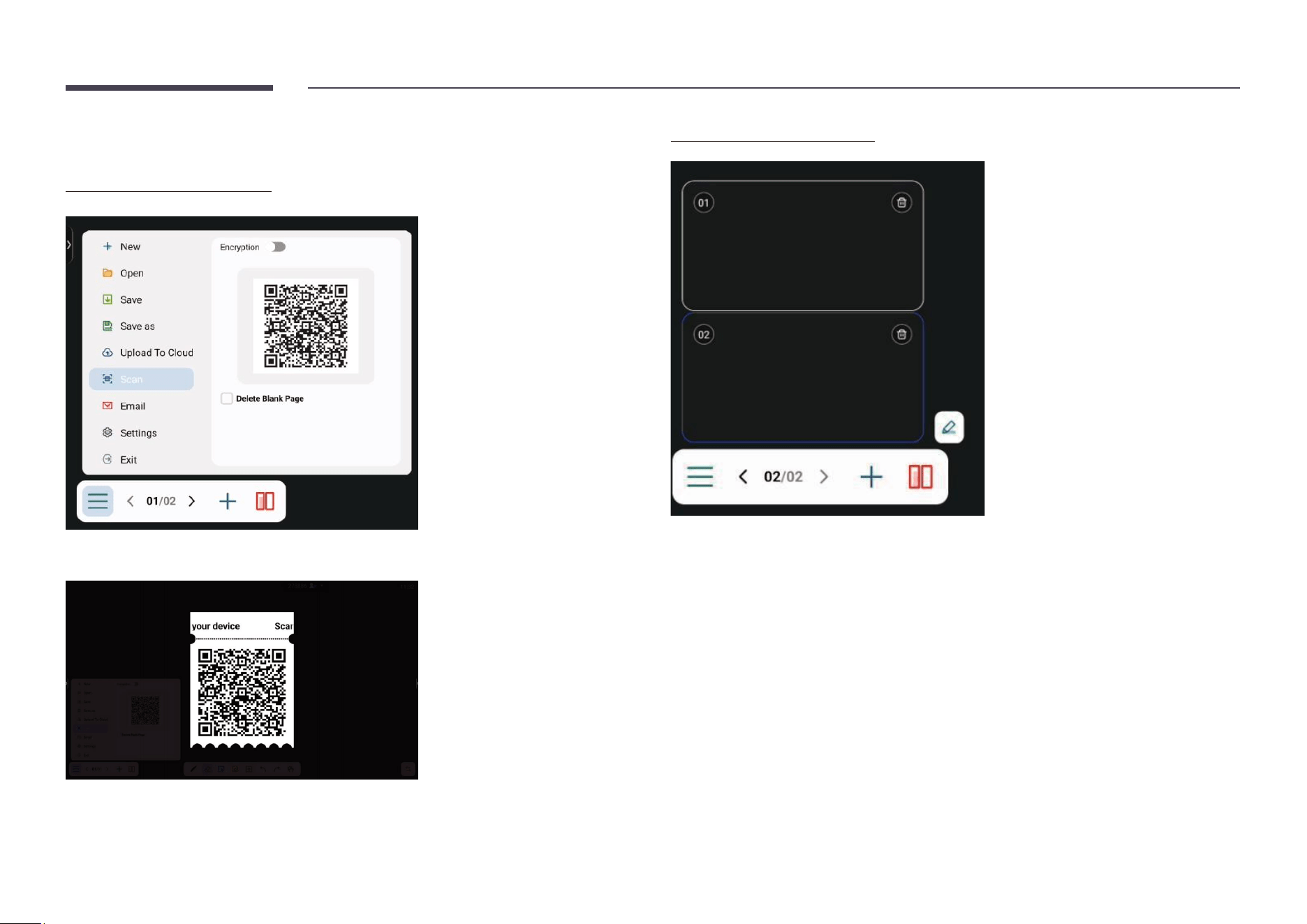

Whiteboard Menu 23
Settings 24
Email Account 24

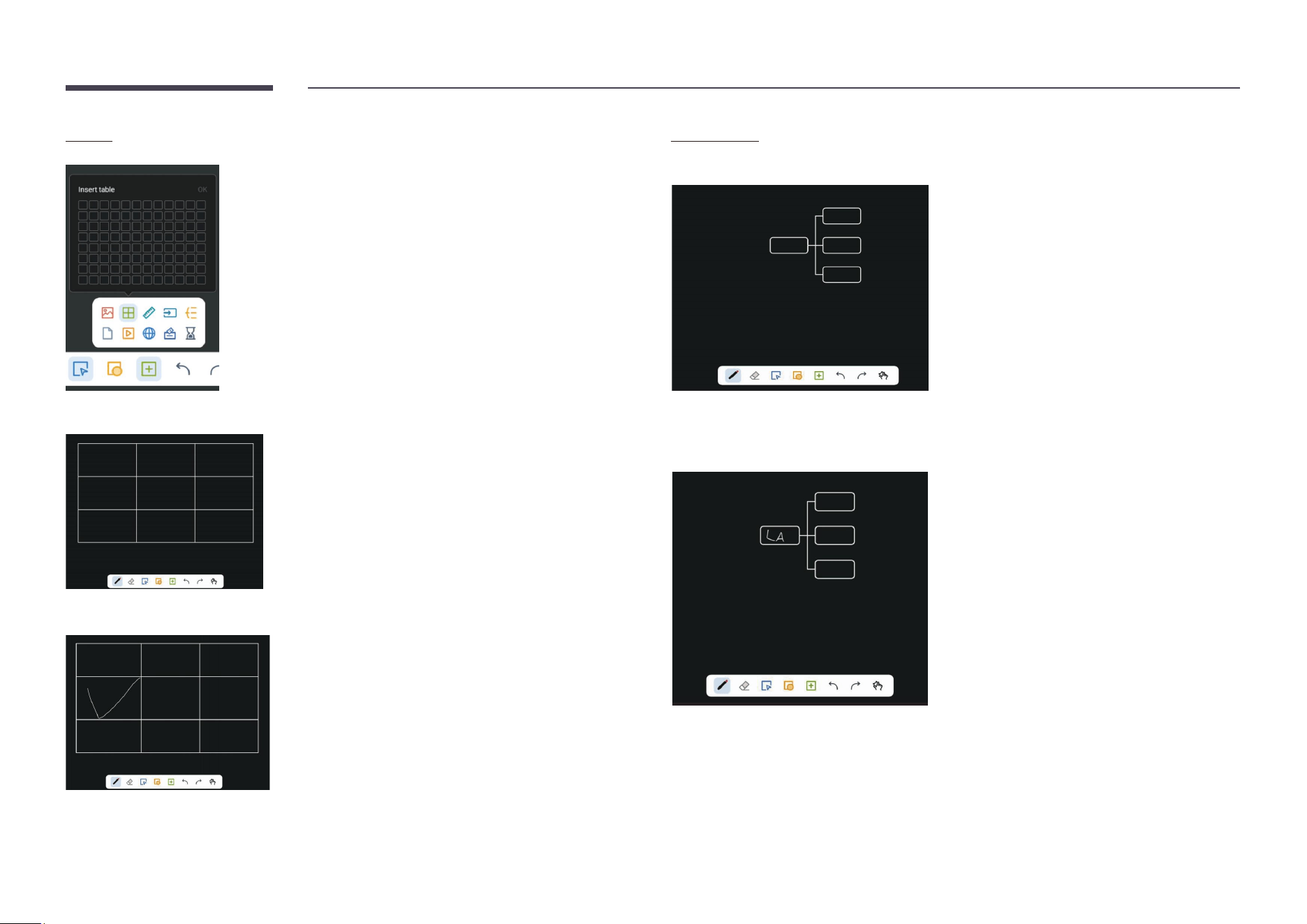

Whiteboard Functions 25
SETTINGS
System Settings 30
Network & Internet
Wireless & Network
31
32
Wi-Fi 32
Ethernet 33

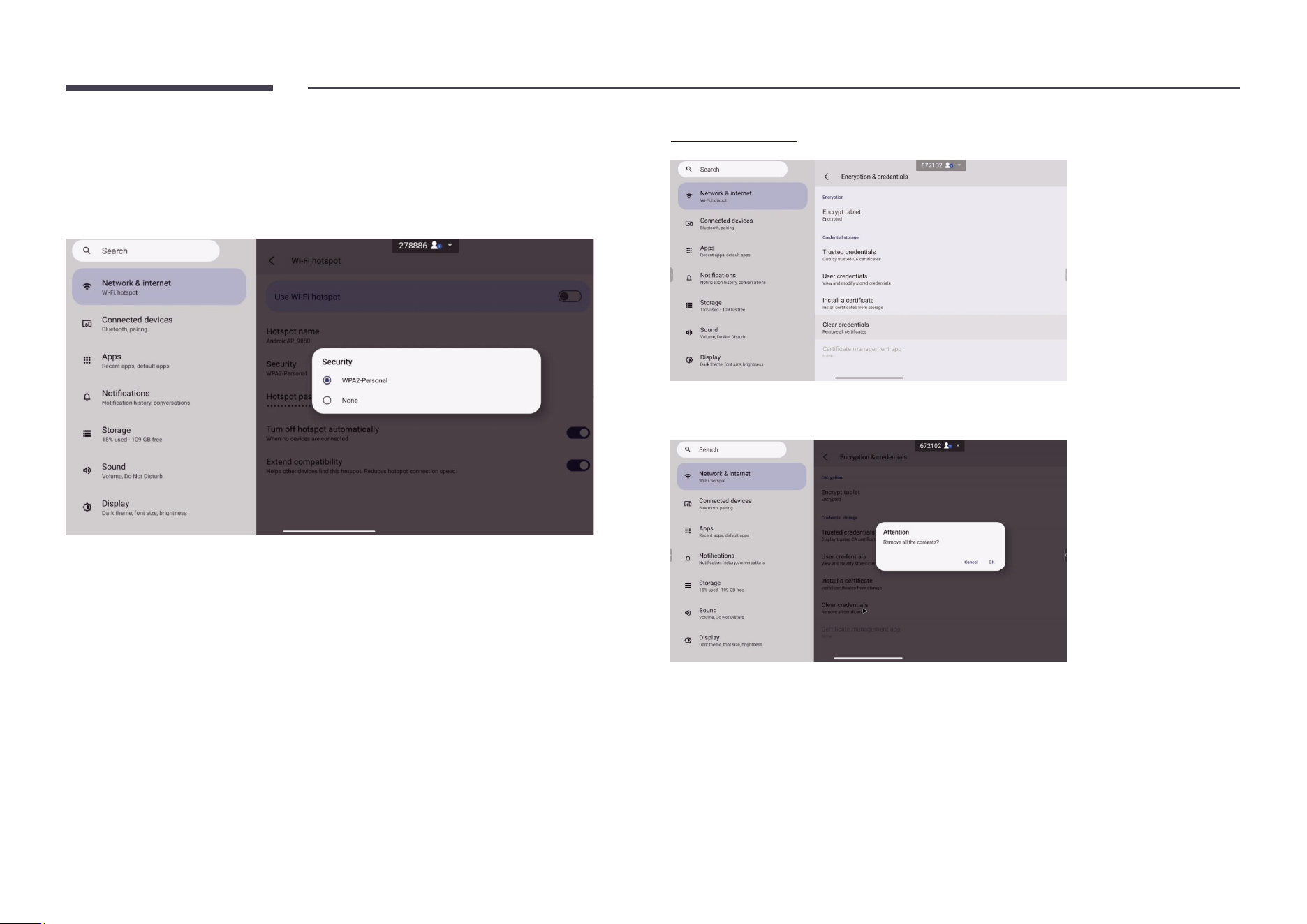

Hotspot 33

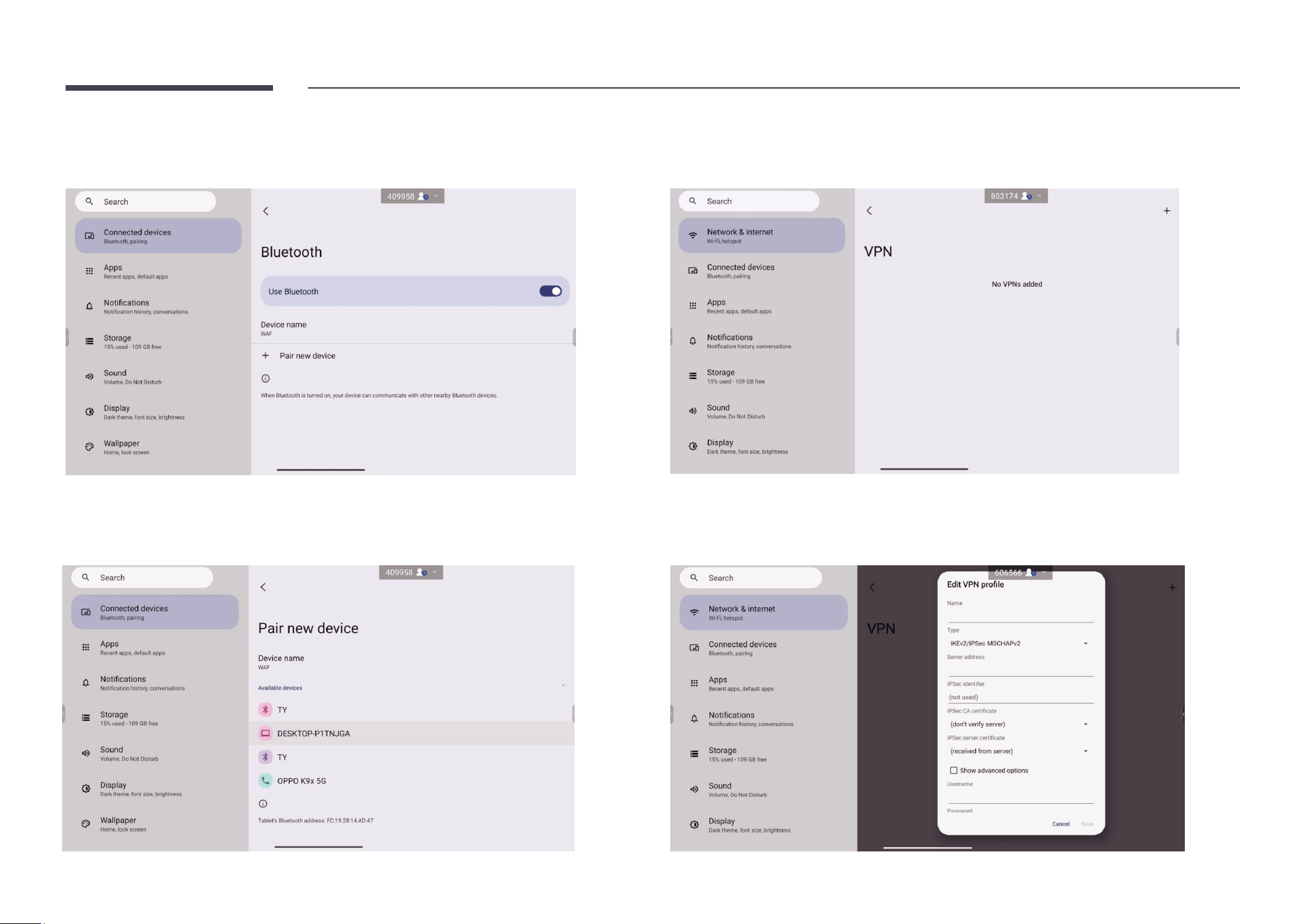

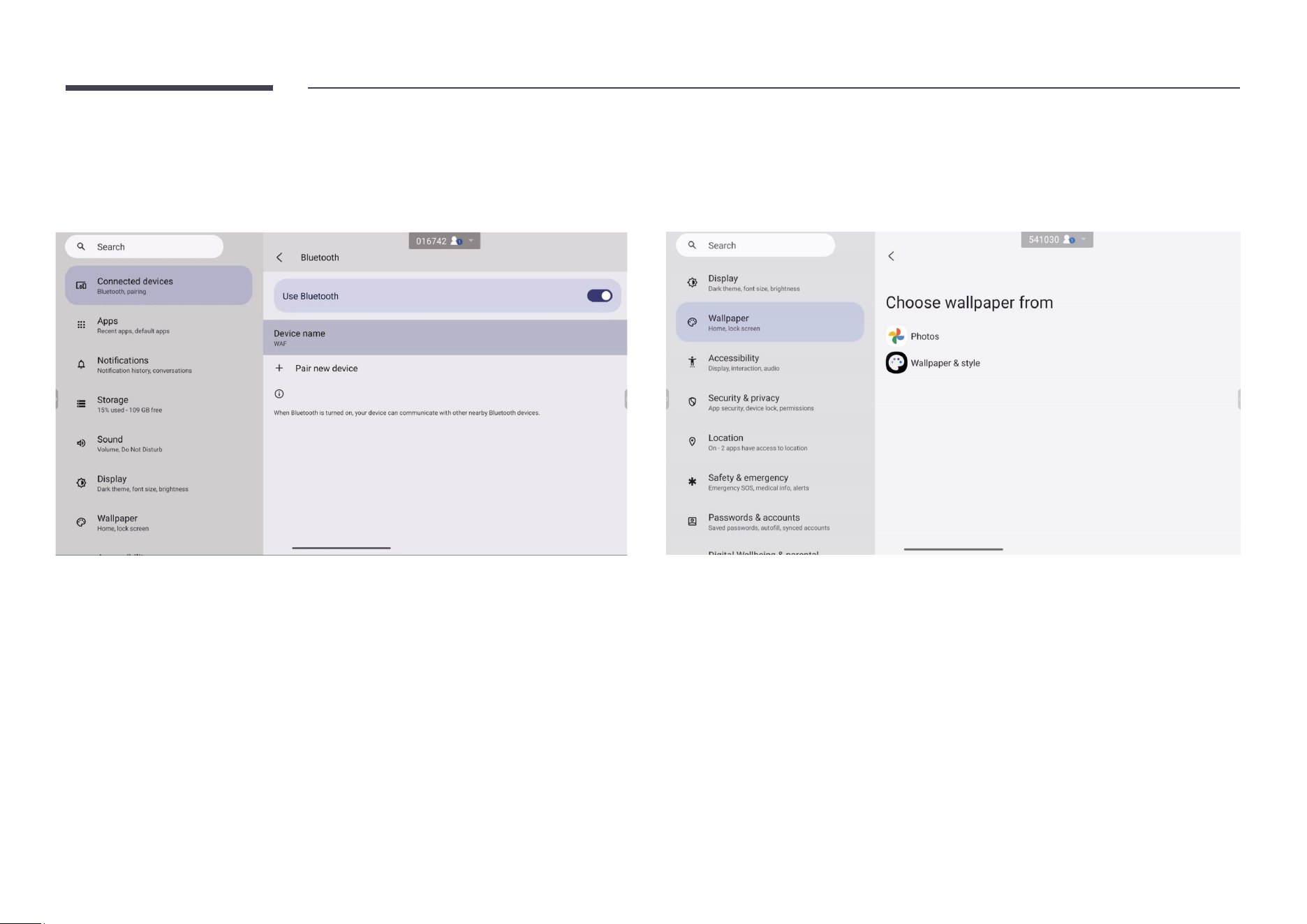

Bluetooth 34
VPN 34
Device 35

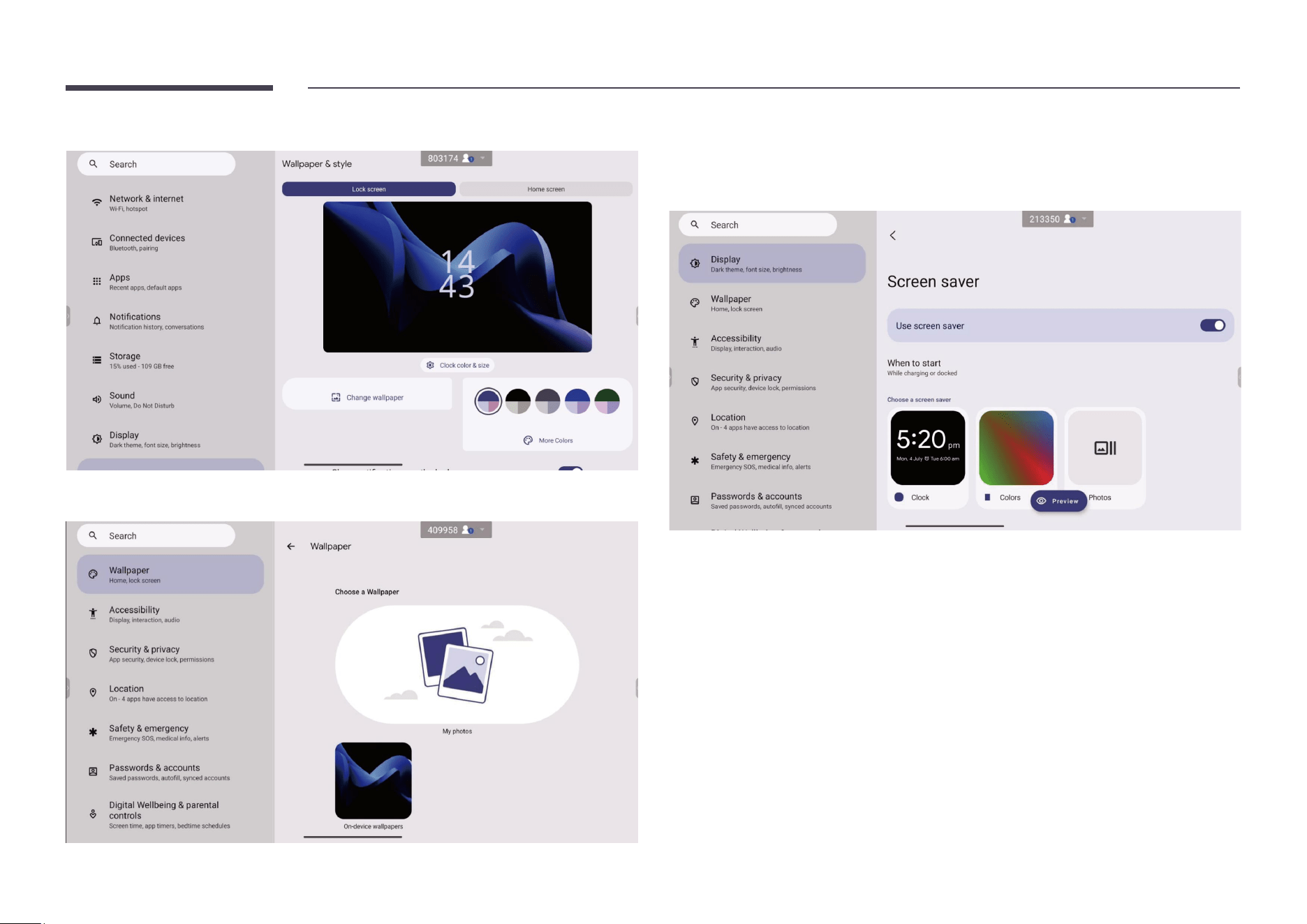

Wallpaper 35
Screen Saver 36
Screenshot 37

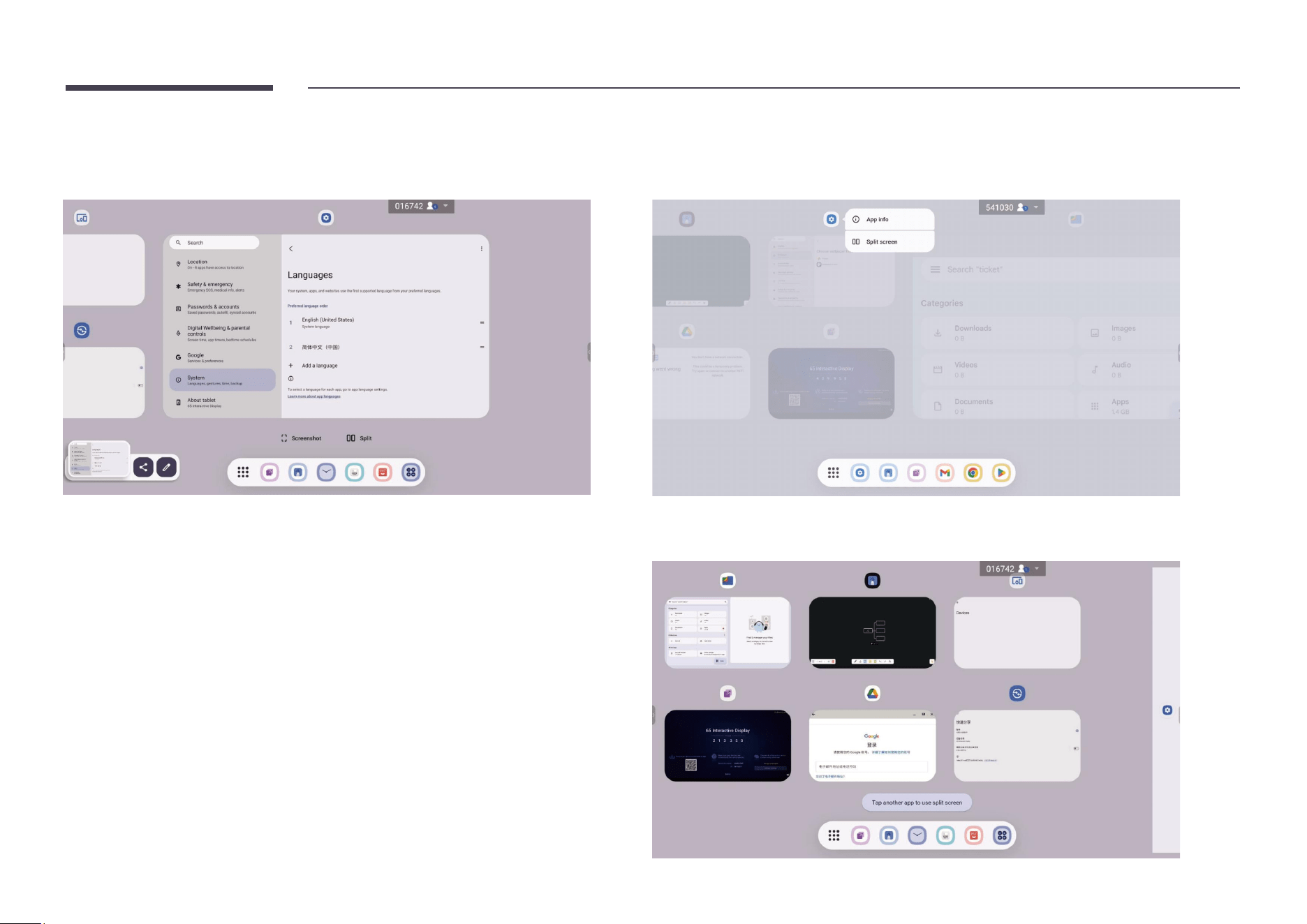

Split Screen 37
Sidebar 38
Floating app 38

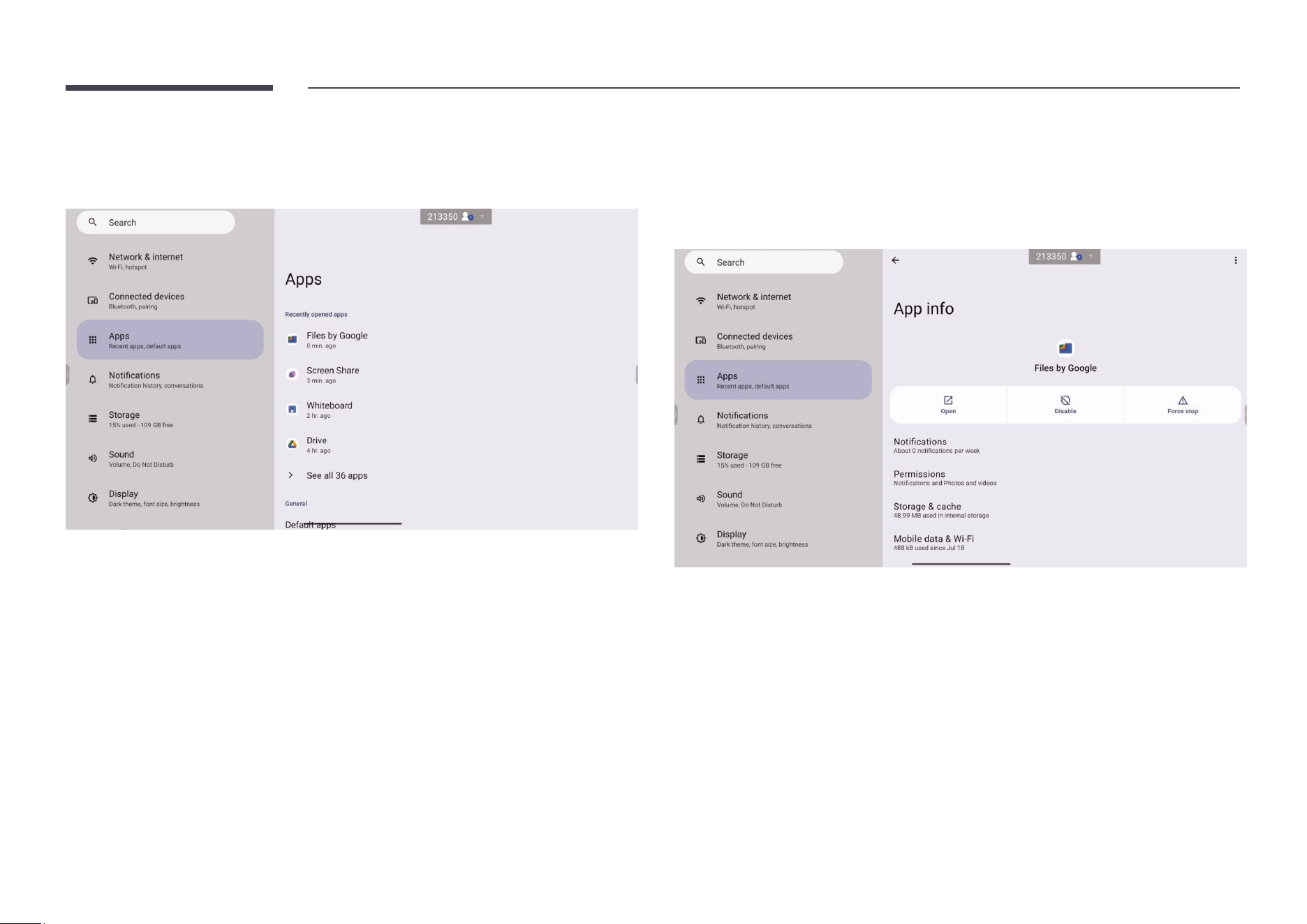

Apps 39
System 40
Date & Time 40

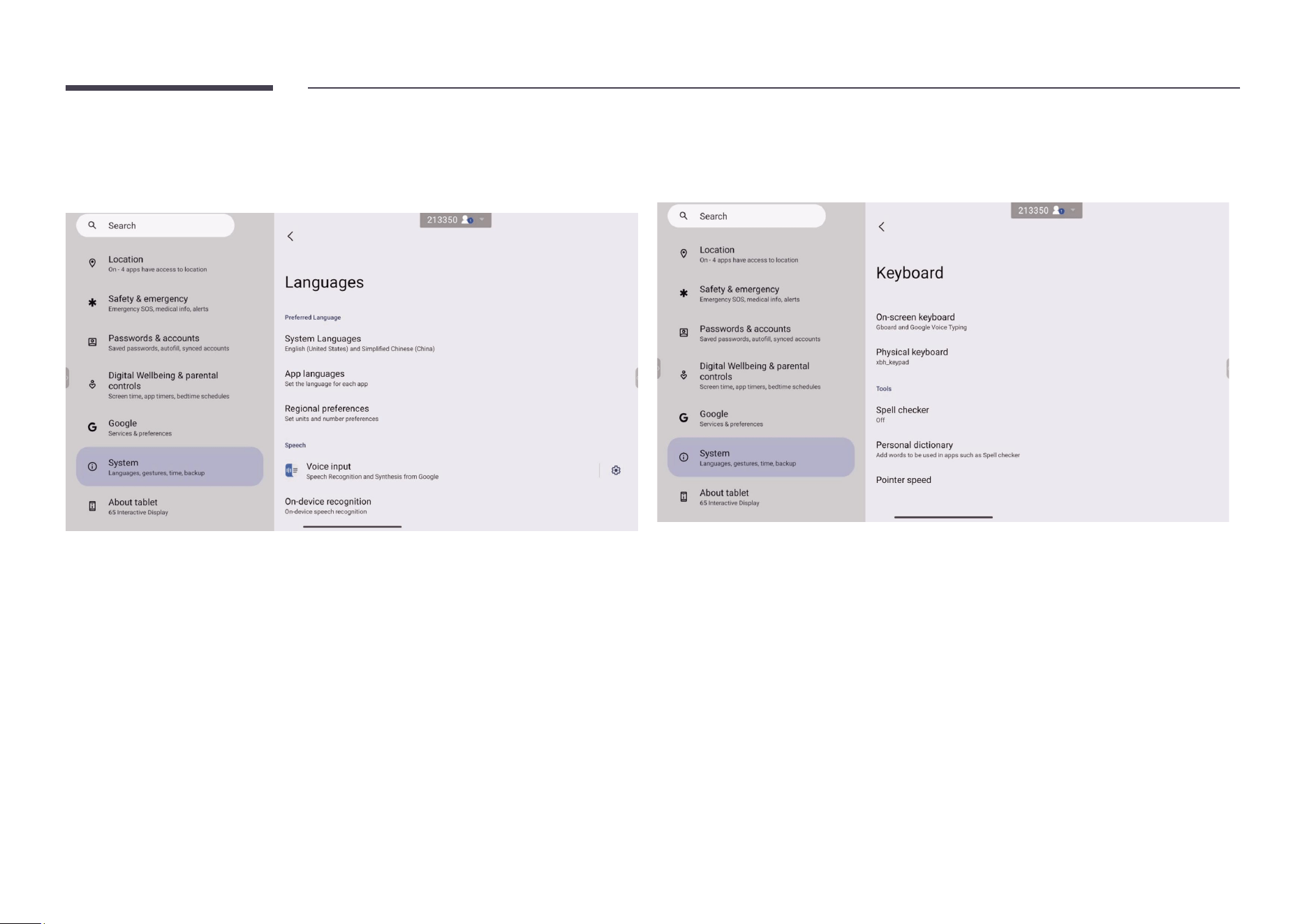

Language 41
Keyboard 41

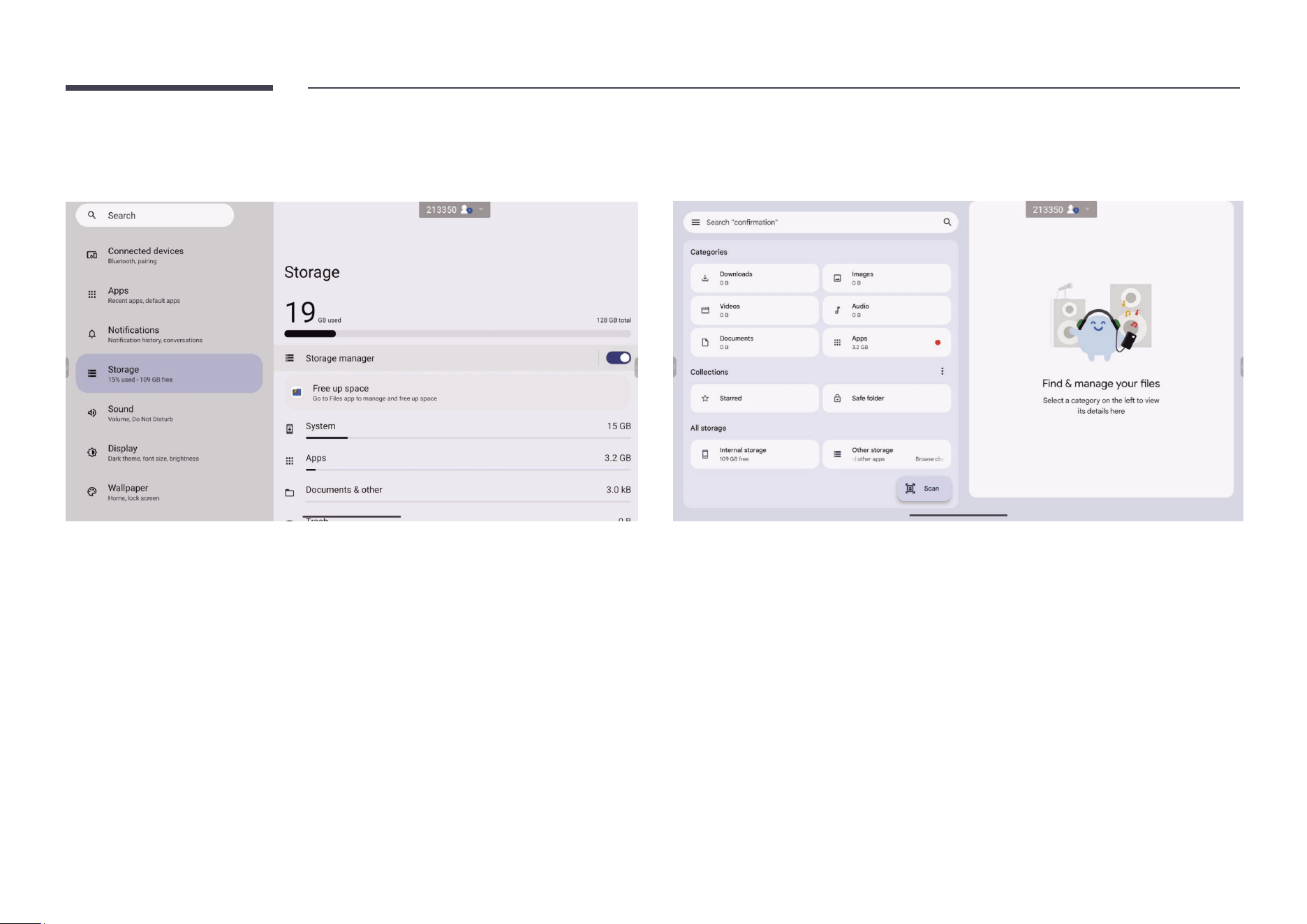

Storage 42
Files 42

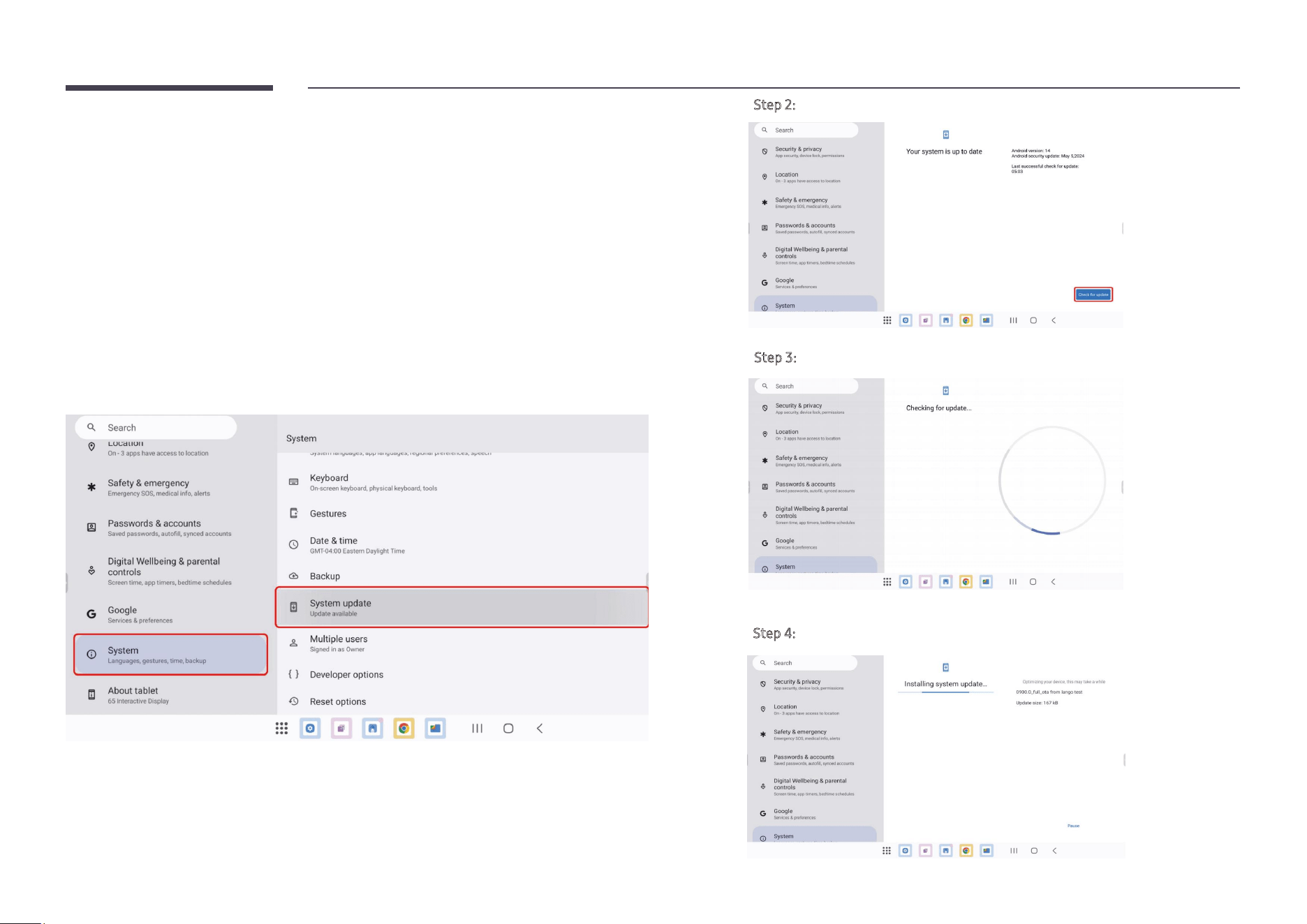

Software Update 43

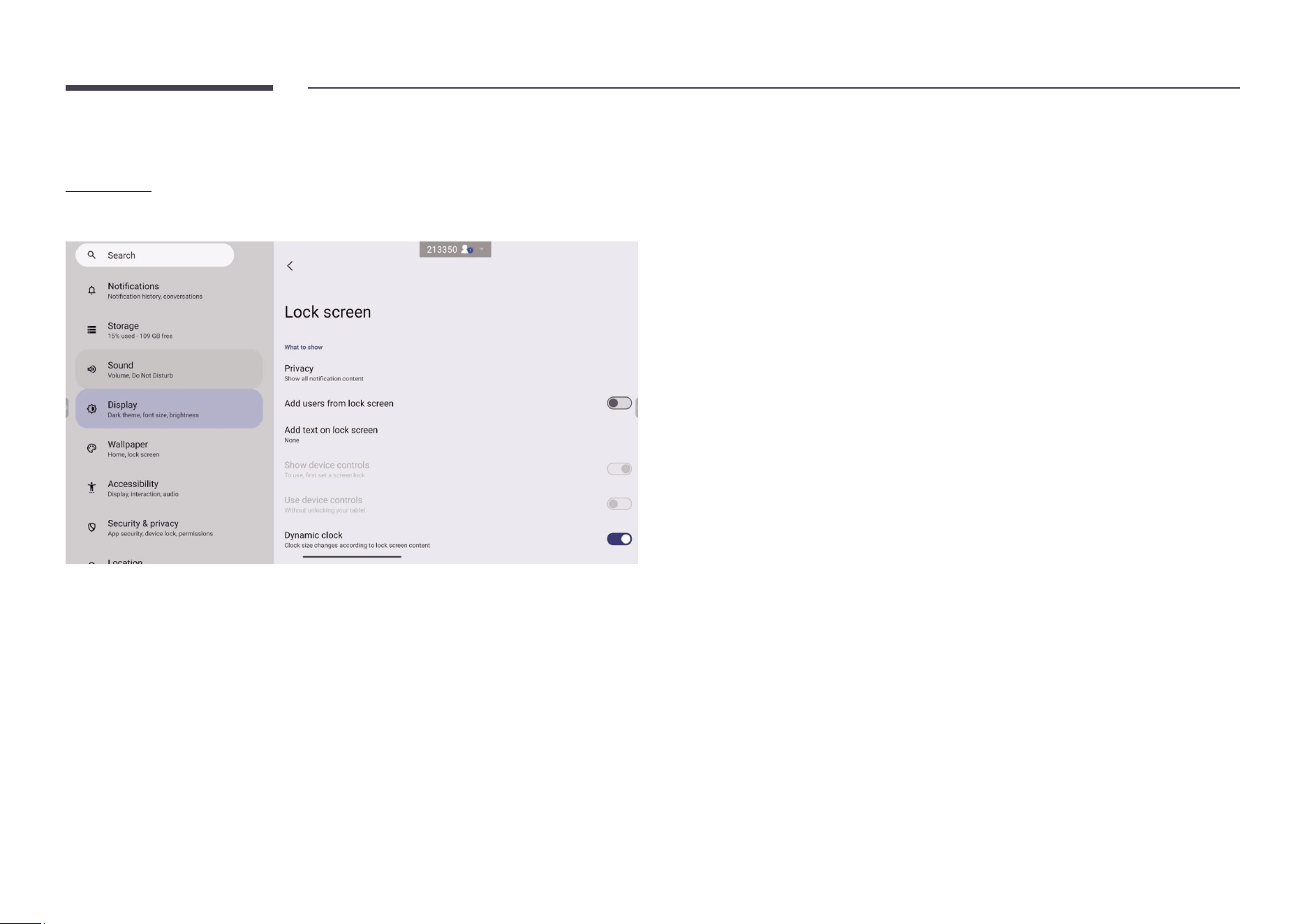

Lock Screen 44
Security 45
3
Table of contents

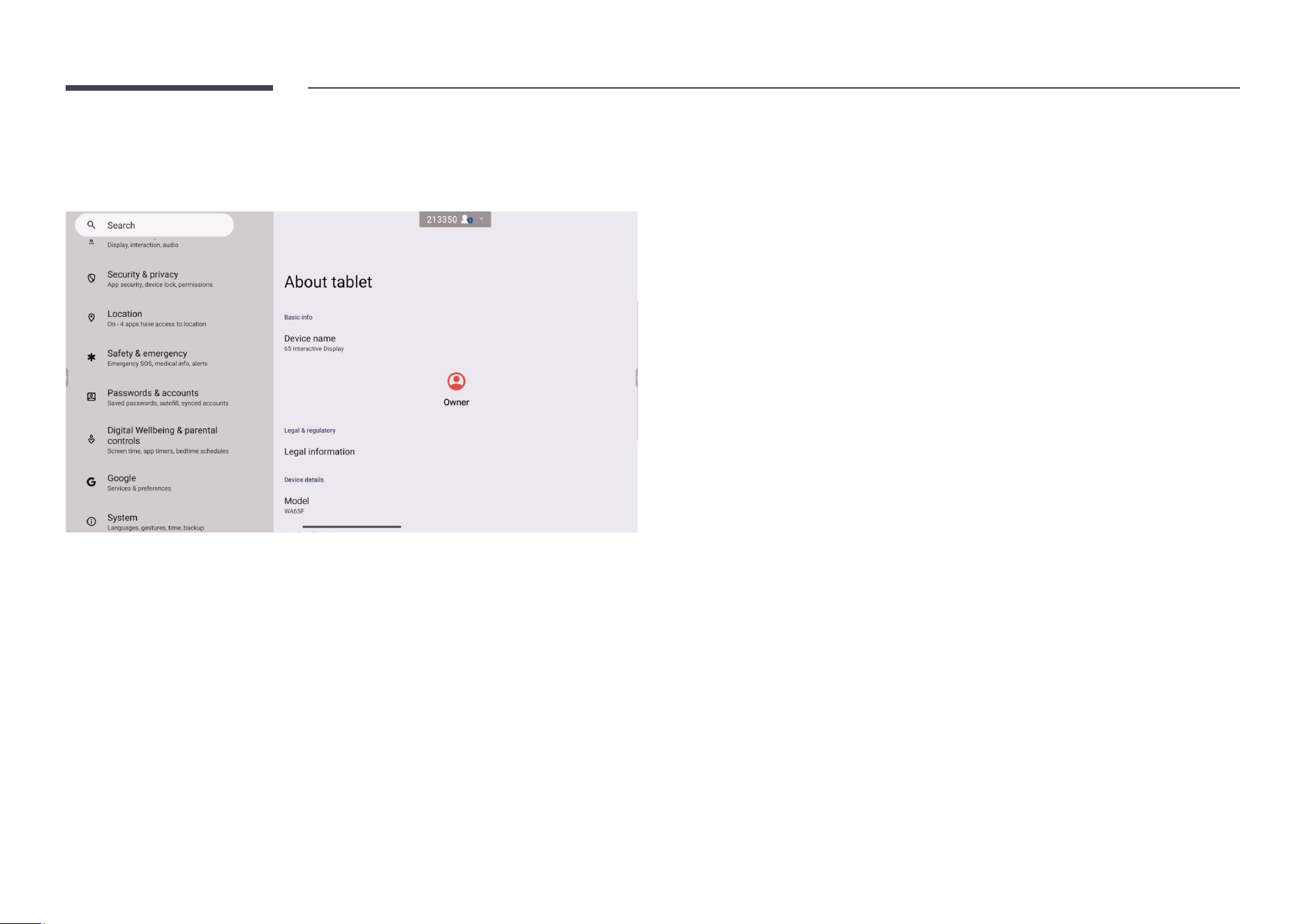

About 46
Device Setting 47
Display 47
Audio 47
General 48
Troubleshooting guide
Specifications
Problems and solutions 49
General 53
Preset timing modes 55
Appendix
Responsibility for the pay service (Cost to
customers) 56
Not a product defect 56
A product damage caused by customer’s
fault 56
Others 56
Prevention of afterimage burn-in 57
What is afterimage burn-in? 57
Recommended prevention practices 57
Tips for eye health 58
Licence 57
Low Blue Light 58
ENERGY STAR 58
4
Chapter 01
Before using the product
Safety precautions
The following safety instructions are to ensure your personal safety and prevent property
damage. Please read the following to ensure the proper use of the product.
Safety symbols
Symbol Name Meaning
Warning A serious or fatal injury may result if instructions are not followed.
Caution
Personal injury or damage to properties may result if instructions
are not followed.
Prohibition Do NOT attempt.
Instruction Follow directions.
CAUTION
RISK OF ELECTRIC SHOCK. DO NOT OPEN.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).
THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO QUALIFIED
PERSONNEL.
This symbol indicates that high
voltage is present inside. It is
dangerous to make any kind of
contact with any internal part of
this product.
AC voltage: Rated voltage marked
with this symbol is AC voltage.
This symbol indicates that this
product has included important
literature concerning operation
and maintenance.
DC voltage: Rated voltage marked
with this symbol is DC voltage.
Class II product: This symbol
indicates that a safety connection
to electrical earth (ground) is
not required. If this symbol is not
present on a product with a mains
lead, the product MUST have a
reliable connection to protective
earth (ground).
Caution. Consult instructions
for use: This symbol instructs
the user to consult the user
manual for further safety related
information.
5
Storage
white-coloured stains on the product.
" Contact Customer Service Centre if the inside of the product needs cleaning (service fee
will be charged).
Electricity and safety
Warning
Do not use a damaged power cord or plug, or a loose power socket.
Do not use multiple products with a single power socket.
Do not touch the power plug with wet hands. Otherwise, an electric shock may
result.
Do not bend or pull the power cord with force. Be careful not to leave the power
cord under a heavy object.
Do not place the power cord or product near heat sources.
Insert the power plug all the way in so it is not loose.
Connect the power plug to a grounded power socket (type 1 insulated devices
only).
An electric shock or injury may result.
Clean any dust around the pins of the power plug or the power socket with a dry
cloth.
Caution
Do not disconnect the power cord while the product is being used.
The product may become damaged by an electric shock.
Only use the power cord provided with your product by Samsung. Do not use the
power cord with other products.
Keep the power socket where the power cord is connected unobstructed.
The power cord must be disconnected to cut off power to the product when an
issue occurs.
Hold the plug when disconnecting the power cord from the power socket.
Installation
Warning
DO NOT PLACE CANDLES, INSECT REPELLANTS OR CIGARETTES ON TOP OF THE
PRODUCT. DO NOT INSTALL THE PRODUCT NEAR HEAT SOURCES.
Do not install the product in poorly ventilated spaces such as a bookcase or closet.
Do not install the product on an unstable or vibrating surface (insecure shelf,
sloped surface, etc.)
• The product may fall and become damaged and/or cause an injury.
• Using the product in an area with excess vibration may damage the product or
Do not expose the product to direct sunlight, heat, or a hot object such as a stove.
6
Do not install the product within the reach of young children.
• The product may fall and injure children.
•
Edible oil, such as soybean oil, can damage or deform the product. Do not install
the product in a kitchen or near a kitchen counter.
Have a technician install the wall-mount hanger.
•
• Only use approved cabinets.
Install the product at least 10 cm away from the wall to allow ventilation.
Keep the plastic packaging out of the reach of children.
Children may suffocate.
Do not install the product in a vehicle or a place exposed to dust, moisture (water
drips, etc.), oil, or smoke.
Caution
Do not set down the product on its front.
The screen may become damaged.
Do not drop the product while moving.
Product failure or personal injury may result.
Set down the product gently.
Product failure or personal injury may result.
or a place where the product will operate continuously for an extended period of
time) may seriously affect its performance.
Be sure to consult Samsung Customer Service Centre if you want to install the
product at such a place.
Operation
Warning
There is a high voltage inside the product. Never disassemble, repair or modify the
product yourself.
•
• Contact Samsung Customer Service Centre for repairs.
Do not let children hang from the product or climb on top of it.
Children may become injured or seriously harmed.
If the product is dropped or the outer case is damaged, turn off the power switch
and disconnect the power cord. Then contact Samsung Customer Service Centre.
Do not leave heavy objects or items that children like (toys, sweets, etc.) on top of
the product.
The product or heavy objects may fall as children try to reach for the toys or sweets
resulting in a serious injury.
Do not move the product by pulling the power cord or any cable.
Do not lift or move the product by pulling the power cord or any cable.
Ensure the vents are not blocked by tablecloths or curtains.
Do not insert metallic objects (chopsticks, coins, hairpins, etc) or objects that burn
easily (paper, matches, etc) into the product (via the vent or input/output ports,
etc).
• Be sure to power off the product and disconnect the power cord when water
or other foreign substances have entered the product. Then contact Samsung
Customer Service Centre.
•
7
Do not place objects containing liquid (vases, pots, bottles, etc) or metallic objects
on top of the product.
• Be sure to power off the product and disconnect the power cord when water
or other foreign substances have entered the product. Then contact Samsung
Customer Service Centre.
•
Before moving the product, turn off the power switch and disconnect the power
cable and all other connected cables.
If the product generates abnormal sounds, a burning smell or smoke, disconnect
the power cord immediately and contact Samsung Customer Service Centre.
During a lightning or thunderstorm, power off the product and remove the power
cable.
Do not drop objects on the product or apply impact.
If a gas leakage is found, do not touch the product or power plug. Also, ventilate
the area immediately.
product.
Caution
Do not touch the screen when the product has been turned on for an extended
period of time as it will become hot.
Do not place heavy objects on the product.
Product failure or personal injury may result.
cause afterimage burn-in or defective pixels.
Activate power-saving mode or a moving-picture screen saver if you will not be
using the product for an extended period of time.
Disconnect the power cord from the power socket if you do not plan on using the
product for an extended period of time (vacation, etc).
leakage.
Use the product at the recommended resolution and frequency.
Your eyesight may deteriorate.
Looking at the screen too close for an extended period of time can deteriorate your
eyesight.
Rest your eyes for more than 5 minutes for every 1 hour of product use.
Eye fatigue will be relieved.
Store small accessories out of the reach of children.
8
Precautions for use
Be careful that if you use the supplied pen with a excessive force 2.5 kg, scratches may occur
on the protective glass.
If you use a ballpoint pen other than the supplied pen, screen may be stained with ink or
damaged.
Do not use a dirty brush to avoid screen damage.
" We recommend that you use the supplied pen. Do not use sharp, pointed objects other
than the pen.
" If dust or dirt from the supplied pen remains on the protective glass, clean it referring to
the instructions below.
Cleaning the exterior and display
Wipe the surface with a slightly wet, soft cloth, and then wipe with a dry cloth.
1 2 3
9
Chapter 02
Preparations
Checking the components
Quick Setup Guide Warranty card
(Not available in some locations)
Regulatory guide
$ Contact the vendor where you
purchased the product if any
components are missing.
$ The appearance of the
components may differ from the
images shown.
$ Refer to the installation guide
for the WAF stand or wall mount
(available for optional purchase).
Waste Electical & Electronic Power cord USB cable
Touch pen x 2 HDMI cable Remote Control
(batteries x 2 included)
10
Parts
WA65F/WA75F/WA86F
Power button
"
Parts Description
Power button Press the Power Button to turn on the product and press and hold the Power Button to
turn off the product.
In writing mode, shortly press the Power Button to switch to the screen saver mode.
In case the PIP screen is in Full Screen mode, press the Power Button to display the
adjustment menu. Press again to hide.
The pen is magnetic. Keep it by attaching to the marked location.
Speaker Key
The colour and shape of parts may differ from what is shown. Specifications are subject to change without
notice to improve quality.
OPS case
OPS case
Speaker Speaker output
Connect the OPS case to the product and insert the standard OPS module into the
case. You can purchase the OPS case and module separately.
Before inserting the OPS module, make sure to remove the power cable from
the product to completely cut off the power supply.
"
" OPS power supply: 18V/5.0A
OPS refers to the Intel Open Pluggable Specification.
Key 1 power indicator：Adjust the brightness of the panel according to the actual
scenery if the user turns on the auto brightness
2 power button
3 home button：switch to the Android home page
4 return button：return
5 freeze button：when press this button，the screen and the picture will be freezed
and cannot be touched
6 volume down
7 volume up
11
Ports
"
notice to improve quality.
Ports Description
USB 2.0
Connect to a USB memory device.
" The USB ports on the product accept a maximum constant current of 1.0 A. If the
maximum value is exceeded, USB ports may not work.
USB 2.0
Connect to a USB memory device.
" The USB ports on the product accept a maximum constant current of 1.0 A. If the
maximum value is exceeded, USB ports may not work.
LAN
HDMI 2
RS232C
HDMI
Connects to a source device using a HDMI cable.
TOUCH 2
Allows touch-based control of the PC screen connected through the HDMI
or DP
port. Use the supplied USB cable to connect between the TOUCH
port on the rear
of the product and the PC.
Serial Interface for debug only.
WA65F/WA75F/WA86F
Power interface
Connects to a network using a LAN cable. (1000 Mbps)
Below port: Connect RJ45 output terminal
Above port: Connect RJ45 input terminal
Connects to a sink device using a HDMI cable.
The colour and shape of parts may differ from what is shown, Specifications are subject to shange without
12
Tray
"
notice to improve quality.
The colour and shape of parts may differ from what is shown, Specifications are subject to shange without
Ports Description
TOUCH 1
HDMI
1
WA65F/WA75F/WA86F
USB 3.0 Connect to a USB memory device.
" The USB ports on the product accept a maximum constant current of 1.0 A. If the
maximum value is exceeded, USB ports may not work.
USB 3.0 Connect to a USB memory device.
" The USB ports on the product accept a maximum constant current of 1.0 A. If the
maximum value is exceeded, USB ports may not work.
You can connect a device using a USB-C cable.
• USB-C connection allows video output and touch-based control of the device.
" You must use a USB-C cable with DP ALT Mode support for video transmission.
" Use a USB-C cable that is 1 m or shorter in length.
" Charging is supported up to 65 W. Charging with USB-C cable is only available
when the product is on.
Connects to a source device using a HDMI cable.
Allows touch-based control of the PC screen connected through the HDMI1
port.
Use the supplied USB cable to connect between the TOUCH port on the rear of the
product and the PC.
13
WA65F/WA75F/WA86F
Before installing the product (Installation
guide)
This product can be wall-mounted. The wall mount are available for optional purchase.
Ventilation
" Contact Samsung Customer Service Center for further details.
Installation on a perpendicular wall
A Minimum 30 mm
B Ambient temperature: 35 °C or less
A
B
Installation on an indented wall
A Minimum 30 mm
B Minimum 25 mm
C Ambient temperature: 35 °C or less
" When installing the product on an indented wall, allow at least the space
specified above between the product and wall for ventilation and ensure
that the ambient temperature is kept below 35 °C.
B
B
C
A
14
Installing the wall mount
" This product can be wall-mounted. The wall mount are available for optional purchase.
Using the wall mount kit
• The wall mount kit allows you to mount the product on the wall.
• For detailed information on installing the wall mount, see the instructions provided with
the wall mount.
• We recommend you contact a technician for assistance when installing the wall mount
bracket.
• Samsung is not responsible for any damage to the product or injury to yourself or others
if you select to install the wall mount on your own.
C
Wall mount
bracket
Product
15
"
install the product on the other wall area, contact the nearest agency.
Install your wall mount on a solid wall perpendicular to the floor. To
If you install the product on a slanted wall, it may fall and result in
severe personal injury.
• Samsung wall mount kits contain a detailed installation manual and all parts necessary for assembly are
provided.
• Do not use screws that are longer than the standard length or do not comply with the VESA standard screw
specifications. Screws that are too long may cause damage to the inside of the product.
For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws
may differ depending on the wall mount specifications.
Do not fasten the screws too firmly. This may damage the product or cause the product to fall, leading to
•
•
personal injury. Samsung is not liable for these kinds of accidents.
Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is•
used or the consumer fails to follow the product installation instructions.
• Always have at least two people mount the product on a wall.
• Standard dimensions for wall mount kits are shown in the table below.
Model name
VESA screw hole specs (A x B) in
millimetres
C (mm) Standard screw Quantity
WA65F 600 x 400 23 - 25 M8 4
WA75F 23 - 25
WA86F
800 x 400
800 x 600 23 - 25
" Do not install your Wall Mount Kit while your product is turned on. It may result in personal injury due to
electric shock.
Wall mount kit specifications (VESA)
A
B
C
C
A
B
C
C
Product
Wall mount bracket
16
Connecting to a network
" Connecting parts may differ in different products.
Network settings (Wired)
Connecting to a wired network
There are three ways to attach your product to your LAN using cable.
• You can attach your product to your LAN by connecting the LAN port on the back of your
product to an external modem using a LAN cable. See the diagram below.
External modem (ADSL/VDSL)
The modem port on the
wall
LAN
LAN
Modem cable LAN cable
• You can attach your product to your LAN by connecting the LAN port on the back of your
product to an IP sharer which is connected to an external modem. Use LAN cable for the
connection. See the diagram below.
LAN
LAN
The modem port on the
wall
External modem (ADSL/
VDSL)
IP sharer (having DHCP
server)
Modem cable LAN cableLAN cable
•
your LAN by connecting the LAN port on the back of your product directly to a network
Depending on how your network is configured, you may be able to attach your product to
wall outlet using a LAN cable.
See the diagram below. Note that the wall outlet is attached to a modem or router
elsewhere in your house.
LAN
LAN
The modem port on the
wall
LAN cable
If you have a Dynamic Network, you should use an ADSL modem or router that supports
the Dynamic Host Configuration Protocol (DHCP). Modems and routers that support DHCP
automatically provide the IP address, subnet mask, gateway, and DNS values your product
needs to access the Internet so you do not have to enter them manually. Most home
networks are Dynamic Networks.
Some networks require a Static IP address. If your network requires a Static IP address, you
must enter the IP address, subnet mask, gateway, and DNS values manually on your product
Cable Setup Screen when you set up the network connection. To get the IP address, subnet
mask, gateway, and DNS values, contact your Internet Service Provider (ISP).
If you have a Windows computer, you can also get these values through your computer.
" You can use ADSL modems that support DHCP if your network requires a Static IP
address.
" ADSL modems that support DHCP also let you use Static IP addresses.
17
Set the network connection to use Internet services such as perform software upgrades.
Automatic Open Network Settings (Wired)
Connect to the network using a LAN cable.
Make sure a LAN cable is connected first.
How to set up automatically
1
Set
The network connection screen appears, and the verification process starts.
When the connection has been verified, the
Network Type to Wired from the Open Network Settings page.
2
3
OK button appears on the bottom of the
screen.
4
Tap OK.
" If the connection process fails, check the LAN port connection.
lf the automatic process cannot find the network connection values or if you want to "
set the connection manually, go to the next section, “Manual Open Network Settings
(Wired)”.
Manual Open Network Settings (Wired)
If this is the case, ask the network administrator for the IP address, subnet mask, gateway
Offices may use static IP addresses.
and DNS server address. Enter these values manually.
Getting the network connection values
To view the Network connection values on most Windows computers, follow these steps.
1
Right click the Network icon on the bottom right of the screen.
2
In the pop-up menu that appears, click Status.
3
On the dialog that appears, click the Support tab.
4
On the Support tab, click the Details button. The Network connection values are
displayed.
How to set up manually
1
Set
The network connection screen appears, and the verification process starts.
Network Type to Wired from the Open Network Settings page.
2
3
Select Cancel while network connections are being attempted. This will stop the
connection.
4
Select
Select the field at the top and then set
IP Settings on network connection screen. The IP Settings screen appears.
5
IP setting to Enter manually.
" Setting IP setting to Enter manually automatically changes DNS setting to Enter
manually.
6
Enter the IP Address, Subnet mask, Gateway, and DNS Server values manually.
7
When done, select
When the connection has been verified, the
the verification process starts.
OK at the bottom of the page. The network test screen appears and
8
OK button appears on the bottom of the
screen.
9
Tap OK to complete the setting.
18
Network settings (Wireless)
Connecting to a wireless network
Wireless IP sharer
(router having DHCP server)
The LAN port on the wall
LAN cable
Samsung recommends using IEEE 802.11n. When you play video over a network connection,
the video may not play smoothly.
" Select a channel for the wireless IP sharer that is not currently being used. If the channel
set for the wireless IP sharer is currently being used by another device nearby, this will
result in interference and communication failure.
" Your product supports only the following wireless network security protocols.
If you select the Pure High-throughput (Greenfield) 802.11n mode and the encryption
type is set to WEP, TKIP or TKIP AES (WPS2Mixed) on your AP or wireless router, Samsung
products will not support a connection in compliance with new Wi-Fi certification
specifications.
" If your wireless router supports WPS (Wi-Fi Protected Setup), you can connect to the
network via PBC (Push Button Configuration) or PIN (Personal ldentification Number).
WPS will automatically configure the SSID and WPA key in either mode.
" Connection methods: You can setup the wireless network connection in three ways. Auto
Setup (Using the Auto Network Search function), Manual Setup, Use WPS
" This product supports Enterprise WPA2 (TLS/TTLS/PEAP).
Automatic network setup (Wireless)
Most wireless networks have an optional security system that requires devices that access
the network to transmit an encrypted security code called an Access or Security Key. The
Security Key is based on a Pass Phrase, typically a word or a series of letters and numbers of a
specified length you were asked to enter when you set up security foryourwireless network.
If you use this method of setting up the network connection, and have a Security Key for your
wireless network, you will have to enter the Pass Phrase during the automatic or manual
setup process.
How to set up automatically
1
Set Network Type to Wireless from the Open Network Settings page.
2
The product searches for available wireless networks. When done, it displays a list of the
available networks.
3
In the list of networks, select a network.
" If the desired wireless router does not appear, select Refresh to search again.
" If the router cannot be found after retrying, select Add Network.
4
If you selected a password-protected network, enter the password, and tap
The network connection screen appears, and the verification process starts.
When the connection has been verified, the
Go.
" You may skip this step if you selected an open network.
5
6
OK button appears on the bottom of the
screen.
7
Tap OK.
Manual network setup (Wireless)
If this is the case, ask the network administrator for the IP address, subnet mask, gateway
Offices may use static IP addresses.
and DNS server address. Enter these values manually.
Getting the network connection values
To view the network connection values on most Windows computers, follow these steps.
19
1
Right click the Network icon on the bottom right of the screen.
2
In the pop-up menu that appears, click Status.
3
On the dialog that appears, click the Support tab.
4
On the Support tab, click the Details button. The Network connection values are
displayed.
How to set up manually
1
Set Network Type to Wireless from the Open Network Settings page.
2
The product searches for available wireless networks. When done, it displays a list of the
available networks.
3
In the list of networks, select a network.
" If the desired wireless router does not appear, select Refresh to search again.
" If the router cannot be found after retrying, select Add Network.
4
If you selected a password-protected network, enter the password, and tap Go.
" You may skip this step if you selected an open network.
5
6
Select
The network connection screen appears, and the verification process starts.
Cancel while network connections are being attempted. This will stop the
connection.
7
Select
Select the field at the top and then set
IP Settings on network connection screen. The IP Settings screen appears.
8
IP setting to Enter manually.
" Changing IP setting to Enter manually automatically changes DNS setting to Enter
manually.
9
Enter the IP Address, Subnet mask, Gateway, and DNS Server values manually.
10
When done, select
When the connection has been verified, the
the verification process starts.
OK at the bottom of the page. The network test screen appears, and
11
OK button appears on the bottom of the
screen.
12
Tap OK to complete the setting.
How to set up using the WPS button
If your router has a WPS button, follow these steps.
1
Set Network Type to Wireless from the Open Network Settings page.
2
Select Use WPS.
3
Press the WPS or PBC button on your wireless router within the next two minutes. Your
product automatically acquires all the network setting values it needs and connects to
your network.
4
The network connection screen appears, and network setup is done.
20
Chapter 03
Writing

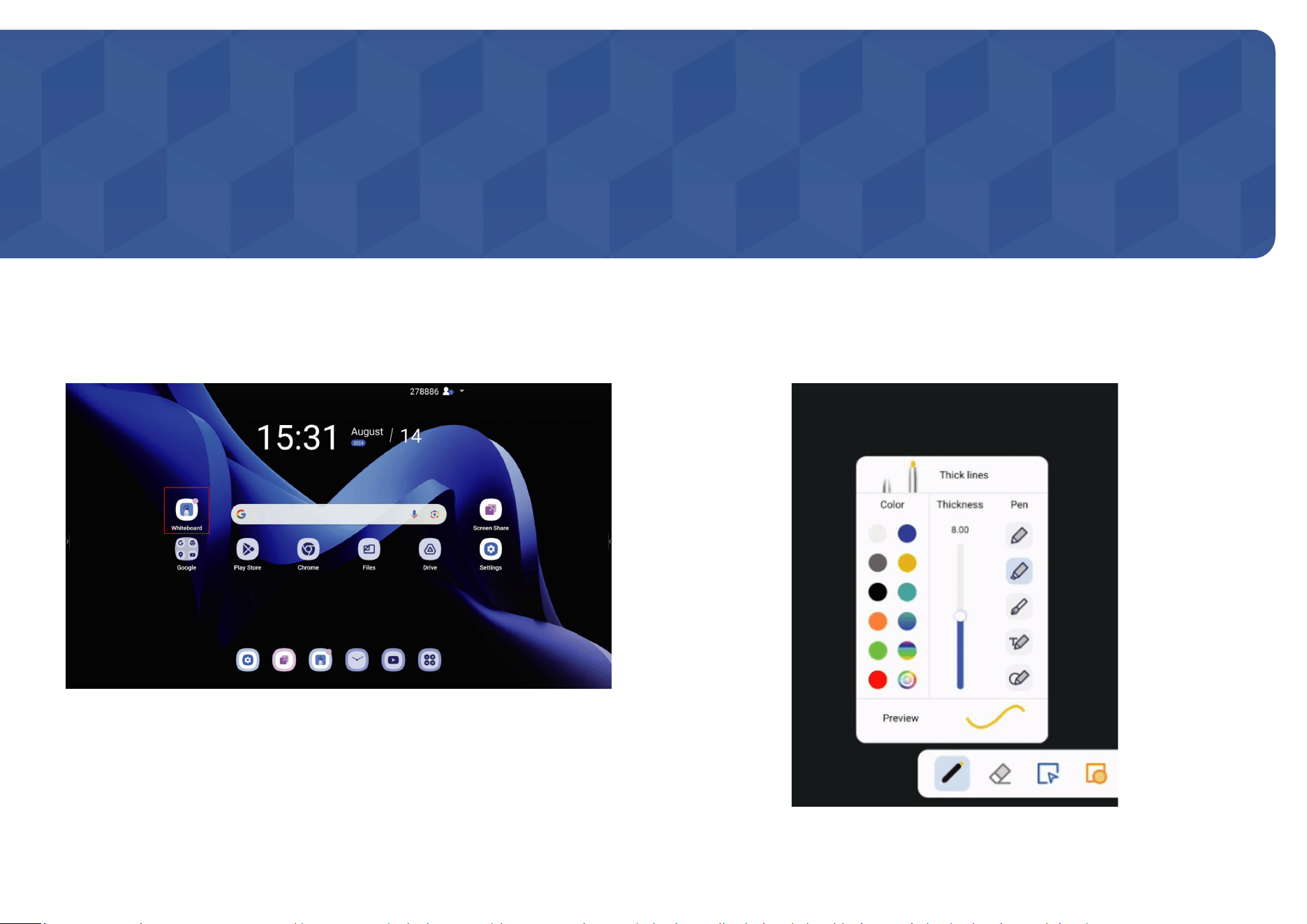

Whiteboard - Entry
Select Whiteboard app on home screen or app list to use whiteboard feature.
Pen
Pen feature has various pen types which allows you to select the color and adjust the thickness
of the pen.
21
Whiteboard
Screen elements
Buttons Description
1
2
Set the stroke size (which can be automatically recognized), the color, the weight,
and the stroke type.
4
Split Screen divides the whiteboard in to multiple screens: 2, 3, or 4 screens.
5
6
Switch to select mode to select handwritings, picture or other elements to
enlarge, reduce, rotate, change colors, search, copy or delete.
Erase annotation by circle erase, path erase, or one-click swipe clear.
7
Select a graphic and move it with touch to draw different geometric shapes,
including lines, plane shapes, and 3D Shapes.
8
Page Management
Split Screen
Pen
Eraser
Select
shape
Tools
Toggle layout
Time
Undo
Redo
Multi-fingerWriting
A variety of tools can be inserted into the whiteboard, including images, tables,
math tools, source, mind maps, documents, videos, browsers, votekit, timer.
Navigate pages (Previous page, Next page) and manage pages (Add page, Current
page number) of the whiteboard.
9
Click the undo button to undo the last step of the operatlon, up to 30 steps
are supported to undo.
10
You can choose either Multi-finger writing mode or Multi-finger scaling/moving
mode
12
SwitchWhiteboardmenuandpagecontrolpositionstoleftorright
13
Menu
The Menu contains new, save, share, close, and various settings of the
whiteboard.
1 2 43 5 6 7 8 9 1110 12 13
14
3
Add a new page after the current page and jump to the new page display.
Add Page
The time display can be switched on or off in the settings.
14
Click the redo button to revert the last undo operation.
11
22
Write
Use the supplied pen to write on the display.
• Thin tip (
A
): Pen type
• Thick tip (
B
): Thick Pen
A
B
Extension function of the pen
After writing, you can select the handwriting by using the selection tool and you
can adjust the color, search the handwriting, copy the handwriting or delete it.
Erasing
Select Eraser to erase the written content. You can use your palm to erase the content in
a large area on the screen. You can also clear all contents by dragging button to right.
Erase selection for removing the content. Eraser is resizable.
23
Whiteboard Menu
①
②
③
④
⑤
⑥
⑦
⑧
⑨
Item Description
1
New
Click to create a new whiteboard and the current whiteboard will be closed;
if the current whiteboard is not saved, the user will be prompted to save file
before creating a new one;
2
Open
Open previous saved whiteboard file. If current whiteboard is not saved, the
user will be prompted to save.
3
Save
Click to save the current whiteboard.
4
Save as
Save current whiteboard as separate file.
5
Upload To cloud
Upload the whiteboard file to the network disk for saving, various formats
options are available: whiteboard file, PNG, and PDF.
6
Scan
Share whiteboard as picture format through QR Code. Password option is
available by selecting encryption above the QR code.
7
Email
Share the whiteboard file through Email.
8
Settings
Set the various states of the whiteboard according to the requirements.
9
Exit
Click to exit the whiteboard, close the page and process; If the current
document is not saved, the user will be prompted to save the file.
24
Settings
Item Description
1
Time display Switch
Background Settings
Control whether the current time on the upper right corner of the whiteboard is displayed.
2
Set the background style (background color, background picture, grid background).
4
Adjust writing tool
recognition area
Adjust thresholds for board eraser, fine pen, and thick pen.
3
Email settings
Click to add email.
5
Write While Erase
Simultaneously
Enable to write and erase on whiteboard simultaneously. When disabled, only one activity,
either write or erase, can be carried out.
Email Account
Setting up an Email account allows you to send files via Whiteboard.
25

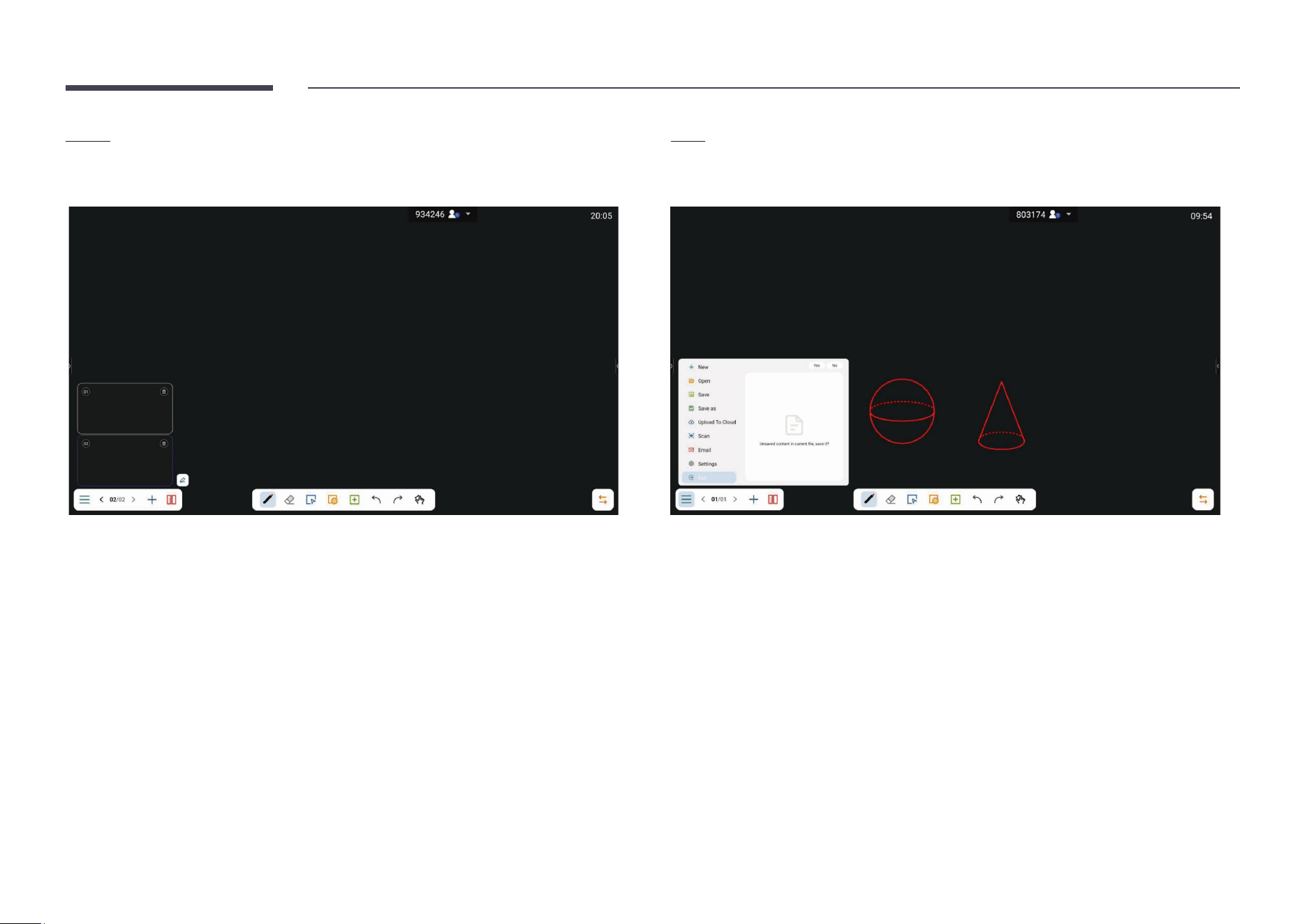

Whiteboard Functions
QR code-based sharing
Whiteboard canvas list
Tap the QR code to enlarge it.
26

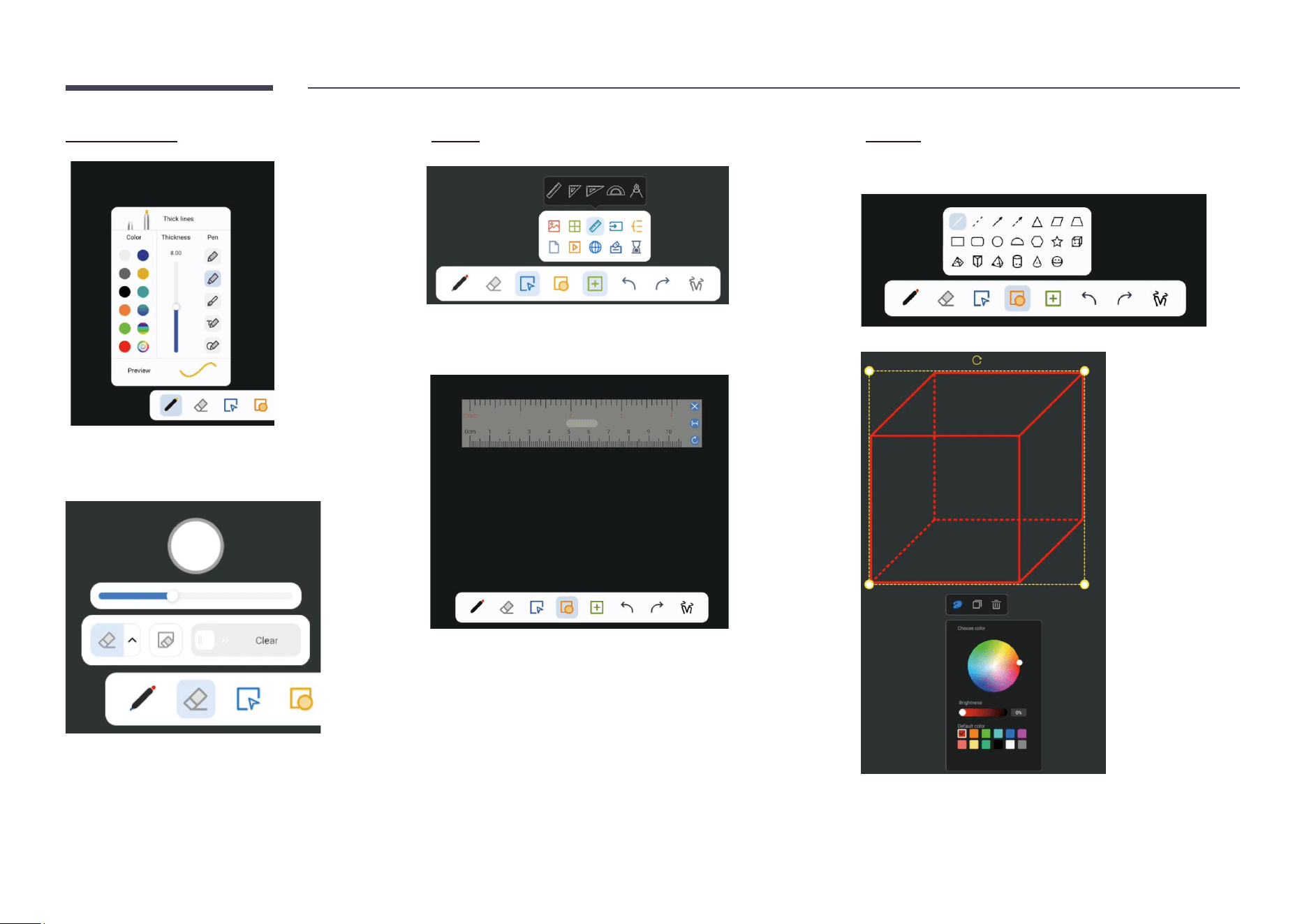

Pen settings
Adjust the eraser size.
Ruler
Select ruler type to use.
Insert a 3D shape and pick its color.
Shape
27
Form Mind map
A form is inserted as shown.
The cells in the form automatically adapt to the handwriting size.
Nodes in mind maps automatically adapt to the size of handwriting.
A mind map is inserted as shown.
28

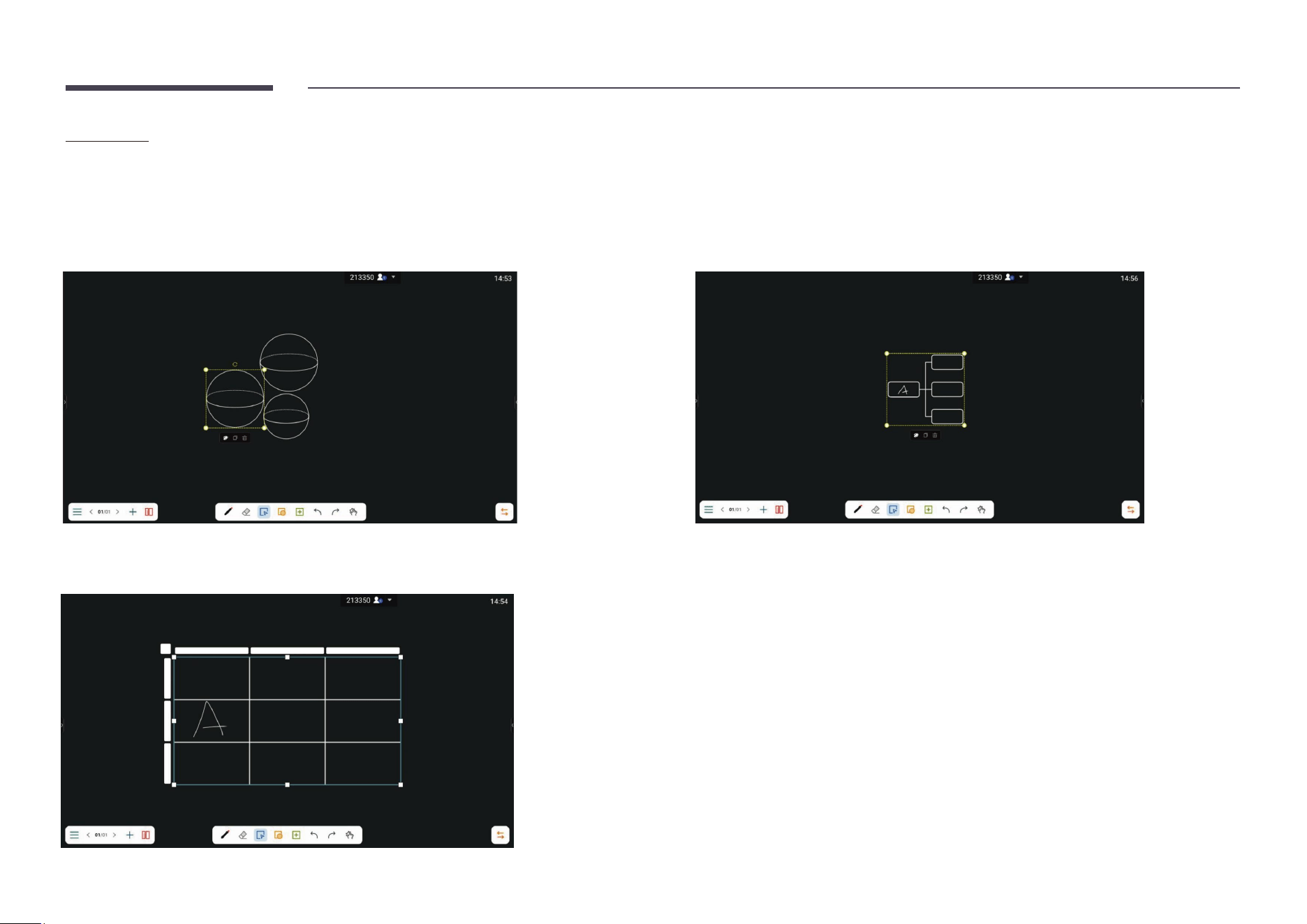

Selection
Shape: After selecting a shape, you can change the frame/fill color of the
shape and flip, pin to top, clone, or delete it.
Mind map: After selecting a mind map, you can change the color
Form: After selecting a form, you can pin to top or delete the form.
or text color of the mind map and pin to top, clone, or delete it.
Different functions are available for different content. Below are examples.
29
Page
Tap Page to view, select, or delete all pages that are added to the note.
Exit
Tap Exit.
You are prompted whether to save the file.
30
Chapter 04
SETTINGS
System Settings
From system settings, various settings can be managed.
Function Deseription
Network & Internet Wi-Fi, hotspot
Connected Devices Bluetooth, pairing
Apps Recent apps, default apps
Notifications Notification history, conversations
Storage Used storage, free storage
Sound & Vibration
Display
Wallpaper
Accessibility
Manage system sound settings
Dark theme, font size, brightness
Home, lock screen
Display, interaction, audio
Function Deseription
Security & Privacy
Screen lock, Find My Device, app security and Permissions
account activity, personal data
Location Apps accessing to location
Safety & Emergency Emergency SOS, medical info, alerts
Passwords & Accounts Saved passwords, autofill, synced accounts
Digital Wellbeing &
Parental Controls
Screen time, app timers, bedtime schedules
Google
System
About Table
Services & preferences
Languages, gestures, time, backup
Interactive Display
31
Network & Internet
①
②
③
④
Configure network settings and view current network connection information.
Item Description
1
Internet Set up the system network connection.
2
Airplane mode Select to turn off/on flight mode.
3
Hotspot & tethering
Click whether to turn on the hotspot and see how the network is
shared.
4
Data Saver
Tap whether to turn on the Traffic Saver and see the apps that are
not subject to traffic restrictions.
5
VPN View added vpn.
6
Private DNS
Click to select the private DNS mode, there ere off automatic, private
DNS provider hostname, and add Enter hostname of DNS prcvide
can be selecled.
⑥
⑤
32
Wireless & Network
Wi-Fi
Wi-Fi enabled, available Wi-Fi networks will be listed. Select the network to
establish connection.
Tap a connected Wi-Fi network to view the details:
Click Add New Network to add and connect to a hidden network.
33
Ethernet
If a network cable is connected, you can configure the network in the Ethernet option.
In automatic configuration, the system automatically obtains the IP address and other
information about the Ethernet and establishes the connection. In manual configuration,
you need to manually enter the corresponding information.
Ethernet proxy can be configured for proxy-based access.
Hotspot
Hotspot provides Internet to other connected devices. Hotpost name and password can be
setup through this menu.
Item Description
Wi-Fi hotspot Etherenet tethering.
USB tethering
Sharing internet connection via USB.
Bluetooth tethering Sharing internet connection via Bluetooth.
Ethernet tethering Sharing internet connection via Ethernet.
34
Bluetooth
Enabling Bluetooth allows you to configure Bluetooth settings.
You can view the list of available nearby devices and connect to a Bluetooth device from the
list. Then, you can configure the permission and type of the connected Bluetooth device.
VPN
You can set up a virtual private network (VPN) for VPN-based network access.
You can add a VPN profile based on your requirements.
35
Device
You can specify whether to toggle on the samba service that allows file transfer between a
personal device and the current device.
Wallpaper
Select wallpaper sources including Photo album and Wallpaper & Style.
36
Screen Saver
Clock color&size
Choose a Wallpaper
You can set the screen saver to clock, colors, or photos and specify the time to start it.
You can also preview the screen saver.
37
Screenshot
Then tap another app for split-screen operation
Click to take a screenshot Tap the app icon to view app info or split-screen operation
Split Screen
38
Floating app
It allows you to have multiple applications open in the foreground at the same time.
Sidebar
After clicking on the sidebar, then open the control panel. In the app list at the bottom,
long press on the apps with blue corner mark in the upper right corner to open it in free
window form.
Item Description
Annotaion
Open Annotation tool.
Signal Source
To display the list of signal sources(the connected sources are
highlighted), click to enter the corresponding source.
Tools
Tool provides quick access to key functions. Also, adjust volume and
brightness and recently used applications. Long press the application
with "Multi-window icon" opens the app in the floating form.
Device Setting
Click to enter the settings for Display, Audio and General settings.
Settings
Click to enter Android system settings.
Multitasking
View and manage apps that are currently running in the background.
Home
Tap the home icon to quickly return to the home page. The current
application can be retrieved in multitasking.
Back
Tap to return to the previous step of the operation, until you return to
the home page or the starting position of the operation.
①
②
③
④
1
2
3
4
5
6
7
8
⑥
⑦
⑧
⑤
39
Apps
In Apps , you can browse system apps and manage their permissions. View recently opened apps with the option to open, deactivate, or force stop ,
set notifications, app permissions, storage and cache, set
whether to turn on Picture-in-Picture and other advanced options and more.
System
40
Date & Time
You can specify the date and time format and the time zone of the system.
Item Description
Set time automatically
Toggle on/off Automatic Date & Time. lf you toggle off this option,
you need to manually specify the date and time.
Set automatically
Specify the time zone. The time zone is the basis for the automatic
adjustment of the date and time.
Date Format Whether to use the default locale format.
Time Zone Toggle on/off Use 24-Hour Format.
System settings allow you to configure general system functions.
Specify the time zone for the automatic adjustment of the date and time.
41
Language Keyboard
You can adjust the system languages, apps languages, regional preferences. In system
languages, you can add languages to your list and organize them according to preference.
Setting up the on-screen keyboard and displaying the on-screen keyboard.
42
Storage
You can view the internal storage space and the space occupied by different types of files.
Tap on free up space to jump to the files.
Files
You can find and manage your files in different categories and all storage space.
-Be careful not to turn off the power until the upgrade is complete. The product will
turn off and on automatically after completing the software upgrade.
-When you upgrade software, all video and audio settings you have made will
return to thier default settings. We advise you to write down your settings so that
you can easily reset them after the upgrade.
43
Step 1: Select the system and click on system upgrade.
The System Update lets you upgrade your product software to the latest version.
S
tep 2: Click to check for update.
S
tep 3: Waiting for checking update.
S
tep 4: Installing system update.
Software Update
Settings → System → System Update → ENTER
44
Lock Screen
Password
The lock screen password is used to prevent unauthorized operations.
45
Security
Credential list
The following window pops up during credential clearing.
Connecting to specific encrypted networks, such as TLS or PEAP requires a specific
credential for validation. In the security settings, you can view the configured
credentials in the system, including trusted and user credentials.
46
About
You can view basic system information.
47
Display
Adjust image display settings.
Item Description
Dlsplay Click to enter the display settings.
Picture Mode
Picture mode includes four modes: Standard, Bright, Brilliant and
Custom which can adjust Scale, Contrast, Tone and Sharpness
respectively.
Color temperature mode Color temperature modes include Normal, Cold, Warm, and Filter.
Audio
Supports 5 sound modes: Standard, Conference room, Cinema, classroom and Custom. And
the use of ARC output can be turned on.
Item Description
Audio Click to enter sound settings.
Sound mode
Sound modes include Standard,Meeting Room, Cinema, Classroom
and Custom, with adjustments for Bass, Treble and Balance.
Use ARC output
Toggle to use external speaker connected through HDMI-ARC.
Turn it off to use the device's own output channels.
Device Setting
48
General
Adjust general settings.
Parts Description
General Click to enter General Settings.
Power-on mode Power-up mode includes two modes: power-on and power-on
stand by.
OPS power-on mode Tap OPS power-up mode to confirm whether it is on or not.
Boot source
You can chose Memeory Channel (Last used), ANDROID, OPS,
HDMI 1, HDMI 2 and USB-C as boot source.
Auto Source switching
Select "On","User Confirmation" or "Off" Auto Source
Switching.
Power on Source Setting Click to enable or disable power on source.
49
Chapter 05
Troubleshooting guide
Problems and solutions
Source window (HDMI) issue
Blank spaces are found on all four sides of the screen
when an HDMI cable is connected to the product and
PC.
The blank spaces are not caused by the product.
Blank spaces on the screen are caused by the PC or graphics card. To resolve the problem,
adjust the screen size in the HDMI settings for the graphics card.
If the graphics card settings menu does not have an option to adjust the screen size, update
the graphics card driver to the latest version.
(Please contact the graphics card or computer manufacturer for further details about how to
adjust the screen settings.)
The images on the screen look distorted. Check the connected cable. Compatibility is not guaranteed if you use a cable that has not
been supplied by Samsung.
The screen is not clear. The screen is blurry. Set the resolution and frequency to the recommended level.
The screen appears unstable and shaky. Check that the resolution and frequency of the PC and graphics card are set within a range
compatible with the product. Then, change the screen settings if required by referring to
'Preset timing modes'.
There are shadows or ghost images left on the screen.
The product will turn off automatically. Make sure the power cable is connected properly to the product and power outlet.
$ Test your product as follows before
calling Samsung Customer Service
Center. If the problem persists,
contact Samsung Customer
Service Center.
50
Source window (HDMI) issue
The screen display does not look normal. Encoded video content may cause the display to appear corrupted in scenes featuring fast
moving objects such as in a sports event or action video.
Low signal level or low picture quality may cause the display to appear corrupted. This does
not mean the product is defective.
A mobile device within a distance of one-meter radius may cause static on analogue and
digital products.
The brightness and color do not look normal.
The display looks unstable and then freezes.
From the quick settings, select
Display → Picture Mode
to adjust the mode to standard,
bright, brilliant or custom.
The screen may freeze when a resolution other than the recommended resolution is used or
if the signal is not stable. To resolve the issue, change the PC resolution to the recommended
resolution.
The screen cannot be displayed in full screen. If the source window is set to full screen mode while in portrait orientation, a black bar
appears at both the top and bottom.
Change to landscape orientation, and then switch the Source window to full screen mode.
51
Sound issue
There is no sound. Check the volume.
The volume is too low. Adjust the volume.
If the volume is still low after turning it up to the maximum level, adjust the volume on your
PC sound card or software programme.
Video is available but there is no sound. If a HDMI cable is connected, check the audio output settings on the PC.
If a source device is used
• Check the audio output settings for the source device.
(For example, if your monitor is connected to HDMI, you may need to change the audio
option of your video output device to HDMI.)
Reconnect the power cable to the device and then reboot the device.
There is static coming from the speakers. Low signal level can cause corrupted sound.
There is audible sound when the volume is muted. Audio settings for main speakers are separate from the internal speakers on the product.
Changing or muting the volume on the product does not affect an external
amplifier(decoder).
52
Touch function issues
The icons can be selected but does not allow drawing.
Touching does not work when HDMI connection is
used.
Check whether the TOUCH
Use the provided product-specific pen.
port on the product is connected to a USB port on the PC using
the supplied USB cable.
• WA65F/WA75F/WA86F
recognizing them.
When two pens are used, display has difficulty
Make sure that there is enough space between the two pens at multi-touching.
There is a screen touch malfunction such as slow or
inaccurate responding.
Make sure that there are no foreign substances on the screen surface.
Check whether the screen is broken.
Make sure that the product is not exposed to direct sunlight.
When the product is turned on after turning off, do not tap the screen because touch
calibration is performed for 5 seconds.
Displayed picture colors may not look normal. Video or sound may not be available. This
can occur if a source device that only supports an older version of the HDMI standard is
There is no sound from the speakers in HDMI mode
The message "
The defined resolution is not currently supported.
" appears if the input source
resolution exceeds the maximum resolution of the product.
When I try to change the PC resolution, a message
"The defined resolution is not currently supported."
Other issue
The product smells like plastic. The plastic smell is normal and disappears over time.
Small particles are found on the edges of the product. The particles are part of the product design. The product is not defective.
appears.
To resolve the issue, change the PC resolution to a resolution supported on the product.
when a DVI-HDMI cable is connected.
DVI cables do not transmit sound data.
There is no sound in HDMI mode.
connected to the product.
" HDMI
1 or 2 → TOUCH 1 on the rear of the product
" HDMI
3 → TOUCH on the front of the product
Chapter 06
General
Model Name WA65F WA75F WA86F
Panel Size 65 CLASS (64.5 inches / 163.9 cm) 75 CLASS (74.5 inches / 189.3cm) 86 CLASS (85.6 inches /
217.4cm)
Display area 1428.48 mm (H) x 803.52 mm (V) 1649.664 mm (H) x 927.936 mm (V) 1895.04 mm (H) x 1065.96
mm (V)
Synchronization (Panel
Spec)
Horizontal Frequency 135 kHz
Vertical Frequency 60 Hz
Resolution Optimum resolution
3840 x 2160
Maximum resolution
Power Supply AC100-240V~ 50/60Hz
Refer to the label at the back of the product as the standard voltage can vary in different countries.
Environmental
considerations
Operating Temperature : 32 °F – 104 °F (0 °C – 40 °C)
* For installing the enclosure, keep the internal temperature at 104 °F (40 °C) or below.
Humidity : 10% – 80%, non-condensing
Storage Temperature : -4 °F – 113 °F (-20 °C – 45 °C)
Humidity : 5% – 95%, non-condensing
* Applicable before the product package is unpacked.
$ Horizontal Frequency:
The time required to scan a single
line from the left to the right side
of the screen is called a horizontal
cycle. The reciprocal number
of a horizontal cycle is called
horizontal frequency. Horizontal
frequency is measured in kHz.
$ Vertical Frequency:
The product displays a single
image multiple times per second
(like a fluorescent light) to display
what the viewer sees. The rate of
a single image being displayed
repeatedly per second is called
vertical frequency or refresh rate.
Vertical frequency is measured
in Hz.
53
Specifications
54
" Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1 ppm) may appear brighter or darker on the panel. This
does not affect product performance.
" This product can be set to only one resolution for each screen size to obtain the optimum picture quality due to the nature of the panel. Using
For detailed device specifications, visit the Samsung website.
a resolution other than the specified resolution may degrade the picture quality. To avoid this, it is recommended that you select the optimum
resolution specified for your product.
"
• Europe only (WA65F/WA75F/WA86F only)
To access energy labelling information about this product on the European Product Registry for Energy Labelling (EPREL), go to https://eprel.
ec.europa.eu/qr/****** where ****** is the product’s EPREL registration number. You can find the registration number on the rating label of your
product.
• Turkey only
To access the energy labelling information of the model: WA65F, WA75F, WA86F
(1) Go to https://www.samsung.com/global/ecodesign_energy
(2) Get the model identifier from the energy label of the product and type it in the search box
(3) Energy labelling information can be found
55
Preset timing modes
The screen will automatically be adjusted if a signal that belongs to the following standard
signal modes is transmitted from your PC. If the signals transmitted from the PC differ from
the standard mode, the screen may not be displayed. In such a case, change the settings as
shown in the following table by referring to the graphics card user manual.
No. Signal timing name Reference
clock Hf Vf
HDMI VGA TypeC
[MHz] [KHz] [Hz]
1 720*400 @70Hz IBM 28.322 31.788 70 / Y /
2 640*480 @60Hz VESA 25.18 31.469 59.94 Y Y Y
3 800*600 @56Hz VESA 36 35.156 56.25 / Y Y
4 800*600 @60Hz VESA 40 37.879 60.317 Y Y Y
5 1024*768 @60Hz VESA 65 48.363 60.004 Y Y Y
6 1280*768 @60Hz(RB) CVTRB 68.25 47.396 59.995 Y Y Y
7 1280*768 @60Hz VESA 79.5 47.776 59.87 Y Y Y
8 1280*800 @60Hz VESA 83.5 49.702 59.81 Y Y Y
9 1280*960 @60.000Hz VESA 108 60 60 Y Y Y
10 1280*1024 @60Hz VESA 108 63.981 60.002 Y Y Y
11 1360*768 @60Hz VESA 85.5 47.712 60.015 Y Y Y
12 1440*900 @60Hz(RB) CVTRB 88.75 55.469 59.901 Y Y Y
13 1440*900 @60Hz CVT 106.5 55.935 59.887 Y Y Y
14 1680*1050 60Hz VESA 146.25 65.29 59.954 Y Y Y
15 1920*1080 60Hz CEA 148.5 67.5 60 Y Y Y
16 640*480P594:3 CEA 25.175 31.469 59.94
/ / Y
17 640*480P604:3 CEA 25.2 31.5 60 / / Y
18 720*480P604:3 CEA 27.027 31.5 60 / / Y
19 720*480P6016:9 CEA 27.027 31.5 60 / / Y
20 1280*720P5916:9 CEA 74.175 44.955 59.939 / / Y
21 1280*720P6016:9 CEA 74.25 45 60 / / Y
22 1440*480P604:3 CEA 54.054 31.5 60 / / Y
23 1440*480P5916:9 CEA 54 31.469 59.94 / / Y
24 1440*480P6016:9 CEA 54.054 31.5 60 / / Y
25 1920*1080P5916:9 CEA 148.35 67.432 59.939 / / Y
26 1920*1080P6016:9 CEA 148.5 67.5 60 / / Y
No. Signal timing name Reference
clock Hf Vf
HDMI VGA TypeC
[MHz] [KHz] [Hz]
27 720*576P504:3 CEA 27 31.25 50 / / Y
28 720*576P5016:9 CEA 27 31.25 50 / / Y
29 1280*720P5016:9 CEA 74.25 37.5 50 / / Y
30 1440*576P5016:9 CEA 54 31.25 50 / / Y
31 1920*1080P5016:9 CEA 148.5 56.25 50 / / Y
32 1920*1080P2316:9 CEA 74.175 26.973 23.976 / / Y
33 1920*1080P2416:9 CEA 74.25 27 24 / / Y
34 1920*1080P2516:9 CEA 74.25 28.125 25 / / Y
35 1920*1080P2916:9 CEA 74.175 33.716 29.97 / / Y
36 1920*1080P3016:9 CEA 74.25 33.75 30 / / Y
37 720(1440)*480i CEA 27 15.734 59.939 Y / /
38 480p 59Hz CEA 27 31.469 59.94 Y / /
39 480p 60Hz CEA 27.027 31.5 60 Y / /
40 720(1440)*576i CEA 27 15.625 50 Y / /
41 576p 50Hz CEA 27 31.25 50 Y / /
42 720p 60Hz CEA 74.25 45 60 Y / /
43 720p 59Hz CEA 74.176 44.955 59.94 Y / /
44 720p 50Hz CEA 74.25 37.5 50 Y / /
45 1080i 60H
z CEA 74.25 33.75 60 Y / /
46 1080i 59Hz CEA 74.176 33.716 59.94 Y / /
47 1080i 50Hz CEA 74.25 28.125 50 Y / /
48 1080p 60Hz CEA 148.5 67.5 60 Y / /
49 1080p 50Hz CEA 148.5 56.25 50 Y / /
50 1080p 30Hz CEA 74.25 33.75 30 Y / /
51 1080p 29Hz CEA 74.176 33.716 29.97 Y / /
52 1080p 25Hz CEA 74.25 28.125 25 Y / /
53 1080p 24Hz CEA 74.25 27 24 Y / /
54 1080p 23Hz CEA 74.176 26.973 23.976 Y / /
55 3840*2160 60Hz CEA 594 135 60 Y / Y
56 3840*2160 50Hz CEA 594 112.5 50 Y / Y
57 3840*2160 30Hz CEA 297 67.5 29.97 Y / Y
58 3840*2160 25Hz CEA 297 56 25 25 Y / Y
59 3840*2160 24Hz CEA 297 54 23.982 Y / Y
56
Chapter 07
Appendix
Responsibility for the pay service (Cost to
customers)
" When the service is requested, in spite of in warranty, a visit from a service technician in
the following cases may get charged.
Not a product defect
Cleaning of the product, Adjustment, Explanation, Re-installation and etc.
• If a service technician is requested to give instructions on how to use product or simply
adjusts options without disassembling product.
• If a defect is caused by external environmental factors (Internet, Antenna, Wired Signal,
etc.)
• If a product is reinstalled or devices are connected additionally after installing the
purchased product for the first time.
• If a product is reinstalled to move to a different spot or to move to a different house.
• If the customer requests instructions on how to use another company’s product.
• If customer requests instructions on how to use the network or another company’s
programme.
• If customer requests software installation and setup for the product.
• If a service technician removes/cleans dusts or foreign materials inside of the product.
• If customer requests an installation additionally after purchasing a product through
home-shopping or online.
A product damage caused by customer’s fault
Product damage caused by customer’s mishandling or wrong repair
If a product damage is caused by;
• External impact or drop.
Use of supplies or separately sold product unspecified by Samsung.•
• Repair from a person besides an engineer of outsourcing service company or partner of
Samsung Electronics Co., Ltd.
• Remodeling or repairing the product by customer.
• Using it with incorrect voltage or non-authorised electrical connections.
• Not following the “cautions” in User Manual.
Others
•
• If consumable components are all used up. (Battery, Toner, Fluorescent lights, Head,
If product fails by natural disaster. (lightning, fire, earthquake, flood damage, etc)
Vibrator, Lamp, Filter, Ribbon, etc.)
" If customer requests a service in case the product has no defect, service fee may be
charged. So please read user Manual first.
57
Prevention of afterimage burn-in
What is afterimage burn-in?
Afterimage burn-in should not occur when the panel is operating normally. Normal operation
refers to a continuously changing video pattern. If the panel displays a fixed pattern for an
extended period of time a slight voltage difference may occur between the electrodes in
pixels that control the liquid crystals.
Such a voltage difference between electrodes increases with time and makes the liquid
crystals thinner. When this occurs, a previous image can remain on the screen when the
pattern changes.
for an extended period of time may cause afterimage burn-in. This problem is not
This information is a guide to prevent afterimage burn-in. viewing a fixed screen
included in warranty.
Recommended prevention practices
smudges. Turn off the product when it is not used for a long time, activate the Power Saving
Viewing a fixed screen for an extended period of time may cause afterimage burn-ins or
mode, or run a moving screen saver.
Licence
the HDMI Logo are trademarks or registered trademarks of HDMI
The terms HDMI and HDMI High-Definition Multimedia Interface, and
Licensing Administrator, Inc. in the United States and other countries.
Open Source Licence Notice
In the case of using open source software, Open Source Licences are available on the
product menu. For information on the Open Source Licence Notice, contact Samsung Open
Source (http://opensource.samsung.com).
Low Blue Light
much blue light is shown:
Low Blue Light (software solution) filters out blue light to protect your eyes by adjusting how
1. To open blue light setting: on an device home screen, swipe up from the bottom
2. In the middle of “General Setting”, the function low blue light is called “Eye Care”.
3.Tap the item “Eye Care” to enable/disable low blue light.
Tips for eye health
Eye exercises can help minimize eye strain. Slowly roll your eyes to the up, down, left and
right. Repeat as many times as needed.
When viewing screens for extended periods, it is recommended to take periodic breaks
from viewing. Short breaks of at least 10 minutes are recommended after one (1) hour of
continuous viewing.
While taking breaks, users can further reduce eye strain and dryness by focusing on objects
that are further away from them for 10-15 seconds, then gaze at something up close for 10-15
seconds. Repeat this up to 10 times.
This exercise reduces the risk of your eyes’ focusing ability to “lock up” after prolonged
computer work.
ENERGY STAR
ENERGY STAR is a U.S. Environmental Protection Agency voluntary program that helps
businesses and individuals save money and protect our climate through superior energy
efficiency. Products that earn the ENERGY STAR prevent greenhouse gas emissions by
meeting strict energy efficiency criteria or requirements set by the U.S. Environmental
Protection Agency. The following logo appears on all ENERGY STAR-certified models:
in which power savings will be achieved. Changing the Standard mode picture settings
This product qualifies for ENERGY STAR in the “Standard mode" setting and this is the setting
or enabling other features will increase power consumption that could exceed the limits
necessary to qualify for ENERGY STAR rating. Refer to EnergyStar.gov for more information
on.
58
