84" HIGH INTEGRATED REFRIGERATION
PLANNING GUIDE
SERIES 11 | INTEGRATED FRENCH DOOR RS3684AUVE1
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 290005454A PLANNING GUIDE REFRIGERATION VERSION A - SEPTEMBER 2025
RS3684AUVE1
CONCEPT DESIGN PAGE
DEVELOPED AND DETAILED DESIGN PAGE DEVELOPED AND DETAILED DESIGN PAGE
DESIGN CHOICE
84" Integrated refrigeration 4
SPECIFICATION GUIDE
French door refrigerator freezer 6
Product and cavity dimensions 7
DOOR SWING
Door swing clearances 9
SUPPORT
For additional design planning and installation support please
contact the Fisher & Paykel design support team.
designsupport@fisherpaykel.com
CONTENTS | REFRIGERATION
CONTENTS
INTRODUCTION
This comprehensive planning guide provides you with the
framework and tools to achieve your desired design outcome
with Fisher & Paykel appliances. In this guide, you will find a
range of conceptual, detailed, and dimensional product
information to bring your ideas to life and create spaces that
truly reflect your vision.
NOTES
The models shown in this Planning Guide may not be available
in all markets and are subject to change at any time. Refer to
our website fisherpaykel.com for the latest document version.
Product specifications may vary from those shown.
This Planning Guide should not be used as installation guidance
for any product. Specific installation guidance will be available
with the product on delivery and on our website.
<< CONTENTS
PAGE 3© FISHER & PAYKEL APPLIANCES LIMITED 2025PLANNING GUIDE REFRIGERATION VERSION A - SEPTEMBER 202590005454A
DESIGN CHOICE
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 490005454A PLANNING GUIDE REFRIGERATION VERSION A - SEPTEMBER 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
84" CAVITY HEIGHT MODELSDESIGN CHOICES | REFRIGERATION
REFRIGERATION
1
2
3 4
PRODUCT
MODEL
1 24" Wine Cabinet
91 bottle capacity, optional display
capability. Two independent temperature
zones, four wine modes.
RS2484VL2K1, RS2484VR2K1
2 24" Integrated Refrigerator
Custom panel ready, with 12.4cu capacity
RS2484SRK1
3 24" Integrated Refrigerator
Custom panel ready, 12.4cu capacity with
internal water dispenser.
RS2484SRHE1, RS2484SLHE1
RS2484SRHK1
4 30" Integrated Refrigerator
Custom panel ready, with 16.3cu capacity
RS3084SRK1
5 30" Integrated Refrigerator with water
Custom panel ready, 16.3cu capacity with
internal water dispenser.
RS3084SRHE1, RS3084SLHE1
RS3084SRHK1
PRODUCT
MODEL
6
24" Integrated Refrigerator-Freezer
Custom panel ready, 12.1cu capacity,
internal ice maker and water dispenser.
RS2484WRUE1, RS2484WLUE1
RS2484WRUK1, RS2484WLUK1
7 30" Integrated Refrigerator-Freezer
Custom panel ready, 15.9cu capacity,
internal ice maker and water dispenser.
RS3084WRUE1, RS3084WLUE1
RS3084WRUK1, RS3084WLUK1
8 36" Integrated Refrigerator-Freezer
Custom panel ready, 19.2cu capacity,
internal ice maker and water dispenser.
RS3684WRUVE1, RS3684WLUVE1
9 36" Integrated Refrigerator-Freezer,
French Door
Custom panel ready, 19.2cu capacity,
internal ice maker and water dispenser.
RS3684AUVE1
PRODUCT
MODEL
!0
18"Freezer with Ice
Custom panel ready, 7.8cu, and internal
ice maker. zones, four wine modes.
RS1884FRJE1, RS1884FLJE1
RS1884FLJK1
!1
24" Integrated Freezer with ice
Custom panel ready, 11.9cu capacity and
internal ice maker and water dispenser.
RS2484FRJE1, RS2484FLJE1
RS2484FLJK1
!2
30" Integrated Refrigerator
Custom panel ready, 15.6cu capacity
with internal water dispenser.
RS3084FRJE1, RS3084FLJE1
RS3084FLJK1
REFRIGERATOR FREEZER FREEZER
5 6 7
8
9
!0
!1 !2
<< CONTENTS
PAGE 5© FISHER & PAYKEL APPLIANCES LIMITED 2025PLANNING GUIDE REFRIGERATION VERSION A - SEPTEMBER 202590005454A
SPECIFICATION GUIDE
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 6PLANNING GUIDE REFRIGERATION - VERSION A - SEPTEMBER 202590005454A © FISHER & PAYKEL LIMITED 2025
SPECIFICATION GUIDE | 84" High Integrated French Door Refrigeration
OVERVIEW
Experience the pinnacle of refrigeration design with our
most advanced model. Featuring an elegant interior, this
refrigerator embodies premium functionality and style.
Designed to optimise energy eciency, it comes complete
with an ice maker and internal water dispenser.
PRODUCT OVERVIEW
RS3684AUVE1
Integrated French Door Refrigerator Freezer, 91cm, Ice &
Water
FEATURES
1 Space-saving French Door design, ideal for island or galley
style kitchens
2 Designed for optimal energy performance and maximum
efficiency
3 Enjoy convenient access to fresh, chilled water and ice
with the internal water dispenser and ice maker
4 Seamless fit with only ⅛” gaps, featuring no visible hinges
or grilles
5 Customize with kitchen cabinetry or a stainless steel door
panel accessory
6 Variable Temperature Drawer with Chill, Fridge, and Pantry
modes for optimal food care
7 Intuitive, easy-to-use touchscreen interface with Wi-Fi
compatibility
8 The premium design and finish include a steel interior
lining, full-extension metal shelf runners for easy access,
robust glass shelving, and drawers with quality hinges
designed for daily use
!0 ActiveSmart™ technology maintains ideal temperature for
fresher food
ACCESSORIES
Handles
1 Contemporary Silver AHD7RD3684AX
2 Minimal Black AHM1RD3684AB
3 Professional Round AHP3RD3684A
4 Professional Round Copper 3RD3684ADC
5 Professional Round Brass AHP3RD3684ABA
Door panels
6 Stainless Steel Door Panels RD3684AD
RS3684AUVE1
<< CONTENTS
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 790005454A PLANNING GUIDE REFRIGERATION VERSION A - SEPTEMBER 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
RS3684AUVE1SPECIFICATION GUIDE | 84" FRENCH DOOR INTEGRATED REFRIGERATION

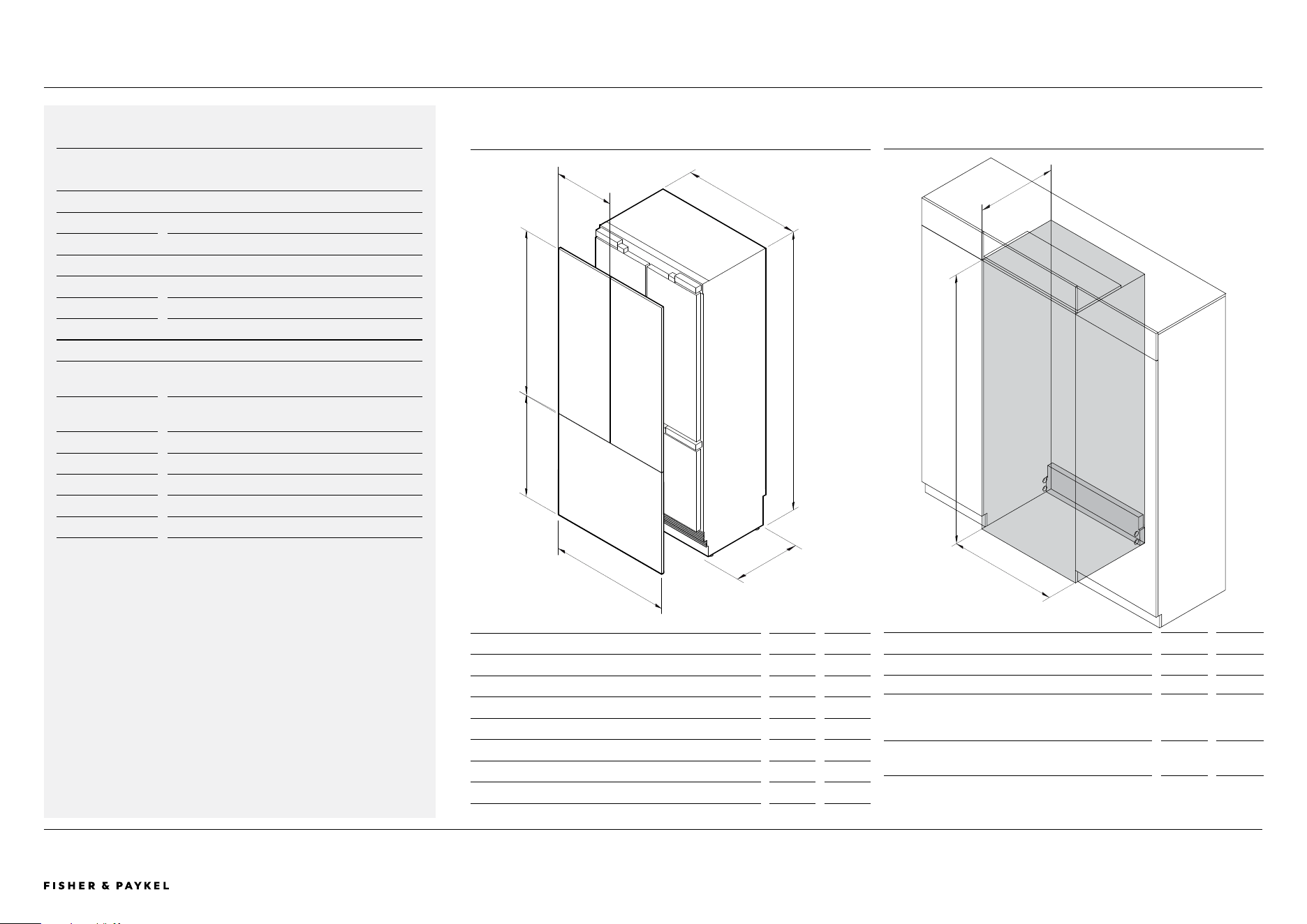

PRODUCT DIMENSIONS
Product Dimensions in mm
A Chassis height 84 2134
B Chassis width 35 3/4 908
C Chassis depth* 24 610
D Door panel height 49 3/8 1254
E Door panel width (single install) 17 13/16 452
F Drawer panel height 30 3/8 771
G Drawer panel width 35 3/4 908
*Excludes panels.
b
a
c
d
a
b
SPECIFICATIONS
Model Number
RS3684AUVE1 French door integrated refrigeration
Electrical
Supply 115V, 60Hz
Service 10 A circuit
Plumbing
Supply US/CA 7/16" comp. stainless steel braided with
hose adapter
Pressure
min 150 kPa (22 psi)
max 827 kPa (120 psi) @ 20°C (68°F)
Weight 533.5 lbs (242kg)
e
f
CAVITY DIMENSIONS
Cavity Dimensions in mm
A Cavity height 84 2134
B Cavity width 36 914
C Cavity depth
Services located outside of cavity
Services located at rear of cavity
25
25 5/8
635
650
Minimum cabinetry gap clearance from edge
of door panels
1/8 3
C
G
<< CONTENTS
PAGE 8© FISHER & PAYKEL APPLIANCES LIMITED 2025PLANNING GUIDE REFRIGERATION VERSION A - SEPTEMBER 202590005454A
DOOR SWING
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 990005454A PLANNING GUIDE REFRIGERATION VERSION A - SEPTEMBER 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com

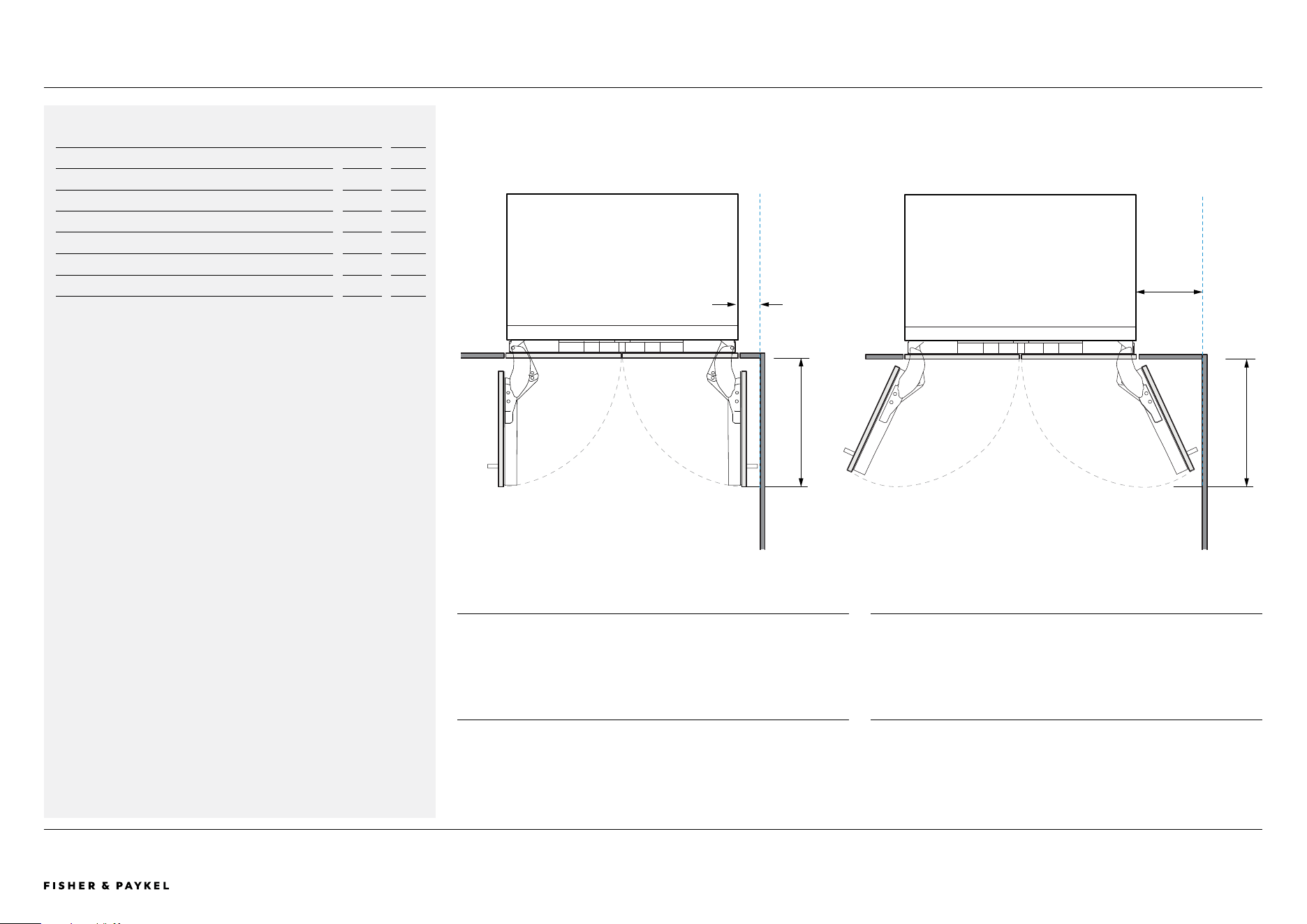

RS3684AUVE1SPECIFICATION GUIDE | DOOR SWING CLEARANCES
A
B
C
D
90° INTERNAL ACCESS
A hinge limiting pin can be installed to restrict door opening to
90° where necessary.
Minimum dimensions shown are for a 1 5/8" handle depth.
Custom door panel and handle details need to be taken into
account.
115° INTERNAL ACCESS
115° door opening - full internal access.
Minimum dimensions shown are for a 1 5/8" handle depth.
Custom door panel and handle details need to be taken into
account.
DOOR CLEARANCES
90° Opening Door clearances in mm
A Minimum door clearance to adjacent wall
4 5/16 110
B Maximum door opening depth
22 5/7 575
115° Opening Door clearances
C Minimum door clearance to adjacent wall
12 3/8 315
D Maximum door opening depth
22 5/7 575
<< CONTENTS
