HCA-2620
Shaft Hedge Trimmer
Burn Hazard
The muffler or catalytic muffler and surrounding cover
may become extremely hot. Always keep clear of
exhaust and muffler area, otherwise serious personal
injury may occur.
The engine exhaust from this product contains chemicals
known to the State of California to cause cancer, birth defects,
or other reproductive harm.
Users of this equipment risk injury to themselves and
others if the unit is used improperly and/or safety
precautions are not followed. Echo provides an
operator’s manual and a safety manual. Both must be
read and understood for proper and safe operation. Failure to do
so could result in serious injury.
Note: This product complies with CAN ICES-2/NMB-2.
TABLE OF CONTENTS HCA-2620
2 X7502342200
© 5/2017 ECHO Inc.
TABLE OF CONTENTS
Table of Contents................................................................................................... 2
Introduction............................................................................................................ 3
Servicing Information............................................................................................. 3
Parts/Serial Number ...................................................................................... 3
Service........................................................................................................... 3
Echo Consumer Product Support .................................................................. 4
Product Registration ...................................................................................... 4
Additional or Replacement Manuals .............................................................. 4
Safety..................................................................................................................... 4
Manual Safety Symbols and Important Information ....................................... 4
International Symbols .................................................................................... 5
Personal Condition and Safety Equipment .................................................... 7
Equipment.................................................................................................... 12
Emission Control (Exhaust & Evaporative)......................................................... 13
CARB And EPA Emissions Control Information........................................... 13
Description........................................................................................................... 14
Contents .............................................................................................................. 16
Assembly ............................................................................................................. 16
Gear Housing Assembly / Drive Shaft ........................................................ 16
Operation ............................................................................................................. 17
Fuel.............................................................................................................. 17
Adjusting Cutting Angle................................................................................ 19
Starting Cold Engine.................................................................................... 21
Starting Warm Engine.................................................................................. 22
Stopping Engine........................................................................................... 24
Hedge Trimming........................................................................................... 24
Maintenance ........................................................................................................ 25
Skill Levels ................................................................................................... 25
Maintenance Intervals.................................................................................. 26
Air Filter........................................................................................................ 27
Fuel Filter..................................................................................................... 28
Spark Plug ................................................................................................... 29
Cooling System............................................................................................ 29
Exhaust System........................................................................................... 31
Carburetor Adjustment................................................................................. 32
Lubrication ................................................................................................... 34
Blades.......................................................................................................... 36
Troubleshooting ................................................................................................... 38
Storage ................................................................................................................ 39
Long Term Storage (Over 30 Days)............................................................. 40
Specifications....................................................................................................... 41
Notes ................................................................................................................... 42
Product Registration ............................................................................................ 43
Notes ................................................................................................................... 45
HCA-2620 INTRODUCTION
X7502342200 3
© 5/2017 ECHO Inc.
ENGLISH
INTRODUCTION
Welcome to the ECHO family. This ECHO product was designed and
manufactured to provide long life and on-the-job dependability. Read and
understand this manual and the safety manual. Keep the manuals in a safe
place for future reference.
The operators manual contains specifications and information for safety,
operation, maintenance, storage and assembly specific to this product.
Scan the QR codes throughout the operator’s manual for more information.
The safety manual explains possible hazards and the measures you should
take to insure safe operation.
SERVICING INFORMATION
Parts/Serial Number
Genuine ECHO Parts and
Assemblies for your ECHO
products are available only from
an Authorized ECHO Dealer.
When you do need to buy parts
always have the Model Number
and Serial Number of the unit
with you. For future reference
write them in the space provided
below.
Model No. _________________
Serial No. _________________
Service
Service of this product during
the warranty period must be
performed by an Authorized ECHO Service Dealer. For the name and
address of the Authorized ECHO Service Dealer nearest you, ask your
retailer or call:
1-800-432-ECHO (3246). Dealer information is also available on our Web
Site. www.echo-usa.com
. When presenting your unit for Warranty service/
repairs, proof of purchase is required.
SAFETY HCA-2620
4 X7502342200
© 5/2017 ECHO Inc.
Echo Consumer Product Support
If you require assistance or have questions concerning the application,
operation, or maintenance of this product, call the ECHO Consumer
Product Support Department at 1-800-673-1558 from 8:00 am to 5:00 pm
(Central Standard Time) Monday through Friday. Before calling, please
know the model and serial number of your unit.
Product Registration
Register your ECHO equipment on-line at www.echo-usa.com or by filling
out the product registration sheet included in this manual. Registering your
product confirms warranty coverage and provides a direct link to ECHO if
we find it necessary to contact you.
Additional or Replacement Manuals
Replacement Operator or Safety Manuals, and Parts
Catalogs, are available from your Authorized ECHO
Service Dealer, or at www.echo-usa.com, or by contacting
ECHO Inc., 400 Oakwood Road, Lake Zurich, IL 60047
(800-673-1558). Always check www.echo-usa.com for
updated information.
Safety Videos are available from your Authorized ECHO Service Dealer. A
$5.00 shipping charge is required for each video.
SAFETY
Manual Safety Symbols and Important Information
Throughout this manual and on the product itself, you will find safety alerts
and helpful, informational messages preceded by symbols or key words.
The following is an explanation of those symbols and key words and what
they mean to you.

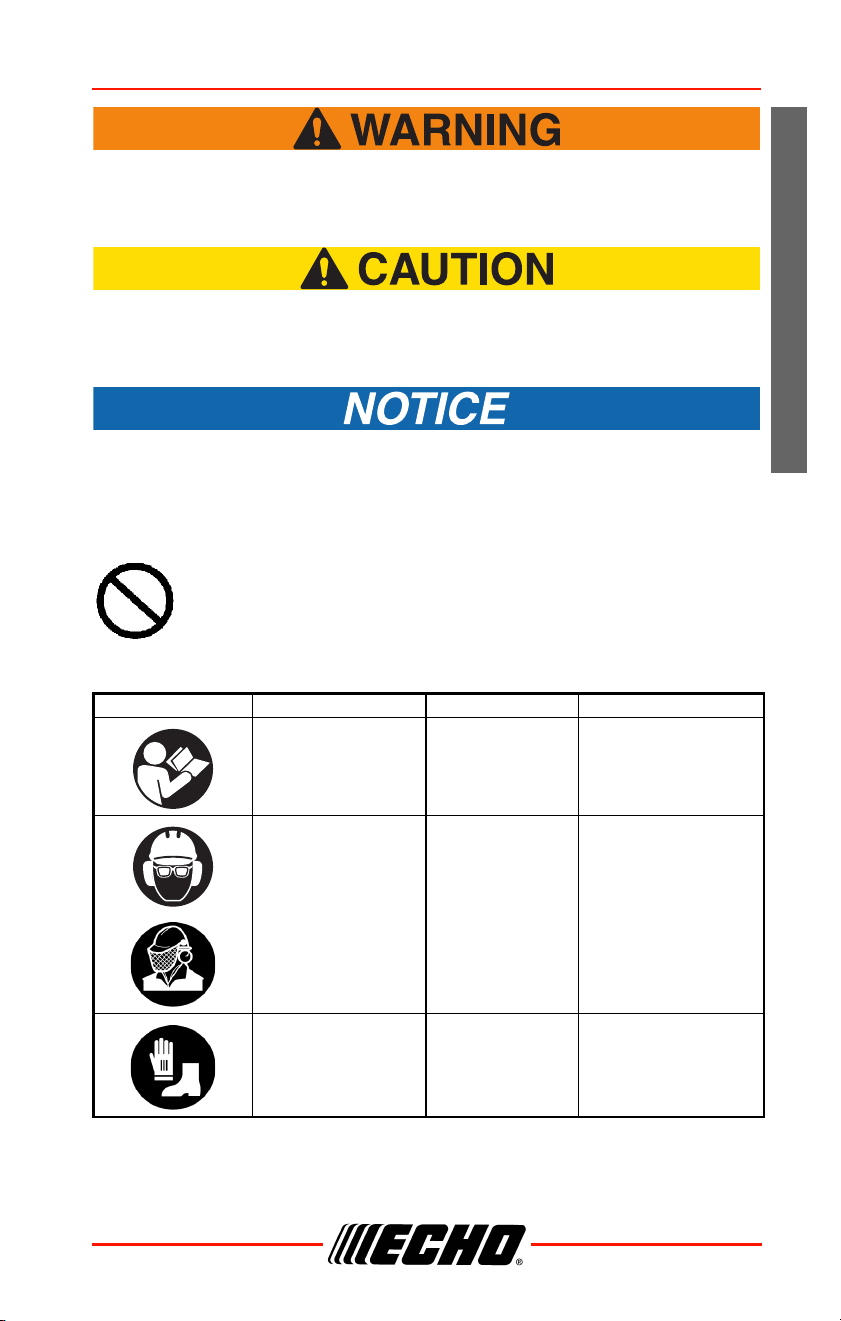

The safety alert symbol accompanied by the word “DANGER”
calls attention to an act or condition which WILL lead to serious
personal injury or death if not avoided.
HCA-2620 SAFETY
X7502342200 5
© 5/2017 ECHO Inc.
ENGLISH
The safety alert symbol accompanied by the wrod “WARNING”
calls attention to an act or condition which CAN lead to serious
personal injury or death if not avoided.
The safety alert symbol accompanied by the word “CAUTION”
calls attention to an act or condition which may lead to minor or
moderate personal injury if not avoided.
The enclosed message provides information necessary for the
protection of the unit.
Note: This enclosed message provides tips for use, care and
maintenance of the unit.
CIRCLE AND SLASH SYMBOL
This symbol means the specific action shown is prohibited.
Ignoring these prohibitions can result in serious or fatal injury.
International Symbols

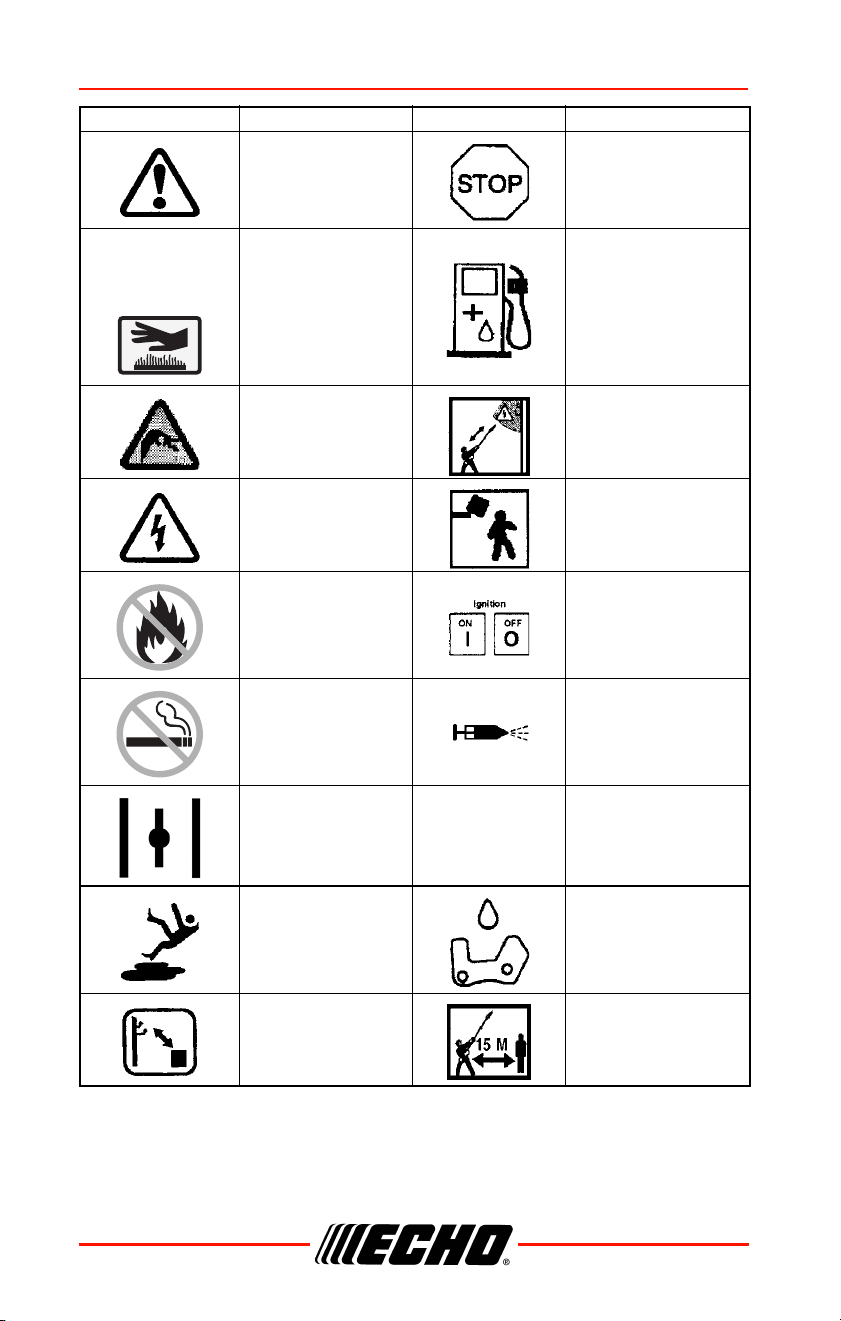

Symbol Description Symbol Description
Warning, See
Operator’s Manual
Carburetor Adjustment -
High Speed Mixture
Wear Eye, Ear and
Head Protection
Carburetor Adjustment -
Idle Speed
Wear Hand and Foot
Protection
Carburetor Adjustment -
Low Speed Mixture
H
T
L
SAFETY HCA-2620
6 X7502342200
© 5/2017 ECHO Inc.
Safety/Alert Emergency Stop
Hot Surface Fuel and Oil Mixture
Finger Severing
Do not operate closer
than 15 m (50 ft.) from
electrical hazard.
Avoid all power lines.
This unit is not insulated
against electrical
current.
Plan retreat path from
falling objects.
DO NOT Allow Flames
or Sparks Near Fuel
Ignition ON / OFF
DO NOT Smoke Near
Fuel
Primer Bulb
Choke Control “RUN”
Position (Choke Open)
Choke Control “COLD
START” Position (Choke
Closed)
Wear Slip Resistant
Footwear
Chain Lubrication
Do not operate closer
than 15 m (50 ft.) from
electrical hazards.
Keep bystanders at least
15 m (50 ft.) away.
Symbol Description Symbol Description

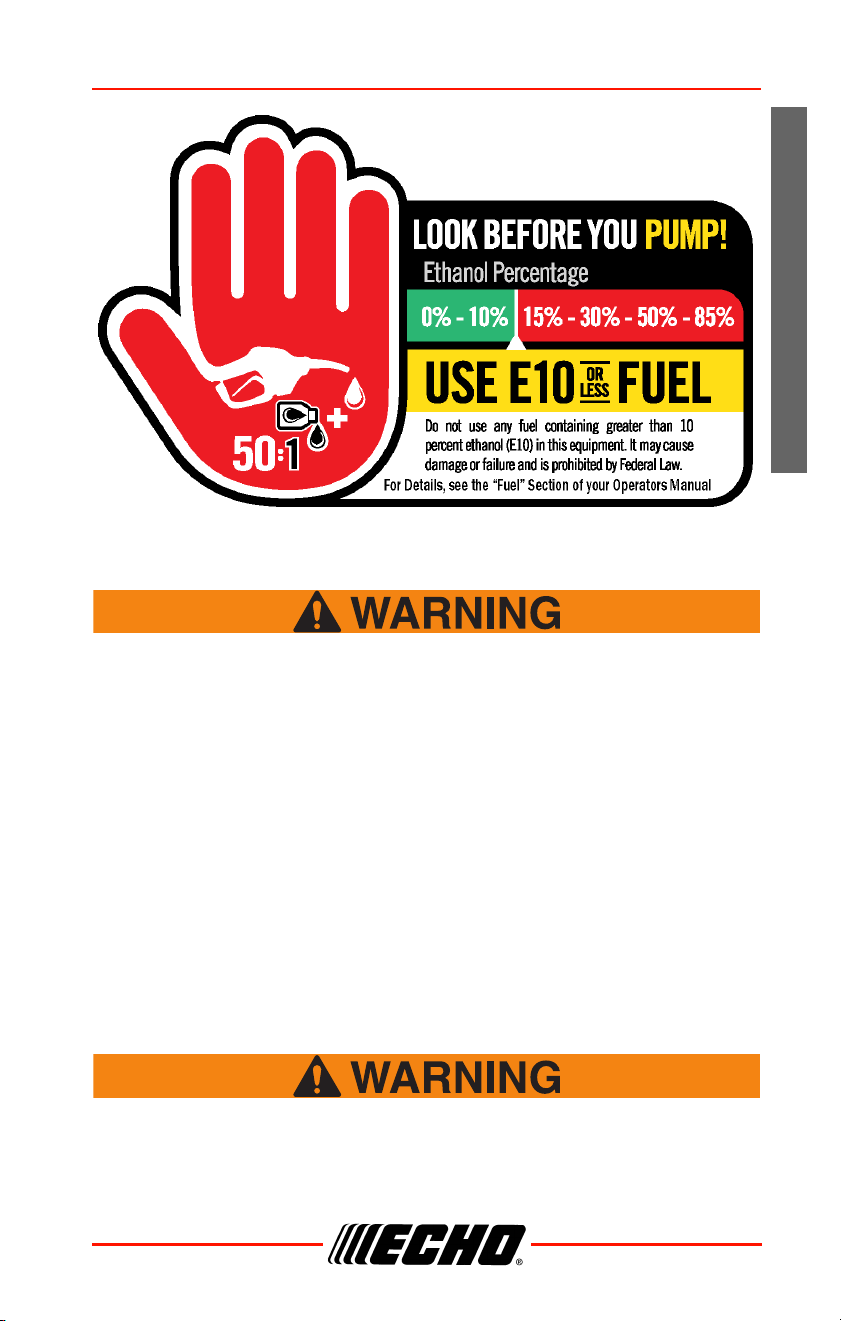

HCA-2620 SAFETY
X7502342200 7
© 5/2017 ECHO Inc.
ENGLISH
Personal Condition and Safety Equipment
Users of this product risk injury to themselves and others if the
unit is used improperly and/or safety precautions are not
followed. Proper clothing and safety gear must be worn when
operating unit.
Physical Condition
Your judgment and physical dexterity may not be good:
• If you are tired or sick
• If you are taking medication
• If you have taken alcohol or drugs
Operate unit only if you are physically and mentally well.
Eye Protection
◆ Eye protection that meets ANSI Z87.1 or CE requirements
must be worn whenever you operate the unit.
SAFETY HCA-2620
8 X7502342200
© 5/2017 ECHO Inc.
◆ For additional safety, a full-face shield may be worn over
safety glasses or goggles to provide protection from sharp
branches or flying debris.
Hand Protection
Wear sturdy, no-slip, rubber work gloves to improve your grip on the
handles. Gloves also provide protection against cuts and scratches, cold
environments, and reduce the transmission of machine vibration to your
hands.
Hearing/Ear Protection
ECHO recommends wearing hearing protection whenever unit is used.
Breathing Protection
Operators who are sensitive to dust or other common airborne allergens
may need to wear a dust mask to prevent inhaling these materials while
operating unit. Dust masks can provide protection against dust, plant debris,
and other plant matter such as pollen. Make sure the mask does not impair
your vision, and replace the mask as needed to prevent air restrictions.
Proper Clothing
Wear snug-fitting, durable clothing:
• Pants should have long legs, shirts should have long sleeves.
• DO NOT WEAR SHORTS.
• DO NOT WEAR TIES, SCARVES, JEWELRY, or clothing with loose or
hanging items that could become entangled in moving parts or
surrounding growth.
• Keep clothing buttoned or zipped, and keep shirt tails tucked in.
Wear sturdy work shoes with nonskid rubber soles:
• DO NOT WEAR OPEN TOED SHOES.
• DO NOT OPERATE UNIT BAREFOOTED.
Keep long hair away from engine and air intake. Retain hair with cap or net.
Heavy protective clothing can increase operator fatigue, which may lead to
heat stroke. Schedule heavy work for early morning or late afternoon hours
when temperatures are cooler.
HCA-2620 SAFETY
X7502342200 9
© 5/2017 ECHO Inc.
ENGLISH
The components of this machine generate an electromagnetic
field during operation, which may interfere with some
pacemakers. To reduce the risk of serious or fatal injury,
persons with pacemakers should consult with their physician
and the pacemaker manufacturer before operating this
machine. In the absence of such information, ECHO does not
recommend the use of this machine by anyone who has a
pacemaker.
Extended Operation / Extreme Conditions
Prolonged exposure to cold and/or vibration may result in
injury. Read and follow all safety and operation instructions to
minimize risk of injury. Failure to follow instructions may result
in painful wrist/hand/arm injuries.
It is believed that a condition called Raynaud’s Phenomenon, which affects
the fingers of certain individuals, may be brought about by exposure to
vibration and cold. Exposure to vibration and cold may cause tingling and
burning sensations, followed by loss of color and numbness in the fingers.
The following precautions are strongly recommended, because the
minimum exposure, which might trigger the ailment, is unknown.
• Keep your body warm, especially
the head, neck, feet, ankles,
hands, and wrists.

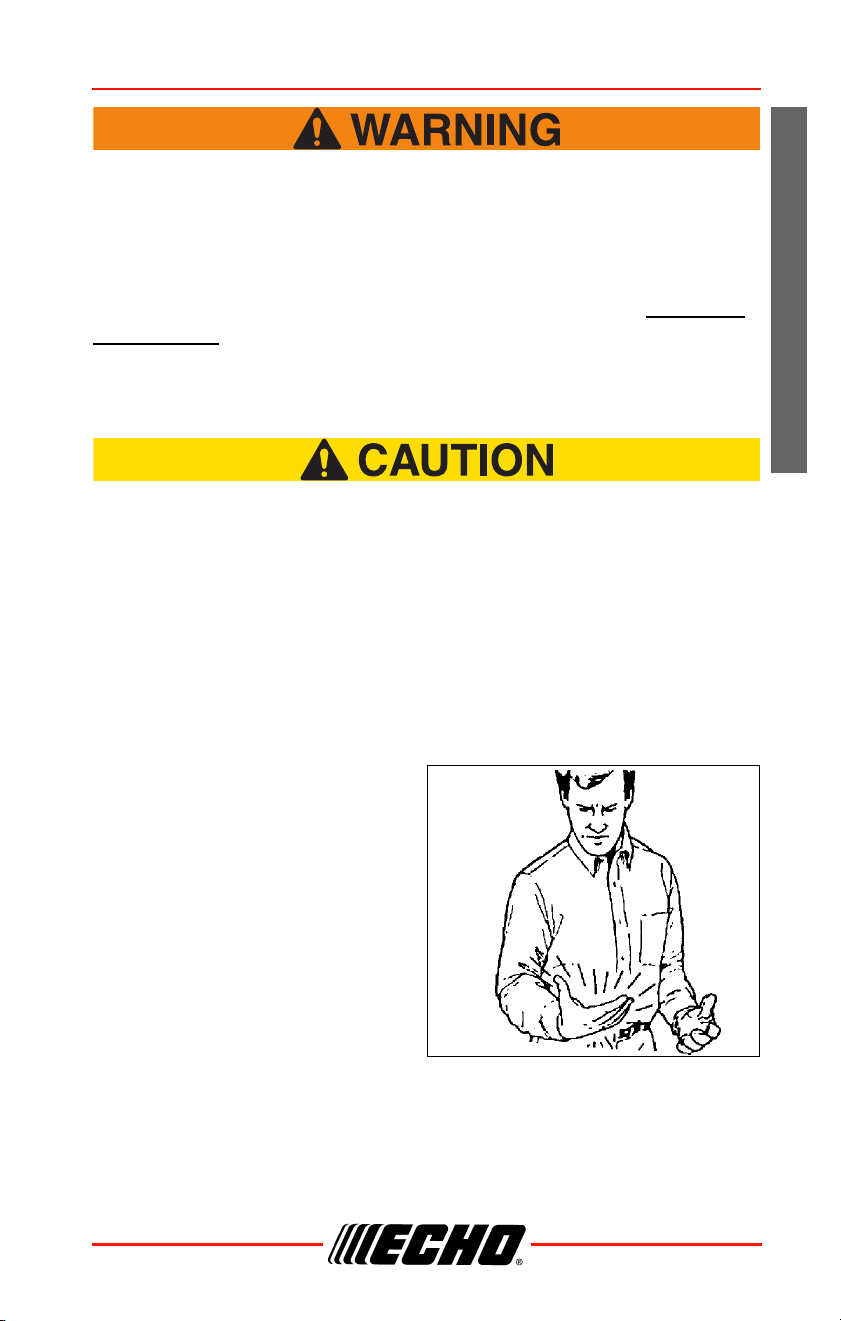

• Maintain good blood circulation by
performing vigorous arm
exercises during frequent work
breaks, and also by not smoking.
• Limit the hours of operation. Try to
fill each day with jobs where
operating the unit or other hand-
held power equipment is not
required.
• If you experience discomfort, redness, and swelling of the fingers followed
by whitening and loss of feeling, consult your physician before further
exposing yourself to cold and vibration.
SAFETY HCA-2620
10 X7502342200
© 5/2017 ECHO Inc.
Repetitive Stress Injuries
(RSI)
It is believed that overusing the
muscles and tendons of the fingers,
hands, arms, and shoulders may
cause soreness, swelling,
numbness, weakness, and extreme
pain in those areas. Certain
repetitive hand activities may put
you at a high risk for developing a
Repetitive Stress Injury (RSI). An
extreme RSI condition is Carpal
Tunnel Syndrome (CTS), which
could occur when your wrist swells
and squeezes a vital nerve that runs
through the area. Some believe that
prolonged exposure to vibration may contribute to CTS. CTS can cause
severe pain for months or even years.
To reduce the risk of RSI/CTS, do the following:

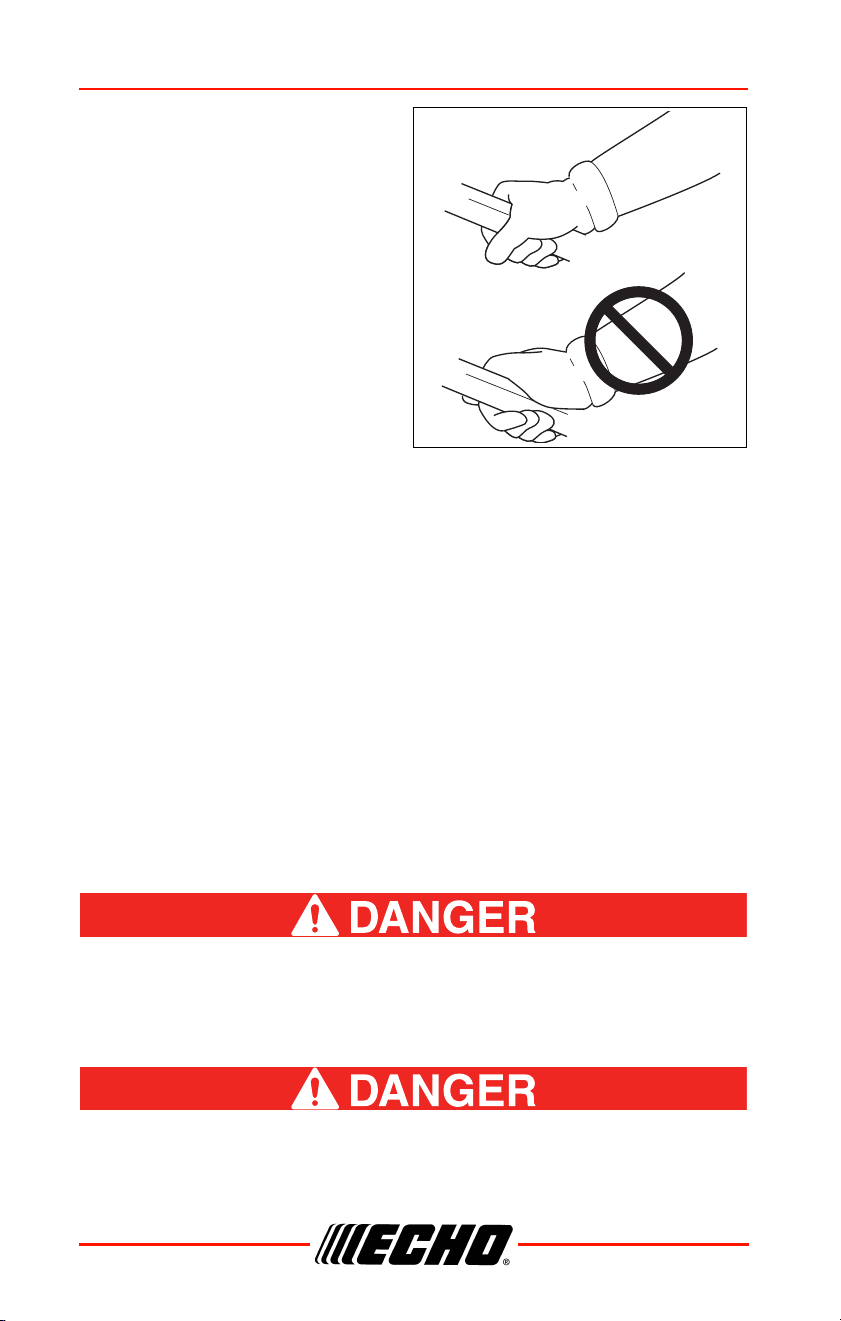

• Avoid using your wrist in a bent, extended, or twisted position. Instead try
to maintain a straight wrist position. Also, when grasping, use your whole
hand, not just the thumb and index finger.
• Take periodic breaks to minimize repetition and rest your hands.
• Reduce the speed and force with which you do the repetitive movement.
• Do exercises to strengthen the hand and arm muscles.
• Immediately stop using all power equipment and consult a doctor if you
feel tingling, numbness, or pain in the fingers, hands, wrists, or arms. The
sooner RSI/CTS is diagnosed, the more likely permanent nerve and
muscle damage can be prevented.
All over head electrical conductors and communications wires
can have electricity flow with high voltages. This unit is not
insulated against electrical current. Never touch wires directly
or indirectly, otherwise serious injury or death may result.
Do not operate this product indoors or in inadequately
ventilated areas. Engine exhaust contains poisonous emissions
and can cause serious injury or death.
HCA-2620 SAFETY
X7502342200 11
© 5/2017 ECHO Inc.
ENGLISH
Read the Manuals
• Provide all users of this equipment with the Operator’s Manual and Safety
Manual for instructions on Safe Operation.
Clear the Work Area
• Spectators and fellow workers must be warned, and children and animals
prevented from coming nearer than 15 m (50 ft.) while the unit is in use.
Keep a Firm Grip
• Always hold throttle handle and support handle with thumbs and fingers
tightly encircling the handles.
Keep a Solid Stance
• Maintain footing and balance at all times. Do not stand on slippery,
uneven or unstable surfaces. Do not work in odd positions or on ladders.
Do not over reach.

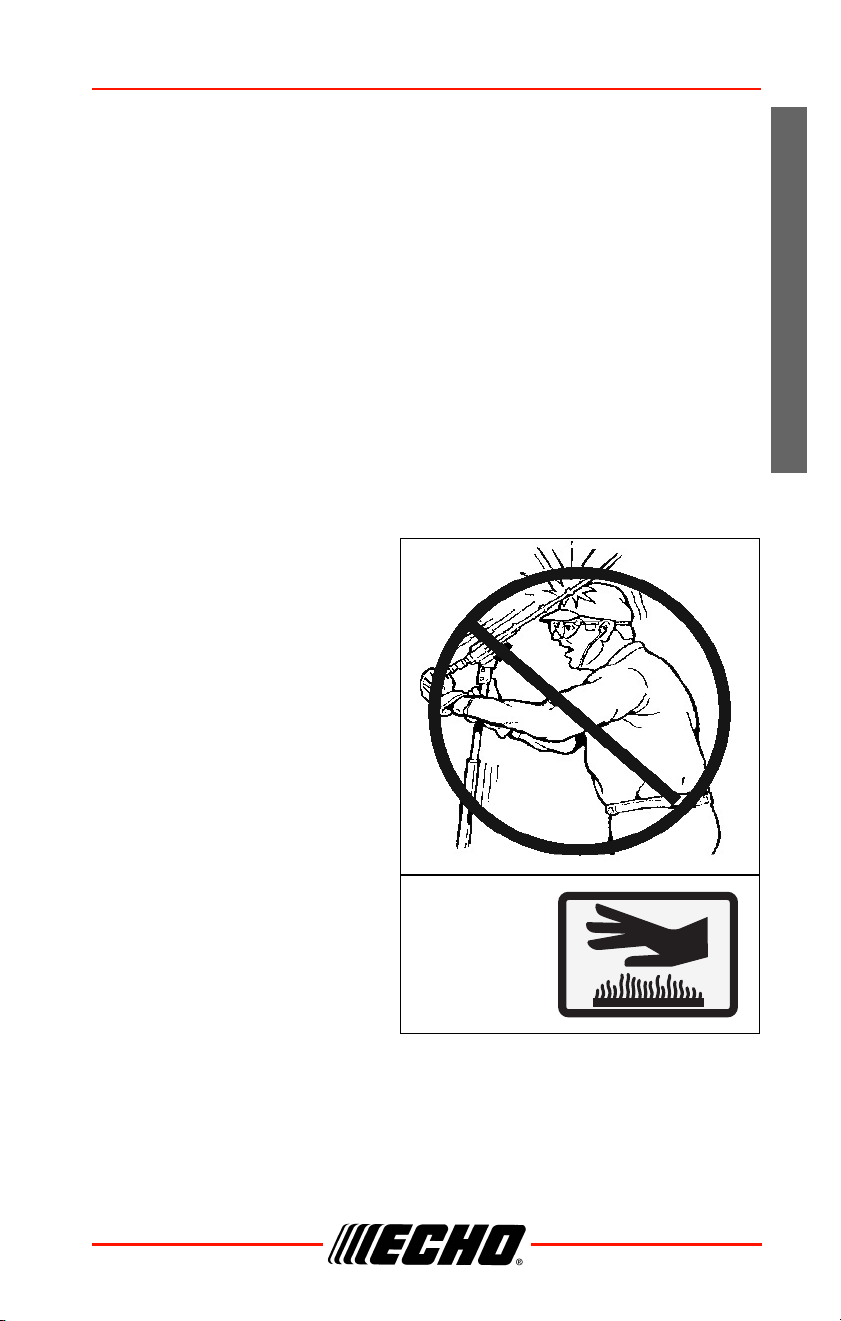

Cutting Angle Adjustments
• Only adjust cutting blade angle
with unit flat on the ground,
with the engine stop switch in
the “STOP” position. Never
adjust cutting angle with unit
standing upright.
Avoid Contact With Gear
Box Assembly During Use
• Gear box assembly becomes
hot during use. Avoid contact
with gear box assembly when
using unit or making cutting
angle adjustments.
SAFETY HCA-2620
12 X7502342200
© 5/2017 ECHO Inc.
Avoid Hot Surfaces
• Keep exhaust area clear of flammable debris. Avoid
contact during and immediately after operation.
Never perform blade maintenance procedures while engine is
running.
Equipment
Use only ECHO attachments. Serious injury may result from the
use of a non-approved attachment combination. ECHO, INC. will
not be responsible for the failure of cutting devices,
attachments or accessories which have not been tested and
approved by ECHO, INC. Read and comply with all safety
instructions listed in this manual and safety manual.
◆ Check unit for loose or missing nuts, bolts, and screws.
Tighten and/or replace as needed.
◆ Check that the cutting attachment is firmly attached and in
safe operating condition. Dull, loose or damaged blades
should not be used.
Moving parts can amputate fingers or cause severe injuries.
Keep hands, clothing and loose objects away from all openings.
◆ ALWAYS stop engine, disconnect spark plug, and make
sure all moving parts have come to a complete stop before
removing obstructions, clearing debris, or servicing unit.
◆ DO NOT start or operate unit unless all guards and
protective covers are properly assembled to unit.
◆ NEVER reach into any opening while the engine is running.
Moving parts may not be visible through openings.
HCA-2620 EMISSION CONTROL
X7502342200 13
© 5/2017 ECHO Inc.
ENGLISH
Periodically check fuel system (fuel lines, vent, grommet, fuel
tank, and fuel cap) for leaks especially if the unit is dropped. If
damage or leaks are found, do not use unit, otherwise serious
personal injury or property damage may occur. Have unit
repaired by an authorized servicing dealer before using.
EMISSION CONTROL (EXHAUST &
EVAPORATIVE)
CARB And EPA Emissions Control Information
The emission control system for the
engine is EM (engine modification)
and, if the second to last character
of the Engine Family on the
Emission Control Information label
(sample below) is “B”, “C”, “K”, or
“T”, the emission control system is
EM and TWC (3-way catalyst). The
fuel tank/fuel line emission control
system is EVAP (evaporative emissions). Evaporative emissions for
California models are only applicable to fuel tanks.

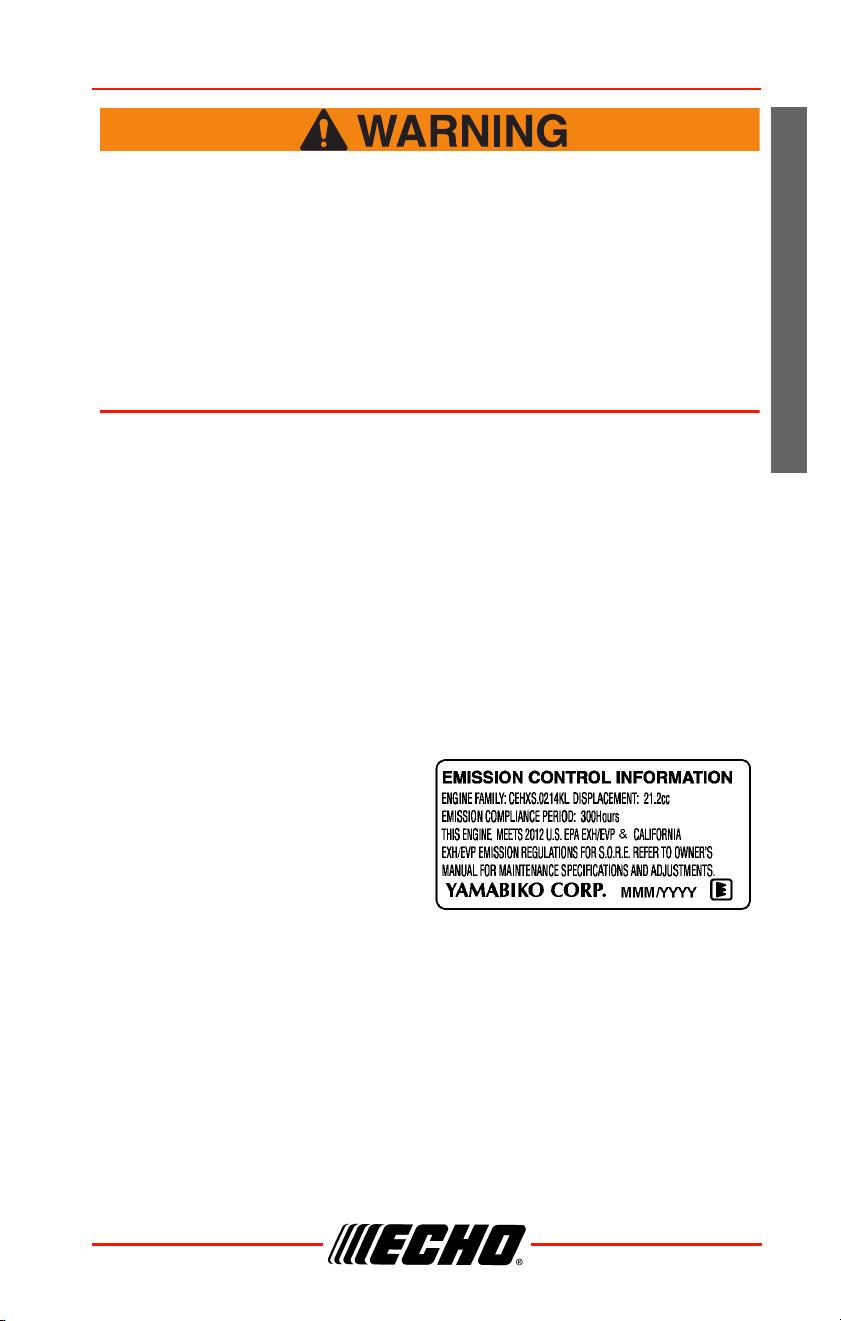

An Emission Control Label is
located on the engine. (This is an
EXAMPLE ONLY, information on
label varies by engine FAMILY).
Product Emission Durability
(Emission Compliance
Period)
The 50 or 300 hour emission compliance period is the time span selected
by the manufacturer certifying the engine emissions output meets
applicable emissions regulations, provided that approved maintenance
procedures are followed as listed in the Maintenance Section of this
manual.
DESCRIPTION HCA-2620
14 X7502342200
© 5/2017 ECHO Inc.
DESCRIPTION
Locate the safety decal(s) on your unit. Make sure the decal(s) is legible and
that you understand and follow the instructions on it. If a decal cannot be
read, a new one can be ordered from your ECHO dealer.
10
12
13
14
15
16
17
18
1
3
4
20
2
5
6
7
8
9
11
19
21
HCA-2620 DESCRIPTION
X7502342200 15
© 5/2017 ECHO Inc.
ENGLISH
1. Power Head
2. Throttle Handle - For Right Hand
3. Throttle Trigger Lockout
4. Stop Switch
5. Blades
6. Gear Case
7. Blade Adjustment Handle
8. Support Handle - For Left Hand
9. Drive Shaft Assembly
10. Throttle Trigger
11. Blade Cover
12. Spark Plug
13. Top Guard
14. Spark Arrestor Muffler Or Spark Arrestor Muffler With Catalyst
15. Fuel Tank
16. Recoil Starter / Handle
17. Fuel Tank Cap
18. Purge Bulb
19. Air Cleaner
20. Choke
21. Shoulder Harness
CONTENTS HCA-2620
16 X7502342200
© 5/2017 ECHO Inc.
CONTENTS
The ECHO product you purchased has been factory pre-assembled for your
convenience. Due to packaging restrictions, some assembly may be
necessary.
After opening the carton, check for damage. Immediately notify your retailer
or ECHO Dealer of damaged or missing parts. Use the contents list to check
for missing parts.
ASSEMBLY
Gear Housing Assembly / Drive Shaft
Hedge Trimmer Blades are very sharp. Wear gloves to protect
hands.
1. Remove locating bolt (A)
and loosen clamping bolt
(B).
2. Remove vinyl cap from drive
shaft.
3. Slide Gear Housing
Assembly onto Drive Shaft.
Be certain the Flex Drive
Shaft engages the hole in
Driver Gear.
4. Align locating hole in gear housing with locator hole in drive shaft.
5. Install locating bolt (A). Tighten clamping bolt (B).
1 Power Head / Drive Shaft Assembly
1 Gear case Assembly
1 Operator's manual
1 Safety Manual
1 Warranty Statement
Shoulder Harness
1 Blade Cover
B
A
HCA-2620 OPERATION
X7502342200 17
© 5/2017 ECHO Inc.
ENGLISH
OPERATION
Moving parts can amputate fingers or cause severe injuries.
Keep hands, clothing and loose objects away from all openings.
Always stop engine, disconnect spark plug, and make sure all
moving parts have come to a complete stop before removing
obstructions, clearing debris, or servicing unit.
Operation of this equipment may create sparks that can start
fires around dry vegetation. This unit is equipped with a spark
arrestor to prevent discharge of hot particles from the engine.
Metal cutters can also create sparks if the cutter strikes rocks,
metal, or other hard objects. Contact local fire authorities for
laws or regulations regarding fire prevention requirements.
Fuel
Diesel fuels and alternative fuels, such as E-15 (15% ethanol),
E-85 (85% ethanol) or any fuels not meeting ECHO requirements
are NOT approved for use in ECHO 2-stroke gasoline engines.
Use of diesel or alternative fuels may cause performance
problems, loss of power, overheating, fuel vapor lock, and
unintended machine operation, including, but not limited to,
improper clutch engagement. Diesel or alternative fuels may
also cause premature deterioration of fuel lines, gaskets,
carburetors and other engine components.
OPERATION HCA-2620
18 X7502342200
© 5/2017 ECHO Inc.
Fuel Requirements
Gasoline - Use 89 Octane [R+M/2] (mid grade or higher) gasoline known to
be good quality. Gasoline may contain up to 10% Ethanol (grain alcohol) or
15% MTBE (methyl tertiary-butyl ether). Gasoline containing methanol
(wood alcohol) is NOT approved. ECHO Red Armor Fuel
™
(Power Fuel
™
) is
93 octane, ethanol-free fuel premixed with ECHO Red Armor
®
engine oil at
50:1 ratio. Use of ECHO Red Armor Fuel
™
(Power Fuel
™
) is recommended
to extend engine life in all air-cooled 2-stroke and 2/4-stroke hybrid engines.
Two Stroke Oil - A two-stroke engine oil meeting ISO-L-EGD (ISO/CD
13738) and J.A.S.O. FD Standards must be used. Echo brand 2-stroke oils
meet these standards. Engine problems due to inadequate lubrication
caused by failure to use an ISO-L-EGD (ISO/CD 13738) and J.A.S.O.
M345-FD
certified oil, such as Echo brand 2-stroke oils, will void the two-
stroke engine warranty.
Echo brand 2-stroke oils may be mixed at 50:1 ratio for application in
all Echo engines sold in the past regardless of ratio specified in those
manuals.
Handling Fuel
Fuel is VERY flammable. Use extreme care when mixing, storing
or handling, or serious personal injury may result.
◆ Use an approved fuel container.
◆ DO NOT smoke near fuel.
◆ DO NOT allow flames or sparks near fuel.
◆ Fuel tanks/cans may be under pressure. Always loosen
fuel caps slowly allowing pressure to equalize.
◆ NEVER refuel a unit when the engine is HOT or RUNNING!
◆ DO NOT fill fuel tanks indoors. ALWAYS fill fuel tanks
outdoors over bare ground.
◆ DO NOT overfill fuel tank. Wipe up spills immediately.
◆ Securely tighten fuel tank cap and close fuel container
after refueling.
◆ Inspect for fuel leakage. If fuel leakage is found, do not
start or operate unit until leakage is repaired.
◆ Move at least 3 m (10 ft.) from refueling location before
starting the engine.
HCA-2620 OPERATION
X7502342200 19
© 5/2017 ECHO Inc.
ENGLISH
Mixing Instructions
1. Fill an approved fuel container
with half of the required
amount of gasoline.
2. Add the proper amount of
2-stroke oil to gasoline.
3. Close container and shake to
mix oil with gasoline.
4. Add remaining gasoline, close
fuel container, and remix.
Spilled fuel is a leading cause of hydrocarbon emissions. Some
states may require the use of automatic fuel shut-off containers to
reduce fuel spillage.
• Empty the fuel tank prior to storing the unit. Return
unused fuel to an approved fuel storage container.
Storage - Fuel storage laws vary by locality. Contact your
local government for the laws affecting your area. As a
precaution, store fuel in an approved, airtight container.
Store in a well-ventilated, unoccupied building, away from
sparks and flames.
Stored fuel ages. Do not mix more fuel than you expect to use in thirty
(30) days, ninety (90) days when a fuel stabilizer is added.
Stored two-stroke fuel may separate. ALWAYS shake fuel container
thoroughly before each use.
Used oil and gasoline, and soiled towels are hazardous waste
materials. Disposal laws vary by locality.
Adjusting Cutting Angle
Never adjust cutting assembly with engine running.
Fuel to Oil Mix – 50:1 Ratio
US Metric
Gas Oil Gas Oil
Gallons Oz. Liter CC.
12.65100
2 5.2 10 200
51325500
OPERATION HCA-2620
20 X7502342200
© 5/2017 ECHO Inc.
Hedge Trimmer blades are sharp. Always wear gloves when
adjusting cutting assembly.
DO NOT stand hedge trimmer on end when adjusting cutting
angle, otherwise serious injury may result.
1. Place unit on a flat surface with
blade cover (A) facing up.
Assure stop switch is in the
“STOP” position.
2. Hold blade adjustment handle
(B) and compress blade lock
levers (C) and (D) together.
Rotate blade to desired
position. Release levers to lock
blade.
Gear case assembly becomes HOT during use. Always grip
assembly at blade-adjustment handle when making cutting
angle adjustments, otherwise serious injury may result.
Always install the blade cover and place the cutter assembly in
the folded / locked position for storage or transportation.
A
B
C
D
HCA-2620 OPERATION
X7502342200 21
© 5/2017 ECHO Inc.
ENGLISH
Starting Cold Engine
Hedge Trimmer blades are very sharp. Touching them may lead
to severe personal injury. Avoid touching blades whenever
possible, and always wear gloves to protect hands.
Note: The blade cover is used for transportation and storage.
Remove blade cover before using the unit.
The attachment will operate immediately when the engine
starts, and could result in possible serious injury. Keep
movable parts of the attachment away from objects that could
become entangled or thrown, and surfaces that could cause
loss of control.
1. Stop Switch
Move stop switch (A) away
from the STOP position.
2. Choke
Move choke (B) to Cold Start
( ) (closed) position.
3. Purge Bulb
Pump purge bulb (C) until
fuel is visible and flows freely
in the clear fuel tank return
line. Pump bulb an
additional four or five times.
A
B
C
OPERATION HCA-2620
22 X7502342200
© 5/2017 ECHO Inc.
4. Recoil Starter
Lay the unit on a flat area
and keep movable
attachment parts clear of all
obstacles. Firmly grasp
throttle handle and throttle
trigger lockout with left hand
and fully depress throttle
trigger to wide open
position. Rapidly pull recoil
starter handle (D) until engine fires (or maximum five pulls).
5. Choke
After engine fires (or five pulls), move choke (B) to the Run ( ) (open)
position. Firmly grasp throttle handle and throttle trigger lockout with left
hand and fully depress throttle trigger to wide open position. Pull starter
handle until engine starts and runs. Release throttle trigger and allow unit
to warm up at idle for several minutes.
Note: If engine does not start with choke in “Run” position after five
pulls, repeat instructions 2 - 5.
The blades must not move at idle, otherwise serious personal
injury may result. Periodic carburetor adjustment may be
necessary to assure blades do not move at idle. If blades move,
readjust carburetor according to “Carburetor Adjustment”
instructions in this manual or see your dealer.
6. Throttle Trigger
After engine warm-up, grip the throttle handle and support handle.
Depress the throttle trigger lockout, and gradually depress throttle trigger
to increase engine RPM to operating speed.
Starting Warm Engine
The starting procedure is the same as Cold Start except DO NOT close the
choke, and do not depress throttle trigger to wide open position.
D
HCA-2620 OPERATION
X7502342200 23
© 5/2017 ECHO Inc.
ENGLISH
The blades must not move at idle, otherwise serious personal
injury may result. Periodic carburetor adjustment may be
necessary to assure blades do not move at idle. If blades move,
readjust carburetor according to “Carburetor Adjustment”
instructions in this manual or see your dealer.
1. Stop Switch
Move stop switch (A) away
from the STOP position.
2. Purge Bulb
Pump purge bulb (C) until
fuel is visible and flows freely
in the clear fuel tank return
line. Pump bulb an
additional four or five times.
3. Recoil Starter
Lay the unit on a flat area
and keep movable
attachment parts clear of all
obstacles. Firmly grip
throttle handle and throttle
trigger lockout with left hand.
Rapidly pull recoil starter
handle (D) until engine
starts.
A
B
C
D
OPERATION HCA-2620
24 X7502342200
© 5/2017 ECHO Inc.
Note: If engine does not start after five pulls, use Cold Start
Procedure.
Stopping Engine
1. Throttle
Release throttle and allow
engine to return to idle
before shutting off engine.
2. Stop Switch
Move stop switch (A) to
STOP position.
If engine does not stop when stop switch is moved to STOP
position, close choke - COLD START position - to stall engine.
Have your dealer repair stop switch before using unit again.
Hedge Trimming
Shoulder Harness (if included)
1. Loosen the harness clamp
screw.
2. Put the harness on and attach it
to the unit.
3. Adjust the harness for
comfortable operation.
4. Tighten the harness clamp
screw.
Engine exhaust IS HOT, and contains Carbon Monoxide (CO), a
poison gas. Breathing CO can cause unconsciousness, serious
injury, or death. Exhaust can cause serious burns. ALWAYS
position unit so that exhaust is directed away from your face
and body.
A
HCA-2620 MAINTENANCE
X7502342200 25
© 5/2017 ECHO Inc.
ENGLISH
Hedge Trimmer blades are very sharp. Touching them may lead
to severe personal injury. Avoid touching blades whenever
possible, and always wear gloves to protect hands.
Never remove hands from unit when blades are moving. The
engine continues running even when the blades have stopped
due to an obstruction. If this occurs, stop the engine,
disconnect ignition cable and remove the obstruction.
1. Always grip throttle handle with right hand and support handle with left
hand.
2. Hold trimmer firmly and squeeze throttle trigger to accelerate engine.
3. Tilt trimmer so cutting teeth are angled slightly toward the hedge or
shrub and proceed to cut.
MAINTENANCE
Moving parts can amputate fingers or cause severe injuries.
Keep hands, clothing and loose objects away from all openings.
Always stop engine, disconnect spark plug, and make sure all
moving parts have come to a complete stop before removing
obstructions, clearing debris, or servicing unit. Allow unit to
cool before performing service. Wear gloves to protect hands
from sharp edges and hot surfaces.
Your ECHO unit is designed to provide many hours of trouble free service.
Regular scheduled maintenance will help your unit achieve that goal. If you
are unsure or are not equipped with the necessary tools, we recommend
that you take your unit to an ECHO Servicing Dealer for maintenance. To
help you decide whether you want to DO-IT-YOURSELF or have the ECHO
Dealer do it, each maintenance task has been graded. If the task is not
listed, see your ECHO Dealer for repairs.
Skill Levels
Level 1 = Easy to do. Common tools may be required.
Level 2 = Moderate difficulty. Some specialized tools may be required.
MAINTENANCE HCA-2620
26 X7502342200
© 5/2017 ECHO Inc.
Level 3 = See your dealer.
Click HERE or go to http://www.echo-usa.com/products/maintenance-kit for
information on Maintenance Kits.
Maintenance Intervals
IMPORTANT NOTE - Time intervals shown are maximum. Actual use and
your experience will determine the frequency of required maintenance.
MAINTENANCE PROCEDURE NOTES:
1
Apply lithium based grease every 25 hours of use.
COMPONENT/SYSTEM
MAINTENANCE
PROCEDURE
REQ’D
SKILL
LEVEL
Daily or Before Use
Air Filter Inspect/Clean* 1
Choke Shutter Inspect/Clean 1
Fuel System Inspect
3
1
Cooling System Inspect/Clean 2
Recoil Starter Rope Inspect/Clean* 1
Screws/Nuts/Bolts Inspect/Tighten/Replace* 1
Blades Inspect/Clean
2
1
Every Refuel
Fuel System Inspect
3
1
3 Months
Air Filter Replace* 1
Fuel Filter Inspect* 1
Fuel Cap Gasket Inspect* 1
Spark Plug Inspect/Clean/Replace* 1
Muffler Spark Arrestor Inspect/Clean/Replace* 2
Cylinder Exhaust Port Inspect/Clean/De-carbon 2
Gear Housing
Grease
1
2
Yearly
Fuel Filter Inspect/Replace* 1
Fuel Cap Gasket Replace* 1
HCA-2620 MAINTENANCE
X7502342200 27
© 5/2017 ECHO Inc.
ENGLISH
2
Inspect blade, and clean and sharpen as needed. Lubricate blades
periodically during use.
3
Low evaporative fuel tanks DO NOT require regular maintenance to
maintain emission integrity.
*Replacement is recommended based on the finding of damage or wear
during inspection.
Air Filter
Level 1
1. Close choke (COLD START [ ] position). This prevents dirt from
entering the carburetor throat when the air filter is removed. Brush
accumulated dirt from air cleaner area.
2. Remove air filter cover. Brush dirt from inside cover.
Assure throttle wire retaining clip
(A) remains in place as shown
when removing or installing air
filter cover.
3. Remove foam pre-filter (B) and
air filter and clean as indicated
below:
4. Foam Pre-filter
• Clean foam filter in water/
detergent solution and rinse
with clean water.
• Wrap the filter in a clean, dry
cloth and squeeze (do not
wring) dry. Allow to dry completely before reuse. Do not oil.
Air Filter
Parts Required: Tune Up Kit.
A
B
MAINTENANCE HCA-2620
28 X7502342200
© 5/2017 ECHO Inc.
• Lightly brush debris from filter. Replace filter if it is damaged, fuel
soaked, very dirty, or the rubber sealing edges are deformed.
5. Assemble components in reverse order.
Assure air filter is assembled
with pleats oriented vertically.
Fuel Filter
Level 1.
Fuel is VERY flammable. Use extreme care when mixing, storing
or handling, or serious personal injury may result.
1. Use a clean rag to remove
loose dirt from around fuel cap
and empty fuel tank.
2. Pull the fuel filter from the fuel
tank.
Do not damage fuel line while removing fuel filter from tank.
3. Remove the filter from the line and install the new filter.
Parts Required: Tune Up Kit.
HCA-2620 MAINTENANCE
X7502342200 29
© 5/2017 ECHO Inc.
ENGLISH
Note: Federal EPA regulations require all model year 2012 and later
gasoline powered engines produced for sale in the United
States to be equipped with a special low permeation fuel
supply hose between the carburetor and fuel tank. When
servicing model year 2012 and later equipment, only fuel
supply hoses certified by EPA can be used to replace the
original equipment supply hose. Fines up to $37,500 may be
enforced for using an un-certified replacement part.
Spark Plug
Level 2.
Use only NGK CMR7H spark plug otherwise severe engine damage
may occur.
1. Remove spark plug and check
for fouling, worn and rounded
center electrode.
2. Clean the plug or replace with a
new one. DO NOT sand blast to
clean. Remaining sand will
damage engine.
3. Adjust spark plug gap by
bending outer electrode.
4. Tighten spark plug to 102-153
kgf•cm (89-133 in•lbf).
Cooling System
Level 2.
Parts Required: Tune Up Kit.
Parts Required: None if you are careful.
0.65 mm (0.026 in.)
MAINTENANCE HCA-2620
30 X7502342200
© 5/2017 ECHO Inc.
To maintain proper engine
operating temperatures, cooling
air must pass freely through the
cylinder fin area. This flow of air
carries combustion heat away
from the engine.
Overheating and engine seizure can
occur when:
• Air intakes are blocked,
preventing cooling air from
reaching the cylinder.
• Dust and grass build up on the
outside of the cylinder. This build up insulates the engine and prevents
the heat from leaving.
Removal of cooling passage blockages or cleaning of cooling fins is
considered “Normal Maintenance.” Any failure attributed to lack of
maintenance is not warranted.
1. Remove spark plug lead.
2. Remove muffler cover (A).
3. Remove engine cover (B).
DO NOT use a metal scraper to remove dirt from the cylinder fins.
4. Use brush to remove dirt from
the cylinder fins.
A
B
HCA-2620 MAINTENANCE
X7502342200 31
© 5/2017 ECHO Inc.
ENGLISH
5. Remove grass and leaves from
the grid (C) between the recoil
starter and fuel tank.
6. Assemble components in
reverse order.
Exhaust System
Spark Arrestor Screen
Level 2.
1. Remove spark plug lead.
2. Remove muffler cover (A).
3. Place piston at Top Dead Center (TDC) to prevent carbon or dirt from
entering cylinder.
4. Remove spark arrestor screen
cover (B), gasket (C), and
screen (D), from muffler body.
5. Clean carbon deposits from
muffler components.
Note: When cleaning carbon
deposit, be careful not to
damage the catalytic
element inside muffler.
6. Replace screen if it is cracked,
plugged, or has holes burned through.
7. Assemble components in reverse order.
Exhaust Port Cleaning
Level 2.
Parts Required: Spark Arrestor Screen, Gasket
Parts Required: As needed: Heat Shield
C
C
A
B
D
C
MAINTENANCE HCA-2620
32 X7502342200
© 5/2017 ECHO Inc.
1. Remove spark plug lead from
spark plug, and remove muffler
cover.
2. Place piston at top dead center.
Remove muffler (A) and heat
shield (B).
3. Use a wood or plastic scraping
tool to clean deposits from
cylinder exhaust port (C).
Never use a metal tool to scrape carbon from the exhaust port. Do
not scratch the cylinder or piston when cleaning the exhaust port. Do
not allow carbon particles to enter the cylinder.
4. Inspect heat shield, and replace if damaged.
5. Install heat shield and muffler.
6. Tighten muffler mounting bolts (or nuts) to 90-110 kgf•cm (80-95
in•lbf).
7. Install muffler cover and attach spark plug lead.
8. Start engine, and warm to operating temperature.
9. Stop engine, and re-tighten mounting bolts (or nuts) to specifications.
Carburetor Adjustment
Level 2.
AB
C
HCA-2620 MAINTENANCE
X7502342200 33
© 5/2017 ECHO Inc.
ENGLISH
When carburetor adjustment is completed, the cutting
attachment should not move at idle, otherwise serious personal
injury may result.
Engine Break-In
New engines must be operated a minimum duration of two tanks of fuel
break-in before carburetor adjustments can be made. During the break-in
period your engine performance will increase and exhaust emissions will
stabilize. Idle speed can be adjusted as required.
High Altitude Operation
This engine has been factory adjusted to maintain satisfactory starting,
emission, and durability performance up to 1,100 feet above sea level (ASL)
(96.0 kPa). To maintain proper engine operation and emission compliance
above 1,100 feet ASL the carburetor may
need to be adjusted by an
authorized ECHO service dealer.
If the engine is adjusted for operation above 1,100 feet ASL, the
carburetor must be re-adjusted when operating the engine below
1,100 feet ASL, otherwise severe engine damage may result.
Note: Every unit is run at the
factory and the carburetor
is set in compliance with
emission regulations.
Carburetor adjustments,
other than idle speed,
must be performed by an
authorized ECHO dealer.
Parts Required: None
A
MAINTENANCE HCA-2620
34 X7502342200
© 5/2017 ECHO Inc.
1. Check idle speed and reset if
necessary. If a tachometer is
available, idle speed screw (A)
should be set to the
specifications found on
“Specifications” page of this
manual. Turn idle screw (A)
clockwise to increase idle
speed; counterclockwise to
decrease idle speed.
Lubrication
Blades
Level 1.
Hedge Trimmer blades are very sharp. Touching them may lead
to severe personal injury. Avoid touching blades whenever
possible, and always wear gloves to protect hands.
1. Brush loose debris from blade
and coat both sides of blade
with the 50-50 cleaning mixture.
2. Allow cleaning mixture to soften
the remaining gummy residue
then wipe it from the blade.
3. Apply clean oil to the entire
length of the blade. Be certain
the blade bolts are lubricated.
4. Wipe excess oil from the blade
before putting the unit back in
service.
Gear Case
Level 1.
1. Clean dirt from the grease fitting (A).
Parts Required: 20W Engine Oil (blade lubrication), 50-50 mixture of
kerosene and 20W oil (blade cleaning)
Parts Required: A grease gun with lithium based grease.
A
HCA-2620 MAINTENANCE
X7502342200 35
© 5/2017 ECHO Inc.
ENGLISH
2. Carefully pump grease into
fitting (A). DO NOT force
grease. Too much pressure will
force grease past seals and
cause damage. Apply 1 - 2
pumps of grease every 15 - 25
hours of operation.
3. Wipe excess grease from
around grease fitting.
Drive Shaft Assembly
Level 1.
Hedge Trimmer blades are very sharp. Touching them may lead
to severe personal injury. Avoid touching blades whenever
possible, and always wear gloves to protect hands.
1. Remove gear housing locating
screw (A) and loosen clamping
screw (B). Remove the gear
housing assembly from the
drive shaft housing.
2. Pull the drive shaft (C) from the
housing, wipe clean, then apply
15 ml (0.5 oz.) of grease.
3. Slide the drive shaft back in the
drive housing being careful not
to get dirt on the flex shaft.
Parts Required: Lithium based grease.
A
A
A
A
B
A
B
C
MAINTENANCE HCA-2620
36 X7502342200
© 5/2017 ECHO Inc.
4. Install the gear housing assembly.
Blades
Hedge trimmer blades are very sharp, touching them may lead
to severe personal injury. Use long hex wrenches and sockets
with extensions when tightening blade screws and blade lock
nuts to keep hands at a safe distance from sharp blades.
Blades should only be removed and reinstalled by an authorized
ECHO servicing dealer, otherwise premature wear or internal
damage may occur.
Sharpening
Level 2.
If a power grinder is used DO NOT allow blade to over heat.
1. Move stop switch to STOP
position.
2. Disconnect spark plug wire.
3. Remove blade guard.
4. Slide blades to allow file
clearance using slots (A) on
bottom of blade. Do not pry
against cutting edges.
5. File each edge carefully. Follow
the original shape of the blade.
6. Install blade guard.
Use new Echo approved lock
nuts each time blade guard is
installed. See Echo dealer for
correct nuts.
7. Lubricate blades (see “Lubrication”).
8. Connect spark plug wire.
A
45°
HCA-2620 MAINTENANCE
X7502342200 37
© 5/2017 ECHO Inc.
ENGLISH
Adjustment
Level 2.
Locking ability of hedge trimmer blade lock nuts will diminish each
time they are removed. Replace if turning resistance is not felt when
installing lock nuts.
1. Tighten blade screws securely.
2. Hold blade screws (A) to
prevent turning, and tighten
lock nuts (B).
A
B
A
B
TROUBLESHOOTING HCA-2620
38 X7502342200
© 5/2017 ECHO Inc.
TROUBLESHOOTING
ENGINE PROBLEM TROUBLESHOOTING CHART
Problem Check Status Cause Remedy
Engine
starts
hard
or
Engine
does not
start
Fuel at
carburetor
No fuel at
carburetor
Fuel strainer or
fuel line
obstructed
Clean or replace
See your Echo
dealer
Fuel at
cylinder
No fuel at
cylinder
Carburetor
See your Echo
dealer
Muffler wet
with fuel
Fuel mixture
too rich
OPEN choke
Clean or replace
air filter
Adjust carburetor
See your Echo
dealer
Spark at
end of plug
wire
No spark
Stop switch
OFF - Electrical
problem - Inter-
lock switch
Turn switch to ON
See your Echo
dealer
Spark at
plug
No spark
Incorrect gap -
Covered with
carbon - Fouled
with fuel - Plug
defective
Adjust to 0.65mm
(0.026 in.)
Clean or replace
plug
Engine
runs, but
dies
or
Engine
does not
acceler-
ate
properly
Air filter Air filter dirty Normal wear Clean or replace
Fuel filter Fuel filter dirty
Contaminants
or residue in
fuel
Replace filter or
replace fuel
Fuel vent
Fuel vent
plugged
Contaminated
fuel
Clean or replace
Spark plug
Plug dirty or
worn
Normal wear
Clean and adjust
or replace
Carburetor
Improper
adjustment
Vibration Adjust
Cooling
system
Cooling
system dirty
or plugged
Extended oper-
ation in dirty or
dusty locations
Clean
Spark arres-
tor screen
Spark arres-
tor screen
plugged
Normal wear Replace
HCA-2620 STORAGE
X7502342200 39
© 5/2017 ECHO Inc.
ENGLISH
Fuel vapors are extremely flammable and may cause fire and/or
explosion. Never test for ignition spark by grounding spark plug
near cylinder plug hole, otherwise serious personal injury may
result.
STORAGE
The muffler and surrounding cover become hot during
operation. Always keep exhaust area clear of flammable debris
during transportation or when storing, otherwise serious
property damage or personal injury may result.
Hedge Trimmer blades are very sharp. Touching them may lead
to severe personal injury. Avoid touching blades whenever
possible, and always wear gloves to protect hands.
Do not store in enclosure where fuel fumes may accumulate or
reach an open flame or spark, otherwise serious personal injury
may result.
Always store and transport hedge trimmers in a stable, horizontal
position. Support gear case and cutting blades to prevent excessive
flexing, which may cause damage to these components. Always
install blade cover when transporting or storing unit.
Engine
does not
crank
N/A N/A
Internal engine
problem
See your Echo
dealer
ENGINE PROBLEM TROUBLESHOOTING CHART
Problem Check Status Cause Remedy
STORAGE HCA-2620
40 X7502342200
© 5/2017 ECHO Inc.
Long Term Storage (Over 30 Days)
Do not store your unit for a prolonged period of time (30 days or longer)
without performing protective storage maintenance which includes the
following:
1. Store unit in a dry, dust free place, out of the reach of children.
2. Place the stop switch in the “STOP” position.
3. Remove accumulation of grease, oil, dirt and debris from exterior of
unit.
4. Perform all periodic lubrication and services that are required.
5. Apply clean oil to the entire length of the blade. Be certain the blade
bolts are lubricated.
6. Install blade cover on blades.
7. Tighten all the screws and nuts.
8. Drain fuel tank completely. Press purge bulb 6-7 times to remove
remaining fuel from carburetor then drain the tank again. Close choke,
start and run the engine until it stops due to lack of fuel.
9. Allow engine to cool. Remove the spark plug lead from the spark plug.
Remove the spark plug. Pour 7 cc (0.25 oz.) of fresh, clean, two-stroke
engine oil into the cylinder through the spark plug hole.
a. Place a clean cloth over the spark plug hole.
b. Pull the recoil starter handle 2-3 times to distribute the oil inside the
engine.
c. Observe the piston location through the spark plug hole. Pull the
recoil handle slowly until the piston reaches the top of its travel and
leave it there.
10. Install the spark plug. Connect the spark plug lead to the spark plug.
HCA-2620 SPECIFICATIONS
X7502342200 41
© 5/2017 ECHO Inc.
ENGLISH
SPECIFICATIONS
MODEL HCA-2620
Length 2440 mm (96.1 in.)
Width 273 mm (10.7 in.)
Height 260 mm (10.2 in.)
Weight (dry) 6.5 kg (14.3 lb.)
Engine Type Air cooled, two-stroke, single cylinder gasoline engine
Bore 34.0 mm (1.34 in.)
Stroke 28.0 mm (1.10 in.)
Displacement 25.4 cc (1.55 cu. in.)
Exhaust
Spark arrestor muffler or spark arrestor muffler with
catalyst
Carburetor Diaphragm w/purge pump
Ignition System Flywheel magneto, capacitor discharge ignition type
Spark Plug NGK CMR7H (Gap 0.65 mm (0.026 in.)
Fuel Mixed (Gasoline and Two-stroke Oil)
Fuel/Oil Ratio
50:1 Power Blend X
TM
or ECHO Red Armor
®
ISO-L-
EGD (ISO/CD 13738) and J.A.S.O. M345- FD
, two-
stroke, air-cooled engine oil.
Gasoline
Use 89 Octane unleaded. Do not use fuel containing
methyl alcohol, more than 10% ethyl alcohol or 15%
MTBE. Do not use alternative fuels such as E-15 or E-
85.
Oil
Power Blend X
TM
or ECHO Red Armor
®
Premium
Universal 2-Stroke Oil
Fuel Tank Capacity 0.61 L (20.6 US fl. oz.)
Starter System Automatic Recoil Starter
Clutch Centrifugal Type
Gear Case Ratio 4.6:1
Cutter Double Reciprocating Blade, Double Edge
Length 536 mm (21.1 in.)
Pitch 35 mm (1.1 in.)
Height 21 mm (.083 in)
Maximum Diameter Cut:
Soft Material 25.4 mm (1 in.)
Woody Material 13 mm (1/2 in.)
Cutting Angle Adjustment -90o to +45o (135o total)
Idle Speed 3,000 RPM
Clutch Engagement Speed 4,300 RPM
Wide Open Throttle Speed
(W.O.T.)
11,500 RPM
NOTES HCA-2620
42 X7502342200
© 5/2017 ECHO Inc.
NOTES
HCA-2620 PRODUCT REGISTRATION
X7502342200 43
© 5/2017 ECHO Inc.
ENGLISH
PRODUCT REGISTRATION
Thank you for choosing ECHO Power Equipment
Please go to http://www.echo-usa.com/Warranty/Register-Your-ECHO to
register your new product on-line. It's FAST and EASY! NOTE: your
information will never be sold or misused by ECHO, Inc. Registering your
purchase enables us to contact you in the unlikely event of a service update
or product recall, and verifies your ownership for warranty consideration.
If you do not have access to the Internet, you can complete the form below
and mail to:
ECHO Inc., Product Registration, PO Box 1139, Lake Zurich IL 60047.
PRODUCT REGISTRATION HCA-2620
44 X7502342200
© 5/2017 ECHO Inc.
HCA-2620 NOTES
X7502342200 45
© 5/2017 ECHO Inc.
ENGLISH
NOTES
NOTES HCA-2620
46 X7502342200
© 5/2017 ECHO Inc.
HCA-2620 NOTES
X7502342200 47
© 5/2017 ECHO Inc.
ENGLISH
ECHO, INCORPORATED
400 Oakwood Road
Lake Zurich, IL 60047
www.echo-usa.com
U00315001001 - U00315999999
