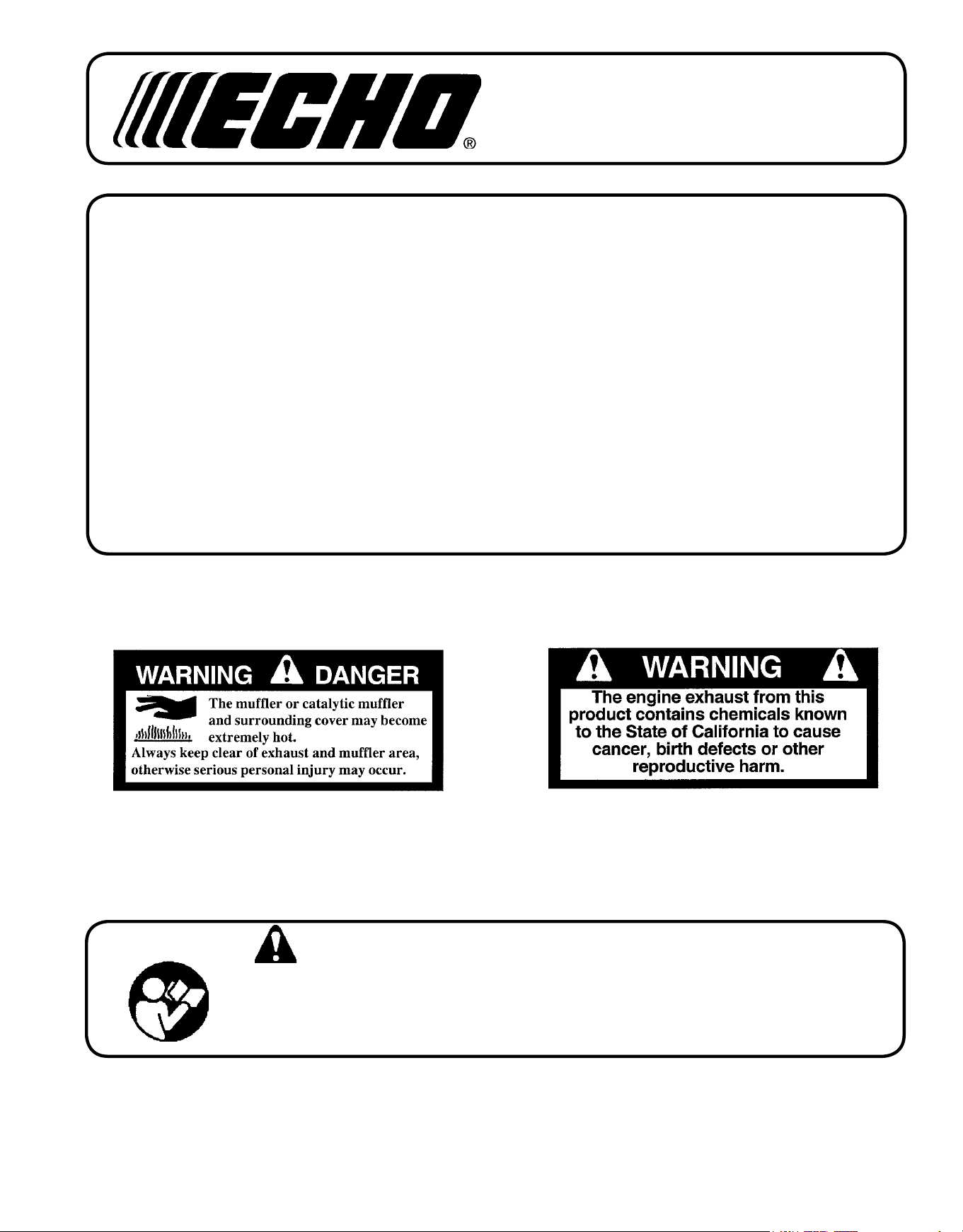

He d g e Cl i p p e r
Op e r a t O r 's Ma n u a l
1
WARNING
Read rules for safe operation and instructions carefully. ECHO provides an
Operator's Manual and a Safety Manual. Both must be read and understood for
proper and safe operation. Failure to do so could result in serious injury.
Shaft Hedge Clipper
Operator's Manual
MODELS SHC-225
SHC-225S
X750011882
12/09
X7502257102
2
Copyright© 2010 By Echo, Incorporated
All Rights Reserved.
In t r o d u c t I o n
Welcome to the ECHO family. This ECHO product was designed and manufactured to provide long life and on-the-job
dependability. Read and understand this manual and the SAFETY MANUAL you found in the same package. You will
nd both easy to use and full of helpful operating tips and SAFETY messages.
ta b l e o f co n t e n t s
Introduction ....................................................................... 2
- The Operator's Manual ............................................... 2
- The Safety manual ..................................................... 2
Safety ................................................................................ 3
- Manual Safety Symbols and Important Information . 3
- International Symbols ................................................ 3
- Personal Conditions and Safety Equipment .............. 4
- Equipment .................................................................. 6
Emissions Control ............................................................. 6
Description ........................................................................ 7
Contents ............................................................................ 9
Assembly........................................................................... 9
- Front Handle .............................................................. 9
Operation ......................................................................... 10
- Fuel .......................................................................... 10
- Starting Cold Engine ................................................ 12
- Starting Warm Engine .............................................. 13
- Stopping Engine ....................................................... 13
- Hedge Trimming ...................................................... 14
Maintenance .........................................................15
- Skill Levels .......................................................15
- Maintenance Intervals .......................................15
- Air Filter ............................................................16
- Fuel Filter ..........................................................16
- Spark Plug .........................................................17
- Cooling System ................................................17
- Exhaust System .................................................18
- Carburetor Adjustment ....................................20
- High Altitude Operations ................................20
- Lubrication ........................................................21
- Sharpening Blades.............................................22
- Blade Adjustment ..............................................23
Troubleshooting .......................................................24
Storage ..................................................................... 25
Specications ...........................................................26
Warranty Statements ................................................27
Servicing Information ..............................................32
- Parts/Serial Number ..........................................32
- Service ............................................................... 32
- ECHO Consumer Product Support ...................32
- Warranty Card ...................................................32
- Additional or Replacement Manuals .................32
Specications, descriptions and illustrative material in
this literature are as accurate as known at the time of
publication, but are subject to change without notice.
Illustrations may include optional equipment and acces-
sories, and may not include all standard equipment.
t h e o p e r a t o r 's m a n u a l
Read and understand this manual before operation. Keep it in a safe
place for future reference. It contains specications and information
for operation, starting, stopping, maintenance, storage, and assembly
specic to this product.
t h e s a f e t y m a n u a l
Read and understand this manual before operation. Keep it in a safe
place for future reference. It explains possible hazards involved with
the use of Hedge Clippers and what measures you should take to make
their use safer.
He d g e Cl i p p e r
Op e r a t O r 's Ma n u a l
3

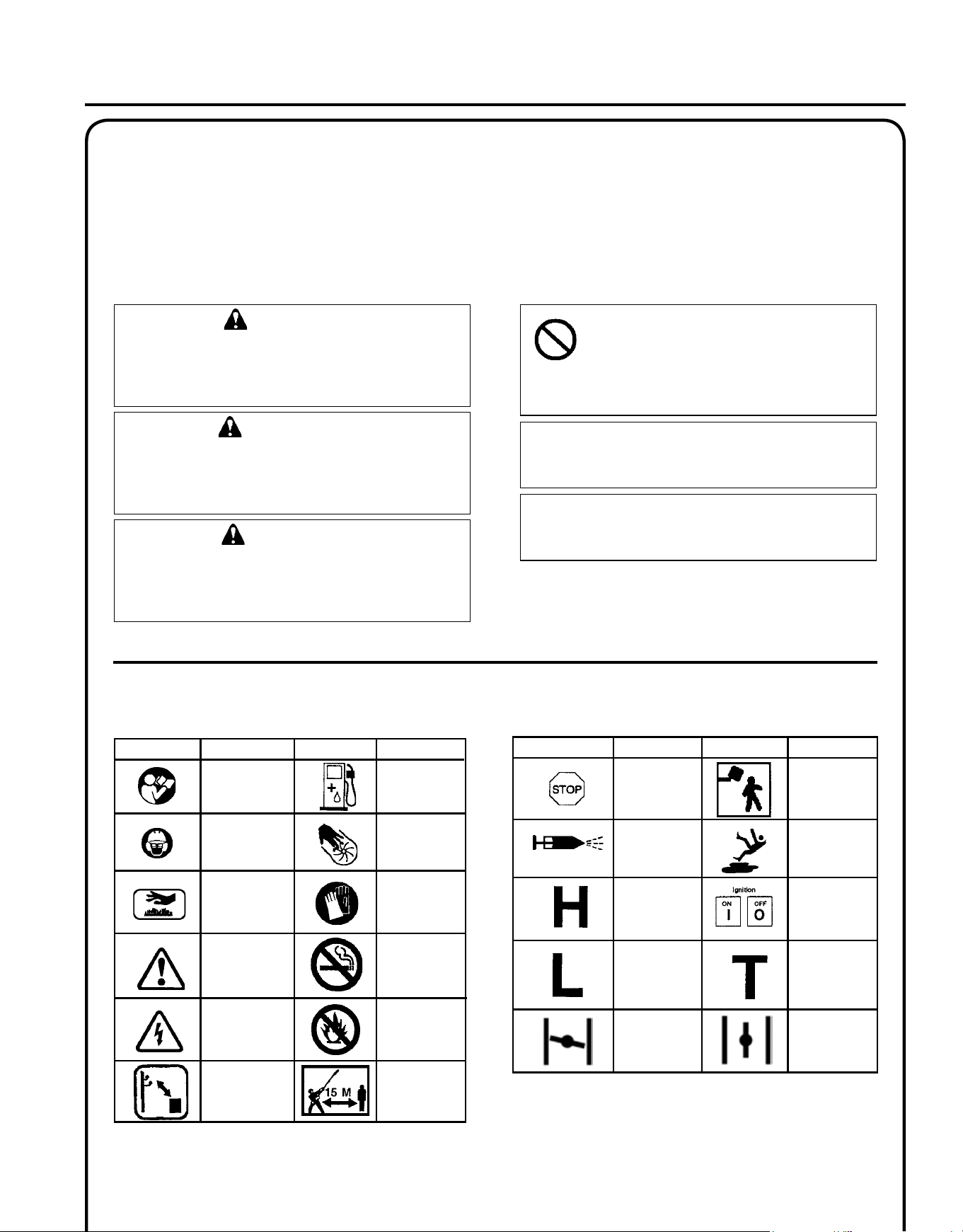

I n t e r n a t I o n a l s y m b o l s
Symbol
description/application
Symbol form/shape
Symbol
description/application
Symbol form/shape
Hot
Surface
Carburetor adjust-
ment
- Idle speed
Carburetor adjust-
ment
- High speed
mixture
Symbol
description/application
Symbol form/shape
Symbol
description/application
Symbol form/shape
Read and under-
stand Operator's
Manual.
Wear eyes, ears
and head protec-
tion
Emergency stop
Fuel and oil
mixture
Finger Severing
Carburetor adjust-
ment
- Low speed
mixture
Safety/Alert
Do not operate
closer than 15 M
(50 ft.) from elec-
trical haz-
ards.
Keep bystanders
at least 15 meters
(50 feet) away.
Plan retreat
path from falling
objects.
Wear hand
protection. Use
two handed.
DO NOT smoke
near fuel.
DO NOT allow
ames or sparks
near fuel.
Wear slip resis-
tant foot wear.
Ignition
ON/OFF
Primer
bulb
Avoid all power
lines. This unit
is not insulated
against electrical
current.
Choke Control
"Cold Start"
Position
(Choke Closed)
Choke Control
"Run"
Position
(Choke Open)
sa f e t y
m a n u a l
s a f e t y s y m b o l s a n d I m p o r t a n t I n f o r m a t I o n
Throughout this manual and on the product itself, you will nd safety alerts and helpful, informational messages pre-
ceded by symbols or key words. The following is an explanation of those symbols and key words and what they mean
to you.
WARNING
The safety alert symbol accompanied by the word
“WARNING” calls attention to an act or condi-
tion which CAN lead to serious personal injury or
death if not avoided.
CIRCLE AND SLASH SyMbOL
This symbol means the specic action
shown is prohibited. Ignoring these prohi-
bitions can result in serious or fatal injury.
CAUTION
The safety alert symbol accompanied by the word
“CAUTION” calls attention to an act or condition
which may lead to minor or moderate personal
injury if not avoided.
NOTE
This enclosed message provides tips for use, care and
maintenance of the unit.
IMPORTANT
The enclosed message provides information neces-
sary for the protection of the unit.
DANGER
The safety alert symbol accompanied by the word
“DANGER” calls attention to an act or condition
which WILL lead to serious personal injury or
death if not avoided.
4
Physical Condition
Your judgment and physical dexterity may not be good:
• if you are tired or sick,
• if you are taking medication,
• if you have taken alcohol or drugs.
Operate unit only if you are physically and mentally well.
Eye Protection
Eye protection that meets ANSI Z87.1 or CE requirements
must be worn whenever you operate the unit.
Hand Protection
Wear no-slip, heavy duty work gloves to improve your
grip on the handles. Gloves also reduce the transmission of
machine vibration to your hands.
Hearing Protection
Wear hearing protection. ECHO recommends wearing
hearing protection whenever unit is used.
Vibration and Cold
It is believed that a condition called Raynaud’s Phenomenon, which affects the ngers of certain individuals, may be
brought about by exposure to vibration and cold. Exposure to vibration and cold may cause tingling and burning sen-
sations, followed by loss of color and numbness in the ngers. The following precautions are strongly recommended,
because the minimum exposure which might trigger the ailment is unknown.
• Keep your body warm, especially the head, neck, feet, ankles,
hands, and wrists.
• Maintain good blood circulation by performing vigorous arm
exercises during frequent work breaks, and also by not smoking.
• Limit the hours of operation. Try to ll each day with jobs where
operating the unit or other hand-held power equipment is not
required.
• If you experience discomfort, redness, and swelling of the ngers
followed by whitening and loss of feeling, consult your physician
before further exposing yourself to cold and vibration.
p e r s o n a l c o n d I t I o n a n d s a f e t y e q u I p m e n t
WARNING
Hedge Clipper users risk injury to themselves and others if the hedge clipper is used improperly and or safety
precautions are not followed. Proper clothing and safety gear must be worn when operating a hedge clipper.
Proper Clothing
Wear snug tting, durable clothing;
• Pants should have long legs, shirts with long sleeves.
• DO NOT WEAR SHORTS,
• DO NOT WEAR TIES, SCARFS, JEWELRY.
Wear sturdy work shoes with nonskid soles;
• DO NOT WEAR OPEN TOED SHOES,
• DO NOT OPERATE UNIT BAREFOOTED.
Wear no-slip, heavy duty work gloves.
Keep long hair away from engine and air intake. Retain
hair with cap or net.
Hot Humid Weather
Heavy protective clothing can increase operator fatigue
which may lead to heat stroke. Schedule heavy work for
early morning or late afternoon hours when temperatures
are cooler.
He d g e Cl i p p e r
Op e r a t O r 's Ma n u a l
5
DANGER
Do not operate this product indoors or in inadequately ventilated
areas. Engine exhaust contains poisonous emissions and can cause
serious injury or death.
Read the Manuals
• Provide all users of this equipment with the Operator’s Manual and
Safety Manual for instructions on Safe Operation.
Clear the Work Area
• Spectators and fellow workers must be warned, and children and
animals prevented from coming nearer than 15 m (50 ft.) while the
unit is in use.

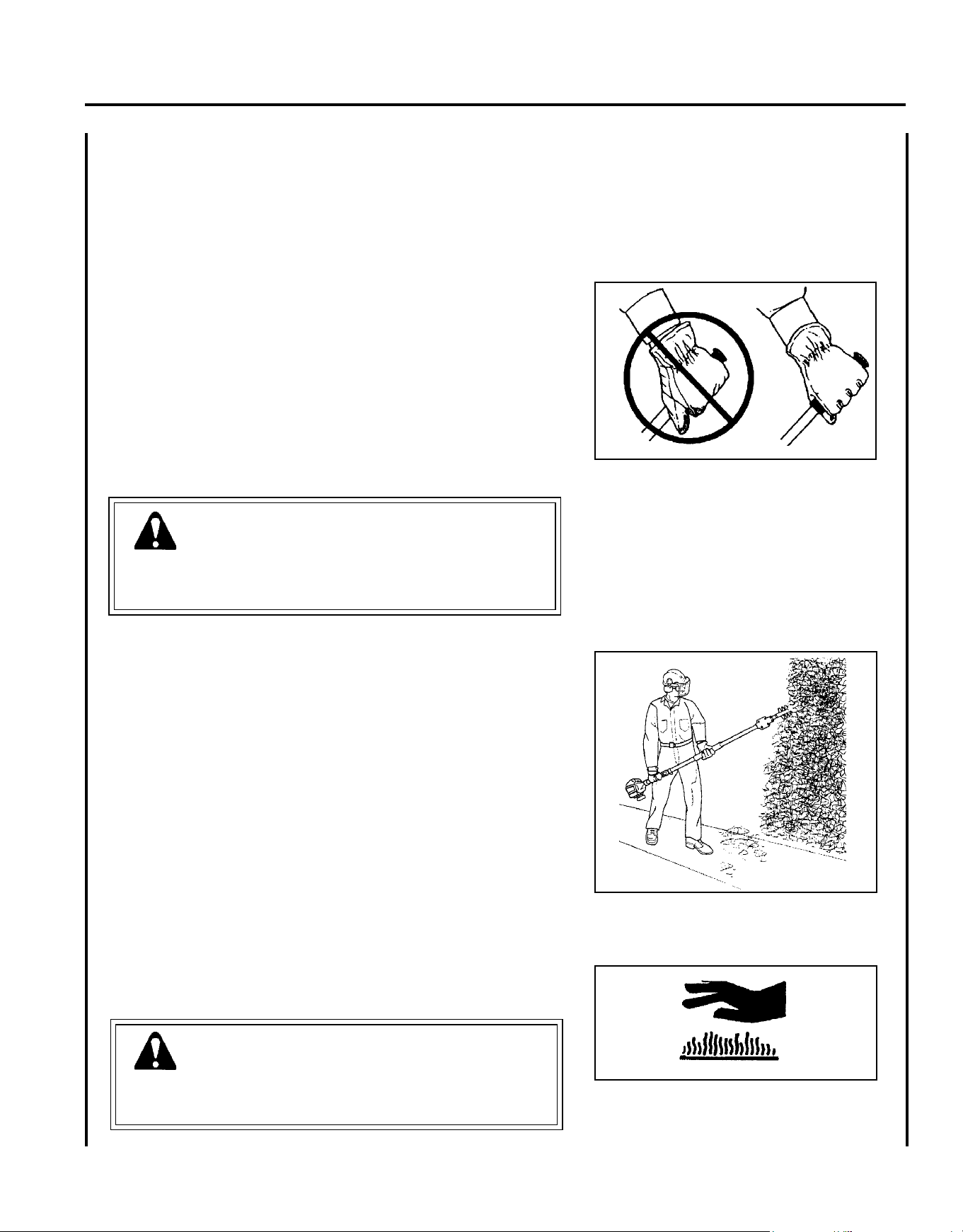

Keep a Firm Grip
• Hold the front and rear handles with both hands, with thumbs and
ngers encircling the handles.
Keep a Solid Stance
• Maintain footing and balance at all times. Do not stand on slippery,
uneven or unstable surfaces. Do not work in odd positions or on
ladders. Do not over reach.
Avoid Hot Surfaces
• Keep exhaust area clear of ammable debris. Avoid contact during
and immediately after operation.
WARNING
Never perform blade maintenance procedures while engine is run-
ning.
Repetitive Stress Injuries
It is believed that overusing the muscles and tendons of the ngers, hands, arms, and shoulders may cause soreness,
swelling, numbness, weakness, and extreme pain in those areas. Certain repetitive hand activities may put you at a high
risk for developing a Repetitive Stress Injury (RSI). An extreme RSI condition is Carpal Tunnel Syndrome (CTS), which
could occur when your wrist swells and squeezes a vital nerve that runs through the area. Some believe that prolonged
exposure to vibration may contribute to CTS. CTS can cause severe pain for months or even years.
To reduce the risk of RSI/CTS, do the following:
• Avoid using your wrist in a bent, extended, or twisted position.
Instead try to maintain a straight wrist position. Also, when grasp-
ing, use your whole hand, not just the thumb and index nger.
• Take periodic breaks to minimize repetition and rest your hands.
• Reduce the speed and force with which you do the repetitive move-
ment.
• Do exercises to strengthen the hand and arm muscles.
• Immediately stop using all power equipment and consult a doctor
if you feel tingling, numbness, or pain in the ngers, hands, wrists,
or arms. The sooner RSI/CTS is diagnosed, the more likely perma-
nent nerve and muscle damage can be prevented.
6

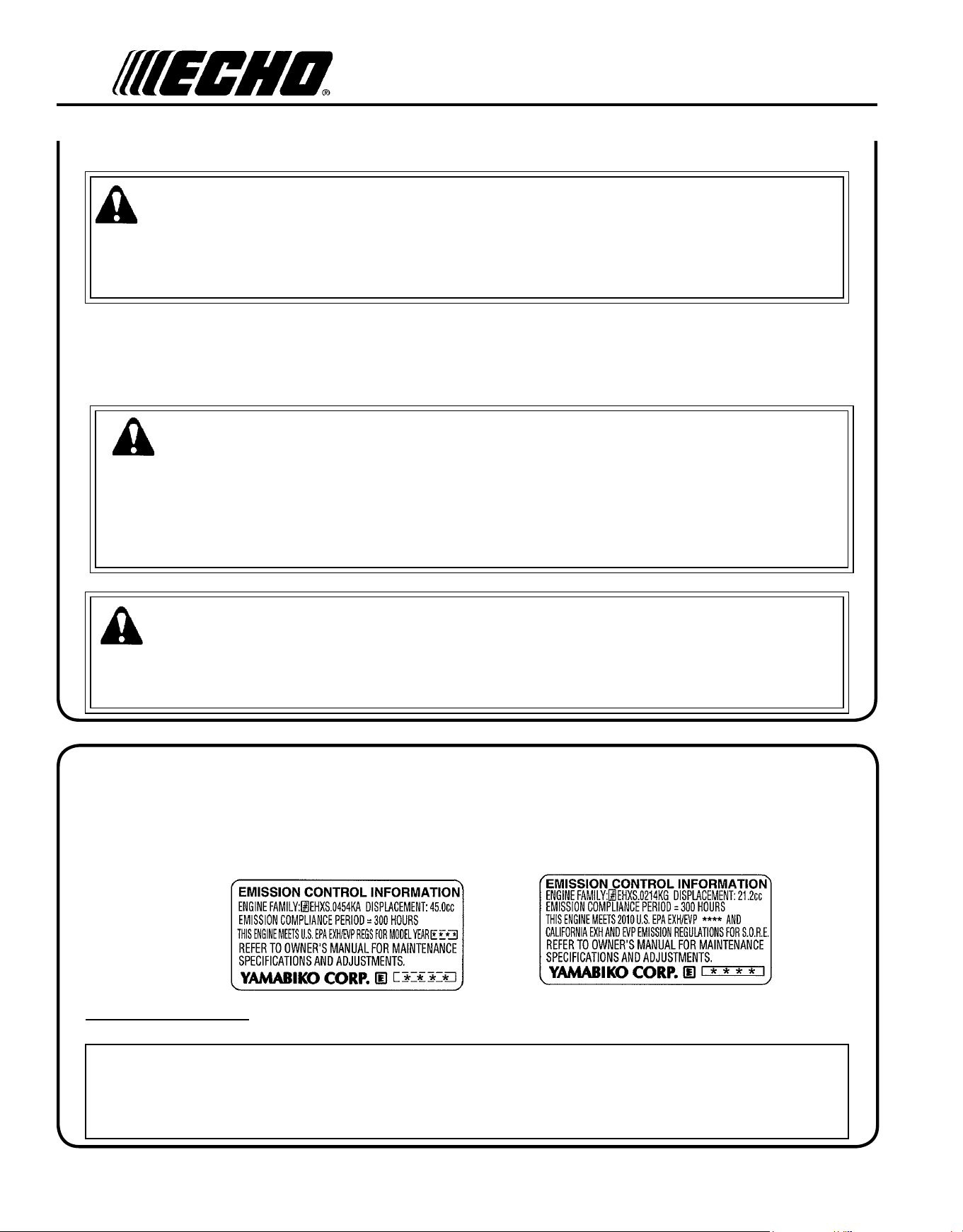

Emission Control Label (located on Engine) (EXAMPLE ONLY, information on label varies by FAMILY).
e q u I p m e n t
WARNING
Use only ECHO approved attachments. Serious injury may result from the use of a non-approved attachment com-
bination. ECHO, INC. will not be responsible for the failure of cutting devices, attachments, or accessories which
have not been tested and approved by ECHO. Read and comply with all safety instructions listed in this manual and
safety manual.
• Check unit for loose/missing nuts, bolts, and screws. Tighten and/or replace as needed.
• Never adjust blades when the engine is operating.
• Inspect hand guard for damage. Replace if damaged or missing.
• Check that the blade assembly is rmly attached and in safe operating condition. Dull, loose or damaged blades
should not be used.
WARNING
Moving parts can amputate ngers or cause severe injuries. Keep hands, clothing and loose objects away from all
openings.
• ALWAyS stop engine, disconnect spark plug, and make sure all moving parts have come to a complete stop
before removing obstructions, clearing debris, or servicing unit.
• DO NOT start or operate unit unless all guards and protective covers are properly assembled to unit.
• NEVER reach into any opening while the engine is running. Moving parts may not be visible through openings.
WARNING
Check fuel system for leaks due to fuel tank damage, especially if the unit is dropped. If damage or leaks are found,
do not use unit, otherwise serious personal injury or property damage may occur. Have unit repaired by an autho-
rized servicing dealer before using.
em I s s I o n co n t r o l (e x h a u s t & e v a p o r a t I v e )
EPA 2010 and Later and/or C.A.R.B. TIER III
The emission control system for the engine is EM/TWC (Engine Modication and 3-way Catalyst) and for the fuel tank
the Control System is EVAP (Evaporative Emissions) or N (for nylon tank). Evaporative emission may be applicable to
California models only.
PRODUCT EMISSION DURAbILITy (EMISSION COMPLIANCE PERIOD)
The 300 hour emission compliance period is the time span selected by the manufacturer certifying the engine emis-
sions output meets applicable emissions regulations, provided that approved maintenance procedures are followed as
listed in the Maintenance Section of this manual.
He d g e Cl i p p e r
Op e r a t O r 's Ma n u a l
7
de s c r I p t I o n

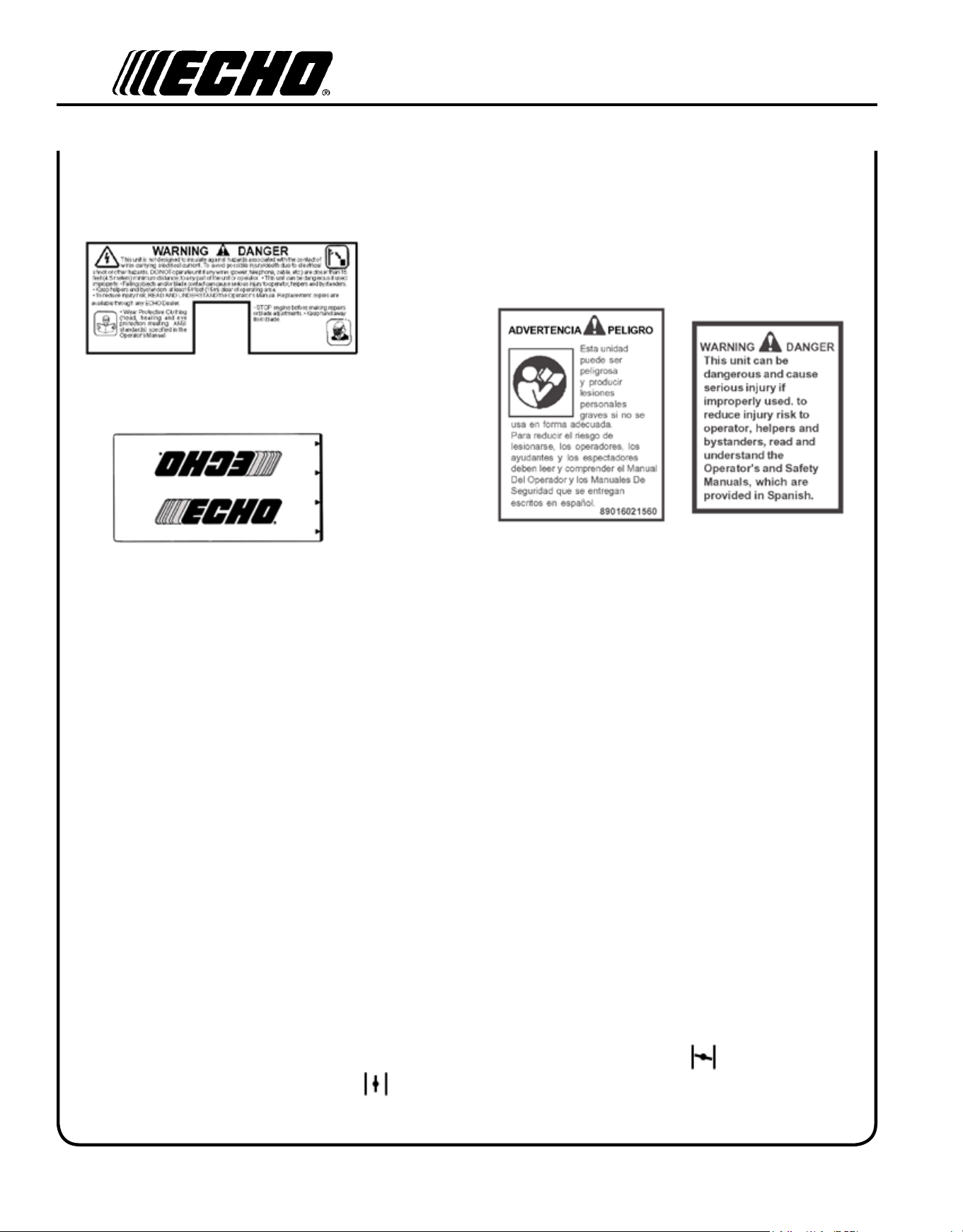

Locate these safety decals on your unit. Make sure the decals are legible and that you understand and follow the instruc-
tions on them. If a decal cannot be read, a new one can be ordered from your ECHO dealer. See PARTS ORDERING
instructions for specic information.
P/N X505002310
Hot Decal (near mufer)
1
3
7
8
9
4
6
2
5
12
13
14
15
16
18
17
11
19
shc-225
1
3
7
8
9
4
6
2
5
10
shc-225s
8

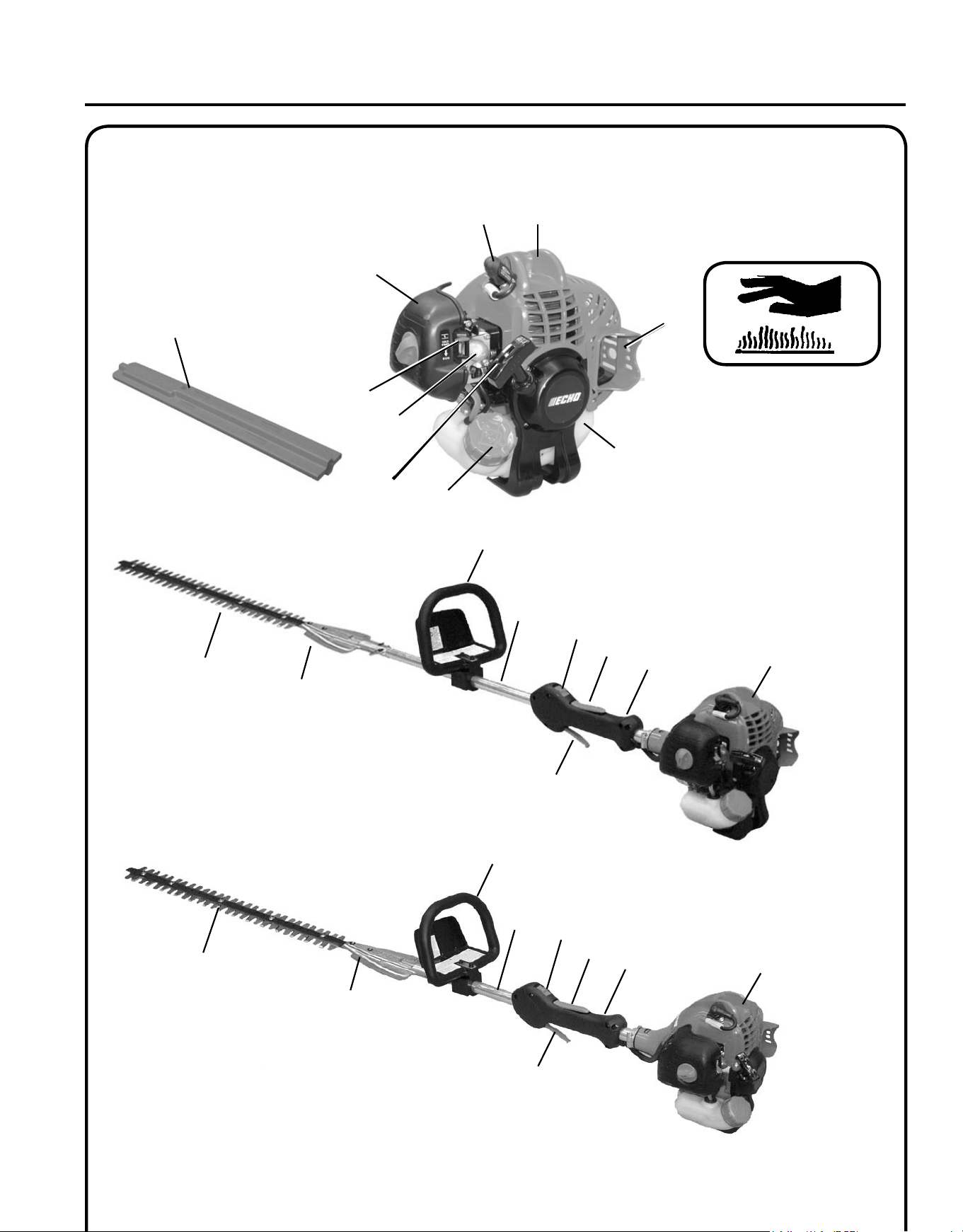

1. POWER HEAD - Includes the Engine, Clutch, Fuel System, Ignition System and Recoil Starter.
2. THROTTLE HANDLE - FOR RIGHT HAND - Contains Stop Switch, Throttle Lockout, and Throttle Trigger.
3. THROTTLE TRIGGER LOCKOUT - This lever must be held during starting. Operation of the throttle trigger is
prevented unless throttle trigger lockout lever is engaged.
4. STOP SWITCH - Mounted on top of the Throttle Trigger Housing. Move switch FORWARD to RUN, BACK to
STOP.
5. DRIVE SHAFT ASSEMbLy - Contains the Flexible Drive Cable.
6. SUPPORT HANDLE - FOR LEFT HAND - Adjustable, loop handle for proper cutting attitude and operator
comfort.
7. bLADES - Double reciprocating blades mounted to a blade support bar. Double sided blades, are capable of cut-
ting on either side.
8. GEAR HOUSING ASSEMbLy - Gear housing assembly xed straight extension.
9. THROTTLE TRIGGER - Spring loaded to return to idle when released. During acceleration, depress gradually
for best operating technique.
10. bLADE COVER - Used to cover blade during transport and storage. Remove blade cover before using unit.
11. SPARK PLUG - Provides spark to ignite fuel mixture.
12. TOP GUARD - Protects arm from the hot engine.
13. SPARK ARRESTOR MUFFLER OR SPARK ARRESTOR MUFFLER WITH CATALyST -The mufer or
catalytic mufer controls exhaust noise and emission. The spark arrestor screen prevents hot, glowing particles of
carbon from leaving the mufer. Keep exhaust area clear of ammable debris.
14. FUEL TANK - Contains fuel and fuel lter.
15. FUEL TANK CAP - Covers and seals fuel tank opening.
16. RECOIL STARTER HANDLE - Pull handle slowly until starter engages, then quickly and rmly. When engine
starts, return handle slowly. DO NOT let handle snap back or damage to unit will occur.
17. PURGE bULb - Pumping purge bulb before starting engine draws fresh fuel from the fuel tank, purging air from
the carburetor. Pump purge bulb until fuel is visible and ows freely in the clear fuel tank return line. Pump purge
bulb an additional 4 or 5 times.
18. CHOKE CONTROL - Located on the air cleaner housing. Move the lever to Cold Start ( ) to close the choke
for Cold Starting. Move lever to Run ( ) position after engine res.
19. AIR CLEANER - Contains replaceable lter element.
Hand Guard
P/N 89018721560
P/N 89016021560
P/N X505001930
He d g e Cl i p p e r
Op e r a t O r 's Ma n u a l
9

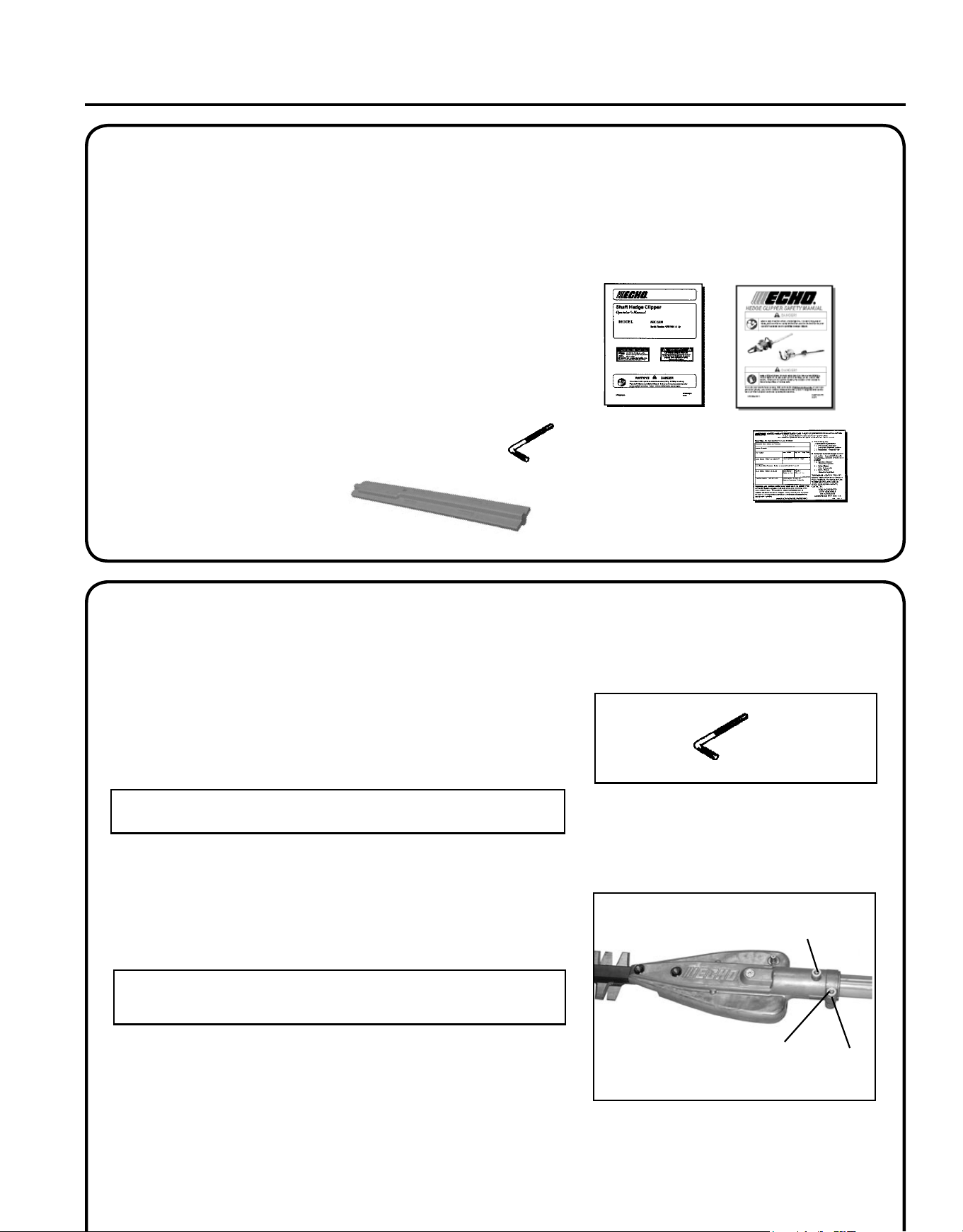

co n t e n t s
The ECHO product you have purchased has been factory pre-assembled for your convenience.
After opening the carton, check for damage. Immediately notify your retailer or ECHO Dealer of damaged or missing
parts. Use the contents list to check for missing parts.
____ 1 - Power Head/Driveshaft/Hedge Clipper Assembly
____ 1 - Operator's Manual
____ 1 - Hedge Clipper Safety Manual
____ 1 - Warranty Registration Card
____ 1 - Torx T27 L-Wrench (225 Model Only)
____ 1 - Blade Cover
as s e m b l y
225 Model Only
Tools Required: Torx T27 L-Wrench
Parts Required: Drive Shaft Assembly and Gear Housing Assembly.
g e a r h o u s I n g a s s e m b l y / d r I v e s h a f t
NOTE
Hedge Clipper Blades are very sharp. Wear gloves to protect hands.
1. Remove locating bolt (A) and loosen clamping bolt (B).
2. Remove vinyl cap from drive shaft.
3. Slide Gear Housing Assembly onto Drive Shaft. Be certain the
Flex Drive Shaft engages the hole in Driver Gear.
IMPORTANT
Flat edge of washer (C) must be against drive shaft.
4. Align locating hole in gear housing with locator hole in drive shaft.
5. Install locating bolt (A). Tighten clamping bolt (B).
A
B
C
10

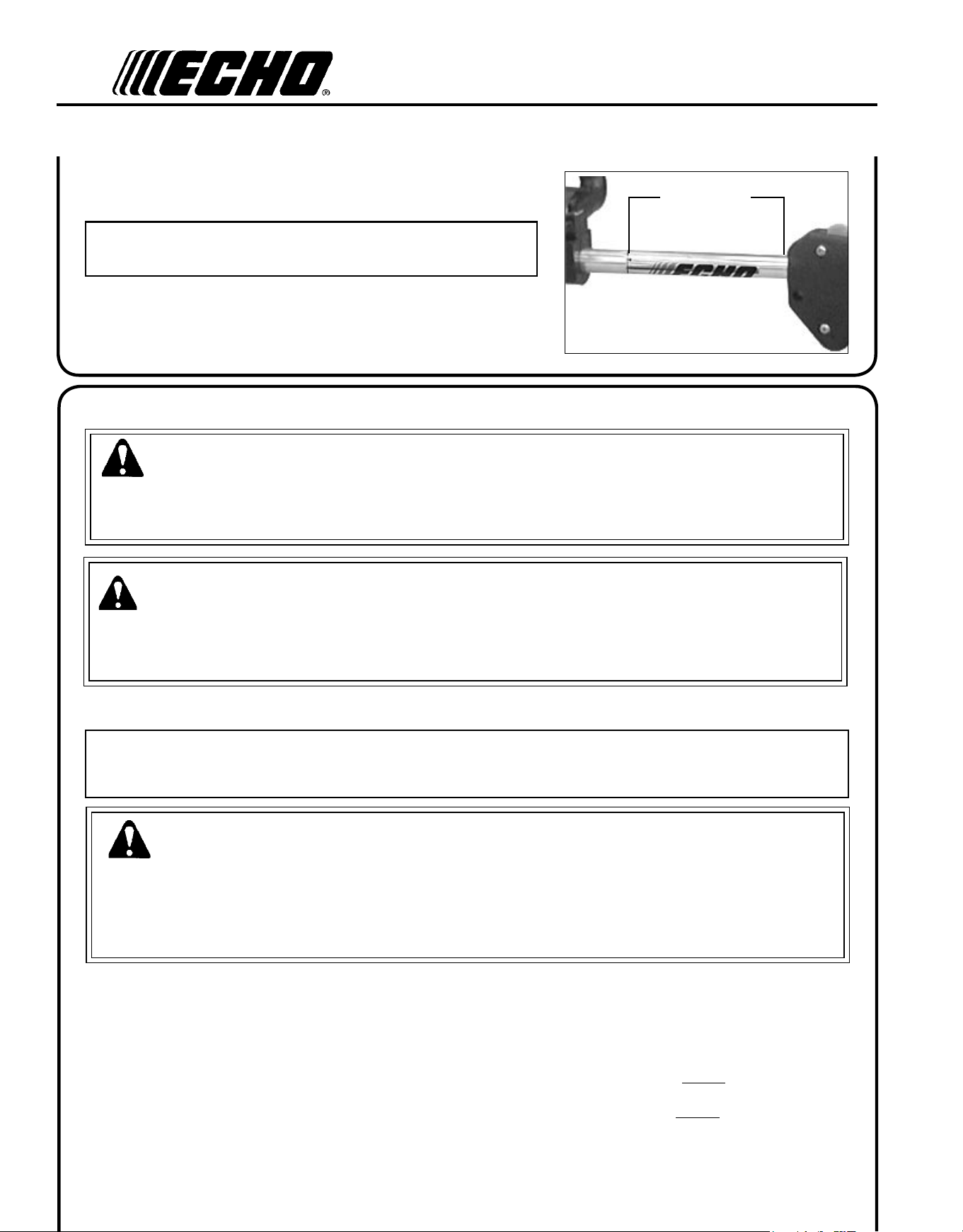

f r o n t h a n d l e
NOTE
Label shows minimum spacing for front handle location.
1. Position front handle in comfortable operating position and
tighten screws.
MIN
SPACING
f u e l
NOTICE: Use of unmixed, improperly mixed, or fuel older than 90 days, (stale fuel), may cause hard starting, poor
performance, or severe engine damage and void the product warranty. Read and follow instructions in the Storage
section of this manual.
WARNING
Alternative fuels, such as E-15 (15% ethanol), E-85 (85% ethanol) or any fuels not meeting ECHO requirements are
NOT approved for use in ECHO 2-stroke gasoline engines. Use of alternative fuels may cause performance prob-
lems, loss of power, overheating, fuel vapor lock, and unintended machine operation, including, but not limited to,
improper clutch engagement. Alternative fuels may also cause premature deterioration of fuel lines, gaskets, carbu-
retors and other engine components.
Fuel Requirements
Gasoline - Use 89 Octane [R+M/2] (mid grade or higher) gasoline known to be good quality. Gasoline may contain up
to 10% Ethanol (grain alcohol) or 15% MTBE (methyl tertiary-butyl ether). Gasoline containing methanol (wood alco-
hol) is NOT approved.
Two Stroke Oil - A two-stroke engine oil meeting ISO-L-EGD (ISO/CD 13738) and J.A.S.O. FC/FD Standards must
be used. Echo brand premium Power Blend X
TM
Universal 2-Stroke Oil meets these standards. Engine problems due to
inadequate lubrication caused by failure to use an ISO-L-EGD (ISO/CD 13738) and J.A.S.O. FC/FD certied oil, such as
Echo premium Power Blend X
TM
, will void the two-stroke engine warranty.
op e r a t I o n
WARNING
Moving parts can amputate ngers or cause severe injuries. Keep hands, clothing and loose objects away from all
openings. Always stop engine, disconnect spark plug, and make sure all moving parts have come to a complete
stop before removing obstructions, clearing debris, or servicing unit.
WARNING
Operation of this equipment may create sparks that can start res around dry vegetation. This unit is equipped with
a spark arrestor and a spark arrestor may be required. The operator should contact local re agencies for laws or
regulations relating to re prevention requirements.
He d g e Cl i p p e r
Op e r a t O r 's Ma n u a l
11

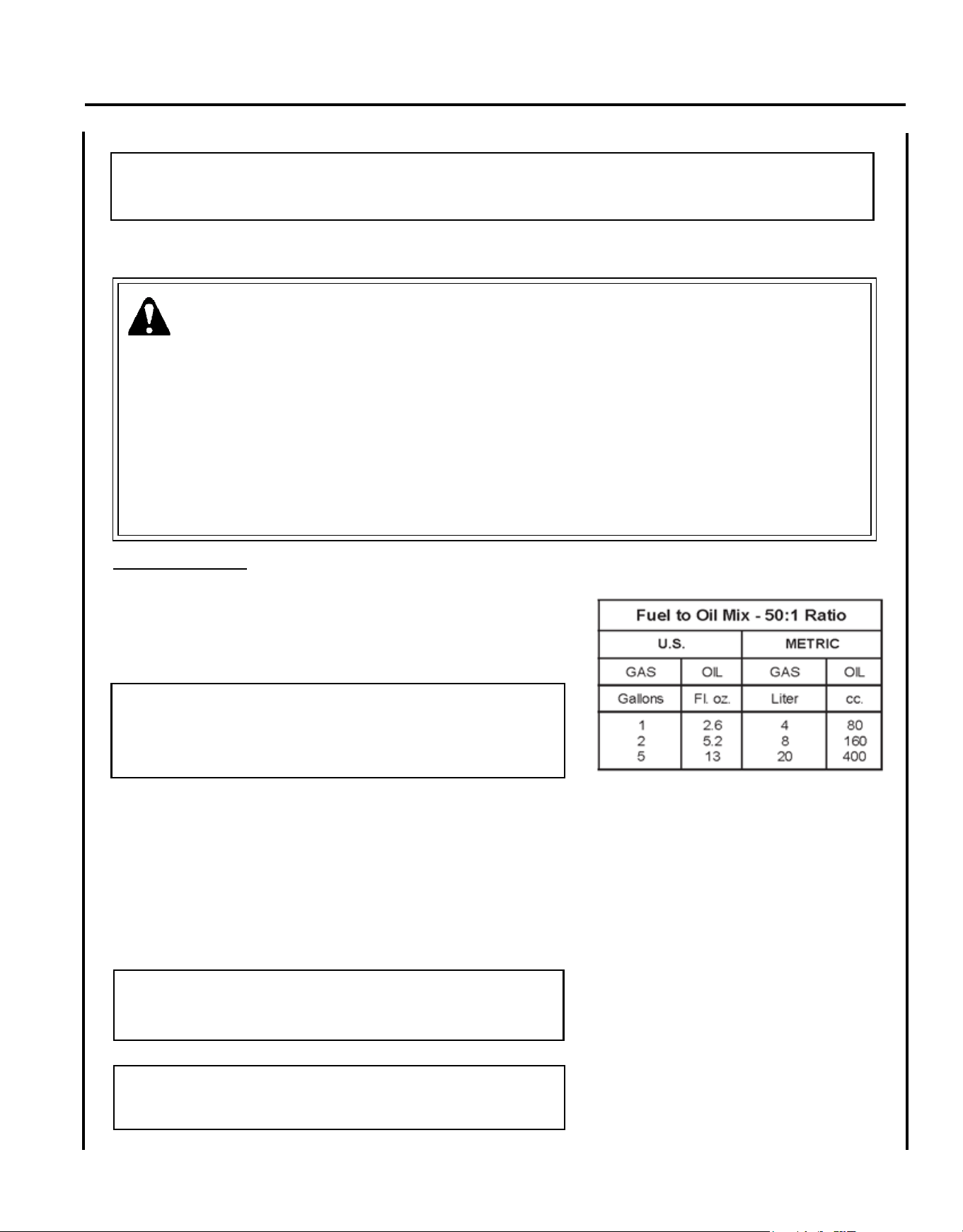

Mixing Instructions
1. Fill an approved fuel container with half of the required amount of
gasoline.
2. Add the proper amount of 2-stroke oil to gasoline.
3. Close container and shake to mix oil with gasoline.
4. Add remaining gasoline, close fuel container, and remix.
IMPORTANT
Spilled fuel is a leading cause of hydrocarbon emissions. Some
states may require the use of automatic fuel shut-off containers to
reduce fuel spillage.
After use
• DO NOT store a unit with fuel in its tank. Leaks can occur. Return
unused fuel to an approved fuel storage container.
Storage - Fuel storage laws vary by locality. Contact your local gov-
ernment for the laws affecting your area. As a precaution, store fuel in
an approved, airtight container. Store in a well-ventilated, unoccupied
building, away from sparks and ames.
IMPORTANT
Stored fuel ages. Do not mix more fuel than you expect to use in
thirty (30) days, ninety (90) days when a fuel stabilizer is added.
IMPORTANT
Stored two-stroke fuel may separate. ALWAYS shake fuel con-
tainer thoroughly before each use.
Handling Fuel
DANGER
Fuel is VERY ammable. Use extreme care when mixing, storing or handling or serious personal injury may result.
• Use an approved fuel container.
• DO NOT smoke near fuel.
• DO NOT allow ames or sparks near fuel.
• Fuel tanks/cans may be under pressure. Always loosen fuel caps slowly allowing pressure to equalize.
• NEVER refuel a unit when the engine is HOT or RUNNING!
• DO NOT ll fuel tanks indoors. ALWAYS ll fuel tanks outdoors over bare ground.
• DO NOT overll fuel tank. Wipe up spills immediately.
• Securely tighten fuel tank cap and close fuel container after refueling.
• Inspect for fuel leakage. If fuel leakage is found, do not start or operate unit until leakage is repaired.
• Move at least 3m (10 ft.) from refueling location before starting the engine.
IMPORTANT
Echo premium Power Blend X
TM
Universal 2-Stroke Oil may be mixed at 50:1 ratio for application in all Echo en-
gines sold in the past regardless of ratio specied in those manuals.
12

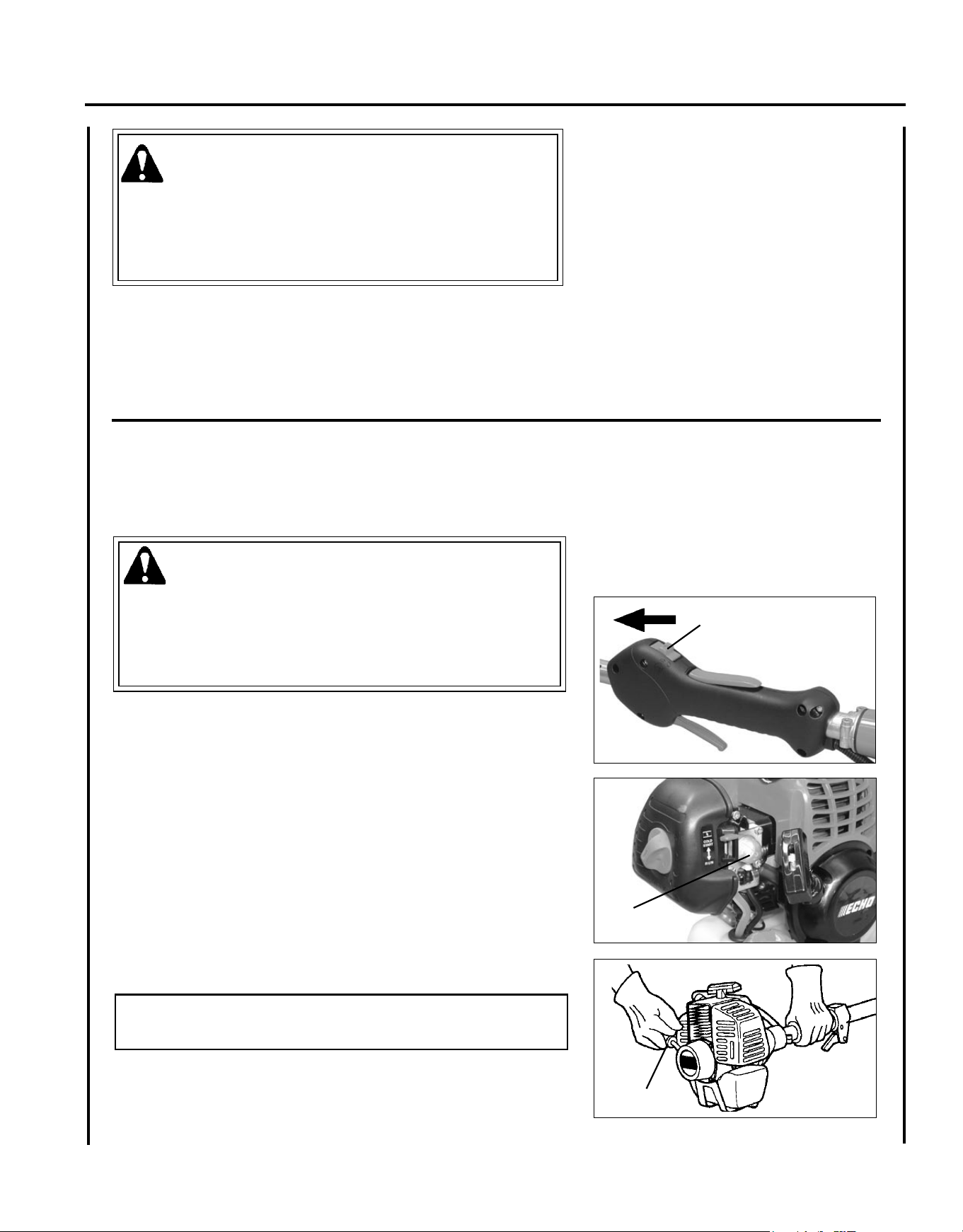

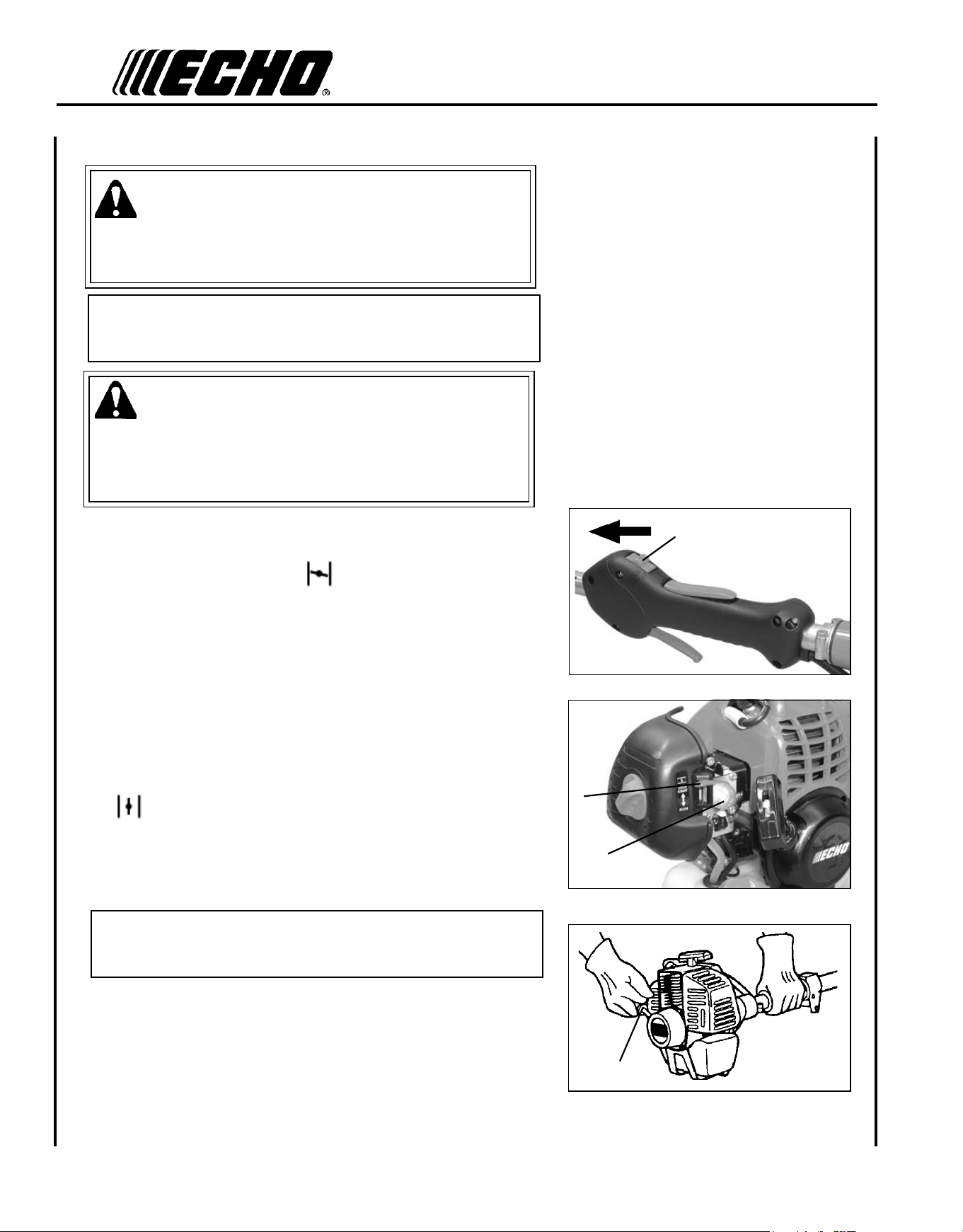

s t a r t I n g c o l d e n g I n e
WARNING
Hedge Clipper blades are very sharp. Touching them may lead to
severe personal injury. Avoid touching blades whenever possible,
and always wear gloves to protect hands.
NOTE
The blade cover is used for transportation and storage. Remove
blade cover before using the unit.
WARNING
The attachment will operate immediately when the engine starts
and could result in loss of control and possible serious injury.
Keep movable parts of the attachment off the ground and away
from objects that could become entangled or thrown.
1. Stop Switch
Move Stop Switch button away from the STOP position.
2. Choke
Move choke (B) to Cold Start (
) position.
3. Purge Bulb
Pump purge bulb (C) until fuel is visible and ows freely in the
clear fuel tank return line. Pump bulb an additional 4 or 5 times.
4. Recoil Starter
Lay the unit on a at area and keep movable attachment parts clear
of all obstacles. Firmly grasp throttle handle and throttle trigger
lockout with left hand and fully depress throttle trigger to wide
open position. Rapidly pull recoil starter handle/rope (D) until
engine res (or maximum ve [5] pulls).
5. Choke
After engine res or ve (5) pulls, move choke lever back to Run
(
) position. Firmly grasp throttle handle and throttle trigger
lockout with left hand and fully depress throttle trigger to wide
open position. Pull starter handle/rope until engine starts and runs.
Release throttle trigger and allow unit to warm up at idle for several
minutes.
NOTE
If engine does not start with choke in Run position after 5 pulls,
repeat instructions 2 -5.
C
D
A
B
He d g e Cl i p p e r
Op e r a t O r 's Ma n u a l
13
WARNING
The blades must not move at idle, otherwise serious personal in-
jury may result. Periodic carburetor adjustment may be necessary
to assure blades do not move at idle.
If blades move, readjust carburetor according to “Carburetor Ad-
justment” instructions in this manual or see your ECHO Dealer.
6. Throttle Trigger
After engine warm up, grip throttle handle with right hand and
support handle with left hand. Depress throttle trigger lockout, and
gradually depress throttle trigger to increase engine RPM to operat-
ing speed.
s t a r t I n g w a r m e n g I n e
The starting procedure is the same as Cold Start except DO NOT close
the choke, and do not depress throttle trigger to wide open position.
WARNING
The blades must not move at idle, otherwise serious personal in-
jury may result. Periodic carburetor adjustment may be necessary
to assure blades do not move at idle.
If blades move, readjust carburetor according to “Carburetor Ad-
justment” instructions in this manual or see your ECHO Dealer.
1. Stop Switch
Move Stop Switch button (A) away from the STOP position.
2. Purge Bulb
Pump purge bulb (C) until fuel is visible and ows freely in the
clear fuel tank return line. Pump bulb an additional 4 or 5 times.
3. Recoil Starter
Lay the unit on a at area and keep movable attachment parts clear
of all obstacles. Firmly grip throttle handle and throttle trigger lock-
out with left hand. Rapidly pull recoil starter handle/rope (D) until
engine res.
NOTE
If engine does not start after 5 pulls, use Cold Start Procedure.
A
C
D
14

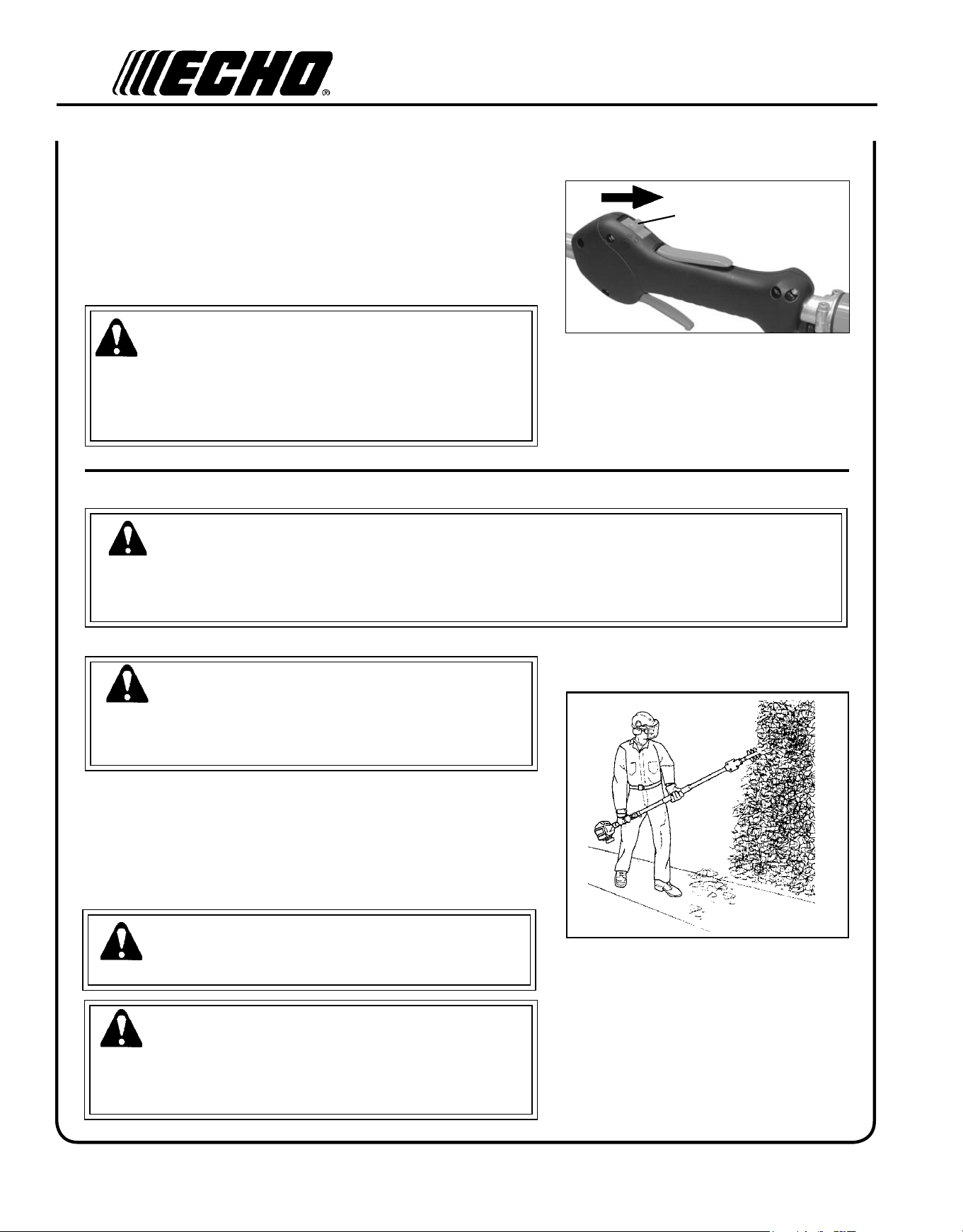

s t o p p I n g e n g I n e
1. Throttle
Release throttle and allow engine to return to idle before shutting
off engine.
2. Stop Switch
Move stop switch button (A) backward to STOP position.
WARNING
If engine does not stop when stop switch is moved to STOP posi-
tion, close choke - COLD START position - to stall engine. Have
your ECHO dealer repair stop switch before using hedge clipper
again or serious personal injury may result.
A
h e d g e t r I m m I n g
WARNING
Engine exhaust IS HOT, and contains Carbon Monoxide (CO), a poison gas. Breathing CO can cause unconscious-
ness, serious injury, or death. Exhaust can cause serious burns. ALWAYS position unit so that exhaust is directed
away from your face and body.
WARNING
Hedge Clipper blades are very sharp. Touching them may lead to
severe personal injury. Avoid touching blades whenever pos-
sible, and always wear gloves to protect hands.
1. Always grip throttle handle with right hand and support handle
with left hand while trimming.
2. Hold trimmer rmly and squeeze throttle trigger to accelerate
engine.
3. Tilt trimmer so cutting teeth are angled slightly toward the hedge
or shrub and proceed to cut.
WARNING
Never remove hands from unit when blades are moving.
WARNING
The engine continues running even when the blades have stopped
due to an obstruction. If this occurs, stop the engine, disconnect
ignition cable and remove the obstruction.
He d g e Cl i p p e r
Op e r a t O r 's Ma n u a l
15
m a I n t e n a n c e I n t e r v a l s
WARNING
Moving parts can amputate ngers or cause severe injuries. Keep hands, clothing and loose objects away from all
openings. Always stop engine, disconnect spark plug, and make sure all moving parts have come to a complete
stop before removing obstructions, clearing debris, or servicing unit. Allow unit to cool before performing service.
Wear gloves to protect hands from sharp edges and hot surfaces.
Your ECHO product is designed to provide many hours of trouble free service. Regular scheduled maintenance will help
achieve that goal. If you are unsure or are not equipped with the necessary tools, you may want to take your unit to an
ECHO Service Dealer for maintenance. To help you decide whether you want to DO-IT-YOURSELF or have the ECHO
Dealer do it, each maintenance task has been graded. If the task is not listed, see your ECHO Dealer for repairs.
s k I l l l e v e l s
Level 1 = Easy to do. Common tools may be required.
Level 2 = Moderate difculty. Some specialized tools may be required.
ECHO offers REPOWER
TM
Maintenance Kits and Parts to make your maintenance job easier.
ma I n t e n a n c e
COMPONENT/SYSTEM
MAINTENANCE
PROCEDURE
SKILL
LEVEL
REQ'D
DAILY OR
BEFORE
USE
EVERY
REFUEL
3 MONTHS
OR 90
HOURS
YEARLY 600
HOURS
Air Filter Inspect/Clean 1
I / C *
Choke Shutter Inspect/Clean 1
I / C
Fuel Filter Inspect 1
I * I / R *
Fuel Cap Gasket Inspect/Replace 1
I * R *
Fuel System Inspect/Replace 1
I (4) * I (4) *
Spark Plug Inspect/Clean 1
I / C / R *
Cooling System Inspect/Clean 2
I / C
Muffler Spark Arrestor Inspect/Clean/Replace 2
I / C / R *
Cylinder Exhaust Port Inspect/Clean/Decarbon 2
I / C
Drive Shaft Grease 2
I (1)
Gear Housing Grease 2
I (2)
Blades Inspect/Clean 1
I / C (3)
Recoil Starter Rope Inspect/Clean 1
I / C *
Screws/Nuts/Bolts Inspect/Tighten/Replace 1
I *
* All recommendations to replace are based on the finding of damage or wear during inspection.
(3) Inspect blade and clean and sharpen as needed. Lubricate blades periodically during use.
(4) Low evaporative fuel tanks DO NOT require regular maintenance to maintain emission integrity.
MAINTENANCE PROCEDURE LETTER CODES:
I = INSPECT, R = REPLACE, C = CLEAN
IMPORTANT NOTE
- Time intervals shown are maximum. Actual use and your experience will determine the
frequency of required maintenance.
MAINTENANCE PROCEDURE NOTES:
(1) Apply POWER BLENDX
TM
grease every 25 hours of use.
(2) Apply POWER BLENDX
TM
grease every 15 - 25 hours of use.
16

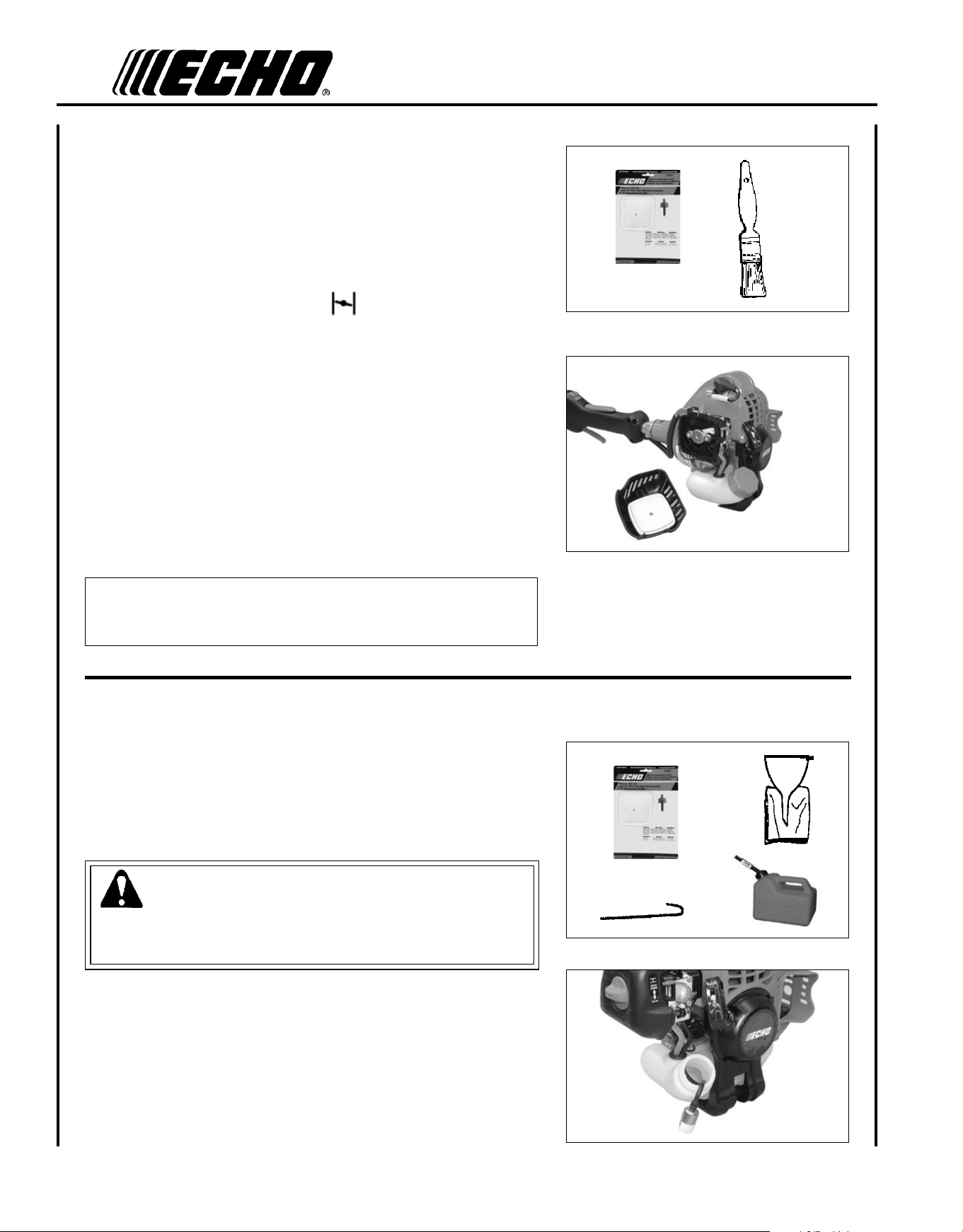

a I r f I l t e r
Level 1.
Tools required: 25 - 50 mm (1 - 2 in.) Cleaning Brush
Parts required: REPOWER
TM
AIR & FUEL FILTER KIT.
1. Close choke (Cold Start Position [ ]). This prevents dirt from
entering the carburetor throat when the air lter is removed. Brush
accumulated dirt from air cleaner area.
2. Remove air lter cover. Brush dirt from inside cover.
3. Remove air lter and lightly brush debris from lter. Replace lter
if it is damaged, fuel soaked, very dirty, or the rubber sealing edges
are deformed.
4. If lter can be reused, be certain it:
• Fits tightly in the air lter cavity.
• Is installed with the original side out.
5. Install air lter cover.
NOTE
Carburetor adjustment may be needed after air lter cleaning/re-
placement.
f u e l f I l t e r
Level 1.
Tools required: 200 - 250 mm (8 - 10 in.) length of wire with one
end bent into a hook, clean rag, funnel, and an
approved fuel container
Parts required: REPOWER
TM
AIR & FUEL FILTER KIT.
DANGER
Fuel is VERy ammable. Use extreme care when mixing, storing
or handling, or serious personal injury may result.
1. Use a clean rag to remove loose dirt from around fuel cap and
empty fuel tank.
2. Use the “fuel line hook” to pull the fuel line and lter from the
tank.
3. Remove the lter from the line and install the new lter.
He d g e Cl i p p e r
Op e r a t O r 's Ma n u a l
17

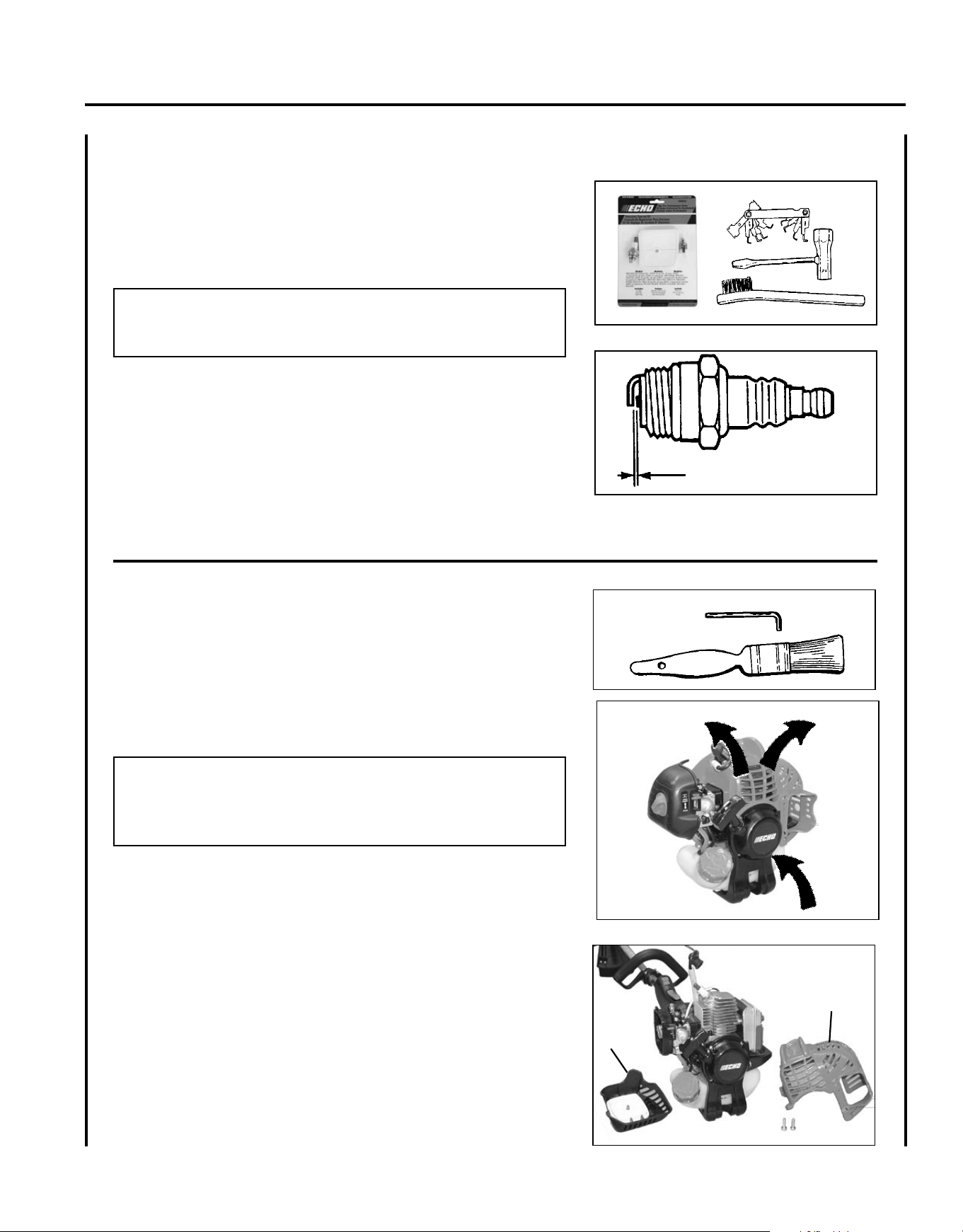

s p a r k p l u g
Level 2.
Tools Required: T-Wrench, feeler gauge, soft metal brush
Parts Required: REPOWER
TM
Tune-Up Kit
IMPORTANT
Use only NGK BPM-8Y spark plug (BPMR-8Y in Canada) other-
wise severe engine damage may occur.
1. Remove spark plug and check for fouling, worn and rounded
center electrode.
2. Clean the plug or replace with a new one. DO NOT sand blast to
clean. Remaining sand will damage engine.
3. Adjust spark plug gap by bending outer electrode.
4. Tighten spark plug to 150-170 kgf • cm (130-150 in • lbf).
c o o l I n g s y s t e m
Level 2.
Tools required: T27 Torx L-Wrench, 25 - 50 mm (1 - 2 in.)
Cleaning Brush,
Parts Required: None.
IMPORTANT
To maintain proper engine operating temperatures, cooling air
must pass freely through the cylinder n area. This ow of air car-
ries combustion heat away from the engine.
Overheating and engine seizure can occur when:
• Air intakes are blocked, preventing cooling air from reaching the
cylinder.
• Dust and grass build up on the outside of the cylinder. This build
up insulates the engine and prevents the heat from leaving.
Removal of cooling passage blockages or cleaning of cooling ns is
considered “Normal Maintenance.” Any failure attributed to lack of
maintenance is not warranted.
1. Remove spark plug lead.
2. Remove air cleaner cover (A).
3. Remove 2 engine cover screws and engine cover (B).
0.65 mm
(0.026 in.)
A
B
18

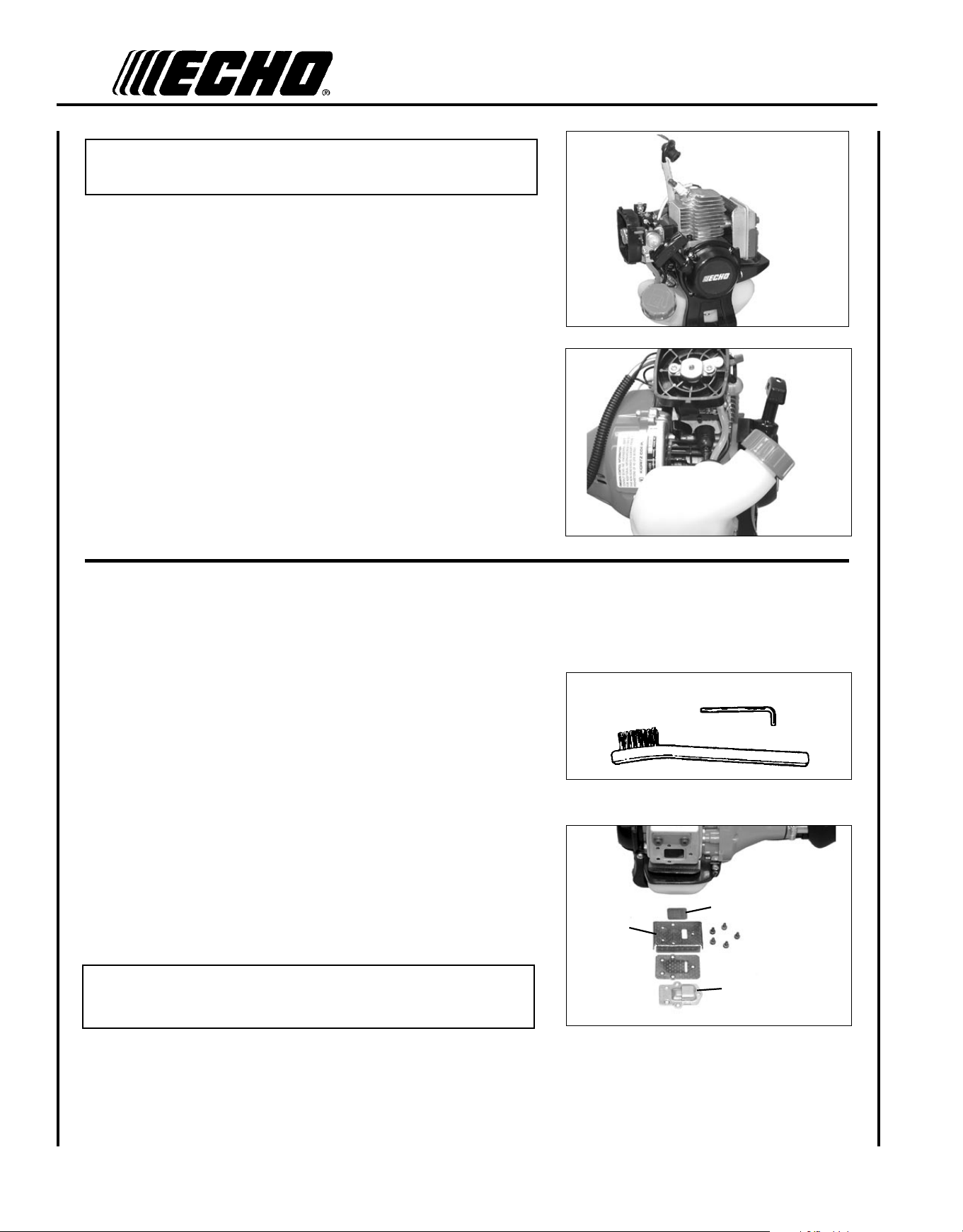

IMPORTANT
DO NOT use a metal scraper to remove dirt from the cylinder ns.
4. Remove ignition wires from clip for cleaning.
5. Use brush to remove dirt from the cylinder ns.
6. Remove grass and leaves from the grid between the recoil starter
and fuel tank.
7. Assemble components in reverse order.
e x h a u s t s y s t e m
Spark Arrestor Screen
Level 2.
Tools Required: T27 Torx L-Wrench, Soft Metal Brush
Parts Required: Screen, Gasket
1. Remove spark plug lead from spark plug, and remove engine cover
(2 screws).
2. Place piston at Top Dead Center (TDC) to prevent carbon/dirt from
entering cylinder.
3. Remove spark arrestor screen cover (C), gasket (D), and screen
(E), from mufer body.
4. Clean carbon deposits from mufer components.
NOTE
When cleaning carbon deposit, be careful not to damage the cata-
lytic element inside mufer.
5. Replace screen if it is cracked, plugged, or has holes burned
through.
6. Install engine cover and attach spark plug lead.
C
D
E
He d g e Cl i p p e r
Op e r a t O r 's Ma n u a l
19

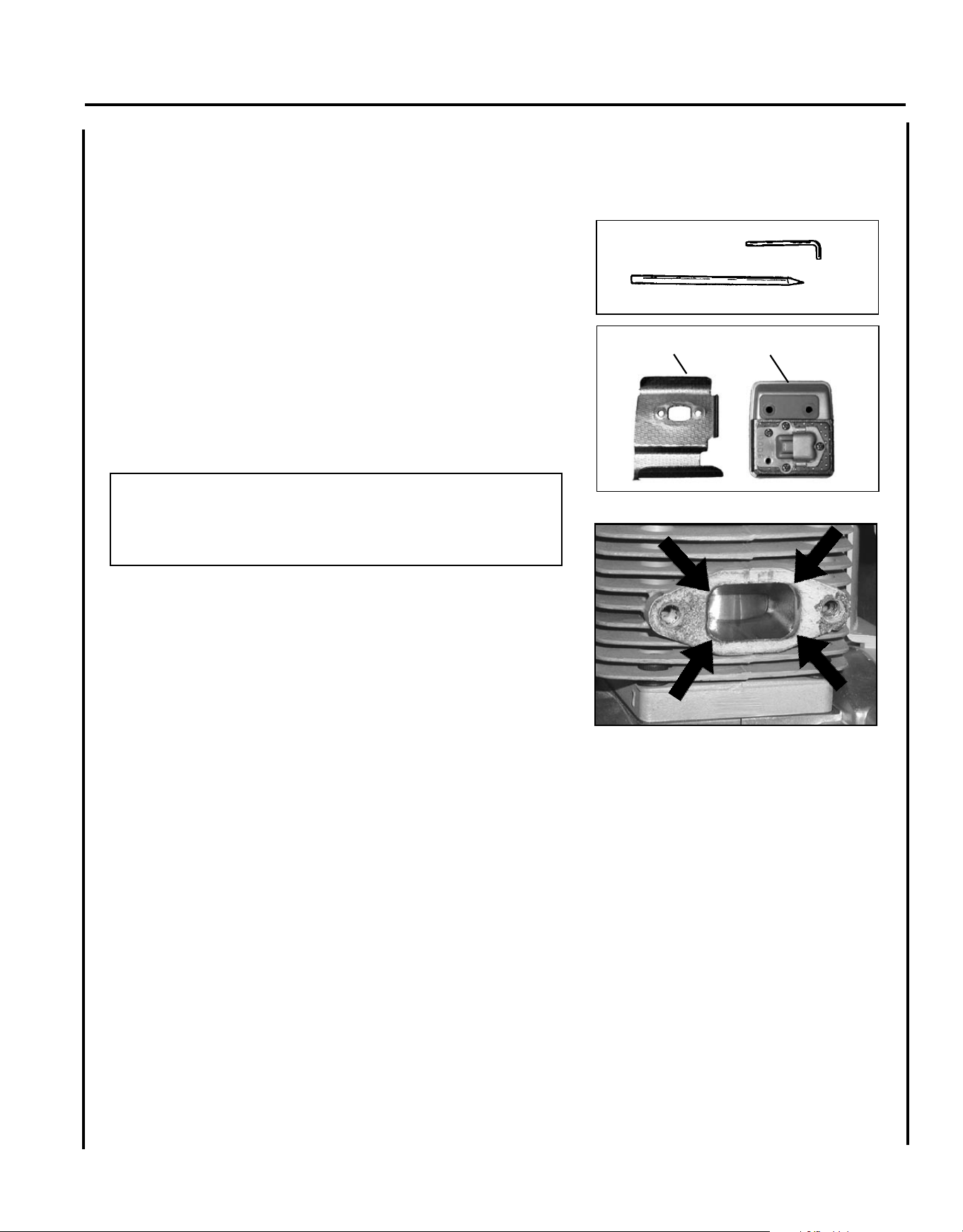

Exhaust Port Cleaning
Level 2.
Tools required: Torx T27 L-Wrench, Wood or plastic scraper
Parts Required: As needed: Heat Shield
1. Remove spark plug lead from spark plug, and remove engine cover
(2 screws).
2. Place piston at top dead center. Remove mufer (A) and heat
shield (B).
3. Use a wood or plastic scraping tool to clean deposits from cylinder
exhaust port.
IMPORTANT
Never use a metal tool to scrape carbon from the exhaust port.
Do not scratch the cylinder or piston when cleaning the exhaust
port. Do not allow carbon particles to enter the cylinder.
4. Inspect heat shield, and replace if damaged.
5. Install heat shield and mufer.
6. Tighten mufer mounting bolts (or nuts) to 80-95 in•lbf
(90-110 kgf•cm).
7. Install engine cover and attach spark plug lead.
8. Start engine, and warm to operating temperature.
9. Stop engine, and re-tighten mounting bolts (or nuts) to specica-
tions.
A
B
20

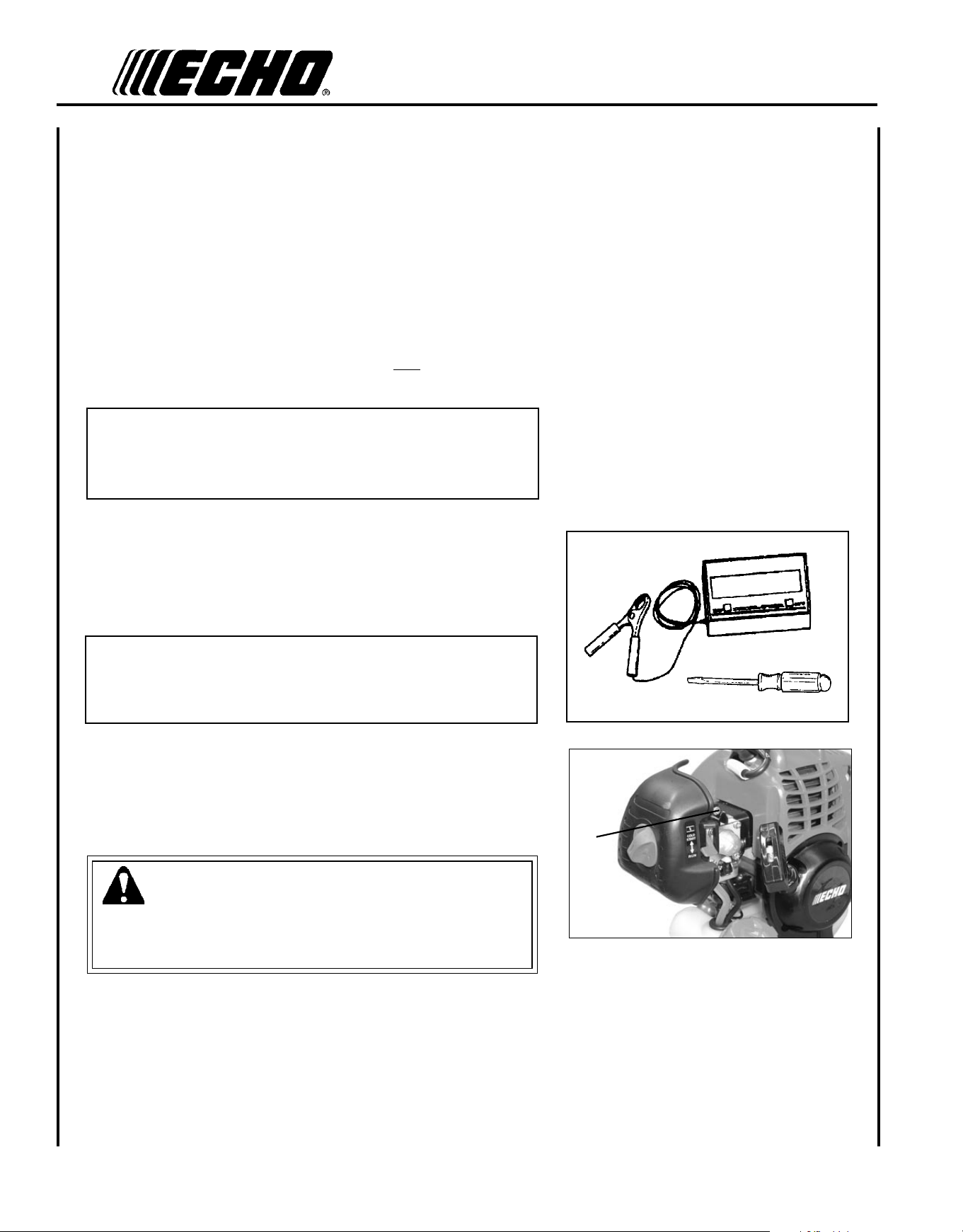

c a r b u r e t o r a d j u s t m e n t
Engine Break-In
New engines must be operated a minimum duration of two tanks of fuel
break-in before carburetor adjustments can be made. During the break-
in period your engine performance will increase and exhaust emissions
will stabilize. Idle speed can be adjusted as required.
High Altitude Operation
This engine has been factory adjusted to maintain satisfactory starting,
emission, and durability performance up to 1,100 feet above sea level
(ASL) (96.0 kPa). To maintain proper engine operation and emission
compliance above 1,100 feet ASL the carburetor may need to be ad-
justed by an authorized ECHO service dealer.
IMPORTANT
If the engine is adjusted for operation above 1,100 feet ASL, the
carburetor must be re-adjusted when operating the engine below
1,100 feet ASL, otherwise severe engine damage may result.
Level 2.
Tools required: Screwdriver, Tachometer (ECHO P/N
99051130017).
Parts required: None.
NOTE
Every unit is run at the factory and the carburetor is set in compli-
ance with emission regulations. Carburetor adjustments, other than
idle speed, must be performed by an authorized ECHO dealer.
1. Check idle speed and reset if necessary. If a tachometer is avail-
able, idle speed screw (A) should be set to the specications found
on page 26 "Specications" of this manual. Turn idle screw (A)
clockwise to increase idle speed; counter clockwise to decrease
idle speed.
WARNING
When carburetor adjustment is completed, the cutting attachment
should not move at idle, otherwise serious personal injury may
result.
A
He d g e Cl i p p e r
Op e r a t O r 's Ma n u a l
21

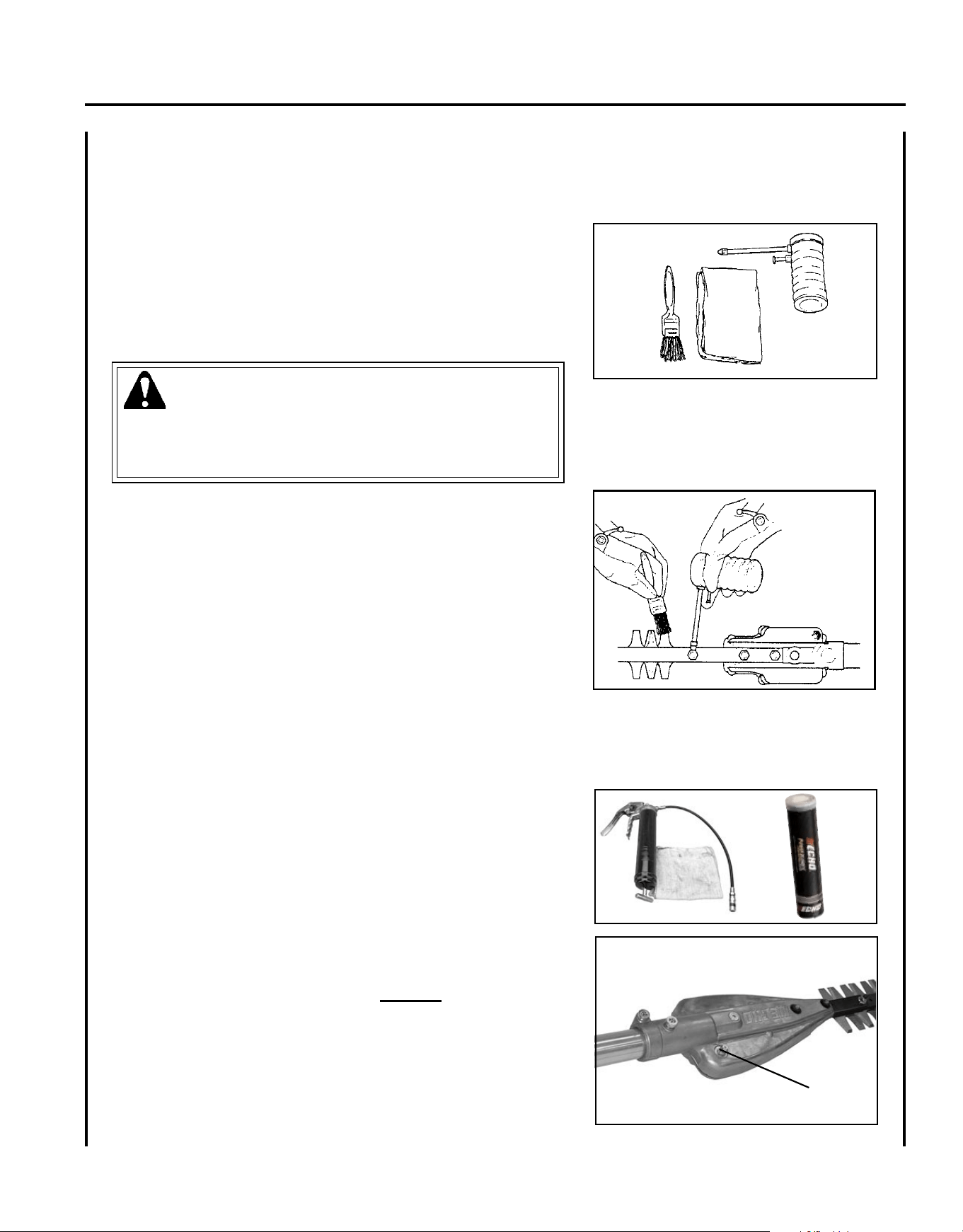

l u b r I c a t I o n
Blades
Level 1.
Tools Required: Clean rag, cleaning brush, oil can
Parts Required: 20W Engine Oil (lubrication), 50-50 mixture of
kerosene and 20W oil (cleaning)
WARNING
Hedge Clipper blades are very sharp. Touching them may lead to
severe personal injury. Avoid touching blades whenever possible,
and always wear gloves to protect hands.
1. Brush loose debris from blade and coat both sides of blade with the
50-50 cleaning mixture.
2. Allow cleaning mixture to soften the remaining gummy residue
then wipe it from the blade.
3. Apply clean oil to the entire length of the blade. Be certain the
blade bolts are lubricated.
4. Wipe excess oil from the blade before putting the unit back in ser-
vice.
Gear Case
Level 2.
Tools required: Grease gun with Lithium Grease, clean rag
Parts required: POWER BLENDX
TM
14 oz. cartridge or Lithium
Based Grease
1. Clean dirt from grease tting (A).
2. Carefully pump grease in tting (A). DO NOT force grease.
Too much pressure will force grease past seals and cause damage.
Apply 1-2 pumps of grease every 15-25 hours of operation.
A
22

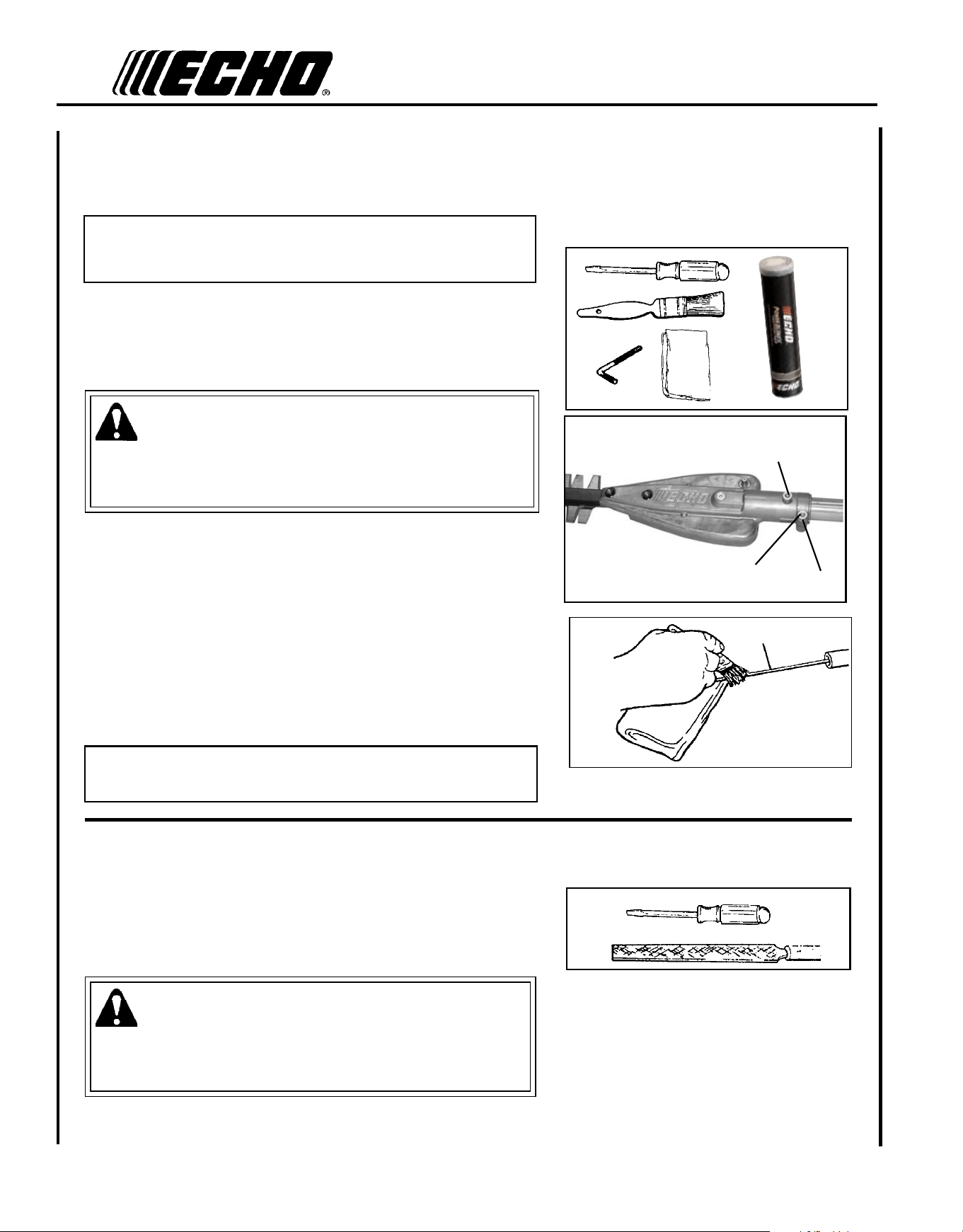

Drive Shaft Assembly
Level 1.
NOTE
Hedge Clipper drive shaft should be greased every 25 hours of
operation.
Tools required: Torx T27 L-Wrench, screwdriver, clean rag, small
brush
Parts required: POWER BLENDX
TM
14 oz. cartridge or Lithium
Based Grease
WARNING
Hedge Clipper blades are very sharp. Touching them may lead to
severe personal injury. Avoid touching blades whenever possible,
and always wear gloves to protect hands.
1. Remove gear housing locating screw (A) and clamping screw (B).
Remove the gear housing assembly from the drive shaft housing.
2. Pull the drive shaft (C) from the housing, wipe clean and re-coat
with a thin coating [1/2 oz. (15 ml)] of grease.
3. Slide the drive shaft back in the drive housing being careful not to
get dirt on the ex shaft.
4. Install the gear housing assembly.
IMPORTANT
Flat edge of washers (D) must be against drive shaft.
s h a r p e n I n g b l a d e s
Level 2.
Tools required: Flat le, screwdriver
Parts required: None
WARNING
Hedge Clipper blades are very sharp. Touching them may lead to
severe personal injury. Avoid touching blades whenever possible,
and always wear gloves to protect hands.
C
A
B
D
He d g e Cl i p p e r
Op e r a t O r 's Ma n u a l
23

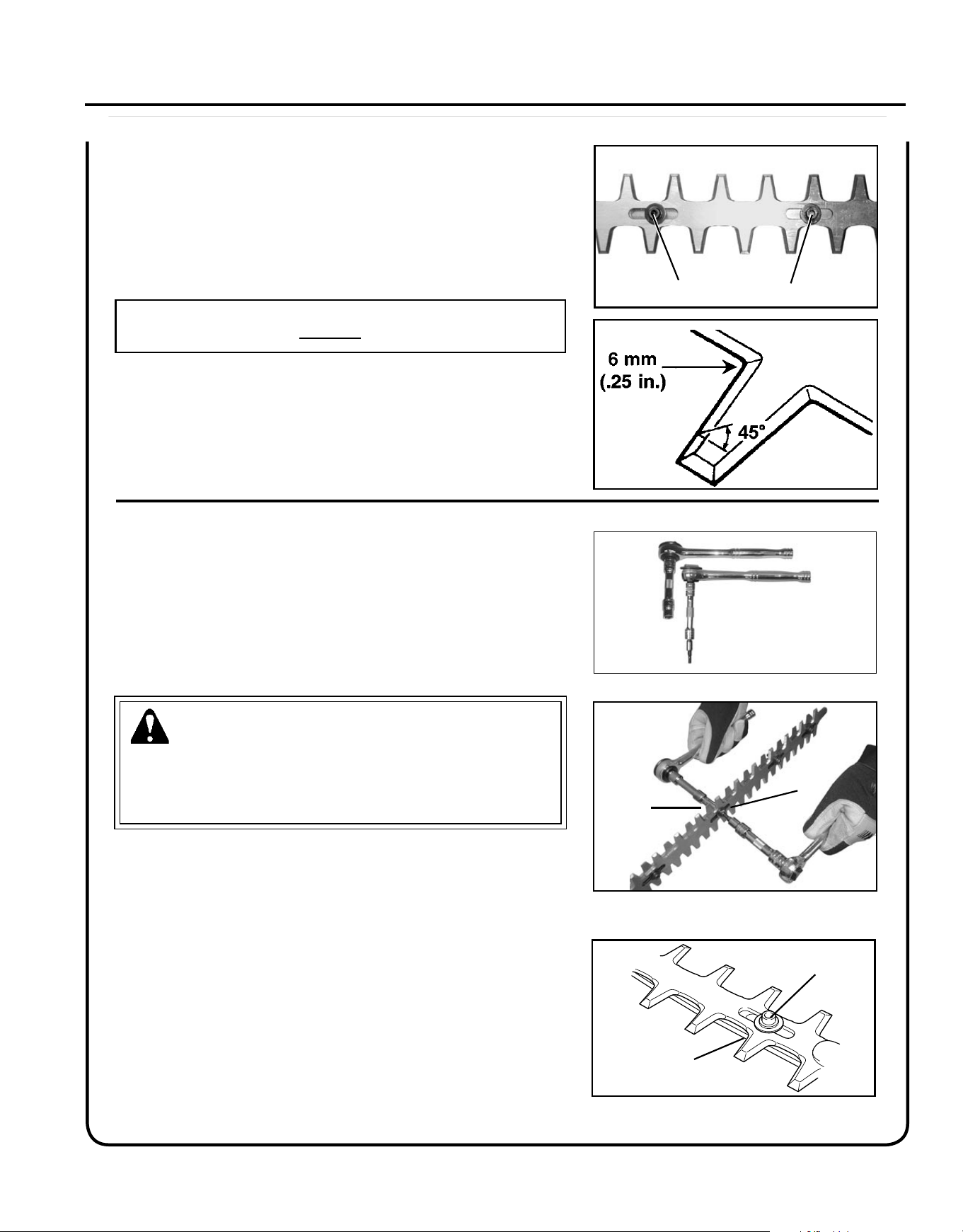

1. Disconnect spark plug wire from spark plug.
2. Slide blades to allow le clearance using slots (A) on bottom of
blades. Do not pry against cutting edges.
3. Follow the original shape, and le each cutting edge carefully to
avoid damage to adjacent teeth. Maintain 6 mm (.25 in.) radius at
base of each tooth.
IMPORTANT
If a power grinder is used, DO NOT allow blade to over heat.
4. Lubricate blades. See "Lubrication".
5. Connect spark plug wire.
b l a d e a d j u s t m e n t
Level 2.
Tools Required: 8 mm Socket & Extension, 4mm Hex Wrench w/
extension
1. Move stop switch to STOP position.
2. Disconnect spark plug wire.
WARNING
Hedge clipper blades are very sharp. Touching them may lead to
severe personal injury. Use long hex wrenches and sockets with
extensions when tightening blade screws and blade locknuts to keep
hands at a safe distance from sharp blades.
3. Tighten blade screws (A) securely.
4. Hold blade screws (A) to prevent turning, and tighten locknuts (B).
A
B
A
A
A
B
24
DANGER
Fuel vapors are extremely ammable and may cause re and/or explosion. Never test for ignition spark by ground-
ing spark plug near cylinder plug hole, otherwise serious personal injury may result.
tr o u b l e s h o o t I n g
TRAHCGNITOOHSELBUORTMELBORPENIGNE
melborPkcehCsutatSesuaCydemeR
enignE
-sknarc
/drahstrats
t'nseod
trats
roterubractaleuFroterubractaleufoNdeggolcreniartsleuF
deggolcenilleuF
roterubraC
ecalperronaelC
ecalperronaelC
relaedohcEruoyeeS
rednilyctaleuFrednilyctaleufoNroterubraCrelaedohcEruoyeeS
leufhtiwtewrelffuMhcirooterutxiMleuFekohcnepO
retlifriaecalper/naelC
roterubractsujdA
relaedohcEruoyeeS
dnetakrapS
eriwgulpfo
krapsoNffohcti
wspotS
melborplacirtcelE
hctiwskcolretnI
NOothctiwsnruT
relaedohcEruoyeeS
relaedohcEruoyeeS
gulptakrapSkrapsoNtcerrocnipagkrapS
nobrachtiwderevoC
leufhtiwdeluoF
evitcefedgulP
).ni620.0(mm56.ottsujdA
ecalperronaelC
ecalperronaelC
gulpecalpeR
,snurenignE
roseidtub
tonseod
etarelecca
ylreporp
retlifriAytridretlifriAraewlamroNecalperronaelC
retlifleuFytridretlifleuFseudiser/stnanimatnoCni
leuf
ecalpeR
tnevleuFdeggulptnevleuFniseudise
r/stnanimatnoC
leuf
ecalperronaelC
gulPkrapSnrow/ytridgulPraewlamroNecalperrotsujdadnanaelC
roterubraCtnemtsujdareporpmInoitarbiVtsujdA
metsySgnilooCmetsysgnilooC
deggulp/ytrid
ninoitarepodednetxE
snoitacolytsud/ytrid
naelC
rotserrAkrapS
neercS
rotserrakrapS
deggulpneercs
raewlamroNecalpeR
seodenignE
knarcton
A/NA/NmelborpenignelanretnIrelaedohcEruoyeeS
He d g e Cl i p p e r
Op e r a t O r 's Ma n u a l
25
IMPORTANT
Always store and transport hedge clippers in a stable, horizontal position. Support gear case and cutting blades to
prevent excessive exing, which may cause damage to these components. Always install blade cover when transport-
ing or storing unit.
st o r a g e
WARNING
During operation the mufer or catalytic mufer and surrounding cover become hot. Always keep exhaust area
clear of ammable debris during transportation or when storing, otherwise serious personal injury may result.
Long Term Storage (over 30 days)
Do not store your unit for a prolonged period of time (30 days or longer) without performing protective storage mainte-
nance which includes the following:
1. Store unit in a dry, dust free place, out of the reach of children.
WARNING
Hedge Clipper blades are very sharp. Touching them may lead to severe personal injury. Avoid touching blades
whenever possible, and always wear gloves to protect hands.
DANGER
Do not store in enclosure where fuel fumes may accumulate or reach an open ame or spark, otherwise serious
personal injury may result.
2. Place the stop switch in the “OFF” position.
3. Remove accumulation of grease, oil, dirt and debris
from exterior of unit.
4. Perform all periodic lubrication and services that are
required.
5. Apply clean oil to the entire length of the blade. Be
certain the blade bolts are lubricated.
6. Install blade cover on blades.
7. Tighten all the screws and nuts.
8. Drain the fuel tank completely and pull the recoil
starter handle several times to remove fuel from the
carburetor.
9. Remove the spark plug and pour 7cc (1/4 oz.) of
fresh, clean, two-stroke engine oil into the cylinder
through the spark plug hole.
A. Place a clean cloth over the spark plug hole.
B. Pull the recoil starter handle 2-3 times to
distribute the oil inside the engine.
C. Observe the piston location through the spark
plug hole. Pull the recoil handle slowly until the
piston reaches the top of its travel and leave it
there.
10. Install the spark plug (do not connect ignition cable).
26
sp e c I f I c a t I o n s
MODEL ---------------------------------------------------- SHC-225, SHC-225S
Length (SHC-225) --------------------------------------- 1758 mm (69.21 in.)
Length (SHC-225S) -------------------------------------- 1480 mm (58.27 in.)
Width (SHC-225) ----------------------------------------- 246 mm (9.69 in.)
Width (SHC-225S) ---------------------------------------- 246 mm (9.69 in.)
Height (SHC-225) ----------------------------------------- 290 mm (11.4 in.)
Height (SHC-225S) ---------------------------------------- 290 mm (11.4 in.)
Weight (dry) (SHC-225) ---------------------------------- 6.21 kg (13.7 lb.)
Weight (dry) (SHC-225S) -------------------------------- 6.03 kg (13.3 lb.)
Engine Type ------------------------------------------------ Air cooled, two-stroke, single cylinder gasoline engine
Bore ---------------------------------------------------------- 32.2 mm (1.27 in.)
Stroke -------------------------------------------------------- 26.0 mm (1.02in.)
Displacement ----------------------------------------------- 21.2 cc (1.29 cu. in.)
Exhaust ------------------------------------------------------ Spark arrestor mufer or spark arrestor mufer with catalyst
Carburetor--------------------------------------------------- Zama Diaphragm w/Purge Pump
Ignition System -------------------------------------------- Flywheel Magneto, CDI (capacitor discharge ignition) with ESG
Spark Plug -------------------------------------------------- NGK BPM-8Y (Gap 0.65 mm (0.026 in.)
Fuel ---------------------------------------------------------- Mixed (Gasoline and Two-stroke Oil)
Fuel/Oil Ratio ---------------------------------------------- 50 : 1 Power Blend X™ ISO-L-EGD (ISO/CD 13738) and
J.A.S.O. M345- FC/FD, two-stroke, air-cooled engine oil.
Gasoline ----------------------------------------------------- Use 89 Octane unleaded. Do not use fuel containing methyl
alcohol, more than 10% ethyl alcohol or 15% MTBE. Do not use
alternative fuels such as E-15 or E-85.
Oil ------------------------------------------------------------ Power Blend X
TM
Premium Universal 2-Stroke Oil
Fuel Tank Capacity ---------------------------------------- 0.44 lit. (14.9 US . oz.)
Recoil Starter System ------------------------------------- Automatic Recoil Starter
Clutch-------------------------------------------------------- Centrifugal Type
Gear Case Ratio ------------------------------------------- 4.27:1
Cutter ------------------------------------------------------- Double Reciprocating Blade - Double Edge
Length ----------------------------------------------------- 528 mm (20.79 in.)
Pitch ------------------------------------------------------- 35 mm (1.38 in.)
Maximum Diameter Cut
Soft Material ---------------------------------------------- 25.4 mm (1 in.)
Woody Material ------------------------------------------- 13 mm (1/2 in.)
Idle Speed --------------------------------------------------- 2,500 - 3,000 RPM
Clutch Engagement Speed -------------------------------- 4,100 RPM
Wide Open Throttle Speed ------------------------------- 10,600 - 11,600 RPM
He d g e Cl i p p e r
Op e r a t O r 's Ma n u a l
27
ECHO LIMITED WARRANTY STATEMENT FOR
PRODUCT SOLD IN USA AND CANADA BEGINNING 01/01/2010
ECHO'S RESPONSIBILITY
ECHO Incorporated’s Limited Warranty, provides to the original purchaser that this ECHO product is free from defects in material and workmanship.
Under normal use and maintenance from date of purchase, ECHO agrees to repair or replace at ECHO’s discretion, any defective product
free of charge at any authorized ECHO servicing dealer within listed below application time periods, limitations and exclusions. THIS LIMITED
WARRANTY IS ONLY APPLICABLE TO ECHO PRODUCTS SOLD BY AUTHORIZED ECHO DEALERS. IT IS EXTENDED TO THE ORIGINAL
PURCHASER ONLY, AND IS NOT TRANSFERABLE TO SUBSEQUENT OWNERS EXCEPT FOR EMISSION RELATED PARTS. Repair
parts and accessories replaced under this warranty are warranted only for the balance of the original unit or accessory warranty period. Any
damage caused by improper installation or improper maintenance is not covered by this warranty. All parts or products replaced under warranty
become the property of ECHO, Inc. This warranty is separate from the Emission control warranty statement supplied with your new product.
Please consult the Emission Control Warranty Statement for details regarding emission related parts. For a list of Authorized ECHO Dealers
refer to WWW.ECHO-USA.COM or call 1-800-432-ECHO.
OWNER’S RESPONSIBILITY
To ensure trouble free warranty coverage it is important that you register your ECHO equipment on-line at WWW.ECHO-USA.COM or by ll-
ing out the warranty registration card supplied with your unit. Registering your product conrms your warranty coverage and provides a direct
link if we nd it necessary to contact you.
The owner shall demonstrate reasonable care and use, and follow preventative maintenance, storage, fuel and oil usage as prescribed in the
operator’s manual. Should a product difculty occur, you must, at your expense, deliver or ship your ECHO unit to an authorized ECHO servicing
dealer for warranty repairs (within the applicable warranty period), and arrange for pick-up or return of your unit after the repairs have been
made. For your nearest authorized ECHO servicing dealer, call ECHO’s Dealer Referral Center, at 1-800-432-ECHO or you can locate an ECHO
servicing dealer at WWW.ECHO-USA.COM. Should you require assistance or have questions concerning ECHO’s Warranty Statement, you
can contact our Consumer Product Support Department at 1-800-673-1558 or contact us through the web at WWW.ECHO-USA.COM.
PRODUCT WARRANTY PERIOD
RESIDENTIAL APPLICATION
• 5 YEAR WARRANTY - All units for residential, or non-income producing use will be covered by this limited warranty for ve (5) years from
date of purchase.
EXCEPTIONS:
• For two-stroke engine powered products, the electronic ignition module, exible drive cables, SRM solid drive shafts, and TC tines
are warranted for the life* of the product on parts only.
• Cutting attachments such as, but not limited to, bars, chains, sprockets, blades, and nylon trimmer heads for residential or non-income
producing use will be covered for failures due to defects in material or workmanship for a period of 60 days from original product
purchase date. Any misuse from contact with concrete, rocks, or other structures is not covered by this warranty.
• ECHO’s Rapid Loader String Head carries a lifetime warranty on the line locking system, parts only; no labor. Refer to your operator’s
manual for string head installation and maintenance instructions.
• All SB-Series and PRO ATTACHMENT SERIES Split Shaft attachments carry the same warranty duration as the units they are
designed to t.
COMMERCIAL APPLICATION
• 1 YEAR WARRANTY - All Chain Saws, QuikVent Saws, and Cut-Off Saws for commercial, institutional, agricultural, industrial, or income
producing use will be covered by this limited warranty for one (1) year from the date of purchase.
• 2 YEAR WARRANTY - All other units for commercial, institutional, agricultural, industrial, or income producing use will be covered by this
limited warranty for two (2) years from the date of purchase.
EXCEPTIONS:
• For two-stroke engine powered products, the electronic ignition module, exible drive cables, SRM solid drive shafts and TC tines,
are warranted for the life* of the product on parts only.
• Cutting attachments such as, but not limited to, bars, chains, sprockets, blades, and nylon trimmer heads for commercial, institutional,
agricultural, industrial, rental, or income producing will be covered for failures due to defects in material or workmanship for a period
of 30 days from original product purchase date. Any misuse from contact with concrete, rocks, or other structures is not covered by
this warranty.
• ECHO’s Rapid Loader String Head carries a lifetime warranty on the line locking system, parts only; no labor. Refer to your operator’s
manual for string head installation and maintenance instructions.
• All SB-Series and PRO ATTACHMENT SERIES Split Shaft attachments carry the same warranty duration as the units they are
designed to t.
RENTAL APPLICATION - 90 DAYS WARRANTY
• Units for rental use will be covered against defects in material and workmanship for a period of 90 days from the date of purchase.
* ECHO’s liability under the “Lifetime” coverage is limited to furnishing parts specied under the PROdUCT wARRANTy PERIOd section of
this warranty statement for “Life” free of charge for a period of ten (10) years after the date of the complete unit’s nal production.
wa r r a n t y st a t e m e n t s
He d g e Cl i p p e r
Op e r a t O r 's Ma n u a l
28
PURCHASED REPAIR PARTS, SHORT BLOCKS AND ACCESSORIES
• 90-day residential, or non-income producing warranty
• 30-day commercial, institutional, agricultural, industrial, income producing, or rental application warranty
ATTENTION TWO-STROKE ENGINE POWER PRODUCT OWNERS
This ECHO two-stroke engine power product is a quality-engineered unit which has been manufactured to exact tolerances to provide superior
performance. To help ensure the performance of the unit, it is required to use two-stroke oil which meets the ISO-L-EGD Standard per ISO/CD
13738 and JASO M345/FC/FD Standards. ECHO Power Blend™ Two-Stroke Oil is a premium two-stroke oil specically formulated to meet
ISO-L-EGD (ISO/CD 13738) and JASO M345/FC/FD Standards. The use of two-stroke oils designed for other applications, such as for outboard
motors or lawnmowers can result in severe engine damage, and will void your two-stroke engine limited warranty.
THIS WARRANTY DOES NOT COVER DAMAGE CAUSED BY:
• Lack of lubrication or engine failure, due to the use of two-stroke oils that do not meet the ISO-L-EGD (ISO/CD 13738) and JASO M345/
FC/FD Standards. Engine problems due to inadequate lubrication caused by failure to use an ISO-L-EGD compliant and JASO M345/FC/
FD registered oil, will void the two-stroke engine limited warranty. ECHO Power Blend™ Two-Stroke Oil meets the ISO-L-EGD and JASO
M345/FC/FD Standard. Emission related parts are covered for 5 years residential use or 2 years commercial use regardless of two-stroke
oil used, per the statement listed in the EPA or California Emission Defect Warranty Explanation.
• damage caused by use of gasohol, containing methanol (wood alcohol), or gasoline containing less than 89 octane. Only use gasoline which
contains 89 octane or higher. Gasohol which contains a maximum 10% ethanol (grain alcohol) or 15% MTBE (methyl/tertiary/butyl/ether)
is also approved. The prescribed mixing ratio of gasoline to oil is listed on the ECHO oil label and covered in your operator’s manual.
• Engine damage caused by use of ether or any starting uids.
• damage caused by tampering with engine speed governor or emission components, or running engines above specied and recommended
engine speeds as listed in your operator’s manual.
• Operation of the unit with improperly maintained/removed cutting shield or removed/damaged air lter.
• damage caused by dirt, pressure or steam cleaning the unit, salt water, corrosion, rust, varnish, abrasives, and moisture.
• defects, malfunctions or failures resulting from abuse, misuse, neglect, modications, alterations, normal wear, improper servicing, or use
of unauthorized attachments.
• Incorrect storage procedures, stale fuel, including failure to provide or perform required maintenance services as prescribed in the operator's
manual. Preventative maintenance as outlined in the operators manual is the customer’s responsibility.
• Failures due to improper set-up, pre-delivery service or repair service by anyone other than authorized ECHO servicing dealer during the
warranty period.
• Certain parts and other items are not warranted, including but not limited to: lubricants, starter cords, and engine tune-ups.
• Use of spark plugs other than those meeting performance and durability requirements of the OEM spark plug listed in the Operator's
Manuals.
• Overheating or carbon scoring failures due to restricted, clogged exhaust port or combustion chamber, including damage to spark arrester
screen.
• Adjustments after the rst (30) thirty days and beyond, such as carburetor adjustment and throttle cable adjustment.
• damage to gears or gear cases caused by contaminated grease or oil, use of incorrect type or viscosity of lubricants, and/or failure to comply
with recommended grease or oil change intervals.
• damage caused by loading SHREd 'N' VAC
®
beyond recommended capacity.
• damage caused by pump or sprayer running dry, pumping or spraying caustic or ammable materials, or lack of or broken strainers.
• Additional damage to parts or components due to continued use after operational problem or failure occurs. Should operational problem or
failure occur, the product should not be used, but delivered as is to an authorized ECHO servicing dealer.
It is a dealer’s and/or customer’s responsibility to complete and return the warranty registration card supplied with your ECHO product or by visiting
WWW.ECHO-USA.COM. your receipt of purchase including date, model and serial number must be maintained and presented to an authorized
ECHO servicing dealer for warranty service. Proof of purchase rests solely with the customer. Some states do not allow limitations on how long
an implied warranty lasts, so the above limitations may not apply to you. Some states do not allow the exclusion or limitation of incidental or
consequential damages, so you may also have other specic legal rights which vary from state to state. This limited warranty is given by ECHO
Incorporated, 400 Oakwood Rd., Lake Zurich, IL 60047.
DISCLAIMER OF IMPLIED WARRANTIES
This limited warranty is in lieu of all other expressed or implied warranties, including any warranty of FITNESS FOR A PARTICULAR PURPOSE
OR USE and any implied warranty of MERCHANTABILITY otherwise applicable to this product. ECHO and its afliated companies shall not be
liable for any special incidental or consequential damage, including lost prots. There are no warranties extended other than as provided herein.
This limited warranty may be modied only by ECHO.
99922201032
12/03/09
He d g e Cl i p p e r
Op e r a t O r 's Ma n u a l
29
ECHO INCORPORATED EMISSION CONTROL WARRANTY STATEMENT
FOR ECHO AND SHINDAIWA BRANDS
The Environmental Protection Agency (EPA) and the California Air Resources Board (C.A.R.B.) and ECHO Incorporated (ECHO Inc.) are pleased
to explain the emission control system warranty on your 2010 and later equipment/small off-road engine (SORE). New equipment/SORE must be
designed, built and equipped to meet stringent EPA and C.A.R.B. anti-smog standards. ECHO Inc. must warrant the emission control system on
your equipment/SORE for the periods of time listed below, provided there has been no abuse, neglect or improper maintenance of your equipment/
SORE. Your emission control system may include parts such as: carburetor, fuel-injection system, ignition system, catalytic converter/mufer, fuel
tank, fuel feed lines, fuel cap assembly, spark plug, air lters, and other associated components. Where a warrantable condition exists, ECHO
Inc will repair your equipment/SORE at no cost to you including diagnosis, parts and labor. The Emission Control System warranty is extended
to the original owner including all subsequent owners.
MANUFACTURER'S WARRANTY COVERAGE:
The emission control system is warranted for 2 years or the length of the ECHO Inc. warranty, whichever is longer. If any emission-related part
on your equipment is defective, the part will be repaired or replaced by ECHO Inc. or its Authorized Service Representative.
OWNER'S WARRANTY RESPONSIBILITIES:
As the equipment/SORE owner, you are responsible for the performance of the required maintenance listed in your Operator's Manual. ECHO
Inc. recommends that you retain all receipts covering maintenance on your equipment/SORE however, ECHO Inc. cannot deny warranty solely
for the lack of receipts or for your failure to ensure the performance of all scheduled maintenance. As the equipment/SORE owner, you should be
aware that ECHO Inc. may deny you warranty coverage if your equipment/SORE or a part has failed due to abuse, neglect, improper maintenance
or unapproved modications.
You are responsible for presenting your equipment/SORE to an ECHO Inc. authorized service representative as soon as a problem exists. The
warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days. If a warrantable condition exists and there is no
Authorized Dealer within 100 miles, ECHO Inc. will pay to ship the unit to the nearest authorized dealer. If you have questions regarding your
warranty coverage, you should contact ECHO Inc. at 1-800-673-1558, web site WWW.ECHO-USA.COM or contact Shindaiwa at 1-877-986-
7783, web site WWW.SHINDAIWA.COM.
WHAT DOES THIS WARRANTY COVER?
ECHO Inc. warrants that your equipment/SORE was designed, built and equipped to conform with applicable EPA and C.A.R.B. emissions
standards and that your equipment/SORE is free from defects in material and workmanship that would cause it to fail to conform with applicable
requirements for 2 years or the length of the ECHO Inc. warranty, whichever is longer. The warranty period begins on the date the product is
purchased by an end user.
HOW WILL A COVERED PART BE CORRECTED?
If there is a defect in a part covered by this warranty, any ECHO Inc. Authorized Service Dealer will correct the defect. You will not have to pay
anything to have the part adjusted, repaired or replaced. This includes any labor and diagnosis for warranted repairs performed by the dealer. In
addition, engine parts not expressly covered under this warranty but whose failure is a result of a failure of a covered part will be warranted.
WHAT PARTS ARE COVERED?
Any applicable emission related part not scheduled for "required maintenance" will be repaired or replaced within the warranty period. The repaired
or replaced part will be warranted for the remaining ECHO Inc. warranty period.
Any warranted part that is scheduled only for regular inspection in the written instructions supplied is warranted for the warranty period stated
above. Any such part repaired or replaced under warranty will be warranted for the remaining ECHO Inc. warranty period.
Any emission related part scheduled for replacement during "required maintenance" is warranted for the period of time prior to the rst scheduled
replacement point for that part. Any such part repaired or replaced under warranty shall be warranted for the remainder of the period prior to the
rst scheduled replacement point for that part.
Any manufacturer-approved replacement part may be used in the performance of any warranty maintenance or repairs on emission related parts,
and must be provided without charge if the part is still under warranty.
Any replacement part that is equivalent in performance and durability may be used in non-warranty maintenance or repairs, and shall not reduce
the warranty obligations of the manufacturer.
Throughout the equipment/SORE warranty period, ECHO Inc. will maintain a supply of warranted parts sufcient to meet the expected demand
for such parts.
SPECIFIC EMISSION RELATED WARRANTED PARTS:
• Electronic Ignition System • Spark Plug
• Catalytic Converter / Mufer Assembly • Carburetor (complete assembly or replaceable components)
• Choke • Fuel-Injection Assembly (or replaceable components)
• Fuel Tank • Fuel Cap Assembly
• Air Filter • Fuel Feed Line (and associated clamps/connectors as applicable)
WHAT IS NOT COVERED?
Any failure caused by abuse, neglect, improper maintenance, unapproved modications, use of unapproved add-on parts/modied parts or
unapproved accessories.
This Emission Control Warranty is valid only for the U.S.A., it's Territories, and Canada.
99922201033
01/2010
He d g e Cl i p p e r
Op e r a t O r 's Ma n u a l
30
NOTES
He d g e Cl i p p e r
Op e r a t O r 's Ma n u a l
31
NOTES
CONSUMER PRODUCT
SUPPORT
1-800-673-1558
8:30 - 4:30 Mon - Fri C.S.T.
ECHO, INCORPORATED
400 Oa k w O O d RO a d
La k e Zu R i c h , iL 60047
www.echo-usa.com
DEALER?
Call
1-800-432-ECHO
1-800-432-3246
or
www.echo-usa.com
S85411001144/S85411999999
S85312002871/S85312999999
(S) S86111001677/S86111999999
(S) S86012006190/S86012999999

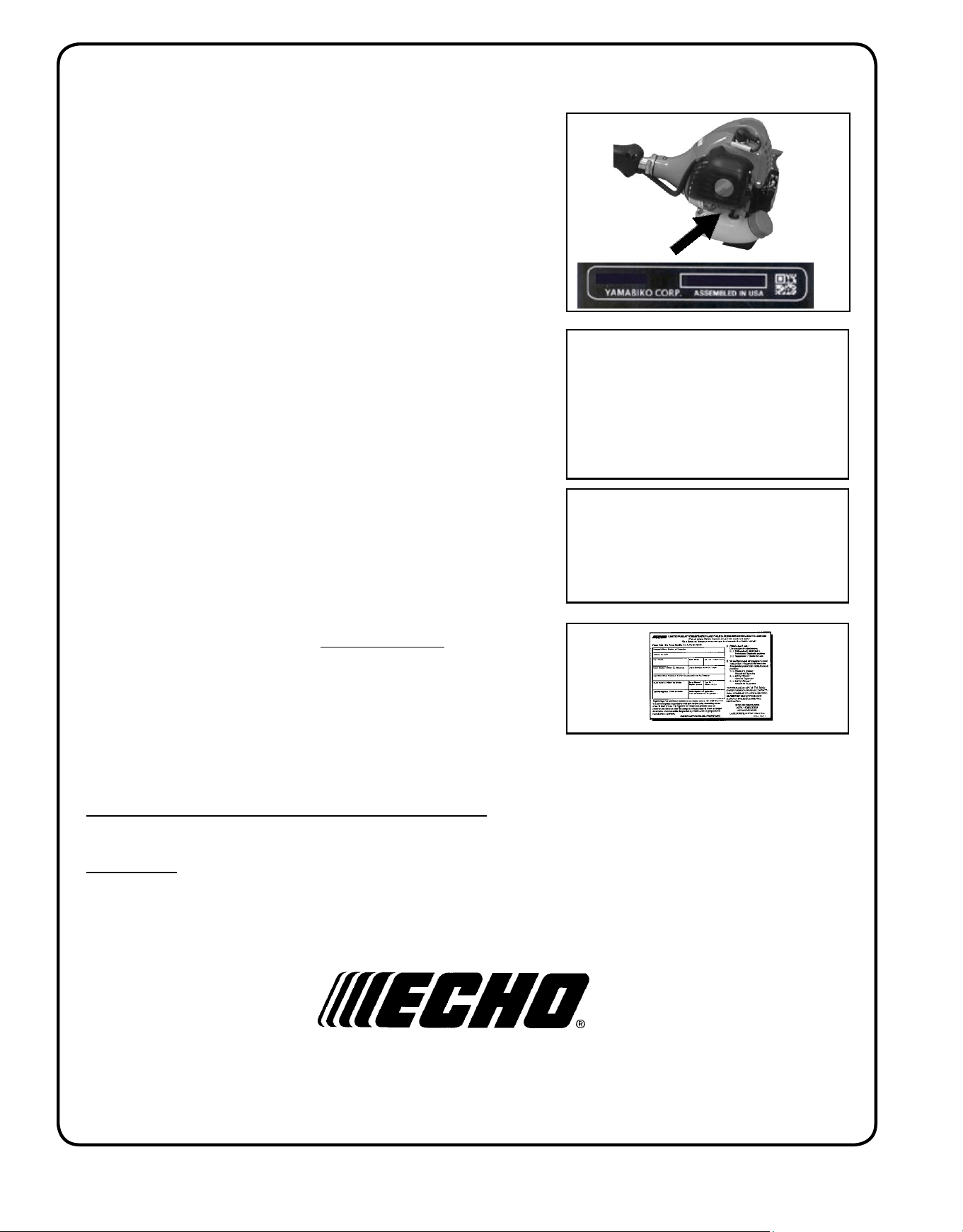

se r v I c I n g In f o r m a t I o n
p a r t s
/s e r I a l n u m b e r
Genuine ECHO Parts and ECHO REPOWER™ Parts and Assemblies
for your ECHO products are available only from an Authorized ECHO
Dealer. When you do need to buy parts always have the Model Num-
ber, Type and Serial Number of the unit with you. You can nd these
numbers on the engine housing. For future reference, write them in the
space provided below.
Model No. _________________SN. ___________________
s e r v I c e
Service of this product during the warranty period must be performed
by an Authorized ECHO Service Dealer. For the name and address of
the Authorized ECHO Service Dealer nearest you, ask your retailer or
call: 1-800-432-ECHO (3246). Dealer information is also available on
our Web Site. When presenting your unit for Warranty service/repairs,
proof of purchase is required.
e c h o c o n s u m e r p r o d u c t s u p p o r t
If you require assistance or have questions concerning the applica-
tion, operation or maintenance of this product you may call the ECHO
Consumer Product Support Department at 1-800-673-1558 from 8:30
am to 4:30 pm (Central Standard Time) Monday through Friday. Before
calling, please know the model and serial number of your unit.
w a r r a n t y r e g I s t r a t I o n
To ensure trouble free warranty coverage it is important that you regis-
ter your ECHO equipment on-line at www.echo-usa.com or by lling
out the warranty registration card supplied with your unit. Registering
your product conrms your warranty coverage and provides a direct
link between you and ECHO if we nd it necessary to contact you.
a d d I t I o n a l o r r e p l a c e m e n t m a n u a l s
Replacement Operator, Safety Manuals, and Parts Catalogs are available from your ECHO dealer or at www.echo-
usa.com or by contacting ECHO Inc., 400 Oakwood Road, Lake Zurich, IL 60047 (800-673-1558). Always check the
ECHO Web Site for updated information.
Safety Videos are available from your Echo dealer. A $5.00 shipping charge will be required for each video.
