OR90 Induction models
FREESTANDING COOKER
INSTALLATION GUIDE
NZ AU UK IE EU
3
SAFETY AND WARNINGS
!
WARNING!
Electrical Shock Hazard
Failure to follow this advice may result
inelectric shock or death.
• Before carrying out any work on the
electrical section of the appliance, it must be
disconnected from the mains electricity supply.
• Connection to a good earth wiring system is
absolutely essential and mandatory.
• Alterations to the domestic wiring system must
only be made by a qualified electrician.
!
WARNING!
Cut Hazard
Failure to use caution could result in injury
or cuts.
• Take care – some edges are sharp.
!
WARNING!
Tipping Hazard
Failure to do so can result in death or serious
burns to children of adults.
• To reduce the risk of tipping the appliance, the
appliance must be secured by properly installed
anti-tip device packed with theappliance.
• A child or adult can tip the cooker and bekilled.

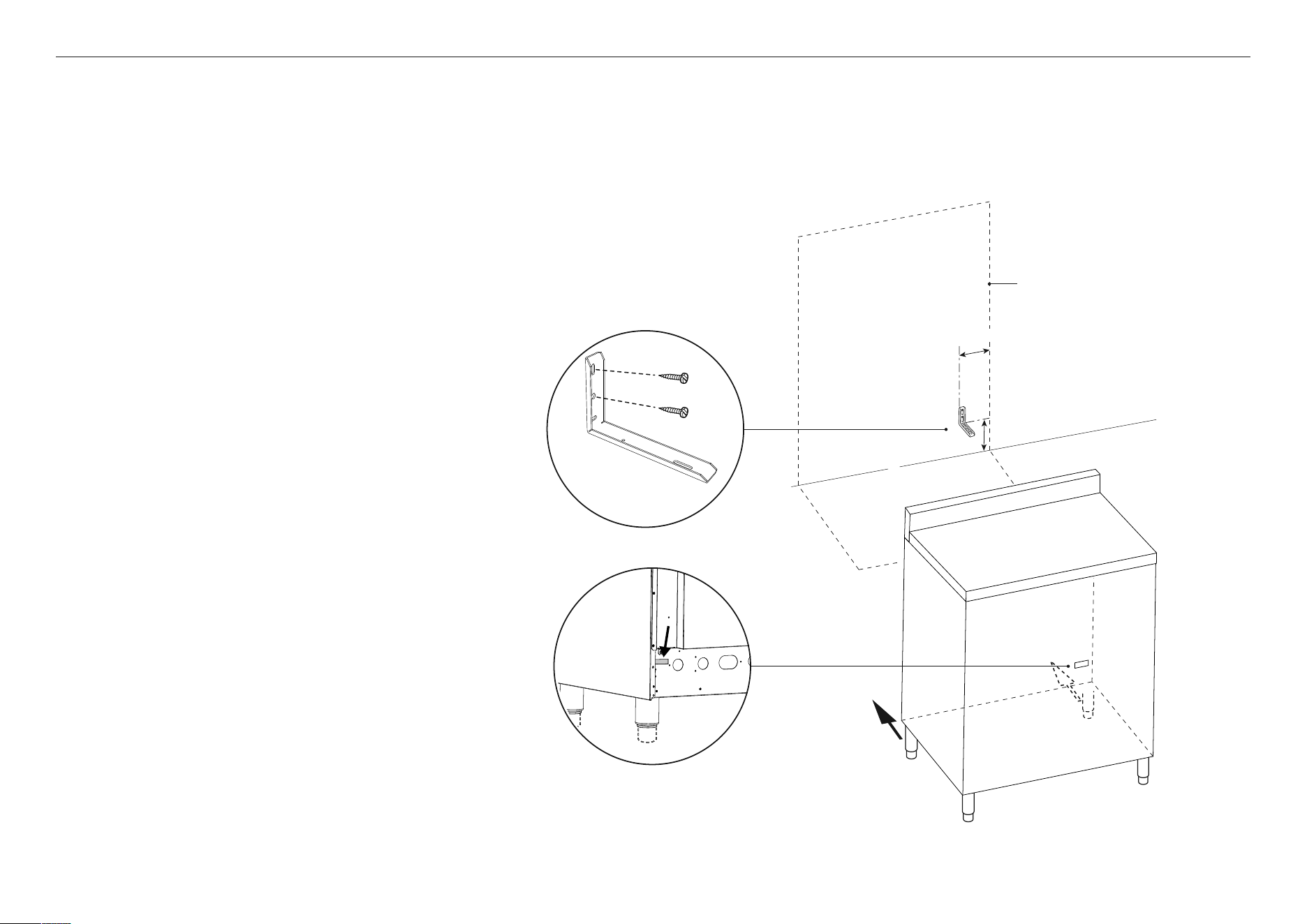

• Install the anti-tip device to the structure
by fastening the supplied bracket to the
floor andwall following the instructions for
installingthe anti-tip device.
• Engage the anti-tip device.
• Re-engage the anti-tip device if the cooker
ismoved.
4
SAFETY AND WARNINGS
WARNING!
To avoid hazard, follow these instructions carefully before installing or using
thisappliance.
z
Please make this information available to the person installing the appliance —
doing so could reduce your installation costs.
z
This appliance must be installed and connected to the mains power supply only by a
suitably qualified person according to these installation instructions and in compliance
with any applicable local building and electricity regulations. Failureto install the
appliance correctly could invalidate any warranty or liabilityclaims.
z
If the power supply cable is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualified person in order to avoid a hazard.
z
Isolating switch: ensure this cooker is connected to a circuit which incorporates
an isolating switch providing full disconnection from the power supply in accordance
with the wiring rules.
z
The cooker must be earthed.
z
Do not use adaptors, reducers or branching devices to connect the cooker tothe mains
electricity supply, as they can cause overheating and burning.
z
Check for damaged after unpacking and that the cooker door closes correctly.
z
Some appliances are supplied with a protective film on steel and aluminium parts.
Thisfilm must be removed before using the appliance.
z
Packing elements (ie plastic bags, polystyrene foam, nails, packing straps, etc.)
shouldnot be left around within easy reach of children, as these may cause
seriousinjuries.
z
Ensure you recycle the packaging material where possible.
z
The manufacturer accepts no responsibility for the incorrect installation of appliances.
Incorrect installation may result in personal injury, damage to property and may
invalidate any warranty or liability claims.
z
Do not modify this appliance.
z
Before disposing of any appliance, ensure that it can no longer be used andthat all
hazardous parts are removed or made harmless, so that children playing with the old
appliance cannot harm themselves.
z
The various components of the appliance are recyclable. Dispose of them in accordance
with the regulations in force in your country. If the appliance is to be scrapped, remove
the power cord.
GENERAL INSTALLATION INFORMATION
Cleaning and servicing
z
Service should only be performed by an authorised technician.
z
Always disconnect the appliance from mains power supply before carrying out any
maintenance operations or repairs.
z
When removing appliance for cleaning and/or service:
z
Disconnect power supply.
z
Carefully remove the cooker by pulling outward.
z
The misuse of oven door (eg stepping, sitting, or leaning on them) can result in
potential hazards and/or injuries.
z

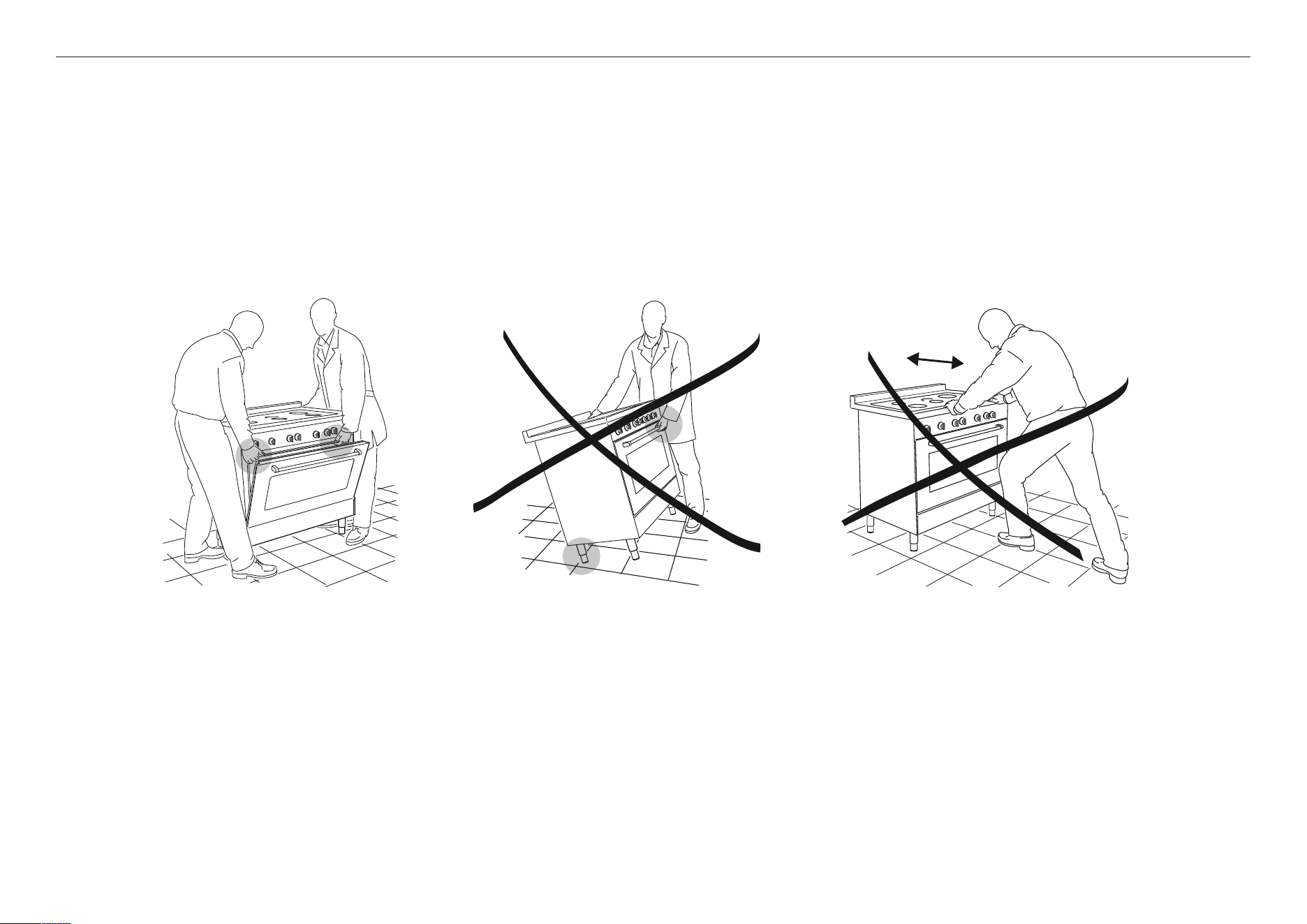

When installing or removing the cooker for service, a rolling lift jack should be used.
Do not push against any of the edges of the cooker in an attempt to slide it
into or out of the installation. Pushing or pulling a cooker (rather than using a
lift jack) also increases the possibility of bending the leg spindles or the internal
couplingconnectors.
IMPORTANT!
z
Cooker is heavy; use care in handling.
z
Do not lift the cooker by the oven door handle or hob rail, or by lifting the cooktop trim
as this may damage the appliance.
Replacement parts
z
Only authorised replacement parts may be used in performing service on the cooker.
z
Replacement parts are available from factory authorised parts distributors.
z
Contact the nearest parts distributor in your area.
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this installation guide may not be available in all markets and are subject to change at any time. For current details about model and specification availability in your country,
please go to our website fisherpaykel.com or contact your local Fisher&Paykel dealer.
5
IMPORTANT!
THIS APPLIANCE MUST BE INSTALLED BY A QUALIFIED INSTALLER.
z
Improper installation, adjustment, alteration, services, or maintenance can cause injury or property damage.
Consult a qualified installer or the service agent.
z
The use of suitable protective clothing/gloves is recommended when handling or installing this appliance.

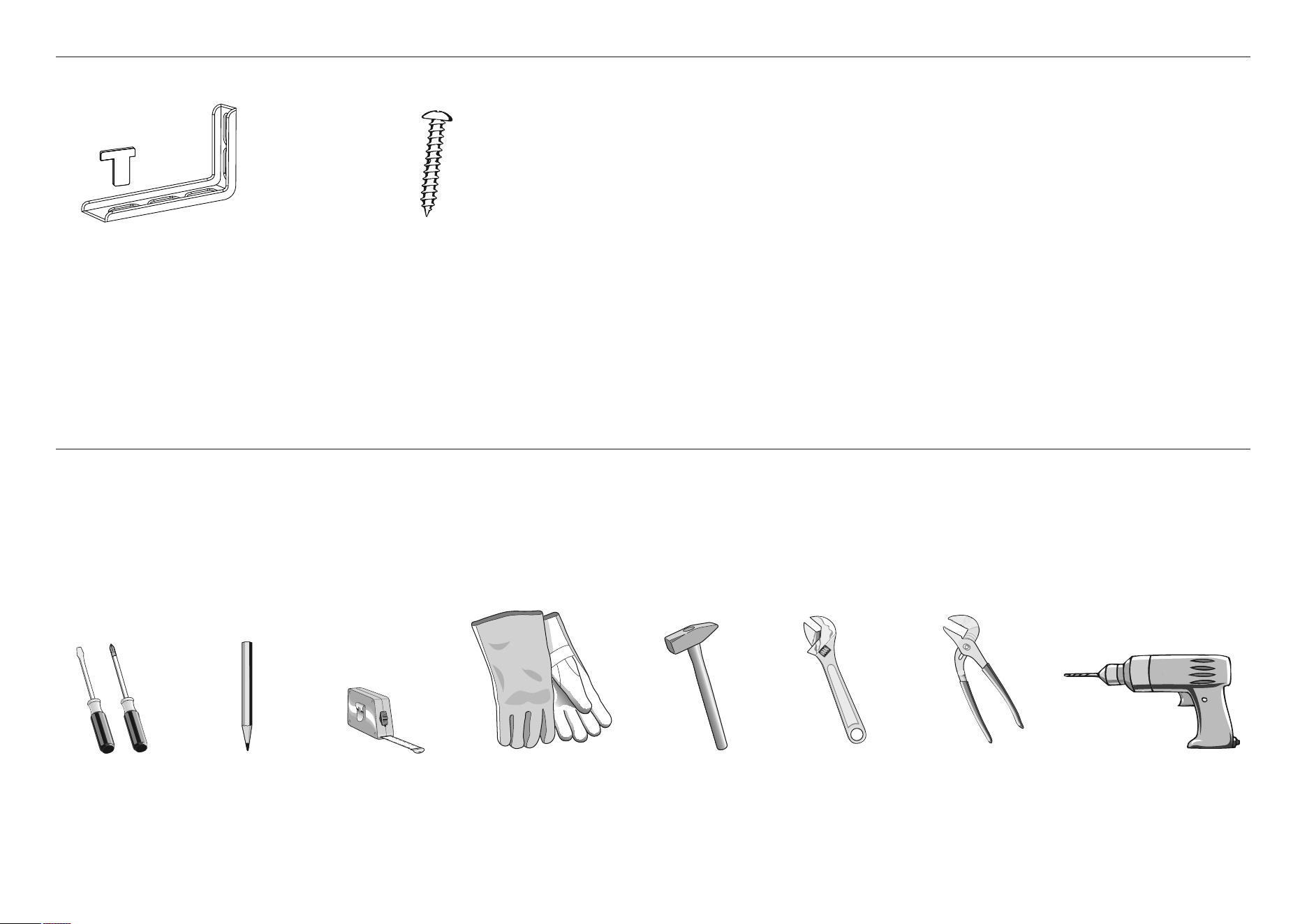

PARTS SUPPLIED FOR INSTALLATION
TOOLS NEEDED FOR INSTALLATION (NOT SUPPLIED WITH THE APPLIANCE)
Screwdriver 2 - Wrench
T-handle
wrench
Tape
measurePencil
Adjustable
pliers
Adjustable
wrench
Suitable protective
gloves
Drill
Hammer
Screwdriver
Screwdriver 2 - Wrench
T-handle
wrench
Tape
measurePencil
Adjustable
pliers
Adjustable
wrench
Suitable protective
gloves
Drill
Hammer
Pencil
Screwdriver 2 - Wrench
T-handle
wrench
Tape
measurePencil
Adjustable
pliers
Adjustable
wrench
Suitable protective
gloves
Drill
Hammer
Tape measure
Screwdriver 2 - Wrench
T-handle
wrench
Tape
measurePencil
Adjustable
pliers
Adjustable
wrench
Suitable protective
gloves
Drill
Hammer
Suitable
protective gloves
Screwdriver 2 - Wrench
T-handle
wrench
Tape
measurePencil
Adjustable
pliers
Adjustable
wrench
Suitable protective
gloves
Drill
Hammer
Hammer Adjustable
wrench
Adjustable
pliers
Screwdriver 2 - Wrench
T-handle
wrench
Tape
measurePencil
Adjustable
pliers
Adjustable
wrench
Suitable protective
gloves
Drill
Hammer
Drill
Screws and plastic sleeve anchors (2) Anti-tip bracket and lock pin (1)
Screwdriver 2 - Wrench
T-handle
wrench
Tape
measurePencil
Adjustable
pliers
Adjustable
wrench
Suitable protective
gloves
Drill
Hammer
Screwdriver 2 - Wrench
T-handle
wrench
Tape
measurePencil
Adjustable
pliers
Adjustable
wrench
Suitable protective
gloves
Drill
Hammer
6

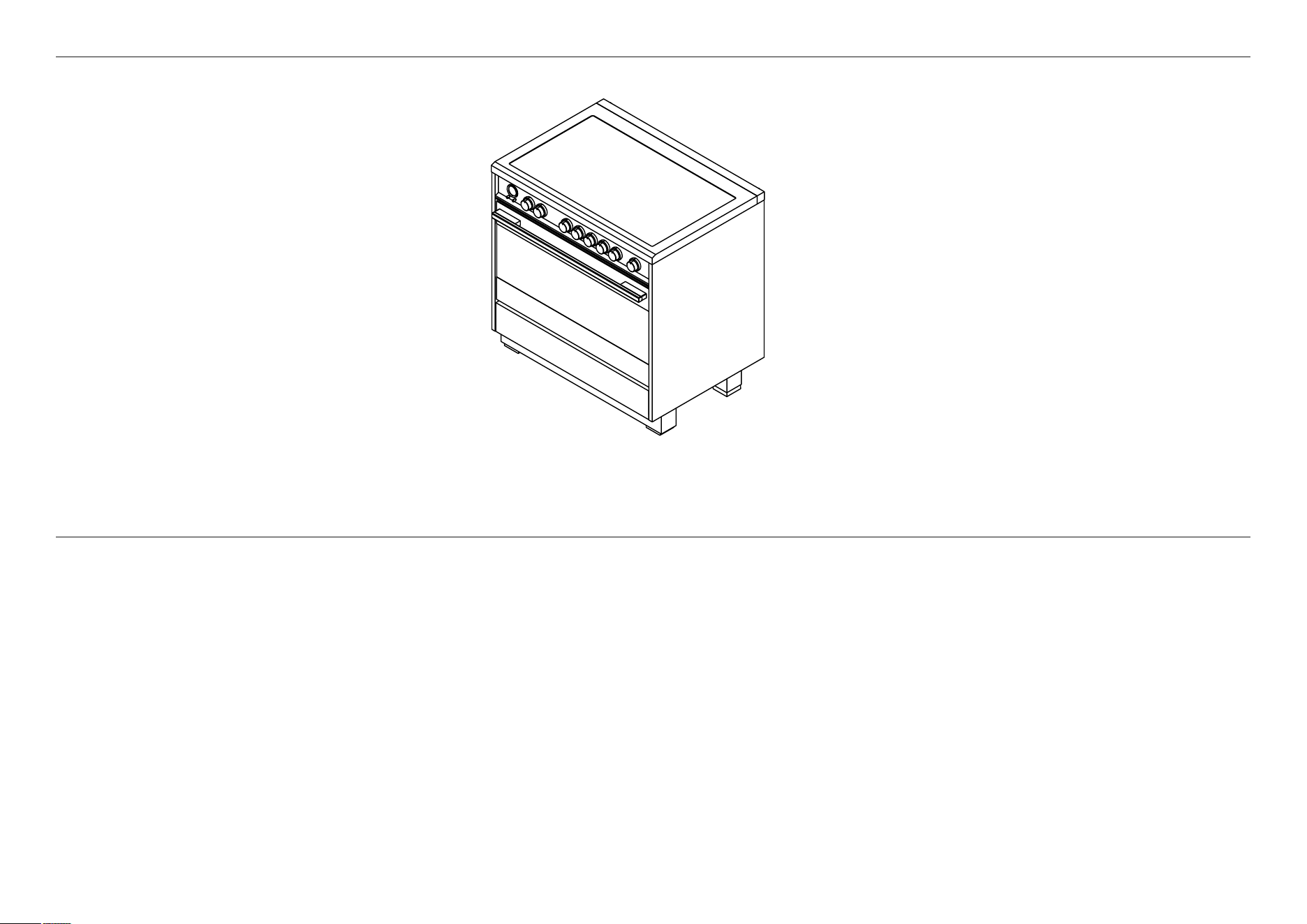

MODEL IDENTIFICATION
Model features may vary.
OR90 Induction models
OR90SCI1
OR90SCI4
OR90SCI6
OR90SDI6
PRIOR TO INSTALLATION
Unpacking and handling
z
Inspect the cooker to verify that there is no shipping damage. If any damage is detected, call the shipper and initiate a damage claim. Fisher & Paykel is not responsible for shipping damage.
z
DO NOT discard any packing material until the cooker has been inspected.
z
Remove the outer carton and any packing material from cooker. Some models are supplied with a protective film on steel and aluminum parts.
This film must be removed before installing or using the appliance.
OR90SPI6X1
7

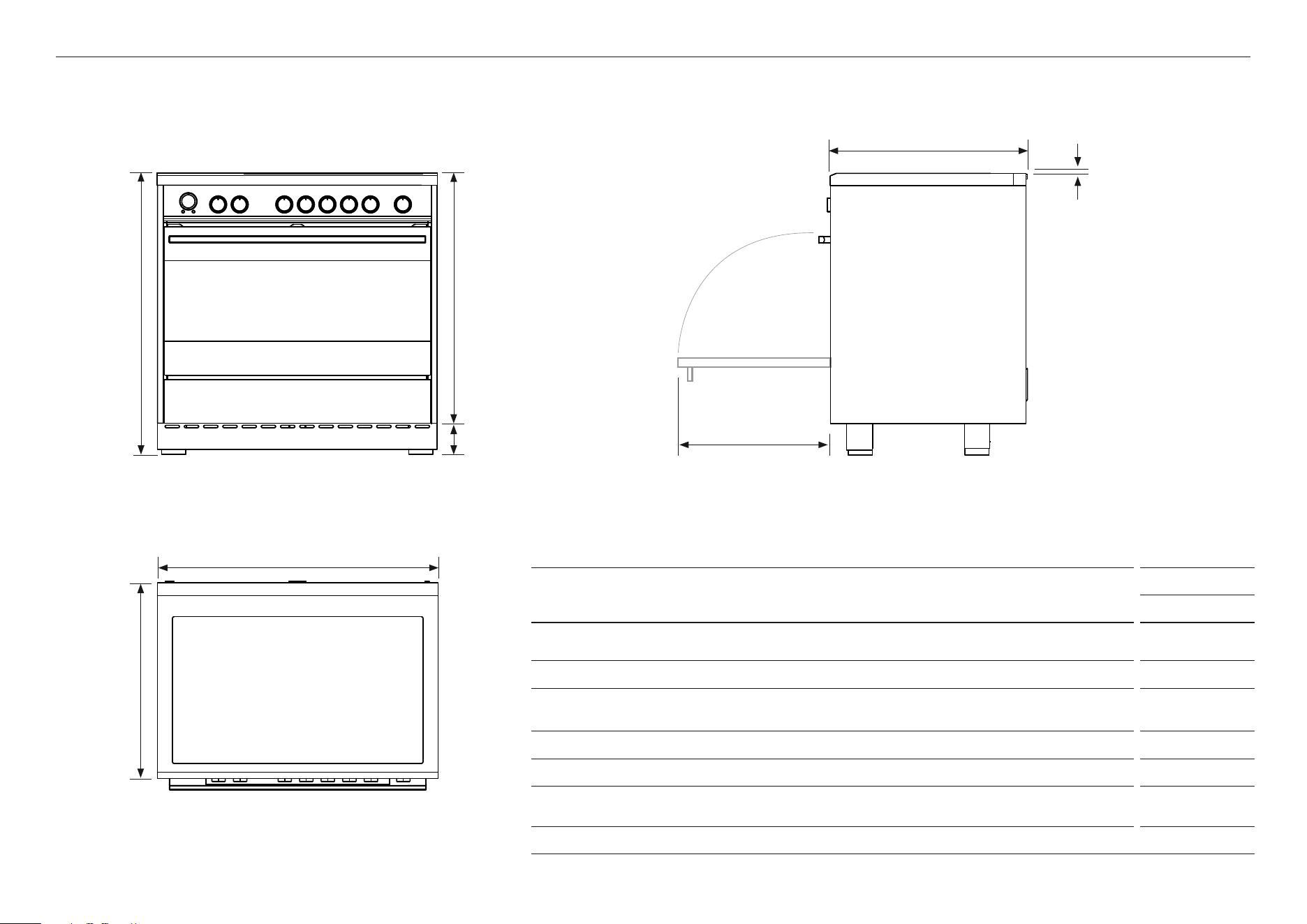

PRODUCT DIMENSIONS
FRONT
PLAN
PROFILE
e
B
C
C
a
D
F
G
PRODUCT DIMENSIONS
OR90
mm
1 Overall height of cooker (from floor to top of cooktop, excl. optional backguard)
min 898
max 946
2 Overall width of cooker
897
3 Overall depth of cooker
(from front of cooker to rear of island trim/backguard, excl.handles and dials)
600
4 Height of optional backguard from top of cooktop (supplied with some models only)
60
5 Height of chassis (excl. adjustable feet)
813
6 Adjustable feet height
min 85
max 133
7 Depth of open door to front of cooker
451
Model features may vary.
Optional kickstrip available (purchased separately).
8
F

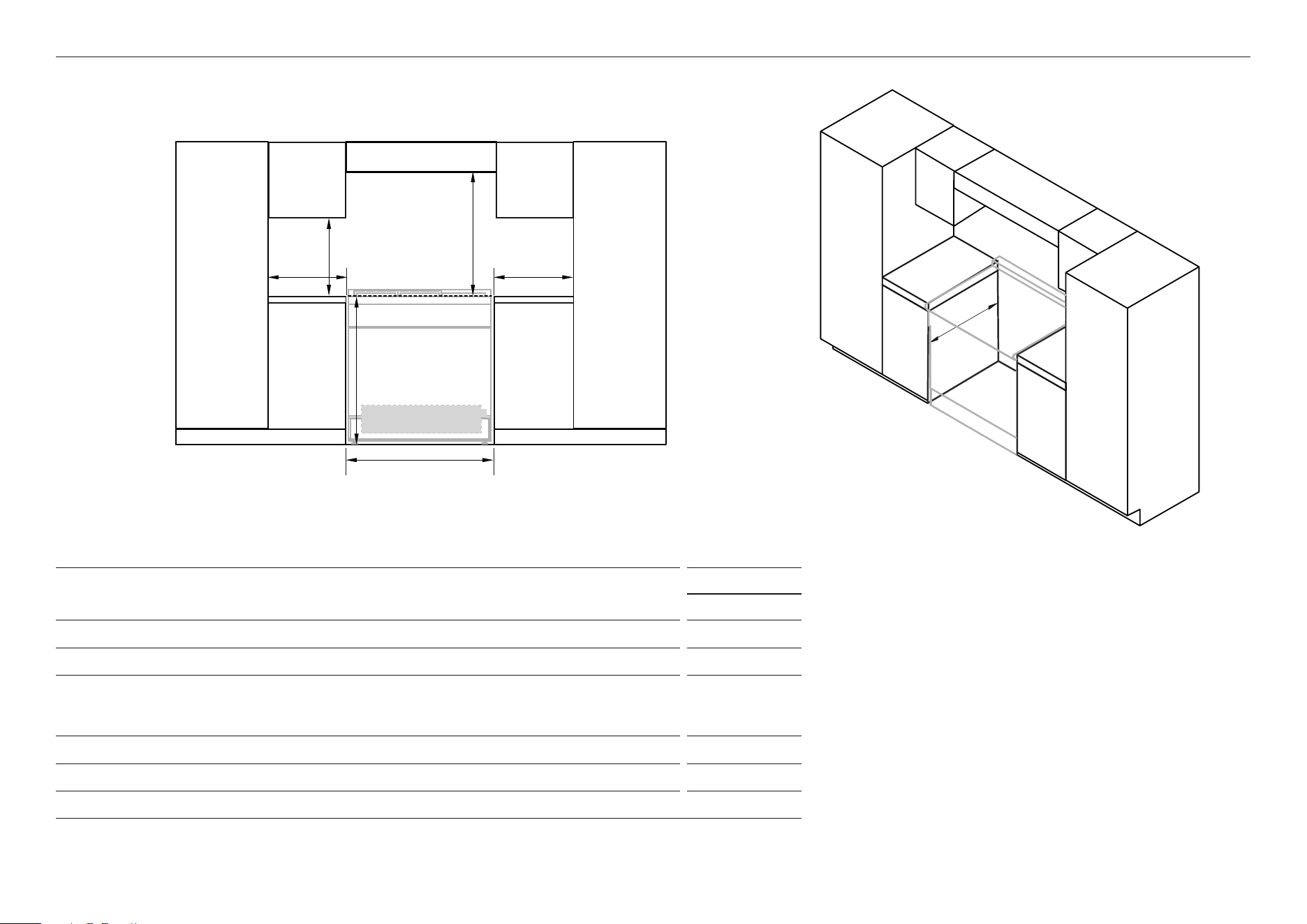

CLEARANCE DIMENSIONS
Note:
z
The cabinetry surrounding the cooker must be heat
resistant and capable of withstanding temperatures
of75°C above room temperature.
z
Do not install the cooker near flammable materials
suchas curtains.
z
Installing the cooker on a plinth: the cooker can be
installed on a plinth without the adjustable feet fitted.
z
Ensure the cooker is secure and provide safety
measures to keep it in place.
z
Cabinetry dimensions can be adjusted to suit the plinth
height, see product dimensions for chassis height.
z
The cooker must sit flush or above benchtop level.
ISOFRONT
B
D
C
A
E
B
Cooking surface
Electrical & Gas
(see diagrams following)
CLEARANCE DIMENSIONS
OR90
mm
A Minimum vertical distance between benchtop and cabinet extending above counter
450
B Minimum clearance from left and right edge of cooker to nearest vertical combustible surface
50
C Minimum clearance from cooking surface to:
z
Overhead cabinet centered above the cooktop
z
Ventilation hood centered above the cooktop
650
650
D Width of cabinetry opening
900
E Maximum height of cabinetry immediately adjacent to the cooker (from floor to countertop)*
946
F Maximum depth from wall to cabinetry face
600
*Depending on the height of the feet adjustment. The cooking surface must sit flush or above benchtop level.
9

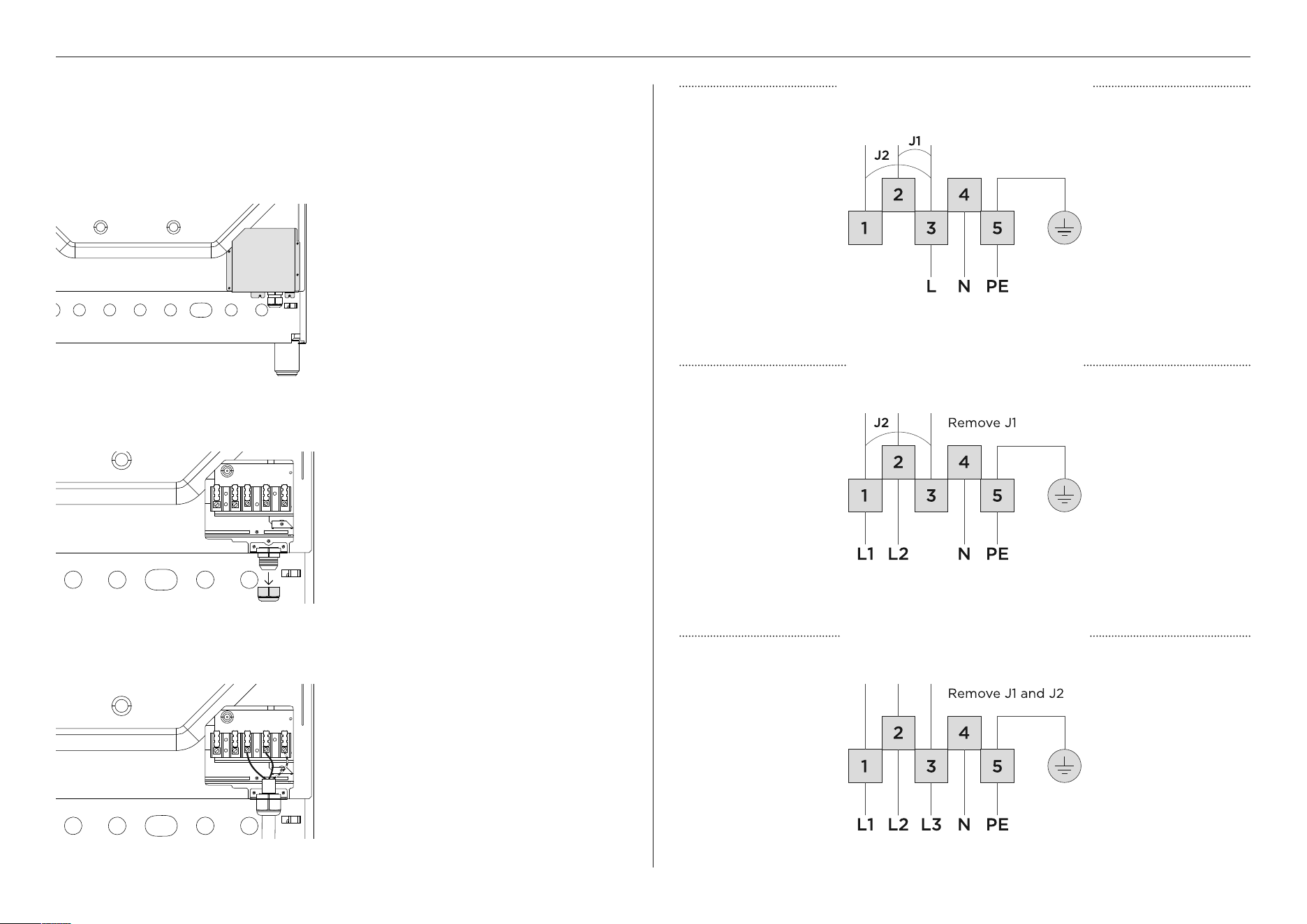

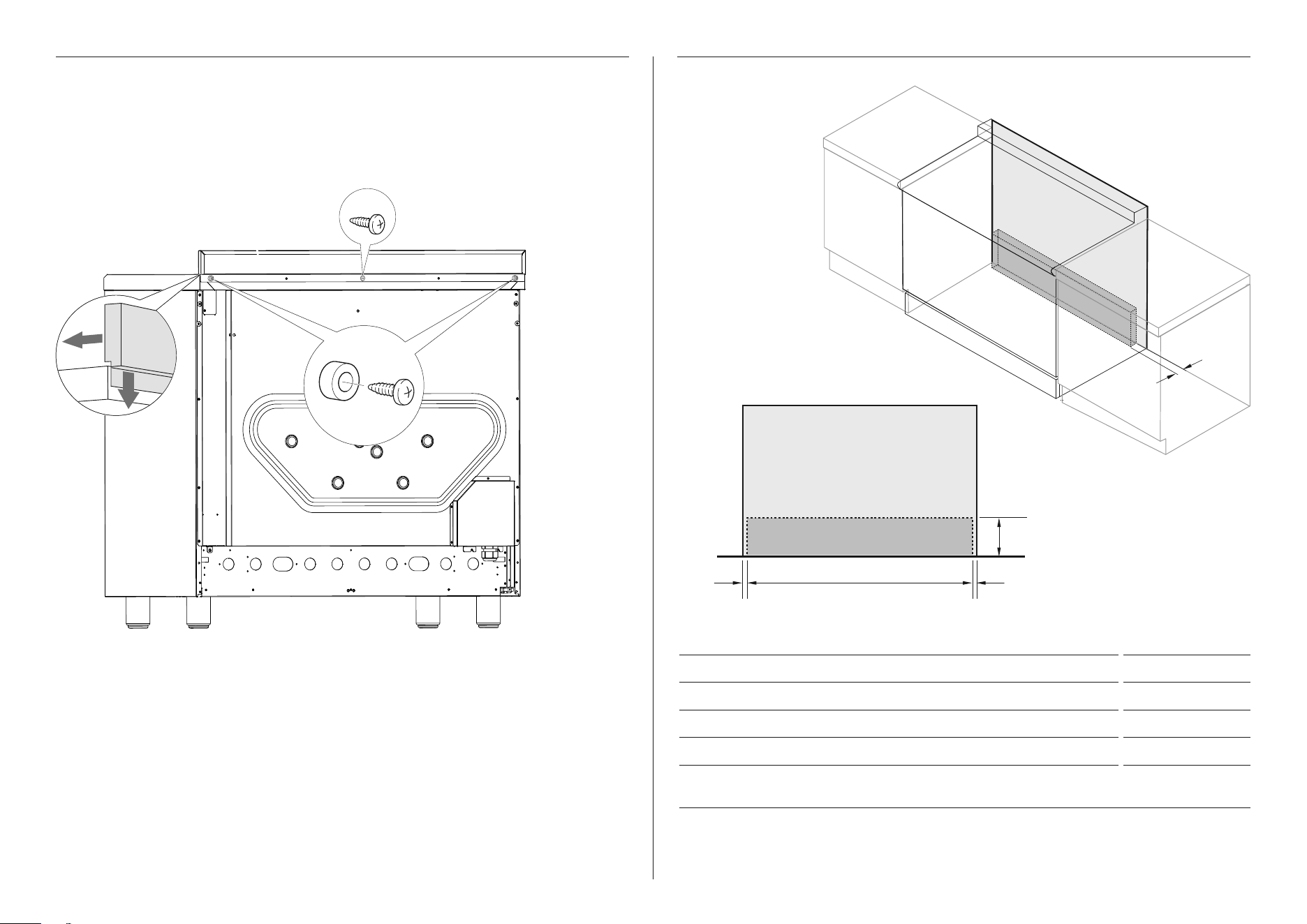

FITTING THE OPTIONAL BACKGUARD LOCATION OF ELECTRICAL SUPPLY
Backguard (supplied with some models only)
z
Remove the screws and spacers on the rear of the cooktop.
z
Assemble the backguard as shown and fix onto the back of the cooker using
the same screws and spacers.
z
Fix the backguard onto the cooker using the screws provided.
A
B
D
E
C
Final position of cooker
against wall
Left side
of cavity
Floor
Electricity
B
A A
C
A
B
D
E
C
D
SUPPLY AREA DIMENSIONS MM
A Distance from either edge of Cooker to supply area 19
B Height of electrical supply area (from floor)*
210 – 260
C Width of electrical supply areas 859
D Depth of supply area
(ie maximum protrusion of electrical connection from wall)
74
*Depending on adjustment of feet.
10
VENTILATION REQUIREMENTS
A suitable ventilation hood may be installed above the cooker.
Fisher & Paykel has a choice of ventilation hoods designed to match the rest of our kitchen appliance family.
See fisherpaykel.com or your local dealer for more details.
IMPORTANT
z
Consult local building codes and/or local agencies, before starting, to ensure that hood and duct installation will meet local requirements.
z
Hood blower speeds should be variable to reduce noise and loss of heated or air conditioned household air when maximum ventilation is not required.
Normally, the maximum blower speed is only required when using the grill or the self-cleaning cycle.
Wall Installation Island Installation
650mm 650mm
Hood
(inc. combustible)
Hood
(inc. combustible)
11

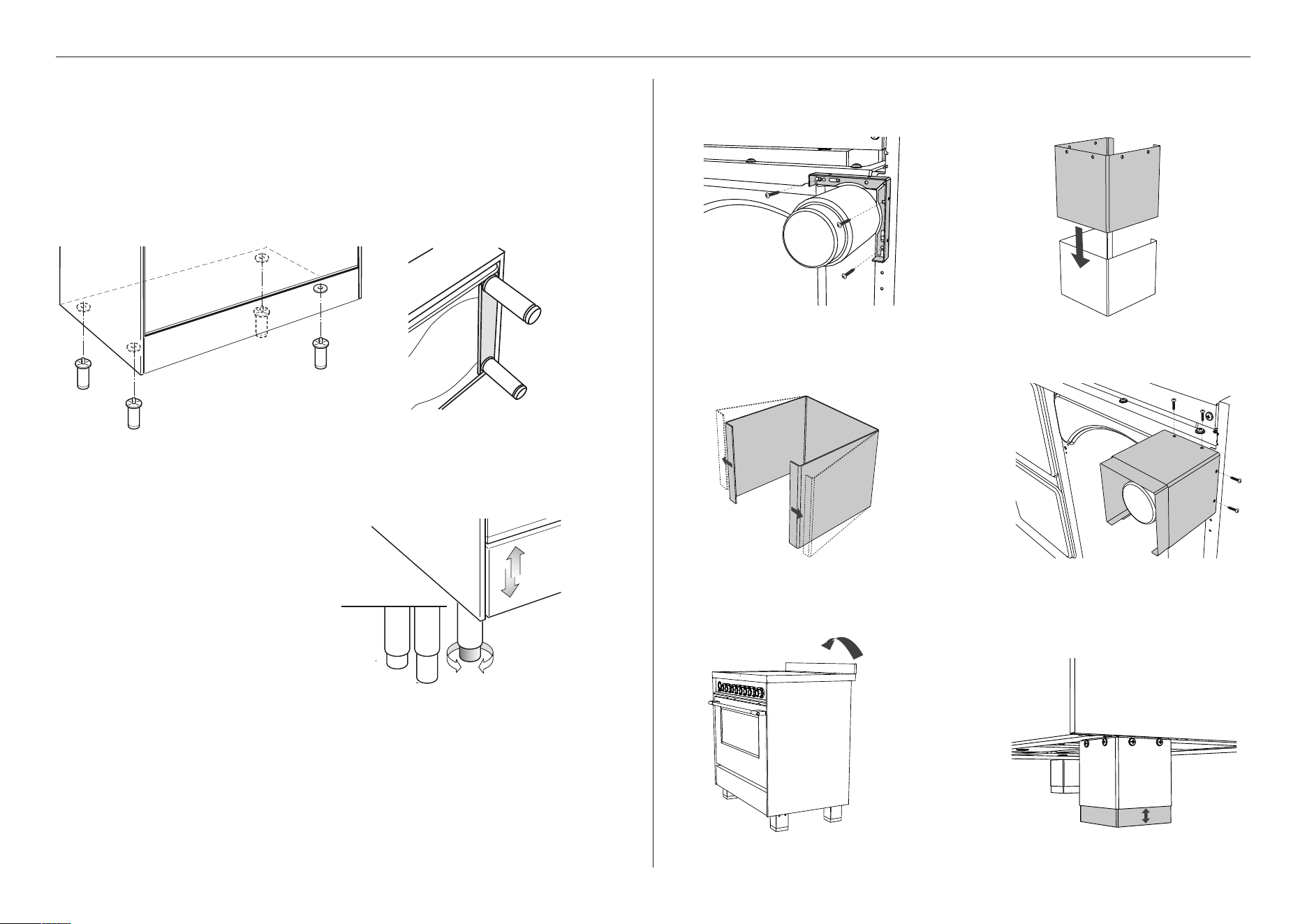

Fitting the adjustable feet
The adjustable feet must be fitted to the base of the cooker before use.
Rest the rear of the cooker on a piece of the polystyrene packaging exposing
the base for the fitting of the feet.
IMPORTANT
Take care not to damage the cooker during this operation.
3
2 Gently bend the sides of the inner
panels outwards to tension.
3 Slot the outer panels over the
tensioned inner panels.
6 Adjust the inner panels of the foot
covers to suit height of range feet.
INSTALLING FOOT COVERS (OR90 MODELS) SIMPLIFIED
1 Tip range onto its back and fix
brackets to mounting holes.
4 Secure covers to brackets using
the provided screws
5 Stand range back upright.
Fitting the adjustable feet covers (optional)
If using the adjustable feet covers fit these while the cooker is tipped over.
FITTING THE ADJUSTABLE FEET
3 Note: gently bend the edges of the
inner cover to adjust the tension
between the two parts if needed.
5 Stand cooker back upright. 6 Adjust the inner panels of the foot
covers to suit height of cooker feet.
4 Secure covers to brackets using the
provided screws.
2 Assemble the feet covers by slotting
the inner cover inside the outer cover.
1 Tip cooker onto its back and fix
brackets to mounting holes.
3
2 Gently bend the sides of the inner
panels outwards to tension.
3 Slot the outer panels over the
tensioned inner panels.
6 Adjust the inner panels of the foot
covers to suit height of range feet.
INSTALLING FOOT COVERS (OR90 MODELS) SIMPLIFIED
1 Tip range onto its back and fix
brackets to mounting holes.
4 Secure covers to brackets using
the provided screws
5 Stand range back upright.
3
2 Gently bend the sides of the inner
panels outwards to tension.
3 Slot the outer panels over the
tensioned inner panels.
6 Adjust the inner panels of the foot
covers to suit height of range feet.
INSTALLING FOOT COVERS (OR90 MODELS) SIMPLIFIED
1 Tip range onto its back and fix
brackets to mounting holes.
4 Secure covers to brackets using
the provided screws
5 Stand range back upright.
3
2 Gently bend the sides of the inner
panels outwards to tension.
3 Slot the outer panels over the
tensioned inner panels.
6 Adjust the inner panels of the foot
covers to suit height of range feet.
INSTALLING FOOT COVERS (OR90 MODELS) SIMPLIFIED
1 Tip range onto its back and fix
brackets to mounting holes.
4 Secure covers to brackets using
the provided screws
5 Stand range back upright.
3
2 Gently bend the sides of the inner
panels outwards to tension.
3 Slot the outer panels over the
tensioned inner panels.
6 Adjust the inner panels of the foot
covers to suit height of range feet.
INSTALLING FOOT COVERS (OR90 MODELS) SIMPLIFIED
1 Tip range onto its back and fix
brackets to mounting holes.
4 Secure covers to brackets using
the provided screws
5 Stand range back upright.
3
2 Gently bend the sides of the inner
panels outwards to tension.
3 Slot the outer panels over the
tensioned inner panels.
6 Adjust the inner panels of the foot
covers to suit height of range feet.
INSTALLING FOOT COVERS (OR90 MODELS) SIMPLIFIED
1 Tip range onto its back and fix
brackets to mounting holes.
4 Secure covers to brackets using
the provided screws
5 Stand range back upright.
Levelling the cooker
z
The cooker may be levelled by screwing
the lower ends of the feet IN or OUT.
z
Small adjustments may be made to the
cooker in the upright position, however
it may be necessary to tip the cooker
again to make larger adjustments.
Fit the four legs by screwing them tight into the support base as shown.
12
IMPORTANT!
z
When raising cooker to upright position always ensure two people carry out this manoeuvre to prevent damage to the adjustable feet.
z
BE CAREFUL: do not lift the cooker by the oven door handle, the hob rail or by lifting the cooktop trim as this may damage the appliance.
z
When moving cooker to its final position DO NOT DRAG.
z
Lift feet clear of floor.
MOVING THE COOKER
13
INSTALLING THE ANTI-TIP BRACKET
Fit the anti-tip bracket
1 Loosely fix the anti-tip bracket to the wall using the supplied screws.
z
Drill two 8mm diameter holes in the wall and insert the supplied plastic
sleeve anchors before inserting the screws.
2 Slide the cooker into place and adjust the height of the bracket
sothat it will align with the slot on the back of the cooker.
3 Tighten the screws to fix the anti-tilt bracket in place.
4 Push the cooker back into place so that the bracket is fully inserted
into the slot on the back of the cooker.
min 67mm
max 217mm
IMPORTANT!
z
To restrain the cooker and prevent it tipping accidentally secure the cooker to the wall using the supplied anti-tip bracket.
Ensure you also fit the supplied lock pin to the anti-tip bracket.
z
If installing the cooker above a plinth (without fitting the adjustable feet) revise the installation dimensions for the anti-tip
bracket accordingly, considering that the feet have the following measurements: min 85mm – max 133mm.
z
Before drilling and holes or inserting any screws into the floor or wall check that you will not damage any wiring or pipes.
40mm
dotted line showing the
position of the range
when installed
bracket
slot at
back of
the range
anti-tip bracket
14

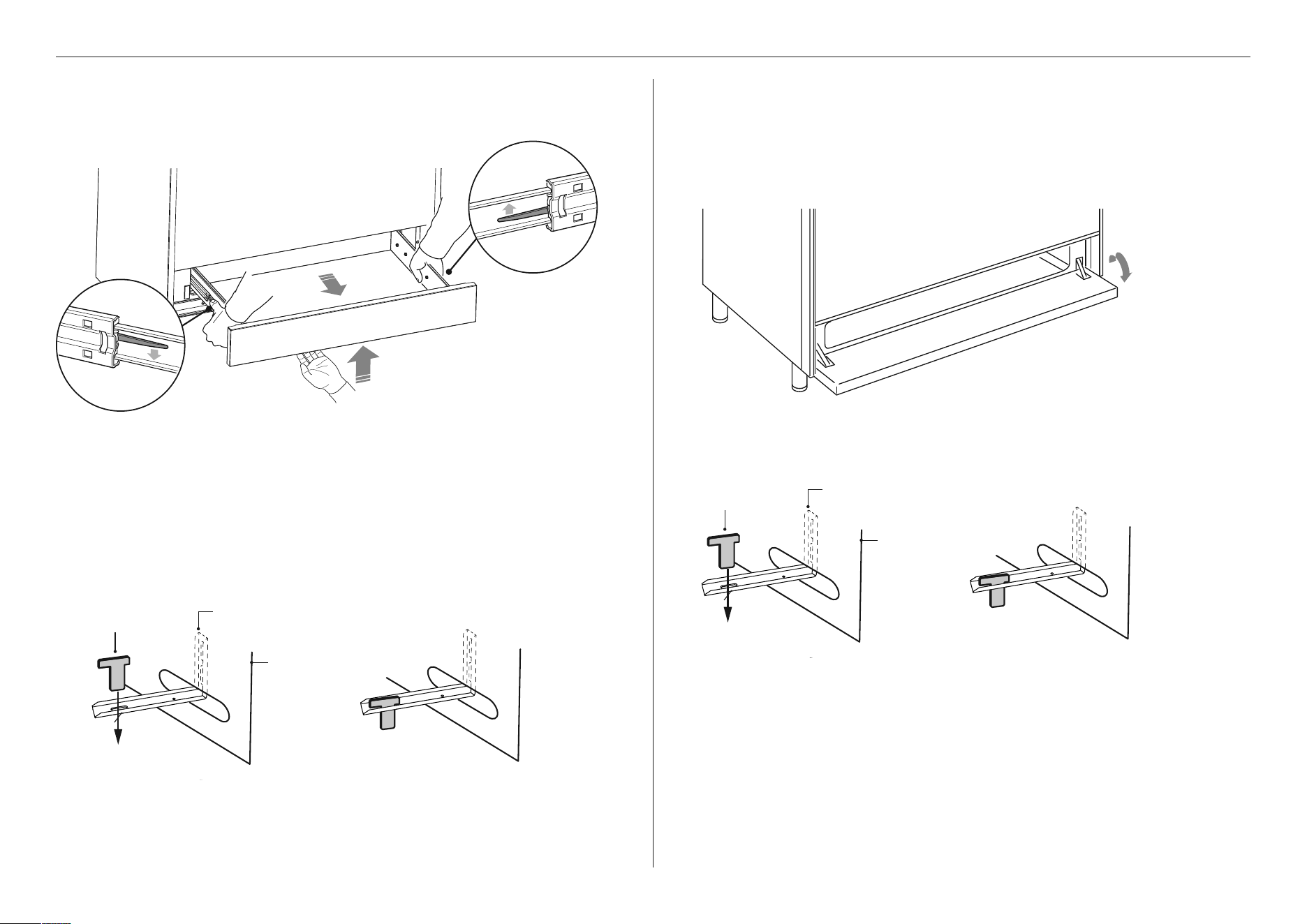

4 Fit the lock pin through the bracket as shown
5 Insert the drawer guides onto the sliding runners on either side of the cooker interior.
z
Ensure they are correctly lined up on both sides of the drawer.
6 Gently close the drawer completely. The safety catches will automatically lock into place.
2 Fit the lock pin through the bracket as shown.
3 Close the storage compartment door.
INSTALLING THE ANTI-TIP BRACKET
1 Open the storage compartment door.
To remove the storage/warming drawer
1 Open the storage/warming drawer completely.
2 Move down the lever of left guide A and up the lever of right guide B.
3 Remove the drawer holding the levers in the same position.
IMPORTANT
z
Do not remove storage/warming drawer while hot or during operation.
z
Be sure storage/warming drawer is empty before removing.
z
Always position your hand below the front panel to open/close the drawer.
A
B
Fitting the lock pin (models with a storage/warming drawer)
The anti-tip bracket is accessible by removing the storage/warmer drawer,
andispositionedon the rear right side of the cooker.
Fitting the lock pin (models with a storage compartment)
The anti-tip bracket is accessible by opening the storage compartment door,
andispositioned on the rear right side of the cooker.
bracket mounted
to rear wall
cooker
back
lock pin
bracket mounted
to rear wall
cooker
back
lock pin
15
ELECTRICAL CONNECTION
IMPORTANT!
z
This cooker must be connected to the mains power supply only
by a suitably qualified person. This cooker must be earthed.
z
If the installation requires alterations to the domestic electrical system, call a qualified electrician. The electrician should also
check that theelectrical system is suitable for the electricity drawn by the cooker.
z
The appliance must be connected to the mains electricity supply, checking that the voltage corresponds to the value given in
the rating plate and that the electrical cable sections can withstand the load specified on the plate.
z
A suitable disconnection switch must be incorporated in the permanent wiring, mounted and positioned to comply with the
local wiring rules and regulations. Theswitch must be of an approved type installed in the fixed wiring and provide a 3mm air
gap contact separation inall poles in accordance with the local wiringrules.
z
A switch of the approved type with a 3mm air gap must be installed in the active (phase) conductor of the fixed wiring.
z
The switch must always be accessible.
z
The power supply cable must not touch any hot parts and must be positioned so that it does not exceed 75°C at any point.
z
This cooker must be connected to a suitable double pole control unit adjacent to the cooker. No diversity can be applied to
this control unit.
z
This appliance must be connected to the electrical supply using a cable fitted with an appropriately rated plug. The plug must
be compatible with the socket-outlet fitted to the final subcircuit in the fixed wiring that is intended to supply the appliance.
Replacing the power cord
z
Replacements should only be made by a qualified electrician.
z
Use a cable according to the applicable local regulations.
MODEL CODE MAX POWER (W) HZ VOLTAGE (V)
MAX CURRENT PER PHASE (A)
1 PH 2 PH 3 PH
OR90S*1 10610 50 Hz 220 – 240 V~ 46 32 16
OR90S*4 15300 50 Hz 220 – 240 V~ 67 45 32
OR90S*6 15550 50 Hz 220 – 240 V~ 68 45 32

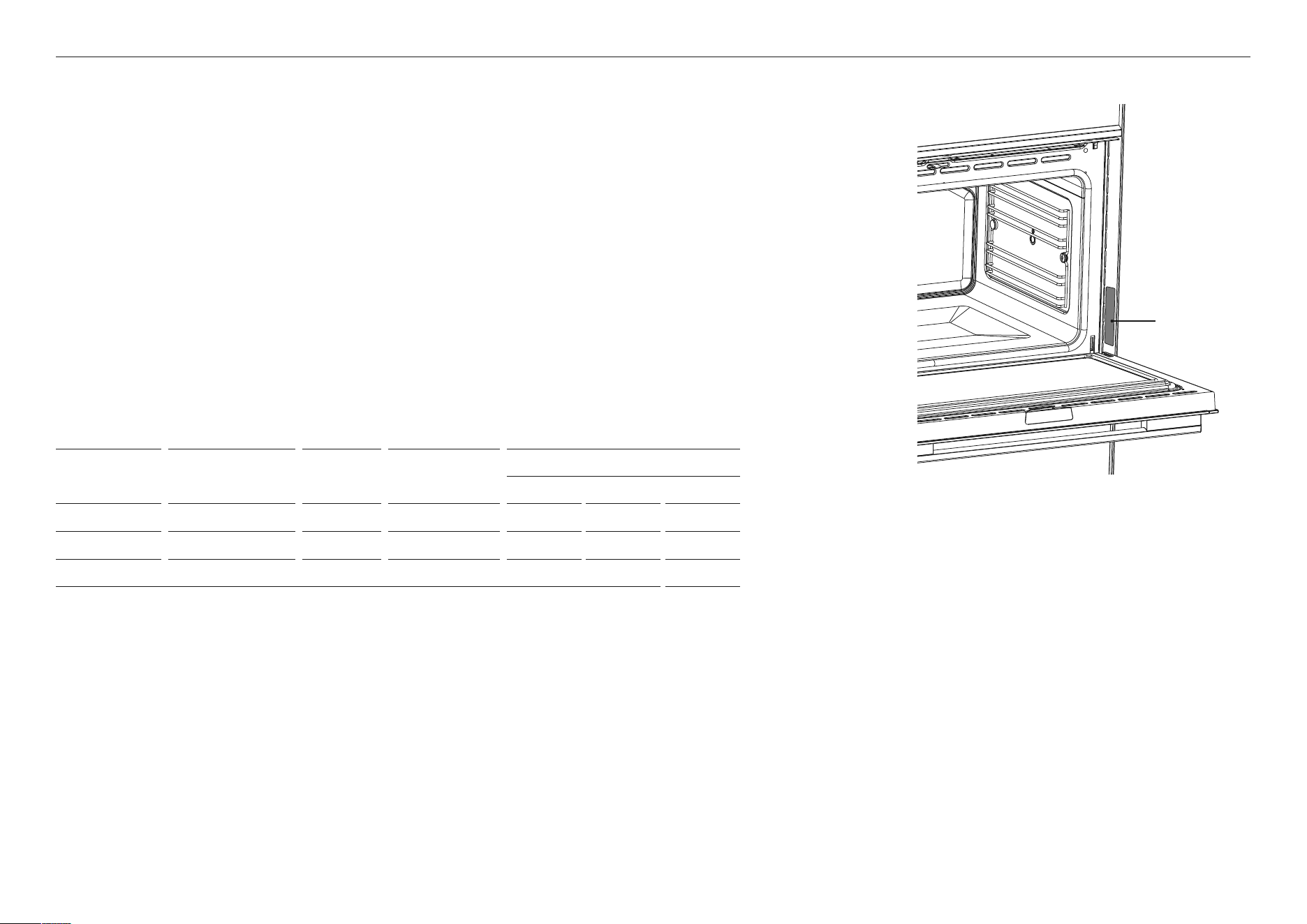

location of
nameplate
16
ELECTRICAL FEEDER CABLE CONNECTION
IMPORTANT!
The power supply cable must be connected by a Fisher & Paykel trained and support
service technician or qualified person.
Feeder cable section
Use a type of cable according to the applicable local regulations.
SINGLE-PHASE CONNECTION
TWO-PHASE CONNECTION
THREE-PHASE CONNECTION
1 Remove the screws that hold the cover in
place at the back of the cooker.
3 Connect the live, neutral and earth cables
to the terminal. Lock the power supply
cable in place by screwing the terminal
end back to the strain relief. Re-mount the
screw cover back onto to the cooker.
IMPORTANT!
The earth conductor should remain
around 30mm longer than the others.
2 Unscrew the bottom terminal end of the
strain relief by using two spanners. Insert
terminal into the power suply cable, then
insert the feeder cable into the strain relief
(ensure sealing ring stays secured inside
the strain relief).
IMPORTANT!
Do not to unscrew the strain relief
from the cooker.
single-phase connection illustrated
17
FINAL CHECKLIST
TO BE COMPLETED BY THE INSTALLER
GENERAL
F Placement of unit.
F Specified clearance maintained to cabinet surfaces.
F Unit Level — front to back, side to side.
F All packaging material and tie straps removed.
F Island trim or optional backguard correctly attached.
F The anti-tip bracket is correctly installed.
ELECTRICAL
F Adequate ground connection.
OPERATION
F All internal packing materials removed. Check inside the oven.
F Dials turn correctly and freely.
F Oven and cooktop displays are functioning correctly and oven and cooking zones
can be turned on.
F Oven door hinges seated and door opens and closes properly.
Complete and keep for safe reference:
Model
Serial No.
Purchase Date
Purchaser
Dealer address
Installer’s name
Installer’s signature
Installation company
Installation date
591517E 12.21
FISHERPAYKEL.COM
© Fisher & Paykel Appliances 2021. All rights reserved.
The models shown in this guide may not be available in all markets
and are subject to change at any time.
The product specifications in this guide apply to the specific products and
models described at the date of issue. Under our policy of continuous product
improvement, these specifications may change at any time.
For current details about model and specification availability in your country,
please go to our website or contact your local Fisher&Paykel dealer.
