Freestanding Cooker, Induction, 91cm
SPECIFICATION GUIDE | FREESTANDING COOKER, INDUCTION, 91CM
OVERVIEW

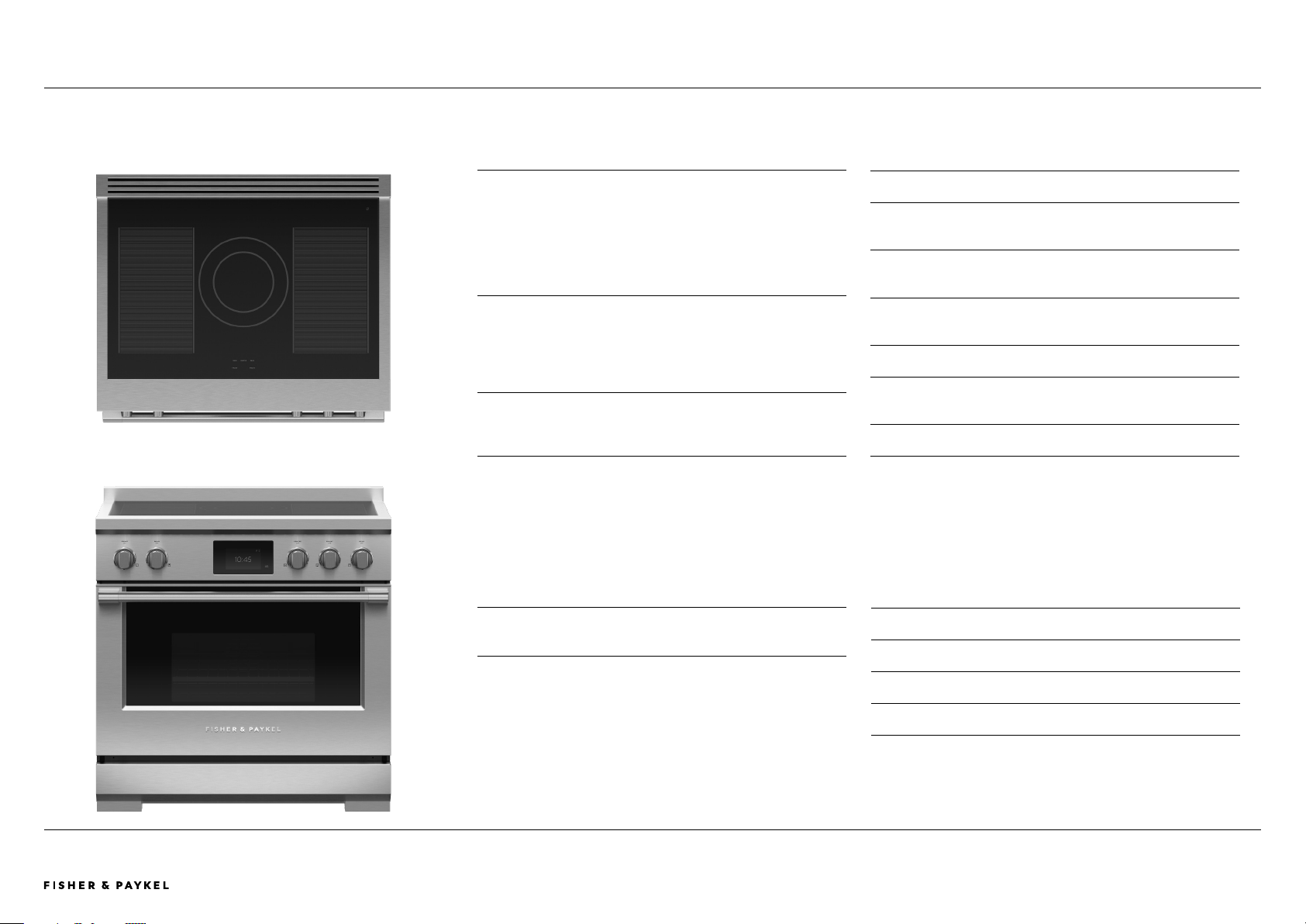

This 91cm Freestanding Cooker with Induction Cooktop
oers the best of both worlds. Enjoy the instant-response,
easy to clean and energy eciency of induction cooking
while the generous 136L total capacity oven oers plenty of
space to cook multiple dishes at once. Easy-to-use, it has
an intuitive touchscreen display, pairing powerful
functionality with a singular aesthetic treatment.
PRODUCTS
RIV3-915
Freestanding Cooker, Induction, 91cm
5 Zones, with SmartZone, Self-cleaning
SERIES & STYLE
Series 9
Professional
FEATURES
1 Generous size perfect for larger kitchens
2 Five induction cooking zones, which can be paired to
form two large SmartZones
3 Guided cooking using a touchscreen makes it simple to
cook by food, function or recipe
4 Less heat is wasted during induction cooking as only the
cookware is heated, not the cooktop surface
5 Single glass cooking surface can be easily wiped clean
6 Cooktop remains cool to touch until a pot or pan is
placed on the surface
7 LED halo-illuminated dials provide information at a glance
ACCESSORIES
1 Food probe
2 Grill pan
3 Grill rack
4 Full-extension telescopic racks
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 59000297B © FISHER & PAYKEL LIMITED 202PLANNING GUIDE FREESTANDING COOKER, INDUCTION - VERSION B - SEPTEMBER 202
RIV-915
SPECIFICATION GUIDE | FREESTANDING COOKER, INDUCTION, 91CM
SPECIFICATIONS
Model No.
RIV-915
Dimensions
H 908 - 9mm W 911mm D 740mm
Weight
Packaged
200kg
Unpackaged
176kg
Total Oven Capacity
16L
Door Clearance
486mm
Electrical
Supply
220-240 V, 50 Hz
Service
50 A
Connection
Terminal Block
CAVITY DIMENSIONS: STANDARD INSTALLATION
mm
A Overall height of cavity*
908
9
B Overall width
914
C Minimal depth of cavity
z
Proud installation
z
Flush installation
644
70
Service area H152mm x W835mm x D51mm
*Depending on height of range.
PRODUCT DIMENSIONS
mm
A Overall height
(from floor to cooktop,
excl. vent trim)
min 908
max 9
B Overall width
911
C Overall depth
(excl. handles and dials)
740

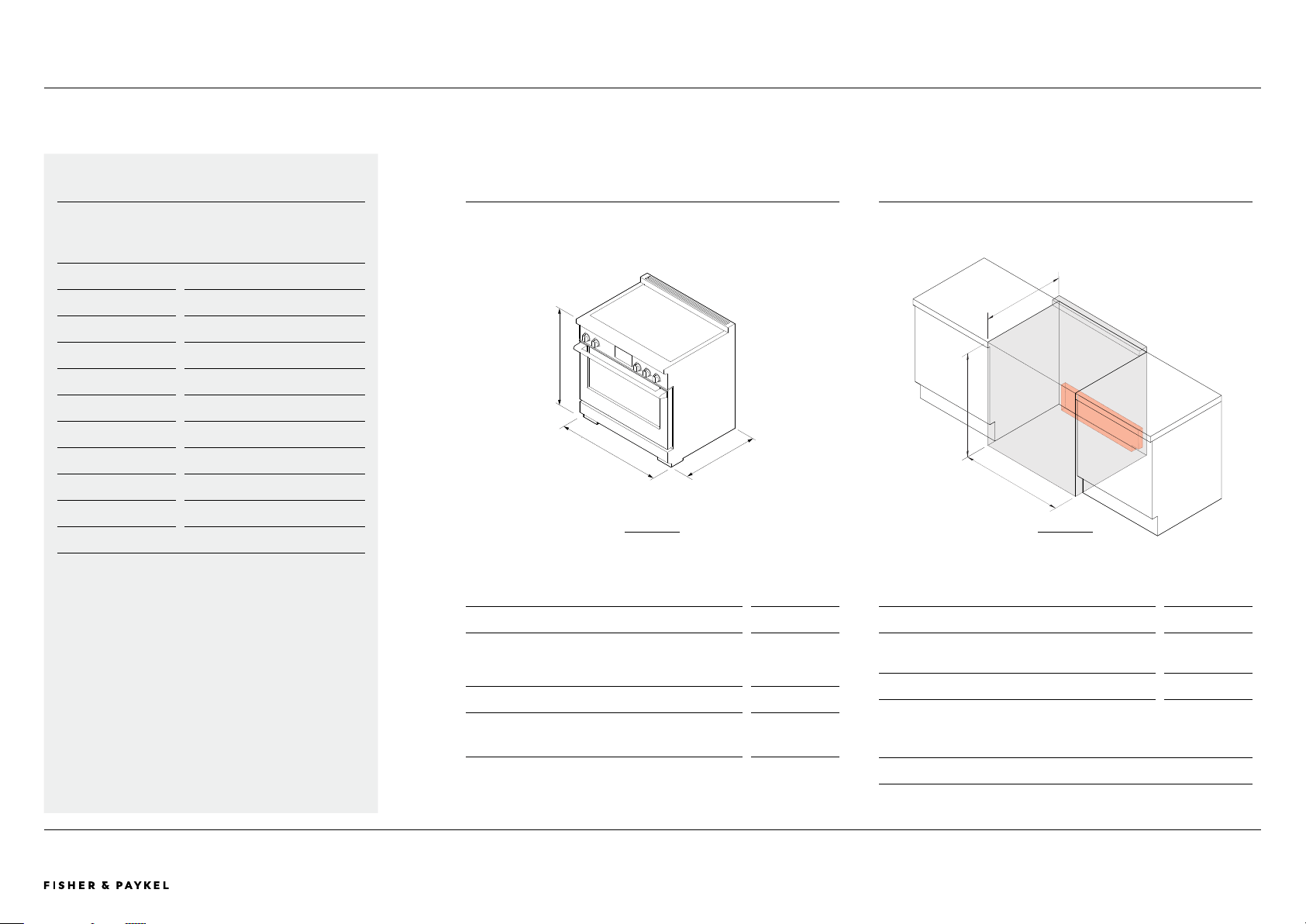

ISO VIEW
A
B
C
C
A
B
ISO VIEW
© FISHER & PAYKEL LIMITED 202 PAGE 69000297B PLANNING GUIDE FREESTANDING COOKER, INDUCTION - VERSION B - SEPTEMBER 202
DATA SHEET
Data Sheet
IMPORTANT NOTE: Throughout this guide, dimensions may vary by
±2mm (1/16''). Please read the Installation Guide for detailed information on
installing the product. For full installation instructions visit fisherpaykel.com
PAGE 79000297B © FISHER & PAYKEL LIMITED 202
INDICATES CABINETRY / PRODUCT DATUM -------------------------
INDICATES CABINETRY CLEARANCES --------------------------------
PLANNING GUIDE FREESTANDING COOKER, INDUCTION - VERSION B - SEPTEMBER 202
Freestanding Cooker, Induction, 91cm
RIV-915
DATA SHEET | FREESTANDING COOKER, INDUCTION, 91CM
Model no:
Freestanding Cooker, Induction, 91cm - RIV-915
Product Dimensions
mm
A
Height of range (from floor to cooktop, excluding rear trim)
min 908
max 9
b
Overall width of range
911
c
Overall depth of product (excluding handle and dials)
740
d
Depth of proud installation
644
e
Depth of flush installation
70
f
Height of rear trim
45
g
Depth of rear trim
7
h
Height from counter top to bottom of control panel
196
i
Height from countertop to top of foor
206
j
Height of countertop to centre of handle
29
k
Height from counter top to bottom of door
77
l
Height from counter top of lower panel
761
m
Height from counter top to bottom of lower panel
855
n
Thickness of handle rail
2
o
Width of handle (including o-stand)
892
p
Depth of handle (measured from front of door)
7
q
Depth of front of cooktop to control panel
7
r
Height of cooktop front face
5
s
Height from top of cooktop to control panel
51
t
Depth of open door to cabinetry face - flush
486
u
Adjustable feet height
min 1
max 8
Cavity Dimensions: Standard Installation
mm
Overall width of cavity
min 914
Overall depth of cavity for proud installation
max 644
Overall depth of cavity for flush installation
max 70
Maximum height from floor to countertop:
- for level counter
- with levelling legs fully extended
908
9
IMPORTANT NOTE: For full installation please refer to our installation manual
millimeters
0 100 200 400
A
908 -
9mm
f
c
e
c
b
740mm
q
rs
p
t
d
u
n
hij
k
l m
t
g
o
740mm
911mm

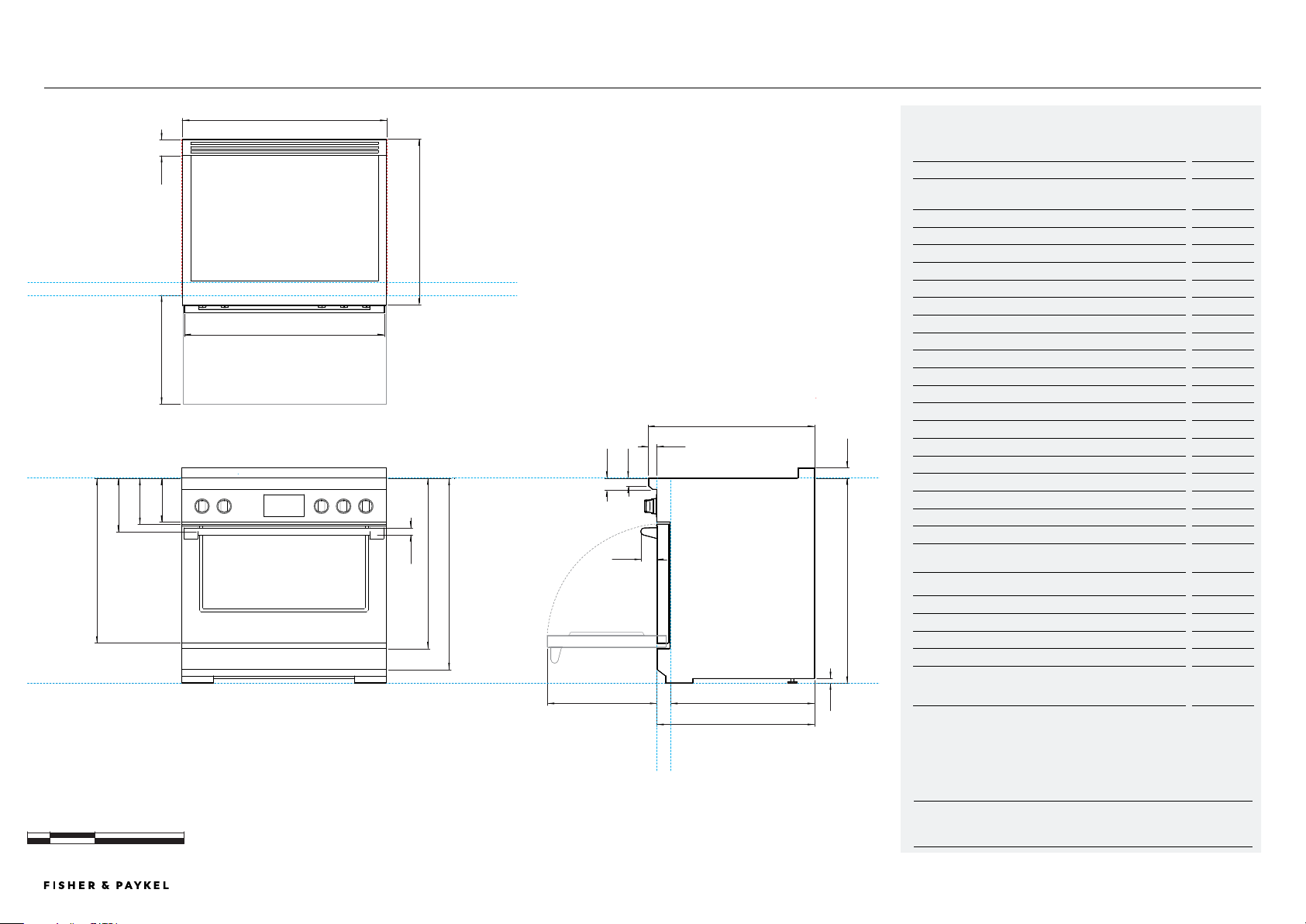

PROFILE VIEWFRONT VIEW
PLAN VIEW
DATUM: TOP OF COUNTERTOP
DATUM: FLOOR
DATUM: FLUSH INSTALLATION DATUM: PROUD INSTALLATION
DATUM:
FLUSH INSTALLATION
DATUM:
PROUD INSTALLATION
IMPORTANT NOTE: Throughout this guide, dimensions may vary by
±2mm (1/16''). Please read the Installation Guide for detailed information on
installing the product. For full installation instructions visit fisherpaykel.com
PAGE 89000297B © FISHER & PAYKEL LIMITED 202
INDICATES CABINETRY / PRODUCT DATUM -------------------------
INDICATES CABINETRY CLEARANCES --------------------------------
PLANNING GUIDE FREESTANDING COOKER, INDUCTION - VERSION B - SEPTEMBER 202
Model no:
Freestanding Cooker, Induction, 91cm - RIV-915
Clearance Dimensions
mm
A
Minimum width of ventilation hood installed above cooktop
- not shown*
914
b
Minimum vertical distance between countertop and cabinet
extending above counter
457
c
Minimum clearance from left and right edge of cooktop to
nearest vertical combustuble surface
05
d
Minimum clearance from cooking surface to:
- combustible surface centred above the cooking
surface
- combustible covering ventilation hood centred
above the cooking surface
- non combutsible surface* centred above the
cooking surface
762
762
762
e
Maximum overall depth of overhead cabinetry
0
*IMPORTANT NOTE: For full installation please refer to our installation manual
RIV-915
DATA SHEET | FREESTANDING COOKER, INDUCTION, 91CM

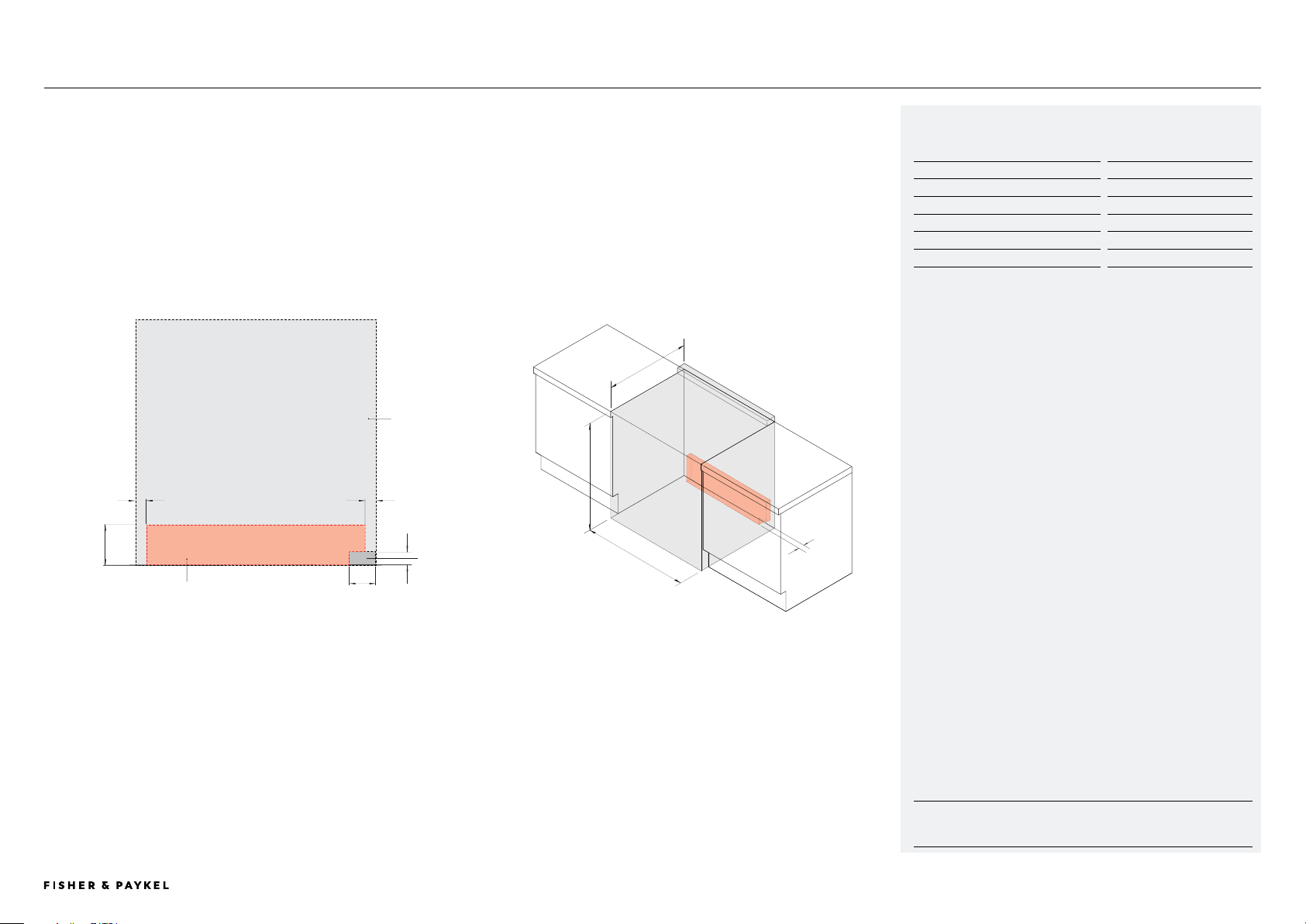

PLAN VIEW
e
b
c
c
MINIMUM CLEARANCE:
NEAREST VERTICAL
COMBUSTIBLE SURFACE
MINIMUM CLEARANCE:
NEAREST VERTICAL
COMBUSTIBLE SURFACE
MINIMUM CLEARANCE:
ADJACENT OVERHEAD CABINET
MAXIMUM OVERALL DEPTH OF
OVERHEAD CABINETRY
DATUM: TOP OF COUNTERTOP
DATUM: FLOOR

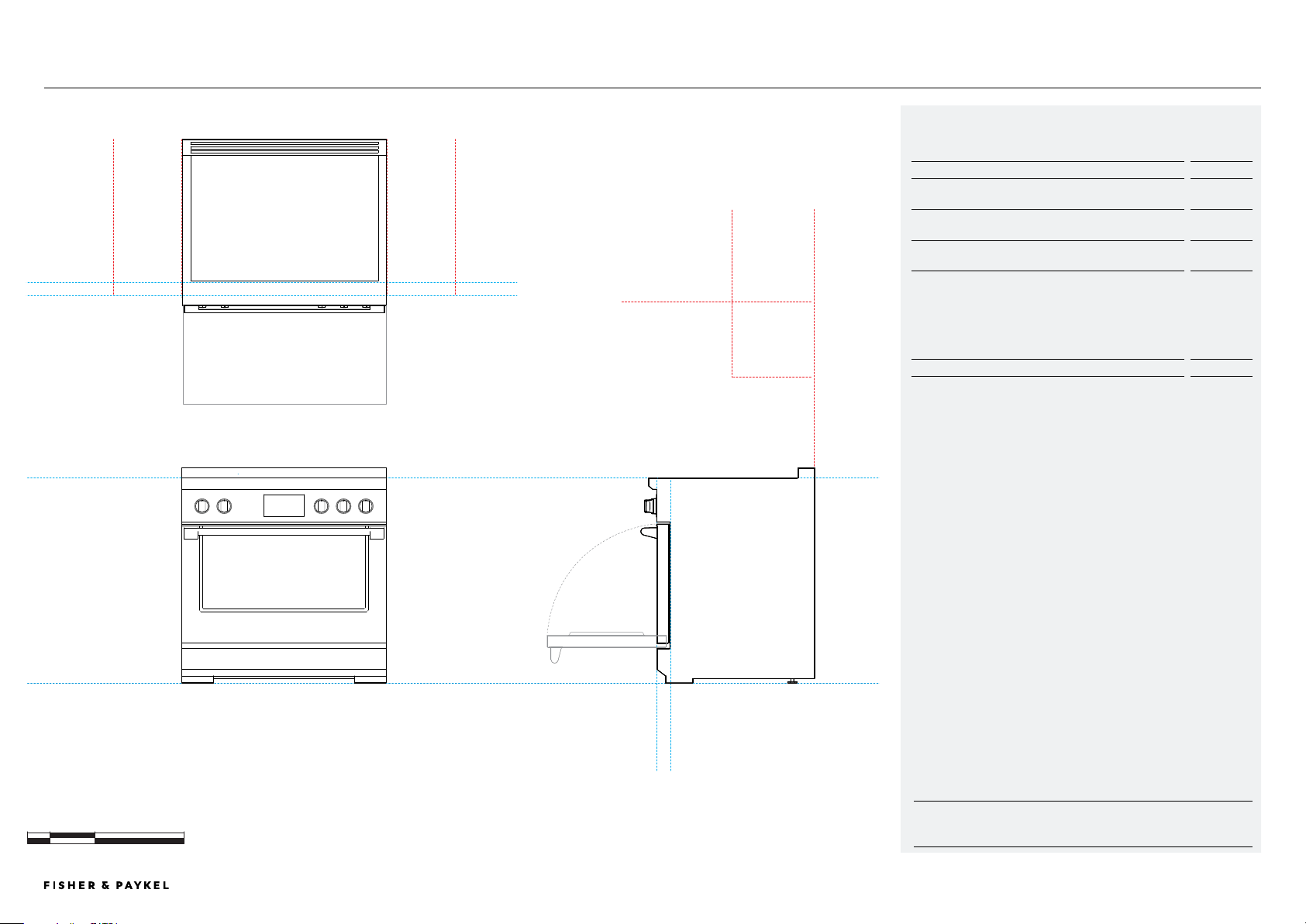

FRONT VIEW
millimeters
0 100 200 400
d
MINIMUM CLEARANCE:
FROM COOKING SURFACE
PROFILE VIEW
DATUM: FLUSH INSTALLATION DATUM: PROUD INSTALLATION
DATUM:
FLUSH INSTALLATION
DATUM:
PROUD INSTALLATION
IMPORTANT NOTE: Throughout this guide, dimensions may vary by
±2mm (1/16''). Please read the Installation Guide for detailed information on
installing the product. For full installation instructions visit fisherpaykel.com
PAGE 99000297B © FISHER & PAYKEL LIMITED 202
INDICATES CABINETRY / PRODUCT DATUM -------------------------
INDICATES CABINETRY CLEARANCES --------------------------------
PLANNING GUIDE FREESTANDING COOKER, INDUCTION - VERSION B - SEPTEMBER 202
50mm
152mm
100mm
ELECTRICAL
FLOOR
LEFT SIDE
OF CAVITY
FINAL POSITION OF
RANGE AGAINST WALL
8mm
51mm
LOCATION OF
ANTI-TIP BRACKET
Model no:
Freestanding Cooker, Induction, 91cm - RIV-915
Specifcations
Oven total capacity
16L
Electrical
Supply
220-240 V, 50 Hz
Service
50 A
Connection
Terminal Block
IMPORTANT NOTE: For full installation please refer to our installation manual
8mm
RIV-915
DATA SHEET | FREESTANDING COOKER, INDUCTION, 91CM
FRONT VIEW
(REAR OF CAVITY)
