Model：HOFSSS3T917EIMXK
Table of Contents
Product Introduction
Installation
Operation
Maintenance
Product features -------------------------------------------- 8
Product components --------------------------------------- 9
Installation dimension-------------------------------------- 10
Transportation----------------------------------------------- 11
Where to install your unit ---------------------------------- 11
Adjustable plastic feet ------------------------------------- 11
Door rack ----------------------------------------------------- 11
Before use --------------------------------------------------- 12
Water supply connection ---------------------------------- 12
Starting ------------------------------------------------------ 12
Control panel ------------------------------------------------ 12
Freezer chamber settings --------------------------------- 13
Refrigerator chamber settings -------------------------- 13
Mode/Lock/Unlock(3S)---------------------- ---------------- 13
Open door alarm -------------------------------------------- 13
Ice and water dispenser ----------------------------------- 14
Refrigerator chamber -------------------------------------- 16
Freezing chamber ------------------------------------------ 16
Automatic ice maker---------------------------------------- 17
Ice maker install and uninstall---------------------------- 17
Switch off the ice maker----------------------------------- 17
Instructions for storing foods ----------------------------- 18
Storage of foods -------------------------------------------- 18
Defrosting --------------------------------------------------- 21
Cleaning ----------------------------------------------------- 21
General information ---------------------------------------- 21
Energy saving tips ------------------------------------------ 21
Normal phenomena ---------------------------------------- 22

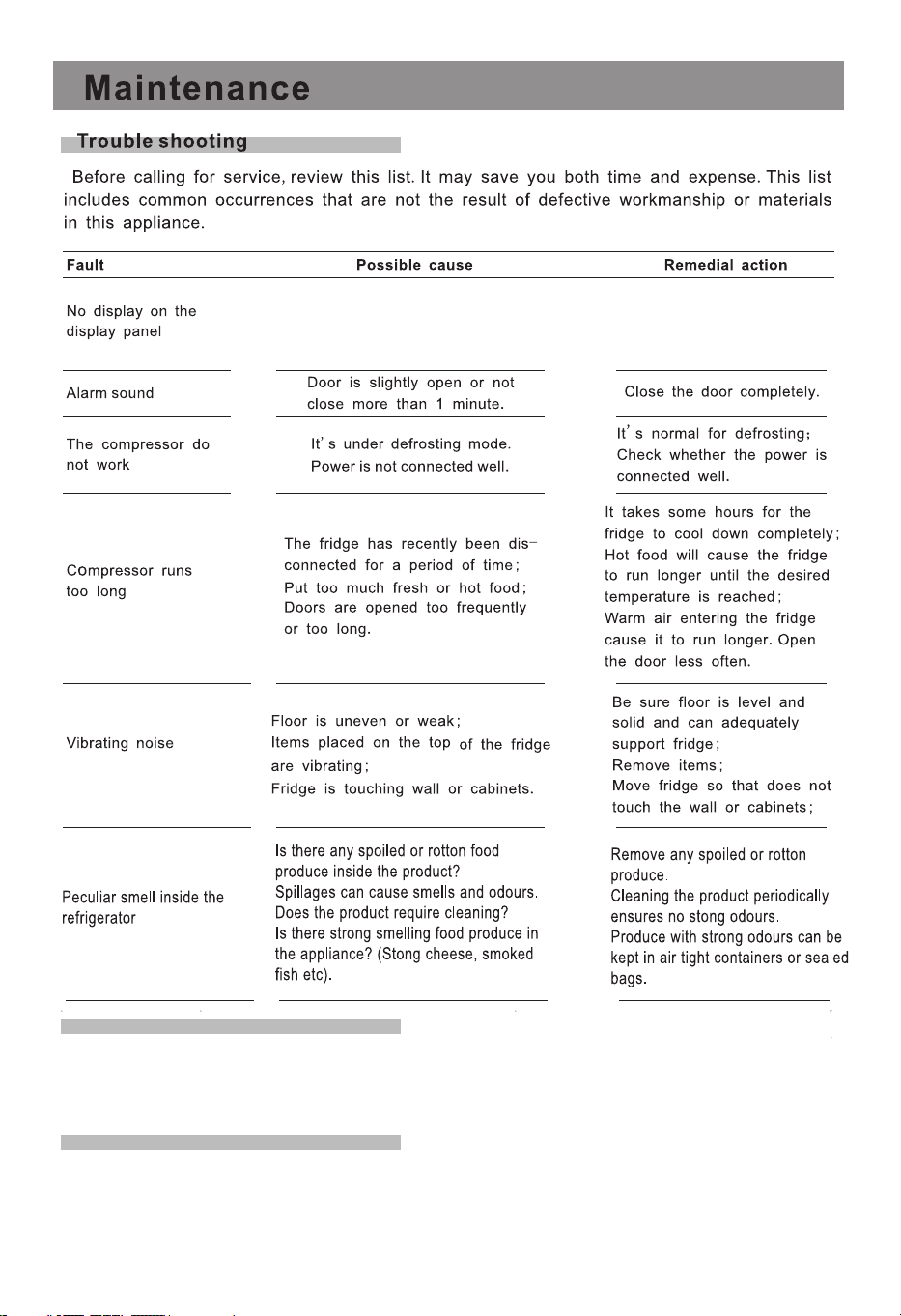

Troubleshooting ------------------------------------------- 24
Scrapping old appliances
Conformity
1
7
7
7
7
Guarantee
Energy Saving
AVAILABILITY OF SPARE PARTS
TECHNICAL ASSISTANCE
24
24
- 1 -
Thank you for purchasing this product.
Before using your refrigerator, please carefully read this instruction manual in order to maximize
its performance. Store all documentation for subsequent use or for other owners. This product is
intended solely for household use or similar applications such as:
- the kitchen area for personnel in shops, offices and other working environments
- on farms, by clientele of hotels, motels and other environments of a residential type
- at bed and breakfasts (B & B)
- for catering services and similar applications not for retail sale.
This appliance must be used only for purposes of storage of food, any other use is considered
dangerous and the manufacturer will not be responsible for any omissions. Also, it is
recommended that you take note of the warranty conditions.
SAFETY INFORMATION
Please read the operating and installation instructions carefully!
They contain important information on how to install, use and maintain the appliance.
The manufacturer is not liable if you fail to comply with the instructions and warnings.
Retain all documents for subsequent use or for the next owner.
• Do not connect the appliance to the electricity supply
until all packing and transit protectors have been
removed. Keep children away from packaging and its
parts.
Danger of suffocation from folding cartons and plastic
film!
• Leave to stand for at least 4 hours before switching on
the product, to allow compressor oil to settle if
transported horizontally.
• Make sure there is no transport damage.
• Do not damage the refrigerant circuit.
• Maintain the ventilation openings in the appliance
enclosure or in the built-in structure, free of obstruction.
• Never use water to wash the compressor position, wipe
it with a dry cloth thoroughly after cleaning to prevent
rust.
• Handle the appliance always with at least two persons
because it is heavy.
• Install and level the appliance in an area suitable for its
size and use.
- 2 -
• Only for UK: The appliance’s power cable is fitted with
3-cord (grounding) plug that fits a standard 3-cord
(grounded) socket. Never cut off or dismount the third
pin (grounding). After the appliance is installed, the plug
should be accessible.
• Make sure that mains cable is not caught under the
appliance during and after carrying/moving the
appliance, to avoid the mains cable becoming cut or
damaged. If the supply cord is damaged, it must be
replaced by the manufacturer, its service agent or
similarly qualified person in order to avoid a hazard.
• Do not install the appliance in humid, oily or dusty
places, nor expose it to direct sunlight and to water.
• Do not install the appliance near heaters or
inflammable materials.
• FOR appliances with a freezer compartment: if there
is a power failure do not open the lid. Frozen food
should not be affected if the failure lasts for less than
the hours indicated on the rating label (Temperature
rise time). If the failure is longer, then the food should
be checked and eaten immediately or cooked and then
refrozen.
• If you find that the lid of the appliance is difficult to
open just after you have closed it, don’t worry. This is
due to the pressure difference which will equalize and
allow the lid to be opened normally after a few minutes.
• Do not store medicines, bacteria or chemical agents in
the appliance. This appliance is a household appliance,
it is not recommended to store materials that require
strict temperatures.
• Make sure that the electrical information on the rating
plate agrees with the power supply. If it does not,
contact an electrician.
• Do not excessively pull or fold the power cord or touch
the plug with wet hands.
• Do not store products which contain flammable
propellant (e.g. spray cans) or explosive substances in
the ce. Risk of on!
- 3 -
• Do not place unstable articles (heavy objects,
containers filled with water) on top of the refrigerator, to
ovoid personal injury caused by falling or electric shock
caused by contact with water.
• Do not use electrical appliances inside the food
storage compartments, unless they are of the type
recommended by the manufacturer.
• Do not touch internal cooling elements, especially
with wet hands, to avoid cracks or injuries.
• At risk here are children, people who have limited
physical, mental or sensory abilities, as well as people
who have inadequate knowledge concerning safe
operation of the appliance.
• Check that children and vulnerable people have u
nderstood the hazards. A person responsible for safety
must supervise or instruct children and vulnerable
people who are using the appliance. Only children aged
8 years and above may use the appliance.
• Children should not play with the appliance.
• Children aged from 3 to 8 years are allowed to load
and unload this appliance.
• FOR appliances with a freezer compartment: do not
store bottled or canned liquids (especially carbonated
drinks) in the freezer compartment. Bottles and cans
may burst!
• FOR appliances with a freezer compartment: never
put frozen food straight from the freezer compartment in
your mouth. Risk of low-temperature burns!
• Keep plastic parts and the door seal free of oil and
grease. Otherwise, plastic parts and the door seal will
become porous.
• Before performing any operation, unplug the power
cord from the power socket.
• Do not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
• Do not use pointed or sharp-edged objects such as
knives or forks to remove the frost.
- 4 -
- 4 -
• Never use hairdryers, electrical heaters or other such
electrical appliances for defrosting.
• It is recommended to keep the plug clean, any
excessive dust residues on the plug can be the cause
fire.
• Do not try to repair, disassemble or modify the
appliance by yourself. In case of repair please contact
always our customer service.
• Supervise children while the appliance is being
cleaned or maintained.
• Do not clean the cold glass shelves with hot water.
Sudden temperature change may cause the glass to
break.
• WARNING: The tubes of the refrigeration circuit
convey a small quantity of an environmentally friendly
but flammable refrigerant (R600a) and insulating gas
(cyclopentane). It does not damage the ozone layer and
does not increase the greenhouse effect. If refrigerant
escapes, it may injure your eyes or ignite.
• If the refrigerant circuit should be damaged:
- Switch off the appliance and pull out the mains plug,
- Keep naked flames and/or ignition sources away from
the appliance,
- Thoroughly ventilate the room for several minutes,
- Inform customer service.
• WARNING: Do not damage the plug and/or the power
cord; this could cause electrical shocks or fires.
• WARNING: Do not use multiple portable
socket-outlets or portable power supplies. We do not
recommend the use of extension leads and multi-way
adapters.
- 5 -
• Do not attempt to sit or stand on the top of the
appliance. You could injure yourself or damage it. This
appliance is not designed for stacking with any other
ones.
• The product is designed and built for domestic
household use only.
• Only original parts supplied by the manufacturer may
be used. The manufacturer guarantees that only these
parts satisfy the safety requirements.
• Opening the door for long periods can cause a
significant increase of the temperature in the
compartments of the appliance.
- Clean regularly surfaces that can come in contact with
food and accessible drainage systems.
- Clean water tanks if they have not been used for 48h;
flush the water system connected to a water supply if
water has not been drawn for 5 days.
- Store raw meat and fish in suitable containers in the
refrigerator, so that it is not in contact with or drip onto
other food.
- Two-star frozen-food compartments(if they are
presented in the appliance) are suitable for storing
pre-frozen food, storing or making ice-cream and
making ice cubes.
- One-, two- and three -star compartments, if present in
the appliance, are not suitable for the freezing of fresh
food.
- If the appliance is left empty for long periods, switch
off, defrost, clean, dry and leave the door open to
prevent mould developing within the appliance.
• FOR Wine Coolers: this appliance is intended to be
used exclusively for the storage of wine
- 6 -
• FOR a free standing appliance: this refrigerating
appliance is not intended to be used as a built-in
appliance
• FOR appliances without a 4-star compartment: this
refrigerating appliance is not suitable for freezing
foodstuffs
• The appliance is operated by a 220-240 VAC/50 Hz
•
•
Replaceable (LED only) light source by a professional.
This product contains a light source of energy efficiency
class F
power supply. Abnormal voltage fluctuation may cause
the appliance to fail to start, or damage to the
temperature control or compressor, or there may be an
abnormal noise when operating. In such case, an
automatic regulator shall be mounted
- 7 -
Energy Saving
For better energy saving we suggest :
• Installing the appliance away from heat sources and not exposed to direct sunlight and in a well
ventilated roo.
• Avoid putting hot food into the refrigerator to avoid increasing the internal temperature and therefore
causing continuos functionaliting of the compressor.
• Do not excessively stuff foods so as to ensure proper air circulation.
• Defrost the appliance in case there is ice to facilitate the transfer of cold.
• In case of absence of electrical energy, it is advisable to keep the refrig
erator door closed.
• Open or keep the doors of the appliance open as little as possible
• Avoid adjusting the setting to temperatures too cold.
• Remove dust present on the rear of the appliance
Scrapping old appliances
This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic
Equipment (WEEE).
WEEE contains both polluting substances (which can cause negative consequences for the env
ironment) and
basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in
order to remove and dispose properly all pollutants, and recover and recycle all materials.
Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is
essential to follow some basic rules:
- WEEE should not be treated as household waste;
- WEEE should be handed over to the relevant collection points managed by the municipality or by
registered companies. In many countries, for large WEEE, home collection could be present.
In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect
it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same
functions as the supplied equipment.
Conformity
By placing the mark on this product, we are confirming compliance to all relevant European safety, health
and environmental requirements which are applicable in legislation for this product.
Guarantee
Minimum guarantee is: 2 years for EU Countries, 3 years for Turkey, 1 year for UK, 1 year for Russia, 3 years for
Sweden, 2 years for Serbia, 5 years for Norway, 1 year for Morocco, 6 months for Algeria, Tunisia no legal
warranty required.
Safety information
Product features
Product Introduction
This unit container super freeze, energy-savings, noise
reduction, optimal refrigeration are preset options for your unit.
Precise temperature control
Microcomputer control systems are able to separately control
both the fridge and freezer more accurately.
Automatic defrosting
This unit is equipped with a program that controls the frequency
and duration of defrosting your freezer. This will make sure that
you never need to manually defrost the freezer.
LED display and temperature controls
The control board respectively displays the fridge and freezer
temperatures. To change the setting in either section simply
press the up or down arrow depending on the chance you
would like made.
Tempered glass,safe and reliable
Tempered glass, is safe and reliable, easy to clean and durable.
Easy clean and removable door seal
The door seal(s) are easy to remove and clean, allowing the
product to operate efficiently for longer.
Door-open alarm system
If you leave any of your doors open for longer than 1-minute the
alarm system will remind you to close the door.
Automatic ice maker
The refrigerator has the function of automatic ice making, and
users can take ice cube, crushed ice and cold water outside the
door.
- 8 -
Product Introduction
The layout of items below are subject to change without notice, and may not look or come setup
as seen in the picture below.
The appearance and specifications of the actual product may differ depending on the
model.
Product components
- 9 -
8
A B
A Freezer compartment
1 Dispenser
2 Freezer door rack
3 Ice storage box
4 Freezer glass shelves
5 Freezer drawer
B Refrigerator compartment
6 Refrigerator glass shelves
7 Crisper
8 Refrigerator door rack
6
7
9
9 Water tank
The above figures are a guideline for installation purposes. The actual dimensions of the unit
may vary slightly.
To ensure that your unit works at peak efficiency please maintain sufficient space around your
unit as outlined on the next page.
Installation dimension
Product Introduction
Select a good location to place your appliance where it is flat and easy to use.Avoid
placing the unit near heat sources,direct sunlight or moisture.
- 10 -
911
621
693
1726
149
o
1780
19.8mm
447
1661
1151
911
The refrigerator must be placed on hard, flat ground;
if cushioning is needed, stable, hard, nonflammable cushion
blocks shall be used.
The unit shall be kept away from damp locations where water is
present.Water or dirt should be removed from any surface of the
unit as soon as possible using a soft cloth. This will help prevent
rust and will help your unit run at peak efficiency.
Place the refrigerator in a well-ventilated place, reserve a certain
space around and behind the refrigerator, and do not cover or block
the air grille on the rear cover plate of compressor at the back of
refrigerator; Keep the refrigerator away from heat source or direct
sunlight.
Do not carry the refrigerator horizontally or by laying it down.
Do not carry the refrigerator by holding the door or handle; the
refrigerator shall be carried by lifting the bottom.
This unit should never be moved alone, two people are required
to safely lift or move your unit.
Installation
Transportation
Where to install your unit
Adjustable plastic feet
When the refrigerator stays in the packing box, plastic feet are in
tightened state. After carrying it out from the packing box for
placement, please make sure to adjust two front plastic feet until
the height is suitable; just adjust two plastic feet with a wrench or
directly by hand.
Plastic feet and rear rollers must touch the ground to prevent the
refrigerator from movement, vibration or noise.
When moving the refrigerator, adjust plastic feet
counterclockwise to keep them off the ground, and then push the
refrigerator gently to move it.
Door rack
This is the door shelf guide
door rack
liner of door
Disassembly: Hold both sides of the door rack with both hands.
Push it from the side without the guide and push it inward as seen
in the diagram.Push until the edge of the door rack is separated
from the grove of the liner.
Installation :Hold both sides of the door rack with both hands.
Install the buckle of the guide side at first. Then push the other
side inward slightly,the guide will then click into place and the
door rack will be installed. Please make sure it is installed
properly before use.
DO NOT USE THE FOAM PACKAGING AS CUSHIONING BLOCKS!
- 11 -
Operation
Before Use
This refrigerating appliance is not intended to be used as a built-in appliance.
Remove all of the packaging, including the foam backing at the bottom of the unit and the
tape that fixes the shelves and door bins inside.
Place the refrigerator to a proper position, and adjust the feet to level. It is recommended to
wipe out your unit with a warm soapy cloth and dry it thoroughly before use.
Place the refrigerator and adjust to level, clean it, let the refrigerator stand for above 4-6
hours, and then power the unit on. This helps make sure that the oil from the compressor has
settled properly, and will help your unit run normally.
Starting
Connect the power cord, and turn on the power switch.
Upon startup for the first time, the screen will display respective set temperature values (the
temperature of the fridge section is set to 5°C, the temperature of the freezer is set to-18°C).
The default mode is energy saving upon startup: The screen displays for 20s and then goes
off. This mode to save energy and prolong the service life of LED lights.
- 12 -
The water supply system must be installed and connected by a professional technician.
Connect the refrigerator with the cold water pipe:
Min. pressure: 1.4bar;Max. pressure: 6.9bar;
Water supply connection
When using the function of ice maker, please make sure that the tap water pipe is connected normally
and the water valve is opened. Enough space shall be reserved for the faucet connecting water source.
After the refrigerator operates stably, the ice maker will make ice. Upon power-on for the first time, cold
water is available after 5 hours since the refrigerator operates normally, and ice cubes or crushed ice is
available after 12 hours.
WARNING: Connect to potable water supply only.
Control panel
ice maker button
ice
off
icon
fast
cool
icon
fast
freeze
icon
smart
icon
temperature
display
icon
water
shortage
icon
FRZ. TEMP
icon
REF. TEMP
icon
mode
lock/unlock cbutton
temp zone select button
temp adjust cbutton
- 13 -
Operation
The default temperature of the freezer is -18 .
Press TEMP ZONE SELECT button,when FREEZER icon flashes,you can
press TEMP ADJUST to adjust the freezer zone temperature.
℃
Set Temperature
F-chamber temperature setting
-15 ℃
-23 ℃
Set Temperature
8 ℃
2 ℃
MODE/LOCK/UNLOCK(3S)
8 7 6 5 4 3 2 8℃ ~ ℃ ~ ℃ ~ ℃~℃ ~ ℃ ~ ℃ ~ ℃
When the refrigerator door is open for above 1 min, the buzzer will alarm to remind users to close the door.
After the door is closed, the alarm sound will stop automatically.
Open door alarm
-15℃
~
-16℃ ~ -17℃
~
-18℃
~
-19℃
~
-20℃
~
-21℃
~
-22℃
~
-23℃
~
-15℃
+
CAUTION: Do not put fresh foods directly on the frozen foods.
R-chamber temperature setting
The default temperature of the fridge is
5
℃.
This product has button lock funtion.
When lock the control panel,the other buttons are inoperable.
Press this button for 3s to unlock/lock the display control.
Touch the MODE button,you can set the following modes:
Press TEMP ZONE SELECT button,when FRIDGE icon flashes,you can
press TEMP ADJUST to adjust the fridge zone temperature.
FAST COOL
FAST FREEZE
SAMRT
FAST COOL
FAST FREEZE
FREEZER
FRIDGE
FREEZER
FRIDGE
Ice and water dispenser
Touch “ICE WATER” button; if indicator comes on, press and hold
ice discharge button with the glass cup, and cold water will come out.
Touch “ICE CUBES” button; if indicator comes on, press and hold
ice discharge button with the glass cup, and ice cubes will come out.
Touch button; if indicator comes on, press and hold
ice discharge button with the glass cup, and crushed ice will come out.
“ICE CRUSHING”
Operation
- 14 -
Ice and water dispenser
WARNING
Operation
Do not take ice cubes with fragile containers to avoid injuries
caused by breakage.
Do not touch the ice outlet with fingers to prevent crushed ice
from injuring hands.
When a new refrigerator is started, attention shall be paid to the
following:
When taking ice cubes or crushed ice,please take off the thermal
insulation cover; while at other times,please make sure the thermal
insulation cover is covered export.
When taking water from a new refrigerator for the first time, press and
hold the ice discharge button, take the first 1 ~2 L of water and discard,
and then take water for drinking;
When using the ice maker for the first time, the first box of ice is not
suitable for eating from the point of sanitation.
Other precautions:
Do not use too deep, narrow or soft cups, and put the cup close to the
ice outlet to prevent ice cubes from jumping on the ground; keep a
proper distance between the cup and ice outlet; if the cup is too close
to the ice outlet, it may obstruct ice discharge; after the cup is full,
release the ice discharge button to prevent ice cubes from spilling on
the ground.
When taking ice or water, please keep the cup at the ice outlet for 2s
~ 3s after releasing the ice discharge button, because there may be
ice or water coming out at the moment. After confirming there is no ice
or water coming out, just take away the cup.
If using crushed ice function only, the ice outlet may be blocked by
crushed ice, and remove residual crushed ice; when selecting ice cube
after crushed ice, there may be a little crushed ice.
In case of power-off for a long time, ice in the ice storage box may melt
into water which then flows into the freezing chamber; in this case, take
out the ice storage box and discard ice, and wipe away water in the ice
storage box and freezing chamber.
- 15 -
Add water to the water tank
WARING:Fill with potable water only.
After the refrigerator operates stably, the ice maker will make ice. Upon power-on for the first time, cold
water is available after 5 hours since the refrigerator operates normally, and ice cubes or crushed ice is
available after 12 hours.
When fill water,you need refer to the operating instructions on the water tank.
Do not exceed the maximum water level.
WARING:The water shortage icon will flash to remind you add water.
Reminder: If there is a water shortage alarm, please add water in a timely manner to avoid
affecting normal ice making!
Refrigerator chamber
Operation
The fridge compartment should mainly be used to store food that will be consumed in
a short time.
Freezing chamber
The freezing chamber is used to freeze foods,store deeply frozen foods and make ice
cubes.lt can preserve foods for a long time.
- 16 -
2
3 Freezer drawer
4 Dispenser
5 Freezer door rack
1 Ice storage box
Freezer glass shelves
1
2
3
4
5
CAUTION
The food especially the oily food which stored in refrigerator ,please
avoidthe direct contact with the liner.When the interior stained with oil
or oily food soup stains, should be cleaned immediately to avoid the
long contact with the liner which may lead to the liner corrosion and
cracking.
-Two-star( )frozen-food compartments are suitable for storing pre-frozen food, storing or making
ice-cream and making ice cubes.
One star( ), two star( )and three star( )compartments are not suitable for the freezing of fresh food.
-If the refrigerating appliance is left empty for long periods,switch off, defrost, clean, dry, and leave the
door open to prevent mould developing within the appliance.
-Please depend on the actual situation of the product.
The freezing chamber is suitable for retaining the freshness of foods for a long
time. When storing meat, it is suggested to cut the meat into pieces which are
easy to take out, and mark the freezing date to prevent foods from exceeding
the time limit.
1
2 Refrigerator glass shelves
3 Crisper
4
Water tank
Refrigerator door rack
2
3
1
4
Operation
The ice maker and ice storage box are arranged at the upper part of freezing chamber. When using the ice
maker, please make sure that the ice maker switch is turned on and the water system is connected, and the
ice maker will make ice automatically; when the ice storage box is full of ice, the ice making process will stop
automatically.
The ice maker can make about 1,500g of ice every 24 hours.
When the freezing chamber reaches the set temperature, the ice maker can make the first batch of ice just
for several hours.
CAUTION:
When the ice maker is making ice cubes, you may hear the beep from water valve, flowing sound of water
into ice maker, and falling sound of ice cubes.
The catch basin shall be cleared timely to prevent water from spilling to destroy the floor.
Automatic ice maker
Switch off the ice maker
Ice maker
on/off button
Ice maker
OFF icon
Switch off the ice maker
- If the ice maker function is not needed for a long time, please switch off the ice
maker temporarily;
Hint: This only disables the ice making function; the remaining ice in the ice storage
box can be taken still, and water system operates normally.
- Press “ICE ON/OFF” button for 3s to switch off the ice maker,then the ICE ON/OFF
icon is lighted.
- After the ice maker is turned off, the ice/water icon on the control panel is
displayed still, and “ICE CUBES / ICE CRUSHING / ICE WATER” button is enabled,
not affecting ice/water discharge.
CAUTION:
Before switching off the ice maker, you must disconnect the water system of
refrigerator several hours in advance; after switching off the ice maker, empty and
clean the ice storage box, and then put it back.
When the ice maker function is enabled, if there is ice in the ice storage box still,
ice may fall during self-check of the refrigerator.
- 17 -
Ice maker install and uninstall
It is suggested to remove the ice maker, clean, and then install when it is used for
the first time or for a long time.
Please power off the refrigerator before removal.
Take out the ice storage box ,lift forcibly with both hands, and then pull it out;
Clean, dry and then install.
When installing the ice storage box , align the bottom with the rails at both sides, put
into the rails, and then push;
△
!
DANGER
Never put your hand in the ice compartment outlet, as mechanical injury may occur.
Instructions for storing foods
CAUTION
-When storing freezing foods, put them to the inside of freezing chamber, other than the bottle
rack.
-Do not put bottled or canned foods into the freezing chamber to prevent frost cracking.
Before putting hot foods into the refrigerator, cool them to room temperature first; otherwise,
they will increase power consumption.
-Mark the freezing date on the packaging bag according to different storage lives of foods, so
as to prevent foods from exceeding the time limit.
-Divide foods into proper pieces and package them separately, which are easy to freeze
thoroughly and will not frozen together.
-The packaging materials shall be odorless, airtight, watertight and pollution-free, so
packaged foods are not easy to taint by other odor, without quality reduction.
-Do not put too many fresh foods into the freezing chamber once, preferably not exceeding the
freezing capacity value of refrigerator.
-Melted foods can not be frozen again, unless they are made into dishes; otherwise, their
service quality will be affected.
-Glass bottles or glass containers shall not be placed into the freezing chamber or at the air
outlet of refrigerating chamber duct; otherwise, they may explode.
-Foods can not block the air outlet; otherwise, abnormal air circulation will be caused.
Operation
Your appliance has the accessories as the “Structure illustration" showed in general, with this
part instruction you can have the right way to storage your food.The glass shelves and crisper
can be removed to store food if needed.
Note: Food is not allowed to touch directly all surfaces inside the appliance. lt has to be
wrapped separately in aluminum sheet or in cellophane sheet or in airtight plastic boxes
Precautions for internal and external cleaning of refrigerator:
Before cleaning, always turn off the power switch, disconnect the power plug.
During cleaning, make sure that no water will enter the switch, control panel, door lamp and
top control box.
Remove dirt from the outside of refrigerator with mild cleaner, then wipe with clean soft cloth,
and let the refrigerator dry naturally.
When cleaning door sealing strip, always use clean water, wipe with dry cloth and let it dry
naturally. Wet soft cloth with warm water or neutral cleaner to wipe the refrigerator body except
the door sealing strip.
lt is forbidden to flush the refrigerator directly with water,which will affect electrical insulation
properties, etc.
lt is forbidden to clean the refrigerator with metal wipers,ware brushes, coarse abrasive
cleaners,strong alkaline detergents,or flammable or toxic cleaning fluids.
Dairy foods and eggs
Most pre-packed dairy foods have a recommended 'use by/best before/best by/ date stamped
on them. Store them in the fridge compartment and use within the recommended time.
Storage of foods
- 18 -
FOOD
Butter, cheese
Eggs
Fruit, vegetables, salad
Meat, sausage, cheese, milk
Dairy products, canned food, cans
Drinks, bottles, tubes
Location(Refrigerator )
Upper door rack
Door rack
Crisper
Lower area (lowest shelf 1 crisper cover)
Upper area or door rack
Door rack
chamber
Butter can become tainted by strong smelling foods so it is best stored in a sealed container.
Eggs should be stored in the fridge compartment.
Red meat
Place fresh red meat on a plate and loosely cover with waxed paper, plastic wrap or foil.
Store cooked and raw meat on separate plates. This will prevent any juice lost from the raw
meat from contaminating the cooked product.
Poultry
Fresh whole birds should be rinsed inside and out with cold running water, dried and placed on
a plate. Cover loosely with plastic wrap or foil
Poultry pieces should also be stored this way. Whole poultry should never be
stuffed until just before cooking, otherwise food poisoning may result.
Fish and seafood
Whole fish and fillets should be used on the day of purchase. Until required refrigerate on a
plate loosely covered with plastic wrap, waxed paper or foil. lf storing overnight or longer, take
particular care to select very fresh fish.
Whole fish should be rinsed in cold water to remove loose scales and dirt and then patted dry
with paper towels. Place whole fish or fillets in a sealed plastic bag.
Keep shellfish chilled at all times. Use within 1-2 days.
Precooked foods and leftovers
These should be stored in suitable covered containers so that the food will not dry out.
Keep for only 1-2 days.
Reheat leftovers only once and until steaming hot.
Vegetable container
The vegetable container is the optimum storage location for fresh fruit and vegetables.
Take care not to store the following at temperatures of less than 6°C for long periods: Citrus
fruit, melons, aborigines, pineapple, papaya, curette, passion fruit, cucumber, peppers,
tomatoes.
Undesirable changes will occur at low temperatures such as softening of the flesh, browning
and/or accelerated decaying
Do not refrigerate avocados (until they are ripe), bananas and mangoes.
Operation
Storage of foods
FOOD
Small frozen food
Packaged frozen foods
Fish,meat,ice cream
Location(Freezer chamber)
Door rack
Freezer drawer
Lower area(lower shelf or drawer)
- 19 -
Operation
Storage of foods
Note:
Freezing and storing food in the freezer compartment
Note:
Purchasing frozen food
Storing frozen food
Freezing fresh food
Recommended storage times of frozen food in the freezer compartment
Food is not allowed to touch directly all surfaces inside the appliance. It has to be
wrapped separately in aluminum sheet or in cellophane sheet or in airtight plastic boxes.
· To store deep-frozen food.
· To make ice cubes.
· To freeze food.
Ensure that the freezer compartment door has been closed properly.
· Packaging must not be damaged.
· Use by the 'use by /best before/best by/' date.
· If possible, transport deep-frozen food in an insulated bag and place quickly in the freezer
compartment.
Store at -18°C or colder. Avoid opening the freezer compartment door unnecessarily.
Freeze fresh and undamaged food only.
To retain the best possible nutritional value, flavour and colour, vegetables should be
blanched before freezing.Aubergines, peppers, zucchini and asparagus do not require
blanching.
· The following foods are suitable for freezing:
Cakes and pastries, fish and seafood, meat, game, poultry, vegetables, fruit, herbs, eggs
without shells,dairy products such as cheese and butter, ready meals and leftovers such as
soups, stews, cooked meat and fish, potato dishes, souffles and desserts.
· The following foods are not suitable for freezing:
Types of vegetables, which are usually consumed raw, such as lettuce or radishes, eggs in
shells, grapes,whole apples, pears and peaches, hard-boiled eggs, yogurt, soured milk,
sour cream, and mayonnaise.
These times vary depending on the type of food. The food that you freeze can be preserved
from 1 to 12 months (minimum at -18°C).
FOOD
Bacon, casseroles, milk
Bread, ice cream, sausages, pies,
prepared shellfish,oily fish
Non-oily fish, shellfish, pizza,
scones and muffins
Ham, cakes, biscuits, beef and
lamb chops, poultry pieces
Butter, vegetables (blanched), eggs
whole and yolks,cooked cray fish,
minced meat (raw), pork (raw)
Fruit (dry or in syrup), egg whites,
beef (raw), whole chicken,
lamb (raw), fruit cakes
Storage time
1 month
2months
3months
4months
6months
12months
- 20 -
Cleaning
Defrosting
This production has automatic defrosting function, without manual operation.
Precautions for internal and external cleaning of refrigerator:
After cleaning, connect the power plug of refrigerator,and connected with
the refrigerator.
Maintenance
General information
On vacation
- When you want to leave for vacation, you had better to make the refrigerator operate continuously and
leave foods that can be stored for a short time. If you want to stop the refrigerator, remove all foods,
disconnect the power plug, clean the inside of refrigerator fully, and open the door to avoid producing
abnormal odors.
At power failure
- Generally, short-term power failure will not affect the temperature of the refrigerator sharply. However, if
power failure lasts for a long time, you shall reduce the opening frequency of refrigerator, and shall not put
fresh foods into the refrigerator (prevent rise in the temperature of refrigerator from speeding up).
- If you know power failure is coming, you can turn on the “Super Freezer” function in advance to keep the
temperature of refrigerator to the lowest value.
Shutdown
- Generally, it is not suggested to stop refrigerator or turn off the power switch; otherwise, the life of
refrigerator may be affected.
- Before cleaning, always turn off the power switch, disconnect the power plug.
- During cleaning, make sure that no water will enter the switch, control panel, doorlamp and
top control box.
- Remove dirt from the outside of refrigerator with mild cleaner, then wipe with clean soft cloth,
and let the refrigerator dry naturally.
- When cleaning door sealing strip, always use clean water, wipe with dry cloth and let it dry
naturally. Wet soft cloth with warm water or neutral cleaner to wipe the refrigerator body
except the door sealing strip.
- lt is forbidden to flush the refrigerator directly with water,which will affect electrical insulation
properties, etc.
- lt is forbidden to clean the refrigerator with metal wipers,ware brushes, coarse abrasive
cleaners,strong alkaline detergents,or flammable or toxic cleaning fluids.
Energy saving tips
- Make sure to keep the refrigerator away from heat source and direct sunlight.
- Before storing hot foods, cool them to room temperature and then put into refrigerator.
- Close the door timely, reduce the opening frequency, and shorten the opening time.
- When unfreezing frozen foods, you can put them into the refrigerating chamber, which will
assist in refrigeration of the refrigerating chamber.
- Make sure that the temperature sensor is not covered or blocked by foods,and keep proper
distance with foods.
- 21 -
If the ambient temperature is too low during shutdown, the remaining water in the water system may
be iced; in this case, please contact technicians to come for emptying the refrigerator.
Normal phenomena
Maintenance
Low voltage,the compressor can't start
You should purchase pressurizer of more than 1000W when the area of the appliance
installation,that's better to protect your fridge.
Long time to start
When the ambient temperature too high, it will take long time to start the appliance.
Button failure
Please check the control board whether the fridge under lock mode.When under lock mode,
all buttons can't work.
Dew drops
When external air flows into the cool inner surface of the fridge,dew drops can be formed.
If the humidity of the installed location is high or during the rainy season,dew drops can
form on the outer side of the fridge.This is a natural phenomenon that occurs during the
humid weather,Wipe the water drops with a dry cloth.
Noise
When you operate the fridge for the first time,the fridge will operate at high speed to cool
fast and the sound can seem louder.When the internal temperature falls below a certain
level,the noise will subside.
When the operation of the compressor is starting or ending;various parts expanding/
contracting or various control devices operating or temperature change within the fridge,you
will hear the sounds,these are normal sounds.
Compressor hot
When working,the temperature of the compressor is more than
touch the compressor,it may cuase serious injury.
outer 80℃,please do not
Compressor long time running
When the ambient temperature too high or put too much fresh foods into the fridge,it will
take long time to cool down until the appliance run at the setting temperature.
Middle beams feel hot
Middle beams feel hot after a period of time of the appliance run,it belongs to the normal
phenomenon.
- 22 -
Maintenance
Normal phenomena
Abnormal odors in refrigerator
Odorous foods shall be packaged tightly; check for bad foods; the inside of refrigerator shall
be cleaned.
Ice maker failing to work normally
Whether the ice maker switch is turned on; whether the freezing chamber door is closed or ajar;
Whether the water valve is opened; whether water supply is obstructed, or water pressure is
too low;
Whether the temperature of freezing chamber is high due to just power connection or frequent
use;
Water leakage from ice outlet upon power-on for the first time
When the refrigerator is powered on for the first time, the system will execute self-check; at the
moment,
there may be a little water flowing out from the ice outlet of ice maker; this is self-check action
and is normal.
No ice out from dispenser
If the temperature of freezing chamber is high or the door is opened and closed frequently, ice
cubes in the ice storage box may join together; take out ice cubes from the ice storage box,
break them and then put back, and discard ice that is not broken;
When the successive time of taking ice exceeds 1 minute, stop for 5 minutes and then take ice
again;
Whether the valve is opened, the ice maker starts to make ice after the water system works
normally;
The door of freezing chamber is not closed, make sure that all doors are closed.
No water out from dispenser
When the ambient temperature is lower than -2℃, no water will come out due to low-temperature
icing of the water pipe, and try to take water after the ambient temperature rises;
If you take water for above 3 minutes once, the refrigerator will execute automatic protection,
release the ice discharge button for a while, and then take water again.
Warm water out from dispenser
Because the water pipe has a section exposed outside the refrigerator, the temperature of the
first cup of water taken may be high, just continue to take water to get cold water.
Dispenser blocked
Ice melted is frozen on the screw rod, this is due to infrequent use or sharp temperature change,
or overvoltage. Empty the ice storage box, clean, wipe dry, and then put back.
Ice frozen together when ice maker operates stably
If ice is not used usually, ice cubes may frozen together; take out the frozen ice cubes from the
ice storage box, break into pieces and then put back, or discard directly.
- 23 -
- 24 -
AVAILABILITY OF SPARE PARTS
“Thermostats, temperature sensors, printed circuit boards and light sources are available for a minimum period of
seven years after placing the last unit of the model on the market.
Door handles, door hinges, trays and baskets for a minimum period of seven years and door gaskets for a
minimum period of 10 year, after placing the last unit of the model on the market”.
TECHNICAL ASSISTANCE
To contact the technical assistance, visit our website: https://corporate.haier-europe.com/en/
Under the section “website”, choose the brand of your product and your country. You will be redirected to the specific
website where you can find the telephone number and form to contact the technical assistance.
For further information about the product, please consult https://eprel.ec.europa.eu/ or scan the QR on the energy
The mains plug of the appliance
is not in the socket properly.
Check whether the power is
on ;
