WEN TF1450 Tri-Fuel Generator 14500-Watt 120V/240V User Manual

IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability,

ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged,

trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use

your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.

14500-WATT

TRI FUEL GENERATOR

Instruction Manual

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

TECHSUPPOR[email protected]1-847-429-9263 (M-F 8AM-5PM CST)

For replacement parts and the most up-to-date instruction manuals, visit WENPRODUCTS.COM

MODEL TF1450

CONTENTS

WELCOME 3

Speciﬁcations ....................................................................................................3

Introduction ......................................................................................................4

SAFETY 5

General Safety Rules .........................................................................................5

Generator Safety Warnings ...............................................................................7

BEFORE OPERATING 10

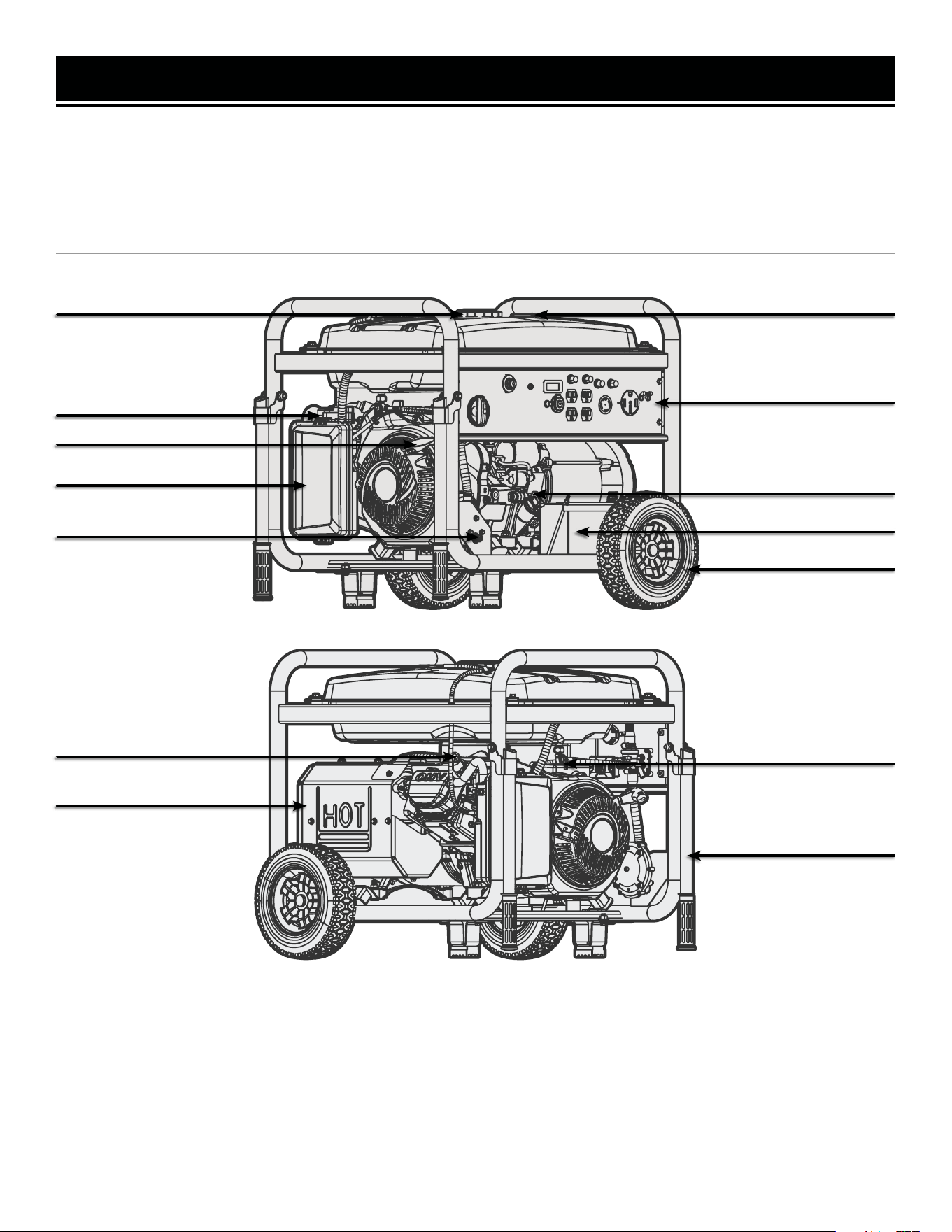

Know Your Generator ......................................................................................10

Unpacking & Packing List ...............................................................................12

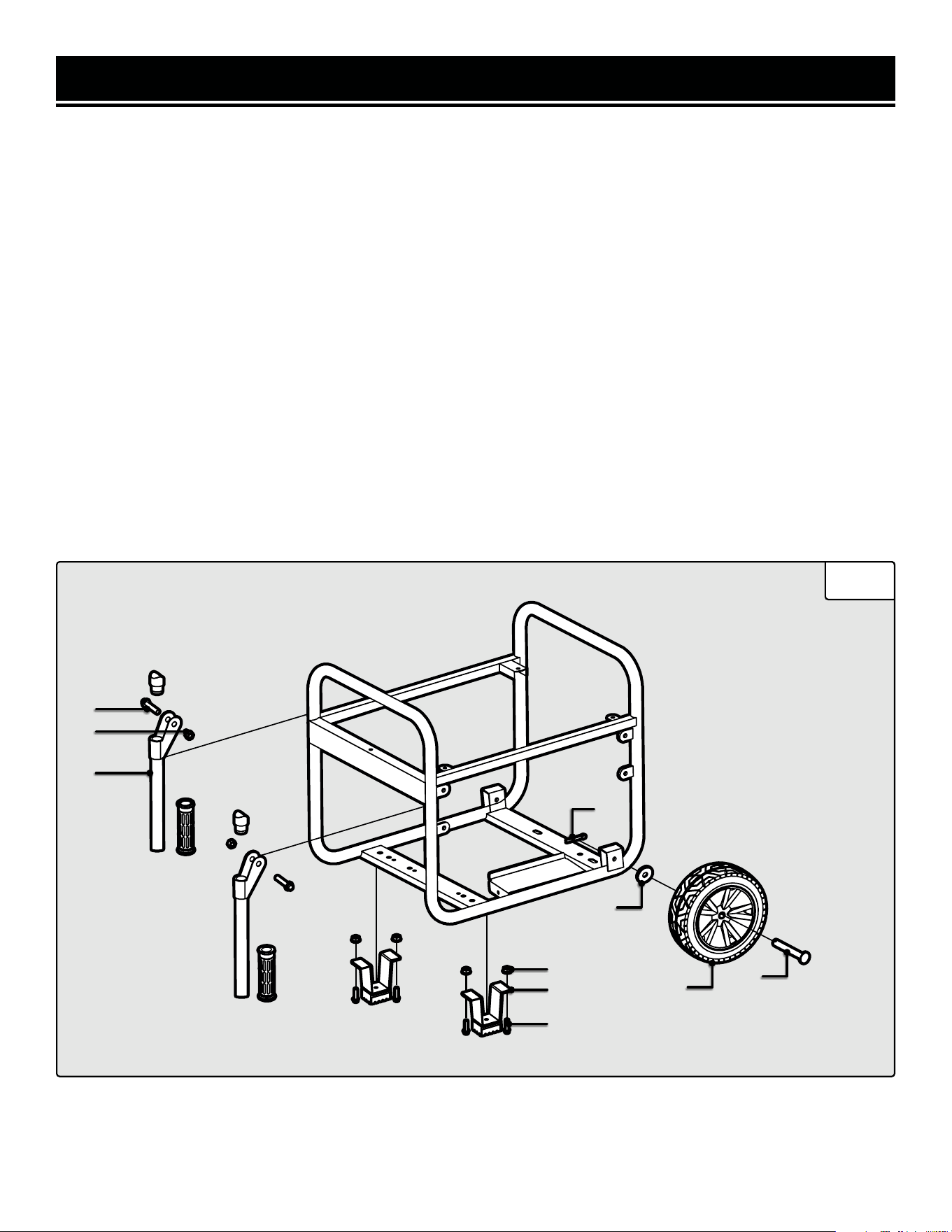

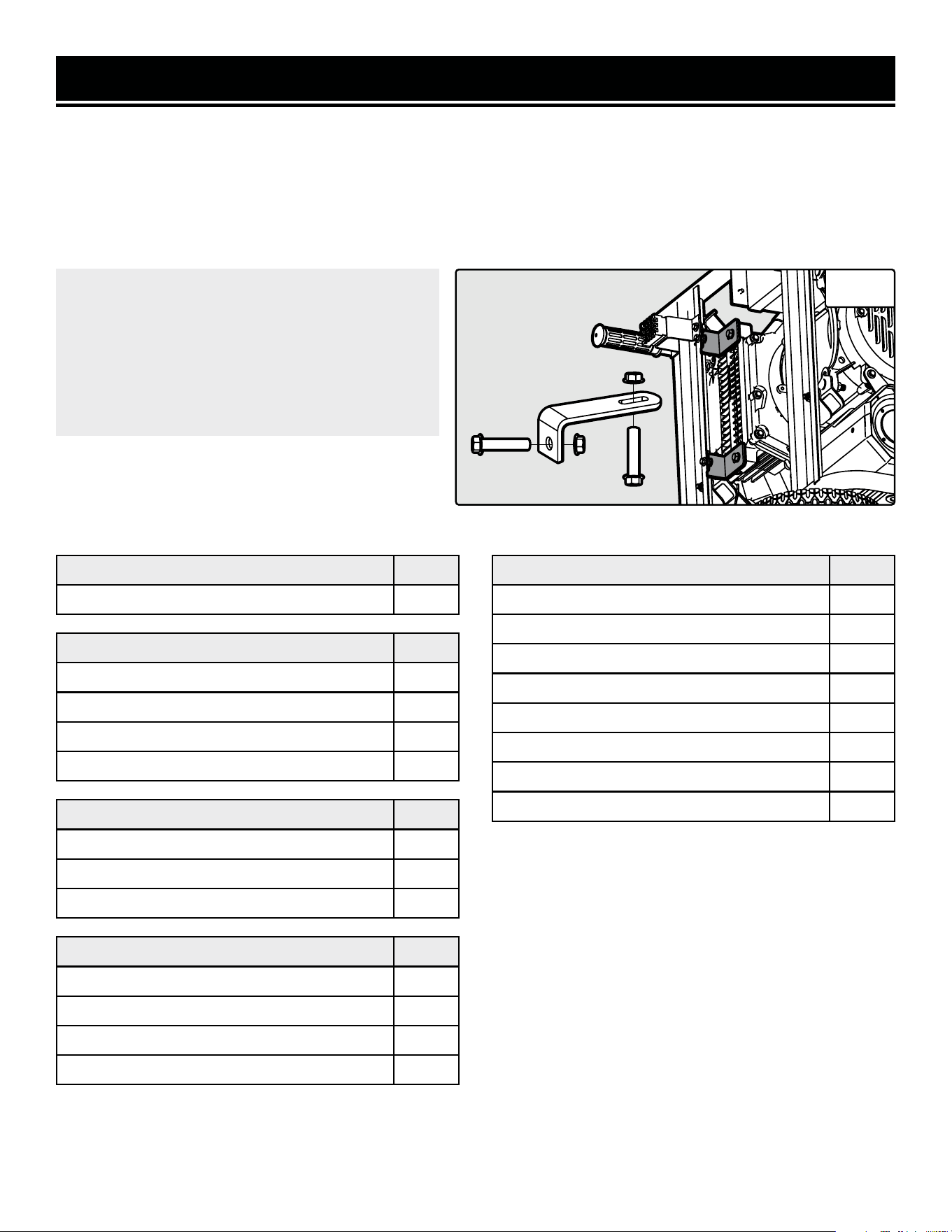

Assembly & Adjustments ................................................................................13

Generator Preparation .....................................................................................14

Starting Your Generator ..................................................................................21

Using Your Generator ......................................................................................23

Shutting Off Your Generator ............................................................................26

Maintenance ....................................................................................................27

Transportation & Storage ................................................................................33

Troubleshooting Guide ....................................................................................34

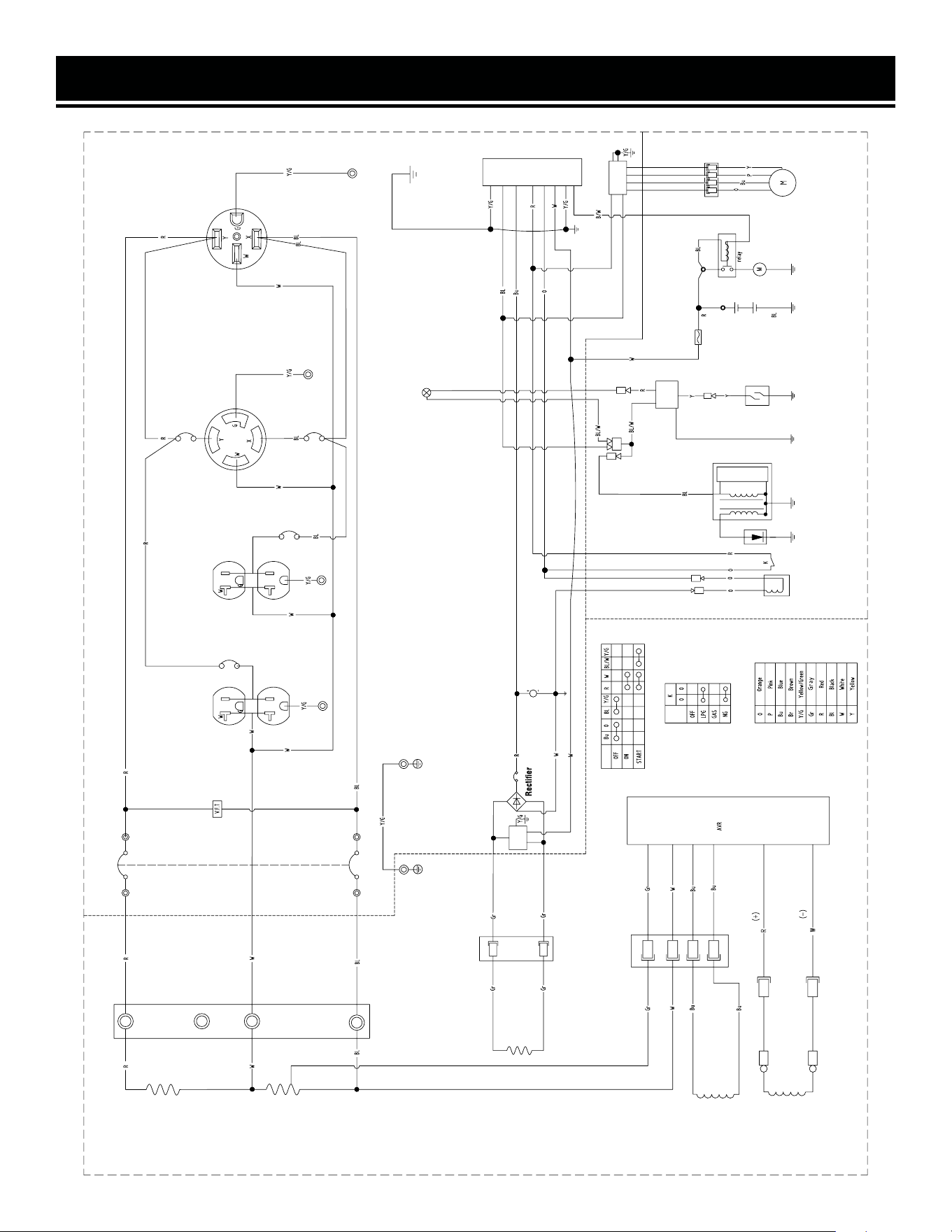

Wiring Diagram ...............................................................................................35

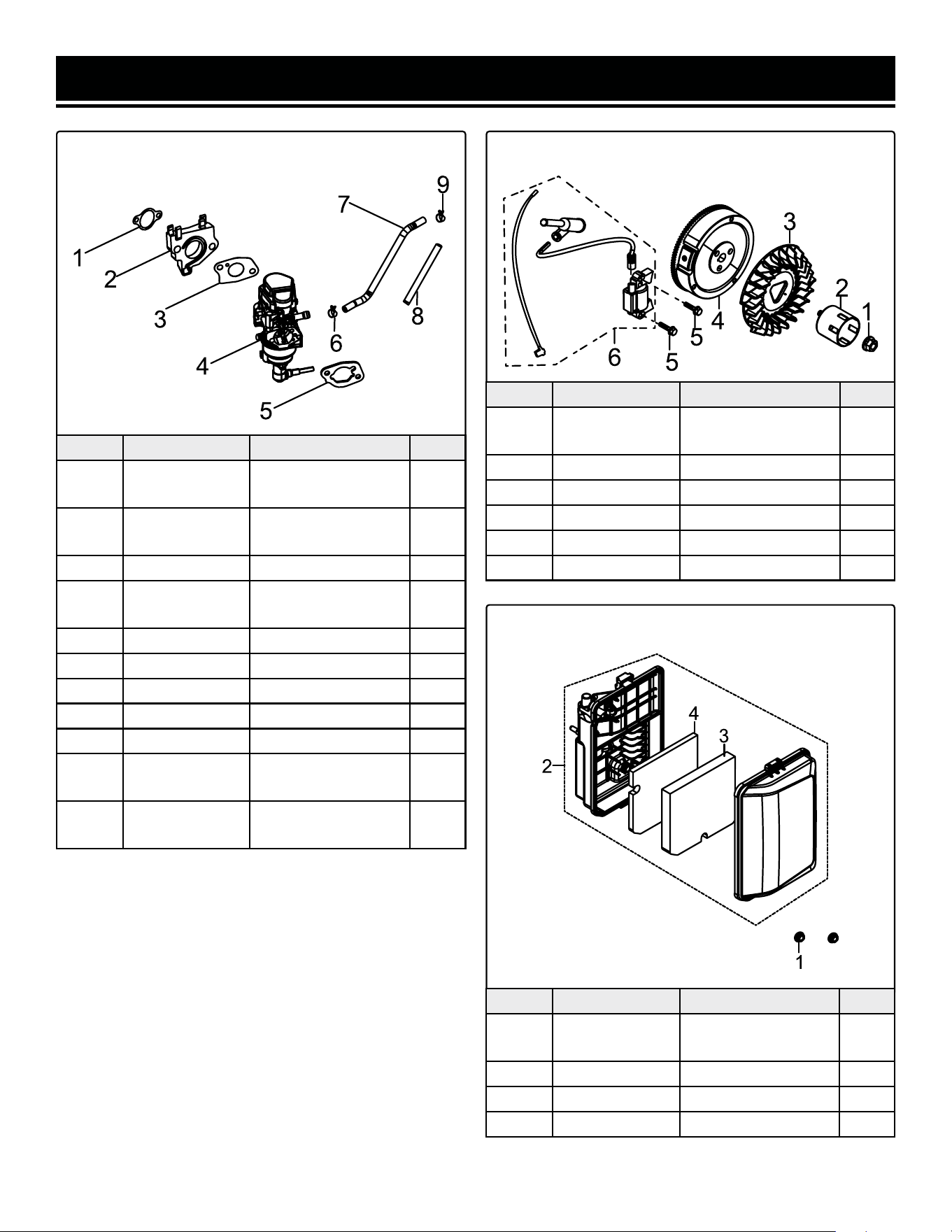

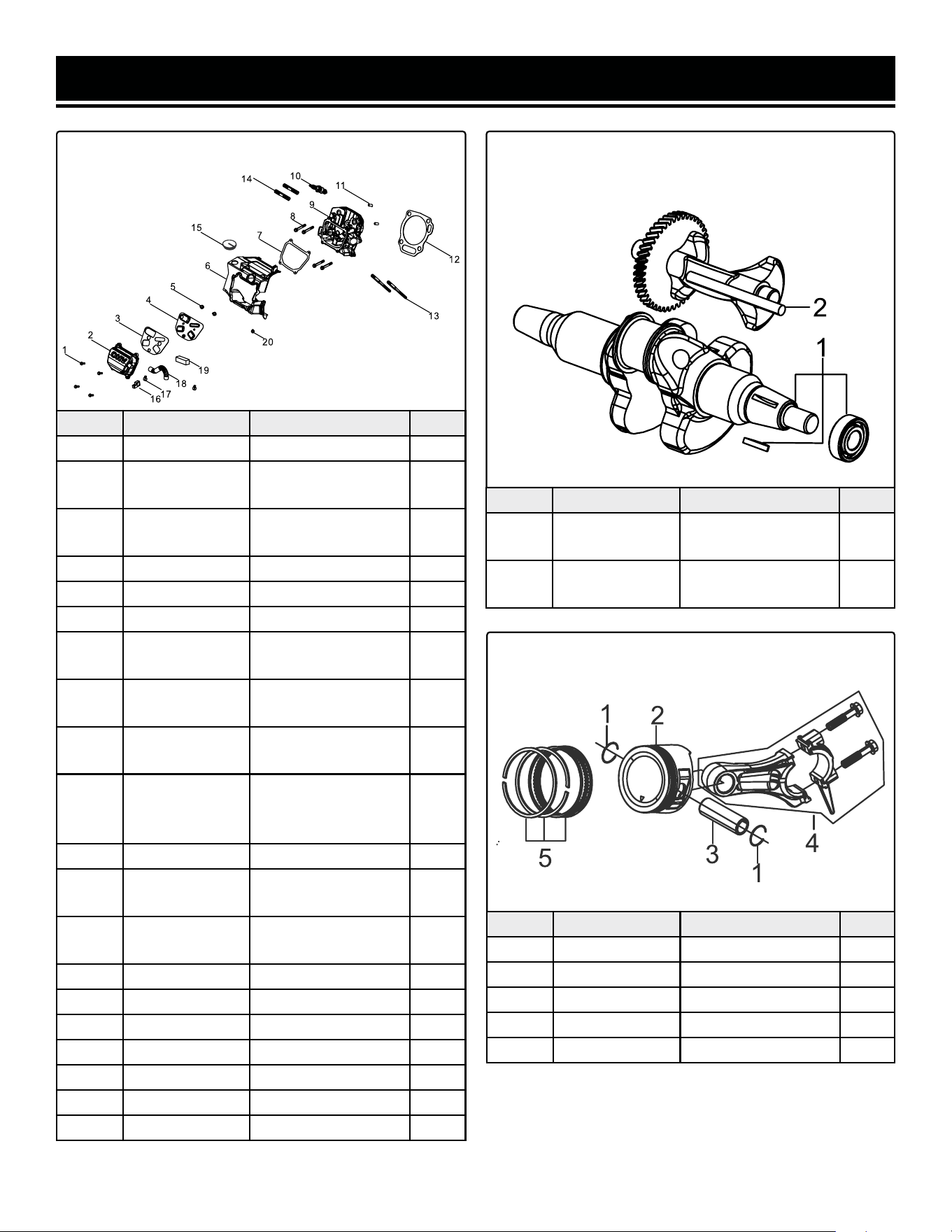

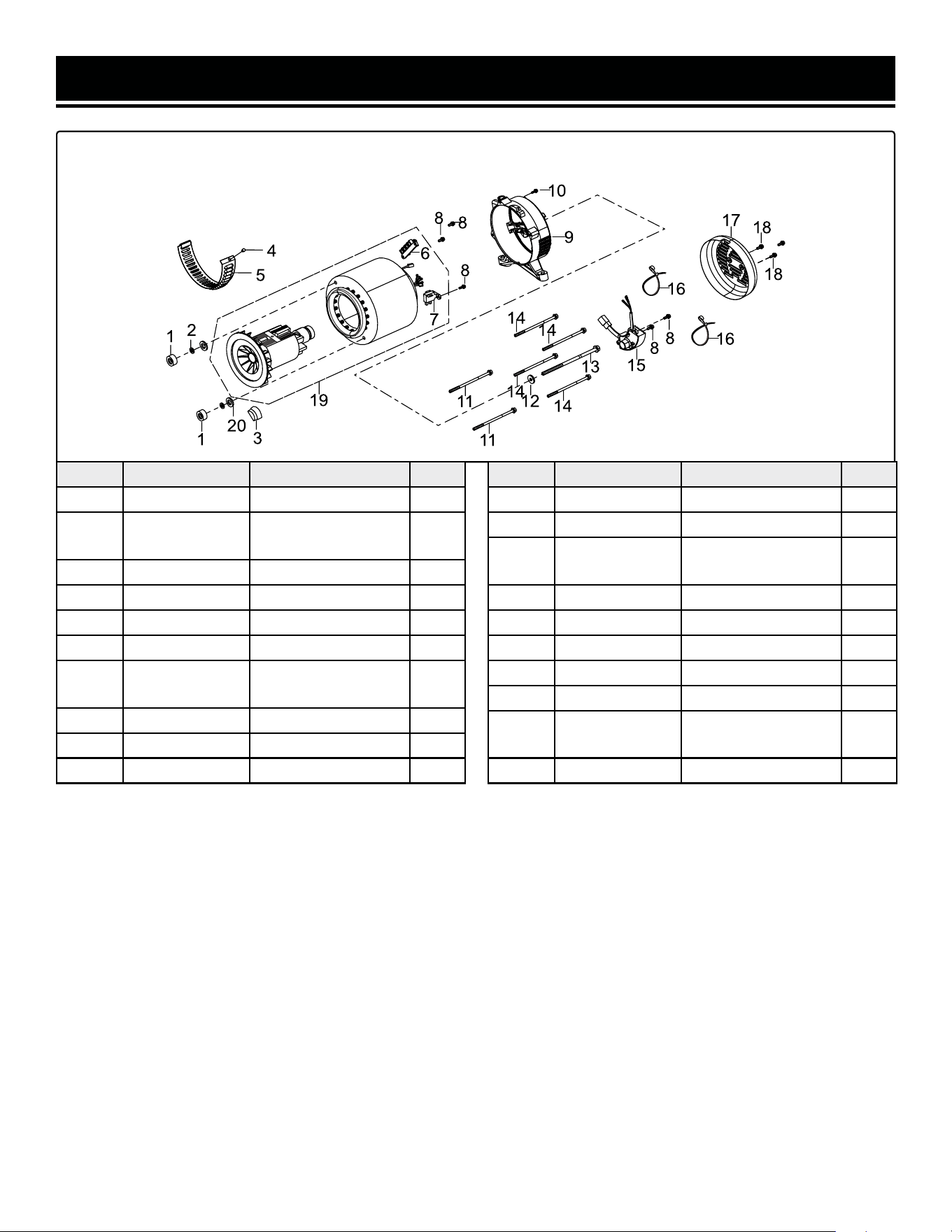

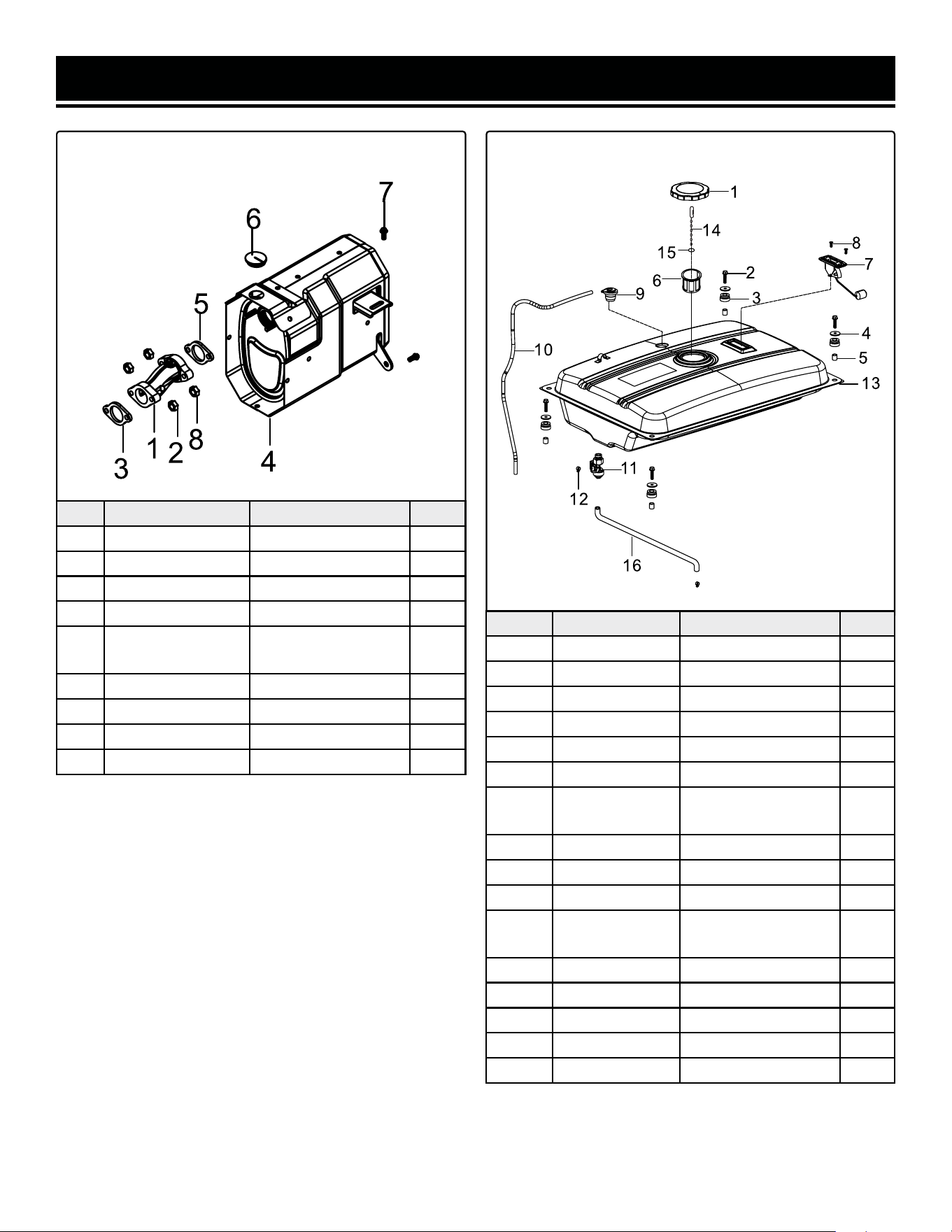

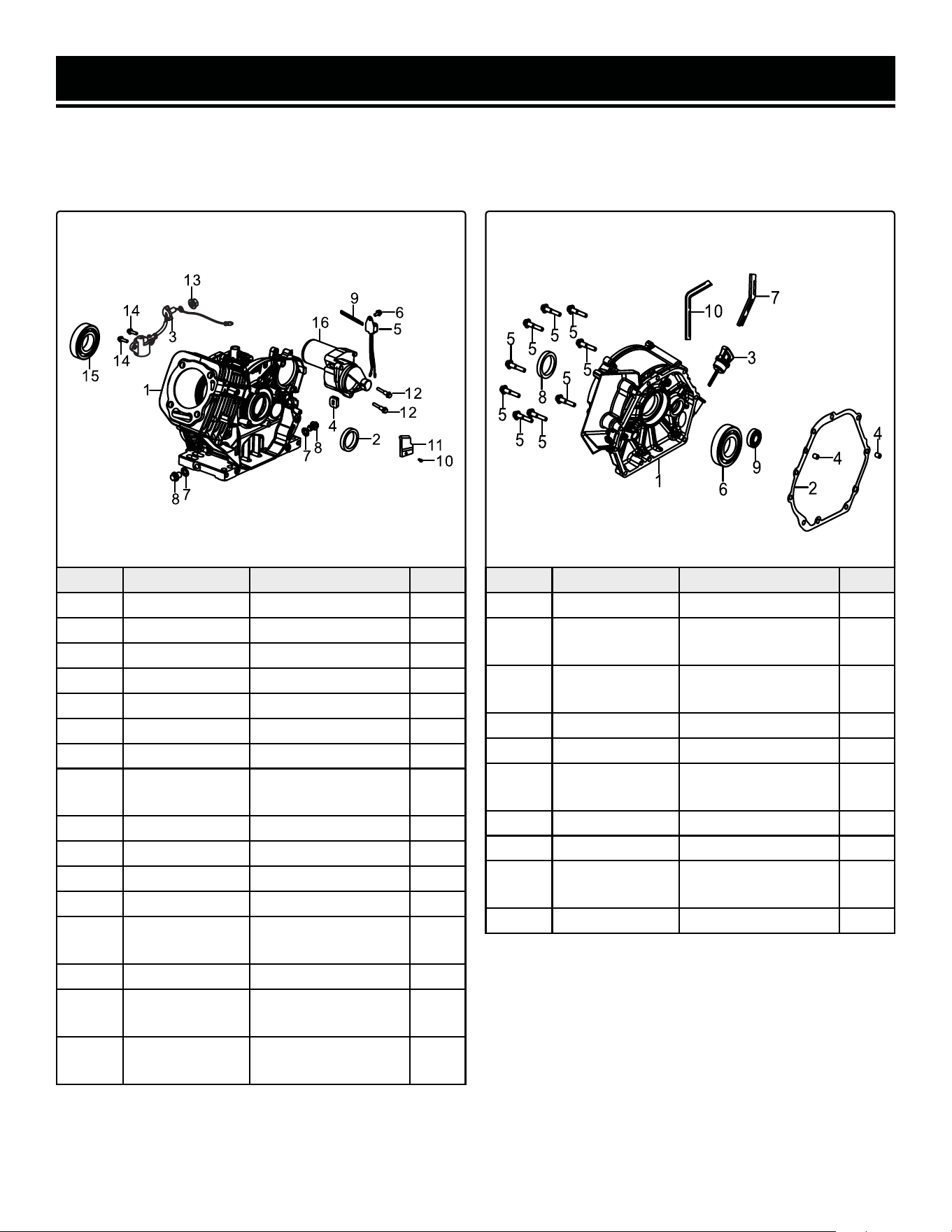

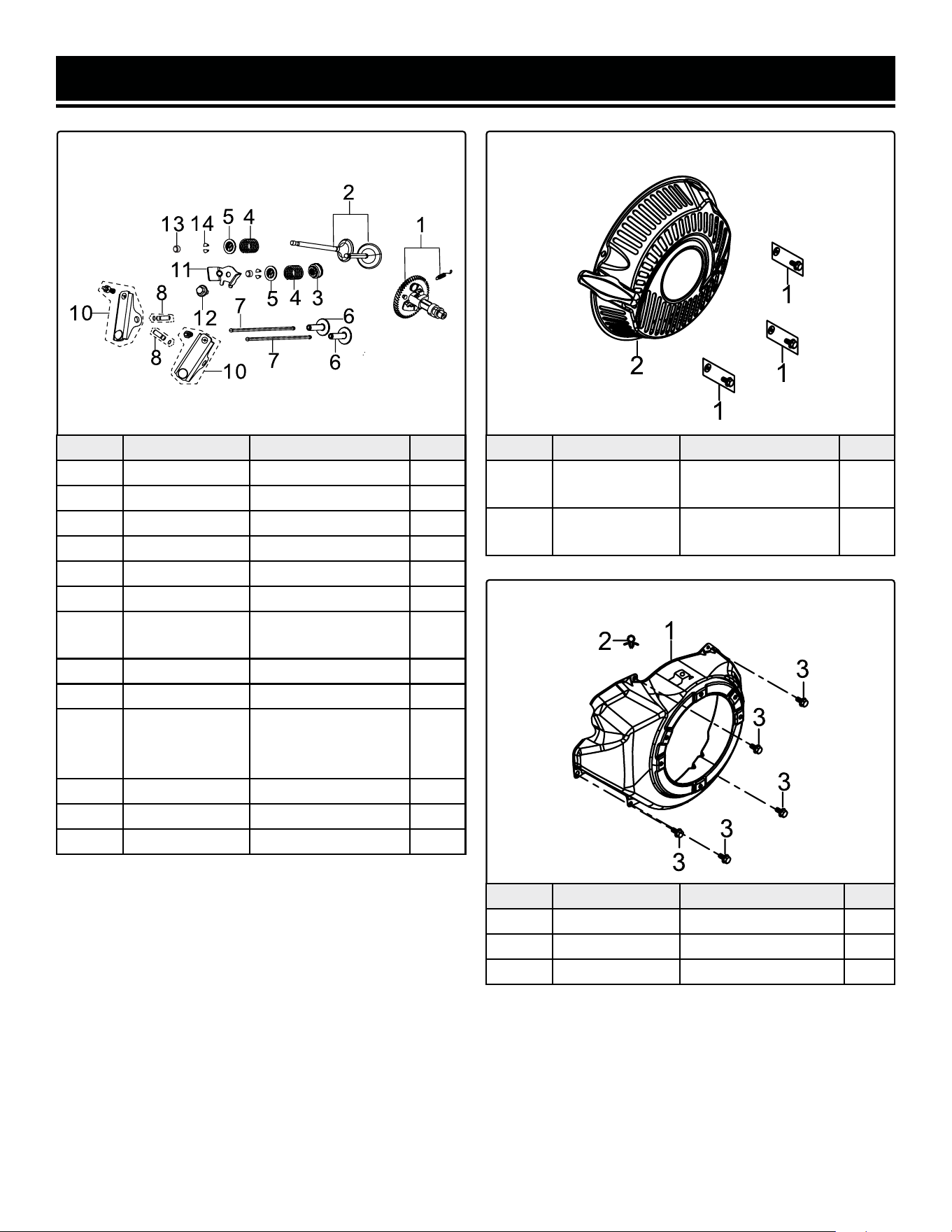

Exploded View & Parts List .............................................................................36

Warranty Statement ........................................................................................44

OPERATION & MAINTENANCE

To purchase accessories and replacement parts for your tool, visit WENPRODUCTS.COM

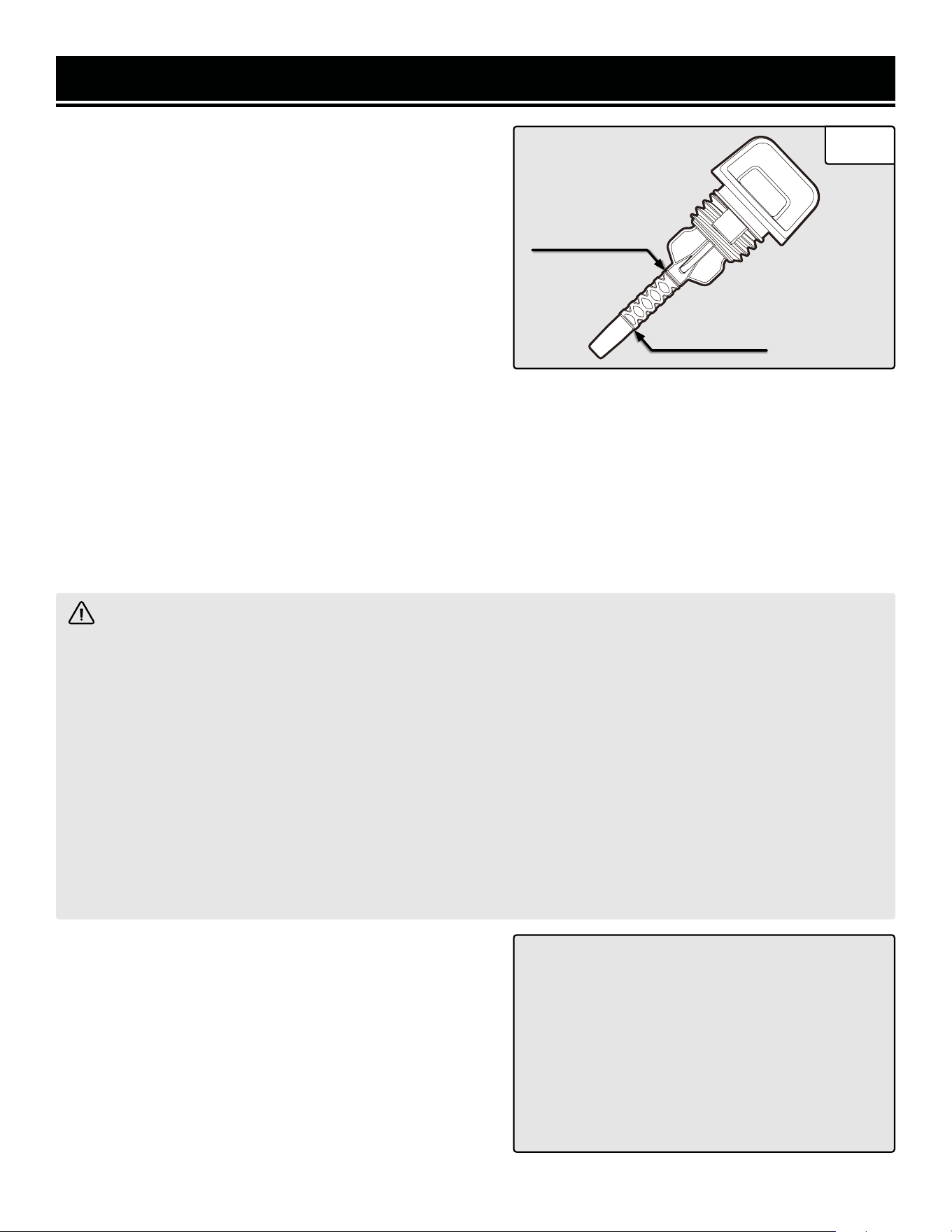

Extra-Large Magnetic Oil Dipstick (Model GNA273)

Universal Weatherproof Generator Cover (Model 56413)

Extension Cords & Outlet Adapters

(Models PC2514, PC3025, PC3040, PC1550, PC1405, PC1430, GNA430, and GNA650)

25-Foot 1/2-inch NG Hose with Quick-Connector (part no. TF1450X-1431)

12V Deluxe Battery Maintainer and Float Charger (Model GNA12C)

SPECIFICATIONS

Model Number TF1450

Surge (Starting) Wattage

Gasoline: 14500W

Propane: 12500W

Natural Gas: 10500W

Rated (Running) Wattage

Gasoline: 11500W

Propane: 10300W

Natural Gas: 8750W

Rated Voltage

AC: 120V / 240V

DC: 12V

Rated Amperage

AC: 47.9A (Gas), 42.9A (LPG), 36.4A (NG)

DC: 8.3A

Phase Single

Frequency 60 Hz

Recommended LPG Tank Size 20 - 40 lbs

Product Weight

With Wheel Kit: 224.9 lbs

Without Wheel Kit: 218.3 lbs

Product Dimensions

With Wheel Kit: 28.8 in. x 28.3 in. x 25.8 in.

Without Wheel Kit: 27.4 in. x 22.3 in. x 22.8 in.

GENERATOR

Engine Type OHV, 4 Stroke, Single Cylinder

Engine Displacement 500cc

Fuel Tank Capacity 8.2 US Gallons (31.0 L), 87 Octane Minimum

Oil Capacity 44.0 ﬂ. oz. (1.3 L)

Half-Load Runtime

Gasoline: 12 Hours

Propane: 6 Hours (20-Pound Tank)

No-Load Speed 3600 RPM

Lubrication System Splash Lubrication

Spark Plug Type LG F7RTJC (NGK BP6ET)

Spark Plug Gap 0.8mm to 1mm (0.031 in. to 0.039 in.)

Spark Plug Torque 15 - 17.5 ft-lb (20 - 24 Nm)

Battery 12V 14Ah Lead-Acid AGM

ENGINE

INTRODUCTION

Thanks for purchasing the WEN 14500-Watt Tri Fuel Generator. Refer to the illustration below for the location of

the serial number on the speciﬁcations label. Record the generator information in the spaces provided below. If as-

sistance for information or service is required, please contact customer service by calling 1-847-429-9263, M-F 8-5

CST; you will be asked to provide the following generator information when calling.

Generator Model Number: TF1450

Date of Purchase: _______________________________________________

Purchased From: ________________________________________________

Serial Number: _________________________________________________

TO MAXIMIZE THE LIFESPAN OF YOUR GENERATOR: We recommend running your generator at least once a

month for 20 to 30 minutes. Start the generator according to the instructions and plug a small load in to make

sure the outlet is producing electricity.

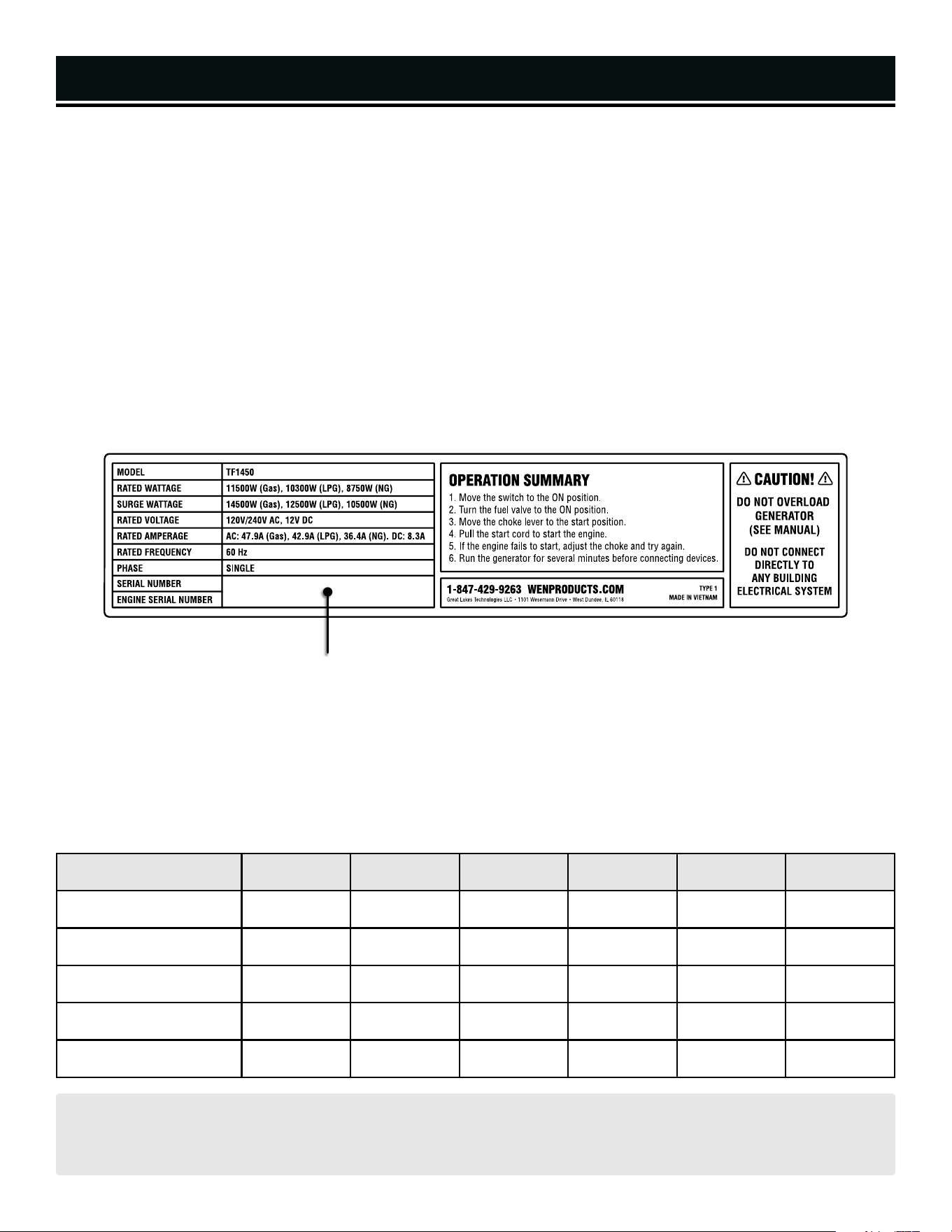

SERVICE RECORD

Record the service dates of your generator in the chart below. Please perform maintenance checks and operations

according to the “Maintenance” section of the manual.

Service Record Date Date Date Date Date Date

Change Oil

Change Spark Plug

Clean Fuel Tank

Clean Air Cleaner

Clean Spark Arrestor

SERIAL NUMBER

GENERAL SAFETY RULES

WORK AREA SAFETY

1. Keep work area clean and well lit. Cluttered or dark

areas invite accidents.

2. Do not operate power tools in explosive atmo-

spheres, such as in the presence of ﬂammable liquids,

gases or dust. Power tools create sparks which may ig-

nite the dust or fumes.

3. Keep children and bystanders away while operating

a power tool. Distractions can cause you to lose control.

ELECTRICAL SAFETY

1. Power tool plugs must match the outlet. Never mod-

ify the plug in any way. Do not use any adapter plugs

with earthed (grounded) power tools. Unmodiﬁed plugs

and matching outlets will reduce risk of electric shock.

2. Avoid body contact with earthed or grounded surfac-

es such as pipes, radiators, ranges and refrigerators.

There is an increased risk of electric shock if your body

is earthed or grounded.

3. Do not expose power tools to rain or wet conditions.

Water entering a power tool will increase the risk of elec-

tric shock.

4. Do not abuse the cord. Never use the cord for car-

rying, pulling or unplugging the power tool. Keep cord

away from heat, oil, sharp edges or moving parts.

Damaged or entangled cords increase the risk of electric

shock.

5. When operating a power tool outdoors, use an ex-

tension cord suitable for outdoor use. Use of a cord

suitable for outdoor use reduces the risk of electric

shock.

6. If operating a power tool in a damp location is un-

avoidable, use a ground fault circuit interrupter (GFCI)

protected supply. Use of a GFCI reduces the risk of elec-

tric shock.

PERSONAL SAFETY

1. Stay alert, watch what you are doing and use com-

mon sense when operating a power tool. Do not use a

power tool while you are tired or under the inﬂuence

of drugs, alcohol or medication. A moment of inatten-

tion while operating power tools may result in serious

personal injury.

2. Use personal protective equipment. Always wear

eye protection. Protective equipment such as a respira-

tory mask, non-skid safety shoes and hearing protection

used for appropriate conditions will reduce the risk of

personal injury.

3. Prevent unintentional starting. Ensure the switch is

in the off-position before connecting to power source

and/or battery pack, picking up or carrying the tool.

Carrying power tools with your ﬁnger on the switch or

energizing power tools that have the switch on invites

accidents.

4. Remove any adjusting key or wrench before turning

the power tool on. A wrench or a key left attached to a

rotating part of the power tool may result in personal

injury.

5. Do not overreach. Keep proper footing and balance

at all times. This enables better control of the power

tool in unexpected situations.

6. Dress properly. Do not wear loose clothing or jew-

elry. Keep your hair and clothing away from moving

parts. Loose clothes, jewelry or long hair can be caught

in moving parts.

Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool”

in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

SAVE THESE SAFETY INSTRUCTIONS.

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may

result in electric shock, ﬁre and/or serious injury.

GENERAL SAFETY RULES

7. If devices are provided for the connection of dust

extraction and collection facilities, ensure these are

connected and properly used. Use of dust collection

can reduce dust-related hazards.

POWER TOOL USE AND CARE

1. Do not force the power tool. Use the correct power

tool for your application. The correct power tool will

do the job better and safer at the rate for which it was

designed.

2. Do not use the power tool if the switch does not turn

it on and off. Any power tool that cannot be controlled

with the switch is dangerous and must be repaired.

3. Disconnect the plug from the power source and/or

the battery pack from the power tool before making

any adjustments, changing accessories, or storing

power tools. Such preventive safety measures reduce

the risk of starting the power tool accidentally.

4. Store idle power tools out of the reach of children

and do not allow persons unfamiliar with the power

tool or these instructions to operate the power tool.

Power tools are dangerous in the hands of untrained us-

ers.

5. Maintain power tools. Check for misalignment or

binding of moving parts, breakage of parts and any

other condition that may affect the power tool’s opera-

tion. If damaged, have the power tool repaired before

use. Many accidents are caused by poorly maintained

power tools.

6. Keep cutting tools sharp and clean. Properly main-

tained cutting tools with sharp cutting edges are less

likely to bind and are easier to control.

7. Use the power tool, accessories and tool bits, etc.

in accordance with these instructions, taking into ac-

count the working conditions and the work to be per-

formed. Use of the power tool for operations different

from those intended could result in a hazardous situa-

tion.

8. Use clamps to secure your workpiece to a stable

surface. Holding a workpiece by hand or using your

body to support it may lead to loss of control.

9. KEEP GUARDS IN PLACE and in working order.

SERVICE

1. Have your power tool serviced by a qualiﬁed repair

person using only identical replacement parts. This

will ensure that the safety of the power tool is main-

tained.

CALIFORNIA PROPOSITION 65 WARNING

Some dust created by power sanding, sawing, grinding,

drilling, and other construction activities may contain

chemicals, including lead, known to the State of Califor-

nia to cause cancer, birth defects, or other reproductive

harm. Wash hands after handling. Some examples of

these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement, and other

masonry products.

• Arsenic and chromium from chemically treated

lumber.

Your risk from these exposures varies depending on

how often you do this type of work. To reduce your ex-

posure to these chemicals, work in a well-ventilated area

with approved safety equipment such as dust masks

specially designed to ﬁlter out microscopic particles.

Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool”

in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

SAVE THESE SAFETY INSTRUCTIONS.

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may

result in electric shock, ﬁre and/or serious injury.

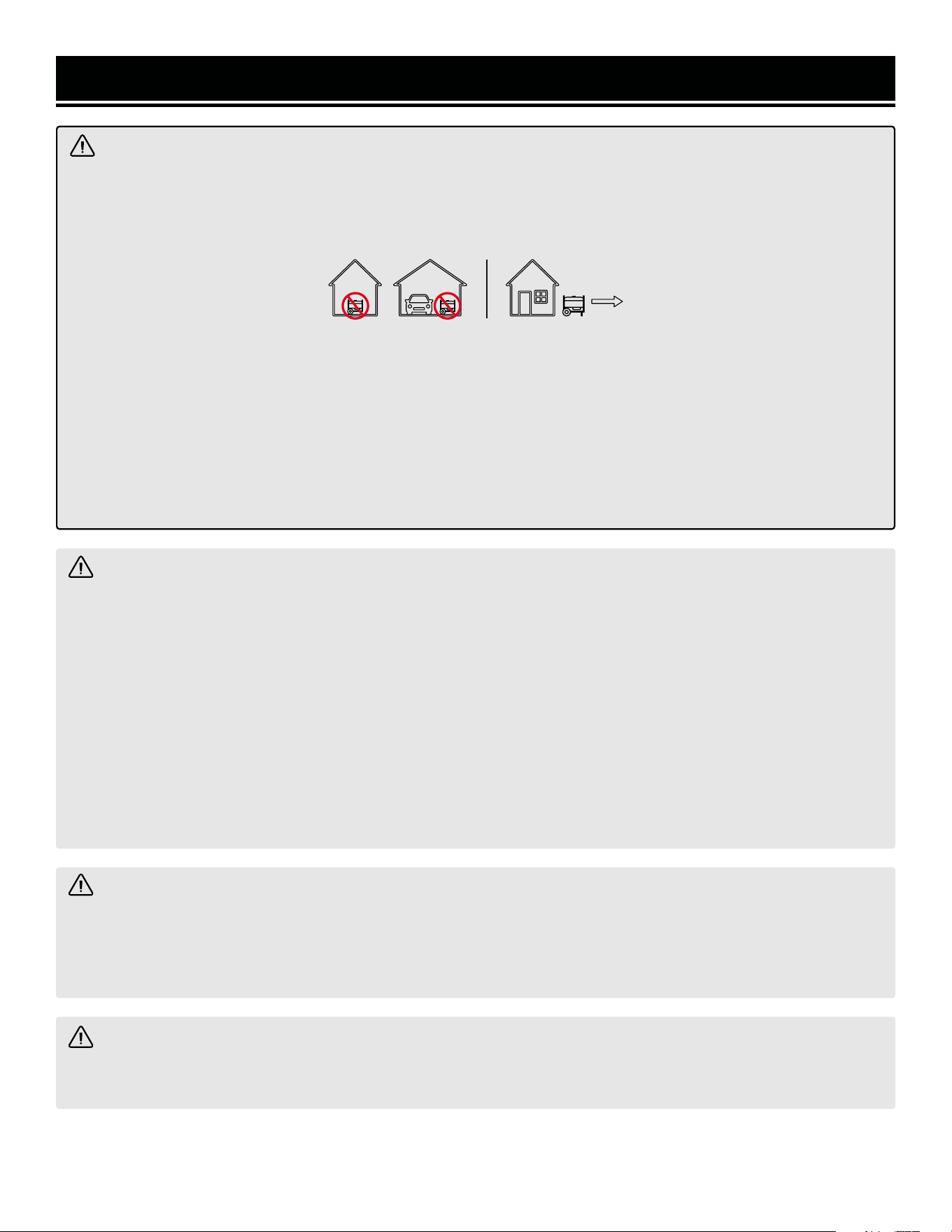

GENERATOR SAFETY WARNINGS

DANGER! CARBON MONOXIDE

Using a generator indoors CAN KILL YOU IN MINUTES. Generator exhaust contains carbon monoxide (CO). This

is a poison gas you cannot see or smell. If you can smell the generator exhaust, you are breathing CO. But even

if you cannot smell the exhaust, you could be breathing CO.

NEVER use a generator inside homes, garages, crawl spaces, or other partially enclosed areas. Deadly levels

of carbon monoxide can build up in these areas. Using a fan or opening windows and doors does NOT supply

enough fresh air. ONLY use a generator outside and far away from windows, doors, and vents. These openings

can pull in generator exhaust.

Even if you use a generator correctly, CO may leak into the home. ALWAYS use a battery-powered or battery-

backup CO alarm in the home. If you start to feel sick, dizzy, or weak after the generator has been running, move

to fresh air RIGHT AWAY. See a doctor. You may have carbon monoxide poisoning.

WARNING! RISK OF EXPLOSION. HIGHLY FLAMMABLE: This generator may emit highly ﬂammable and

explosive gasoline vapors, which can cause severe burns or even death, if ignited. A nearby open ﬂame can lead

to explosion even if not directly in contact with gasoline.

• Do not operate near open ﬂame, heat, or any other ignition source. Do not smoke near the generator.

• Always operate on a ﬁrm, level surface.

• Always turn generator off before refueling. Allow generator to cool for at least 2 minutes before removing

fuel cap. Loosen cap slowly to relieve pressure in tank.

• Do not overﬁll fuel tank. Gasoline may expand during operation. Do not ﬁll to the top of the tank. Allow for

expansion. Always check for spilled fuel before operating.

• If fuel spills, move the generator at least 30 feet away from the spill and wipe clean any spilled fuel before

starting the engine.

• Empty fuel tank before storing or transporting the generator.

WARNING! If this generator is used as a supply for a building’s wiring system, the generator must be in-

stalled by a qualiﬁed electrician and connected to a transfer switch as a separately derived system in accordance

with all applicable laws and electrical codes and the National Electrical Code, NFPA 70. The generator shall be

connected to a transfer switch that switches all conductors excluding the equipment grounding conductor. The

frame of the generator shall be connected to an approved grounding electrode.

CALIFORNIA PROPOSITION 65 WARNING: This product contains chemicals and produces exhaust known

to the State of California to cause cancer, birth defects and other reproductive harm. For more information, visit

www.P65Warnings.ca.gov

OPERATING ENVIRONMENT

1. Using a generator indoors can kill you in minutes.

Only use a generator outside and far away from win-

dows, doors and vents.

2. Do not smoke near the generator.

3. Do not operate near open ﬂame, heat, or ﬂammable

materials. This generator may emit highly ﬂammable

and explosive gasoline vapors, which can cause severe

burns or even death if ignited. A nearby open ﬂame can

lead to an explosion even if it isn’t directly in contact with

gasoline.

4. Do not expose the generator to rainy or wet con-

ditions; doing so signiﬁcantly increases the risk of

electrical shock. Never handle the generator, electronic

devices, or any cord while standing in water, while bare-

foot, or when hands or feet are wet.

5. Always operate the generator on a dry, ﬁrm, level

surface.

6. The generator should have at least 5 feet of clear-

ance from buildings or other equipment during opera-

tion.

7. Do not allow children or non-qualiﬁed persons to

operate the generator.

GENERATOR PREPARATION

1. Always ground the generator before using it to maxi-

mize safety (see “Ground the Generator” section).

2. Do not overﬁll fuel tank, as gasoline may expand

during operation. Do not ﬁll to the very top of the tank.

Leave room for gasoline expansion. Always check for

spilled fuel before operating.

3. If any part of the generator, electrical device or pow-

er cord is broken, damaged, or defective, make sure

it is repaired or replaced before operation. Service

should only be performed by a qualiﬁed technician. Do

not use receptacles or cords that show signs of damage,

such as broken or cracked insulation.

4. Use a ground fault circuit interrupter (GFCI) in highly

conductive areas such as metal decking or steel work.

Extension cords with in-line GFCIs are recommended for

these operations to maximize safety.

5. If connecting the generator to a building’s electri-

cal system for standby power, you MUST consult a

qualiﬁed electrician and install a transfer switch. Such

connections must comply with local electrical laws and

codes. Failure to comply can create a back-feed, which

may result in serious injury or death to utility workers.

6. Never modify the generator in any way. Modifying

or using the machine for any other purpose for which it

is not designed may result in serious injuries, machine

damage and voiding of the warranty.

GENERATOR OPERATION

1. Only use the generator for its intended purposes.

Modifying or using the generator for operations for

which it was not designed may cause hazards and per-

sonal injury.

2. Do not touch bare wires or receptacles (outlets).

3. Do not exceed the wattage capacity of the generator

by plugging in more electrical devices than the unit

can handle. This could damage the generator and/or

connected electrical devices. Check the operating volt-

age and frequency requirements of all electrical devices

prior to plugging them into the generator.

Generator safety warnings continue on the next page.

WARNING! Do not let comfort or familiarity with the product replace strict adherence to product safety rules.

Failure to follow the safety instructions may result in serious personal injury.

GENERATOR SAFETY WARNINGS

WARNING! Do not let comfort or familiarity with the product replace strict adherence to product safety rules.

Failure to follow the safety instructions may result in serious personal injury.

4. Allow generator to run for several minutes before

connecting electrical devices. Do not start or stop en-

gine with electrical devices plugged in to the receptacles.

Failure to do so could damage the generator and/or con-

nected electrical devices.

5. Do not turn on electrical devices until after they are

connected to the generator.

6. Generators vibrate in normal use. During and after

the use of the generator, inspect both the generator as

well as extension and power supply cords for damage

resulting from vibration.

7. Do not touch hot parts. This generator produces heat

when running. Temperatures near exhaust can exceed

150ºF (65ºC). Allow generator to cool down after use be-

fore touching engine or areas of the generator that be-

come hot during use.

8. Turn off all connected electrical devices before stop-

ping the generator.

9. Always turn generator off before refueling.

Allow generator to cool for at least 2 minutes before re-

moving fuel cap. Loosen cap slowly to relieve pressure

in tank.

10. Turn the engine switch to “STOP” position when

the engine is not running.

11. Empty fuel tank before storing or transporting the

generator. Do not store generator or gasoline near fur-

naces, water heaters, or any other appliances that pro-

duce heat or have automatic ignitions. Store the genera-

tor and fuel away from sparks, open ﬂames, pilot lights,

heat and other sources of ignition.

12. Always wash hands after handling generator.

CAUTION: Misuse of this generator can damage it or

shorten its lifespan.

TO MAXIMIZE THE LIFESPAN OF YOUR GENERATOR: We recommend running your generator at least once a

month for 20 to 30 minutes. Start the generator according to the instructions and plug a small load in to make

sure the outlet is producing electricity. If you do not run it often, it will greatly shorten the generator’s lifespan

and void the warranty.

KNOW YOUR GENERATOR

TOOL PURPOSE

Generators provide you with power when and where you need it most. Refer to the following diagrams to become

familiarized with all the parts and controls of your Generator. The components will be referred to later in the manual

for assembly and operation instructions.

GENERATOR

Gasoline Fuel Cap

Choke Lever

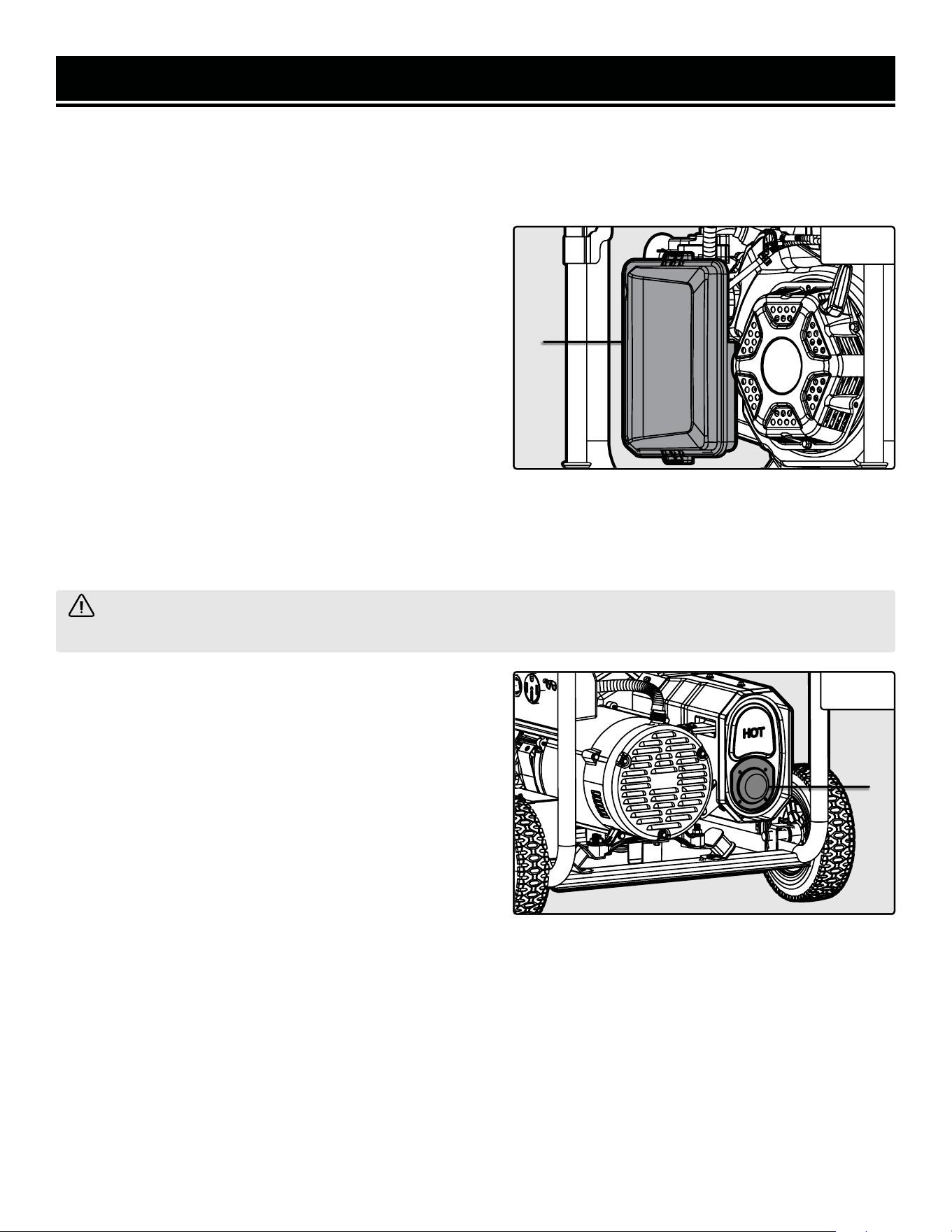

Air Filter

Recoil Start Handle

Fuel Gauge

Control Panel

Oil Fill

Battery

Wheels

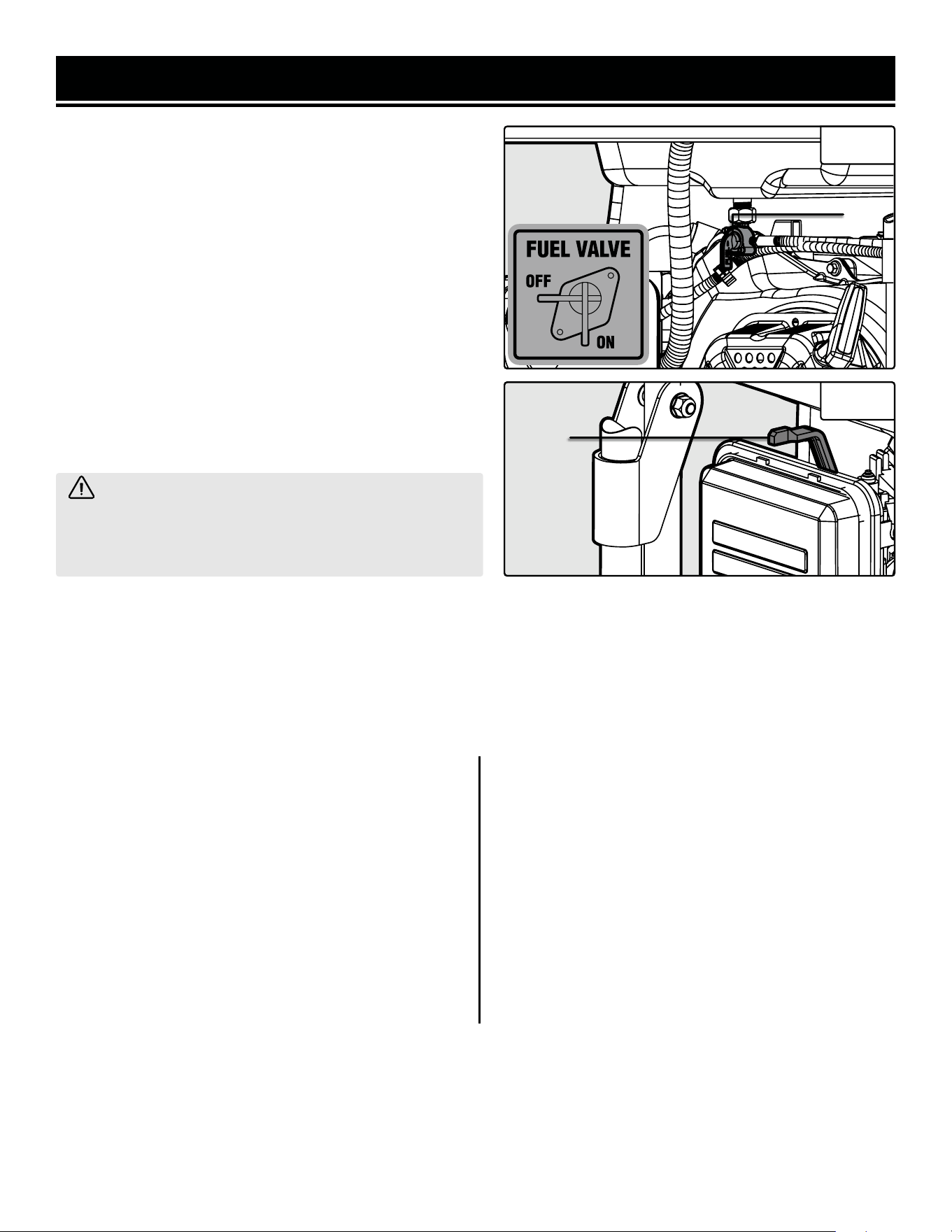

Fuel Valve

Handles

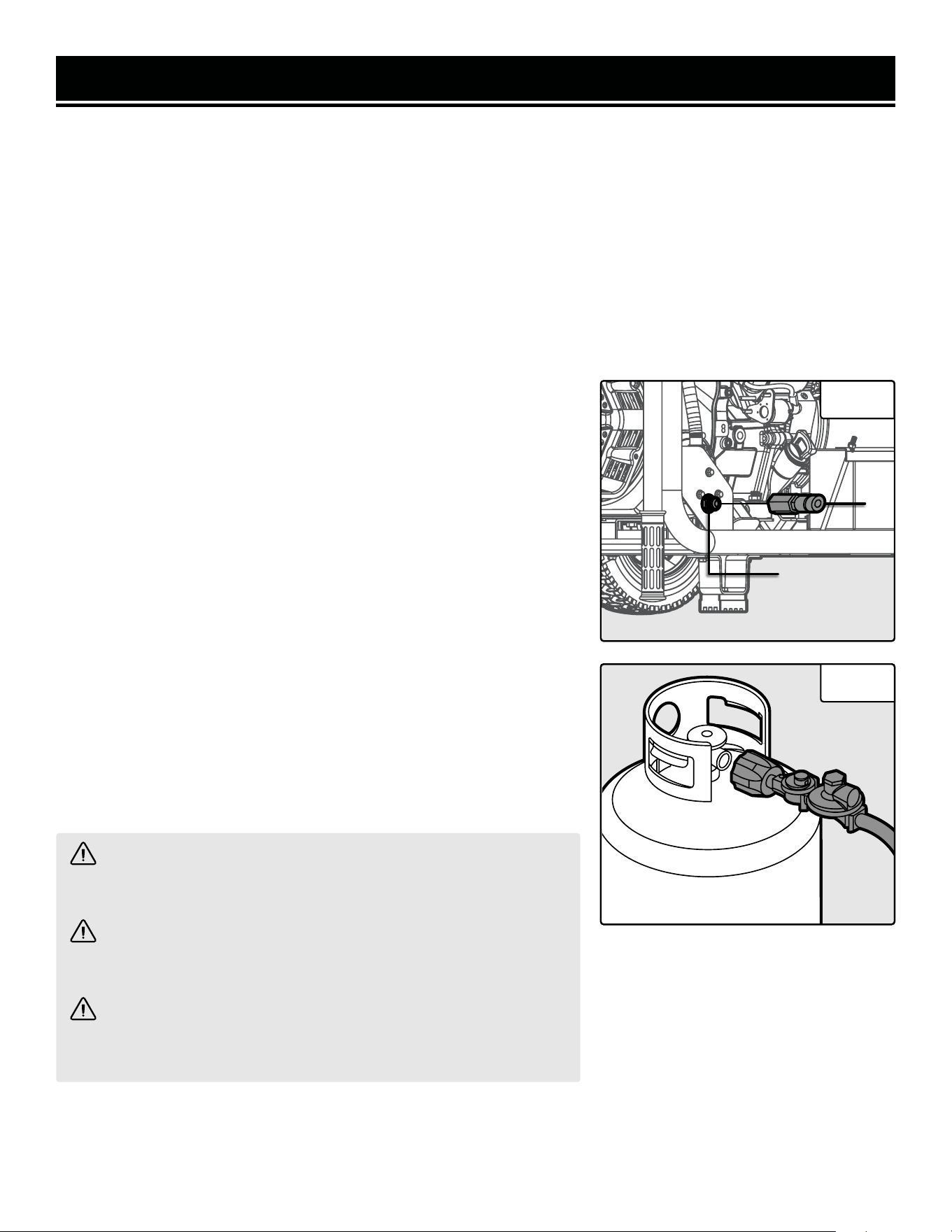

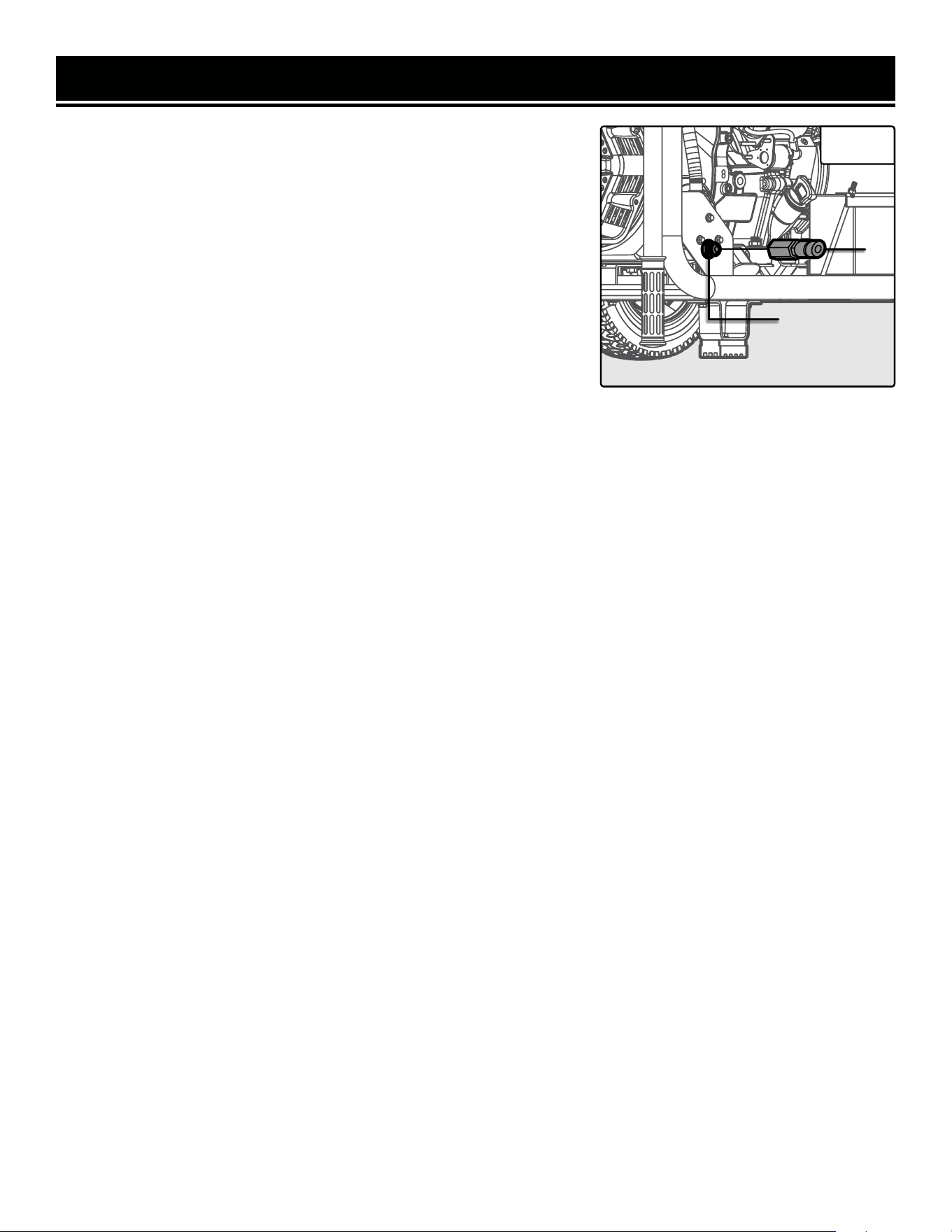

LPG/NG Hose Connector

Spark Plug

Mufﬂer

KNOW YOUR GENERATOR

CONTROL PANEL

1. Fuel Selector Switch

Turn the dial to easily switch between gasoline, propane,

and natural gas before operation.

2. Engine Key Switch

Start and shut off the engine.

3. Low Oil Alert

Illuminates if the oil level is too low.

4. Data Meter

Displays voltage (e.g. V240), frequency (e.g. F-60), total

runtime (HHHH), and session runtime (HH:MM). Press

the MODE button to switch between displays.

5. AC 20A Circuit Breakers

Thermal protector that protects the 5-20R receptacles

from overload.

6. AC 30A Circuit Breakers

Thermal protector that protects the L14-30R receptacle

from overload.

7. NEMA 14-50R 120V/240V 50A Receptacle

AC 120V/240V split-phase.

8. Main Circuit Breaker

Flip the lever to reset the breaker.

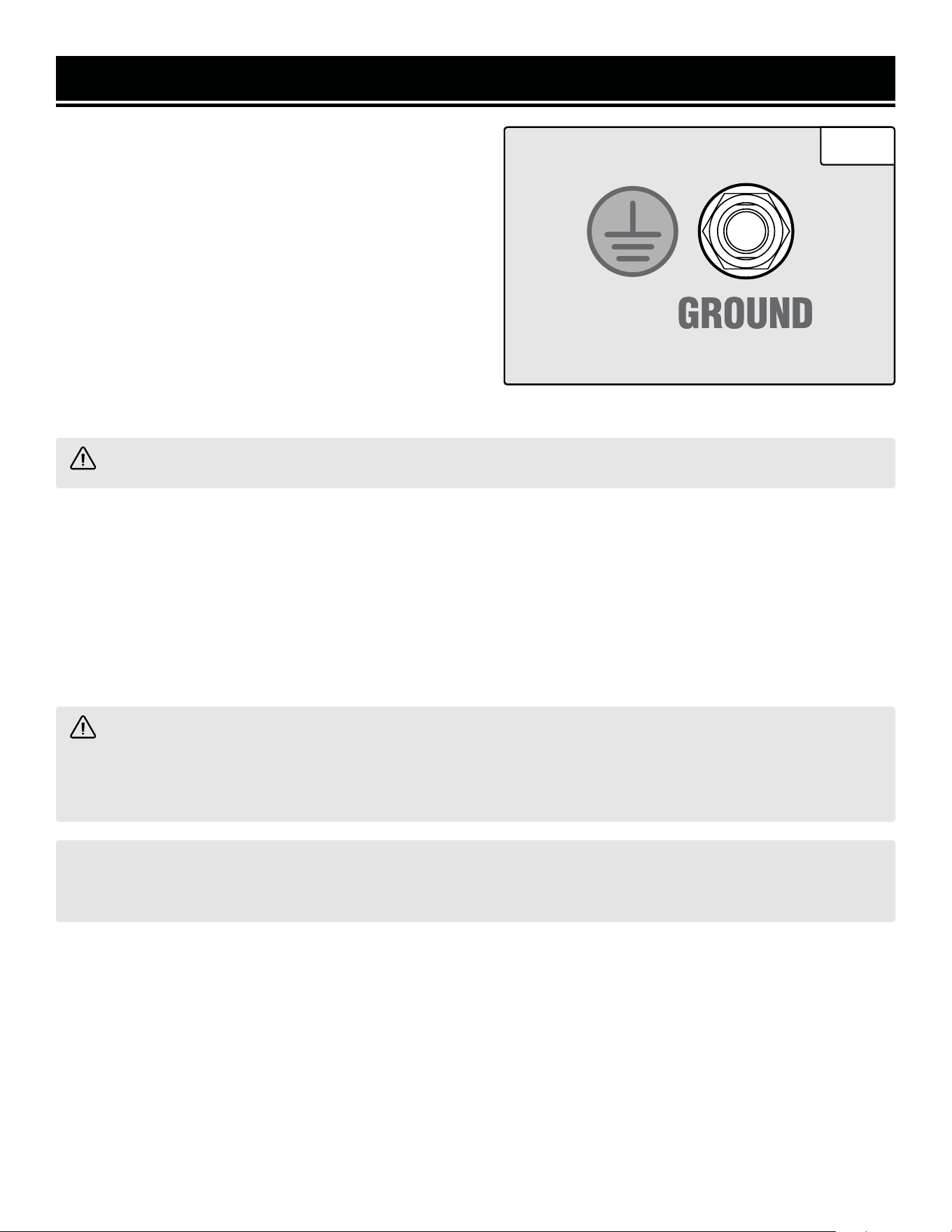

9. Grounding Nut

Connection point for grounding the generator to the

earth. See p. 20 for more information.

10. NEMA L14-30R Receptacle

AC 120V/240V split-phase.

11. NEMA 5-20R Duplex Receptacle

Connect electrical devices that run on 120V, 60 Hz, sin-

gle phase, AC current.

12. DC 12V Receptacle

Cigarette lighter style receptacle, 12V DC, 8A.

13. DC Circuit Breaker

Thermal protector that protects the DC circuit from over-

load.

2 3 4 5 6 7 8

10111213 9

UNPACKING

With the help of a friend or trustworthy foe, such as one of your in-laws, carefully remove the generator from the

packaging and place it on a sturdy, ﬂat surface. Make sure to take out all contents and accessories. Do not discard

the packaging until everything is removed. Check the packing list below to make sure you have all of the parts and

accessories. If any part is missing or broken, please contact customer service at 1-847-429-9263 (M-F 8-5 CST),

or email [email protected].

UNPACKING & PACKING LIST

PACKING LIST

Components Qty.

Generator 1

Foot Assembly Qty.

Feet 2

Foot Brackets 2

M8x16 Bolts 4

M8 Hex Nuts 4

Handle Assembly Qty.

Handles 2

M8x50 Bolts 2

M8 Lock Nuts 2

Wheel Assembly Qty.

Wheels 2

Wheel Axles 2

17mm Flat Washers 2

Cotter Pins 2

Tools & Accessories Qty.

Oil Bottle 1

LPG Regulator Hose 1

Funnel 1

Spark Plug Socket 1

10mm x 13mm Wrench 1

13mm x 15mm Wrench 1

22mm x 24mm Wrench 1

Quick-Connector Adapter 1

IMPORTANT: Two red shipping brackets have

been added to the bottom of your generator to

protect the generator during shipping. Please

make sure to remove BOTH shipping brackets

before operation. Make sure there is no gasoline

or oil in the generator, and carefully tip the gener-

ator on its end for easier access to the brackets.

Fig. A

TO INSTALL THE FEET:

1. Insert two M8x16 bolts (1) through the foot support assembly (2) and frame. Tighten with two M8 nuts (3).

2. Repeat step 1 for the other foot.

TO INSTALL THE WHEELS:

1. Slide the wheel axle (4) through the wheel (5), ﬂat washer (6), and wheel bracket on the frame.

2. Insert cotter pin (7) through the hole on the end of the axle to keep the wheel in place.

3. Repeat steps 1-2 for the other wheel.

TO INSTALL THE HANDLE ASSEMBLIES:

1. Slide the M8x50 bolt (8) through the handle (9) and generator frame.

2. Tighten with an M8 lock nut (10).

3. Repeat steps 1-2 for the other handle.

NOTE: Only the generator frame is shown to maximize clarity for assembly.

ASSEMBLY & ADJUSTMENTS

Fig. 1

GENERATOR PREPARATION

The following section describes the necessary steps to prepare the generator for use. If you are unsure about how to

perform any of the steps please call 1-847-429-9263 (M-F 8-5 CST) for customer service. Failure to perform these

steps properly can damage the generator or shorten its life.

STEP 1 - ADD/CHECK OIL

The generator is shipped without oil. User must add the proper amount of oil before operating the generator for the

ﬁrst time. The oil capacity of the engine’s crankcase is 44 ﬂ. oz. (1.3 L).

CAUTION! Keep the generator level. Tilting the generator

to assist in ﬁlling will cause oil to ﬂow into the wrong

areas of the engine and cause damage.

TO ADD OIL:

1. Place the generator on a level surface. Make sure the en-

gine is OFF before adding or checking oil.

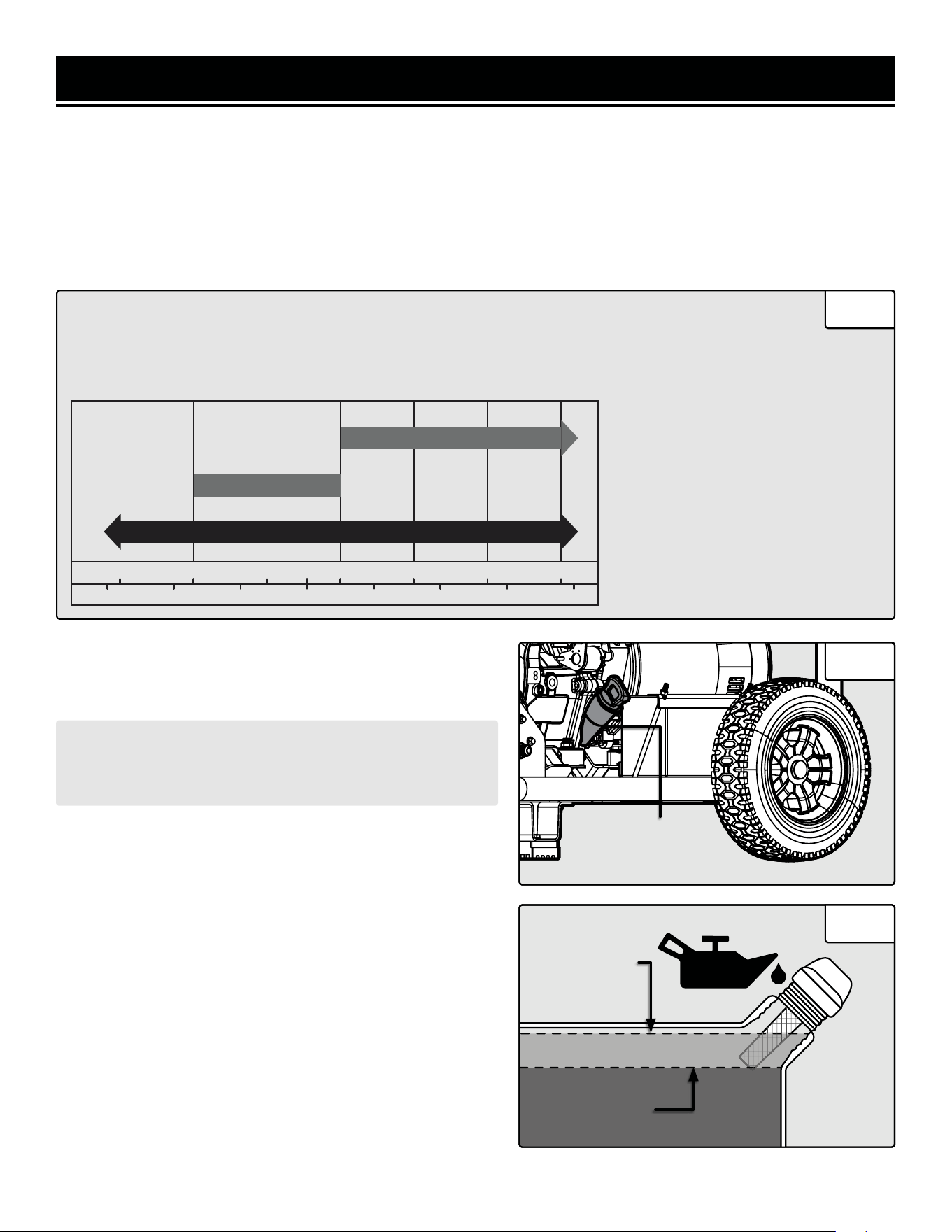

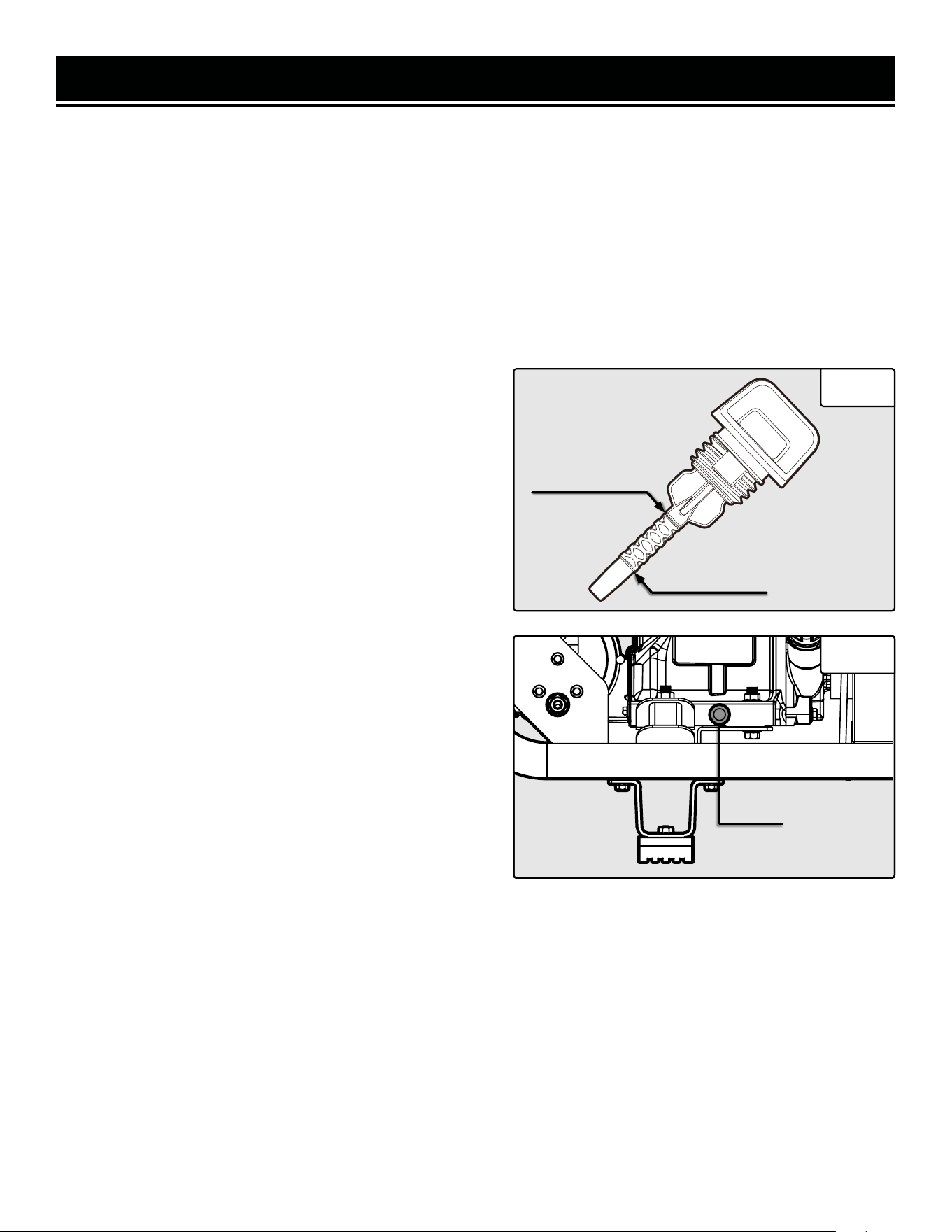

2. Unscrew the oil dipstick (Fig. 3) from the engine.

3. Using an oil funnel or appropriate dispenser, slowly add

oil into the oil ﬁll, being careful not to overﬁll the unit. Fill the

crankcase to the upper ﬁll line so you can visually see the oil

coming halfway up the oil ﬁll threads. See Fig. 4.

4. Reinstall the oil dipstick and ﬁrmly tighten it. Wipe clean

any spilled oil.

NOTE: Extend the lifespan of your generator by catching the

loose metal ﬁlaments that naturally build up inside the crank

case with the WEN Magnetic Dipstick (Model GNA273),

available for purchase at wenproducts.com.

• 30W Engine Oil

Temperatures above 40°F

• 10W-30 Engine Oil

Temperatures between 0°F - 40°F

• Synthetic 5W-30 Engine Oil

All temperature ranges

ENGINE OIL RECOMMENDATIONS

Select good quality detergent oil bearing the American Petroleum Institute (API) service classiﬁcations

SJ, SL, or SM (synthetic oils may be used). Select the SAE viscosity grade of oil that matches the ex-

pected operating temperature.

°F

°C

-20 0 20 32 40 60 80 100

40200

-20

-10

-30 30

Upper Fill Line

Lower Fill Line

Dipstick

Fig. 2

Fig. 3

Fig. 4

30W

10W-30

Synthetic 5W-30

Lower Limit

Upper Limit

TO CHECK OIL LEVEL (before every subsequent start):

1. Place the generator on a level surface. Make sure the

engine is OFF before adding or checking oil.

2. Remove and wipe the dipstick with a clean rag.

3. Insert the dipstick into the oil ﬁll without screwing it in.

Remove the dipstick to check the oil mark.

4. If the oil mark covers less than one half of the dipstick,

slowly add oil until the oil mark reaches the top of the dip-

stick (or when you can see the oil coming halfway up the

oil ﬁll threads). See Fig. 5.

WARNING: RISK OF EXPLOSION. HIGHLY FLAMMABLE: This generator may emit highly ﬂammable and

explosive gasoline vapors, which can cause severe burns or even death, if ignited. A nearby open ﬂame can lead

to explosion even if not directly in contact with gasoline.

• Do not operate near open ﬂame, heat, or any other ignition source. Do not smoke near the generator.

• Always operate on a ﬁrm, level surface.

• Always turn generator off before refueling. Allow generator to cool for at least 2 minutes before removing

fuel cap. Loosen cap slowly to relieve pressure in tank.

• Do not overﬁll fuel tank. Gasoline may expand during operation. Do not ﬁll to the top of the tank. Allow for

expansion. Always check for spilled fuel before operating.

• If fuel spills, move the generator at least 30 feet away from the spill and wipe clean any spilled fuel before

starting the engine.

• Empty fuel tank before storing or transporting the generator.

ONLY use fresh (within 30 days from purchase), lead-free

gasoline with a minimum of 87 octane rating. The genera-

tor performs best with ethanol-free gasoline. DO NOT use

gasoline with over 10% ethanol.

The capacity of the fuel tank is 8.2 US gallons. Do not mix

oil with gasoline.

Follow the instructions on the next page to add gasoline.

IMPORTANT:

• Avoid getting dirt or water into the fuel tank.

• Keep gasoline away from sparks, open ﬂames,

pilot lights, heat, and other sources of ignition.

• Gasoline can age in the tank and make starting

difﬁcult. Never store the generator for more

than 2 months with fuel in the tank.

• Never use an oil/gasoline mixture.

• Never use old gasoline.

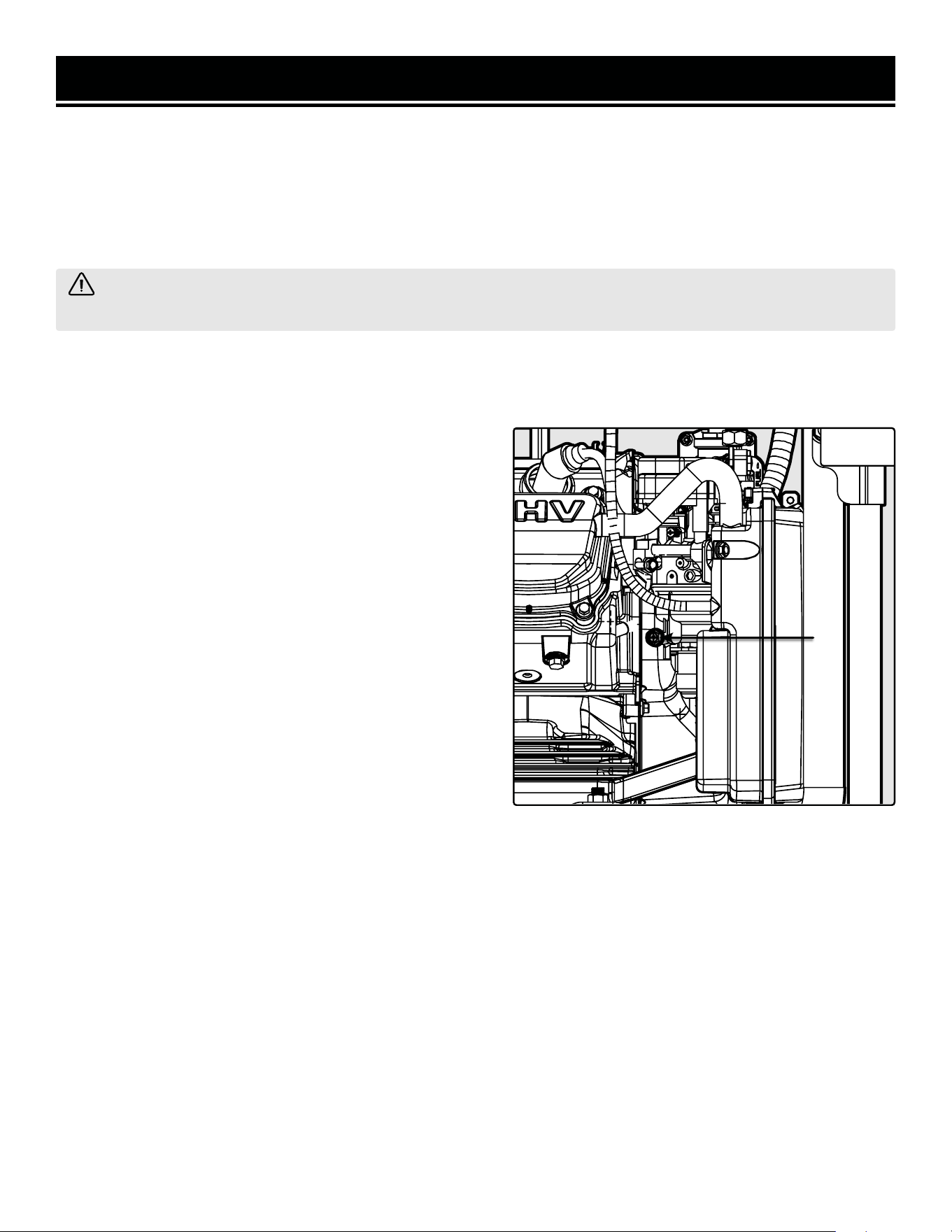

OIL LEVEL SHUTDOWN

To protect the unit from damage, the generator is equipped with a low-oil-pressure shutoff that will automatically

shut down the engine when the oil level is too low. The oil level of the engine should be checked before each start

to ensure that the engine crankcase contains sufﬁcient lubricant.

STEP 2 - ADD/CHECK FUEL

FUEL OPTION A: GASOLINE

GENERATOR PREPARATION

Fig. 5

TO ADD GASOLINE:

1. Place the generator on a level surface. Make sure the

engine is OFF before adding or checking the fuel.

2. Unscrew the fuel cap (Fig. 6) and set it aside. The fuel

cap may be tight and hard to unscrew.

3. Slowly add unleaded gasoline to the fuel tank. Be careful

not to overﬁll. Reinstall fuel cap and wipe clean any spilled

gasoline with a dry cloth.

NOTE: Do not ﬁll the fuel tank to the very top. If you do

so, gasoline will expand and spill during use, even with

the fuel cap in place.

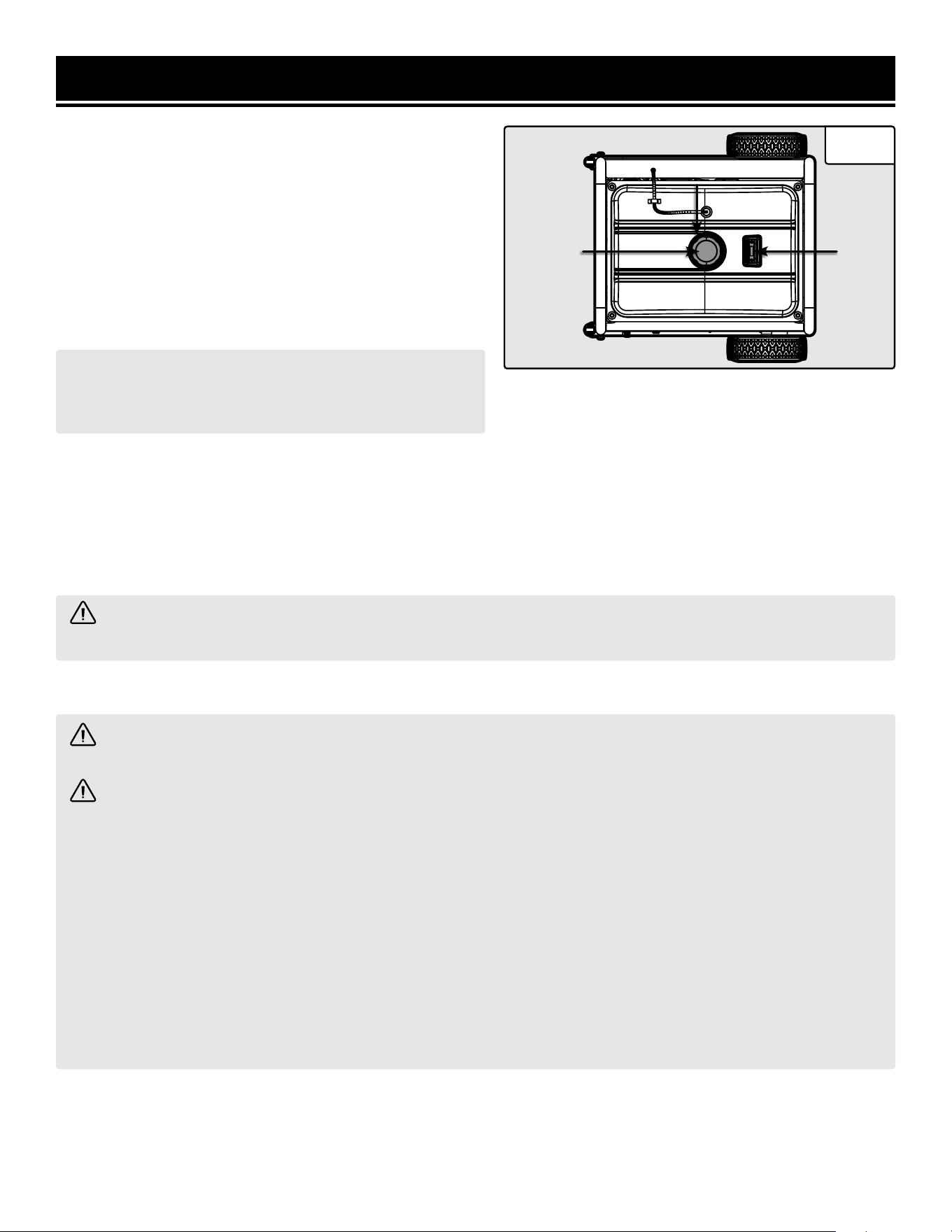

TO CHECK GAS LEVEL (before every subsequent start):

1. Before starting the generator, check the fuel gauge (Fig. 6) to see if there is sufﬁcient fuel inside the tank:

• E = Empty

• F = Full

2. If the tank is empty, add gasoline to the fuel tank. See above section, "To Add Gasoline".

GENERATOR PREPARATION

Fig. 6

Fuel Cap

Fuel

Gauge

WARNING! If using gasoline, the LPG tank must be shut OFF. If using LPG, the fuel valve on the generator

must be turned to the OFF position.

FUEL OPTION B: LIQUID PETROLEUM GAS (LPG)

DANGER! Explosion and ﬁre. LP vapors are extremely ﬂammable and explosive. Do not use or store LP

cylinder in a building, garage or enclosed area. Failure to do so will result in death or serious injury.

WARNING! Explosion and ﬁre. The cylinder valve should be turned OFF (closed) when generator is not in

use. Failure to do so could result in death or serious injury.

• Always keep the LPG cylinder in an upright position.

• When transporting and storing, keep cylinder secured in an upright position with cylinder valve turned off. Keep

cylinders ventilated and away from heat when in a vehicle.

• Liquid Petroleum Gas (LPG) is highly ﬂammable and explosive. Flammable gas under pressure can cause a ﬁre

or explosion if ignited.

• In any petroleum gas ﬁre, ﬂames should not be extinguished unless the fuel supply valve is turned OFF. If a ﬁre

is extinguished and a supply of fuel is not turned OFF, an explosion hazard could be created.

• RISK OF BURNS. Contact with liquid contents of cylinder will cause freeze burns to the skin. If liquid contents

contacts skin or eyes, seek immediate medical attention.

• When exchanging LPG cylinders, be sure the cylinder valve is of the same type.

GENERATOR PREPARATION

FUEL OPTION B: LIQUID PETROLEUM GAS (LPG) (CONT.)

NOTE: LPG regulator inlet pressure is approximately 30 PSI at 0 °F, and 218 PSI at 100 °F.

• You can use LPG tanks with Type 1, right hand Acme threads with this generator. Verify that the qualiﬁcation date

on tank has not expired. Do not use rusted or damaged cylinders.

• All new cylinders must be purged of air and moisture prior to ﬁlling. Used cylinders that have not been plugged or

kept closed must also be purged.

• The purging process should be done by the propane gas supplier. (Cylinders from an exchange supplier should

have been purged and properly ﬁlled by supplier).

To connect your generator to an LPG cylinder:

1. Take off the safety caps from the cylinder valve, generator-mounted

regulator, and regulator connecting hose ends.

2. Screw the female threaded end of the quick-connect adapter (Fig.

7A - 1) onto the male threaded ﬁtting on the generator (Fig. 7A - 2). DO

NOT use Teﬂon or other PTFE tape on this connection. Tighten it with the

included 22mm wrench.

3. With the LPG tank closed, attach the ﬁrst-stage regulator to the valve.

Turn the regulator’s plastic coupling right (clockwise) to tighten the as-

sembly onto the LPG tank (Fig. 7B).

3. Pull back the collar on the quick-connector on the LPG hose. Push it

fully over the male end of the adapter, then release the collar. Lightly pull

on the hose to ensure it is securely attached to the generator.

4. Turn the LPG tank valve ON and check for leaks by spraying soapy

water on all connections. If bubbles appear, become larger in size, or

increase in number, a leak exists. Recheck all connections and perform

the test again. If the leak persists, it must be corrected before using the

generator. Contact a professional, certiﬁed LPG plumber for assistance.

CAUTION! Always position the LPG cylinder so the connection

between the valve and regulator won’t cause sharp bends or kinks in

hose.

WARNING! Risk of burns. Contact with liquid contents of cylinder

will cause freeze burns to the skin. If liquid contents contacts skin or

eyes, seek immediate medical attention.

WARNING! When transporting and storing, keep cylinder

secured in an upright position with cylinder valve turned off. Keep

cylinders ventilated and away from heat when in a vehicle.

Fig. 7A

Fig. 7B

GENERATOR PREPARATION

FUEL OPTION C: NATURAL GAS (NG)

1. We recommend using Teﬂon or other PTFE tape when securing the

threaded male end of the NG hose (not included) to the supply line. A

25-foot 1/2-inch NG hose with quick-connector is available for pur-

chase at wenproducts.com (part no. TF1450X-1431).

2. Screw the female threaded end of the quick-connect adapter (Fig. 8 -

1) onto the male threaded ﬁtting on the generator (Fig. 8 - 2). DO NOT

use Teﬂon or other PTFE tape on this connection. Tighten it with the

included 22mm wrench.

3. Pull the rubber cover off the female quick-connector on the NG hose.

4. Pull back the collar on the quick-connector on the NG hose. Push it

fully over the male end of the adapter, then release the collar. Lightly

pull on the hose to ensure it is securely attached to the generator.

5. Turn the NG supply ON and check for leaks by spraying soapy water

on all connections. If bubbles appear, become larger in size, or increase

in number, a leak exists. Recheck all connections and perform the test

again. If the leak persists, it must be corrected before using the genera-

tor. Contact a professional, certiﬁed NG plumber for assistance.

6. Turn the NG supply OFF until you are ready to start the generator.

Fig. 8

GENERATOR PREPARATION

WARNING! BATTERY GIVES OFF EXPLOSIVE HYDROGEN GAS.

• Keep battery away from spark, ﬂame, or cigarette.

• Do not connect or disconnect battery while generator is running.

• Service or use battery only in well ventilated areas.

WARNING! Battery contains sulfuric acid. Battery acid is poisonous. Tilting the generator with the battery

installed can cause battery acid to spill.

• Wear protective clothing and eye wear when servicing battery.

• Keep out of reach of children.

• Do not tilt generator with battery installed.

• If battery acid gets on your skin, wash with water immediately.

• If battery acid gets in your eyes, ﬂush with water for at least 15 minutes and call a doctor immediately.

If battery acid is swallowed, call a doctor immediately. Drink a large amount of water or milk. Then drink milk of

magnesia or vegetable oil.

The generator comes with the battery disconnected for

safety. When using LPG or NG to run the generator, the

battery must be connected whether using electric or recoil

start. The battery must also be connected for electric start

when using gasoline, but the battery does not need to be

connected for recoil start on gasoline.

For a video of this procedure, please visit http://bit.

ly/44sb6C2.

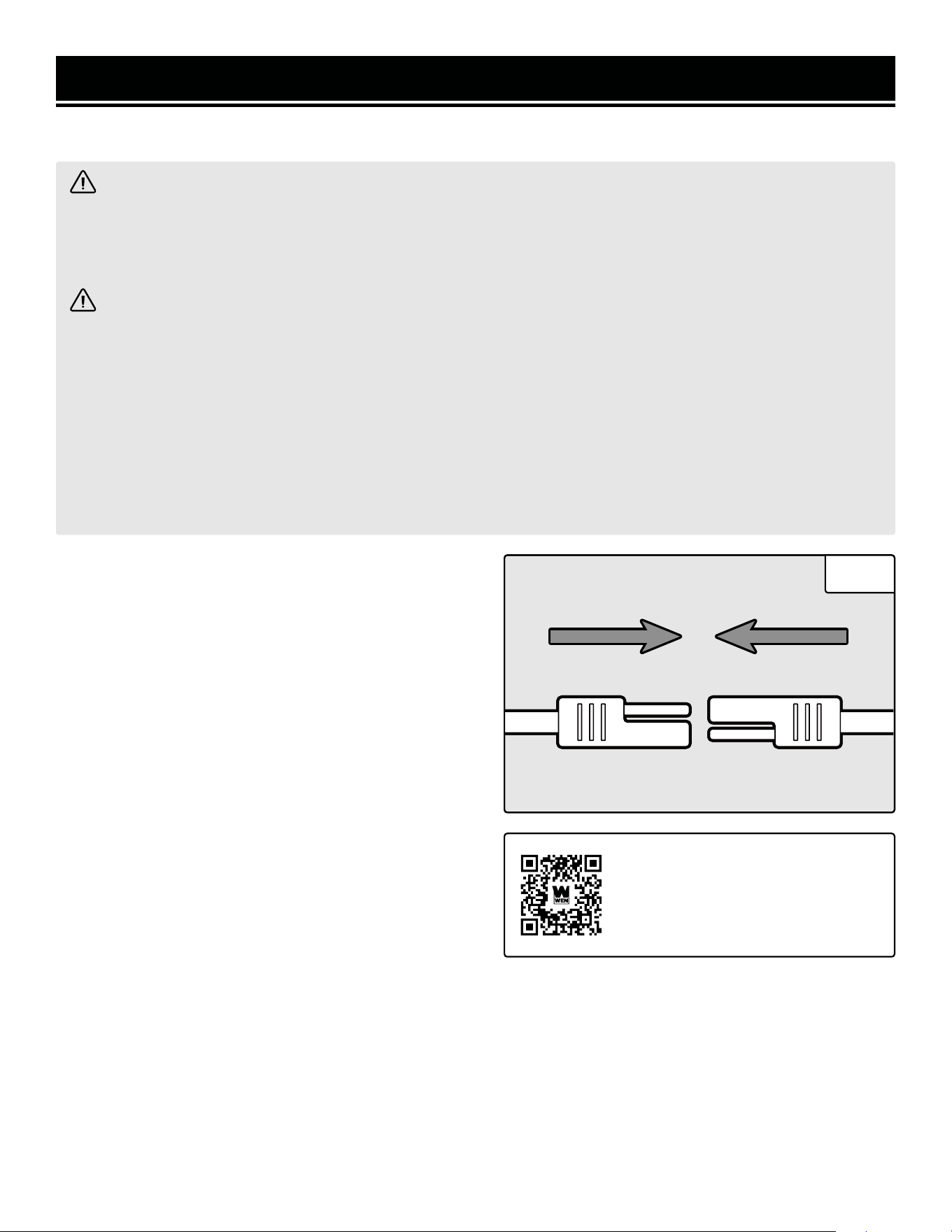

To connect the battery:

1. Remove the rubber quick-connector covers.

2. Connect the two ends of the quick-connector on the

battery (Fig. 9) to the ends of the quick-connector on the

starter motor.

IMPORTANT: If you do not plan to use the generator for

an extended period of time, we recommend DISCONNECT-

ING the quick connector. This will protect the battery from

losing its charge. Cover the ends with the rubber covers.

Alternatively, you can use a trickle charger (not included)

to maintain battery charge. A smart trickle / ﬂoat charger

is available for purchase at wenproducts.com (model no.

GNA12C).

STEP 3 - CONNECT THE BATTERY

If the battery is dead or disconnected, the generator will not start when using electric start on gasoline. The genera-

tor will also not start when using LPG or NG, regardless of starting method. The battery receives charge when the

generator is running. To help maximize your battery’s lifespan, and ensure it’s ready when needed, run your genera-

tor once a month, disconnect the quick connectors as outlined above, or connect the battery to a trickle charger.

Fig. 9

For more information on your

battery quick-connectors, scan the

QR code or visit the link below:

http://bit.ly/44sb6C2

After completing the above preparation, the generator is ready to be started.

GENERATOR PREPARATION

STEP 4 - GROUND THE GENERATOR

To reduce the risk of electric shock and to maximize safety,

the generator should be properly grounded.

Ground the generator by tightening the grounding nut on

the front control panel (Fig. 10) against a grounding wire.

A generally acceptable grounding wire is a No. 12 AWG

(American Wire Gauge) stranded copper wire.

This grounding wire should be connected at the other end

to a copper, brass, or steel-grounding rod that is driven

into the earth. Wire and grounding rods are not included

with the generator.

NOTE: Grounding codes can vary by location. Contact a local electrician to check the area codes.

WARNING! Failure to properly ground the generator increases your risk of electric shock.

HIGH ALTITUDE OPERATION ABOVE 3000 FEET

The fuel system on this generator may be affected by operation at high altitudes. Proper operation can be ensured by

installing an altitude kit at altitudes higher than 3000 feet above sea level. At elevations above 8000 feet, the engine

may experience a decrease in performance, even with the proper altitude kit. Operating this generator without said

kit may increase the engine’s emissions and decrease both fuel economy and performance.

This kit should be installed by a qualiﬁed mechanic. You can order the kit at wenproducts.com by searching part

number TF1450X-HA36 (3000 - 6000 ft) and TF1450X-HA68 (6000 - 8000 ft). Refer to the instructions included

with your altitude kit for more information about installation.

WARNING! To prevent serious injury from ﬁre, follow the kit installation procedures in a well-ventilated

area away from ignition sources. If the engine is hot from use, shut the engine off and wait for it to cool before

proceeding. Do not smoke near the generator. Warranty will be void if adjustments are not made for high altitude

use.

CAUTION: Engines with the high-altitude kit installed operated at lower altitudes could cause severe engine dam-

age and affect emissions compliance. Be sure to uninstall the high altitude kit when operating at altitudes below

3000 feet.

Fig. 10

STARTING YOUR GENERATOR

CAUTION! Disconnect all electrical loads from the generator before attempting to start it.

Before starting the generator, make sure you have read and performed the steps in the “Generator Preparation” sec-

tion of this manual. If you are unsure about how to perform any of the steps in this manual please call

1-847-429-9263 (M-F 8-5 CST) for customer service.

To maximize safety, ALWAYS ground the generator before using it. Refer to “Step 4 - Ground the Generator.”

Use a ground fault circuit interrupter (GFCI) in highly conductive areas such as metal decking or steel work. GFCIs

are available in-line with some extension cords.

DANGER: CARBON MONOXIDE

Using a generator indoors CAN KILL YOU IN MINUTES. Generator exhaust contains carbon monoxide (CO). This

is a poison gas you cannot see or smell. If you can smell the generator exhaust, you are breathing CO. But even

if you cannot smell the exhaust, you could be breathing CO.

NEVER use a generator inside homes, garages, crawl spaces, or other partially enclosed areas. Deadly levels

of carbon monoxide can build up in these areas. Using a fan or opening windows and doors does NOT supply

enough fresh air. ONLY use a generator outside and far away from windows, doors, and vents. These openings

can pull in generator exhaust.

Even if you use a generator correctly, CO may leak into the home. ALWAYS use a battery-powered or battery-

backup CO alarm in the home. If you start to feel sick, dizzy, or weak after the generator has been running, move

to fresh air RIGHT AWAY. See a doctor. You may have carbon monoxide poisoning.

WARNING: The exhaust from this product contains chemicals known to the State of California to cause

cancer, birth defects, or other reproductive harm.

WARNING: Do not operate generator near open ﬂame or ﬂammable materials This generator may emit

highly ﬂammable and explosive gasoline vapors, which can cause severe burns or even death if ignited. A

nearby open ﬂame can lead to explosion even if it isn’t directly in contact with gasoline. Do not smoke near the

generator.

WARNING: This generator produces powerful voltage, which can result in electrocution.

WARNING: Do not use in rainy or wet conditions. Do not touch bare wires or receptacles (outlets). Do not

allow children or non-qualiﬁed persons to operate.

WARNING: Generator should only be connected to electrical devices, either directly or with an extension

cord. NEVER connect to a building electrical system unless a qualiﬁed electrician has connected the generator to

a transfer switch as a separately derived system. Such connections must comply with local electrical laws and

codes. Failure to comply can create a back-feed, which may result in serious injury or death to utility workers.

Follow the instructions on the next page to start your generator.

BEFORE STARTING THE GENERATOR

1. Verify that the generator is outside on a dry, level sur-

face. Allow at least two feet of clearance on all sides of the

generator.

2. To maximize safety, check that the generator is properly

grounded (see “Ground the Generator”).

3. Check there is sufﬁcient level of oil in the crankcase. Add

oil if necessary (see “Add/check Oil”).

4. Verify the fuel selection dial is turned to the desired fuel

(gasoline, propane, or natural gas). Check that there is ad-

equate supply of the selected fuel.

5. Make sure all electrical devices are unplugged from the

generator during ignition. Otherwise it will be difﬁcult for

the engine to start.

7. Allow the engine to run for several minutes before attempting to connect any electrical devices. This allows the

generator to stabilize its speed and temperature. Follow the instructions in the next section for properly connecting

your electrical devices.

NOTE: In case you have had repeated failed attempts to start the engine, please consult the troubleshooting guide

before attempting to start the generator. If problems persist please call 1-847-429-9263, M-F 8-5 CST.

a. To start the engine with electric starter:

4. Insert the key and turn the engine switch to the

START position for 2-3 seconds. NOTE: If the engine

does not start, release the switch and try again. Keeping

the switch in the START position too long can damage

the starter.

5. When engine starts, release the switch to the ON po-

sition.

6. Slowly move the choke lever to the OPEN/RUN posi-

tion. If engine ﬁres, but does not continue to run, move

choke lever to CLOSE/START position and repeat start-

ing instructions.

b. To start the engine with recoil starter:

4. Turn the engine switch to the ON position.

5. Pull on the recoil starter handle slowly until a slight

resistance is felt, then pull quickly to start the engine.

Return cord gently into the recoil starter. Never allow

the cord to snap back.

If engine fails to start, repeat this step.

6. Once the engine has started, slowly return the choke

lever all the way to the OPEN/RUN position.

STARTING YOUR GENERATOR

WARNING! The LPG cylinder valve or NG supply

valve must must be shut OFF when using gasoline. The

generator’s fuel valve must be shut OFF when using

LPG or NG.

Fig. 11

STARTING THE GENERATOR

1. To use gasoline, turn the fuel valve (Fig. 11 - 1) to ON. To use LPG or NG, make sure all of the connectors and

hoses are well connected and sealed. Close the fuel valve, then open the LPG tank valve or NG line.

2. Turn the fuel selector switch to the desired fuel option.

3. Move the choke lever (Fig. 12 - 1) to the CLOSED/START position.

4. Make sure the battery is connected. See p. 19 for more information.

Fig. 12

Generator

Wattage

Capacity

Generator Running (Rated) Watts Generator Starting (Surge) Watts

Gasoline: 11500W Gasoline: 14500W

LPG: 10300W LPG: 12500W

NG: 8750W NG: 10500W

What this means:

The generator can produce a maximum of

11500W / 10300W / 8750W on a continuous

basis to supply ongoing power to your elec-

tronic devices.

NOTE: Also check the rated amperage for each

outlet and make sure not to overload the indi-

vidual outlets.

What this means:

Some devices such as box fans require short

bursts of extra power in addition to the rated

wattage listed by the device to start their mo-

tors.

The generator can produce a maximum watt-

age of 14500W / 12500W / 10500W for a

short period of time (seconds) to cover the

extra starting power required by your elec-

tronic devices.

Electronic

Device Wattage

Calculation

Find the wattage information of each device you plan to connect. The information should be

listed on the device or in its instruction manual.

The wattage can be calculated using this equation:

Watts = Volts x Amperes

To calculate the total running watts of your

devices:

+ Add up the running wattages of all the

device(s) you plan to connect

= The total running wattage

This wattage should NOT exceed the running

wattage of 11500W / 10300W / 8750W.

It is recommended to maintain a load at or be-

low 10350W / 9270W / 7875W (90% of the

rated output) to ensure steady voltage output

and to prolong the generator’s lifespan.

To calculate the total starting watts of your

devices:

+ Add up the total running wattage of all the

device(s) you plan to connect

+ Add the single highest ADDITIONAL start-

ing wattage out of the device(s) you plan to

connect

= The total surge (starting) wattage

This wattage should NOT exceed the starting

wattage of 14500W / 12500W / 10500W.

If any of either of the total calculated running watts or starting watts is higher than the

capacity of your generator, adjust the load until both wattage requirements are met. Other-

wise you will overload the generator, and cause damage to the engine and your electrical

device(s).

CALCULATING THE WATTAGE OF YOUR DEVICE(S)

Connect electrical devices running on AC current according to their wattage requirements. Calculate the total run-

ning wattage and starting wattage of the device(s) you wish to connect, and MAKE SURE that they are within the

capacity of your generator and the capacity of each individual outlet.

Table 1 - How to Calculate Wattages

USING YOUR GENERATOR

CALCULATING THE WATTAGE OF YOUR DEVICE(S) - CONTINUED

The chart below serves as a reference for the estimated wattage requirements of common electrical devices. How-

ever, do not solely rely on this chart - all electronics and appliances are built differently. Always check the wattage

listed on the electrical device before consulting this chart.

Tool or Appliance Rated (Running) Watts Surge (Starting) Watts

Hot Plate 2500 0

Saw - Radial Arm 2000 2000

Electric Stove (Each Element) 1500-2800 0

Saw - Circular 1500 1500

Air Compressor (1 HP) 1500 3000

Window Air Conditioner 1200 1800

Saw - Miter 1200 1200

Microwave 1000 0

Well Water Pump 1000 1000

Sump Pump 800 1200

Refrigerator Freezer 800 1200

Furnace Blower 800 1300

Computer 800 0

Electric Drill 600 900

Television 500 0

Deep Freezer 500 500

Garage Door Opener 480 0

Stereo 400 0

Box Fan 300 600

Clock Radio 300 0

Security System 180 0

DVD Player / VCR 100 0

Common Light Bulb 75 0

Table 2 - Estimated Wattages of Common Electrical Appliances

NOTE: Become familiar with the functions and capacity of each component on the control panel before con-

necting electrical devices. See page 11 for more information about the components of the control panel. Do not

overload generator or individual panel receptacles. Do not connect 50Hz or 3-phase loads to the generator.

USING YOUR GENERATOR

Follow the steps below to properly connect your

device(s) to the generator:

1. Before connecting electrical devices, allow the genera-

tor to run for a few minutes to stabilize the speed and

voltage output.

2. Select the device with the highest wattage, and make

sure it is turned off. Plug the device into the matching

generator outlet and then turn the device on. Allow the

engine to stabilize.

3. Repeat step 2 to plug in each additional device. Do not

attempt to plug in or start multiple devices at the same

time.

IN CASE OF OVERLOAD

If your generator becomes overloaded from too much

drawn wattage, the push-to-reset circuit breaker(s) on

your control panel will activate and cut off the output.

When an overload occurs, reduce the load by turning off

and unplugging your electronic device(s), then press the

activated circuit breaker to reset your generator. If the

circuit breaker does not reset, wait several minutes and

try again. If no power is produced after resetting, restart

your generator.

CONNECTING ELECTRICAL DEVICES

CAUTION: Become familiar with the functions and capacity of each component on the control panel (page 11)

before connecting electrical devices. Do not overload generator or individual panel receptacles. Do not connect

50Hz or 3-phase loads to the generator.

USING YOUR GENERATOR

Table 3 - Power Cord Requirement Guide*NR = Not Recommended

Device Requirements Max. Cord Length (ft) by Wire Gauge

Amps Watts (120V) Watts (240V) #8 wire #10 wire #12 wire #14 wire #16 wire

2.5 300 600 NR NR NR 375 250

5 600 1200 NR NR 300 200 125

7.5 900 1800 NR 350 200 125 100

10 1200 2400 NR 250 150 100 50

15 1800 3600 NR 150 100 65 NR

20 2400 4800 175 125 75 50 NR

25 3000 6000 150 100 60 NR NR

30 3600 7200 125 65 NR NR NR

40 4800 9600 90 NR NR NR NR

WARNING! Generator should only be connected to electrical devices, either directly or with an extension

cord. NEVER CONNECT TO A BUILDING ELECTRICAL SYSTEM unless a qualiﬁed electrician has connected the

generator to a transfer switch as a separately derived system. Such connections must comply with local electri-

cal laws and codes. Failure to comply can create a back-feed, which may result in serious injury or death.

SOME NOTES ABOUT POWER CORDS

Long or thin extension cords can drain the power pro-

vided to your electrical devices. Refer to the following

chart in determining the necessary gauge extension cord

for each of your devices. Round up to the higher amper-

age in the chart to maximize safety.

ENGINE BREAK-IN PROCEDURE

The procedure below should be followed when you re-

ceive your generator in order to prolong the engine’s

service life. This procedure helps to seat the piston rings

properly in the cylinder, and will reduce overall wear on

the engine. For the ﬁrst 8 hours of operation, vary the

load, but keep it at or below 50% of the generator’s rated

wattage, if possible. If your generator is equipped with

an Eco-mode switch (only applicable for certain inverter

generators), engage Eco-mode periodically during the

ﬁrst 8 hours. After the ﬁrst 8 hours, change the oil, then

change it again after the ﬁrst 25 hours. You may run the

generator at full load after the 8-hour oil change. Refer to

the Recommended Maintenance Schedule in Table 4 for

the full maintenance schedule.

CHANGING FUELS

1. Before changing the fuel source, make sure the generator is turned OFF or running under half-load. Do not change

fuel when the generator is over half-load.

2. If switching from LPG / NG to gasoline, turn off the LPG tank valve or close the NG line and disconnect the LPG

hose or NG hose from the generator. Then turn the fuel valve to ON.

If switching from gasoline to LPG / NG, turn the fuel valve OFF. Then follow the LPG / NG connecting procedure in

sections “FUEL OPTION B: Liquid petroleum gas (LPG)” or “FUEL OPTION C: Natural Gas (NG)”.

3. Check the fuel level of the selected fuel and make sure there is an adequate amount.

4. Turn the fuel selection dial to the desired fuel.

TO STOP THE GENERATOR

1. Turn OFF all electrical devices prior to unplugging them from the generator. Unplugging running devices can

cause damage to the generator. Never start or stop the generator with electrical devices plugged in or turned on.

2. Let engine run at no-load for several minutes to stabilize internal temperatures of engine and generator.

CAUTION: Allowing gasoline to sit in the fuel tank for long periods of time can make it difﬁcult to start the gen-

erator in the future. Never store the generator for extended periods of time (over 2 months) with fuel in the fuel

tank. Refer to “Storing the Generator”.

3a. If using LPG / NG, close the LPG valve or NG fuel

line.

3b. If using gasoline, turn the fuel valve to the OFF

(horizontal) position. Let the generator run until the

fuel is used up. Continue on to step 4.

IMPORTANT: Always ensure that the fuel valve and the engine switch are in the OFF or STORAGE position

when the generator is not in use.

USING YOUR GENERATOR

SHUTTING OFF YOUR GENERATOR

WARNING! Allow the generator to cool down before touching areas that become hot during use.

4. Turn the engine key to the OFF position.

5. Turn the fuel selection knob to STORAGE.

6. Drain the carburetor (See “Draining the Carburetor”).

7. In case you are in a hurry and do not want to wait for the generator to automatically shut down, turn the engine

key to the OFF position and the generator will shut off right away. However, this method will leave stagnant fuel in

the carburetor, possibly causing blockages, a shortened lifespan, and other maintenance issues. If this approach is

frequently taken, make sure to drain your carburetor before any long storage periods.

WARNING! Never perform maintenance operations while the generator is running. Before maintaining or

servicing the generator, turn OFF the generator, disconnect all devices and allow the generator to cool down.

NOTE: Failure to properly maintain the generator will void the warranty.

RECOMMENDED MAINTENANCE SCHEDULE

Proper routine maintenance of the generator will help prolong the life of the machine. Please perform maintenance

checks and operations according to the maintenance schedule below, Table 4. If there are any questions about the

maintenance procedures listed in this manual, please contact customer service at 1-847-429-9263 (M-F 8-5 CST),

or email [email protected].

IMPORTANT GENERATOR MAINTENANCE TIPS:

• Drain your carburetor after each use and before storage to prevent it from clogging.

• Do not store the generator with fuel inside the tank for more than 2 months - the fuel will go bad.

• Run the generator for 20 to 30 minutes every month to maximize its lifespan.

MAINTENANCE

Recommended

Maintenance Schedule

Every 8

Hours or

Daily

Every 25

Hours

Every 3

Months or

50 Hours

Every 6

Months or

100 Hours

Before

Storage

Necessary

Engine Oil

Check Level x

Replace x** x** x* x

Air Filter

Check x*

Clean x*

Spark Plug

Check/Clean/

Regap

Change x x

Fuel

Check Level x

Drain x x

Carburetor Drain x x

Spark

Arrestor

Check/Clean x

Table 4 - Recommended Maintenance Schedule* Clean/change more often under dusty conditions or operating

under heavy load.

** Change the oil after the ﬁrst 8 hours of operation, after the

ﬁrst 25 hours of operation, and every 50 hours after that.

CLEANING THE GENERATOR

Keep the generator clean to prevent improper operation or machine damage from dirt and debris. Inspect all ventila-

tion openings on the generator. These openings must be kept clean and unobstructed.

If the generator becomes dirty, use a damp cloth to wipe exterior surfaces. Use a soft bristle brush to loosen dirt and

oil and use a vacuum to pick up loose dirt. Use low pressure air (not to exceed 25 PSI) to blow away dirt.

DRAINING THE CARBURETOR

We recommend draining the carburetor after every use and before storing the generator. Draining the carburetor

can help prevent build-up and blockages caused by stagnant fuel inside of the carburetor.

1. Prepare an approved gasoline-storage container under the

carburetor to collect the drained fuel.

2. The carburetor can be accessed from the backside of the

generator between the engine and the air ﬁlter. To drain the

carburetor, open up the carburetor drain screw (Fig. 14 - 1)

with a Phillips-head screwdriver (not included) and drain out

any gasoline that has built up inside.

3. Once the fuel has drained, close the drain screw.

NOTE: Make sure to drain your carburetor before storing the

generator for long periods of time.

MAINTENANCE

WARNING! Never clean the generator when it is running! Never clean with a bucket of water or a hose. Water

can get inside the working parts of the generator and cause corrosion or a short circuit.

Fig. 14

CHECKING/ADDING OIL

Check the oil level before each use and every 8 hours of operation.

The oil capacity of the generator engine is 44 ﬂ. oz. Add oil when the oil level is low. For proper type and weight of

oil refer to “add oil” portion of the “Generator Preparation” section. This is a critical step for proper engine starting.

The generator is equipped with an automatic shutoff to protect it from running on low oil.

To check the oil level and add oil:

1. Make sure the generator is on a level surface. Do not tilt the generator, as oil will ﬂow into engine areas and cause

damage. Keep generator level!

2. Clean around the oil ﬁll. Remove the dipstick and wipe the it with a clean rag.

3. Insert the dipstick into the oil ﬁll opening without screw-

ing in. Remove the dipstick to check the oil mark (Fig. 15).

Add oil if the oil mark covers less than one half of the dip-

stick.

4. Using a funnel or appropriate dispenser, slowly add more

oil. Repeat step 3 until the oil mark reaches the top of the

dipstick (you can see oil coming up the threads of the oil

ﬁll). Do not over ﬁll.

5. Reinstall dipstick and wipe clean any spilled oil with a rag.

Reinstall the oil access cover.

DRAINING/CHANGING OIL

Change the oil according to the Recommended Mainte-

nance Schedule.

Change the oil more often if operating under heavy load or

high ambient temperatures. It is also necessary to drain the

oil from the crankcase if it has become contaminated with

water or dirt. Changing the oil when the engine is warm al-

lows for complete drainage.

To drain the oil from the generator:

1. Place generator on elevated platform. Prepare an ap-

proved gasoline-storage container underneath the oil drain

bolt next to the oil dipstick to catch the oil as it drains.

2. Unscrew the oil drain bolt (Fig. 16 - 1) using the included

10mm/13mm wrench and allow oil to drain from the engine

completely.

3. Reinstall the oil drain bolt and tighten it securely. Wipe

clean any oil spillage.

NOTE: Never dispose of used engine oil in the trash or down

a drain. Please call a local recycling center or auto garage to

arrange proper oil disposal.

MAINTENANCE

Lower Limit

Upper Limit

Fig. 15

Fig. 16

AIR FILTER MAINTENANCE

Check every 50 hours of operation (refer to Recommended Maintenance Schedule).

Routine maintenance of the air ﬁlter helps maintain proper airﬂow to the carburetor. Occasionally check that the air

ﬁlter is free of excessive dirt. Clean air ﬁlter more frequently in dirty or dusty conditions

To inspect and clean the air ﬁlter:

1. Remove the air ﬁlter cover (Fig 17 - 1) by undoing the

clasps at the top and bottom of the air ﬁlter cover.

2. Remove the sponge-like air ﬁlter elements from the cas-

ing. Wipe excessive oil and any dirt from inside of the air

ﬁlter casing.

3. Check and clean the foam air ﬁlter elements. Good ele-

ments can be washed in soapy water. Dry the elements in

clean cloth (do not twist them). A small amount of oil left

in the elements is normal and necessary for the engine to

work properly.

MAINTENANCE

WARNING! Running the engine with a dirty, damaged or missing air ﬁlter element can result in danger to the

operator and cause the engine to wear out prematurely.

SPARK ARRESTOR MAINTENANCE

The spark arrestor is located outside the mufﬂer, which gets

very hot during operation. Allow the engine to cool com-

pletely before servicing the spark arrestor. To inspect and

clean the spark arrestor:

1. Remove the four Phillips-head screws holding the spark

arrestor to the mufﬂer (Fig. 18 - 1).

2. Remove the spark arrestor.

3. Carefully clean and remove the carbon deposits from

the spark arrestor screen with a wire brush. Replace the

spark arrestor if it is damaged. Replacement spark arres-

tors can be purchased from wenproducts.com (part. no.

DF1200X-1303.1).

4. Reinstall the spark arrestor in the mufﬂer and secure it in

place with the screws.

Fig. 17

If either of the air ﬁlter elements have been damaged, replace them with new ones. Replacement air ﬁlter elements

can be ordered from wenproducts.com by searching part no. TF1450X-1103 and TF1450X-1104.

4. Reinstall the air ﬁlter elements and air ﬁlter cover.

Fig. 18

To inspect or replace the spark plug:

1. Pull on the spark plug boot to remove it (Fig. 19 - 1). Be

careful not to tear insulation or wire.

2. Remove the spark plug rubber boot and unscrew the

spark plug from the engine using the spark plug wrench

provided.

TIP: There is limited space for the wrench to turn. Use both

rows of holes in the spark plug wrench to gain leverage to

loosen the plug.

3. Visually inspect the spark plug. If it is cracked or chipped,

or if the electrodes are worn or burned, discard it and re-

place with a new spark plug.

We recommend replacing with a LG F7RTJC (NGK BP6ET)

spark plug (part no. TF1450X-0310), available for purchase

at wenproducts.com.

4. If re-using the spark plug, use a wire brush to clean any

dirt from around the spark plug base, then re-gap the spark

plug.

5. Measure the plug gap with a spark plug gap gauge. The

gap should be 0.8mm to 1mm (0.031 in. to 0.039 in.) (Fig.

20). Carefully adjust the gap if necessary.

6. Screw the spark plug back into the spark plug hole us-

ing the spark plug wrench. Do not over-tighten spark plug.

Recommended tightening of spark plug is ½ to ¾ of a turn

(14.5 - 17 ft-lbs, or 20 - 24Nm) after spark plug gasket con-

tacts spark plug hole.

7. Reinstall the spark plug boot over the spark plug.

SPARK PLUG MAINTENANCE

Refer to Recommended Maintenance Schedule for maintaining the spark plug.

The spark plug is important for proper engine operation. Check the spark plug regularly to maintain proper engine

operation. A good spark plug should be intact, free of deposits, and properly gapped.

MAINTENANCE

Fig. 19

Fig. 20

0.8mm - 1mm

BATTERY MAINTENANCE/STORAGE

The battery (part no. DF1200X-1526) shipped with the

generator has been fully charged. The battery will re-

ceive charge when the engine is running. Remember to

run the generator once a month for 20-30 minutes to

charge the battery. A charged battery will allow you to

start the generator using the electric start switch during

your next time of need.

If the battery is out of charge, you can still manually start

the generator using the recoil start with gasoline as your

fuel source.

IMPORTANT: If the generator is not used for a long pe-

riod, it is recommended to disconnect the quick connec-

tors to prevent the battery from losing charge. After dis-

connecting the cable, cover the free end with the rubber

covers, or with an insulator such as electrical tape. You

may can also connect the battery to an automatic trickle

charger to keep the battery charged. A smart trickle /

ﬂoat charger is available for purchase at wenproducts.

com (model no. GNA12C).

To reinstall/replace the battery:

1. Disconnect the quick connector ends from each other.

2. Remove the hold down bracket.

3. Remove the quick connectors from the battery termi-

nals.

4. Install the quick connectors on the new battery’s

terminals. Connect the red (positive, +) wire to the red

(positive, +) battery terminal ﬁrst. Then connect the

black (negative, -) wire to the black (negative, -) battery

terminal.

5. Connect the ends of the quick connectors.

NOTE: Always recycle used batteries in accordance with

local laws and regulations. Contact your local solid waste

collection site or recycling facility to obtain information

on local recycling processes.

CAUTION: Store the emptied gasoline in a suitable

place. Never store fuel for more than 2 months.

MAINTENANCE

NOTE: You can also drain the fuel tank through the car-

buretor. Follow the procedures in “Draining the Carbure-

tor”, and turn the fuel valve ON. It may take a while for

the fuel tank to drain, depending on the amount of fuel

in the tank.

DRAINING THE FUEL TANK

Drain and clean the fuel tank each year, or before storing

the generator for longer than two months.

To drain the fuel tank:

1. Prepare an approved gasoline-storage container to

collect the drained fuel. Place it near the fuel valve.

2. Turn the fuel valve to the OFF position.

3. Locate the fuel line between the fuel valve and back

of control panel. Disconnect the fuel line from the fuel

valve. NOTE: A small amount of fuel may leak from the

fuel line during removal.

4. Place a funnel below the fuel valve opening, and direct

the other end of the funnel over the prepared container.

Turn the fuel valve to ON to start draining the fuel from

the fuel valve opening.

5. Once the fuel is drained, shut OFF the fuel valve.

6. Start and run the engine until the fuel runs out.

7. Drain the carburetor.

8. Store the emptied gasoline in a suitable place. DO

NOT store ﬂammable materials near the gasoline. Do not

store fuel for more than 3 months.

TRANSPORTING THE GENERATOR

To prevent fuel spillage when transporting, be sure to perform the following to your generator:

1. Tighten the fuel cap and make sure the fuel valve is turned OFF.

2. Make sure the engine switch is in the OFF position.

3. Drain the fuel tank if possible (see “Draining the Fuel Tank”).

4. Keep the generator upright. Never place the generator on its side or upside down - doing so could damage the

internal components of the generator and make it difﬁcult to start.

5. Remove the LPG/NG quick connector adapter for transport, and reinstall it on the generator afterwards to prevent

damage.

STORING THE GENERATOR

Shut off the generator and allow the unit to cool to room temperature before storing it. Never place any type of stor-

age cover on the generator while it is still hot. Do not obstruct any ventilation openings.

Follow the procedures below for properly storing your generator. We highly recommend running your generator

once a month for 20 to 30 minutes. Plug in a small load in to ensure there is proper power output.

For Short Periods (30 to 60 Days):

• Drain the carburetor (see page 29).

• Disconnect the battery quick connectors (see p. 33).

• Add fuel stabilizer:

Follow the suggested portions and instructions of your

preferred stabilizer. Run the engine for 15 to 20 minutes,

allowing the fuel stabilizer to mix with the gasoline and

circulate through the carburetor, and then top off with fuel.

Filling the fuel tank full reduces the amount of air in the

tank and helps ﬁght deterioration of fuel.

For Extended Periods

(Over 60 Days):

• Disconnect the battery quick connectors (see

page 33) .

• Drain the fuel tank and carburetor (see

“DRAINING THE FUEL TANK”). NEVER store

generator with fuel in the tank for more than two

months.

• Change the engine oil (see “CHANGING OIL”).

PRODUCT DISPOSAL

Do not dispose of used generator or parts with your household waste. This product contains electrical or electronic

components that should be recycled. Please take this product to your local recycling facility for responsible disposal

to minimize its environmental impact.

Do not dispose of used oil or fuel in the trash or down a drain. Please contact your local recycling center or auto

garage to arrange proper oil/fuel disposal.

TRANSPORTATION & STORAGE

WARNING! Avoid direct sunlight inside a vehicle. If the generator is left in an enclosed vehicle for many

hours, the high temperature could cause the fuel to vaporize and result in a possible explosion.

WARNING! Store the generator upright in a cool and dry location, away from sources of heat, open ﬂames,

sparks or pilot lights.

PROBLEM POSSIBLE CAUSE SOLUTION

Engine will not start.

Engine switch is set to OFF. Set engine switch to ON.

Fuel valve is turned to OFF. Turn fuel valve to ON.

Fuel selector switch is set to

wrong fuel.

Turn fuel selector switch to correct fuel.

Oil is low. Add or replace oil.

Engine is out of fuel. Add fuel.

Engine is ﬁlled with

contaminated or old fuel.

Drain fuel in the tank. Fill with fresh fuel.

Spark plug is dirty or broken. Clean or replace the spark plug.

Carburetor is air locked.

Shut off the fuel valve. Remove the bolt from the bottom of the carburetor.

Take off the carburetor bowl to allow it to reset. Replace carburetor bowl

and reinstall the bolt.

Propane tank or NG supply line

is OFF.

Turn tank or supply line ON.

Regulator is stuck.

Turn OFF propane tank or NG line. Disconnect hose from onboard regulator.

Spray a small amount of penetrating oil into regular inlet, then gently insert

a pin into inlet to break valve free.

Engine runs but there

is no electrical output

whatsoever.

Circuit breaker has been tripped

due to overload.

Turn off and unplug electrical device(s). Wait 5 minutes, then press the

circuit breaker to reset. Check the total wattage of the devices and reduce

the load if it exceeds the capacity of the generator. Then plug the loads back

in one by one.

Bad connecting cords/wires.

Check the power cords and extension cords. Do not use if any cord is dam-

aged. Replace damaged cords immediately.

Bad electrical device connected

to the generator.

Try connecting a different device.

Voltage regulator is bad. Check voltage regulator with a multimeter, replace if necessary.

Carbon brushes worn or need

adjustment.

Check carbon brushes, adjust so that both brushes extrude the same length,

or replace if worn.

Generator runs but does

not support all electrical

devices connected.

Generator is overloaded.

Turn off and unplug all electrical devices. Wait 5 minutes, then press the

circuit breaker to reset. Reduce load as necessary, then plug devices back in

one by one.

Short circuit in one of the

devices.

Try disconnecting any faulty or short-circuited electrical loads.

Air ﬁlter is dirty. Clean or replace the air ﬁlter element.

Engine is “hunting”

during operation (engine

RPM is ﬂuctuating).

1. The fuel isn’t running through

the fuel valve.

2. The air ﬁlter is clogged.

3. The mufﬂer or spark arrestor

is blocked.

4. There is gunk in the carburetor

preventing a consistent fuel/

air mixture.

Turn off the generator and wait for it to cool down.

Perform the following steps:

1. Check if the fuel is properly and consistently going through the fuel valve

2. Check for any blockage in the air ﬁlter. Check and clean the air ﬁlter as

necessary.

3. Check if the spark arrestor is blocked. Clean with metal brush as neces-

sary.

4. Use “gunk remover” spray on the carburetor jets.

TROUBLESHOOTING GUIDE

WARNING! Stop using the generator immediately if any of the following problems occur or risk serious

personal injury. If you have any questions, please contact customer service at 1-847-429-9263 (M-F 8-5 CST),

or email [email protected].

WIRING DIAGRAM

Main Coil 1

Main Coil 2

DC Coil

Excitation

Coil

Field Coil

Generator Block

Main Breaker, 39A

Control Panel Block

Main Breaker, 39A

Breaker, 20A

Breaker, 30A

Low Oil LED

Charging

Module

Breaker, 8A

12V

Outlet

Engine Switch

Fuel Selector Switch

Engine

Switch

Control

Module

Engine Block

Throttle Stepper

Motor

Starting

Motor

Battery

Resettable

Fuse

Oil

Protector

Oil SensorIgnition

Coil

Spark

Plug

Solenoid

Valve

Carburetor

Fuel

Selector

Switch

No. Part No. Description Qty.

1 TF1450X-0101 Crankcase 1

2 DF1200X-0102 Oil Seal 1 1

3 TF1450X-0103 Engine Oil Sensor 1

4 TF1450X-0104 Rubber Plug 1

5 DF1200X-0105 Engine Oil Switch 1

6 56380i-0313 Bolt, M6x12 1

7 GN625i-0204 Flat Washer, 12mm 2

8 5613K-0207

Drain Plug Bolt,

M12-1.5x18

9 TF1450X-0109 Wire Clip 1

10 GN400i-1209 Bolt, M6x25 1

11 DF1200X-0120 Oil Switch Cover 1

12 GN400i-1310 Bolt, M8x35 2

13 56310i-0210

Flanged Hex Nut,

M10

14 56310i-1201 Bolt, M6x16 2

15 TF1450X-0115

Ball Bearing, P5C3

6202

16 TF1450X-0116

Starter Motor

Assembly

EXPLODED VIEW & PARTS LIST

NOTE: Replacement parts can be purchased from wenproducts.com, or by calling our customer service at 1-847-

429-9263, M-F 8-5 CST. Parts and accessories that wear down over the course of normal use are not covered by

the three-year warranty. Not all parts may be available for purchase.

FIG. 1. CRANKCASE

No. Part No. Description Qty.

1 TF1450X-0201 Crankcase Cover 1

2 TF1450X-0202

Crankcase Cover

Gasket

3 TF1450X-0203

Oil Dipstick

Subassembly

4 GN875i-0304 Pin 2

5 56310i-1412 Bolt, M8x40 9

6 TF1450X-0206

Ball Bearing, P53

6208

7 TF1450X-0207 Seal Strip 1 1

8 DF1200X-0102 Oil Seal 1 1

9 TF1450X-0115

Ball Bearing, P5C3

6202

10 TF1450X-0210 Seal Strip 2 1

FIG. 2. CYLINDER HEAD COVER

No. Part No. Description Qty.

1 GN625i-0701 Bolt, M6x20 4

2 TF1450X-0302

Cylinder Head

Cover Subassembly

3 TF1450X-0303

Breather Plate

Gasket

4 TF1450X-0304 Breather Plate 1

5 56380i-0313 Bolt, M6x12 2

6 TF1450X-0306 Cylinder Shroud 1

7 TF1450X-0307

Cylinder Head

Cover Gasket

8 TF1450X-0308

Cylinder Head Bolt,

M12x90

9 TF1450X-0309

Cylinder Head

Subassembly

10 TF1450X-0310

Spark Plug, Torch

F7RTJC

(NGK BP6ET)

11 TF1450X-0311 Pin 2

12 TF1450X-0312

Cylinder Head

Gasket

13 TF1450X-0313

Stud Bolt,

M6/8x114

14 TF1450X-0314 Stud Bolt, M8x47 2

15 TF1450X-0315 Plug 1

16 TF1450X-0316 Limit Block 1

17 TF1450X-0317 Clamp 2

18 TF1450X-0318 Breather Tube 1

19 TF1450X-0319 Breather Plate Filter 1

20 56200-0502 Bolt, M6x14 1

EXPLODED VIEW & PARTS LIST

FIG. 3. CYLINDER HEAD, SPARK PLUG

No. Part No. Description Qty.

1 TF1450X-0401

Crankshaft

Assembly

2 DF1200X-0404

Balance Shaft

Assembly

FIG. 4. CRANKSHAFT AND

BALANCE SHAFT

No. Part No. Description Qty.

1 GN875i-0405 Piston Pin Clip 2

2 TF1450X-0502 Piston 1

3 TF1450X-0503 Piston Pin 1

4 TF1450X-0504 Connecting Rod 1

5 TF1450X-0505 Piston Ring Set 1

FIG. 5. PISTON, CONNECTING ROD

EXPLODED VIEW & PARTS LIST

No. Part No. Description Qty.

1 TF1450X-0601 Camshaft Assembly 1

2 TF1450X-0602 Valve Set 1

3 TF1450X-0603 Guide Seal 1

4 TF1450X-0604 Valve Spring 2

5 TF1450X-0605 Valve Spring Seat 2

6 GN875i-0510 Valve Tappet 2

7 TF1450X-0607

Valve Lifter Subas-

sembly

8 TF1450X-0608 Valve Rocker Shaft 2

10 TF1450X-0610 Valve Rocker 2

11 56380i-0312

Cylinder Head

Cover Pin Limit

Plate

12 56380i-0313 Bolt, M6x12 1

13 TF1450X-0613 Valve Rotator 2

14 TF1450X-0614 Valve Lock Clamp 4

FIG. 6. VALVE TRAIN, CAMSHAFT

No. Part No. Description Qty.

1 TF1450X-0701

Bolt and Washer,

M6x8

2 TF1450X-0702

Recoil Starter

Assembly

FIG. 7. RECOIL STARTER

No. Part No. Description Qty.

1 TF1450X-0801 Shroud 1

2 TF1450X-0802 Wire Clip 1

3 56380i-0313 Bolt, M6x12 5

FIG. 8. RECOIL STARTER SHROUD

EXPLODED VIEW & PARTS LIST

No. Part No. Description Qty.

1 TF1450X-0901

Carburetor Insulator

Gasket

2 TF1450X-0902

Carburetor

Insulator Plate

3 GN875i-0805 Carburetor Gasket 1

4 TF1450-0904

Carburetor

Assembly

5 TF1450X-0905 Air Filter Gasket 1

6 GN625i-0907 Hose Clamp 1 1

7 TF1450X-0907 Fuel Tube 1

8 TF1450X-0908 Rubber Jacket 1

9 56380i-1435 Hose Clamp 2 1

N.P. TF1450X-HA36

High-Altitude Kit,

3000 - 6000 ft

N.P. TF1450X-HA68

High-Altitude Kit,

6000 - 8000 ft

FIG. 9. CARBURETOR

No. Part No. Description Qty.

1 TF1450X-1001

Flywheel Nut,

M16-1.5

2 TF1450X-1002 Starter Pulley 1

3 TF1450X-1003 Impeller 1

4 TF1450X-1004 Flywheel 1

5 56380i-0117 Bolt, M6x28 2

6 TF1450-1006 Ignition Coil 1

FIG. 10. FLYWHEEL, IGNITION COIL

No. Part No. Description Qty.

1 56200-0506

Flanged Hex Nut,

2 TF1450X-1102 Air Filter Assembly 1

3 TF1450X-1103 Air Filter Element 1 1

4 TF1450X-1104 Air Filter Element 2 1

FIG. 11. AIR FILTER

EXPLODED VIEW & PARTS LIST

No. Part No. Description Qty.

1 TF1450X-1201 Exhaust Pipe 1

2 56310i-1010 Nut, M8 2

3 TF1450X-1203 Mufﬂer Gasket 1 1

4 TF1450X-1204 Mufﬂer Assembly 1

5 DF1200X-1306

Exhaust Pipe

Gasket

6 TF1450X-0315 Plug 1

7 GN400i-1104 Bolt, M8x16 2

8 TF1450X-1208 Nut, M8 2

N.P. DF1200X-1303.1 Spark Arrestor 1

FIG. 12. MUFFLER

No. Part No. Description Qty.

1 TF1450X-1301 Fuel Tank Cap 1

2 GN400i-1209 Bolt, M6x25 4

3 56380i-1207 Bushing 4

4 GN400i-1210 Flat Washer, 6mm 4

5 TF1450X-1305 Bushing 4

6 GN400i-1203 Fuel Strainer 1

7 DF1200X-1407

Fuel Gauge Assem-

bly

8 TF1450X-1308 Screw, M5x12 2

9 GN400i-1205 Breather Valve 1

10 TF1450X-1310 Breather Hose 1

11 TF1450X-1311

Fuel Valve

Assembly

12 GN625i-0907 Hose Clamp 1 2

13 TF1450X-1313 Fuel Tank 1

14 GN400i-1214 Chain 1

15 GN400iX-1219 Clip 1

16 TF1450X-1316 Fuel Tube 1

FIG. 13. FUEL TANK ASSEMBLY

EXPLODED VIEW & PARTS LIST

No. Part No. Description Qty.

1 TF1450X-1401 Frame Assembly 1

2 DF1200X-1530 Handle Bumper 2

3 TF1450X-1403 Air Filter Bracket 1

4 TF1450X-1404 Bolt, M6x12 1

5 DF1200X-1505 Wheel Axle 2

6 DF1200X-1506 Wheel 2

7 DF1200X-1507 Cotter Pin 2

8 TF1450X-1408

Engine Frame

Damper

9 TF1450X-1409 Nut, M10-1.25 4

10 GN625i-1432 Nut, M8 8

11 TF1450X-0109 Wire Clip 2

12 GN400i-1303 Nut, M6 2

13 DF1200X-1513 Foot Bracket 2

14 DF1200X-1514 Foot Pad 2

15 TF1450X-1415 Bolt, M6x25 2

16 GN400i-1303 Nut, M6 2

17 DF1200X-1517 Battery Clamp 1

18 DF1200X-1518 Battery Bolt 2

19 DF1200X-1519 Handle Sleeve 2

FIG. 14. FRAME

No. Part No. Description Qty.

20 DF1200X-1520 Handle 2

21 DF1200X-1521 Bolt, M8x50 2

22 DF1200X-1522 Nut, M8 2

23 56200-1202 Bolt, M6x12 2

24 GN400i-1316 Sleeve 1

25 DF1200X-1525 Flat Washer, 17mm 2

26 DF1200X-1526 Battery, 12V, 14Ah 1

27 TF1450X-1427

Starter Motor

Quick-Connector

Wiring Harness

28 TF1450X-1428

Battery Quick-

connector Wiring

Harness

N.P TF1450X-1429

Primary LPG

Regulator and Hose

N.P TF1450X-1430

LPG / NG Quick-

Connector Adapter,

3/4" to Q3

N.P TF1450X-1431

NG Hose, 25 ft x

1/2 inch ID with

Quick-Connector

EXPLODED VIEW & PARTS LIST

No. Part No. Description Qty.

1 TF1450-1501

Secondary LPG/NG

Regulator

2 TF1450X-1502 Hose Clamp 4

3 TF1450X-1503 Hose 1

4 TF1450X-1504

Secondary LPG/NG

Regulator Bracket

5 TF1450X-1505 Breather Tube 1

7 DF475-029.1A Engine Key 1

8 TF1450X-1508 Knob 1

9 TF1450X-1509 Screw, M4x14 1

10 TF1450X-1510 Screw, M4x16 4

11 56200-1202 Bolt, M6x12 3

12 56380i-1432 Rectiﬁer Bridge 1

13 TF1450X-1513 Rubber Jacket 1

14 TF1450-1514 Control Panel Subassembly 1

15 56200-1202 Bolt, M6x12 4

16 DF1200X-1608 Engine Switch 1

FIG. 15. CONTROL PANEL

No. Part No. Description Qty.

17 DF1200X-1606 Multi-meter 1

18 GN400i-1415 Breaker, 20A 2

19 DF1200X-1604 Breaker, 30A 2

20 TF1450X-1520 NEMA 14-50R Outlet 1

21 TF1450X-1521 39A AC Breaker 1

22 TF1450X-1522 DC Breaker, 8A 1

23 56380i-1425

12V DC Automotive Outlet

Subassembly

24 56380i-1421

NEMA 5-20R Duplex Outlet

Subassembly

25 GN625i-1524

NEMA L14-30R Outlet

Subassembly

26 TF1450X-1526 Rear Panel Cover 1

27 TF1450X-1527 Oil Sensor LED 1

30 TF1450X-1530 Grounding Terminal 1

N.P. TF1450X-1532

Stepper Motor Control

Module

No. Part No. Description Qty.

1 DF1200X-1701 Nut, M5 2

2 DF1200X-1702

Spring Washer,

5mm

3 TF1450X-1603 Cover Stopper 1

4 GN875i-0904 Bolt, M5x10 1

5 TF1450X-1605 Shroud 1

6 TF1450X-1606 Terminal Block 1

7 DF1200X-1707

Carbon Brush

Subassembly

8 56310i-1106 Bolt, M5x16 5

9 TF1450X-1609 Alternator Bracket 1

10 DF1200X-1710 Bolt, M5x12 1

FIG. 16. ALTERNATOR

EXPLODED VIEW & PARTS LIST

No. Part No. Description Qty.

11 DF1200X-1711 Stator Bolt, M5x235 2

12 DF1200X-1712 Flat Washer, 10mm 1

13 DF1200X-1713

Rotor Bolt,

M10-1.25x285

14 DF1200X-1714 Stator Bolt, M6x199 4

15 TF1450X-1615 Voltage Regulator 1

16 TF1450X-1616 Wire Loop 2

17 TF1450X-1617 Alternator Cover 1

18 TF1450X-1618 Bolt, M5x12 3

19 TF1450X-1619

Alternator Subas-

sembly

20 56400iX-1332 Flat Washer, 5mm 2

V. 2025.05.14

WARRANTY STATEMENT

WEN Products is committed to building tools that are dependable for years. Our warranties are consistent with this

commitment and our dedication to quality.

LIMITED WARRANTY OF WEN PRODUCTS FOR HOME USELIMITED WARRANTY OF WEN PRODUCTS FOR HOME USE

GREAT LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that this WEN consumer prod

uct will be free from defects in material or workmanship during personal use for a period of three (3) years from date

of purchase or 500 hours of use; whichever comes ﬁrst. Ninety days for all WEN products if the tool is used for profes

sional or commercial use. Purchaser has 30 days from the date of purchase to report missing or damaged parts. Parts

and labor are covered for one (1) year under this limited warranty; parts only are covered for three (3) years under this

limited warranty.

SELLER’S SOLE OBLIGATION AND YOUR EXCLUSIVE REMEDY under this Limited Warranty and, to the extent per

mitted by law, any warranty or condition implied by law, shall be the replacement of parts, without charge, which are

defective in material or workmanship and which have not been subjected to misuse, alteration, careless handling, mis

repair, abuse, neglect, normal wear and tear, improper maintenance, improper storage, incorrect lubricants / fuels, or

other conditions adversely affecting the Product or the component of the Product, whether by accident or intentionally,

by persons other than Seller. To make a claim under this Limited Warranty, you must make sure to keep a copy of your

proof of purchase that clearly deﬁnes the Date of Purchase (month and year) and the Place of Purchase. Place of Pur-

chase must be a direct vendor of Great Lakes Technologies, LLC. Purchasing through third party vendors, including but

not limited to garage sales, pawn shops, resale shops, or any other secondhand merchant, voids the warranty included

with this product. Contact [email protected] or 1-847-429-9263 with the following information to make

arrangements: your shipping address, phone number, serial number, required part numbers, and proof of purchase.

Damaged or defective parts and products may need to be sent to WEN before the replacements can be shipped out.

Upon the conﬁrmation of a WEN representative, your product may qualify for repairs and service work. When returning

a product for warranty service, the shipping charges must be prepaid by the purchaser. The product must be shipped

in its original container (or an equivalent), properly packed to withstand the hazards of shipment. The product must be

fully insured with a copy of the proof of purchase enclosed. There must also be a description of the problem in order

to help our repairs department diagnose and ﬁx the issue. Repairs will be made and the product will be returned and

shipped back to the purchaser at no charge for addresses within the contiguous United States.

THIS LIMITED WARRANTY DOES NOT APPLY TO ITEMS THAT WEAR OUT FROM REGULAR USAGE OVER TIME,

INCLUDING FILTERS, SPARK PLUGS, VOLTAGE REGULATORS, BRUSHES, GASKETS, O-RINGS, WHEEL KITS, BAT

TERIES, RECOIL STARTERS, HIGH PRESSURE HOSES, SPRAY GUNS, ETC. ANY IMPLIED WARRANTIES SHALL BE

LIMITED IN DURATION TO THREE (3) YEARS FROM DATE OF PURCHASE. SOME STATES IN THE U.S. AND SOME

CANADIAN PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE

ABOVE LIMITATION MAY NOT APPLY TO YOU.

IN NO EVENT SHALL SELLER BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING BUT

NOT LIMITED TO LIABILITY FOR LOSS OF PROFITS) ARISING FROM THE SALE OR USE OF THIS PRODUCT. SOME

STATES IN THE U.S. AND SOME CANADIAN PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF IN

CIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH

VARY FROM STATE TO STATE IN THE U.S., PROVINCE TO PROVINCE IN CANADA AND FROM COUNTRY TO COUNTRY.

THIS LIMITED WARRANTY APPLIES ONLY TO ITEMS SOLD WITHIN THE UNITED STATES OF AMERICA, CANADA

AND THE COMMONWEALTH OF PUERTO RICO. FOR WARRANTY COVERAGE WITHIN OTHER COUNTRIES, CONTACT

THE WEN CUSTOMER SUPPORT LINE. FOR WARRANTY PARTS OR PRODUCTS REPAIRED UNDER WARRANTY

SHIPPING TO ADDRESSES OUTSIDE OF THE CONTIGUOUS UNITED STATES, ADDITIONAL SHIPPING CHARGES MAY

APPLY.

WEN TF1450 Tri-Fuel Generator 14500-Watt 120V/240V

Product's Documents

Product manual

Specifications

WEN TF1450 Questions and Answers
