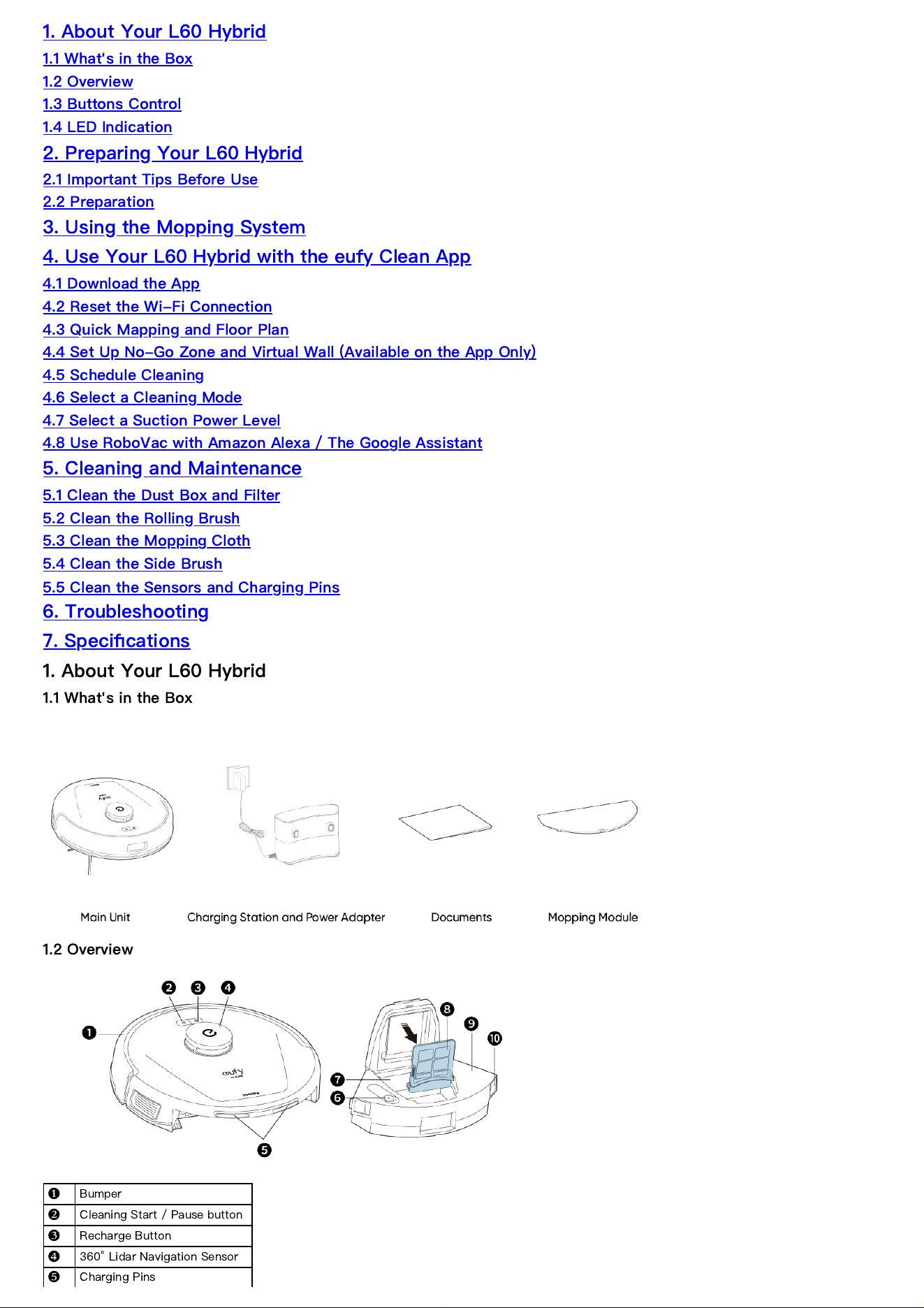

1. About Your L60 Hybrid
1.1 What's in the Box
1.2 Overview
1.3 Buttons Control
1.4 LED Indication
2. Preparing Your L60 Hybrid
2.1 Important Tips Before Use
2.2 Preparation
3. Using the Mopping System
4. Use Your L60 Hybrid with the eufy Clean App
4.1 Download the App
4.2 Reset the Wi-Fi Connection
4.3 Quick Mapping and Floor Plan
4.4 Set Up No-Go Zone and Virtual Wall (Available on the App Only)
4.5 Schedule Cleaning
4.6 Select a Cleaning Mode
4.7 Select a Suction Power Level
4.8 Use RoboVac with Amazon Alexa / The Google Assistant
5. Cleaning and Maintenance
5.1 Clean the Dust Box and Filter
5.2 Clean the Rolling Brush
5.3 Clean the Mopping Cloth
5.4 Clean the Side Brush
5.5 Clean the Sensors and Charging Pins
6. Troubleshooting

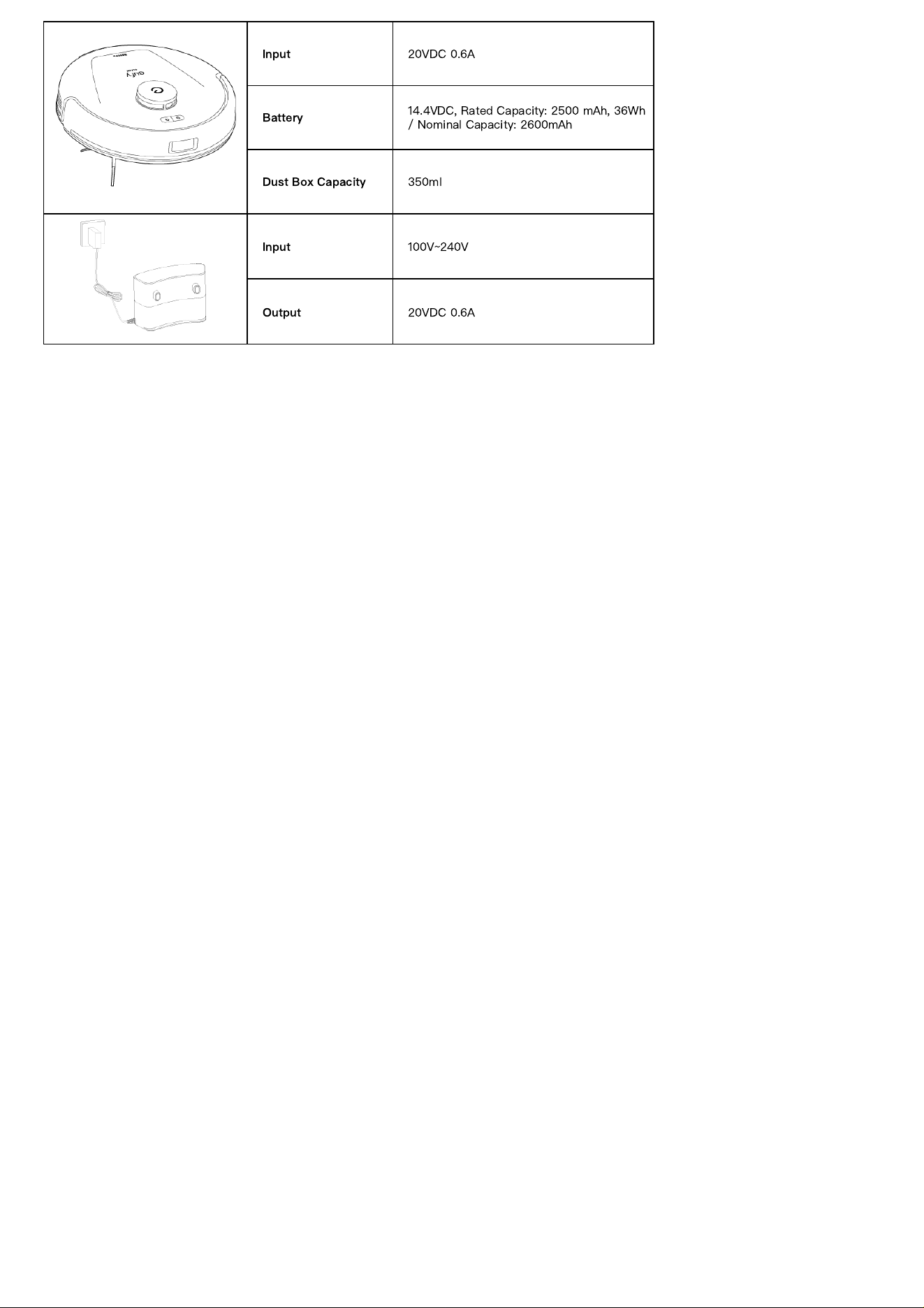

7. Speci
fi
cations
1. About Your L60 Hybrid
1.1 What's in the Box

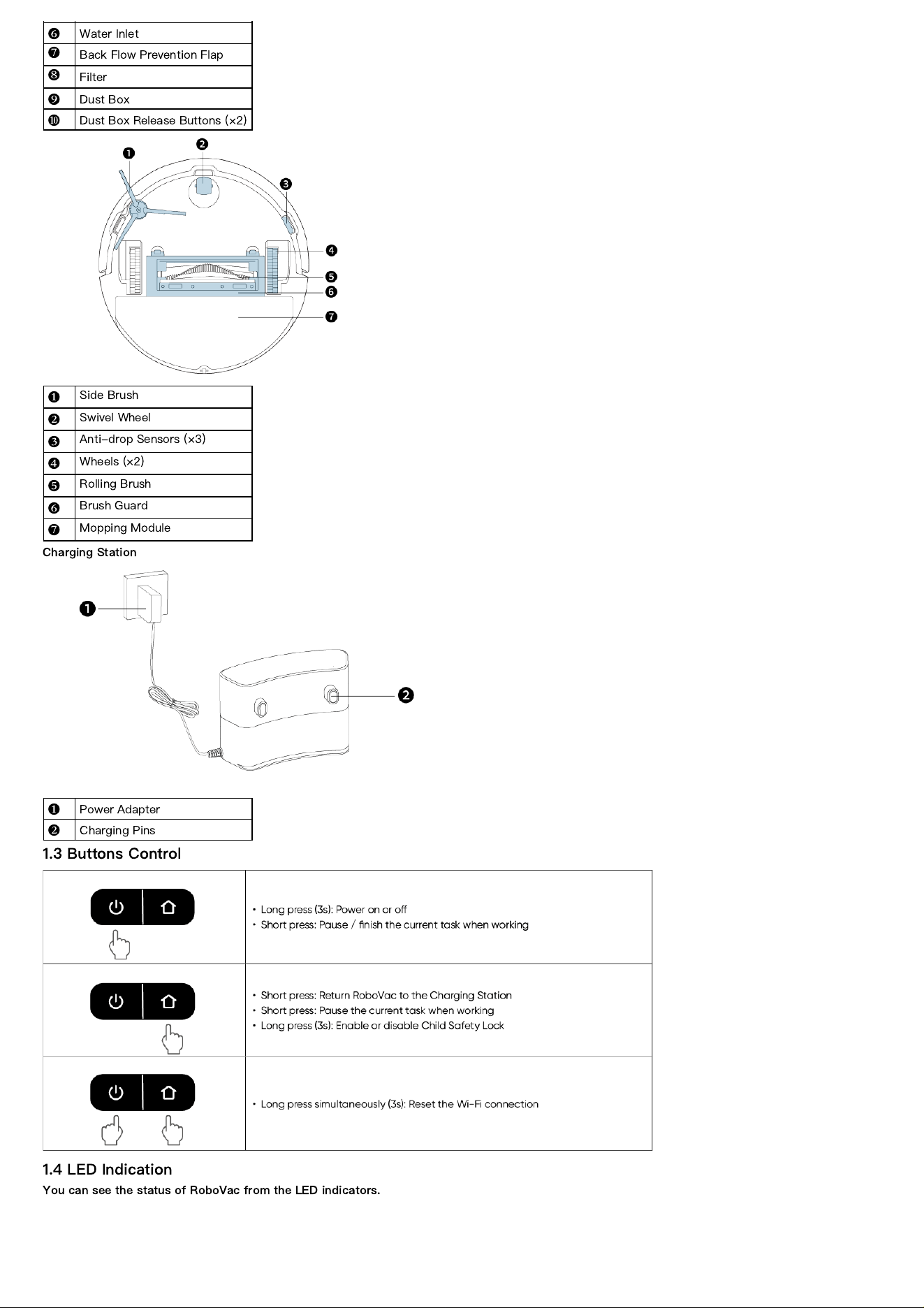

1.2 Overview
❶
Bumper
❷
Cleaning Start / Pause button
❸
Recharge Button
❹
360° Lidar Navigation Sensor
❺
Charging Pins
❻
Water Inlet
❼
Back Flow Prevention Flap
❽
Filter
❾
Dust Box
❿
Dust Box Release Buttons (×2)
❶
Side Brush
❷
Swivel Wheel
❸
Anti-drop Sensors (×3)
❹
Wheels (×2)
❺
Rolling Brush
❻
Brush Guard
❼
Mopping Module
Charging Station
❶
Power Adapter
❷
Charging Pins
1.3 Buttons Control

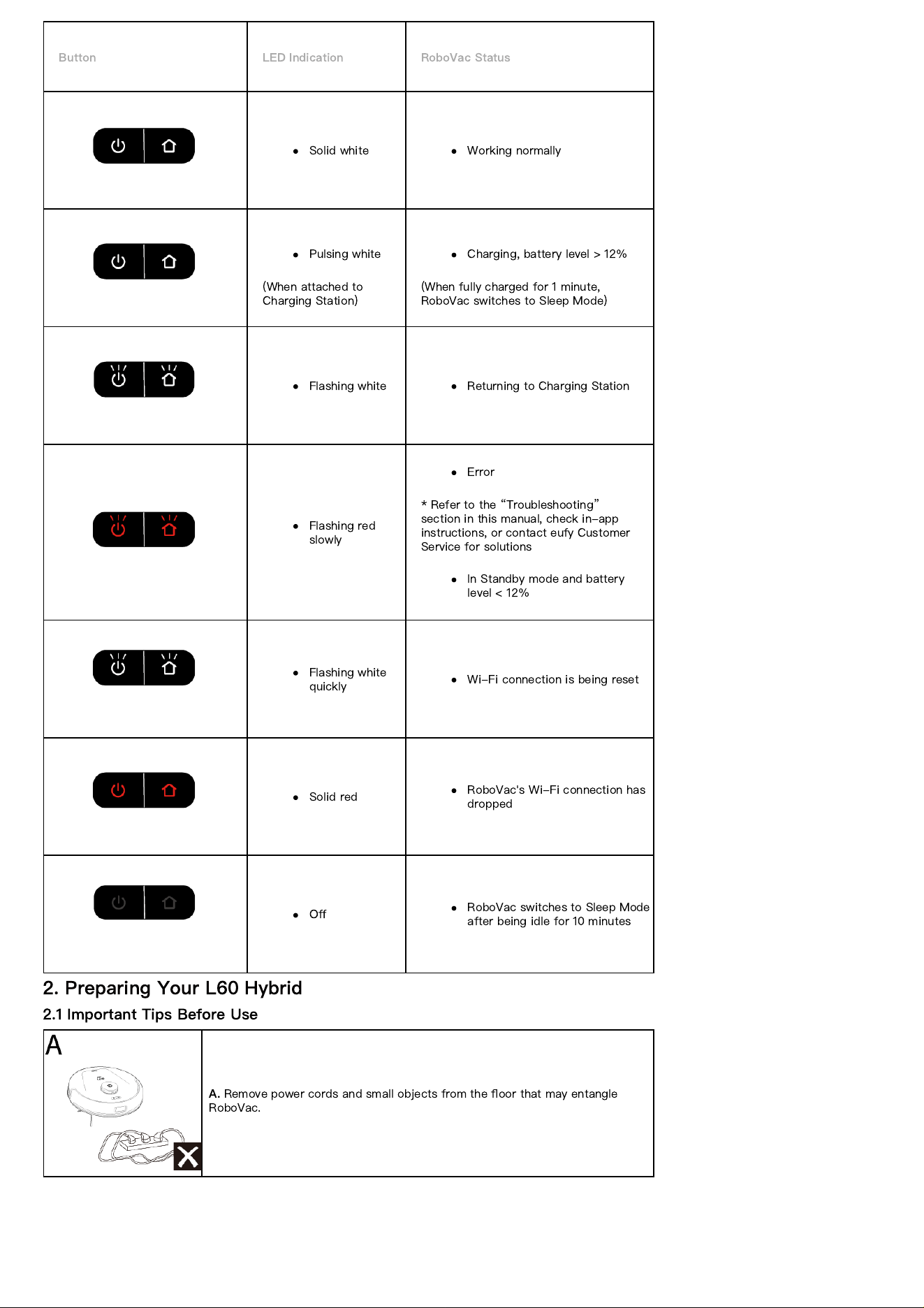

1.4 LED Indication
You can see the status of RoboVac from the LED indicators.
Button LED Indication RoboVac Status
Solid white Working normally
Pulsing white
(When attached to
Charging Station)
Charging, battery level > 12%
(When fully charged for 1 minute,
RoboVac switches to Sleep Mode)
Flashing white Returning to Charging Station
Flashing red
slowly
Error
* Refer to the
“
Troubleshooting
”
section in this manual, check in-app
instructions, or contact eufy Customer
Service for solutions
In Standby mode and battery
level < 12%
Flashing white
quickly
Wi-Fi connection is being reset
Solid red
RoboVac's Wi-Fi connection has
dropped
O
ff
RoboVac switches to Sleep Mode
after being idle for 10 minutes
2. Preparing Your L60 Hybrid
2.1 Important Tips Before Use
A.
Remove power cords and small objects from the
fl
oor that may entangle
RoboVac.
B.

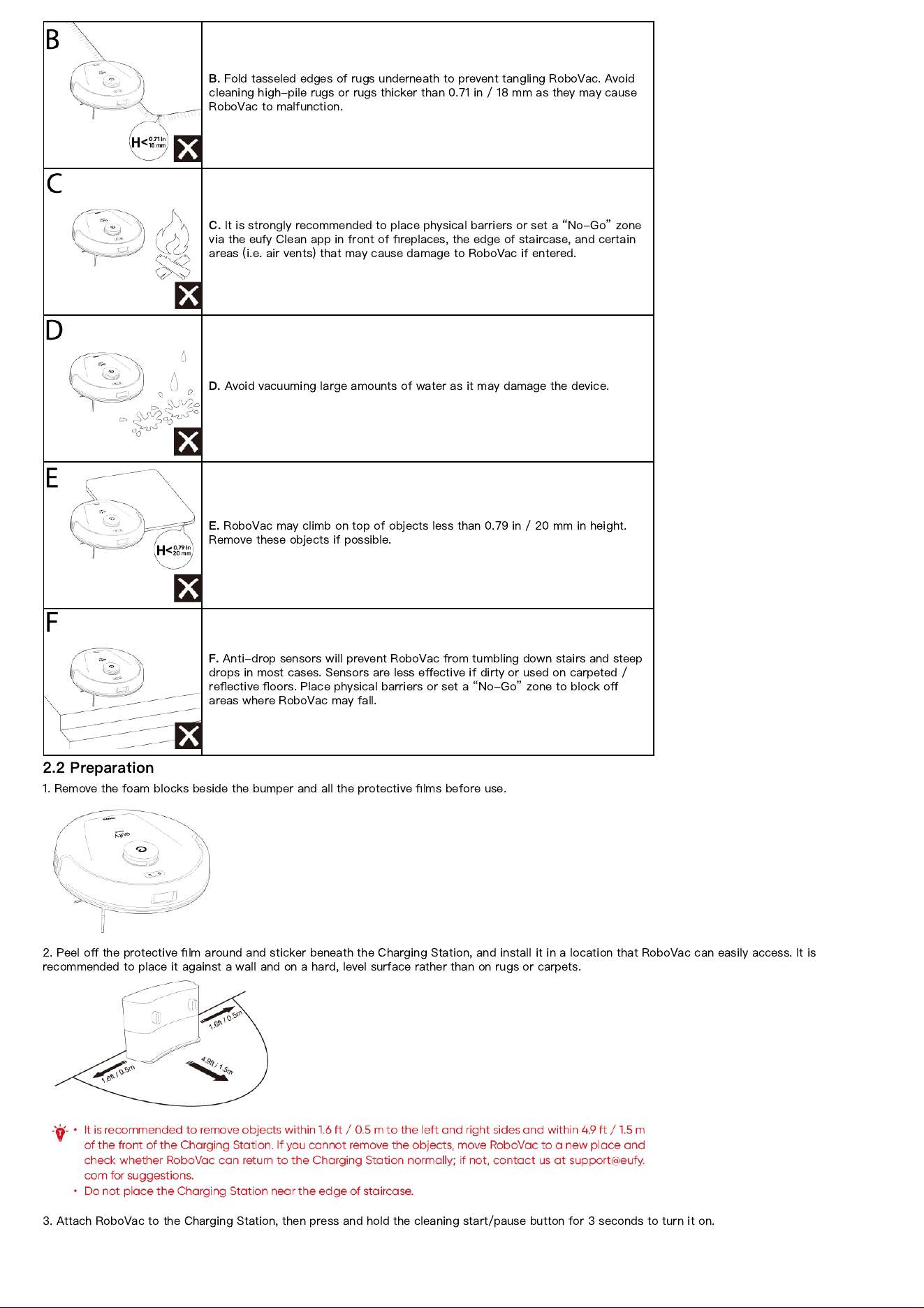

Fold tasseled edges of rugs underneath to prevent tangling RoboVac. Avoid
cleaning high-pile rugs or rugs thicker than 0.71 in / 18 mm as they may cause
RoboVac to malfunction.
C.
It is strongly recommended to place physical barriers or set a
“
No-Go
”
zone
via the eufy Clean app in front of
fi
replaces, the edge of staircase, and certain
areas (i.e. air vents) that may cause damage to RoboVac if entered.
D.
Avoid vacuuming large amounts of water as it may damage the device.
E.
RoboVac may climb on top of objects less than 0.79 in / 20 mm in height.
Remove these objects if possible.
F.
Anti-drop sensors will prevent RoboVac from tumbling down stairs and steep
drops in most cases. Sensors are less e
ff
ective if dirty or used on carpeted /
re
fl
ective
fl
oors. Place physical barriers or set a
“
No-Go
”
zone to block o
ff
areas where RoboVac may fall.
2.2 Preparation
1. Remove the foam blocks beside the bumper and all the protective
fi
lms before use.
2. Peel o
ff
the protective
fi
lm around and sticker beneath the Charging Station, and install it in a location that RoboVac can easily access. It is
recommended to place it against a wall and on a hard, level surface rather than on rugs or carpets.

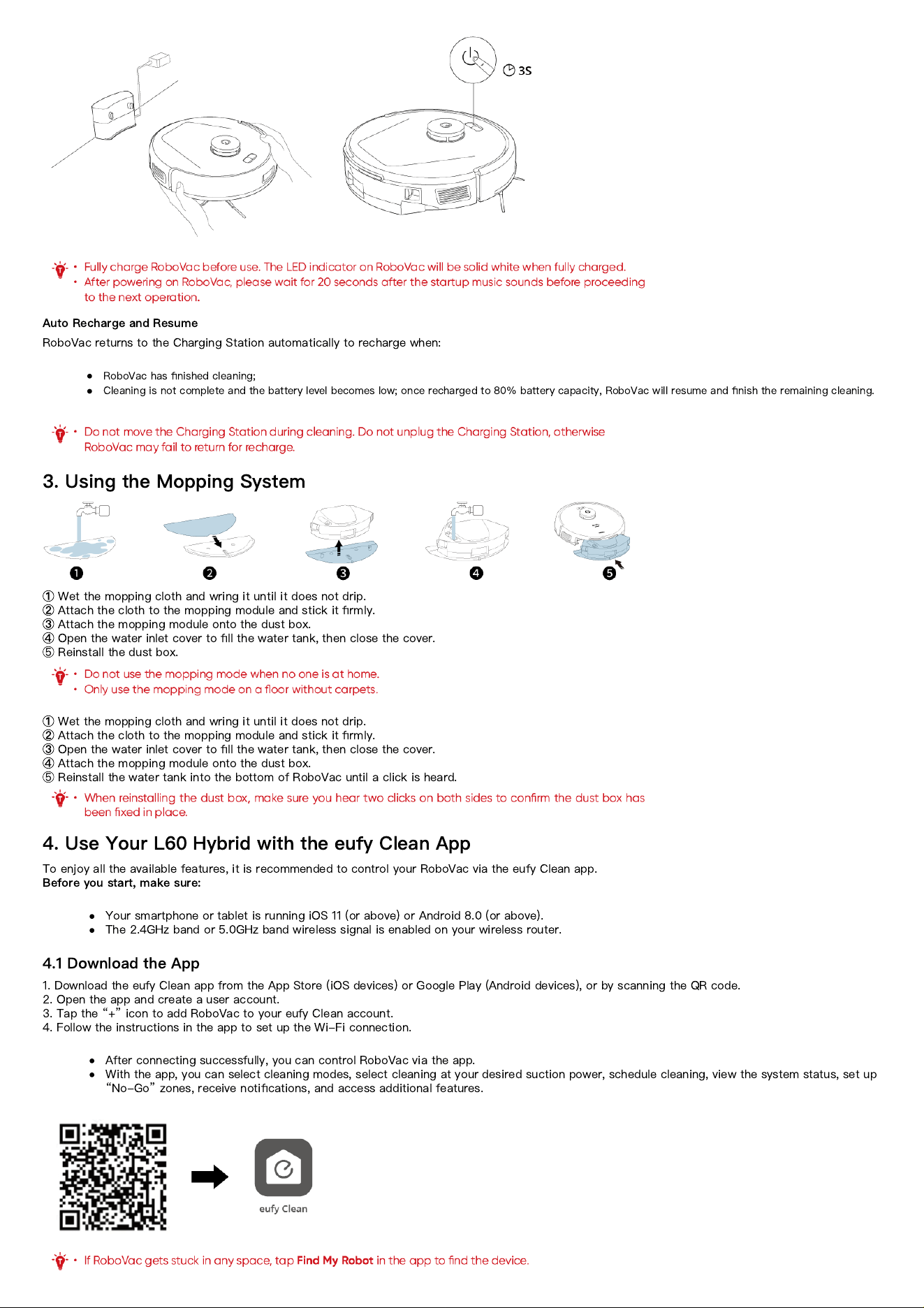

3. Attach RoboVac to the Charging Station, then press and hold the cleaning start/pause button for 3 seconds to turn it on.
Auto Recharge and Resume
RoboVac returns to the Charging Station automatically to recharge when:
RoboVac has
fi
nished cleaning;
Cleaning is not complete and the battery level becomes low; once recharged to 80% battery capacity, RoboVac will resume and
fi
nish the remaining cleaning.
3. Using the Mopping System
①
Wet the mopping cloth and wring it until it does not drip.
②
Attach the cloth to the mopping module and stick it
fi
rmly.
③
Attach the mopping module onto the dust box.
④
Open the water inlet cover to
fi
ll the water tank, then close the cover.
⑤
Reinstall the dust box.
①
Wet the mopping cloth and wring it until it does not drip.
②
Attach the cloth to the mopping module and stick it
fi
rmly.
③
Open the water inlet cover to
fi
ll the water tank, then close the cover.
④
Attach the mopping module onto the dust box.
⑤
Reinstall the water tank into the bottom of RoboVac until a click is heard.
4. Use Your L60 Hybrid with the eufy Clean App
To enjoy all the available features, it is recommended to control your RoboVac via the eufy Clean app.
Before you start, make sure:
Your smartphone or tablet is running iOS 11 (or above) or Android 8.0 (or above).
The 2.4GHz band or 5.0GHz band wireless signal is enabled on your wireless router.
4.1 Download the App
1. Download the eufy Clean app from the App Store (iOS devices) or Google Play (Android devices), or by scanning the QR code.
2. Open the app and create a user account.
3. Tap the
“
+
”
icon to add RoboVac to your eufy Clean account.
4. Follow the instructions in the app to set up the Wi-Fi connection.
After connecting successfully, you can control RoboVac via the app.
With the app, you can select cleaning modes, select cleaning at your desired suction power, schedule cleaning, view the system status, set up
“
No-Go
”
zones, receive noti
fi
cations, and access additional features.

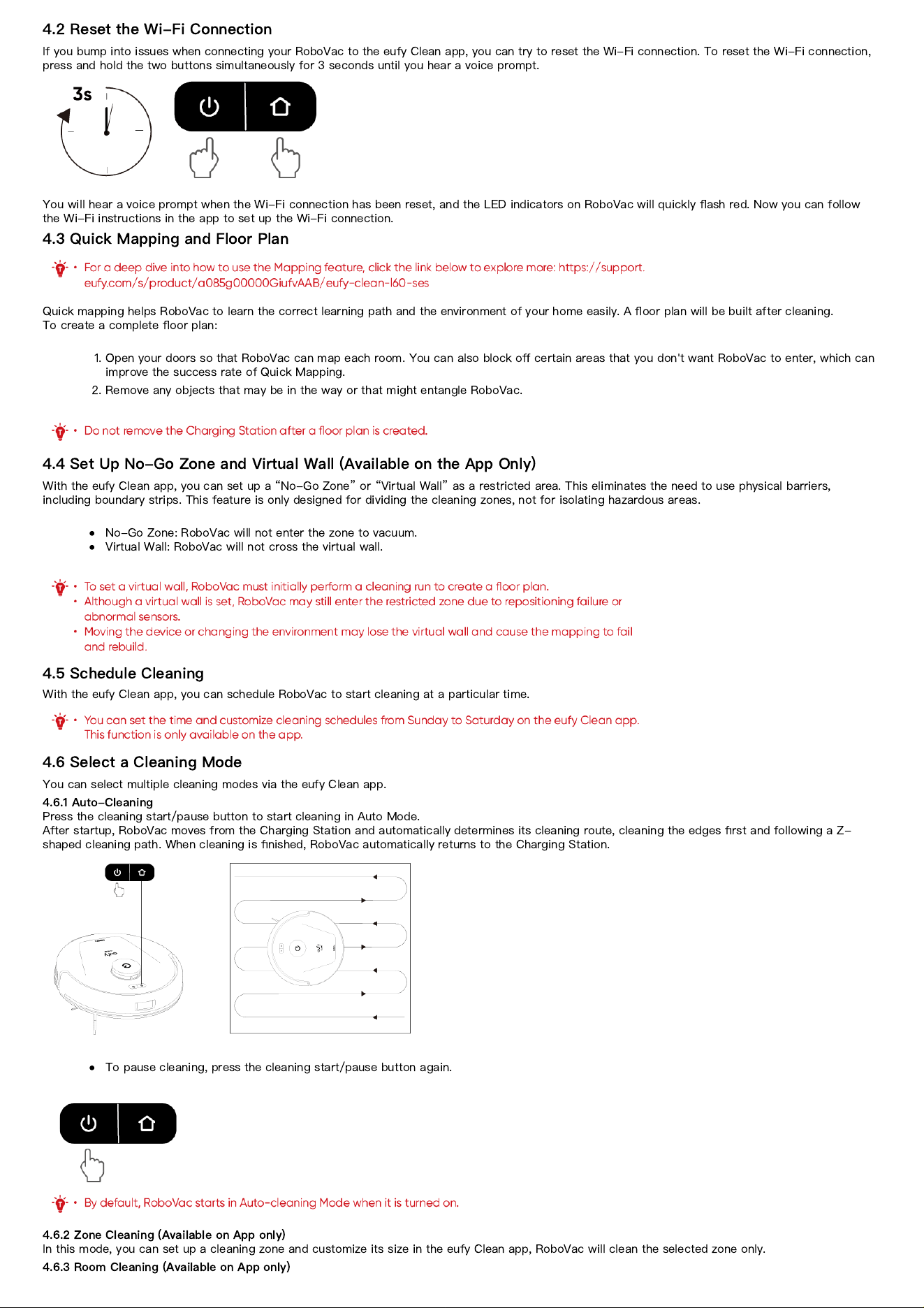

4.2 Reset the Wi-Fi Connection
If you bump into issues when connecting your RoboVac to the eufy Clean app, you can try to reset the Wi-Fi connection. To reset the Wi-Fi connection,
press and hold the two buttons simultaneously for 3 seconds until you hear a voice prompt.
You will hear a voice prompt when the Wi-Fi connection has been reset, and the LED indicators on RoboVac will quickly
fl
ash red. Now you can follow
the Wi-Fi instructions in the app to set up the Wi-Fi connection.
4.3 Quick Mapping and Floor Plan
Quick mapping helps RoboVac to learn the correct learning path and the environment of your home easily. A
fl
oor plan will be built after cleaning.
To create a complete
fl
oor plan:
1. Open your doors so that RoboVac can map each room. You can also block o
ff
certain areas that you don't want RoboVac to enter, which can
improve the success rate of Quick Mapping.
2. Remove any objects that may be in the way or that might entangle RoboVac.
4.4 Set Up No-Go Zone and Virtual Wall (Available on the App Only)
With the eufy Clean app, you can set up a
“
No-Go Zone
”
or
“
Virtual Wall
”
as a restricted area. This eliminates the need to use physical barriers,
including boundary strips. This feature is only designed for dividing the cleaning zones, not for isolating hazardous areas.
No-Go Zone: RoboVac will not enter the zone to vacuum.
Virtual Wall: RoboVac will not cross the virtual wall.
4.5 Schedule Cleaning
With the eufy Clean app, you can schedule RoboVac to start cleaning at a particular time.
4.6 Select a Cleaning Mode
You can select multiple cleaning modes via the eufy Clean app.
4.6.1 Auto-Cleaning
Press the cleaning start/pause button to start cleaning in Auto Mode.
After startup, RoboVac moves from the Charging Station and automatically determines its cleaning route, cleaning the edges
fi
rst and following a Z-
shaped cleaning path. When cleaning is
fi
nished, RoboVac automatically returns to the Charging Station.
To pause cleaning, press the cleaning start/pause button again.
4.6.2 Zone Cleaning (Available on App only)
In this mode, you can set up a cleaning zone and customize its size in the eufy Clean app, RoboVac will clean the selected zone only.

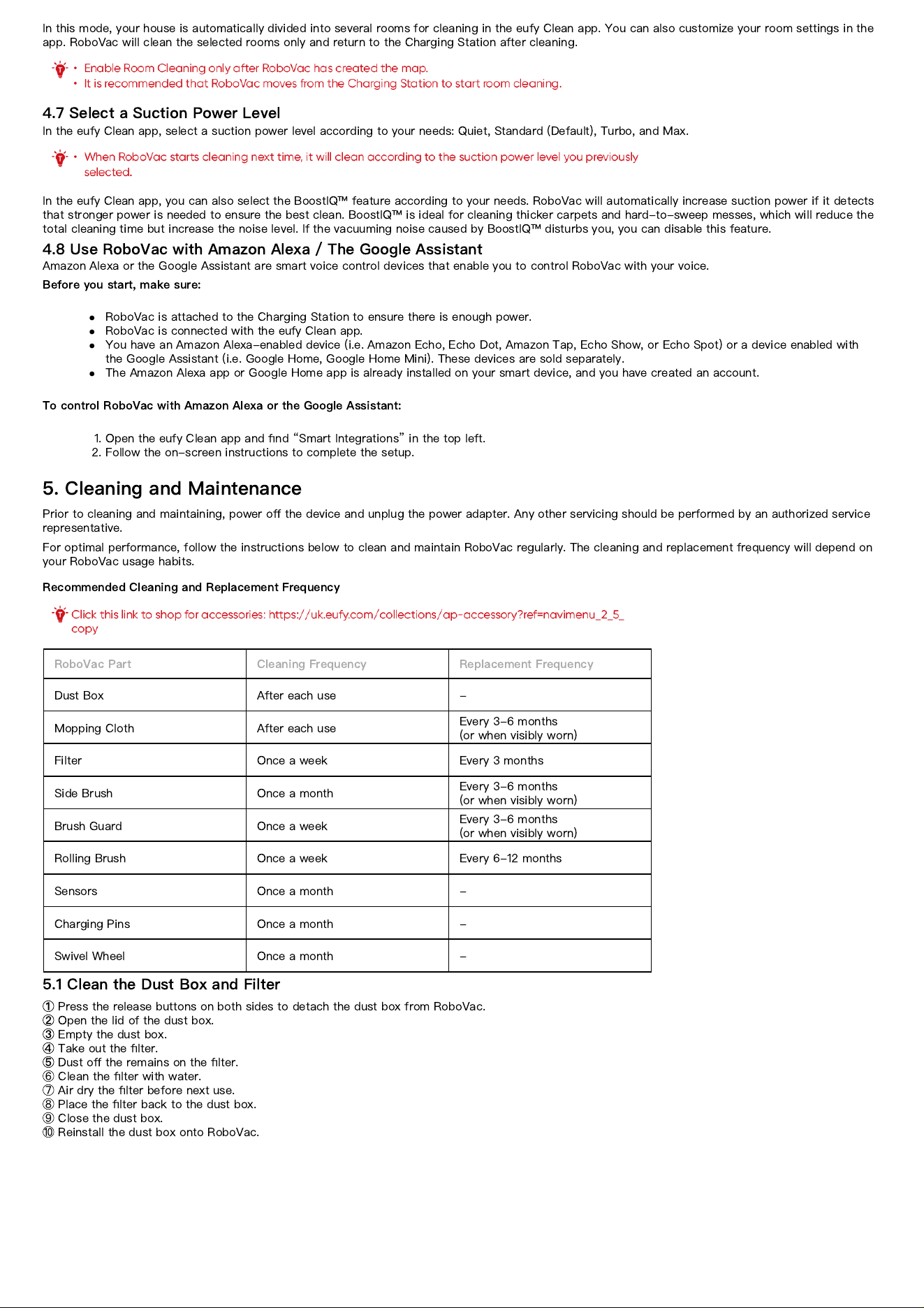

4.6.3 Room Cleaning (Available on App only)
In this mode, your house is automatically divided into several rooms for cleaning in the eufy Clean app. You can also customize your room settings in the
app. RoboVac will clean the selected rooms only and return to the Charging Station after cleaning.
4.7 Select a Suction Power Level
In the eufy Clean app, select a suction power level according to your needs: Quiet, Standard (Default), Turbo, and Max.
In the eufy Clean app, you can also select the BoostIQ
™
feature according to your needs. RoboVac will automatically increase suction power if it detects
that stronger power is needed to ensure the best clean. BoostIQ
™
is ideal for cleaning thicker carpets and hard-to-sweep messes, which will reduce the
total cleaning time but increase the noise level. If the vacuuming noise caused by BoostIQ
™
disturbs you, you can disable this feature.
4.8 Use RoboVac with Amazon Alexa / The Google Assistant
Amazon Alexa or the Google Assistant are smart voice control devices that enable you to control RoboVac with your voice.
Before you start, make sure:
RoboVac is attached to the Charging Station to ensure there is enough power.
RoboVac is connected with the eufy Clean app.
You have an Amazon Alexa-enabled device (i.e. Amazon Echo, Echo Dot, Amazon Tap, Echo Show, or Echo Spot) or a device enabled with
the Google Assistant (i.e. Google Home, Google Home Mini). These devices are sold separately.
The Amazon Alexa app or Google Home app is already installed on your smart device, and you have created an account.
To control RoboVac with Amazon Alexa or the Google Assistant:
1. Open the eufy Clean app and
fi
nd
“
Smart Integrations
”
in the top left.
2. Follow the on-screen instructions to complete the setup.
5. Cleaning and Maintenance
Prior to cleaning and maintaining, power o
ff
the device and unplug the power adapter. Any other servicing should be performed by an authorized service
representative.
For optimal performance, follow the instructions below to clean and maintain RoboVac regularly. The cleaning and replacement frequency will depend on
your RoboVac usage habits.
Recommended Cleaning and Replacement Frequency
RoboVac Part Cleaning Frequency Replacement Frequency
Dust Box After each use -
Mopping Cloth After each use
Every 3-6 months
(or when visibly worn)
Filter Once a week Every 3 months
Side Brush Once a month
Every 3-6 months
(or when visibly worn)
Brush Guard Once a week
Every 3-6 months
(or when visibly worn)
Rolling Brush Once a week Every 6-12 months
Sensors Once a month -
Charging Pins Once a month -
Swivel Wheel Once a month -

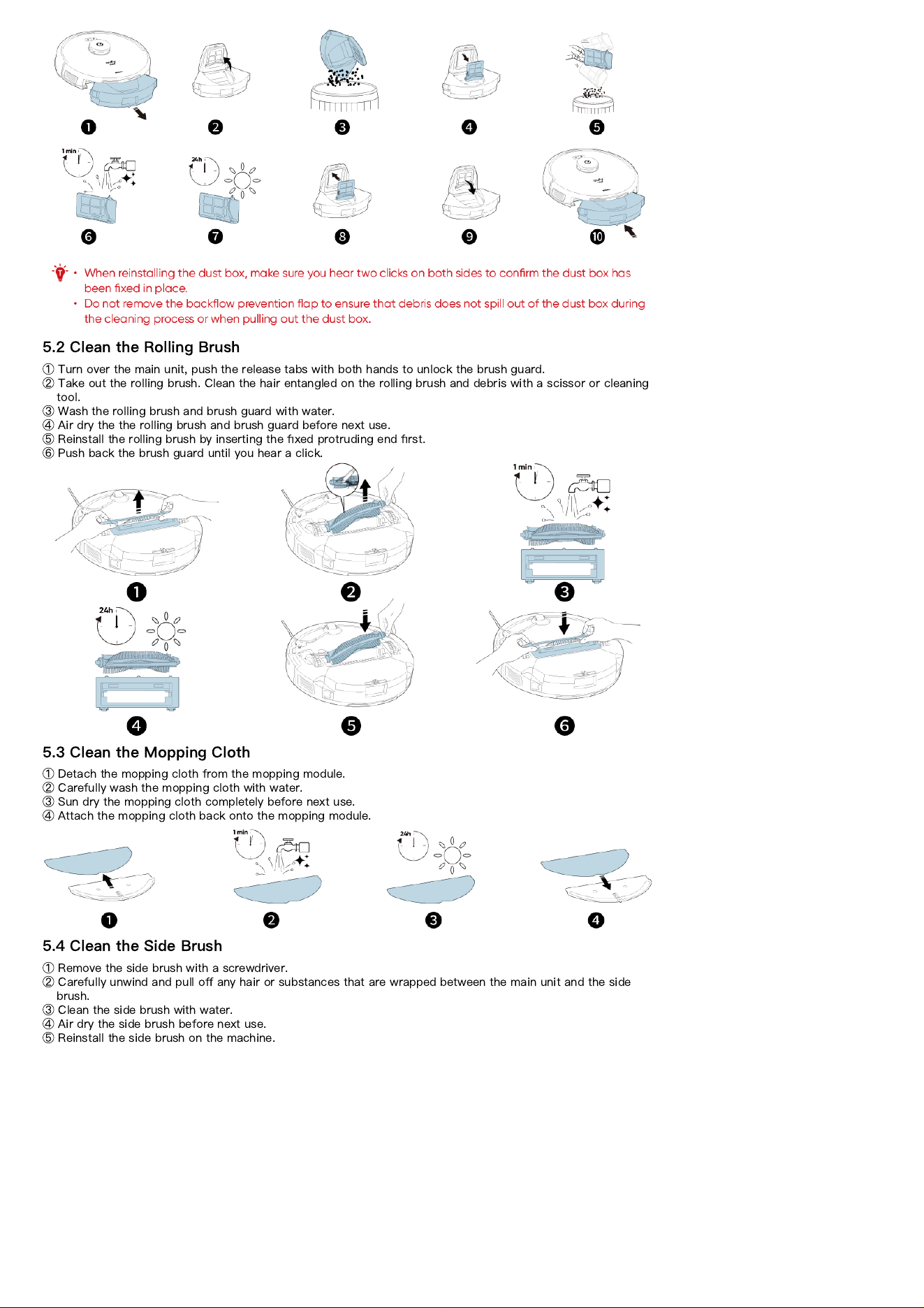

5.1 Clean the Dust Box and Filter
①
Press the release buttons on both sides to detach the dust box from RoboVac.
②
Open the lid of the dust box.
③
Empty the dust box.
④
Take out the
fi
lter.
⑤
Dust o
ff
the remains on the
fi
lter.
⑥
Clean the
fi
lter with water.
⑦
Air dry the
fi
lter before next use.
⑧
Place the
fi
lter back to the dust box.
⑨
Close the dust box.
⑩
Reinstall the dust box onto RoboVac.
5.2 Clean the Rolling Brush
①
Turn over the main unit, push the release tabs with both hands to unlock the brush guard.
②
Take out the rolling brush. Clean the hair entangled on the rolling brush and debris with a scissor or cleaning
tool.
③
Wash the rolling brush and brush guard with water.
④
Air dry the the rolling brush and brush guard before next use.
⑤
Reinstall the rolling brush by inserting the
fi
xed protruding end
fi
rst.
⑥
Push back the brush guard until you hear a click.
5.3 Clean the Mopping Cloth
①
Detach the mopping cloth from the mopping module.
②
Carefully wash the mopping cloth with water.
③
Sun dry the mopping cloth completely before next use.
④
Attach the mopping cloth back onto the mopping module.

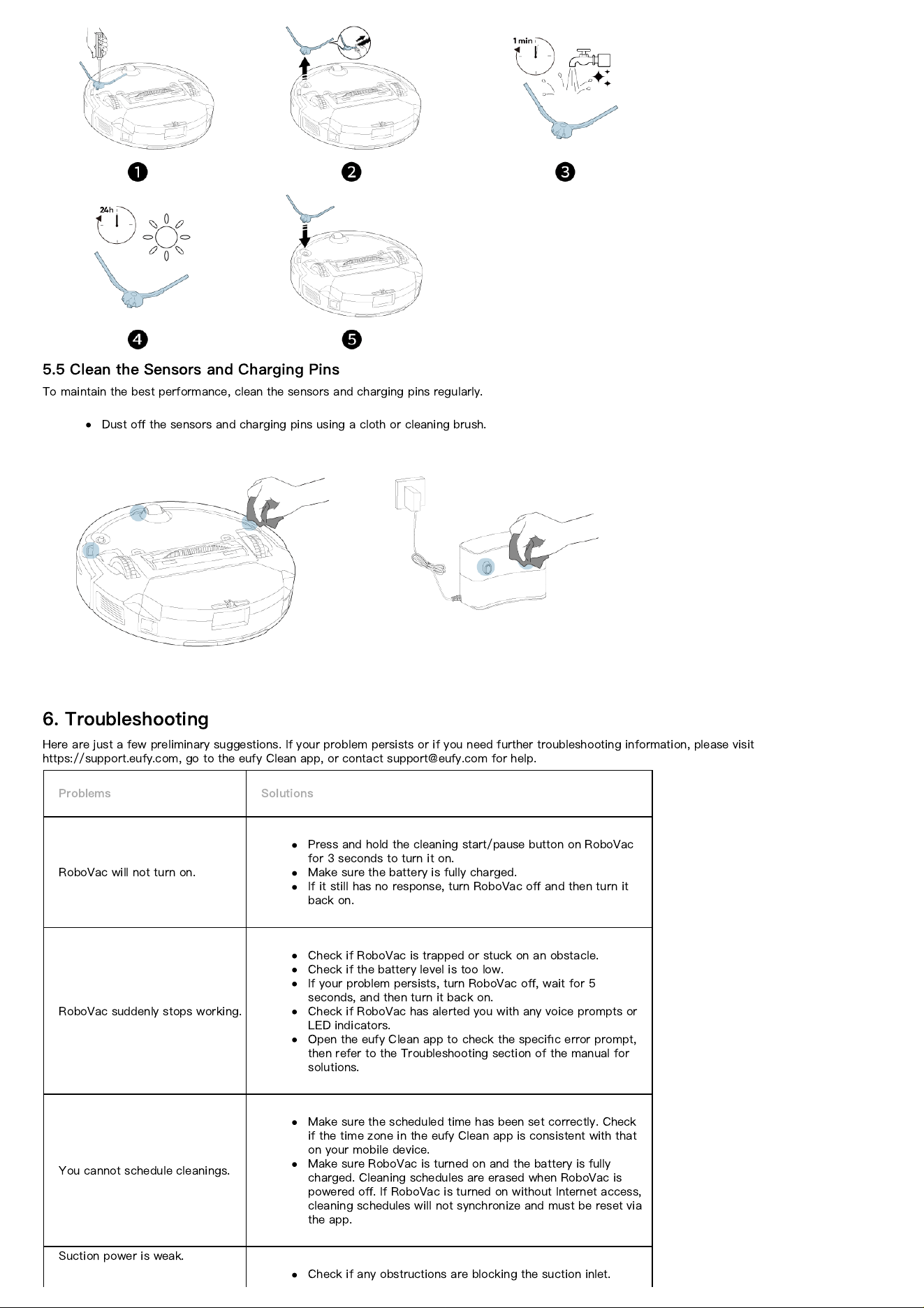

5.4 Clean the Side Brush
①
Remove the side brush with a screwdriver.
②
Carefully unwind and pull o
ff
any hair or substances that are wrapped between the main unit and the side
brush.
③
Clean the side brush with water.
④
Air dry the side brush before next use.
⑤
Reinstall the side brush on the machine.
5.5 Clean the Sensors and Charging Pins
To maintain the best performance, clean the sensors and charging pins regularly.
Dust o
ff
the sensors and charging pins using a cloth or cleaning brush.

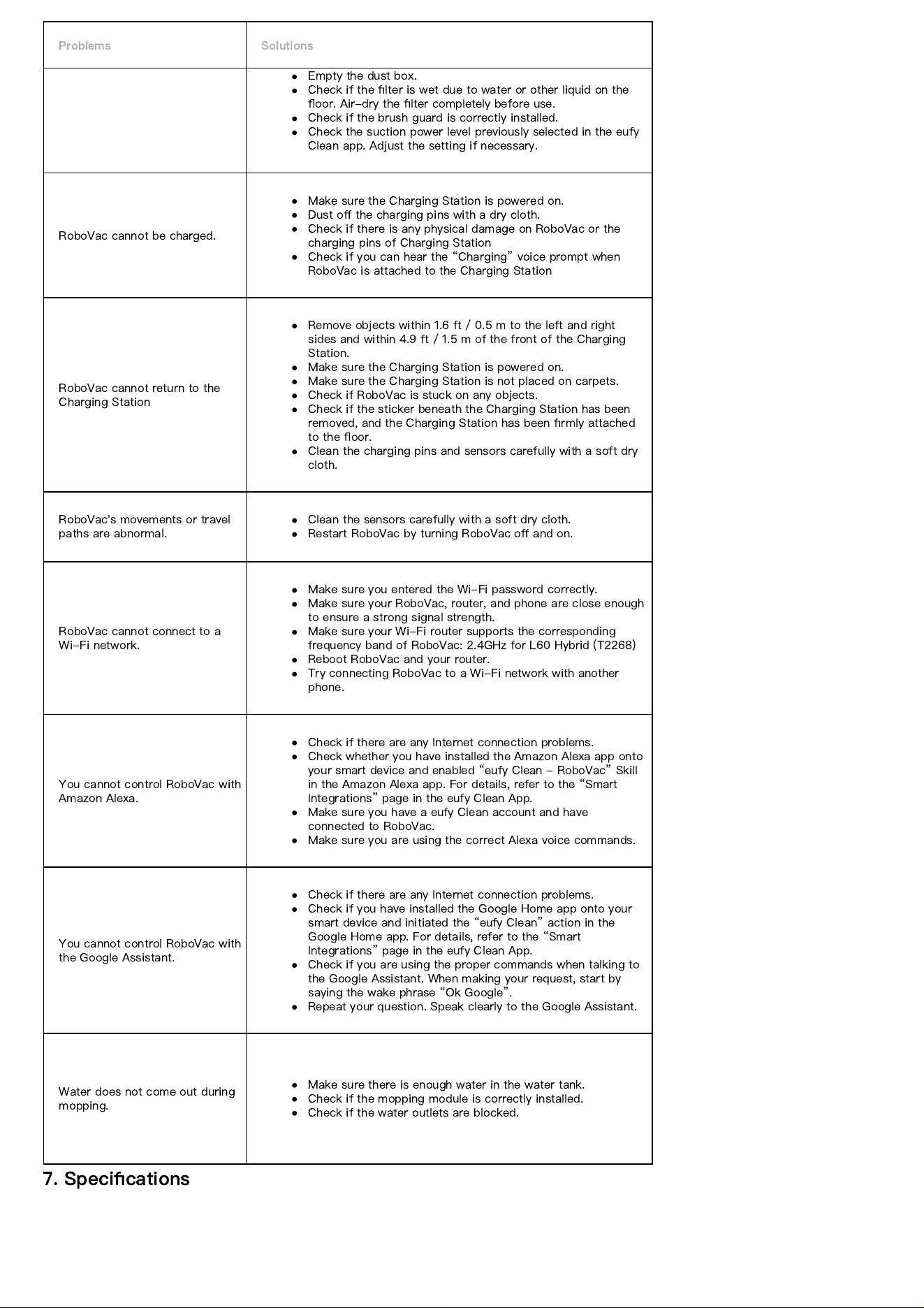

6. Troubleshooting
Here are just a few preliminary suggestions. If your problem persists or if you need further troubleshooting information, please visit
https://support.eufy.com, go to the eufy Clean app, or contact support@eufy.com for help.
Problems Solutions
RoboVac will not turn on.
Press and hold the cleaning start/pause button on RoboVac
for 3 seconds to turn it on.
Make sure the battery is fully charged.
If it still has no response, turn RoboVac o
ff
and then turn it
back on.
RoboVac suddenly stops working.
Check if RoboVac is trapped or stuck on an obstacle.
Check if the battery level is too low.
If your problem persists, turn RoboVac o
ff
, wait for 5
seconds, and then turn it back on.
Check if RoboVac has alerted you with any voice prompts or
LED indicators.
Open the eufy Clean app to check the speci
fi
c error prompt,
then refer to the Troubleshooting section of the manual for
solutions.
You cannot schedule cleanings.
Make sure the scheduled time has been set correctly. Check
if the time zone in the eufy Clean app is consistent with that
on your mobile device.
Make sure RoboVac is turned on and the battery is fully
charged. Cleaning schedules are erased when RoboVac is
powered o
ff
. If RoboVac is turned on without Internet access,
cleaning schedules will not synchronize and must be reset via
the app.
Suction power is weak.
Check if any obstructions are blocking the suction inlet.
Problems Solutions
Empty the dust box.
Check if the
fi
lter is wet due to water or other liquid on the
fl
oor. Air-dry the
fi
lter completely before use.
Check if the brush guard is correctly installed.
Check the suction power level previously selected in the eufy
Clean app. Adjust the setting if necessary.
RoboVac cannot be charged.
Make sure the Charging Station is powered on.
Dust o
ff
the charging pins with a dry cloth.
Check if there is any physical damage on RoboVac or the
charging pins of Charging Station
Check if you can hear the
“
Charging
”
voice prompt when
RoboVac is attached to the Charging Station
RoboVac cannot return to the
Charging Station
Remove objects within 1.6 ft / 0.5 m to the left and right
sides and within 4.9 ft / 1.5 m of the front of the Charging
Station.
Make sure the Charging Station is powered on.
Make sure the Charging Station is not placed on carpets.
Check if RoboVac is stuck on any objects.
Check if the sticker beneath the Charging Station has been
removed, and the Charging Station has been
fi
rmly attached
to the
fl
oor.
Clean the charging pins and sensors carefully with a soft dry
cloth.
RoboVac's movements or travel
paths are abnormal.
Clean the sensors carefully with a soft dry cloth.
Restart RoboVac by turning RoboVac o
ff
and on.
RoboVac cannot connect to a
Wi-Fi network.
Make sure you entered the Wi-Fi password correctly.
Make sure your RoboVac, router, and phone are close enough
to ensure a strong signal strength.
Make sure your Wi-Fi router supports the corresponding
frequency band of RoboVac: 2.4GHz for L60 Hybrid (T2268)
Reboot RoboVac and your router.
Try connecting RoboVac to a Wi-Fi network with another
phone.
You cannot control RoboVac with
Amazon Alexa.
Check if there are any Internet connection problems.
Check whether you have installed the Amazon Alexa app onto
your smart device and enabled
“
eufy Clean - RoboVac
”
Skill
in the Amazon Alexa app. For details, refer to the
“
Smart
Integrations
”
page in the eufy Clean App.
Make sure you have a eufy Clean account and have
connected to RoboVac.
Make sure you are using the correct Alexa voice commands.
You cannot control RoboVac with
the Google Assistant.
Check if there are any Internet connection problems.
Check if you have installed the Google Home app onto your
smart device and initiated the
“
eufy Clean
”
action in the
Google Home app. For details, refer to the
“
Smart
Integrations
”
page in the eufy Clean App.
Check if you are using the proper commands when talking to
the Google Assistant. When making your request, start by
saying the wake phrase
“
Ok Google
”
.
Repeat your question. Speak clearly to the Google Assistant.
Water does not come out during
mopping.
Make sure there is enough water in the water tank.
Check if the mopping module is correctly installed.
Check if the water outlets are blocked.
7. Speci
fi
cations
Input
20VDC 0.6A
Battery
14.4VDC, Rated Capacity: 2500 mAh, 36Wh
/ Nominal Capacity: 2600mAh
Dust Box Capacity
350ml
Input
100V~240V
Output
20VDC 0.6A
