INTEGRATED REFRIGERATION
PLANNING GUIDE
24" Series 5 Integrated Refrigerator Freezer | RB2470BRV2
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 290004874B PLANNING GUIDE 24" SERIES 5 INTEGRATED REFRIGERAToR FREEzER VERSIoN B - SEPTEMBER 2025
RB2470BRV2
CONCEPT DESIGN PAGE
DEVELOPED AND DETAILED DESIGN PAGE DEVELOPED AND DETAILED DESIGN PAGE
SPECIFICATIoN GUIDE
Product Features 4
Product Specifications 5
DATA SHEET
RB2470BRV2 7
DESIGN PLANNING
Cabinetry Overview 9
Custom Panels 10
Ventilation 11
Services 12
SUPPORT
For additional design planning and installation support please
contact the Fisher & Paykel design support team.
designsupport@fisherpaykel.com
CONTENTS | 24" SERIES 5 INTEGRATED REFRIGERATOR FREEzER
CONTENTS
INTRODUCTION
This comprehensive planning guide provides you with the
framework and tools to achieve your desired design outcome
with Fisher & Paykel appliances. In this guide, you will find a
range of conceptual, detailed, and dimensional product
information to bring your ideas to life and create spaces that
truly reflect your vision.
NOTES
The models shown in this Planning Guide may not be available
in all markets and are subject to change at any time. Refer to
our website fisherpaykel.com for the latest document version.
Product specifications may vary from those shown.
This Planning Guide should not be used as installation guidance
for any product. Specific installation guidance will be available
with the product on delivery and on our website.
<< CONTENTS<< CONTENTS
PAGE 3© FISHER & PAYKEL APPLIANCES LIMITED 2025PLANNING GUIDE 24" SERIES 5 INTEGRATED REFRIGERAToR FREEzER VERSIoN B - SEPTEMBER 202590004874B
SPECIFICATION GUIDE
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 490004874B PLANNING GUIDE 24" SERIES 5 INTEGRATED REFRIGERAToR FREEzER VERSIoN B - SEPTEMBER 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
OVERVIEW
Designed to integrate seamlessly into smaller spaces, this 9.5 cu
ft Refrigerator Freezer oers generous storage, adjustable door
panels and a reversible hinge. ActiveSmart™ technology
maintains the ideal temperature to keep food fresher for longer,
while the Variable Temperature Drawer can be adjusted to store
beverages, meat and seafood or fruit and vegetables.
PRODUCT
RB2470BRV2
24" Series 5, Integrated Refrigerator Freezer
ACCESSORIES
Handles
Handles are available in Contemporary, Professional, and Classic
styles. Options include brushed aluminium, black, and stainless
steel finishes. For a full range of handle options visit our website
fisherpaykel.com
FEATURES
1 Perfect for smaller spaces, with a generous 9.5 cu ft
capacity that doesn't compromise on storage
2 Designed for minimal gaps with adjustable door panels, our
integrated products are easy to install
3 By cooling and defrosting only when necessary, this
refrigerator uses only the energy it needs and doesn't
compromise on food care
4 Reversible hinge offers flexible installation to create kitchen
perfection
5 Variable Temperature Drawer can be set to Fruit & Veg,
Beverage or Meat & Seafood mode
6 ActiveSmart™ technology maintains the ideal temperature
for fresher food
7 Eco Mode adjusts each compartment to the ideal settings to
balance food care and energy efficiency
8 Bright LEDs illuminate ceiling, shelves, bins, and tray
9 Intuitive, easy-to-use interface for activating features like
Fast Freeze and Max Cool
"0 Connected capability via Wi-Fi and the SmartHQ™ app gives
control & visibility from anywhere at any time
PRODUCT FEATURES | 24" SERIES 5 INTEGRATED REFRIGERATOR FREEzER
RB2470BRV2
<< CONTENTS<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 590004874B PLANNING GUIDE 24" SERIES 5 INTEGRATED REFRIGERAToR FREEzER VERSIoN B - SEPTEMBER 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com

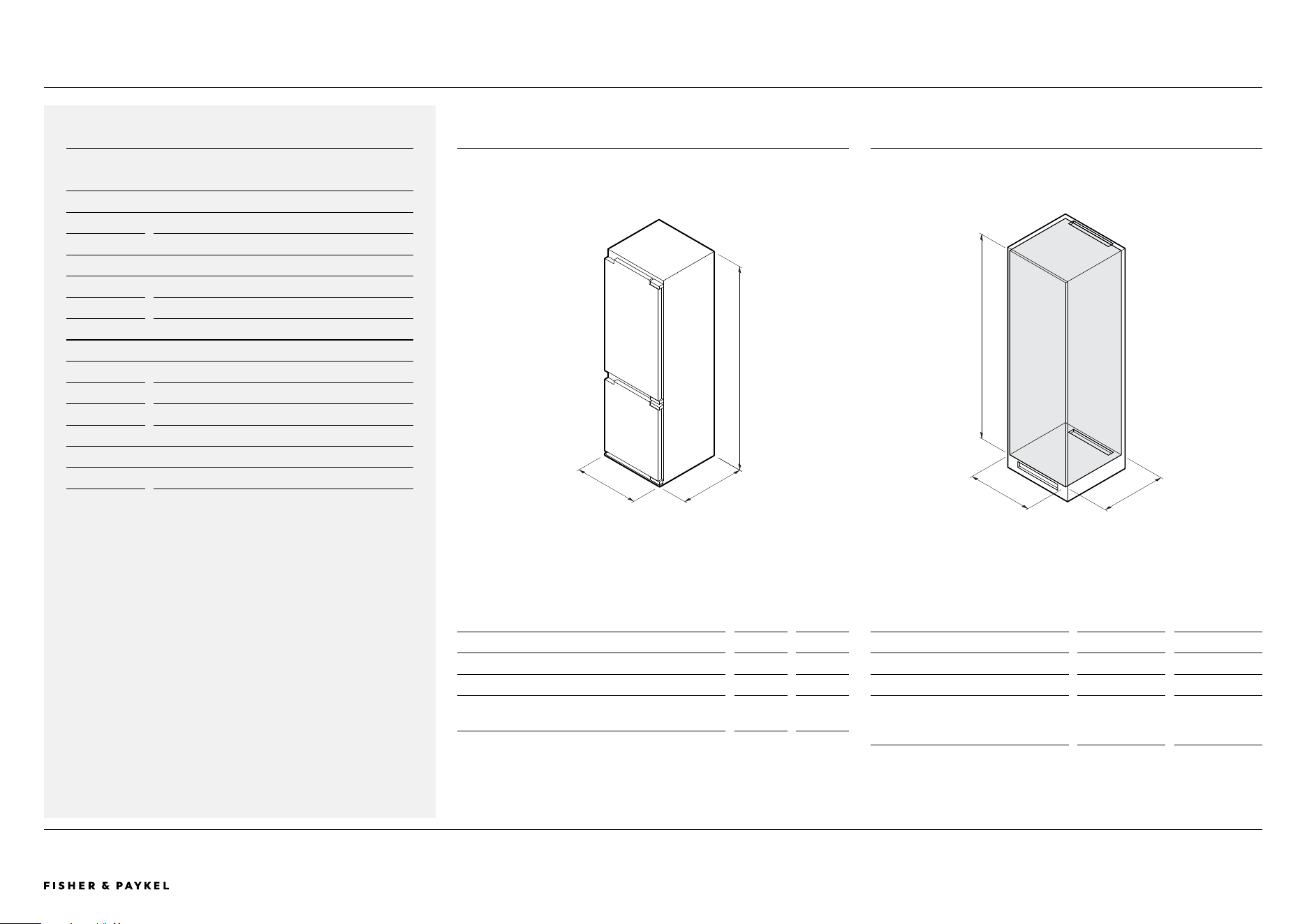

PRODUCT DIMENSIONS
Product Dimensions inch mm
A Overall height of product 69 3/4 1772
B Overall width of product 21 11/16 550
C Overall depth of product excluding front
panels
21 11/16 550
CAVITY DIMENSIONS
Cavity Dimensions inch mm
A Height of cavity 70 - 70 1/8 1778 - 1782
B Width of cavity 22 1/16 - 22 3/8 560 - 568
C Depth of cavity
- minimum
- recommended
22 1/16
22 7/8
560
580
RB2470BRV2PRODUCT SPECIFICATIONS | 24" SERIES 5 INTEGRATED REFRIGERATOR FREEzER
ISOMETRIC VIEW
EXPLODED
a
b
c
SPECIFICATIONS
Model Number
RB2470BRV2 24" Series 5, Integrated Refrigerator Freezer
Weight
Packaged 192 lb (87 kg)
Unpackaged 179 lb (81 kg)
Electrical *
Supply 115 V, 60 Hz
Service 10 A
Connection 90" flex cord with plug
Plumbing
Connection no connection required
b
a
c
ISOMETRIC VIEW
<< CONTENTS<< CONTENTS
PAGE 6© FISHER & PAYKEL APPLIANCES LIMITED 2025PLANNING GUIDE 24" SERIES 5 INTEGRATED REFRIGERAToR FREEzER VERSIoN B - SEPTEMBER 202590004874B
DATA SHEET
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 790004874B PLANNING GUIDE 24" SERIES 5 INTEGRATED REFRIGERAToR FREEzER VERSIoN B - SEPTEMBER 2025
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm (1/16''). Please
read the installation manual for detailed information on installing the product. For full
installation instructions & specifications visit fisherpaykel.com

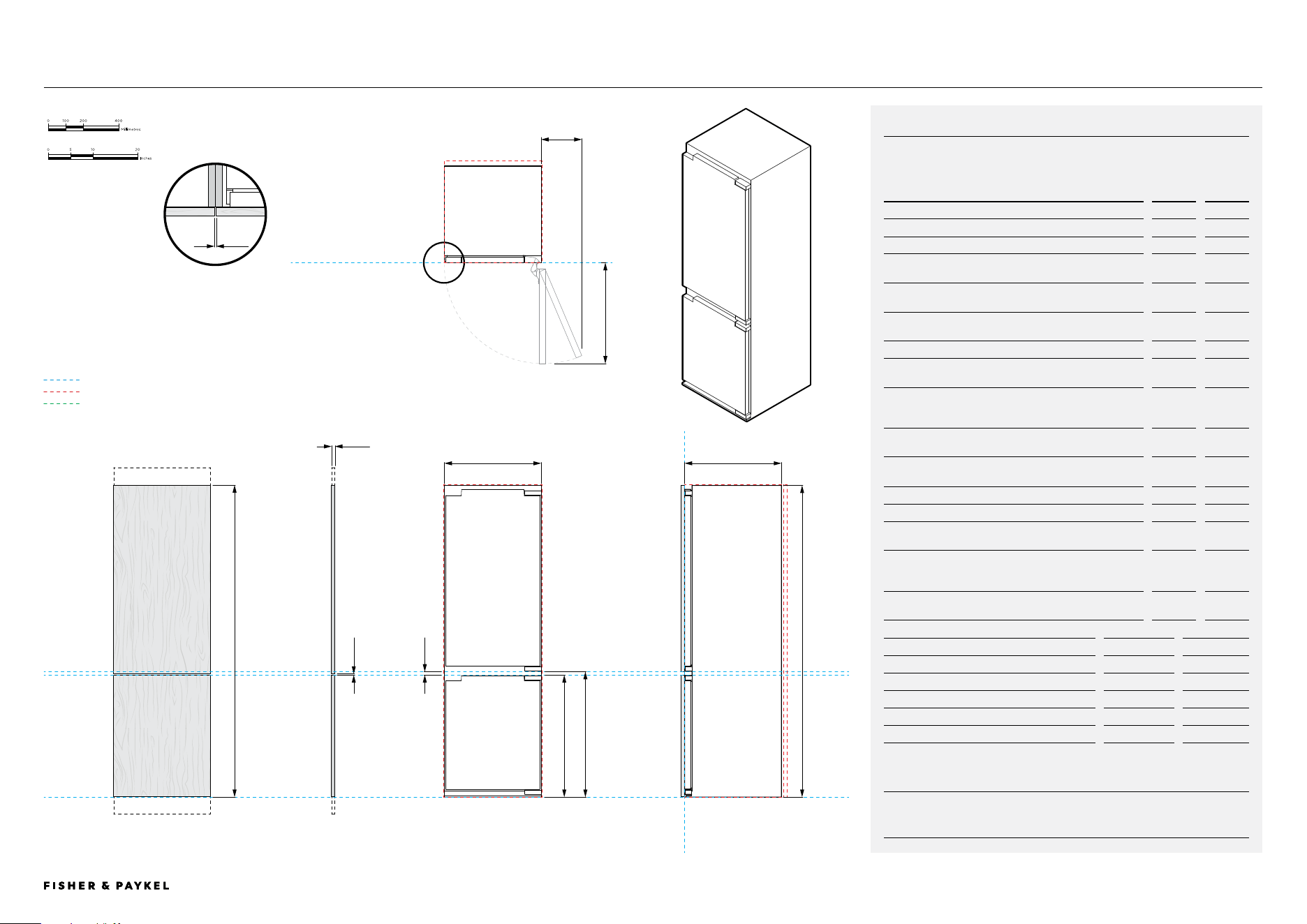

Model no:
RB2470BRV2 24" Series 5, Integrated Refrigerator Freezer
NOTE: Left hand hinge is a mirrored version of the image shown. Left hand hinge
can be achieved using supplied parts. Please refer to Installation Guide for details.
Product Dimensions inch mm
A Overall height of product
69 3/4
1772
B Overall width of product
21 11/16
550
C Overall depth of product (excluding custom panels
and handle)
21 11/16
550
D Height from base of product/cavity to lower
adjustable break line
27 5/16
694
E Height from base of product/cavity to upper
adjustable break line
28 1/16
713
F Height between adjustable break lines
3/4
19
G Depth of inner door open at 90° (from front of
carcass, excludes custom panels and handle)
22 5/8 574
H Width of Inner door open at 113° (from side of
product, allows full internal access, excludes custom
panels and handle)
8 7/1 6
213
I Minimum height from base of product to top of upper
custom door panel*
69 5/8
1768
* at minimum cavity height
Custom Panel Dimensions inch mm
J Depth of custom door panels
5/8 - 7/8
16 - 22
K Minimum gap between upper and lower custom door
panels
5/32
4
L Minimum cabinetry gap from side of door panels
5/8 - 3/4" (16 - 19mm) custom door panel
25/32 - 7/8" (20 - 22mm) custom door panel
5/32
3/16
4
5
Maximum weight of an individual door panel including
handle
33 lb
15 kg
Cavity Dimensions inch mm
Height of cavity
70 - 70 1/8
1778 - 1782
Width of cavity
22 1/16 - 22 3/8 560 - 568
Minimum depth of cavity
22 1/16
560
Recommended depth of cavity
22 7/8
580
Minimum ventilation throughout cavity
31 in
2
200 cm
2
PROFILE VIEW
PRODUCT
FRONT VIEW
PRODUCT
PLAN VIEW
PRODUCT
j
k
g
d
DATUM: UPPER
ADJUSTABLE
BREAKLINE
PROFILE VIEW
CUSTOM PANELS
FRONT VIEW
CUSTOM PANELS
A
69 3/4"
b
21 11/16"
c
21 11/16"
e
RB2470BRV2DATA SHEET | 24" SERIES 5 INTEGRATED REFRIGERATOR FREEzER
h
DATUM: LOWER
ADJUSTABLE
BREAKLINE
DAT U M:
FRONT OF CHASSIS /
CABINETRY CARCASS
l
PLAN VIEW DETAIL
PRODUCT WITH
CABINETRY
i
f
DATUM: BASE OF
PRODUCT /
CAVIT Y
DAT U M:
FRONT OF CHASSIS /
CABINETRY CARCASS
INDICATES CABINETRY / PRODUCT DATUM
INDICATES CABINETRY CLEARANCES
INDICATES CUTOUT
<< CONTENTS<< CONTENTS
PAGE 8© FISHER & PAYKEL APPLIANCES LIMITED 2025PLANNING GUIDE 24" SERIES 5 INTEGRATED REFRIGERAToR FREEzER VERSIoN B - SEPTEMBER 202590004874B
DESIGN PLANNING
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 990004874B PLANNING GUIDE 24" SERIES 5 INTEGRATED REFRIGERAToR FREEzER VERSIoN B - SEPTEMBER 2025
CABINETRY OVERVIEWDESIGN PLANNING | 24" SERIES 5 INTEGRATED REFRIGERATOR FREEzER
A
B
D
C
e
f
g
CAVITY DIMENSIONS inch mm
A Height of cavity 70 - 70 1/8 1778 - 1782
B Width of cavity 22 1/16 - 22 3/8 560 - 568
C Recommended depth of cavity 22 7/8 580
D Minimum depth of cavity 22 1/16 560

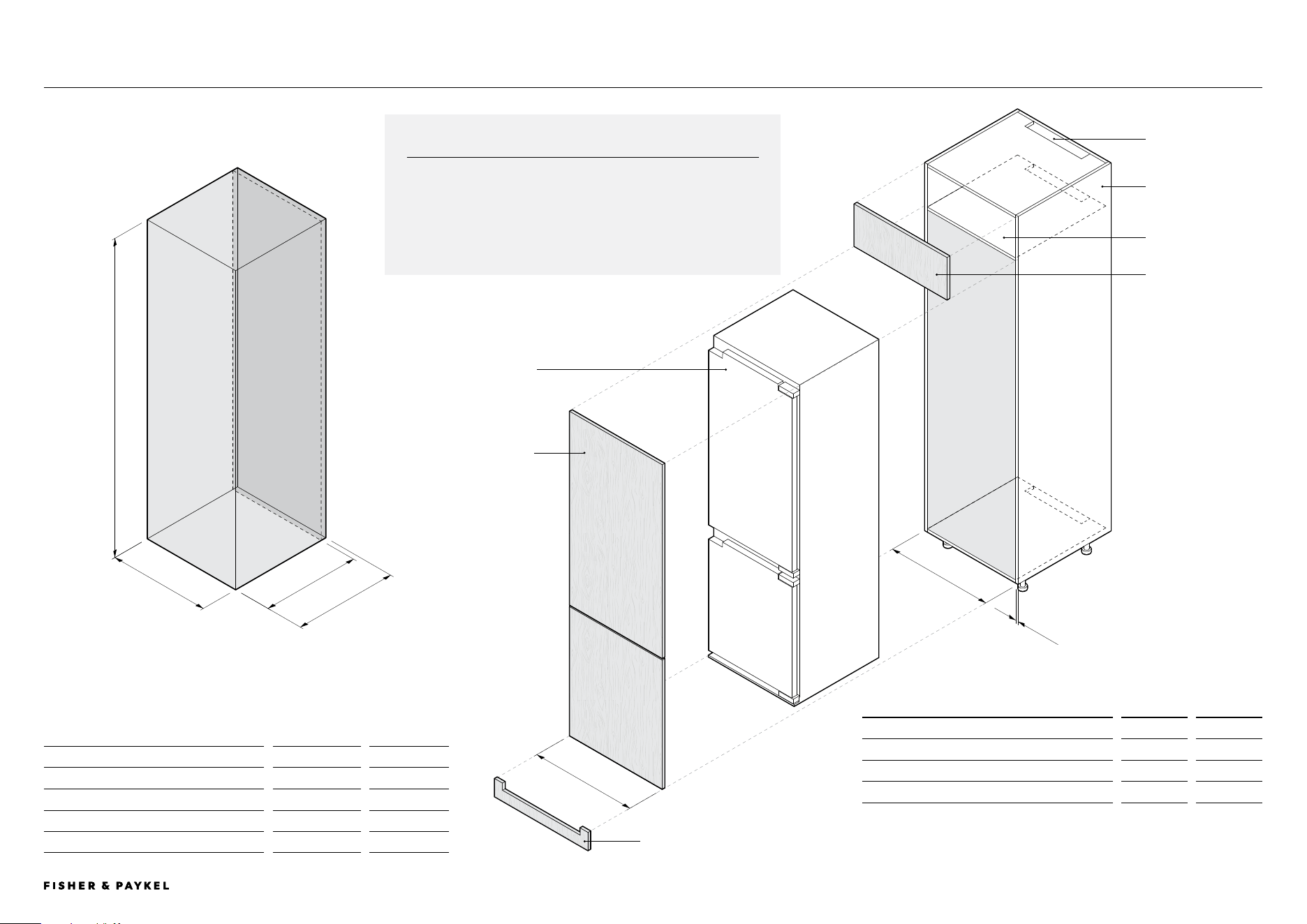

ISOMETRIC VIEW
CAVITY
EXPLODED ISOMETRIC VIEW
CABINETRY AND PRODUCT
Cabinetry carcass
Shelf to create appliance
cavity (if required)
Filler front panel (if
required)
Refrigerator
Freezer
Appliance
front panels
31 in
2
vents required
throughout cabinet
Toe kick panel with 31 in
2
vent
CABINETRY DIMENSIONS inch mm
E Recommend cabinet carcass width* 23 5/8 600
F Thickness of carcass panels** 5/8 - 25/32 16 - 20
G Width of custom panel*** 23 15/32 596
*other widths are achievable, cavity width requirements must be met
**to achieve cavity width requirements for recommended cabinet width
***shared 5/32" gap to adjacent cabinetry front panels
CABINETRY REQUIREMENTS
This is an overview of a typical installation of the product.
Cavity and panel clearances must be met. Cabinetry carcass and
front panel dimensions are recommendations. Further details can
be found throughout this Planning Guide.
For details on wider cabinetry requirements please contact the
Design Support Team.
<< CONTENTS<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 1090004874B PLANNING GUIDE 24" SERIES 5 INTEGRATED REFRIGERAToR FREEzER VERSIoN B - SEPTEMBER 2025
CUSTOM PANELSDESIGN PLANNING | 24" SERIES 5 INTEGRATED REFRIGERATOR FREEzER
e
D
D
e
B
c
DETAIL 1
SIDE VIEW
DETAIL 2
SIDE VIEW
DETAIL 3
SIDE VIEW
3
2
1
DETAIL 4
TOP VIEW
SIDE VIEW
TOP VIEW
FRONT VIEW
D
D
c
4
DAT U M:
UPPER ADJUSTABLE
BREAKLINE
DAT U M:
LOWER ADJUSTABLE
BREAKLINE
DAT U M:
BASE OF PRODUCT /
CAVIT Y
g
f
DAT U M:
TOP OF VENT
E
A
c

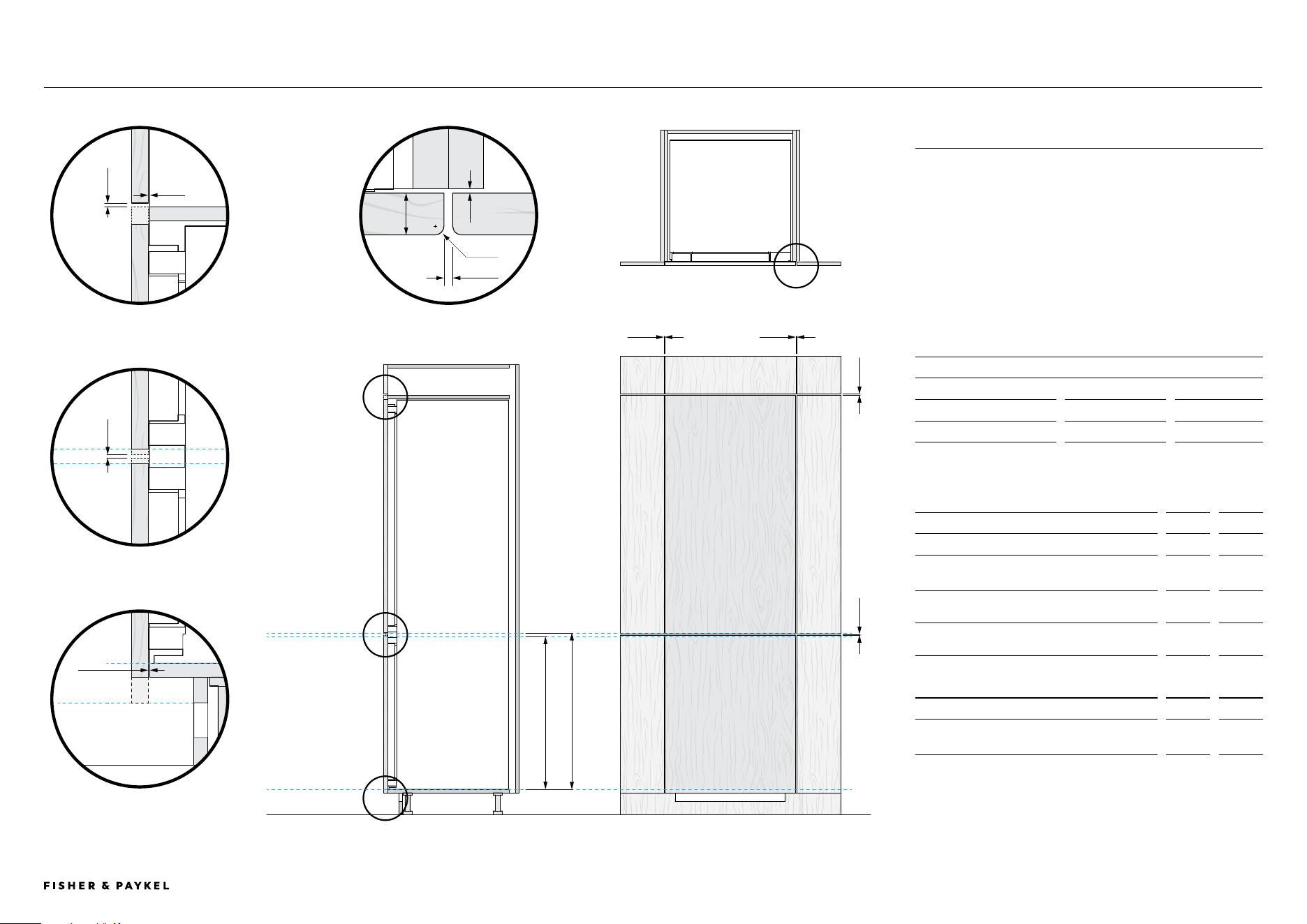

CUSTOM PANELS
Custom panel specifications and clearances must be applied to
specific cabinetry design and construction requirements.
The gap between upper and lower panels can be placed at any
height within the adjustable break lines.
The base of lower door must be in line with or above the top of
vent to ensure ventilation gap of 31 in
2
or greater.
For attachment details between custom panels and product refer
to Installation Guide.
CUSTOM PANEL DIMENSIONS
A Panel thickness B Corner radius C Gap to side
5/8 - 3/4 (16 - 19mm) 3/32 (2mm) 5/32 (4mm)
25/32 - 7/8 (20 - 22mm)* 3/32 (2mm) 3/16 (5mm)
*Panels with a thickness of 13/16 - 7/8" are considered special
case. For further details please contact the Design Support Team.
CUSTOM PANEL CLEARANCES inch mm
D Gap to adjacent panels above and below 5/32 4
E Gap between front panel and cabinetry
carcass
3/32 2
F Height from base of product/cavity to
base of adjustable break line
27 5/16
694
G Height from base of product/cavity to
top of adjustable break line
28 1/16
713
CUSTOM PANEL WEIGHT lb kg
Maximum weight of each custom panel
including handle
33 15
HINGE
<< CONTENTS<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 1190004874B PLANNING GUIDE 24" SERIES 5 INTEGRATED REFRIGERAToR FREEzER VERSIoN B - SEPTEMBER 2025
VENTILATIONDESIGN PLANNING | 24" SERIES 5 INTEGRATED REFRIGERATOR FREEzER

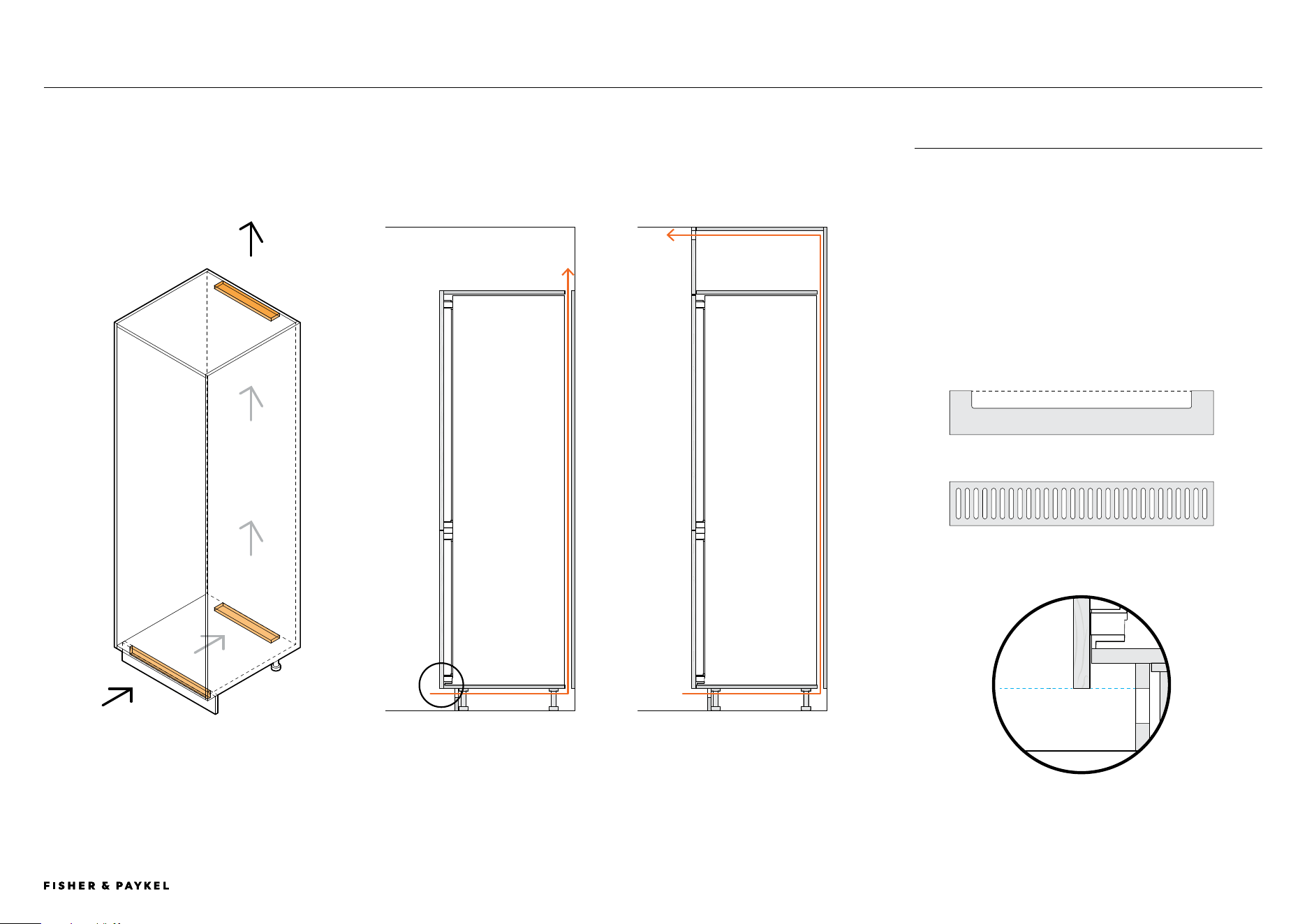

VENTILATION OVERVIEW
An unrestricted flow of cool air is required at the back of the
product.
Vents of at least 31 in
2
(200 cm
2
) are required throughout the
cabinet to ensure adequate airflow. If a grille is used, the
combined hole area must be equal to or greater than 31 in
2
.
Avoid venting directly into adjacent cabinetry.
Cabinetry examples can be adjusted to suit specific cabinetry
design and construction requirements whilst ensuring ventilation
requirements.
FRONT VIEW
SINGLE CUTOUT VENT EXAMPLE
ISOMETRIC VIEW
CABINET VENTILATION
SIDE VIEW
VENTILATION EXAMPLE 1
SIDE VIEW
VENTILATION EXAMPLE 2
FRONT VIEW
GRILLE VENT EXAMPLE
DAT U M:
TOP OF VENT
DETAIL A
BASE OF DOOR MUST BE IN LINE
WITH OR ABOVE TOP OF VENT
A
<< CONTENTS<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 1290004874B PLANNING GUIDE 24" SERIES 5 INTEGRATED REFRIGERAToR FREEzER VERSIoN B - SEPTEMBER 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
SERVICESDESIGN PLANNING | 24" SERIES 5 INTEGRATED REFRIGERATOR FREEzER

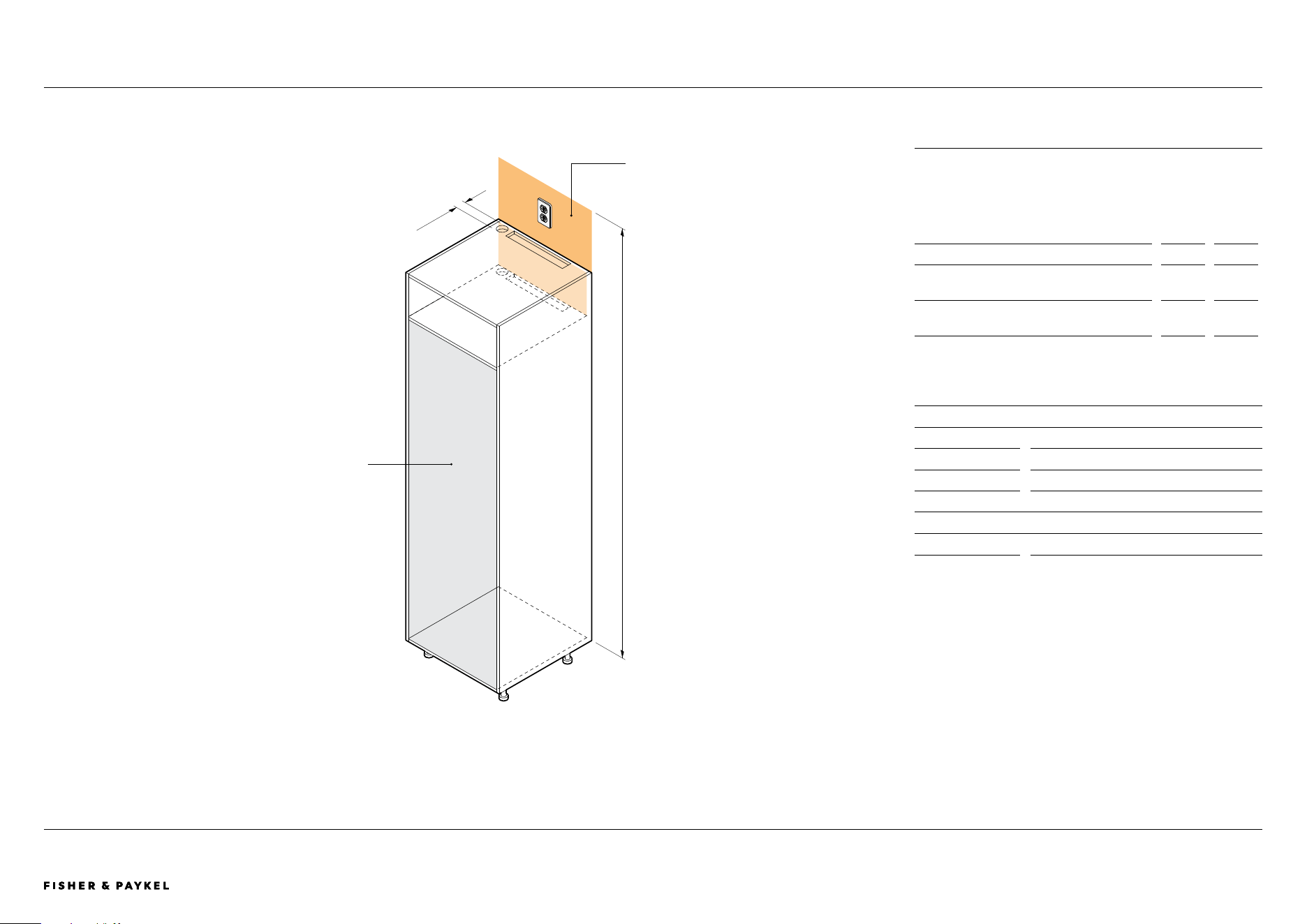

SERVICE CONNECTIONS
Connections must be made above and outside the product
cavity, either inside or outside the cabinet. The electrical socket
must be accessible once the product is installed.
ISOMETRIC VIEW
CABINETRY
Electrical Supply Dimensions inch mm
A Maximum height between base of
product and power connection
86 1/2 2200
B Minimum diameter of hole for services
for be routed through*
2 3/16 55
* alternatively can be routed through vent with same depth
requirements.
Electrical
Supply 115 V, 60 Hz
Service 10 A
Connection 90" flex cord with plug
Plumbing
Connection no connection required
a
b
No connections inside
product cavity
Connections above product cavity,
inside or outside cabinet
<< CONTENTS<< CONTENTS
