THANK YOU
USE AND CARE GUIDE
FORTRA 56 IN. CEILING FAN
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this ceiling fan. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for
your home improvement needs. Thank you for choosing Hampton Bay!
1-855-HD-HAMPTON
HAMPTONBAY.COM
Questions, problems, missing parts? Before returning to the store,
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday
call Hampton Bay Customer Service
Visual instruction of how to install this fan:
Visit www.homedepot.com and enter either the Item or Model number to find
this fan and click the link of visual instruction in the product overview section.
Item #1000 000 000
Model #AK272-MBK
2
READ AND SAVE THESE INSTRUCTIONS
Table of Contents ..................................
Safety Information .................................
Warranty .........................................
Pre-installation ....................................
Installation .......................................
Assembly ........................................
Operation ........................................
Care and Cleaning .................................
Troubleshooting ...................................
Table of Contents
2
2
3
3
6
7
13
15
15
WARNING: To reduce the risk of electric shock, this fan
must be installed with an isolating wall control/switch.
WARNING: To reduce the risk of personal injury, do not bend
the blade arms (also referred to as flanges), when installing
the brackets, balancing the blades or cleaning the fan.
WARNING: Do not insert foreign objects between rotating
fan blades.
WARNING: To reduce the risk of fire, electric shock or
personal injury, mount the fan to an outlet box marked
acceptable for fan support with the screws provided with the
outlet box.
CAUTION: To reduce the risk of personal injury, use only
the screws provided with the outlet box.
Safety Information
The following responsible party designated in FCC §2.909 is
responsible for this declaration:
Model Number: AK272-MBK
Company Name: TAL INTERNATIONAL CORPORATION
Company Address: 2919 E. Philadelphia St., Ontario, CA 91761, U.S.A.
Telephone Number: (909) 923-2888 Fax: (909) 923-8337
1. To reduce the risk of electric shock, ensure electricity has
been turned off at the circuit breaker or fuse box before
beginning.
2. All wiring must be in accordance with the National Electrical
Code “ANSI/NFPA 70” and local electrical codes. Electrical
installation should be performed by a qualified licensed
electrician.
3. The outlet box and support structure must be securely
mounted and capable of reliably supporting a minimum of 35
lb (15.9 kg) or less. Use only UL-Listed outlet boxes marked
“FOR FAN SUPPORT.”
4. The fan must be mounted with a minimum of 7 ft. (2.1m)
clearance from the trailing edge of the blades to the floor.
5. Avoid placing objects in the path of the blades.
6. To avoid personal injury or damage to the fan and other
items, be cautious when working around or cleaning the fan.
7. Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be
suitable for most cleaning.
8. After making electrical connections, spliced conductors
should be turned upward and pushed carefully up into the
outlet box. The wires should be spread apart with the
grounded conductor and the equipment-grounding conductor
on one side of the outlet box and ungrounded conductor on
the other side of the outlet box.
9. All set screws must be checked and retightened where
necessary before installation.
10. Suitable for use with solid-state speed control (AP-0RD
only).
3
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Warranty

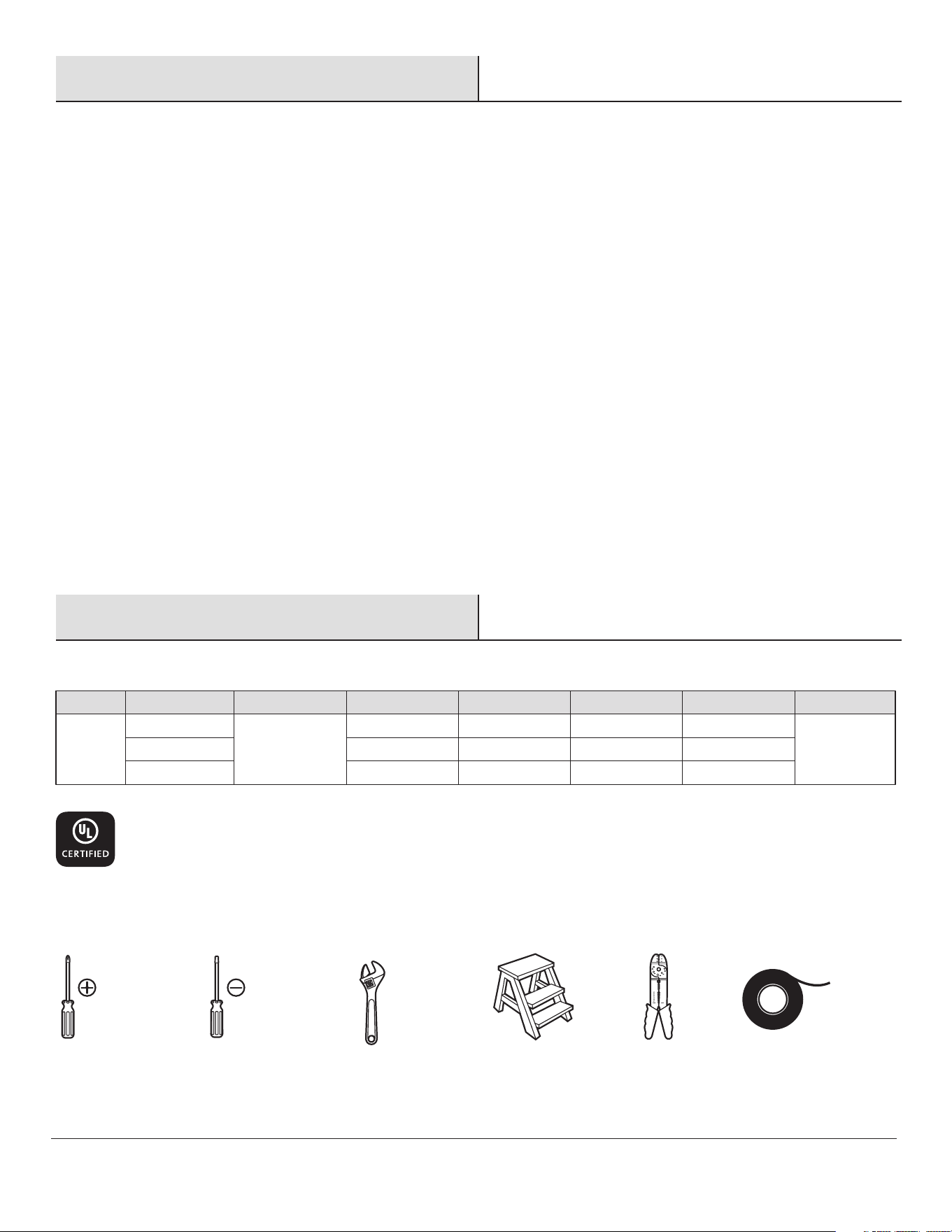

SPECIFICATIONS
TOOLS REQUIRED
Pre-InstallationPre-Installation
0.3
0.55
0.8
14
40
88
42
81.25
132
2157
4313
6676
Phillips
screwdriver
Flat blade
screwdriver
Step
ladder
Wire
stripper
Electrical
tape
Adjustable
wrench
56 in.
Low
Medium
High
120
Fan size Watts RPM CFMSpeed Volts Amps N.W.
9.39 kg
(20.70 lb)
The manufacturer warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the
factory for a period of lifetime after the date of purchase by the original purchaser. The manufacturer warrants the light kit (excluding any
glass), to be free from defects in workmanship and material at the time of shipment from the factory for a period of three years after the
date of purchase by the original purchaser. The manufacturers also warrants that all other fan parts, excluding any glass or acrylic blades,
to be free from defects in workmanship and material at the time of shipment from the factory for a period of one year after the date of
purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or
superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All
costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper
installation or by affixing any accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not
cover any changes in brass finish, including rusting, pitting, corroding, tarnishing or peeling. Brass finishes of this type give the longest
useful life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a
defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. We hereby
disclaim any and all warranties, including but not limited to those of merchantability and fitness for a particular purpose to the extent
permitted by law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as specified in the
express warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to
you. The retailer shall not be liable for incidental, consequential, or special damages arising out of or in connection with product use or
performance except as may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential
damages, so the above exclusion or limitation may not apply to you. This warranty gives specific legal rights, and you may also have other
rights which vary from state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a
claim on the warranty must be paid by the customer.
Contact the Customer Service Team at 1-855-HD-HAMPTON or visit www.hamptonbay.com.
4
Pre-Installation (continued)
HARDWARE INCLUDED
AA
BB
CC
DD
EE
Plastic wire nut
Blade attachment screw with lock washer
23A 12V battery
Extension cord
Hex wrench
Part Description
3
13
1
1
1
Quantity
AA
BB
DD
EE
CC
NOTE: Hardware not shown to actual size.
23A 12V
5

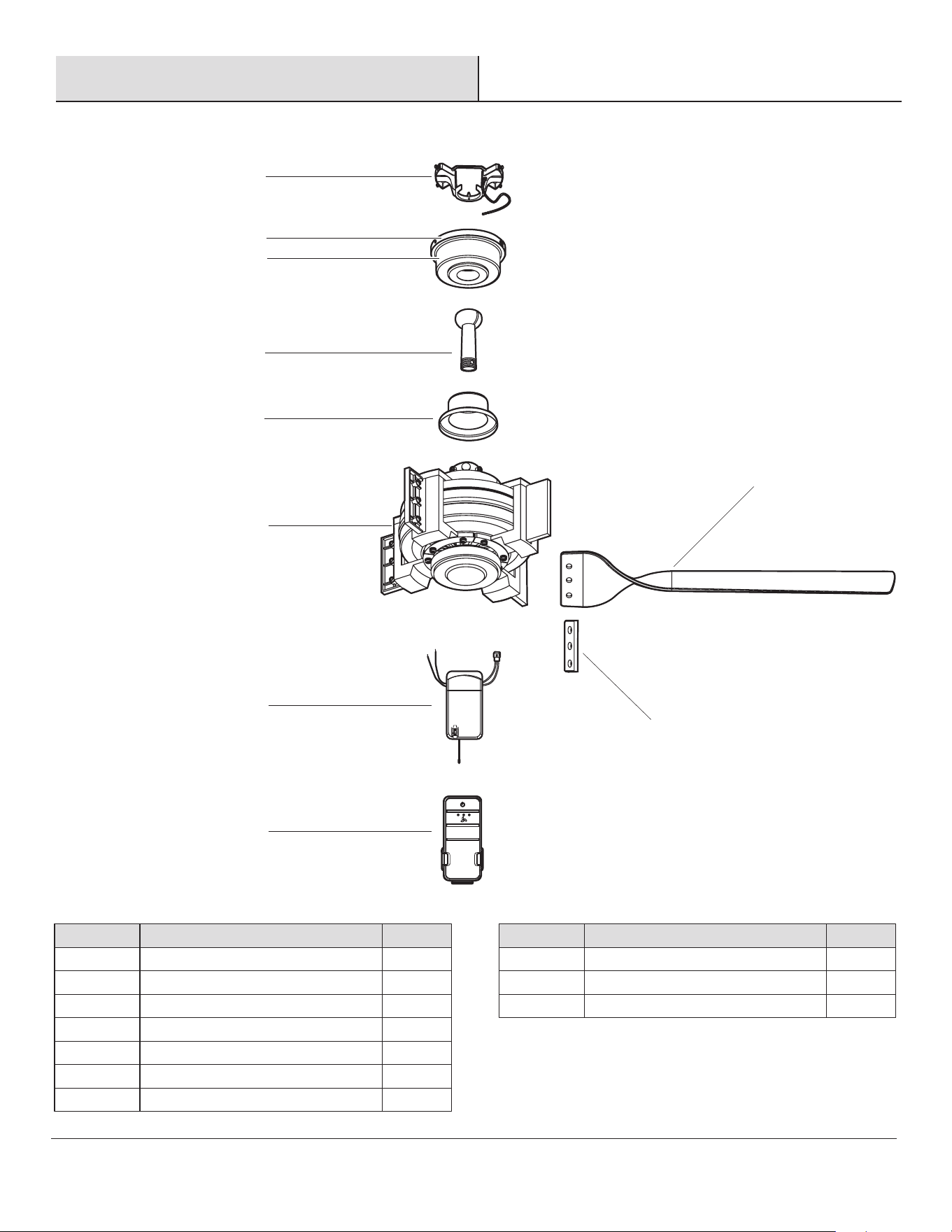

PACKAGE CONTENTS
Pre-Installation (continued)
Part
H
I
J
Description
Blade support plate
Receiver
Remote control
Quantity
4
1
1
Part
A
B
C
D
E
F
G
Quantity
1
1
1
1
1
1
4
Description
Mounting bracket (preassembled)
Canopy ring (preassembled)
Canopy
Hanger ball/downrod assembly
Coupling cover
Fan motor assembly
Blade
G
H
F
I
J
E
A
D
C
B
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
6
Installation
MOUNTING OPTIONS
WARNING: To reduce the risk of fire, electric shock, or
personal injury, mount the fan to an outlet box marked
acceptable for fan support using the screws provided with the
outlet box. An outlet box commonly used for the support of
lighting fixtures may not be acceptable for fan support and
may need to be replaced. If in doubt, consult a qualified
electrician.
NOTE: You may need a longer downrod to maintain proper
blade clearance when installing on a steep, sloped ceiling.
The maximum angle allowable is 18° away from horizontal. If
the canopy (C) touches the hanger ball/downrod assembly (D),
turn the canopy (C) 180° before attaching the canopy (C) to
the mounting bracket (A).
Outlet Box
Outlet Box
Recessed
Outlet
Box
Ceiling
Mounting
Bracket
Outlet Box
Hanger Bar
If your ceiling fan does not have an existing UL-Listed
mounting box, then install one using the following instructions:
Disconnect the power by removing the fuses or turning off
the circuit breakers.
Secure the outlet box (not included) directly to the building
structure. Use appropriate fasteners and materials (not
included). The outlet box and its bracing must be able to fully
support the weight of the moving fan (at least 35 lb). Do not
use a plastic outlet box.
The illustrations below show three different ways to mount the
outlet box (not included).
To hang your fan where there is an existing fixture but no ceiling
joist, you may need an installation hanger bar (not included) as
shown above.
7
1
Preparing the canopy
2
Preparing the motor
□ Remove the canopy ring (B) from the canopy (C).
□ Remove the two non-slotted canopy mounting screws
with lock washers (FF) from the canopy (C), and
loosen the slotted canopy mounting screws with lock
washers (FF) on the canopy (C).
□ Remove the canopy (C) from the mounting bracket (A)
by turning the canopy counterclockwise.
3

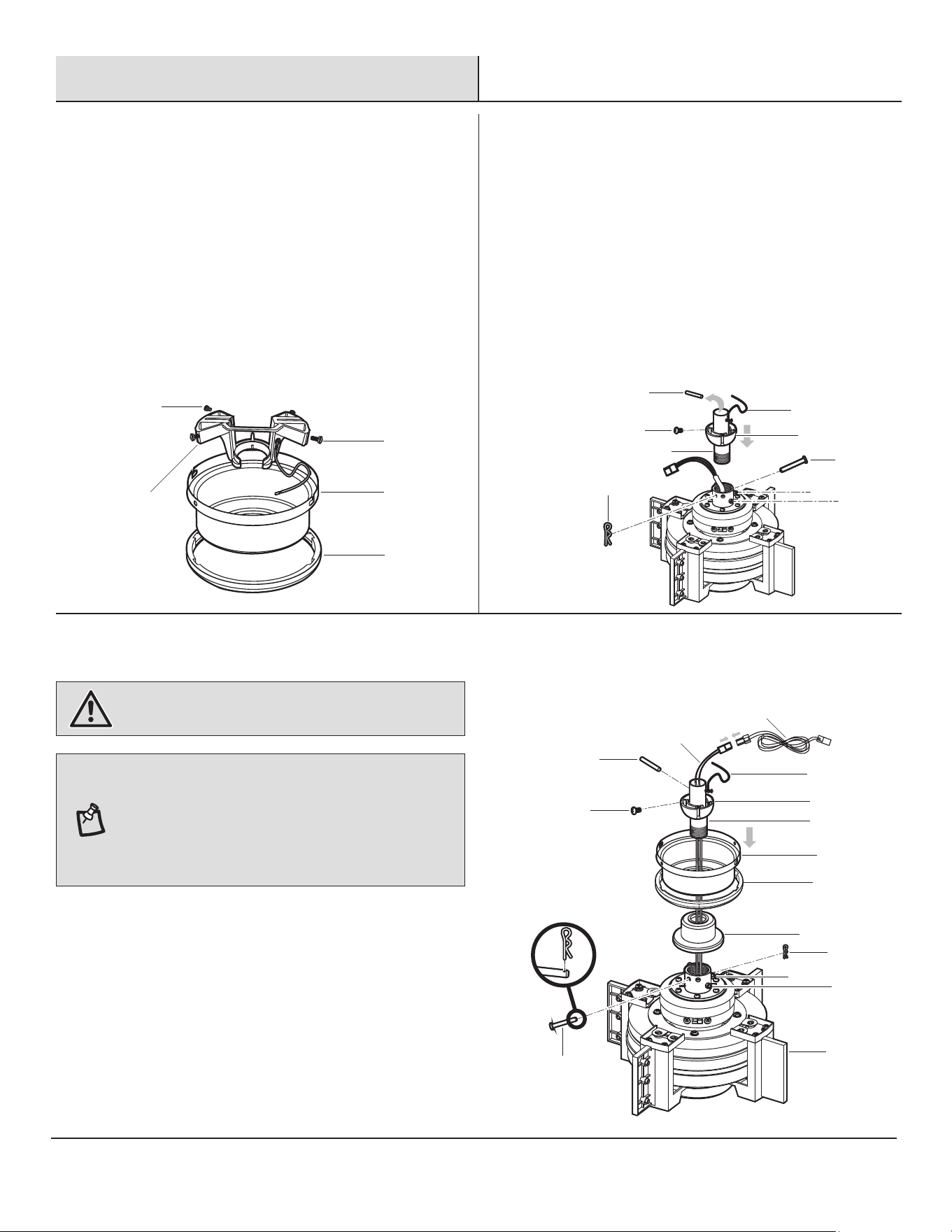

Assembling the fan
Assembly
□ Remove the cotter pin (GG) and clevis pin (HH), and
loosen the two collar set screws (II) from the motor
collar.
□ Take out the set screw (JJ) located in the hanger ball
(KK), lower the hanger ball (KK) and remove the cross
pin (LL). Remove the hanger ball (KK) from the hanger
ball/downrod assembly (D).
□ Remove the ground lead (MM) from the downrod
assembly (D).
□ Carefully feed the motor wires up through the
downrod (OO). Thread the downrod (OO) into the
collar.
□ Align the holes and replace the clevis pin (HH) and
cotter pin (GG). Tighten the two collar setscrews (II).
□ Slip the coupling cover (E), the canopy ring (B), and
the canopy (C) onto the downrod (OO).
□ Carefully reinstall the hanger ball (KK) and the ground
lead (MM) onto the downrod (OO) , being sure that the
cross pin (LL) is in the correct position, the setscrew
(JJ) is tightened and wires are not twisted.
WARNING: Failure to properly install the cotter pin (GG)
could result in the fan loosening and possibly falling.
NOTE: If a longer downrod (not included) is needed, take out
the screw located in the hanger ball (KK), lower the hanger
ball (KK) and remove the pin (LL). Remove all three pieces
from the downrod and assemble them onto the new longer
downrod before proceeding to the downrod installation.
Be sure to snap together the 2-pin connector, the male plug
(NN) from the fan and female plug from the extension cord (DD).
GG
HH
II
II
JJ
D
LL
KK
MM
A
FF
FF
C
B
B
F
E
C
OO
II
II
HH
GG
LL
KK
NN
DD
MM
JJ
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
8
4
Installing the mounting bracket
to the electrical box
Hanging the fan on the mounting
bracket

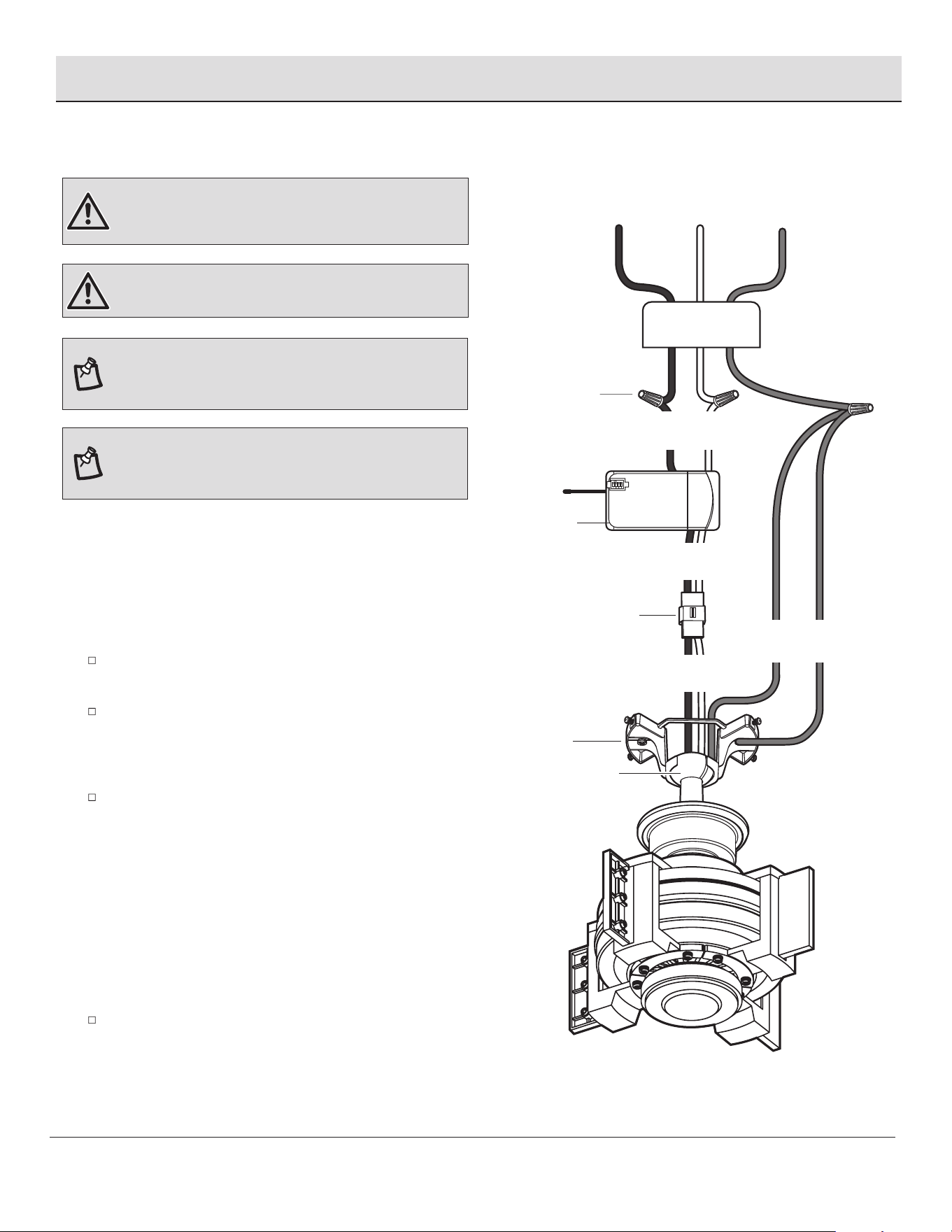

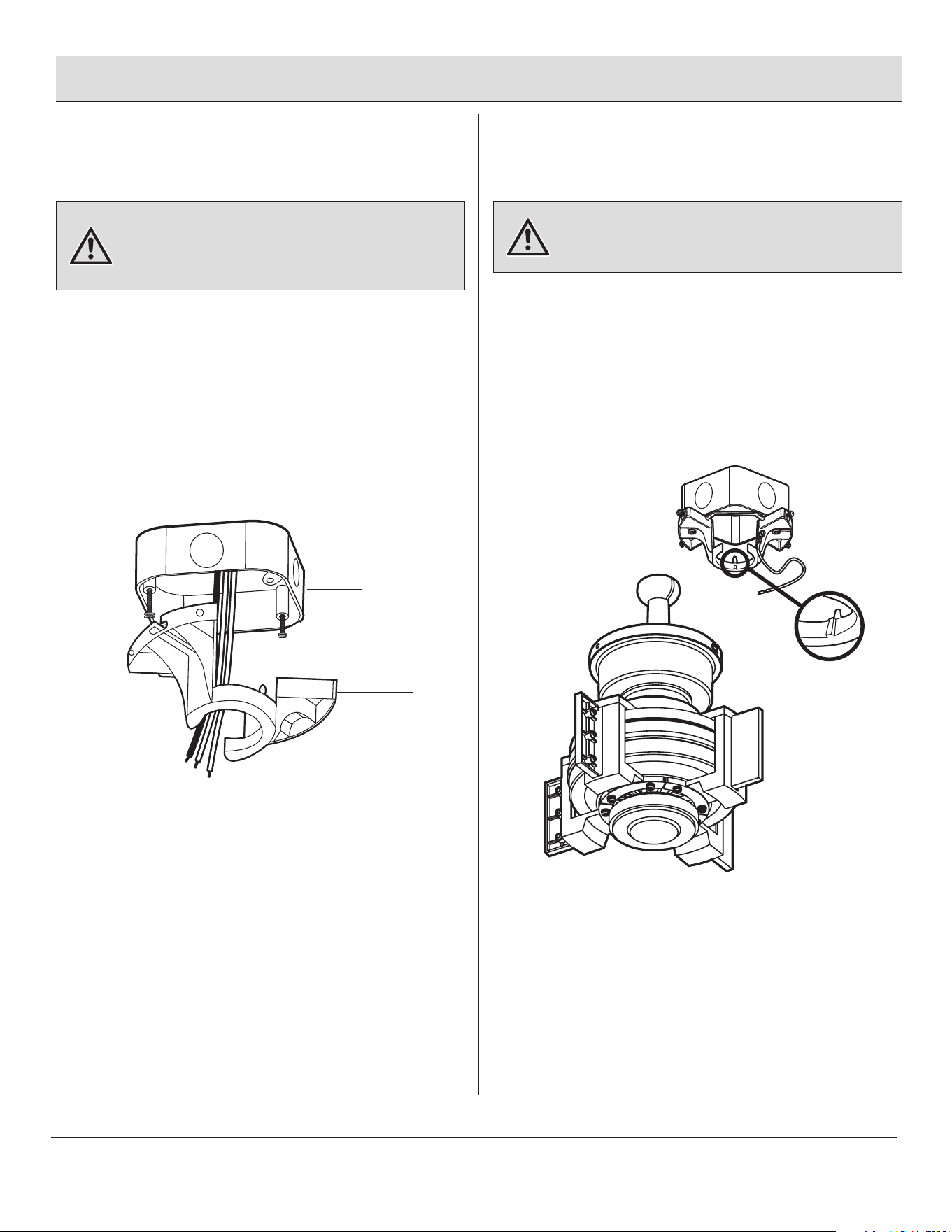

□ Carefully lift the fan motor assembly (F) up to the
mounting bracket (A) and seat the hanger
ball/downrod assembly (D) in the mounting bracket
(A) socket. Make sure the tab on the mounting
bracket (A) socket is properly seated in the groove in
the hanger ball/downrod assembly (D). This will help
to balance the ceiling fan.
5

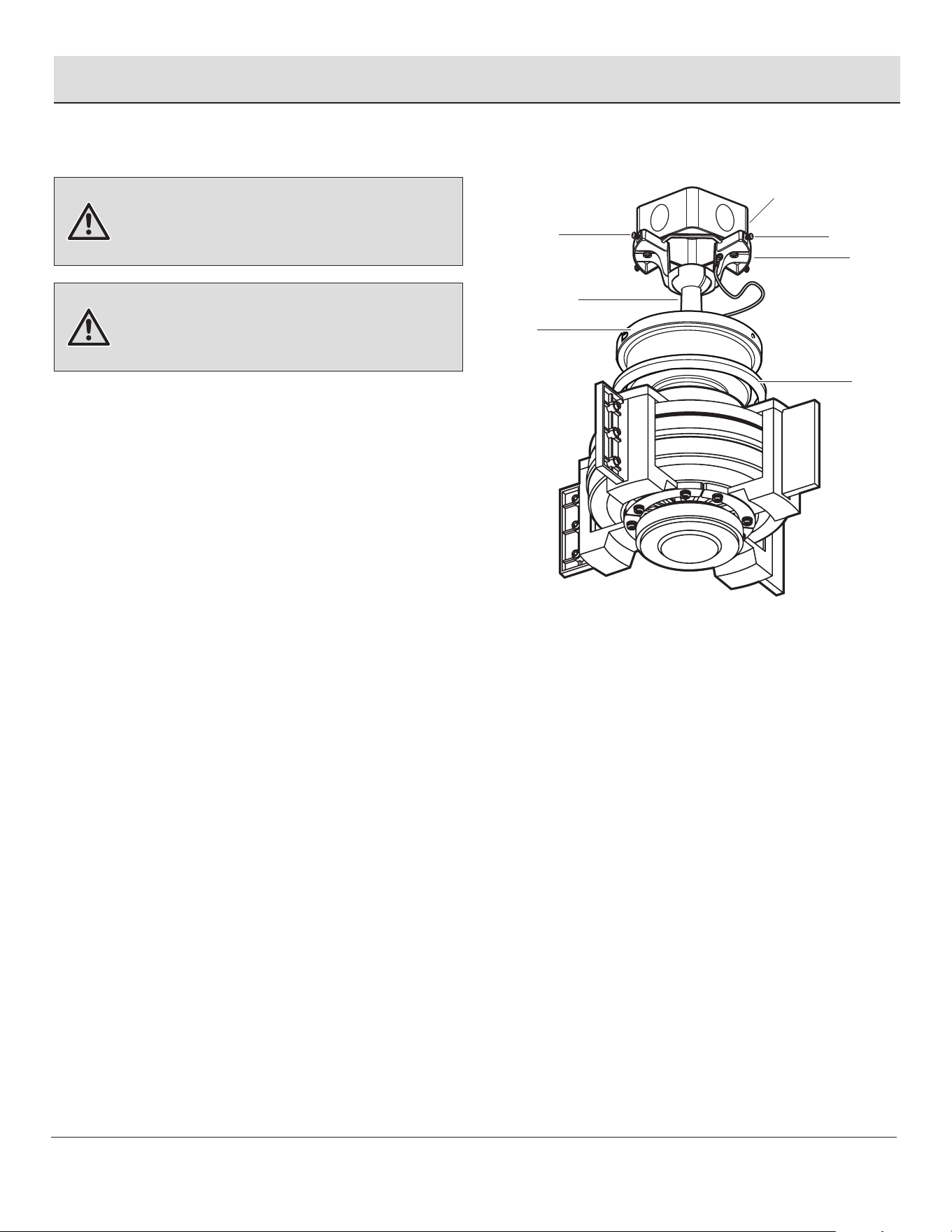

Assembly — Hanging the Fan
WARNING: To reduce the risk of fire, electric shock or
other personal injury, mount the fan only to an outlet box or
supporting system marked acceptable for fan support and
use the mounting screws provided with the outlet box.
WARNING: The tab in the ring must rest in the groove of
the hanger ball/downrod assembly (D). Failure to properly
seat the tab in the groove could cause damage to the wiring.
□ Pass the 120-volt supply wires through the center
hole in the mounting bracket (A).
□ Attach the mounting bracket (A) on the outlet box by
sliding the mounting bracket (A) over the screws
provided with the outlet box. Note that the flat side of
the mounting bracket (A) is toward the outlet box.
□ Securely tighten the two mounting screws.
A
A
Outlet Box
D
F
9
Assembly — Hanging the Fan (continued)
6

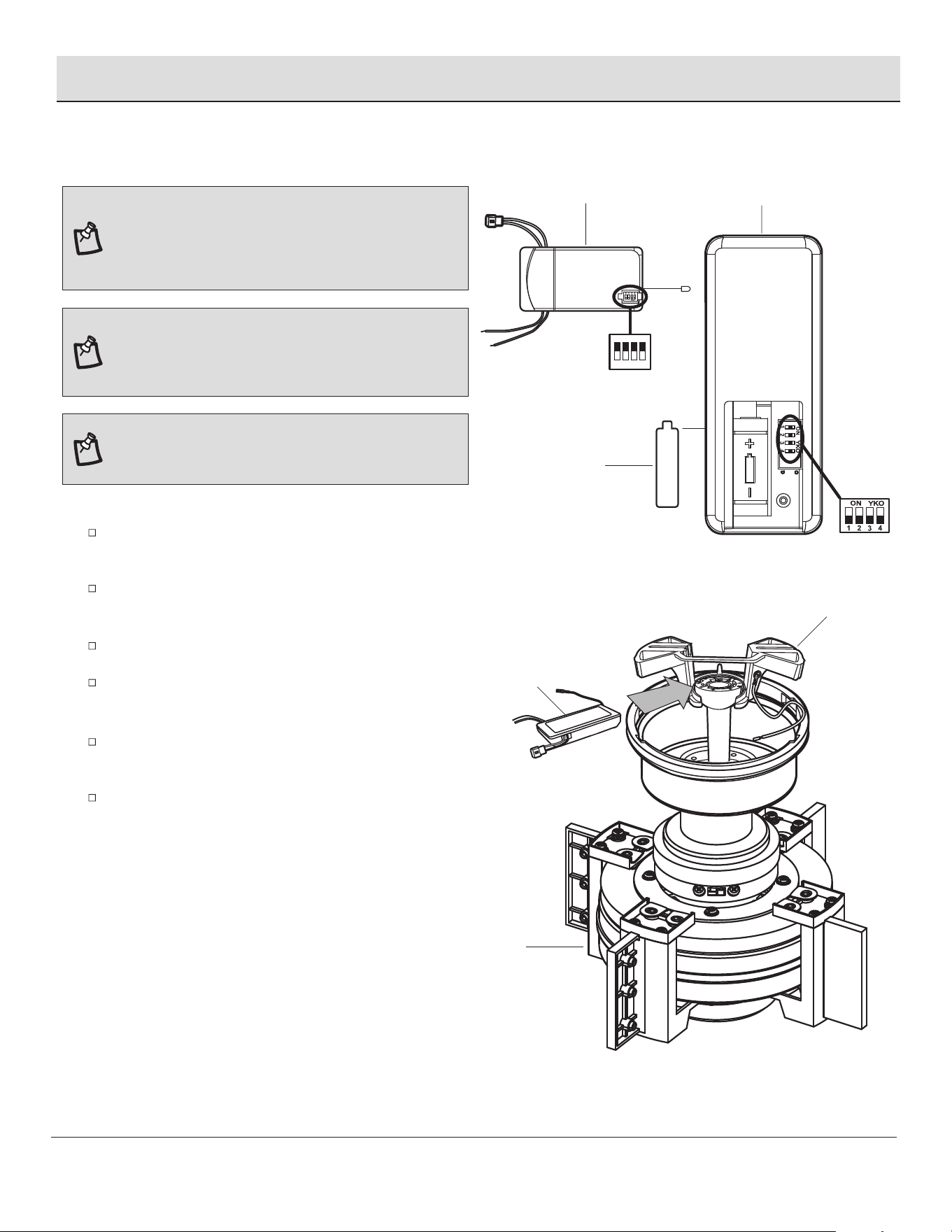

Preparing the receiver and remote
control
Setting the code on the remote:
Setting the code on the receiver:
Slide the code switches on the receiver (I) to the same
positions as set on the remote control (J).
After checking the switches, insert the receiver (I) into the
mounting bracket (A) with the flat side of the receiver (I)
facing the ceiling.
Remove the battery cover on the back of the remote control
(J) by pressing firmly on the arrow and sliding the cover off.
Slide the code switches to your choice of either up or down.
The factory setting is up.
Install the 23A 12V battery (CC) (included).
Replace the battery cover on the remote control (J).
NOTE: The frequencies on your receiver and remote control
have been preset at the factory. Before installing the receiver,
make sure the dip switches on the receiver and remote control
are set to the same frequency. The dip switches on the remote
control are located inside the battery compartment.
NOTE: The battery will weaken with age and should be
replaced before leaking takes place as this will damage the
remote control. Dispose of the used battery properly and keep
the battery out of the reach of children.
NOTE: The frequency switches on the receiving unit are
covered with a rubber cover, remove the rubber cover and then
replace it after making any changes to the frequency switches.
F
A
I
J
CC
23A 12V
23A 12V
I
3 41 2
ON
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
10
Assembly — Hanging the Fan (continued)
7
Making the electrical connections
AA
White
Green
Black
Black
Ground
White
conductor
Green
A
D
Outlet Box
2-pin connector
I
White
Black
White
Black
NOTE: The fan must be installed at a maximum distance of
20 ft. from the remote control for proper signal transmission
between the remote control and the fan's receiving unit.
NOTE: If a longer downrod (not included) is needed, use the
extension cord (DD) to connect with the motor wires and
receiver.
WARNING: Check to see that all connections are tight,
including ground, and that no bare wire is visible at the wire
nuts, except for the ground wire.
If you feel you do not have enough electrical wiring knowledge
or experience, have your fan installed by a licensed electrician.
Follow the steps below to connect the fan to your household
wiring. Use the plastic wire nuts (AA) with your fan. Secure the
plastic wire nuts (AA) with electrical tape. Make sure there are
no loose strands or connections.
WARNING: To reduce the risk of electric shock, this fan
must be installed with an isolating wall control/switch.
Insert the receiver (I) into the mounting bracket (A) with
the flat side of the receiver (I) facing the ceiling.
Make wire connections from the fan to the receiver (I).
From fan To receiver
2-pin connector -------------- 2-pin connector
Make wire connections from the receiver (I) and fan to the
outlet box as follows, using the wire nuts (AA).
From receiver To outlet box
Black wire "AC in L" --------- Black wire (hot)
White wire "AC in N" -------- White wire (neutral)
From fan To outlet box
Green wires* ----------------- Green or bare wire (ground)
* There are two green grounding leads: one from the mounting
bracket (A) and one from the hanger ball/downrod assembly (D).
Turn the wire nut connections upward, spreading them
apart so the green (ground) and white wires will be on one
side of the outlet box and the black wire will be on the
other side. Carefully tuck the connections up into the
outlet box.
11
Assembly — Hanging the Fan (continued)
8
Installing the canopy
WARNING: The locking slots of the canopy (C) are provided
only as an aid to mounting. Do not leave the fan assembly
unattended until all four canopy mounting screws with lock
washers (FF) are engaged and firmly tightened.
WARNING: Make sure the tab on the mounting bracket (A)
properly sits in the groove in the hanger ball/downrod
assembly (D) before attaching the canopy (C) to the mounting
bracket (A) by turning the canopy (C) until it drops into place.
□ Slide the canopy (C) up to the ceiling. Make sure you
have placed the wires safely into the outlet box.
□ Secure the canopy (C) to the mounting bracket (A)
with the four canopy mounting screws with lock
washers (FF) included with your fan.
□ Raise up the canopy ring (B) and line up the four
grooves with the four screw heads on the canopy (C).
Once lined up, slide the canopy ring (B) and secure it
to the canopy (C) until snug.
FF
Outlet Box
A
FF
B
D
C
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
12
Assembly — Attaching the Fan Blades
WARNING: To reduce the risk of personal injury, do not
bend the blades (G) while installing, balancing the blades (G),
or cleaning the fan.
WARNING: Do not insert foreign objects between rotating
fan blades (G).
9

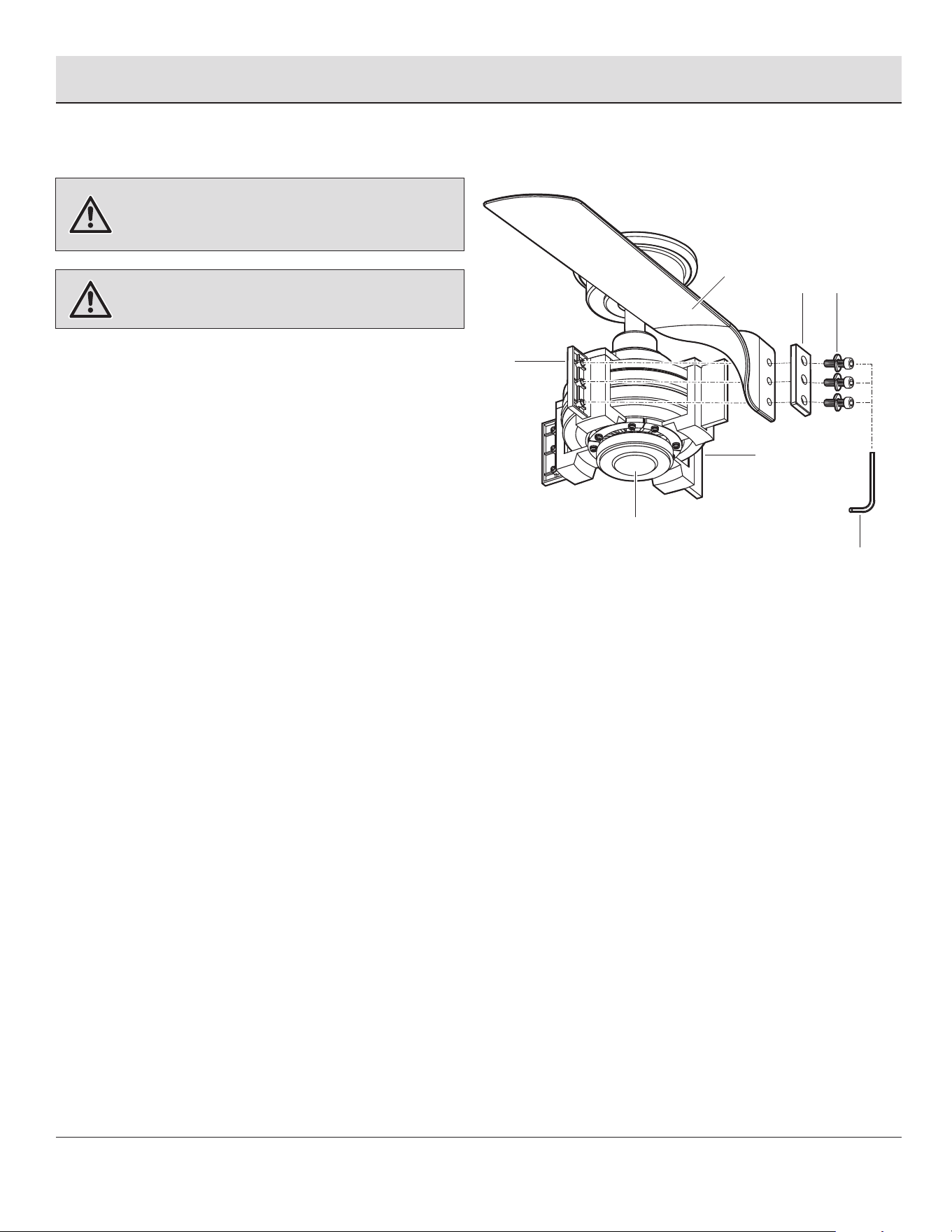

Attaching the fan blades
□ Align the holes from the blade (G) to the holes from
blade arm (PP), and secure the blade in place with
blade support plate (H) and blade attachment screws
with lock washers (BB) by using the hex wrench (EE)
provided.
□ Repeat this procedure with the remaining blades (G).
□ Check and make sure the decorative cover (QQ) is
secured properly.
BB
PP
H
EE
QQ
F
G
13
Operation
Power ON/OFF: Press and release the power button to turn
the fan on or off.
Fan speed: LEDs on the fan speed button will illuminate to
the corresponding speed.
Press and release 1 time: turns the fan on high speed.
Press and release 2 times: turns the fan on medium speed.
Press and release 3 times: turns the fan on low speed.
Press and release 4 times: turns the fan off.
J

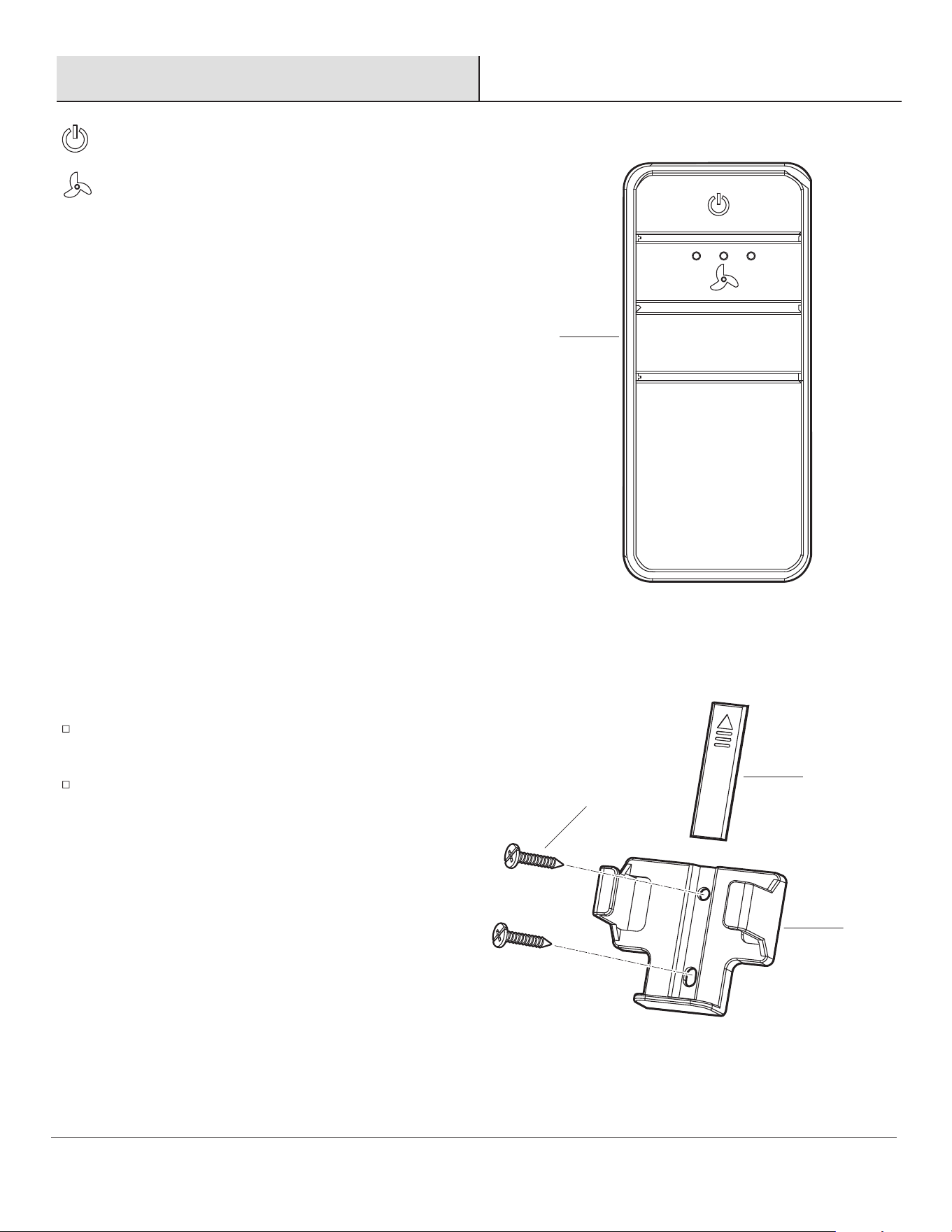

INSTALLING THE REMOTE CONTROL HOLDER
Attach the remote control holder (RR) with the two remote
control holder mounting screws (SS).
Replace the remote control holder cover (TT) into the remote
control holder (RR).
SS
TT
RR
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
14
Operation (continued)
NOTE: Wait for the fan to stop before reversing the direction
of the blade rotation.

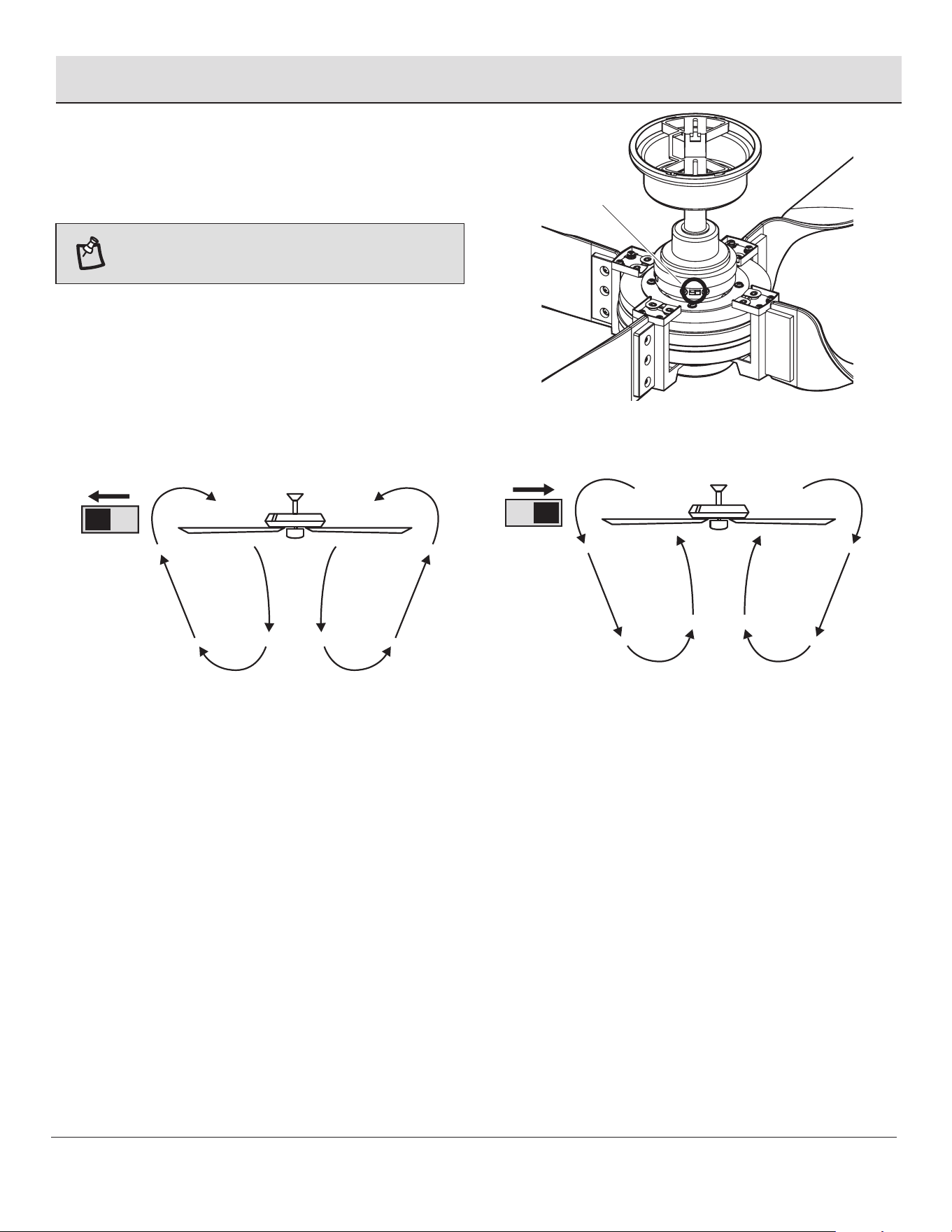

REVERSE SWITCH OPERATING INSTRUCTIONS
The reverse switch is located on the top of the motor housing.
Slide the switch to the left for warm weather operation. Slide the
switch to the right for cool weather operation.
Cool weather - (Clockwise direction) An upward air flow moves
warm air off the ceiling. This allows you to set your heating unit on
a cooler setting without affecting your comfort.
Warm weather - (Counterclockwise direction) A downward air flow
creates a cooling effect. This allows you to set your air conditioner
on a warmer setting without affecting your comfort.
Reverse switch
15
Do not connect the fan with wall mounted variable speed control(s).
Make sure the frequency switches are set correctly.
The fan wobbles.
The remote control is
not working.
Problem Solution
Check the main and branch circuit fuses or breakers.
Check the line wire connections to the fan and switch wire connections in the switch housing.
Check to make sure the frequency switches from the remote control and receiver are set to the same
frequency.
Make sure all motor housing screws are snug.
Make sure the screws that attach the fan blade to the motor hub are tight.
Make sure the wire nut connections are not rattling against each other or the interior wall of the switch
housing.
Allow a 24-hour "breaking-in" period. Most noises associated with a new fan disappear during this time.
Make sure there is a short distance from the ceiling to the canopy. It should not touch the ceiling.
Make sure your ceiling box is secure and that rubber isolator pads are used between the mounting
bracket and outlet box.
The fan will not start.
The fan sounds noisy.
Verify that all blades and blade bracket screws are secure (most fan wobble problems are caused by
loose parts). Once the fan is properly installed, run the ceiling fan for 10 minutes to let the fan self-adjust.
If wobble occurs after running the fan for 10 minutes, verify blade level using the following process:
- Select a point on the ceiling above the tip of one of the blades, then select any fan blade and measure
from the center of the selected blade to the point on the ceiling. Rotate the fan until the next blade is
positioned and repeat the measurement using the same point from the ceiling for every blade.
Measurement deviations should be within 1/8 in.
- If all deviations are less than 1/8 in. and the fan continues to wobble, please call Customer Service
(1-855-HD-HAMPTON) to order a complimentary blade balancing kit.
- If deviation is greater than 1/8 in. , please call Customer Service (1-855-HD-HAMPTON) to order complimentary
replacements of your brackets.
Troubleshooting
Care and Cleaning
Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. Because of the fan’s
natural movement, some connections may become loose over time. It is not necessary to remove the fan from the ceiling.
Clean your fan periodically. Use only a soft brush or lint-free cloth to avoid scratching the finish. The plating is sealed with a lacquer to
minimize discoloration or tarnishing.
(Optional) Apply a light coat of furniture polish to the wood blades.
(Optional) Cover small scratches with a light application of shoe polish.
Do
Use water when cleaning. Water could damage the motor, or the wood, or possibly cause an electrical shock.
Apply oil to your fan or motor. The motor has permanently-lubricated sealed ball bearings.
Do not
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
Retain this manual for future use.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
