"6. Firmware Update"
Instruction Manual
En
NETWORK STEREO RECEIVER /
NETWORK STEREO AMPLIFIER
TX-8470
Contents

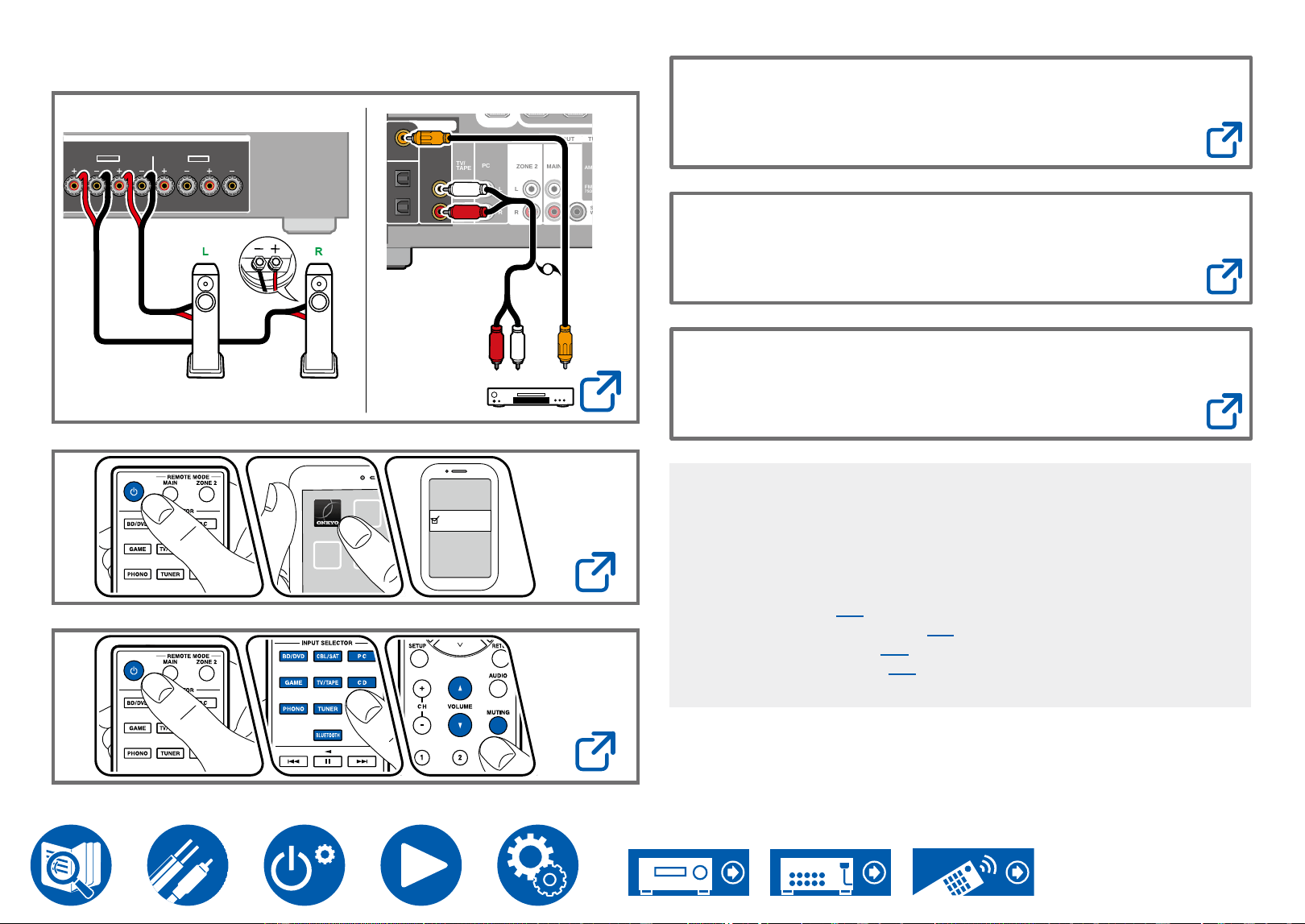

2
Reducing the Power Consumption in Standby
State
When the following functions are enabled, the power consumption in
standby state increases. To reduce the power consumption in standby state,
check each setting and set the functions to "O".
– HDMI CEC ( →p79)
– HDMI Standby Through ( →p79)
– Network Standby ( →p80)
– Bluetooth Wakeup ( →p80)
Table of contents
Detailed contents (Next page)
Firmware Update
Troubleshooting
Supplementary Information
FM
75Ω
CD
COAXIAL
GAME
TV/TAPE
OPTICAL
AUDIO IN
CD PC
TV/
TAPE
PRE/LINE
OUT
PRE OUT
ZONE 2 MAIN
MM MC
GND
DIGITAL IN
SUB-
WOOFER
AM
TUNER
L
R
L
R
L
R
OR
SPEAKERS
R L
A
LR
B
SUB-
WOOFER
TX-8470
TX-8470(192.168.XXX.XXX)
ConnectionsConnections
Initial SetupInitial Setup
PlaybackPlayback
3
Before starting the procedure 6
Firmware Update 7
Update Information of the rmware 7
Checking the Firmware Version of the Unit 7
Firmware Update Procedure 7
Part Names 10

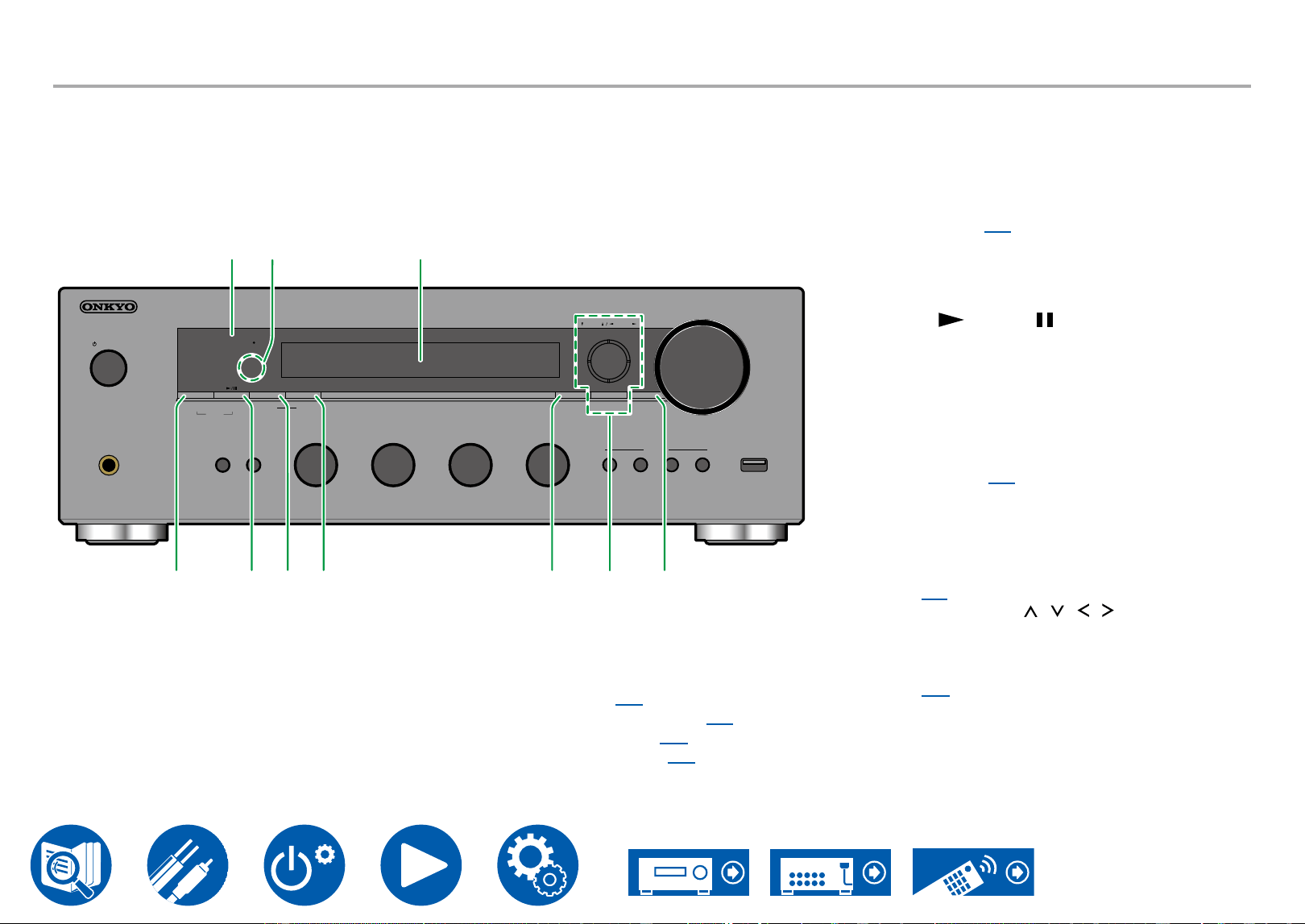

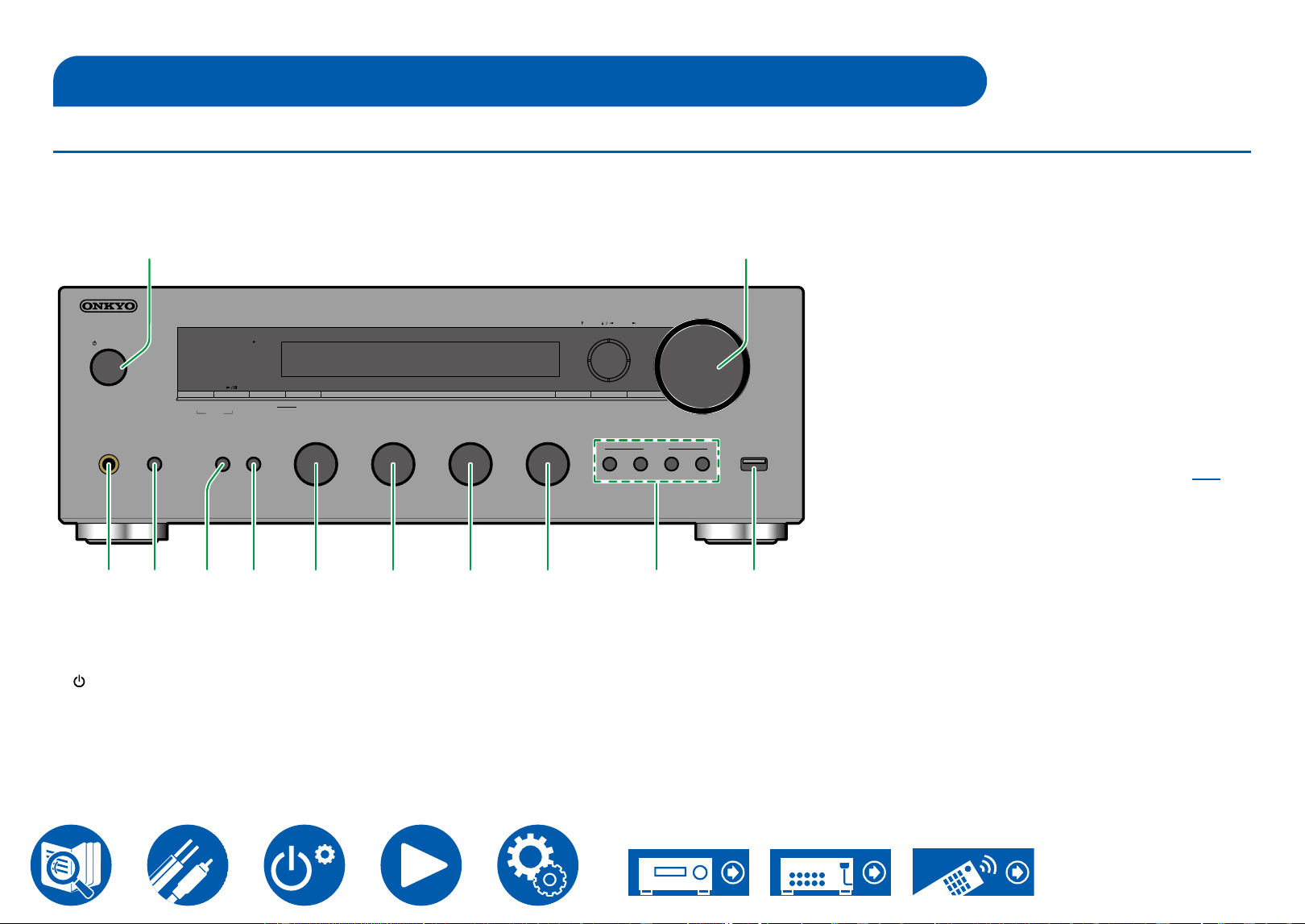

Front Panel 10

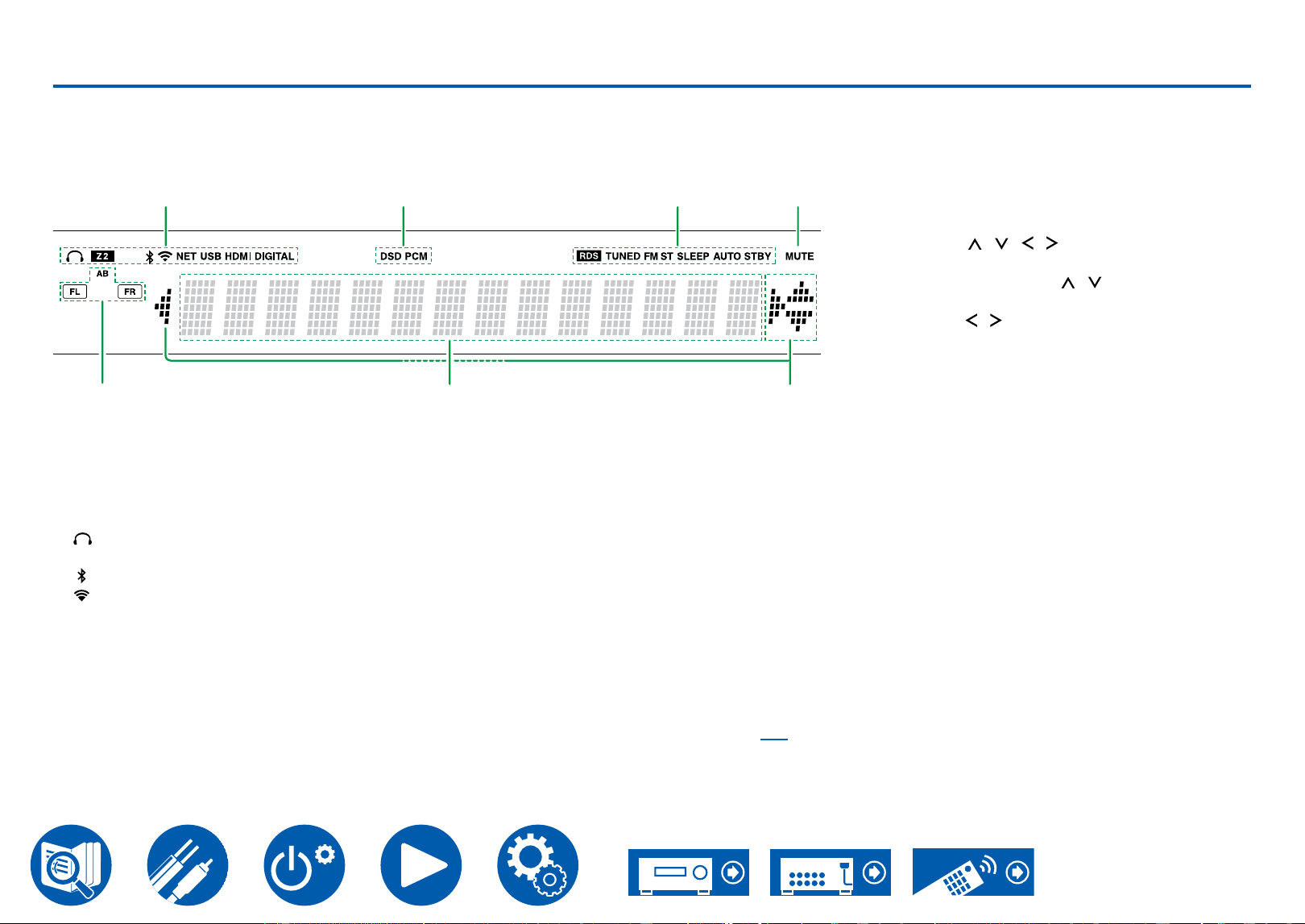

Display 12

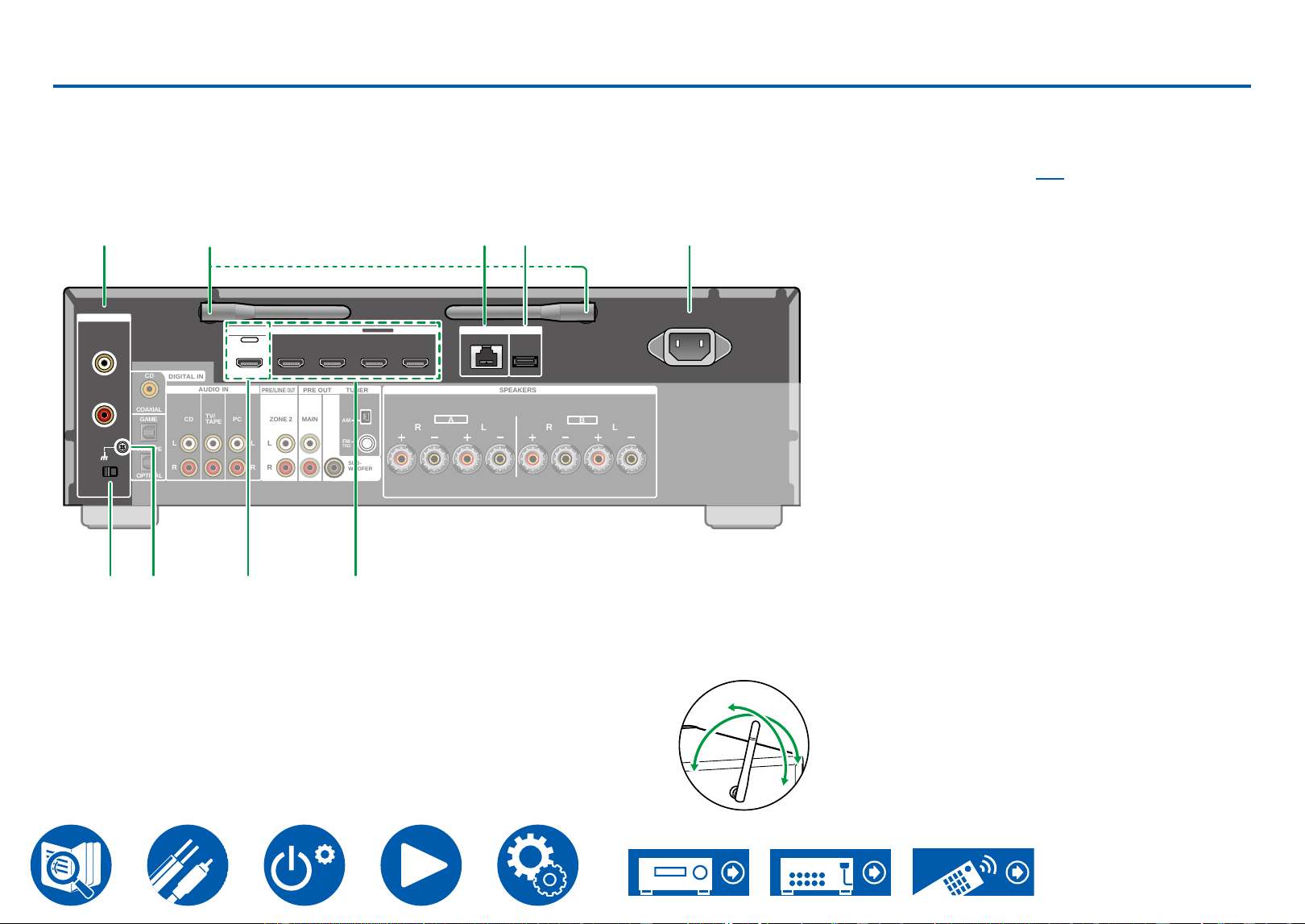

Rear Panel 13

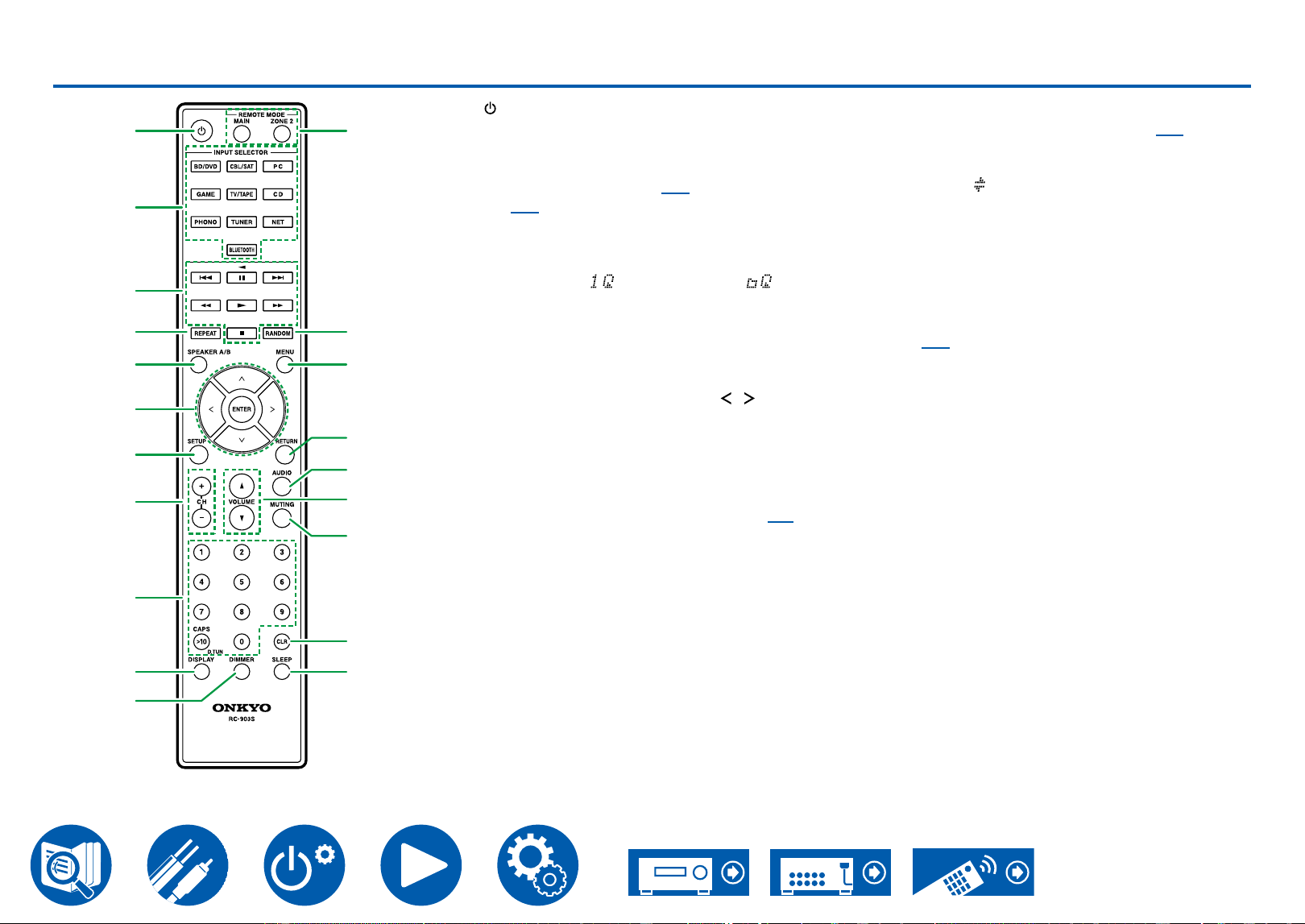

Remote Controller 15

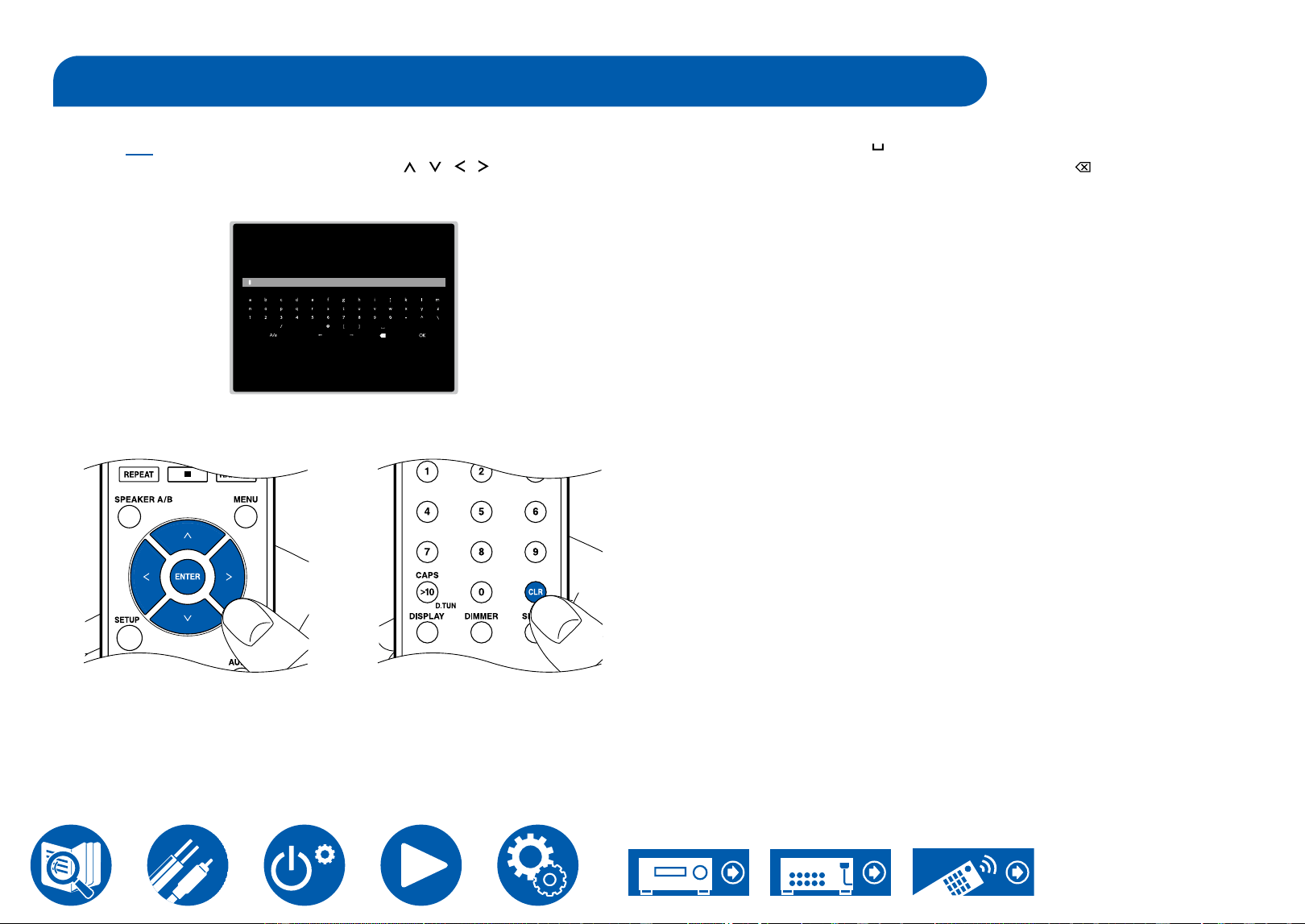

Inputting Characters 16
Connections
Speakers you can use with this unit and cable
connections 18

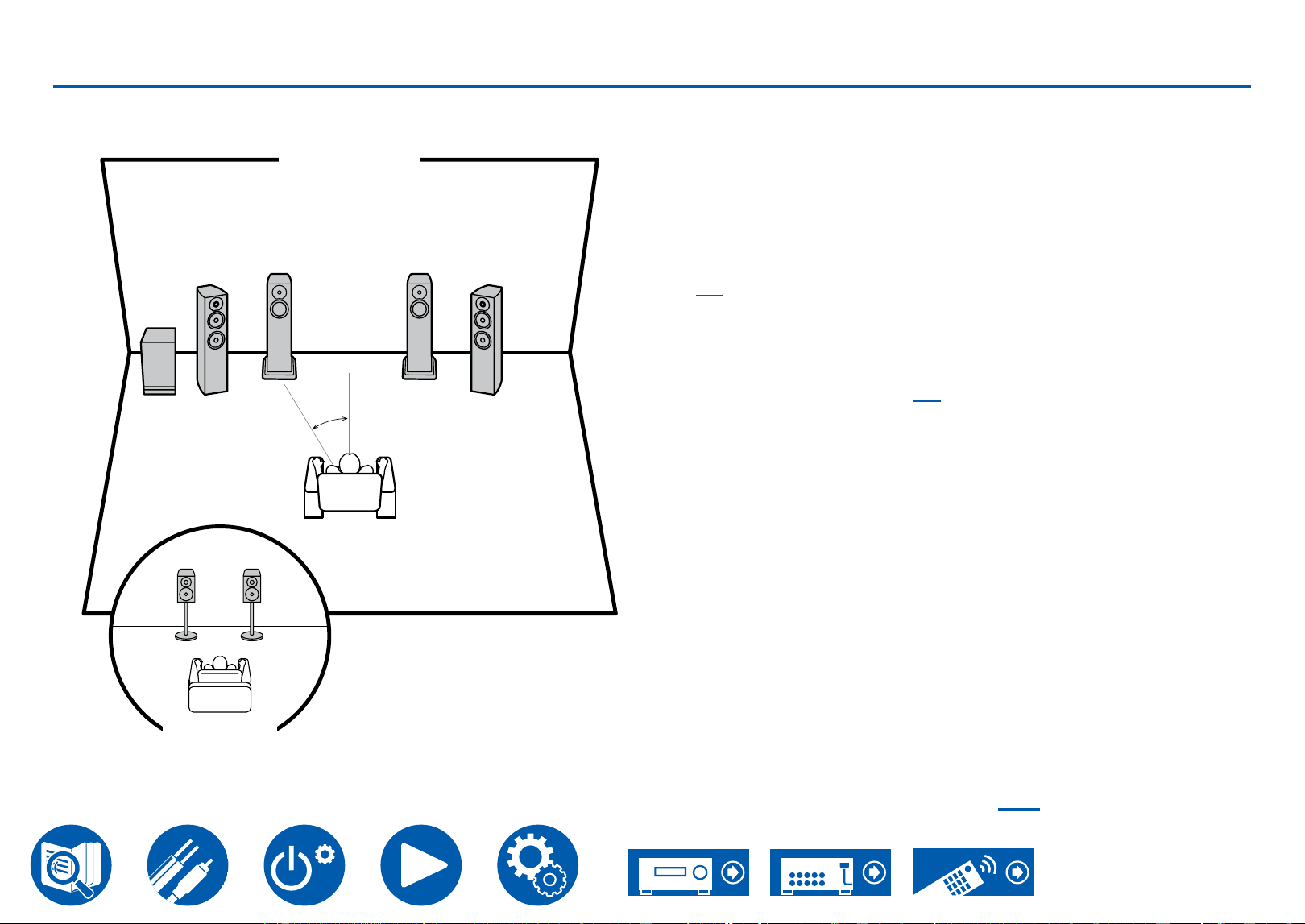

Speaker layout 19

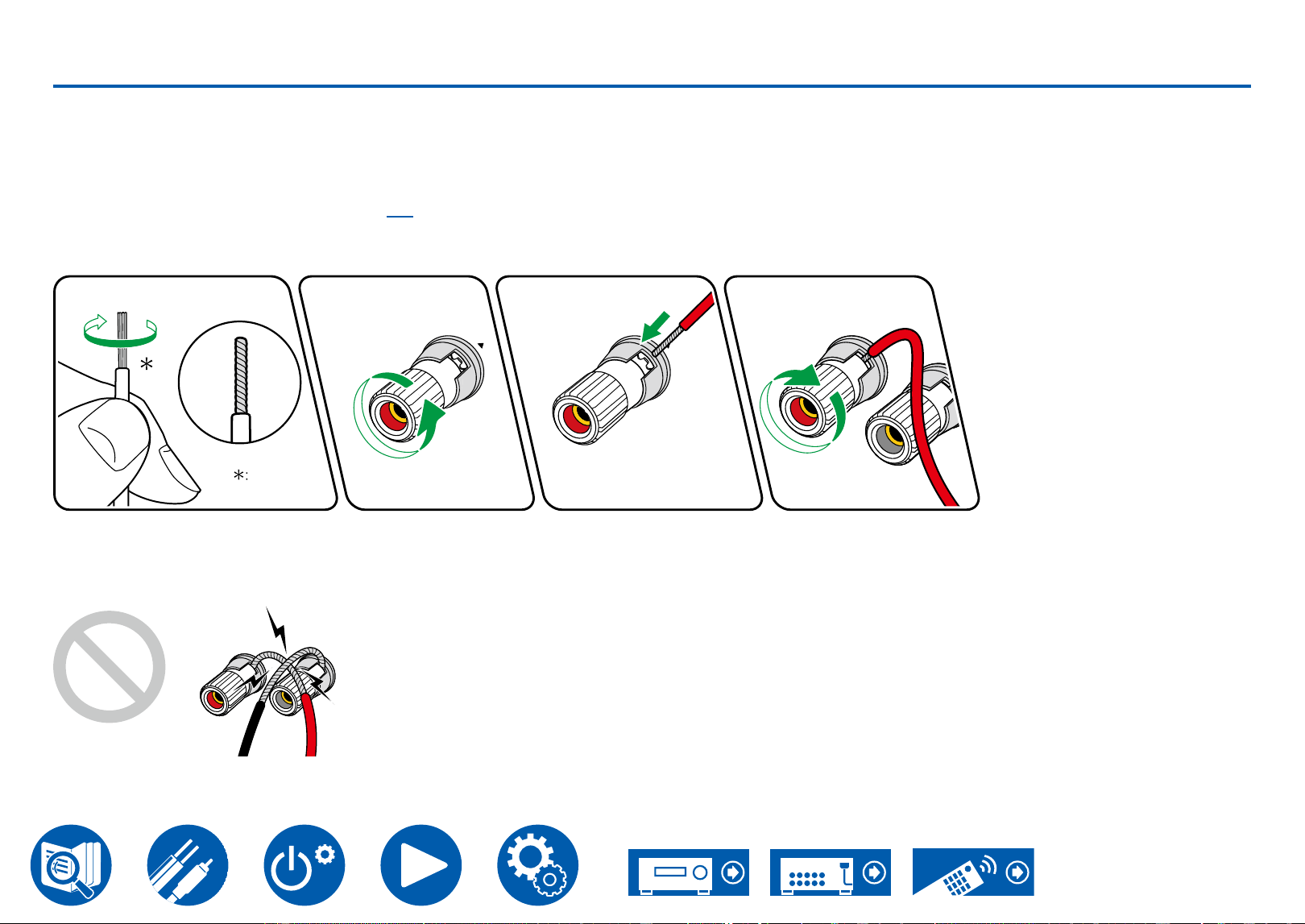

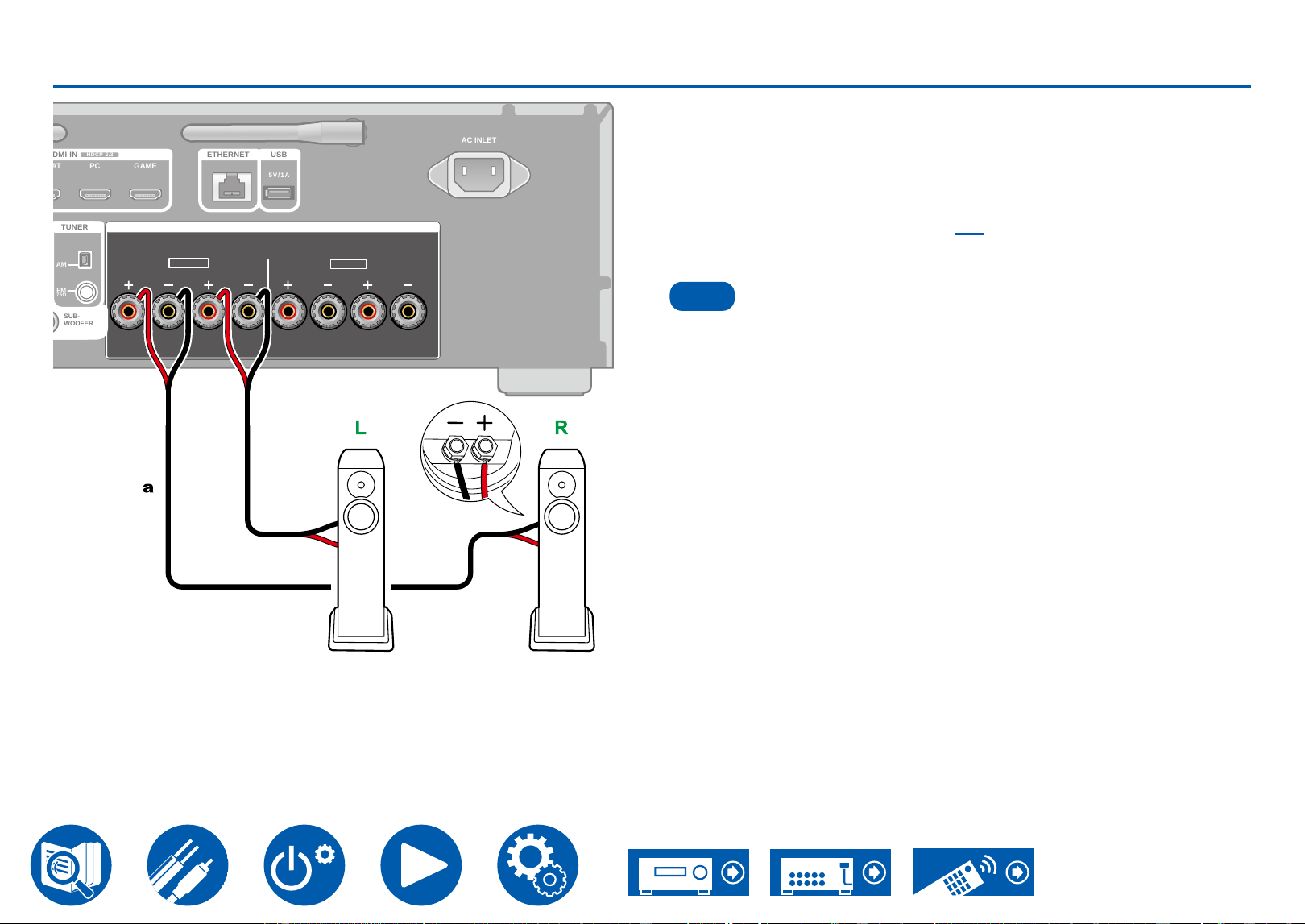

Connecting speakers 20

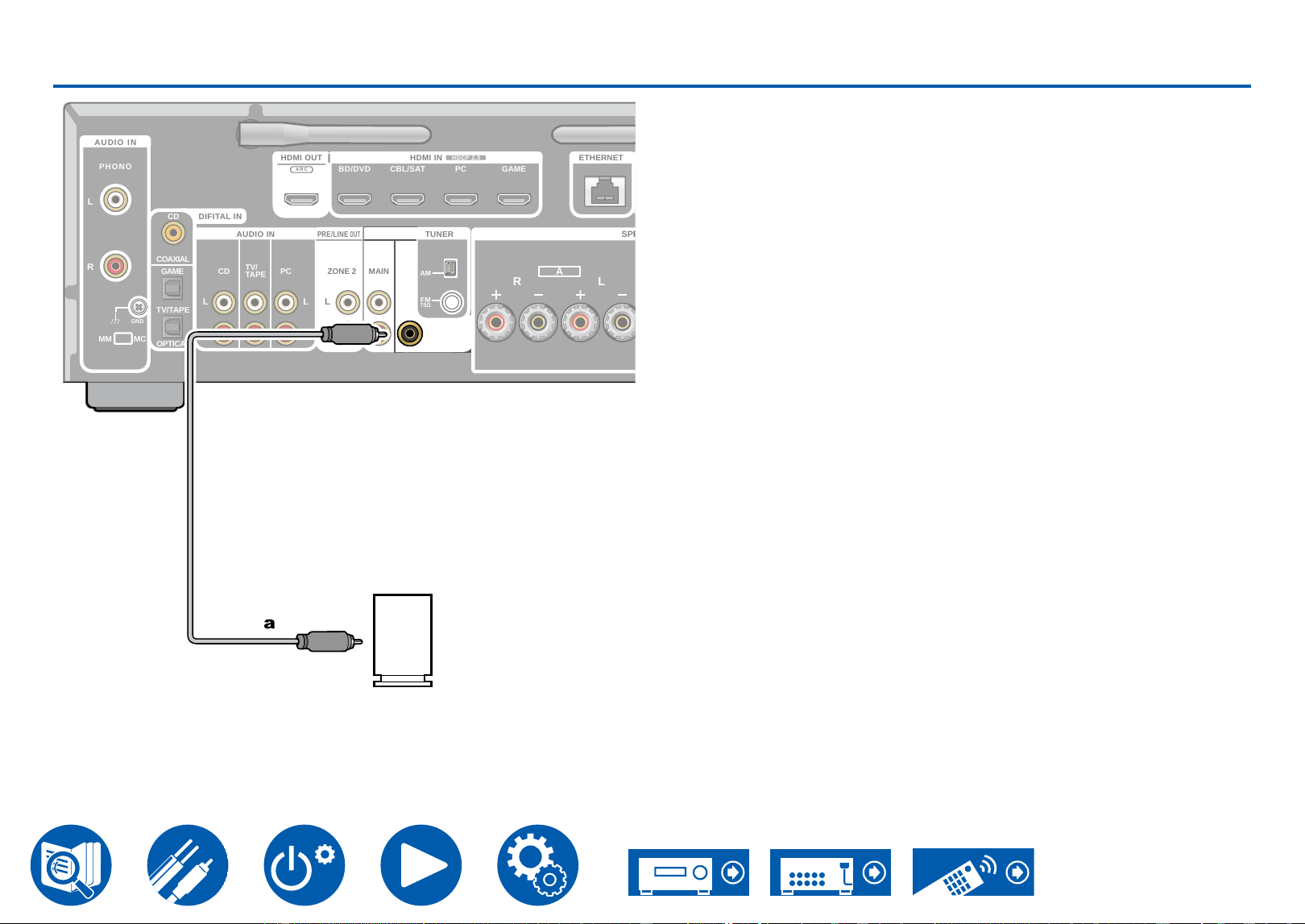

Connecting the Subwoofer 21

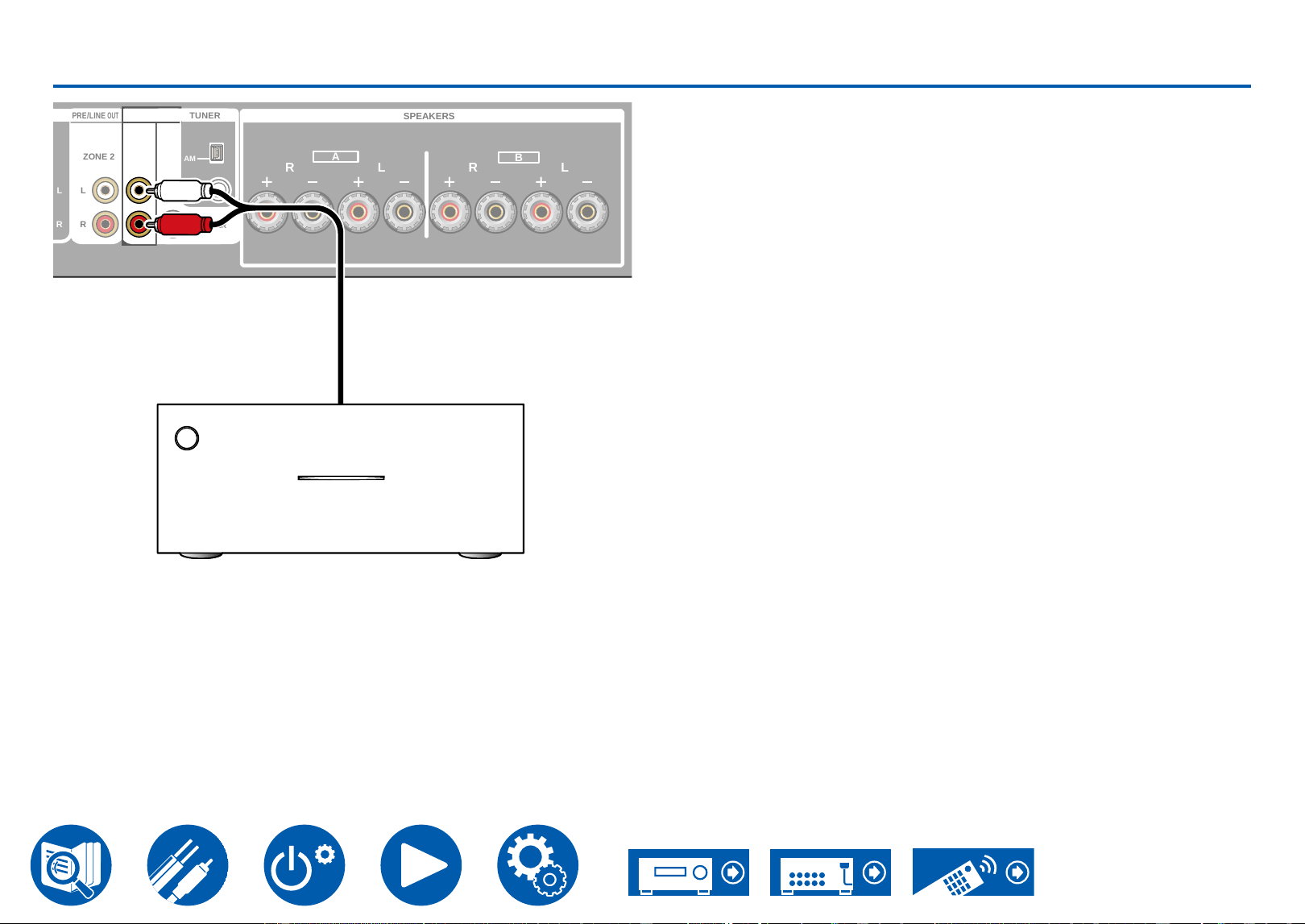

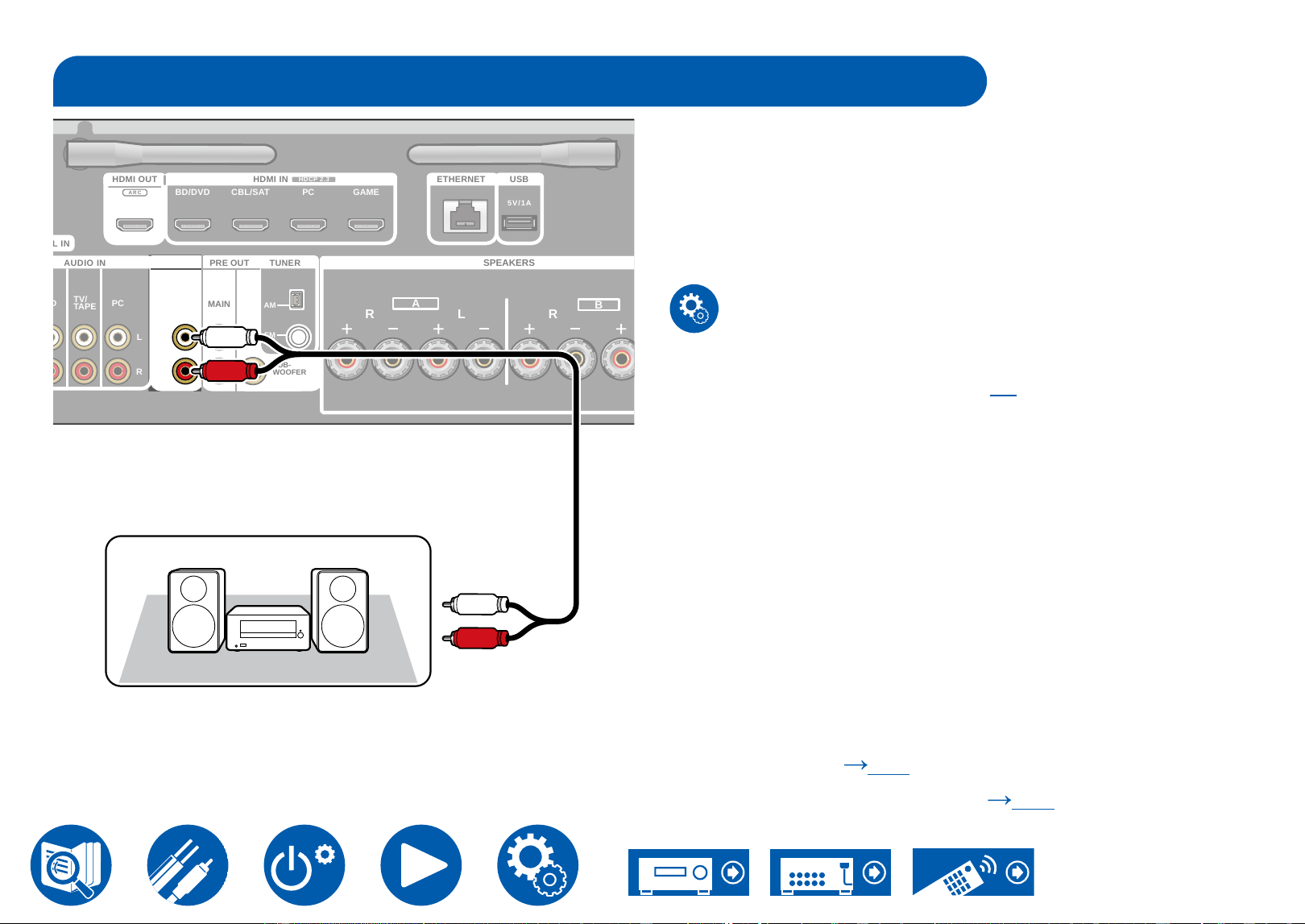

Connecting a Power Amplier 22
Notes regarding connections with HDMI cables 23
Connections 23

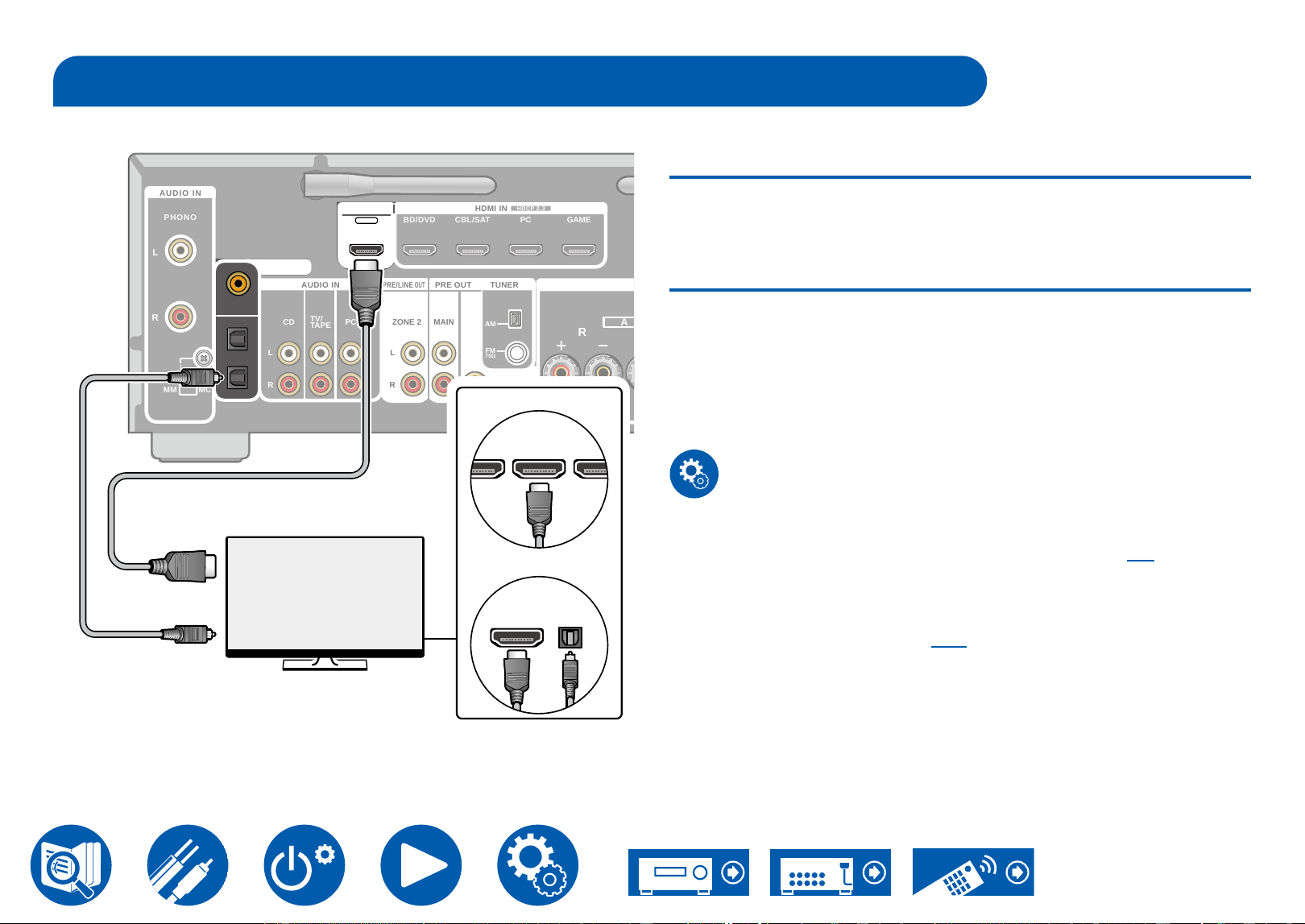

Connecting the TV 24
To ARC TV 24
To Non-ARC TV 24
Connecting Playback Devices 26

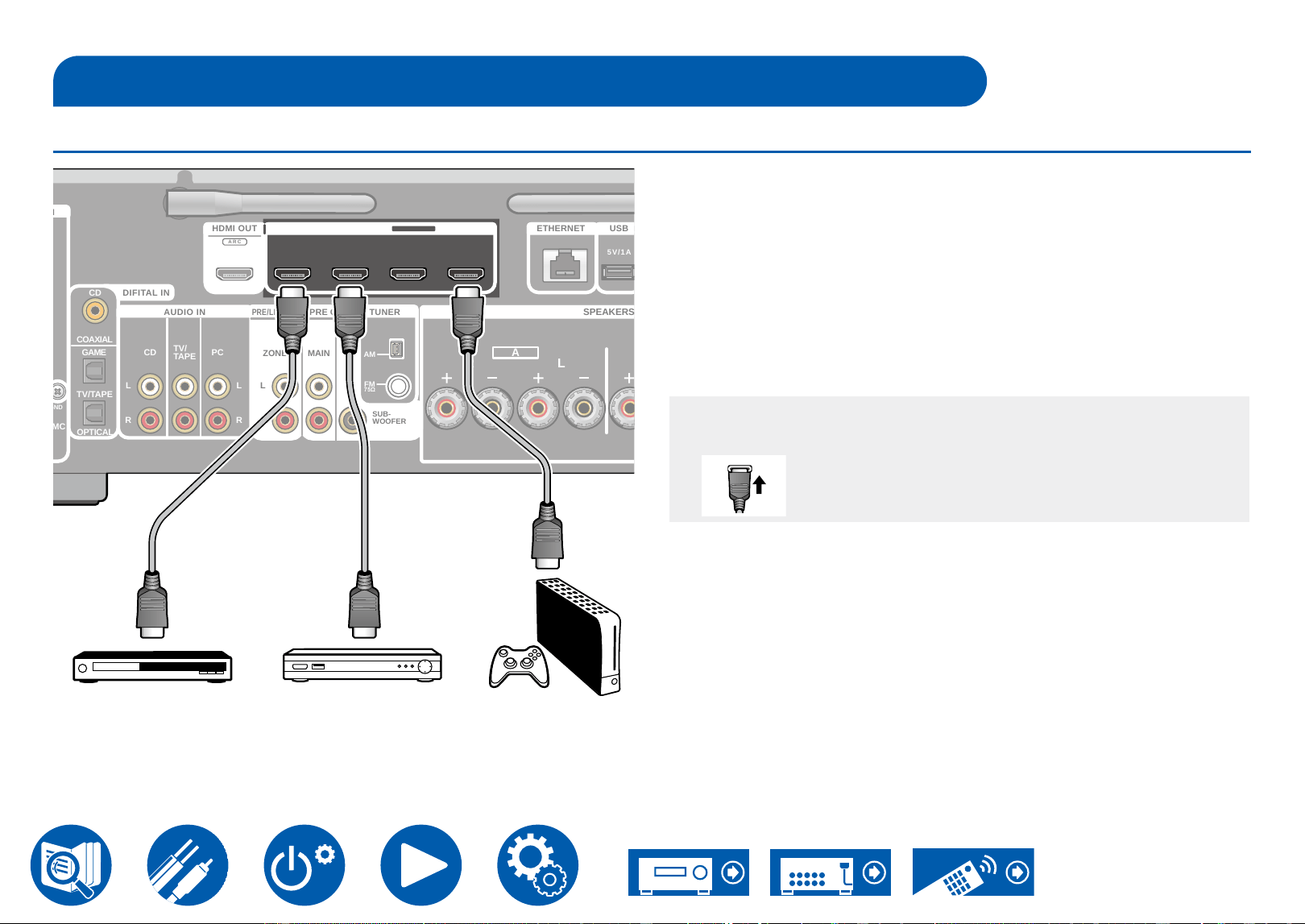

Connecting a Blu-ray/DVD Disc player and Game
console 26

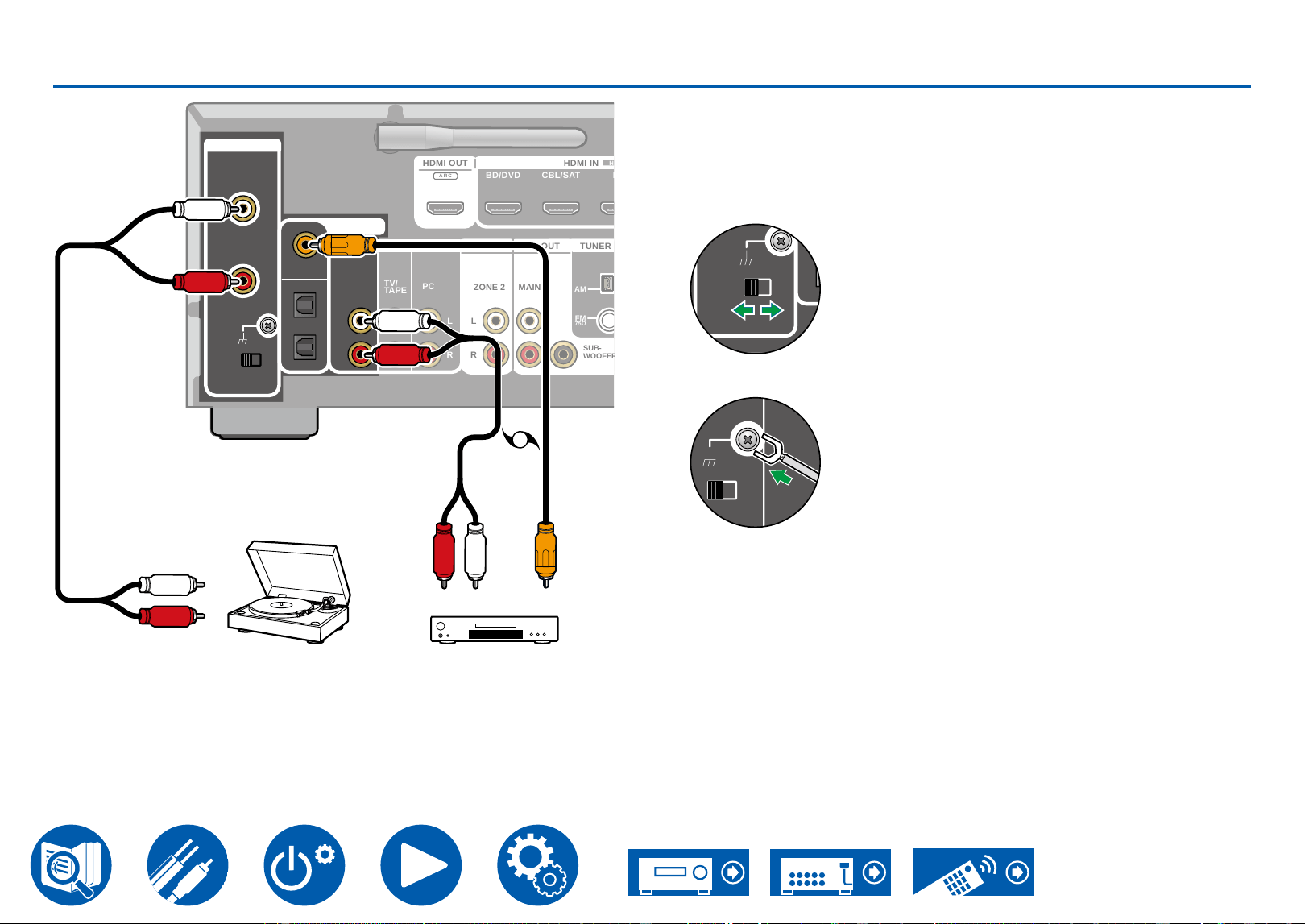

Connecting an Audio Component 27
Connecting an Integrated Amplier in a
separate room (Multi-zone) 28

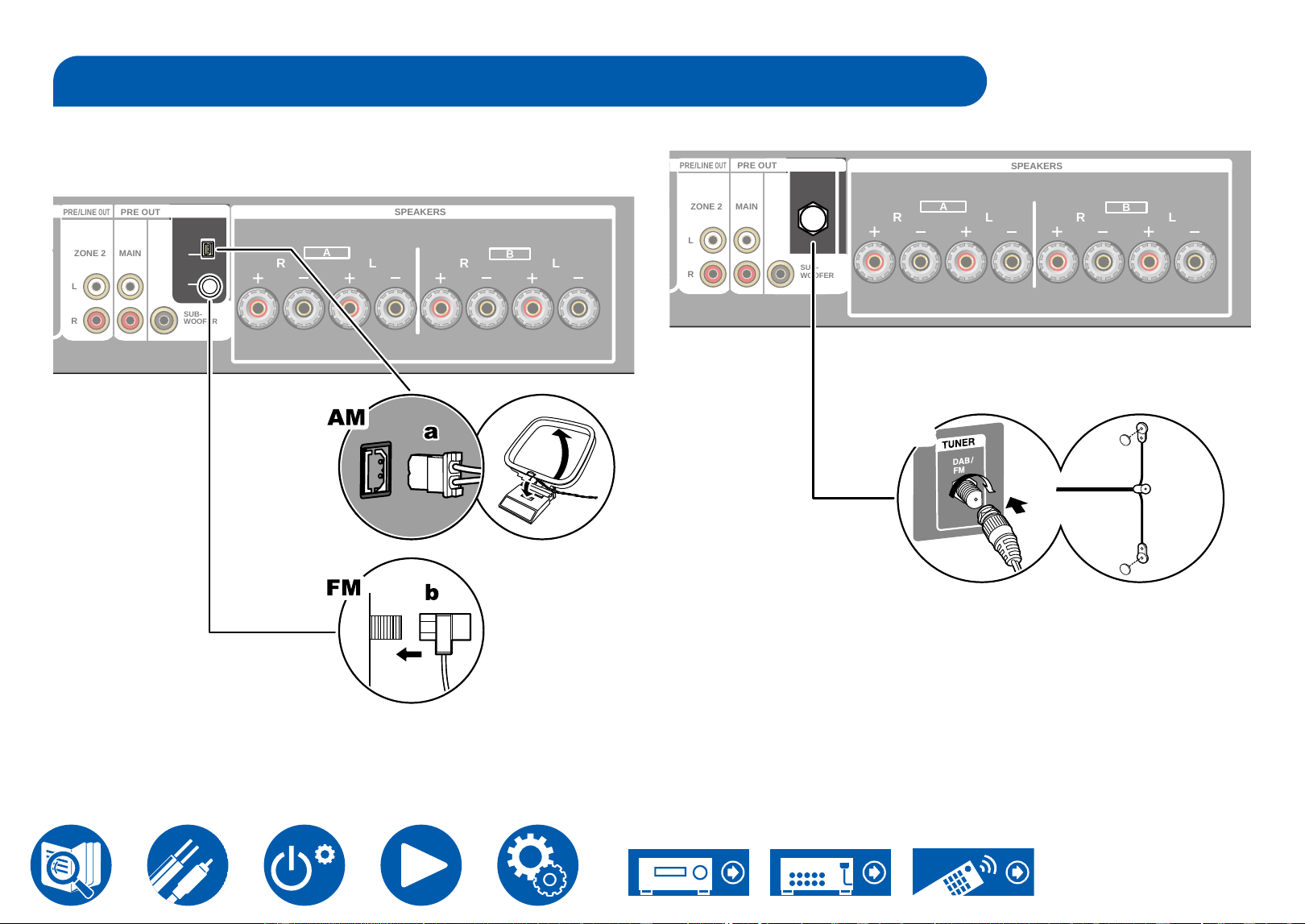

Connecting Antennas (North American
and European models) 29

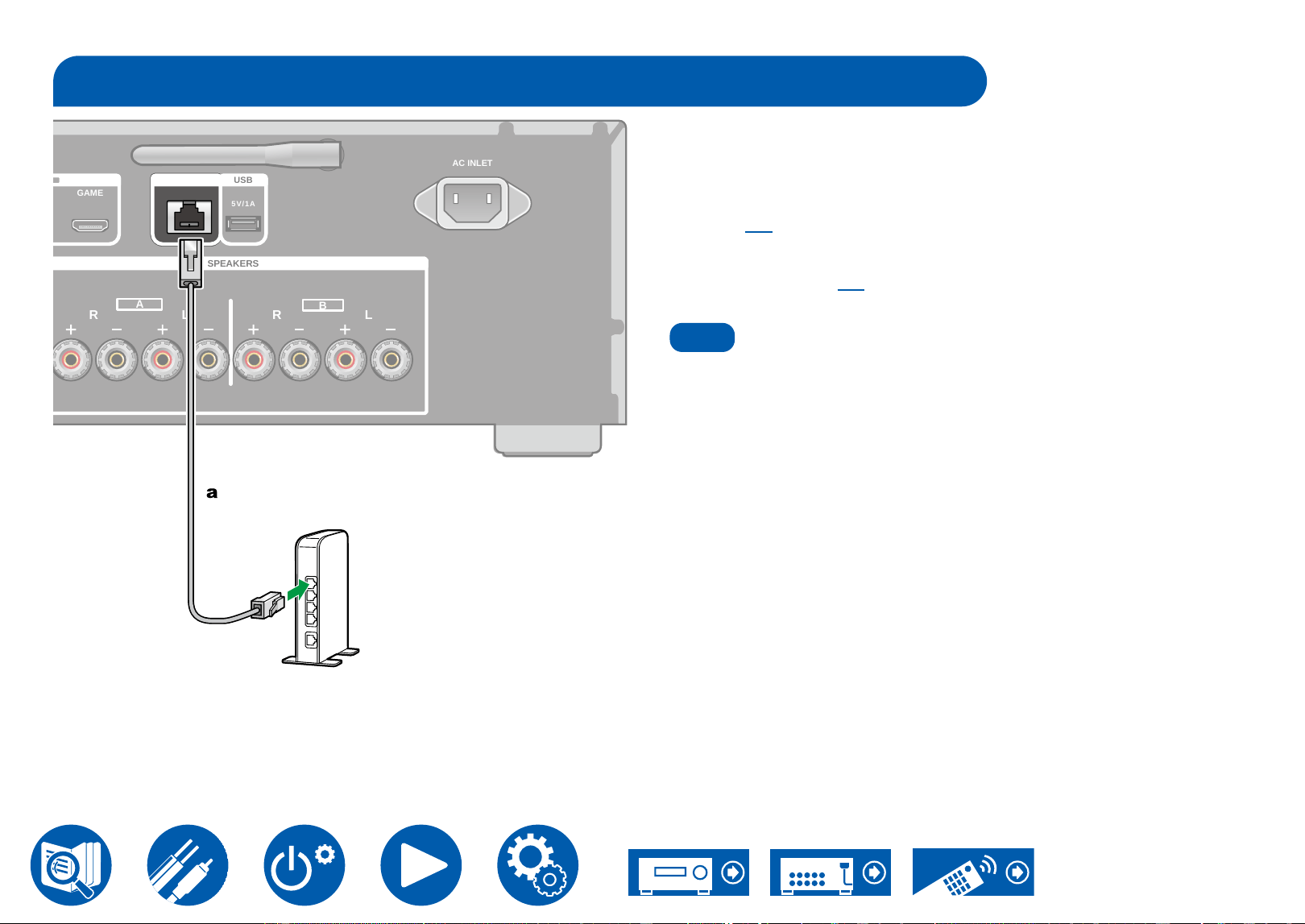

Network Connection 30

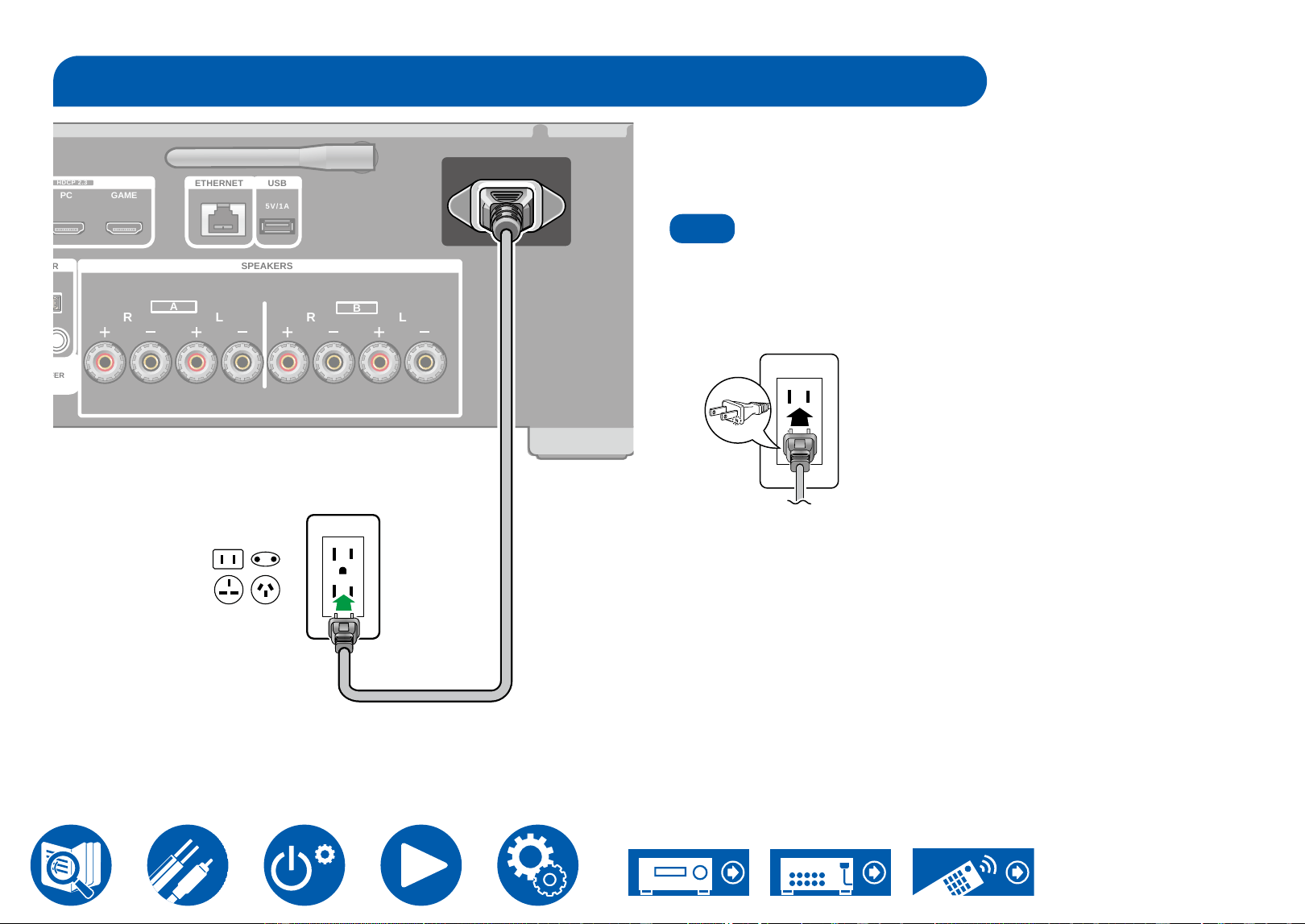

Connecting the Power Cord 31
Initial Setup
Before starting the procedure 33

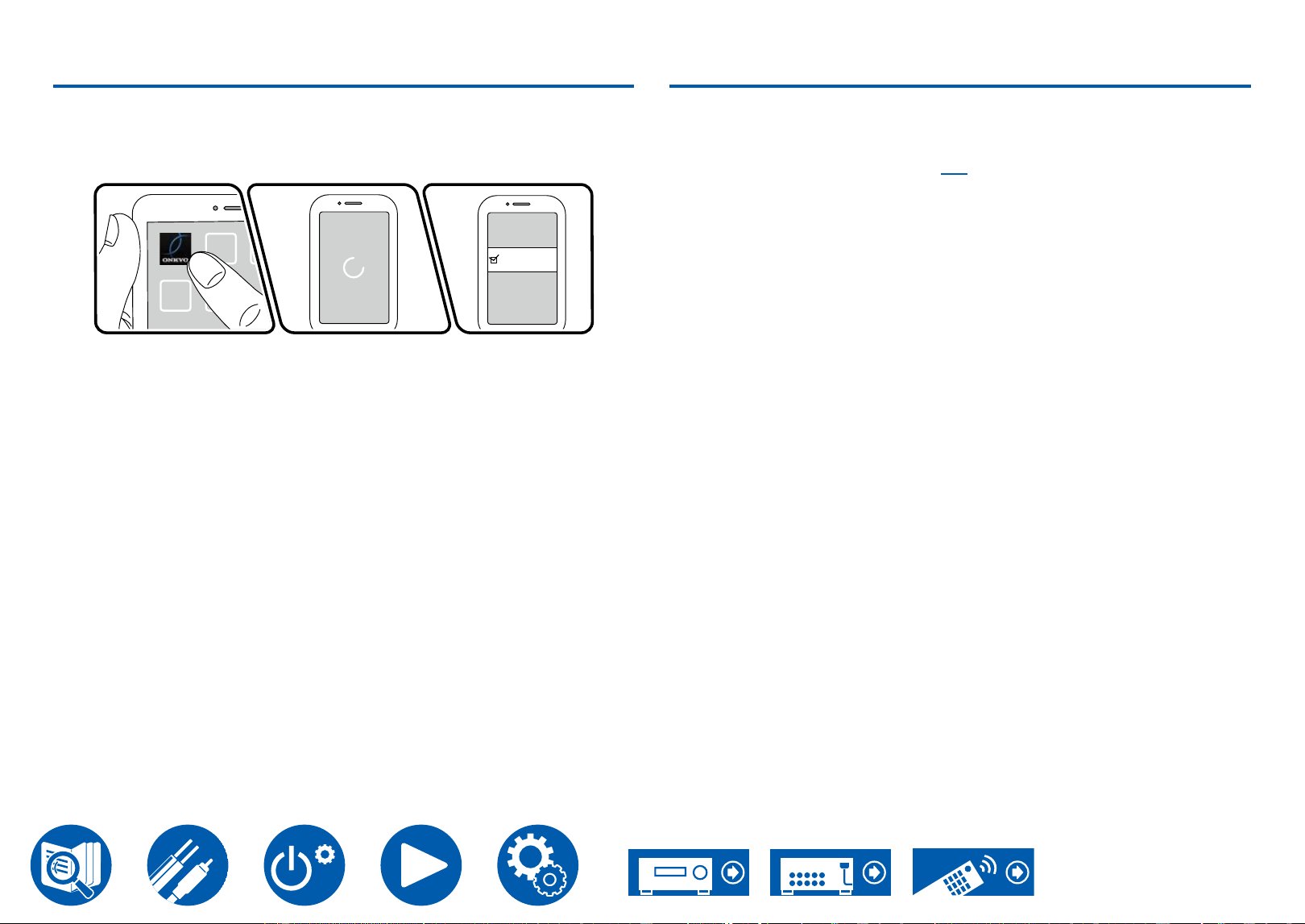

1. Install the app 33
2. Connect the unit to Wi-Fi 34
Set the impedance 34
Playback
Basic Operations 36

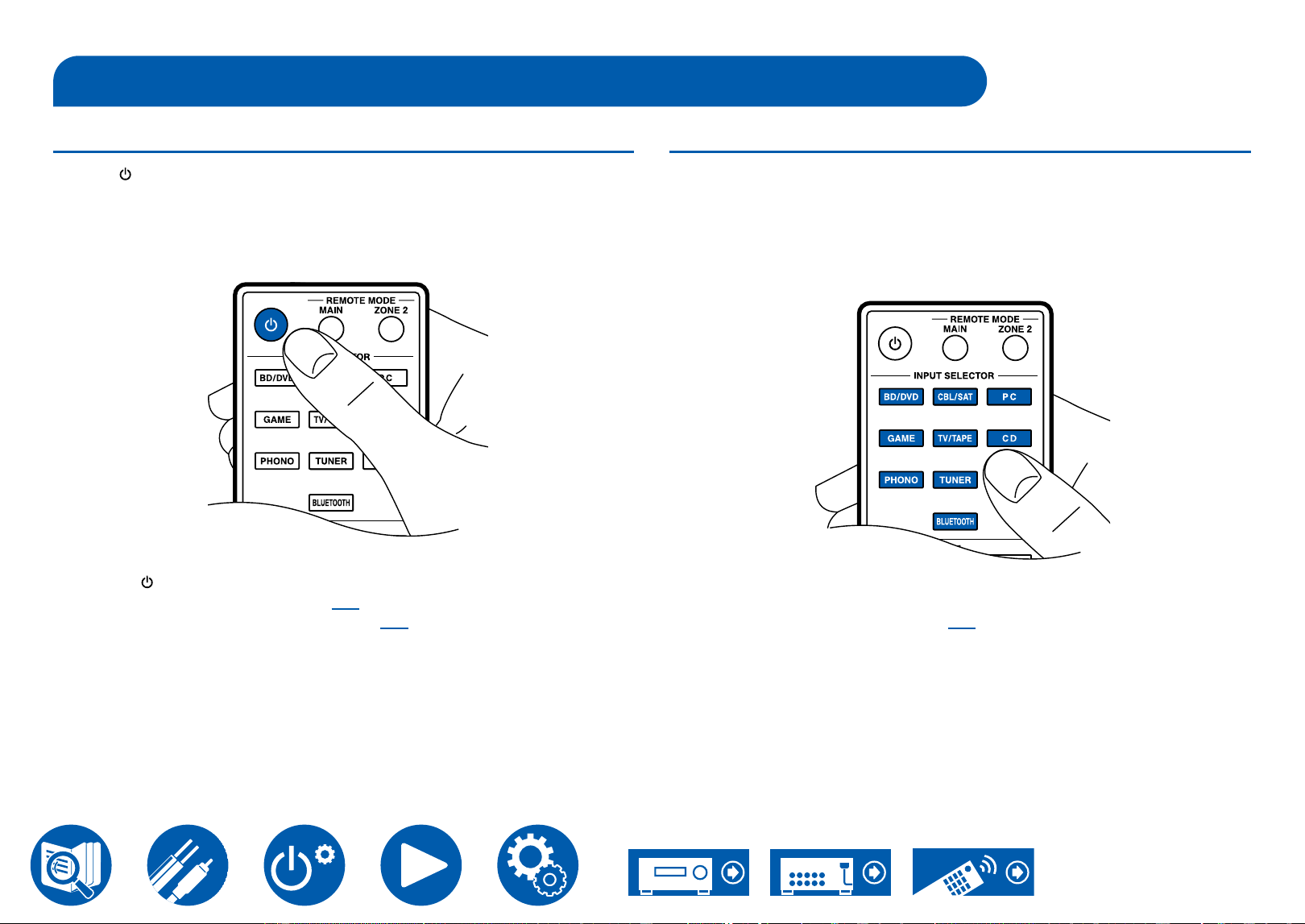

Turning the power on 36
Selecting a source to play 36

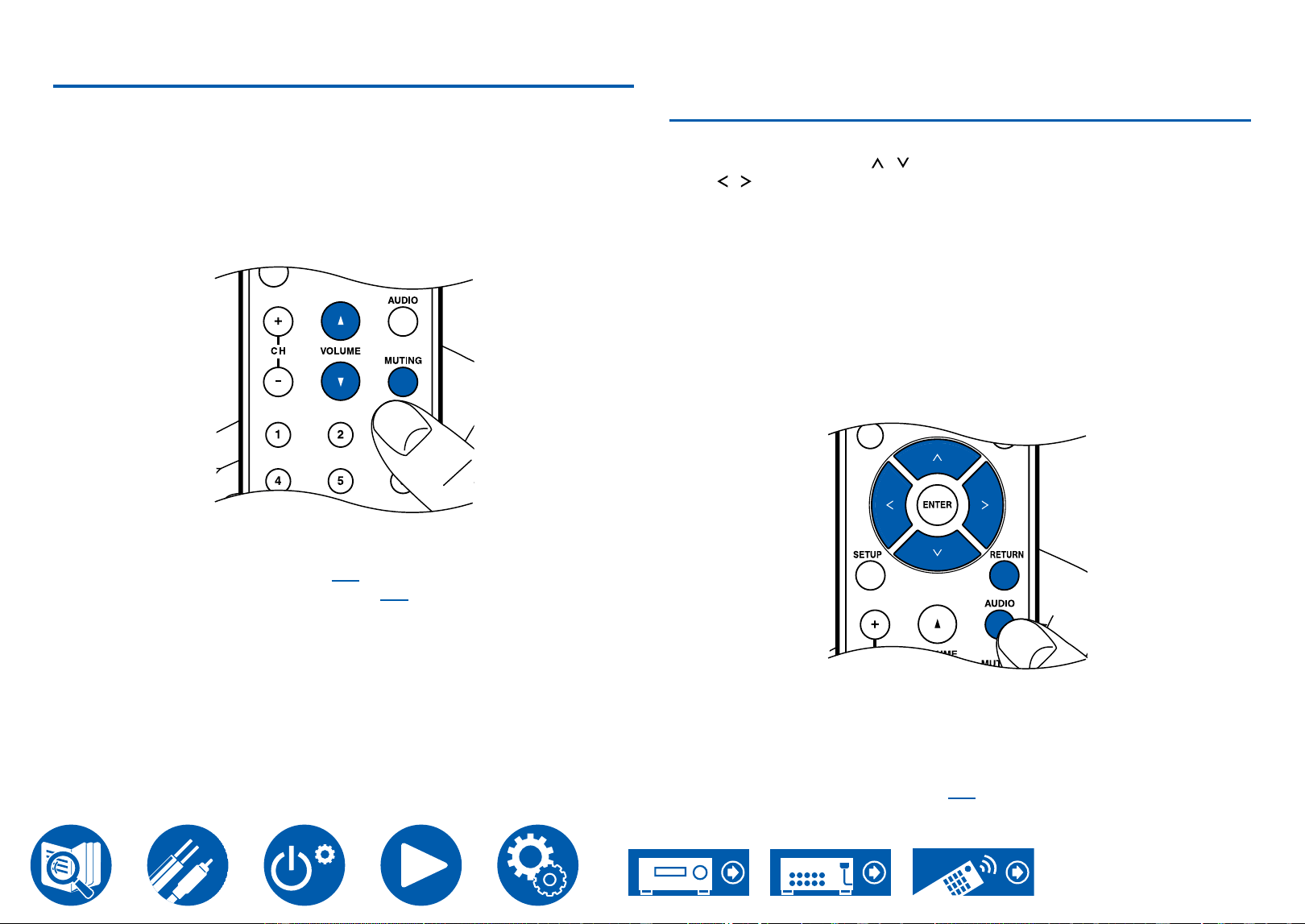

Adjusting the volume 37
Adjusting the sound quality and left/right volume
balance 37

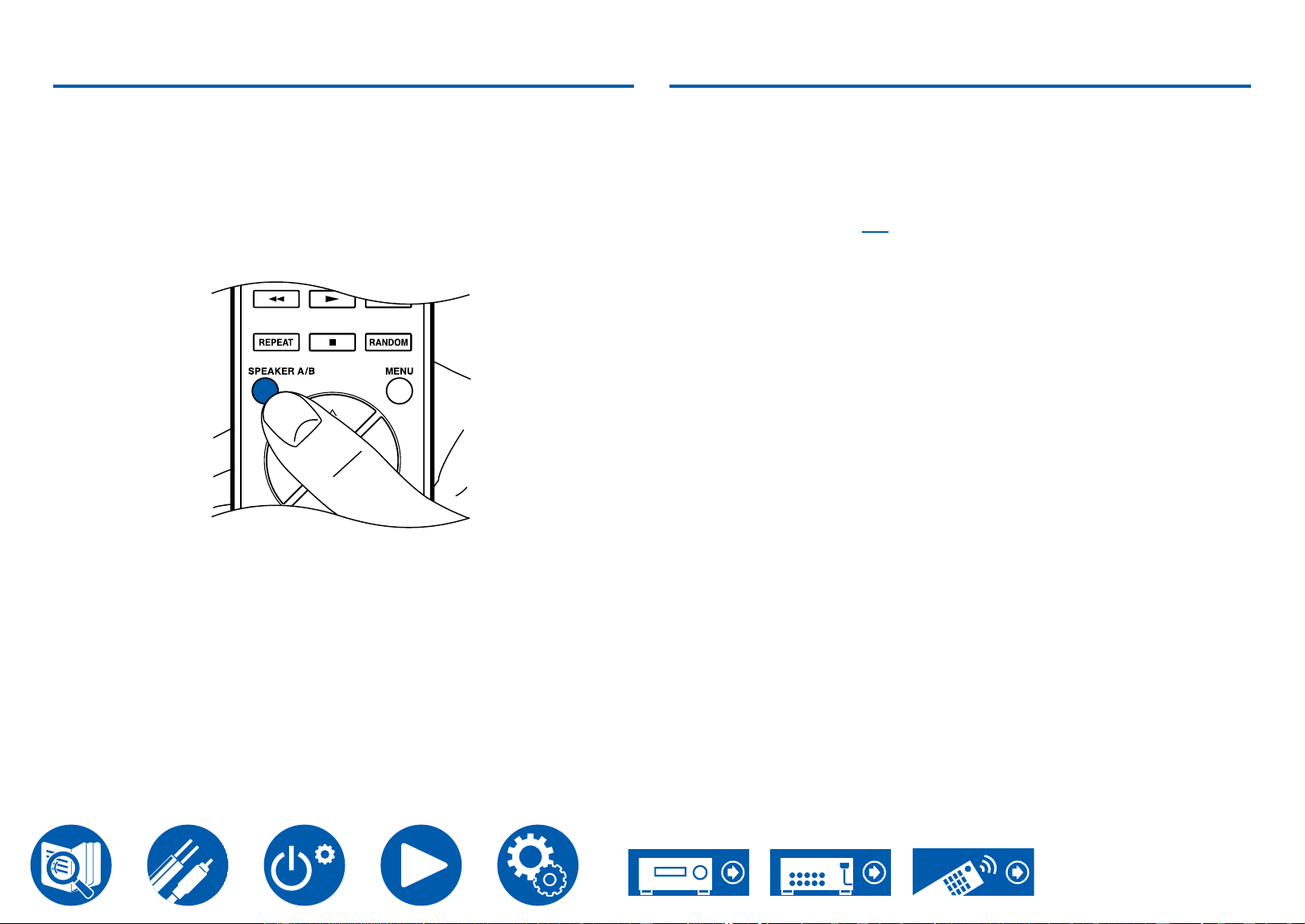

Switching speakers 38
Using the linking function (HDMI CEC) 38
Switching the display 39
4
Bluetooth
®
Playback 40

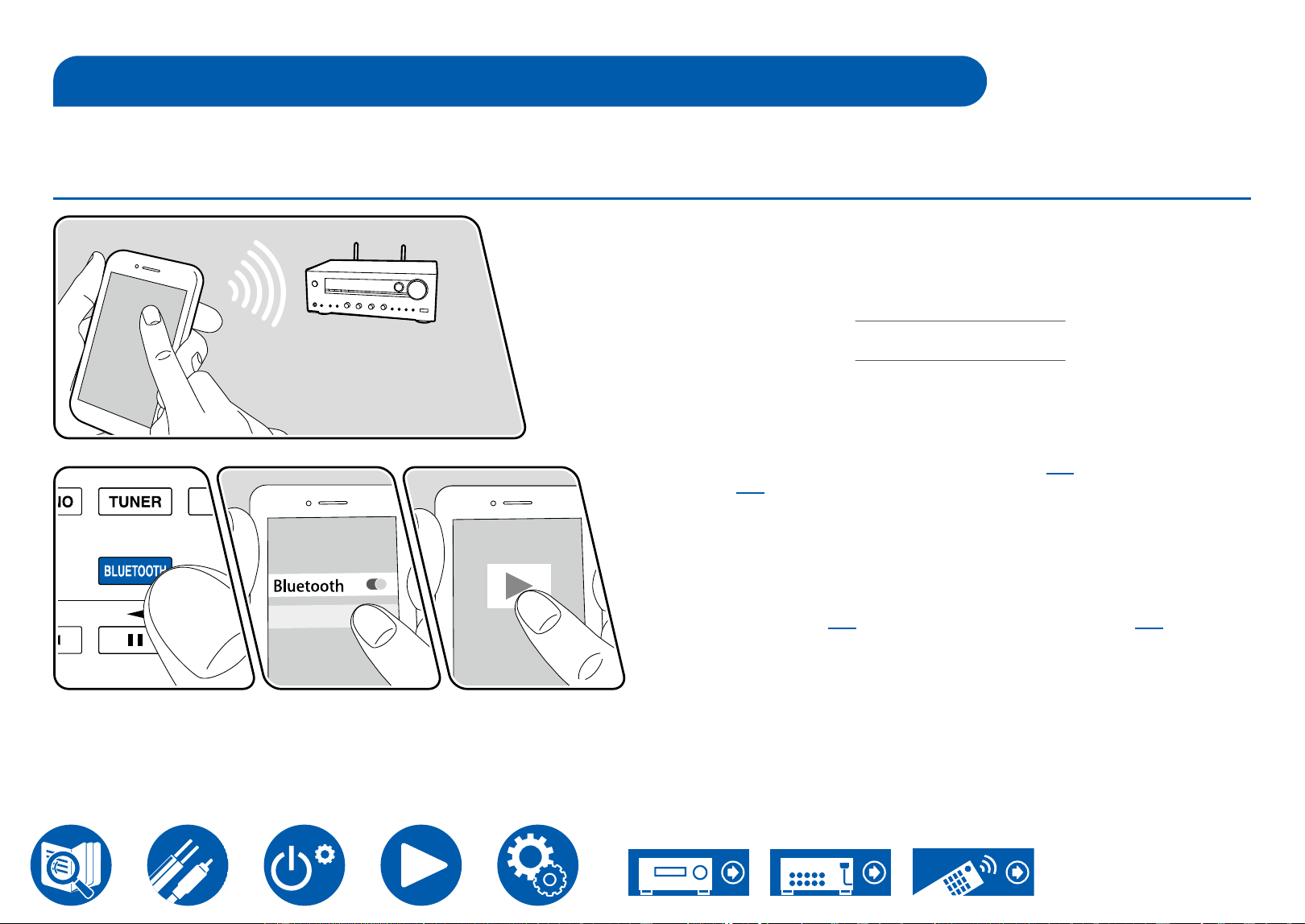

Playing audio from Bluetooth wireless technology
enabled devices with this unit 40

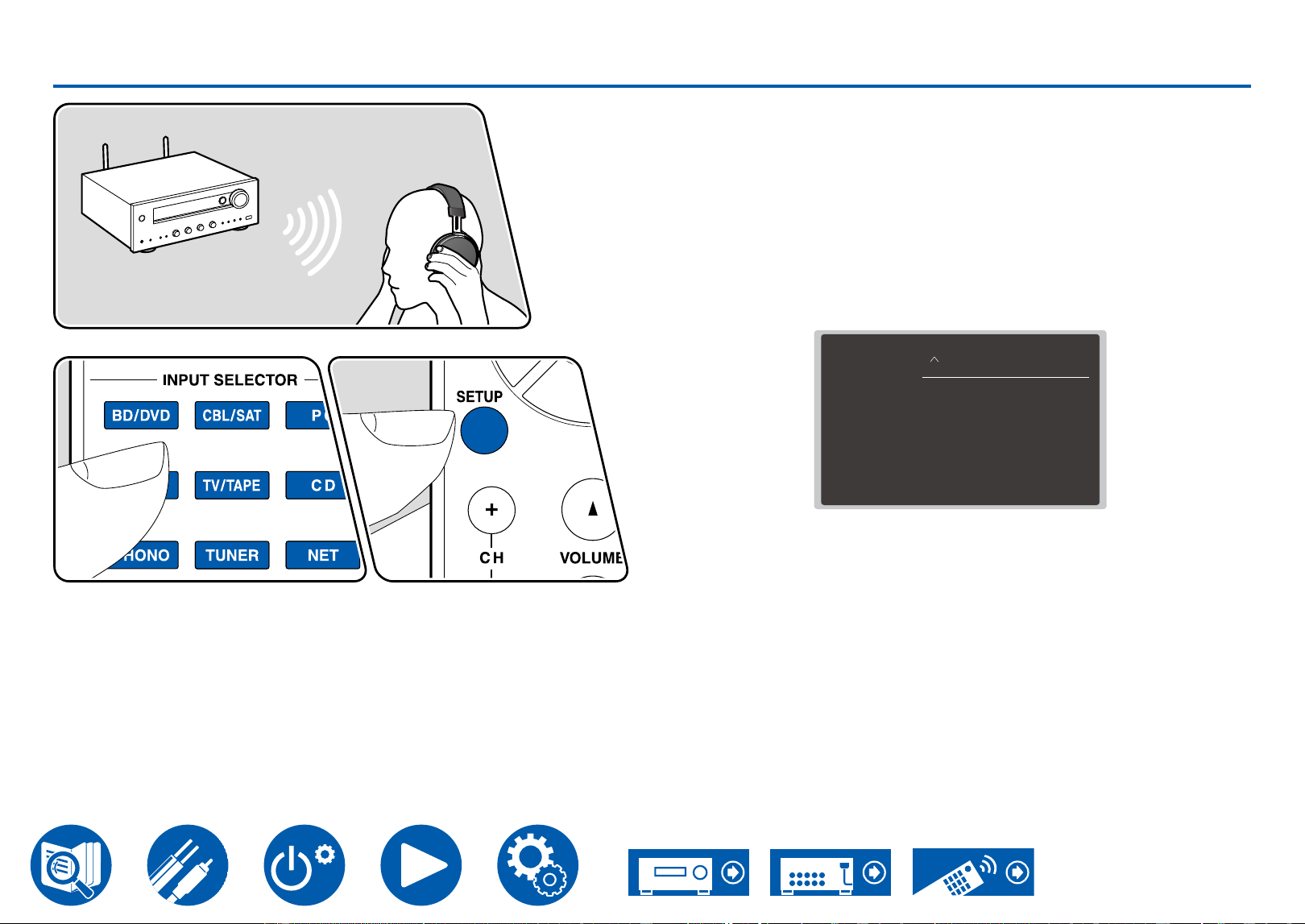

Transmitting audio from this unit to Bluetooth
wireless technology enabled devices 42

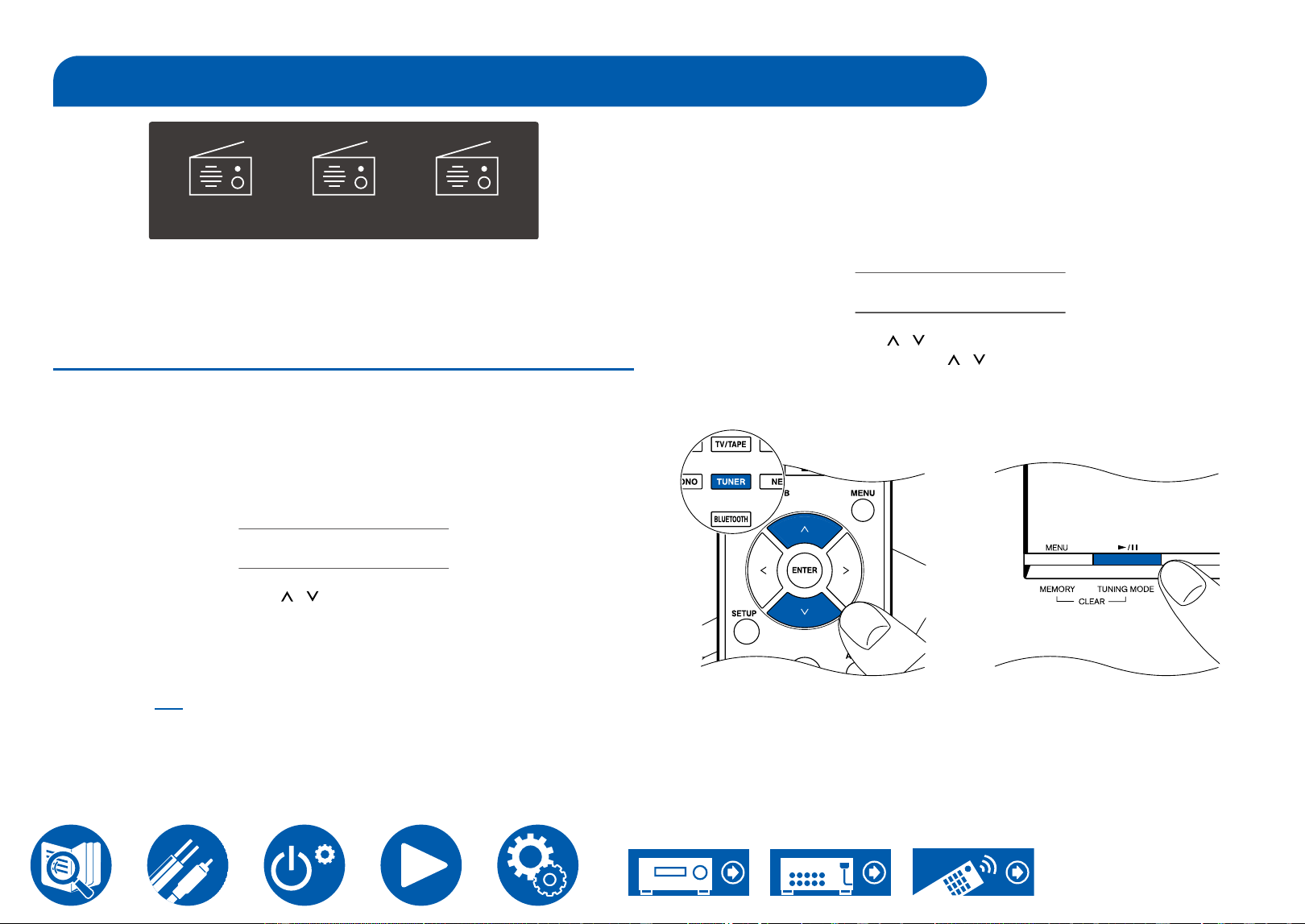

Listening To the Radio 44
Listening To the AM/FM Radio 44
Using RDS
(European models only) 46
Listening To DAB Digital Radio
(European models only) 47

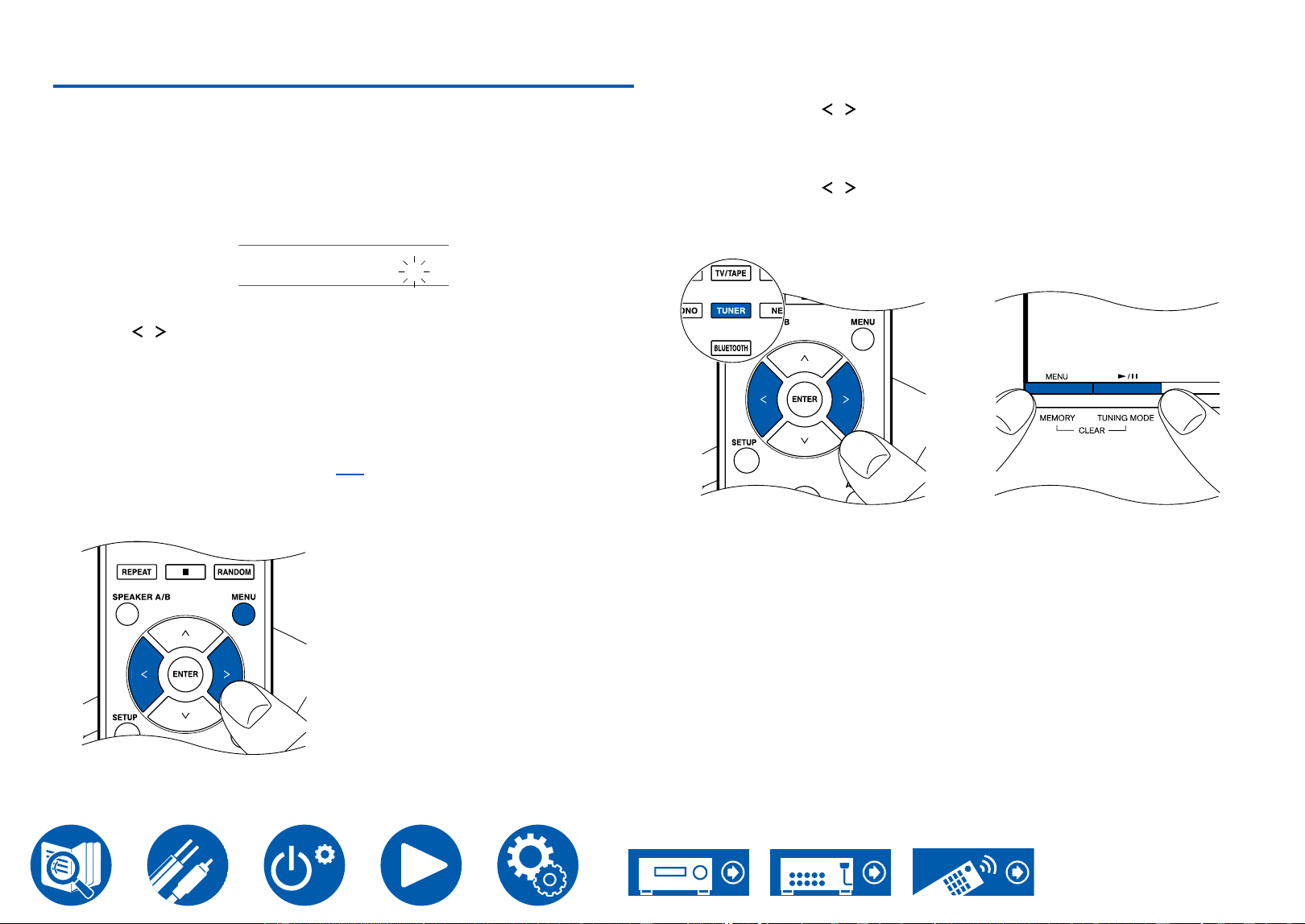

Presetting a Radio Station 48
Spotify 49
AirPlay
®
50

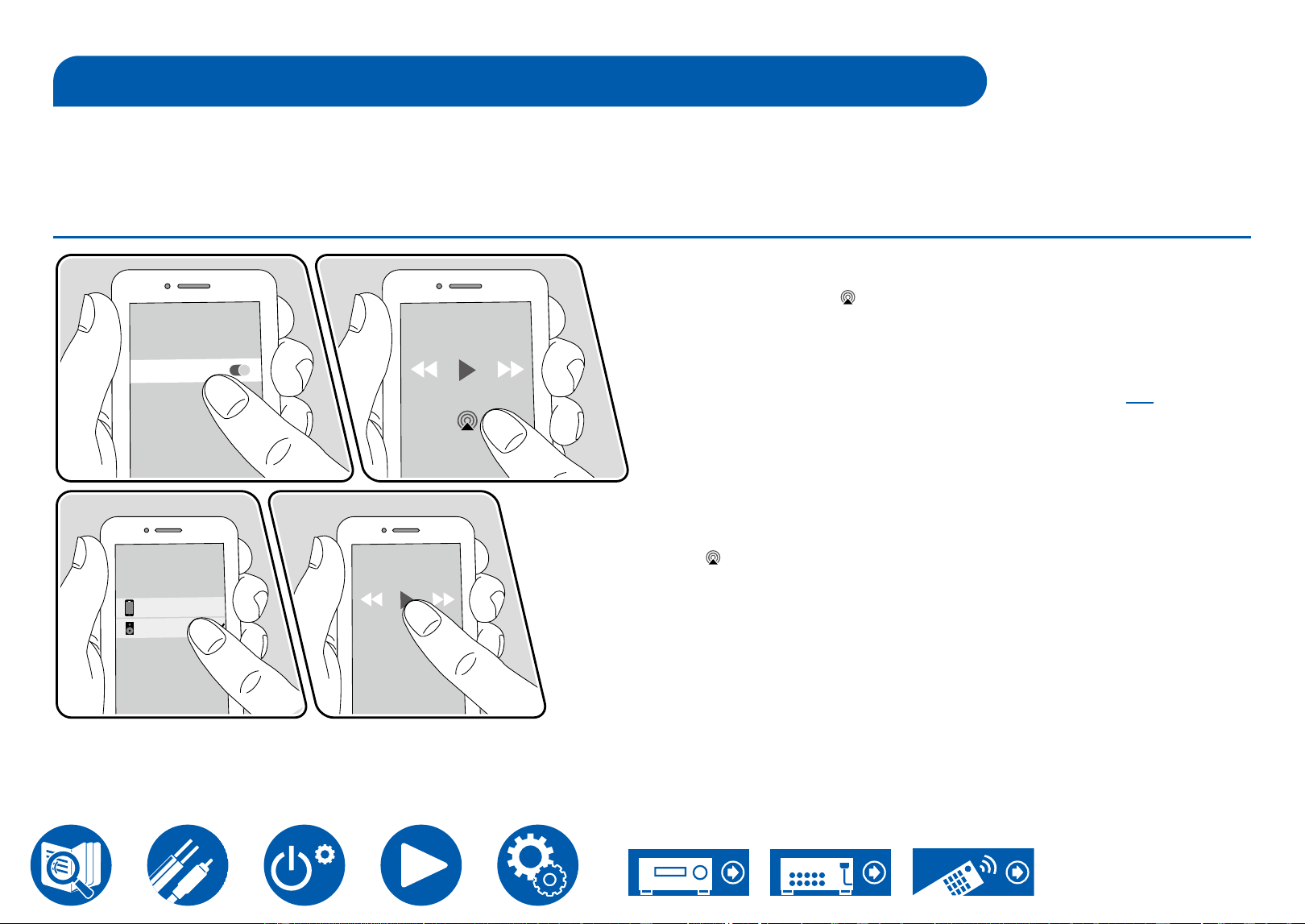

Basic Operations 50

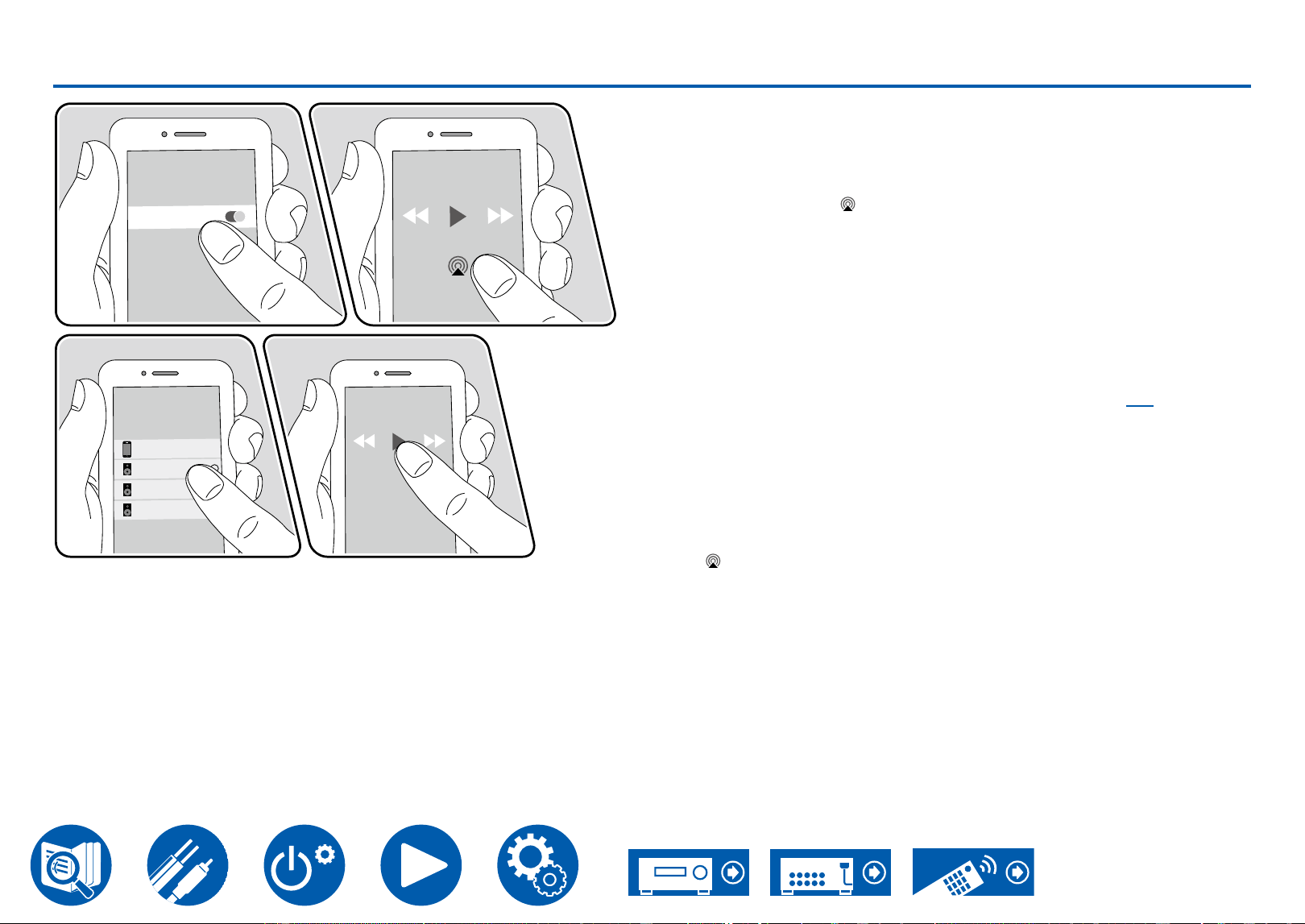

Playing Back on multiple devices (AirPlay2) 51

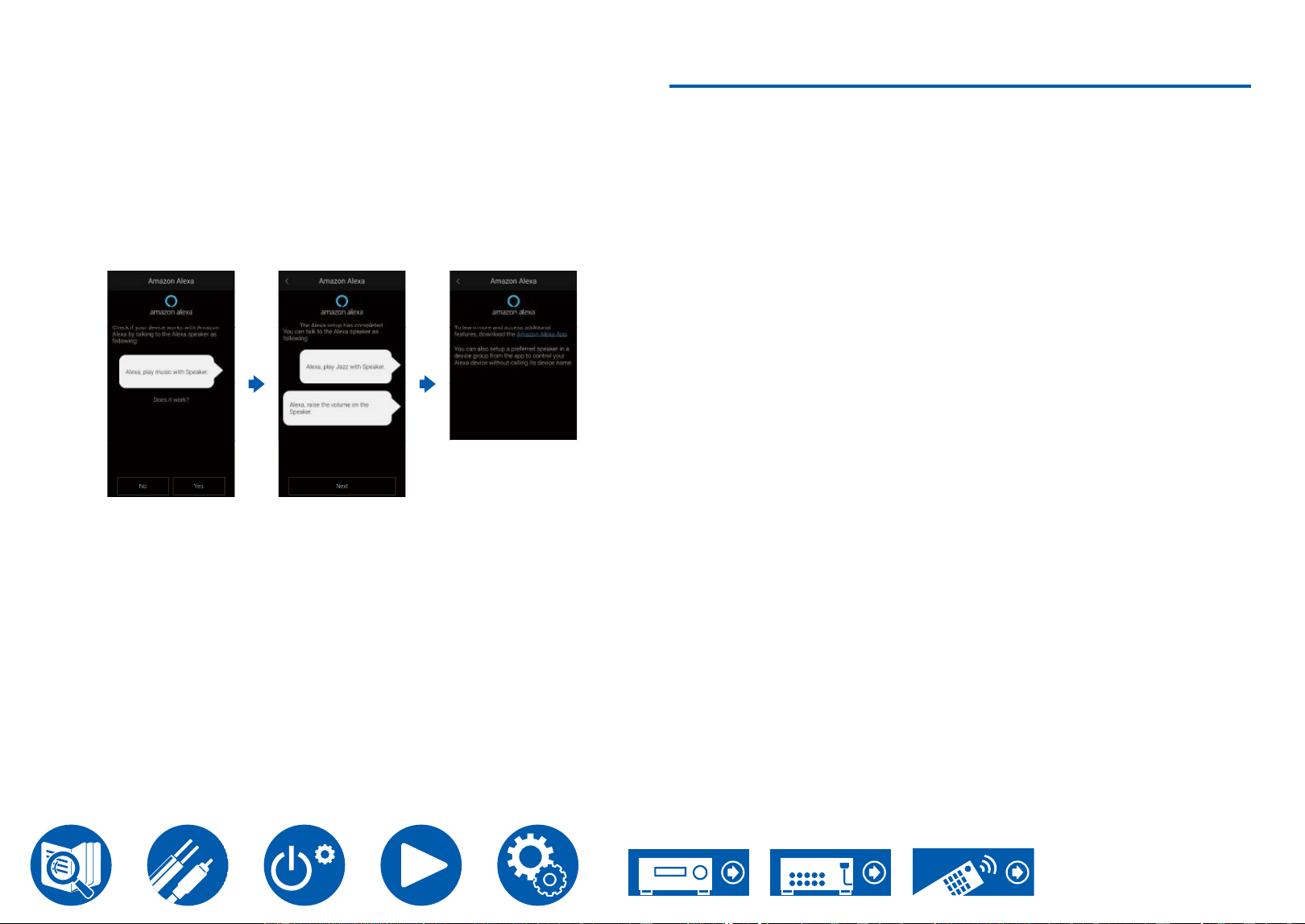

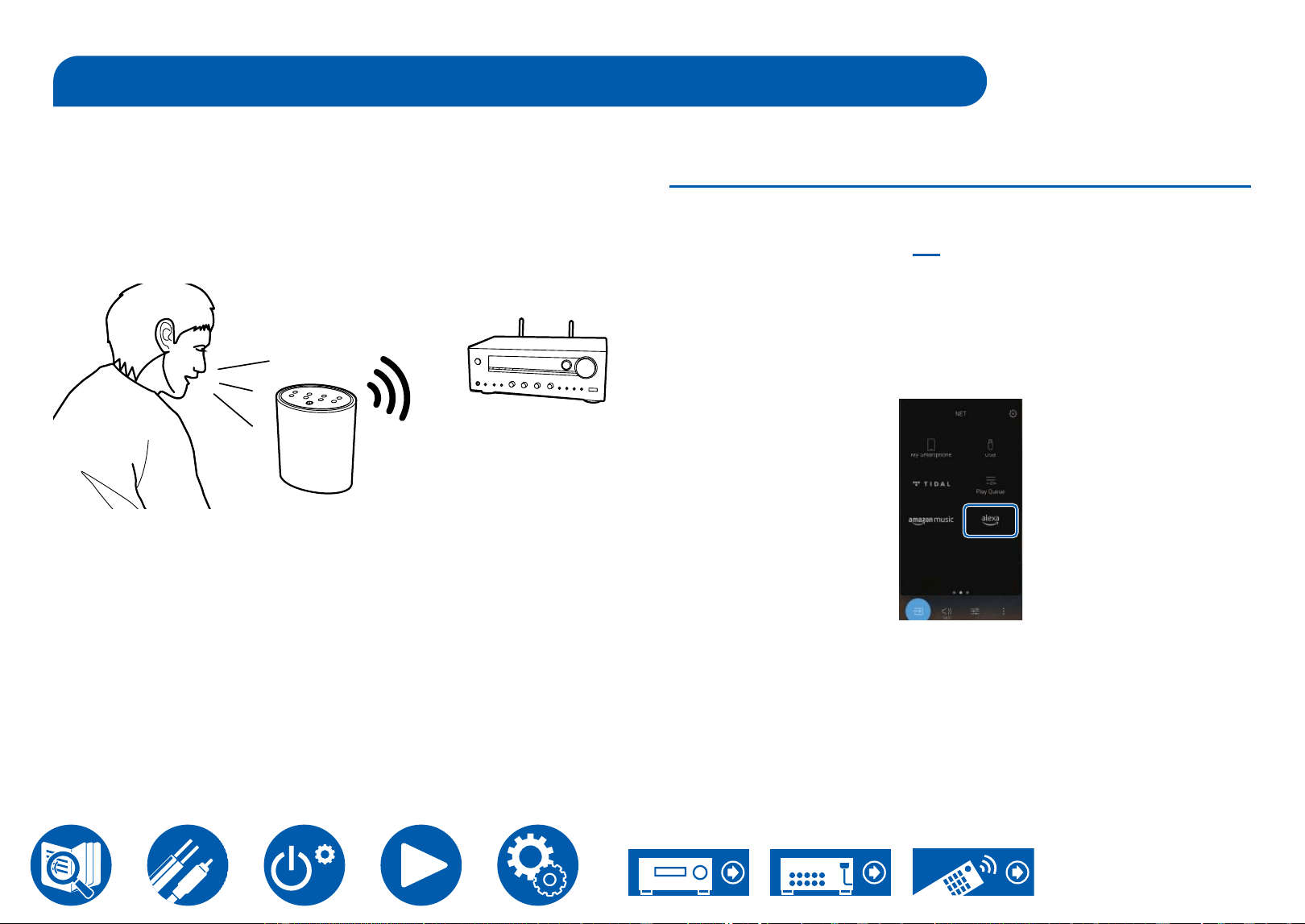

Amazon Alexa 52
Registering this unit with an Amazon account 52
Operating this unit 53
Amazon Music 54
Registering This Unit with Amazon Music 54

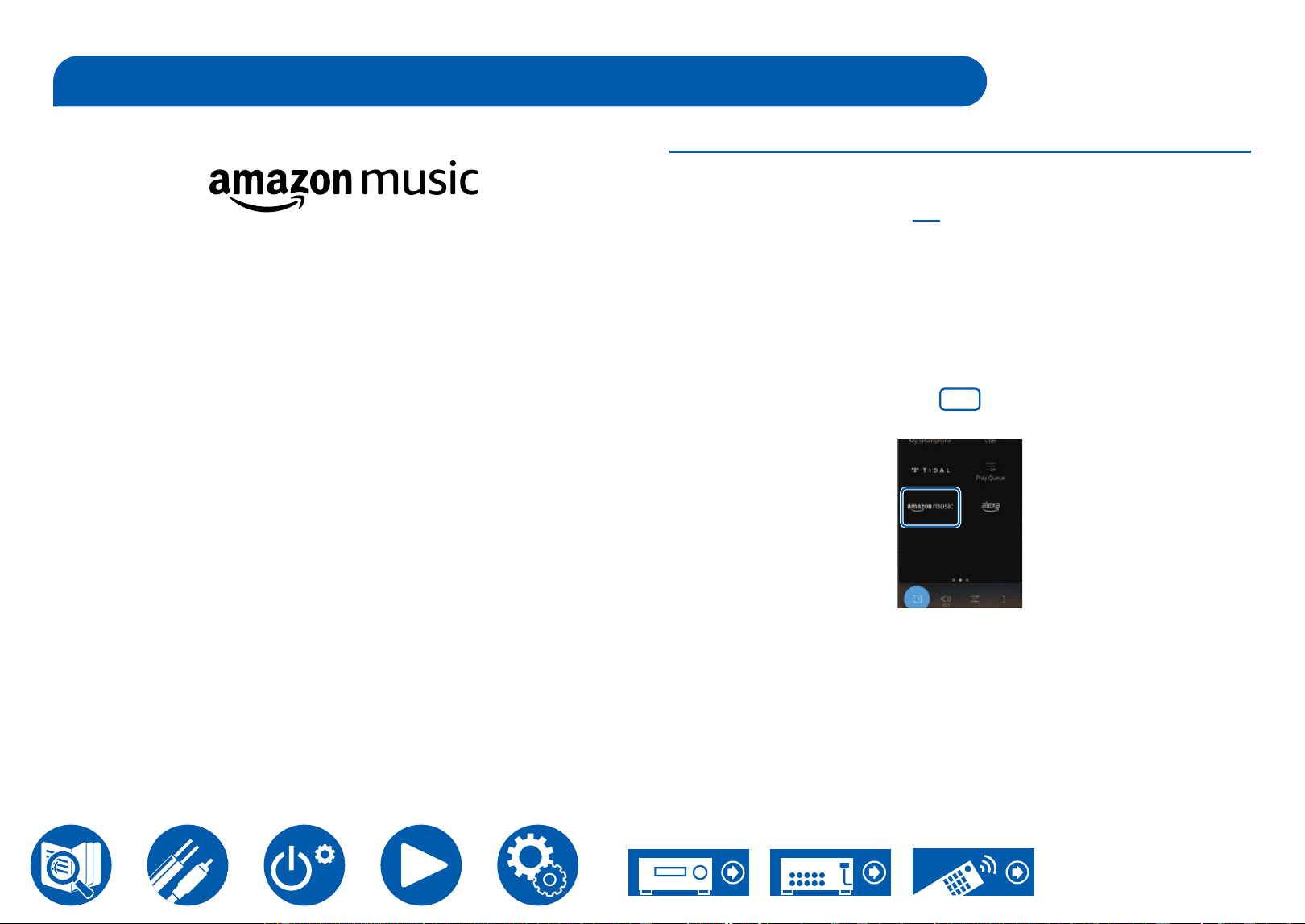

Playing Amazon Music using the Onkyo Controller 55
Playing Amazon Music using the remote controller 55

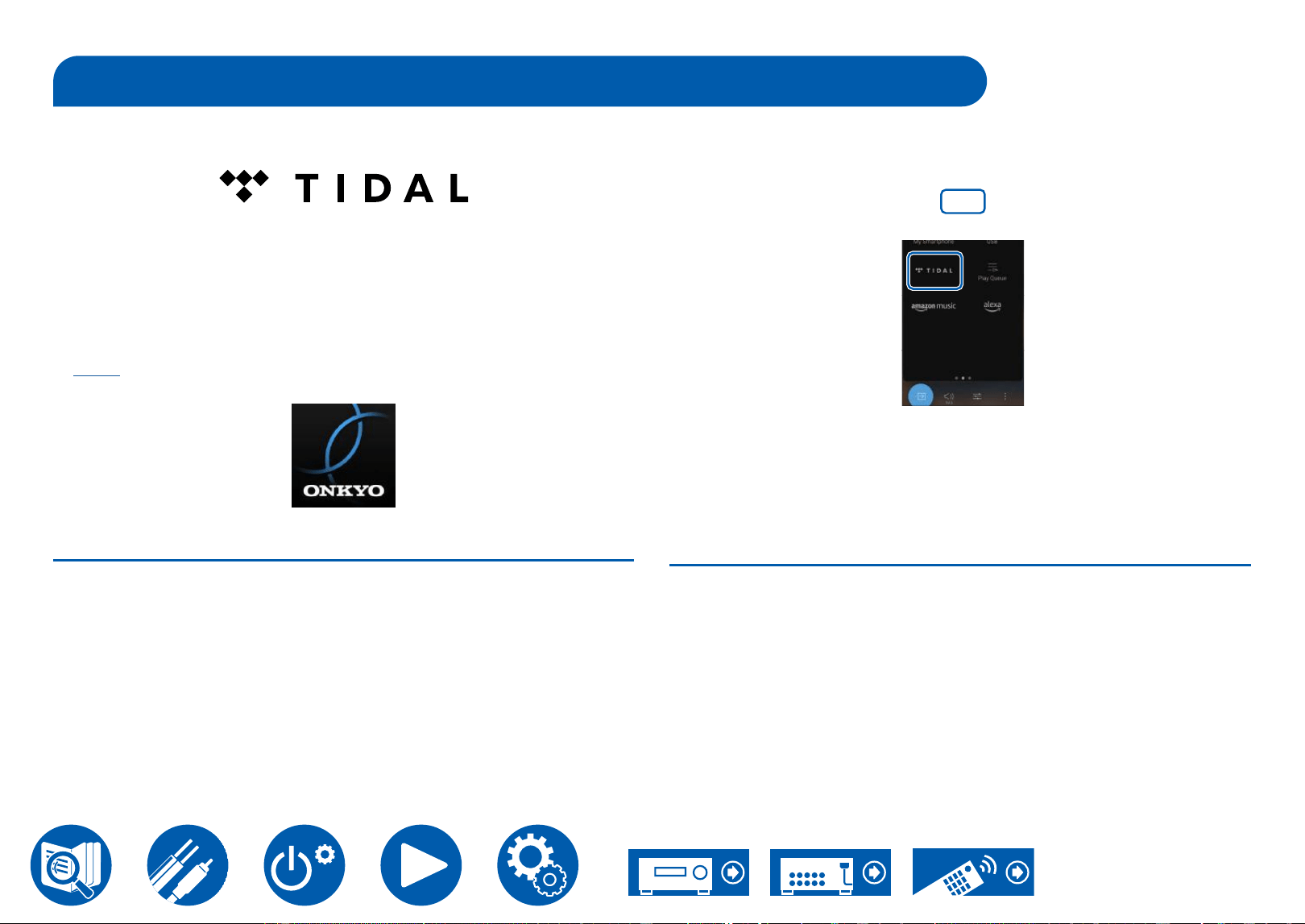

TIDAL 56
Registering this unit with TIDAL 56
Playing TIDAL 56
Connecting the Sonos System for Playback 57
Necessary Equipment 57
How to Connect This Unit and Sonos Port 57
Setting Up 57
Playing Sonos on This Unit 58
Internet Radio 59
Playing Back 59

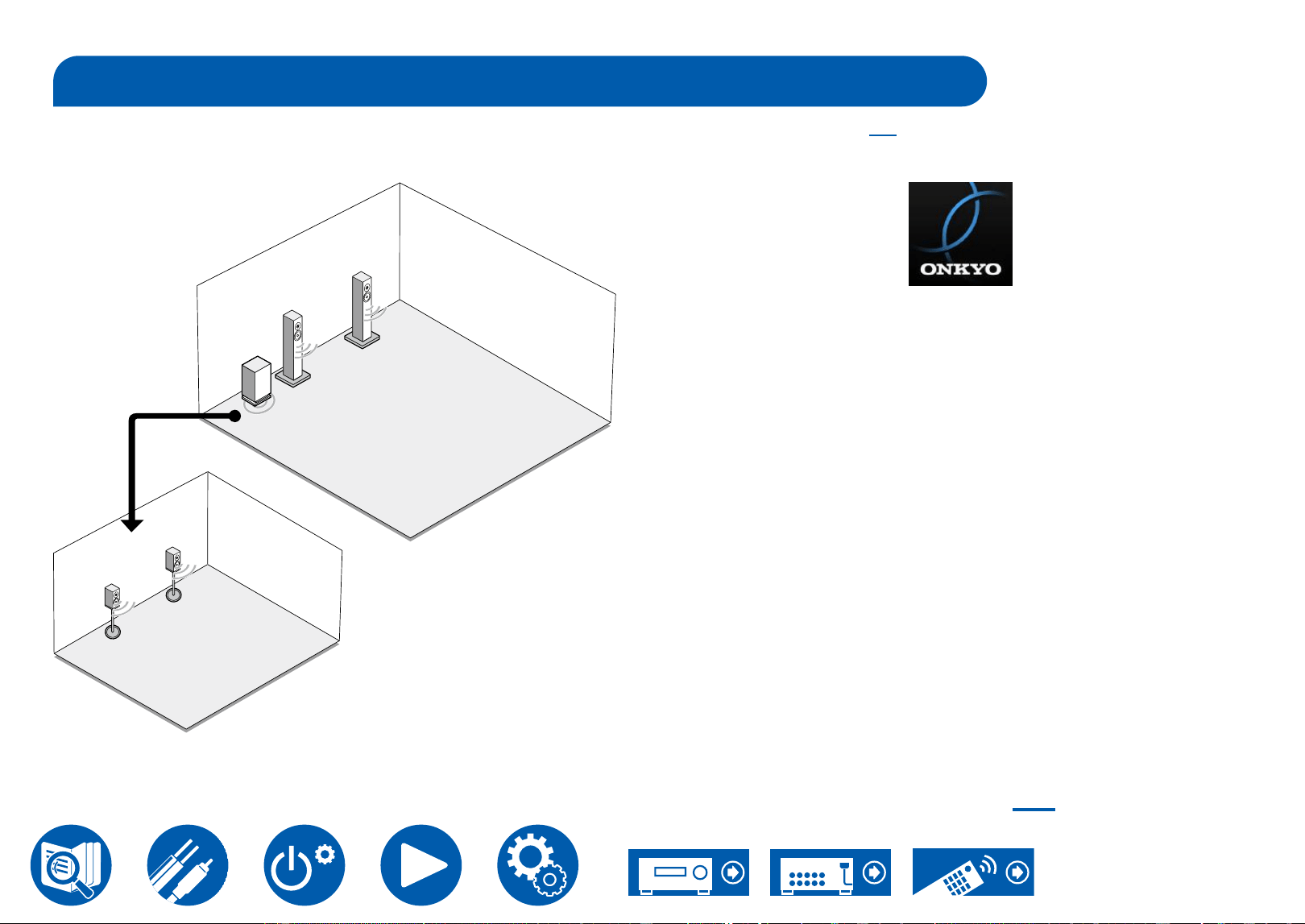

Multi-zone 61

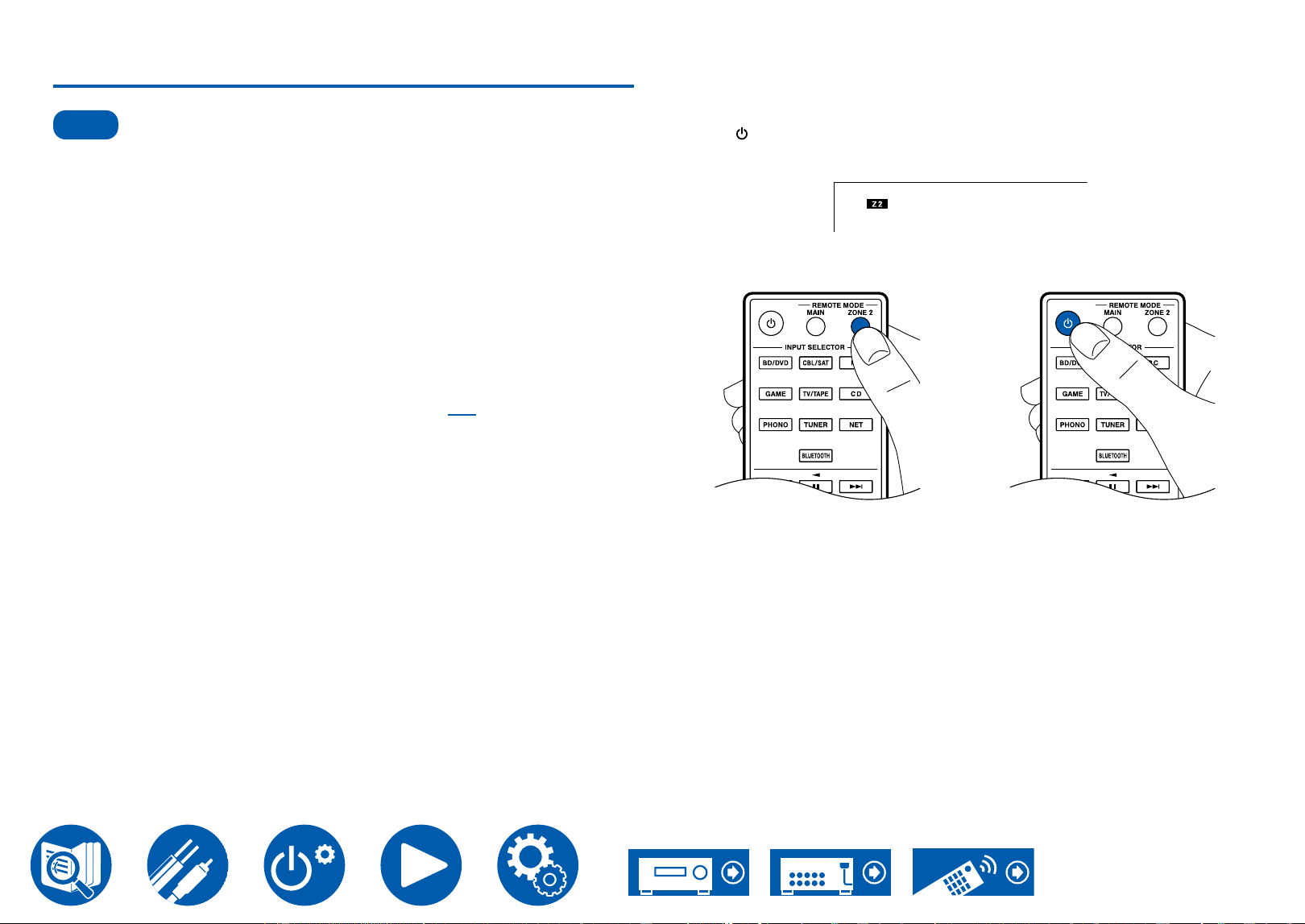

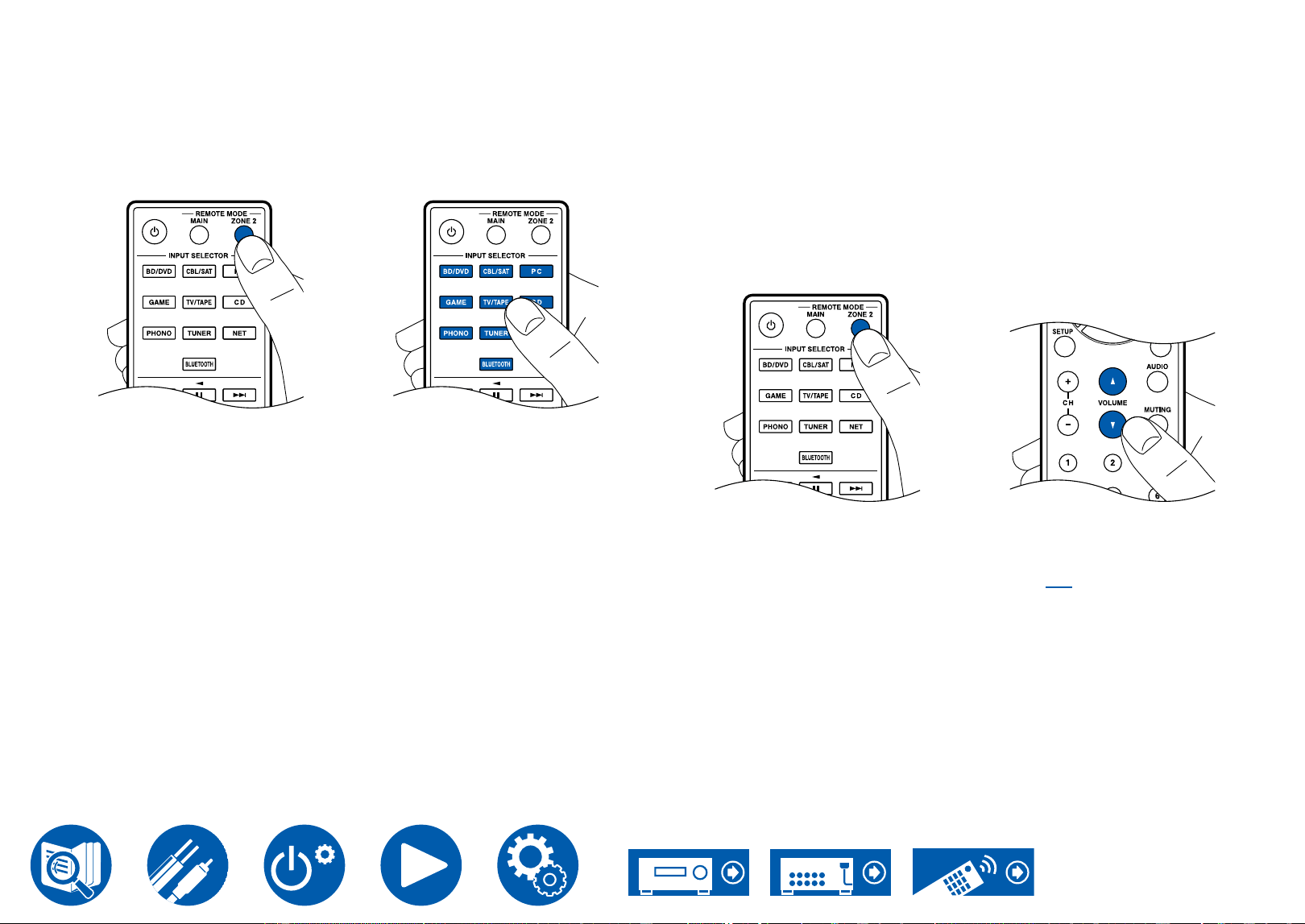

Playing Back (ZONE 2) 62

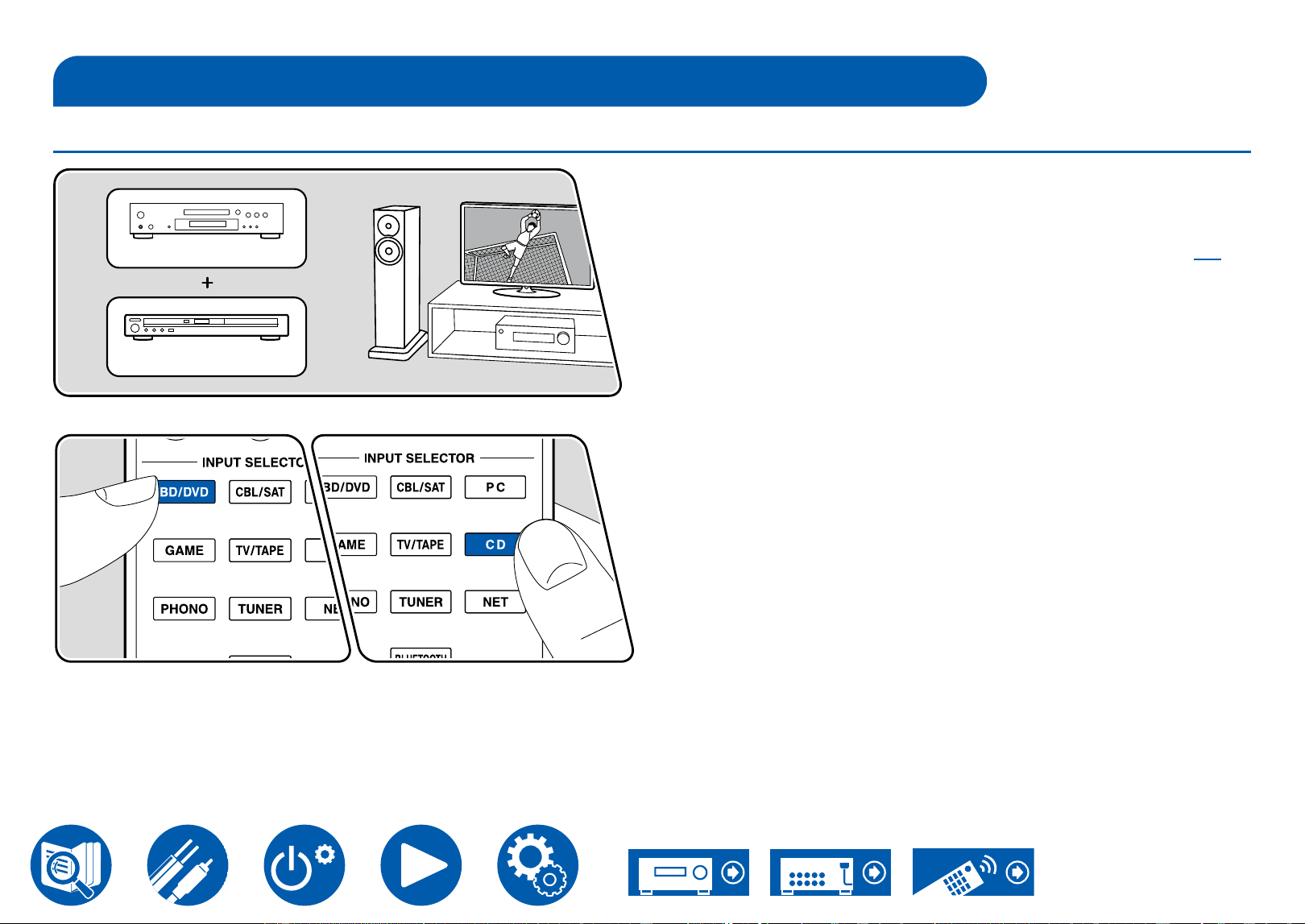

Playing dierent audio and video 64
Displaying Your Favorite Video on TV While Playing
Music 64
Using MY INPUT 65
Regarding the settings that can be registered 65
Registering 65
Using the registered settings 65

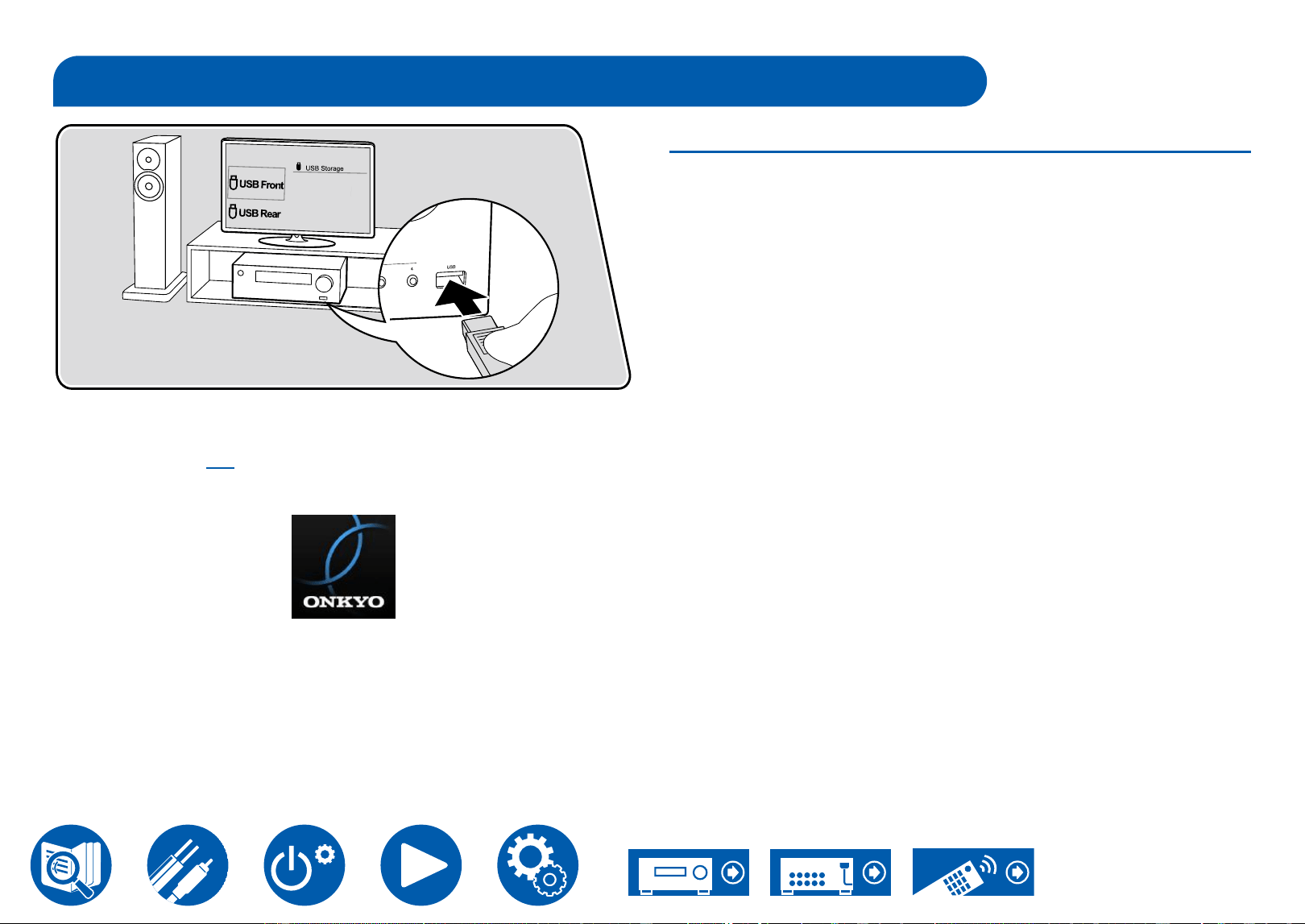

Playing music les saved on a USB storage device 66
Playing Back 66
USB Storage Device Requirements 67
Music Server 68
Music Server notes 68
Windows Media
®
Player 12 settings 68
Playing Back 69
5

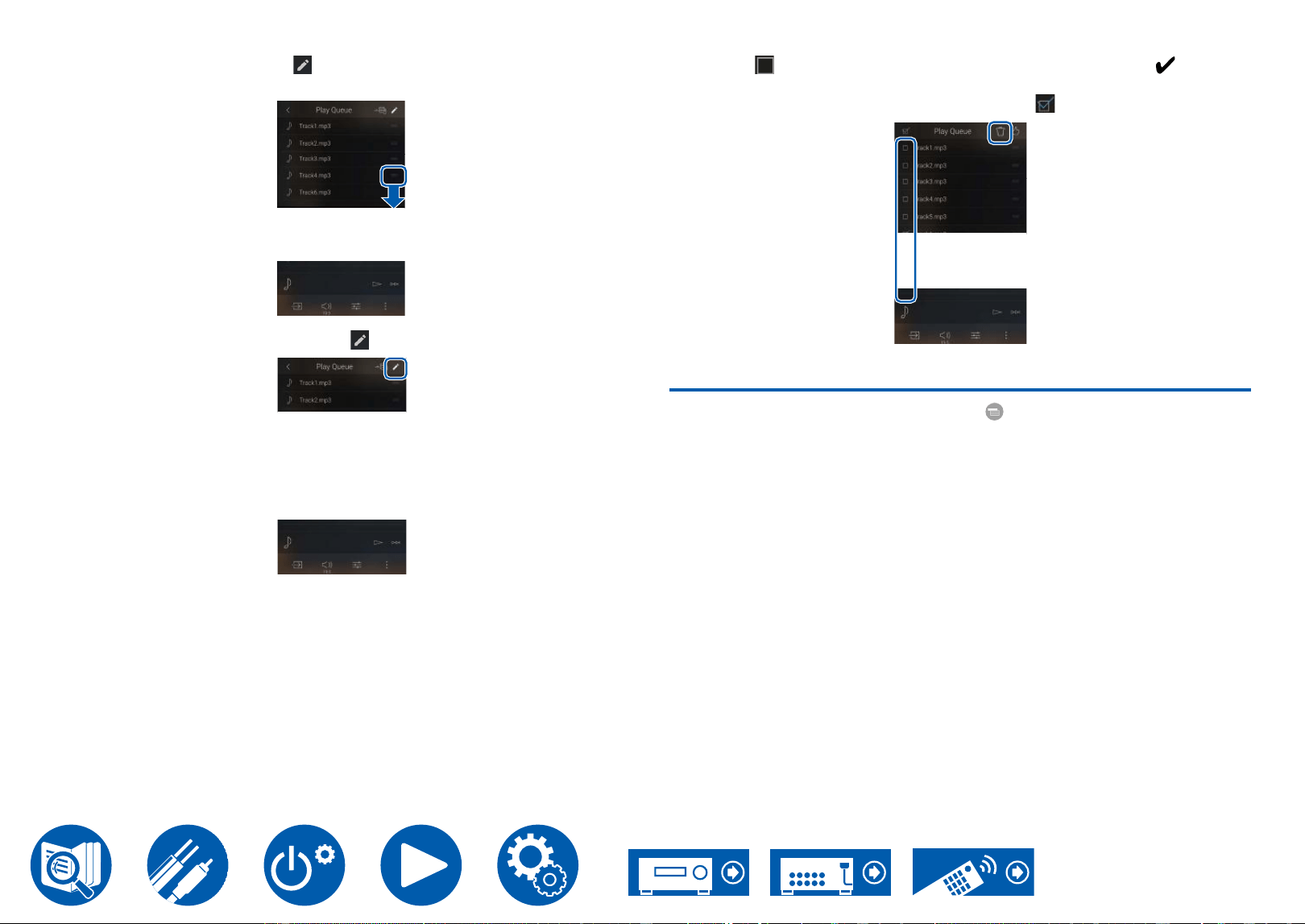

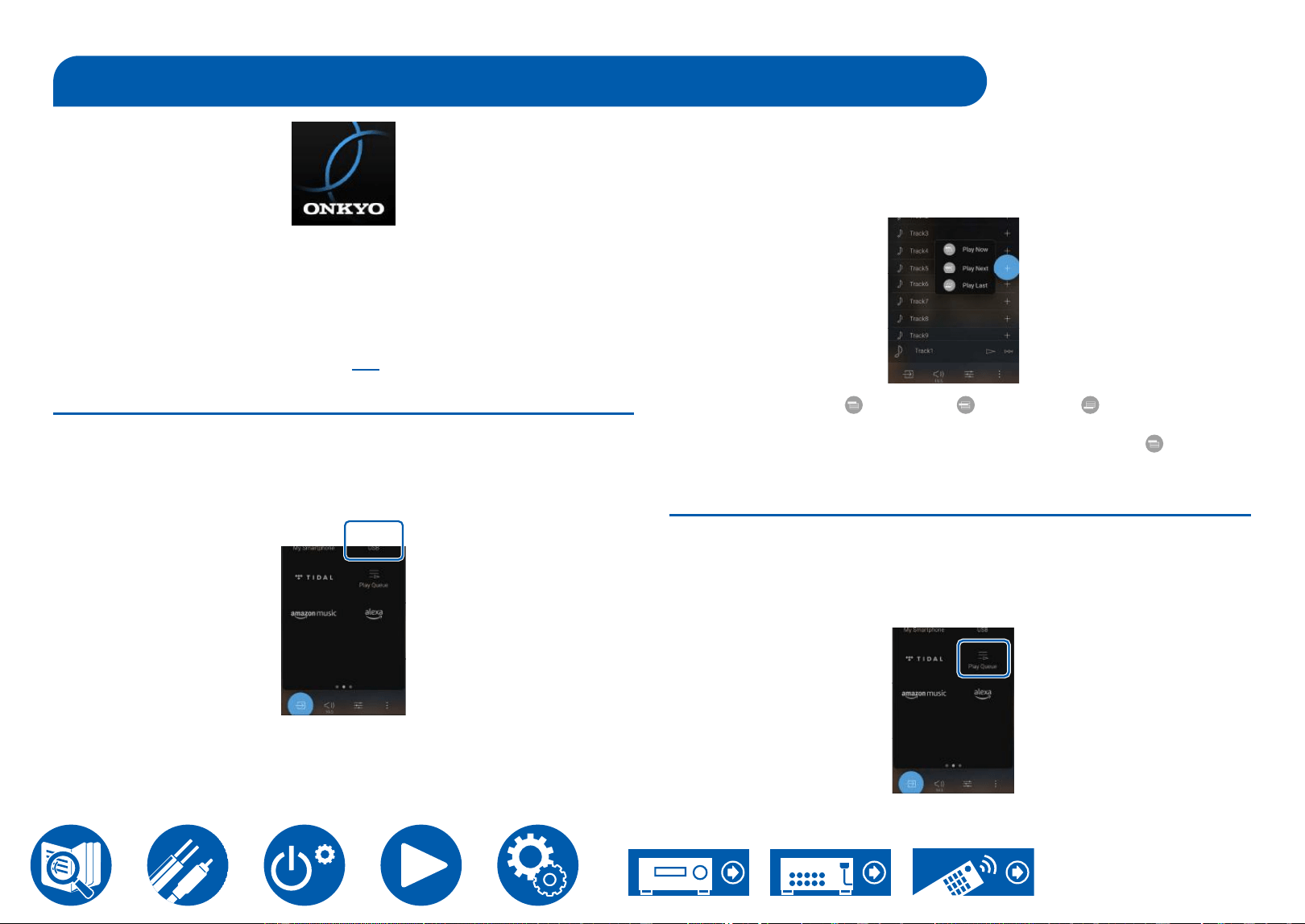

Play Queue 71
Adding Play Queue Information 71
Sort and Delete 71
Playing Back 72
Setup
Setup Menu 74
Menu list 74
1. Audio 78
2. Control 79
3. Network 81
4. Bluetooth 84
5. Works with SONOS 86
6. Firmware Update 87
7. Lock 87
8. Factory Reset 88

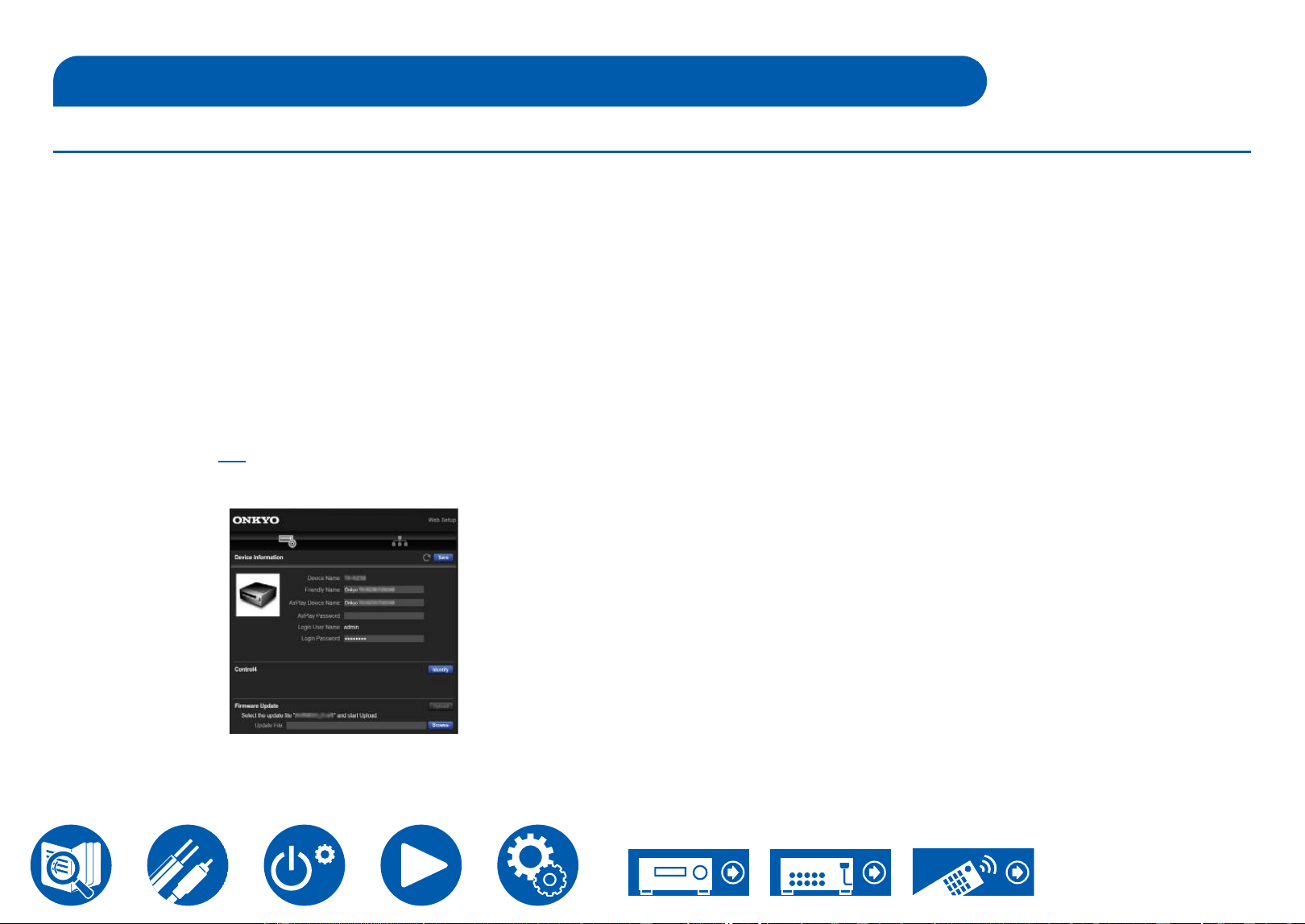

Web Setup 89
Menu operations 89
Troubleshooting
Before starting the procedure 91
When the unit is operating erratically 92
Turning o Initial Setup which appears when you
turn the power on 93
Troubleshooting 94
Appendix
General Specications 102
6
Before starting the procedure

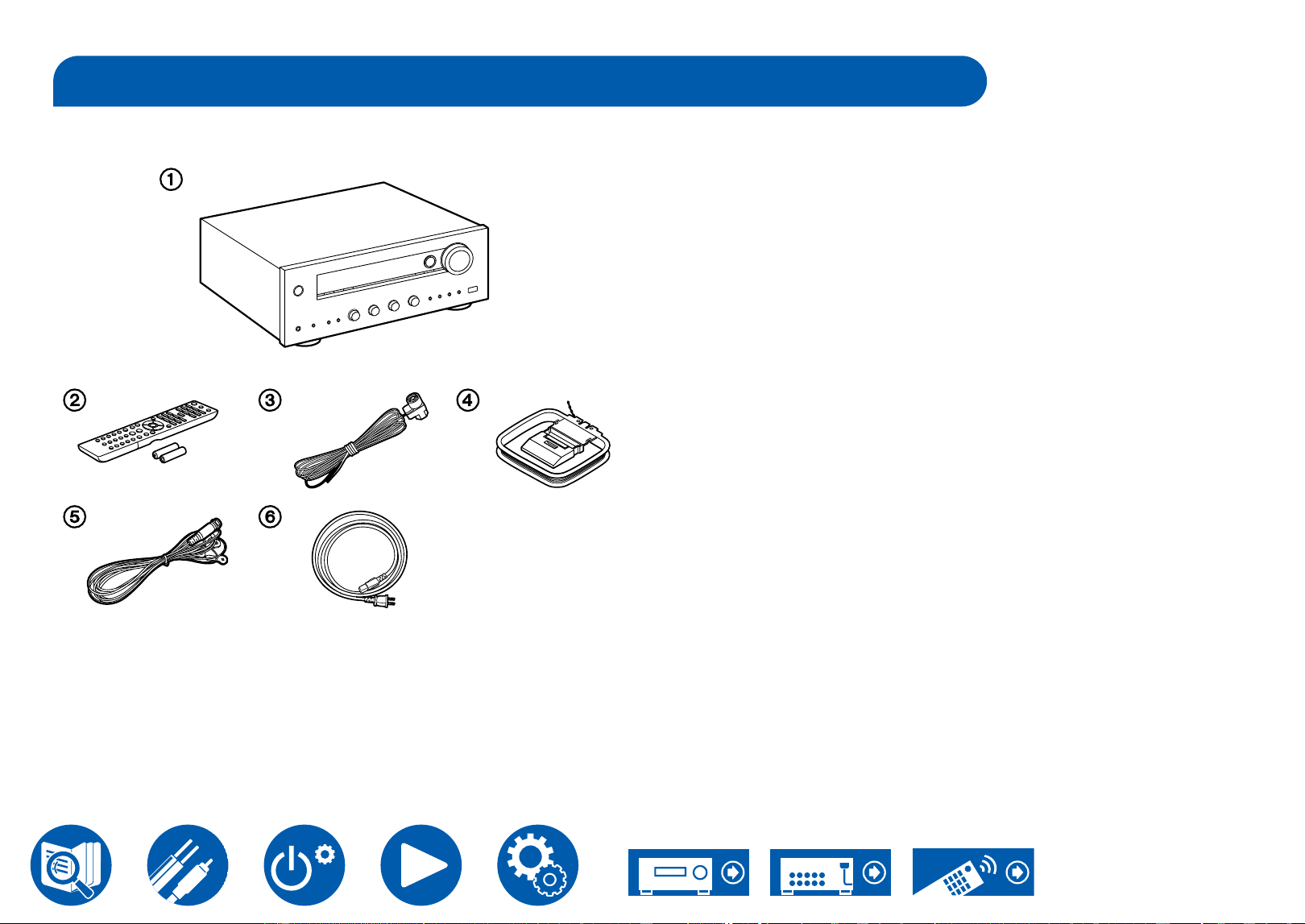

What's in the box
A Main unit (1)
B Remote controller (RC-903S) (1)
Batteries (AAA/R03) (2) (Some models only)
C Indoor FM antenna (North American models only) (1)
D AM loop antenna (North American models only) (1)
E DAB/FM antenna (European models only) (1)
F Power cord (1) *Depending on the model, 2 Power Cords are supplied. Use
the type of cord suited to your area.
• Initial Setup Guide (1)
• Safety Information (1)
* This is an online user manual. This is not supplied with the product.
Note
• Connect speakers with an impedance of 4 Ω to 16 Ω.
• The power cord must be connected only after all other connections are
completed.
• We will not accept any responsibility for damage arising from the connection
with equipment manufactured by other companies.
• Network services and content that can be used may no longer be available
if new functions are added by updating rmware or the service providers
terminate their services. Also, available services may dier depending on
your area.
• Details on the rmware update will be posted on our website and through
other means at a later date.
• The illustrations in this manual use those of North American models unless
otherwise mentioned.
• Specications and appearance are subject to change without prior notice.
7
Firmware Update
Disclaimer: The program and accompanying online documentation are
furnished to you for use at your own risk.
Our company will not be liable and you will have no remedy for damages for
any claim of any kind whatsoever concerning your use of the program or the
accompanying online documentation, regardless of legal theory, and whether
arising in tort or contract.
In no event will our company be liable to you or any third party for any special,
indirect, incidental, or consequential damages of any kind, including, but not
limited to, compensation, reimbursement or damages on account of the loss of
present or prospective prots, loss of data, or for any other reason whatsoever.
Update Information of the rmware
For the latest rmware contents and the rmware version, visit website.
• When this unit is connected to the network, notications of rmware
updates may be displayed. To update the rmware, select "Update Now"
with the cursor buttons of the remote controller and press ENTER. The unit
automatically enters standby mode after "Completed!" is displayed, and the
update is completed.
Checking the Firmware Version of the Unit
To conrm the rmware version of your product, press the SETUP button on the
remote controller, and refer to "6. Firmware Update" - "Version" ( →p87).
Firmware Update Procedure
Updating can take about 20 minutes. Furthermore, existing settings are
maintained regardless of the method used for update.
Updating the Firmware via Network
• While updating the rmware, do not do the following:
– Disconnecting and reconnecting cables, USB storage device or
headphones, or performing operations on the unit such as turning the
power o
– Accessing this unit from a PC or smartphone using their applications
• Check that the unit is turned on, and the connection to the Internet is secured.
• Turn o control devices (PC etc.) connected to the network.
• Stop an Internet radio, USB storage device, or server content being played.
• If the multi-zone function is active, turn it o.
• If "HDMI CEC" is set to "On", set it to "O".
– Press the SETUP button. Next, select "2. Control" and press ENTER, then
select "HDMI CEC" and select "O".
* The descriptions may dier from the actual on-screen displays, however, operations
and functions are the same.
Update
1. Press SETUP.
The Setup menu is displayed on the TV screen.
2. Select "6. Firmware Update" - "Update via NET" with the cursor buttons in
order and press ENTER.
• If "6. Firmware Update" is not available for selection, wait until the system
has started.
• You will not be able to select "Update via NET" if there is nothing to
update.
3. With “Update” selected, press ENTER to start the update.
• During the update, the TV screen may go black depending on the updated
program. In that case, check the progress on the display of the unit. The
TV screen will remain black until the update is complete and the power is
turned on again.
• "Completed!" is displayed when the update is complete.
8
4. Press ON/STANDBY on the main unit to turn the unit into standby mode.
The process is completed, and your rmware is updated to the latest version.
• Do not use on the remote controller.
If an Error Message is Displayed
If an error occurs, "- Error!" is displayed on the display of the unit. (""
represents an alphanumeric character.) Refer to the following descriptions and
check.
Error Code
• -01, -10:
Ethernet cable not found. Connect the Ethernet cable properly.
• -02, -03, -04, -05, -06, -11, -13, -14, -16, -17, -18, -20,
-21:
Internet connection error. Check the following:
– Whether the router is turned on
– Whether this unit and the router are connected via the network
Unplug and plug the power cords of this unit and the router. This may solve
the problem. If you are still unable to connect to the Internet, the DNS server
or proxy server may be temporarily down. Check the server operation status
with your Internet service provider.
• Others:

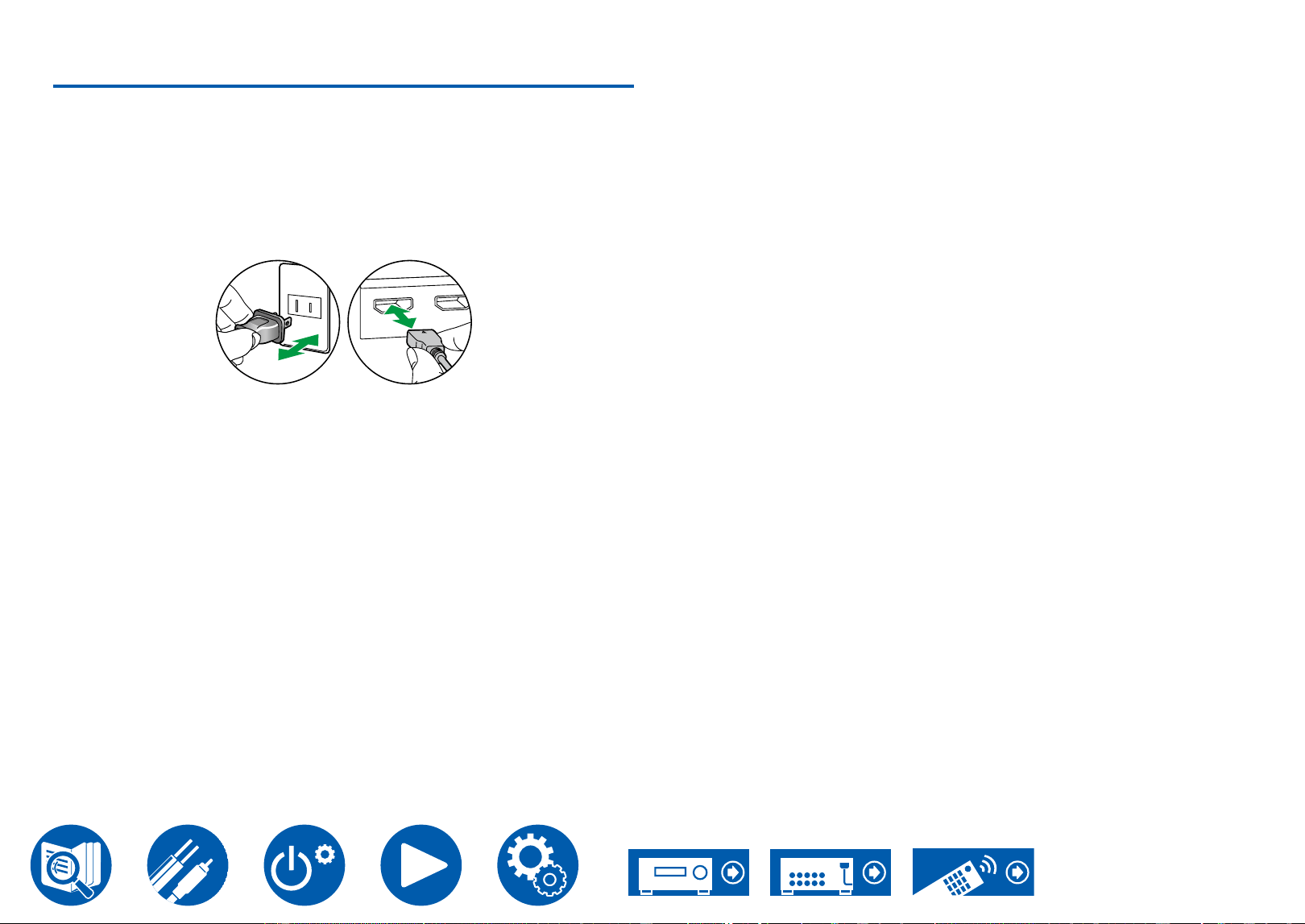

After removing the power plug once, insert it to the outlet, and then start the
operation from the beginning.
Updating via USB
• While updating the rmware, do not do the following:
– Disconnecting and reconnecting cables, USB storage device or
headphones, or performing operations on the unit such as turning the
power o
– Accessing this unit from a PC or smartphone using their applications
• Prepare a 1 GB or larger USB storage device. The format of USB storage
devices supports FAT16 or FAT32 le system format.
– Media inserted into a USB card reader may not be used for this function.
– USB storage devices equipped with the security function are not
supported.
– USB hubs and USB devices equipped with the hub function are not
supported. Do not connect these devices to the unit.
• Delete any data stored on the USB storage device.
• Turn o control devices (PC etc.) connected to the network.
• Stop an Internet radio, USB storage device, or server content being played.
• If the multi-zone function is active, turn it o.
• If "HDMI CEC" is set to "On", set it to "O".
– Press the SETUP button. Next, select "2. Control" and press ENTER, then
select "HDMI CEC" and select "O".
* Depending on the USB storage device or its content, long time may be required
for loading, the content may not be loaded correctly, or power may not be supplied
correctly.
* Our company will not be liable whatsoever for any loss or damage of data, or
storage failure arising from the use of the USB storage device. Please note this in
advance.
* The descriptions may dier from the actual on-screen displays, however, operations
and functions are the same.
Update
1. Connect the USB storage device to your PC.
2. Download the rmware le from the our company's website to your PC and
unzip.
Firmware les are named as below.
ONKAVR_R.zip
Unzip the le on your PC. The number of unzipped les and folders varies
depending on the model.
3. Copy all unzipped les and folders to the root folder of the USB storage
device.
• Make sure to copy the unzipped les.
9
4. Connect the USB storage device to the USB port of this unit.
• If an AC adapter is supplied with the USB storage device, connect the AC
adapter, and use it with a household outlet.
• If the USB storage device has been partitioned, each section will be
treated as an independent device.
5. Press SETUP.
The Setup menu is displayed on the TV screen.
6. Select "6. Firmware Update" - "Update via USB" with the cursor buttons in
order and press ENTER.
• If "6. Firmware Update" is not available for selection, wait until the system
has started.
• You will not be able to select "Update via USB" if there is nothing to
update.
7. Press ENTER with "Update" selected, and start update.
• During the update, the TV screen may go black depending on the updated
program. In that case, check the progress on the display of the unit. The
TV screen will remain black until the update is complete and the power is
turned on again.
• During the update, do not turn the power o, or disconnect or reconnect
the USB storage device.
• "Completed!" is displayed when updating is completed.
8. Disconnect the USB storage device from the unit.
9. Press ON/STANDBY on the main unit to turn the unit into standby mode.
The process is completed, and your rmware is updated to the latest version.
• Do not use on the remote controller.
If an Error Message is Displayed
If an error occurs, "- Error!" is displayed on the display of the unit. (""
represents an alphanumeric character.) Refer to the following descriptions and
check.
Error Code
• -01, -10:
The USB storage device cannot be recognized. Check if the USB storage
device or USB cable is securely inserted to the USB port of the unit.
Connect the USB storage device to an external power source if it has its own
power supply.
• -05, -13, -20, -21:
The rmware le is not present in the root folder of the USB storage device,
or the rmware le is for another model. Retry from the download of the
rmware le.
• Others:
After removing the power plug once, insert it to the outlet, and then start the
operation from the beginning.
10
Front Panel
SPEAKER A/B
INPUT BASS TREBLL BALANCE
MEMORY TUNING MODE ZONE 2 OFF
PHONES DIMMER
CLEAR
MENU
ON/STANDBY
SETUP ENTER RETURN
1 2 3 4
MY INPUT
USB
VOLUME
TUNING PRESET
HYBRID STANDBY
PURE AUDIO
L R
- +- +
A B
C D E F G
8 9 J K
L
A ON/STANDBY button
B VOLUME dial
C PHONES jack: Connect headphones with a
standard plug (ø1/4″/6.3 mm).
D PURE AUDIO button/LED indicator: Switches
Pure Audio mode, which provides purer sound,
on or o. The LED indicator lights when you
switch it on, the display turns o and the “Bass”
and “Treble” settings are disabled.
• The Pure Audio mode is canceled when the
multi-zone function is turned on.
E DIMMER button (North American, Middle East,
Australian and Asian models): Switches the
brightness of the display with three levels. It
cannot be turned o completely.
RT/PTY button (European models): Used when
receiving stations transmitting text information.
F SPEAKER A/B buttons: Select the terminals to
output audio from between SPEAKERS A/B.
G INPUT dial: Switches the input to be played.
H BASS dial: Adjusts the bass.
I TREBLE dial: Adjusts the treble.
J BALANCE dial: Adjusts the balance of the
sounds output from the left and right speakers.
K MY INPUT buttons: You can register settings
conditions such as the current input selection or
listening mode, and then recall them. ( →p65)
L USB port: Connect a USB storage device to play
music les. You can also supply power (5 V/1 A)
to USB devices with a USB cable.
Part Names
11
Front Panel
SPEAKER A/B
INPUT BASS TREBLL BALANCE
MEMORY TUNING MODE ZONE 2 OFF
PHONES DIMMER
L R
- +- +
CLEAR
MENU
ON/STANDBY
SETUP ENTER RETURN
1 2 3 4 USB
VOLUME
TUNING PRESET
HYBRID STANDBY
MY INPUT
M N O
P Q R S T U
V
M HYBRID STANDBY indicator: Lights up when
any of the following functions is working or
enabled in standby state of this unit. When this
indicator is lighting, the power consumption in
standby state increases, however, the increase
in power consumption is minimized by entering
the HYBRID STANDBY mode where only the
essential circuits operate
– HDMI CEC ( →p79)
– HDMI Standby Through ( →p79)
– Network Standby ( →p80)
– Bluetooth Wakeup ( →p80)
N Remote control sensor: Receives signals from
the remote controller.
• The reception range of the remote controller
is within a distance of approx. 16´/5 m, and
an angle of 20° in vertical direction and 30° to
right and left.
O Display ( →p12)
P MENU button: Used to display the menu.
MEMORY button (North American and
European models): Used to register AM/FM/DAB
radio stations.
Q Play (
)/Pause ( ) button: Used for play
operations when playing Music Server or USB.
TUNING MODE button (North American and
European models) : Switches tuning to an AM/
FM station between automatic tuning and manual
tuning, and allows you to select the order for
displaying DAB stations.
R ZONE 2 button: Controls the multi-zone
function. ( →p61)
S OFF button: Switches the multi-zone function
o.
T SETUP button: You can display advanced
setting items on the TV and the display to have
a more enjoyable experience with this unit.
( →p74)
U Cursor buttons ( / / / ) and ENTER
button: Select an item with the cursors, and
press ENTER to conrm your selection.
Use them to tune to stations when using TUNER
( →p44)
V RETURN button: Returns the display to the
previous state while setting.
12
Display
5
1
7
2 3 4
6
8
A Lights in the following conditions.
: Headphones are connected.
Z2: ZONE 2 is on.
: Connected by Bluetooth.
: Connected by Wi-Fi.
NET: Lights when connected to the network with
the "NET" input selector. It will blink if incorrectly
connected to the network.
USB: Lights when the "NET" input selector is
selected, a USB device is connected and the
USB input is selected. It will blink if the USB
device is not properly connected.
HDMI: HDMI signals are input and the HDMI
input is selected.
DIGITAL: Digital signals are input and the digital
input is selected.
B Lights according to the type of input digital audio
signal.
C Lights in the following conditions.
RDS (European models): Receiving RDS
broadcasting.
TUNED: Receiving DAB (European models)/AM
(North American models)/FM (North American
and European models) radio.
FM ST: Receiving FM stereo.
SLEEP: Sleep timer is set.
AUTO STBY: Auto Standby is set. ( →p80)
D MUTE: Blinks when muting is on.
E Speaker/Channel display: Displays the speaker
channels being output.
A: When audio is being output from the
SPEAKERS A terminals
B: When audio is being output from the
SPEAKERS B terminals
AB: When audio is being output from both the
SPEAKERS A and SPEAKERS B terminals
F Displays various information of the input signals.
G Cursors (
/ / / ): These may light when
performing operations while "NET" is selected
with the input selector. / light when there are
multiple folders or les that are available to be
selected. / light when text information does
not t with the range provided by "6".
13
Rear Panel
MADE IN M ALAYSIA
FABRI QUE EN MALAISIE
HDMI IN
HDMI OUT
TV/ TAPE
BD / DVD CBL /SAT P C GAME
RRR LLL
DIGITAL IN
COAXIAL
GAME
OPTICAL
ARC
HDCP
2
.
3
SPEAKERS
PC
CD
CD
TV/
TAPE
AC INLET
AUDIO IN
AUDIO IN
GND
LL
RR
LL
RR
LL
RR
PRE OUT
SUB
-
WOOFER
A or B
:
4
~
16
Ω
or
6
~
16
Ω
/SPEAKER
A
+
B
:
8
~
16
Ω
/SPEAKER
CAUTION
:
SPEAKER
RR LLL
LINE OUT
TX
-
8470
MODEL
MODEL E
LL
RR
ZONE 2 MAIN
ETHERNET USB
PHONO
5 V/ 1A
AA
BB
SEE INSTRUCTION MANUAL FOR CORRECT SETTINGS.
MCMCMMMM
USB Front Terminal
5V/0.5 A
TX
-
8470
TX
-
8470
For DTS patents,
see http
:
//patents.dts. com.
TX
-
8470
MODEL
MODEL E
AC 120V~
60Hz
265W
NETWORK STEREO RECEIVER
AMPLIFICATEUR
-
TUNER STÉRÉO CONNECTÉ
27125233
MDC
CLASS 2 WIRING
FM
SUB
-
WOOFER
75Ω
LL
RR
SPEAKERS
CAN ICES
-
3
B/NMB
-
3
B
THIS DE VICE COMPL IES WITH PART
15
OF THE FC C
RULE S. OPERATION I S SUBJECT TO T HE FOLLOWING
TWO CONDITIONS
:
(
1
)
THIS DE VICE MAY NOT CAUS E
HARMFUL INTERFERENCE, AND
(
2
)
THIS DE VICE
MUST AC CEPT ANY INT ERFEREN CE RECEIVE D,
INCLU DING INTERFERE NCE THAT MAY CAUSE
UNDESIRED OPERATION.
Contai ns FCC ID
:
TLZ
-
CM
276
NF
Contains IC
:
6100
A
-
CM
276
NF
MDC
SPEAKERS
R L
A
LR
B
FM
75Ω
HDMI OUT HDMI IN ETHERNET USB
HDCP 2.3
BD/DVD CBL/SAT PC GAME
ARC
5V/1A
AUDIO IN
PHONO
L
R
CD
COAXIAL
GAME
TV/TAPE
OPTICAL
AUDIO IN
CD PC
TV/
TAPE
R
L
R
L
PRE OUT
ZONE 2 MAIN
MM MC
GND
DIGITAL IN
SUB-
WOOFER
AM
TUNER
R
L
AC INLET
PRE/LINE
OUT
A 2 3 4 5
6 7 8 9
A PHONO jack: Use an analog audio cable to
connect either an MM or MC type cartridge
turntable.
B Wireless antenna: Used for WI-Fi connection or
when using a Bluetooth enabled device. Adjust
the angles according to the connection status.
C ETHERNET port: Connect to the network with
an Ethernet cable.
D USB port: Connect a USB storage device to
play music les ( →p66). You can also supply
power (5 V/1 A) to USB devices with a USB
cable.
E AC INLET: Connect the supplied power cord.
F MM/MC switch: Switch to suit the turntable
cartridge type (MM or MC).
G GND terminal: Connect the ground wire of the
turntable.
H HDMI OUT jacks: Transmit video signals and
audio signals with an HDMI cable connected to a
monitor such as a TV or projector.
I HDMI IN jacks: Transmit video signals and audio
signals with an HDMI cable connected to an AV
component.
180°
90°
14

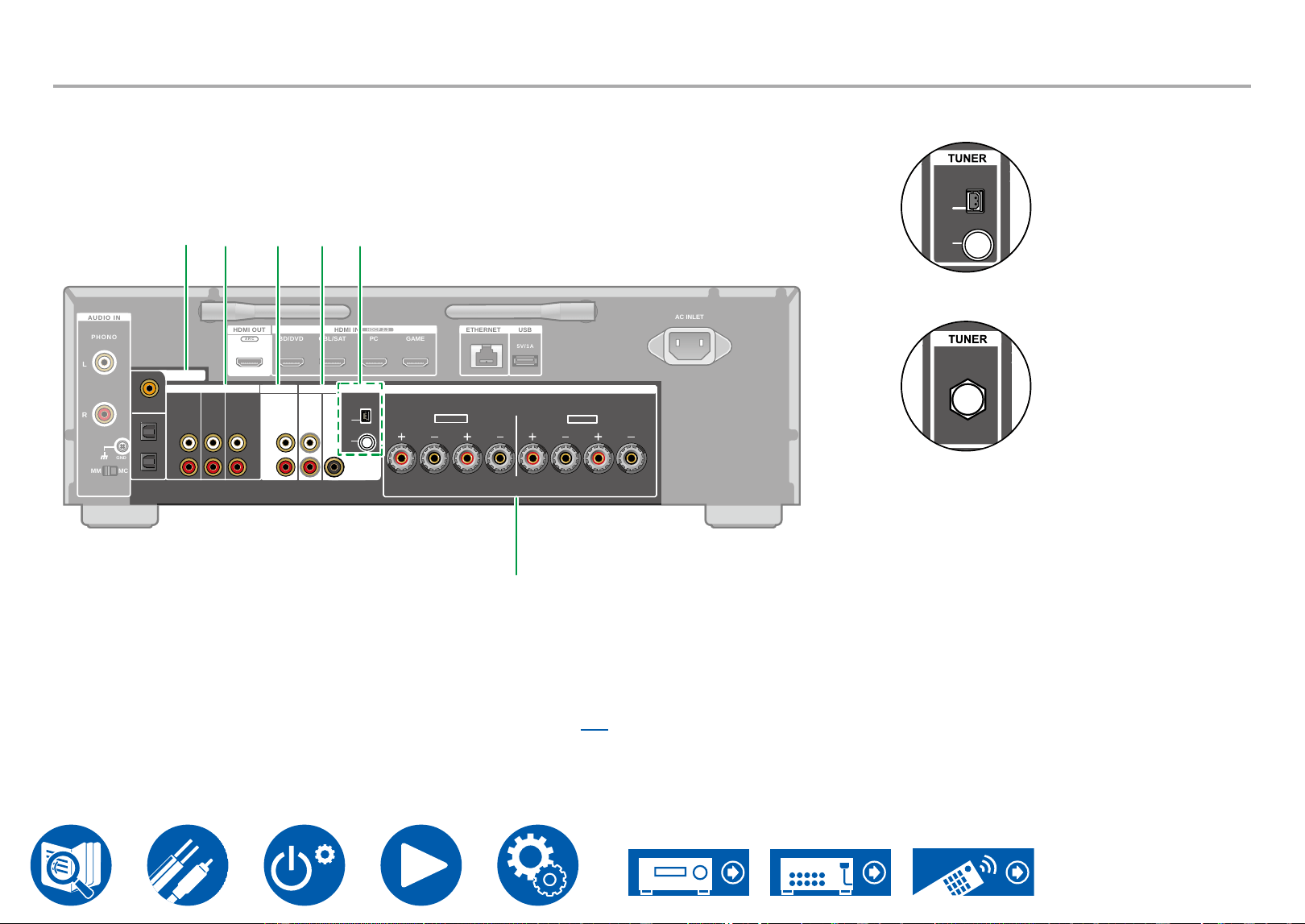

Rear Panel
SPEAKERS
R L
A
LR
B
FM
75Ω
HDMI OUT HDMI IN ETHERNET USB
HDCP 2.3
BD/DVD CBL/SAT PC GAME
ARC
5V/1A
AUDIO IN
PHONO
L
R
CD
COAXIAL
GAME
TV/TAPE
OPTICAL
AUDIO IN
CD PC
TV/
TAPE
R
L
R
L
PRE OUT
ZONE 2 MAIN
MM MC
GND
DIGITAL IN
SUB-
WOOFER
AM
TUNER
R
L
AC INLET
PRE/LINE
OUT
J K
O
L M N
J DIGITAL IN OPTICAL/COAXIAL jacks: Input
TV or AV component digital audio signals with a
digital optical cable or digital coaxial cable.
K AUDIO IN jacks: Input AV component audio
signals with an analog audio cable.
*For models that do not have a tuner, the “PC”
jack is changed to a “TUNER” jack.
L ZONE 2 PRE/LINE OUT jacks: Output audio
signals with an analog audio cable connected
to an integrated amplier in a separate room
(ZONE 2).
M MAIN PRE OUT jacks: Connect a power
amplier. ( →p22)
SUBWOOFER PRE OUT jacks: Connect a
powered subwoofer with a subwoofer cable.
N TUNER AM/FM terminal (North American
models): Connect the supplied antennas.
T
B
-
OOFER
TUNER
AM
FM
75Ω
AM
FM
75Ω
TUNER DAB/FM terminal (European models):
Connect the supplied antennas.
T
B
-
OOFER
TUNER
AM
FM
75Ω
DAB /
FM
O SPEAKERS terminals: Connect speakers with
speaker cables. (North American and Japanese
models are banana plug ready. Use plugs with a
diameter of 4 mm.)
Connection with spade lugs is not supported.
15
Remote Controller
A ON/STANDBY button
B INPUT SELECTOR buttons: Switches the input
to be played.
C Play buttons: Used for playback operations
for the Music Server ( →p68) or USB device
( →p66).
D REPEAT button : Used for repeat play
operations when playing Music Server or USB.
Each time you press the button, the mode
switches from (1-track repeat) to (folder
repeat).
E SPEAKER A/B button: Select the terminals to
output audio from between SPEAKERS A/B.
F Cursor buttons and ENTER button: Select
an item with the cursors, and press ENTER to
conrm your selection. Pressing / LEFT/
RIGHT button allows you to switch the screen
when a music folder list or le list is not displayed
on one screen on the TV.
G SETUP button: Displays advanced setting
items on the TV or the display to have a more
enjoyable experience with this unit. ( →p74)
H CH (+/-) buttons: Used to select DAB (European
models)/AM (North American models)/FM (North
American and European models) radio stations.
I Numbered buttons
J DISPLAY button: Switches the information on
the display. You can display information such as
the input source, volume, and input format when
pressed repeatedly during play.
K DIMMER button: Switches the brightness of the
display with three levels. It cannot be turned o
completely.
L REMOTE MODE MAIN/ZONE 2 buttons:
Controls the multi-zone function ( →p61).
M RANDOM button: Used for random play
operations when playing Music Server or USB.
Random ( ) turns on or o each time you
press the button .
N MENU button: Used to display the menu.
O RETURN button: Returns the display to the
previous state while setting.
P AUDIO button: Enables you to make
adjustments such as the strength of the bass and
treble and the balance between left and right.
( →p37)
Q VOLUME buttons
R MUTING button: Temporarily mutes audio.
Press the button again to cancel muting.
S CLR button: Deletes all characters you have
entered when entering text on the TV screen.
T SLEEP button: You can allow the unit to enter
standby automatically when the specied time
has elapsed. Select the time from "30 min", "60
min", "90 min" and "O". When you do not want
to turn the unit to standby automatically, select
"O ".
P
Q
R
S
T
M
N
O
L
A
2
3
4
5
6
7
8
9
J
K
16
Inputting Characters
You can use the keyboard displayed on the TV to enter the password in Wi-Fi
Setup ( →p81).
1. Select a character or symbol with the cursors / / / UP/DOWN/LEFT/
RIGHT on the remote controller and press the ENTER button.
2. When saving characters after input, select "OK" and press the ENTER button.
, . ;/ : ], . ; :
• Select "A/a" to switch between upper and lower cases.
• To enter a space, select " ".
• To delete a character on the left of the cursor, select " ".
• To delete all the input characters, press the CLR button on the remote control.
Connections
17
Connections
Connections
(Before starting the procedure)
Speakers you can use with this unit and cable
connections 18
4-16Ω
A
B
C
Speaker layout 19
Connecting speakers 20
Connecting the Subwoofer 21
Connecting a Power Amplier 22
Notes regarding connections with HDMI cables 23
Connecting the TV 24
Connecting Playback Devices 26
Connecting an Integrated Amplier in a separate
room (Multi-zone) 28
Connecting Antennas (North American and
European models) 29
Network Connection 30
Connecting the Power Cord 31
Connections
18
Connections
Speakers you can use with this unit and cable connections
Speakers you can use with this unit
This unit supports speakers with 4 Ω to 16 Ω impedance. For speaker impedance, check the speaker instruction manual.
(Note) Speaker Impedance
If any of the connected speakers have 4 Ω or more to less than 6 Ω impedance, you have to set the impedance. Press the SETUP button on the remote controller,
then set “1. Audio” - “Speaker Impedance” ( →p78) to “4ohms”. When connecting two speaker systems for simultaneous output from both systems, connect
speakers with 8 Ω to 16 Ω impedance.
Connect the Speaker Cables
1/2˝
(12 mm)
Make correct connection between the unit's jacks and speaker's jacks (+ side to + side, and - side to - side) for each channel. If the connection is wrong, a bass
sound will not be reproduced properly due to reverse phase. Twist the wires exposed from the tip of the speaker cable so that the wires do not stick out of the speaker
terminal when connecting. If the exposed wires touch the rear panel, or the + side and – side wires touch each other, a malfunction may occur.
19
Connections
Speaker layout
ZONE 2
Main Room
A
B
C
D
A
B
D
A SPEAKER A
Speakers to be connected to the SPEAKERS A terminals. Install in the main
room (where this unit is located).
B SPEAKER B
You can connect another speaker system to this unit. Connect these speakers to
the SPEAKERS B terminals.
C Powered Subwoofer
The powered subwoofer reproduces bass sounds and enriches the sound eld.
( →p21)
D ZONE 2 Speakers
The speaker system set up in a separate room (ZONE 2). This enables you to
play the same source in the main room and the separate at the same time, or
to play separate sources. Note that to use ZONE 2 Speakers you will require a
separately available amplier. ( →p28)
Connecting speakers ( →p20)
22° to 30°
20
Connections
Connecting speakers
SPEAKERS
R L
A
LR
B
FM
75Ω
HDMI IN
ETHERNET USB
HDCP 2.3
CBL/SAT
PC GAME
5V/1A
SUB-
WOOFER
AM
TUNER
AC INLET
a Speaker cable
Connect the speakers to the unit with speaker cable.
• You can connect two sets of speakers to this unit. You can select which set to
listen to when enjoying music. You can also choose to listen to sounds from
both sets.
Press SPEAKER A/B on the remote controller or the main unit to switch the
audio output. The selection changes in the order SPEAKER A, SPEAKER B,
SPEAKER A+B with each press. ( →p38)
Note
When outputting audio simultaneously from 2 speaker systems
Connect speakers with 8 Ω to 16 Ω impedance.
When switching audio output to one of either SPEAKER A or B
Connect speakers with 4 Ω to 16 Ω impedance.
21
Connections
Connecting the Subwoofer
SPEAKERS
R L
A
FM
75Ω
HDMI OUT HDMI IN ETHERNET
USB
HDCP 2.3
BD/DVD CBL/SAT PC GAME
ARC
5V/1A
AUDIO IN
PHONO
L
R
CD
COAXIAL
GAME
TV/TAPE
OPTICAL
AUDIO IN
CD PC
TV/
TAPE
R
L
R
L
PRE/LINE
OUT
PRE OUT
ZONE 2 MAIN
MM MC
GND
DIFITAL IN
SUB-
WOOFER
AM
TUNER
R
L
a Subwoofer cable
Connect a powered subwoofer with this unit using a subwoofer cable.
22
Connections
Connecting a Power Amplier
You can connect a power amplier to the unit and use the unit as a pre-amplier.
This enables you to playback at high volumes that the unit by itself cannot
produce. Connect the speakers to the power amplier. For details, refer to the
power amplier's instruction manual.
• Use the MAIN PRE OUT terminals as shown in the illustration at left.
a Analog audio cable
SPEAKERS
R L
A
LR
B
FM
75Ω
PC
PRE/LINE
OUT
PRE OUT
ZONE 2 MAIN
SUB-
WOOFER
AM
TUNER
L
R
L
R
a
Power amplier
23
Connections

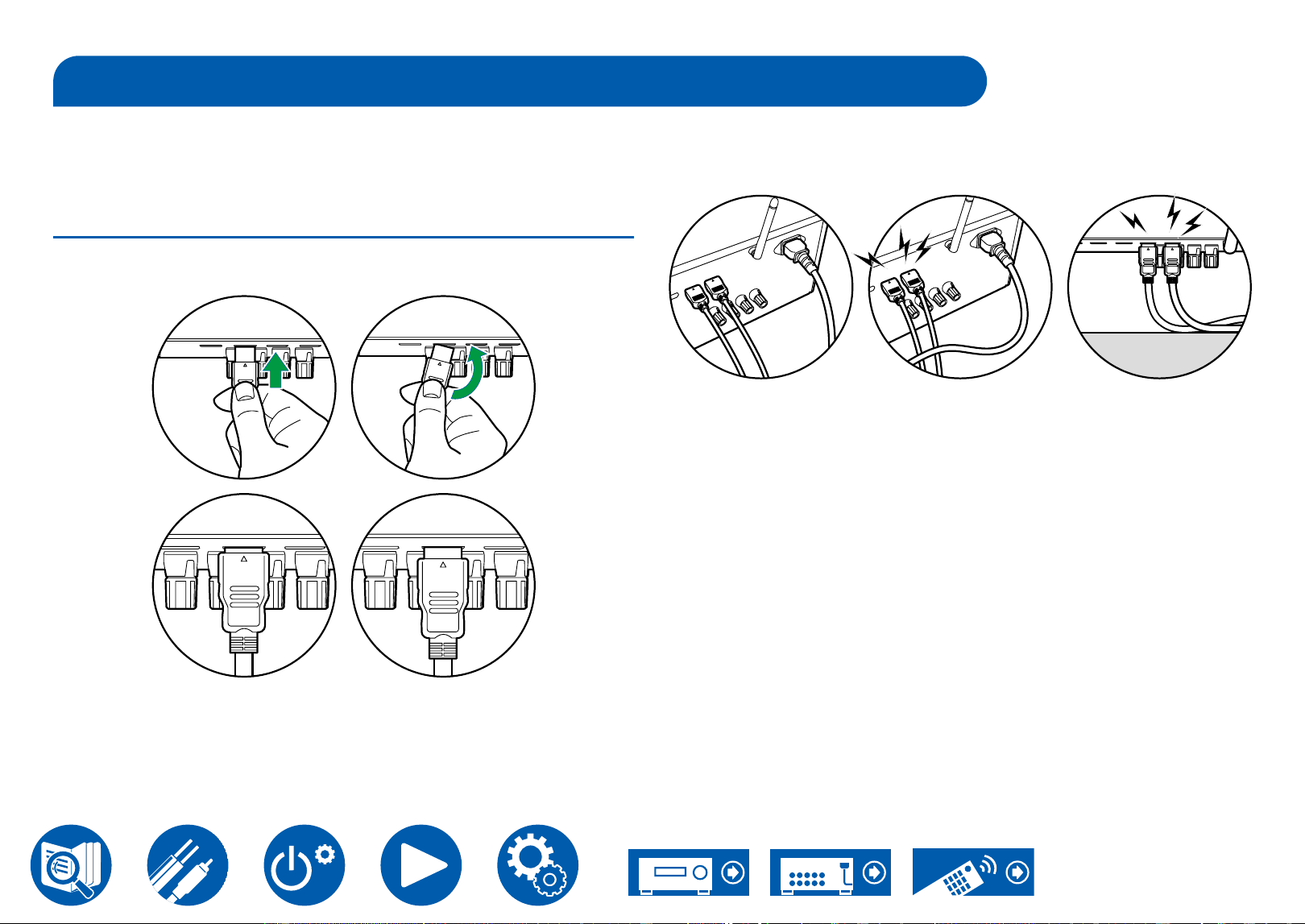

Notes regarding connections with HDMI cables
HDMI (High-Denition Multimedia Interface) is a digital interface standard for
connecting TVs, projectors, Blu-ray Disc players, game consoles, and other
video components. With HDMI, a single cable can carry control signals, digital
video, and digital audio.
Connections
Push HDMI cables straight in and all the way. You can damage the terminals if
you try to insert at an angle.
Correct
Incorrect
Correct Incorrect
• Hold the terminal housing on the HDMI cable when unplugging. Pulling on the
cable may lead to damaged cabling.
(Note) Placement of cables
Putting a load on HDMI cables can lead to poor operational performance. Place
the cables so there is no load put on them.
Correct Incorrect Incorrect
• When 4K high-quality video (4K 120 Hz, etc.) or 8K high-quality video (8K
60 Hz, etc.) is to be played, use ULTRA High Speed HDMI Cable that has the
"ULTRA HIGH SPEED" label attached to the packaging.
24
Connections
Connecting the TV
By connecting a TV to this unit, you can show the video from AV devices connected to this unit on the TV and also play the sound from the TV through this unit.
R
A
FM
75Ω
HDMI OUT HDMI IN
ETHERNET
HDCP 2.3
BD/DVD CBL/SAT PC GAME
ARC
AUDIO IN
PHONO
L
R
CD
COAXIAL
GAME
TV/TAPE
OPTICAL
AUDIO IN
CD PC
TV/
TAPE
PRE/LINE
OUT
PRE OUT
ZONE 2 MAIN
MM MC
GND
DIFITAL IN
SUB-
WOOFER
AM
TUNER
L
R
L
R
b
a
HDMI IN
DIGITAL
OPTICAL
OUT
HDMI IN
(
ARC
)
To ARC TV
If the TV supports the ARC (Audio Return Channel) function(*), use only the
HDMI cable to connect with the TV. Use the ARC-compatible HDMI IN jack of
the TV for connection.
To Non-ARC TV
If the TV does not support the ARC (Audio Return Channel) function(*), connect
an HDMI cable and digital optical cable. If the TV does not have a DIGITAL
OPTICAL OUT jack, you can use an analog audio cable to connect with the
AUDIO IN TV/TAPE jack.
• If you use a cable set-top box, etc. connected to the input jack of this unit to
watch TV (without using a TV’s built-in tuner), connection with a digital optical
cable or analog audio cable is not required.
Setup
• When not using the ARC function, press the SETUP button on the remote
controller, then set "2. Control" - "Audio Return Channel" ( →p80) to "O".
(*)The ARC function transmit the audio signals of the TV via an HDMI cable, and
plays the audio of the TV on this unit. To check if the TV supports the ARC
function, refer to the instruction manual of the TV, etc.
ARC compatible audio format ( →p104)
TV
ARC TV
Non-ARC TV
a HDMI cable, b Digital optical cable
26
Connections
Connecting Playback Devices
Connecting a Blu-ray/DVD Disc player and Game console
SPEAKERS
R L
A
FM
75Ω
HDMI OUT HDMI IN ETHERNET USB
HDCP 2.3
BD/DVD CBL/SAT PC GAME
ARC
5V/1A
AUDIO IN
PHONO
CD
COAXIAL
GAME
TV/TAPE
OPTICAL
AUDIO IN
CD PC
TV/
TAPE
PRE/LINE
OUT
PRE OUT
ZONE 2 MAIN
MC
GND
DIFITAL IN
SUB-
WOOFER
AM
TUNER
L
R
L
R
L
R
a
This is a connection example of an AV component equipped with an HDMI jack.
When connecting with an AV component that conforms to the CEC (Consumer
Electronics Control) standard, you can use the HDMI CEC function (*) that
enables linking with input selectors, etc. and the HDMI Standby Through
function that can transmit video and audio signals of the AV component to the
TV even if this unit is in standby mode.
(*) The HDMI CEC function: This function enables various linking operations
with CEC-compliant devices, such as switching input selectors interlocking
with a CEC-compliant player, switching audio output between TV and this unit
or adjusting the volume using the remote controller of a CEC-compliant TV,
and automatically switching this unit to standby when the TV is turned o.
• Use an HDMI cable that supports 4K or 8K high-quality video when these
are to be played.
• Be sure to insert the HDMI cable all the way in.
Blu-ray/
DVD Disc player
Game consoler
Cable/Satellite
set-top box
a HDMI cable
27
Connections
Connecting an Audio Component
This is a connection example of an audio component. Connect a CD player
using an analog audio cable. You can also connect a turntable that has an MM-
type or MC type cartridge to the PHONO jack.
• If the turntable has a built-in phono equalizer, connect it to any of the AUDIO
IN jacks other than the PHONO jack.
• Switch the MM/MC switch to suit the turntable cartridge type (MM or MC).
TV
OP
MM MC
GND
• If the turntable has a ground wire, connect it to the GND terminal of this unit.
MM MC
GND
FM
75Ω
HDMI OUT HDMI IN
HDCP 2.3
BD/DVD CBL/SAT
PC
ARC
AUDIO IN
PHONO
L
R
CD
COAXIAL
GAME
TV/TAPE
OPTICAL
AUDIO IN
CD PC
TV/
TAPE
PRE/LINE
OUT
PRE OUT
ZONE 2 MAIN
MM MC
GND
DIGITAL IN
SUB-
WOOFER
AM
TUNER
L
R
L
R
L
R
OR
a
a b
Turntable CD player
a Analog audio cable, b Digital coaxial cable
28
Connections
Connecting an Integrated Amplier in a separate room (Multi-zone)
You can enjoy 2 ch audio in the separate room (ZONE 2) while performing
playback in the main room (where this unit is located). Use an analog audio
cable to connect the ZONE 2 PRE/LINE OUT jacks on this unit to the input jack
on an integrated amplier in the separate room.
• To output audio from an externally connected AV component to ZONE 2,
use an analog audio cable for connection. Note that ZONE 2 output is not
possible with the connection using an HDMI cable, digital coaxial cable, or
digital optical cable.
Setup
• When connecting an integrated amplier that does not have a volume control,
set "1. Audio" - "Zone 2 Output Level" ( →p78) to "Variable" (Default
Value: Fixed) on the Setup menu. If you do not set this, the volume output
will be very loud and there is a danger of damage to the integrated amplier,
speakers, etc. When connecting an integrated amplier that has a volume
control, leave this as "Fixed".
Multi-zone ( p61)
Playing Back (ZONE 2) (
p62)
SPEAKERS
R L
A
L
R
B
FM
75Ω
HDMI OUT HDMI IN ETHERNET USB
HDCP 2.3
BD/DVD CBL/SAT PC GAME
ARC
5V/1A
AUDIO IN
CD
PC
TV/
TAPE
PRE/LINE
OUT
PRE OUT
ZONE 2 MAIN
DIFITAL IN
SUB-
WOOFER
AM
TUNER
L
R
L
R
a
a Analog audio cable
Integrated amplierIntegrated amplier
29
Connections
Connecting Antennas (North American and European models)
Connect the antenna to this unit, and set up the antenna at the best position for
listening while receiving radio signals.
North American models
SPEAKERS
R L
A
LR
B
FM
75Ω
PRE/LINE
OUT
PRE OUT
ZONE 2 MAIN
SUB-
WOOFER
AM
TUNER
L
R
L
R
A B
• Attach the indoor FM antenna to the wall using push pins or adhesive tape.
European models
SPEAKERS
R L
A
LR
B
PRE/LINE
OUT
PRE OUT
ZONE 2 MAIN
SUB-
WOOFER
TUNER
L
R
L
R
DAB /
FM
c
DAB
a AM loop antenna, b Indoor FM antenna c DAB/FM antenna
30
Connections
Network Connection
This unit can be connected to the network using a wired LAN or Wi-Fi (wireless
LAN). You can enjoy network functions such as Internet radio by network
connection. If connection is made by the wired LAN, connect the router and
the ETHERNET jack with the Ethernet cable as shown in the illustration. To
connect by Wi-Fi, select your desired setting method in "2. Connect the unit to
Wi-Fi" ( →p34) of Initial Setup, and then follow the on-screen instructions.
To congure the setting on the Setup menu after the completion of Initial Setup,
press the SETUP button on the remote controller, and select "3. Network"
to make the setting ( →p81). For the Wi-Fi connection, stand the wireless
antenna for use.
Note
• For security reasons, always connect via a router, etc., when connecting this
unit to the Internet. Do not directly connect to the communication circuits
(including public wireless LAN) of a telecommunications provider (mobile
communications company, xed-line communications company, Internet
provider, etc.).
Router
SPEAKERS
R L
A
LR
B
ETHERNET USB
HDCP 2.3
PC
GAME
5V/1A
AC INLET
a Ethernet cable
31
Connections
Connecting the Power Cord
Connect the power cord after all the connections are completed.
• This model includes a removable power cord. Be sure to connect the power
cord to the AC INLET of the unit rst, and then connect it to the outlet. Always
disconnect the outlet side rst when disconnecting the power cord.
Note
Japanese models
• Match the power polarity to improve sound quality. Put the side of the power
plug included with this unit with the "N" mark into the side of the outlet with
the longer slot. If both slots are the same length, then you can plug it in either
side.
a Power cord
SPEAKERS
R L
A
LR
B
HDMI IN
ETHERNET USB
HDCP 2.3
PC GAME
5V/1A
SUB-
WOOFER
TUNER
AC INLET
a
33
Initial Setup
Before starting the procedure
Initial Setup starts when you turn on the power after purchasing the unit. An app
is used during Initial Setup to connect the unit to Wi-Fi (wireless LAN).
Download
• To perform Initial Setup later, press SETUP or RETURN.
• If a Wi-Fi connection is not established, or if a wired LAN connection is not
made, Initial Setup is displayed again when you turn the power on.
1. Install the app
Onkyo Controller (available on iOS and Android™ handsets) is a dedicated app
available for free which allows you to use your handset as a remote controller.
You have operations such as Wi-Fi (wireless LAN) settings for the unit, input
switching, volume adjustments, and network services (Internet radio and music
le playback) at your ngertips.
Main features
• Setting the Wi-Fi (wireless LAN) for the unit.
• Turning the power on/o, switching input, adjusting the volume, and other
such basic remote controller operations.
• When using Multi-zone ( →p61), you can not only control with the app
in the main room (where this unit is located), but also in the separate room
(ZONE 2).
• Playing internet radio services (TuneIn Radio, etc.) and selecting stations.
Control in the palm of your hands without looking at the TV.
• Play the music les saved on the mobile device via Wi-Fi.
• Play Amazon Music (compatible models only) ( →p54)
1. Download the Onkyo Controller from the App Store or Google Play
TM
Store.
If it has already been downloaded, then it is updated to the latest version.
34
Initial Setup
2. Connect the unit to Wi-Fi
1. Turn on the power of the unit.
2. Start Onkyo Controller. The search for this unit starts automatically when you
start the app.
3. When this unit appears in the list of devices, tap it to select it.
TX-8470
TX-8470(192.168.XXX.XXX)
4. Follow the guidance in the app to connect this unit via Wi-Fi.
Set the impedance
If any of the connected speakers have 4 Ω or more to less than 6 Ω impedance,
and it is anticipated that they will be used continuously at full power, you have to
set the impedance. Press the SETUP button on the remote controller, then set
“1. Audio” - “Speaker Impedance” ( →p78) to “4ohms”.
Playback
35
Playback
Basic Operations
Basic Operations 36
Bluetooth
®
Playback 40
Listening To the Radio 44
Network Services
Spotify 49
AirPlay
®
50
Amazon Alexa 52
Amazon Music 54
TIDAL 56
Connecting the Sonos System for Playback 57
Internet Radio 59
Convenience functions
Multi-zone 61
Playing dierent audio and video 64
Using MY INPUT 65
Playing music les saved on a USB storage device 66
Music Server 68
Play Queue 71
Playback
36
Playback
Basic Operations
Turning the power on

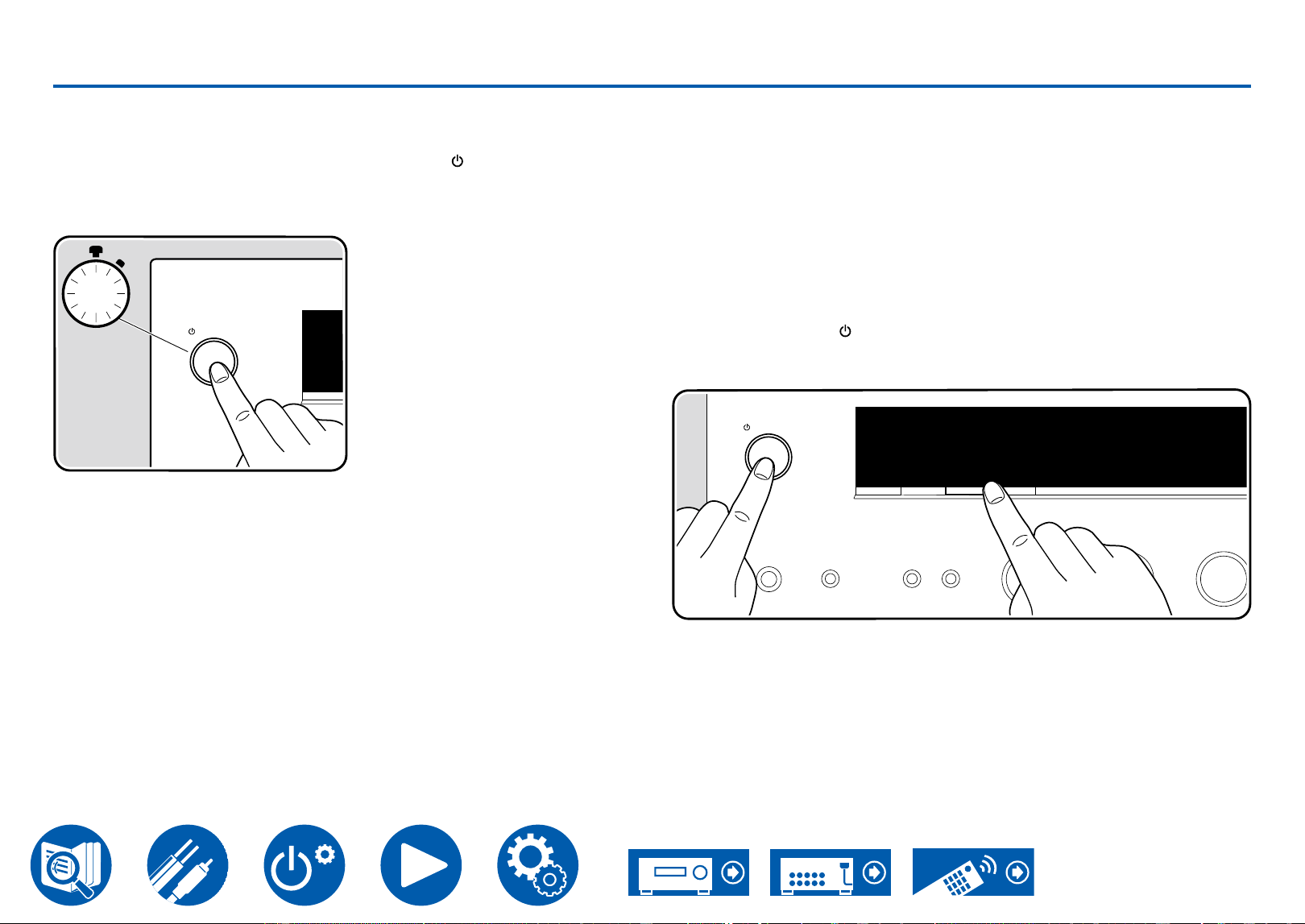

1. Press ON/STANDBY on the remote controller to turn on the power of the
unit.
• If there is no response to the remote controller, press the REMOTE MODE
MAIN button at the top of the remote controller once to switch the remote
controller to the main mode.
You can also turn on the power of the unit with the following operations:
– Pressing ON/STANDBY on the main unit.
– Using the Onkyo Controller app ( →p33)
– Using the linking function (HDMI CEC) ( →p38)
Selecting a source to play
1. Press an input selector button on the remote controller to select a source.
For example, to play the device connected to the BD/DVD jack, press the BD/
DVD button. To listen to the audio of the TV, press TV/TAPE button.
• If there is no response to the remote controller, press the REMOTE MODE
MAIN button at the top of the remote controller once to switch the remote
controller to the main mode.
You can also select a source to play with the following operations:
– Turning the INPUT dial on the main unit.
– Using the Onkyo Controller app ( →p33)
37
Playback
Adjusting the volume
1. Press the VOLUME buttons on the remote controller to adjust the volume.
To temporarily turn o the sound, press the MUTING button. Press again to
cancel.
• If there is no response to the remote controller, press the REMOTE MODE
MAIN button at the top of the remote controller once to switch the remote
controller to the main mode.
• Depending on the video signal, the volume bar on the TV screen changes
from blue to magenta.
You can also adjust the volume with the following operations:
– Using the VOLUME dial on the main unit
– Using the Onkyo Controller app ( →p33)
– Using the linking function (HDMI CEC) ( →p38)
Adjusting the sound quality and left/right
volume balance
1. Press AUDIO on the remote controller.
2. Press the cursor buttons / UP/DOWN to select the item, then use
the / LEFT/RIGHT buttons to change the settings.
Bass: Enhance or moderate the low pitched range. *1
Treble: Enhance or moderate the high pitched range. *1
Balance: Adjust the balance of the sounds output from the left and right
speakers.
Direct: Enable/disable the Direct function which outputs pure sound as it was
intended by bypassing the tone control circuits during play.
3. To exit the settings, press RETURN.
• If there is no response to the remote controller, press the REMOTE MODE
MAIN button at the top of the remote controller once to switch the remote
controller to the main mode.
*1 It cannot be set if the listening mode is Pure Audio or Direct.
You can also adjust the sound quality with the following operations:
– Turning the BASS, TREBLE, and BALANCE dials on the main unit
– Using the Onkyo Controller app ( →p33)
38
Playback
Switching speakers
When you have connected two sets of speakers to this unit, you can select
which set to output the sound.
1. Press SPEAKER A/B on the remote controller.
The selection changes in the order SPEAKER A, SPEAKER B, SPEAKER
A+B with each press.
• If there is no response to the remote controller, press the REMOTE MODE
MAIN button at the top of the remote controller once to switch the remote
controller to the main mode.
You can also switch speakers with the following operations:
– Pressing SPEAKER A/B on the main unit
Using the linking function (HDMI CEC)
By using an HDMI cable and connecting to a TV that is compatible with the
HDMI CEC (Consumer Electronics Control) function, you are able to perform
operations such as adjusting the volume of this unit with the TV's remote
controller and link power On/O. Furthermore, if you have connected a Blu-ray
Disc player, Game consoler, etc. that is compatible with the HDMI CEC function,
input switching is performed automatically.
• HDMI CEC settings ( →p79) (the default value is "On")
• For information about the HDMI CEC functions of the TV, refer to the
operating instructions, etc., for the TV.
• The unit is designed to link with products that comply with the CEC standard,
and that linked operation is not always guaranteed with all CEC devices.
• For linked functions to work properly, do not connect CEC-compliant devices
exceeding the connectable number to the HDMI jack as shown below.
– Blu-ray Disc/DVD players: up to 3 units
– Blu-ray Disc/DVD recorders: up to 3 units
– Cable TV tuner, terrestrial digital tuner, and satellite broadcasting tuner: up
to 4 units
39
Playback
Switching the display
Repeatedly pressing the DISPLAY button on the remote controller switches the
display of the main unit in the following order.
• The content displayed depends on the source, Bluetooth, etc., being played.
• Not all the information is necessarily displayed.
1 9 2 1 6 8 X X X X
Stereo
10 8 0 p /5 9 1 6 : 9
17 6 . 4 k H z
BD/DVD 4 0 . 0
PCM
Input signal resolution
Input source and volume
IP Address
Listening mode
The display is switched in
a few seconds.
Input format
Sampling frequency
40
Playback
Bluetooth
®
Playback
You can wirelessly play music on a smartphone or other Bluetooth wireless technology enabled device through the speakers connected to this unit. It is also possible
to transmit the audio from this unit to Bluetooth enabled headphones, wireless speakers, etc.
Playing audio from Bluetooth wireless technology enabled devices with this unit
Perform the following procedure when this unit is on.
Pairing
1. When you press the BLUETOOTH button, "Now Pairing..." appears on the
display, and the pairing mode is enabled.
Now Pairing . . .
2. Enable (turn on) the Bluetooth function of the Bluetooth enabled device,
and then select this unit from among the devices displayed. If a password is
requested, enter "0000".
• This unit is displayed as "Onkyo TX-8470 XXXXXX". This display can be
changed using the Friendly Name function ( →p82) or Onkyo Controller
( →p33) (available on iOS or Android™).
• To connect another Bluetooth enabled device, press and hold the
DISPLAY button at least 2 seconds, and then perform step 2. This unit can
store the pairing information of up to 8 paired devices.
• The coverage area is approx. 48´/15 m. Note that connection is not always
guaranteed with all Bluetooth enabled devices.
• If pairing fails, then in the Setup menu, set "4. Bluetooth" - "Bluetooth
Transmitter" ( →p85) to "O" and "Bluetooth Receiver" ( →p84) to
"On".
Onkyo TX-84
The illustration shows an image.
41
Playback
Playing Back
1. Perform the connection procedure on the Bluetooth enabled device.
2. Playing the music le.
The input on this unit automatically switches to "BLUETOOTH".
Turn up the volume of the Bluetooth enabled device to an appropriate level.
• Due to the characteristics of Bluetooth wireless technology, the sound
produced on this unit may slightly be behind the sound played on the
Bluetooth enabled device.
42
Playback
Transmitting audio from this unit to Bluetooth wireless technology enabled devices
Pairing
1. Press the input selector you want to play.
• Select a source other than "BLUETOOTH". This function does not work if
you select "BLUETOOTH".
2. Press the SETUP button on the remote controller, select "4. Bluetooth" -
"Bluetooth Transmitter", and select either "On (Tx)" or "On (Main + Tx)" in
"Bluetooth Transmitter". (Default value is "O")
• If you select "On (Tx)", playback is from the Bluetooth wireless technology
enabled device only, and if you select "On (Main + Tx)", playback is from
both the Bluetooth wireless technology enabled device and the main unit.
Setup
1. Audio
2. Control
3. Network
4. Bluetooth
5. Works with SONOS
6. Firmware Update
7. Lock
8. Factory Reset
Bluetooth Transmitter
Search Devices
Output Level
aptX HD
Low Latency Mode
Pairing Information
Device
Status
On (Tx)
Start
Variable
Off
Off
Clear
Ready
Set to “Off” if you are not using the Bluetooth Transmitter.
3. In "Search Devices", press ENTER.
• The search starts for Bluetooth wireless technology enabled devices that
are able to receive, then a list of relevant devices is displayed.
4. Select the device you want to output the audio from, and when you press
ENTER the message "Now Pairing…" is displayed and the two are paired.
• Depending on the Bluetooth wireless technology enabled device, you may
need to pair manually. If the device name does not appear in the list, check
the settings of the Bluetooth wireless technology enabled device.
The illustration shows an image.
43
Playback
Playing Back
1. Do the play operations on the AV component connected to this unit. Do the
play operations on this unit when the input is TUNER or NET.
• If "Variable" has been selected for the "Output Level", the volume can be
adjusted on this unit. Adjust to a suitable volume on the connected Bluetooth
wireless technology enabled device beforehand. If "Fixed" is selected, adjust
the volume on the Bluetooth wireless technology enabled device.
• You cannot transmit audio to multiple Bluetooth wireless technology enabled
devices from this unit.
• The coverage area is approx. 48´/15 m. Note that connection is not always
guaranteed with all Bluetooth enabled devices.
• When "Bluetooth Transmitter" is "On (Tx)" or "On (Main + Tx)" and in the
following cases, when this unit detects a paired Bluetooth wireless technology
enabled device, it will automatically reconnect with that device.
– When the power is turned on again after the unit is switched to standby
– While other than "BLUETOOTH" is selected
– When the "NET" input is selected and there is audio output from a network
service/content (some services excluded)
When not using this function, select "O" in "Bluetooth Transmitter" to cancel
the connection. Also disconnect on the receiving device (if disconnection is
possible on the receiving device).
• Audio cannot be output from a Bluetooth wireless technology enabled device
in the following cases:
– When the audio le is DSD format
– When playing audio from one of the following network services:
Chromecast built-in, Amazon Alexa, AirPlay
*The services may not be available, depending on your area of residence.
• Sound quality adjustments and listening modes of this unit cannot be applied
to the output audio.
• This function can be used in the main room (where this unit is located). This
function turns o if you turn on the Multi-zone function which outputs audio
from a separate room (ZONE 2).
44
Playback
Listening To the Radio
AM FM DAB
You can receive AM (North American models)/FM (North American and
European models)/DAB (European models) radio on this unit with the built-in
tuner.
Listening To the AM/FM Radio
Perform the following procedure when this unit is on.
Tuning Automatically
1. Press the TUNER button on the remote controller repeatedly to select either
"AM" or "FM".
2. Press the TUNING MODE button on the main unit repeatedly to display
"TunMode: Auto" on the display.
TunMode:Auto
3. When you press the cursors / UP/DOWN, automatic tuning starts, and
searching stops when a station is found. When tuned in to a radio station,
the "TUNED" indicator on the display lights up. When tuned in to an FM radio
station, the "FM ST" indicator lights up.
When FM broadcasts reception is poor: Perform the procedure for "Tuning
Manually" ( →p44). Note that if you tune manually, the reception for FM
broadcasts will be monaural rather than stereo, irrespective of the sensitivity of
the reception.
Tuning Manually
Note that if you tune manually, the reception for FM broadcasts will be monaural
rather than stereo, irrespective of the sensitivity of the reception.
1. Press the TUNER button on the remote controller repeatedly to select either
"AM" or "FM".
2. Press the TUNING MODE button on the main unit repeatedly to display
"TunMode: Manual" on the display.
TunMode:Manual
3. While pressing the cursors / UP/DOWN, select the desired radio station.
• Each time you press the cursors / UP/DOWN, the frequency changes
by 1 step. If the button is held down, the frequency changes continuously,
and if the button is released, the frequency stops changing.
45
Playback
Frequency step setting (North American models)
Press the SETUP button, and using the cursors and ENTER, select "1. Audio" -
"AM/FM Frequency Step", and then select the frequency step for your area. Note
that when this setting is changed, all radio presets are deleted.
Presetting a Radio Station ( →p48)
46
Playback

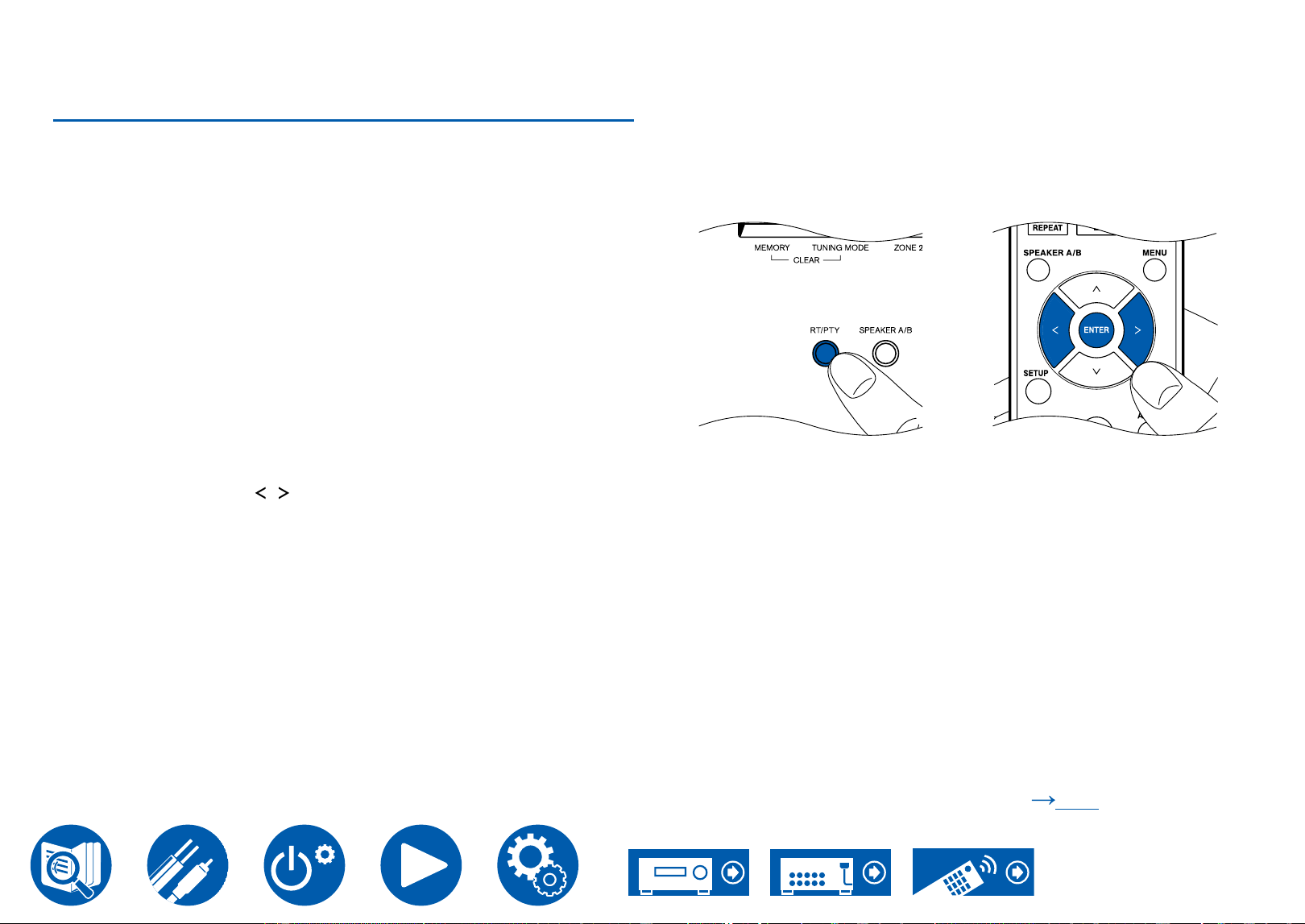

Using RDS
(European models only)
RDS stands for Radio Data System, and is a method of transmitting data in FM
radio signals. In regions where RDS can be used, when you tune in to a radio
station broadcasting program information, the radio station name is displayed
on the display. When you press the RT/PTY button on the main unit in this state,
you can use the following functions.
Display Text Information (Radio Text)
1. While the name of the station is being displayed on the display, press the RT/
PTY button on the main unit once.
The Radio Text (RT), which is text information delivered by the station, is
displayed scrolling across the display. "No Text Data" is displayed when no
text information is delivered.
Search for Stations by Program Type
1. While the name of the station is being displayed on the display, press the RT/
PTY button on the main unit twice.
• If none of the Program Types are set for the radio station under reception,
"None" is displayed.
2. Press the cursor buttons / LEFT/RIGHT on the remote controller to select
the Program Type you want to search for, and then press the ENTER button
to start the search.
• The Program Types displayed are as follows: None / News (News reports)
/ Aairs (Current aairs) / Info (Information) / Sport / Educate (Education) /
Drama / Culture / Science (Science and technology) / Varied / Pop M (Pop
music) / Rock M (Rock music) / Easy M (Middle of the road music) / Light
M (Light classics) / Classics (Serious classics) / Other M (Other music)
/ Weather / Finance / Children (Children's programmes) / Social (Social
aairs) / Religion / Phone In / Travel / Leisure / Jazz (Jazz music) / Country
(Country music) / Nation M (National music) / Oldies (Oldies music) / Folk
M (Folk music) / Document (Documentary)
• The information displayed may not match the content delivered by the
station.
3. When a station is found, the station blinks on the display. Pressing the
ENTER button in this state will receive that station. If you don't press the
ENTER button, the unit starts to search for another station.
• If no stations are found, the message "Not Found" is displayed.
• Unusual characters may be displayed when the unit receives unsupported
characters. This is not a malfunction. Also, if the signal from a station is weak,
information may not be displayed.
Presetting a Radio Station ( p48)
47
Playback

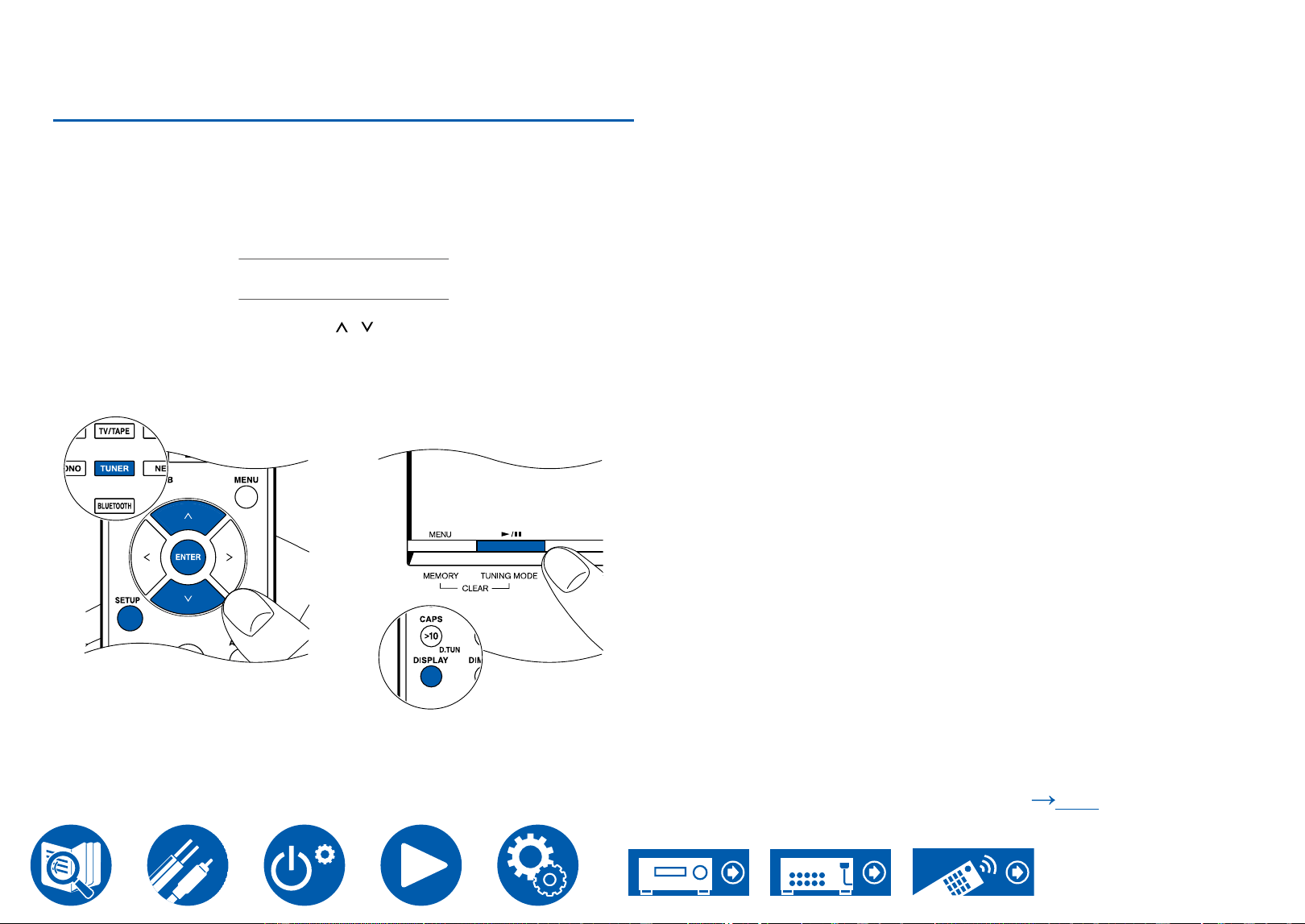

Listening To DAB Digital Radio
(European models only)
Perform the following procedure when this unit is on.
1. Press TUNER repeatedly to select "DAB".
• The very rst time you select DAB, the Auto Tuning function automatically
scans the DAB Band 3 for the multiplexes (i.e., stations) available in your
area. Once the scanning process is complete, the rst station that was
detected is selected.
Scan: 100%
2. Select the desired radio station with / UP/DOWN.
• If a new DAB station is introduced, or you move to a new area, press the
SETUP button on the remote controller, then use the cursors and ENTER
button to run the "1. Audio" - "DAB Auto Scan".
Changing how stations are sorted
You can sort the available stations alphabetically or by multiplex.
1. Press the TUNING MODE button on the main unit repeatedly to set the
method for sorting the display order from the following.
Alphabet (default setting): Sort stations alphabetically.
Multiplex: Sort stations by multiplex.
Displaying DAB Radio Information
1. Press DISPLAY button repeatedly to display more information about the
selected DAB station.
DLS (Dynamic Label Segment) : When tuned to a station that's broadcasting
DLS text data, the text will scroll across the display.
Program Type : Displays the type of program.
Bit Rate and Audio Mode : Displays the station's bit rate and audio mode
(Stereo, Mono).
Quality : Displays the signal quality.
0 - 59: Poor reception
60 - 79: Good reception
80 - 100: Excellent reception
Multiplex Name : Displays the name of the current multiplex.
Multiplex Number and Frequency :
Displays the number and frequency of the current multiplex.
Presetting a Radio Station ( p48)
48
Playback
Presetting a Radio Station
Registration Procedure
You can preset up to 40 of your favorite radio stations.
After tuning in to the radio station you want to register, perform the following
procedure.
1. Press MENU button on the remote controller so that the preset number on the
display blinks.
FM 87.5 MHz 1
2. While the preset number is blinking (approx. 8 seconds), repeatedly press the
cursors
/ LEFT/RIGHT to select a number between 1 and 40.
3. Press MENU button on the remote controller again to register the station.
When the station is registered, the preset number stops ashing. Repeat this
procedure for all of your favorite radio stations.
You can also register radio stations with the following operations:
– Pressing MEMORY on the main unit.
– Using the Onkyo Controller app ( →p33)
Selecting a Preset Radio Station
1. Press TUNER button on the remote controller.
2. Press the cursors / LEFT/RIGHT to select a preset number.
Deleting a Preset Radio Station
1. Press TUNER button on the remote controller.
2. Press the cursors / LEFT/RIGHT to select the preset number to delete.
3. While pressing MEMORY on the main unit, press TUNING MODE to delete
the preset number. When deleted, the number on the display disappears.
50
Playback
AirPlay
®
By connecting this unit to the same network as that of iOS devices such as iPhone
®
, iPod touch
®
and iPad
®
, you can enjoy music les on iOS devices wirelessly.
• Update the OS version on your iOS device to the latest version.
• Depending on the iOS version, operation screens or operation procedures on the iOS device may be dierent. For details, refer to the operating instructions for the
iOS device.
Basic Operations
1. Connect the iOS device to the access point where this unit is connected via
network.
2. Tap the AirPlay icon in the play screen of the music app on an iOS device
that supports AirPlay and select this unit from the list of devices displayed.
3. Play the music le on the iOS device.
• When "2. Control" - "Network Standby" is set to "O" in the Setup menu, turn
this unit on manually, and press the NET button on the remote controller. In
the factory default setting, the Network Standby function ( →p80) is set to
On.
• Due to the characteristics of AirPlay wireless technology, the sound produced
on this unit may slightly be behind the sound played on the AirPlay-enabled
device.
You can also play the music les on a PC with iTunes (Ver. 10.2 or later)
equipped. Conrm that this unit and the PC are connected to the same network
beforehand. Then, press NET on the remote controller. Next, click the AirPlay
icon
in iTunes, select this unit from the displayed devices, and start play of a
music le.
Onkyo TX-8470
iPhone
Wi-Fi
e.g., iOS 10
51
Playback
Playing Back on multiple devices (AirPlay2)
This unit supports AirPlay2. If the version of the iOS device is iOS11.4 or later,
you can play the tracks on the iOS device simultaneously on this device and on
another device that supports AirPlay2.
1. Connect the iOS device to the access point where this unit is connected via
network.
2. Tap the AirPlay icon on the play screen of the music play application on
the iOS device, and select this unit and AirPlay2-supported devices to play
from the displayed devices.
• AirPlay2-supported devices are displayed with white circle on the right
side.
• Multiple AirPlay2-supported devices can be selected.
• The volume can be adjusted on individual devices.
3. Play the music le on the iOS device.
• When "2. Control" - "Network Standby" is set to "O" in the Setup menu, turn
this unit on manually, and press the NET button on the remote controller. In
the factory default setting, the Network Standby function ( →p80) is set to
On.
• Due to the characteristics of AirPlay wireless technology, the sound produced
on this unit may slightly be behind the sound played on the AirPlay-enabled
device.
You can also play the music les on a PC with iTunes (Ver. 12.8 or later)
equipped. Conrm that this unit and the PC are connected to the same network
beforehand. Then, press NET on the remote controller. Next, click the AirPlay
icon
in iTunes, select this unit and AirPlay2-supported devices to play from
the displayed devices, and start play of a music le.
Onkyo TX-8470
iPhone
Onkyo XXXXXXXX
Onkyo XXXXXXXX
Wi-Fi
e.g., iOS 11.4
52
Playback
Alexa is a cloud-based voice service developed by Amazon. When this unit is
registered with an Amazon account, you can use a terminal with Amazon Alexa
(an Amazon Echo, etc.) or Amazon Alexa App (available on iOS and Android™)
to perform operations such as adjusting the volume of this unit or playing music
using voice commands.
• You need an Amazon account to use Amazon Alexa. For more information,
see the Amazon website.
• The services may not be available, depending on your area of residence.
Registering this unit with an Amazon
account
1. Register with the Amazon account on Onkyo Controller. This cannot be set
with operations on this unit.
Refer to "1. Install the app" ( →p33) for information about the app.
2. Start Onkyo Controller and tap the unit when displayed.
3. Tap "NET" or "NETWORK" on the upper part of the Onkyo Controller’s
screen to switch to the network menu.
4. Tap the "amazon Alexa" icon.
• If the login screen is not displayed, but rather a screen prompting updates
or installation of the ID authentication app (Service Unlocker), then follow
the on screen instructions to update and install rst.
Available services may dier depending on your area.
5. Tap "Start Setup", and in the Setup screen, select the language and register
the device name. Select the same language as the one you have selected
for your other terminals with Amazon Alexa (an Amazon Echo, etc.). For the
device name, use one that can easily be called up vocally.
For example: Speaker
6. Tap "Next" to display the Amazon Alexa screen.
Amazon Alexa
53
Playback
7. Follow the on screen instructions to enter the Amazon account information,
such as your email address and password, to log into Amazon (*1). After
logging in, tap "Allow" and register this unit with an Amazon account.
(*1) Log in using the same account as other terminals with Amazon Alexa.
8. When registration is nished, the screen returns to the one for Onkyo
Controller. Follow the on screen instructions and talk to the terminal with
Amazon Alexa (an Amazon Echo, etc.), and conrm that you can use voice
commands.
For example: "Alexa, raise the volume of the speaker (*2)"
"Alexa, play music from the speaker (*2)"
(*2) Use the device name you registered in Step 5 when talking.
Operating this unit
You can use voice commands to adjust the volume on this unit, start and stop
music, and skip music up or down.
1. With the unit on, speak at the terminal with Amazon Alexa (an Amazon Echo,
etc.). When using the Amazon Alexa app, after starting the app, tap the Alexa
logo and speak at the mobile device.
For example: "Alexa, raise the volume of the speaker (*3)"
"Alexa, play music from the speaker (*3)"
(*3) Use the device name you registered in Step 5 of "Registering this unit
with an Amazon account" when talking.
• Refer to the Amazon websites for information about operation of the Amazon
Alexa app.
54
Playback
Amazon Music
Registering this unit with Amazon Music allows you to enjoy the music
distribution service provided by Amazon.
• To play Amazon Music, you need to have your Amazon account and sign up
for Amazon Prime or Amazon Music Unlimited. For more information, see the
Amazon website.
Amazon Music is now available in several countries. If Amazon Music is not
available in your country, please visit https://music.amazon.com/ for more info.
Registering This Unit with Amazon Music
1. Register with the Amazon account on Onkyo Controller. This cannot be set
with operations on this unit.
Refer to "1. Install the app" ( →p33) for information about the app.
2. Start Onkyo Controller and tap the unit when displayed.
3. Tap "NET" or "NETWORK" on the upper part of the Onkyo Controller’s
screen to switch to the network menu.
4. Then tap the "Amazon Music" icon to display the login screen of Amazon
Music. (Depending on the model, the icon names may be dierent.)
• If the login screen is not displayed, but rather a screen prompting updates
or installation of the ID authentication app (Service Unlocker), then follow
the on screen instructions to update and install rst.
Available services may dier depending on your area.
5. Enter the Amazon account information such as email address and password
to log in to Amazon. When the login is successful and this unit is registered,
the Amazon Music menu is displayed.
For playback, proceed to step 3 in the next section.
55
Playback
Playing Amazon Music using the Onkyo
Controller
1. Start up Onkyo Controller. This unit is automatically displayed after startup.
Then, tap and select this unit displayed.
2. Tap "NET" or "NETWORK" on the upper part of the screen to switch to the
network screen. Then tap the "Amazon Music" icon.
3. Select the content to play from the menu screen of Amazon Music to start
playback.
Playing Amazon Music using the remote
controller
1. Switch the input on the TV to the input connected to the unit.
2. Pressing NET will display the Network Functions list screen on the TV.
3. Select "Amazon Music" with the cursors and press ENTER to conrm.
4. Select the content to play from the menu screen of Amazon Music to start
playback.
56
Playback
TIDAL
Registering this unit with TIDAL allows you to enjoy the music distribution
service provided by TIDAL. You can register this unit on the screen of Onkyo
Controller by downloading Onkyo Controller (available on iOS or Android™) to
mobile devices such as a smartphone and tablet.
• You need a TIDAL account to play back TIDAL. For more information, see the
TIDAL website.
• The services may not be available, depending on your area of residence.
Registering this unit with TIDAL
• You can register this unit with TIDAL using Onkyo Controller. The registration
cannot be performed by operation of this unit.
1. Connect this unit to your home network by the network settings on this unit.
2. Download Onkyo Controller using your mobile device.
3. Connect the mobile device to the network where this unit is connected.
4. Start up Onkyo Controller to automatically display this unit. Tap and select
this unit displayed.
5. Tap "NET" or "NETWORK" on the upper part of the Onkyo Controller’s
screen to switch to the network menu. Then tap the "TIDAL" icon to display
the login screen of TIDAL. (Depending on the model, the icon names may be
dierent.)
• If the login screen is not displayed but an update or installation screen
is displayed instead, perform the update or installation according to the
onscreen instructions.
Available services may dier depending on your area.
6. Enter the TIDAL account information such as login ID and password to log in
to TIDAL. When the login is successful and this unit is registered, the TIDAL
menu is displayed.
For playback, proceed to step 3 in the next section.
Playing TIDAL
1. Start up Onkyo Controller. This unit is automatically displayed after startup.
Then, tap and select this unit displayed.
2. Tap "NET" or "NETWORK" on the upper part of the screen to switch to the
network screen. Then tap the "TIDAL" icon.
3. Select the content to play from the menu screen of TIDAL to start playback.
• To play TIDAL using the remote controller, operate the input selector on the
remote controller to display the network menu, and select "TIDAL" from the
menu.
57
Playback
Connecting the Sonos System for Playback
Connecting this unit and Sonos Port allows you to send the music or music
sources on the Sonos App to this unit. Through Sonos Port, you can play this
unit with the same group of another Sonos device on the network or can play
only on this unit. Also, if you start to play music from Sonos App, this unit is
automatically turned on and the link function to switch input works.
• When "2.Control" - "Network Standby" is set to "O" in the Setup menu, turn
this unit on manually, and press the NET button on the remote controller. In
the factory default setting, the Network Standby function ( →p80) is set to
On.
• You can register a maximum of 2 Sonos Port.
Necessary Equipment
• Sonos Port
• RCA audio cable (supplied with Sonos Port)
How to Connect This Unit and Sonos Port
1. Connect the Sonos Port to the AUDIO IN jack of this unit with the RCA audio
cable supplied with the Sonos Port. Any input jacks other than the PHONO
jack can be used.
• A digital cable can also be connected. For details, refer to the instruction
manual of Sonos.
Setting Up
A setup is required to play Sonos on this unit. Make the setting according to the
following procedure.
1. Press the SETUP button on the remote controller, select "5. Works with
SONOS", and press the ENTER button.
2. Select the following items with the cursors / UP/DOWN and set each
item.
Input Selector:
Enable the interlocking function with the Sonos Port. With the cursors /
LEFT/RIGHT, select the input selector to which the Sonos Port is connected.
Connected Device:
Press the ENTER button to display Sonos devices connected to the same
network as the network of this unit. Select the Sonos Port connected to the
unit and press the ENTER button.
• Products (e.g. Play:3 unequipped with an output terminal) other than the
Sonos Port are also displayed in the device list and selectable. In that
case, when playback on the Sonos side starts, the input is switched,
however, audio is not output. Select the room name of the connected
Sonos Port.
• Up to 32 devices can be displayed on the Sonos product list screen. If you
cannot nd the Sonos Port to be interlocked, return to the previous screen,
turn o the product you do not want to interlock, and try again.
58
Playback
Output Zone:
With the cursors / LEFT/RIGHT, select the ZONE where you want to
listen to the music.
"Main": Outputs audio only to the main room (where this unit is located).
"Zone 2": Outputs audio only to the separate room (ZONE 2).
"Main/Zone 2": Outputs audio to both the main room and separate room
(ZONE 2).
Preset Volume:
You can set the volume that Sonos Port will be played at beforehand. After
pressing the ENTER button, press the cursor buttons / LEFT/RIGHT
to select a value from "Last" (Volume level before entering standby mode),
"Min", "0.5" to "99.5" and "Max".
• When making the setting for the second unit, press the cursor DOWN
several times to move to the next page, and change the menu from
"SONOS-1" to "SONOS-2".
Playing Sonos on This Unit
1. Select desired tracks using Sonos App and send the tracks to the room
where this unit is located (or to the group). It is recommended to give an easy-
to-remember name to the combination of this unit and Sonos Port, such as
TV Room or Living Room where this unit is located.
• If the input selector of this unit is not automatically switched even after the
start of music playback, stop the playback once and start again.
• When the "Volume Pass Through" mode has been selected with the Sonos
App settings, you can use the Sonos App to control the volume of this unit.
* You cannot use the "Preset Volume" function when the "Volume Pass
Through" mode has been selected.
59
Playback

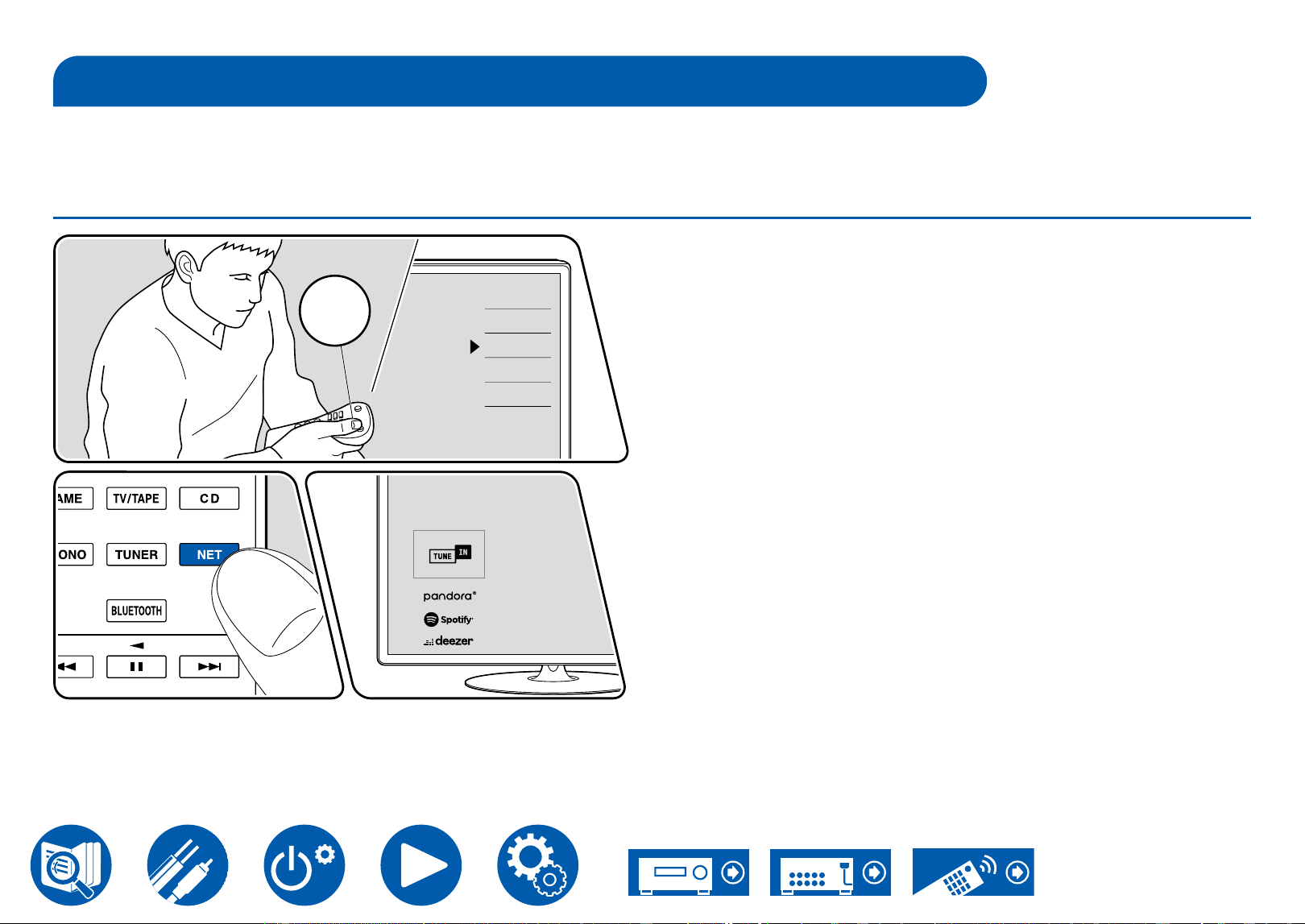

Internet Radio
By connecting this unit to an Internet-connected network, you can enjoy Internet radio services such as TuneIn Radio.
• To play Internet radio services, the network needs to be connected to the Internet.
• Depending on the Internet radio service, a user registration may be required on your PC beforehand. For details of each service, visit the website of each service.
Playing Back
Perform the following procedure when this unit is on.
1. Switch the input on the TV to the input connected to the unit.
2. Pressing NET will display the Network services list screen on the TV.
3. Select your preferred Internet radio service using cursor, and press ENTER to
conrm the selection.
4. Following the on-screen instructions, select a radio station and program using
cursor, and then press ENTER to play.
• To return to the previous screen, press RETURN.
Inputs
TV
HDMI 1
HDMI 2
HDMI 3
TV
INPUT
The illustration shows an image.
TV’s REMOTE
60
Playback
Internet Radio Service Menu
You can bookmark specic stations, or delete stations that have been
bookmarked. The displayed menu varies according to the service being
selected.
The menu icon
is displayed while a station is being played. When only this
icon is displayed, pressing ENTER will display the menu on the screen. When
multiple icons are displayed, select the
icon with the cursor, and press
ENTER.
Regarding the TuneIn Radio Account
If you create an account on the TuneIn Radio website (tunein.com), and log in it
from this unit, your favorite radio stations or programs you have followed on the
website are automatically added to your "My Presets" on this unit. "My Presets"
is displayed on the next level in the hierarchical structure of TuneIn Radio. To
display a radio station added to "My Presets", you need log into TuneIn Radio
from the unit. To log in, select "Login" - "I have a TuneIn account" in the "TuneIn
Radio" top list on the unit, and then enter your user name and password.
• If you select "Login" on this unit, a registration code is displayed. By using
this code, you can associate the device on the My Page section of the TuneIn
Radio website so that you can log in from "Login" - "Login with a registration
code" without entering the user name and password.
radiko.jp premium (Japanese models)
If you have registered as a radiko.jp premium member, you will be able to listen
to radio stations from all over Japan, even those outside your region, by logging
in with this unit. In radiko.jp, select a radio station from outside your region, then
press ENTER and log in using the following procedure:
1. The "Enter email address" message appears. Press ENTER and enter the
email address used to register as a member. When you have nished entry,
select "OK" and press ENTER.
2. Select "OK" with the cursors on the remote controller and press ENTER.
3. The "Enter password" message appears. Press ENTER and enter your
password. When you have nished entry, select "OK" and press ENTER.
4. Select "OK" with the cursors on the remote controller and press ENTER.
61
Playback
Multi-zone
You can enjoy 2 ch audio in the separate room (ZONE 2) while performing
playback in the main room (where this unit is located). The same source can be
played back in the main room and ZONE 2 simultaneously.
Main Room
ZONE 2
Using Onkyo Controller ( →p33) is convenient for operations of multi-zone
playback. You can use it on mobile devices, such as a smartphone and tablet to
which Onkyo Controller (available on iOS or Android™) has been downloaded.
Playing Back (ZONE 2) ( →p62)
62
Playback
Playing Back (ZONE 2)
Note
• To output audio from an externally connected AV component to ZONE 2,
use an analog audio cable for connection. Note that ZONE 2 output is not
possible with the connection using an HDMI cable, digital coaxial cable, or
digital optical cable
• You can only select the same source for the main room and separate room
with the "NET" and "BLUETOOTH" input selectors. Furthermore, if you have
"NET" selected in the main room and you then select "BLUETOOTH" in the
separate room, the main room will also switch to "BLUETOOTH".
• It is not possible to select dierent stations in the main room and separate
room with AM/FM broadcasts. (North American models)
• DSD audio signals cannot be output to ZONE 2 with the "NET" input selector.
• If ZONE 2 is on, power consumption during standby will increase.
• This function turns o if you use "Transmitting audio from this unit to
Bluetooth wireless technology enabled devices" ( →p42).
Turning ZONE 2 On/O
1. Press REMOTE MODE ZONE 2 once on the remote controller.
• The remote controller switches to the mode for controlling ZONE 2.
2. Press ON/STANDBY on the remote controller. "Z2" lights in the main
unit display when ZONE 2 turns on. To turn ZONE 2 o, repeat the same
procedure.
1 21
• To control on the main unit, press the ZONE 2 button twice on the main unit to
turn it on. To turn o, after pressing the ZONE 2 button, press the OFF button
that is next to it.
• When the power of this unit is switched to standby while using ZONE 2, the
Z2 indicator lights dimly, and the mode switches to play only in the separate
room. Furthermore, the mode switches to play only in the separate room
when this unit is in standby mode and ZONE 2 is turned on.
63
Playback
Selecting a source to play in ZONE 2
1. Press REMOTE MODE ZONE 2 once on the remote controller.
• The remote controller switches to the mode for controlling ZONE 2.
2. Press an INPUT SELECTOR button to select a source.
1 2
• To control on the main unit, after pressing the ZONE 2 button on the main
unit, turn the INPUT dial to select the source to play.
To play the source currently selected in ZONE 2, press the ZONE 2 button
twice.
Adjusting the volume in ZONE 2
When using an integrated amplier that has a volume control
Use the volume control on the integrated amplier to adjust the volume.
When connecting an integrated amplier that does not have a volume
control
1. Press REMOTE MODE ZONE 2 once on the remote controller.
• The remote controller switches to the mode for controlling ZONE 2.
2. Press the VOLUME buttons to adjust the volume in ZONE 2.
1 2
• When connecting an integrated amplier that does not have a volume control,
in the Setup menu, set "Zone 2 Output Level" ( →p78) to "Variable". If you
do not set this, the volume output will be very loud and there is a danger of
damage to the integrated amplier, speakers, etc.
• To control on the main unit, after pressing the ZONE 2 button on the main
unit, turn the VOLUME dial to adjust the volume.
64
Playback
Playing different audio and video
Displaying Your Favorite Video on TV While Playing Music
While listening to the music from a CD or Bluetooth enabled device, you can
display video on TV from an AV component such as a Blu-ray Disc player.
• For audio playback, you can select an input selector to which video input is
not assigned, such as "CD", "PHONO", "TUNER", "NET" and "BLUETOOTH".
• (European, Australian and Asian models): If the "OSD Language" ( →p79)
is set to Chinese or Japanese, it is not possible to play video while playing the
audio from "NET" or "BLUETOOTH".
Perform the following procedure when this unit is on.
1. Switch the input on the TV to the input connected to the unit.
2. Press an input selector such as BD/DVD button connected to the AV
component of which the video is to be displayed on TV.
• This operation is not necessary if the same input selector has been
selected in the previous operation.
3. Press an input selector of the audio you want to play, such as the CD or
BLUETOOTH button and perform playback operation.
4. Perform the playback operation of the AV component such as a Blu-ray Disc
player. To play the audio of NET or Bluetooth, the following step 5 operation is
required.
5. To play the audio of NET or Bluetooth, press the CAPS button to switch the
TV display from the NET or Bluetooth playback screen to the video of the
AV component. Pressing the CAPS button again will return to the NET or
Bluetooth playback screen.
• When the TV display is switched to the video of the AV component, the
playback screen of NET or Bluetooth is displayed on the corner of the
screen as Mini Player.
CD
BD/DVD
The illustration shows an image.
65
Playback

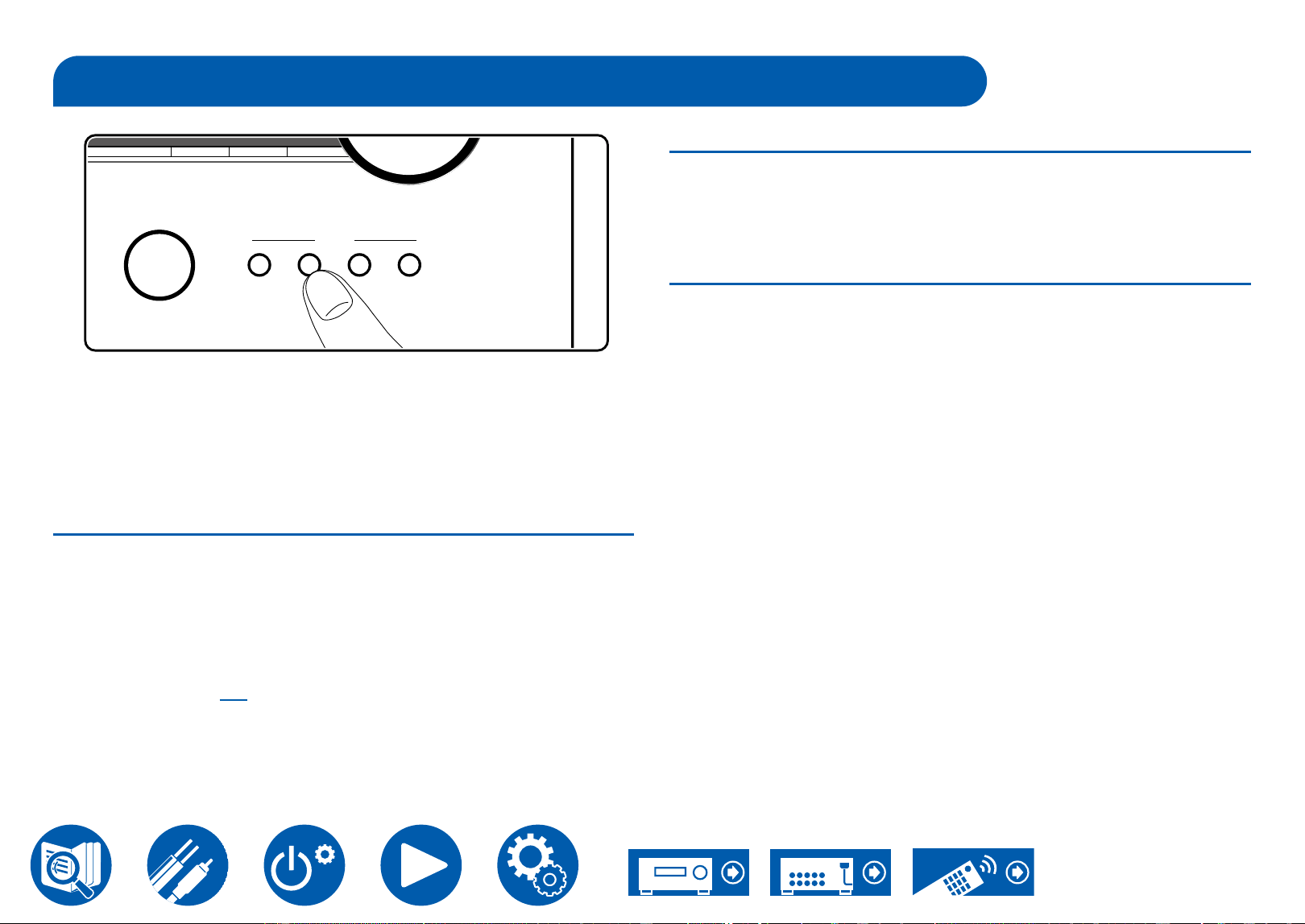

Using MY INPUT
BALANCE
SETUP ENTER RETURN
1 2 3 4
MY INPUT
L R
You can register a variety of settings, such as the current input selection or
listening mode, in the 4 MY INPUT presets, and then recall these easily.
For example: Press the MY INPUT button to automatically switch input to
“TUNER” and start receiving the registered station. It also switches to the
registered listening mode and volume level.
Regarding the settings that can be
registered
– Input selection (It is also possible to register Network services and DAB
(European models)/AM (North American models)/FM radio stations.)
– Listening modes
– Volume level (“82” is the upper limit)
– Output destination (Multi Zone)
– TREBLE/BASS/BALANCE, etc.
*If an AM/FM/DAB radio station is registered, the TUNER preset numbers “37”,
“38”, “39”, and “40” ( →p48) are overwritten.
Registering
With the unit in the state you want to register, perform the following procedure:
1. Press and hold one of the MY INPUT buttons 1 to 4.
2. “Preset Written” appears on the display and the settings are registered.
Content is overwritten if there was any already registered.
Using the registered settings
1. Press one of the MY INPUT buttons 1 to 4.
• Even when the main unit is in standby mode, it comes ON when you press
the MY INPUT button.
66
Playback
Playing music les saved on a USB storage device
You can play music les stored on a USB storage device.
Onkyo Controller ( →p33) is convenient for controlling the playback of music
stored on a USB storage device. It can be used on a smartphone or tablet to
which you have downloaded Onkyo Controller (for use on iOS and Android™).
Playing Back
Perform the following procedure when this unit is on.
1. Switch the input on the TV to the input connected to the unit.
2. Plug your USB storage device with the music les into the USB port on the
front panel or rear panel of this unit.
3. Press NET to display the network service list screen.
4. Select "USB Front" or "USB Rear" with the cursors, and then press ENTER.
• If the "USB" indicator blinks on the display, check whether the USB storage
device is plugged in properly.
• Do not unplug the USB storage device while "Connecting..." is being
displayed on the display. This may cause data corruption or malfunction.
5. Press ENTER on the next screen again. The list of folders and music les on
the USB storage device is displayed. Select the folder with the cursors, and
press ENTER to conrm your selection.
6. Select the music le with the cursors, and then press ENTER to start
playback.
• To return to the previous screen, press RETURN.
• Characters that cannot be displayed on this unit appear with "".
• The USB port of this unit complies with the USB 2.0 standard. The transfer
speed may be insucient for some content you play, and sound interruptions,
etc. may occur.
• When playing les recorded with VBR (Variable bit-rate), the playback time
may not be displayed correctly.
• This unit supports the gapless playback of the USB storage device in the
following conditions.
When continuously playing WAV, FLAC and Apple Lossless les with the
same format, sampling frequency, the number of channels and quantization
bit rate.
67
Playback

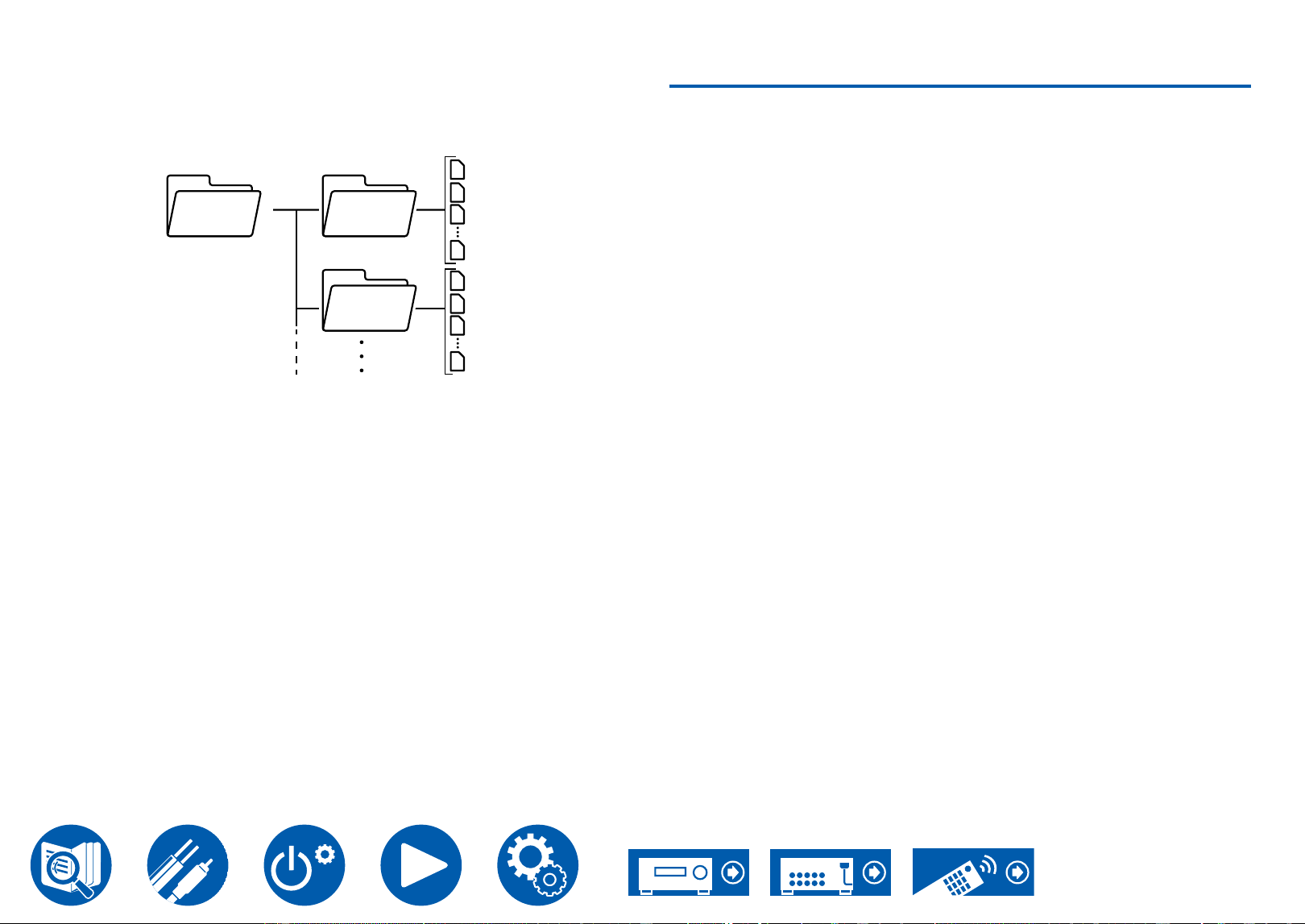

• To display an album title, artist name and album art of a le in WAV format,
make the folder structure and le names as shown below when saving music
les. The album art can be displayed by saving a .jpg le to display on the
screen in the folder of bottom level. Note that a large volume of .jpg le may
take time to be displayed, or may not be displayed.
file 1-1
file 2-1
file 3-1
.jpg file
Album name
file 1-2
file 2-2
file 3-2
.jpg file
Artist name
Album name
Folder 1 Folder 1-1
Folder 1-2
USB Storage Device Requirements
• This unit can use USB storage devices that comply with the USB mass
storage class standard. Also the format of USB storage devices supports
FAT16 or FAT32 le system format.
• If the USB storage device has been partitioned, each section will be treated
as an independent device.
• Up to 20,000 tracks per folder are supported, and folders can be nested up to
16 levels deep.
• USB hubs and USB storage devices with hub functions are not supported. Do
not connect these devices to the unit.
• If an AC adapter is supplied with the USB storage device, connect the AC
adapter, and use it with a household outlet.
• USB storage devices with security functions are not supported on this unit.
• Media inserted to the USB card reader may not be available in this function.
Furthermore, depending on the USB storage device, proper reading of the
contents may not be possible.
• In use of a USB storage device, our company accepts no responsibility
whatsoever for the loss or modication of data stored on a USB storage
device, or malfunction of the USB storage device. We recommend that you
back up the data stored on a USB storage device before using it with this unit.
• Note that operation is not always guaranteed for all USB storage devices.
68
Playback
Music Server
Streaming play of music les stored on PCs or NAS devices connected to the
same network as this unit is supported.
Music Server notes
• The network servers this unit is compatible with are those PCs with players
installed that have the server functionality of Windows Media
®
Player 12,
or NAS that are compatible with home network functionality. When using
Windows Media
®
Player 12, you need to make the settings beforehand. Note
that with PCs, only music les registered in the library of Windows Media
®
Player can be played.
• When playing les recorded with VBR (Variable bit-rate), the playback time
may not be displayed correctly.
• For music les on a server, up to 20,000 tracks per folder are supported, and
folders can be nested up to 16 levels deep.
• Depending on the type of media server, the unit may not recognize it, or may
not be able to play its music les.
• Onkyo Controller ( →p33) is convenient for controlling the playback of
music stored on a PC or NAS. It can be used on a smartphone or tablet
to which you have downloaded Onkyo Controller (for use on iOS and
Android™).
Windows Media
®
Player 12 settings
1. Turn on your PC, and start Windows Media
®
Player 12.
2. In the "Stream" menu, select "Turn on media streaming" to display a dialog
box.
• If the media streaming is already turned on, select "More streaming
options..." in the "Stream" menu to display the list of playback devices in
the network, and then go to step 4.
3. Click "Turn on media streaming" to display the list of playback devices in the
network.
4. Select this unit in "Media streaming options" and check that it is set to "Allow".
5. Click "OK" to close the dialog.
6. Open the "Stream" menu and conrm that "Allow remote control of my
Player..." is checked.
• Depending on the version of Windows Media
®
Player, the names of items to
select may dier from the above description.
Playing Back ( →p69)
69
Playback
Playing Back
Perform the following procedure when this unit is on.
1. Switch the input on the TV to the input connected to the unit.
2. Start the server (Windows Media
®
Player 12 or NAS device) containing the
music les to play.
3. Make sure that the PC or NAS is properly connected to the same network as
this unit.
4. Press NET to display the network service list screen.
• If the "NET" indicator on the display blinks, the unit is not properly
connected to the network. Check the connection.
*

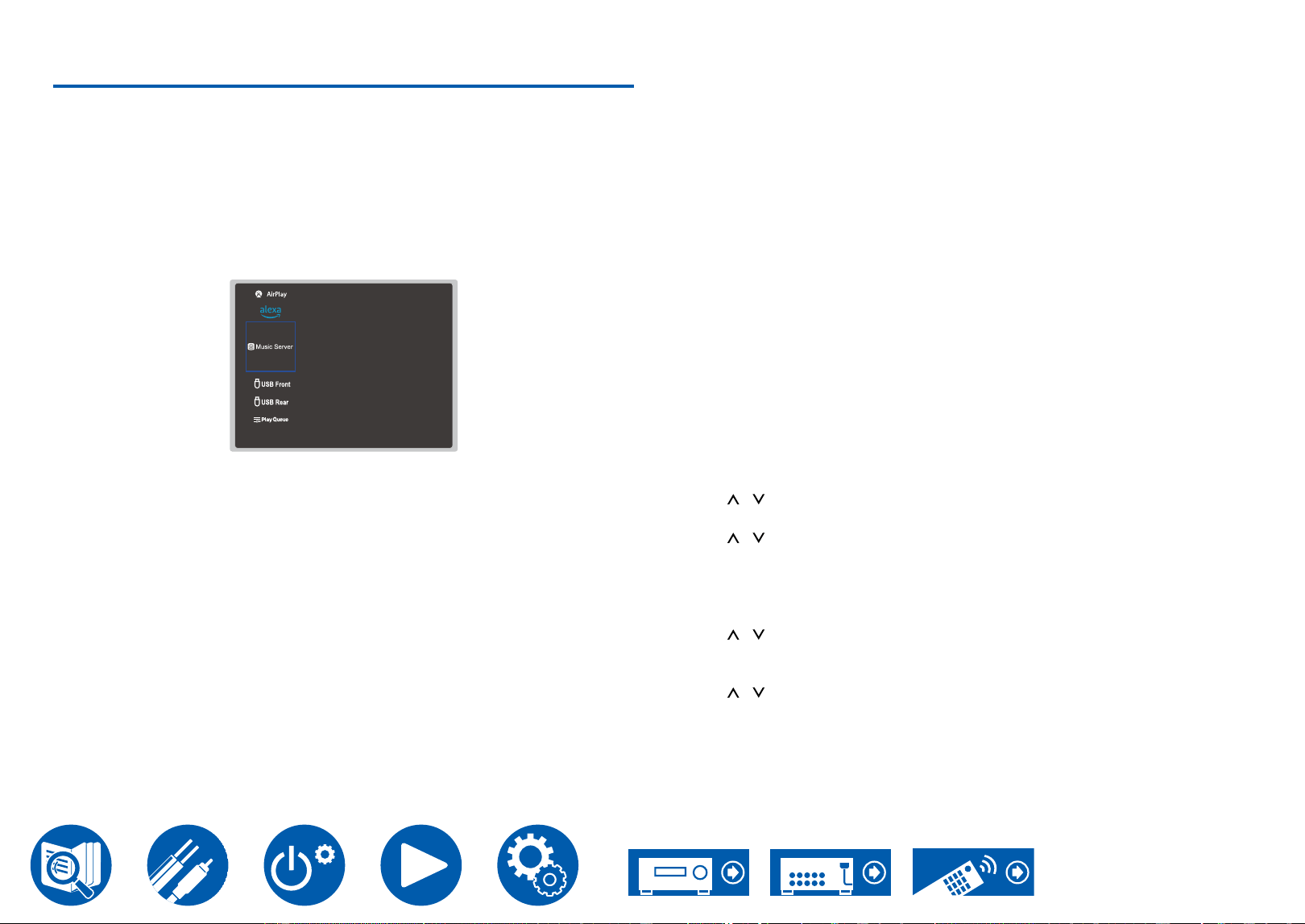

The screen illustration is an artist’s impression
5. With the cursors, select "Music Server", and then press ENTER.
6. Select the target server with the cursors, and press ENTER to display the
items list screen.
• This unit cannot access pictures and videos stored on servers.
• Depending on the server sharing settings, contents stored on the server
may not be displayed.
7. With the cursors, select the music le to play, and then press ENTER to start
playback.
• If "No Item." is displayed on the screen, check whether the network is
properly connected.
• To return to the previous screen, press RETURN.
• When playing les recorded with VBR (Variable bit-rate), the playback time
may not be displayed correctly.
• For music les on a server, up to 20,000 tracks per folder are supported, and
folders can be nested up to 16 levels deep.
• Depending on the type of media server, the unit may not recognize it, or may
not be able to play its music les.
Searching music les to select
If the server you use supports search functions, the following search function
can be used.
Perform the following procedure with available servers displayed using Music
Server.
1. With
/ UP/DOWN, select the server containing music les you want to
play, and select ENTER.
2. With
/ UP/DOWN, select the Search folder, and press ENTER. The
Search folder contains the following three folders.
• "Search by Artist": Select this when searching by artist name.
• "Search by Album": Select this when searching by album title.
• "Search by Track": Select this when searching by track title.
3. With / UP/DOWN, select the folder, and press ENTER.
4. Input a character string to search for, and press ENTER. Then, the search
result is displayed.
5. With
/ UP/DOWN, select the music les to play, and select ENTER.
70
Playback
Controlling Remote Playback from a PC
You can use this unit to play music les stored on your PC by operating the PC
in your home network. The unit supports remote playback via Windows Media
®
Player 12. To use the remote playback function of this unit with Windows Media
®
Player 12, it must be congured beforehand. ( →p68)
Remote playback
1. Turn on the power of the unit.
2. Turn on your PC, and start Windows Media
®
Player 12.
3. Select and right-click the music le to play with Windows Media
®
Player 12.
• To remotely play a music le on another server, open the target server
from "Other Libraries", and select the music le to play.
4. Select this unit in "Play to" to open the "Play to" window of Windows Media
®
Player 12, and start playback on this unit.
• If your PC is running on Windows
®
10, click "Cast to Device", and select
this unit. Operations during remote playback are possible from the "Play
to" window on the PC. The playback screen is displayed on the HDMI-
connected TV.
5. Adjust the volume using the volume bar on the "Play to" window.
• Sometimes, the volume displayed on the remote playback window may
dier from the volume displayed on the display of this unit.
• When the volume is changed on this unit, the value is not reected in the
"Play to" window.
• This unit cannot play music les remotely in the following conditions.
– It is using a network service.
– It is playing a music le on a USB storage device.
• Remote play of DSD is not supported.
• Remote playback does not support the gapless playback.
71
Playback
Play Queue
When downloading Onkyo Controller (available on iOS or Android™) to mobile
devices, such as a smartphone and tablet, you can save your favorite playlist
(Play Queue information) among music les stored in the USB storage device
connected to this unit and music les stored in PC or NAS connected to the
same network as this unit, and you can play the music on the playlist. The Play
Queue information is eective until the power cord of this unit is removed from
the outlet. Refer to "1. Install the app" ( →p33) for information about the app.
Adding Play Queue Information
1. Select the "INPUT" input on the application screen, and tap the "USB" icon.
Or, select the "NET" input, and tap the "USB" icon or "Music Server" icon.
(Depending on the model, the icon names may be dierent.)
2. Tapping the "+" icon of the track you want to add will open the pop-up to add
the Play Queue information.
3. Touch the "Play Now ", "Play Next " or "Play Last " icon to add the
track to Play Queue.
• If there are no tracks on the Play Queue list, only "Play Now " is
displayed.
Sort and Delete
1. Select the "NET" input, tap the "Play Queue" icon, and enter the Play Queue
service screen.
72
Playback
2. To reorder the tracks, tap the " " editing icon, then tap the “ ” icon of the
track and drag it to the destination.
3. To delete a track, tap the editing icon " " to switch to editing mode.
4. Tap the " " icon next to the track you want to delete to put in a " ", then
when you tap the "
" icon, the track is deleted from the Play Queue.
• To select or release all of the tracks, tap the "
" icon next to Play Queue.
Playing Back
Playback starts when you select "Play Now " for Play Queue addition, or
select the track in the Play Queue service screen.
74
Setup
Setup Menu
Press the SETUP button on the remote controller to display the Setup menu.
Select the item with the cursors / UP/DOWN of the remote controller, and press the ENTER button to conrm your selection.
Use the cursors
/
LEFT/RIGHT to change the default values.
• To return to the previous screen, press the RETURN button.
• To exit the settings, press the SETUP button.
• If a TV has been connected to the unit using an HDMI cable, you can also use the OSD (On-Screen Display) function which displays screens for operation to make
the settings.
Setup
1. Audio
2. Control
3. Network
4. Bluetooth
5. Works with SONOS
6. Firmware Update
7. Lock
8. Factory Reset
Speaker Impedance
Maximum Volume
Power On Volume
Zone 2 Output Level
AM / FM Frequency Step
6 ohms
Off
Last
Fixed
10 kHz / 0.2 MHz
Menu list
TV screen (OSD)
Main unit display
1. Audio
Speaker Impedance
[ 1.Audio ]
[ SpImpedance:6Ω ]
p78
Maximum Volume
[ Max Vol : Off ]
Power On Volume
[ POn Vol: Last ]
Zone 2 Output Level
[ Z2 Lv : Fixed ]
AM/FM Frequency Step
[ AM/FM:10k/0.2M ]
FM Search Level
[ FM Lvl: Normal ]
DAB Auto Scan
[ DAB Auto Scan ]
DAB DRC
[ DAB DRC : Off ]
75
Setup
TV screen (OSD) Main unit display
2. Control
OSD Language
[ 2.Control ]
[ Lang : English ]
p79
HDMI CEC
[ HDMI CEC : On ]
HDMI Standby Through
[ Thru:Auto(Eco) ]
Auto Standby
[ Auto Stby :Off ]
Auto Standby in HDMI Standby Through
[ ASb(Thru) :Off ]
Audio Return Channel
[ ARC: On ]
Network Standby
[ NET Stby : On ]
Bluetooth Wakeup
[ Bluetooth :Off ]
3. Network
Wi-Fi
[ 3.Network ]
[ Wi-Fi :Off ]
p81
Wi-Fi Setup
[ Wi-Fi Setup ]
Wi-Fi Status No relevant display
MAC Address
[ MAC Address ]
DHCP
[ DHCP : Enable ]
IP Address
[ IP Address ]
Subnet Mask
[ Subnet Mask ]
Gateway
[ Gateway ]
DNS Server
[ DNS Server ]
Proxy URL
[ Proxy URL ]
Proxy Port
[ Proxy Port ]
Friendly Name
[ Friendly Name ]
AirPlay
[ AirPlay : On ]
AirPlay Device Name
[ AirPlay Name ]
AirPlay Password
[ AirPlay PW ]
Privacy Statement
[ PrvcyStatement ]
Network Check
[ Network Check ]
76
Setup
TV screen (OSD) Main unit display
4. Bluetooth
Bluetooth Receiver
[ 4.Bluetooth ]
[ Rx : On ]
p84
Auto Input Change
[ AutoChange: On ]
Auto Reconnect
[ Reconnect : On ]
Pairing Information
[ Pairing Info ]
Device
[ Device: ]
Status
[ Stat: ]
Bluetooth Transmitter
[ Tx :Off ]
Search Devices
[ Search Devices ]
Output Level
[ OutLv:Variable ]
aptX HD
[ aptX HD :Off ]
Low Latency Mode
[ LowLatency:Off ]
Pairing Information
[ Pairing Info ]
Device
[ Device: ]
Staus
[ Stat: ]
5. Works with SONOS
SONOS-1
Input Selector
[ 5.Worksw/SONOS ]
[ Input: Off ]
p86
Connected Device
[ Connect Device ]
Output Zone
[ Out Zone:Main ]
Preset Volume
[ Preset Volume ]
SONOS-2
Input Selector
[ Input: Off ]
Connected Device
[ Connect Device ]
Output Zone
[ Out Zone:Zone2 ]
Preset Volume
[ Preset Volume ]
77
Setup
TV screen (OSD) Main unit display
6. Firmware Update
Update Notice
[ 6.F/W Update ]
[ Notice: Enable ]
p87
Version
[ Ver:xxxx-xxxx- ]
Update via NET
[ Update via NET ]
Update via USB
[ Update via USB ]
7. Lock
Setup Parameter
[ 7.Lock ] [ Setup:Unlocked ]
p87
8. Factory Reset
Start
[ 8.FactoryRst ]
[ ResetSettings? ]
p88
Cancel
[ ResetSettings? ]
78
SetupSetup
1. Audio1. Audio
Speaker Impedance (Default Value: 6 ohms or above)
Set the impedance (Ω) of the connected speakers.
• For impedance, check the indications on the back of the speakers or their
instruction manual.
4ohms When any of the connected speakers have 4 Ω or more to less
than 6 Ω impedance, and expected to be used in Full power
continuously.
6 ohms or above
When all the connected speakers have an impedance of 6 Ω
or more
Maximum Volume (Default Value: O)
Set the maximum value to prevent the volume from becoming too loud. Select
a value from "O", and "50" to "99".
Power On Volume (Default Value: Last)
Set the volume level of when the power is turned on. Select a value from "Last"
(Volume level before entering standby mode), "Min", "0.5" to "99.5" and "Max".
• You cannot set a higher value than that of "Maximum Volume".
Zone 2 Output Level (Default Value: Fixed)
Select whether to adjust the volume on the integrated amplier in the separate
room or on this unit when outputting to the separate room (Zone 2).
Fixed Adjust on the integrated amplier in the separate room
Variable Adjust on this unit
AM/FM Frequency Step (North American models) (Default Value:
10 kHz / 0.2 MHz)
Select a frequency step to suit your residential area.
Select "10 kHz/0.2 MHz" or "9 kHz/0.05 MHz".
• When this setting is changed, all radio presets are deleted.
FM Search Level (European models) (Default Value: Normal)
If automatic tuning regularly stops on FM stations with weak reception when
"Normal" is selected, select "Strong" so only those FM stations with strong
reception are selected.
DAB Auto Scan (European models) (Default Value: -)
You can run the auto scan when new DAB stations are added or when you
move house.
DAB DRC (European models) (Default Value: O)
With the DRC (Dynamic Range Control) setting, you can reduce the dynamic
range of DAB digital radio so that you can still hear quiet parts even when
listening at low volume levels - ideal for listening to the radio late at night when
you don't want to disturb anyone.
O DRC o
Large Large reduction in dynamic range
Small Small reduction in dynamic range
79
SetupSetup
2. Control2. Control
OSD Language (Default Value: English/Japanese)
Select the on-screen display language from the following.
(North American models)
English, German, French, Spanish, Italian, Dutch, Swedish
(European, Middle East, Australian and Asian models)
English, German, French, Spanish, Italian, Dutch, Swedish, Russian, Chinese
(Japan models)
English, German, French, Spanish, Italian, Dutch, Swedish, Japanese
• Default values vary depending on the regions.
HDMI CEC (Default Value: On)
Setting this to "On" enables the input selection link and other link functions with
HDMI-connected CEC-compatible device.
When this setting is changed, turn o and then on again the power of all
connected devices.
• Depending on the TV to use, a link setting may be required on the TV.
• Setting this to "On" and closing the operation screen will display the name
of the connected CEC-compatible device and "CEC On" on the main unit’s
display.
• When this function is set to "On", the power consumption in standby state
increases, however, the increase in power consumption is minimized by
automatically entering the HYBRID STANDBY mode where only the essential
circuits operate.
• If you operate the VOLUME dial on the main unit when this setting is "On"
and audio is output from the TV speakers, audio will be output also from the
speakers connected to this unit. To output audio from only either of them,
change the setting of this unit or TV, or reduce the volume of this unit.
• If abnormal behavior is observed when this is set to "On", set it to "O".
• If a connected device is not CEC-compatible, or if you are not sure whether it
is compatible, set it to "O".
On When this function is used
O When this function is not used
HDMI Standby Through (Default Value: Auto (Eco))
When this is set to anything other than "O", you can play the video and audio of
an HDMI-connected player on the TV even if the unit is in standby mode. Also,
only "Auto" and "Auto (Eco)" can be selected if "HDMI CEC" is set to "On". If you
select anything else, set "HDMI CEC" to "O".
• When this function is set to a value other than "O", the power consumption
in standby state increases, however, the increase in power consumption is
minimized by automatically entering the HYBRID STANDBY mode where only
the essential circuits operate.
• To play a non-CEC compliant player on the TV, turn the unit on and switch the
input.
• When using a CEC-compliant TV, you can reduce the power consumption in
standby mode by selecting "Auto (Eco)".
O When this function is not used
BD/DVD,
GAME,
CBL/SAT,
PC
For example, if you select "BD/DVD", you can play the
equipment connected to the "BD/DVD" jack on the TV even
if the unit is in standby mode. Select this setting if you have
decided which player to use with this function.
Last You can play on the TV the video and audio of the input
selected immediately before the unit is switched to standby.
Auto,
Auto (Eco)
Select one of these settings when you have connected
equipment that conforms to the CEC standard. You can
play the video and audio of the input selected on the TV,
irrespective of what input was selected immediately prior to the
unit being switched to standby, using the CEC link function.
80
SetupSetup
2. Control
Auto Standby (Default Value: On/O)
This setting allows the unit to enter standby mode automatically after 20 minutes
of inactivity without any video or audio input.
• Default values vary depending on the regions.
On The unit will automatically enter standby mode ("AUTO STBY"
will light).
• "Auto Standby" is displayed on the main unit’s display and
TV screen 30 seconds before entering standby mode.
O The unit will not automatically enter standby mode.
Auto Standby in HDMI Standby Through (Default Value: On/O)
Enable or disable "Auto Standby" while "HDMI Standby Through" is on.
• Default values vary depending on the regions.
On The setting will be enabled.
• This setting cannot be set to "On" if "Auto Standby" and
"HDMI Standby Through" are set to "O".
O The setting will be disabled.
Audio Return Channel (Default Value: On)
You can enjoy the sound of an HDMI-connected ARC-compatible TV through
the speakers connected to the unit.
On When enjoying the TV sound through the speakers connected
to the unit
O When the ARC function is not used
Network Standby (Default Value: On)
When this function is set to "On", the network function works even in standby
state, and you can turn on the power of the unit via network using an
application such as Onkyo Controller that can control this unit.
• When this function is set to "On", the power consumption in standby state
increases, however, the increase in power consumption is minimized
by automatically entering the HYBRID STANDBY mode where only the
essential circuits operate. Note that even if this function is set to "O", when
any of the HDMI CEC ( →p79), HDMI Standby Through ( →p79) and
Bluetooth Wakeup ( →p80) functions is enabled, this function will be in
"On" state regardless of the setting.
• When connection to the network is lost, "Network Standby" may be disabled
to reduce power consumption. In such a case, turn the unit on by using the
power button on the remote controller or main unit.
Bluetooth Wakeup (Default Value: O)
This function wakes up the unit on standby by connecting a Bluetooth enabled
device. This is eective when "4. Bluetooth" - "Bluetooth Receiver" is set to "On".
On When this function is used
• When this function is set to "On", the power consumption
in standby state increases, however, the increase in power
consumption is minimized by automatically entering the
HYBRID STANDBY mode where only the essential circuits
operate.
O When this function is not used
• This setting is xed to "O" if "4. Bluetooth" - "Bluetooth
Receiver" is set to "O".
• This setting is also xed to "O" if "4. Bluetooth" - "Bluetooth
Receiver" - "Auto Input Change" is set to "O".
• Wait for a while if "Network Standby" and "Bluetooth Wakeup" cannot be
selected. It can be selected when the network function is activated.
81
SetupSetup
3. Network3. Network
Change the settings of the Network function.
• When LAN is congured with a DHCP, set "DHCP" to "Enable" to congure
the setting automatically. ("Enable" is set by default) To assign xed IP
addresses to each components, you must set "DHCP" to "Disable", assign an
address to this unit in the "IP Address" setting, and set information related to
your LAN, such as Subnet Mask and Gateway.
Wi-Fi (Default Value: O(Wired))
Connect the unit to the network via a wireless LAN router.
• When switching between "On" and "O(Wired)", stop the Network service.
Also, when group playback is in process, cancel the group playback once, and
then switch the setting.
On Wireless LAN connection
O(Wired) Wired LAN connection
Wi-Fi Setup (Default Value: -)
Congure wireless LAN settings by pressing ENTER with "Start" displayed.
Wi-Fi Status (Default Value: -)
The information of the connected access point is displayed.
SSID SSID of the connected access point.
Signal Signal strength of the connected access point.
Status Status of the connected access point.
MAC Address (Default Value: -)
Check the MAC address of this unit.
This value is specic to the component and cannot be changed.
DHCP (Default Value: Enable)
Enable Auto conguration by DHCP
Disable Manual conguration without DHCP
• If you select "Disable", set "IP Address", "Subnet Mask",
"Gateway", and "DNS Server" manually.
IP Address (Default Value: 0.0.0.0)
Displays/Sets the IP address.
Subnet Mask (Default Value: 0.0.0.0)
Displays/Sets the subnet mask.
Gateway (Default Value: 0.0.0.0)
Displays/Sets the gateway.
DNS Server (Default Value: 0.0.0.0)
Displays/Sets the primary DNS server.
Proxy URL (Default Value: -)
Displays/Sets the proxy server URL.
Proxy Port (Default Value: 8080)
Displays/Sets the proxy server port number when you input "Proxy URL".
82
SetupSetup
3. Network
Friendly Name (Default Value: Onkyo TX-8470 XXXXXX)
Change the model name of this unit which is displayed on the device
connected to the network to an easily recognized name.
1. Press ENTER to display the Edit screen.
2. Select a character or symbol with the cursors, and press ENTER.
Repeat this operation to input up to 31 characters.
"A/a": Switches between upper and lower cases.
"←" "→": Moves the cursor in the arrow direction.
" ": Removes a character on the left of the cursor.
" ": Enters a space.
• Pressing CLR on the remote controller will remove all the input characters.
3. After inputting, select "OK" with the cursors, and press ENTER.
The input name will be saved.
AirPlay (Default Value: On)
Select whether or not to use the AirPlay function.
On When this function is used
O When this function is not used
AirPlay Device Name (Default Value: Onkyo TX-8470 XXXXXX)
Change the model name of this unit which is displayed on the AirPlay-
connected device to an easily recognized name.
1. Press ENTER to display the Edit screen.
2. Select a character or symbol with the cursors, and press ENTER.
Repeat this operation to input up to 31 characters.
"A/a": Switches between upper and lower cases.
"←" "→": Moves the cursor in the arrow direction.
" ": Removes a character on the left of the cursor.
" ": Enters a space.
• Pressing CLR on the remote controller will remove all the input characters.
3. After inputting, select "OK" with the cursors, and press ENTER.
The input name will be saved.
• This function cannot be used when registering this unit to Home App.
83
SetupSetup
3. Network
AirPlay Password (Default Value: -)
You can set a password of up to 31 characters so that only users that have
input can use AirPlay.
1. Press ENTER to display the Edit screen.
2. Select a character or symbol with the cursors, and press ENTER.
Repeat this operation to input up to 31 characters.
"A/a": Switches between upper and lower cases.
"←" "→": Moves the cursor in the arrow direction.
" ": Removes a character on the left of the cursor.
" ": Enters a space.
• To select whether to mask the password with "" or display it in plain text,
press MENU on the remote controller.
• Pressing CLR on the remote controller will remove all the input characters.
3. After inputting, select "OK" with the cursors, and press ENTER.
The input password will be saved.
• This function cannot be used when registering this unit to Home App.
Privacy Statement (Default Value: Not Accepted)
When using a network service that requires a login name, email address,
password, etc., you need to agree to the Privacy Statement of our company.
• This setting can be made after conrming the Privacy Statement.
• When "Not Accepted" is selected, the login name, email address, password,
etc., that are kept on this unit will be deleted and you will be logged out from
the network service you have logged in.
Network Check (Default Value: -)
You can check the network connection.
Press ENTER when "Start" is displayed.
• Wait for a while if "3. Network" cannot be selected. It can be selected when
the network function is activated.
84
SetupSetup
4. Bluetooth4. Bluetooth
Change the settings for the Bluetooth function.
• Wait for a while if "4. Bluetooth" cannot be selected. It can be selected when
the Bluetooth function is activated.
(Bluetooth Receiver)
Bluetooth Receiver (Default Value: On)
Select whether or not to use the function that receives audio from Bluetooth
wireless technology enabled devices.
On When this function is used
O When this function is not used
Auto Input Change (Default Value: On)
When a Bluetooth enabled device is played while it is connected to the unit, the
input of the unit can be automatically switched to "BLUETOOTH".
On The input will automatically become "BLUETOOTH" when a
Bluetooth enabled device is connected.
O The function is disabled.
• If the input is not switched automatically, set this to "O",
and change the input manually.
Auto Reconnect (Default Value: On)
This function automatically reconnects to the Bluetooth enabled device
connected last when you change the input to "BLUETOOTH".
• This may not work with some Bluetooth enabled devices.
On When this function is used
O When this function is not used
Pairing Information (Default Value: -)
You can initialize the pairing information stored on this unit. If you are no longer
able to connect with a device you have paired, try doing this. ( →p97)
Pressing ENTER when "Clear" is displayed initializes the pairing information
stored on this unit.
• This function does not initialize the pairing information on the Bluetooth
enabled device. When pairing the unit again with the device, be sure to clear
the pairing information on the Bluetooth enabled device beforehand. For
information on how to clear the pairing information, refer to the instruction
manual of the Bluetooth enabled device.
Device (Default Value: -)
Displays the name of the Bluetooth enabled device connected to the unit.
• The name is not displayed when "Status" is "Ready" and "Pairing".
Status (Default Value: -)
Displays the status of the Bluetooth enabled device connected to the unit.
Ready Not paired
Pairing Paired
Connected Successfully connected
85
SetupSetup
4. Bluetooth
(Bluetooth Transmitter)
Bluetooth Transmitter (Default Value: O)
Select whether or not to use the function that transmits audio from this unit to
Bluetooth wireless technology enabled devices.
On (Tx) When this function is to be used (played back only on
Bluetooth
wireless technology enabled devices)
On
(Main + Tx)
When this function is to be used (played back both on this unit
and on
Bluetooth
wireless technology enabled devices)
O When this function is not used
Search Devices (Default Value: -)
Search for a Bluetooth wireless technology enabled device that is able to
receive the audio from this unit. Select "Start" then press ENTER. A list of
the names of Bluetooth wireless technology enabled devices that are able to
receive is displayed. Select the device to be connected with the cursors /
UP/DOWN, then pairing begins when you press ENTER.
Output Level (Default Value: Variable)
You can select whether to adjust the volume on this unit or to adjust it on the
Bluetooth
wireless technology enabled device.
Variable To use the volume controls on this unit
Fixed To use the volume controls on the
Bluetooth
wireless
technology enabled device
aptX HD (Default Value: O)
It is possible to use aptX HD to connect a Bluetooth wireless technology enabled
device and this unit.
• The codec of the receiving device must be compatible with aptX HD.
On When this function is used
O When this function is not used
Low Latency Mode (Default Value: O)
If the audio from a device connected via Bluetooth is delayed compared to the
video on the TV when watching a gaming screen, etc., you can reduce the audio
delay.
On When this function is used
O When this function is not used
Pairing Information (Default Value: -)
You can initialize the pairing information stored on this unit. If you are no longer
able to connect with a device you have paired, try doing this. ( →p97)
Pressing ENTER when "Clear" is displayed initializes the pairing information
stored on this unit.
• This function does not initialize the pairing information on the Bluetooth
enabled device. When pairing the unit again with the device, be sure to clear
the pairing information on the Bluetooth enabled device in advance. For
information on how to clear the pairing information, refer to the Bluetooth
enabled device's instruction manual.
Device (Default Value: -)
Displays the name of the Bluetooth enabled device connected to the unit.
• The name is not displayed when "Status" is "Ready" and "Pairing".
Status (Default Value: -)
Displays the status of the Bluetooth enabled device connected to the unit.
Ready Not paired
Pairing Paired
Connected Successfully connected
Connected
(aptX)
Successfully connected with aptX compatible device
Connected
(aptX HD)
Successfully connected with aptX HD compatible device
86
SetupSetup
5. Works with SONOS5. Works with SONOS
Change the settings to connect with the Sonos Port.
(SONOS-1/SONOS-2)
Input Selector (Default Value: O)
Select the input selector to which the Sonos Port is connected.
• Selecting "O" disables the interlock function with Sonos.
Connected Device (Default Value: -)
Displays the Sonos Port connected to the same network as the network of this
unit. Press the ENTER button to select the connected Sonos Port.
• Products (e.g. Play:3 unequipped with an output terminal) other than the
Sonos Port are also displayed in the device list and selectable. In that case,
when playback on the Sonos side starts, the input is switched, however,
audio is not output. Select the room name of the connected Sonos Port.
• Up to 32 devices can be displayed on the Sonos product list screen. If you
cannot nd the Sonos Port to be interlocked, return to the previous screen,
turn o the product you do not want to interlock, and try again.
• To use this function, set "Input Selector" beforehand.
Output Zone (Default Value: Main)
Select the zone where you want to listen to the music.
• To use this function, set "Input Selector" beforehand.
Main Outputs audio only to the main room (where this unit is
located).
Zone 2 Outputs audio only to the separate room (ZONE 2).
Main/Zone 2 Outputs audio to both the main room and separate room
(ZONE 2).
Preset Volume (Default Value: Main=Last / Zone 2=Last)
You can set the volume beforehand for playing back the Sonos Port. You
can set volumes for the main room (where this unit is located) and separate
room (ZONE 2) respectively. Select a value from "Last" (Volume level before
entering standby mode), "Min", "0.5" to "99.5" and "Max".
• To use this function, set "Input Selector" beforehand.
87
Setup
6. Firmware Update
Update Notice (Default Value: Enable)
Availability of a rmware update is notied via network.
Enable Notify updates
Disable Do not notify updates
Version (Default Value: -)
The current rmware version is displayed.
Update via NET (Default Value: -)
Press ENTER to select when updating the rmware via network.
• This setting cannot be selected if you do not have Internet access or there is
no updatable rmware.
Update via USB (Default Value: -)
Press ENTER to select when updating the rmware via USB.
• This setting cannot be selected if a USB storage device is not connected or
there is no updatable rmware in the USB storage device.
• Wait for a while if "6. Firmware Update" cannot be selected. It can be selected
when the network function is activated.
7. Lock
Lock the Setup menu so that the settings cannot be changed.
Setup Parameter (Default Value: Unlocked)
Lock the Setup menu so that the settings cannot be changed.
Locked The menu is locked.
Unlocked The menu is unlocked.
89
Setup
Web Setup
Menu operations
You can make the settings for the network function of this unit using an Internet
browser on a PC, smartphone, etc.
1. Press SETUP on the remote controller to display the Setup menu.
2. Select "3. Network" with the cursors, and then take a note of the IP address
displayed in "IP Address".
3. Start the Internet browser on your PC, smartphone, etc. and enter the IP
address of this unit in the URL eld.
4. The screen for entering the user name and password is displayed. Enter the
following then click "OK".
User name: admin (xed)
Password: admin (default value)
• Input is required again if you close the browser.
5. Change the password.
• Take a note of the password so that you do not forget it. If you do forget it,
reset the unit ( →p92) then log in again with the initial settings (admin).
6. Information for the unit (Web Setup screen) is displayed in the internet
browser.
7. After changing the settings, select "Save" to save the settings.
Device Information
You can change the Friendly Name or AirPlay Device Name, set an
AirPlay Password, etc.
Control4: Register this unit if you are using a Control4 system.
Firmware Update: Select the rmware le you have downloaded to your PC so
you can update this unit.
Network Setting
Status: You can see information for the network such as the MAC address and
IP address of this unit.
Network Connection: You can select a network connection method. If you select
"Wireless", select an access point from "Wi-Fi Setup" to connect.
DHCP: You can change DHCP settings. If you select "O", set "IP Address",
"Subnet Mask", "Gateway" and "DNS Server" manually.
Proxy: Display and set the URL for the proxy server.
Troubleshooting
90
Troubleshooting
Before starting the procedure 91
When the unit is operating erratically 92
Try restarting the unit 92
Resetting the unit (this resets the unit settings to the
default) 92
Turning o Initial Setup which appears when you turn
the power on 93
Troubleshooting 94
Power 94
Audio 94
Video 95
Linked operation 96
Tuner (North American and European models) 96
Bluetooth function 96
Network function 98
USB storage device 99
Wireless LAN Network 99
Multi-zone function 100
Remote Controller 100
Display 100
Others 100
Troubleshooting
91
Troubleshooting
Before starting the procedure
Problems may be solved by simply turning the power on/o or disconnecting/
connecting the power cord, which is easier than working on the connection,
setting and operating procedure. Try the simple measures on both the unit and
the connected device. If the problem is that the video or audio is not output or
the HDMI linked operation does not work, disconnecting/connecting the HDMI
cable may solve it. When reconnecting, be careful not to wind the HDMI cable
since if wound the HDMI cable may not t well. After reconnecting, turn o and
on the unit and the connected device.
• The AV receiver contains a microPC for signal processing and control
functions. In very rare situations, severe interference, noise from an external
source, or static electricity may cause it to lockup. In the unlikely event that
this happens, unplug the power cord from the wall outlet, wait at least 5
seconds, and then plug it back in.
• Our company is not responsible for damages (such as CD rental fees) due to
unsuccessful recordings caused by the unit’s malfunction. Before you record
important data, make sure that the material will be recorded correctly.
92
Troubleshooting
When the unit is operating erratically
Try restarting the unit
Restarting this unit may solve the problem. Set the main unit to standby, then
after waiting for 5 seconds or more, press and hold the ON/STANDBY button
of the main unit for at least 5 seconds, and then restart the unit. (The settings
on this unit are kept.) If the problem persists after restarting the unit, unplug and
plug the power cords or HDMI cable of this unit and connected devices.
5"
ON/STANDBY
Resetting the unit (this resets the unit settings to the
default)
If the restart of the unit does not solve the problem, reset the unit, and restore
all the settings to the factory default at the time of purchase. This may solve
the problem. If the unit is reset, your settings are restored to the default values.
Be sure to note down your setting contents before performing the following
operations. Note that it is not possible to reset the unit during the Initial Setup
process. Before doing the following procedures, press RETURN to exit Initial
Setup.
1. While pressing and holding ZONE 2 button on the main unit with the unit
turned on, press the
ON/STANDBY button.
2. "Clear" is displayed on the display, and the unit returns to the standby state.
Do not remove the power cord until "Clear" disappears from the display.
2
2
Clear
1
1
2
2
ON/STANDBY
ZONE 2
93
Troubleshooting
Turning o Initial Setup which appears when you turn the power on
If a Wi-Fi connection is not established, or if a wired LAN connection is not
made, Initial Setup is displayed when you turn the power on.
To stop Initial Setup from being displayed, press and hold the RETURN button
for 5 or more seconds while it is being displayed.
• You will need to initialize ( →p92) to restore this setting, so be sure that
you want to proceed.
94
Troubleshooting
Troubleshooting
Power
The unit turns o unexpectedly
• If "2. Control" - "Auto Standby" on the Setup menu is activated, the unit automatically enters the standby mode.
• The protection circuit function may have operated due to an abnormal rise in temperature of the unit. In such a case, the power turns o
repeatedly even if the power is turned on each time. Secure sucient ventilation space around the unit, wait for a while until the temperature of
the unit decreases. Then, turn the power on again.
WARNING: If smoke, smell or abnormal noise is produced by the unit, unplug the power cord from the outlet immediately, and contact the dealer or
our company's support.
( →p80)
Audio
• Conrm that the connection between the output jack on the connected device and the input jack on this unit is correct.
• Make sure that none of the connecting cables are bent, twisted, or damaged.
• If "MUTING" is displayed on the display and MUTE is blinking, press the MUTING button on the remote controller to cancel muting.
• While headphones are connected to the PHONES jack, no sound is output from the speakers.
Check the following if the problem persists after you have conrmed the above.
No sound from the TV
• Change the input selector on this unit to the position of the terminal to which the TV is connected.
• If the TV doesn't support the ARC function, along with connection by HDMI, connect the TV and this unit using a digital optical cable or analog
audio cable.
( →p24)
No sound from a connected player
• Change the input selector on this unit to the position of the jack to which the player is connected.
• Check the digital audio output setting on the connected device. On some game consoles, such as those supporting DVD, the default setting may
be o.
• For some DVD-Video discs, you need to select an audio output format from a menu.
Speakers produce no sounds
• Make sure that the polarity (+/-) of the speaker cables is correct, and that no bare wires are in contact with the metal part of speaker terminals.
• Make sure that the speaker cables are not shorting out.
• Check "Connect the Speaker Cables" ( →p18) to see if the speaker connections have been made correctly.
( →p18)
95
Troubleshooting
Noise can be heard
• Using cable ties to bundle analog audio cables, power cords, speaker cables, etc. may degrade the audio performance. Do not bundle the
cords.
• An audio cable may be picking up interference. Change the position of the cables.
The beginning of audio received by an HDMI IN cannot be heard
• Since it takes longer to identify the format of an HDMI signal than it does for other digital audio signals, audio output may not start immediately.
Sound suddenly reduces
• When using the unit for extended periods with the temperature inside the unit exceeding a certain temperature, the volume may be reduced
automatically to protect the circuits.
Video
• Conrm that the connection between the output jack on the connected device and the input jack on this unit is correct.
• Make sure that none of the connecting cables are bent, twisted, or damaged.
• When the TV image is blurry or unclear, the power cord or connection cables of the unit may have interfered. In such a case, keep distance
between TV antenna cable and cables of the unit.
• Check the switching of the input screen on the monitor side such as a TV.
Check the following if the problem persists after you have conrmed the above.
No image appears
• Change the input selector on this unit to the position of the jack to which the player is connected.
No image from a device connected to HDMI IN jack
• To display video from the connected player on the TV while the unit is in standby, you need to enable "2. Control" - "HDMI Standby Through" on the
Setup menu.
• Check if "Resolution Error" is displayed on the main unit display when video input via HDMI IN jack is not displayed. In this case, the TV does
not support the resolution of the video input from the player. Change the setting on the player.
• Normal operation with an HDMI-DVI adapter is not guaranteed. In addition, video signals output from a PC are not guaranteed.
• Try switching o the Deep Color function. To turn o the Deep Color function, simultaneously press the ZONE2 OFF and ENTER buttons on
the main unit. While holding down ZONE2 OFF, press ENTER repeatedly until "Deep Color:O" appears on the display. To reactivate the Deep
Color function, repeat the above described step until "Deep Color:On" is appeared on the display.
( →p79)
Images icker
• The output resolution of the player may not be compatible with the resolution of the TV. If the player is connected to this unit with an HDMI cable,
change the output resolution on the player. Also this may be solved by changing the screen mode on the TV.
96
Troubleshooting
Linked operation
HDMI linked operation does not work with CEC-compliant devices, such as a TV
• In the Setup menu of the unit, set "2. Control" - "HDMI CEC" to "On".
• It is also necessary to set HDMI linking on the CEC-compliant device. Check the instruction manual.
( →p79)
Tuner (North American and European models)
Poor reception or much noise
• Recheck the antenna connection.
• Move the antenna away from the speaker cord or power cord.
• Move the unit away from your TV or PC.
• Passing cars or airplanes in the vicinity can cause interference.
• If radio waves are blocked by concrete walls, etc., radio reception may be poor.
• Change the reception mode to mono ( →p44).
• When listening to an AM station, operating the remote controller may cause noise.
• FM reception may be clearer if you use the antenna jack on the wall used for the TV.
( →p29)
Bluetooth function
• Unplug and plug the power cord of the unit, or turn o and on the Bluetooth enabled device. Restart of the Bluetooth enabled device may be
eective.
• Bluetooth enabled devices must support the A2DP prole.
• Because a radio wave interference will occur, this unit may not be used near devices such as a microwave oven or cordless phone which use
the radio wave in the 2.4 GHz range.
• A metallic object near the unit can aect on the radio wave, and Bluetooth connection may not be possible.
Check the following if the problem persists after you have conrmed the above.
Cannot transmit from a Bluetooth wireless technology enabled device (PC, smartphone, etc.) to this
unit
• Check if the Bluetooth function of the Bluetooth enabled device is enabled.
97
Troubleshooting
Cannot connect a Bluetooth wireless technology enabled device (PC, smartphone, etc.) to this unit
• Initialize the pairing information and perform pairing again.
Firstly delete all the pairing information saved on this unit. In the Setup menu, select "4. Bluetooth" - "Bluetooth Receiver" - "Pairing Information",
then press ENTER while "Clear" is displayed.
Next, delete the pairing information of this unit that is saved on the Bluetooth wireless technology enabled device. For information on how to
clear the pairing information, refer to the Bluetooth enabled device's instruction manual.
Finally, perform pairing again. Refer to "Playing audio from Bluetooth wireless technology enabled devices with this unit" ( →p40) for pairing
instructions.
Cannot transmit from this unit to a Bluetooth wireless technology enabled device (wireless
headphones, etc.)
• Check that the "Bluetooth Transmitter" setting on this unit is set to either "On(Tx)" or "On(Main + Tx)".
Cannot connect this unit to a Bluetooth wireless technology enabled device (wireless headphones,
etc.)
• Check if the Bluetooth function of the Bluetooth enabled device is enabled.
• Initialize the pairing information and perform pairing again.
Firstly delete all the pairing information saved on this unit. In the Setup menu, select "4. Bluetooth" - "Bluetooth Transmitter" - "Pairing
Information", then press ENTER while "Clear" is displayed.
Next, delete the pairing information of this unit that is saved on the Bluetooth wireless technology enabled device. For information on how to
clear the pairing information, refer to the Bluetooth enabled device's instruction manual.
Finally, perform pairing again. Refer to "Transmitting audio from this unit to Bluetooth wireless technology enabled devices" ( →p42) for
pairing instructions.
Music playback is unavailable on the unit even after successful Bluetooth connection
• If the volume setting on this unit or the Bluetooth wireless technology enabled device is low, audio may not be played. Check the volume setting
on this unit or the Bluetooth wireless technology enabled device.
• Some Bluetooth enabled devices may be equipped with a Send/Receive selector switch. Try switching the setting to suit the application the
device is being used for.
• Depending on the characteristics or specications of the Bluetooth enabled device, music may not be played back on this unit.
Sound is interrupted
• There maybe a problem with the Bluetooth enabled device. Check the information on a web page.
The audio quality is poor after connection with a Bluetooth enabled device
• The Bluetooth reception is poor. Move the Bluetooth enabled device closer to the unit, or remove any obstacle between the Bluetooth enabled
device and this unit.
98
Troubleshooting
Network function
• If you cannot select a network service, start up the network function to select it. It may take approx. one minute to start it up.
• When the NET indicator is blinking, this unit is not properly connected to the home network.
• Unplug and plug the power cords of this unit and the router, or restart the router.
• If the desired router is not displayed in the access point list, it may be set to hide SSID, or the ANY connection may be o. Change the setting
and try again.
Check the following if the problem persists after you have conrmed the above.
Cannot access the Internet radio
• In the case the service provider has terminated the service, the network service or contents may not be used on this unit.
• Check if your modem and router are properly connected, and they are both turned on.
• Check if the LAN side port on the router is properly connected to this unit.
• Check if connecting to Internet from other devices is possible. If it is not possible, turn o all devices connected to the network, wait for a while,
and then turn on the devices again.
• Depending on ISP, setting the proxy server is required.
• Check if the router and modem you are using are supported by your ISP.
Cannot access the network server
• This unit needs to be connected to the same router as the network server.
• This unit supports the Windows Media
®
Player 12 network servers, or NASes that support the home network function.
• Windows Media
®
Player may require some settings. Refer to "Music Server".
• When using a PC, only the music les registered in the library of Windows Media
®
Player can be played.
( →p68)
Sound is interrupted when playing music les on the network server
• Check if the network server meets the requirements for operation.
• When the PC is serving as the network server, quit application software other than the server software (Windows Media
®
Player 12, etc.).
• If the PC is downloading or copying large les, the playback sound may be interrupted.
99
Troubleshooting
USB storage device
USB storage device is not displayed
• Check if the USB storage device or USB cable is securely inserted to the USB port of the unit.
• Disconnect the USB storage device once from the unit, and then reconnect it.
• Performance of the hard disk that receive power from the USB port of the unit is not guaranteed.
• Depending on the type of content, the playback may not be performed normally. Check the types of supported le formats.
• Operations of USB storage devices equipped with security functions are not guaranteed.
( →p66)
Wireless LAN Network
• Unplug and plug the power cords of this unit and the wireless LAN router, check the power-on status of the wireless LAN router, or restart the
wireless LAN router.
Check the following if the problem persists after you have conrmed the above.
Cannot access wireless LAN network
• The wireless LAN router setting may be switched to Manual. Restore the setting to Auto.
• Try the manual set-up. The connection may succeed.
• When the wireless LAN router is in stealth mode (mode to hide SSID) or when the ANY connection is o, the SSID is not displayed. Change the
setting and try again.
• Check if the SSID and encryption settings are correct. Match the network settings with the settings of this unit.
• Connection to an SSID that includes multi-byte characters is not supported. Set the SSID of the wireless LAN router using single-byte
alphanumeric characters only, and try again.
Connected to an SSID dierent from the selected SSID
• Some wireless LAN routers allow you to set multiple SSIDs for one unit. If connecting to such a router using the automatic setting button, you
may end up connecting to an SSID dierent from the SSID you want to connect to. If this occurs, use the connection method requiring you to
enter a password.
Playback sound is interrupted, or communication is not possible
• You may not receive radio waves due to poor radio wave conditions. Shorten the distance from the wireless LAN router, or remove obstacles to
improve visibility, and connect again. Install the unit away from microwave ovens or other access points. It is recommended to install the wireless
LAN router and the unit in the same room.
• If there is a metallic object near the unit, wireless LAN connection may not be possible because the metal aects the radio wave.
• When other wireless LAN devices are used near the unit, other symptoms may occur, such as interrupted playback and impossible
communication. You can avoid those problems by changing the channel of your wireless LAN router. For instructions on changing channels,
refer to the instruction manual supplied with your wireless LAN router.
• There may not be enough bandwidth available in wireless LAN. Use a wired LAN for connection.
100
Troubleshooting
Multi-zone function
Cannot ZONE-output the audio of externally connected AV components
• To output audio from an externally connected AV component to ZONE 2, use an analog audio cable for connection. Note that ZONE 2 output is
not possible with the connection using an HDMI cable, digital coaxial cable, or digital optical cable.
Others
• If the audio signal is from the NET input selector, the zone output is not possible for DSD audio signals.
Remote Controller
• Make sure that the batteries are inserted with the correct polarity.
• Insert new batteries. Do not mix dierent types of batteries, or old and new batteries.
• Make sure that the sensor of the main unit is not subjected to direct sunlight or inverter-type uorescent lights. Relocate it if necessary.
• If the main unit is installed in a rack or cabinet with colored-glass doors, or if the doors are closed, the remote controller may not work normally.
Display
The display does not light up
• When the Dimmer function is working, the display may go dim. Press the DIMMER button, and change the brightness level of the display.
• The display is turned o when the Pure Audio listening mode is selected.
( →p10, 15)
( →p10)
Others
Strange noise can be heard from the unit
• If you have connected another device to the same outlet as this unit, strange noise may occur under the inuence of the device. If the symptom
is remedied by removing the power plug of the other device from the outlet, use dierent outlets for this unit and the device.
102
Appendix
General Specications
Amplier Section North American and Japanese models European, Middle East, Australian and Asian models
Rated Output Power *
(North American models)
With 8 ohm loads, both channels driven, from 20Hz-
20kHz; rated 110 watts per channel minimum RMS
power, with no more than 0.08% total harmonic
distortion from 250 milliwatts to rated output.
(Japanese models)
2 ch × 110 W at 8ohms, 20-20,000Hz, 2ch driven of
0.08% THD (JEITA)
2 ch × 150 W at 6 ohms, 1 kHz, 2 ch driven of 0.7%
THD (JEITA)
2 ch × 140 W at 4 or 6 ohms, 1 kHz, 2 ch driven of 1% THD
2 ch × 120 W at 8 ohms, 1 kHz, 2 ch driven of 1% THD
Maximum Eective Output Power *
(North American models)
210 W at 6 ohms, 1 kHz, 2 ch driven of 10% THD
(Japanese models)
2 ch × 190 W at 6 ohms, 1 kHz, 2 ch driven of 10%
THD
2 ch × 170 W at 6 ohms, 1 kHz, 2 ch driven of 10% THD
(JEITA)
THD+N (Total Harmonic Distortion + Noise) 0.08% (20 Hz - 20,000 Hz, Rated output power)
Input Sensitivity and Impedance 200 mV/32 kΩ (LINE(RCA)), 4 mV/47 kΩ (PHONO MM), 0.4 mV/110 Ω (PHONO MC)
Rated RCA Output Level and Impedance
PRE OUT : 1 V/470 Ω
LINE OUT : 200 mV/470 Ω
Phono Maximum Input Signal Voltage 70 mV (MM 1 kHz 0.5%), 7 mV (MC 1 kHz 0.5%)
Frequency Response 5 Hz - 100 kHz/+1 dB, –3 dB (DIRECT/Pure Audio)
Tone Control Characteristics ±10 dB, 100 Hz (Bass), ±10 dB, 10 kHz (Treble)
Signal to Noise Ratio
106 dB (IHF-A, LINE IN, SP OUT),
76 dB (IHF-A, PHONO MM 5mV IN, SP OUT),
60 dB (IHF-A, PHONO MC 0.5mV IN, SP OUT)
Supported impedance of Speakers 4 Ω - 16 Ω
103
Appendix
Headphone Rated Output 80 mW + 80 mW (32 Ω, 1 kHz, 10% THD)
Supported impedance of Headphones 8 Ω - 600 Ω
Headphones Frequency Response 5 Hz - 100 kHz (Direct/Pure Audio)
*Typical usage is 1/8th power (Sine wave) on 2ch channels into the rated load. Full power is expected to be used in extreme case for a while.
Tuner Section North American models European models
FM Tuning Frequency Range 87.5 MHz - 107.9 MHz 87.5 MHz - 108.0 MHz, RDS
50 dB quieting sensitivity (FM MONO) 2.8 μV, 20.2 dBf (IHF, 1 kHz, 100% MOD)
AM Tuning Frequency Range 530 kHz - 1710 kHz -
DAB Tuning Frequency Range - 174.928 MHz - 239.200 MHz (Band III)
DAB Sensitivity - -100 dBm (Min.) (Band III)
Preset Channel 40
Bluetooth Section North American and Japanese models European, Middle East, Australian and Asian models
Communication system Bluetooth Specication version 4.2
Frequency band 2.4GHz (2.402-2.480GHz)
Modulation method FHSS (Frequency Hopping Spread Spectrum)
Compatible Bluetooth proles A2DP 1.3.1, AVCTP 1.4, AVDTP 1.3, AVRCP 1.6.1
Supported Codecs
Receiving: SBC, AAC
Transmitting: SBC, aptX, aptX HD
Transmission range (A2DP) 20 Hz - 20 kHz (Sampling frequency 44.1 kHz)
Maximum communication range
Line of sight approx. 15 m(*)
(*)The actual range will vary depending on factors such as obstacles between devices, magnetic elds around
a microwave oven,static electricity, cordless phone, reception sensitivity, antenna's performance, operating
system, software application, etc.
104
Appendix
HDMI North American and Japanese models European, Middle East, Australian and Asian models
Input 4
Output 1
HDMI IN *1
HDMI OUT
BD/DVD CBL/SAT PC GAME
bandwidth 40Gbps 40Gbps 40Gbps 40Gbps 40Gbps
ALLM
Gaming-VRR
QFT
SBTM
DSC
Uncompressed 8K/60p
4:2:0
8K/60p
4:2:0
8K/60p
4:2:0
8K/60p
4:2:0
8K/60p
4:2:0
Compressed
(TV needs DSC)
8K/60p
4:4:4
8K/60p
4:4:4
8K/60p
4:4:4
8K/60p
4:4:4
8K/60p
4:4:4
ARC *2
HDR10 /
HLG (BT.2020)
HDR10+
*1
Compatible
Audio Format: 2 ch linear PCM (32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 16/20/24 bit)
DSD(2.8 MHz)
*2
ARC compatible audio format
: PCM
105
Appendix
Corresponding
input resolutions
Frame rate Color space Color depth HDMI Input
4K
(3840x2160p)
4K SMPTE
(4096x2160p)
24/25/30 Hz YCbCr4:2:2 12 bit
(*1)Video compressed with DSC (Display
Stream Compression) can be input and
output. DSC is a video compression
technique that enables the transmission of
high-resolution video, which requires high
bandwidth, via HDMI. While playing this
video format, there is no on-screen display
when you perform such operations as using
the AUDIO Menu or adjusting the volume.
(*2)5K, 48 Hz, YCbCr4:2:0, 8/10/12 bit is not
supported.
YCbCr4:4:4/RGB 8 bit
10/12 bit
48/50/60 Hz YCbCr4:2:0 8 bit
10/12 bit
YCbCr4:2:2 12 bit
YCbCr4:4:4/RGB 8 bit
10/12 bit
100/120 Hz YCbCr4:2:0 8/10/12 bit
YCbCr4:2:2 12 bit
YCbCr4:4:4/RGB 8/10 bit
12 bit
(*1)
5K
(5120x2160p)
24/25/30 Hz YCbCr4:2:2 12 bit
YCbCr4:4:4/RGB 8 bit
10/12 bit
48/50/60 Hz YCbCr4:2:0 8/10/12 bit
(*2)
YCbCr4:2:2 12 bit
YCbCr4:4:4/RGB 8 bit
10/12 bit
8K
(7680x4320p)
24/25/30 Hz YCbCr4:2:0 8/10/12 bit
YCbCr4:2:2 12 bit
YCbCr4:4:4/RGB 8/10 bit
12 bit
(*1)
48/50/60 Hz YCbCr4:2:0 8/10 bit
12 bit
(*1)
YCbCr4:2:2 12 bit
(*1)
YCbCr4:4:4/RGB 8/10/12 bit
(*1)
106
Appendix
Network Section North American and Japanese models European, Middle East, Australian and Asian models
Ethernet LAN 1 (10BASE-T/100BASE-TX)
Wireless LAN IEEE 802.11 a/b/g/n/ac standard (Wi-Fi
®
standard) 5 GHz/2.4 GHz band
Music Server ( →p68)
Supported Audio Formats
MP3 (.mp3)
• MPEG-1/MPEG-2 Audio Layer-3/44.1 kHz, 48 kHz/Between 8 kbps and 320 kbps, and VBR/2 ch
WMA (.wma)
• 44.1 kHz, 48 kHz/Between 5 kbps and 320 kbps, and VBR/2 ch
WAV (.wav)
WAV les contain uncompressed PCM digital audio.
• 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz/8 bit, 16 bit, 24 bit/2 ch
AIFF (.ai/.aif)
AIFF les contain uncompressed PCM digital audio.
• 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz/8 bit, 16 bit, 24 bit/2 ch
AAC (.aac/.m4a/.mp4/.3gp/.3g2)
• MPEG-2/MPEG-4 Audio/44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz/Between 8 kbps and 320 kbps, and VBR/2 ch
FLAC (.ac)
• 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz/8 bit, 16 bit, 24 bit/2 ch
LPCM (Linear PCM)
• 44.1 kHz, 48 kHz/16 bit/2 ch
Apple Lossless (.m4a/.mp4)
• 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz/16 bit, 24 bit/2 ch
DSD (.dsf/.d)
• DSF/DSDIFF/2.8 MHz, 5.6 MHz, 11.2 MHz/2 ch
107
Appendix
USB Section North American and Japanese models European, Middle East, Australian and Asian models
USB 2 (Front: Ver.2.0, 5 V/0.5 A, Rear: Ver.2.0, 5 V/1A)
USB Storage Device ( →p66)
Supported Audio Formats
MP3 (.mp3)
• MPEG-1/MPEG-2 Audio Layer-3/44.1 kHz, 48 kHz/Between 8 kbps and 320 kbps, and VBR/2 ch
WMA (.wma)
• 44.1 kHz, 48 kHz/Between 5 kbps and 320 kbps, and VBR/2 ch
WAV (.wav)
WAV les contain uncompressed PCM digital audio.
• 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz/8 bit, 16 bit, 24 bit/2 ch
AIFF (.ai/.aif)
AIFF les contain uncompressed PCM digital audio.
• 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz/8 bit, 16 bit, 24 bit/2 ch
AAC (.aac/.m4a/.mp4/.3gp/.3g2)
• MPEG-2/MPEG-4 Audio/44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz/Between 8 kbps and 320 kbps, and VBR/2 ch
FLAC (.ac)
• 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz/8 bit, 16 bit, 24 bit/2 ch
Apple Lossless (.m4a/.mp4)
• 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz/16 bit, 24 bit/2 ch
DSD (.dsf/.d)
• DSF/DSDIFF/2.8 MHz, 5.6 MHz, 11.2 MHz/2 ch
108
Appendix
General North American and Japanese models European, Middle East, Australian and Asian models
Power Supply
(North American models)
AC 120 V, 60 Hz
(Japanese models)
AC 100 V, 50/60 Hz
AC 220 - 240 V, 50/60 Hz
Power Consumption
(North American models)
265 W
(Japanese models)
210 W
275 W
Full Standby mode 0.2 W 0.2 W
Network Standby (wired)
(North American models)
1.7 W
(Japanese models)
1.6 W
1.8 W
Network Standby (wireless) 1.5 W 1.6 W
Bluetooth Wakeup
(North American models)
1.6 W
(Japanese models)
1.5 W
1.7 W
HDMI CEC Standby 0.2 W 0.3 W
Standby mode (ALL ON)
(North American models)
2.0 W
(Japanese models)
2.1 W
2.2 W
Dimensions (W × H × D)
435 mm × 149.5 mm × 329 mm
17-1/8" × 5-7/8" × 12-15/16"
Weight 9 kg (19.8 lbs.)
Maximum radio-frequency power transmitted in
the frequency band(s)
-
(European models)
2400 MHz - 2483.5 MHz (20 dBm (e.i.r.p))
5150 MHz - 5350 MHz (23 dBm (e.i.r.p))
5470 MHz - 5725 MHz (23 dBm (e.i.r.p))
109
Appendix
Audio Inputs North American and Japanese models European, Middle East, Australian and Asian models
Analog 4 (Including 1×PHONO)
Digital
3 (COAXIAL×1, OPTICAL×2)
• Supported sampling rates for PCM signals (stereo, mono) from a digital input are 32 kHz, 44.1 kHz, 48 kHz,
88.2 kHz, 96 kHz/16 bit, 20 bit, and 24 bit.
Audio Outputs North American and Japanese models European, Middle East, Australian and Asian models
Analog
MAIN PRE OUT L/R ×1,
SUBWOOFER PRE OUT ×1,
ZONE 2 PRE/LINE OUT ×1
Speaker Outputs
SPEAKERS A L/R ×1
(Ready to receive banana plugs),
SPEAKERS B L/R ×1
(Ready to receive banana plugs)
SPEAKERS A L/R ×1,
SPEAKERS B L/R ×1
Phones 1 (ø 6.3 mm, 1/4")
Specications and features are subject to change without notice.
License and Trademark
