Accessories
8
Inserting the batteries
9
Operating range of the remote control unit
9
Features
10
High quality sound
10
High performance
10
Easy operation
15
Part names and functions
16

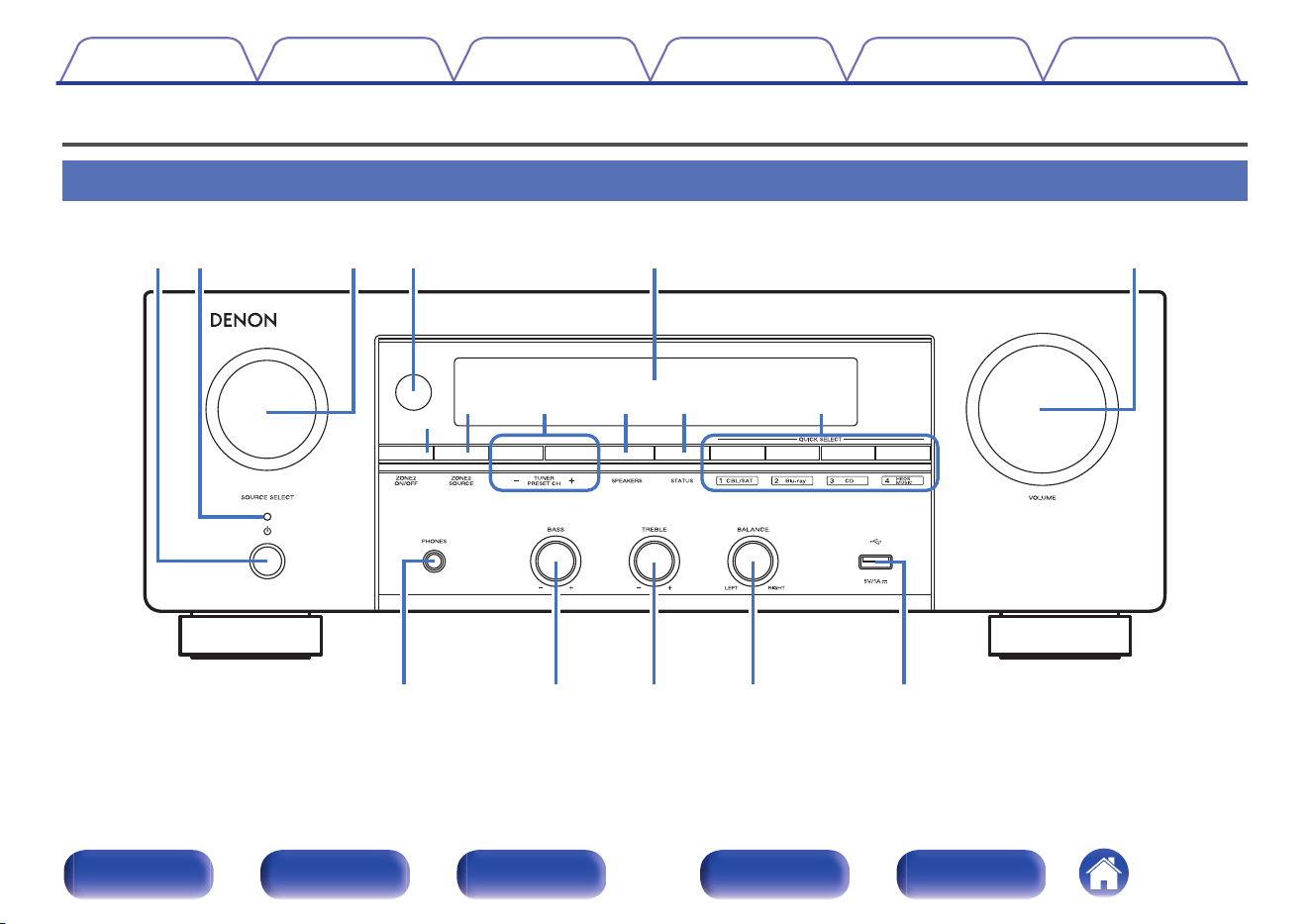

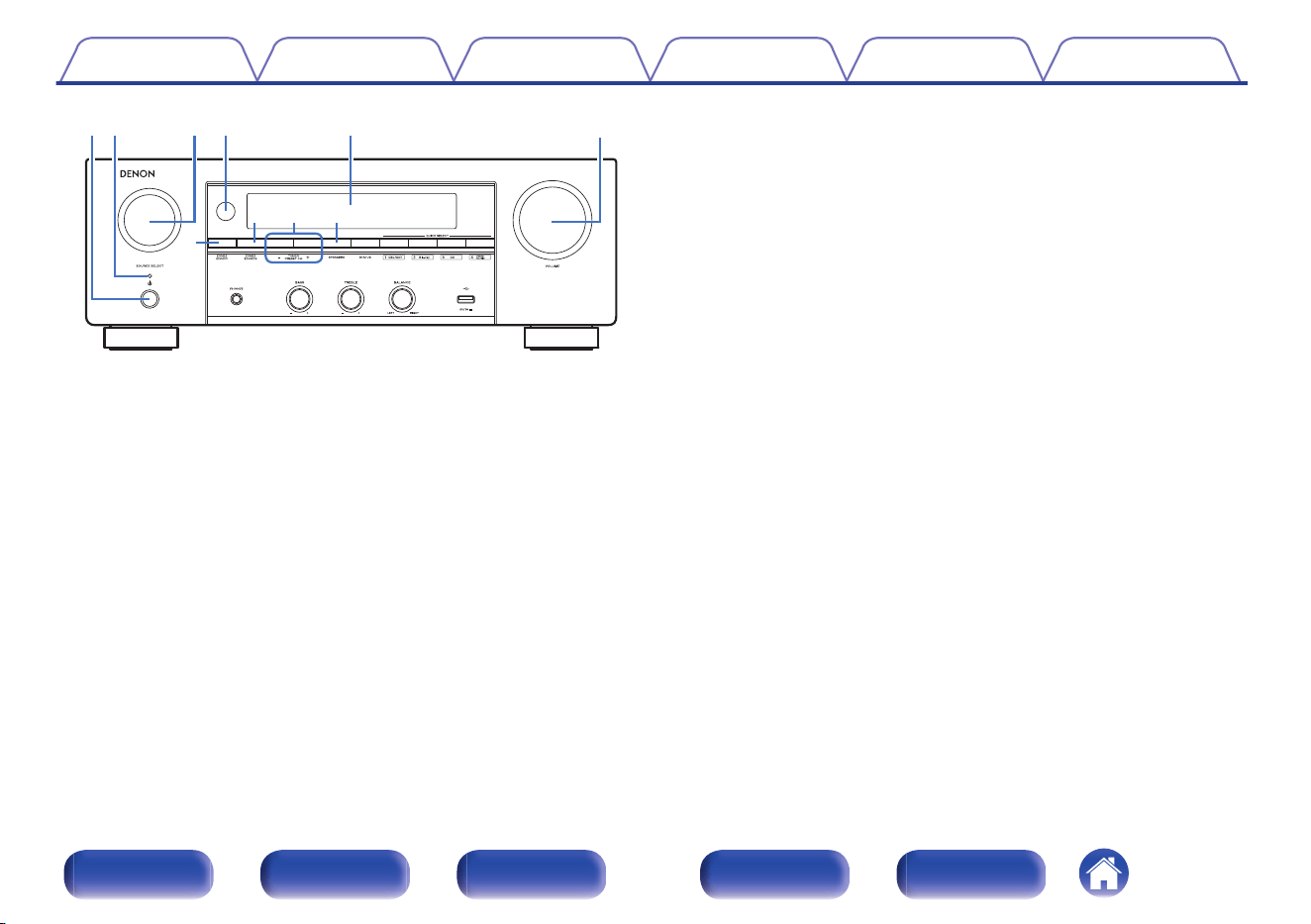

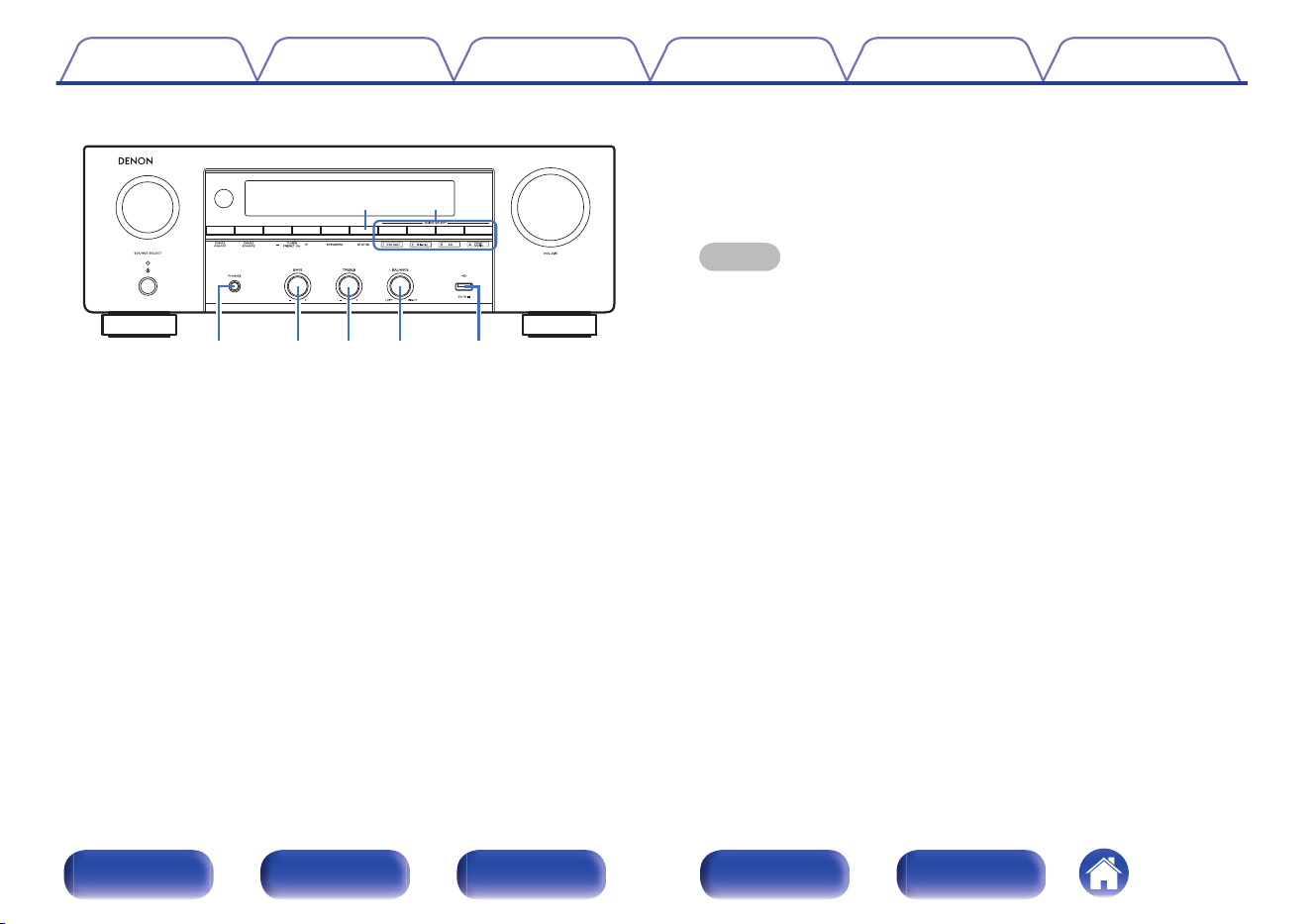

Front panel
16

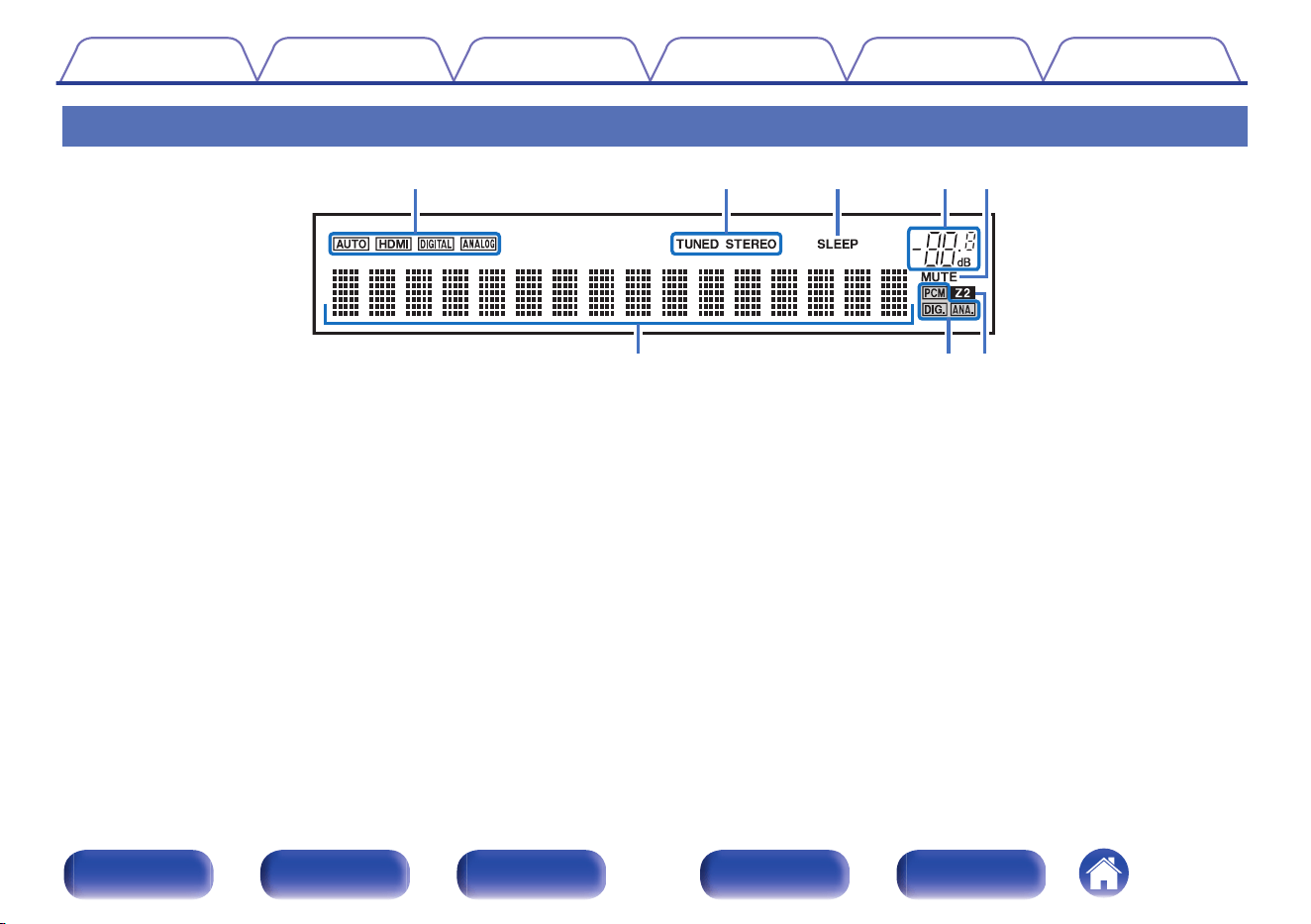

Display
19

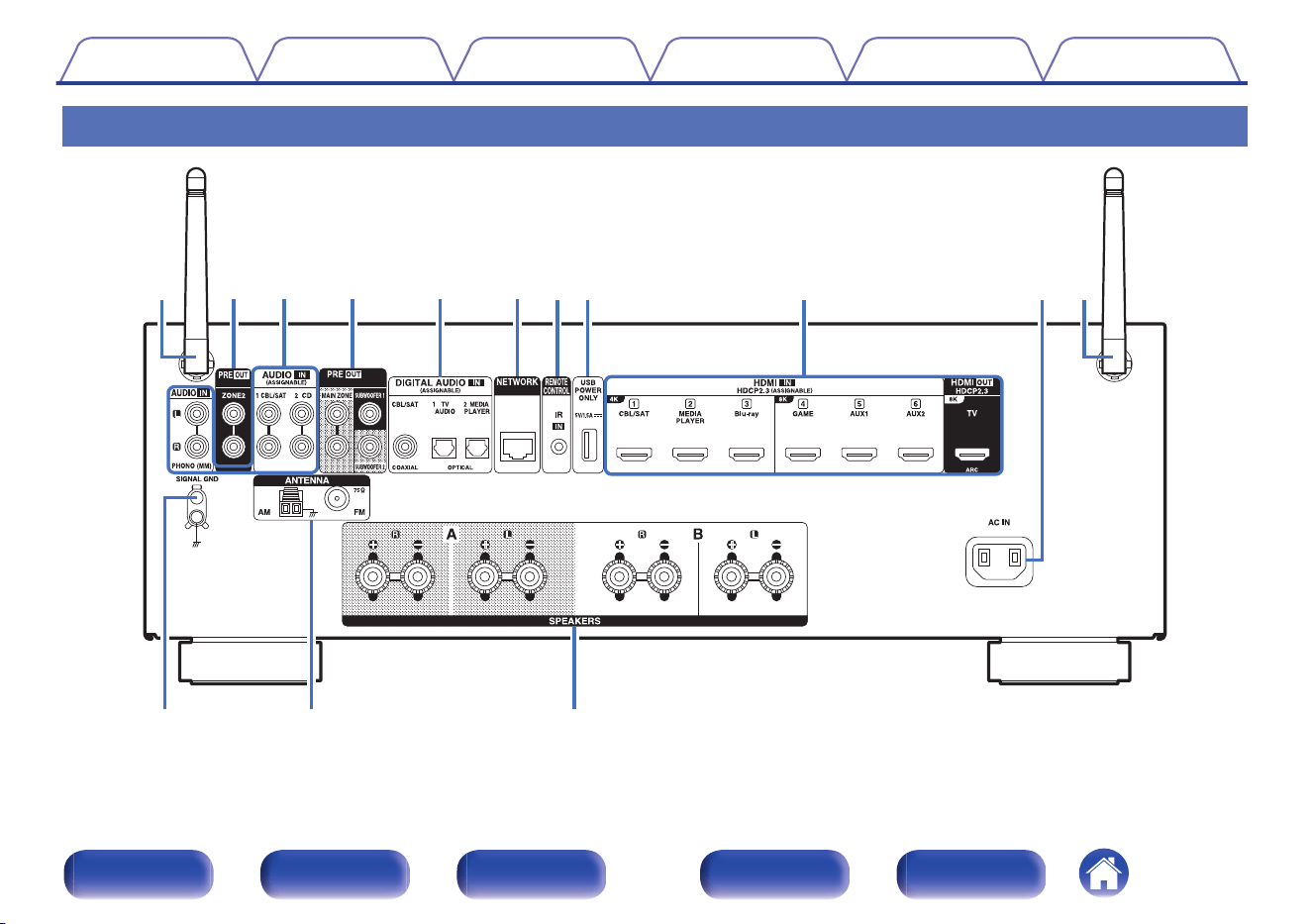

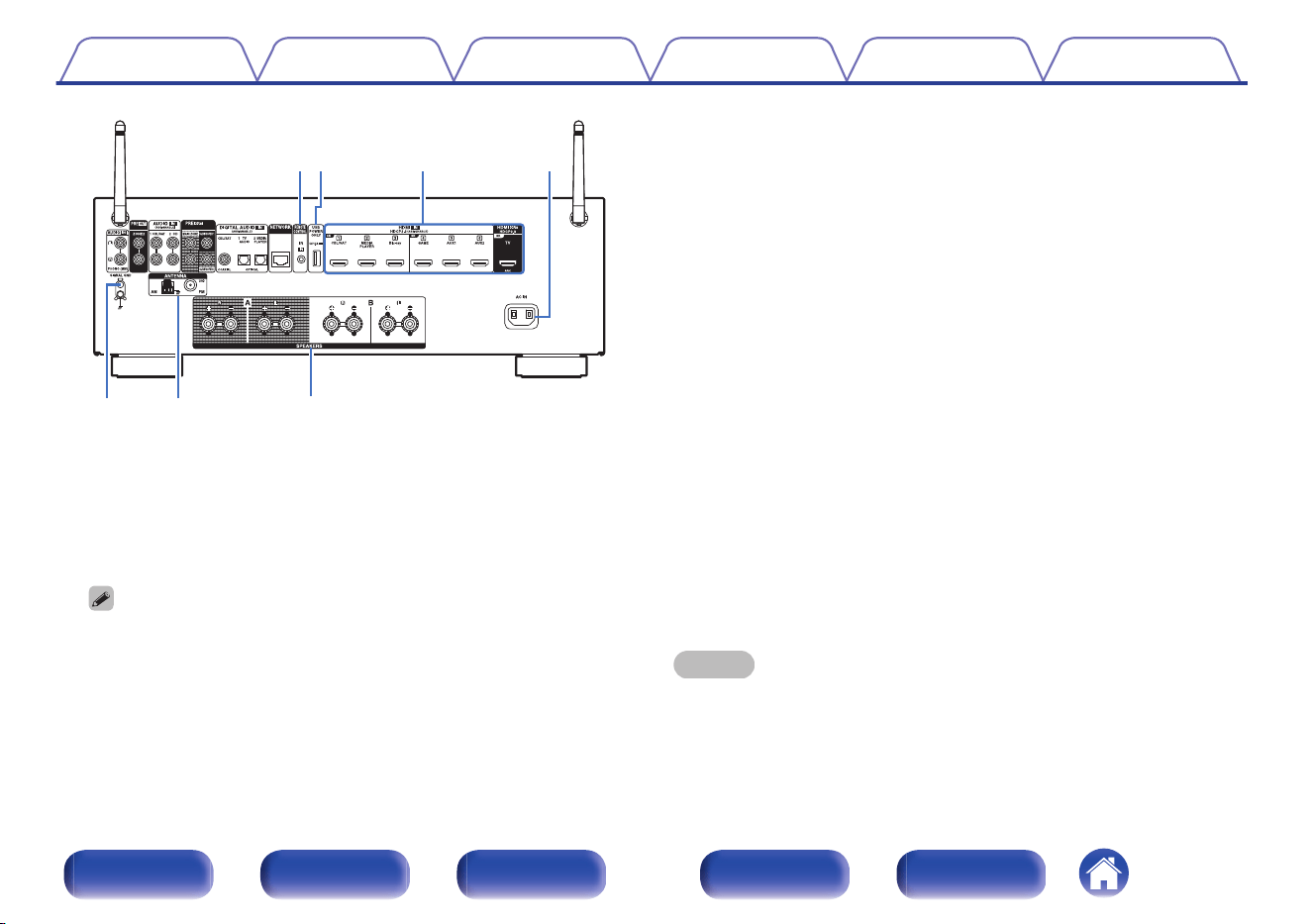

Rear panel
20

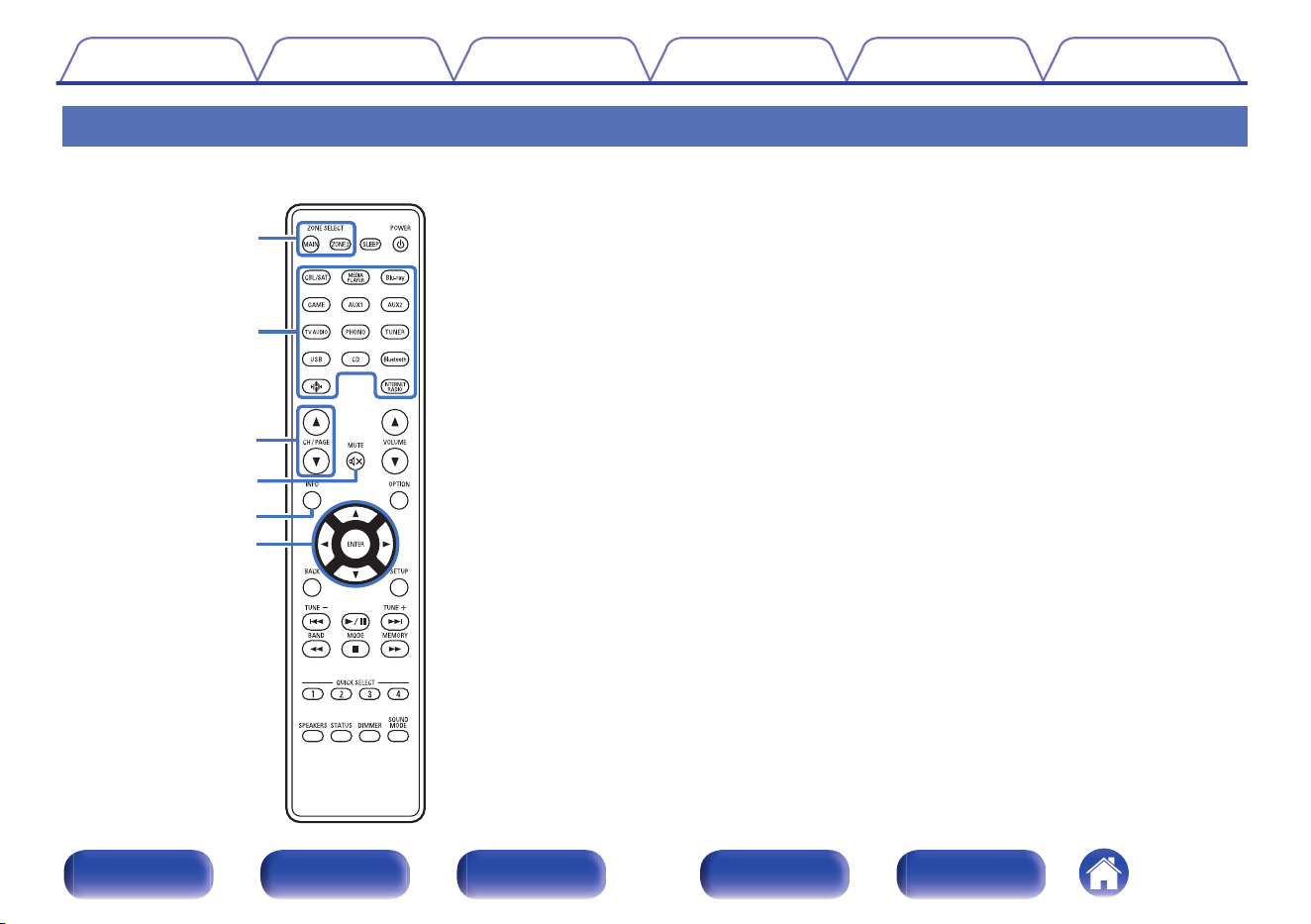

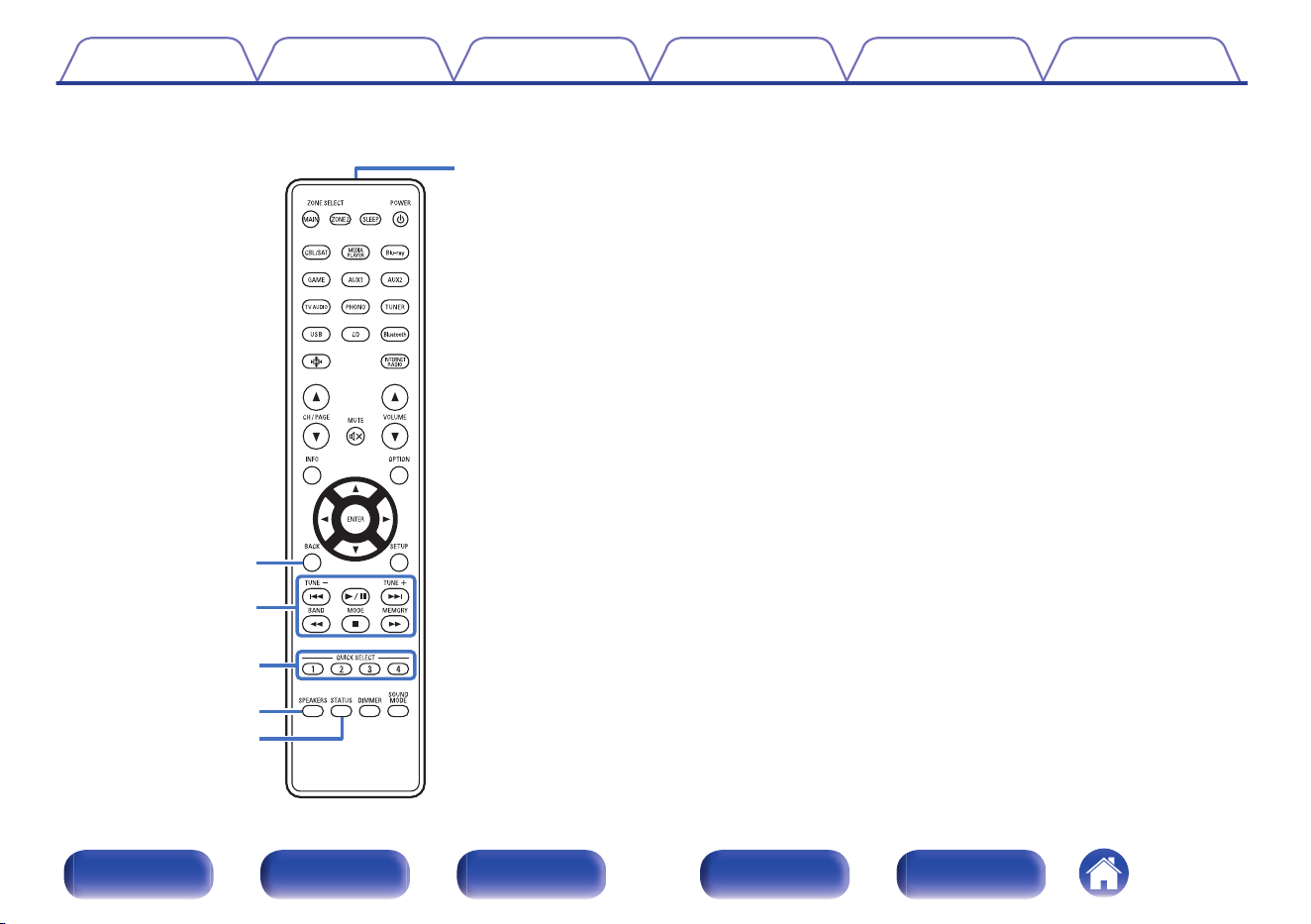

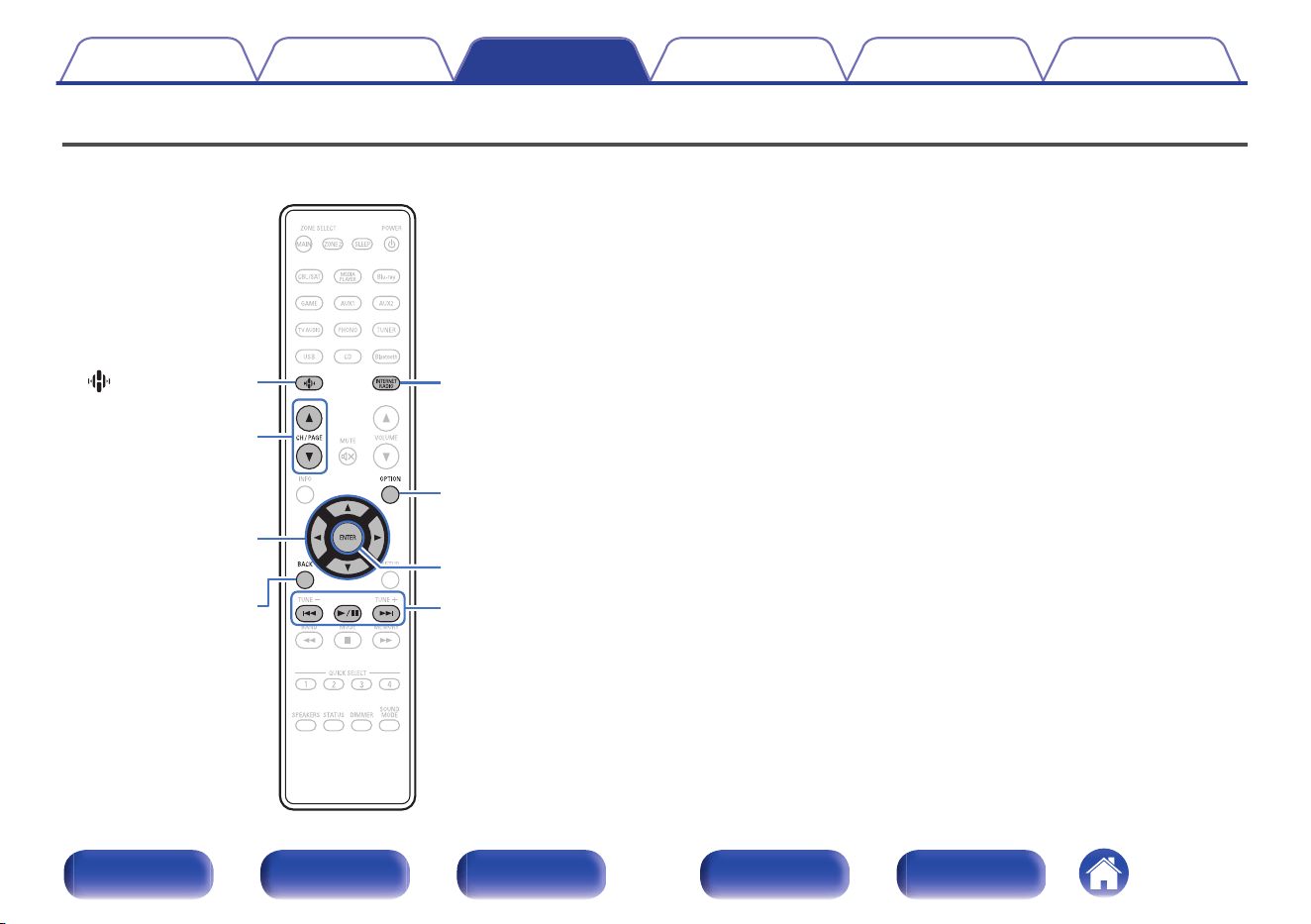

Remote control unit
23
Connections
Speaker installation
27
Connecting speakers
28

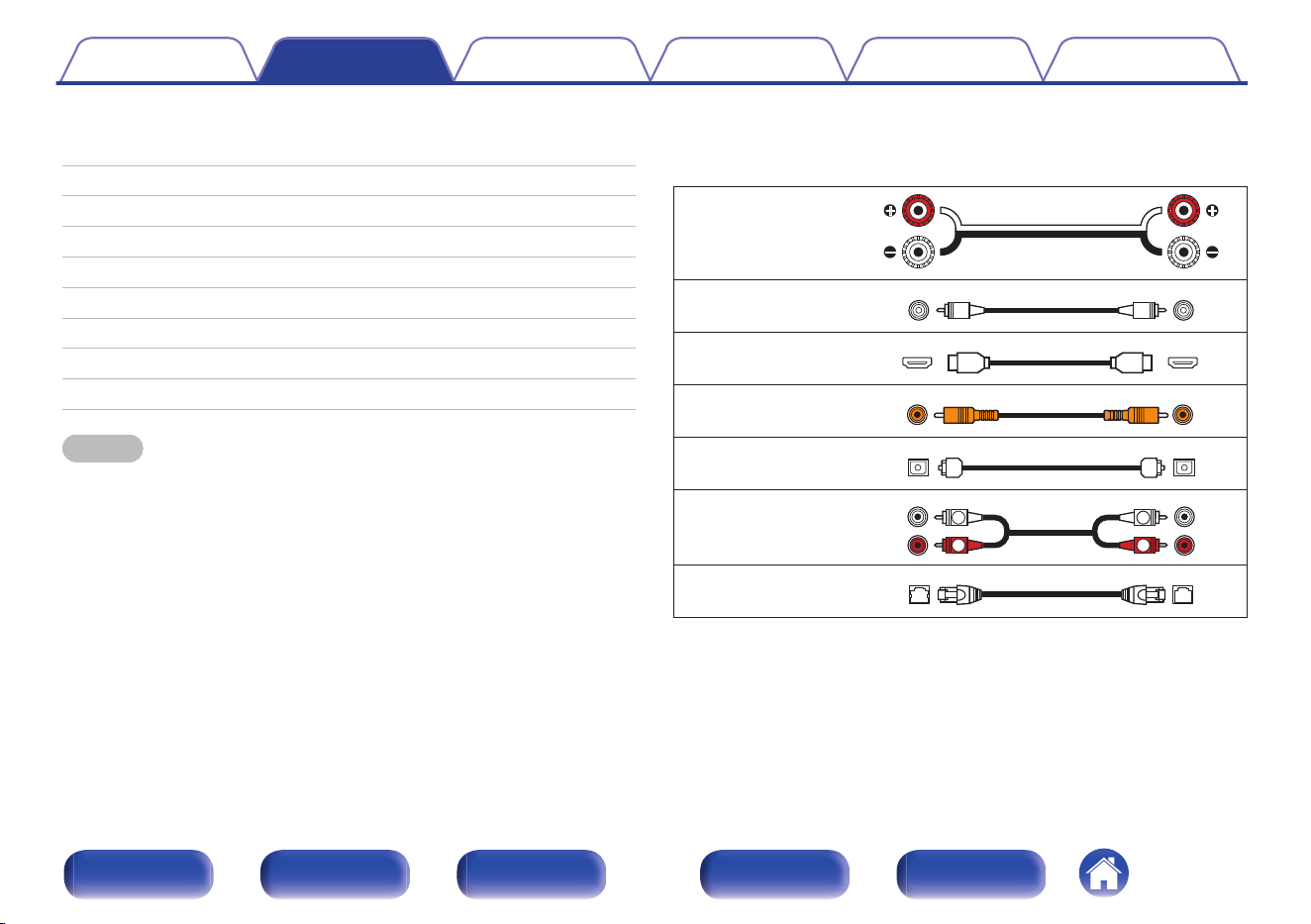

Before connecting speakers
28

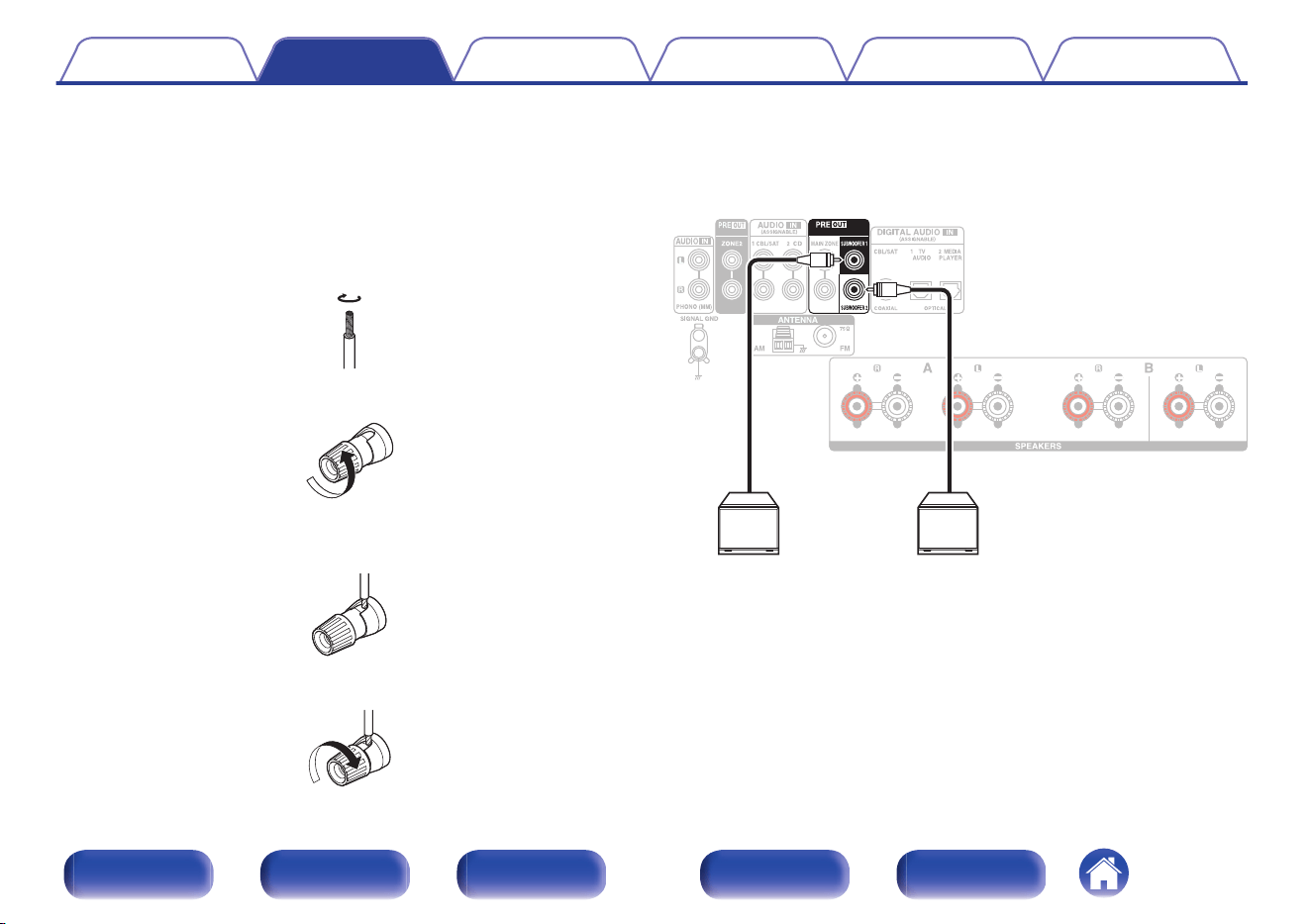

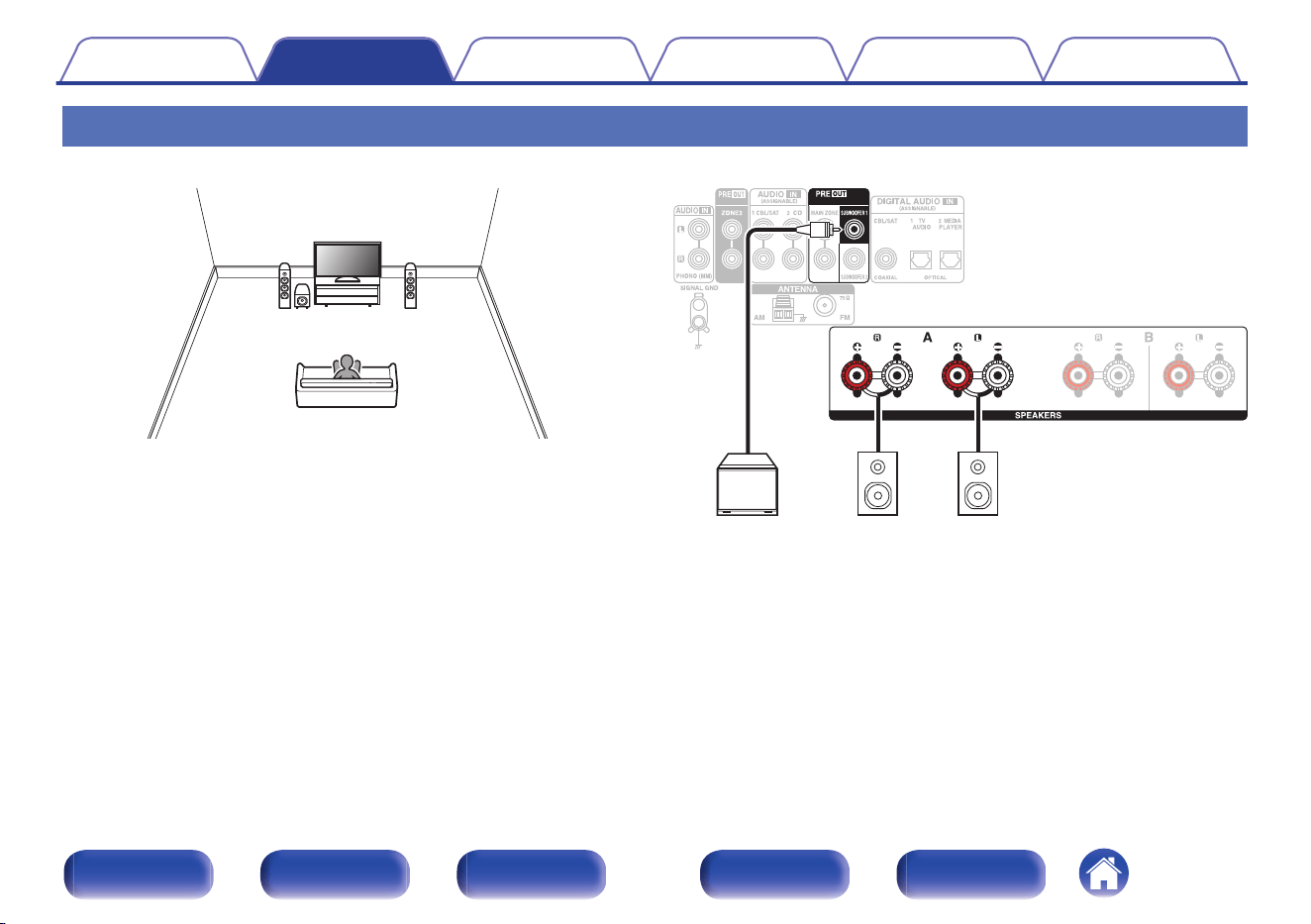

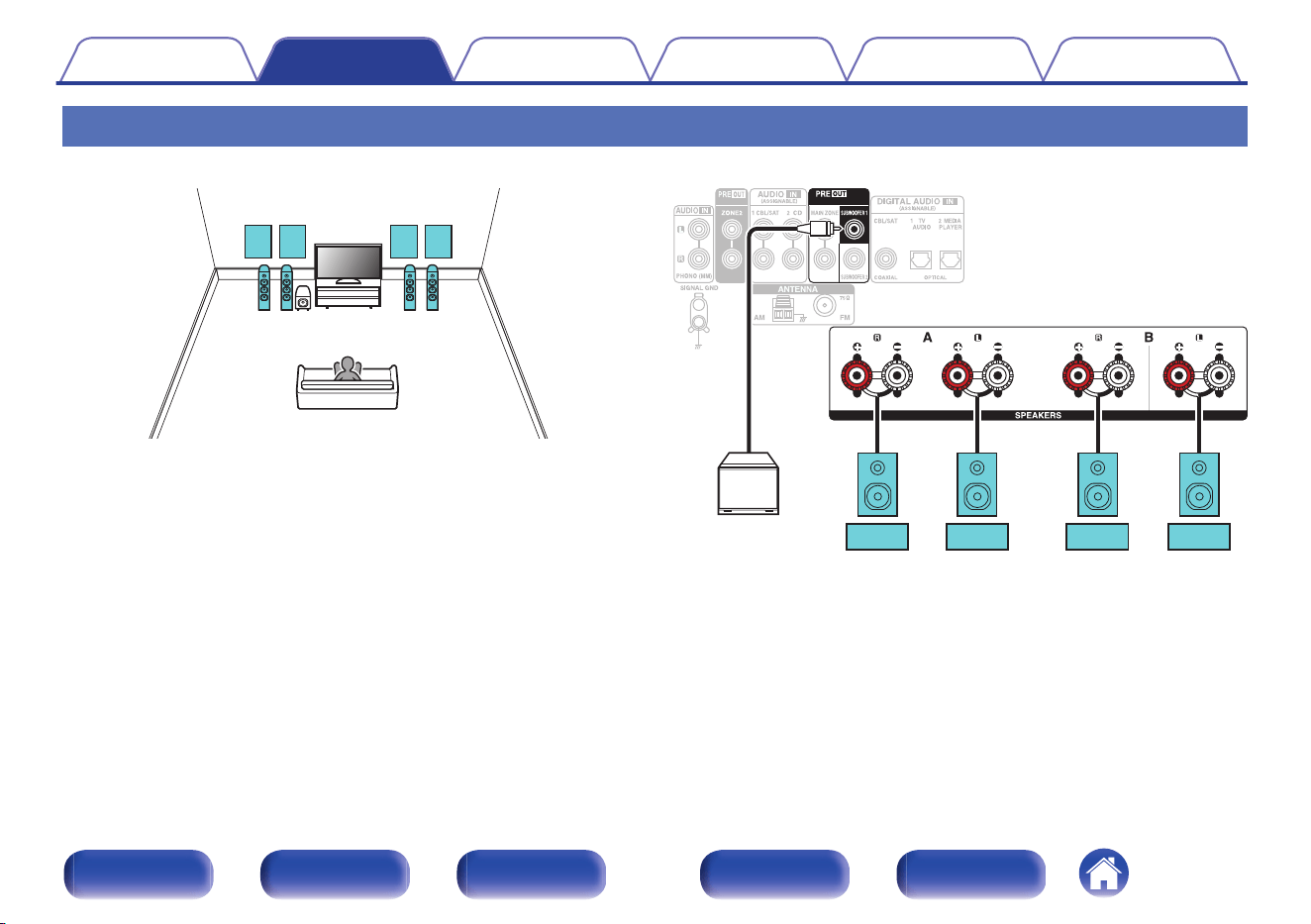

Connecting 2.1-channel speakers
30
Second pair of speaker
31

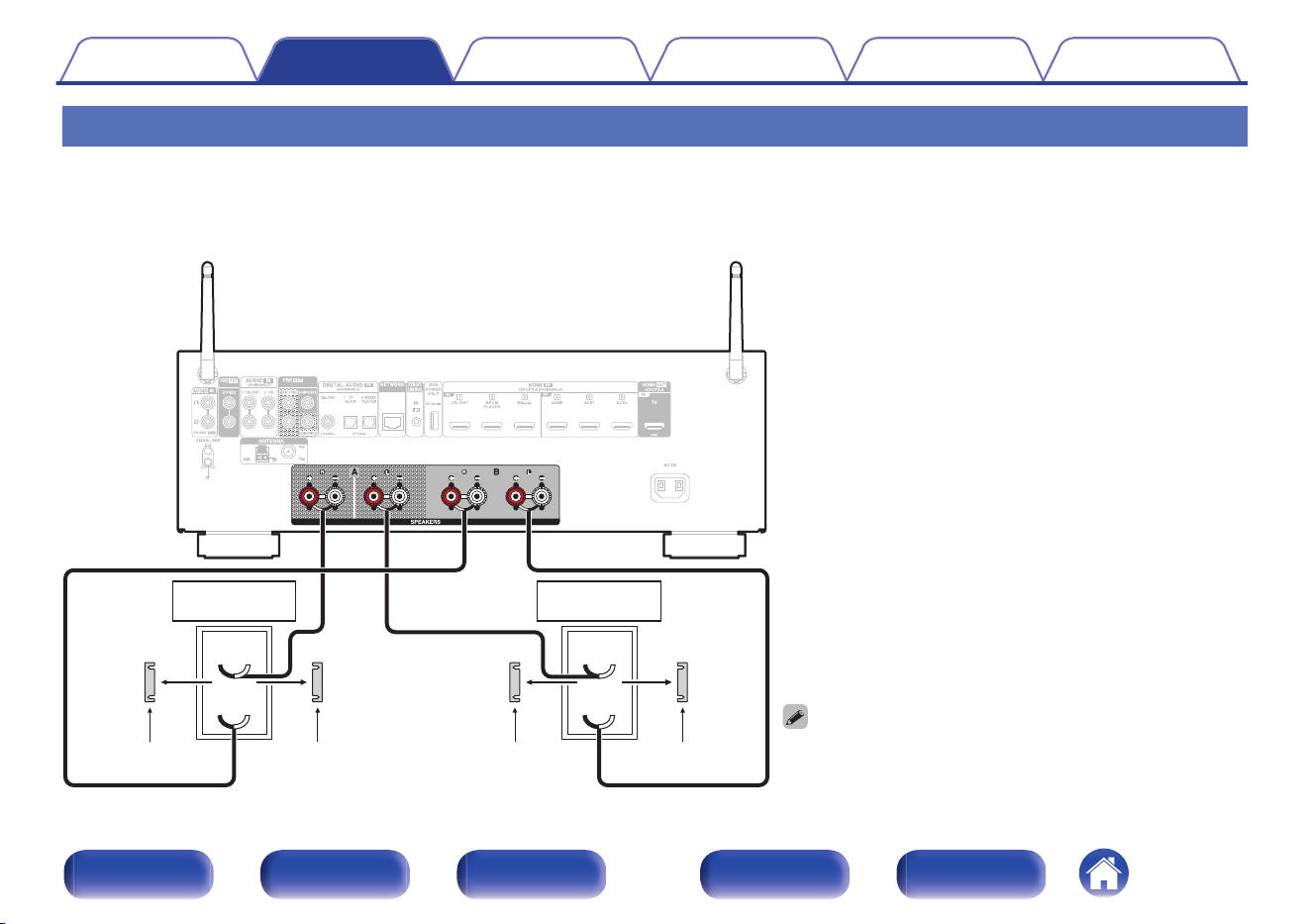

Bi-wiring connection
32

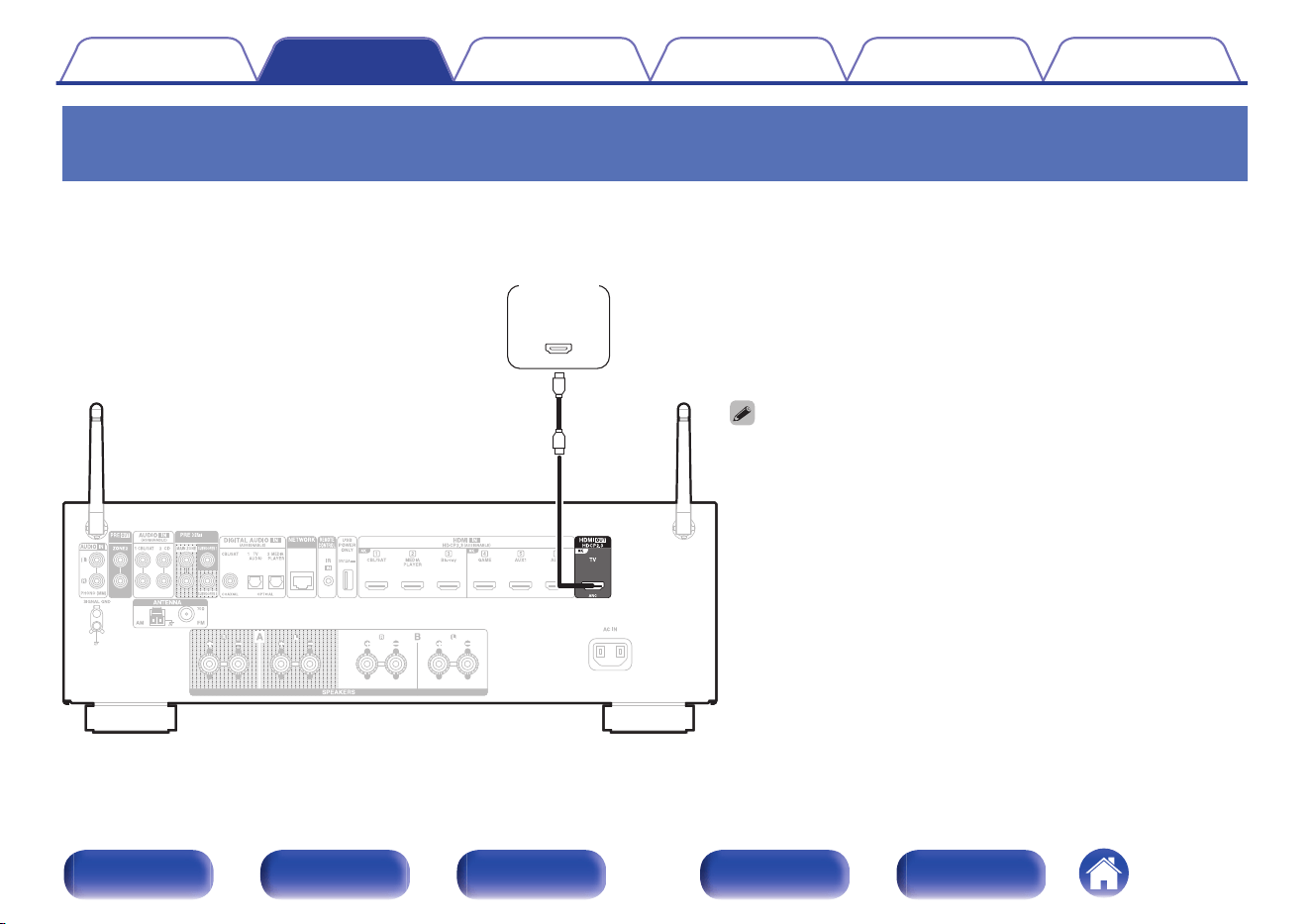

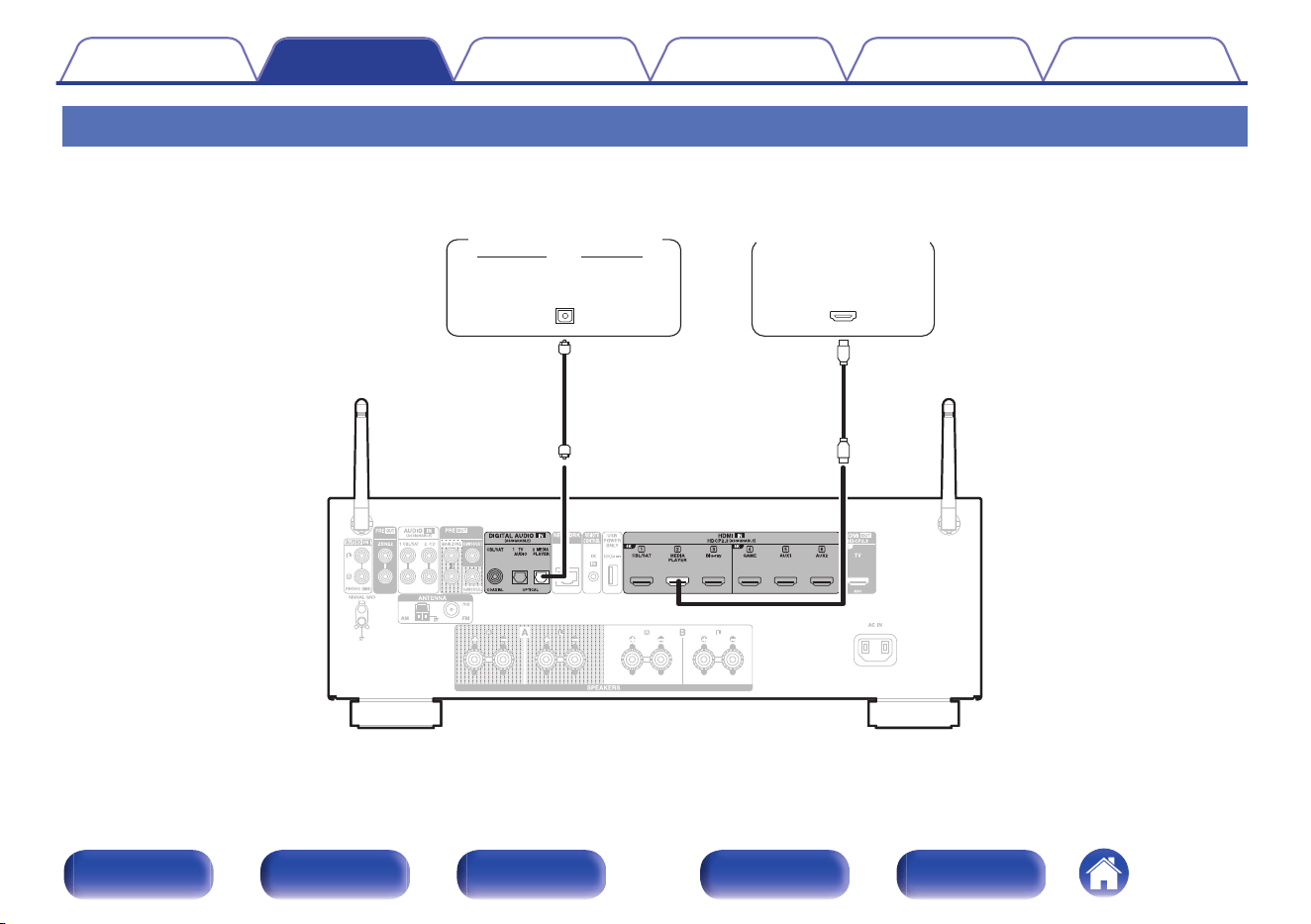

Connecting a TV
34
Connection 1 : TV equipped with an HDMI connector and
compatible with the ARC (Audio Return Channel)
35

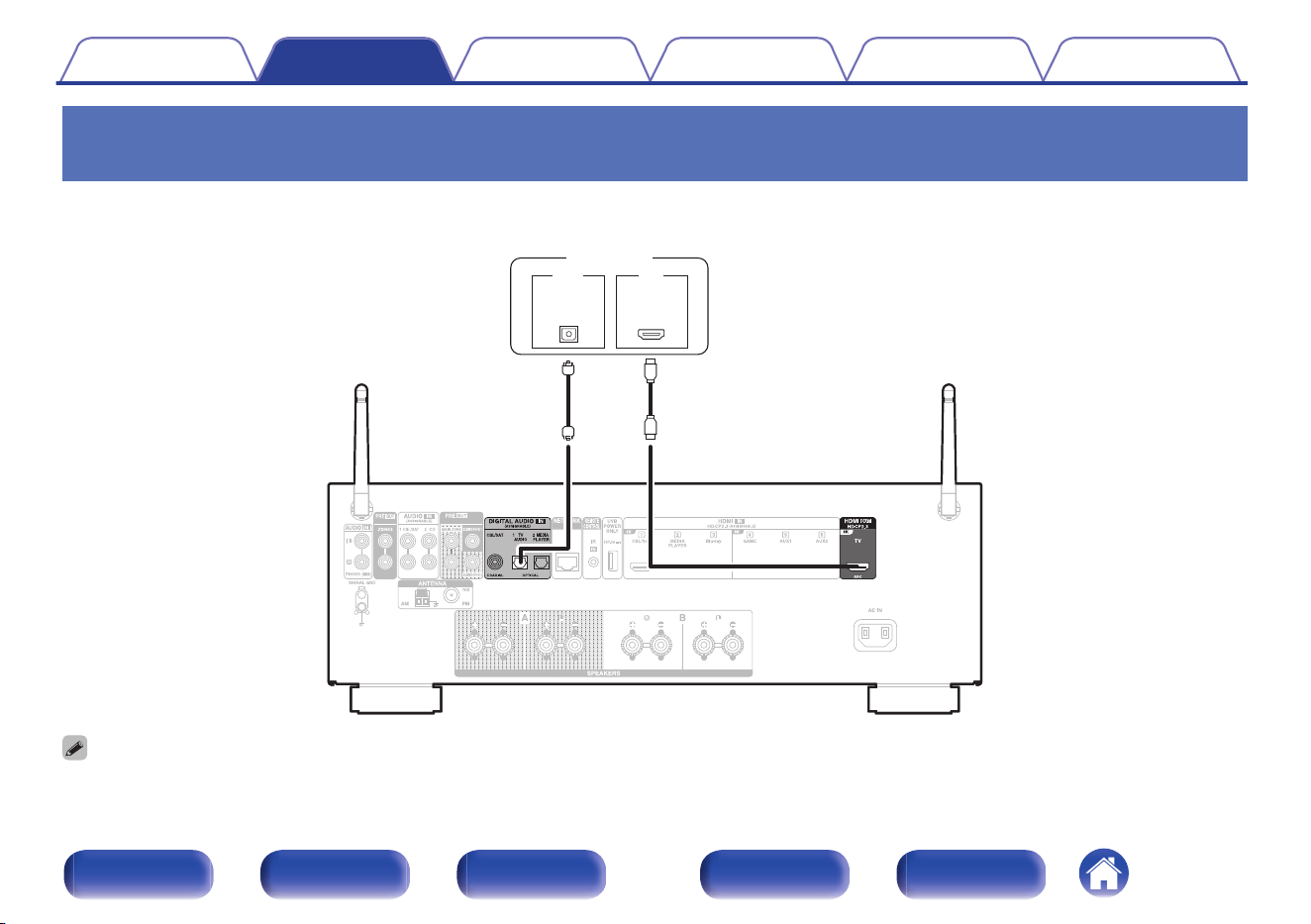

Connection 2 : TV equipped with an HDMI connector and
incompatible with the ARC (Audio Return Channel)
36

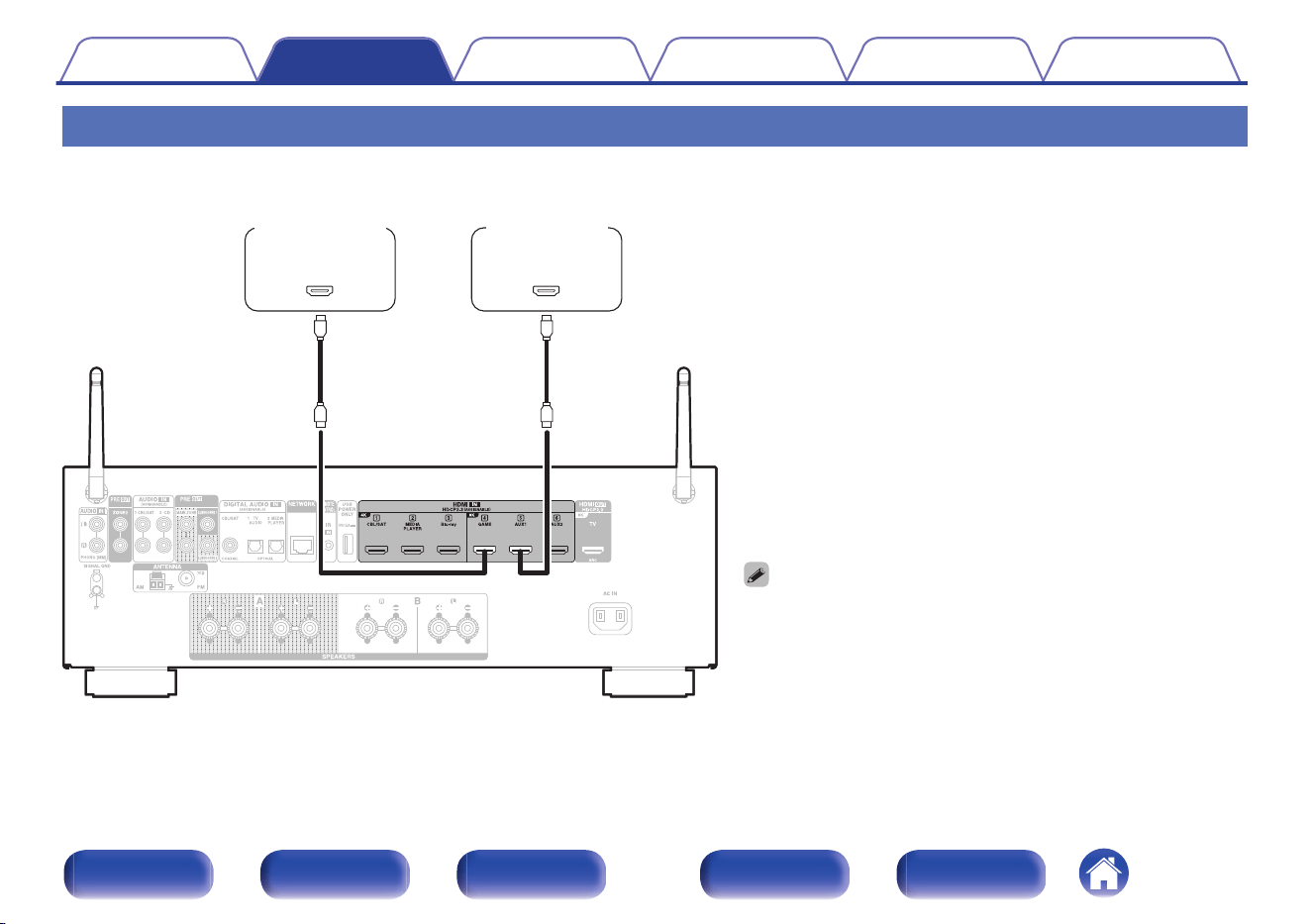

Connecting a playback device
37
Connecting a set-top box (Satellite tuner/cable TV)
38
Connecting a media player
39
Connecting a Blu-ray Disc player or DVD player
40
Connecting a game console or player device compatible with 8K
41

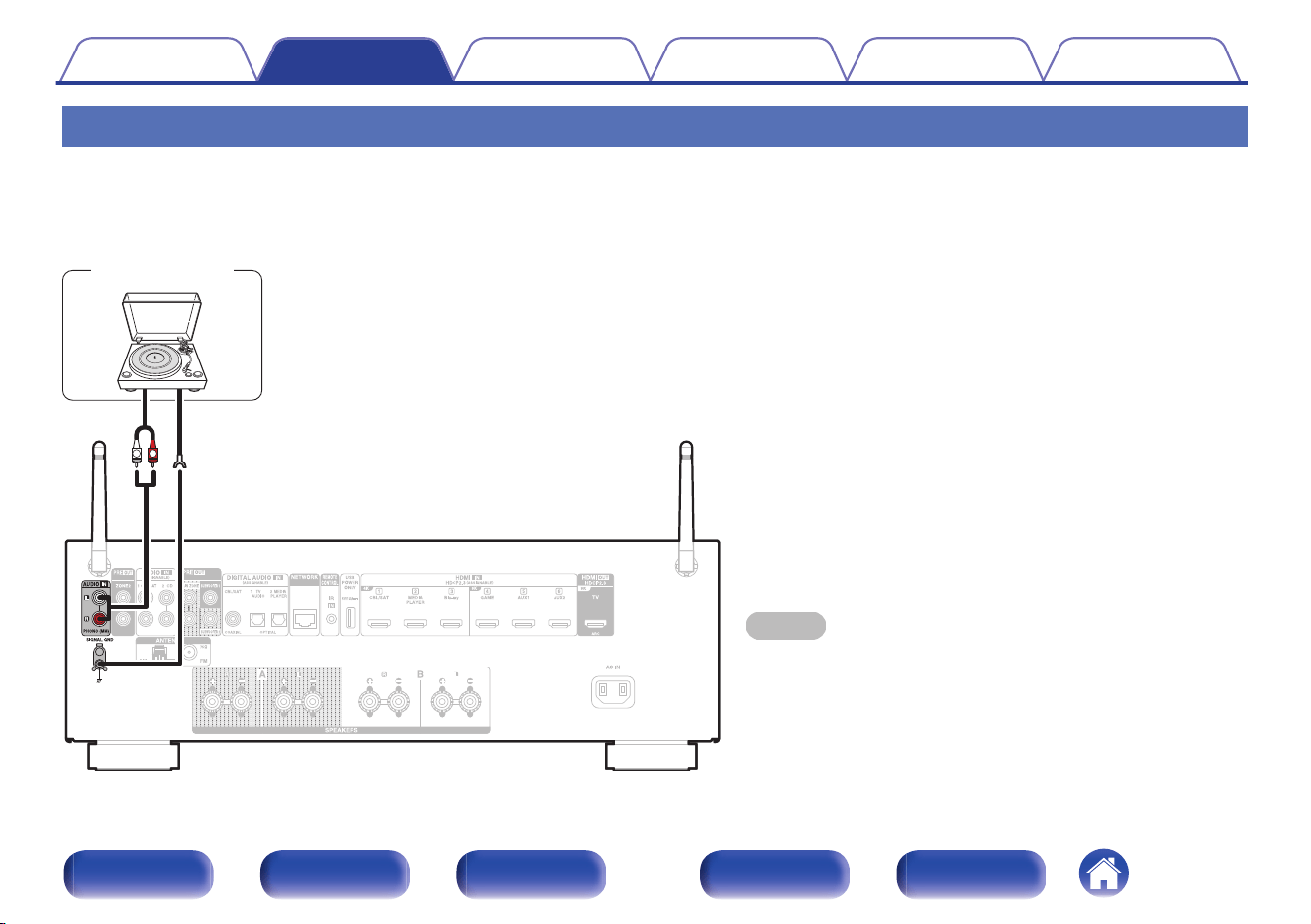

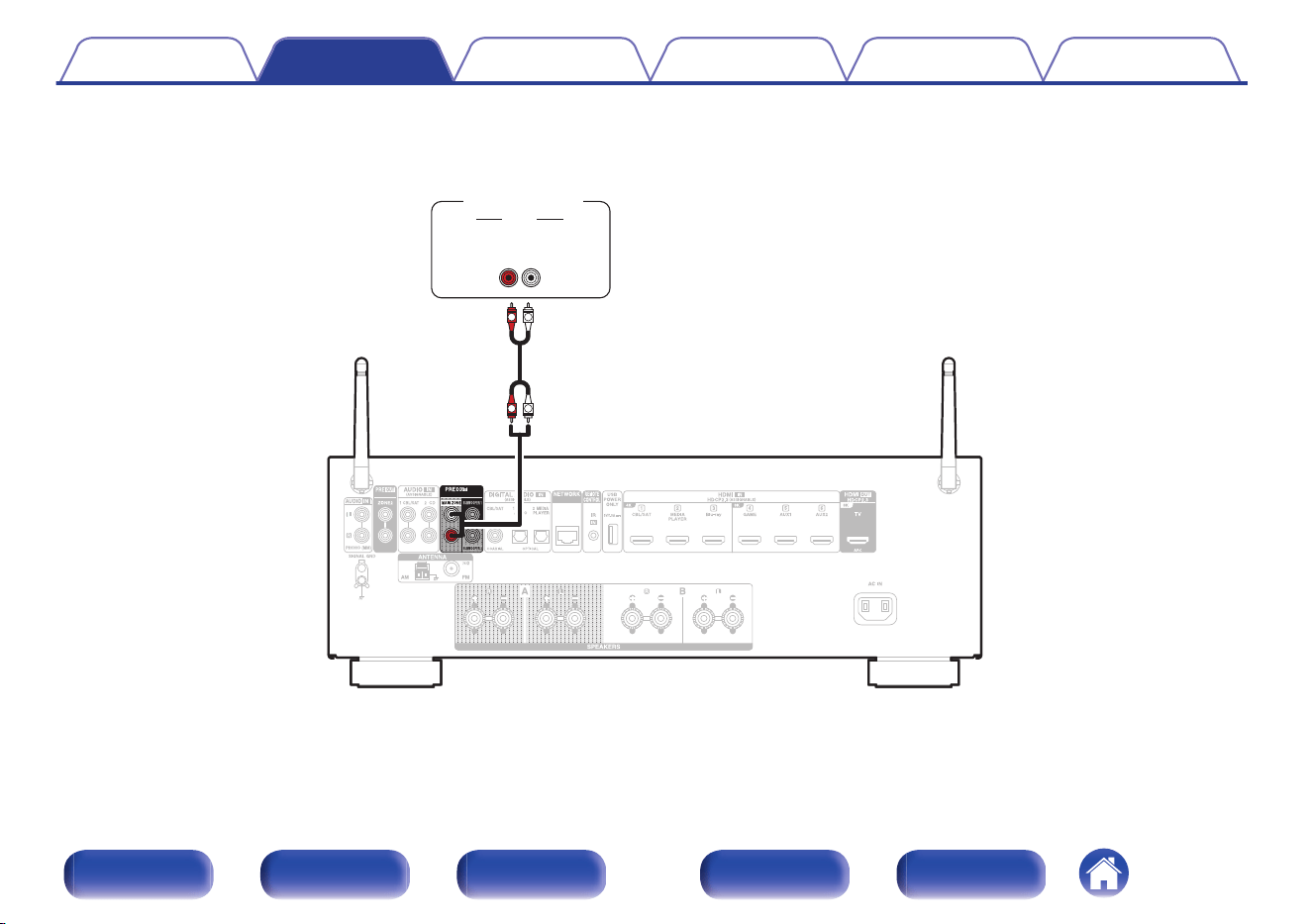

Connecting a turntable
42

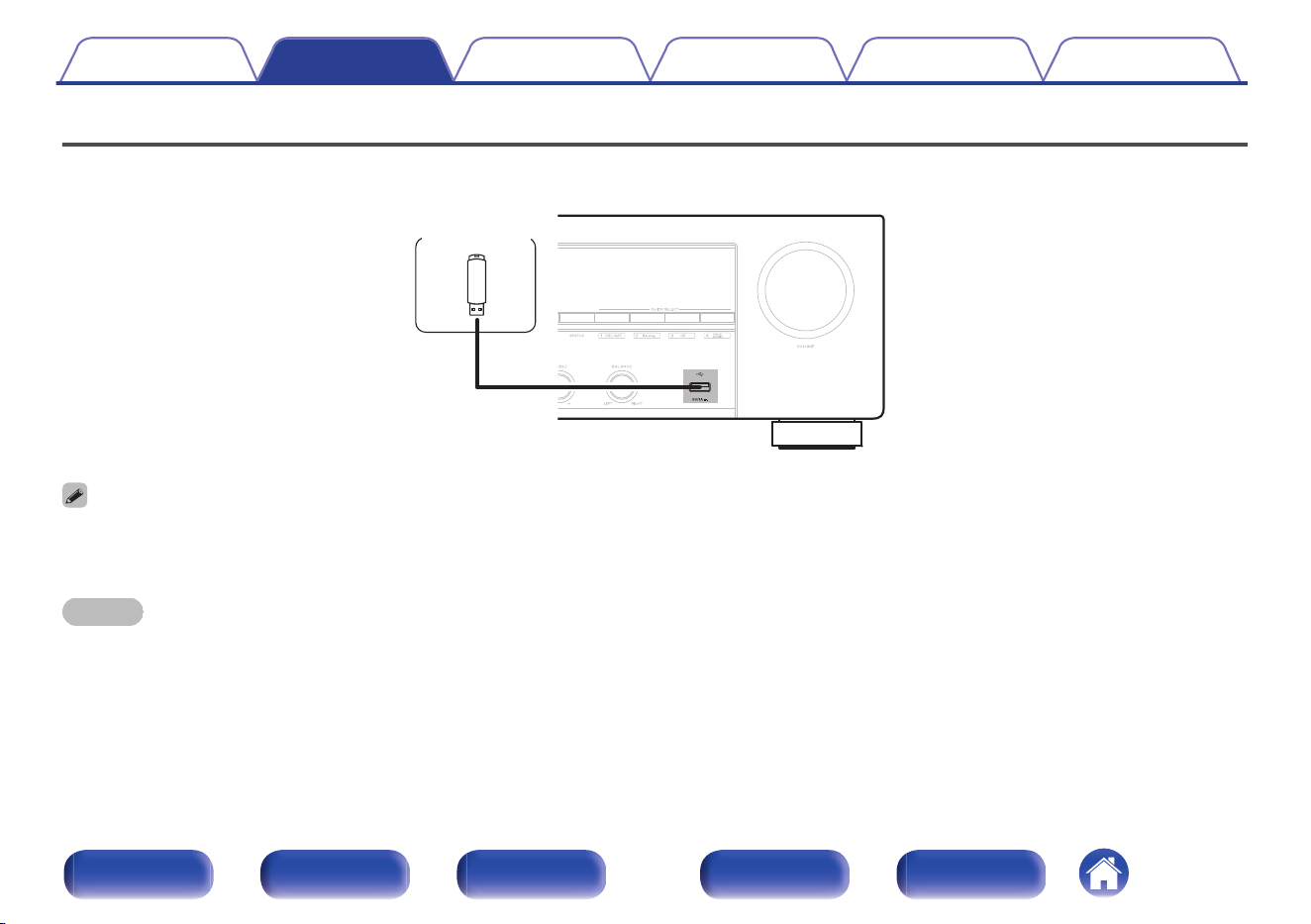

Connecting a USB memory device to the USB port
43

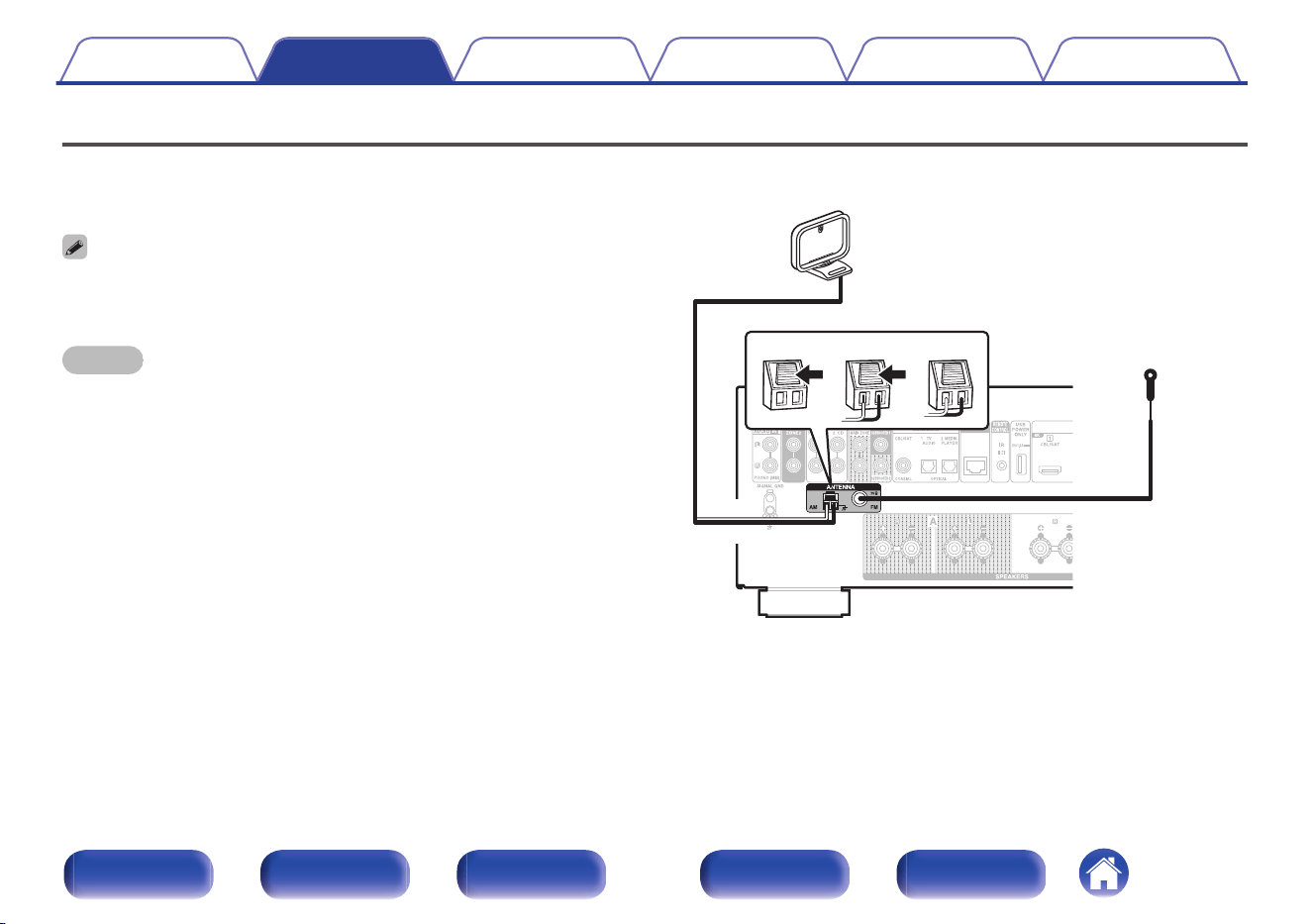

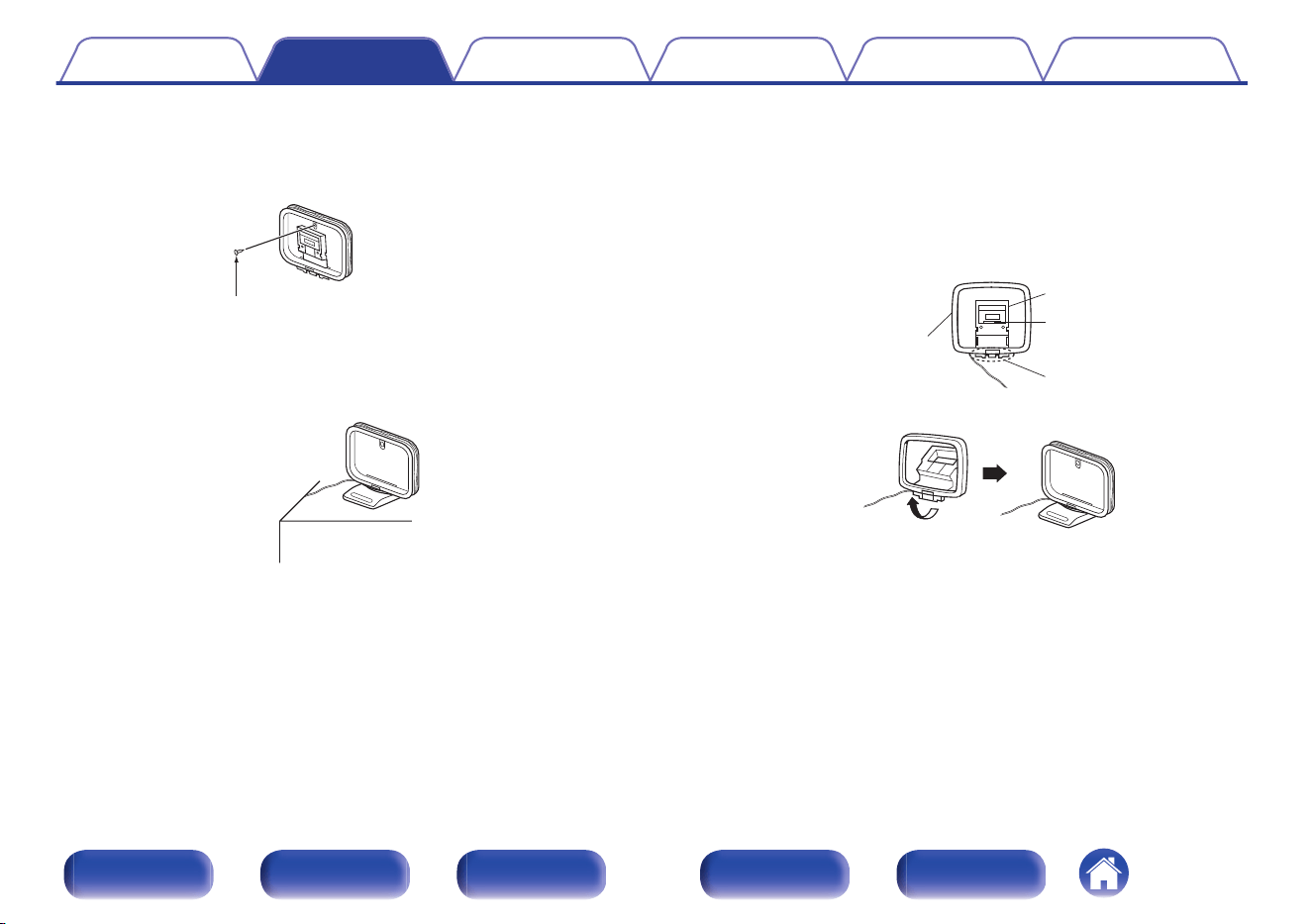

Connecting FM/AM antennas
44

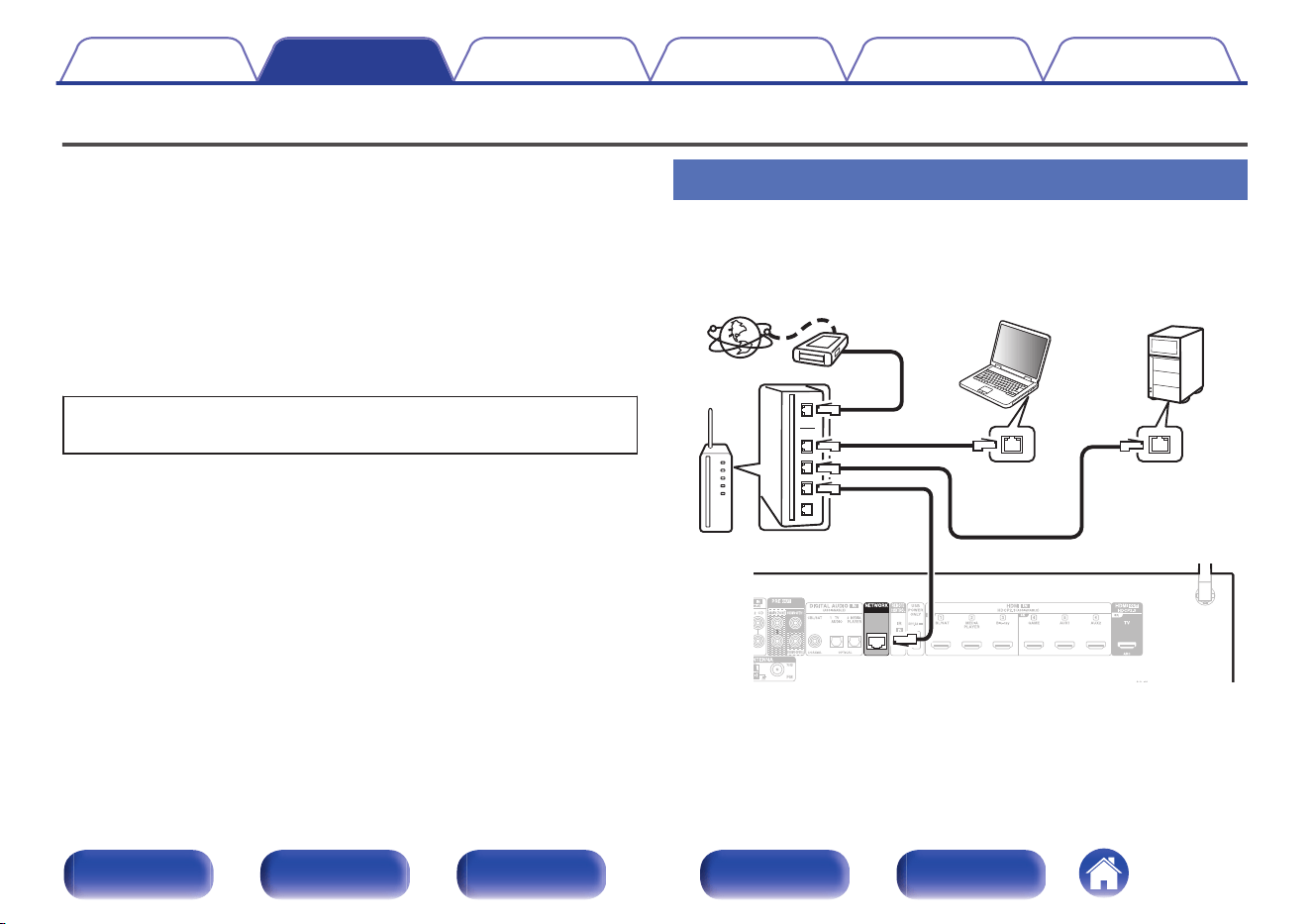

Connecting to a home network (LAN)
46
Wired LAN
46

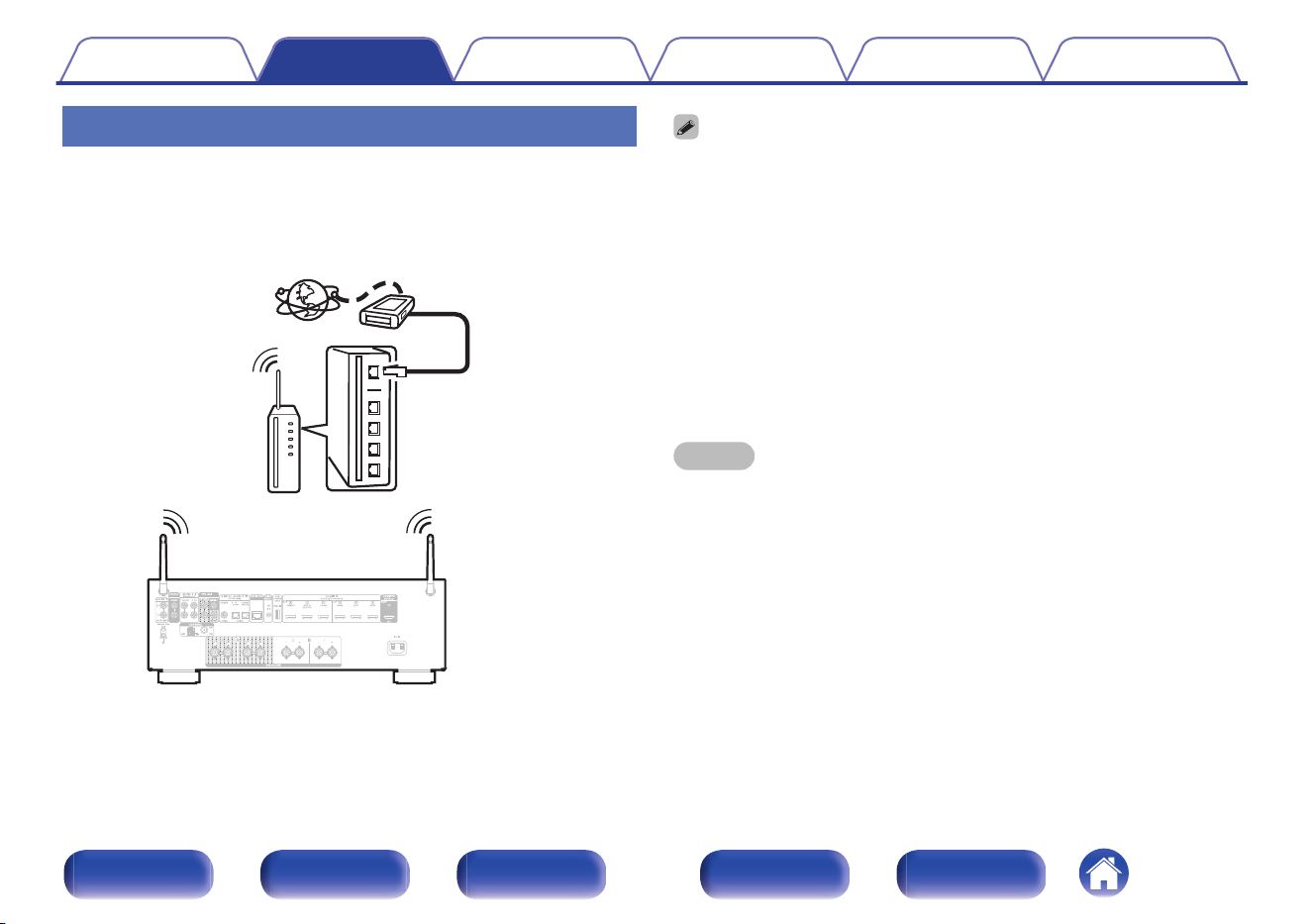

Wireless LAN
47

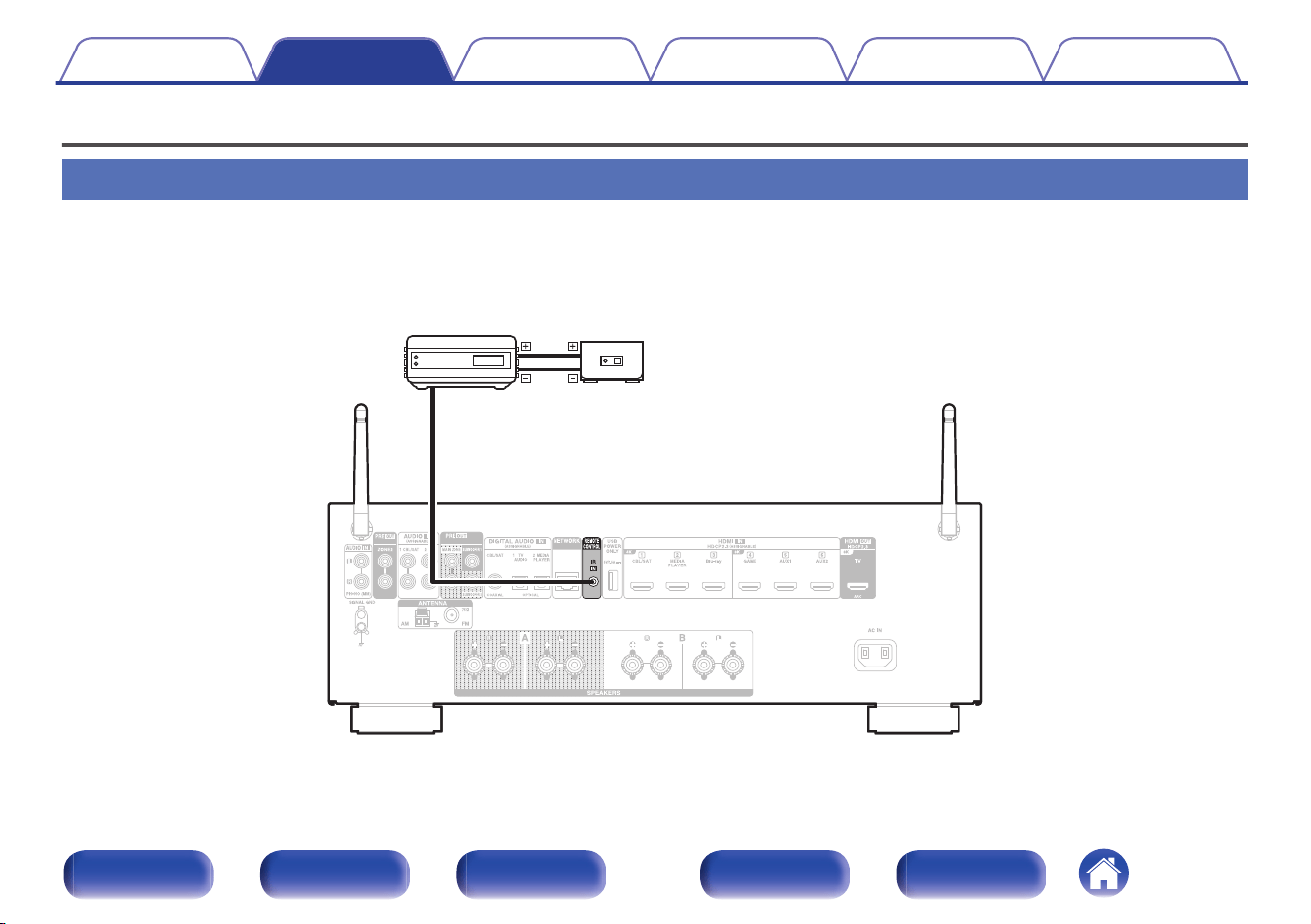

Connecting an external control device
48
REMOTE CONTROL jack
48

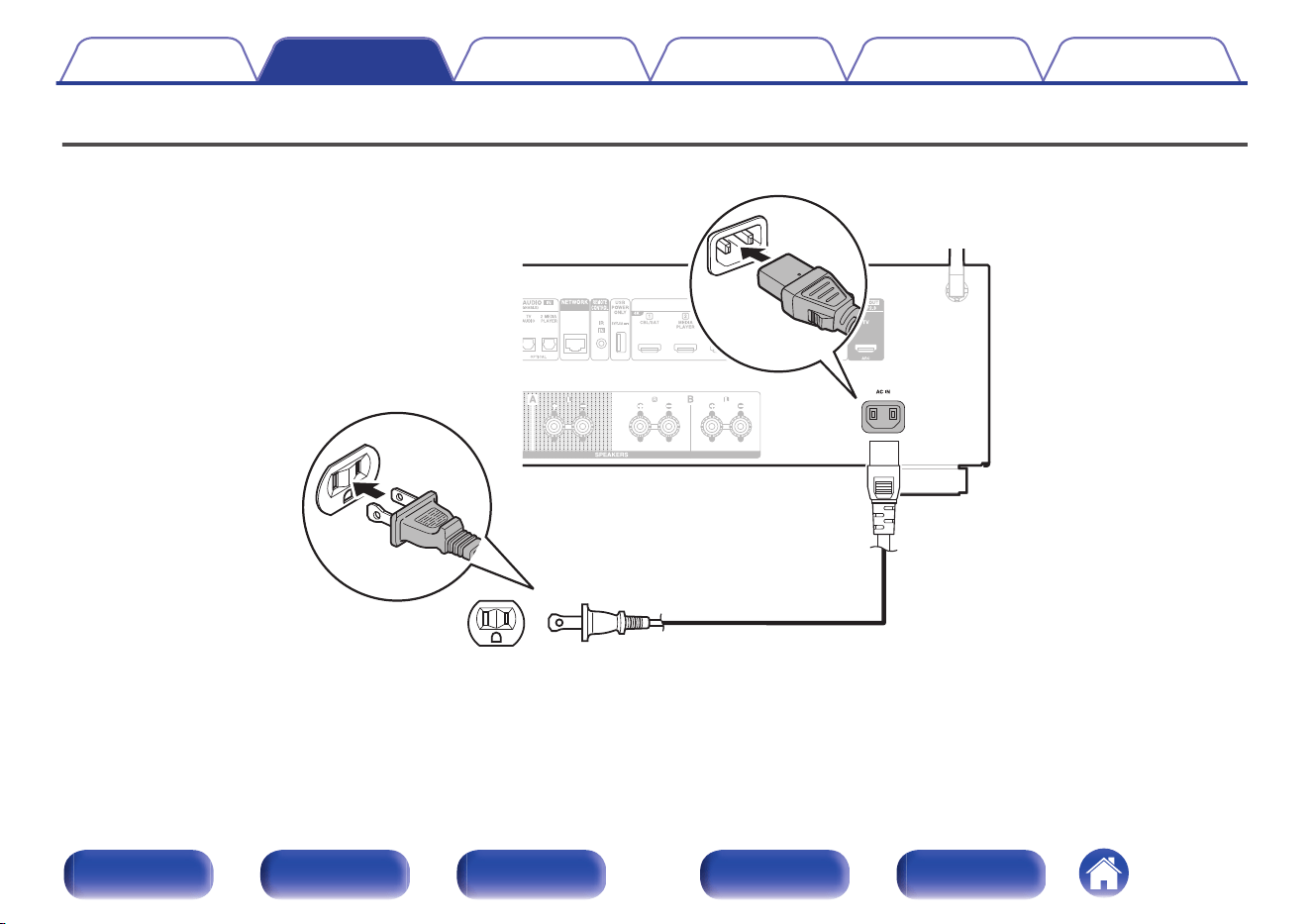

Connecting the power cord
49
Contents Connections Playback Settings Tips Appendix
2
Front panel Display Rear panel Remote Index
Playback

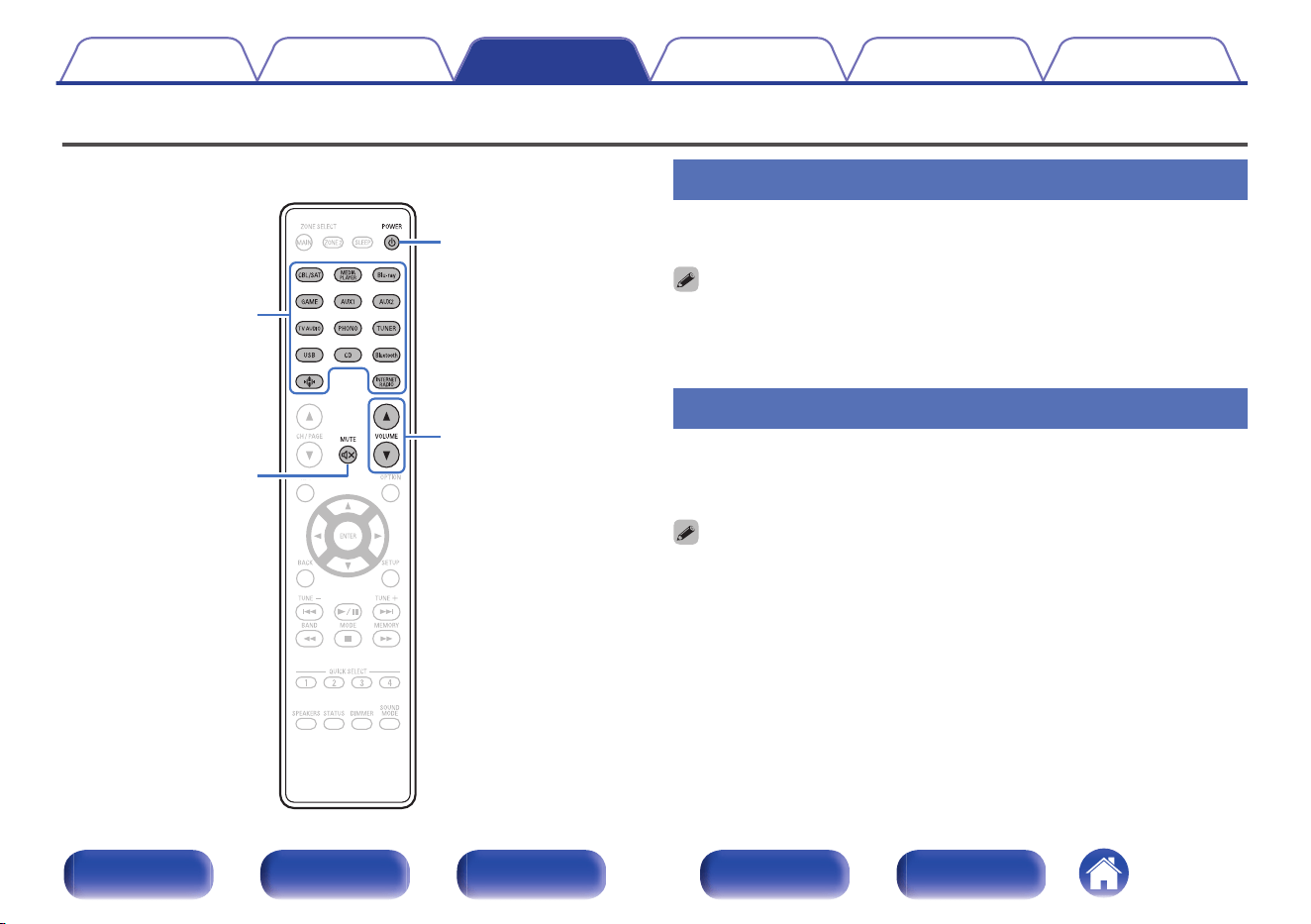

Basic operation
51
Turning the power on
51

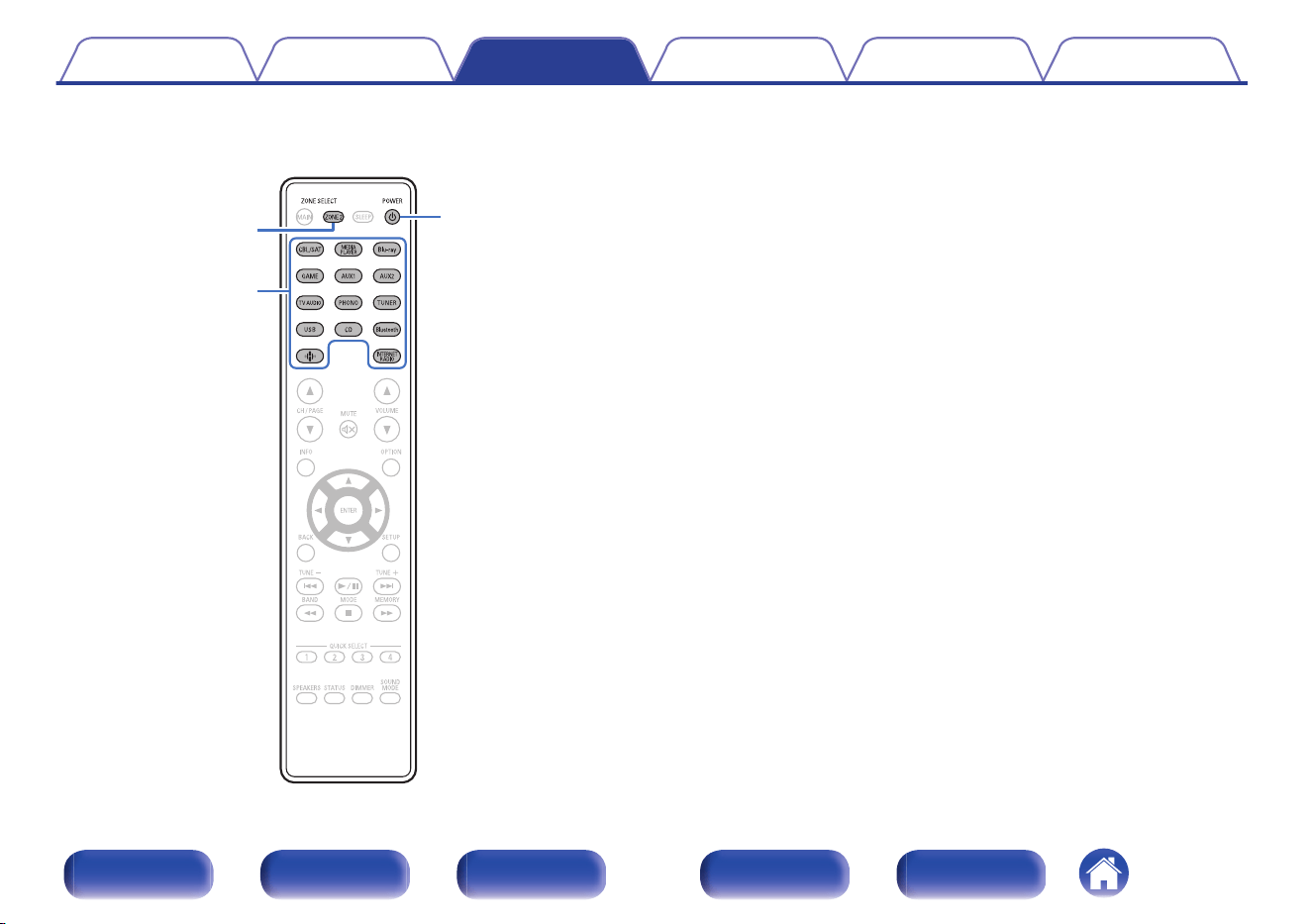

Selecting the input source
51

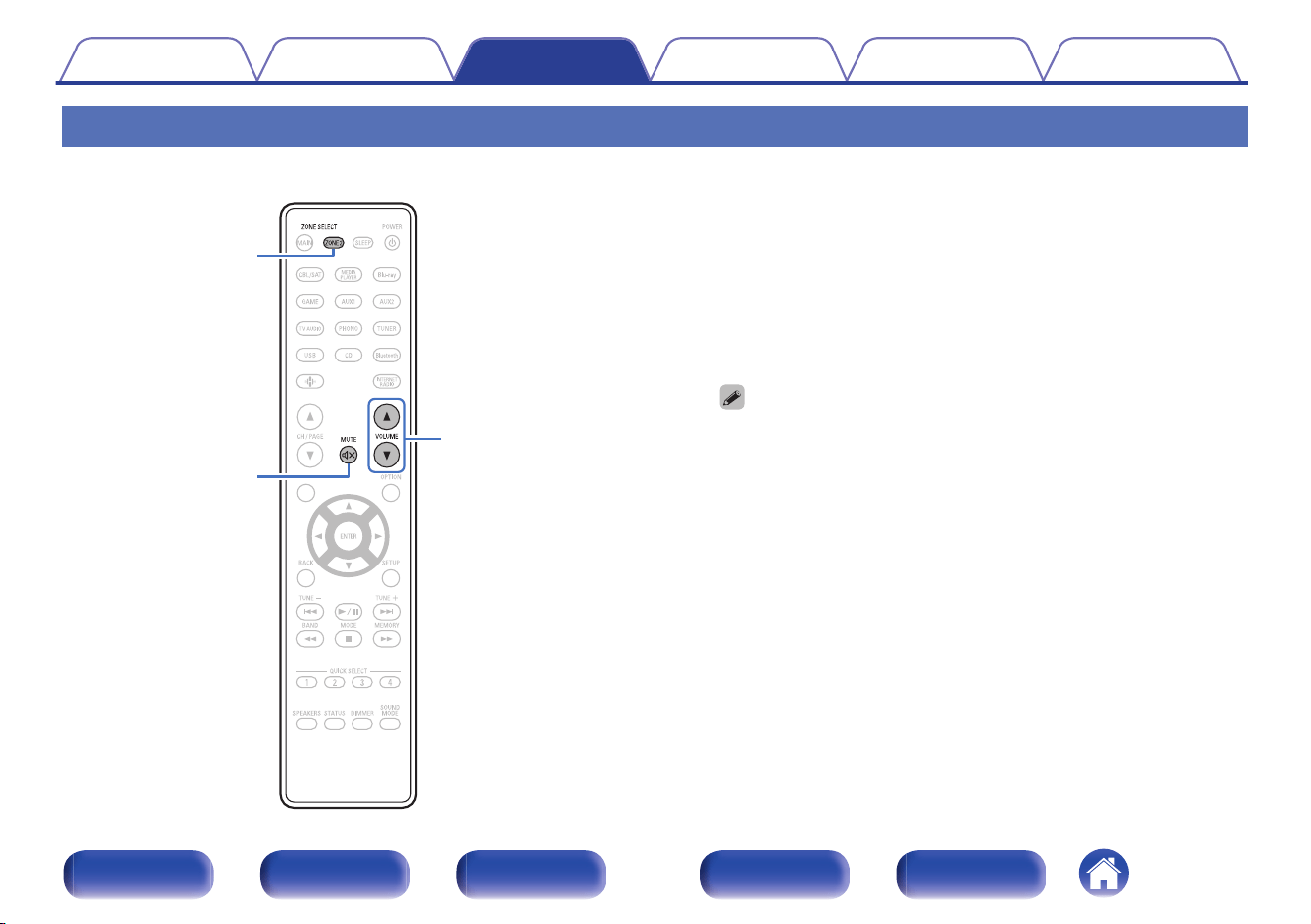

Adjusting the volume
52
Turning off the sound temporarily (Muting)
52
Playback a Blu-ray Disc player/DVD player
52
Playing a USB memory device
53
Playing files stored on USB memory devices
54
Listening to music on a Bluetooth device
57
Playing music from Bluetooth device
58
Pairing with other Bluetooth devices
59
Reconnecting to this unit from a Bluetooth device
60

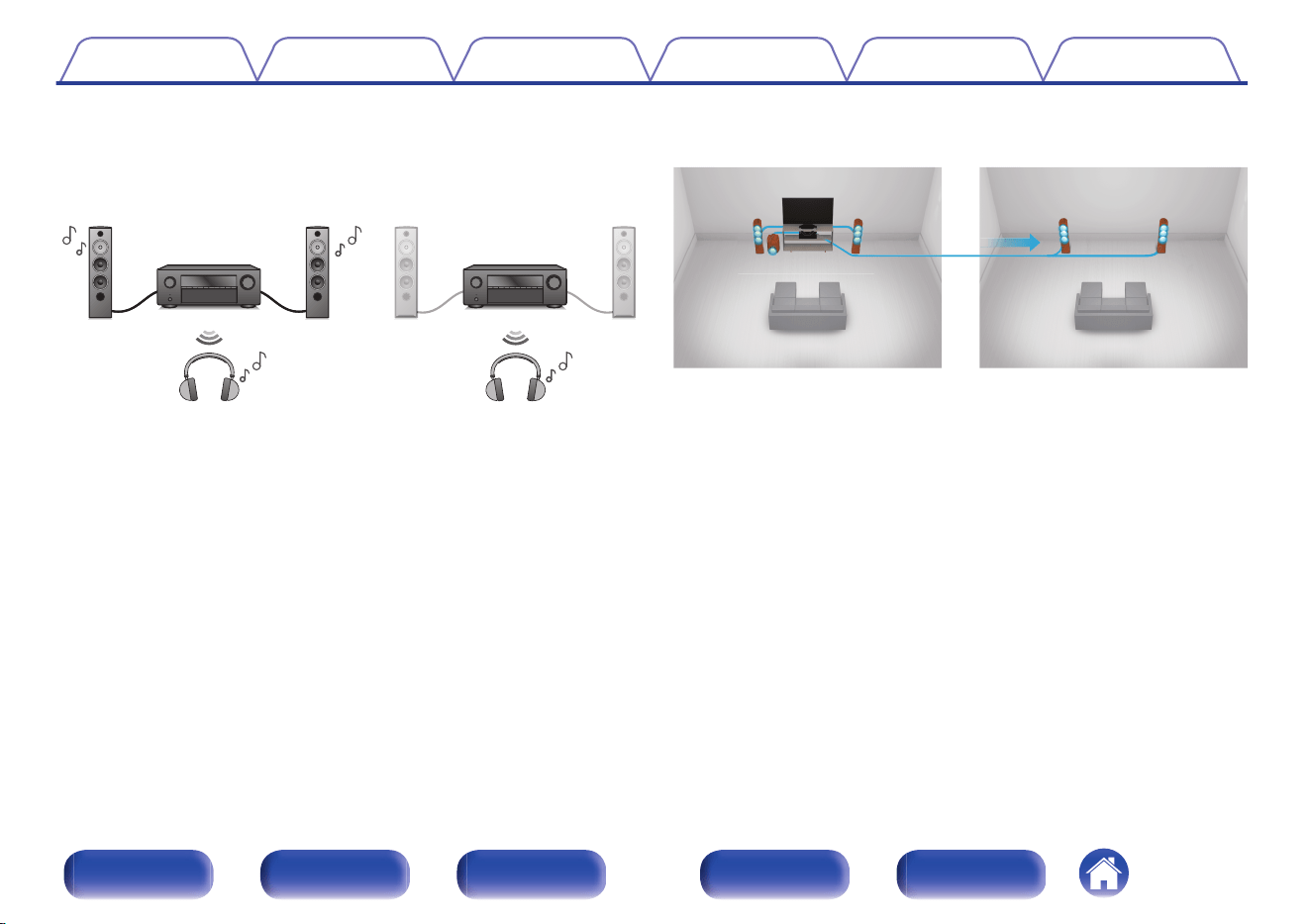

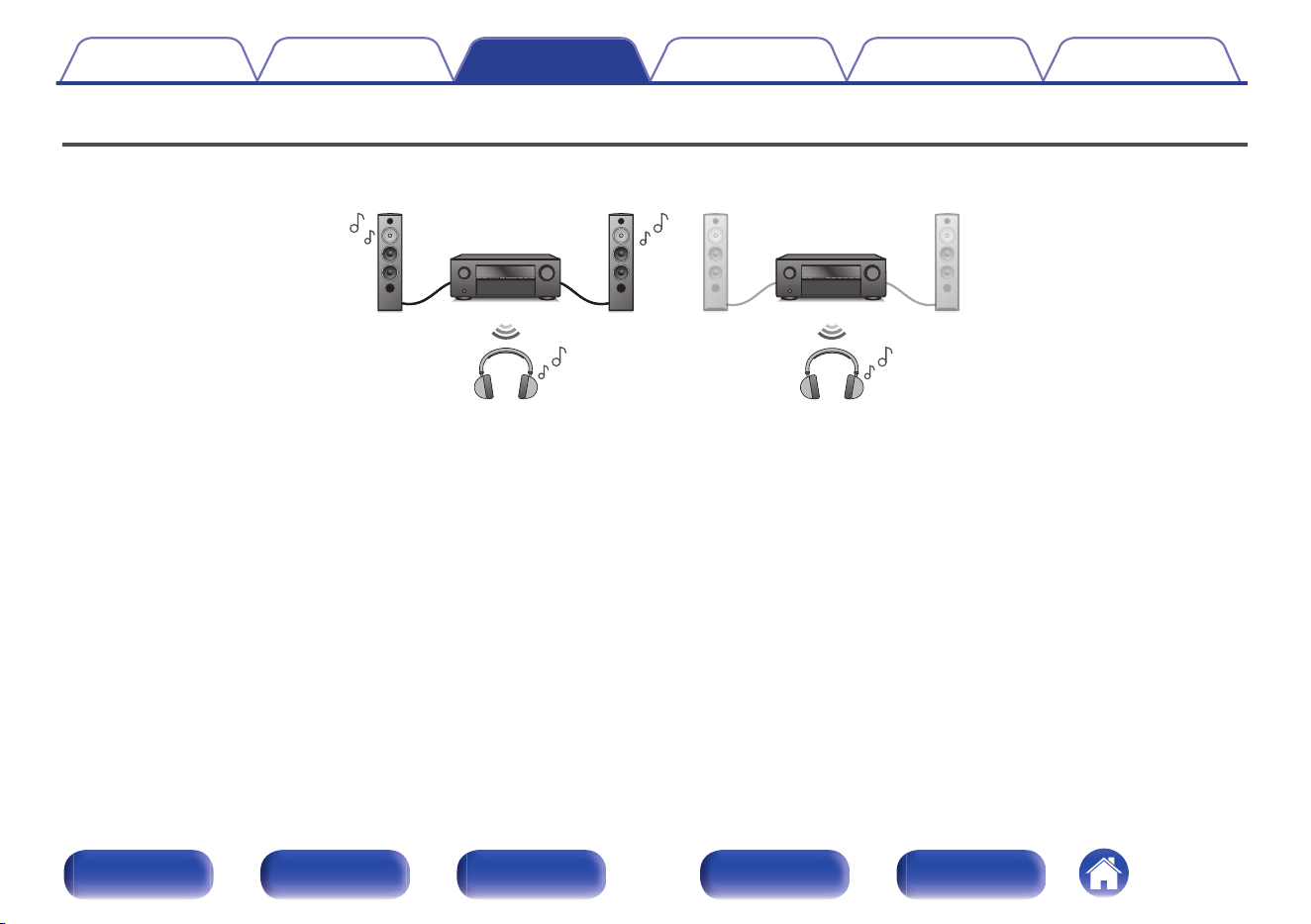

Listening to audio on Bluetooth headphones
61
Listening to audio on Bluetooth headphones
62
Adjusting the volume of Bluetooth headphones
63
Reconnecting to a Bluetooth headphones
63
Disconnecting Bluetooth headphones
64
Listening to FM/AM broadcasts
65
Listening to FM/AM broadcasts
66
Tuning in by entering the frequency (Direct Tune)
67
Changing the tune mode (Tune Mode)
68
Tuning in to stations and presetting them automatically (Auto
Preset Memory)
68
Presetting the current broadcast station (Preset Memory)
69
Listening to preset stations
69
Specify a name for the preset broadcast station (Preset Name)
70
Skipping preset broadcast stations (Preset Skip)
71
Cancelling Preset Skip
72
Listening to Internet Radio
73
Listening to Internet Radio
74
Playing back files stored on a PC or NAS
75
Playing back files stored on a PC or NAS
76

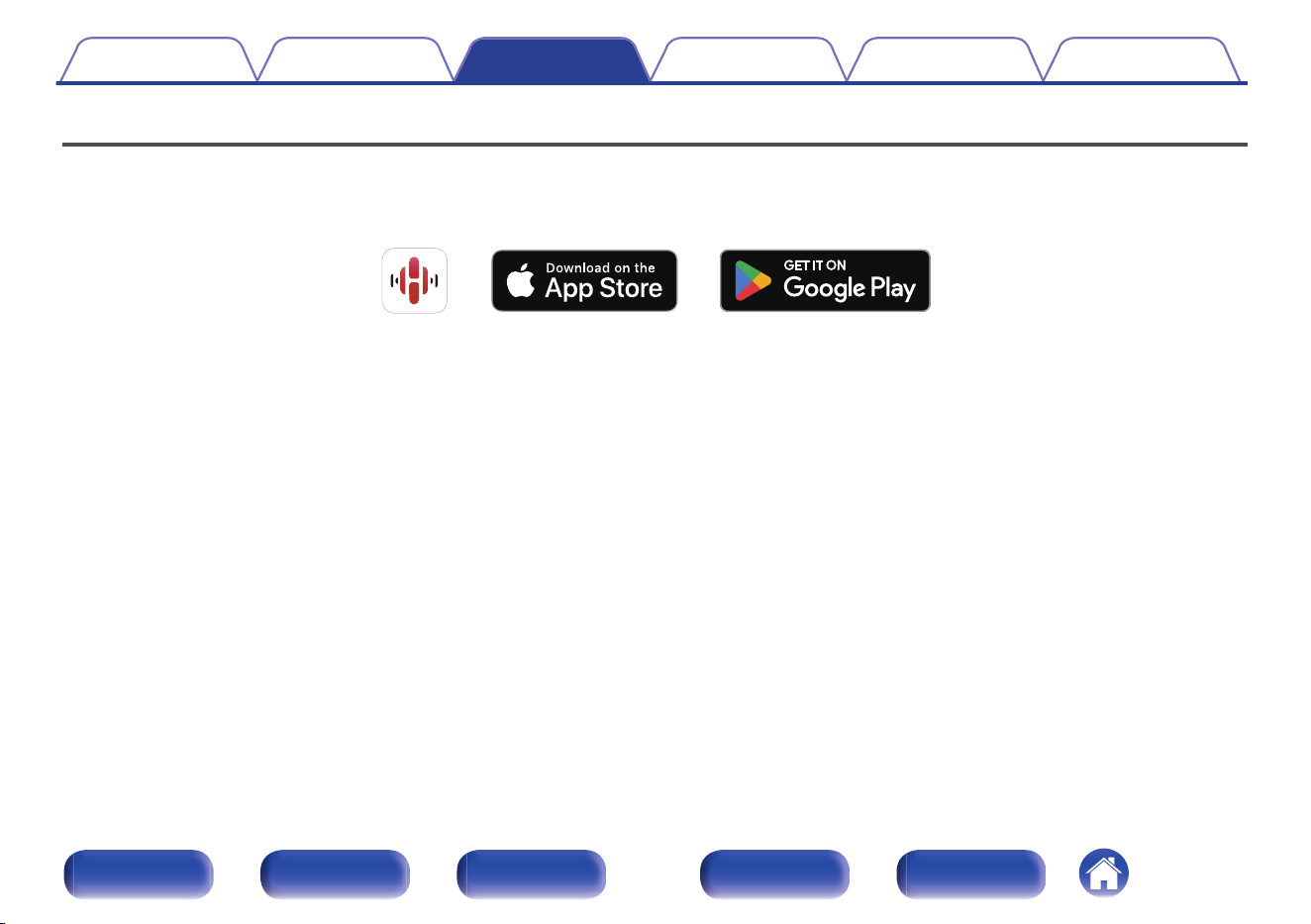

Getting the HEOS App
79
HEOS Account
80

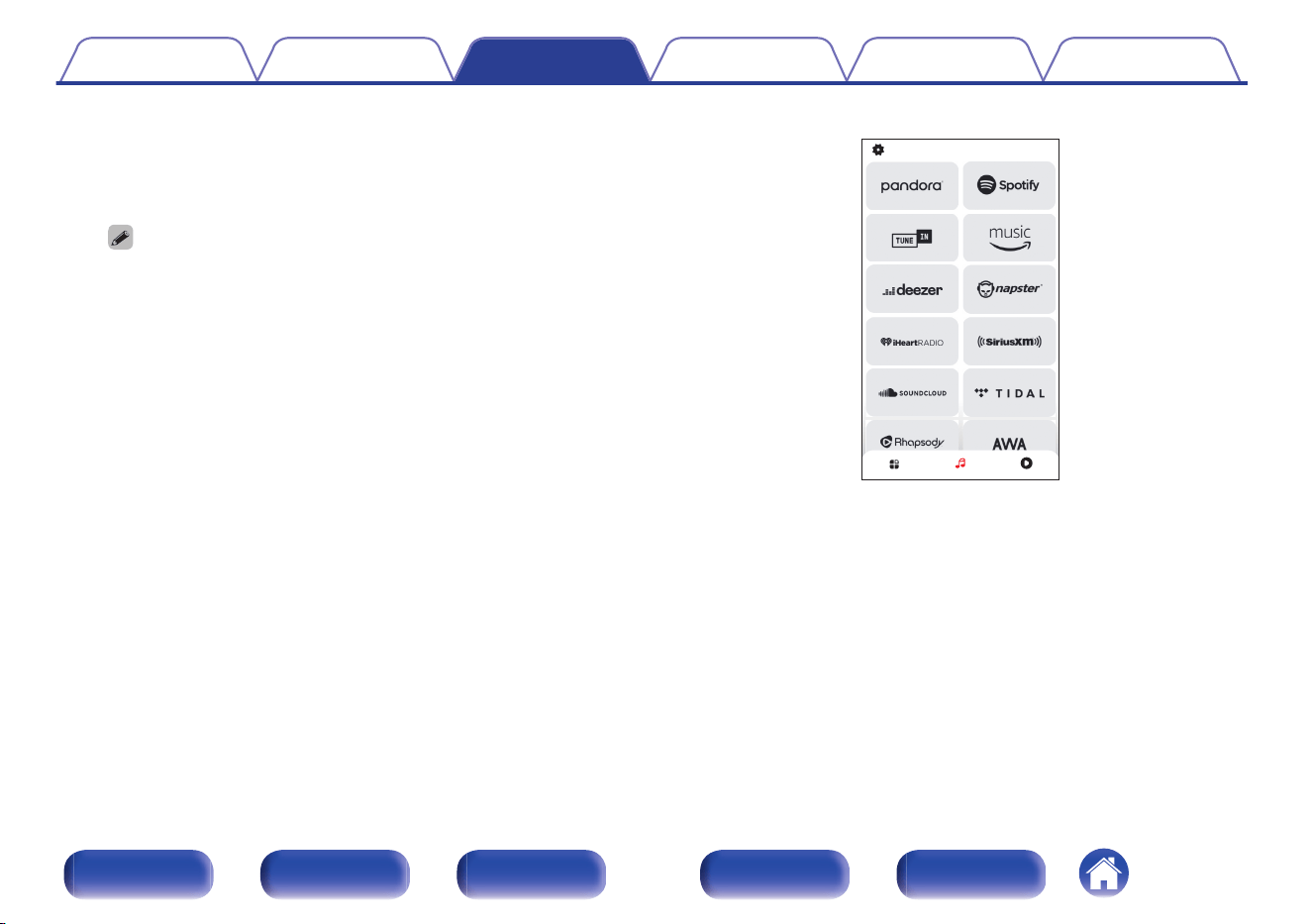

Playing from streaming music services
81

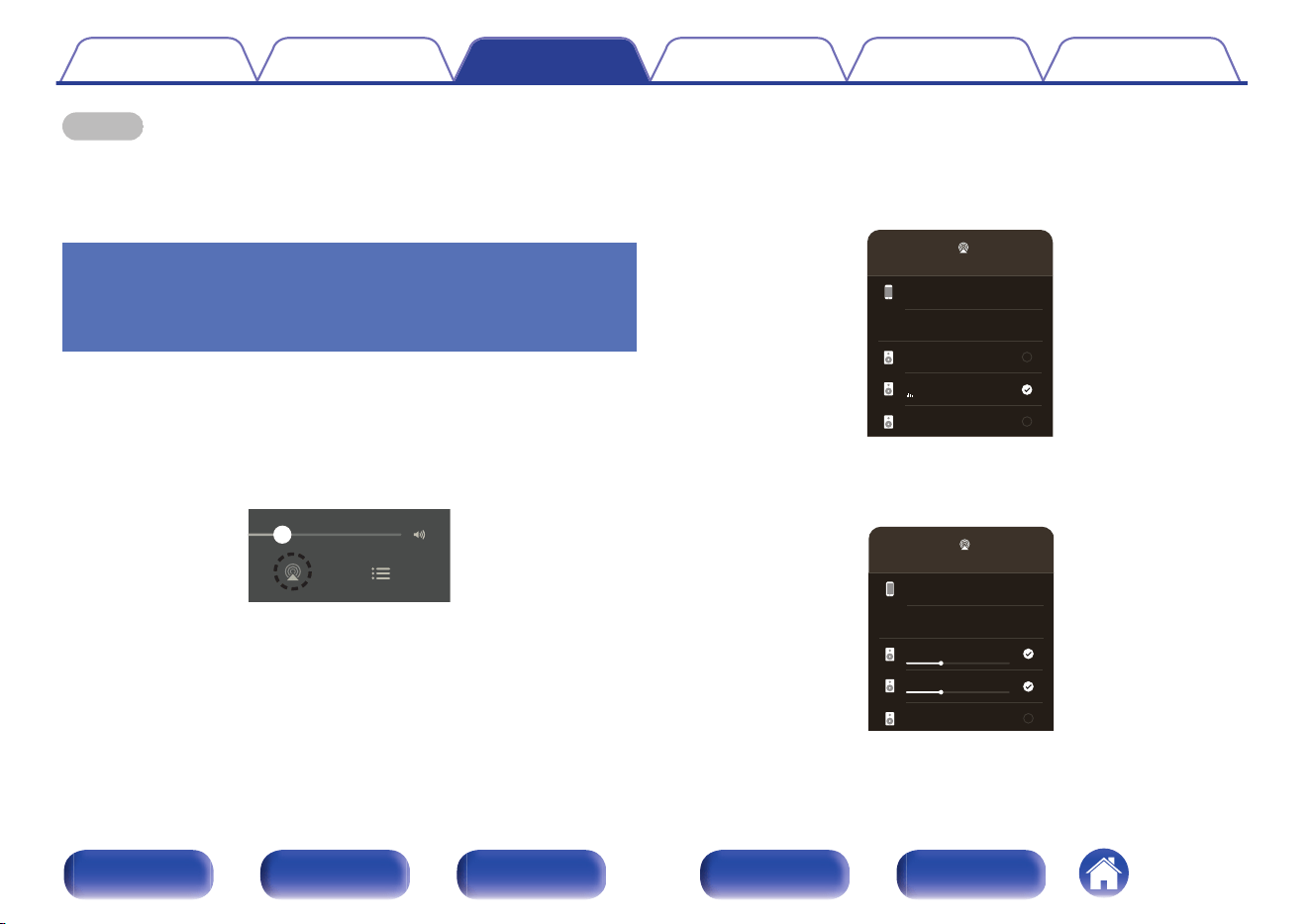

Listening to the same music in multiple rooms
84
Contents Connections Playback Settings Tips Appendix
3
Front panel Display Rear panel Remote Index

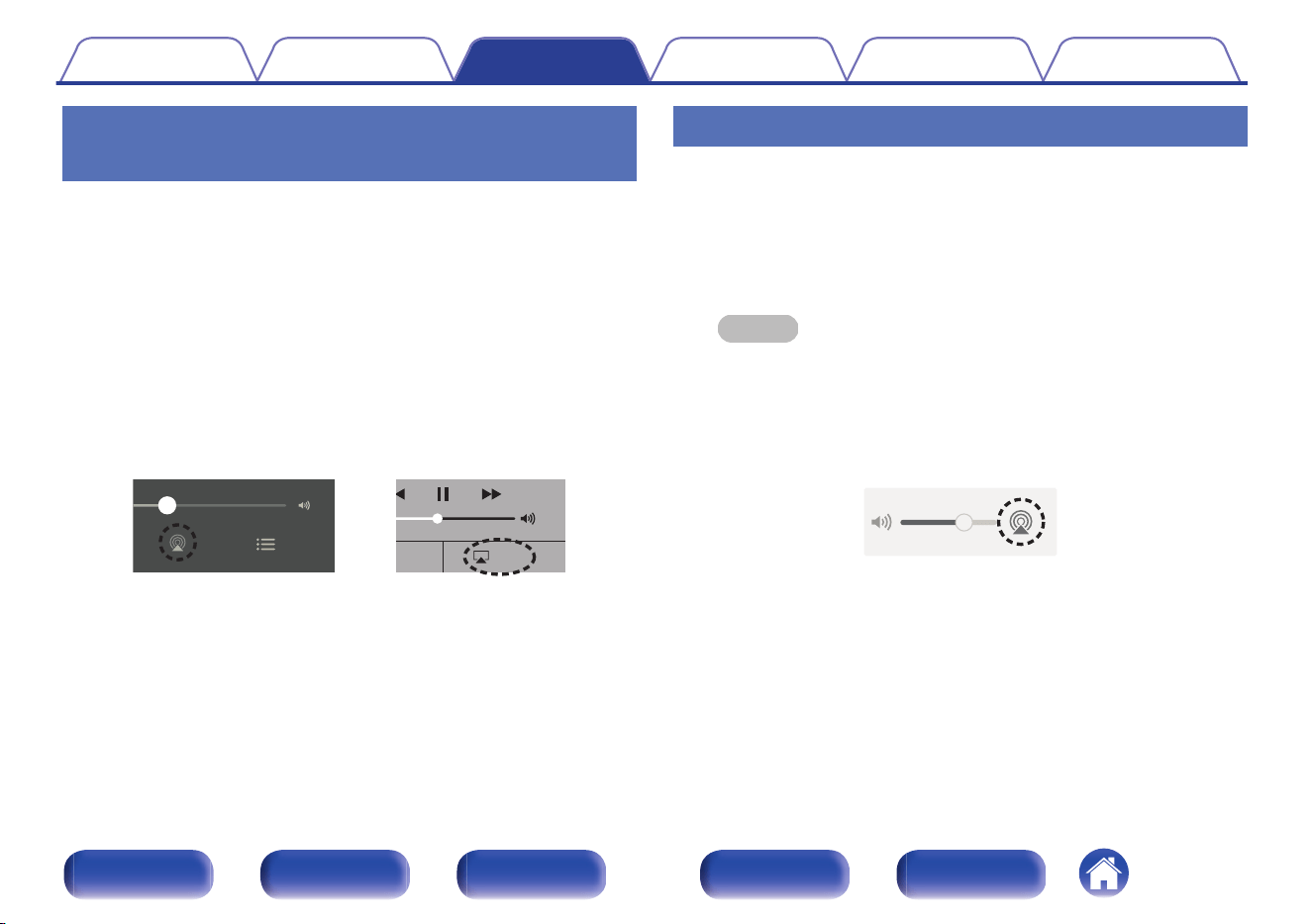

AirPlay function
88
Playing songs from your iPhone, iPod touch or iPad
89
Playing iTunes music with this unit
89
Play a song from your iPhone, iPod touch or iPad on multiple
synced devices (AirPlay 2)
90

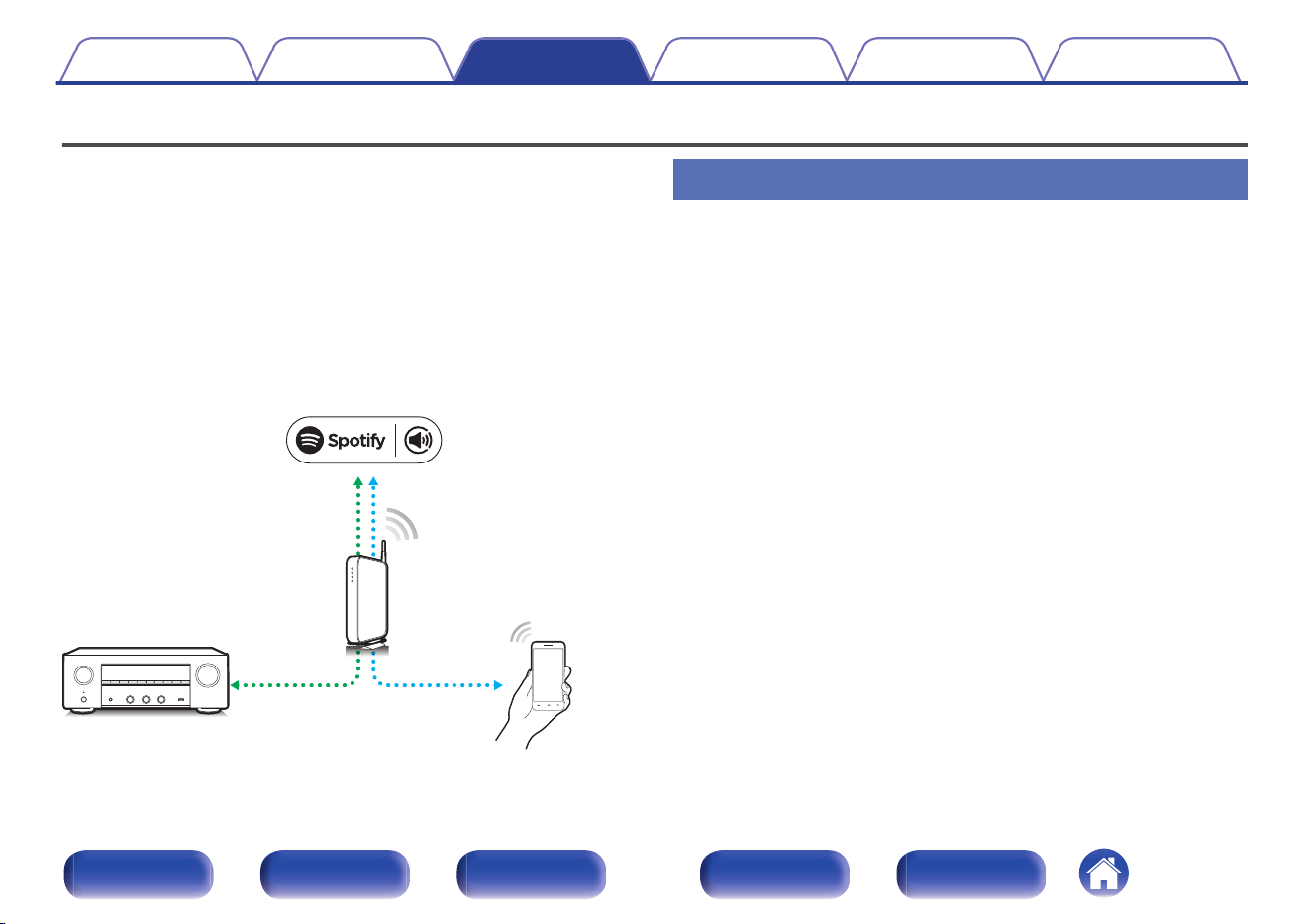

Spotify Connect function
91
Playing Spotify music with this unit
91
Convenience functions
92

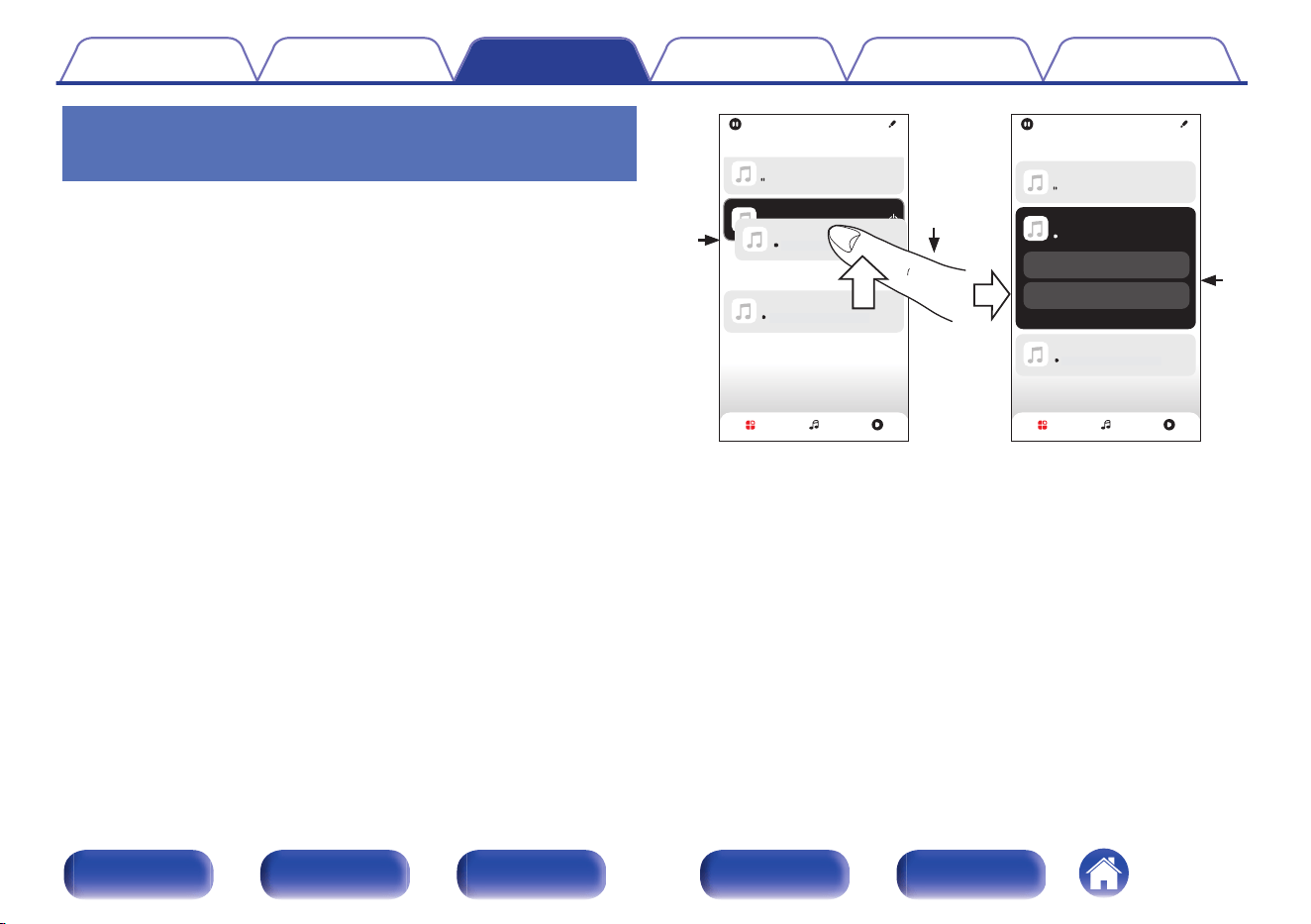

Playing back HEOS Favorites
93
Adding to HEOS Favorites
94
Deleting a HEOS Favorites
94
Adjust the sound output balance of left and right speakers
(Balance)
94
Adjust the subwoofer output (Subwoofer)
95
Adjusting the tone (Tone)
96
Adjusting audio delay (Audio Delay)
97
Displaying your desired video during audio playback (Video
Select)
98
Playing the same music in all zones (All Zone Stereo)
99
Selecting a sound mode
100
Selecting a sound mode
100
Description of sound mode types
101
HDMI Control function
102
Setting procedure
102
Sleep timer function
103
Using the sleep timer
104
Quick select plus function
105
Calling up the settings
106
Changing the settings
107
Panel lock function
109
Disabling all key button operations
109
Disabling all button operations except VOLUME
110
Canceling the Panel lock function
110
Remote lock function
111
Disabling the sensor function of the remote control unit
111
Enabling the remote sensor function
111

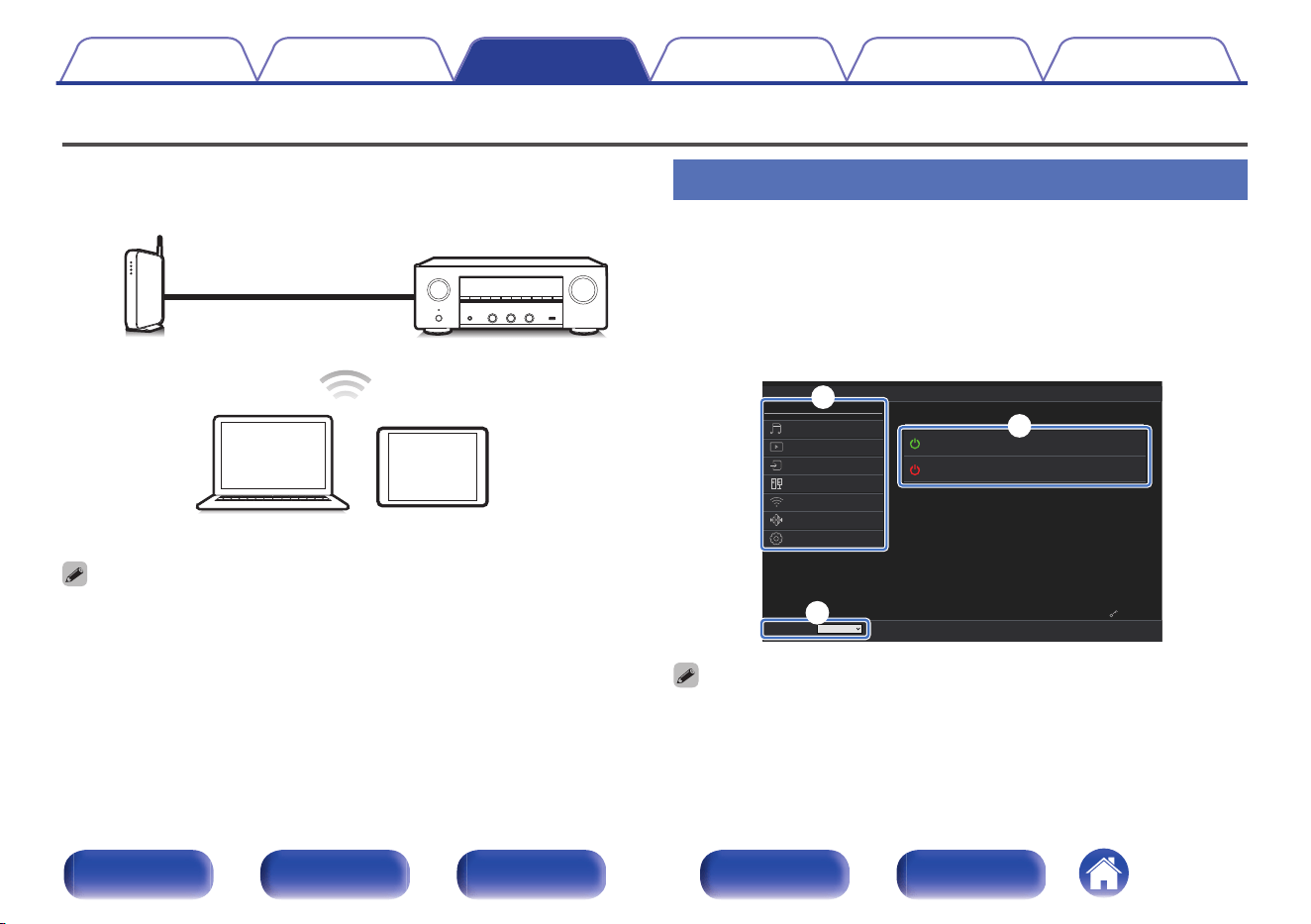

Web control function
112
Controlling the unit from a web control
112
Playback in ZONE2 (Another room)
114
Connecting ZONE2
115
Playback the source in ZONE2
116
Adjusting the Volume in ZONE2
120
Contents Connections Playback Settings Tips Appendix
4
Front panel Display Rear panel Remote Index
Settings
Menu map
121
Menu operations
126
Audio
127
Restorer
127
Volume
128
Video
129
HDMI Setup
129
HDMI Upscaler
133
On-Screen Display
134
Screensaver
135
4K/8K Signal Format
135
HDCP Setup
137
Inputs
138
Input Assign
138
Source Rename
141
Hide Sources
141
Source Level
141
Speakers
142
Speaker Layout
142
Distances
143
Levels
144
Advanced
144
Network
145
Information
145
Connection
145
Wi-Fi Setup
146
Settings
147
Network Control
149
Friendly Name
149
Diagnostics
150
AirPlay
151
Spotify Connect
151
Wi-Fi and Bluetooth
152
HEOS
153
You have not signed in
153
You have already signed in
153
Contents Connections Playback Settings Tips Appendix
5
Front panel Display Rear panel Remote Index
General
154
Language
154
Owner's Manual
154
ECO
154
Bluetooth Transmitter
158
ZONE2 Setup
159
Zone Rename
160
Quick Select
160
Front Display
161
Firmware
161
Information
163
Usage Data
166
Save & Load
166
Setup Lock
167
Reset
167

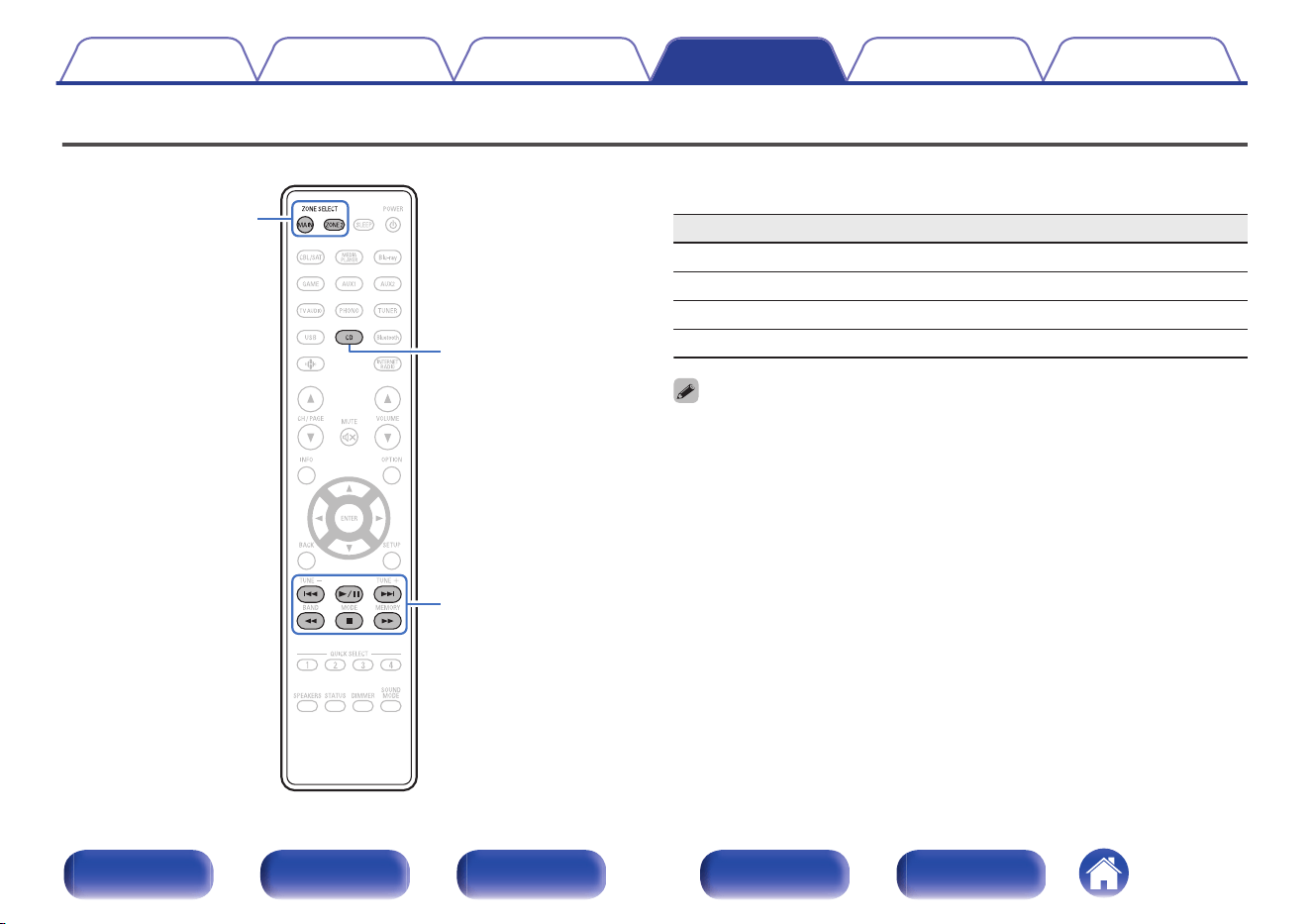

Operating CD player with the remote control unit
168
Limiting the operating zone with the remote control
169
Tips
Tips
171
Troubleshooting
172
Power does not turn on / Power is turned off
173
Operations cannot be performed through the remote control unit
174
Display on this unit shows nothing
174
No sound comes out
175
Desired sound does not come out
176
Sound is interrupted or noise occurs
178
No video is shown on the TV
179
The menu screen is not displayed on the TV
180
The color of the menu screen and operations content displayed
on the television is different from normal
180
AirPlay cannot be played back
181
USB memory devices cannot be played back
182
Bluetooth cannot be played back
183
The Internet radio cannot be played back
185
Music files on PC or NAS cannot be played back
186
Various online services cannot be played
187
The HDMI Control function does not work
187
Cannot connect to a wireless LAN network
188
Update error messages
189
Resetting factory settings
190
Resetting network settings
191
Factory Restore
192
Contents Connections Playback Settings Tips Appendix
6
Front panel Display Rear panel Remote Index
Appendix
About HDMI
193
Relationship between video signals and TV output
196
Playing back a USB memory devices
198
Playing back a Bluetooth device
199
Playing back a file saved on a PC or NAS
200
Playing back Internet Radio
201
Personal memory plus function
201
Last function memory
201
Explanation of terms
202
Trademark information
206
Specifications
208
Audio section
208
Tuner section
209
Wireless LAN section
209
Bluetooth section
210
General
211
Index
213
Contents Connections Playback Settings Tips Appendix
7
Front panel Display Rear panel Remote Index
Thank you for purchasing this Denon product.
To ensure proper operation, please read this owner’s manual carefully before using the product.
After reading this manual, be sure to keep it for future reference.

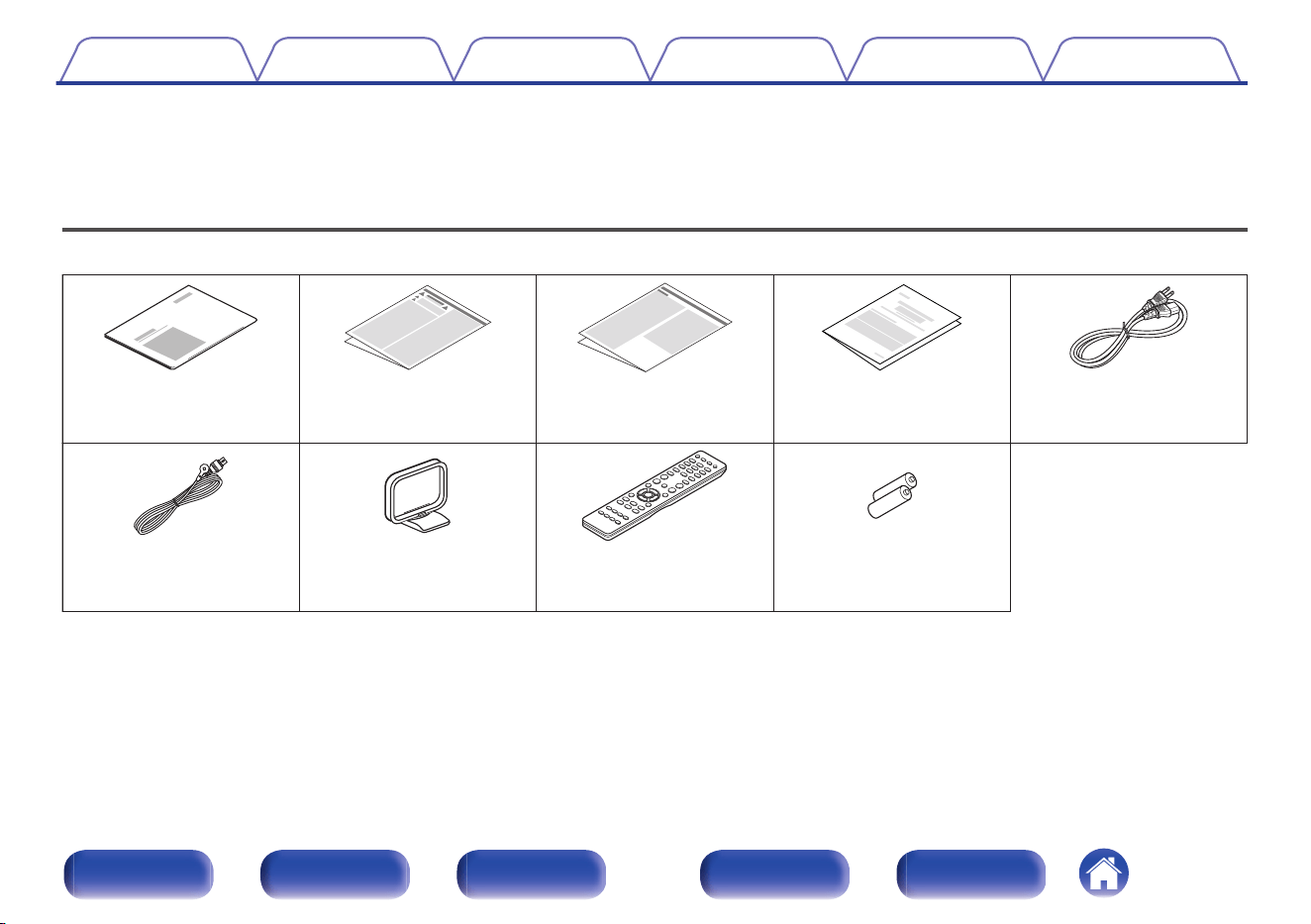

Accessories
Check that the following parts are supplied with the product.
Notes on radioSafety InstructionsQuick Start Guide
AM loop antennaFM indoor antenna
Power cord
Remote control unit
(RC-1259)
Warranty
(for North America
model only)
2× R03/AAA batteries
Contents Connections Playback Settings Tips Appendix
8
Front panel Display Rear panel Remote Index

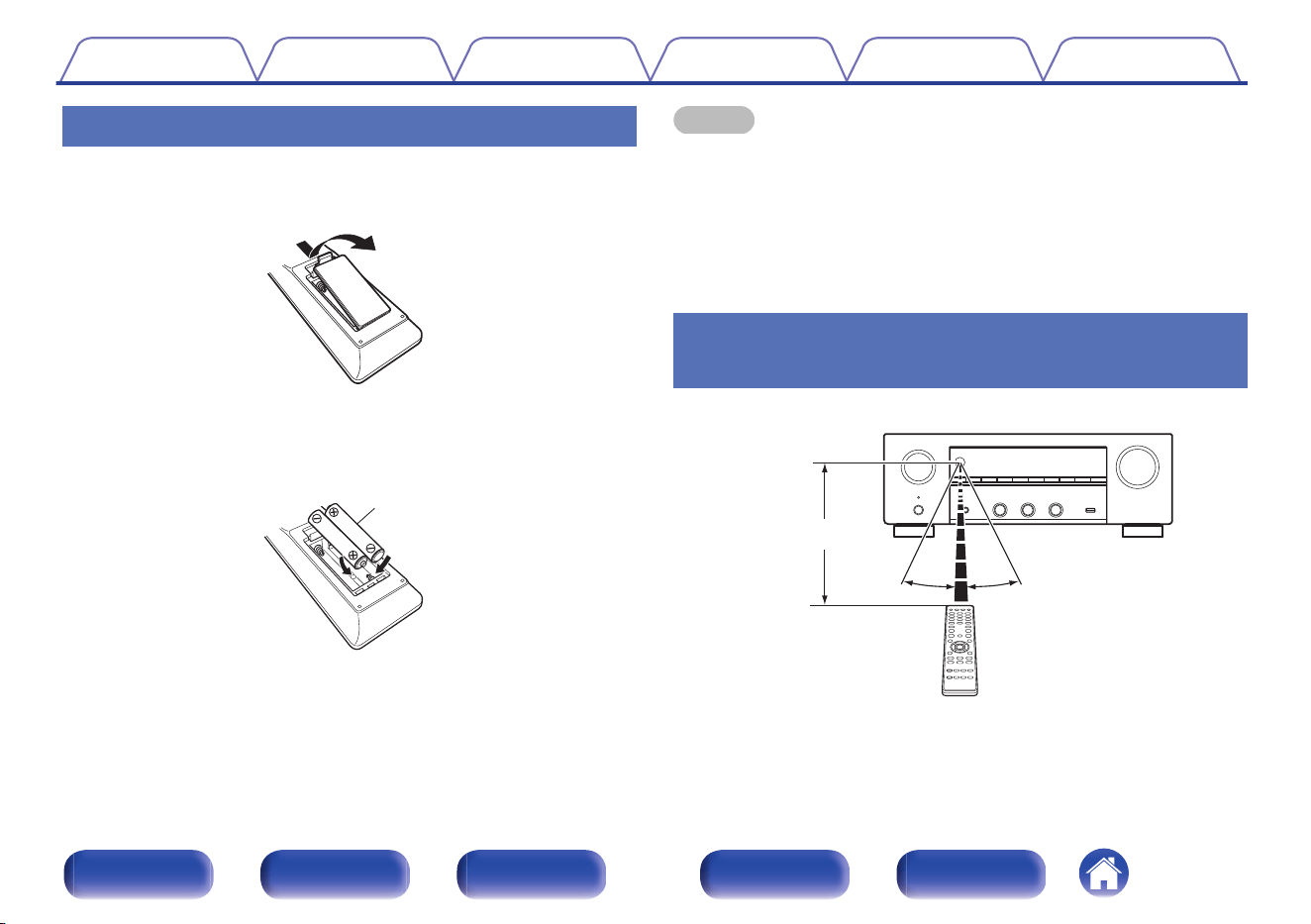

Inserting the batteries
1
Remove the rear lid in the direction of the arrow and
remove it.
2
Insert two batteries correctly into the battery
compartment as indicated.
Batteries
3
Put the rear cover back on.
NOTE
0
To prevent damage or leakage of battery fluid:
0
Do not use a new battery together with an old one.
0
Do not use two different types of batteries.
0
Remove the batteries from the remote control unit if it will not be in use for long
periods.
0
If the battery fluid should leak, carefully wipe the fluid off the inside of the battery
compartment and insert new batteries.
Operating range of the remote control
unit
Point the remote control unit at the remote sensor when operating it.
30° 30°
Approx. 23 ft/7 m
Contents
Connections Playback Settings Tips Appendix
9
Front panel Display Rear panel Remote Index
Features
High quality sound
0
High-power amplifier (120 Watts x 2-channels)
The power amplifier circuit is made with a power transformer and power
supply capacitors designed for stereo receivers and uses a discrete
part structure, achieving powerful, high-quality sound reproduction.
0
Double-differential D/A converter circuit
A double-differential circuit is used to reduce noise, achieving clearer
audio playback.
High performance
0
8K 60Hz input/output supported
8K,
4K 120Hz
8K,
4K 120Hz
When 8K Ultra HD (High Definition) is used, an input/output speed of 60
frames per second (60p) is achieved for video signals. When connected
to 8K Ultra HD and 60p video signal input compatible TV, you can enjoy
the sense of realism only available from high-definition images, even
when viewing fast-moving video.
This unit supports a wide range of HDR content, delivering even higher
definition video.
0
HDCP 2.3
This unit is compatible with HDCP 2.3 copyright protection standard.
Contents
Connections Playback Settings Tips Appendix
10
Front panel Display Rear panel Remote Index
0

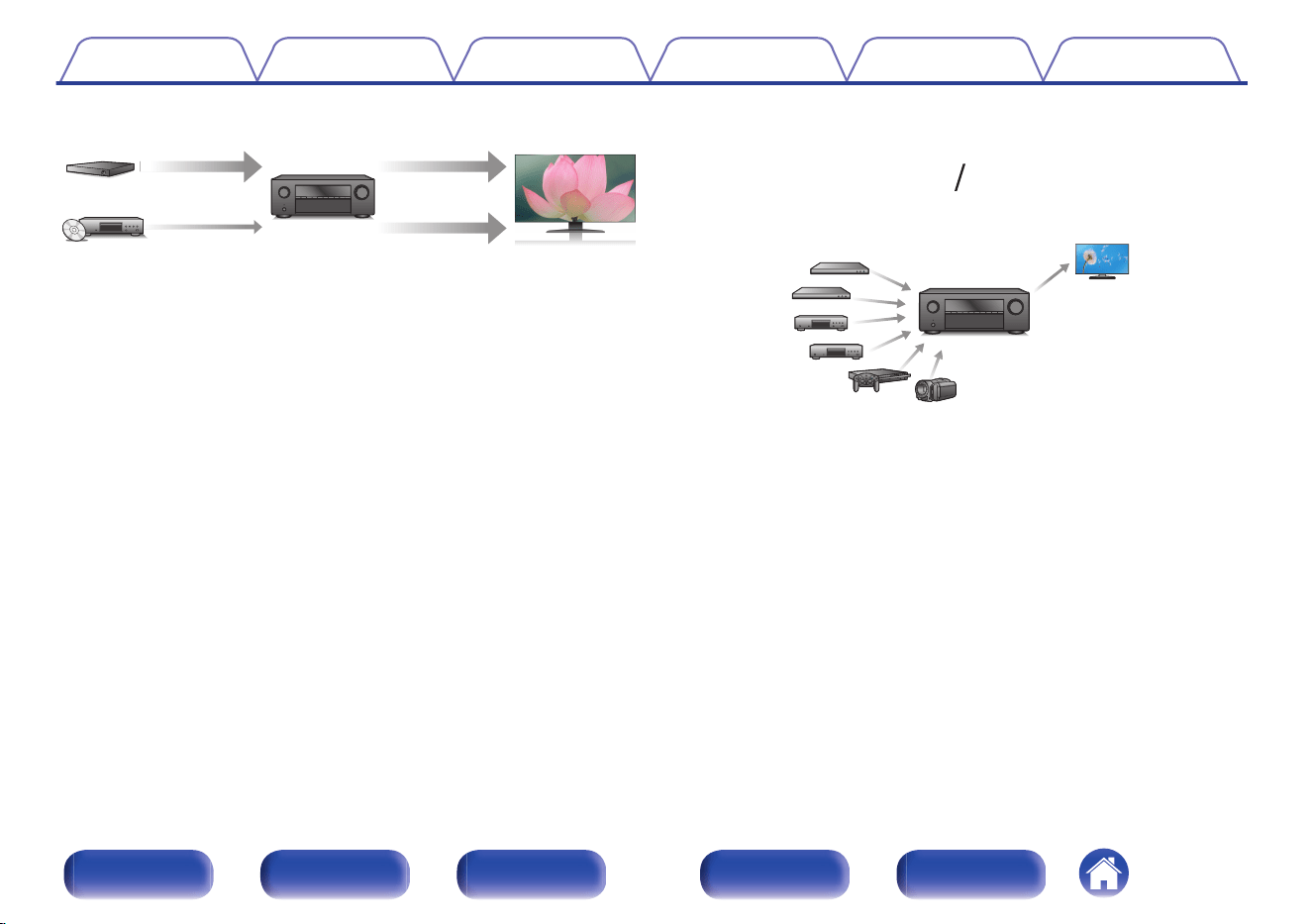

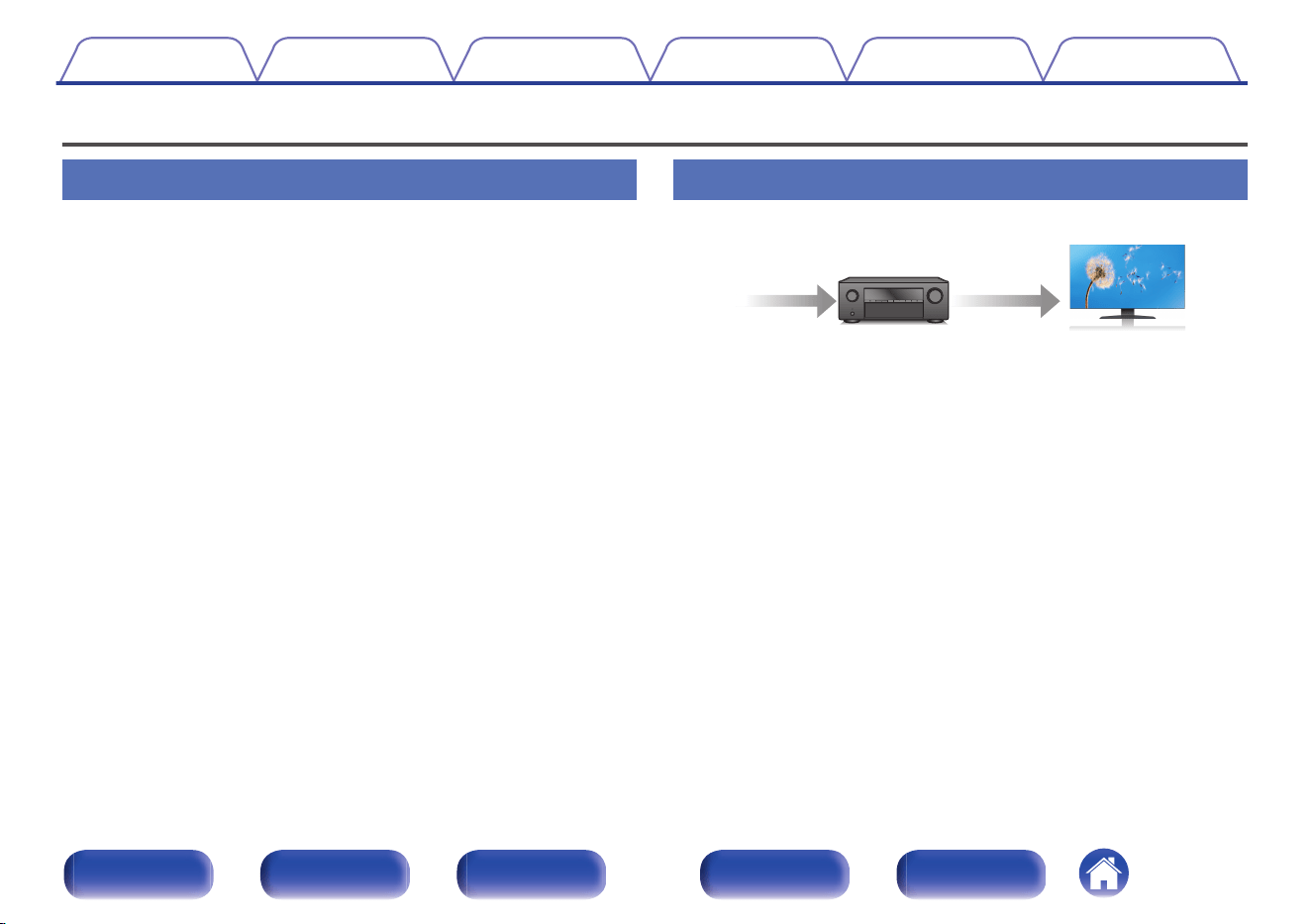

Digital video processor upscales 1080p / 4K to 8K
8K Ultra HD
8K 8K
1080p/4K 60Hz
8K
up scaling
This unit is equipped with a 8K video upscaling function that allows
1080p/4K video to be output via HDMI at 8K (7680 × 4320 pixels)
resolution. This function enables the device to be connected to a TV
using a single HDMI cable, and produces high definition images for any
video source.
0
HDMI connections enable connection to various digital AV
devices (6 inputs, 1 output)
61
OutIn
This unit is equipped with 6 HDMI inputs and 1 HDMI output enabling
connection to various HDMI compatible devices such as Blu-ray Disc
players, game consoles and HD video camcorders.
Contents
Connections Playback Settings Tips Appendix
11
Front panel Display Rear panel Remote Index
0
The device is equipped with a AirPlay
®
function in addition to
network functions such as Internet radio etc. (v p. 88)
You can enjoy a wide variety of content, including listening to Internet
Radio, playing audio files stored on your PC.
This unit also supports Apple AirPlay which lets you stream your music
library from an iPhone
®
, iPad
®
, iPod touch
®
or iTunes
®
.
0
Supports AirPlay 2
®
wireless audio
Sync multiple AirPlay 2 compatible devices/speakers for simultaneous
playback.
This unit supports AirPlay 2 and requires iOS 11.4 or later.
0
Playback of DSD and FLAC files via USB and networks
This unit supports the playback of high resolution audio formats such as
DSD (5.6 MHz) and FLAC 192 kHz files. It provides high quality
playback of high resolution files.
0
Wireless connection with Bluetooth devices can be carried out
easily (v p. 57)
You can enjoy music simply by connecting wirelessly with your
smartphone, tablet, PC, etc.
Contents
Connections Playback Settings Tips Appendix
12
Front panel Display Rear panel Remote Index
0
Connect Bluetooth headphones
This unit can transmit Bluetooth so you can enjoy audio wirelessly
through your Bluetooth headphones.
Playback can be performed using connected speakers and Bluetooth
headphones simultaneously, or only using Bluetooth headphones.
0
Multi-Room audio (v p. 99)
GMAIN ZONEHGZONE2H
You can select and play back the respective inputs in MAIN ZONE and
ZONE2.
In addition, when the All Zone Stereo function is used, the music being
played back in MAIN ZONE can be enjoyed in all the zones at the same
time. This is useful when you want to let the BGM propagate throughout
the whole house.
0
Energy-saving design
This unit is equipped with an ECO Mode function that allows you to
enjoy music and movies while reducing the power consumption during
use, and also an auto-standby function that automatically turns off the
power supply when the unit is not in use. This helps reduce
unnecessary power use.
Contents
Connections Playback Settings Tips Appendix
13
Front panel Display Rear panel Remote Index
0

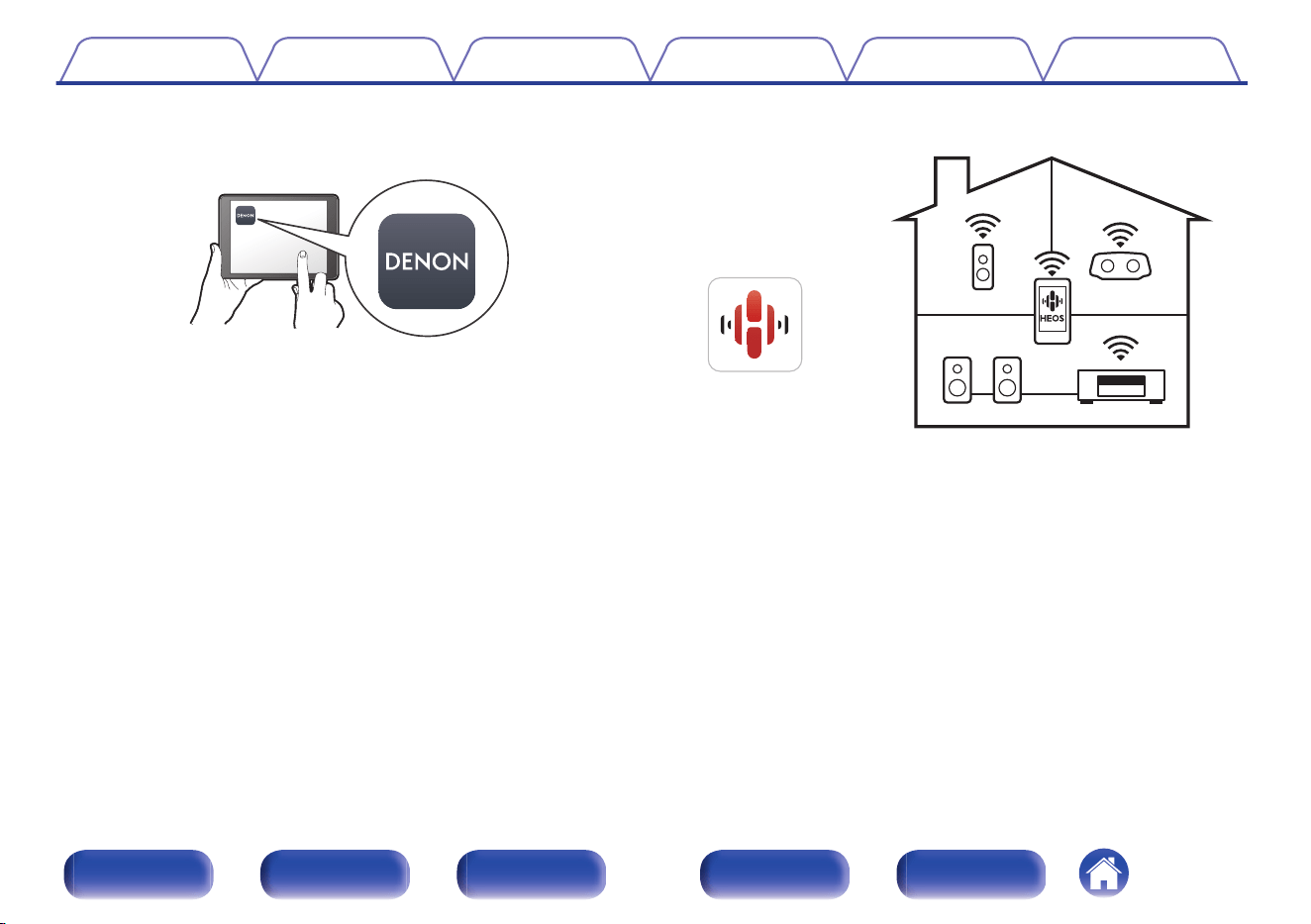

Compatible with the “Denon AVR Remote” App
z
for performing
basic operations of the unit with an iPad, iPhone or Android™
devices (Google, Amazon Kindle Fire)
The Denon AVR Remote app gives you full control of this unit as well as
access to its setup menu for detailed adjustments from your phones or
tablets. “Denon AVR Remote” App also gives you quick access to the
receiver's status display, option menus, Denon Blu-ray Disc player
control, and online owner's manual for your convenience.
z

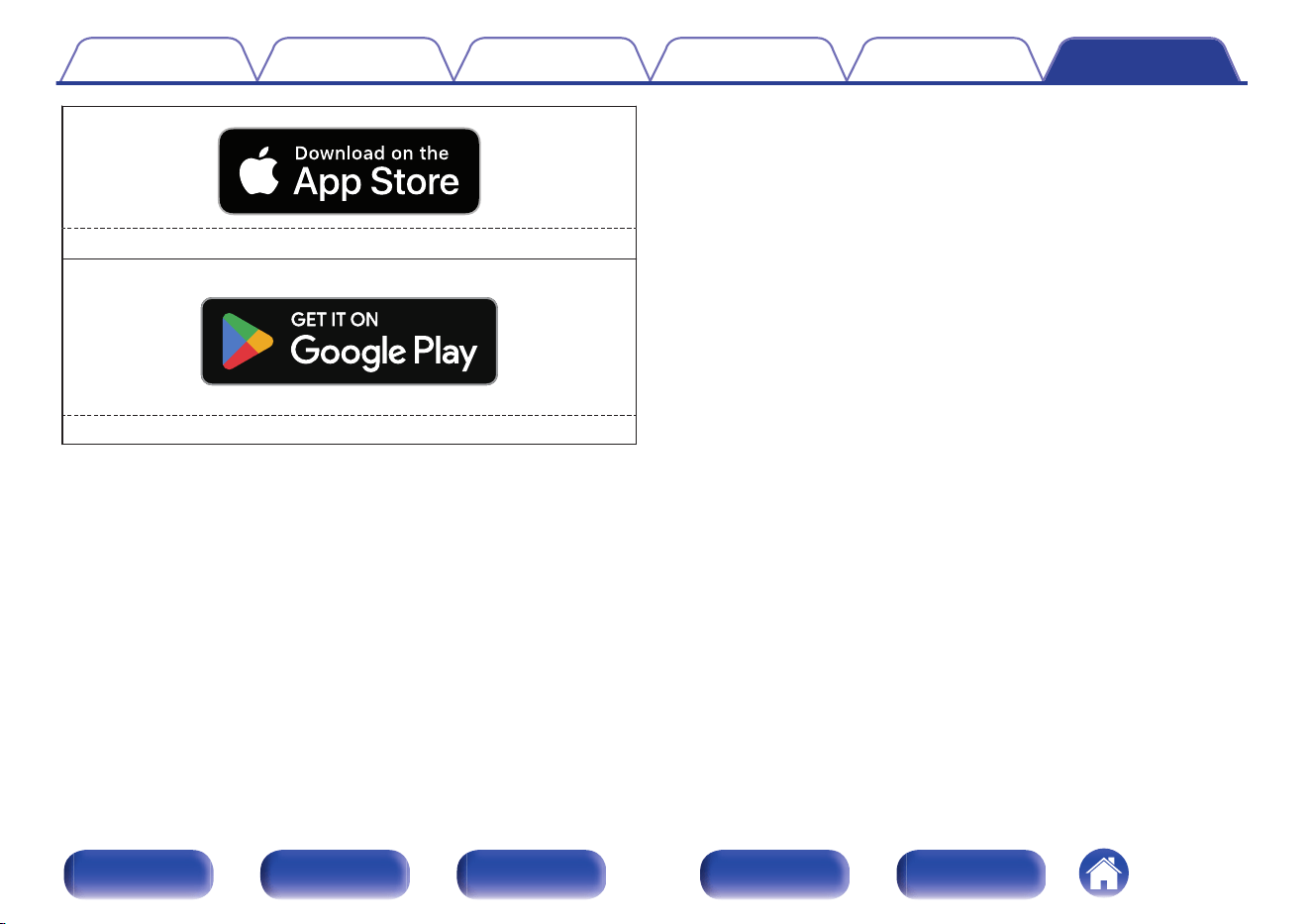

Download the appropriate “Denon AVR Remote” App for your iOS or Android
devices. This unit needs to be connected to the same LAN or Wi-Fi (wireless
LAN) network that the iPad, iPhone or Android™ is connected to.
0

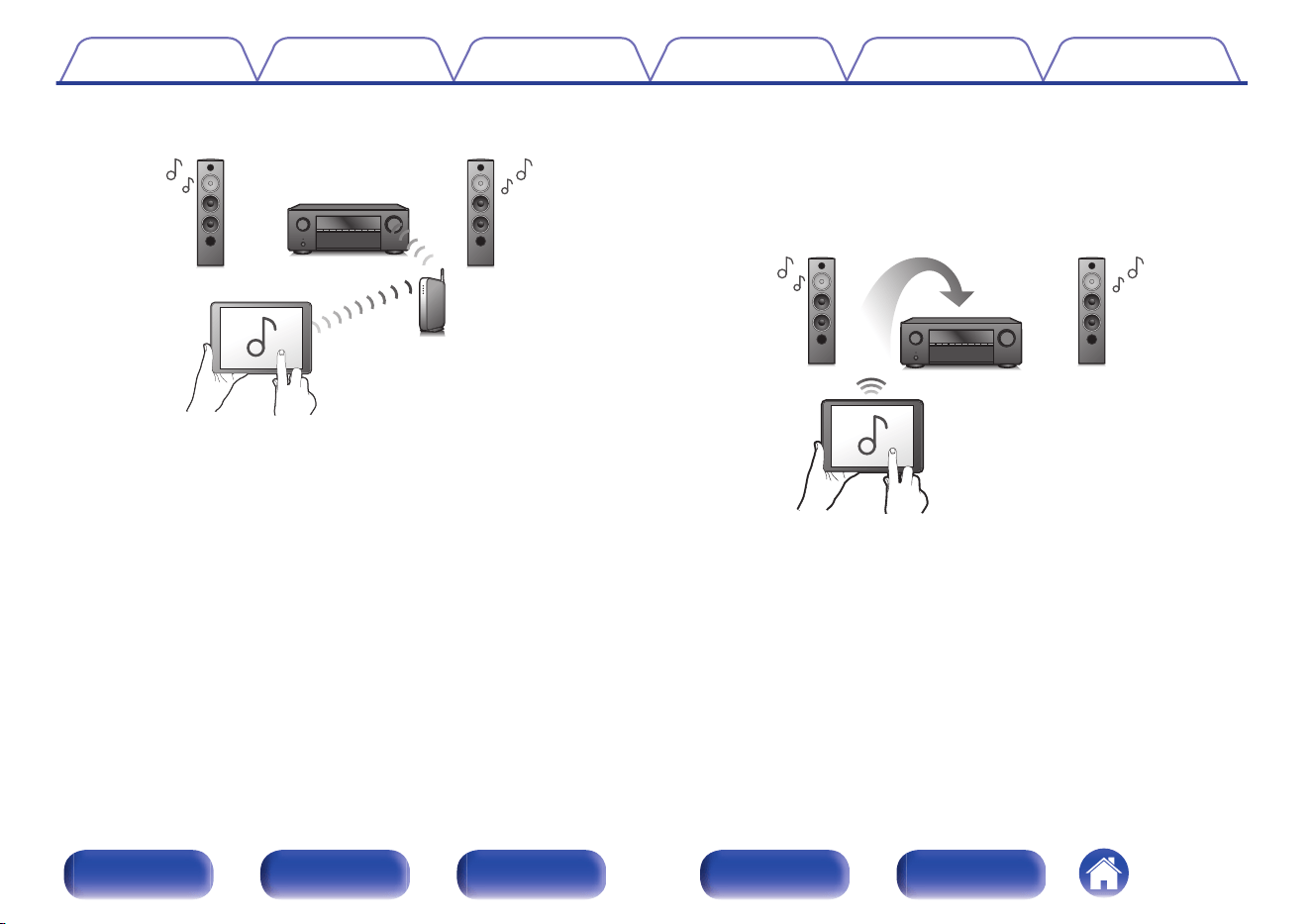

HEOS provides streaming music from your favorite online music
sources
HEOS wireless multi-room sound system that enables you to enjoy your
favorite music anywhere and everywhere around your home. By utilizing
your existing home network and the HEOS App (available for iOS,
Android and Amazon devices), you can explore, browse, and play
music from your own music library or from many online streaming music
services.
When multiple products with HEOS Built-in are connected to the same
network, they can be grouped to play the same music on all products
simultaneously, or different music can be played on each one.
Contents
Connections Playback Settings Tips Appendix
14
Front panel Display Rear panel Remote Index
Easy operation
0
“Setup Assistant” provides easy-to-follow setup instructions
First select the language when prompted. Then simply follow the
instructions displayed on the TV screen to set up the speakers, network,
etc.
0

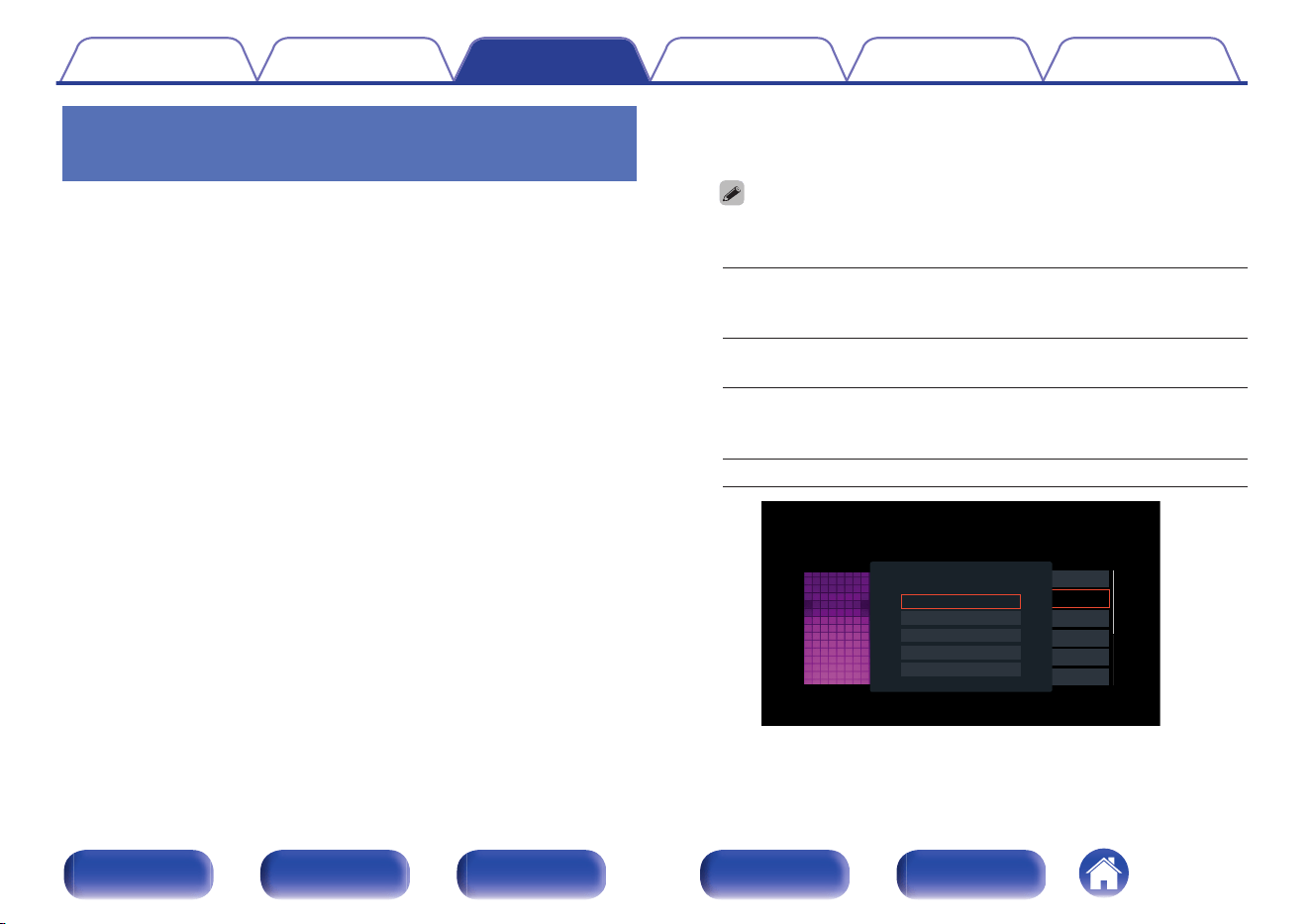

Easy to use Graphical User Interface
This unit is equipped with a Graphical User Interface for improved
operability.
Contents Connections Playback Settings Tips Appendix
15
Front panel Display Rear panel Remote Index
y
oi
u
trqw e
Q0
A
Power operation button (X)
Used to turn the power of the MAIN ZONE (room where this unit is
located) on/off (standby). (v p. 51)
B
Power indicator
This is lit as follows according to the power status:
0
Green: Power on
0
Off: Normal standby
0
Red:
0
When “HDMI Pass Through” is set to “On” (v p. 130)
0
When “HDMI Control” is set to “On” (v p. 131)
0
When “Network Control” is set to “Always On” (v p. 149)
C
SOURCE SELECT knob
This selects the input source. (v p. 51)
D
Remote control sensor
This receives signals from the remote control unit. (v p. 9)
E
Display
This displays various pieces of information. (v p. 19)
F
MASTER VOLUME knob
This adjusts the volume level. (v p. 52)
G
ZONE2 ON/OFF button
This turns the power of ZONE2 (another room) on/off. (v p. 116)
H
ZONE2 SOURCE button
This selects the input source for ZONE2. (v p. 116)
I
Tuner preset channel buttons
(TUNER PRESET CH +, –)
These select preset broadcast stations. (v p. 69)
J
Speaker switching button (SPEAKERS)
This selects the speaker for audio output.
Contents
Connections Playback Settings Tips Appendix
17
Front panel Display Rear panel Remote Index
Q2
Q1
Q
7
Q
6
Q
3
Q
4
Q
5
K
STATUS button
Each press of this switches the status information that is shown on the
display.
L
QUICK SELECT buttons
With a single press of any of these buttons, you can call up various
settings you’ve registered to each button such as the input source,
volume level and sound mode settings. (v p. 105)
M
Headphones jack (PHONES)
This is used to connect headphones.
When the headphones are plugged into this jack, audio will no longer
be output from the connected speakers or from the SUBWOOFER
connectors.
NOTE
0
To prevent hearing loss, do not raise the volume level excessively when using
headphones.
N
Bass control knob (BASS)
This setting adjusts the volume level for the bass.
O
Treble control knob (TREBLE)
This setting adjusts the volume level for the treble.
P
Balance knob (BALANCE)
This adjusts the balance of the volume output from the left and right
speakers.
Q
USB port (T)
This is used to connect USB storages (such as USB memory devices).
(v p. 43)
Contents
Connections Playback Settings Tips Appendix
18
Front panel Display Rear panel Remote Index
Display
rtewq
yui
A
Input mode indicators
These light according to the audio input mode settings of each input
source. (v p. 140)
B
Tuner reception mode indicators
These light up according to the reception conditions when the input
source is set to “Tuner”.
TUNED: Lights up when the broadcast is properly tuned in.
STEREO: Lights up when receiving FM stereo broadcasts.
C
Sleep timer indicator
This lights when the sleep mode is selected. (v p. 103)
D
Volume indicator
E
MUTE indicator
This blinks while the sound is muted. (v p. 52)
F
Information display
The input source name, sound mode, setting values and other
information are displayed here.
G
Input signal indicators
The respective indicator will light corresponding to the input signal.
(v p. 140)
H
ZONE2 indicator
This lights up when ZONE2 (another room) power is turned on.
(v p. 116)
Contents Connections Playback Settings Tips Appendix
19
Front panel Display Rear panel Remote Index
qq
ew
w
rt
A

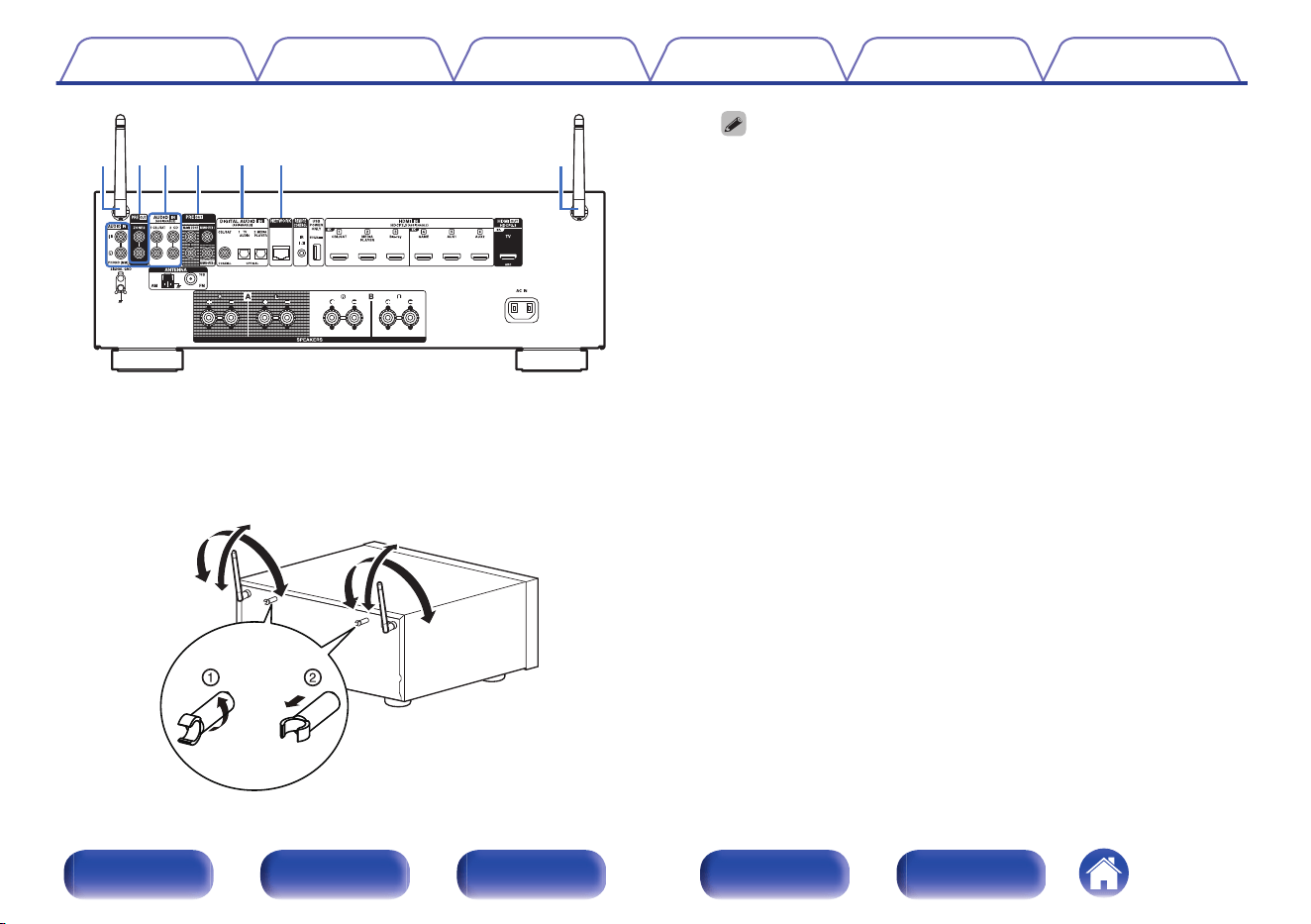

Rod antennas for Bluetooth/wireless LAN
Stand this antenna upright when connecting to a network via wireless
LAN, or when connecting to a handheld device via Bluetooth.
(v p. 47)
90°
320°
320°
90°
0
The antenna clip can be removed from the rear panel.
A
Rotate the antenna clip 90 degrees to the left.
B
Pull the antenna clip out towards yourself.
0
The antenna clip is needed when transporting this unit. Keep it in a
safe place.
0
Attach the antenna clip by following the steps for removing it in
reverse.
B
PRE OUT connectors
Used to connect a subwoofer with built-in amplifier or power amplifier.
0
“Connecting the subwoofer” (v p. 29)
0
“Connecting speakers that uses a power amplifier” (v p. 33)
0
“Connecting ZONE2” (v p. 115)
C
Analog audio connectors (AUDIO)
Used to connect devices equipped with analog audio connectors.
0
“Connecting a set-top box (Satellite tuner/cable TV)” (v p. 38)
0
“Connecting a turntable” (v p. 42)
D
Digital audio connectors (DIGITAL AUDIO)
Used to connect devices equipped with digital audio connectors.
0
“Connection 2 : TV equipped with an HDMI connector and
incompatible with the ARC (Audio Return Channel)” (v p. 36)
0
“Connecting a set-top box (Satellite tuner/cable TV)” (v p. 38)
0
“Connecting a media player” (v p. 39)
E
NETWORK connector
Used to connect to a LAN cable when connecting to a wired LAN
network. (v p. 46)
Contents
Connections Playback Settings Tips Appendix
21
Front panel Display Rear panel Remote Index
yu i o
Q0
Q
1
Q
2
F
REMOTE CONTROL jack
Used to connect infrared receivers/transmitters in order to operate this
unit and external devices from a different room. (v p. 48)
G
USB port (POWER SUPPLY)
Can be used to power streaming media players, etc.
0
Use a device’s supplied AC adapter when a power supply of 5 V/1.5 A or more
is required.
0
Connect to the USB port on the front panel to play content from a USB
memory device.
H

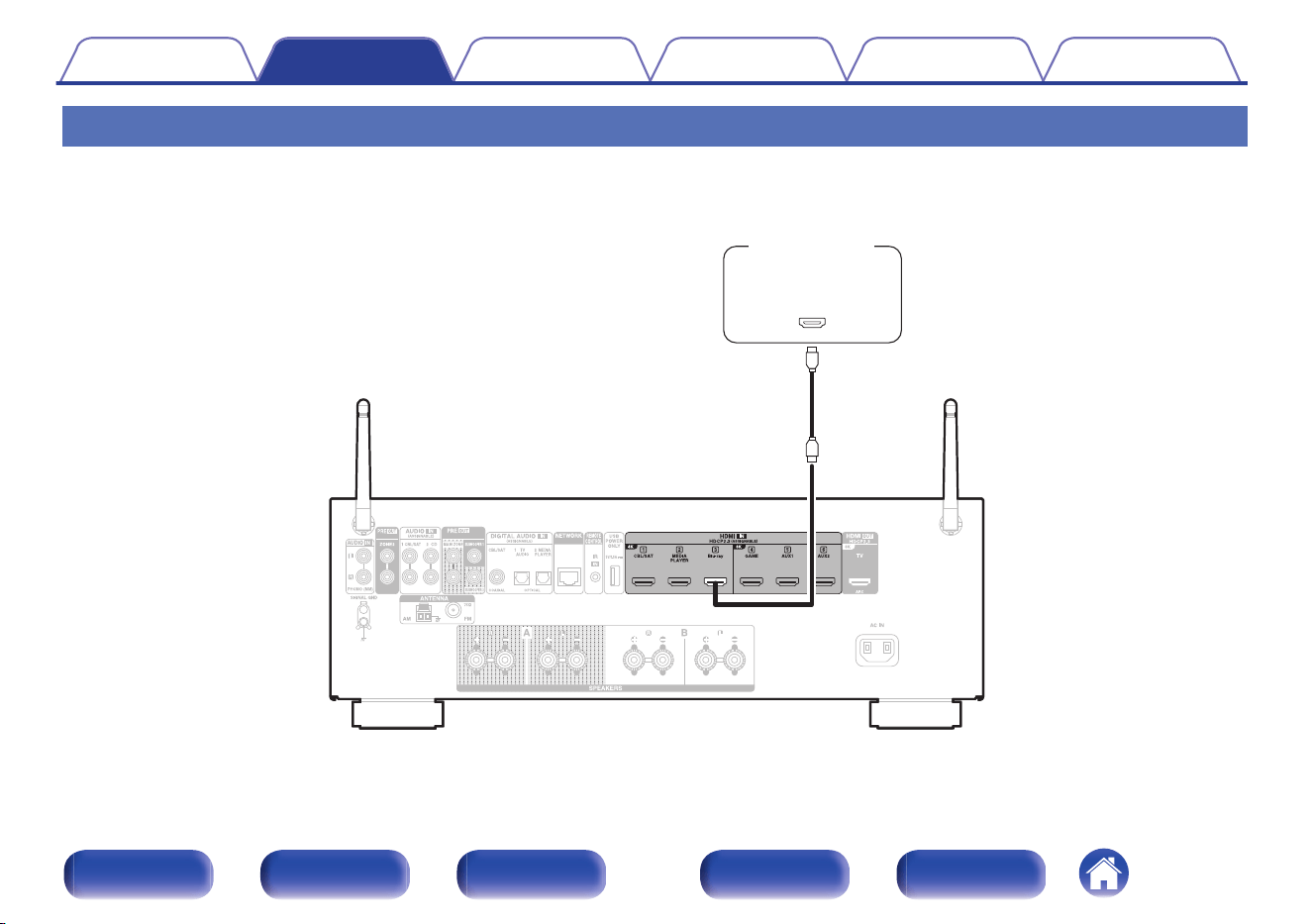

HDMI connectors
Used to connect devices equipped with HDMI connectors.
0
“Connection 1 : TV equipped with an HDMI connector and
compatible with the ARC (Audio Return Channel)” (v p. 35)
0
“Connection 2 : TV equipped with an HDMI connector and
incompatible with the ARC (Audio Return Channel)” (v p. 36)
0
“Connecting a set-top box (Satellite tuner/cable TV)” (v p. 38)
0
“Connecting a media player” (v p. 39)
0
“Connecting a Blu-ray Disc player or DVD player” (v p. 40)
0
“Connecting a game console or player device compatible with
8K” (v p. 41)
I
AC inlet (AC IN)
Used to connect the power cord. (v p. 49)
J
SIGNAL GND terminal
Used to connect a ground wire for the turntable. (v p. 42)
K
FM/AM antenna terminals (ANTENNA)
Used to connect FM antennas and AM loop antennas. (v p. 44)
L
Speaker terminals (SPEAKERS)
Used to connect speakers.
0
“Connecting 2.1-channel speakers” (v p. 30)
0
“Second pair of speaker” (v p. 31)
0
“Bi-wiring connection” (v p. 32)
NOTE
0
Do not touch the inner pins of the connectors on the rear panel. Electrostatic
discharge may cause permanent damage to the unit.
Contents Connections Playback Settings Tips Appendix
22
Front panel Display Rear panel Remote Index

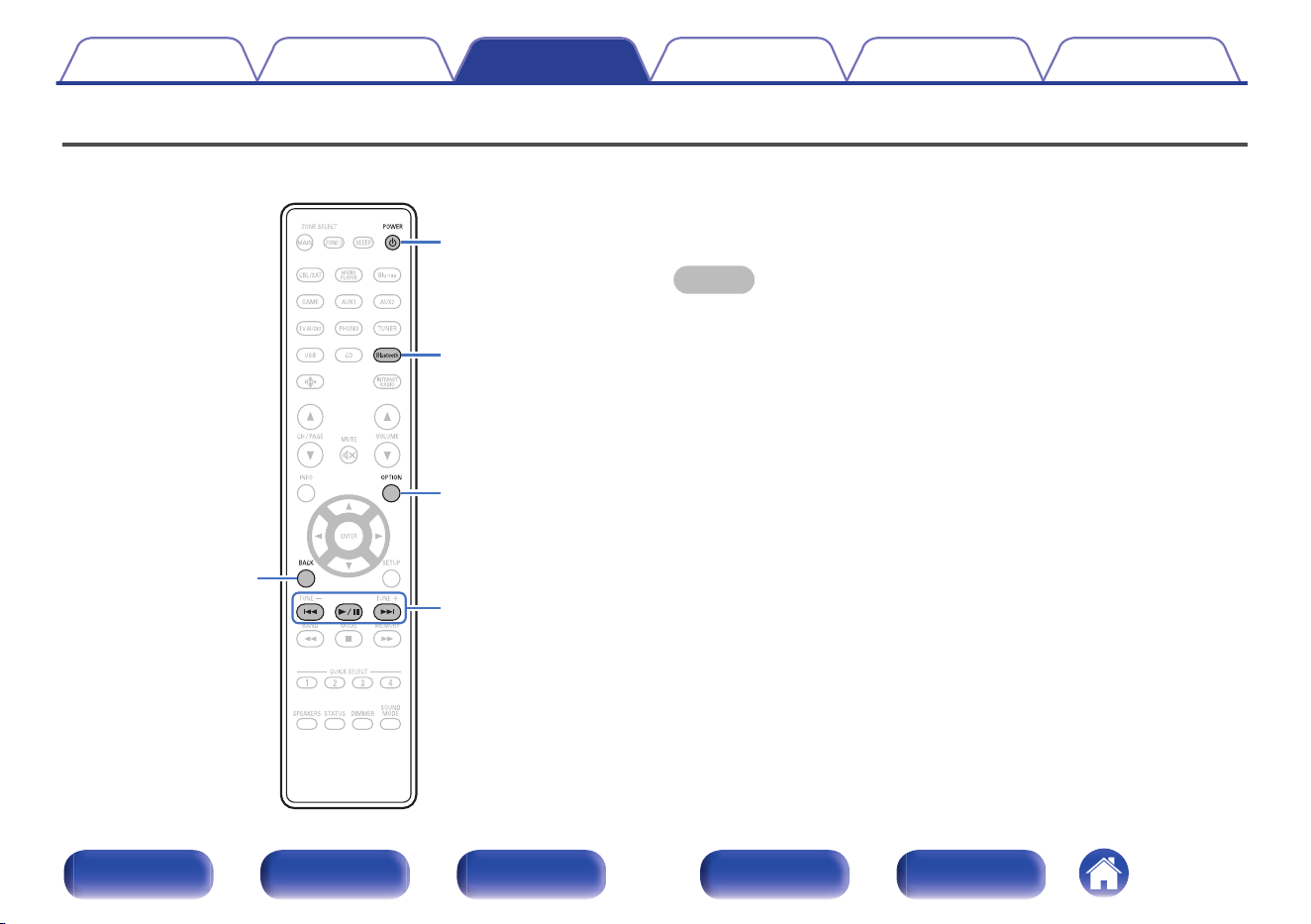

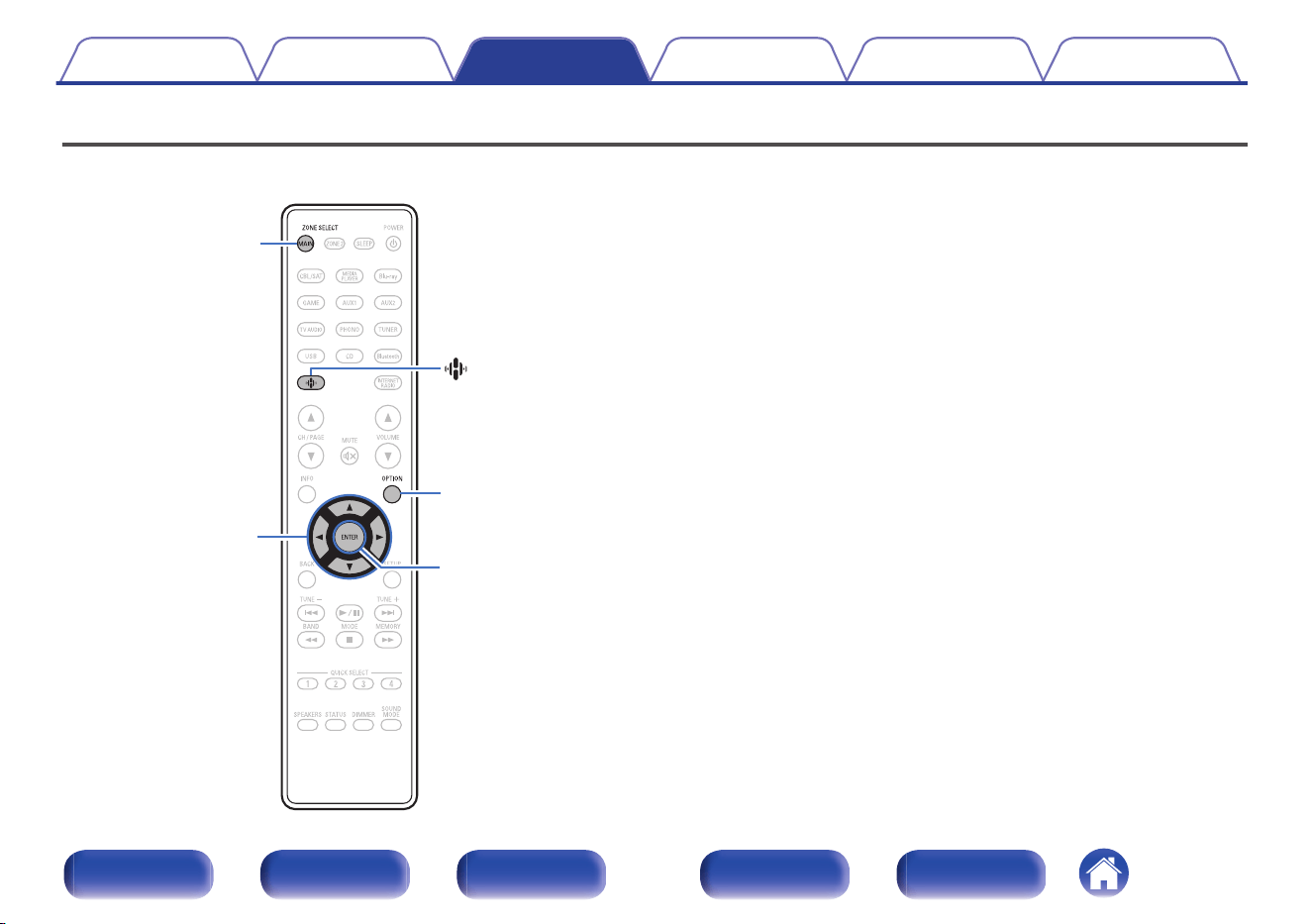

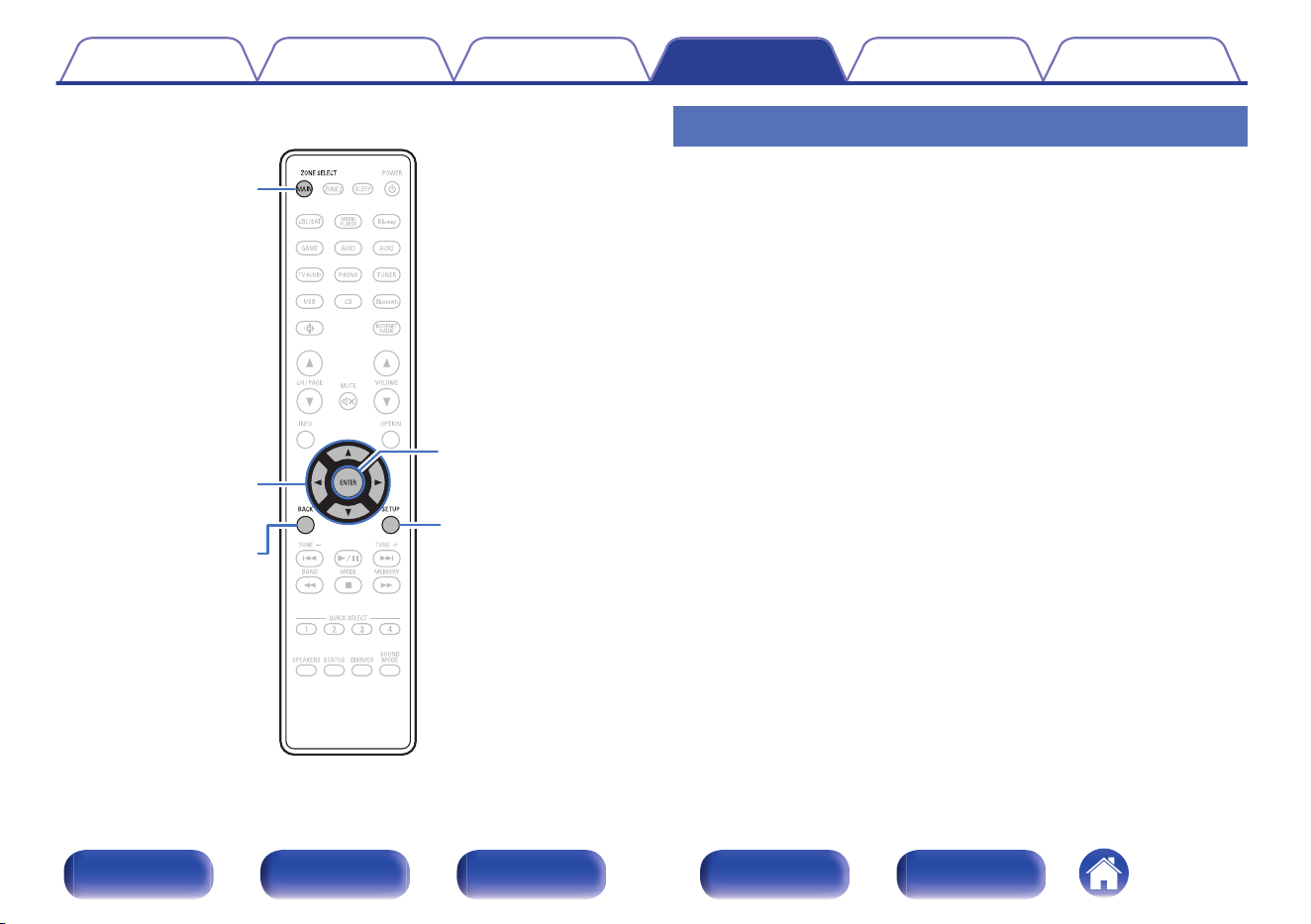

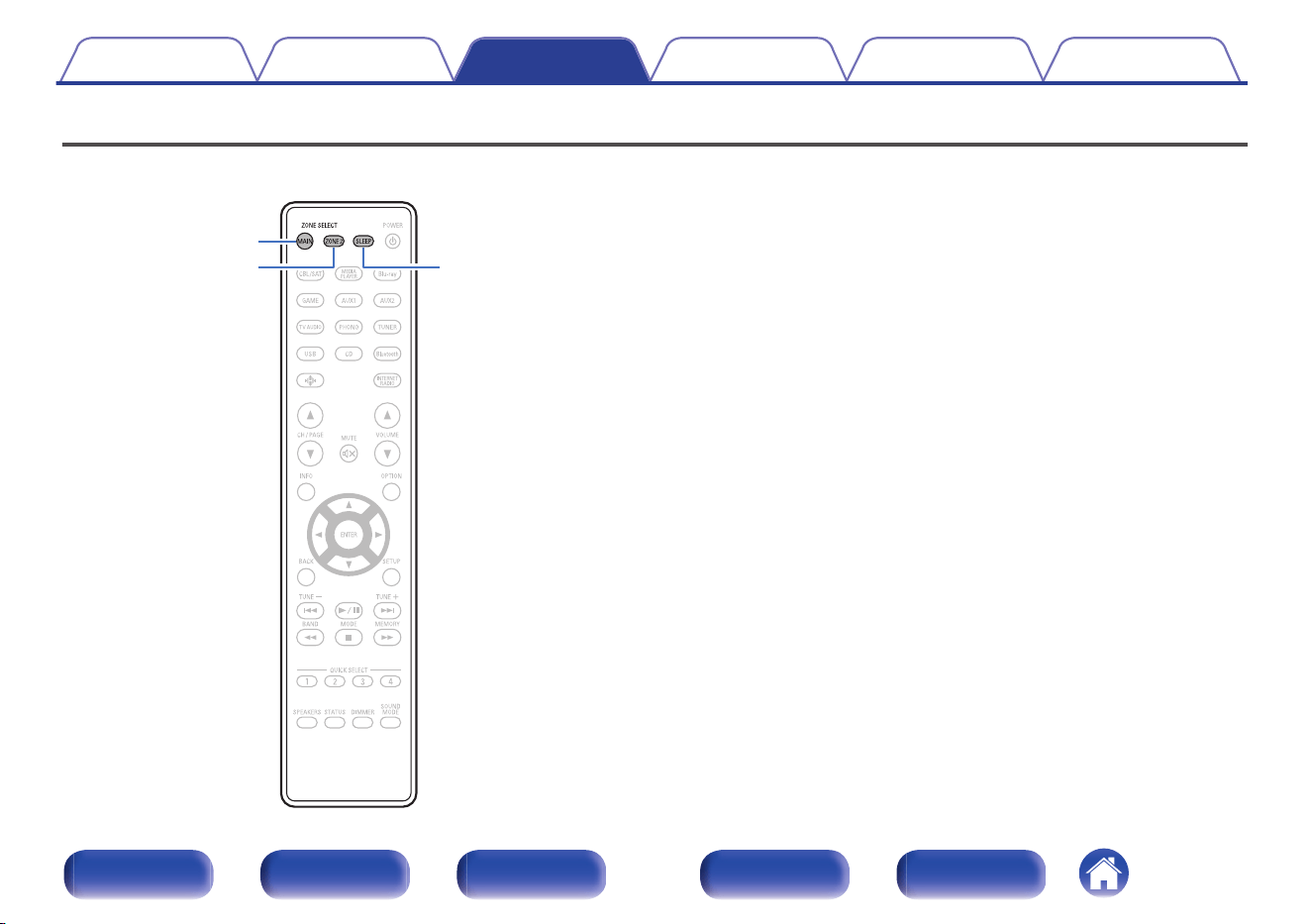

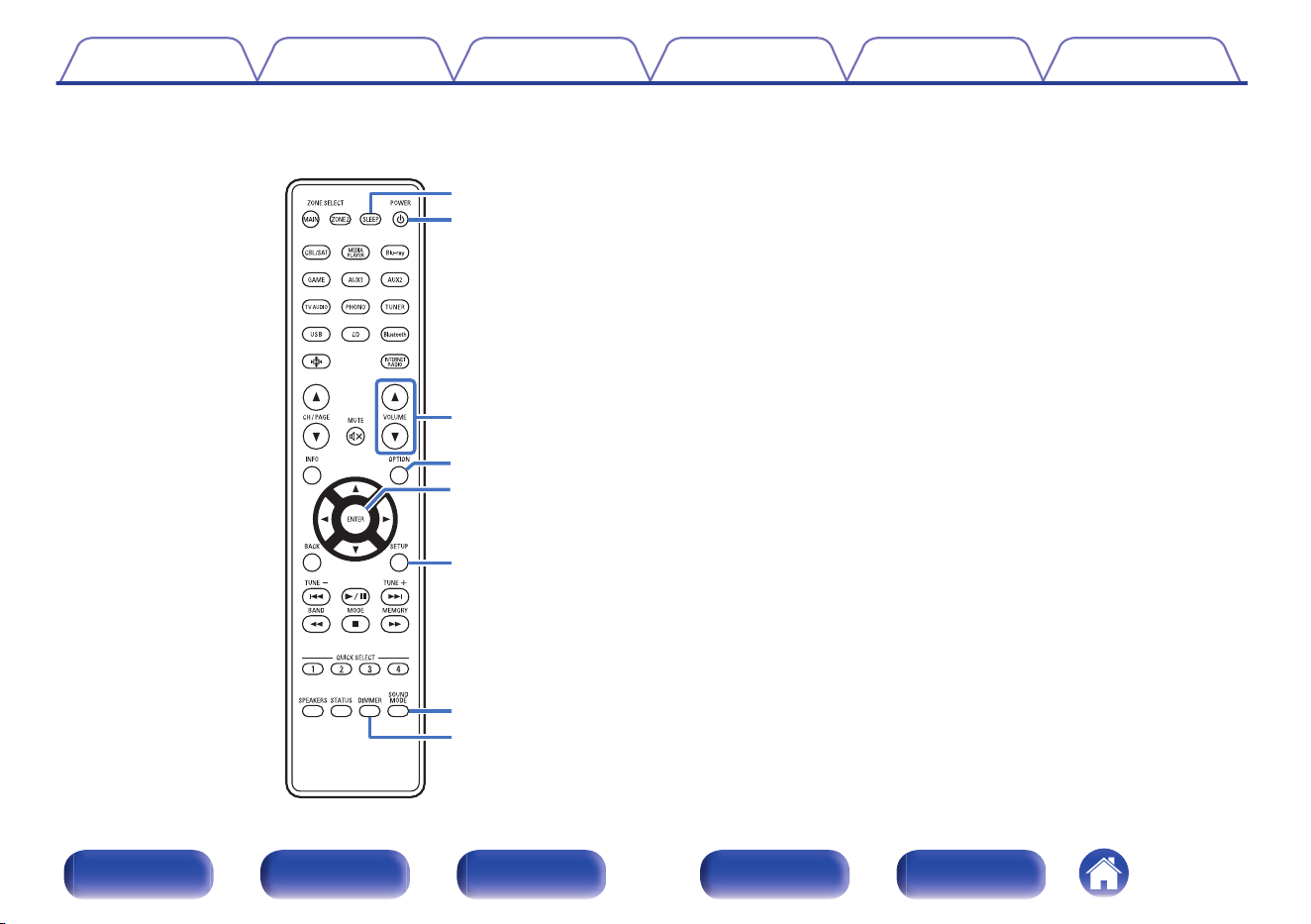

Remote control unit
A
ZONE SELECT buttons
These switch the zone (MAIN ZONE, ZONE2) that is operated through
the remote control unit.
0
“Playing different sources in MAIN ZONE and ZONE2” (v p. 118)
0
“Menu operations” (v p. 126)
B
Input source select buttons
These selects the input source.
0
“Selecting the input source” (v p. 51)
0
“Playing different sources in MAIN ZONE and ZONE2” (v p. 118)
C
Channel/page search buttons (CH/PAGE df)
These select radio stations registered to presets or switch pages.
(v p. 69)
D
MUTE button (:)
This mutes the output audio.
0
“Turning off the sound temporarily (Muting)” (v p. 52)
0
“Turning off the sound temporarily (Muting)” (v p. 120)
E
Information button (INFO)
This displays the status information on the TV screen. (v p. 165)
F
Cursor buttons
These select items.
e
t
r
y
q
w
Contents
Connections Playback Settings Tips Appendix
23
Front panel Display Rear panel Remote Index
G
BACK button
This returns to the previous screen.

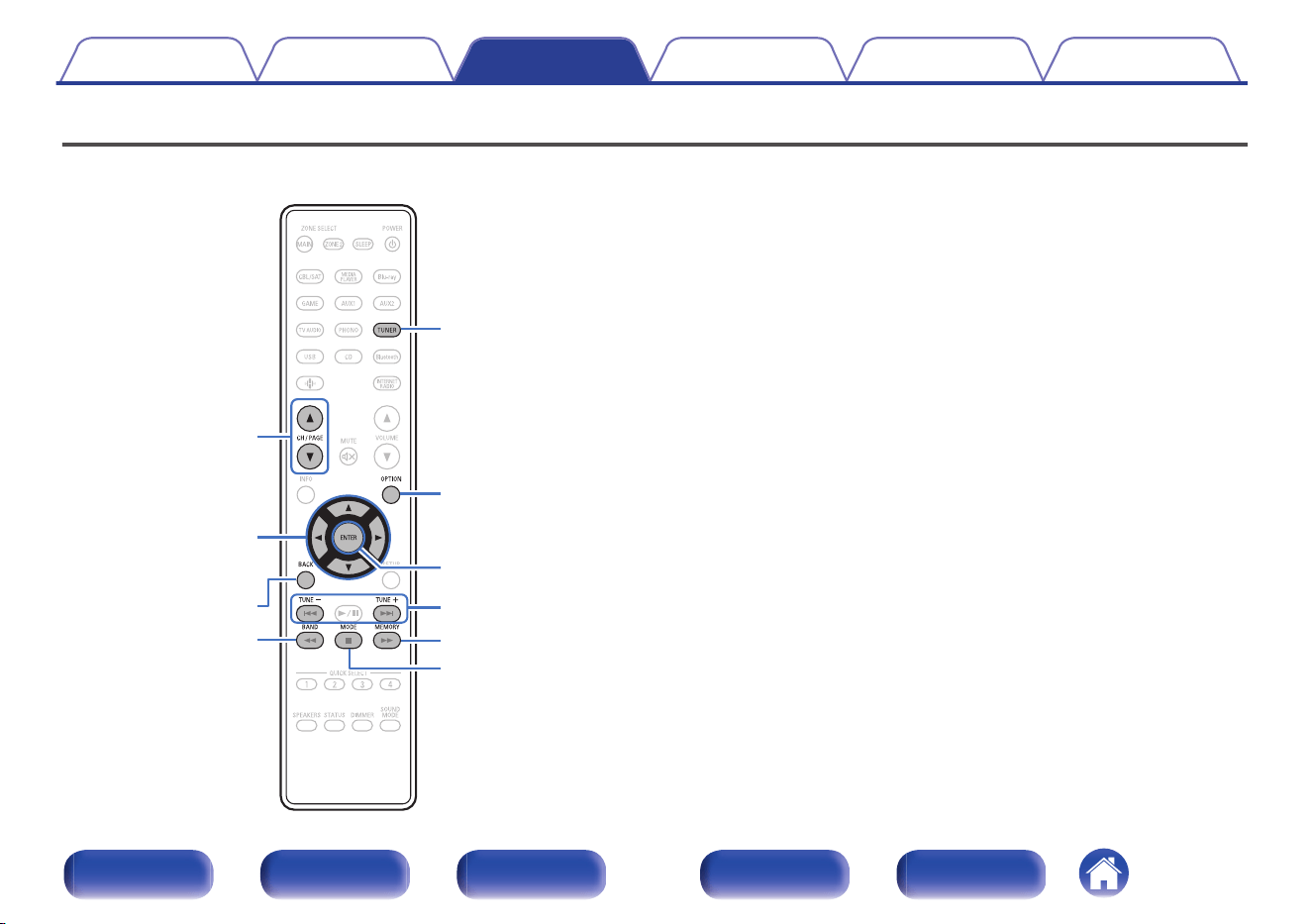

H
System buttons
These perform playback related operations.
Tuning up / Tuning down buttons (TUNE +, –)
These select either FM broadcast or AM broadcast. (v p. 66)
Reception band select button (BAND)
This switches the reception band. (v p. 66)
Tune mode select button (MODE)
This switches the tuning mode. (v p. 68)
Preset memory button (MEMORY)
The current broadcast station that is preset. (v p. 69)
Operating CD player. (v p. 168)
I

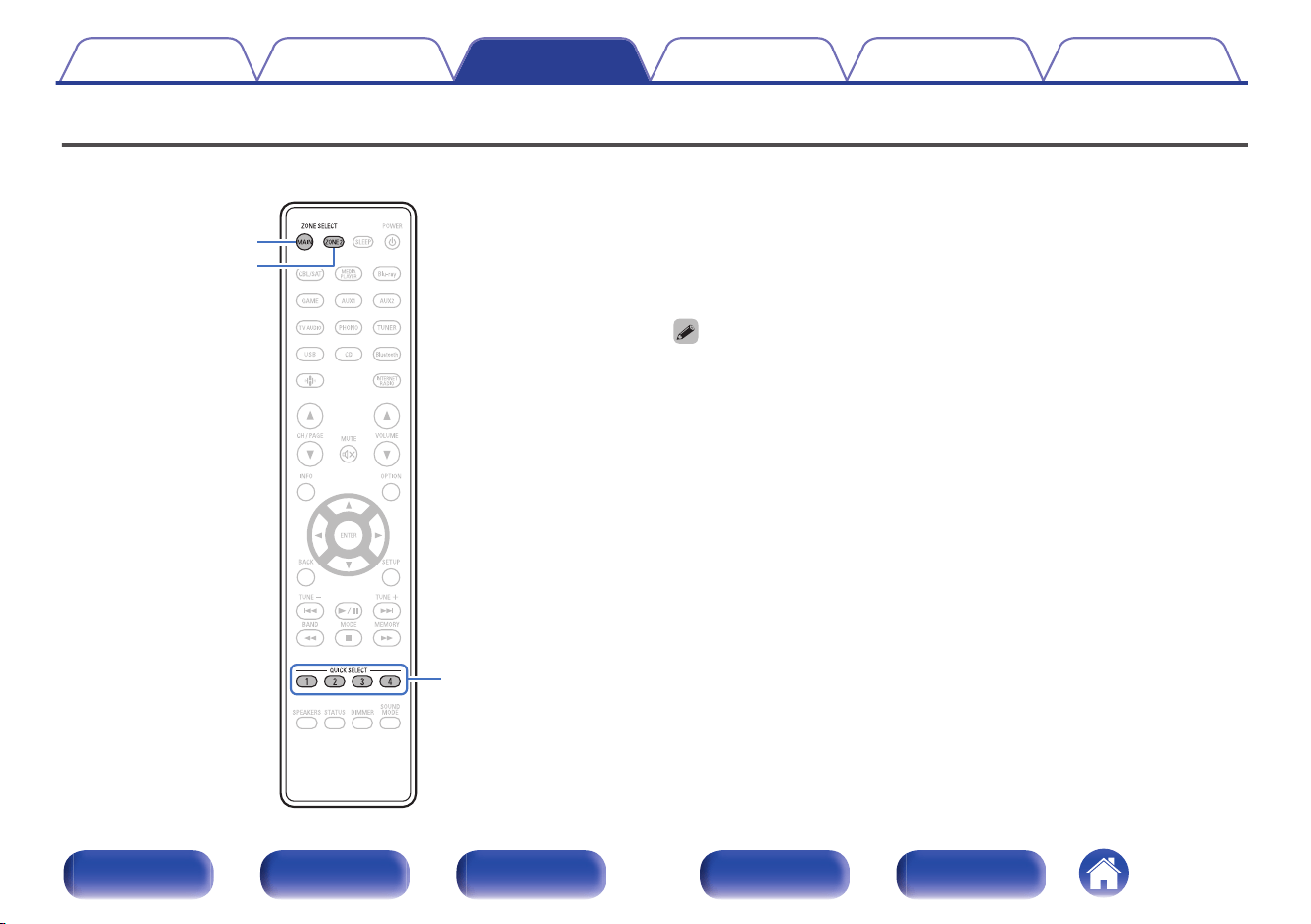

QUICK SELECT buttons (1 – 4)
These call up settings registered to each button, such as input source,
volume level and sound mode settings. (v p. 105)
J
Speaker switching button (SPEAKERS)
This selects the speaker for audio output.
K
STATUS button
Each press of this switches the status information that is shown on the
display.
L
Remote control signal transmitter
This transmits signals from the remote control unit. (v p. 9)
Q2
Q0
Q1
o
i
u
Contents
Connections Playback Settings Tips Appendix
24
Front panel Display Rear panel Remote Index
M
SLEEP button
This sets the sleep timer. (v p. 103)
N
POWER button (X)
This turns the power on/off.
0
“Turning the power on” (v p. 51)
0
“Playing different sources in MAIN ZONE and ZONE2” (v p. 118)
O
VOLUME buttons (df)
These adjusts the volume level.
0
“Adjusting the volume” (v p. 52)
0
“Adjusting the Volume in ZONE2” (v p. 120)
P
OPTION button
This displays the option menu on the TV screen.
Q
ENTER button
This determines the selection.
R
SETUP button
This displays the menu on the TV screen. (v p. 126)
S
SOUND MODE button
These select the sound mode. (v p. 100)
T
DIMMER button
Each press of this switches the brightness of the display. (v p. 161)
Q4
Q3
Q5
Q8
Q9
W0
Q6
Q7
Contents
Connections Playback Settings Tips Appendix
25
Front panel Display Rear panel Remote Index
o
Contents
Speaker installation 27
Connecting speakers 28
Connecting a TV 34
Connecting a playback device 37
Connecting a USB memory device to the USB port 43
Connecting FM/AM antennas 44

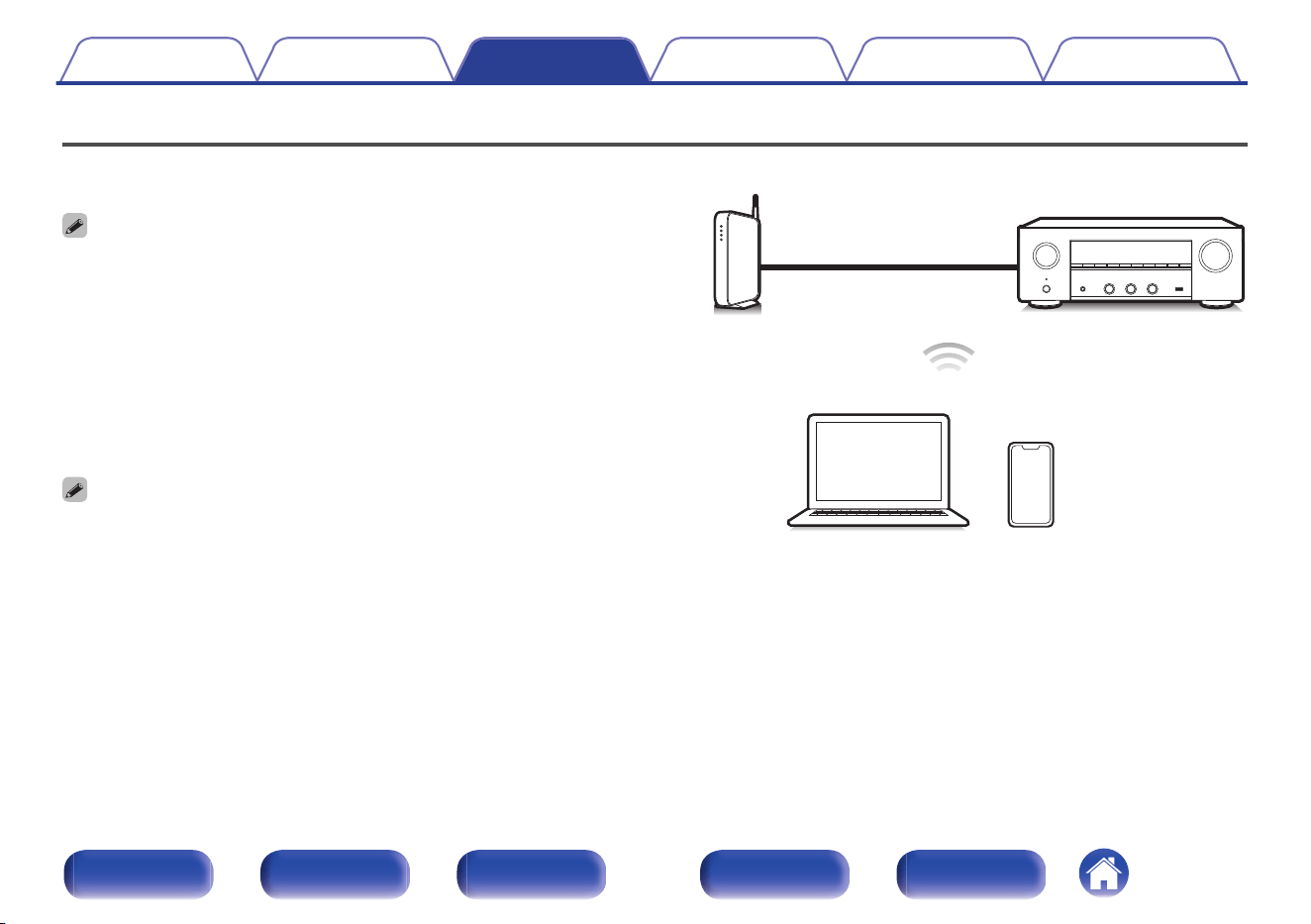

Connecting to a home network (LAN) 46
Connecting an external control device 48
Connecting the power cord 49
NOTE
0
Do not plug in the power cord until all connections have been completed.
However, when the “Setup Assistant” is running, follow the instructions in the
“Setup Assistant” (page 8 in the separate “Quick Start Guide”) screen for making
connections. (During “Setup Assistant” operation, the input/output connectors do
not conduct current.)
0
Do not bundle power cords together with connection cables. Doing so can result in
noise.
o
Cables used for connections
Provide necessary cables according to the devices you want to
connect.
Speaker cable
Subwoofer cable
HDMI cable
Coaxial digital cable
Optical cable
Audio cable
R
L
R
L
LAN cable
Contents Connections Playback Settings Tips Appendix
26
Front panel Display Rear panel Remote Index
Speaker installation
Determine the speaker system depending on the number of speakers you
are using and install each speaker and subwoofer in the room.
Speaker installation is explained using this example of a typical
installation.
LR
SW1
SW2
L/R
(LEFT/RIGHT
speaker):
Place the LEFT and RIGHT speakers an equal
distance from the main listening position. The
distance between each speaker and your TV
should also be the same.
SW 1/2
(Subwoofer):
Place the SUBWOOFER at a convenient location
near the speakers. If you have two subwoofers,
place them asymmetrically across the front of
your room.
Contents Connections Playback Settings Tips Appendix
27
Front panel Display Rear panel Remote Index
Connecting speakers
Here we connect the speakers in the room to this unit.
Before connecting speakers
NOTE
0
Disconnect this unit’s power plug from the power outlet before connecting the
speakers. Also, turn off the subwoofer.
0
Connect so that the speaker cable core wires do not protrude from the speaker
terminal. The protection circuit may be activated if the core wires touch the rear
panel or if the + and - sides touch each other. (“Protection circuit” (v p. 205))
0
Never touch the speaker terminals while the power cord is connected. Doing so
could result in electric shock. When the “Setup Assistant” (page 8 in the separate
“Quick Start Guide”) is running, follow the instructions in the “Setup Assistant”
screen for making connections. (Power is not supplied to the speaker terminals
while the “Setup Assistant” is running.)
0
Use speakers with an impedance of 4 – 16 Ω/ohms.
NOTE
0
Carry out the following settings when using a speaker with an impedance of 4 – 6
Ω/ohms.
1. Press and hold the main unit’s ZONE2 SOURCE and STATUS at the same
time for at least 3 seconds.
“4K/8K <Enhanced>” appears on the display.
2. Press SPEAKERS on the main unit two times.
“Sp.Imp.:<8ohms>” appears on the display.
3. Press TUNER PRESET CH + or TUNER PRESET CH － on the main unit to
select the impedance.
8ohms
(Default):
Select when the impedance for all of the
connected speakers is 8 Ω/ohms or over.
6ohms:
Select when the impedance for any of the
connected speakers is 6 Ω/ohms.
4ohms:
Select when the impedance for any of the
connected speakers is 4 Ω/ohms.
4. Press the main unit’s STATUS to complete the setting.
Contents
Connections Playback Settings Tips Appendix
28
Front panel Display Rear panel Remote Index
o
Connecting the speaker cables
Carefully check the left (L) and right (R) channels and + (red) and –
(black) polarities on the speakers being connected to this unit, and be
sure to connect the channels and polarities correctly.
1
Peel off about 3/8 inch (10 mm) of sheathing from the
tip of the speaker cable, then either twist the core wire
tightly or terminate it.
2
Turn the speaker terminal counterclockwise to loosen it.
3
Insert the speaker cable’s core wire to the hilt into the
speaker terminal.
4
Turn the speaker terminal clockwise to tighten it.
o
Connecting the subwoofer
Use a subwoofer cable to connect the subwoofer. Two subwoofers can
be connected to this unit.
The same signal is output from the respective subwoofer terminals.
SW1 SW2
Contents
Connections Playback Settings Tips Appendix
29
Front panel Display Rear panel Remote Index
Second pair of speaker
This system enables switching playback between speakers A and B as desired.
SW
LL
(B) (A)
RR
(A) (B)
CAUTION:
0
Set speaker impedance to “4ohms” before performing simultaneous
playback from speakers A and B. (v p. 28)
SW
R (A) L (A) R (B) L (B)
Contents
Connections Playback Settings Tips Appendix
31
Front panel Display Rear panel Remote Index
Bi-wiring connection
This connection limits the effects of signal interference between the high range speakers (tweeters) and low range speakers (woofers), allowing you to
enjoy high quality playback.
When bi-wiring with bi-wireable speakers, connect the mid and high range terminals to SPEAKERS A (or B), the low range terminals to SPEAKERS B (or
A).
0
When using bi-wiring connections, set the speaker to “A+B” to
output audio from both SPEAKERS A and SPEAKERS B speaker
terminals. (v p. 144)
wq
w
HIGH
LOW
q
wq
w
HIGH
LOW
q
Remove shorting bar Remove shorting bar Remove shorting bar Remove shorting bar
Speaker
(R)
Speaker
(L)
Contents
Connections Playback Settings Tips Appendix
32
Front panel Display Rear panel Remote Index
o
Connecting speakers that uses a power amplifier
This unit supports connection of speakers that uses an external power amplifier to increase its output.
Connect a separately sold power amplifier to the PRE OUT (MAIN ZONE) connector of this unit.
R
L
R
L
AUDIO
AUDIO
RL
OUT
Power amplifier
Contents Connections Playback Settings Tips Appendix
33
Front panel Display Rear panel Remote Index
Connecting a TV
Connect a TV to this unit so that the input video is output to the TV. You can also enjoy audio from the TV on this unit.
How to connect a TV depends on the connectors and functions equipped on the TV.
No
Yes
Is the TV equipped with an HDMI connector?
Yes No
Is the TV compatible with the ARC?
z
“Connection 1 : TV equipped with an HDMI
connector and compatible with the ARC (Audio
Return Channel)” (v p. 35)
“Connection 2 : TV equipped with an HDMI
connector and incompatible with the ARC (Audio
Return Channel)” (v p. 36)
You cannot connect the TV to this
unit.
z
What is ARC?
ARC (Audio Return Channel) sends audio back to this unit using the same HDMI cable that sends video from this unit to your TV.
This allows this unit to process the sound from your TV’s built-in tuner and apps.
NOTE
0
Use a TV with a 2 prong power plug for this unit. Do not connect a TV with a 3 prong power plug, as this may cause noise.
Contents Connections Playback Settings Tips Appendix
34
Front panel Display Rear panel Remote Index
Connection 1 : TV equipped with an HDMI connector and compatible with the ARC
(Audio Return Channel)
Using a high quality HDMI cable
z
, connect one end to the HDMI port labeled “ARC” on your TV. Connect the other end to the HDMI OUT 1 port on this
unit.
When a TV with ARC support is connected, set “ARC” in the menu to “On”. (v p. 131)
z
For 4K TVs we recommend using an HDMI cable labeled “High Speed”
and “with Ethernet”.
z
For 8K TVs we recommend using an HDMI cable labeled “Ultra High
Speed”.
0
Only the PCM 2-channel setting can be used to play sound from a TV via
the ARC function. Set “PCM 2ch” as the audio format in the TV settings.
0
Set “4K/8K Signal Format” to “8K Enhanced” in the menu to enjoy 8K
video. (v p. 135)
(ARC)
IN
HDMI
TV
Contents
Connections Playback Settings Tips Appendix
35
Front panel Display Rear panel Remote Index
Connection 2 : TV equipped with an HDMI connector and incompatible with the ARC
(Audio Return Channel)
Use an HDMI cable to connect the TV to this unit.
To listen to audio from TV on this unit, use an optical cable to connect the TV to this unit.
OUT
OPTICAL
OUT IN
IN
HDMI
TV
0
Only the PCM 2-channel setting can be used to play sound from a TV via a digital signal. Set “PCM 2ch” as the audio format in the TV settings.
Contents Connections Playback Settings Tips Appendix
36
Front panel Display Rear panel Remote Index

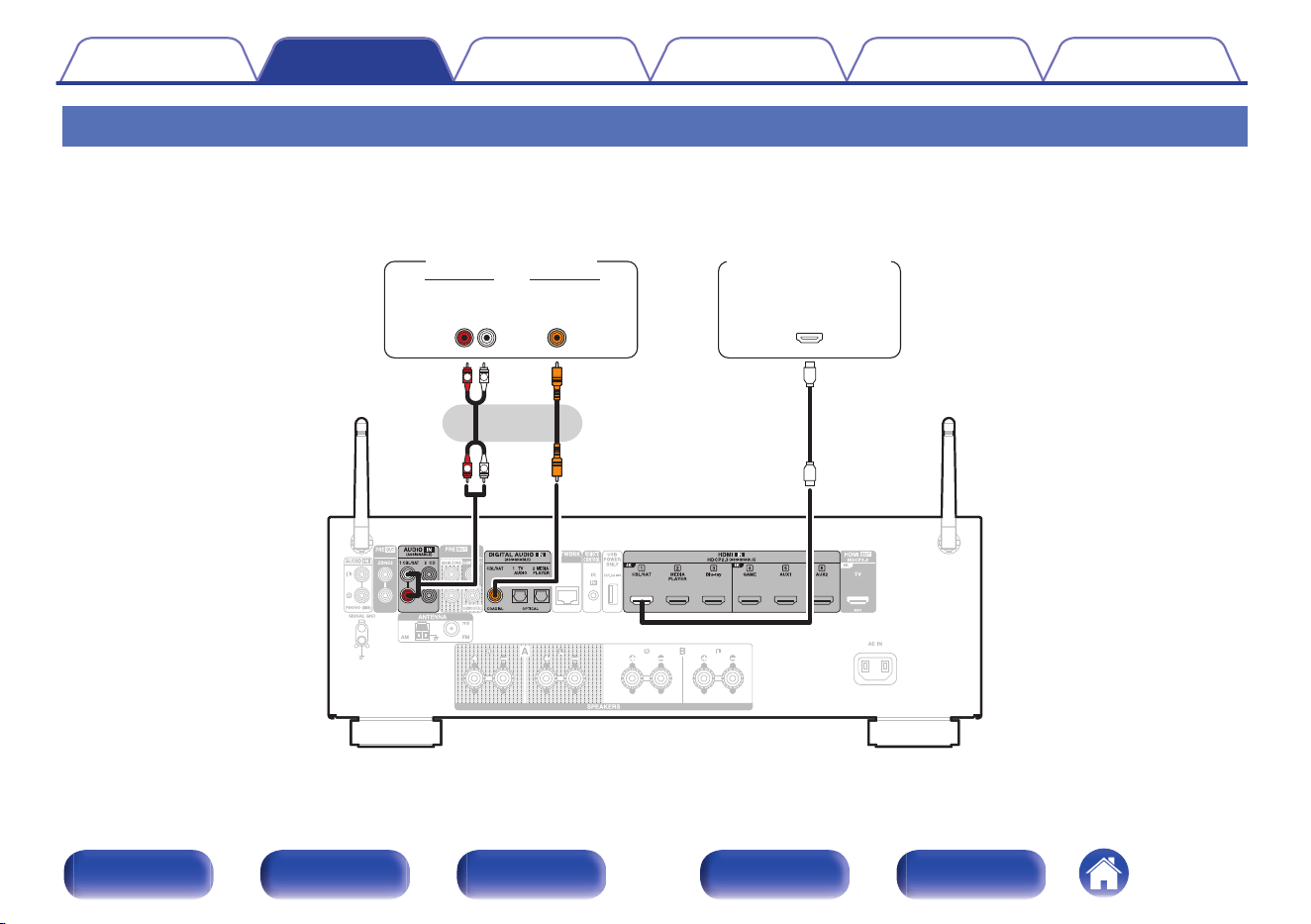

Connecting a playback device
This unit is equipped with one type of video input connectors (HDMI) and three types of audio input connectors (HDMI, digital audio and audio).
Select input connectors on this unit according to the connectors equipped on the device you want to connect.
If the device connected to this unit is equipped with an HDMI connector, it is recommended to use HDMI connections.
In the HDMI connection, audio and video signals can be transmitted through a single HDMI cable.
0
“Connecting a set-top box (Satellite tuner/cable TV)” (v p. 38)
0
“Connecting a media player” (v p. 39)
0
“Connecting a Blu-ray Disc player or DVD player” (v p. 40)
0
“Connecting a game console or player device compatible with 8K” (v p. 41)
0
“Connecting a turntable” (v p. 42)
0
Connect devices to this unit as indicated by the input sources printed on the audio/video input connectors of this unit.
0
The source that is assigned to the HDMI IN, DIGITAL AUDIO IN and AUDIO IN connectors can be changed. See “Input Assign” on how to change the input source assigned
to the input connectors. (v p. 138)
0
To play back audio signals that are input to this unit on a TV connected via HDMI, set in the menu “HDMI Audio Out” to “TV”. (v p. 129)
0
To enjoy content that is copyright protected by HDCP 2.2 or HDCP 2.3, use a playback device and TV compatible with HDCP 2.2 or HDCP 2.3.
0
This unit supports analog audio signals and PCM 2-channel signals. To play sources such as Dolby Digital discs, set “PCM 2ch” as the audio format in the audio device
settings.
Contents Connections Playback Settings Tips Appendix
37
Front panel Display Rear panel Remote Index
Connecting a set-top box (Satellite tuner/cable TV)
This explanation uses the connection with a satellite tuner/cable TV STB as an example.
Select the input connectors on this unit to match the connectors on the device that you want to connect to.
R
L
R
L
OUT
HDMI
OUT
COAXIAL
AUDIO
AUDIO
RL
OUT
or
Satellite tuner /
Cable TV
Satellite tuner /
Cable TV
(HDMI incompatible device)
Contents Connections Playback Settings Tips Appendix
38
Front panel Display Rear panel Remote Index
Connecting a media player
This explanation uses the connection with a media player as an example.
Select the input connectors on this unit to match the connectors on the device that you want to connect to.
OUT
HDMI
AUDIO
OUT
OPTICAL
(HDMI incompatible device)
Media player Media player
Contents Connections Playback Settings Tips Appendix
39
Front panel Display Rear panel Remote Index
Connecting a Blu-ray Disc player or DVD player
This explanation uses the connection with a Blu-ray Disc player or DVD player as an example.
Select the input connectors on this unit to match the connectors on the device that you want to connect to.
OUT
HDMI
Blu-ray Disc player /
DVD player
Contents Connections Playback Settings Tips Appendix
40
Front panel Display Rear panel Remote Index
Connecting a game console or player device compatible with 8K
This unit supports 8K HDMI video signals.
If your game console or player device supports 8K, connect it to the HDMI 4, HDMI 5 or HDMI 6 connector on your device.
0
Use a certified “Ultra High Speed HDMI cable” to enjoy 8K or 4K
120Hz video.
0
Set “4K/8K Signal Format” to “8K Enhanced” in the menu to enjoy 8K
video. (v p. 135)
OUT
HDMI
OUT
HDMI
Game console 8K player
Contents
Connections Playback Settings Tips Appendix
41
Front panel Display Rear panel Remote Index
Connecting a turntable
This unit is compatible with turntables equipped with a moving magnet (MM) phono cartridge. When you connect to a turntable with a low output moving
coil (MC) cartridge, use a commercially available MC head amp or a step-up transformer.
If you set this unit’s input source to “Phono” and you accidentally increase the volume without having a turntable connected, you may hear a hum noise
from the speakers.
NOTE
0
The earth terminal (SIGNAL GND) of this unit is not for safety grounding
purposes. If this terminal is connected when there is a lot of noise, the
noise can be reduced. Note that depending on the turntable,
connecting the ground line may have the reverse effect of increasing
noise. In this case, it is not necessary to connect the ground line.
GND
AUDIO
OUT
L
R
(MM cartridge)
Turntable
Contents
Connections Playback Settings Tips Appendix
42
Front panel Display Rear panel Remote Index
Connecting a USB memory device to the USB port
For operating instructions see “Playing a USB memory device” (v p. 53).
USB memory
device
0
Denon does not guarantee that all USB memory devices will operate or receive power. When using a portable USB hard disk drive (HDD) which came with an AC adapter,
use that device’s supplied AC adapter.
0
The USB port on the rear panel can only be used to supply power (5 V/1.5 A). It cannot be used to play music files. (v p. 22)
NOTE
0
USB memory devices will not work via a USB hub.
0
It is not possible to use this unit by connecting the unit’s USB port to a PC via a USB cable.
0
Do not use an extension cable when connecting a USB memory device. This may cause radio interference with other devices.
Contents Connections Playback Settings Tips Appendix
43
Front panel Display Rear panel Remote Index
Connecting FM/AM antennas
Connect the antenna, tune in to a broadcast and then move the antenna to
the location where there is least noise. Then use tape, etc. to fix the
antenna in this location. (“Listening to FM/AM broadcasts” (v p. 65))
0
If you are unable to receive a good broadcast signal, we recommend installing an
outdoor antenna. For details, inquire at the retail store where you purchased the
unit.
NOTE
0
Make sure the AM loop antenna lead terminals do not touch metal parts of the
panel.
wqe
Black
AM loop antenna
(supplied)
FM indoor antenna
(supplied)
White
Contents Connections Playback Settings Tips Appendix
44
Front panel Display Rear panel Remote Index
o
Using the AM loop antenna
Suspending on a wall
Suspend directly on a wall without assembling.
Nail, tack, etc.
Standing alone
Use the procedure shown above to assemble.
When assembling, refer to “AM loop antenna assembly”.
o
AM loop antenna assembly
1
Put the stand section through the bottom of the loop
antenna from the rear and bend it forward.
2
Insert the projecting part into the square hole in the
stand.
Projecting part
Square hole
Stand
Loop antenna
Contents Connections Playback Settings Tips Appendix
45
Front panel Display Rear panel Remote Index
Connecting to a home network (LAN)
This unit can connect to a network using a wired LAN or wireless LAN.
You can connect this unit to your home network (LAN) to enable various
types of playback and operations as described below.
0
Playback of network audio such as Internet Radio and from your media
server(s)
0
Playback of streaming music services
0
Using the Apple AirPlay function
0
Operation on this unit via the network
0
Operation with the HEOS wireless multi-room sound system
0
Firmware Update
For connections to the Internet, contact an ISP (Internet Service
Provider) or a computer shop.
Wired LAN
To make connections via wired LAN, use a LAN cable to connect the
router to this unit as shown in the figure below.
Internet
Modem
PC
Router
To WAN side
To LAN port
To LAN port
NAS
(Network Attached
Storage)
LAN port /
Ethernet
connector
LAN port /
Ethernet
connector
Contents Connections Playback Settings Tips Appendix
46
Front panel Display Rear panel Remote Index
Wireless LAN
When connecting to a wireless LAN network, stand the rod antenna for
Bluetooth/wireless LAN connection upright on the rear panel.
See “Wi-Fi Setup” on how to connect to a wireless LAN router.
(v p. 146)
Internet
Modem
Router with access point
To WAN side
0
When using this unit, we recommend you use a router equipped with the following
functions:
0
Built-in DHCP server
This function automatically assigns IP addresses on the LAN.
0
Built-in 100BASE-TX switch
When connecting multiple devices, we recommend a switching hub with a
speed of 100 Mbps or greater.
0
Only use a shielded STP or ScTP LAN cable (readily available at electronics
stores). (CAT-5 or greater recommended)
0
The normal shielded-type LAN cable is recommended.
If a flat-type cable or unshielded-type cable is used, other devices could be
affected by noise.
0
When using this unit connected to a network with no DHCP function, configure the
IP address, etc. in “Network”. (v p. 145)
NOTE
0
The types of routers that can be used depend on the ISP. Contact your ISP or a
computer shop for details.
0
This unit is not compatible with PPPoE. A PPPoE compatible router is required if
your contracted line is not set using PPPoE.
0
Do not connect a NETWORK connector directly to the LAN port / Ethernet
connector on your computer.
0
Various online services may be discontinued without prior notice.
Contents Connections Playback Settings Tips Appendix
47
Front panel Display Rear panel Remote Index
Connecting an external control device
REMOTE CONTROL jack
When this unit is installed in a location where the remote control signals cannot reach (installation in a cabinet etc.), it can still be controlled by the remote
control by connecting a remote control receiver unit (sold separately).
You can also use it to remotely control ZONE2 (another room).
AUX
OUT
Output
Input
Infrared
retransmitter
Infrared
sensor
Contents Connections Playback Settings Tips Appendix
48
Front panel Display Rear panel Remote Index
o
Contents
Basic operation
Turning the power on 51
Selecting the input source 51
Adjusting the volume 52
Turning off the sound temporarily (Muting) 52
Selecting a sound mode 100
Playback a device
Playing a Blu-ray Disc player/DVD player 52
Playing a USB memory device 53
Listening to music on a Bluetooth device 57
Listening to audio on Bluetooth headphones 61
Listening to FM/AM broadcasts 65
Playback network audio/service
Listening to Internet Radio 73
Playing back files stored on a PC or NAS 75
Getting the HEOS App 79
AirPlay function 88
Spotify Connect function 91
Convenience functions
Convenience functions 92
HDMI Control function 102
Sleep timer function 103
Quick select plus function 105
Panel lock function 109
Remote lock function 111
Other functions
Web control function 112
Playback in ZONE2 (Another room) 114
Contents Connections Playback Settings Tips Appendix
50
Front panel Display Rear panel Remote Index
Basic operation
MUTE
:
VOLUME
df
POWER
X
Input source
select buttons
Turning the power on
1
Press POWER X to turn on power to the unit.
0
You can press the input source select button when the unit is in standby mode to
turn on the power.
0
You can also switch the power to standby by pressing X on the main unit.
Selecting the input source
1
Press the input source select button to be played back.
The desired input source can be selected directly.
0
You can also select the input source by turning SOURCE SELECT on the main
unit.
Contents Connections Playback Settings Tips Appendix
51
Front panel Display Rear panel Remote Index
Adjusting the volume
1
Use VOLUME df to adjust the volume.
0
The variable range differs according to the input signal and channel level setting.
0
You can also adjust the master volume by turning MASTER VOLUME on the main
unit.
Turning off the sound temporarily
(Muting)
1
Press MUTE :.
0
MUTE indicator on the display flashes.
0
h appears on the TV screen.
0
The sound is reduced to the level set at “Mute Level” in the menu. (v p. 128)
0
To cancel mute, either adjust the sound volume or press MUTE : again.
0
If h is displayed on the TV screen for more than 5 minutes when the “Screen
Saver” is set to “On”, the h symbol moves randomly over the TV screen.
(v p. 135)
Playback a Blu-ray Disc player/DVD
player
The following describes the procedure for playing Blu-ray Disc player/DVD
player.
1
Prepare for playback.
A
Turn on the power of the TV, subwoofer and player.
B
Change the TV input to the input of this unit.
2
Press POWER X to turn on power to the unit.
3
Press Blu-ray to switch an input source for a player
used for playback.
4
Play the Blu-ray Disc player or DVD player.
0
This unit supports analog audio signals and PCM 2-channel signals. To play DVDs
and Blu-ray Discs, set “PCM 2ch” as the audio format in the audio device settings.
Contents Connections Playback Settings Tips Appendix
52
Front panel Display Rear panel Remote Index
Playing a USB memory device
CH/PAGE
df
USB
BACK
OPTION
ENTER
1
/
3
8
9
Cursor Up/Down/
Left/Right
0
Playing back music files stored on a USB memory device.
0
Only USB memory devices conforming to mass storage class standards
can be played on this unit.
0
This unit is compatible with USB memory devices in “FAT32” or “NTFS”
format.
0
The audio format types and specifications supported by this unit for
playback are as follows.
See “Playing back a USB memory devices” (v p. 198) for details.
0
WMA
0
MP3
0
WAV
0
MPEG-4 AAC
0
FLAC
0
Apple Lossless
0
DSD
Contents
Connections Playback Settings Tips Appendix
53
Front panel Display Rear panel Remote Index
Playing files stored on USB memory
devices
1
Insert a “FAT32” or “NTFS” formatted USB memory
device into the USB port.
2
Press USB to switch the input source to “USB”.
3
Select the name of this unit.
4
Browse the music on your USB memory device and
select something to play.
0

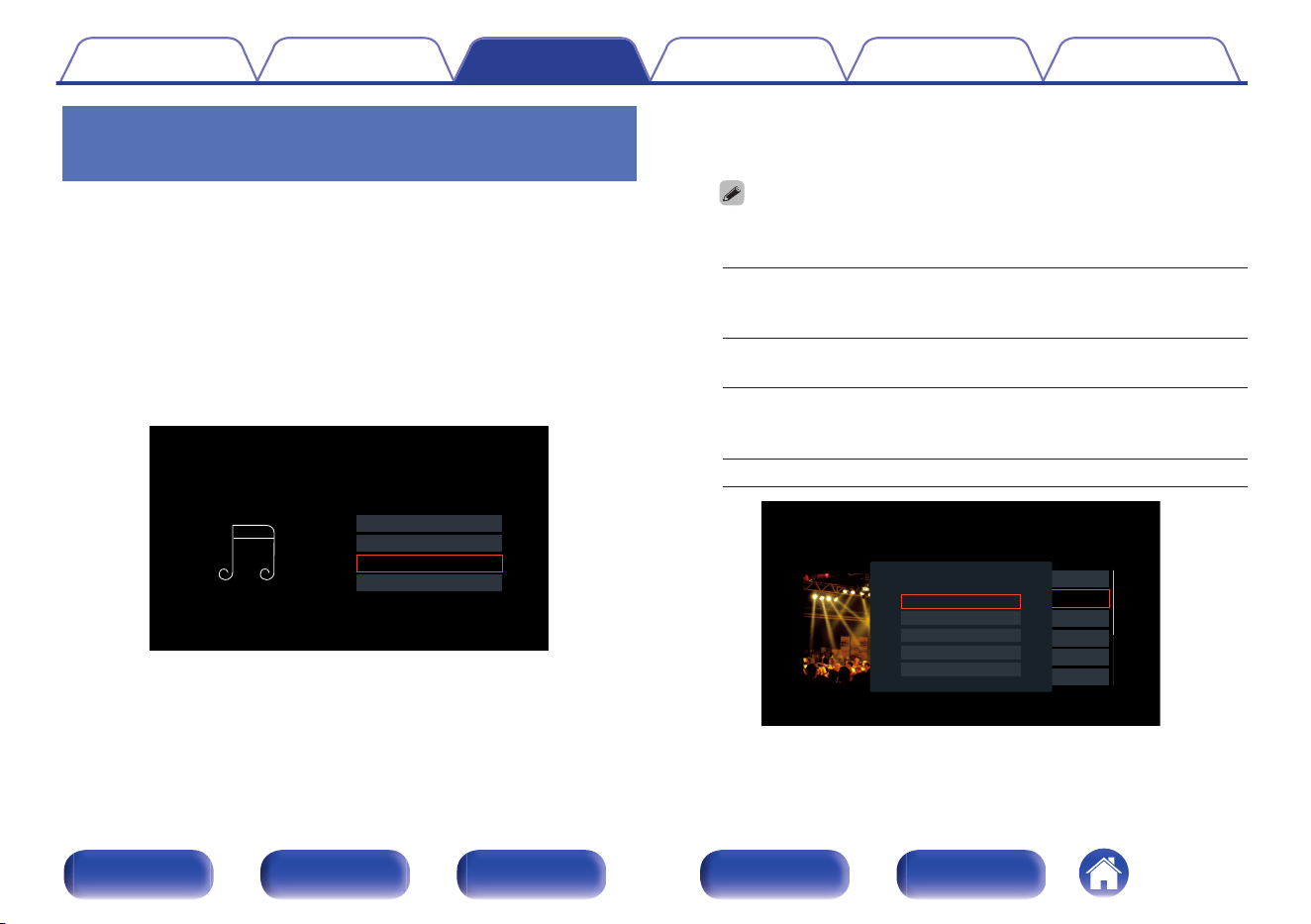

When you select something to play you will be asked how you want to
queue up your music.
Play Now:
Inserts the item into the queue after the
currently playing track and plays the
selected item immediately.
Play Now & Replace
Queue:
Clears the queue and plays the
selected item immediately.
Play Next:
Inserts the item into the queue after the
current song and plays it when the
current song ends.
Add to End of Queue: Adds the item to the end of the queue.
Nature 01
USB Music - Nature
Play Now
Play Now & Replace Queue
Play Next
Add to End of Queue
Cancel
Contents Connections Playback Settings Tips Appendix
54
Front panel Display Rear panel Remote Index
5
Use cursor Up/Down to select the “Play Now” or “Play
Now & Replace Queue”, then press ENTER.
Playback starts.
2:45
-14:21
Nature
Nature 01
-
Various Artists
Now Playing
Operation buttons Function
1/3
Playback / Pause
8 9
Skip to previous track / Skip to next track
CH/PAGE d f
Switch to the previous page/next page in
the list display
0
When an MP3 music file includes album art data, the album art can be displayed
while playing the file.
NOTE
0
Note that Denon will accept no responsibility whatsoever for any problems arising with
the data on a USB memory device when using this unit in conjunction with the USB
memory device.
0
When a USB memory device is connected to this unit, the unit loads all of the files
on the USB memory device. Loading may take a while if the USB memory device
contains a large number of folders and/or files.
Contents Connections Playback Settings Tips Appendix
55
Front panel Display Rear panel Remote Index
o
Operations accessible through the option
menu
0
“Adjust the sound output balance of left and right speakers
(Balance)” (v p. 94)
0
“Adjust the subwoofer output (Subwoofer)” (v p. 95)
0
“Adjusting the tone (Tone)” (v p. 96)
0
“Adjusting audio delay (Audio Delay)” (v p. 97)
0
“Displaying your desired video during audio playback (Video
Select)” (v p. 98)
0
“Playing the same music in all zones (All Zone Stereo)” (v p. 99)
Contents Connections Playback Settings Tips Appendix
56
Front panel Display Rear panel Remote Index
Listening to music on a Bluetooth device
1
/
3
8
9
OPTION
Bluetooth
POWER
X
BACK
Music files stored on Bluetooth devices such as smartphones, digital
music players, etc. can be enjoyed on this unit by pairing and connecting
this unit with the Bluetooth device.
Communication is possible up to a range of about 98.4 ft/30 m.
NOTE
0
To play back music from a Bluetooth device, the Bluetooth device needs to
support the A2DP profile.
Contents Connections Playback Settings Tips Appendix
57
Front panel Display Rear panel Remote Index
Playing music from Bluetooth device
In order to enjoy music from a Bluetooth device on this unit, the Bluetooth
device must first be paired with this unit.
Once the Bluetooth device has been paired, it does not need to be paired
again.
1
Press POWER X to turn on power to the unit.
2
Press Bluetooth.
When using for the first time, the unit will go into the pairing mode
automatically and “Pairing...” will appear on the display of the unit.
3
Activate the Bluetooth settings on your mobile device.
4
Select this unit when its name appears in the list of
devices displayed on the screen of the Bluetooth
device.
Connect to the Bluetooth device while “Pairing” is being displayed
on the display of the unit.
Perform the connection with the Bluetooth device close to the unit
(about 3.3 ft/1 m).
5
Play music using any app on your Bluetooth device.
0
The Bluetooth device can also be operated with the remote
control of this unit.
0
The next time the Bluetooth button is pressed on the remote
control unit, this unit automatically connects to the last Bluetooth
device that was connected.
Operation buttons
Function
1/3
Playback / Pause
8 9
Skip to previous track / Skip to next track
0
Press STATUS on this unit during playback to switch the display between Title
name, Artist name, Album name, etc.
Contents Connections Playback Settings Tips Appendix
58
Front panel Display Rear panel Remote Index
Pairing with other Bluetooth devices
Pair a Bluetooth device with this unit.
1
Activate the Bluetooth settings on your mobile device.
2
Press and hold Bluetooth on the remote control unit for
at least 3 seconds.
This unit will go into the pairing mode.
3
Select this unit when its name appears in the list of
devices displayed on the screen of the Bluetooth
device.
0
This unit can be paired with a maximum of 8 Bluetooth devices. When a 9th
Bluetooth device is paired, it will be registered in place of the oldest registered
device.
0
You can also enter pairing mode by pressing the OPTION button when the
Bluetooth playback screen is displayed and selecting “Pairing Mode” from the
displayed option menu.
NOTE
0
To operate the Bluetooth device with the remote control of this unit, the Bluetooth
device needs to support the AVRCP profile.
0
The remote control of this unit is not guaranteed to work with all Bluetooth devices.
0
Depending on the type of Bluetooth device, this unit outputs audio that is coupled
to the volume setting on the Bluetooth device.
o
Operations accessible through the option
menu
0
“Pairing with other Bluetooth devices” (v p. 59)
0
“Adjust the sound output balance of left and right speakers
(Balance)” (v p. 94)
0
“Adjust the subwoofer output (Subwoofer)” (v p. 95)
0
“Adjusting the tone (Tone)” (v p. 96)
0
“Adjusting audio delay (Audio Delay)” (v p. 97)
0
“Displaying your desired video during audio playback (Video
Select)” (v p. 98)
0
“Playing the same music in all zones (All Zone Stereo)” (v p. 99)
Contents
Connections Playback Settings Tips Appendix
59
Front panel Display Rear panel Remote Index
Reconnecting to this unit from a
Bluetooth device
After pairing is completed, the Bluetooth device can be connected without
performing any operations on this unit.
This operation also needs to be performed when switching the Bluetooth
device for playback.
1
If a Bluetooth device is currently connected, deactivate
the Bluetooth setting of that device to disconnect it.
2
Activate the Bluetooth setting of the Bluetooth device
to be connected.
3
Select this unit from the Bluetooth device list on your
Bluetooth device.
4
Play music using any app on your Bluetooth device.
0
The screen automatically switches to the “Bluetooth” playback screen if a
Bluetooth device is connected while the power of this unit is on.
0
When the “Network Control” setting of this unit is set to “Always On” and a
Bluetooth device is connected with the unit in the standby state, the power of the
unit will be turned on automatically. (v p. 149)
Contents
Connections Playback Settings Tips Appendix
60
Front panel Display Rear panel Remote Index
Listening to audio on Bluetooth headphones
You can listen to audio playing through the MAIN ZONE of this unit on Bluetooth headphones.
Output audio from connected speakers and Bluetooth headphones simultaneously, or only using Bluetooth headphones.
(Output Mode: Bluetooth Only)(Output Mode: Bluetooth + Speakers)
Contents Connections Playback Settings Tips Appendix
61
Front panel Display Rear panel Remote Index
Listening to audio on Bluetooth
headphones
1
Set “Transmitter” to “On” from the “General” -
“Bluetooth Transmitter” setting in the menu.
(v p. 158)
2
Select “Output Mode”, and set audio output method.
Bluetooth + Speakers
(Default):
Audio is output to Bluetooth
headphones and main zone speakers.
This simultaneous output is suitable for
family movie night and other group
activities.
Bluetooth Only:
Audio is output to Bluetooth
headphones only.
This is suitable for listening to music or
watching movies by yourself at night
when you need to keep quiet.
3
Enter pairing mode on the Bluetooth headphones you
want to connect to this unit.
4
Select “Device List” and select the name of the
Bluetooth headphones from the device list.
5
Adjust the volume of connected Bluetooth headphones
after the connection is completed.
0
“Output Mode” can also be set from “Bluetooth Transmitter” in the option menu.
0
A2DP profile-compatible Bluetooth speakers can be connected following the same
steps used to connect Bluetooth headphones.
NOTE
0
The volume of Bluetooth headphones cannot be adjusted through this unit’s
MASTER VOLUME or the VOLUME on the remote control unit. Adjust the volume
through the Bluetooth headphones.
0
If you are using Bluetooth headphones that do not have volume control, or if the
volume is insufficient, you can control the volume by adjusting the “Level” of the
“Bluetooth Transmitter” from the options menu. (v p. 63)
0
Stereo mode is fixed as the sound mode when using Bluetooth headphones. Any
sound modes and other audio settings are not reflected in audio output on
Bluetooth headphones.
Audio settings, sound modes and All Zone Stereo mode are not available while
using Bluetooth headphones and “Output Mode” is set to “Bluetooth Only”.
0
Audio may be delayed when sent over Bluetooth.
0
Bluetooth headphones cannot be connected when use a Bluetooth input source in
any zone.
Furthermore, selecting a Bluetooth input source in any zone will terminate the
connection between this unit and Bluetooth headphones.
0
Bluetooth headphones cannot be connected when this unit is grouped in the
HEOS App.
Contents
Connections Playback Settings Tips Appendix
62
Front panel Display Rear panel Remote Index
Adjusting the volume of Bluetooth
headphones
If you are using Bluetooth headphones that do not have volume control, or
if the volume is insufficient, you can control the volume by adjusting the
“Level” of the “Bluetooth Transmitter” from the options menu.
1
Press OPTION.
An option menu screen is displayed.
0
When the input source is “HEOS Music”, an option menu for
online music is displayed. Select “Receiver Options...”, then press
ENTER.
2
Use cursor Up/Down to select “Bluetooth Transmitter”,
then press ENTER.
The “Bluetooth Transmitter” screen is displayed.
3
Use cursor Up/Down to select “Level”.
4
Use cursor Left/Right to adjust the volume, then press
ENTER.
–50 dB – +10 dB (Default: 0 dB)
0
This setting applies to all connected Bluetooth headphones, regardless of type.
Reconnecting to a Bluetooth
headphones
Follow any of the steps below to reconnect the most recently used
Bluetooth headphones:
0
Reconnect to this unit with Bluetooth headphone's reconnect function.
0
Go to “Bluetooth Transmitter” and then select “Reconnect” within the
options menu.
0
If “Output Mode” is set to “Bluetooth + Speakers”, this unit will
automatically connect to the most recently used Bluetooth headphones
when power is turned on.
0
Select the device you wish to connect from the “Device List” under
“Bluetooth Transmitter” in the menu. (v p. 158)
Contents Connections Playback Settings Tips Appendix
63
Front panel Display Rear panel Remote Index
Disconnecting Bluetooth headphones
Complete any of the following steps to disconnect your Bluetooth
headphones:
0
Turn off your Bluetooth headphones.
0
Go to “Bluetooth Transmitter” and then select “Disconnect” within the
options menu.
0
In the setup menu, go to “General” - “Bluetooth Transmitter”, and set
“Transmitter” to Off. (v p. 158)
Contents Connections Playback Settings Tips Appendix
64
Front panel Display Rear panel Remote Index
Listening to FM/AM broadcasts
CH/PAGE
BACK
BAND
OPTION
TUNE +, –
MEMORY
MODE
TUNER
df
ENTER
Cursor Up/Down/
Left/Right
You can use the built-in tuner of this unit to listen to FM broadcasts and
AM broadcasts.
Make sure the FM antenna and AM loop antenna are connected to this
unit first.
Contents Connections Playback Settings Tips Appendix
65
Front panel Display Rear panel Remote Index
Listening to FM/AM broadcasts
1
Connect the antenna. (“Connecting FM/AM
antennas” (v p. 44))
2
Press TUNER to switch the input source to “Tuner”.
G TV screen H
OPTION
STEREO AUTO
CH 1
FM 92.10 MHz
Tuner
Tune Preset
Option
Now Playing
01 FM 92.10MHz
GDisplay of this unitH
3
Press OPTION.
The option menu screen is displayed.
4
Use cursor Up/Down to select “FM/AM”, then press
ENTER.
This displays the reception band input screen.
5
Use cursor Left/Right to select “FM” or “AM”, then
press ENTER.
FM: When listening to an FM broadcast.
AM: When listening to an AM broadcast.
6
Press TUNE + or TUNE – to select the station you want
listen to.
Scanning is performed until it finds an available radio station. When
it finds a radio station, it stops the scan automatically and tunes in.
0
The modes for receiving FM broadcasts consists of “Auto” mode that automatically
searches available broadcast stations and “Manual” mode that lets you tune in
using buttons to change the frequency. The default setting is “Auto”. You can also
use “Direct Tune” to tune in by entering the frequency directly.
In “Auto” mode, you cannot tune in to radio stations if the reception is not good.
If this is the case, then use the “Manual” mode or “Direct Tune” mode to tune in.
Operation buttons Function
TUNE +, – Selects the radio station (up/down)
BAND Switches between FM and AM
MODE Switching tuning mode
MEMORY Register presets
CH/PAGE d f
Selects preset radio stations
Cursor Up/Down Selects the radio station (up/down)
Cursor Left/Right Selects preset radio stations
Contents Connections Playback Settings Tips Appendix
66
Front panel Display Rear panel Remote Index
o
Operations accessible through the option
menu
0
“Tuning in by entering the frequency (Direct Tune)” (v p. 67)
0
“Changing the tune mode (Tune Mode)” (v p. 68)
0
“Tuning in to stations and presetting them automatically (Auto Preset
Memory)” (v p. 68)
0
“Presetting the current broadcast station (Preset
Memory)” (v p. 69)
0
“Specify a name for the preset broadcast station (Preset
Name)” (v p. 70)
0
“Skipping preset broadcast stations (Preset Skip)” (v p. 71)
0
“Adjust the sound output balance of left and right speakers
(Balance)” (v p. 94)
0
“Adjust the subwoofer output (Subwoofer)” (v p. 95)
0
“Adjusting the tone (Tone)” (v p. 96)
0
“Adjusting audio delay (Audio Delay)” (v p. 97)
0
“Displaying your desired video during audio playback (Video
Select)” (v p. 98)
0
“Playing the same music in all zones (All Zone Stereo)” (v p. 99)
Tuning in by entering the frequency
(Direct Tune)
You can enter the receiving frequency directly to tune in.
1
Press OPTION when the input source is “Tuner”.
The option menu screen is displayed.
2
Use cursor Up/Down to select “Direct Tune”, then
press ENTER.
The screen that lets you enter the frequency is displayed.
3
Use cursor Up/Down to select a number, then press
cursor Right.
0
If cursor Left is pressed, the immediately preceding input is
cancelled.
4
Repeat step 3 and enter the frequency of the radio
station you want to hear.
5
When setting is completed, press ENTER.
The preset frequency is tuned in.
Contents
Connections Playback Settings Tips Appendix
67
Front panel Display Rear panel Remote Index
Changing the tune mode (Tune Mode)
You can change the mode for tuning into FM and AM broadcasts. If you
cannot tune in automatically with “Auto” mode, change the mode to
“Manual” and tune in manually.
1
Press OPTION when the input source is “Tuner”.
The option menu screen is displayed.
2
Use cursor Up/Down to select “Tune Mode”, then press
ENTER.
3
Use cursor Left/Right to select the tune mode, then
press ENTER.
Auto:
Automatically search for and tune to a
receivable radio station.
Manual:
Manually change the frequency one
step at a time each time the button is
pressed.
Tuning in to stations and presetting
them automatically (Auto Preset
Memory)
A maximum of 56 radio stations can be automatically preset.
1
Press OPTION when the input source is “Tuner”.
The option menu screen is displayed.
2
Use cursor Up/Down to select “Auto Preset Memory”,
then press ENTER.
3
Press ENTER.
The unit starts to tune in to radio stations automatically and preset
them.
0
When presetting is completed, “Completed” is displayed for about
5 seconds and the option menu screen turns off.
0
The preset memory is overwritten.
Contents Connections Playback Settings Tips Appendix
68
Front panel Display Rear panel Remote Index
Presetting the current broadcast
station (Preset Memory)
Your favorite broadcast stations can be preset so that you can tune them
in easily.
Up to 56 stations can be preset.
1
Tune in the broadcast station you want to preset.
(“Listening to FM/AM broadcasts” (v p. 66))
2
Press OPTION.
The option menu screen is displayed.
3
Use cursor Up/Down to select “Preset Memory”, then
press ENTER.
The list of already preset channels is displayed.
4
Use cursor Up/Down to select the channel you want to
preset, then press ENTER.
The current broadcast station that is preset.
0
To preset other stations, repeat steps 1 to 4.
0
You can preset your favorite broadcast station by pressing MEMORY on the
remote control unit.
1. Tune in the broadcast station you want to preset.
(“Listening to FM/AM broadcasts” (v p. 66))
2. Press MEMORY.
3. Use cursor Up/Down to select the channel you want to preset.
4. Press MEMORY.
Channel Default settings
1 – 8
92.10 / 92.30 / 92.50 / 92.70 / 93.10 / 93.50 / 93.70 / 94.10
MHz
9 – 16
94.30 / 94.50 / 94.70 / 94.90 / 95.10 / 95.30 / 95.50 / 95.70
MHz
17 – 24
98.10 / 98.30 / 98.50 / 98.70 / 98.90 / 99.10 / 100.10 /
100.30 MHz
25 – 32
100.50 / 100.70 / 100.90 / 101.10 / 101.30 / 101.50 /
101.70 / 101.90 MHz
33 – 40
103.10 / 103.30 / 103.50 / 103.70 / 103.90 / 104.10 /
104.30 / 104.50 MHz
41 – 48
104.70 / 104.90 / 105.10 / 105.30 / 105.50 / 105.70 /
105.90 / 106.10 MHz
49 – 56
106.30 / 106.50 / 106.70 / 106.90 / 107.10 / 107.30 /
107.50 / 107.90 MHz
Listening to preset stations
1
Use CH/PAGE df to select the desired preset channel.
0
You can also select preset broadcast stations by pressing TUNER PRESET CH +
or TUNER PRESET CH – on the main unit.
Contents Connections Playback Settings Tips Appendix
69
Front panel Display Rear panel Remote Index
Specify a name for the preset
broadcast station (Preset Name)
You can set the name to the preset broadcast station or change it.
Up to 8 characters can be input.
1
Press OPTION when the input source is “Tuner”.
The option menu screen is displayed.
2
Use cursor Up/Down to select “Preset Name”, then
press ENTER.
The “Preset Name” screen is displayed.
3
Use cursor Left/Right to select the group of the
broadcast station you want to name.
4
Use cursor Up/Down to select the broadcast station
you want to name, then press ENTER.
The screen that lets you edit the Preset Name is displayed.
0
If you select “Clear”, then the unit returns to displaying the
frequency.
5
Enter the characters, then press “OK”.
6
Press OPTION to return to the previous screen.
Contents Connections Playback Settings Tips Appendix
70
Front panel Display Rear panel Remote Index
Skipping preset broadcast stations
(Preset Skip)
Perform auto preset memory to save all the broadcasting stations that can
be received in the memory. Selecting a broadcast station becomes easier
by skipping unnecessary memories.
1
Press OPTION when the input source is “Tuner”.
The option menu screen is displayed.
2
Use cursor Up/Down to select “Preset Skip”, then press
ENTER.
The “Preset Skip” screen is displayed.
3
n
To set the stations you want to skip by groups
A
Use cursor Left/Right to select the group of broadcast stations
you want to skip.
B
Press cursor Up to select “Set z – z to Skip”, then press
ENTER.
Skip all the broadcast stations that are included in the
selected group “z-z”.
(z is the selected group number.)
n
To set the stations you want to skip by stations
A
Use cursor Left/Right to select the group of broadcast
stations you want to skip.
B
Use cursor Up/Down to select the broadcast station you
want to skip.
C
Use cursor Left/Right to select “Skip”.
The station you selected is not displayed.
4
Press OPTION to return to the previous screen.
Contents Connections Playback Settings Tips Appendix
71
Front panel Display Rear panel Remote Index
Cancelling Preset Skip
1
While the “Preset Skip” screen is displayed, use cursor
Left/Right to select a group containing a broadcast
station to cancel the skip for.
2
Use cursor Up/Down to select a broadcast station to
cancel the skip for.
3
Use cursor Left/Right to select “On”.
The skip is cancelled.
NOTE
0
“Preset Skip” cannot be cancelled for groups.
Contents Connections Playback Settings Tips Appendix
72
Front panel Display Rear panel Remote Index
Listening to Internet Radio
CH/PAGE
df
BACK
OPTION
INTERNET
RADIO
1
/
3
8
9
ENTER
(HEOS Music)
Cursor Up/Down/
Left/Right
0
Internet Radio refers to radio broadcasts distributed over the Internet.
Internet Radio stations from around the world can be received.
0
The Internet Radio station list on this unit the database service provided
by TuneIn Radio service.
0
The audio format types and specifications supported by this unit for
playback are as follows.
See “Playing back Internet Radio” (v p. 201) for details.
0
WMA
0
MP3
0
MPEG-4 AAC
Contents Connections Playback Settings Tips Appendix
73
Front panel Display Rear panel Remote Index
Listening to Internet Radio
1
Press INTERNET RADIO.
0
You can also press R (HEOS Music). Use cursor Up/Down to
select “TuneIn Internet Radio”, then press ENTER.
2
Select the station you want to play.
Operation buttons Function
1/3
z
Playback / Pause
8 9
z
Skip to previous track / Skip to next track
CH/PAGE d f
Switch to the previous page/next page in
the list display
z Enabled when playing Podcasts.
0
The display switches between track title and radio station name etc. each time the
main unit’s STATUS is pressed.
NOTE
0
The radio station database service may be suspended or be otherwise unavailable
without notice.
o
Operations accessible through the option
menu
0
“Adding to HEOS Favorites” (v p. 94)
0
“Adjust the sound output balance of left and right speakers
(Balance)” (v p. 94)
0
“Adjust the subwoofer output (Subwoofer)” (v p. 95)
0
“Adjusting the tone (Tone)” (v p. 96)
0
“Adjusting audio delay (Audio Delay)” (v p. 97)
0
“Displaying your desired video during audio playback (Video
Select)” (v p. 98)
0
“Playing the same music in all zones (All Zone Stereo)” (v p. 99)
Contents
Connections Playback Settings Tips Appendix
74
Front panel Display Rear panel Remote Index
Playing back files stored on a PC or NAS
CH/PAGE
df
BACK
OPTION
1
/
3
8
9
BACK
(HEOS Music)
ENTER
Cursor Up/Down/
Left/Right
0
This unit can play back music files and playlists (m3u, wpl) from DLNA
compatible servers including PCs and NAS devices on your network.
0
Supported file formats:
For details, see “Playing back a file saved on a PC or
NAS” (v p. 200).
0
WMA
0
MP3
0
WAV
0
MPEG-4 AAC
0
FLAC
0
Apple Lossless
0
DSD
Contents Connections Playback Settings Tips Appendix
75
Front panel Display Rear panel Remote Index
Playing back files stored on a PC or
NAS
Use this procedure to play music files or playlists stored on DLNA files
servers on your local network.
1
Press R (HEOS Music).
If a playback history is present, the last Internet radio station or song
played is played back. Pressing R (HEOS Music) again displays the
HEOS Music top menu.
2
Use cursor Up/Down to select “Music Servers”, then
press ENTER.
USB Music
Music Servers
HEOS Favorites
TuneIn Internet Radio
Music
3
Select the name of your networked PC or NAS
(Network Attached Storage) server.
4
Browse the music on your PC/NAS and select
something to play.
0
When you select something to play you will be asked how you want to
queue up your music.
Play Now:
Inserts the item into the queue after the
currently playing track and plays the
selected item immediately.
Play Now & Replace
Queue:
Clears the queue and plays the
selected item immediately.
Play Next:
Inserts the item into the queue after the
current song and plays it when the
current song ends.
Add to End of Queue: Adds the item to the end of the queue.
Nature 01
Play Now
Play Now & Replace Queue
Play Next
Add to End of Queue
Cancel
Music Servers - Live
Contents Connections Playback Settings Tips Appendix
76
Front panel Display Rear panel Remote Index
5
Use cursor Up/Down to select the “Play Now” or “Play
Now & Replace Queue”, then press ENTER.
Playback starts.
2:45
-14:21
Live
Live 01
-
Various Artists
Now Playing
Operation buttons Function
1/3
Playback / Pause
8 9
Skip to previous track / Skip to next track
CH/PAGE d f
Switch to the previous page/next page in
the list display
0
The display switches between track title, artist name, and album title each time the
main unit’s STATUS is pressed.
0
When a WMA (Windows Media Audio), MP3 or MPEG-4 AAC file includes album
art data, the album art can be displayed while the music files are playing.
0
If you use Ver.11 or later of Windows Media Player, the album art for WMA files
can be displayed.
NOTE
0
When playing back music files with your PC or NAS connected through wireless
LAN, audio may be interrupted depending on your wireless LAN environment. In
this case, connect using a wired LAN.
0
The order in which the tracks/files are displayed depends on the server
specifications. If the tracks/files are not displayed in alphabetical order due to the
server specifications, searching by the first letter may not work properly.
Contents Connections Playback Settings Tips Appendix
77
Front panel Display Rear panel Remote Index
o
Operations accessible through the option
menu
0
“Adjust the sound output balance of left and right speakers
(Balance)” (v p. 94)
0
“Adjust the subwoofer output (Subwoofer)” (v p. 95)
0
“Adjusting the tone (Tone)” (v p. 96)
0
“Adjusting audio delay (Audio Delay)” (v p. 97)
0
“Displaying your desired video during audio playback (Video
Select)” (v p. 98)
0
“Playing the same music in all zones (All Zone Stereo)” (v p. 99)
Contents Connections Playback Settings Tips Appendix
78
Front panel Display Rear panel Remote Index
Getting the HEOS App
You can use many online music streaming services from the HEOS App. Depending upon your geographical location, there are several options to choose
from.
Download the HEOS App for iOS or Android by searching App Store, Google Play store or Amazon Appstore for “HEOS”.
Contents Connections Playback Settings Tips Appendix
79
Front panel Display Rear panel Remote Index
HEOS Account
HEOS Accounts can be registered by tapping “Music” tab - “Settings” icon
in the HEOS App.
Once you create or sign into your HEOS Account, you can use the HEOS
Favorites feature to save and recall your favorite streaming radio stations
using the on-screen user interface on your stereo receiver.
o
What is a HEOS Account?
A HEOS Account is master account or “keychain” for managing all of
your HEOS music services with one single username and password.
o
Why do I need a HEOS Account?
With the HEOS Account you just have to enter your music services
login names and passwords one time. This allows you to easily and
quickly use multiple controller apps on different devices.
You just log into your HEOS Account on any device and you will have
access to all of your associated music services, play history and
custom playlists, even if you are at a friend’s house listening to music
on their HEOS system.
o
Signing up for a HEOS Account
You will be instructed to signup for a HEOS Account the first time you
try to access any music service from the main “Music” menu of the
HEOS App.
o
Changing your HEOS Account
1
Tap the “Music” tab.
2
Select the Settings icon in the upper left corner of
the screen.
3
Select “HEOS Account”.
4
Change your location, change your password, delete
your account or sign out of your account.
0
This unit automatically synchronizes when you change your settings or sign out of
your account in the HEOS App.
Contents Connections Playback Settings Tips Appendix
80
Front panel Display Rear panel Remote Index
Playing from streaming music services
A music service is an online music company that provides access to vast
music collections via free and/or paid subscriptions. Depending upon your
geographical location, there are several options to choose from.
NOTE
0
The HEOS App and brand is not affiliated with any manufacturer of any mobile
device. Availability of music services may vary by region. Not all services may be
available at time of purchase. Some services may be added or discontinued from
time to time based on decisions of the music service providers or others.
o
Selecting a room/device
1
Tap the “Rooms” tab, and select “Denon DRA-900H” if
there are multiple products with HEOS Built-in.
0
Tap the Pencil icon at the top right to switch edit mode. You can change the
displayed name.
Song Name 1
Dining L + Dining R
Song Name 2
Kitchen
Song Name 3
Denon DRA-900H
Drag one room into another to group them
Rooms
Rooms Now PlayingMusic
Contents Connections Playback Settings Tips Appendix
81
Front panel Display Rear panel Remote Index

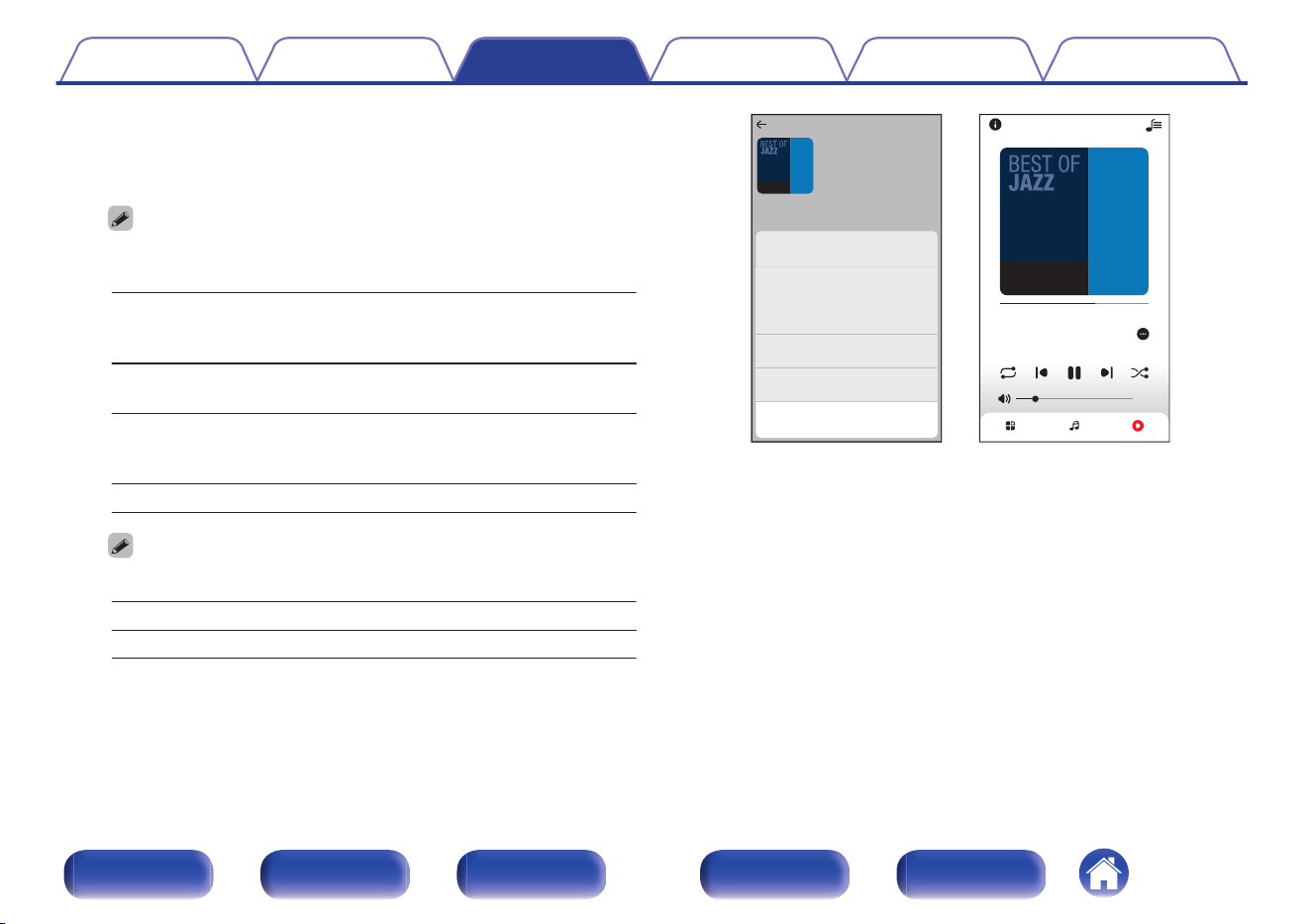

2
Browse the music to play.
After selecting a music track or radio station the app will
automatically change to the “Now Playing” screen.
0
When you select a music track to play you will be asked how you want to
queue up your music.
Play Now:
Inserts the item into the queue after the
currently playing track and plays the
selected item immediately.
Play Now & Replace
Queue:
Clears the queue and plays the
selected item immediately.
Play Next:
Inserts the item into the queue after the
current song and plays it when the
current song ends.
Add to End of Queue: Adds the item to the end of the queue.
0
When you select a radio station the following items are displayed.
Play Now: Plays the selected item immediately.
Add to HEOS Favorites: Adds to HEOS Favorites.
1 Track 1
2 Track 2
0:50
0:20
Now Playing
Track 01
Artist
2:51
-
1:40
Album
Play Now
HEOS 3 Now PlayingMusic
Cancel
Play Now & Replace Queue
Play Next
Add to End of Queue
Track 01
Rooms
Album
Album
10 Tracks,60 Mins.,2014
Artist
Rooms Now PlayingMusic
Contents Connections Playback Settings Tips Appendix
83
Front panel Display Rear panel Remote Index
Listening to the same music in multiple
rooms
This system is a true multi-room audio system. You can create one or
more HEOS groups to automatically synchronize audio playback between
multiple products with HEOS Built-in so that the music playing different
rooms is perfectly in sync and always sounds amazing! You can easily
add up to 32 products to your system in total. You can group up to 16
individual products to have them play the same song fully synchronized.
o
Grouping rooms
1
Press and hold your finger on room that is not playing
music.
2
Drag it into the room that is playing music and lift your
finger.
3
The two rooms will be grouped together into a single
device group and both rooms will be playing the same
music in perfect sync.
Drag one room into another to group them
Song Name 1
Dining
Rooms
Drag one room into another to group them
Song Name 1
Dining
Rooms
Rooms Now PlayingMusic
Rooms Now PlayingMusic
Song Name 3
Bedroom
Living
Song Name 2
Kitchen
Song Name 3
Bedroom
Living+Kitchen
Living
Kitchen
Song Name 2
Drag a room out of this group to ungroup it
2
1
3
Contents Connections Playback Settings Tips Appendix
84
Front panel Display Rear panel Remote Index
o

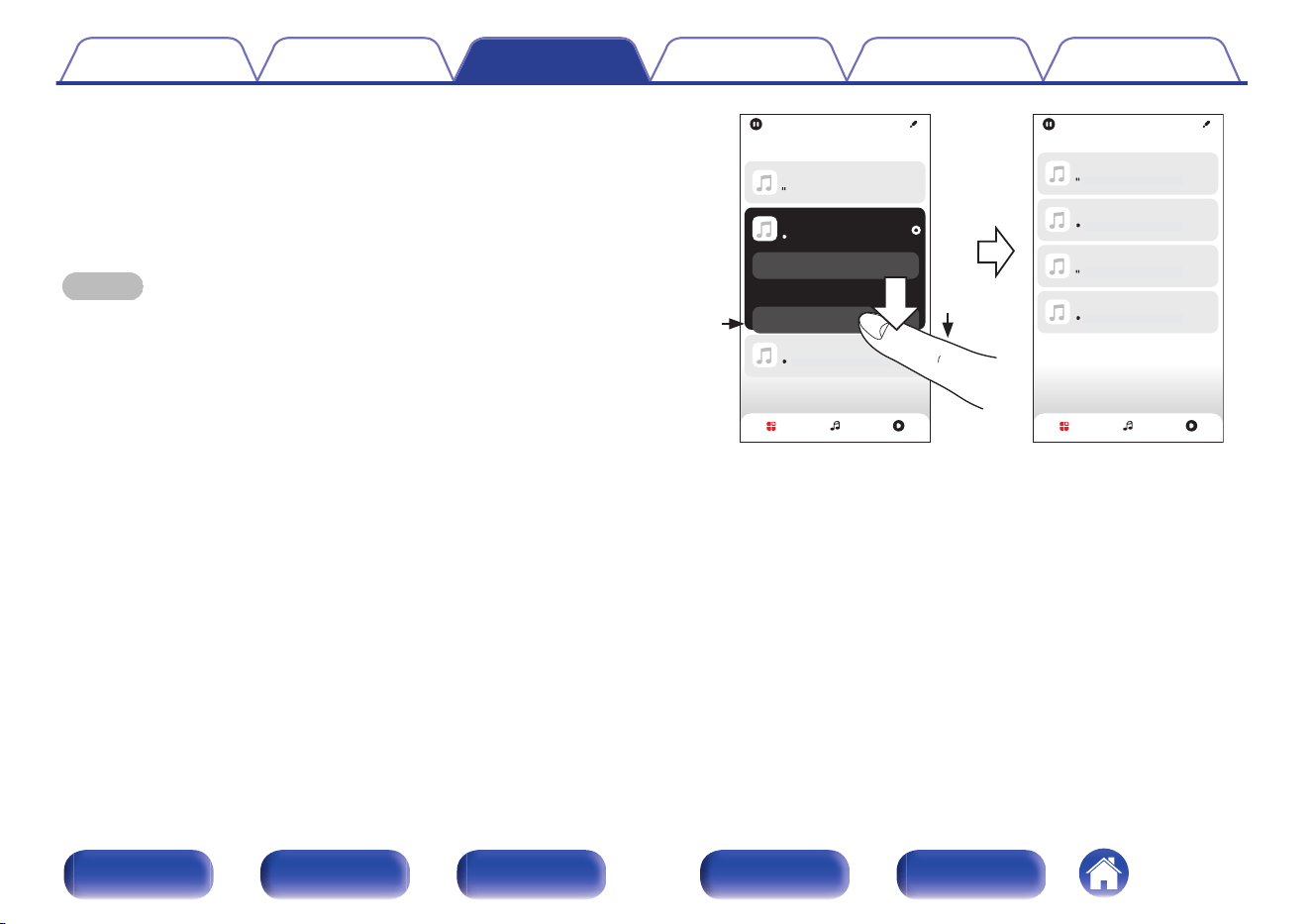

Ungrouping rooms
1
Press and hold your finger on room that you want to
remove from the group.
2
Drag it out of the group and lift your finger.
NOTE
0
You can not remove the first room that started playing the music before grouping.
Rooms
Song Name 4
Kitchen
Drag one room into another to group them
Song Name 1
Dining
Rooms
Song Name 3
Bedroom
Living
Song Name 2
Kitchen
Rooms Now PlayingMusic
Rooms Now PlayingMusic
Song Name 3
Bedroom
Song Name 2
Living
Song Name 1
Dining
Drag one room into another to group them
Living
2
1
Contents Connections Playback Settings Tips Appendix
85
Front panel Display Rear panel Remote Index
o

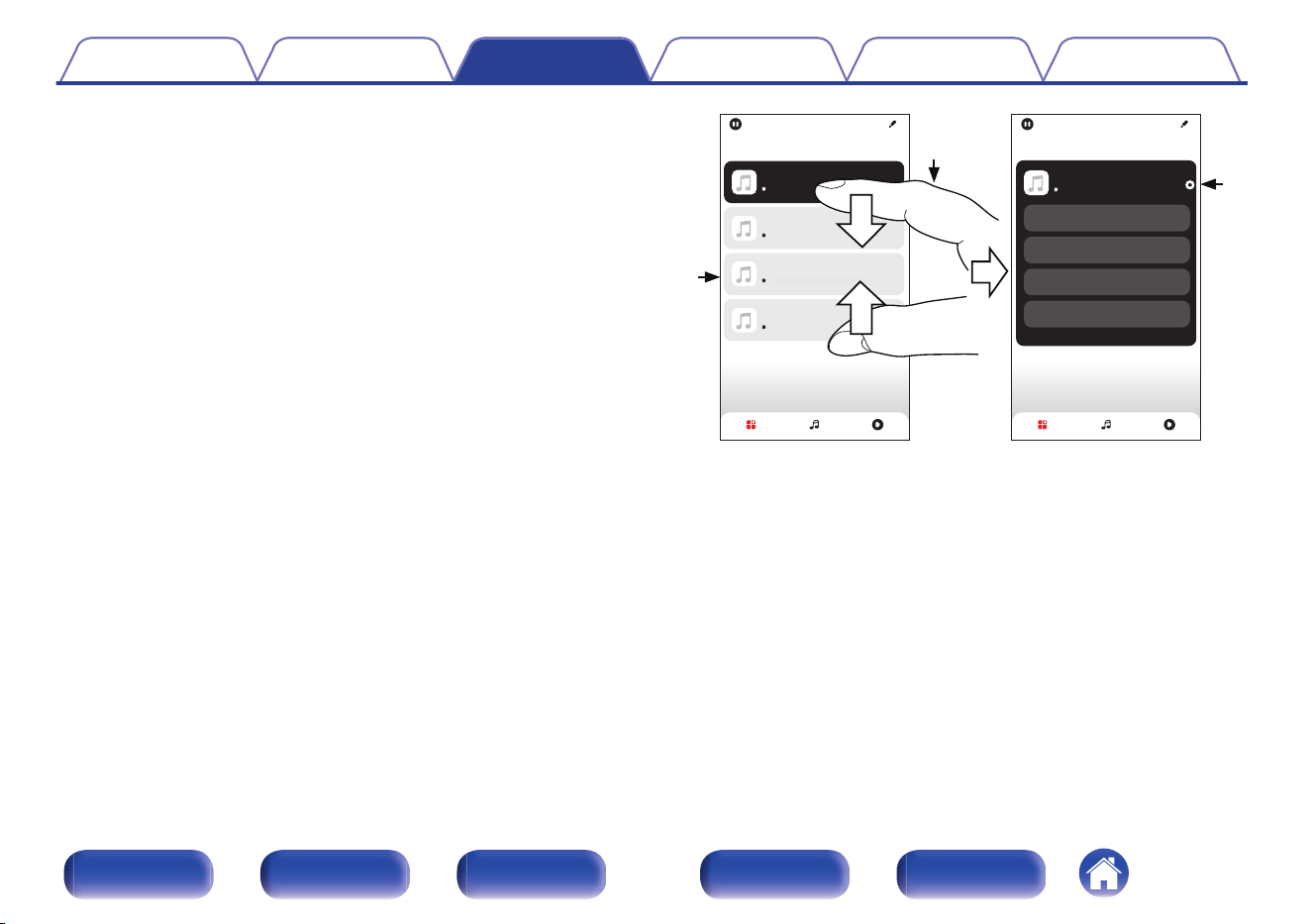

Grouping all rooms (party mode)
You can easily group 16 rooms together into Party Mode by using a
"pinch" gesture.
1
Place two fingers on the screen over the list of rooms.
2
Quickly pinch your two fingers together and release.
3
All of your rooms will be joined together and begin
playing the same music in perfect sync.
Drag one room into another to group them
Rooms
Bedroom
Kitchen
Living
Dining
Drag a room out of this group to ungroup it
Song Name 1
Dining+Living+...
Drag one room into another to group them
Song Name 2
Living
Rooms
Song Name 3
Kitchen
Song Name 4
Bedroom
Rooms Now PlayingMusic
Rooms Now PlayingMusic
Song Name 1
Dining
1
2
3
Contents Connections Playback Settings Tips Appendix
86
Front panel Display Rear panel Remote Index
o

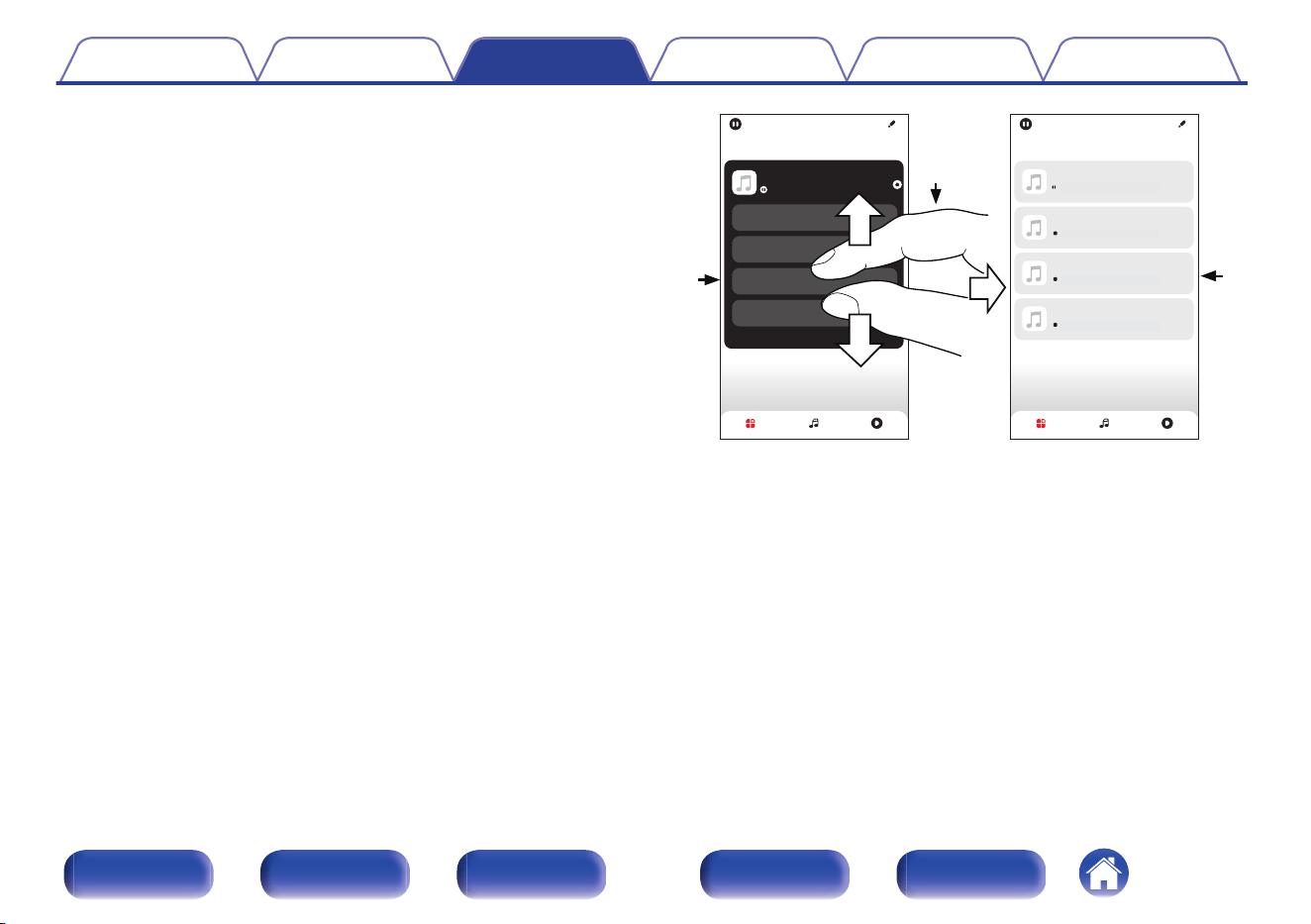

Ungrouping all rooms
You can easily ungroup all of your rooms and exit Party Mode by using
a "spread" gesture.
1
Place two fingers close together on the screen over list
of rooms.
2
Quickly spread your two fingers apart from each other
and release.
3
All of your rooms will be ungrouped.
Rooms
Drag one room into another to group them
Rooms
Bedroom
Kitchen
Living
Dining
Drag a room out of this group to ungroup it
Song Name 1
Dining
Rooms Now PlayingMusic Rooms Now PlayingMusic
Song Name 3
Kitchen
Song Name 4
Bedroom
Song Name 2
Living
Song Name 1
Dining
Drag one room into another to group them
1
2
3
Contents Connections Playback Settings Tips Appendix
87
Front panel Display Rear panel Remote Index
AirPlay function
Music files stored on your iPhone, iPod touch, iPad or iTunes can be
played on this unit via the network.
0
Source input will be switched to “HEOS Music” when AirPlay playback is started.
0
You can stop AirPlay playback by choosing other input source.
0
To see song and artist names together, press STATUS on the main unit.
0
For information about how to use iTunes, also see the Help for iTunes.
0
The screen may differ depending on the OS and software versions.
This unit supports AirPlay 2.
Sync multiple AirPlay 2 compatible devices/speakers for simultaneous
playback.
0
This unit supports AirPlay 2 and requires iOS 11.4 or later.
PC
Router
This unit
Contents Connections Playback Settings Tips Appendix
88
Front panel Display Rear panel Remote Index
Playing songs from your iPhone, iPod
touch or iPad
If you update your “iPhone/iPod touch/iPad” to iOS 10.0.2 or later, you can
stream music stored in your “iPhone/iPod touch/iPad” directly to this unit.
1
Connect your iPhone, iPod touch or iPad Wi-Fi to the
same network as this unit.
0
For details, see your device’s manual.
2
Play the song on your iPhone, iPod touch or iPad.
AirPlay icon is displayed on the iPhone, iPod touch or iPad screen.
3
Tap the AirPlay icon and select this unit.
AirPlay
AirPlay
D
rop:
AirDrop:
ryone
ryone
[Example] iOS 15
[Example] iOS 10
Playing iTunes music with this unit
1
Install iTunes 10, or later, on a Mac or Windows PC that
is connected to the same network as this unit.
2
Turn this unit ON.
Set “Network Control” to “Always On” for this unit. (v p. 149)
NOTE
0
When “Network Control” is set to “Always On”, the unit consumes more
standby power.
3
Start iTunes and click the AirPlay icon to select this
unit.
[Example] iTunes
4
Choose a song and click play in iTunes.
The music will stream to this unit.
Contents
Connections Playback Settings Tips Appendix
89
Front panel Display Rear panel Remote Index
NOTE
0
In playback using the AirPlay function, the sound is output at the iPhone, iPod
touch, iPad or iTunes volume setting level.
You should turn down the iPhone, iPod touch, iPad or iTunes volume prior to
playback and then adjust it to a suitable level.
Play a song from your iPhone, iPod
touch or iPad on multiple synced
devices (AirPlay 2)
Songs from an iPhone, iPod touch or iPad operating iOS 11.4 or later can
be synced with multiple AirPlay 2 supported devices for simultaneous
playback.
1
Play the song on your iPhone, iPod touch or iPad.
AirPlay icon is displayed on the iPhone, iPod touch or iPad screen.
2
Tap the AirPlay icon and select this unit.
Displays a list of devices/speakers that can be played back on the
same network.
0
A circle is displayed to the right of AirPlay 2 compatible devices.
iPhone
AirPlay
Living Room
Denon xxxxxxxx
Song - Artist
Bedroom
Speakers & TVs
3
Tap the devices/speakers you want to use.
0
Multiple AirPlay 2 compatible devices can be selected.
iPhone
AirPlay
Living Room
Denon xxxxxxxx
Bedroom
Speakers & TVs
Contents
Connections Playback Settings Tips Appendix
90
Front panel Display Rear panel Remote Index
Spotify Connect function
Spotify is all the music you’ll ever need. Millions of songs available
instantly. Just search for the music you love, or let Spotify play you
something great. Spotify works on your phone, tablet, computer and home
speakers. So you’ll always have the perfect soundtrack for whatever
you’re doing. Now you can enjoy Spotify with your free account as well as
Premium account.
Use your phone, tablet or computer as a remote control for Spotify.
Go to www.spotify.com/connect to learn how.
The Spotify software is subject to third party licenses found here:
www.spotify.com/connect/third-party-licenses
Spotify server
Control
This unit
Spotify App
Audio
streaming/
control
Playing Spotify music with this unit
Download the “Spotify App” onto your Android or iOS device beforehand.
1
Connect the Wi-Fi settings of the iOS or Android device
in the same network as this unit.
2
Launch the Spotify App.
3
Play back the Spotify track.
4
Tap the Spotify icon F to select the unit.
The music will stream to this unit.
Contents Connections Playback Settings Tips Appendix
91
Front panel Display Rear panel Remote Index
Convenience functions
OPTION
ENTER
(HEOS Music)
MAIN
Cursor Up/Down/
Left/Right
This section explains how to use convenient functions that can be used for
each input source.
These functions can only be set in the MAIN ZONE.
Contents Connections Playback Settings Tips Appendix
92
Front panel Display Rear panel Remote Index
Playing back HEOS Favorites
When using the HEOS Favorites function for the first time on this unit,
create a HEOS Account on the HEOS App or sign in to your account.
Once you create or sign into your HEOS Account, you can use the HEOS
Favorites feature to save and recall your favorite streaming radio stations
using the on-screen user interface on your stereo receiver.
1
Press R (HEOS Music).
If a playback history is present, the last Internet radio station or song
played is played back. Pressing R (HEOS Music) again displays the
HEOS Music top menu.
2
Use cursor Up/Down to select “HEOS Favorites”, then
press ENTER.
USB Music
Music Servers
HEOS Favorites
TuneIn Internet Radio
Music
3
Browse the content and select something to play.
0
“HEOS Favorites - Use HEOS app” is displayed when this unit is not synced with a
HEOS Account in the HEOS App.
Contents Connections Playback Settings Tips Appendix
93
Front panel Display Rear panel Remote Index
Adding to HEOS Favorites
1
While content is playing, press OPTION.
The option menu screen is displayed.
2
Use cursor Up/Down to select “Add to HEOS
Favorites”, then press ENTER.
Deleting a HEOS Favorites
1
While the HEOS Favorites content list is displayed, use
cursor Up/Down to select the item you want to remove
from HEOS Favorites, then press OPTION.
2
Use cursor Up/Down to select “Remove from HEOS
Favorites”, then press ENTER.
Adjust the sound output balance of left
and right speakers (Balance)
Adjust the balance in sound output between the left and right speakers.
1
Press OPTION.
An option menu screen is displayed.
0
When the input source is “HEOS Music”, an option menu for
online music is displayed. Select “Receiver Options...”, then press
ENTER.
2
Use cursor Up/Down to select “Balance”, then press
ENTER.
The “Balance” screen is displayed.
3
Use cursor Left/Right to adjust the sound output
balance of the left and right speakers then press
ENTER.
L 12 – R 12 (Default: 0)
0
“Balance” setting is stored for each input source.
0
This item cannot be set when the sound mode is set to “Direct” or “Pure Direct”.
0
You cannot set this when no audio signal is input or in the menu “HDMI Audio Out”
is set to “TV”. (v p. 129)
0
You can also adjust the sound output balance between the left and right speakers
by turning the BALANCE knob on the main unit.
Contents Connections Playback Settings Tips Appendix
94
Front panel Display Rear panel Remote Index
Adjust the subwoofer output
(Subwoofer)
Adjusts the subwoofer channel volume.
1
Press OPTION.
An option menu screen is displayed.
0
When the input source is “HEOS Music”, an option menu for
online music is displayed. Select “Receiver Options...”, then press
ENTER.
2
Use cursor Up/Down to select “Subwoofer”, then press
ENTER.
The “Subwoofer” screen is displayed.
3
Use cursor Left/Right to turn subwoofer output on and
off.
On
(Default):
The subwoofer is used.
Off: The subwoofer is not used.
4
Select “On” in step 3 and press cursor Down to adjust
the subwoofer channel volume.
-12.0 dB – +12.0 dB (Default : 0.0 dB)
0
“Subwoofer” setting is stored for each input source.
0
You cannot set this when “Speaker Layout” - “Subwoofer” is set to “No”.
(v p. 142)
0
You cannot set this when no audio signal is input or in the menu “HDMI Audio Out”
is set to “TV”. (v p. 129)
Contents
Connections Playback Settings Tips Appendix
95
Front panel Display Rear panel Remote Index
Adjusting the tone (Tone)
Adjusts the tonal quality of the sound.
1
Press OPTION.
An option menu screen is displayed.
0
When the input source is “HEOS Music”, an option menu for
online music is displayed. Select “Receiver Options...”, then press
ENTER.
2
Use cursor Up/Down to select “Tone”, then press
ENTER.
The “Tone” screen is displayed.
3
Select the sound range to be adjusted.
Bass: Adjust bass.
Treble: Adjust treble.
4
Use cursor Left/Right to adjust the tone, then press
ENTER.
-6 dB – +6 dB (Default : 0 dB)
0
“Tone” settings are stored for each input source.
0
This cannot be set when the sound mode is set to “Direct” or “Pure Direct”.
0
You cannot set this when no audio signal is input or in the menu “HDMI Audio Out”
is set to “TV”. (v p. 129)
0
You can also adjust the tone by turning the BASS and TREBLE knobs on the main
unit.
Contents Connections Playback Settings Tips Appendix
96
Front panel Display Rear panel Remote Index
Adjusting audio delay (Audio Delay)
Compensates for incorrect timing between video and audio.
1
Press OPTION.
An option menu screen is displayed.
0
When the input source is “HEOS Music”, an option menu for
online music is displayed. Select “Receiver Options...”, then press
ENTER.
2
Use cursor Up/Down to select “Audio Delay”, then
press ENTER.
The “Audio Delay” screen is displayed.
3
Use cursor Left/Right to set the auto lip sync function
to on/off.
On
(Default):
Automatically adjusts the audio
processing time to compensate for
delays in audio/video timing from TV
compatible with Auto Lip Sync.
Off: Do not adjust automatically.
4
Press cursor Down to select “Adjust” if the timing
mismatch between the picture and sound need to be
corrected manually, then use cursor Left/Right to
adjust the timing.
0 ms – 500 ms (Default : 0 ms)
0
“Audio Delay” settings are stored for each input source.
0
Automatic correction may not be performed depending on the specifications of
your TV even when “Auto Lip Sync” is set to “On”.
0
You can also finely adjust the delay correction value set by “Auto Lip Sync”.
Contents
Connections Playback Settings Tips Appendix
97
Front panel Display Rear panel Remote Index
Displaying your desired video during
audio playback (Video Select)
This unit can display video from a different source on TV during audio
playback. You can set this for each input source.
n
Supported input sources:
CD
z
/ Tuner / HEOS Music / Phono
z
This cannot be set when any of the HDMI connector is assigned.
1
Press OPTION.
An option menu screen is displayed.
0
When the input source is “HEOS Music”, an option menu for
online music is displayed. Select “Receiver Options...”, then press
ENTER.
2
Use cursor Up/Down to select “Video Select”, then
press ENTER.
The “Video Select” screen is displayed.
3
Use cursor Left/Right to select the Video Select mode.
Off
(Default):
Disable Video Select mode.
On: Enable Video Select mode.
4
If you selected “On” in step 3, press cursor Down and
select “Source”.
5
Use cursor Left/Right to select the input source for
video you want to play back, then press ENTER.
Last
(Default):
Plays the video from the last input
source that was played.
CBL/SAT /
Media Player /
Blu-ray / Game /
AUX1 / AUX2 /
TV Audio / CD:
Plays the video from the selected input
source.
z
z
You can select the input source to which the HDMI terminal is assigned.
0
“Video Select” settings are stored for each input source.
Contents Connections Playback Settings Tips Appendix
98
Front panel Display Rear panel Remote Index
Playing the same music in all zones (All
Zone Stereo)
You can play back the music being played back in MAIN ZONE
simultaneously in ZONE2 (another room).
It is useful when you want to enjoy the same music at the same time in
multiple rooms during home party or when you want to play back the same
BGM in the entire house.
1
Press OPTION.
An option menu screen is displayed.
0
When the input source is “HEOS Music”, an option menu for
online music is displayed. Select “Receiver Options...”, then press
ENTER.
2
Use cursor Up/Down to select “All Zone Stereo”, then
press ENTER.
The “All Zone Stereo” screen is displayed.
3
Select “Start”, then press ENTER.
The input source for ZONE2 is switched to the same input source as
for MAIN ZONE, and playback starts in the All Zone Stereo mode.
o
Stopping the All Zone Stereo mode
1
During playback in All Zone Stereo mode, press
OPTION.
An option menu screen is displayed.
0
When the input source is “HEOS Music”, an option menu for
online music is displayed. Select “Receiver Options...”, then press
ENTER.
2
Use cursor Up/Down to select “All Zone Stereo”, then
press ENTER.
3
Select “Stop”, then press ENTER.
0
The All Zone Stereo mode is canceled even when the power supply of the MAIN
ZONE is turned off.
0
In the “All Zone Stereo” mode, only the “Stereo” sound modes can be selected.
0
When “HDMI Audio Out” is set to “TV”, the All Zone Stereo mode is not available.
(v p. 129)
0
Save the All Zone Stereo mode playback status to the Quick Select Plus function
to enable simple playback in All Zone Stereo mode with a single touch.
Contents Connections Playback Settings Tips Appendix
99
Front panel Display Rear panel Remote Index

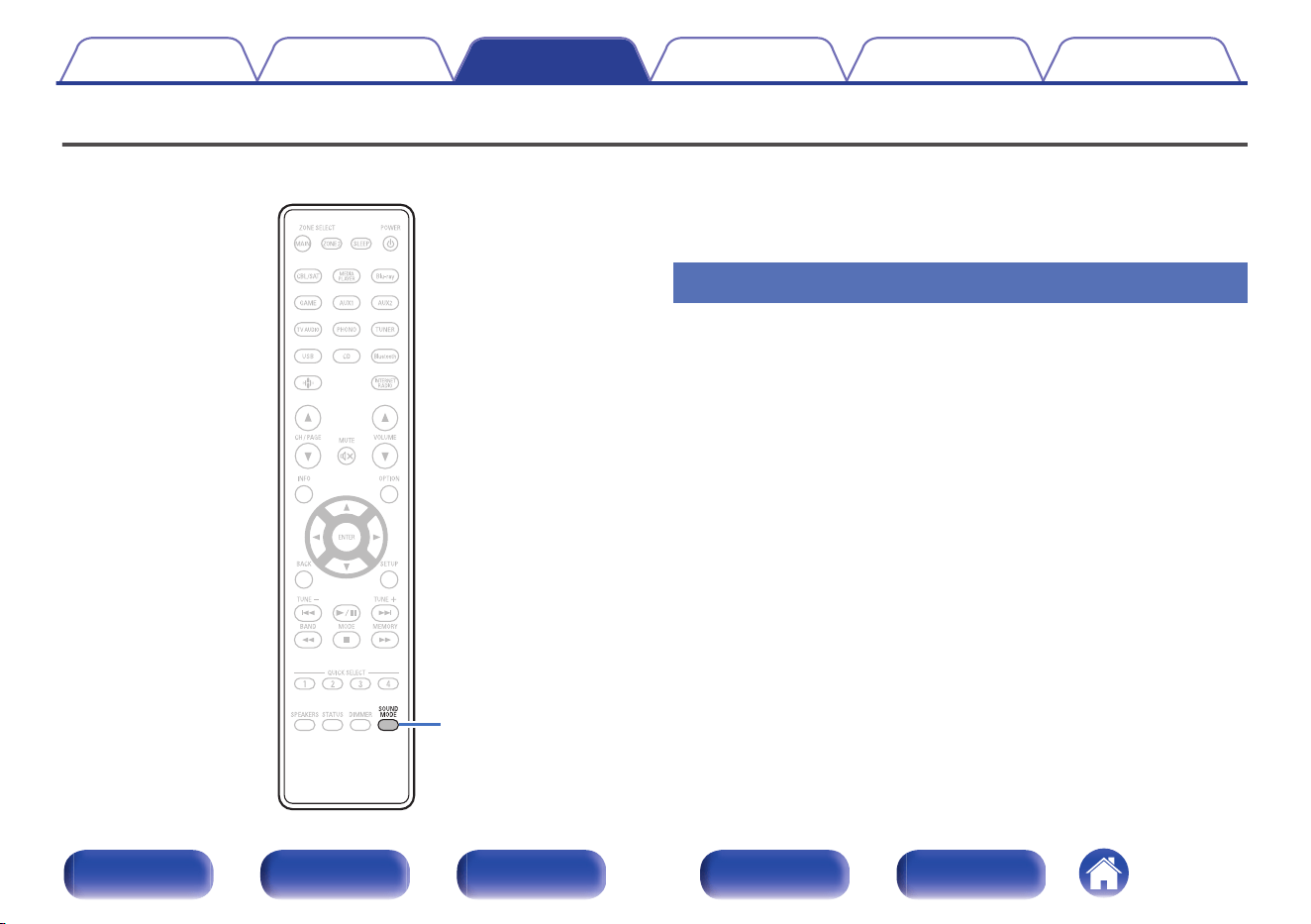

Selecting a sound mode
SOUND
MODE
This unit has a selection of sound modes for you to enjoy: a Direct mode
that plays audio exactly as it is recorded on the input source, a Stereo
mode that adjusts the bass and treble output and a Pure Direct mode that
enhances the quality of the audio that is played in Direct mode.
Selecting a sound mode
1
Press SOUND MODE to select a sound mode.
Contents Connections Playback Settings Tips Appendix
100
Front panel Display Rear panel Remote Index
Description of sound mode types
Sound mode type Description
Stereo Plays audio in 2-channel stereo mode.
The sound can be adjusted using the Restorer, Tone (BASS, TREBLE) and Balance functions.
Direct The signal does not pass through the Restorer, tone adjustment (BASS and TREBLE) and BALANCE circuitry, resulting in
playback of a higher sound quality.
Pure Direct This mode plays back an even higher quality sound than the “Direct” mode.
The following circuits are stopped in order to further improve sound quality.
0
Display indicator circuit of the main body (display will go off.)
Contents Connections Playback Settings Tips Appendix
101
Front panel Display Rear panel Remote Index
HDMI Control function
A recent addition to the HDMI standard is CEC (Consumer Electronics Control), which allows control signals from one device to communicate with
another device via the HDMI cable connection.
Setting procedure
1
Enable the HDMI Control function of this unit.
Set “HDMI Control” to “On”. (v p. 131)
2
Turn the power on for all the devices connected by
HDMI cable.
3
Set the HDMI Control function for all devices connected
by HDMI cable.
0
Please consult the operating instructions for the connected
devices to check the settings.
0
Carry out steps 2 and 3 should any of the devices be unplugged.
4
Switch the television input to the HDMI input connected
to this unit.
5
Switch the input source of this unit to check that video
from the player connected by HDMI is played back
correctly.
6
When you turn the TV’s power to standby, check that
the power of this unit also goes to standby.
NOTE
0
Some functions may not operate depending on the connected TV or player. Check
the owner’s manual of each device for details beforehand.
Contents Connections Playback Settings Tips Appendix
102
Front panel Display Rear panel Remote Index
Sleep timer function
SLEEP
MAIN
ZONE2
You can have the power automatically switched to standby once a set time
has elapsed. This is convenient for viewing and listening while going to
sleep. The sleep timer function can be set for each zone.
Contents Connections Playback Settings Tips Appendix
103
Front panel Display Rear panel Remote Index
Using the sleep timer
1
Press MAIN or ZONE2 to select the operating zone with
the remote control.
The button for the selected zone is lit.
2
Press SLEEP and display the time you want to set.
0
The SLEEP indicator lights up on the display and the sleep timer
starts.
0
You can set the sleep timer in the range from 10 to 120 minutes in
steps of 10 minutes.
o
Checking the remaining time
Press SLEEP when the sleep timer is in operation.
The remaining time appears on the display.
o
To cancel the sleep timer
Press SLEEP to select “Off”.
The SLEEP indicator on the display turns off.
0
The sleep timer setting is canceled when the unit switches to standby mode.
NOTE
0
The sleep timer function cannot turn off the power of devices connected to this
unit. To turn off the power of those connected devices, set up sleep timers on the
connected devices themselves.
Contents Connections Playback Settings Tips Appendix
104
Front panel Display Rear panel Remote Index
Quick select plus function
QUICK
SELECT
1 – 4
MAIN
ZONE2
Settings such as the input source, volume level and sound mode can be
registered to the QUICK SELECT 1 - 4 buttons.
You can simply press one of the registered QUICK SELECT buttons in
subsequent playbacks to switch to the group of saved settings in a batch.
By saving frequently used settings at the QUICK SELECT 1 – 4 buttons,
you will always be able to easily call up the same playback environment.
The Quick Select Plus function can be memorized for each zone.
0
The QUICK SELECT button on main unit can only be used to operate the MAIN
ZONE.
Contents Connections Playback Settings Tips Appendix
105
Front panel Display Rear panel Remote Index
Calling up the settings
1
Press MAIN or ZONE2 to select the operating zone with
the remote control.
The button for the selected zone is lit.
2
Press QUICK SELECT.
The Quick Select settings registered to the button you pressed are
called up.
0
The default settings for the input source are as shown below.
GMAIN ZONEH
Button Input source
QUICK SELECT 1 CBL/SAT
QUICK SELECT 2 Blu-ray
QUICK SELECT 3 CD
QUICK SELECT 4 HEOS Music
GZONE2H
Button Input source
QUICK SELECT 1 CBL/SAT
QUICK SELECT 2 –
QUICK SELECT 3 CD
QUICK SELECT 4 HEOS Music
0
Volume is not registered to Quick Select Plus in the factory default settings.
See “Changing the settings” to register volume to Quick Select Plus. (v p. 107)
Contents Connections Playback Settings Tips Appendix
106
Front panel Display Rear panel Remote Index
Changing the settings
1
Set the items below to the settings you want to
register.
The following settings from A to I can be memorized for MAIN
ZONE, and settings A and B can be memorized for ZONE2.
A
Input source (v p. 51)
B
Volume (v p. 52)
C
Sound mode (v p. 100)
D
“Restorer” (v p. 127)
E
“Adjust the sound output balance of left and right speakers
(Balance)” (v p. 94)
F
“Adjust the subwoofer output (Subwoofer)” (v p. 95)
G
“Displaying your desired video during audio playback (Video
Select)” (v p. 98)
H
“TV Audio sharing settings” (v p. 108)
I
“Playing the same music in all zones (All Zone
Stereo)” (v p. 99)
0
Press and hold QUICK SELECT while a radio station is being received is
being played back with any of the following sources, the current radio
station is memorized.
0
Tuner / Internet Radio Station / Spotify
2
Press MAIN or ZONE2 to select the operating zone with
the remote control.
The button for the selected zone is lit.
3
Press and hold the desired QUICK SELECT until
“Quickz Memory” or “Z2 Quickz Memory” appear on
the display.
The current settings will be memorized.
z is displayed the number for the QUICK SELECT button you
pressed.
o
Changing setting items in Quick Select
You can change the MAIN ZONE Quick Select names displayed on
the TV screen or this unit’s display and saved setting items.
See “Quick Select” in the menu for details on how to make these
changes. (v p. 160)
Contents
Connections Playback Settings Tips Appendix
107
Front panel Display Rear panel Remote Index
o
TV Audio sharing settings
You can enjoy the same content as the MAIN ZONE in ZONE2 while
playing the content from TV or other playback devices in the MAIN
ZONE.
By saving the following settings in advance to Quick Select, you can
easily call up the playback environments to be used in the MAIN
ZONE and ZONE2 with this function.
1
Select the input source to play back in the MAIN ZONE.
2
Press ZONE2 ON/OFF on the main unit to turn on the
power of ZONE2.
3
Press ZONE2 SOURCE on the main unit to switch the
input source of ZONE2 to “Source”.
If “Source” is selected as the input source of ZONE2, the input
source is changed to mirror that of the MAIN ZONE.
4
Press and hold the desired QUICK SELECT until “Quick
Select* Memory” appears on the display.
Contents Connections Playback Settings Tips Appendix
108
Front panel Display Rear panel Remote Index

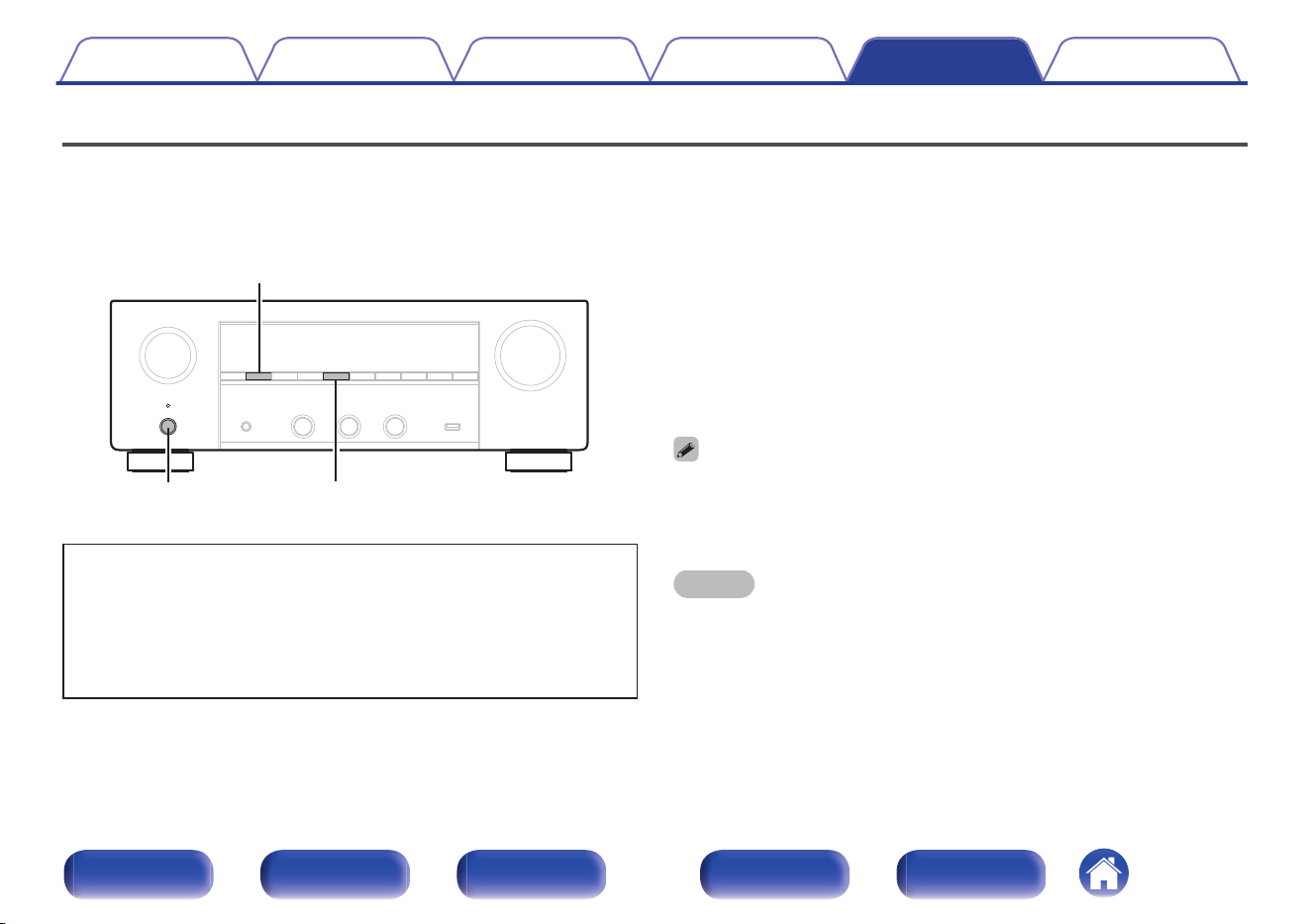

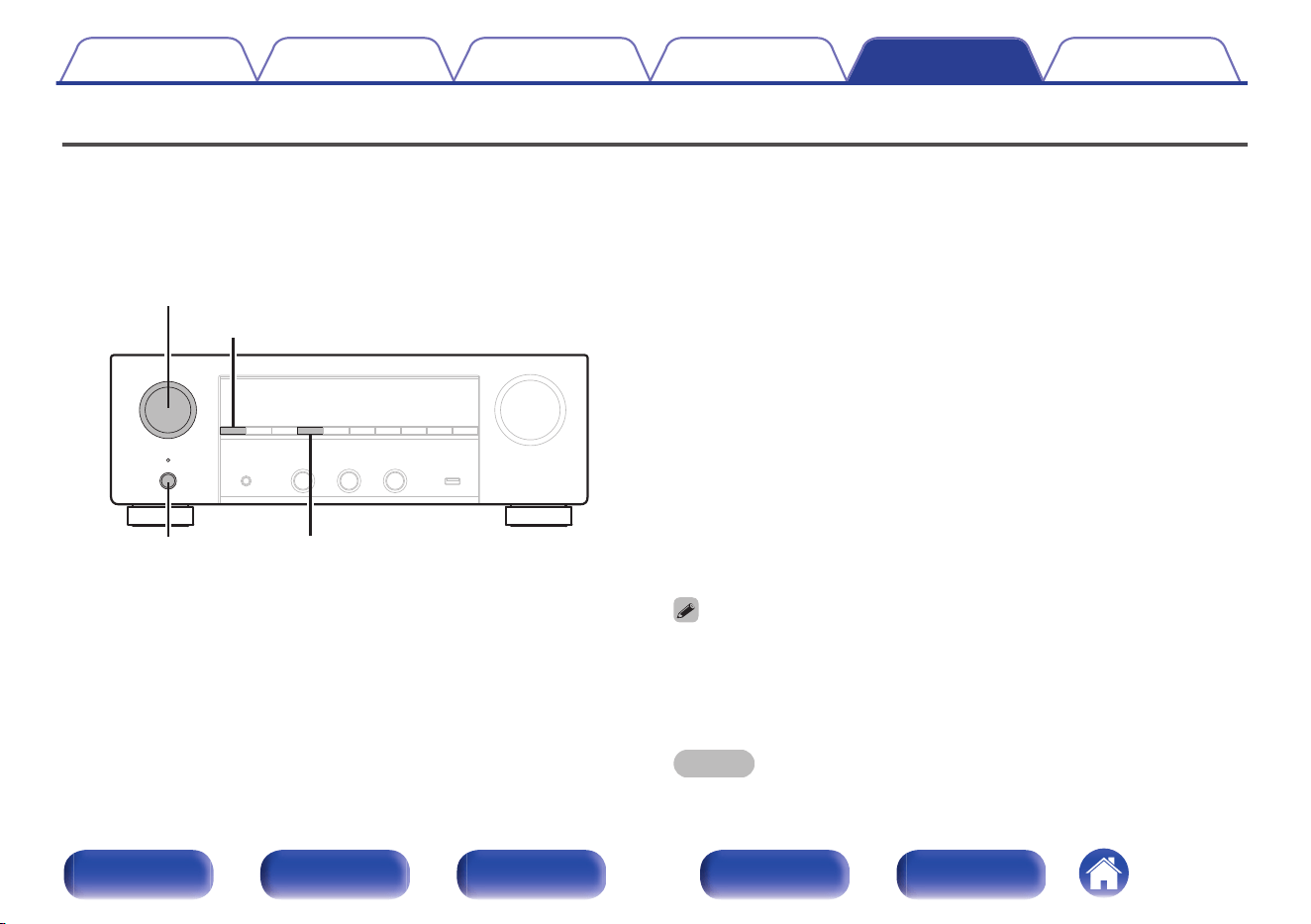

Panel lock function
To prevent accidental operation of this unit, you can disable operation of
the buttons on the front panel.
X
TUNER PRESET CH +
ZONE2 SOURCE
TUNER PRESET CH –
STATUS
Disabling all key button operations
1
Press X while you press and hold TUNER PRESET CH
+ and ZONE2 SOURCE with the unit in standby mode.
2
Use TUNER PRESET CH + or TUNER PRESET CH – to
select “FP/VOL LOCK On”.
3
Press STATUS to enter the setting.
All button operations except X are disabled.
Contents Connections Playback Settings Tips Appendix
109
Front panel Display Rear panel Remote Index
Disabling all button operations except
VOLUME
1
Press X while you press and hold TUNER PRESET CH
+ and ZONE2 SOURCE with the unit in standby mode.
2
Use TUNER PRESET CH + or TUNER PRESET CH – to
select “FP LOCK On”.
3
Press STATUS to enter the setting.
All button operations except X and VOLUME are disabled.
Canceling the Panel lock function
1
Press X while you press and hold TUNER PRESET CH
+ and ZONE2 SOURCE with the unit in standby mode.
2
Press TUNER PRESET CH + or TUNER PRESET CH – to
select “FP LOCK zOff”.
(z The currently set mode.)
3
Press STATUS to enter the setting.
The Panel lock function is canceled.
0
Even when the Panel lock function is set, you can operate the unit using the
remote control unit.
Contents Connections Playback Settings Tips Appendix
110
Front panel Display Rear panel Remote Index
Remote lock function
When connecting an IR receiver, enable the Remote lock function. When
the function is enabled, you can not perform operations with the remote
control unit.
By default, this function is disabled.
X
TUNER PRESET CH +
ZONE2 SOURCE
TUNER PRESET CH –
STATUS
Disabling the sensor function of the
remote control unit
1
Press X while you press and hold TUNER PRESET CH
+ and ZONE2 SOURCE with the unit in standby mode.
2
Use TUNER PRESET CH + or TUNER PRESET CH – to
select “RC LOCK On”.
3
Press STATUS to enter the setting.
The infrared light receiving function is disabled.
Enabling the remote sensor function
1
Press X while you press and hold TUNER PRESET CH
+ and ZONE2 SOURCE with the unit in standby mode.
2
Press TUNER PRESET CH + or TUNER PRESET CH – to
select “RC LOCK zOff”.
(z The currently set mode.)
3
Press STATUS to enter the setting.
Infrared light receiving function on the main unit is enabled.
Contents Connections Playback Settings Tips Appendix
111
Front panel Display Rear panel Remote Index
Web control function
You can control and configure this unit from a web control screen on a
web browser.
PC
Router
This unit
Tablet
0
This unit and the PC or tablet need to be connected correctly to the network in
order to use the web control function. (v p. 46)
0
Depending on the settings of your security-related software, you may not be able
to access this unit from your PC. If this is the case, then change the settings of the
security-related software.
Controlling the unit from a web control
The web control screen supports the following functions.
A
Setup Menu
B
Power ON/OFF for each zone
C
MAIN ZONE input source switching
Web control screen
Top menu
Denon XXXXXXXXXX
CBL/SAT
Denon XXXXXXXXXX
Source
CBL/SAT
Setup Menu
Audio
Advanced
Video
Inputs
Speakers
Network
HEOS Account
General
MAIN ZONE
MAIN ZONE
ZONE2
q
w
e
0
“Advanced” contains settings for use by custom installers and should not be used
at any other time.
Contents Connections Playback Settings Tips Appendix
112
Front panel Display Rear panel Remote Index

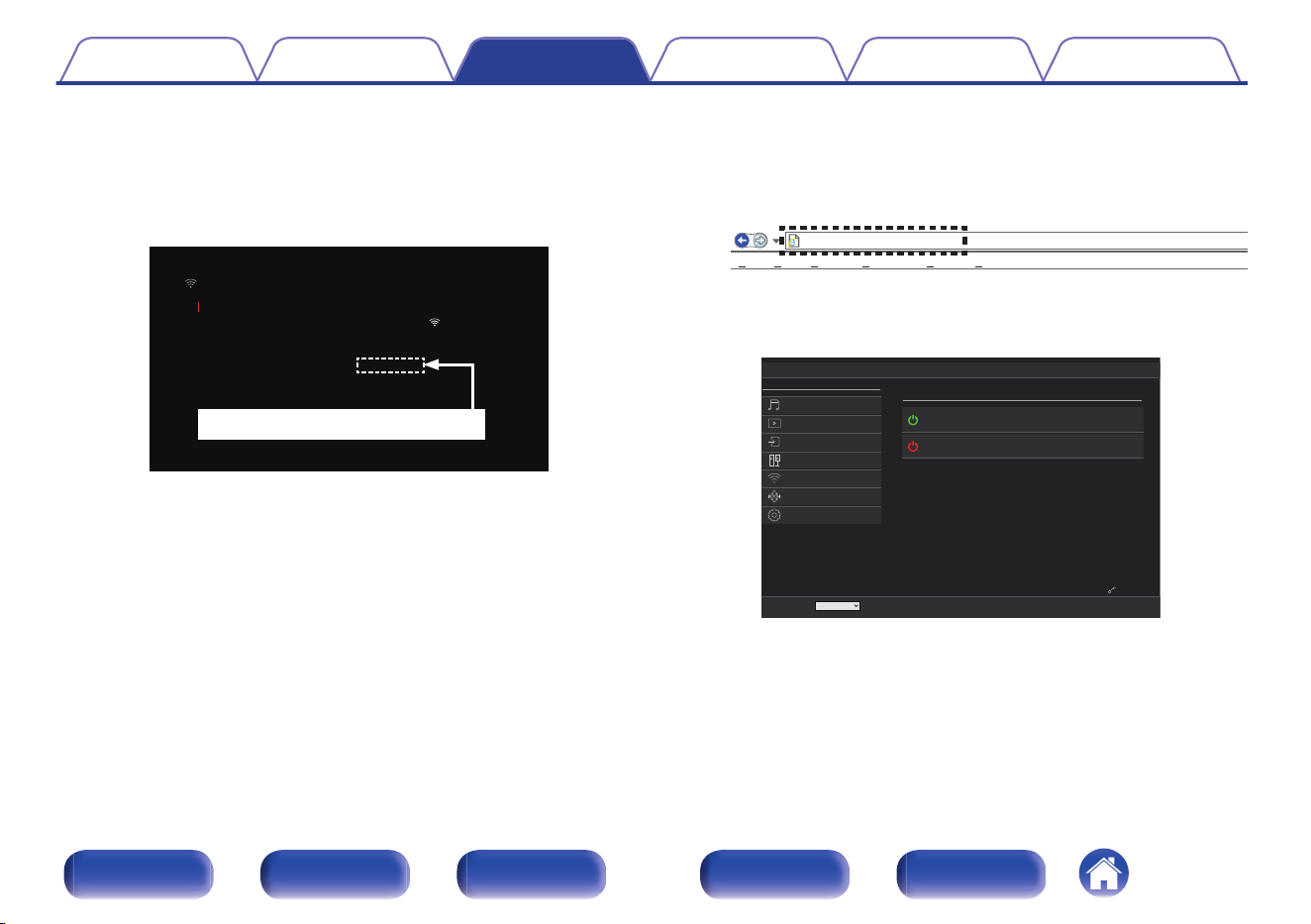

1
Switch the “Network Control” setting to “Always On”.
(v p. 149)
2
Check the IP address of this unit with “Information”.
(v p. 145)
000000-000000
000000-000000
Denon DRA-900H
SSID-01
192.168.100.19
SSID
DHCP
Checking the IP address.
Friendly Name
Connection
SSID
DHCP
IP Address
MAC Address (Ethernet)
MAC Address (Wi-Fi)
Wireless (Wi-Fi)
On
Network/Information
Displays the current network settings of the stereo receiver.
3
Open a web browser on a PC or tablet.
4
Enter the IP address of this unit in browser’s address
box.
For example, if the IP address of this unit is “192.168.100.19”, enter
“http://192.168.100.19”.
http://192.168.100.19
File
Edit View Tools HelpFavorites
5
When the top menu is displayed on the web browser,
click on the menu item you want to operate.
Denon XXXXXXXXXX
CBL/SAT
Denon XXXXXXXXXX
Source
CBL/SAT
Setup Menu
Audio
Advanced
Video
Inputs
Speakers
Network
HEOS Account
General
MAIN ZONE
MAIN ZONE
ZONE2
Contents Connections Playback Settings Tips Appendix
113
Front panel Display Rear panel Remote Index
Playback in ZONE2 (Another room)
You can operate this unit to enjoy video and audio in a room (ZONE2) that is different from the room where this unit is placed (MAIN ZONE).
0
You can simultaneously play back the same source in both the MAIN ZONE and ZONE2.
0
You can also play back separate sources in the MAIN ZONE and ZONE2.
o
Connecting ZONE2 (v p. 115)
“Connection 1 : Connection using an external amplifier (ZONE2)” (v p. 115)
o
Playback the source in ZONE2 (v p. 116)
“Playing the same source simultaneously in MAIN ZONE and ZONE2 (TV Audio Sharing setting)” (v p. 116)
“Playing different sources in MAIN ZONE and ZONE2” (v p. 118)
o
Adjusting the Volume in ZONE2 (v p. 120)
“Adjusting the volume” (v p. 120)
“Turning off the sound temporarily (Muting)” (v p. 120)
Contents
Connections Playback Settings Tips Appendix
114
Front panel Display Rear panel Remote Index

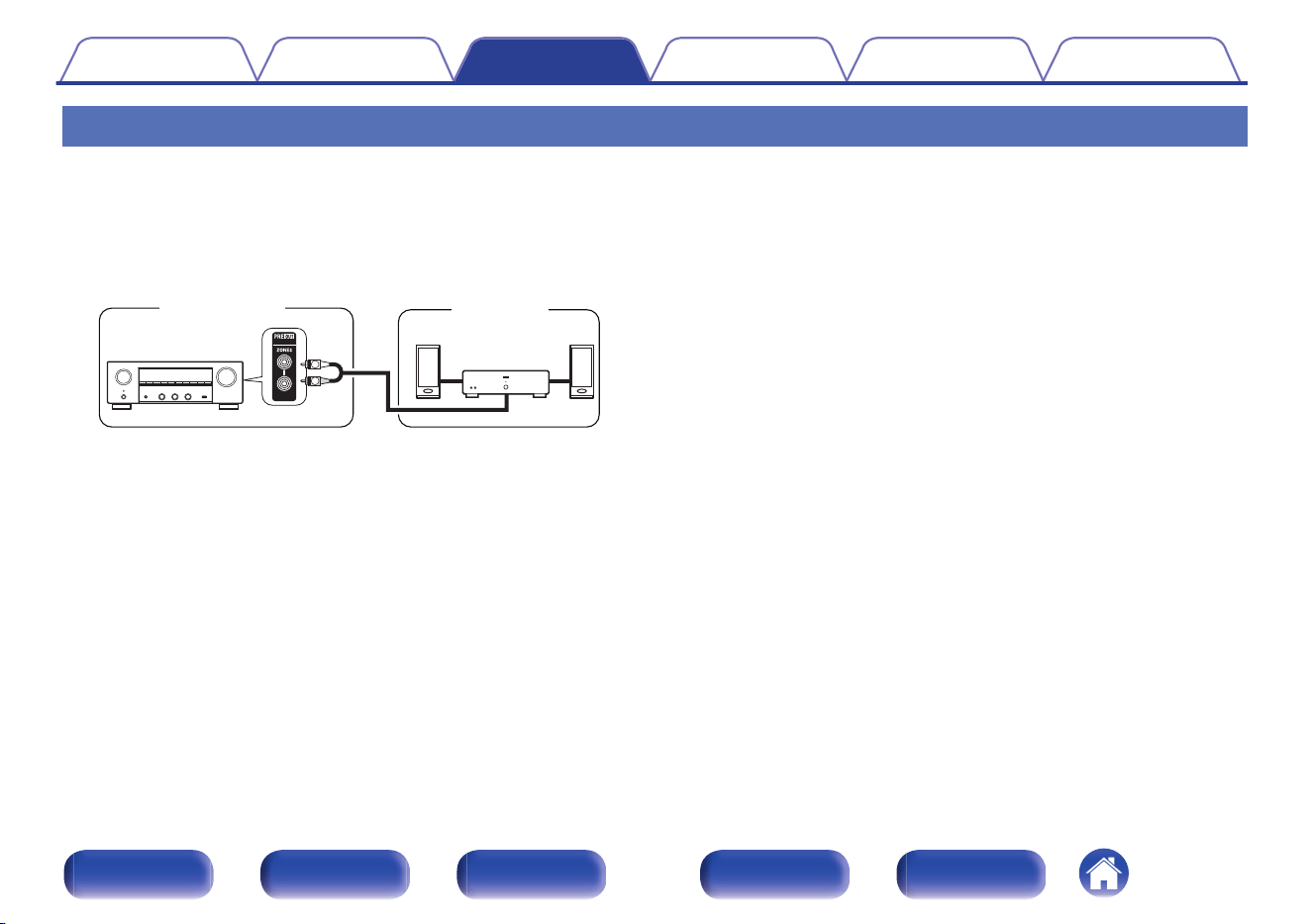

Connecting ZONE2
o
Connection 1 : Connection using an external
amplifier (ZONE2)
The audio signals of this unit’s ZONE2 audio output connectors are
output to the ZONE2 amplifiers and played on these amplifiers.
R
L
AUX IN
ZONE2
MAIN ZONE
This unit
Power amplifier
Contents
Connections Playback Settings Tips Appendix
115
Front panel Display Rear panel Remote Index

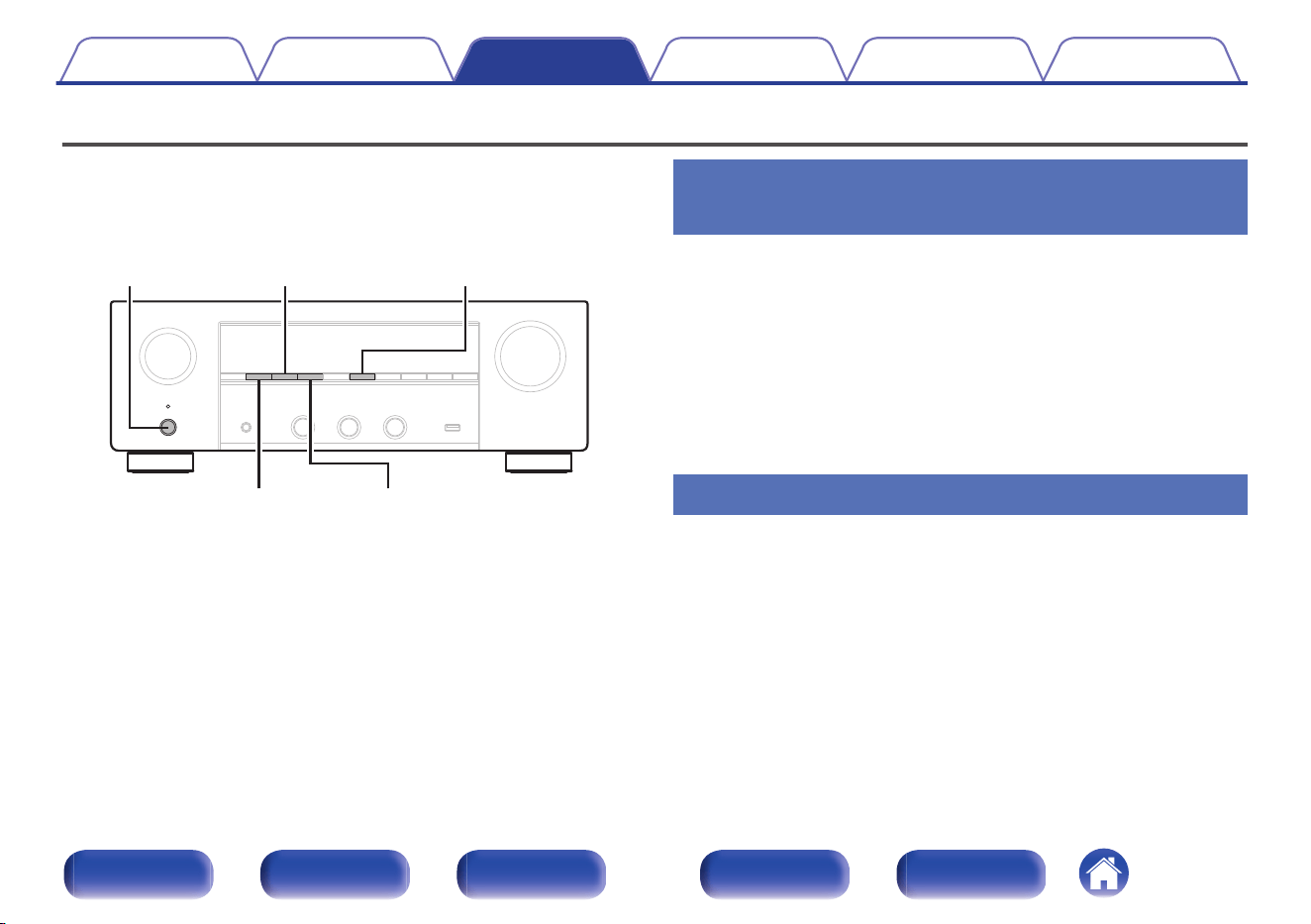

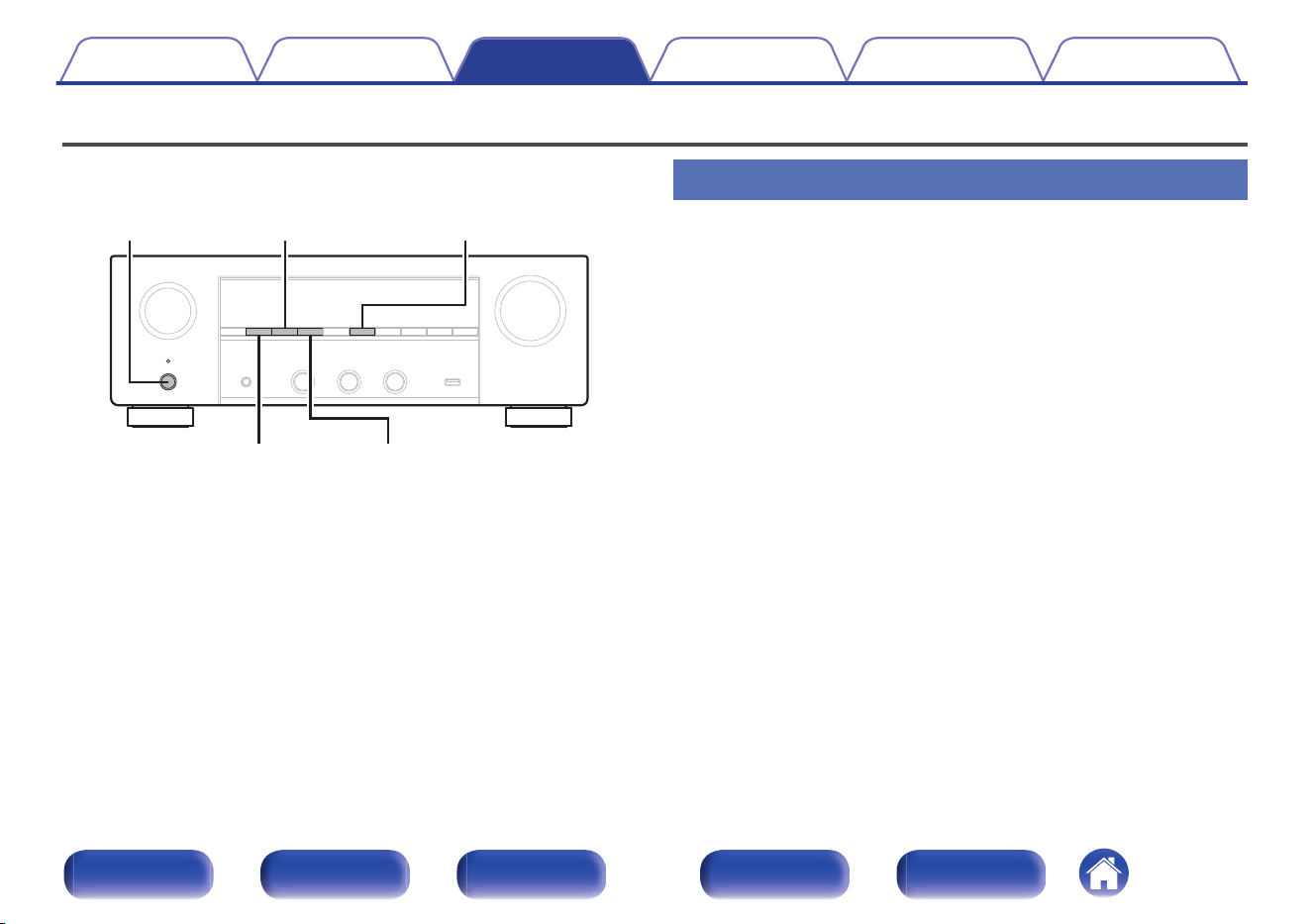

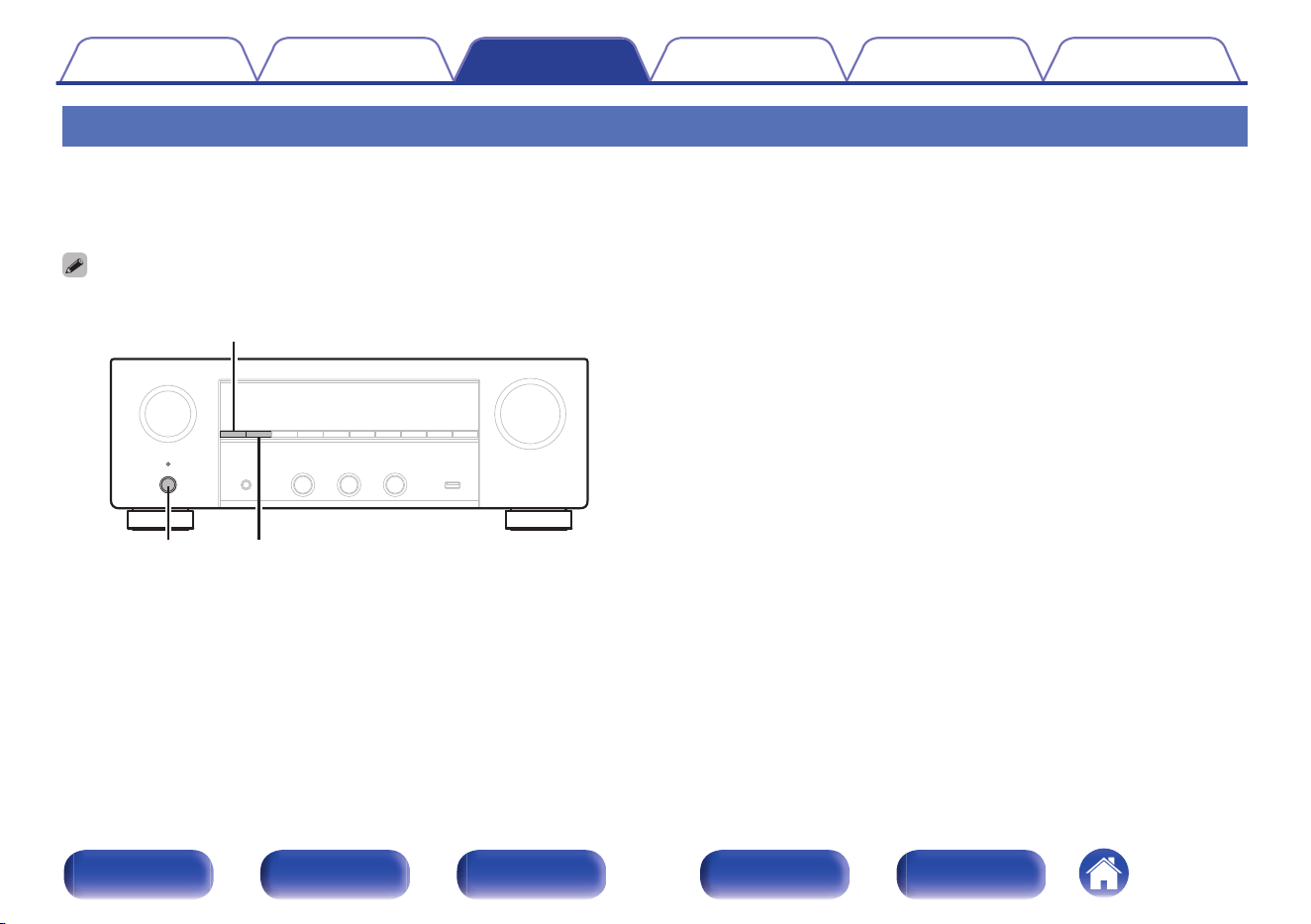

Playback the source in ZONE2
o
Playing the same source simultaneously in MAIN ZONE and ZONE2 (TV Audio Sharing setting)
By setting the ZONE2 input source to “Source” in the TV Audio sharing settings of this unit, you can play audio input from a TV via ARC or from a playback
device in the MAIN ZONE while enjoying the same content in ZONE2.
0
Only the controls on the main unit can be used to set “Source” as the input source.
ZONE2 SOURCE
ZONE2 ON/OFF
X
1
Select the input source to play back in the MAIN ZONE.
2
Press ZONE2 ON/OFF on the main unit to turn on the
power of ZONE2.
The ( indicator on the display lights.
Contents
Connections Playback Settings Tips Appendix
116
Front panel Display Rear panel Remote Index
3
Press ZONE2 SOURCE on the main unit to switch the
input source of ZONE2 to “Source”.
If “Source” is selected as the input source of ZONE2, the input
source is changed to mirror that of the MAIN ZONE. “Source” is the
default setting.
0
The following audio signals can be played in ZONE2.
Input
Output
ZONE2
Digital Audio (HDMI)
S
Digital Audio (Coaxial/Optical)
S
Analog Audio
S
USB
S
HEOS Music
S
TUNER
S
Contents Connections Playback Settings Tips Appendix
117
Front panel Display Rear panel Remote Index
o
Playing different sources in MAIN ZONE and ZONE2
POWER
X
ZONE2
Input source
select buttons
1
Press ZONE2 to set the operating zone to ZONE2 with
the remote control.
The ZONE2 button lights.
2
Press POWER X to turn on the ZONE2 power.
The ( indicator on the display lights.
0
Power in ZONE2 can be turned on or off by pressing ZONE2
ON/OFF on the main unit.
Contents Connections Playback Settings Tips Appendix
118
Front panel Display Rear panel Remote Index
3
Press the input source select button to select the input
source to be played.
The audio signal of the selected source is output to ZONE2.
0
To perform an operation with the main unit, press ZONE2
SOURCE. Each time you press ZONE2 SOURCE, the input
source changes.
0
The following audio signals can be played in ZONE2.
Input
Output
ZONE2
Digital Audio (HDMI)
Digital Audio (Coaxial/Optical)
S
Analog Audio
S
USB
S
HEOS Music
S
TUNER
S
Contents Connections Playback Settings Tips Appendix
119
Front panel Display Rear panel Remote Index
Adjusting the Volume in ZONE2
MUTE
:
VOLUME
df
ZONE2
o
Adjusting the volume
1
Press ZONE2 to set the operating zone to ZONE2 with
the remote control.
The ZONE2 button lights.
2
Use VOLUME df to adjust the volume.
0
At time of purchase, “Volume Limit” is set to “70 （–10 dB）”.
(v p. 159)
0

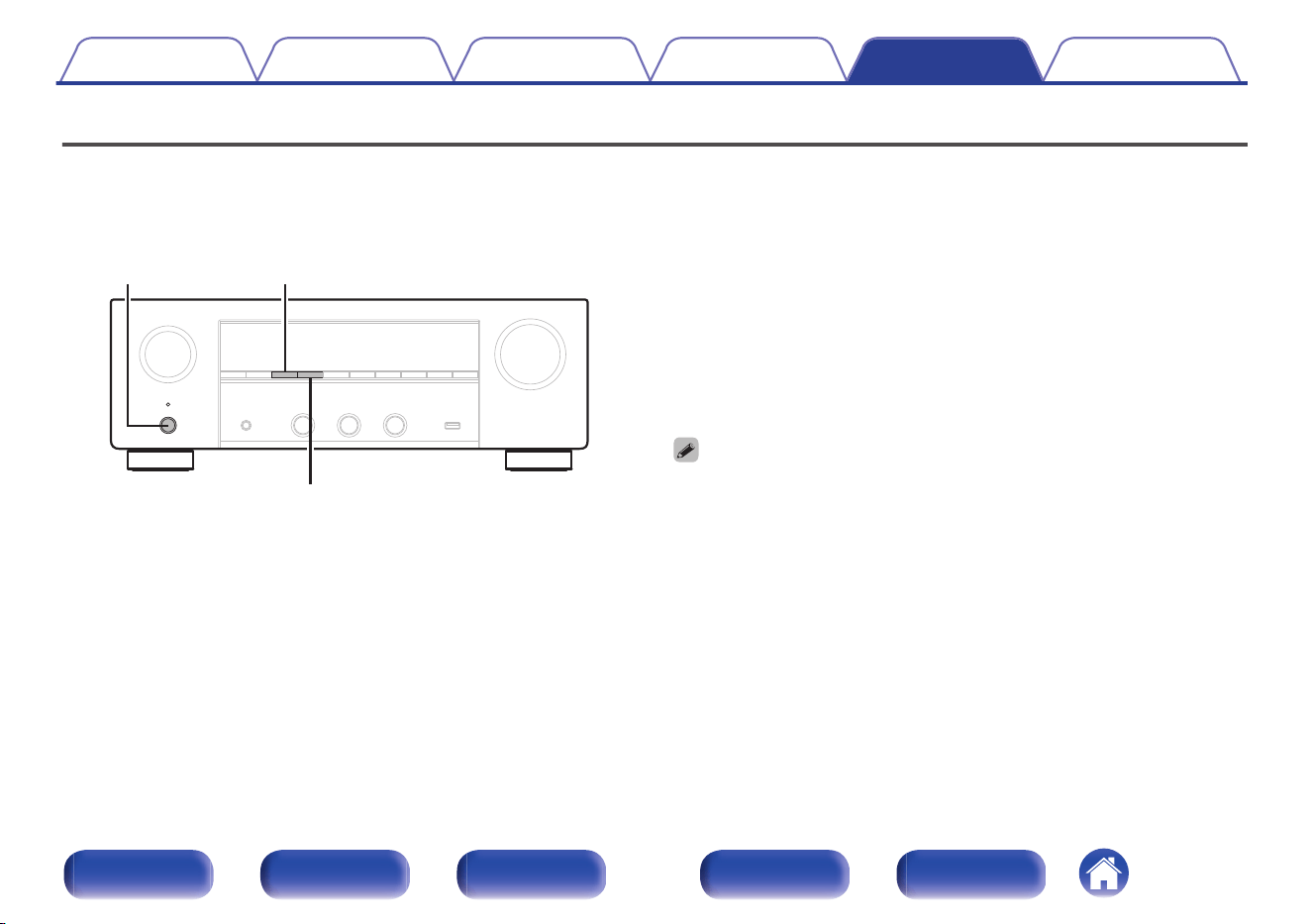

Turn MASTER VOLUME after pressing ZONE2 SOURCE on the main unit
to adjust the volume.
o
Turning off the sound temporarily (Muting)
1
Press ZONE2 to set the operating zone to ZONE2 with
the remote control.
The ZONE2 button lights.
2
Press MUTE :.
0
To cancel mute, either adjust the sound volume or press
MUTE : again.
Contents Connections Playback Settings Tips Appendix
120
Front panel Display Rear panel Remote Index
Menu map
When using menu operations, connect this unit to a TV and operate this unit while viewing the TV.
The recommended settings are configured for this unit by default. You can customize this unit based on your existing system and your preferences.
Setting items Detailed items Description Page
Audio
Restorer Expands the low and high frequency components of compressed audio content such as
MP3 files to enable richer audio playback.
127
Volume Sets the MAIN ZONE (room where the unit is located) volume setting. 128
Video
HDMI Setup Makes settings for HDMI Audio Out, HDMI Pass Through and HDMI Control settings. 129
HDMI Upscaler Sets the mode for upscaling 1080p and 4K HDMI content to 8K. 133
On-Screen Display Selects the on-screen display user interface preferences. 134
Screensaver Sets the screen saver setting. 135
4K/8K Signal Format Sets signal format options for your 4K or 8K video equipment. 135
HDCP Setup Sets the HDCP version for each HDMI input source. 137
Contents Connections Playback Settings Tips Appendix
121
Front panel Display Rear panel Remote Index
Setting items Detailed items Description Page
Inputs
Input Assign Changes input connector assignment and the audio input mode. 138
Source Rename Changes the display name for input source. 141
Hide Sources Selects source inputs to hide on the user interface and front panel displays. 141
Source Level Adjusts the input level for the current source. 141
Speakers
Speaker Layout Selects the speaker layout. 142
Distances Set distance from listening position to speakers. 143
Levels Set the volume of the test tone to be the same at the listening position when it is output
from each speaker.
144
Advanced Sets the advanced settings for the speakers. (speaker assignment) 144
Network
Information Displays network information. 145
Connection Configures the network connection. 145
Settings Configures the network settings (DHCP and IP address). 147
Network Control Enables network communication in standby power mode. 149
Friendly Name Edits the name of this unit that is displayed on the network. 149
Diagnostics Tests the network connection. 150
AirPlay Settings for Apple AirPlay. 151
Spotify Connect Toggles access to Spotify Connect. 151
Wi-Fi and Bluetooth Toggles power to the Wi-Fi and Bluetooth radios. 152
Contents Connections Playback Settings Tips Appendix
122
Front panel Display Rear panel Remote Index
Setting items Detailed items Description Page
HEOS
[When the user is signed out of the HEOS account]
“–” A guidance to download the HEOS app. 153
[When the user is signed in to the HEOS account]
Signed in as Displays your HEOS account. 153
Contents Connections Playback Settings Tips Appendix
123
Front panel Display Rear panel Remote Index
Setting items Detailed items Description Page
General
Language Selects the language for the on-screen user interface. 154
Owner's Manual Access the online Owner's Manual from your mobile device. 154
ECO Configures the ECO Mode and Auto Standby energy-saving functions. 154
Bluetooth Transmitter Sets Bluetooth transmitter settings. 158
ZONE2 Setup Makes settings for audio playback with ZONE2. 159
Zone Rename Changes the display title of each zone to one you prefer. 160
Quick Select Sets the “Quick Select” parameters and display name. 160
Front Display Makes settings related to the display on this unit. 161
Firmware Checks for the latest firmware information about updates, updates the firmware. 161
Information Shows information about this unit settings, input signals, etc. 163
Usage Data Selects whether or not to send anonymous usage data to Denon. 166
Save & Load Save and restore device settings by using a USB memory device. 166
Setup Lock Protects settings from inadvertent changes. 167
Reset Various settings are reset to the factory default values. 167
Contents Connections Playback Settings Tips Appendix
124
Front panel Display Rear panel Remote Index
Setting items Detailed items Description Page
Setup Assistant
Begin Setup... Performs basic installation/connections/settings from the beginning according to the
guidance indicated on the TV screen.
Page 8 of
the separate
manual
“Quick Start
Guide”
Language Select Sets individual setting items according to the guidance displayed on the TV screen.
Speaker Setup
Network Setup
TV Audio Setup
Input Setup
Mobile Apps
Contents Connections Playback Settings Tips Appendix
125
Front panel Display Rear panel Remote Index
SETUP
BACK
MAIN
ENTER
Cursor Up/Down/
Left/Right

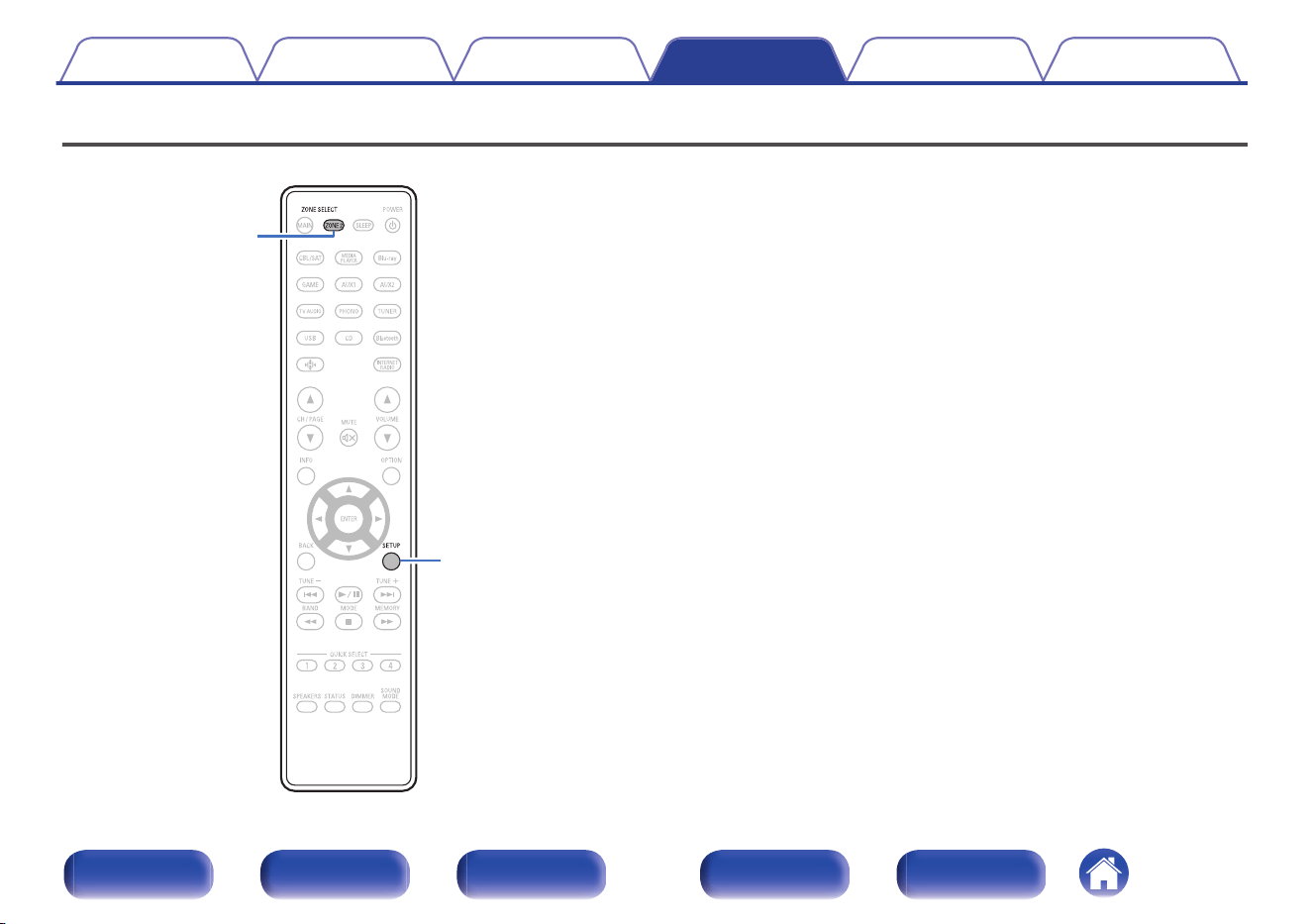

Menu operations
1
Press MAIN on the remote control unit to set the
operating zone to the MAIN ZONE.
The MAIN button lights.
2
Press SETUP.
The menu is displayed on the TV screen.
3
Use cursor Up/Down/Right to select the menu to be set
or operated, then press ENTER.
4
Use cursor Left/Right to change to desired setting.
5
Press ENTER to enter the setting.
0
To return to the previous item, press BACK.
0
Exiting the menu, press SETUP while the menu is displayed. The
menu display disappears.
Contents
Connections Playback Settings Tips Appendix
126
Front panel Display Rear panel Remote Index
Audio
Make audio-related settings.
Restorer
Compressed audio formats such as MP3, WMA (Windows Media Audio)
and MPEG-4 AAC reduce the amount of data by eliminating signal
components that are hard for the human ear to hear. The “Restorer”
function generates the signals eliminated upon compression, restoring the
sound to conditions near those of the original sound before compression.
It also restores the original bass characteristics for a rich and expanded
tonal range.
o
Mode
High:
Optimized mode for compressed sources
with very weak highs (64 kbps and
under).
Medium:
Apply suitable bass and treble boost for
all compressed sources (96 kbps and
under).
Low:
Optimized mode for compressed sources
with normal highs (96 kbps and over).
Off
(Default):
Do not use “Restorer”.
0
This item can be set with analog signals or PCM signal (Sample Rate =
44.1/48 kHz) is input.
0
This cannot be set when the sound mode is set to “Direct” or “Pure Direct”.
0
“Restorer” settings are stored for each input source.
Contents Connections Playback Settings Tips Appendix
127
Front panel Display Rear panel Remote Index
Volume
Set the MAIN ZONE (room where the unit is located) volume setting.
o
Scale
Set how volume is displayed.
0 - 98
(Default):
Display in the range 0 (Min) to 98.
-79.5 dB - 18.0 dB:
Display ---dB (Min), in the range –79.5 dB
to 18.0 dB.
0
“Scale” settings are reflected in all the zones.
o
Limit
Make a setting for maximum volume.
60 – 80 (–20 dB – 0 dB)
Off (Default)
0
The dB value is displayed when the “Scale” setting is “-79.5 dB - 18.0
dB”. (v p. 128)
o
Power On Level
Sets the initial volume level when the power is turned on.
Last
(Default):
Use the memorized setting from the last
session.
Mute:
Always use the muting on condition when
power is turned on.
1 – 98 (–79 dB – 18 dB) : The volume is adjusted to the set level.
0
The dB value is displayed when the “Scale” setting is “-79.5 dB - 18.0
dB”. (v p. 128)
o
Mute Level
Set the amount of attenuation when mute is on.
Full
(Default):
The sound is muted entirely.
–40 dB : The sound is attenuated by 40 dB down.
–20 dB : The sound is attenuated by 20 dB down.
Contents Connections Playback Settings Tips Appendix
128
Front panel Display Rear panel Remote Index
Video
Make video-related settings.
HDMI Setup
Make settings for HDMI Audio Out, HDMI Pass Through and HDMI
Control settings.
NOTE
0
When “HDMI Pass Through” and “HDMI Control” is set to “On”, it consumes more
standby power. (“HDMI Pass Through” (v p. 130), “HDMI Control” (v p. 131))
If you are not using this unit for an extended period, it is recommended that you
unplug the power cord from the power outlet.
o
HDMI Audio Out
Select HDMI audio output device.
Stereo Receiver
(Default):
Play back through speakers connected to
the unit.
TV:
Play back through TV connected to the
unit.
0
When the HDMI Control function is activated, priority is given to the TV audio
setting. (v p. 102)
0
When the power of this unit is on and “HDMI Audio Out” is set to “TV”, audio is
output as 2-channel from the HDMI OUT connector.
Contents
Connections Playback Settings Tips Appendix
129
Front panel Display Rear panel Remote Index
o

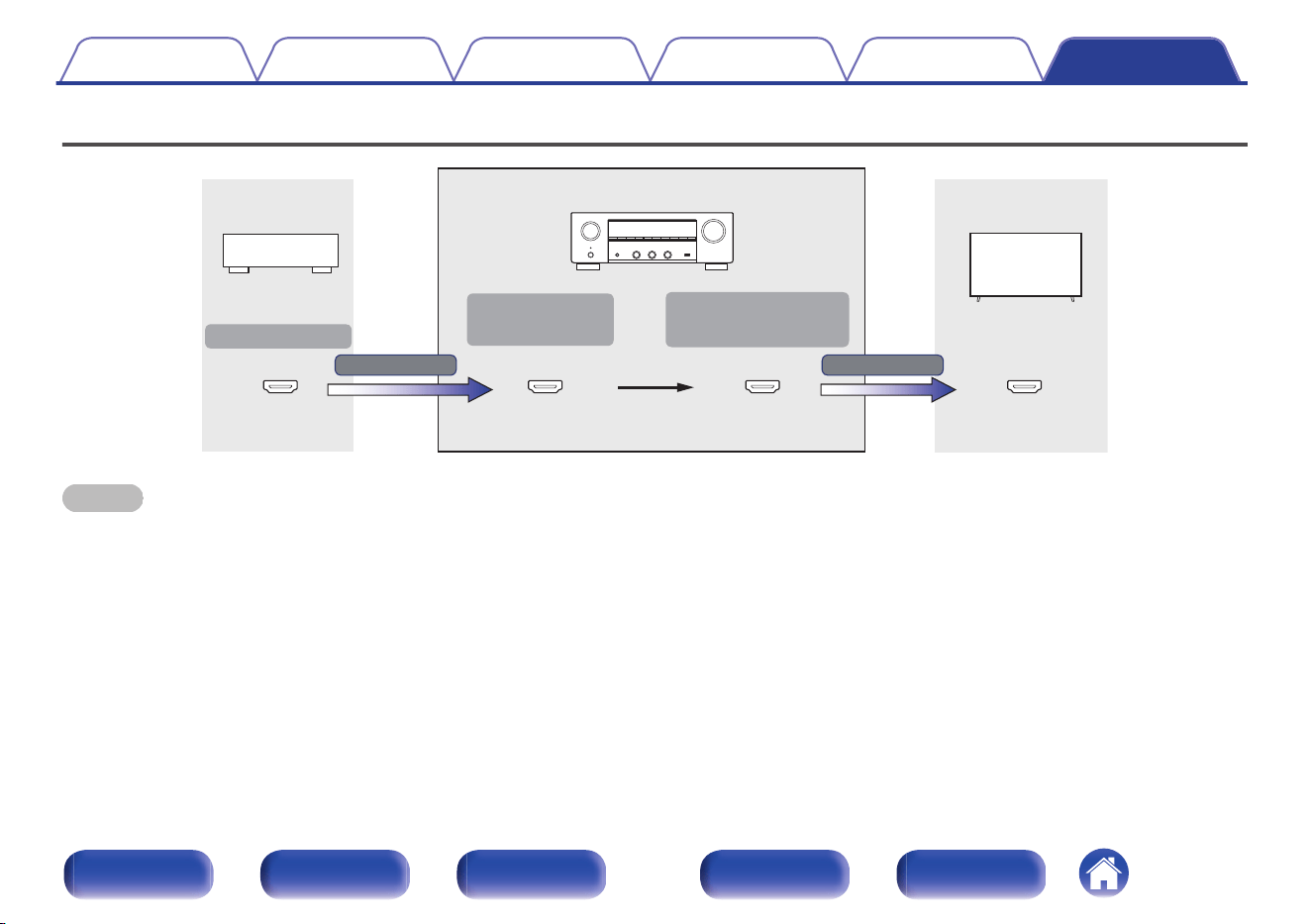

HDMI Pass Through
Selects how this unit will transmit HDMI signals to the HDMI output in
standby power mode.
On
(Default):
Transmits the selected HDMI input
through this unit’s HDMI output when this
unit is in standby power mode.
Off:
No HDMI signals are transmitted through
this unit’s HDMI output in standby power
mode.
o
Pass Through Source
Sets the HDMI connector that inputs HDMI signals when in standby.
Last:
The most recently used input source will
go into standby mode.
CBL/SAT / Media Player /
Blu-ray / Game / AUX1 /
AUX2 / CD
z
(Default: CBL/SAT):
Pass through the selected input source.
z
“Pass Through Source” can be set when any of the HDMI
connectors is assigned to “CD” for the input source in the “Input
Assign” setting. (v p. 138)
0
“Pass Through Source” can be set when “HDMI Control” is set to “On” or
“HDMI Pass Through” is set to “On”. (“HDMI Pass Through” (v p. 130),
“HDMI Control” (v p. 131))
o
RC Source Select
Set whether to allow this unit to be turned on by the input source select
button on the remote control when this unit is in standby power mode.
Power On + Source
(Default):
The power of this unit is turned on and
the input source changes.
Source Select Only:
This unit remains in standby but switches
the HDMI input source when you press
an input source button. The power
display of this unit blinks when the input
source select button of the remote control
is pressed.
0
“RC Source Select” can be set when “HDMI Control” is set to “On” or “HDMI
Pass Through” is set to “On”. (“HDMI Pass Through” (v p. 130), “HDMI
Control” (v p. 131))
Contents Connections Playback Settings Tips Appendix
130
Front panel Display Rear panel Remote Index
o
HDMI Control
You can link operations with devices connected to HDMI and
compatible with HDMI Control.
On: Use HDMI Control function.
Off
(Default):
Do not use HDMI Control function.
0
Please consult the operating instructions for each connected device to check
the settings.
0
When “HDMI Control” is set to “On”, the power to this unit can be linked to the
TV power and the volume of this unit can be controlled using the TV remote
control.
0
Refer to “HDMI Control function” for more information about the HDMI Control
function. (v p. 102)
NOTE
0
If the “HDMI Control” settings have been changed, always reset the power to
connected devices after the change.
o
ARC
On the TV connected to the HDMI OUT connector, set whether to
receive sound from the TV via HDMI.
On: Use ARC function.
Off
(Default):
Do not use ARC function.
0
If using this function, use a TV compatible with ARC (Audio Return Channel)
and enable the HDMI Control function of the TV.
0
When “ARC” is set to “On”, the volume of this unit can be controlled using the
TV remote control even when “HDMI Control” is set to “Off” on this unit.
NOTE
0
If the “ARC” settings have been changed, always reset the power to
connected devices after the change.
0
Only the PCM 2-channel setting can be used to play sound from a TV via the
ARC function. Set “PCM 2ch” as the audio format in the TV settings.
Contents
Connections Playback Settings Tips Appendix
131
Front panel Display Rear panel Remote Index
o
TV Audio Switching
Sets automatic switching to the “TV Audio” input when a TV connected
via HDMI sends an appropriate CEC control command to this unit.
On
(Default):
Select the “TV Audio” input automatically
when receiving a command from the TV.
Off:
Do not select the “TV Audio” input
automatically when receiving a command
from the TV.
0
“TV Audio Switching” can be set when “HDMI Control” is set to “On”.
(v p. 131)
o
Power Off Control
Links the power standby of this unit to external devices.
All
(Default):
If power to a connected TV is turned off
independently of the input source, power
to this unit is automatically set to standby.
Video:
With an input source being selected that
is assigned “HDMI”, when you turn the
power of the TV off, power to this unit is
automatically set to standby.
(v p. 139)
Off: This unit does not link with power to a TV.
0
“Power Off Control” can be set when “HDMI Control” is set to “On”.
(v p. 131)
Contents Connections Playback Settings Tips Appendix
132
Front panel Display Rear panel Remote Index
o
Power Saving
Enables the Power Saving feature of the receiver to reduce energy
costs when using the TV's speakers.
This function is activated in the following cases.
0
When “TV Audio” is selected as the input source of this unit
0
When playing content from a device connected by HDMI
On: Use Power Saving feature.
Off
(Default):
Do not use Power Saving feature.
0
“Power Saving” can be set when “HDMI Control” is set to “On”. (v p. 131)
HDMI Upscaler
Sets the mode for upscaling 1080p and 4K HDMI content to 8K.
Auto:
Upscale 1080p and 4K HDMI video to 8K
based on the TV’s capabilities.
Off
(Default):
8K upscaler is disabled.
0
This item can be set when “HDMI” is assigned for each input source.
0
This function is not effective when the input signal is “x.v.Color”, 3D, sYCC601
color, Adobe RGB color, Adobe YCC601 color, computer resolutions, compressed
video or HDR.
Contents Connections Playback Settings Tips Appendix
133
Front panel Display Rear panel Remote Index
On-Screen Display
Select the on-screen display user interface preferences.
o
Volume
Sets where to display the volume level.
Bottom
(Default):
Display at the bottom.
Top: Display at the top.
Off: Turn display off.
0
When the master volume display is hard to see when superimposed text
(closed captioning) or movie subtitles are present, set to “Top”.
o
Info
Displays status of operation temporarily when the input source is
switched.
On
(Default):
Turn display on.
Off: Turn display off.
o
Now Playing
Sets the display time for the playback display when the input source is
“HEOS Music” or “Tuner”.
Always On
(Default):
Show display continuously.
Auto Off:
Show display for 30 seconds after
operation.
Contents Connections Playback Settings Tips Appendix
134
Front panel Display Rear panel Remote Index
Screensaver
Select the screen saver setting.
A screen saver is activated if no operation is performed for more than 5
minutes when no video signal is input or when the same screen (e.g. the
setup menu) is displayed.
Use cursor Up/Down/Left/Right to clear the screen saver.
On: Turns screen saver on.
Off
(Default):
Turns screen saver off.
0
The screen saver is activated in the following cases.
0
When the setup menu is displayed
0
When no video signal is input
0
When the HEOS Music, USB, Bluetooth or Tuner playback screen is displayed
4K/8K Signal Format
Set the format of 4K and 8K signal to be played back by this unit when the
TV or playback device connected to this unit is HDMI 4K or 8K signal
compatible.
o
4K/8K Signal Format
Sets the signal format options for devices connected to each input on
this unit.
Standard:
Select if your TV and the source device
support 4K 60Hz 4:2:0 8 bit video signals.
Enhanced
(Default):
Select if your TV, the source device, and
cables support high quality 4K 60Hz
4:4:4 8 bit, 4:2:2 or 4:2:0 10 bit video
signals.
8K Enhanced:
Select if your TV, the source device, and
cables support high quality 8K 60Hz or
4K 120Hz video signals.
Contents Connections Playback Settings Tips Appendix
135
Front panel Display Rear panel Remote Index
GRelation between the “4K/8K Signal Format” setting and supported
resolutionsH
Support
Resolution
Color
Space
Pixel
Depth
4K/8K Signal Format
Standard Enhanced
8K
Enhanced
4K 24Hz,
4K 30Hz,
4K 25Hz
RGB /
YCbCr 4:4:4
8 bit
P P P
10,12 bit –
P P
YCbCr 4:2:2 12 bit
P P P
4K 60Hz,
4K 50Hz
YCbCr 4:2:0
8 bit
P P P
10,12 bit –
P P
RGB /
YCbCr 4:4:4
8 bit –
P P
10,12 bit – –
P
YCbCr 4:2:2 12 bit –
P P
4K 120Hz,
4K 100Hz
YCbCr 4:2:0
8,10,12
bit
– –
P
RGB /
YCbCr 4:4:4
8,10 bit – –
P
YCbCr 4:2:2 12 bit – –
P
8K 24Hz,
8K 30Hz,
8K 25Hz
YCbCr 4:2:0
8,10,12
bit
– –
P
RGB /
YCbCr 4:4:4
8,10 bit – –
P
YCbCr 4:2:2 12 bit – –
P
8K 60Hz,
8K 50Hz
YCbCr 4:2:0 8, 10 bit – –
P
0
When setting this to “Enhanced”, we recommend using a “Premium High
Speed HDMI Cable” or “Premium High Speed HDMI Cable with Ethernet” that
has an “HDMI Premium Certified Cable” label attached to the product
package.
0
When setting this to “8K Enhanced”, we recommend using a certified “Ultra
High Speed HDMI cable”.
0
When this setting is “8K Enhanced”, configure the television or playback
device settings to match this setting.
0
When this setting is “8K Enhanced”, video may not be output correctly
depending on the connected playback device or HDMI cable. In this case,
change this setting to “Enhanced” or “Standard”.
0
“Custom” is displayed for the setting item if our service engineers or custom
installers has configured the HDMI signal format for this unit.
0
“4K/8K Signal Format” can also be set by the following procedure. However,
the menu screen is not displayed. Watch the display while configuring the
setting.
1. Switch to the HDMI input source you want to set.
2. Press and hold the main unit’s ZONE2 SOURCE and STATUS at the same
time for at least 3 seconds.
“4K/8K <Enhanced>” appears on the display.
3. Use the main unit's TUNER PRESET CH + or TUNER PRESET CH – and
select the 4K/8K Signal Format.
4. Press the main unit’s STATUS to complete the setting.
Contents Connections Playback Settings Tips Appendix
136
Front panel Display Rear panel Remote Index
HDCP Setup
Sets the HDCP version for each HDMI input source.
Video may not be output depending on the HDCP version of your player
and the TV.
If this issue occurs, use this setting to set one version of HDCP. This may
be able to output video.
Auto
(Default):
Automatically applies the HDCP version of
this unit according to TV.
1.4: Fixes the HDCP version of this unit to 1.4.
2.3: Fixes the HDCP version of this unit to 2.3.
0
“Custom” is displayed for the setting item if our service engineers or custom
installers has configured the HDCP version for this unit.
Contents Connections Playback Settings Tips Appendix
137
Front panel Display Rear panel Remote Index
Inputs
Perform settings related to input source playback.
You do not have to change the settings to use the unit. Make settings when needed.
Input Assign
By making connections as indicated by the input sources printed on the
audio/video input connectors of this unit, you can just press one of the
input source select buttons to easily play back audio or video from a
connected device.
Please change the assignment of the HDMI input connector, digital audio
input connector, analog audio input connector and video input connector
when connecting an input source that differs from that printed to the audio/
video input connectors of this unit.
Sets the audio input mode for each “INPUT MODE” source. “AUTO” is
normally recommended for this setting. This automatically detects and
plays signal input to this unit prioritized in the following order: HDMI >
DIGITAL > ANALOG.
CBL/SAT
Media Player
Blu-ray
Game
AUX1
AUX2
TV Audio
1
[ HDMI ] [ DIGITAL ] [ ANALOG ] [ INPUT MODE ]
2
3
4 (8K)
5 (8K)
6 (8K)
-
1
-
-
-
-
-
-
COAX
OPT2
-
-
-
-
OPT1
AUTO
AUTO
HDMI
HDMI
HDMI
HDMI
DIGITAL
CD
- 2- ANALOG
Inputs/Input Assign
Changes HDMI input assignments.
Set Defaults
0
By default, each item is set as follows.
Input source
Input connector
INPUT
MODE
HDMI DIGITAL
ANALOG
CBL/SAT 1 COAX 1 AUTO
Media Player 2 OPT2 – AUTO
Blu-ray 3 – – HDMI
Game 4 (8K) – – HDMI
AUX1 5 (8K) – – HDMI
AUX2 6 (8K) – – HDMI
TV Audio – OPT1 – DIGITAL
CD – – 2 ANALOG
Contents Connections Playback Settings Tips Appendix
138
Front panel Display Rear panel Remote Index
n
TV set top box/satellite users please note
When using the digital audio output on a TV/satellite box:
To play the video signal assigned to “HDMI” combined with the audio
signal assigned at “Input Assign” - “DIGITAL”, you will also need to
select “DIGITAL” in the “INPUT MODE”.
0
The same input connector can be assigned to multiple input sources. For example,
assign the same HDMI input connector to multiple sources to use each input
source in combination with analog or digital audio as you prefer. In such cases, set
the audio connector for playback in “INPUT MODE”.
o
HDMI
Set this to change the HDMI input connectors assigned to the input
sources.
1 / 2 / 3 / 4(8K) / 5(8K) /
6(8K):
Assign an HDMI input connector to the
selected input source.
– :
Do not assign an HDMI input connector
to the selected input source.
0
When “HDMI Control” or “ARC” is set to “On” in the menu, “HDMI” cannot be
assigned to “TV Audio”. (“HDMI Control” (v p. 131), “ARC” (v p. 131))
o
DIGITAL
Set this to change the digital audio input connectors assigned to the
input sources.
COAX (Coaxial) /
OPT1 (Optical) / OPT2:
Assign a digital audio input connector to
the selected input source.
– :
Do not assign a digital audio input
connector to the selected input source.
o
ANALOG
Set this to change the analog audio input connectors assigned to the
input sources.
1 / 2 :
Assign a analog audio input connector to
the selected input source.
– :
Do not assign a analog audio input
connector to the selected input source.
Contents Connections Playback Settings Tips Appendix
139
Front panel Display Rear panel Remote Index
o
INPUT MODE
Set the audio input modes for each input source.
It is normally recommended to set the audio input mode to “AUTO”.
AUTO
(Default):
Automatically detect input signal and
perform playback.
HDMI: Play only signals from HDMI input.
DIGITAL: Play only signals from digital audio input.
ANALOG: Play only signals from analog audio input.
0
When digital signals are properly input, the ~ indicator lights on the display.
If the ~ indicator does not light, check “Input Assign” and the connections.
(v p. 138)
0
If “ARC” is set to “On” and a TV compatible with the ARC is connected via the
HDMI OUT connectors, the input mode whose input source is “TV Audio” is
fixed to ARC.
o
Set Defaults
The “Input Assign” settings are returned to the default settings.
0
This unit supports analog audio signals and PCM 2-channel signals. To connect
devices with the HDMI and DIGITAL connectors, set “PCM 2ch” as the audio
format in the audio device settings.
Contents Connections Playback Settings Tips Appendix
140
Front panel Display Rear panel Remote Index
Source Rename
0
Changes the display name of the input source.
Once changed, the name is displayed on the display and menu screens
of this unit.
0
If the device name can be acquired from a connected HDMI device, the
display name is changed automatically.
Use this function to change names as needed when the device you are
using differs from the input source on this unit.
CBL/SAT / Media Player /
Blu-ray / Game / AUX1 /
AUX2 / TV Audio / CD /
Phono:
Change the display name for input source.
Set Defaults:
The “Source Rename” settings are returned
to the default settings.
0
Up to 16 characters can be input.
Hide Sources
Remove from the display input sources that are not used.
Show
(Default):
Use this source.
Hide: Do not use this source.
Source Level
This function corrects the playback level of the selected input source’s
audio input.
Make this setting if there are differences in the input volume levels
between the different sources.
-12 dB – +12 dB (Default : 0 dB)
0
“Source Level” settings are stored for each input source.
Contents Connections Playback Settings Tips Appendix
141
Front panel Display Rear panel Remote Index
Speakers
Make speaker-related settings.
Speaker Layout
Select the Left/Right speaker output terminals, whether or not there is a
subwoofer, and the low range playback capacity.
o
Left/Right
Set the Left/Right speaker output terminals.
n
Configuration
The Left/Right speakers are fixed at “Yes” because they are required
for playback.
Yes (Default)
n
Connection
Select the Left/Right speaker output terminals.
Spkr + Pre-out
(Default):
Speaker and pre-out outputs are active.
Pre-out Only:
Pre-out outputs are active. Speaker
outputs are disconnected for enhanced
audio quality using only the pre-out
terminals.
o
Subwoofer
Set the presence of a subwoofer.
Yes
(Default):
Use a subwoofer.
No:
Select when a subwoofer is not
connected.
o
Low Pass Filter
Set the low pass filter of the subwoofer channel.
40 Hz / 60 Hz / 80 Hz / 90 Hz / 100 Hz / 110 Hz / 120 Hz / 150 Hz /
200 Hz / 250 Hz (Default: 80 Hz)
0
This item cannot be set when “Subwoofer” is set to “No”.
Contents Connections Playback Settings Tips Appendix
142
Front panel Display Rear panel Remote Index
Distances
Set distance from listening position to speakers.
Measure beforehand the distance from the listening position to each
speaker.
o
Unit
Set the unit of distance.
Feet (Default)
Meters
o
Step
Set the minimum variable width of the distance.
1 ft / 0.1 ft (Default: 1 ft)
0.1 m / 0.01 m
o
Set the distance
0.0 ft – 59.1 ft / 0.00 m – 18.00 m (Default: 11.8 ft (3.60 m))
0
The subwoofer cannot be set when the “Speaker Layout” - “Subwoofer” is set
to “No”. (v p. 142)
0
Set the difference in the distance between the speakers to less than 19.7 ft
(6.00 m).
o
Set Defaults
The “Distances” settings are returned to the default settings.
Contents Connections Playback Settings Tips Appendix
143
Front panel Display Rear panel Remote Index
Levels
Set the volume of the test tone to be the same at the listening position
when it is output from each speaker.
o
Test Tone Start
A test tone is output from the selected speaker.
While listening to the test tone, adjust the volume output from the
selected speaker.
–12.0 dB – +12.0 dB (Default : 0.0 dB)
0
The set “Levels” are reflected in all sound modes.
0
If you wish to adjust the left and right balance for each input source, carry out
the settings in “Balance”. (v p. 94)
0
When headphones are connected to the PHONES connector on this unit, you
cannot set “Levels”.
o
Set Defaults
The “Levels” settings are returned to the default settings.
Advanced
o
Speaker Select
n
Speaker
Set the speaker A/B for every sound mode.
A
(Default):
Speaker A is used.
B : Speaker B is used.
A+B : Both speaker A+B are used.
Contents Connections Playback Settings Tips Appendix
144
Front panel Display Rear panel Remote Index
Network
To use this unit by connecting it to a home network (LAN), you must configure network settings.
If you set up your home network (LAN) via DHCP, set “DHCP” to “On”. (Use the default setting.) This allows this unit to use your home network (LAN).
When assigning an IP address to each device manually, you need to assign an IP address to this unit using the “IP Address” settings, and enter
information about your home network (LAN) such as the gateway address and subnet mask, etc.
Information
Display network information.
Friendly Name / Connection / SSID / DHCP / IP Address /
MAC Address (Ethernet) / MAC Address (Wi-Fi) /
Wi-Fi signal strength
Connection
Choose whether to connect the home network to a wireless LAN or a
wired LAN.
When connecting to the network using wired LAN, select “Wired
(Ethernet)” after connecting a LAN cable.
When connecting to the network using wireless LAN, select “Wireless (Wi-
Fi)” and configure the “Wi-Fi Setup”. (v p. 146)
o
Connect Using
Select the method for connecting to the home network (LAN).
Wired (Ethernet): Use a LAN cable to connect to a network.
Wireless (Wi-Fi)
(Default):
Use the wireless LAN (Wi-Fi) function to
connect to a network.
0
“Wired (Ethernet)” is set when “Wi-Fi” is set to “Disabled”. (v p. 152)
Contents Connections Playback Settings Tips Appendix
145
Front panel Display Rear panel Remote Index
Wi-Fi Setup
Connect to a wireless LAN (Wi-Fi) router.
The router can be connected in the following ways. Select the connection
method to suit your home environment.
o
Scan Networks
Select the network you wish to connect to from the list of possible
networks shown on the TV screen.
1. Select the network you wish to connect to from the list of wireless
networks.
Select “Rescan” if the network cannot be found.
2. Enter your password and select “OK”.
o
Use iOS Device
Use your iOS device (iPhone/iPod/iPad) to connect to the network. By
connecting your iOS device to this unit using Wi-Fi, the unit can be
automatically connected to the same network as your device.
1. Select “Use iOS Device” on the TV screen.
2. Check that your iOS device is connected to the wireless LAN
(Wi-Fi) router and select “Denon DRA-900H” from “SET UP
NEW AIRPLAY SPEAKER...” at the bottom of the Wi-Fi
configuration screen of your iOS device.
3. Tap “Next” on the screen of the iOS device.
0
The iOS device firmware version needs to support iOS 10.0.2 or later.
o
WPS Router
Use a WPS-compatible router to connect using the push button
method.
1. Select “Push Button” on the TV screen.
2. Switch to the WPS mode by pressing the WPS button of the
router you wish to connect to.
0
The time for pressing the button varies depending on the
router.
3. Select “Connect” on the TV screen within 2 minutes.
Contents
Connections Playback Settings Tips Appendix
146
Front panel Display Rear panel Remote Index
o
Manual
Enter the name (SSID) and password of the network you wish to
connect to.
1. Set the following items.
SSID:
Input the name of the wireless network
(SSID).
Security:
Select the encryption method according
to the encryption setting of the access
point you are using.
Password: Input the password.
2. Select “Connect” at the end of the setting.
0
The Default key of this unit is fixed at “1”. Set Default key of the router to “1” to use.
Settings
Configure the IP address.
0
If you are using a broadband router (DHCP function), the information
required for network connection such as the IP address will be
automatically configured since the DHCP function is set to “On” in the
default settings of this unit.
0
Set up the IP Address, Subnet Mask, Default Gateway and DNS server
information only when assigning a fixed IP address or when connecting
to a network without DHCP function.
000.000.000.000
000.000.000.000
000.000.000.000
000.000.000.000
Network/Settings
Configures the network settings automatically or manually.
DHCP
IP Address
Subnet Mask
Default Gateway
DNS
Off
Cancel Save
Contents Connections Playback Settings Tips Appendix
147
Front panel Display Rear panel Remote Index
o
DHCP
Selects how to connect to the network.
On
(Default):
Configure the network settings
automatically from your router.
Off: Configure the network settings manually.
o
IP Address
Set the IP address within the ranges shown below.
0
The Network Audio function cannot be used if other IP addresses
are set.
CLASS A: 10.0.0.1 - 10.255.255.254
CLASS B: 172.16.0.1 - 172.31.255.254
CLASS C: 192.168.0.1 - 192.168.255.254
o
Subnet Mask
When connecting an xDSL modem or connector adapter directly to
this unit, input the subnet mask indicated in the documentation
supplied by your provider. Normally input “255.255.255.0”.
o
Default Gateway
When connected to a gateway (router), input its IP address.
o
DNS
Enter the DNS address indicated in the documentation supplied by
your provider.
0
If you cannot connect to the Internet, recheck the connections and settings.
(v p. 46)
0
If you do not understand about Internet connection, contact your ISP (Internet
Service Provider) or the store from which you purchased your computer.
Contents
Connections Playback Settings Tips Appendix
148
Front panel Display Rear panel Remote Index
Network Control
Enables network communication in standby power mode.
Off In Standby: Suspend network function during standby.
Always On
(Default):
Network is on during standby. Main unit
operable with a network compatible
controller.
0
When using the web control function, Denon AVR Remote App or HEOS App, use
with the “Network Control” setting set to “Always On”.
NOTE
0
When “Network Control” is set to “Always On”, the unit consumes more standby
power.
Friendly Name
The Friendly Name is the name of this unit displayed on the network. You
can change the Friendly Name according to your preferences.
o
Name
Selects Friendly Name from the list.
When you select “Other”, you can change the Friendly Name
according to your preferences.
Home Theater /Living Room / Family Room / Guest Room /
Kitchen / Dining Room / Master Bedroom / Bedroom / Den /
Office / Other
0
Up to 30 characters can be input.
0
The default Friendly Name on first use is “Denon DRA-900H”.
o
Set Defaults
Restores Friendly Name, which you had changed, to the default
setting.
Contents
Connections Playback Settings Tips Appendix
149
Front panel Display Rear panel Remote Index
Diagnostics
Used to check the network connection.
o
Physical Connection
Checks the physical LAN port connection.
OK
Error:
The LAN cable is not connected. Check
the connection.
0
When connected using a wireless LAN, “Connection Wireless (Wi-Fi)” will
be displayed.
o
Router Access
Checks the connection from this unit to the router.
OK
Error:
Failed to communicate with the router.
Check the router settings.
o
Internet Access
Checks whether this unit has access to the Internet (WAN).
OK
Error:
Failed to connect to the Internet. Check
the Internet connection environment or
router settings.
Contents Connections Playback Settings Tips Appendix
150
Front panel Display Rear panel Remote Index
AirPlay
Settings for Apple AirPlay.
o
AirPlay Name
Displays the name which identifies this unit on Apple devices.
0
If you registered this unit to the Apple Home app, use the app to change the
name.
o
AirPlay
Enables/disables the Apple AirPlay.
On
(Default):
Enables Apple AirPlay.
Off: Disables Apple AirPlay.
Spotify Connect
Toggles access to Spotify Connect.
On
(Default):
Enables Spotify Connect.
Off: Disables Spotify Connect.
Contents Connections Playback Settings Tips Appendix
151
Front panel Display Rear panel Remote Index
Wi-Fi and Bluetooth
Enables/disables the Wi-Fi and Bluetooth radios.
o
Wi-Fi
The Wi-Fi function can be stopped to prevent noise that affects the
sound quality. Using a wired LAN to connect this unit to the network
enables playback with a high sound quality.
Enabled
(Default):
Enables the Wi-Fi function.
Disabled: Disables the Wi-Fi function.
o
Bluetooth
Stopping Bluetooth receiver and transmitter functions reduces a
source of noise that affects sound quality, enabling higher sound
quality playback.
Enabled
(Default):
Enables the Bluetooth function.
Disabled: Disables the Bluetooth function.
Contents Connections Playback Settings Tips Appendix
152
Front panel Display Rear panel Remote Index
HEOS
HEOS Account is needed in order to use HEOS Favorites.
The menu displayed differs depending on the status of the HEOS Account.
You have not signed in
A QR code is displayed on the TV screen.
Scan the QR code with your mobile device and download the HEOS App.
After creating or signing in to your HEOS Account in the HEOS App, you
can save and call up your favorite streaming music services from this
unit’s screen. (v p. 93)
See “Getting the HEOS App” (v p. 79) for details about the HEOS App.
0
This unit’s HEOS Account setting information is synced with the HEOS App.
Change settings and sign out of your account through the HEOS App.
You have already signed in
o
Signed in as
The currently signed in HEOS Account is displayed.
0
This unit automatically syncs when you change your account settings or sign out
through the HEOS App. To switch HEOS accounts, play back music from an
HEOS App signed in to the account you wish to sync to this unit. The “HEOS
Account” switches automatically.
Contents Connections Playback Settings Tips Appendix
153
Front panel Display Rear panel Remote Index
General
Make various other settings.
Language
Set the language for display the menu on the TV screen.
English / Français / Español (Default: English)
0
“Language” can also be set up by the following operation. However, the menu
screen is not displayed. Watch the display while configuring the settings.
1. Press and hold the main unit’s ZONE2 SOURCE and STATUS at the same time
for at least 3 seconds.
“4K/8K <Enhanced>” appears on the display.
2. Press SPEAKERS on the main unit once.
“Lang.:<ENGLISH >” appears on the display.
3. Use the main unit’s TUNER PRESET CH + or TUNER PRESET CH – and set
the language.
4. Press the main unit’s STATUS to complete the setting.
Owner's Manual
Shows URL and QR code to access the online Owner's Manual from your
mobile device.
ECO
Configure the ECO Mode and auto standby mode settings.
o
ECO Mode
This mode can reduce the power consumption and heat generation of
this unit when power on.
This is done by reducing the power supply line to the power amplifier,
in turn the maximum power output.
Contents Connections Playback Settings Tips Appendix
154
Front panel Display Rear panel Remote Index
On:
Power savings are always active,
regardless of volume or input signal.
Auto
(Default):
Gives you the best balance between
power savings and maximum power
output:
For low volume levels, the power savings
are active. If you increase the volume
level, the power savings are switched off
automatically, so you can enjoy
maximum output power without
distortion.
If the volume is set to a high level but no
input signal is detected for more than 2
minutes, this unit will enable power
savings. When an input signal is detected
again or the input source is changed, this
unit will automatically turn off power
savings again at high volume levels.
Off:
No power savings.
0
When the unit is switching between the different power saving states in “ECO
Mode: Auto”, you may notice a click noise from the inside of this unit, this is
normal.
0
If content is paused for more than 2 minutes and playback is resumed from the
same source at these high volume levels, there may be short delay before
maximum power is restored.
0
“ECO Mode” cannot be set when speaker impedance is set to 4 Ω/ohms.
(v p. 28)
Contents Connections Playback Settings Tips Appendix
155
Front panel Display Rear panel Remote Index
o
Power On Default
Set the mode to ECO when the power is on.
Last
(Default):
The ECO Mode will be set to the previous
setting before the power was switched
off.
On:
When power is turned on, the mode will
always be switched to the ECO Mode in
“On”.
Auto:
When power is turned on, the mode will
always be switched to the ECO Mode in
“Auto”.
Off:
When power is turned on, the mode will
always be switched to the ECO Mode in
“Off”.
o
On Screen Display
Display the power consumption of this unit using a meter on the TV
screen.
Always On:
Always display the meter on the TV
screen.
Auto
(Default):
Display the meter when changing the
mode or volume.
Off: Do not display the meter.
Contents Connections Playback Settings Tips Appendix
156
Front panel Display Rear panel Remote Index
o
Auto Standby
Set so the unit power automatically switches to standby.
n
MAIN ZONE
Sets the time for switching to auto standby when there are no audio or
video signals input into this unit.
Before the unit enters standby mode, “Auto Standby” is displayed on
the unit display and the menu screen.
60 min:
The unit goes into standby after 60 minutes.
30 min:
The unit goes into standby after 30 minutes.
15 min:
The unit goes into standby after 15 minutes.
Off
(Default):
The unit does not go into standby
automatically.
n
ZONE2
When there are no operations for a certain period of time as set here,
the power is automatically shut off even if there is audio or video input.
8 hours:
Switches ZONE2 the standby state after
about 8 hours.
4 hours:
Switches ZONE2 to the standby state
after about 4 hours.
2 hours:
Switches ZONE2 to the standby state
after about 2 hours.
Off
(Default):
Does not automatically switch ZONE2 to
the standby state.
Contents Connections Playback Settings Tips Appendix
157
Front panel Display Rear panel Remote Index
Bluetooth Transmitter
Sets this unit's Bluetooth transmitter.
Set to use Bluetooth headphones to listen to audio playing in the MAIN
ZONE.
o
Transmitter
Enables or disables the Bluetooth transmitter.
On: Enables the Bluetooth transmitter feature.
Off
(Default):
Disables the Bluetooth transmitter
feature.
o
Output Mode
Selects the audio output method.
Bluetooth + Speakers
(Default):
Audio is output to Bluetooth headphones
and main zone speakers.
Bluetooth Only:
Audio is output to Bluetooth headphones
only.
o
Connected device
Displays the Bluetooth device connected to this unit.
o
Device List
0
Available devices are displayed in the list once you start pairing
mode on the Bluetooth headphones you want to connect. Select
your Bluetooth headphones from the list to pair them.
0
This unit can only pair with one Bluetooth headphone at a time.
However, up to 8 Bluetooth headphones can be registered. Switch
between registered devices from Device List in the “Bluetooth
Transmitter” setup menu.
0
To remove a saved Bluetooth device from the list, use the cursor
Up/Down buttons to select it, then press the OPTION button and
select “Forget This Device”.
0
“Output Mode” can also be set from “Bluetooth Transmitter” in the option menu.
0
A2DP profile-compatible Bluetooth speakers can be connected following the same
steps used to connect Bluetooth headphones.
NOTE
0
Bluetooth transmitter and Bluetooth receiver function cannot be used at the same
time. Settings in this menu are not available when listening to music on a Bluetooth
device in any zone.
0
Even when “Transmitter” is set to “On”, press Bluetooth on the remote control to
select the “Bluetooth” source and enable the Bluetooth receiver function.
To listen to music stored on Bluetooth devices such as smartphones on this unit,
press Bluetooth on the remote control to switch the input source to Bluetooth, then
reconnect the Bluetooth device.
0
Menu settings for Bluetooth Transmitter are not available when this unit is grouped
within the HEOS App.
Contents Connections Playback Settings Tips Appendix
158
Front panel Display Rear panel Remote Index
ZONE2 Setup
Makes settings for audio playback with ZONE2.
0
Values set for “Volume Limit” and “Power On Volume” are displayed according to
the setting specified for the volume “Scale”. (v p. 128)
o
Volume Level
Set the volume output level.
Variable
(Default):
Volume can be adjusted.
1 – 98
(–79 dB – 18 dB):
Volume is fixed at the desired level. The
volume cannot be adjusting using the
remote control unit.
0
The dB value is displayed when the “Scale” setting is “ –79.5 dB – 18.0 dB”.
(v p. 128)
o
Volume Limit
Make a setting for maximum volume.
60 (-20 dB) / 70 (-10 dB) / 80 (0 dB)
(Default : 70 (-10 dB))
Off: Do not set a maximum volume.
0
This can be set when “Volume Level” is set to “Variable”. (v p. 159)
0
The dB value is displayed when the “Scale” setting is “-79.5 dB - 18.0 dB”.
(v p. 128)
o
Power On Volume
Define the volume setting that is active when the power is turned on.
Last
(Default):
Use the memorized setting from the last
session.
Mute: Always mute when power is turned on.
1 – 98
(–79 dB – 18 dB):
The volume is adjusted to the set level.
0
This can be set when “Volume Level” is set to “Variable”. (v p. 159)
0
The dB value is displayed when the “Scale” setting is “-79.5 dB - 18.0 dB”.
(v p. 128)
Contents Connections Playback Settings Tips Appendix
159
Front panel Display Rear panel Remote Index
Zone Rename
Change the display title of each zone to one you prefer.
MAIN ZONE / ZONE2
Set Defaults:
The default setting is restored for the edited
zone name.
0
Up to 10 characters can be input.
Quick Select
Sets the “Quick Select” parameters and display name.
o
Name
Change the Name that appears on the TV screen to one you prefer.
0
Up to 16 characters can be input.
o
Input Source/Master Volume/Sound Mode/
Balance/Subwoofer/Restorer/Playback
Content/All Zone Stereo/TV Audio Sharing
Enabled
(Default):
The current settings are registered when
Quick Select is registered. In addition,
when Quick Select is called up, the
content of the registered settings is called
up.
Disabled:
Settings are not registered when Quick
Select is registered. In addition, when
Quick Select is called up, the content of
the registered settings is not called up.
0
“Quick Select” can be set for each Quick Select.
0
When “Input Source” is “Disabled”, Video Select information is not registered/
called up either.
Contents Connections Playback Settings Tips Appendix
160
Front panel Display Rear panel Remote Index
Front Display
Makes settings related to the display on this unit.
o
Brightness
Adjust the display brightness of this unit.
Bright
(Default):
Normal display brightness.
Dim: Reduced display brightness.
Dark: Very low display brightness.
Off: Turns the display off.
0
You can also adjust the display by pressing DIMMER on the remote control
unit.
Firmware
Checks for the latest firmware information about updates, updates the
firmware.
o
Check for Update
Check for firmware updates.
The firmware can be updated if a firmware update has been released.
Update Now:
Execute the update process. When the
update starts, the menu screen is shut
down. During the update, the progress is
shown on the display.
Update Later: Update later.
0
This unit automatically retries updating if updating fails. If an update still
cannot be performed, an “Update Error” message appears in the display. See
“Troubleshooting” – “Update error messages” for information on update error
messages. (v p. 189)
Check the conditions according to the message and try the update again.
0
This menu cannot be selected when “Allow Update” is set to “Off”.
Contents Connections Playback Settings Tips Appendix
161
Front panel Display Rear panel Remote Index
o
Auto-Update
Turns on Automatic Updates so that feature updates are automatically
downloaded and installed when this unit is in standby mode.
n
Auto-Update
This unit will automatically update to the newest firmware when in
standby mode.
On: Turns on Automatic Updates.
Off
(Default):
Turns off Automatic Updates.
n
Time Zone
Change the time zone.
Set the time zone that matches the area where you live.
0
This menu cannot be selected when “Allow Update” is set to “Off”.
o
Allow Update
Enable or disable updates for this unit.
On
(Default):
Enables this unit to receive updates.
Off: Prevents this unit from receiving update.
0
This setting causes Incompatibilities between this unit and HEOS App.
Contents Connections Playback Settings Tips Appendix
162
Front panel Display Rear panel Remote Index
Notes concerning use of “Update”
0
In order to use these functions, you must have the correct system
requirements and settings for an Internet connection. (v p. 46)
0
Do not turn off the power until updating is completed.
0
Approximately 1 hour is required for the updating procedure to be
completed.
0
Once updating starts, normal operations on this unit cannot be
performed until updating is completed. Furthermore, there may be
cases where backup data is reset for the parameters, etc., set on this
unit.
0
If the update fails, press and hold the X on the main unit for more than
5 seconds, or remove and re-insert the power cord. After about 1
minute, “Please wait” appears on the display and update restarts. If the
error continues, check the network environment.
Information
Show information about this unit settings, input signals, etc.
o
Audio
Show the audio information for MAIN ZONE.
Sound Mode: The currently set sound mode.
Input Signal: The input signal type.
Sample Rate: The input signal’s sampling frequency.
Contents Connections Playback Settings Tips Appendix
163
Front panel Display Rear panel Remote Index
o
Video
Show the HDMI input/output signals and HDMI TV information for
MAIN ZONE.
HDMI Signal Info.
Resolution / HDR / Color Space / Pixel Depth / ALLM / QFT / FRL
Rate
TV Info.
Interface / HDR / Resolutions / Enhanced Features / Max FRL
Rate
0
A or B may be displayed at the end of resolution. A represents uncompressed
video and B represents compressed video.
0
Refer to “About HDMI” for more information about ALLM, QFT and FRL.
(v p. 194)
o
ZONE
Show information about current settings.
MAIN ZONE:
This item shows information about
settings for MAIN ZONE. The information
displayed differs according to the input
source.
ZONE2:
This item shows information about
settings for ZONE2.
o
Firmware
Version:
Displays information for the current
firmware.
Contents Connections Playback Settings Tips Appendix
164
Front panel Display Rear panel Remote Index
o
Notifications
Displays and sets notifications.
Also, sets whether or not to display the notification when the power is
turned on.
Notification Alerts
On
(Default):
Notification messages are displayed.
Off: Notification messages are not displayed.
0
Pressing INFO on the remote control switches the display to show information
such as the input source name, the volume, the sound mode name, the video
input/output signals, and other information. The FRL Rate is displayed when the
“4K/8K Signal Format” setting of this unit is “8K Enhanced” and the connected TV
supports FRL transmission mode.
R
L
SW
R
L
40.0
SOURCE
Blu-ray
SIGNAL
PCM
SOUND
Stereo
INPUT
SIGNAL
ACTIVE
SPEAKERS
:8K24A
:HDR10
:YCbCr
4:2:2/BT.2020
:12bits
:40Gbps
=
>8K24A
=
>HDR10
=
>YCbCr
4:2:2/BT.2020
=
>12bits
=
>40Gbps
ALLM
SOURCE
Blu-ray
SIGNAL
PCM
SOUND
Stereo
Resolution
HDR
Color Space
Pixel Depth
FRL Rate
Contents Connections Playback Settings Tips Appendix
165
Front panel Display Rear panel Remote Index
Usage Data
To help us improve our products and customer service, Denon collects
anonymous information about how you use this unit (such as frequently
used input sources and sound modes and speaker settings).
Denon will never provide any information we collect to third parties.
Yes:
Provide information on the operating status
of this unit.
No:
Do not provide information on the operating
status of this unit.
Save & Load
Save and restore device settings by using a USB memory device.
0
Use a USB memory device that has at least 128 MB of free space and is formatted
to FAT32. Data may not Save/Load correctly to some USB memory devices.
0
It may take up to 10 minutes for data to Save/Load. Do not turn off the power until
the process is complete.
o
Save Configuration
Current unit settings are stored on the USB memory device.
When the settings are saved correctly, “Saved” appears on the display
and the file “config.avr” is created on the USB memory device.
0
Do not change the file name of the created file. Doing so will prevent the file
from being recognized as a settings file when restoring.
o
Load Configuration
Settings saved on the USB memory device are restored.
When the saved settings are restored correctly, “Loaded” appears on
the display and the unit automatically restarts.
Contents
Connections Playback Settings Tips Appendix
166
Front panel Display Rear panel Remote Index
Setup Lock
Protect settings from inadvertent changes.
o
Lock
On: Turn protection on.
Off
(Default):
Turn protection off.
0
When cancelling the setting, set “Lock” to “Off”.
NOTE
0
When “Lock” is set to “On”, no setting items are displayed except for “Setup
Lock”.
Reset
Returns settings to the factory default.
Initialization can be performed for all unit settings or for Network settings
only.
o
All Settings
All settings are reset to the factory default values.
o
Network Settings
Only network settings are reset to the factory default values.
0
Before returning the settings to the default settings, use the “Save & Load” function
from the menu to save and restore the details of various settings configured on the
unit. (v p. 166)
0
The “Reset” operation can also be performed by using the button on the main unit.
For details on resetting all of the settings to the factory defaults see “Resetting
factory settings” (v p. 190), and for details on resetting the network settings to
the factory defaults see “Resetting network settings” (v p. 191).
NOTE
0
Do not disconnect the power or turn the device off during network settings
initialization.
Contents Connections Playback Settings Tips Appendix
167
Front panel Display Rear panel Remote Index
Operating CD player with the remote control unit
ZONE SELECT
CD
System buttons
Press CD in the input source select buttons to operate your Denon CD
player with the system control buttons.
Operation buttons Function
8 9
Skip track
1/3
Playback / Pause
6 7
Fast-reverse / Fast-forward
2
Stop
0
The zone selection button does not light up in CD control mode, even when the
system control button is pressed.
0
You can exit CD control mode by pressing the zone selection button, the power
button, an input source button other than CD or the QUICK SELECT button.
Contents
Connections Playback Settings Tips Appendix
168
Front panel Display Rear panel Remote Index
Limiting the operating zone with the remote control
ZONE2
SETUP
ZONE2 operations can be disabled using the remote control.
1
Press and hold ZONE2 and SETUP.
The MAIN and ZONE2 buttons blink.
o
Canceling the settings
1
Press and hold ZONE2 and SETUP while configuring
the setting.
The MAIN and ZONE2 buttons blink and the setting is canceled.
Contents Connections Playback Settings Tips Appendix
169
Front panel Display Rear panel Remote Index
o
Contents
Tips
I want the volume not to become too loud by mistake 171
I want to keep the volume at the same level when I turn the power
on 171
I want to combine a desired video with the current music 171
I want to skip unused input sources 171
I want to enjoy the same music in all zones at the home party, etc. 171
Troubleshooting
Power does not turn on / Power is turned off 173
Operations cannot be performed through the remote control unit 174
Display on this unit shows nothing 174
No sound comes out 175
Desired sound does not come out 176
Sound is interrupted or noise occurs 178
No video is shown on the TV 179
The menu screen is not displayed on the TV 180
The color of the menu screen and operations content displayed on
the television is different from normal 180
AirPlay cannot be played back 181
USB memory devices cannot be played back 182
Bluetooth cannot be played back 183
The Internet radio cannot be played back 185
Music files on PC or NAS cannot be played back 186
Various online services cannot be played 187
The HDMI Control function does not work 187
Cannot connect to a wireless LAN network 188
Update error messages 189
Contents Connections Playback Settings Tips Appendix
170
Front panel Display Rear panel Remote Index
Tips
I want the volume not to become too loud by mistake
0
Set the volume upper limit for “Volume Limit” in the menu beforehand. This prevents children or others from increasing the volume too much by mistake.
You can set this for each zone. (“Volume” (v p. 128), “Volume Limit” (v p. 159))
I want to keep the volume at the same level when I turn the power on
0
By default, the volume setting when power was previously set to standby on this unit is applied at next power on with no change. To use a fixed volume
level, set the volume level at power on for “Power On Volume” in the menu. You can set this for each zone. (“Volume” (v p. 128), “Power On
Volume” (v p. 159))
I want to combine a desired video with the current music
0
Set “Video Select” in the option menu to “On”. You can combine the current music with your desired video source from a Set-top Box or Blu-ray, etc.
while listening to music from the Tuner, CD, Phono, HEOS Music, USB or Bluetooth. (v p. 98)
I want to skip unused input sources
0
Set unused input sources for “Hide Sources” in the menu. This allows you to skip unused input sources when turning the SOURCE SELECT knob on
this unit. (v p. 141)
I want to enjoy the same music in all zones at the home party, etc.
0
Set “All Zone Stereo” in the option menu to “Start”. You can simultaneously play back music in another room (ZONE2) that is played back in MAIN
ZONE. (v p. 99)
Contents
Connections Playback Settings Tips Appendix
171
Front panel Display Rear panel Remote Index
Troubleshooting
If a problem should arise, first check the following:
1. Are the connections correct?
2. Is the set being operated as described in the owner’s manual?
3. Are the other devices operating properly?
0
If steps 1 to 3 above do not improve the problem, restarting the device may improve the problem.
Continue pressing the X button on the unit until “Restart” appears in the display, or remove and re-insert the power cord of the unit.
If this unit does not operate properly, check the corresponding symptoms in this section.
If the symptoms do not match any of those described here, consult your dealer as it could be due to a fault in this unit. In this case, disconnect the power
immediately and contact the store where you purchased this unit.
Contents Connections Playback Settings Tips Appendix
172
Front panel Display Rear panel Remote Index
Power does not turn on / Power is turned off
Power does not turn on.
0
Check whether the power plug is correctly inserted into the power outlet. (v p. 49)
Power automatically turns off.
0
The sleep timer is set. Turn on the power again. (v p. 103)
0
“Auto Standby” is set. “Auto Standby” is triggered when there is no operation for a set amount of time. To disable “Auto Standby”, set “Auto Standby” on
the menu to “Off”. (v p. 157)
Power turns off and the power indicator flashes in red approx. every 2 seconds.
0
The protection circuit has been activated due to a rise in temperature within this unit. Turn the power off, wait about an hour until this unit cools down
sufficiently, and then turn the power on again. (v p. 205)
0
Please re-install this unit in a place having good ventilation.
Power turns off and the power indicator flashes in red approx. every 0.5 seconds.
0
Check the speaker connections. The protection circuit may have been activated because speaker cable core wires came in contact with each other or a
core wire was disconnected from the connector and came in contact with the rear panel of this unit. After unplugging the power cord, take corrective
action such as firmly re-twisting the core wire or taking care of the connector, and then reconnect the wire. (v p. 28)
0
Turn down the volume and turn on the power again. (v p. 51)
0
This unit’s amplifier circuit has failed. Unplug the power cord and contact our customer service center.
Power does not turn off even when the power button is pressed, and the display shows “ZONE2 On”.
0
The power supply of ZONE2 is turned to ON. To turn off the power supply of this unit (standby), press the ZONE2 ON/OFF on the main unit, or press
the POWER X button after pressing the ZONE2 button on the remote control unit to turn off the power supply of ZONE2.
Contents
Connections Playback Settings Tips Appendix
173
Front panel Display Rear panel Remote Index
Operations cannot be performed through the remote control unit
Operations cannot be performed through the remote control unit.
0
Batteries are worn out. Replace with new batteries. (v p. 9)
0
Operate the remote control unit within a distance of about 23 ft/7 m from this unit and at an angle of within 30°. (v p. 9)
0
Remove any obstacle between this unit and the remote control unit.
0
Insert the batteries in the proper direction, checking the q and w marks. (v p. 9)
0
The set’s remote control sensor is exposed to strong light (direct sunlight, inverter type fluorescent bulb light, etc.). Move the set to a place in which the
remote control sensor will not be exposed to strong light.
0
The operation target zone does not correspond to the zone setting specified on the remote control unit. Press the MAIN or ZONE2 button to select the
operating zone of the remote control. (v p. 126)
0
When using a 3D video device, the remote control unit of this unit may not function due to effects of infrared communications between units (such as TV
and glasses for 3D viewing). In this case, adjust the direction of units with the 3D communications function and their distance to ensure they do not
affect operations from the remote control unit of this unit.
0
The remote control unit operating mode is used to operate CD player device. Press the corresponding zone selection button (MAIN or ZONE2) to
operate HEOS Music or the Tuner. (v p. 168)
Display on this unit shows nothing
Display is off.
0
Set “Brightness” on the menu to something other than “Off”. (v p. 161)
0
When the sound mode is set to “Pure Direct”, the display is off. (v p. 100)
Contents
Connections Playback Settings Tips Appendix
174
Front panel Display Rear panel Remote Index
No sound comes out
No sound comes out of speakers.
0
This unit supports analog audio signals and PCM 2-channel signals. To play sources such as Dolby Digital discs, set “PCM 2ch” as the audio format in
the audio device settings.
0
Check the connections for all devices. (v p. 28)
0
Insert connection cables all the way in.
0
Check that input connectors and output connectors are not reversely connected.
0
Check cables for damage.
0
Check that speaker cables are properly connected. Check that cable core wires come in contact with the metal part on speaker terminals. (v p. 28)
0
Securely tighten the speaker terminals. Check speaker terminals for looseness. (v p. 28)
0
Check that a proper input source is selected. (v p. 51)
0
Adjust the volume. (v p. 52)
0
Cancel the mute mode. (v p. 52)
0
Check the digital audio input connector setting. (v p. 138)
0
Check the digital audio output setting on the connected device. On some devices, the digital audio output is set to off by default.
0
When a headphone is plugged into the PHONES jack on the main unit, sound is not output from the speaker terminal and SUBWOOFER connector.
0
Check the settings for the SPEAKERS button.
No sound comes out when using the DVI-D connection.
0
When this unit is connected to a device equipped with a DVI-D connector, no sound is output. Make a separate audio connection.
Contents
Connections Playback Settings Tips Appendix
175
Front panel Display Rear panel Remote Index
Desired sound does not come out
The volume does not increase.
0
The maximum volume is set too low. Set the maximum volume using “Limit” on the menu. (v p. 128)
0
Appropriate volume correction processing is performed according to the input audio format and settings, so the volume may not reach the upper limit.
The Bluetooth headphones do not have volume control and the volume is too low or too high.
0
Control the volume by adjusting the “Level” of the “Bluetooth Transmitter” from the option menu. (v p. 63)
The Bluetooth headphones have a volume control function but the volume is still too low or too high.
0
Control the volume by adjusting the “Level” of the “Bluetooth Transmitter” from the option menu. (v p. 63)
No sound comes out with the HDMI connection.
0
Check the connection of the HDMI connectors. (v p. 35)
0
When outputting HDMI audio from the speakers, set “HDMI Audio Out” on the menu to “Stereo Receiver”. To output from the TV, set “TV”. (v p. 129)
0
When using the HDMI Control function, check that the audio output is set to the AV amplifier on the TV. (v p. 102)
No sound comes out of a specific speaker.
0
Check that speaker cables are properly connected.
0
Check that a selection “Yes” is set for the “Speaker Layout” – “Subwoofer” setting in menu. (v p. 142)
Contents
Connections Playback Settings Tips Appendix
176
Front panel Display Rear panel Remote Index
No sound is produced from subwoofer.
0
Check the subwoofer connections.
0
Turn on the subwoofer’s power.
0
Set “Speaker Layout” – “Subwoofer” on the menu to “Yes”. (v p. 142)
“Restorer” cannot be selected.
0
Check that an analog signal or PCM signal (Sample Rate = 44.1/48 kHz) is input. (v p. 127)
0
Switch to a sound mode other than “Direct” or “Pure Direct”. (v p. 100)
No sound is output when using ZONE2.
0
The analog audio signal and the 2-channel PCM signal input from digital connectors (OPTICAL/COAXIAL) can be played back in ZONE2.
0
When listening to audio from a Bluetooth device in ZONE2, remove any obstructions between the Bluetooth device and this unit and use it within a
range of about 98.4 ft/30 m.
Sound mode settings are not available when using Bluetooth headphones. Audio menu settings are also not available.
0
This unit cannot change sound mode or audio menu settings for audio output to Bluetooth headphones.
Contents
Connections Playback Settings Tips Appendix
177
Front panel Display Rear panel Remote Index
Sound is interrupted or noise occurs
During playback from the Internet radio or USB memory device, sound is occasionally interrupted.
0
When the transfer speed of the USB memory device is slow, sound may occasionally be interrupted.
0
The network communication speed is slow or the radio station is busy.
When making a call on iPhone, noise occurs in audio output on this unit.
0
When making a call, keep a distance of 0.7 ft/20 cm or longer between iPhone and this unit.
Noise often occurs in FM/AM broadcasting.
0
Change the antenna orientation or position. (v p. 44)
0
Separate the AM loop antenna from the unit.
0
Use an outdoor antenna. (v p. 44)
0
Separate the antenna from other connection cables. (v p. 44)
The sounds appear to be distorted.
0
Lower the volume. (v p. 52)
0
Set “Off” to the “ECO Mode”. When “On” or “Auto” is in the “ECO Mode”, the audio may by distorted when the playback volume is high. (v p. 154)
Sound cuts out when using Wi-Fi connection.
0
The frequency band used by the wireless LAN is also used by microwave ovens, cordless telephones, wireless game controllers and other wireless
LAN devices. Using such devices at the same time as this unit may cause sound to cut out due to electronic interference. Sound cut out can be
improved using the following methods. (v p. 46)
- Install devices that cause interference away from this unit.
- Turn off the power supply to devices that cause interference.
- Change the settings of the router channel to which this unit is connected to. (See the instruction manual of the wireless router for details on how to
change the channel.)
- Switch to a wired LAN connection.
0
Particularly when you play back large music files, depending on your wireless LAN environment, the playback sound may be interrupted. In this case,
make the wired LAN connection. (v p. 146)
Contents
Connections Playback Settings Tips Appendix
178
Front panel Display Rear panel Remote Index
No video is shown on the TV
No picture appears.
0
Check the connections for all devices. (v p. 35)
0
Insert connection cables all the way in.
0
Check that input connectors and output connectors are not reversely connected.
0
Check cables for damage.
0
Match the input settings to the input connector of the TV connected to this unit. (v p. 138)
0
Check that the proper input source is selected. (v p. 51)
0
Check the video input connector setting. (v p. 138)
0
Check that the resolution of the player corresponds to that of the TV. (v p. 164)
0
Check whether the TV is compatible with copyright protection (HDCP). If connected to a device not compatible with HDCP, video will not be output
correctly. (v p. 195)
0
To enjoy content that is copyright protected by HDCP 2.2 or HDCP 2.3, use a playback device and TV compatible with HDCP 2.2 or HDCP 2.3.
0
To play back a 4K video, use a “High Speed HDMI Cable” or a “High Speed HDMI Cable with Ethernet”. In order to achieve a higher fidelity for 4K
videos, it is recommended to use a “Premium High Speed HDMI Cables” or a “Premium High Speed HDMI Cables with Ethernet” that has an HDMI
Premium Certified Cable label on the product package.
0
Use a certified “Ultra High Speed HDMI cable” to enjoy 8K or 4K 120Hz video. If you use a different HDMI cable, the video may not display or other
problems may occur.
No video is shown on the TV with the DVI-D connection.
0
With the DVI-D connection, on some device combinations, devices may not function properly due to the copy guard copyright protection (HDCP).
(v p. 195)
While the menu is being displayed, no video is shown on the TV.
0
The video being played will not appear in the background of the menu when the menu is operated.
Contents
Connections Playback Settings Tips Appendix
179
Front panel Display Rear panel Remote Index
The menu screen is not displayed on the TV
The menu screen or status information screen is not displayed on the TV.
0
The status information will not appear on the TV when the following video signals are being played.
- Some images of 3D video content
- Computer resolution images (example: VGA)
- Video with an aspect ratio other than 16:9 or 4:3
- Some kind of HDR signals
- Some kind of game contents
- Compressed video
0
When a 2D video is converted to a 3D video on the TV, the menu screen or status information screen is not displayed properly. (v p. 165)
The color of the menu screen and operations content displayed on the television is
different from normal
The color of the menu screen and operations content displayed on the television is different.
0
A different menu screen or operation colors from usual may be displayed when operating this unit while playing some HDR signals. This is due to the
characteristics of those HDR signals and is not a malfunction.
Contents
Connections Playback Settings Tips Appendix
180
Front panel Display Rear panel Remote Index
AirPlay cannot be played back
The AirPlay icon is not displayed on iTunes / iPhone / iPod touch / iPad.
0
This unit and PC / iPhone / iPod touch / iPad are not connected to the same network (LAN). Connect it to the same LAN as this unit. (v p. 46)
0
The firmware on iTunes / iPhone / iPod touch / iPad is not compatible with AirPlay. Update the firmware to the latest version.
Audio is not output.
0
The volume on iTunes / iPhone / iPod touch / iPad is set to the minimum level. The volume on iTunes / iPhone / iPod touch / iPad is linked with the
volume on this unit. Set a proper volume level.
0
The AirPlay playback is not performed, or this unit is not selected. Click the AirPlay icon on the iTunes / iPhone / iPod touch / iPad screen and select this
unit. (v p. 89)
Audio is interrupted during the AirPlay playback on iPhone / iPod touch / iPad.
0
Quit the application running in the background of the iPhone/iPod touch/iPad, and then play using AirPlay.
0
Some external factors may be affecting the wireless connection. Modify the network environment by taking measures such as shortening the distance
from the wireless LAN access point.
iTunes cannot be played back through the remote control unit.
0
Enable the “Allow iTunes audio control from remote speakers” setting on iTunes. Then, you can perform playback, pause, and skip operations through
the remote control unit.
Contents
Connections Playback Settings Tips Appendix
181
Front panel Display Rear panel Remote Index
USB memory devices cannot be played back
USB memory device is not recognized.
0
Disconnect and reconnect the USB memory device. (v p. 43)
0
Mass storage class compatible USB memory devices are supported.
0
This unit does not support a connection through a USB hub. Connect the USB memory device directly to the USB port.
0
The USB memory device must be formatted to “FAT32” or “NTFS”.
0
Not all USB memory devices are guaranteed to work. Some USB memory devices are not recognized. When using a type of portable hard disc drive
compatible with the USB connection that requires power from an AC adapter, use the AC adapter that came with the drive.
Files on the USB memory device are not displayed.
0
Files of a type not supported by this unit are not displayed. (v p. 53)
0
This unit is able to display files in a maximum of eight folder layers. A maximum of 5000 files (folders) can also be displayed for each layer. Modify the
folder structure of the USB memory device.
0
When multiple partitions exist on the USB memory device, only files on the first partition are displayed.
iOS and Android devices are not recognized.
0
The USB port of this unit does not support playback from iOS and Android devices.
Files on a USB memory device cannot be played.
0
Files are created in a format that is not supported by this unit. Check the formats supported by this unit. (v p. 198)
0
You are attempting to play a file that is copyright protected. Files that are copyright protected cannot be played on this unit.
0
Playback may not be possible if the album art file size exceeds 2 MB.
Contents
Connections Playback Settings Tips Appendix
182
Front panel Display Rear panel Remote Index
Bluetooth cannot be played back
Bluetooth devices cannot be connected to this unit.
0
The Bluetooth function in the Bluetooth device has not been enabled. See the Owner’s Manual of the Bluetooth device to enable the Bluetooth function.
0
Bring the Bluetooth device near to this unit.
0
The Bluetooth device cannot connect with this unit if it is not compatible with the A2DP profile.
0
Turn the power of the Bluetooth device off and on again, and then try again.
Smartphones and other Bluetooth devices cannot be connected.
0
Smartphones and other Bluetooth devices cannot be connected when “Transmitter” is set to “On”. Press Bluetooth on the remote control to switch the
input source to Bluetooth, then connect the device. (v p. 158)
Cannot connect Bluetooth headphones.
0
Bring the Bluetooth headphones near to this unit.
0
Turn the power of the Bluetooth headphones off and on again, and then try again.
0
Go to “General” - “Bluetooth Transmitter”, and set “Transmitter” to “On” within the menu. (v p. 158)
0
Make sure this unit is not already connected to another pair of Bluetooth headphones. Check the currently connected Bluetooth headphones by
pressing INFO on the remote control or STATUS button on the unit.
Disconnect the connected Bluetooth headphones before connecting the ones you want to use.
0
Bluetooth headphones cannot be connected if Bluetooth is being used as an input source in any zone.
0
Bluetooth headphones cannot be connected if this unit is grouped in the HEOS App. Remove this unit from the group to enable Bluetooth headphones
connection.
0
The Bluetooth headphones cannot connect with this unit if it is not compatible with the A2DP profile.
0
Connection and operation are not guaranteed for all Bluetooth-enabled devices.
0
This unit can only connect to one Bluetooth headphone at a time. However, up to 8 Bluetooth headphones can be registered. You can switch between
registered devices from “Device List” in the “Bluetooth Transmitter” menu. (v p. 158)
Contents
Connections Playback Settings Tips Appendix
183
Front panel Display Rear panel Remote Index
The sound is cut off.
0
Bring the Bluetooth device near to this unit.
0
Remove obstructions between the Bluetooth device and this unit.
0
To prevent electromagnetic interference, locate this unit away from microwave ovens, wireless LAN devices and other Bluetooth devices.
0
Reconnect the Bluetooth device.
The sound is cut off or noise occurs when using Bluetooth headphones.
0
Move the Bluetooth headphones closer to this unit.
0
Remove obstructions between the Bluetooth headphones and this unit.
0
Reconnect the Bluetooth headphones.
0
To prevent electromagnetic interference, locate this unit away from microwave ovens, wireless LAN devices and other Bluetooth devices.
0
We recommend using wired LAN to connect this unit and other devices.
0
Bluetooth transmits on the 2.4 GHz band which may interfere with Wi-Fi transmitted on this band. Connect this unit and other devices to Wi-Fi network
on a 5 GHz band if available on your Wi-Fi router.
Audio is delayed on my Bluetooth headphones.
0
This unit cannot adjust audio delay on Bluetooth headphones.
Contents
Connections Playback Settings Tips Appendix
184
Front panel Display Rear panel Remote Index
The Internet radio cannot be played back
A list of broadcasting stations is not displayed.
0
The LAN cable is not properly connected, or the network is disconnected. Check the connection status. (v p. 46)
0
Perform the network diagnostic mode.
Internet Radio cannot be played.
0
The selected radio station is broadcasting in a format that is not supported by this unit. Formats that can be played back in this unit are MP3, WMA and
AAC. (v p. 201)
0
The firewall function is enabled on the router. Check the firewall setting.
0
The IP address is not properly set. (v p. 147)
0
Check the power of the router is on.
0
To obtain the IP address automatically, enable the DHCP server function on the router. Also, set the DHCP setting to “On” on this unit. (v p. 147)
0
To obtain the IP address manually, set the IP address on this unit. (v p. 147)
0
Some radio stations broadcast silently during some time period. In this case, no audio is output. Wait for a while and select the same radio station, or
select another radio station. (v p. 74)
0
The selected radio station is not in service. Select a radio station in service.
Cannot connect to favorite radio stations.
0
Radio station is not currently in service. Register radio stations in service.
Contents
Connections Playback Settings Tips Appendix
185
Front panel Display Rear panel Remote Index
Music files on PC or NAS cannot be played back
Files stored on a computer cannot be played.
0
Files are stored in a non-compatible format. Record in a compatible format. (v p. 200)
0
Files that are copyright protected cannot be played on this unit.
0
The USB port of this unit cannot be used for connection to a computer.
0
Media sharing settings on the server or NAS do not allow this unit. Change the settings to allow this unit. For details, see the owner’s manual of the
server or NAS.
Server is not found, or it is not possible to connect to the server.
0
The computer’s or router’s firewall is activated. Check the computer’s or router’s firewall settings.
0
Computer’s power is not turned on. Turn on the power.
0
Server is not running. Launch the server.
0
IP address of this unit is wrong. Check the IP address of this unit. (v p. 145)
Music files on PC cannot be played back.
0
Even if PC is connected to the USB port on this unit, music files on it cannot be played back. Connect PC to this unit through the network. (v p. 46)
Files on PC or NAS are not displayed.
0
Files of a type not supported by this unit are not displayed. (v p. 200)
Music stored on a NAS cannot be played.
0
If you use a NAS in conformity with the DLNA standard, enable the DLNA server function in the NAS setting.
0
If you use a NAS that does not conform with the DLNA standard, play the music via a PC. Set Windows Media Player’s media sharing function and add
NAS to the selected play folder.
0
If connection is restricted, set audio equipment as the connection target.
Contents
Connections Playback Settings Tips Appendix
186
Front panel Display Rear panel Remote Index
Various online services cannot be played
Various online services cannot be played.
0
The online service may have been discontinued.
The HDMI Control function does not work
The HDMI Control function does not work.
0
Check that “HDMI Control” in the menu is set to “On”. (v p. 131)
0
You cannot operate devices that are not compatible with the HDMI Control function. In addition, depending on the connected device or the settings, the
HDMI Control function may not work. In this case, operate the external device directly. (v p. 102)
0
Check that the HDMI Control function setting is enabled on all devices connected to this unit. (v p. 102)
0
When you make connection related changes such as connecting an additional HDMI device, the link operation settings may be initialized. Turn off this
unit and devices connected via HDMI, and turn them on again. (v p. 102)
Contents
Connections Playback Settings Tips Appendix
187
Front panel Display Rear panel Remote Index
Cannot connect to a wireless LAN network
Cannot connect to the network.
0
The network name (SSID), password and encryption setting have not been set up correctly. Configure the network settings according to the setting
details of this unit. (v p. 147)
0
Shorten the distance from the wireless LAN access point and remove any obstructions to improve access first before re-connecting again. Place the
unit away from microwave ovens and other network access points.
0
Configure the access point channel settings away from channels that are being used by other networks.
0
This unit is not compatible with WEP (TSN).
Cannot connect to a WPS Router.
0
Check that the WPS mode of the router is operating.
0
Press the WPS button on the router and then press the “Connect” button displayed on the TV within 2 minutes.
0
A router/settings that are compatible with WPS 2.0 standards are required. Set the encryption type to “None”, “WPA-PSK (AES)” or WPA2-PSK (AES).
(v p. 147)
0
If the router encryption method is WEP/WPA-TKIP/WPA2-TKIP/WPA3-SAE (AES), you cannot connect by using the WPS button on the router. In this
case, use the “Scan Networks” or “Manual” method to connect.
Cannot connect to the network using iPhone/iPod touch/iPad.
0
Update the iPhone/iPod touch/iPad firmware to the latest version.
0
When configuring the settings via a wireless connection, iOS 10.0.2 or later needs to be supported.
Contents
Connections Playback Settings Tips Appendix
188
Front panel Display Rear panel Remote Index
Update error messages
If an update is interrupted or fails, an error message appears.
Display Description
Connection failed. Please check your network, then try
again.
The network connection is unstable.
Connection to the server failed.
Check your network environment and try the update again.
Update failed. Please check your network, then try
again.
The download of the firmware failed.
Check your network environment and try the update again.
Please check your network, unplug and reconnect the
power cord, and try again.
The update failed.
Press and hold the X on the main unit for more than 5 seconds, or remove and re-insert the
power cord.
The update restarts automatically.
Please contact customer service in your area. This unit may be broken.
Contact our Customer Service Center in your area.
Contents Connections Playback Settings Tips Appendix
189
Front panel Display Rear panel Remote Index
Resetting factory settings
If the indicators are incorrect or the unit cannot be operated, restarting the unit may improve the problem. We recommend restarting the unit before
returning the settings to the default settings. (v p. 172)
If the operations are not improved by restarting the unit, follow the steps below.
Various settings are reset to the factory default values. Make settings again.
X
TUNER PRESET CH +
TUNER PRESET CH –
1
Turn off the power using X.
2
Press X while simultaneously pressing TUNER
PRESET CH + and TUNER PRESET CH –.
3
Remove your fingers from the two buttons when
“Initialized” appears on the display.
0
Before returning the settings to the default settings, use the “Save & Load” function
from the menu to save and restore the details of various settings configured on the
unit. (v p. 166)
0
You can also reset all settings to the factory defaults using “Reset” - “All Settings”
in the menu. (v p. 167)
Contents
Connections Playback Settings Tips Appendix
190
Front panel Display Rear panel Remote Index
Resetting network settings
If network contents cannot be played or the unit cannot connect to the network, restarting the unit may improve the problem. We recommend restarting the
unit before returning the settings to the default settings. (v p. 172)
If the operations are not improved by restarting the unit, follow the steps below.
Network settings are reset to the factory default values. Make settings again.
However, the menu “Audio”, “Video” and “Speakers” settings are not reset.
TUNER PRESET CH +
ZONE2 ON/OFF
SOURCE SELECT
X
1
Press X to turn on power to the unit.
2
Turn SOURCE SELECT to select “HEOS Music”.
3
Press and hold the main unit's ZONE2 ON/OFF and
TUNER PRESET CH + at the same time for at least 3
seconds.
4
Remove your fingers from the two buttons when
“Network Reset...” appears on the display.
5
“Completed” is shown in the display when reset is
complete.
0
Before returning the settings to the default settings, use the “Save & Load” function
from the menu to save and restore the details of various settings configured on the
unit. (v p. 166)
0
You can also reset the network settings to the factory defaults using “Reset” -
“Network Settings” in the menu. (v p. 167)
NOTE
0
Do not turn the power off until reset is complete.
Contents Connections Playback Settings Tips Appendix
191
Front panel Display Rear panel Remote Index
Factory Restore
When the unit or the network functions do not work properly, operation may be improved by performing the Factory Restore.
Do this when the unit still does not work properly even after trying the steps for “Resetting factory settings” or “Resetting network settings”. (v p. 190,
191)
After performing the Factory Restore, various settings are reset to the default settings. Configure the network settings and update the firmware again.
SPEAKERS
ZONE2 SOURCE
X
WARNING
By initiating Factory Restore mode, you will be installing limited
recovery firmware on this unit. Functionality will remain limited
until a firmware update is performed over the Internet. Do not
perform a Factory Restore if you do not have this unit connected
to your home network.
1
Press X while simultaneously pressing SPEAKERS and
ZONE2 SOURCE.
2
When “Restoring” appears on the display, release the
buttons.
When the Factory Restore is complete, “Completed” appears on the
display for about 5 seconds, and the unit automatically restarts.
0
This operation takes time because it requires reconnecting to the network,
restoring and updating the firmware.
0
If this operation does not improve the problem, contact our customer service
center.
NOTE
0
Do not turn off the power until the Factory Restore is complete.
Contents Connections Playback Settings Tips Appendix
192
Front panel Display Rear panel Remote Index
About HDMI
HDMI is an abbreviation of High-Definition Multimedia Interface, which is
an AV digital interface that can be connected to a TV or amplifier.
With the HDMI connection, high definition video and high quality audio
formats adopted by Blu-ray Disc players can be transmitted, which is not
possible with the analog video transmission.
Furthermore, in the HDMI connection, audio and video signals can be
transmitted through a single HDMI cable, while in conventional
connections it is necessary to provide audio and video cables separately
for connection between devices. This allows you to simplify the wiring
configuration that tends to be quite complex in a home theater system.
This unit supports the following HDMI functions.
0
Deep Color
An imaging technology supported by HDMI. Unlike RGB or YCbCr,
which uses 8 bits (256 shades) per color, it can use 10 bits (1024
shades), 12 bits (4096 shades), or 16 bits (65536 shades) to produce
colors in higher definition.
Both devices linked via HDMI must support Deep Color.
0
x.v.Color
This function lets HDTVs display colors more accurately. It enables
display with natural, vivid colors.
“x.v.Color” is trademark of Sony Corporation.
0
3D
This unit supports input and output of 3D (3 dimensional) video signals
of HDMI. To play back 3D video, you need a TV and player that
provide support for the HDMI 3D function and a pair of 3D glasses.
0
4K / 8K
This unit supports input and output of 4K (3840 x 2160 pixels) and 8K
(7680 x 4320 pixels) video signals of HDMI.
0
Content Type
It automatically makes settings suitable for the video output type
(content information).
0
Adobe RGB color, Adobe YCC601 color
The color space defined by Adobe Systems Inc. Because it is a wider
color space than RGB, it can produce more vivid and natural images.
0
sYCC601 color
Each of these color spaces defines a palette of available colors that is
larger than the traditional RGB color model.
Contents
Connections Playback Settings Tips Appendix
193
Front panel Display Rear panel Remote Index
0
Auto Lip Sync
This function can automatically correct delay between the audio and
video.
Use a TV that is compatible with the Auto Lip Sync function.
0
HDMI Pass Through
Even when the power to this unit is set to standby, signals input from
the HDMI input connector are output to a TV or other device that is
connected to the HDMI output connector.
0
HDMI Control
If you connect the unit and an HDMI Control function compatible TV or
player with an HDMI cable and then enable the HDMI Control function
setting on each device, the devices will be able to control each other.
0
Power off link
This unit power off can be linked to the TV power off step.
0
Audio output destination switching
From the TV, you can switch whether to output audio from the TV or
the AV amplifier.
0
Volume adjustment
You can adjust this unit’s volume in the TV volume adjustment
operation.
0
Input source switching
You can switch this unit input sources through linkage to TV input
switching.
When playing the player, this unit input source switches to the
source for that player.
0
ARC (Audio Return Channel)
This function transmits audio signals from the TV to this unit through
the HDMI cable and plays back the audio from the TV on this unit
based on the HDMI Control function.
If a TV without the ARC function is connected via HDMI connections,
video signals of the playback device connected to this unit are
transmitted to the TV, but this unit can not play back the audio from the
TV. If you want to enjoy surround audio for TV program, a separate
audio cable connection is required.
In contrast, if a TV with the ARC function is connected via HDMI
connections, no audio cable connection is required. Audio signals from
the TV can be input to this unit through the HDMI cable between this
unit and the TV. This function allows you to enjoy surround playback
on this unit for the TV.
0
ALLM (Auto Low Latency Mode)
This unit automatically switches to low latency mode depending on
playback contents when using a combination of television and game
console compatible with the ALLM function.
0
VRR (Variable Refresh Rate):
VRR reduces or eliminates lag, stutter and frame tearing for more fluid
and better detailed gameplay.
Contents
Connections Playback Settings Tips Appendix
194
Front panel Display Rear panel Remote Index
0
QFT (Quick Frame Transport):
QFT reduces latency for smoother no-lag gaming, and real-time
interactive virtual reality.
0
FRL (Fixed Rate Link):
FRL (Fixed Rate Link) is transmission technology that is required to
provide higher resolutions such as ultra high speed bandwidths of 4K
60Hz or higher.
NOTE
0
Some functions may not operate depending on the connected TV or player. Check
the owner’s manual of each device for details beforehand.
o
Supported audio formats
2-channel Linear PCM 2-channel, 32 kHz – 192 kHz, 16/20/24 bit
o
Supported video signals
0
480i
0
480p
0
576i
0
576p
0
720p 60/50Hz
0
1080i 60/50Hz
0
1080p 120/100/60/50/24Hz
0
4K 120/100/60/50/30/25/24Hz
0
8K 60/50/30/25/24Hz
Copyright protection system
In order to play back digital video and audio such as BD video or DVD
video via HDMI connection, both this unit and the TV or player must to
support the copyright protection system known as HDCP (High-
bandwidth Digital Content Protection System). HDCP is copyright
protection technology comprised of data encryption and authentication of
the connected AV devices. This unit supports HDCP.
0
If a device that does not support HDCP is connected, video and audio
are not output correctly. Read the owner’s manual of your television or
player for more information.
Contents Connections Playback Settings Tips Appendix
195
Front panel Display Rear panel Remote Index
Relationship between video signals and TV output
HDMI-compatible TV
Output
(HDMI OUT)
Input (IN)
HDMI signal
Output
Video device
HDMI signal
HDMI connector HDMI connector HDMI connector HDMI connector
This unit
NOTE
0
Only HDMI connections are available for the video input/output of this unit.
Contents Connections Playback Settings Tips Appendix
196
Front panel Display Rear panel Remote Index
When “HDMI Upscaler” in the menu is set to “Auto”, this unit upscales the input HDMI video signal and then outputs it to the TV. (v p. 133)
HDMI
480i/576i
480p/576p
720p 1080i
1080p
30/25/24Hz
1080p
60/50Hz
1080p
120/100Hz
4K
30/25/24Hz
4K
60/50Hz
4K
120/100Hz
8K
30/25/24Hz
8K
60/50Hz
HDMI
480i/576i
480p/576p
720p
1080i
1080p 30/25/24Hz
1080p 60/50Hz
1080p 120/100Hz
4K 30/25/24Hz
4K 60/50Hz
4K 120/100Hz
z
8K 30/25/24Hz
z
8K 60/50Hz
z
Output signal
Input signal
z
Supported by the HDMI 4, 5 and 6 connectors.
Contents
Connections Playback Settings Tips Appendix
197
Front panel Display Rear panel Remote Index
Playing back a USB memory devices
0
This unit is compatible with MP3 ID3-Tag (Ver. 2) standard.
0
This unit can show the artwork that was embedded by using MP3 ID3-Tag Ver. 2.3 or 2.4.
0
This unit is compatible with WMA META tags.
0
If the image size (pixels) of an album artwork exceeds 500 × 500 (WMA/MP3/Apple Lossless/DSD) or 349 × 349 (MPEG-4 AAC), then music may not
be played back properly.
o
Compatible formats
Sampling frequency Channel Bit rate Extension
WMA
z
1
32/44.1/48 kHz 2-channel 48 – 192 kbps .wma
MP3 32/44.1/48 kHz 2-channel 32 – 320 kbps .mp3
WAV
32/44.1/48/88.2/
96/176.4/192 kHz
2-channel – .wav
MPEG-4 AAC
z
1
32/44.1/48 kHz 2-channel 48 - 320 kbps .aac/.m4a
FLAC
44.1/48/88.2/
96/176.4/192 kHz
2-channel – .flac
Apple Lossless
z
2
44.1/48/88.2/
96/176.4/192 kHz
2-channel – .m4a
DSD 2.8/5.6 MHz 2-channel – .dsf/.dff
z1
Only files that are not protected by copyright can be played on this unit.
Content downloaded from pay sites on the Internet are copyright protected. Also, files encoded in WMA format when ripped from a CD, etc. on a computer may be
copyright protected, depending on the computer’s settings.
z2
The Apple Lossless Audio Codec (ALAC) decoder is distributed under the Apache License, Version 2.0 (http://www.apache.org/licenses/LICENSE-2.0).
Contents
Connections Playback Settings Tips Appendix
198
Front panel Display Rear panel Remote Index
o
Maximum number of playable files and folder
The limits on the number of folders and files that can be displayed by
this unit are as follows.
Media
Item
USB memory device
Number of folder directory levels
z
1
8 levels
Number of folders 500
Number of files
z
2
5000
z1
The limited number includes the root folder.
z2
The allowable number of files may differ according to the USB memory device
capacity and the file size.
Playing back a Bluetooth device
This unit supports the following Bluetooth profile.
0
A2DP (Advanced Audio Distribution Profile):
When a Bluetooth device that supports this standard is connected,
monaural and stereo sound data can be streamed at a high quality.
0
AVRCP (Audio/Video Remote Control Profile):
When a Bluetooth device that supports this standard is connected, the
Bluetooth device can be operated from this unit.
o
About Bluetooth communications
Radio waves broadcast from this unit may interfere with the operation
of medical devices. Make sure you turn off the power of this unit and
Bluetooth device in the following locations as radio wave interference
may cause malfunctions.
0
Hospitals, trains, aircraft, petrol kiosks and places where flammable
gases are generated
0
Near automatic doors and fire alarms
Contents
Connections Playback Settings Tips Appendix
199
Front panel Display Rear panel Remote Index
Playing back a file saved on a PC or NAS
0
This unit is compatible with MP3 ID3-Tag (Ver. 2) standard.
0
This unit can show the artwork that was embedded by using MP3 ID3-Tag Ver. 2.3 or 2.4.
0
This unit is compatible with WMA META tags.
0
If the image size (pixels) of an album artwork exceeds 500 × 500 (WMA/MP3/WAV/FLAC/Apple Lossless/DSD) or 349 × 349 (MPEG-4 AAC), then
music may not be played back properly.
0
A server or server software compatible with distribution in the corresponding formats is required to play music files via a network.
For playing mentioned audio formats via a network a server software, for example Twonky Media Server or jRiver Media Server, needs to be installed
on your computer or NAS for full support. There are other server software available too. Please check supported formats.
o
Specifications of supported files
Sampling frequency Channel Bit rate Extension
WMA
z
1
32/44.1/48 kHz 2-channel 48 – 192 kbps .wma
MP3 32/44.1/48 kHz 2-channel 32 – 320 kbps .mp3
WAV
32/44.1/48/88.2/
96/176.4/192 kHz
2-channel – .wav
MPEG-4 AAC
z
1
32/44.1/48 kHz 2-channel 48 - 320 kbps .aac/.m4a
FLAC
44.1/48/88.2/
96/176.4/192 kHz
2-channel – .flac
Apple Lossless
z
2
44.1/48/88.2/
96/176.4/192 kHz
2-channel – .m4a
DSD 2.8/5.6 MHz 2-channel – .dsf/.dff
z1
Only files that are not protected by copyright can be played on this unit.
Content downloaded from pay sites on the Internet are copyright protected. Also, files encoded in WMA format when ripped from a CD, etc. on a computer may be
copyright protected, depending on the computer’s settings.
z2
The Apple Lossless Audio Codec (ALAC) decoder is distributed under the Apache License, Version 2.0 (http://www.apache.org/licenses/LICENSE-2.0).
Contents
Connections Playback Settings Tips Appendix
200
Front panel Display Rear panel Remote Index
Playing back Internet Radio
o
Playable broadcast station specifications
Sampling frequency Bit rate
Extension
WMA 32/44.1/48 kHz
48 – 192
kbps
.wma
MP3 32/44.1/48 kHz
32 – 320
kbps
.mp3
MPEG-4 AAC 32/44.1/48 kHz
48 - 320
kbps
.aac/
.m4a
Personal memory plus function
The most recently used settings (input mode, HDMI output mode, sound
mode, tone control, Balance, Restorer and Audio Delay, etc.) are saved
for each input source.
Last function memory
This function stores the settings which were made before going into the
standby mode.
Contents Connections Playback Settings Tips Appendix
201
Front panel Display Rear panel Remote Index
Explanation of terms
o
Audio
Apple Lossless Audio Codec
This is a codec for lossless audio compression method developed by
Apple Inc. This codec can be played back on iTunes, iPod or iPhone. Data
compressed to approximately 60 – 70 % can be decompressed to exactly
the same original data.
FLAC (Free Lossless Audio Codec)
FLAC stands for Free lossless Audio Codec, and is a lossless free audio
file format. Lossless means that the audio is compressed without any loss
in quality.
The FLAC license is as shown below.
Copyright (C) 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008,
2009 Josh Coalson
Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions are met:
0
Redistributions of source code must retain the above copyright notice,
this list of conditions and the following disclaimer.
0
Redistributions in binary form must reproduce the above copyright
notice, this list of conditions and the following disclaimer in the
documentation and/or other materials provided with the distribution.
0
Neither the name of the Xiph.org Foundation nor the names of its
contributors may be used to endorse or promote products derived from
this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND
CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED
WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE
FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR
CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,
PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF
USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE
OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS
SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.
MP3 (MPEG Audio Layer-3)
This is an internationally standardized audio data compression scheme,
using the “MPEG-1” video compression standard. It compresses the data
volume to about one eleventh its original size while maintaining sound
quality equivalent to a music CD.
Contents
Connections Playback Settings Tips Appendix
202
Front panel Display Rear panel Remote Index
MPEG (Moving Picture Experts Group), MPEG-2, MPEG-4
These are the names for digital compression format standards used for
the encoding of video and audio. Video standards include “MPEG-1
Video”, “MPEG-2 Video”, “MPEG-4 Visual”, “MPEG-4 AVC”. Audio
standards include “MPEG-1 Audio”, “MPEG-2 Audio”, “MPEG-4 AAC”.
WMA (Windows Media Audio)
This is audio compression technology developed by Microsoft
Corporation.
WMA data can be encoded using Windows Media
®
Player.
To encode WMA files, only use applications authorized by Microsoft
Corporation. If you use an unauthorized application, the file may not work
properly.
Sampling frequency
Sampling involves taking a reading of a sound wave (analog signal) at
regular intervals and expressing the height of the wave at each reading in
digitized format (producing a digital signal).
The number of readings taken in one second is called the “sampling
frequency”. The larger the value, the closer the reproduced sound is to the
original.
Speaker impedance
This is an AC resistance value, indicated in Ω (ohms).
Greater power can be obtained when this value is smaller.
Contents Connections Playback Settings Tips Appendix
203
Front panel Display Rear panel Remote Index
o
Video
Progressive (sequential scanning)
This is a scanning system of the video signal that displays 1 frame of video
as one image. Compared to the interlace system, this system provides
images with less flickering and jagged edges.
o
Network
AirPlay
AirPlay sends (plays) contents recorded in iTunes or on an iPhone/iPod
touch/iPad to a compatible device via the network.
WEP Key (network key)
This is key information used for encrypting data when conducting data
transfer. On this unit, the same WEP key is used for data encryption and
decryption, so the same WEP key must be set on both devices in order for
communications to be established between them.
Wi-Fi
®
Wi-Fi Certification assures tested and proven interoperability by the Wi-Fi
Alliance, a group certifying interoperability among wireless LAN devices.
WPA (Wi-Fi Protected Access)
This is a security standard established by the Wi-Fi Alliance. In addition to
the conventional SSID (network name) and WEP key (network key), it also
uses a user identification function and encrypting protocol for stronger
security.
WPA2 (Wi-Fi Protected Access 2)
This is a new version of the WPA established by the Wi-Fi Alliance,
compatible with more secure AES encryption.
WPA-PSK/WPA2-PSK (Pre-shared Key)
This is a simple authentication system for mutual authentication when a
preset character string matches on the wireless LAN access point and
client.
WPA2/WPA3-Personal
WPA2/WPA3-Personal Mode was defined by Wi-Fi Alliance
®
to minimize
user disruption and provide a gradual migration path to WPA3-Personal
while maintaining interoperability with WPA2-Personal only devices.
Contents
Connections Playback Settings Tips Appendix
204
Front panel Display Rear panel Remote Index
WPA3-Personal
WPA3-Personal replaces the WPA2-Personal Pre-Shared Key (PSK)
authentication with Simultaneous authentication of equals (SAE). Unlike
PSK, SAE is resistant to offline dictionary attacks.
Network Names (SSID: Service Set Identifier)
When forming wireless LAN networks, groups are formed to prevent
interference, data theft, etc. These groups are based on “SSID (network
names)”. For enhanced security, a WEP key is set so that communication
is unavailable unless both the “SSID” and the WEP key match. This is
suitable for constructing a simplified network.
o
Others
HDCP
When transmitting digital signals between devices, this copyright
protection technology encrypts the signals to prevent content from being
copied without authorization.
MAIN ZONE
The room where this unit is placed is called the MAIN ZONE.
Pairing
Pairing (registration) is an operation that is required in order to connect a
Bluetooth device to this unit using Bluetooth. When paired, the devices
authenticate each other and can connect without mistaken connections
occurring.
When using Bluetooth connection for the first time, you need to pair this
unit and the Bluetooth device to be connected.
Protection circuit
This is a function to prevent damage to devices within the power supply
when an abnormality such as an overload, excess voltage occurs or over
temperature for any reason.
Contents
Connections Playback Settings Tips Appendix
205
Front panel Display Rear panel Remote Index
Trademark information
Apple, AirPlay, iPad, iPad Air, iPad Pro and iPhone are trademarks of
Apple Inc., registered in the U.S. and other countries.
The trademark “iPhone” is used in Japan with a license from Aiphone
K.K.
Use of the Works with Apple badge means that an accessory has been
designed to work specifically with the technology identified in the badge
and has been certified by the developer to meet Apple performance
standards.
The Bluetooth
®
word mark and logos are registered trademarks owned
by the Bluetooth SIG, Inc. and any use of such marks by D&M Holdings
Inc. is under license. Other trademarks and trade names are those of
their respective owners.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI
Trade dress and the HDMI Logos are trademarks or registered
trademarks of HDMI Licensing Administrator, Inc.
HDR10+™ logo is a trademark of HDR10+ Technologies, LLC.
The Wi-Fi CERTIFIED logo is a registered trademark of the Wi-Fi
Alliance.
Wi-Fi Certification provides assurance that the device has passed the
interoperability test conducted by the Wi-Fi Alliance, a group that certifies
interoperability among wireless LAN devices.
Contents Connections Playback Settings Tips Appendix
206
Front panel Display Rear panel Remote Index
Specifications
Audio section
0
Power amplifier
Rated output: 100 W + 100 W (8 Ω/ohms, 20 Hz – 20 kHz with 0.08 % T.H.D.)
120 W + 120 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.)
Output connectors: 4 – 16 Ω/ohms
0
Analog
Input sensitivity: 200 mV
Frequency response: 10 Hz – 100 kHz — +1, –3 dB (Direct mode)
S/N: 98 dB (IHF–A weighted, Direct mode)
0
Phono equalizer
Input sensitivity: 2.5 mV
RIAA deviation: ±1 dB (20 Hz to 20 kHz)
S/N: 74 dB (IHF-A)
Distortion factor: 0.03 % (1 kHz, 3 V)
Contents Connections Playback Settings Tips Appendix
208
Front panel Display Rear panel Remote Index
Tuner section
[FM] [AM]
(Note: μV at 75 Ω/ohms, 0 dBf = 1 x 10
–15
W)
Reception frequency range: 87.5 MHz – 107.9 MHz 520 kHz – 1710 kHz
Effective sensitivity: 1.2 μV (12.8 dBf) 18 μV
50 dB sensitivity: MONO ― 2.8 μV (20.2 dBf)
S/N ratio: MONO ― 70 dB (IHF–A weighted, Direct mode)
STEREO ― 67 dB (IHF–A weighted, Direct mode)
Distortion: MONO ― 0.7 % (1 kHz)
STEREO ― 1.0 % (1 kHz)
Wireless LAN section
Network type (wireless LAN standard): Conforming to IEEE 802.11a/b/g/n/ac
(Wi-Fi
®
compliant)
z
1
Security: WEP 64 bit, WEP 128 bit
WPA/WPA2-PSK (AES)
WPA/WPA2-PSK (TKIP)
WPA3-SAE (AES)
Used frequency range: 2.4 GHz, 5 GHz
z1
The Wi-Fi
®
CERTIFIED Logo and the Wi-Fi CERTIFIED On-Product Logo are registered trademarks of the Wi-Fi Alliance.
Contents
Connections Playback Settings Tips Appendix
209
Front panel Display Rear panel Remote Index
Bluetooth section
Communications system: Bluetooth Specification Version 5.0
Transmission power: Bluetooth Specification Power Class 1
Maximum communication range:
Approx. 98.4 ft/30 m in line of sight
z
2
Used frequency range: 2.4 GHz
Modulation scheme: FHSS (Frequency-Hopping Spread Spectrum)
Supported profiles: Receiver function
A2DP (Advanced Audio Distribution Profile) 1.2
AVRCP (Audio Video Remote Control Profile) 1.5
Transmitter function
A2DP (Advanced Audio Distribution Profile) 1.2
Corresponding codec: SBC
Transmission range (A2DP): 20 Hz – 20,000 Hz
z2
The actual communication range varies depending on the influence of such factors as obstructions between devices, electromagnetic waves from
microwave ovens, static electricity, cordless phones, reception sensitivity, antenna performance, operating system, application software etc.
Contents
Connections Playback Settings Tips Appendix
210
Front panel Display Rear panel Remote Index
General
Operating temperature: 41 °F - 95 °F (5 °C - 35 °C)
Power supply: AC 120 V, 60 Hz
Power consumption: 220 W
Power consumption in standby mode:
0.1 W
z
Power consumption in CEC standby
mode:
0.5 W
z When “Network Control” in the menu is set to “Off In Standby” and “HDMI Pass Through” is set to “Off”.
For purposes of improvement, specifications and design are subject to change without notice.
Contents Connections Playback Settings Tips Appendix
211
Front panel Display Rear panel Remote Index
Index
v Numerics
2.1-channel .................................................... 30
3D ................................................................ 193
4K/8K ........................................................... 193
v A
AirPlay ............................................................ 88
All Zone Stereo .............................................. 99
Audio formats ....................... 195, 198, 200, 201
Audio settings .............................................. 127
Auto Standby ............................................... 157
v B
Bluetooth device ............................................ 58
Blu-ray Disc player ................................... 40, 52
v C
Cable TV ........................................................ 38
v D
Display ........................................................... 19
DVD player ............................................... 40, 52
v E
ECO Mode ................................................... 154
External control device ................................... 48
v F
Firmware Update .......................................... 161
FM/AM antenna ........................................ 44, 66
Front panel ..................................................... 16
v G
General settings ........................................... 154
v H
HDCP ........................................................... 195
HDMI Control ............................................... 102
HEOS Account ....................................... 80, 153
HEOS Favorites ............................................. 94
v I
Input Assign ................................................. 138
Input settings ........................................ 122, 138
Input source ................................................... 51
Internet Radio ................................................. 73
v M
Menu map .................................................... 121
Muting ............................................................ 52
v N
NAS ............................................................... 75
Network settings .......................................... 122
v P
Pairing ...................................................... 58, 59
PC .................................................................. 75
Protection circuit .......................................... 205
Contents
Connections Playback Settings Tips Appendix
213
Front panel Display Rear panel Remote Index
v Q
Queue ................................................ 54, 76, 83
Quick select plus .......................................... 105
v R
Rear panel ...................................................... 20
Remote control unit ........................................ 23
Resetting factory settings ............................. 190
Resetting network settings ........................... 191
Restorer ....................................................... 127
v S
Satellite tuner ................................................. 38
Set-top box ..................................................... 38
Setup Assistant ............................................ 125
Sleep timer ................................................... 103
Sound mode ................................................. 100
Speaker connection ....................................... 28
Speaker settings .......................................... 142
Spotify ............................................................ 91
v T
Tips .............................................................. 171
Troubleshooting ........................................... 172
TV ............................................................ 35, 36
v U
USB memory device ................................ 43, 53
v V
Video Select ................................................... 98
Video settings .............................................. 129
Volume ........................................................... 52
v W
Web control .................................................. 112
Wi-Fi settings ............................................... 146
Wired LAN ...................................................... 46
Wireless LAN ................................................. 47
v Z
ZONE2 ......................................................... 115
Contents
Connections Playback Settings Tips Appendix
214
Front panel Display Rear panel Remote Index
www.denon.com
3520 10920 00ASA
©2023 DEI Sales, Inc. All Rights Reserved.
215
