Operator's Manual
19" 48V MAX* Lithium-Ion Cordless Mower CLMF4819A
Save this manual for future reference
* Maximum initial battery workload voltage (measured without a workload) is 48 volts (2*24 V).
Nominal voltage is 43.2 volts (2*21.6 V).
Read all safety rules and instructions carefully before operating this tool.
Distributed By Suzhou Cleva Electric Appliance Co., Ltd.
NO.8 Ting Rong Street 215122 Suzhou - China
Battery Model Number is 24LB4005-CN
Charger Model Number is 24LFC15-ETL
2
Section Page
TABLE OF CONTENTS
TABLE OF CONTENTS 2
SPECIFICATIONS 3
IMPORTANT SAFETY INSTRUCTIONS 4-8
SYMBOLS 9-10

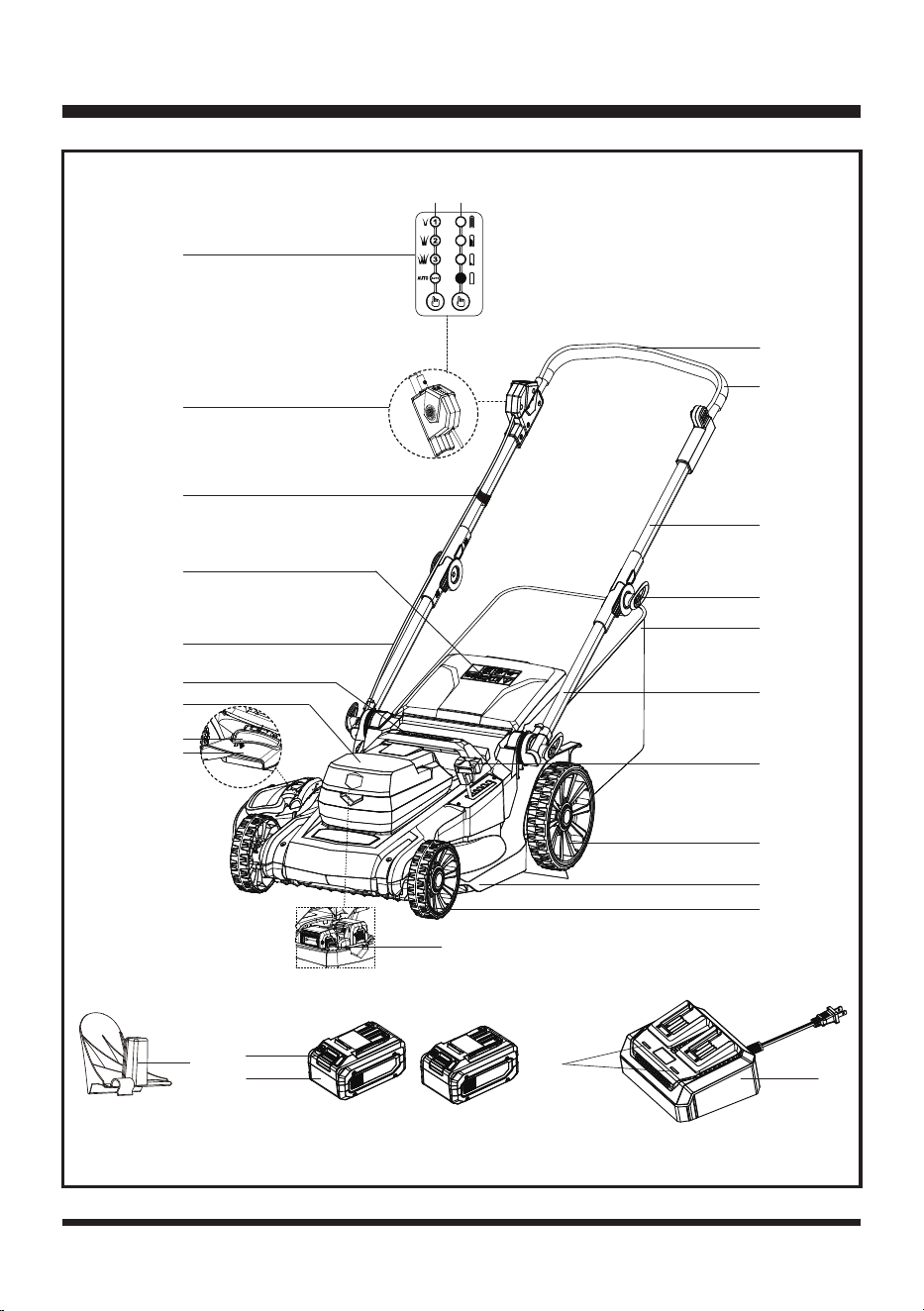

KNOW YOUR LAWN MOWER 11-12
ASSEMBLY 13-19
BATTERY PACK AND CHARGER 20-22
OPERATION 23-26
MAINTENANCE 27-31
ENVIRONMENTALLY SAFE BATTERY DISPOSAL 32
TROUBLESHOOTING 33-34
LAWNMASTER
®

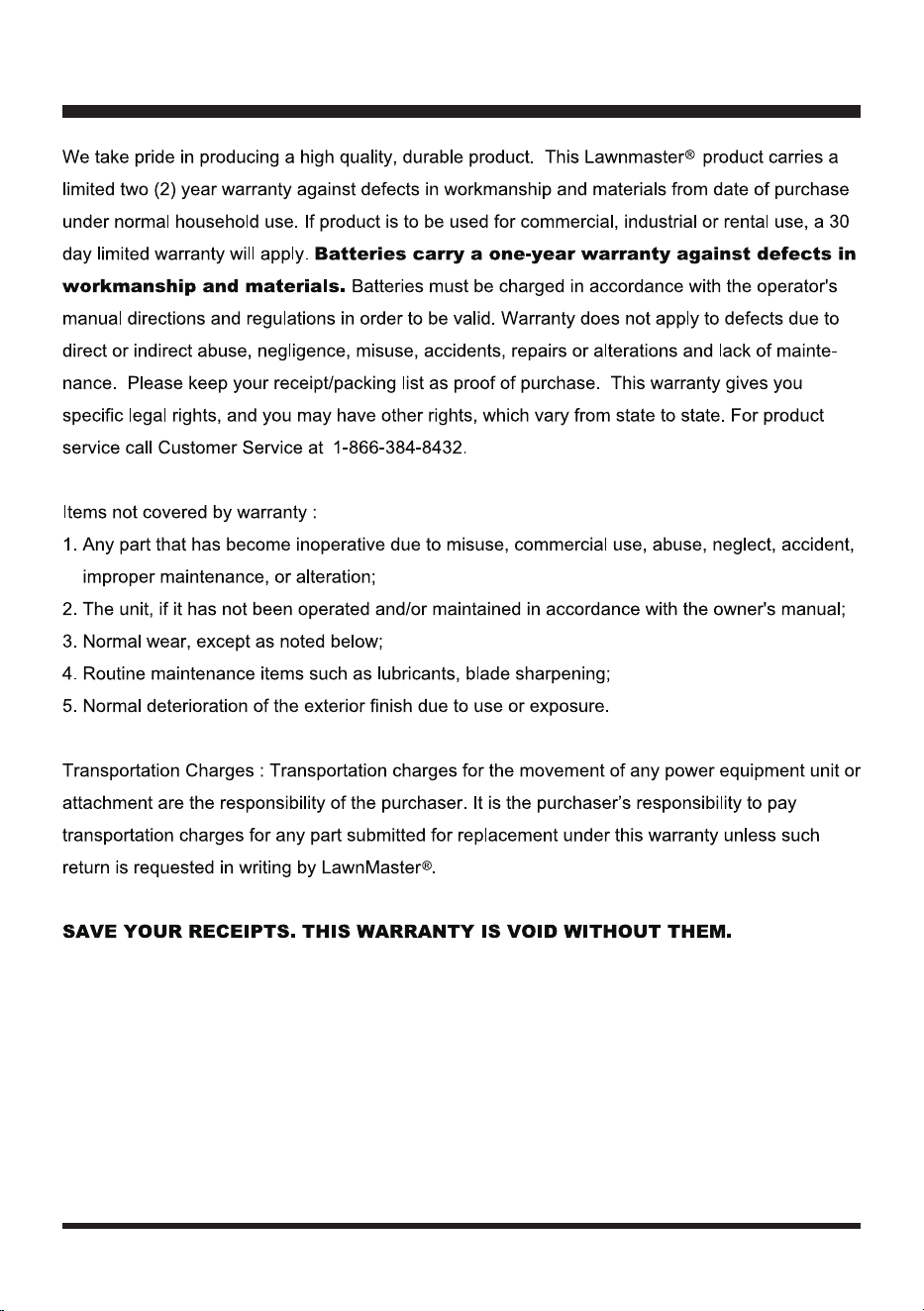

WARRANTY 35

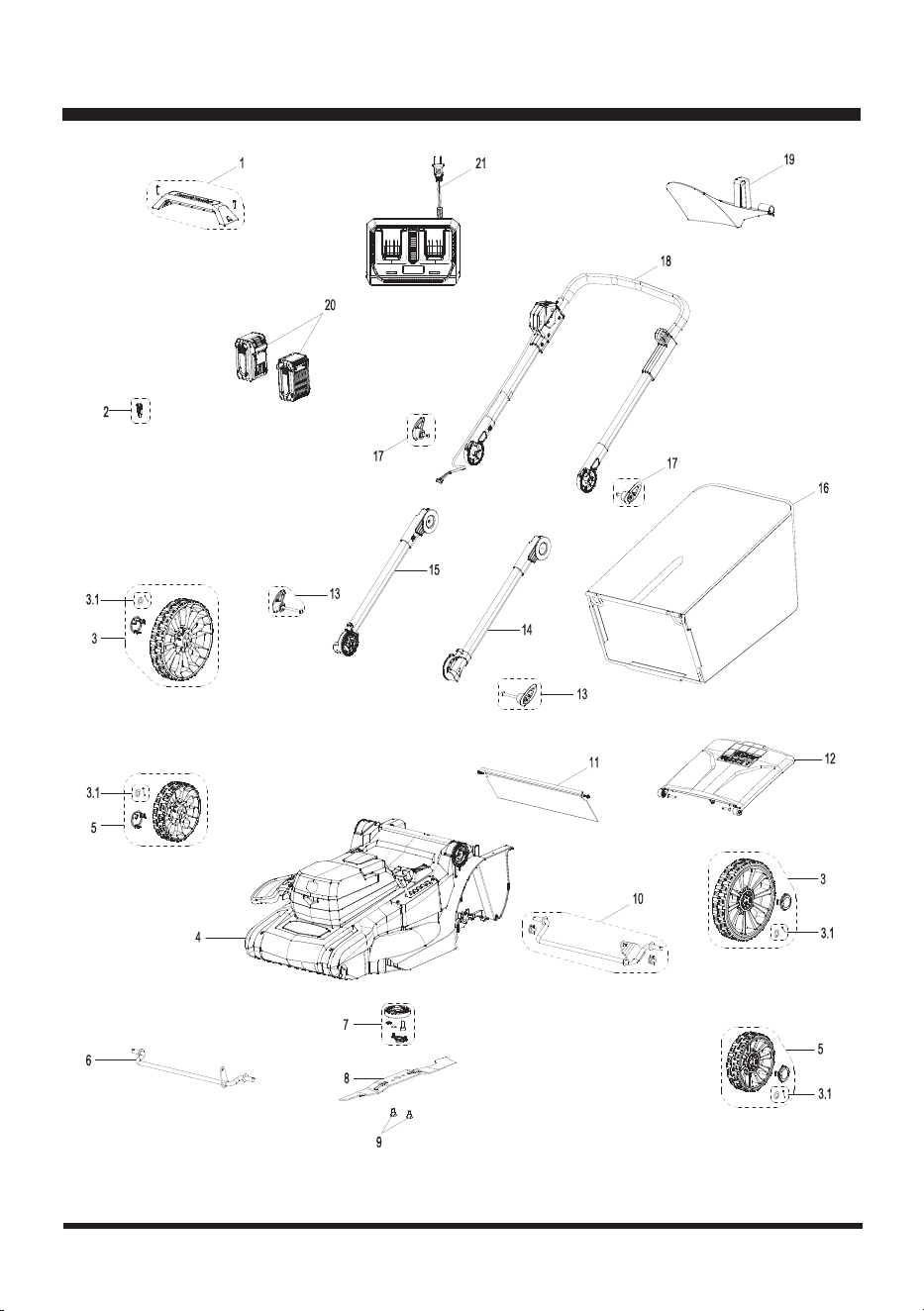

EXPLODED VIEW 36
PARTS LIST 37
NOTES 38-39
3
SPECIFICATIONS
Type Cordless, Battery-powered
No-load Speed 3200, 3300, 3400 RPM
Deck Width 19" (480 mm)
Cutting Width 18" (460 mm)
Height Adjustments 6 Positions (1.4"-3.4") (35-85 mm)
Functions Mulching Plug, Grass Collection Bag, Side Discharge
Wheel Size 6.70" (170 mm) / 9.25" (235 mm)
Unit Weight (With two 4.0Ah Batteries) 33 lbs (15 kg)
48V MAX* CORDLESS MOWER
Model Number 24LB4005-CN
Rated Voltage of Battery 24 V Max* D.C.
Capacity of Battery 4.0 Ah
Battery Type Lithium-Ion
BATTERY PACK
Model Number 24LFC15-ETL
Charger Input 120 V ~ 60 Hz 120 W
Charger Output 24 V D.C. 4.0 A
Charging Time 150 minutes (For two 24LB4005-CN)
80 minutes (For one 24LB4005-CN)
* Maximum initial battery workload voltage (measured without a workload) is 48 volts (2*24 V).
Nominal voltage is 43.2 volts (2*21.6 V).
BATTERY CHARGER
4
INTRODUCTION
This product has many features for making its use more pleasant and enjoyable.
Safety, performance, and dependability have been given top priority in the design of this product
making it easy to maintain and operate.
IMPORTANT SAFETY INSTRUCTIONS
This symbol indicates important safety instructions. If these instructions are not followed, it could
endanger the personal safety and/or property of the operator and others. Read and understand all
instructions in this manual before attempting to operate the mower. Failure to comply with these
instructions may result in personal injury.
This mower was built to be operated according to the rules for safe operation that are contained in this
manual. As with any type of power equipment, carelessness or error on the part of the operator can
result in serious injury. This mower is capable of amputating body parts and throwing objects. Failure
to observe the following safety rules could result in serious injury or death.
Use of this mower should be restricted to individuals who have read and understood and will follow the
warnings and instructions that are printed in this manual and on the mower.
TRAINING AND PREPARATION
■ Read the operator’s manual carefully. Be thoroughly familiar with the controls and the proper use of
the equipment.
■ Avoid operating the lawn mower in a dangerous environment. Do not use the lawn mower in damp
or wet conditions or operate in the rain. Keep a rm hold on the handle and walk; never run.
■ Keep children away. Keep the area of operation clear of all persons, particularly small children, and
pets. Stop the equipment if anyone enters the working area.
■ Only allow operators, who are responsible, trained, familiar with the instructions, and physically
capable to operate the lawn mower.
■ Never allow children to operate power equipment.
■ Clear the operating area of any objects which could be thrown by or interfere with operation of the
equipment.
■ Do not operate the lawn mower without the collection bag, or mulching plug. Check frequently for
signs of wear or deterioration and replace as needed.
■ Wear appropriate personal protective equipment such as safety glasses, hearing protection, and
footwear.
■ Dress properly. Do not wear loose clothing or jewelry. They can be caught in moving parts. Use of
rubber gloves and footwear is recommended when working outdoors.
■ This lawn mower is capable of amputating hands and feet and throwing objects. Failure to observe
all safety instructions could result in serious injury or death.
WARNING
DANGER
WARNING
5
IMPORTANT SAFETY INSTRUCTIONS
■ Do not operate the equipment while under the inuence of alcohol or drugs.
■ Use lawn mower for the correct purpose. Do not use lawn mower for any job except that for which it
is intended.
OPERATION
■ Only operate the equipment in daylight or good articial light.
■ Extinguish all cigarettes, cigars, pipes and other sources of ignition prior to operating the lawn
mower.
■ Avoid holes, ruts, bumps, rocks, or other hidden hazards. Uneven terrain could overturn the
equipment, or cause the operator to lose their balance or footing.
■ Do not put hands or feet near rotating parts or under the lawn mower. Keep clear of the discharge
opening at all times.
■ Always wear safety glasses with side shields that are marked to comply with ANSI Z87.1 standard.
Regular glasses have only impact resistant lenses. They are NOT safety glasses. Following this rule
will reduce the risk of eye injury. Use face mask if operation is dusty.
■ Do not leave a running lawn mower unattended.
■ Do not mow in reverse unless absolutely necessary. Always look down and behind before and while
backing.
■ Stop the blade(s) when crossing gravel drives, walks, or roads.
■ If the equipment vibrates abnormally, stop the motor and check immediately for the cause. Vibration
is generally a warning of trouble.
■ Stop the motor and disconnect the battery when the mower is not in use, before cleaning the mower
housing, and before making any repairs or inspections.
■ Shut the motor off and wait until the blade comes to a complete stop before removing the grass
collection bag or before unclogging the chute.
■ Mow across the face of slopes, never up and down. Exercise extreme caution when changing
direction on slopes. Do not mow excessively on steep slopes.
■ Always keep the equipment in gear when going down slopes. Do not coast downhill.
■ Avoid starting and stopping on slopes. Avoid making sudden changes in speed or direction. Make
turns slowly and gradually.
■ Tragic accidents can occur if the operator is not alert to the presence of children. Children are often
attracted to the lawn mower and the mowing activity. Never assume that children will remain where
you last saw them.
■ Keep children out of the operating area and under the watchful care of a responsible adult other
than the operator.
■ Do not force the lawn mower. It will do the job better and safer at the rate for which it was designed.
■ Do not overreach. Keep proper footing and balance at all times.
■ Stay alert. Watch what you are doing. Use common sense. Do not operate lawn mower when you
are tired.
■ Avoid mowing wet grass. Poor footing could cause a slip and fall accident.
■ Use extra care while operating the equipment with a grass collection bag or other attachment(s).
They can affect the stability of the machine.
■ Thoroughly inspect the area where the equipment is to be used and remove all stones, sticks, wires,
bones, and other foreign objects.
■ Never attempt to make a wheel height adjustment while the motor is running.
6
IMPORTANT SAFETY INSTRUCTIONS
MAINTENANCE AND STORAGE
■ Use caution when servicing blades. Wrap the blade(s) or wear gloves. Replace damaged blades.
Do not repair or alter blade(s).
■ Disconnect the battery when not in use and remove the safety key, before servicing, and when
changing accessories such as blades.
■ Store the idle lawn mower indoors. When not in use, the lawn mower should be stored in an indoor
dry and locked-up place, out of reach of children.
■ Maintain lawn mower with care. Keep cutting edges sharp and clean for best and safe performance.
■ Do not wash with a hose; avoid getting water in motor and electrical connections.
■ Check the blade and the engine mounting bolts frequently for proper tightness.
■ Keep all nuts, bolts, and screws tight to be sure the equipment is in safe working condition.
■ Check grass collection bag frequently for deterioration and wear, and replace worn bags. Check that
replacement bags comply with the original manufacturer's recommendations or specications.
■ Replace the blade if it is bent or cracked. An unbalanced blade causes vibration that could damage
the motor drive unit or cause personal injury.

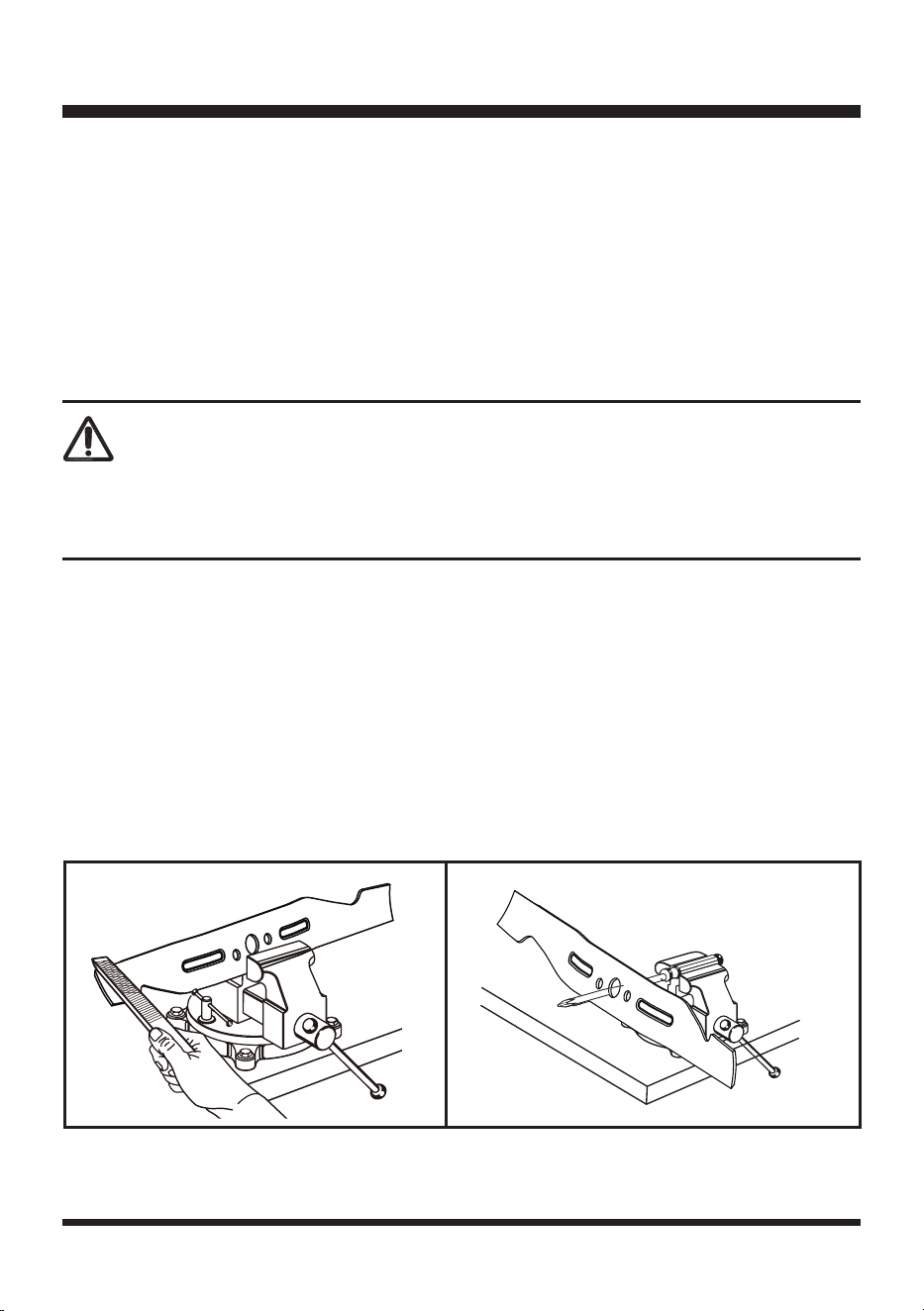

■ Clean the blade thoroughly and check its balance by supporting it horizontally on a thin nail through
its center hole. The nail should also be in a horizontal position. If either end of the blade rotates
downward, shave some metal from the heavy or lower end until the blade is balanced. It is balanced
when neither end drops.
■ Follow instructions for lubricating and changing accessories.
■ Inspect the lawn mower cord periodically and if damaged, have it repaired by an authorized service
facility. Keep handles dry, clean, and free from oil and grease.
■ Keep guards in place and in working order.
■ Keep blades sharp.
■ Keep hands and feet away from cutting area.
■ Objects struck by the lawn mower blade can cause severe injuries to persons. The lawn should
always be carefully examined and cleared of all objects prior to each mowing.
■ If the lawn mower strikes a foreign object, follow these steps:
- Stop lawn mower. Release the switch.
- Remove the safety key and disconnect the battery.
- Inspect for damage.
- Repair any damage before restarting and operating the lawn mower.
■ When servicing use only identical replacement parts.
■ Never pull the mower back towards you while you are walking. If you must back the mower away
from a wall or an obstruction, rst look down and behind in order to avoid tripping, and then follow
these steps:
- Step back from the mower in order to fully extend your arms.
- Be sure that you are well balanced.
- Pull the mower back slowly.
BATTERY PACK
■ The battery pack is only compatible with LawnMaster
®
24LFC15-ETL, 24LFC14-ETL, 24LFC02-ETL
or 24LSC01-ETL chargers.
■ Recharge only with the charger specied by the manufacturer and listed in this manual. A charger
that is suitable for one type of battery pack may create a risk of re when used with another battery
pack.
■ Do not charge battery in a damp or wet location. Following this rule will reduce the risk of electric
shock.
7
IMPORTANT SAFETY INSTRUCTIONS
■ Do not place battery powered lawn mowers or their batteries near re or heat. This will reduce the
risk of explosion and possibly injury.
■ Do not open or mutilate the battery. Released electrolyte is corrosive and may cause damage to the
eyes or skin. It may be toxic if swallowed.
■ Do not dispose of battery packs in re. They will explode or leak and cause injury. Liquid ejected
from the battery may cause irritation or burns.
■ Do not crush, drop or damage the battery pack. Do not use a battery pack or charger that has been
dropped or received a sharp blow. A damaged battery is subject to explosion. Properly dispose of a
dropped or damaged battery immediately.
■ Batteries can explode in the presence of a source of ignition, such as a pilot light. To reduce the
risk of serious personal injury, never use any cordless product in the presence of open ame. An
exploded battery can propel debris and chemicals. If exposed, ush with water immediately.
■ Under extreme usage or temperature conditions, battery leakage may occur. If liquid comes in
contact with your skin, wash immediately with soap and water. If liquid gets into your eyes, ush
them with clean water for at least 10 minutes, then seek immediate medical attention. Following this
rule will reduce the risk of serious personal injury.
■ When the battery pack is not in use, keep it away from other metal objects, like paper clips, coins,
keys, nails, screws, or other small metal objects, that can make a connection from one terminal to
another. Shorting the battery terminals together may cause burns or a re.
■ Do not expose a battery pack or lawn mower to re or excessive temperature. Exposure to re or
temperature above 265°F (130°C) may cause an explosion.
■ Do not modify or attempt to repair the lawn mower or the battery pack (as applicable) except as
indicated in the instructions for use and care.
■ Follow all charging instructions and do not charge the battery pack or lawn mower outside of the
temperature range specied in the instructions. Charging improperly or at temperatures outside of
the specied range may damage the battery and increase the risk of re.
■ All tool services should be performed by a qualied repair person using only identical replacement
parts. This will ensure that the safety of the product is maintained.
BATTERY CHARGER
■ This charger is only compatible with LawnMaster
®
24LB4005-C, 24LB4005-CN, 24LB1304,
24LB2004, 24LB2605, or 24LB4005 lithium-ion batteries.
■ To reduce the risk of injury, charge only the specied lithium-ion rechargeable batteries. Other types
of batteries may burst, causing personal injury or damage.
■ Keep cord and charger away from heat to prevent damage to housing or internal parts.
■ Do not operate charger with a damaged cord or plug, which could cause shorting and electric shock.
If damaged, immediately discontinue use. Replace the charger with the identical unit as listed in the
Parts List of this manual.
■ Do not use a charger that has been dropped or received a sharp blow.
■ Do not disassemble charger. Take it to a qualied service center for check or replacement. Incorrect
reassembly may result in a risk of electric shock or re.
■ Do not abuse the charger cord. Never use the cord for carrying, pulling or unplugging.
■ Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase
the risk of electric shock. If the charger cord is damaged, replace the charger with an identical
model as listed in this manual.
■ A charger that is suitable for one type of battery pack may create a risk of re when used with
another battery pack.
8
IMPORTANT SAFETY INSTRUCTIONS
■ Charge the battery at the normal charging temperature between 40°F (4°C) and 100°F (38°C).
FCC COMPLIANCE
■ This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
- This device may not cause harmful interference, and
- This device must accept any interference received, including interference that may cause
undesired operation.
■ NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
■ This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that of the receiver.
- Consult the dealer or an experienced radio/ TV technician for help.
SAVE THESE INSTRUCTIONS
Refer to them frequently and use them to instruct others who may use this appliance. If you loan
someone this appliance, loan them these instructions also.
9
SYMBOLS
SYMBOL NAME DESIGNATION/EXPLANATION
V Volts Voltage
Direct Current Type or a characteristic of current
A Amperes Current
Hz Hertz Frequency (cycles per second)
W Watts Power
hrs Hours Time
Class II Construction Double-insulated construction
Safety Alert Precautions that involve your safety
Read The Operator’s
Manual
To reduce the risk of injury, user must read and
understand Operator’s Manual before using this
product.
Do not mow up and
down slopes!
To avoid the risk of injury do not mow up and down
slopes. Always mow across slopes (Angle ≤15°).
Keep all persons and
pets at a safe distance
from the mower while
operating!
To avoid the risk of injury to bystanders keep all
persons and pets at a safe distance from the mower
while operating.
Keep hands and feet
clear of mower deck
and discharge opening
at all times!
Rotating blades can cause serious injury.
Keep hands and feet clear of mower deck and
discharge opening at all times. Always be sure
blade has stopped after releasing switch lever and
unplugging before removing and replacing collection
bag, cleaning, servicing, transporting or lifting the
mower.
Stay behind the handle
when the motor is
running!
Objects struck by mower blade can cause serious
injury. Stay behind the handle when the moto is
running. Always ensure persons and pets are clear
of the discharge from the mower while operating.
Wear hearing and
eye protection
when operating this
equipment.
Safety alert precautions that involve your safety.
Some of the following symbols may be used on this product. Please study them and
learn their meaning. Proper interpretation of these symbols will allow you to operate
the product better and safer.
10
SYMBOLS
SYMBOL NAME DESIGNATION/EXPLANATION
Cutting Width Cutting diameter
Lithium-Ion Battery
Recycling
Designates that this tool is in compliance with lithium-
ion battery recycling program requirements.
Keep Away From Water
Do not dispose of battery packs in rivers or immerse
in water.
Keep Away From Fire
Do not dispose of battery packs in explode or leak
and cause injury.
Heat Alert
Do not expose battery packs to heat in excess of
60ºC (140ºF).
Recycle Symbol
This product uses lithium-ion batteries. Local, state
or federal laws may prohibit disposal of batteries in
ordinary trash. Consult your local waste authority
for information regarding available recycling and/or
disposal options.
SYMBOL SIGNAL MEANING
DANGER
Indicates an imminently hazardous situation, which, if not
avoided, will result in death or serious injury.
WARNING
Indicates a potentially hazardous situation, which, if not
avoided, could result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation, which, if not
avoided, may result in minor or moderate injury.
NOTICE
(Without Safety Alert Symbol) Indicates a situation that may
result in property damage.
The following signal words and meanings are intended to explain the levels of risk
associated with this product.
SERVICE
Service requires extreme care and knowledge and should be performed only by a qualied service
technician. For service, we suggest you return the product to your nearest SERVICE CENTER for
repair. When servicing, use only identical replacement parts.
WARNING
To avoid serious personal injury, do not attempt to use this product until you read thoroughly and
understand completely the Operator’s Manual.
If you do not understand the warnings and instructions in the Operator’s Manual, do not use this
product. Call Customer Service for assistance (Toll free number 866-384-8432).
11
KNOW YOUR LAWN MOWER
20a 20b
1
2
3
4
5
8
9
11
16
19
20
6
21
14
12
13
15
17
18
7
10
22
23
24
25
12
KNOW YOUR LAWN MOWER
Components
1. Start/Stop Bale
Switch
2. Foam Grip
3. Upper Handle
4. Wing Knob (X4)
5. Grass Collection Bag
6. Lower Handle
7. Cutting Height
Adjustment Lever
8.Rear Wheel
9. Deck
10.Front Wheel
11.Safety Key (Inside the Battery
Pack Compartment)
12.Side Discharge Door
13.Side Discharge Chute
14.Battery Compartment Cover
15.Carry Handle
16.Control Cable
17.Safety Flap
18.Cable Fasten Strap
19.Safety Switch Button
20.iPower Control Panel
20a. iPower Mower Mode Indicator
20b. iPower Battery Meter Indicator
21.Mulching Plug
22.Battery Release Button
23.Battery Pack (X2)
24.Battery Charger Indicators
25.Battery Charger
KNOW YOUR LAWN MOWER
The safe use of this product requires an understanding of the information on the product and in this Operator’s
Manual as well as a knowledge of the project you are attempting. Before use of this product, familiarize
yourself with all operating features and safety rules.
13
ASSEMBLY
UNPACKING
This product requires assembly.
■ Carefully remove the product and any accessories from the box. Make sure that all items listed in
the packing list are included.
■ Inspect the product carefully to make sure no breakage or damage occurred during shipping.
■ Do not discard the packing material until you have carefully inspected and satisfactorily operated
the product.
■ If any parts are damaged or missing, please call Customer Service (Toll free number 866-384-
8432).
YOU WILL NEED (ITEMS NOT SUPPLIED)
■ Suitable Personal Protective Equipment
PACKING LIST
(1) Mower
(1) Safety Key (Attached inside the Battery Pack Compartment of Mower)
(1) Mulching Plug - Comes installed from factory at rear of mower
(1) Grass Collection Bag Assembly (Bag & Metal Frame)
(1) Upper Handle Assembly (pre-installed with Lower Handles with Wing Knobs)
(2) Lower Handle Assembly
(1) Side Discharge Chute
(4) Wing Konbs
(1) 24V Lithium-ion Battery Charger
(2) 24V 4.0Ah Lithium-ion Battery Packs
(1) Operator’s Manual
NOTE: The safety key must be installed for mower to operate. The safety key only ts into the switch
in one direction.
DO NOT FORCE IT!
14
ASSEMBLY
WARNING
If any parts are damaged or missing do not operate this product until the parts are replaced. Failure to
heed this warning could result in serious personal injury.
Do not attempt to modify this product or create accessories not recommended for use with this
product. Any such alteration or modication is misuse and could result in a hazardous condition
leading to possible serious personal injury, and will void the warranty.
Do not connect power supply until assembly is complete. Failure to comply could result in accidental
starting and possible serious personal injury.
Never operate the mower without the proper safety devices in place and working. Never operate the
mower with damaged safety devices. Failure to heed this warning can result in serious personal injury.

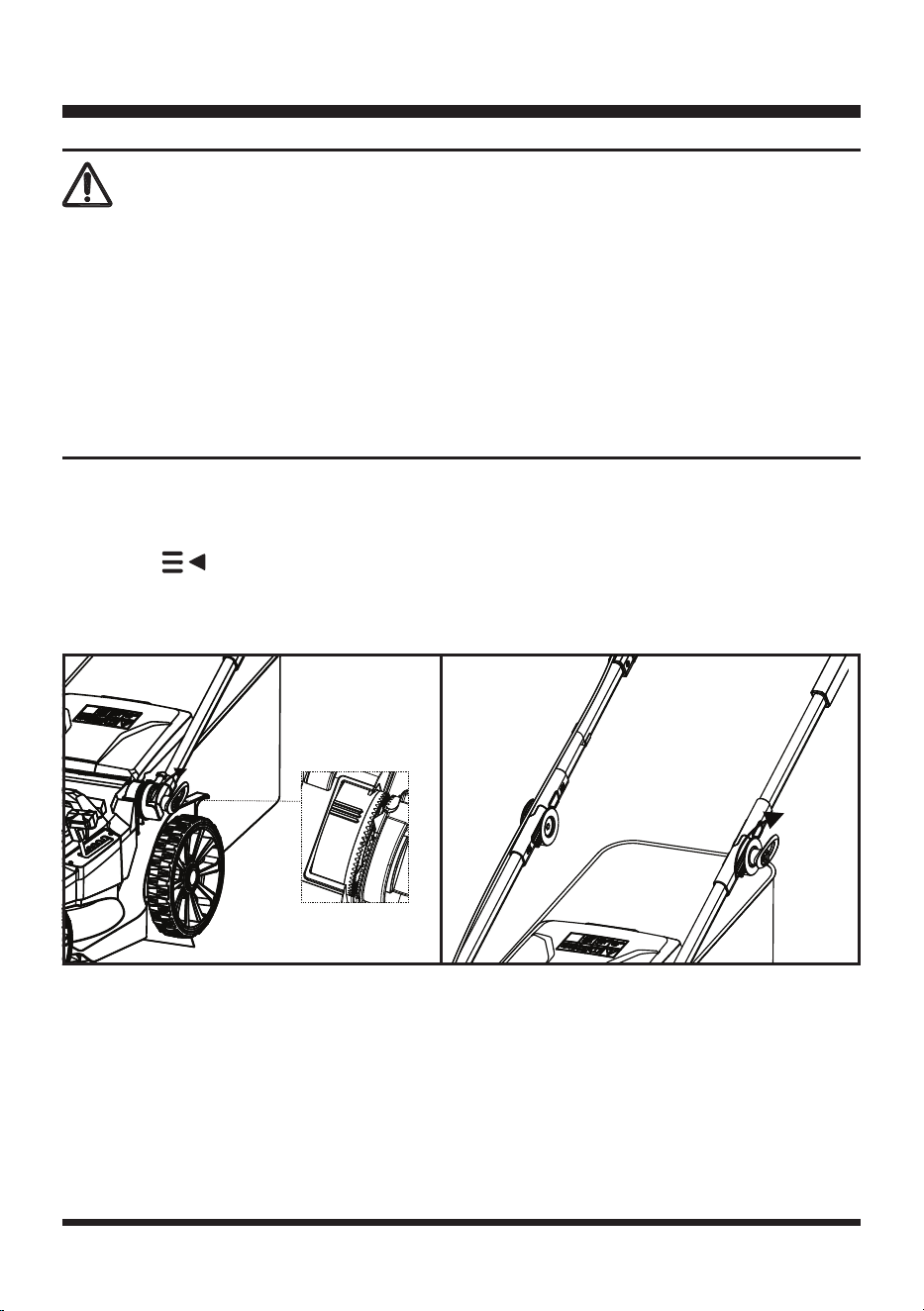

ASSEMBLING THE LOWER HANDLE
1. Unfold the lower handle and adjust to the desired operating position. There are three possible
positions (Fig. 1).
2. Rotate the wing knobs clockwise to tighten (Fig. 1). Do not use excessive force; this may damage
the knobs.
Fig. 2
ASSEMBLING THE UPPER HANDLE
1. Unfold the upper handle assembly.
2. Align the upper handle and lower handle and secure with the wing knobs (Fig. 2).
3. Ensure the cable is secured against the handle frame with the supplied cable fasten strap.
Fig. 1
15
ASSEMBLY

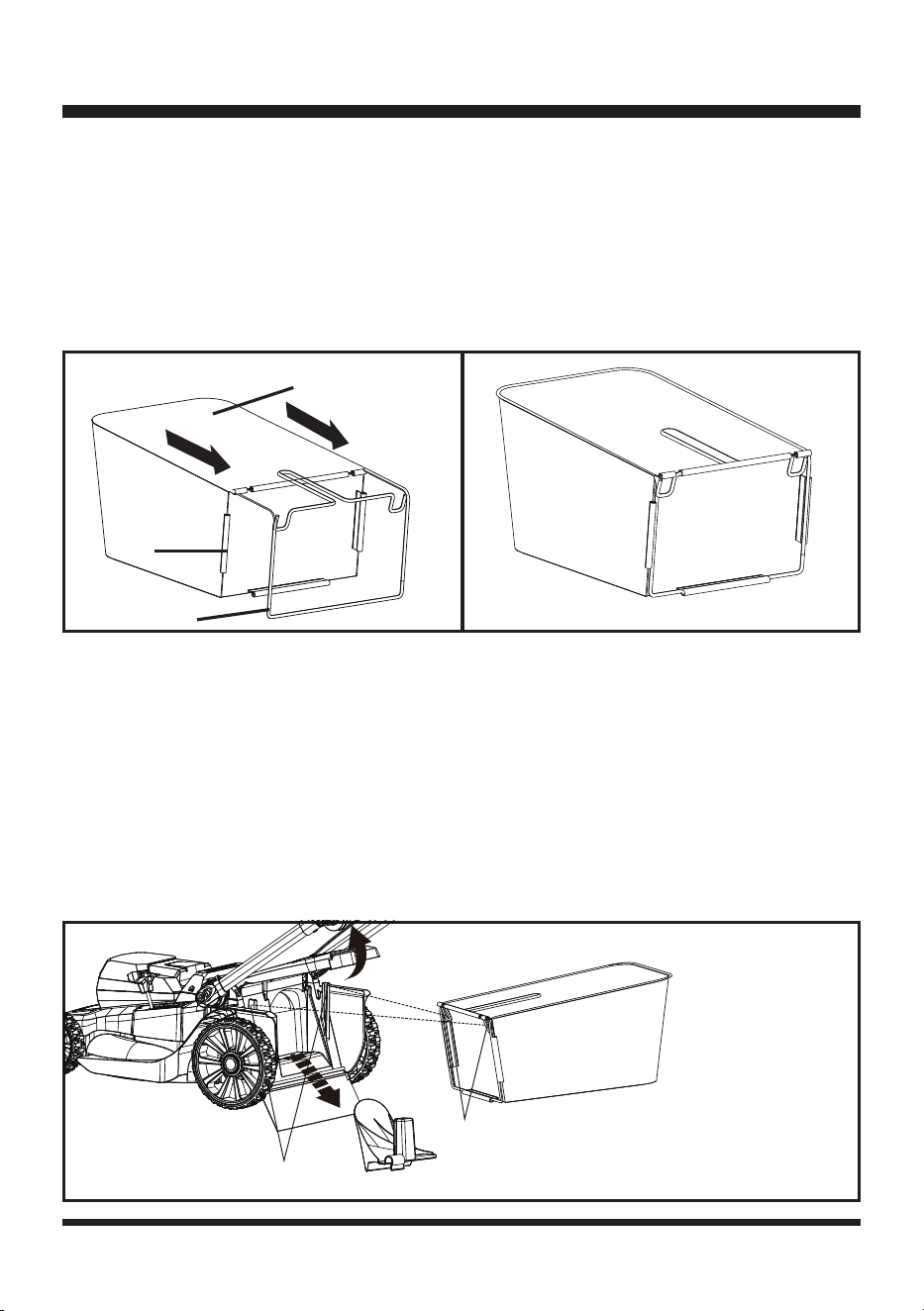

ASSEMBLING THE GRASS COLLECTION BAG
Your LawnMaster
®
mower comes with a tool-less collection bag.
1. Check the grass collection bag before assembling to make sure there is no damage.
2. Pull the grass collection bag over the steel frame as shown (Fig. 3).
3. Pry the soft plastic clamping sleeves with your ngers and insert the steel frame into the sleeves as shown.
Ensure all sleeves are properly clamped with your ngers on the frame.
4. The completely assembled collection bag is shown as below (Fig. 4).
Fig. 3 Fig. 4
Grass Collection Bag
Metal Frame
Sleeve
INSTALLING AND REMOVING THE GRASS COLLECTION BAG
NOTE: When using the grass collection bag, do not install the mulching plug. The mulching plug MUST be
removed prior to installing grass collection bag.
Installing the grass collection bag:
1. Lift the rear safety ap and hold it in the position (Fig. 5).
2. Lift the grass collection bag by its handle and hook the rods of collection bag on the mower holder
under rear safety ap (Fig. 5).
3. Release the rear safety ap.
4. Make sure both rods are rmly seated on the holder and rear safety ap rests rmly against the top
of the grass collection bag.
Holders
Rods
Fig. 5
Mulching plug must be removed prior to
installing grass collection bag.
16
ASSEMBLY
Removing the grass collection bag:
1. Lift the rear safety ap and hold it in position.
2. Lift the grass collection bag by its handle, and unhook the grass collection bag from the mower.
3. Release the rear safety ap.
NOTE: Under normal usage, the bag material is subject to wear. To reduce the risk of injury, frequently inspect
the bag assembly and replace if there are any signs of wear or deterioration.
WARNING

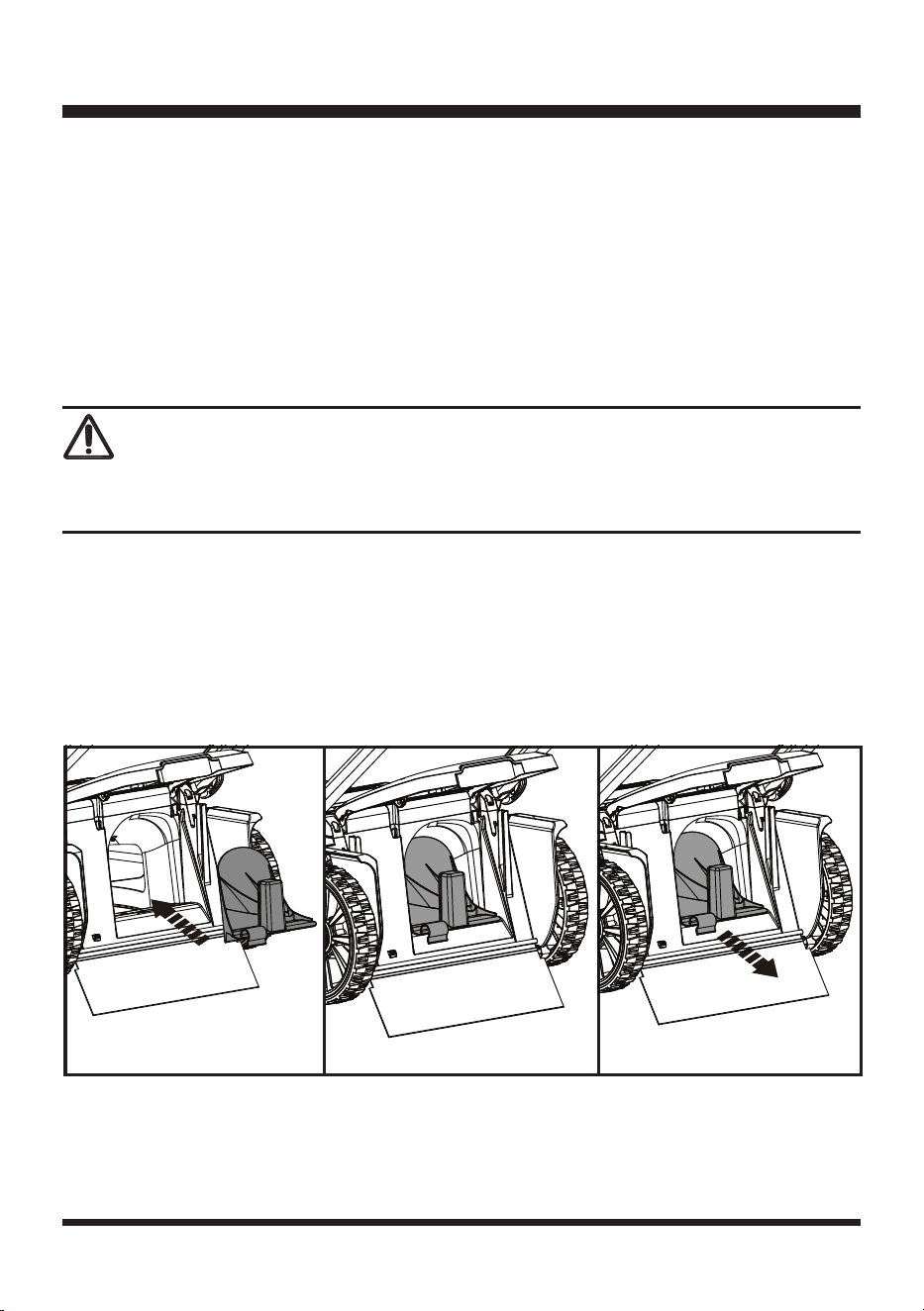

ATTACHING/REMOVING THE MULCHING PLUG
Do not at any time make any adjustment to the lawn mower without rst stopping the motor and removing the
safety key. Do not attach the grass collection bag and the mulching plug at the same time.
NOTE: The mulching plug MUST be removed if grass collection bag is used during mowing operation. The
mulching plug prevents grass from being collected by blocking the collection chute. This allows the grass
clippings to be deposited back on the lawn during cutting.
1. Lift the safety ap and detach the grass collection bag.
2. Lift the safety ap and hold it in position. Insert the mulching plug into the rear discharge chute (Fig.
6). Ensure the locking button snaps into place, as picture shown (Fig. 7).
3. Press the locking button to release and remove the mulching plug (Fig. 8).
Fig. 7
Fig. 8
Fig. 6
17
ASSEMBLY

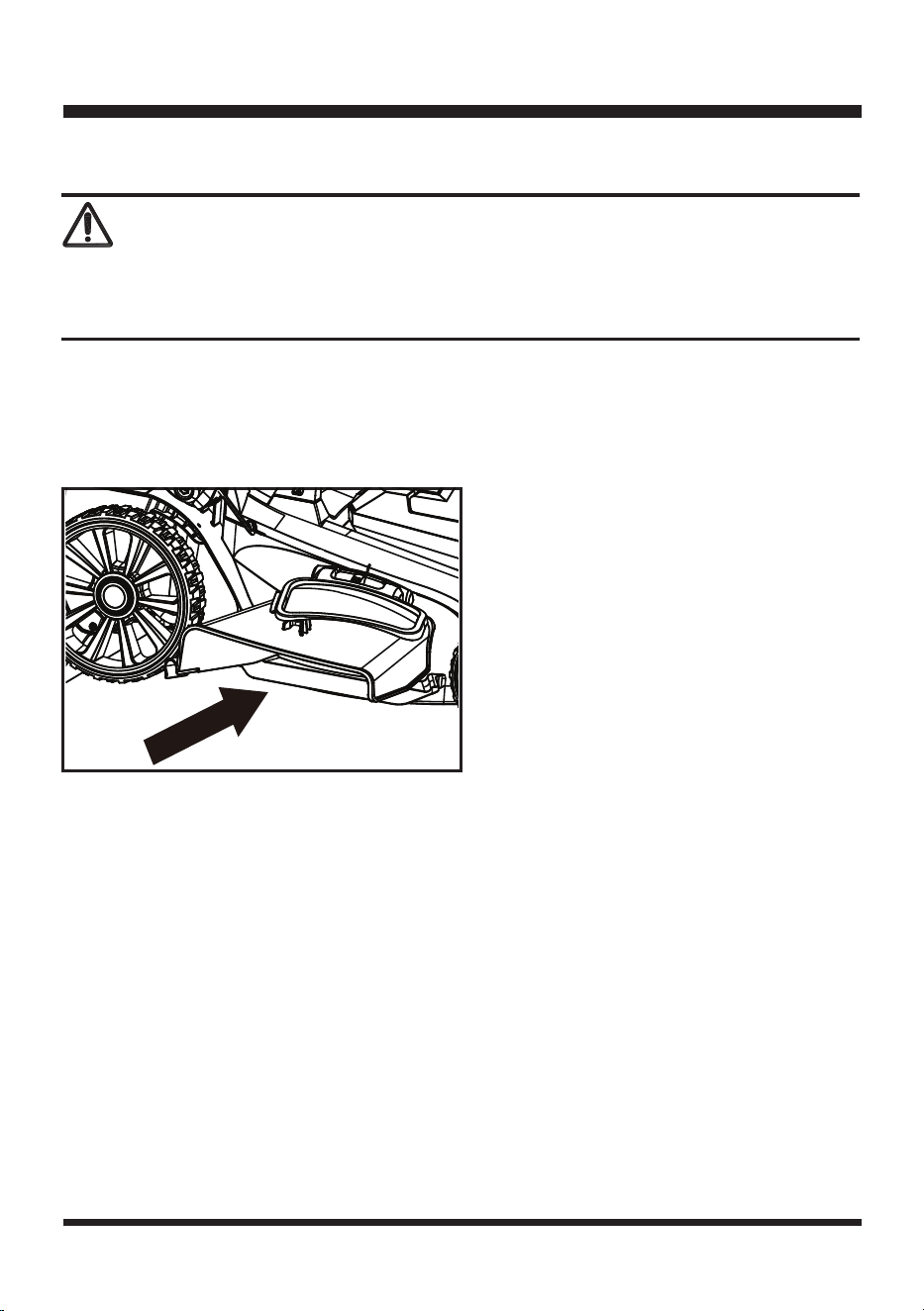

INSTALLING THE SIDE DISCHARGE CHUTE
Do not at any time make any adjustment to the lawn mower without rst stopping the motor and removing the
safety key. Ensure the mulching plug is tted when using the side discharge chute. Do not t the collection
bag.
The mower is designed to be able to disperse the clippings back to the lawn when the side discharge chute is
tted. Lift the mulching door and insert the side discharge chute by mounting the support hook onto the metal
spring frame. Release the door back down during operation (Fig. 9). This feature is optional and does not
need to be tted at all times.
WARNING
Fig. 9
18
ASSEMBLY

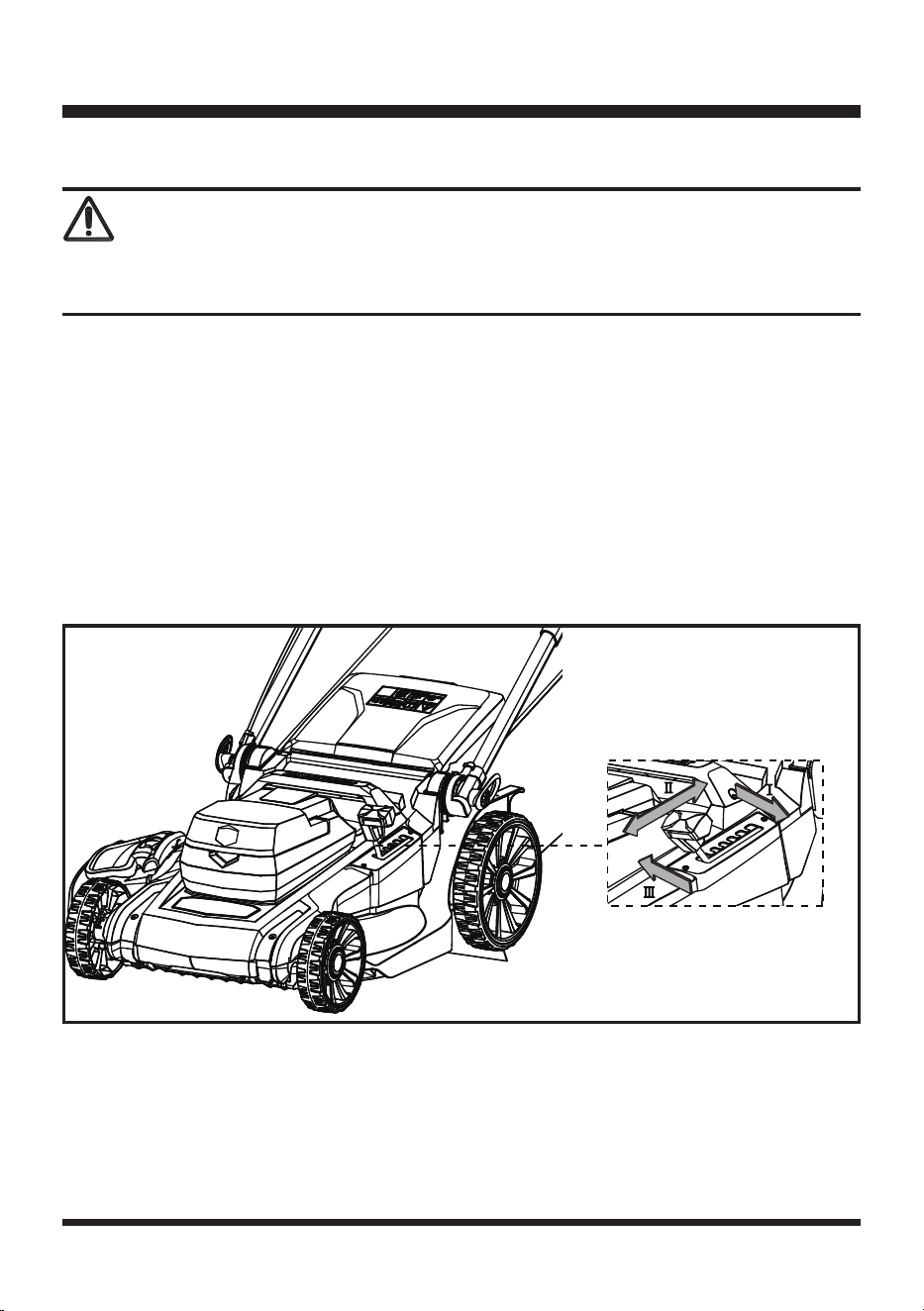

ADJUSTING THE CUTTING HEIGHT
Do not at any time make any adjustment to the lawn mower without rst stopping the motor and removing the
safety key. Keep your feet away from the mower deck when adjusting its height.
When shipped, the rear wheels on the mower are set to a low-cutting position. Before using the mower for the
rst time, adjust the cutting position to the height best suited for your lawn. The mower can be set to 6 cutting
heights between 1.4” (35 mm) and 3.4” (85 mm). Choose the proper cutting height according to the types and
conditions of the grass.
To set the cutting height:
1. To raise the cutting height, grasp the cutting height adjustment lever, then move it toward the back of the
mower and engage the lever in the desired cutting height position on the mower deck (Fig. 10).
2 To lower the cutting height, grasp the cutting height adjustment lever, then move it toward the front of the
mower and engage the lever in the desired cutting height position on the mower deck (Fig. 10).
WARNING
Fig. 10
19
ASSEMBLY
Fig. 11

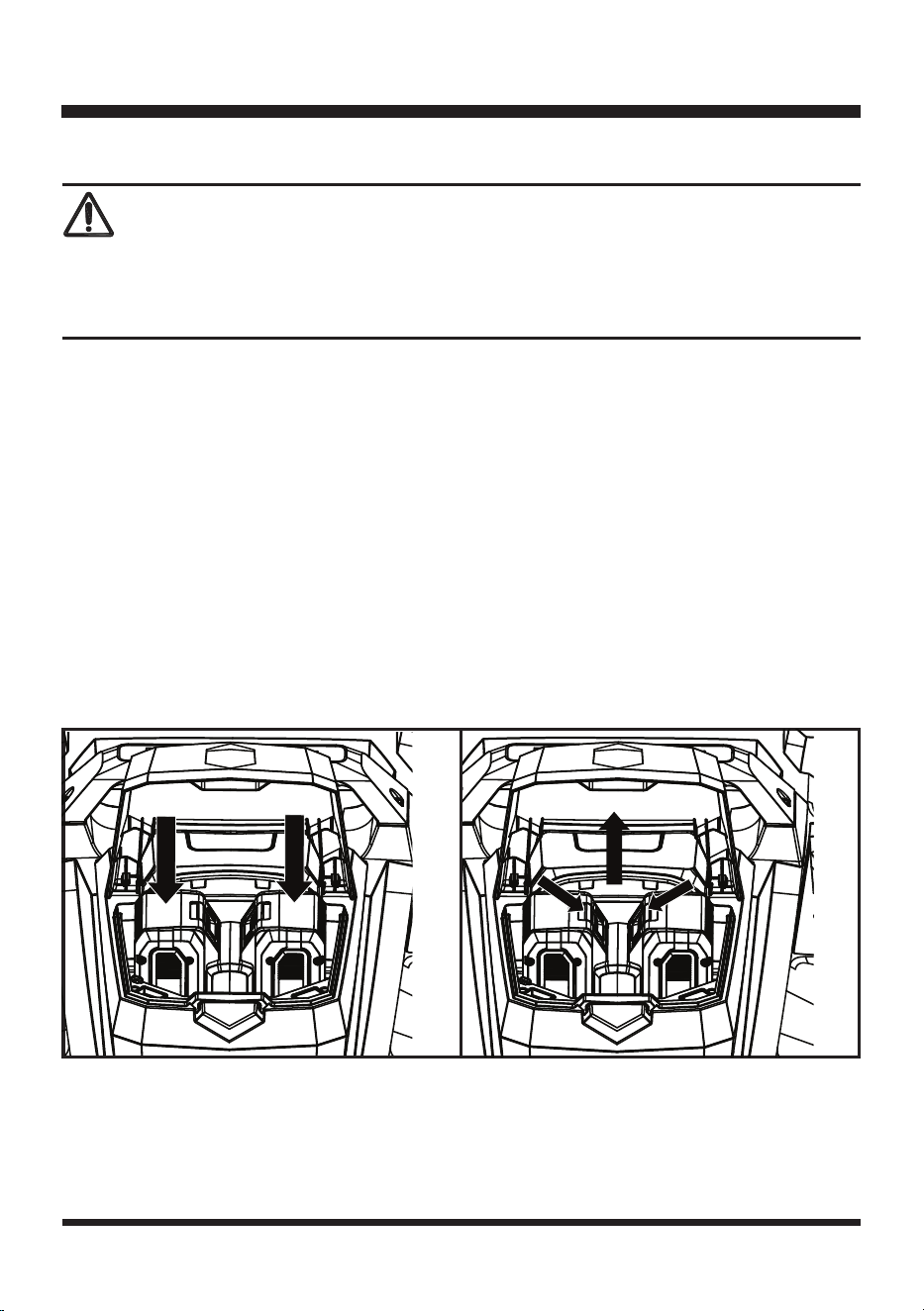

INSTALLING / REMOVING THE BATTERY PACKS
If any parts are broken or missing, do not attempt to attach the battery packs to the mower or operate the
mower until the broken or missing parts are replaced. Failure to do so could result in serious injury. Do not
connect the batteries and/or the safety key before the product is completely assembled.
NOTE: Both batteries should be installed into the compartments in order to start the mower.
To install battery packs:
1. Make sure both batteries are fully charged.
2. Lift the plastic battery compartment cover on the top of the mower deck.
3. Align the raised ribs on the mower with the grooves in the battery pack, and then insert the battery packs
into the compartment (Fig. 11).
4. Push the battery packs until you hear a “click”.
5. Insert the safety key into the keyholes located within the battery compartment.
6. Close the battery compartment cover.
NOTE: Make sure that the battery packs rmly snap into place and are secured to the mower before starting
operation.
WARNING
Fig. 12
To remove battery packs:
1. Stop the lawn mower. Lift the battery compartment cover and remove the safety key.
2. Press the release button on the battery pack, grasp the battery pack rmly and pull out of the battery
compartment. Remove the second battery in the same way (Fig. 12).
3. Close the battery compartment cover.
20
BATTERY PACK AND CHARGER
BATTERY CHARGING
1. Use only with 24V LawnMaster
®
battery chargers. The battery charger supplied is specically designed for
the lithium-ion batteries used in this tool.
2. Check the power voltage! Battery chargers operate on 120V.
3. The batteries are charged between 40°F (4°C) and 100°F (38°C). This ensures an optimum battery
service life.
4. Protect the batteries from heat, from continuous exposure to sun and keep away from radiation or other
heat sources. Do not leave the batteries in the mower in direct sunlight over long periods.
5. The batteries are supplied partially charged. To ensure full capacity of each battery, charge the batteries
before using the tool for the rst time. The lithium-ion batteries can be charged at any time without reducing
their service life. Interrupting the charging procedure does not affect the batteries.
LED CHARGER STATUS
1. If batteries are not inserted into the charger, continuous red LED lights indicate that the outlet plug is
plugged into an outlet socket and the battery charger is ready for operation.
2. Charging: Flashing green LEDs on the charger indicate that batteries are charging normally. The LED’s
ashing frequency is 1Hz.
3. Charged: Continuous green LEDs on the charger indicate that batteries are ready for use.
4. Technical Issue: Flashing red LED lights on the charger indicates that batteries have a charging problem
or might be defective.
a) One possible condition is the battery temperature is lower than 0°C. As soon as the permitted
temperature is reached, the battery charger will automatically switch to charging.
b) If the temperature range is correct and ashing red LED light continues, then remove and reinstall the
battery pack. If the LED status repeats a second time, try to charge another identical battery. If the battery
charges normally, dispose of the defective battery pack (see Environmental Safe Battery Disposal
section).
c) If the ashing red light continues after installing the second battery, the charger may be defective.
Replace with a new one.
5. Flashing green LED lights on the charger (the LED’s ashing frequency (2Hz) is faster than charging
normally (1Hz)), which indicates the battery temperature is higher than 50°C. As soon as the permitted
temperature is reached, the battery charger will automatically switch to charging.
6. After continuous or repeated charging cycles without interruption, the charger may warm up. This is normal
and does not indicate a technical defect of the battery charger.
21
BATTERY PACK AND CHARGER
The indicator lights on the charger show the charger status:
BATTERY LED PANEL
1. The panel consists of 3 LEDs on the battery. Press and hold the button, then release it, the LEDs will show
you the charge levels.
2. The battery’s charge level can be checked either when the battery is attached on the charger/mower or
removed from the charger/mower.
SYMBOL INDICATOR LIGHTS STATUS
Red, continuous Connected to power supply
Green, blinking.
(ashing frequency: 1Hz)
Charging.
Green, blinking.
(ashing frequency: 2Hz)
Battery is overheated.
Green, continuous. Fully charged.
Red, blinking.
(ashing frequency: 2Hz)
Charging problem:
See Technical Issue above
LEDs on Battery
(Continuous
Lighting)
Battery Capacity
3 LEDs
Fully charged
2 LEDs (orange & red)
≥40%
1 LED (red only)
<40% (Recharge required)
Indicator Lights
22
BATTERY PACK AND CHARGER

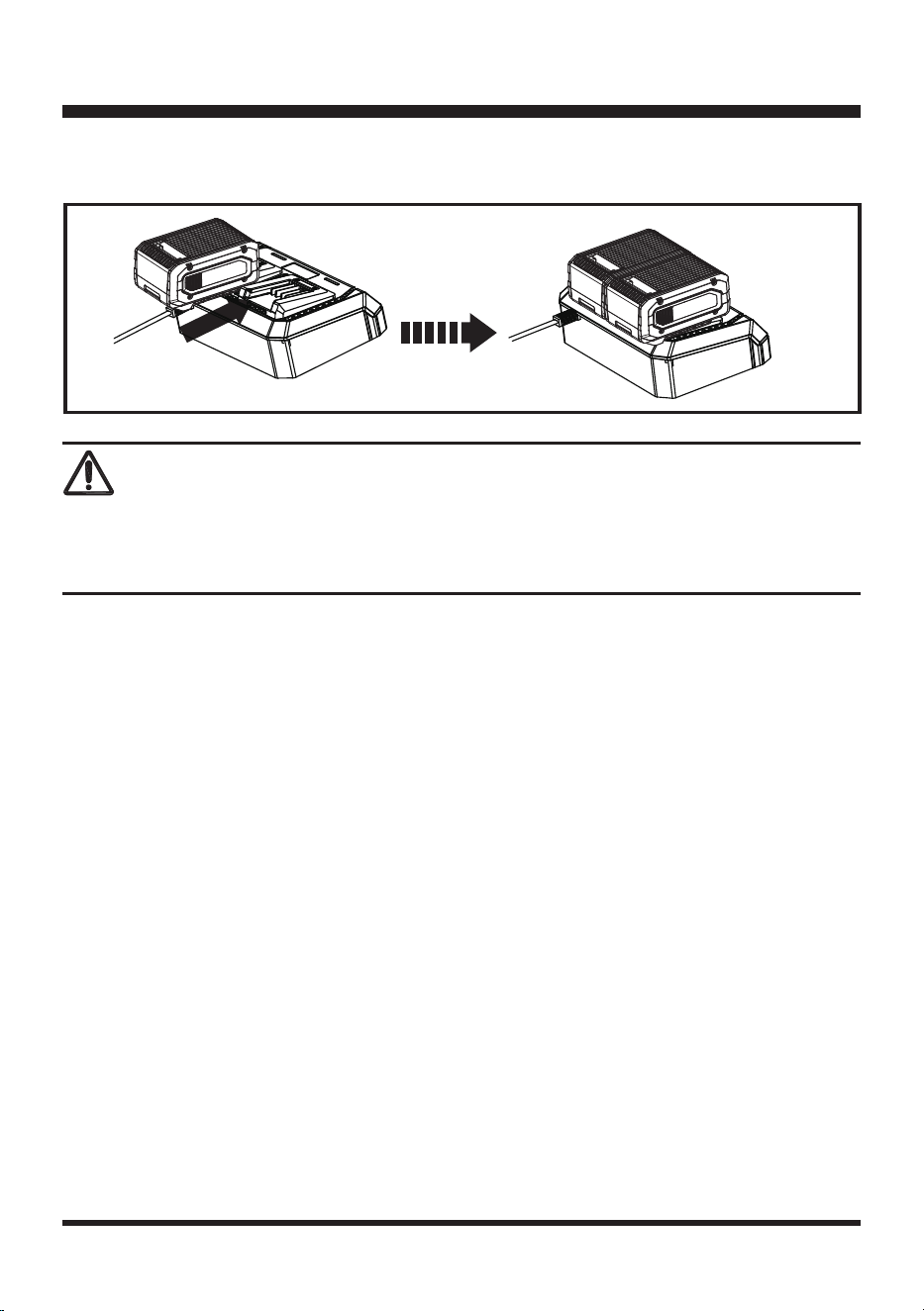

CHARGING THE BATTERY PACK
If any part of the charger is missing or damaged, do not operate it! Replace the charger with a new one.
Failure to heed this warning could result in possible serious injury.
Check the voltage! The voltage must comply with the information on the rating label.
1. Align the slot of the battery pack with the rail on the charger. Slide the slot onto the rail until the battery
pack secures into place. Connect the second battery in the same way (Fig. 13).
2. Connect the charger to the power supply.
3. Allow sufcient charging time (see Specications), and then disconnect the charger from the power supply.
4. Press the release buttons on the battery packs and remove them from the charger.
NOTE: It is normal for the battery packs and the charger to become warm (but not hot) during charging
process. If the battery does not charge properly, check to make sure the electrical outlet is operational. Always
charge the battery before storage!
Fig. 13
WARNING
23
OPERATION
WARNING
Do not allow familiarity with this type of product to make you careless. Remember that a careless
fraction of a second is sufcient to inict serious injury.
Always wear safety goggles or safety glasses with side shields when operating this product. Failure to
do so could result in objects being thrown into your eyes, resulting in possible serious injury.
Do not use any attachments or accessories not recommended by the manufacturer of this product.
The use of attachments or accessories not recommended can result in serious personal injury.

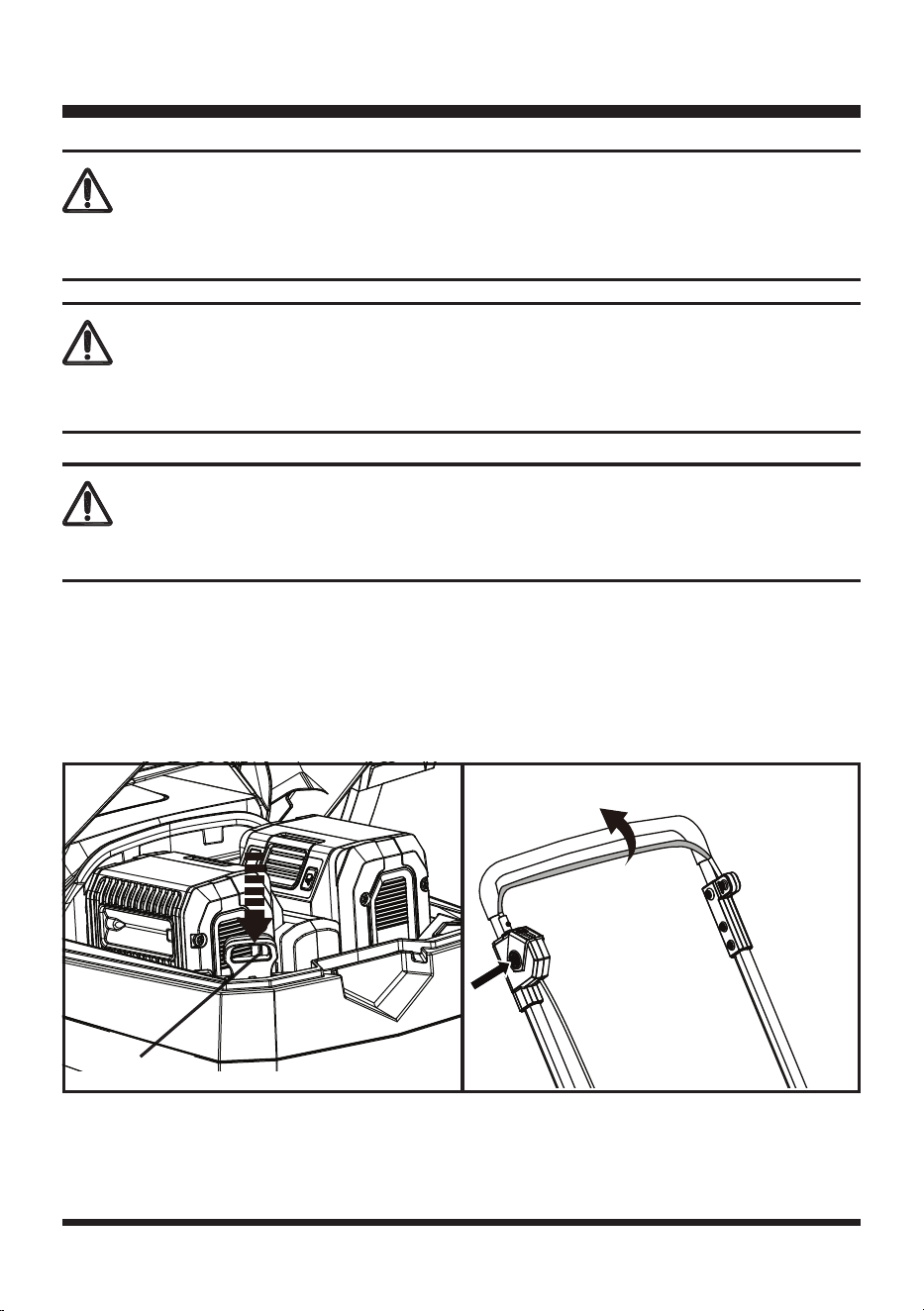

STARTING/STOPPING THE MOWER
1. To switch on, insert the safety key, press and hold the safety switch button and gently pull the start/
stop bale switch (Fig. 14 & 15). Once started, release the safety switch button.
2. To power off the mower, release the start/stop bale switch. Pull out the safety key if the mower is
not going to be used immediately.
WARNING
WARNING
Fig. 14
Fig. 15
Safety Key
Ⅰ
Ⅱ
24
OPERATION
IPOWER MOWER MODE INDICATOR (20a) (Fig. 16)
1. By default, the motor power is set to “AUTO” and will automatically adjust to your lawn.
2. Push the press button repeatedly to cycle through the different motor power levels.
• Set the motor power to “1”, if your lawn needs only light mowing.
• Set it to “2”, if you are going to mow taller and thicker grass.
• Set it to “3” to utilize the maximum motor power for mowing the most stubborn grass.
IPOWER BATTERY METER INDICATOR (20b) (Fig. 16)
1. Push the press button to check on the battery status.
2. The number of lights lit will depend on the condition of the battery.
3. 4 lights indicate a fully charged battery, and 1 light indicates that the battery needs to be charged.
Fig. 16
20a 20b
WARNING
A ashing LED on the mower mode control panel indicates that the current is too high. A ashing
LED on the battery indicates that the voltage is too low. In either case the motor will shut down
automatically. Do not continue to activate the On/Off switch if the motor has been shut down
automatically. The battery may be damaged.
25
Fig. 17
GENERAL OPERATION
Check the product, its power cord and accessories for damage before each use. Before use, please
ensure all power connections are in good working order prior to installing the safety key and battery
packs. If damage is present or observed, please stop and have mower serviced before use.
Do not use the product if it is damaged or shows wear.
1. Double-check that the blade is properly installed.
2. Always hold the product by its handles. Keep the handles dry to ensure safe support.
3. Switch the equipment off immediately if someone enters the work area. Always let the equipment
come to complete stop before removing the grass collection bag.
4. Do not overwork yourself. Take regular breaks to ensure you can concentrate on the work and have
full control over the product.
MOWING TIPS
1. Make sure the lawn is clear of stones, sticks, wires, and other objects that could damage the lawn
mower blades or motor. Such objects could be accidentally thrown by the mower in any direction
and cause serious personal injury to the operator and others.
2. To reduce the chances of disconnecting the lawn mower from the extension cord, be sure to use the
cord retainer provided.
3. For a healthy plot of grass, always cut off one-third or less of the total length of the grass.
4. When cutting heavy grass, reduce walking speed to allow for more effective cutting and a proper
discharge of the clippings.
5. Do not cut wet grass. It will stick to the underside of the deck and prevent proper mulching of grass
clippings.
6. New or thick grass may require a narrower cut.
7. Clean the underside of the mower deck after each use to remove grass clippings, leaves, dirt, and
any other accumulated debris.

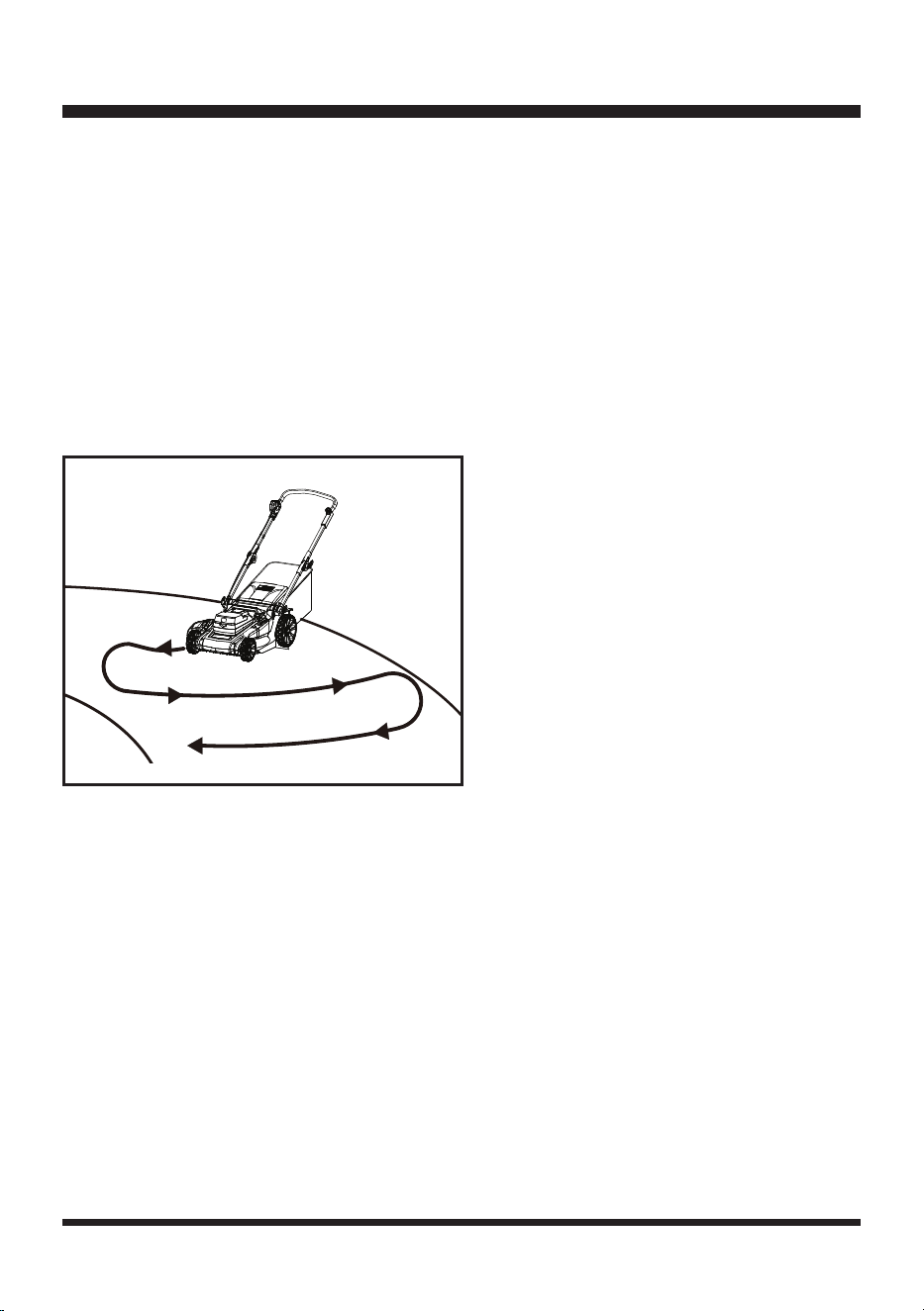

8. Mow in slight overlapping rows. The most effective pattern for mowing lawns is in straight lines
along one of the sides. This will keep the rows even and ensure that the lawn is cut without missing
any spots (Fig. 17).
OPERATION
26
OPERATION
MOWING ON A SLOPE (Fig. 18)
1. Slopes are a major factor related to slip and fall accidents that can result in severe injury. Mowing
on slopes requires extra caution. If you feel uneasy on a slope, do not mow it. For your safety, do
not attempt to mow slopes greater than 15 degrees.
2. Mow across the face of slopes, not up and down. Exercise extreme caution when changing direction
on slopes.
3. Watch for holes, ruts, rocks, hidden objects, or bumps which can cause you to slip or trip. Tall grass
can hide obstacles. Remove all objects such as rocks, tree limbs, etc., which could be tripped over
or thrown by the blade.
4. Always be sure of your footing. A slip and fall can cause serious personal injury. If you feel you are
losing your balance, release the start/stop bale switch immediately.
5. Do not mow near drop-offs, ditches, or embankments; you could lose your footing or balance.
Fig. 18
AFTER USE
1. Switch the product off, remove the battery packs and let it cool down.
2. Check, clean and store the product as described below.
27
MAINTENANCE
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from
various types of commercial solvents and may be damaged by their use. Use a clean cloth to remove
dirt, dust, oil, grease, etc.
WARNING
WARNING
When servicing, use only identical replacement parts. Use of any other parts may create a hazard or
cause product damage.
Always wear safety goggles or safety glasses with side shields during power tool operation. If operation
is dusty, also wear a dust mask.
WARNING
Do not use any attachments or accessories not recommended by the manufacturer of this product. The
use of attachments or accessories not recommended can result in serious personal injury.
1. Do not at any time make any maintenance to the lawn mower without rst stopping the motor and
removing the safety key and battery packs. Adjust the handle bar or make other adjustments as
illustrated in the manual, if necessary or if it can make it easier for maintenance.
2. Periodically check all nuts and bolts for proper tightness to insure safe operation of the mower.
3. Remove any buildup of grass and leaves on or around the motor cover. Wipe the mower clean with
a dry cloth occasionally. Do not use water.
LUBRICATION
All of the bearings in this product are lubricated with a sufcient amount of high grade lubricant for the
life of the unit under normal operating conditions. Therefore, no further bearing lubrication is required.
At the beginning and end of each mowing season:
1. Lubricate the springs on the rear discharge door with light oil.
2. Lubricate the cutting height adjustment lever and related hardware with light oil.
3. Remove the wheels and lubricate the surface of the axle bolt and the inner surface of the wheels
with light oil.
4. Remove the blade and blade hub assembly and lubricate the motor shaft with light oil or engine oil.
See Replacing the Cutting Blade section for instructions on removing the blade.
28

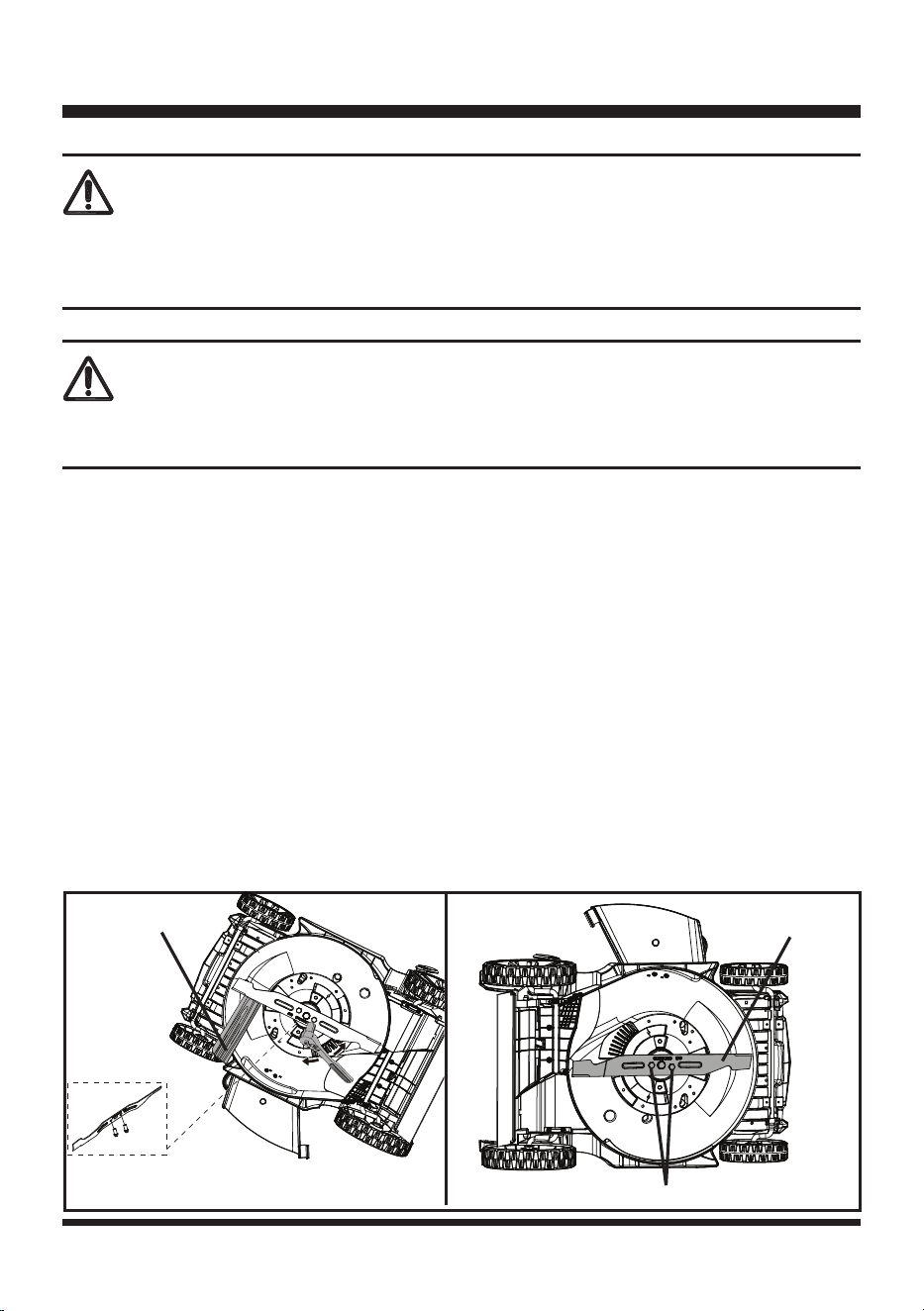

REPLACING THE MOWER BLADE
NOTE: Remove safety key and battery before performing any maintenance!
1. Stop the motor and allow the blade to come to a complete stop.
2. With the blade stopped, remove the SAFETY KEY and the BATTERIES from the mower and store
in safe location.
3. Remove the grass collection bag from mower if attached.
4. Slowly turn the mower onto its side.
5. Wedge a block of wood between the blade and the mower deck in order to prevent blade from
turning while the blade nut is being removed (Fig. 19).
6. Loosen the blade nut using a wrench or socket (not provided).
7. Remove the blade nut by turning counter-clockwise, and then remove the blade.
8. Place the new blade on the shaft. Make sure it is installed with the curved ends pointing up toward
the mower deck and not down toward the ground.
9. Thread the blade nut on the shaft and nger tighten.
10.Torque the blade nuts down using a torque wrench (not provided) to ensure the bolt is properly
tightened to 16 Nm (Fig. 20).
NOTE: Make certain all parts are replaced in the exact order in which they were removed.
WARNING
Before performing any maintenance, make sure the mower is switched off and the safety key and
batteries have been removed. Failure to heed this warning could result in serious personal injury.
WARNING
Always protect hands by wearing heavy gloves and/or wrapping the cutting edges of the blade with rags
and other material when performing blade maintenance. Failure to heed this warning could result in
serious personal injury.
MAINTENANCE
Fig. 19 Fig.20
Nuts
BladeWooden Block
29
MAINTENANCE
SHARPENING THE BLADE
For best mowing performance, the mower blade must be kept sharp. A dull blade does not cut grass
evenly and overloads the motor. Under normal circumstances, sharpening the blade twice during the
mowing season is usually sufcient. However, if your lawn has sandy soil, more frequent sharpening
may be required.
• Following the instructions in the Replacing The Mower Blade section (Page 28), remove the mower
blade. DO NOT attempt to sharpen the blade while it is attached to the mower.
• Using a ne-tooth le or sharpening stone, sharpen cutting edges on both ends of the blade,
removing equal amounts of material from both ends (Fig. 21).
WARNING
When removing, inspect the blade carefully. If blade is bent or damaged, replace immediately with a
new blade. Failure to replace a bent or damaged blade could cause an accident resulting in possible
serious injury.
BALANCING THE BLADE (Fig. 22)
When sharpening, care should be taken to keep the blade balanced. An unbalanced blade will cause
excessive vibration when the mower is running. This vibration will eventually cause damage to the
mower, especially the motor.
To check the blade balance:
• Clamp a screwdriver horizontally in a vise as shown.
NOTE: If a vise is not available, a straight nail can also be used.
• Place the center hole of blade on the screwdriver (or nail) shank.
• If blade is balanced, it will remain in a horizontal position. If either end of the blade drops downward,
sharpen the heavy side until the blade is balanced.
Fig. 21 Fig.22
30
MAINTENANCE
STORING THE MOWER
1. Remove mower safety key and batteries from the mower.
2. Turn mower on its side and clean grass clippings that have accumulated on the underside of the
mower deck.
3. Wipe the mower clean with a dry cloth.
4. Check all nuts, bolts, knobs, screws, fasteners, etc., for tightness.
5. Inspect moving parts for damage, breakage, and wear. Have repairs made on any damaged or
missing parts.
6. Store mower indoors in a clean, dry place out of the reach of children.
7. Do not store near corrosive materials such as fertilizer or rock salt.

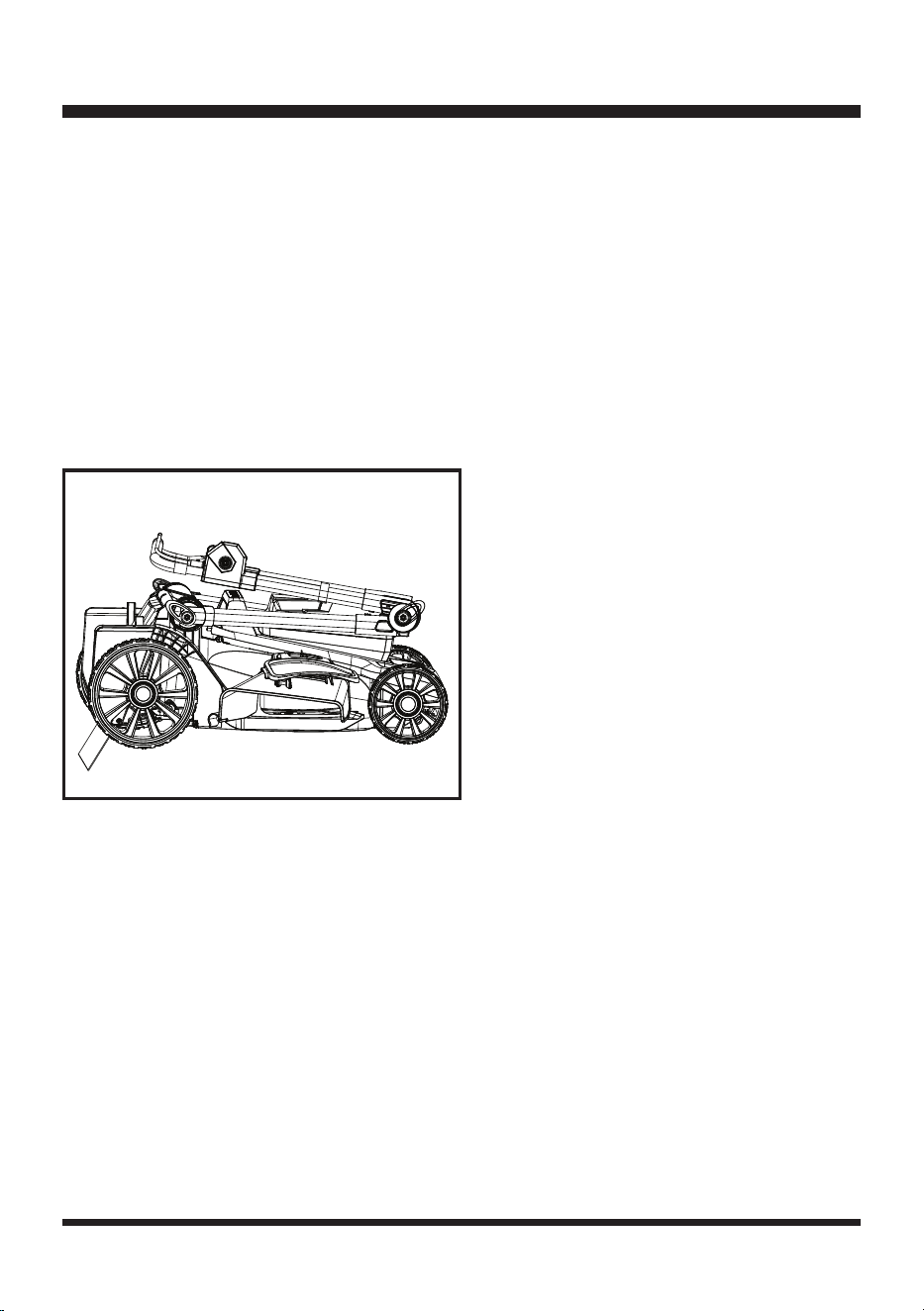

- Remove and clean the grass collection bag.
- Fully loosen the handle locking knobs on the sides of the handle and fold the upper handle down
(Fig. 23).
Fig. 23
31
MAINTENANCE
CLEANING THE MOWER
WARNING
To reduce the risk of electric shock, do not expose the mower to water.
WARNING
Do not at any time make any maintenance to the lawn mower without rst stopping the motor and
removing the safety key and battery packs.
The underside of mower deck should be cleaned after each use as grass clippings, leaves, dirt and
other debris will accumulate causing rust and corrosion.
• Remove any buildup of grass and leaves on or around the motor cover (do not use water). Wipe the
mower clean with a dry cloth occasionally.
• If debris build up on the underside of the unit while in use, stop the motor and remove the safety key
and battery packs. Tilt the mower forward, or on its side, and clean.
BATTERY PACK MAINTENANCE
1. Fully charge the batteries before placing in storage.
2. Recharge the battery packs whenever there is a noticeable reduction in the performance. Do not
allow the battery packs to become completely discharged.
3. Do not recharge a battery pack that is already fully charged. Overcharging shortens battery life.
4. Once the battery packs are fully charged, remove them from the charger and disconnect charger
from the outlet.
5. Do not store the battery packs on the tool or on the charger.
6. If the battery pack is hot, allow it to cool down before recharging.
CHARGER MAINTENANCE
1. Keep the charger clean and clear of debris. Do not allow foreign material into the recessed cavity or
on the contacts. Wipe with a dry cloth. Do not use solvents, water, or place in wet conditions.
2. Always unplug the charger when the battery packs are not installed on the charger.
3. Do not store the charger in excessive heat. Do not use in direct sunlight.
4. Disconnect the charger from the AC power outlet when not in use and once batteries have reached
a full charge.
32
ENVIRONMENTAL SAFE BATTERY DISPOSAL
The following toxic and corrosive materials are in the batteries used in this battery pack:
lithium-ion, a toxic material.
WARNING
All toxic materials must be disposed of in a specic manner to prevent contamination of the
environment. Before disposing of damaged or worn out lithium-ion battery packs, contact your local
waste disposal agency, or the local Environment Protection Agency for information and specic
instructions.
WARNING
If the battery pack cracks or breaks, with or without leaks, do not recharge it and do not use it. Dispose
of it and replace with a new battery pack.
DO NOT ATTEMPT TO REPAIR IT!
To avoid injury and risk of re, explosion, or electric shock, and to avoid
damage to the environment:
• Cover the battery terminals with heavy-duty adhesive tape.
• DO NOT attempt to remove or destroy any of the battery pack components.
• DO NOT attempt to open the battery pack.
• If a leak develops, the released electrolytes are corrosive and toxic. DO NOT get the solution in
eyes or on skin, and do not swallow it.
• DO NOT place damaged or defective batteries in your regular household trash.
• DO NOT incinerate.
• DO NOT place batteries where they will become part of any waste landll or municipal solid waste
stream.
• Take batteries to a certied recycling or disposal center.
33
TROUBLESHOOTING
Suspected malfunctions are often due to causes that the user can x themselves.
Therefore check the product using this section. In most cases the problem can be solved quickly.
WARNING
Only perform the steps described within these instructions!
All further inspection, maintenance and repair work must be performed by an authorized service center
or a similarly qualied specialist if you cannot solve the problem yourself!
Problem Possible Cause Solution
Mower fails to start.
The key is not installed. Check the key installation.
The batteries are not
installed correctly.
Check connection of batteries to mower.
The batteries are not
charged or power is too
low.
Charge the batteries.
The switch is defective.
Call the toll free helpline, at 866-384-
8432.
The blade is jammed.
Stop mower and remove batteries;
check for grass and debris under the
deck, clean to make blade free to move.
The batteries are defective
or old.
Replace the batteries (call the toll free
helpline, at 866-384-8432).
Mower cuts unevenly.
Rough or uneven lawn. Check the mowing area.
Cutting height not set
properly.
Set the mower at a higher position.
The blade is dull. Sharpen or replace the blade.
Mower does not mulch
properly.
Wet grass clippings
sticking to the underside of
the deck.
Wait until the grass dries before
mowing.
Missing mulching plug. Install the mulching plug.
34
TROUBLESHOOTING
Problem Possible Cause Solution
Mower is hard to push.
High grass and low
cutting height. Rear of
mower housing and blade
dragging in heavy grass.
Raise the cutting height.
Mower vibrates
excessively and makes a
lot of noise.
The cutting blade is not
assembled securely.
Tighten the blade bolts.
The blade is not balanced.
Sharpen and balance the blade
following instructions in this manual (see
page 29). Or replace the blade.
The motor shaft is bent.
Stop the mower and remove the
batteries. Have the mower inspected
and repaired by an authorized service
center before restarting.
35
LAWNMASTER
®
WARRANTY
36
EXPLODED VIEW
37
PARTS LIST
Replacement parts highlighted in grey are available for after sales purchase. Replacement of repair or
internal parts should only be done by a qualied service professional. Please contact your authorized
service dealer or Customer Service at 866-384-8432.
Key Number Part Number Description Quantity
1 Handle Assembly 1
2 111198146 Safety Key 1
3 Rear Wheel Assembly 2
3.1 Wheel Axle Ring 4
4 Mower Assembly 1
5 Front Wheel Assembly 2
6 Front Axle Assembly 1
7 Blade Holder Assembly 1
8 111198136 Blade 1
9 Blade Nut 2
10 Rear Axle Assembly 1
11 Rear Skin Bafe Assembly 1
12 Safety Flap Assembly 1
13 Lower Handle Wing Knob 2
14 Left Lower Handle 1
15 Right Lower Handle 1
16 Grass Collection Bag 1
17 Upper Handle Wing Knob 2
18 Upper Handle 1
19 Mulching Plug 1
20 211070122 Battery 2
21 211070120 Charger 1
38
NOTES
39
NOTES
