OTR24XU
EN
INSTRUCTION MANUAL
OVER-THE-RANGE MICROWAVE
MANUEL D’INSTRUCTIONS
MICRO-ONDESÀ HOTTE INTÉGRÈE
MANUAL DE INSTRUCCIONES
MICROONDAS INTEGRABLE
ES
FR
ENGLISH
1
Thank you for your trust and for buying this appliance.
We advise you to read this manual carefully, which contains all the instructions for maintaining the
appliance's aesthetic and functional qualities.
FRANÇAIS
1
Nous vous remercions de votre confiance et de l’achat de cet appareil.
Nous conseillons de lire attentivement ce manuel qui contient toutes les indications nécessaires pour
préserver les caractéristiques esthétiques et fonctionnelles de l'appareil acheté.
ESPAÑOL
1
Gracias por la confianza que ha depositado en nosotros con la compra de este aparato.
Aconsejamos leer detenidamente este manual que contiene todas las indicaciones para mantener
inalteradas las cualidades estéticas y funcionales del aparato adquirido.
Contents
3
EN
1 Instructions 4
1.1 General safety instructions 5
1.2 To reduce the risk of fire in the oven cavity 8
1.3 To reduce the risk of injury to persons 9
1.4 To reduce the risk of injury to persons grounding installation 9
1.5 Radio interference 10
1.6 Appliance purpose 11
1.7 Identification plate 11
1.8 Disposal 11
1.9 This user manual 12
1.10 How to read the user manual 12
2 Description 13
2.1 Names of Oven Parts and Accessories 13
2.2 Specifications 13
3 Use 14
3.1 Turntable Installation 14
3.2 Utensils 14
3.3 Materials you can use in microwave oven 15
3.4 Materials to be avoided in microwave oven 16
3.5 Operation Instructions 16
4 Cleaning and maintenance 21
5 Troubleshooting 22
6 Installation 23
We advise you to read this manual carefully, which contains all the instructions for
maintaining the appliance’s aesthetic and functional qualities.
For further information on the product: www smeg com
Instructions
4
1 Instructions
Important Safety Instructions
WARNING: If the instructions contained in this manual are not followed
precisely, fire or explosion may result causing property damage, personal
injury or loss of life.
READ AND SAVE THESE INSTRUCTIONS - Your safety and the safety of
others are very important.
We have provided many important safety messages throughout this manual and
on the appliance.
Read all the instructions before using the appliance and always obey all safety
messages.
RECOGNIZE SAFETY INFORMATION
This is a safety alert symbol. This symbol alerts you to potential hazards that can
result in severe personal injury or loss of life.
UNDERSTAND SIGNAL WORDS
A signal word - DANGER, WARNING or CAUTION - is used with the safety alert
symbol. DANGER denotes the most serious hazards. It means you could lose your
life or be seriously injured if you do not immediately follow the instructions.
WARNING means you could lose your life or be seriously injured if the instructions
are not followed. CAUTION indicates a potentially hazardous situation which, if
not avoided, could result in minor to moderate injury.
WARNING
• This appliance is intended for use in the home only.
• Use this appliance only for its intended purpose. The
manufacturer cannot be held liable for damage caused by
improper use of this appliance.
• This appliance complies with current safety regulations.
Improper use of this appliance can result in personal injury
and material damage.
• Read all the instructions before installing or using the
appliance for the first time.
• Keep these operating instructions in a safe place and pass
them on to any future user.
Instructions
5
EN
The safety messages will inform you of potential hazards, on how to avoid the risk of injury
and what can occur if the instructions are not followed.
IMPORTANT: Observe all codes and ordinances in force.
Do not store or use gasoline or other flammable vapors, liquids or materials near this or any
other appliance.
1.1 General safety instructions
To reduce the risk of fire, electric
shock, injury to persons or
exposure to excessive microwave
oven energy when using your
appliance, follow basic
precautions, including the
following:
• Read and follow the specific:
“PRECAUTIONS TO AVOID
POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE
ENERGY”.
• WARNING: If the door or the
door seal is damaged, the oven
must not be used until it has been
repaired by a competent person.
• WARNING: It is hazardous for
anyone other than a competent
person to carry out any service or
repair operation which involves
the removal of a cover which
offers protection against exposure
to microwave energy.
WARNING: For your safety, the instructions contained in this manual must be
followed to minimize the risk of fire or explosion and to prevent property damage,
personal injury or loss of life.
NOTE: This appliance is NOT designed for installation in manufactured (mobile)
homes or in recreational vehicles (RVs).
DO NOT install this appliance outdoors.
WARNING
To reduce the risk of fire, electrical shock, personal injury, or
damage when using the appliance, follow basic safety
precautions, including the following:
Instructions
6
• WARNING: Ensure that the
appliance is switched off before
replacing the lamp to avoid the
possibility of electric shock.
• WARNING: Liquids and other
foods must not be heated in
sealed containers since they are
liable to explode.
• WARNING: During use the
appliance and its accessible parts
become very hot.
• Never touch the heating elements
during use.
• Keep children under eight years
of age at a safe distance if they
are not constantly supervised.
• This appliance may be used by
children aged at least 8 and by
people of reduced physical and
mental capacity, or lacking in
experience in the use of electrical
appliances, as long they are
supervised or instructed by adults
who are responsible for their
safety.
• Children must never play with the
appliance.
• The appliance must never be
cleaned by unsupervised children.
• Do not operate the oven if it is
damaged.
• The oven should not be adjusted
or repaired by anyone except
properly qualified service
personnel.
• The appliance must be installed or
positioned only in accordance
with the provided installation
instructions.
• Keep the appliance and its cord
out of reach of children less than
8 years.
• If the supply cord is damaged, it
must be replaced by the
manufacturer, its service agent or
similarly qualified persons in
order to avoid a hazard.
• Do not immerse cord or plug in
water and keep it away from
heated surface.
• Do not let cord hang over edge
of table or counter.
• Do not cover or block any
openings on the appliance.
Instructions
7
EN
• The microwave oven is intended
for heating food and beverages.
Drying of food or clothing and
heating of warming pads,
slippers, sponges, damp cloth
and similar may lead to risk of
injury, ignition or fire.
• Eggs in their shell and whole
hard-boiled eggs should not be
heated in microwave ovens since
they may explode, even after
microwave heating has ended.
• Closed containers should be
opened and plastic pouches
should be pierced before
cooking.
• Metallic containers for food and
beverages are not allowed
during microwave cooking.
• Only use utensils that are suitable
for use in microwave ovens.
• Microwave heating of beverages
can result in delayed eruptive
boiling, therefore care must be
taken when handling the
container.
• Liquids, such as water, coffee, or
tea are able to be overheated
beyond the boiling point without
appearing to be boiling. Visible
bubbling or boiling when the
container is removed from the
microwave oven is not always
present.
• If smoke is emitted, switch off or
unplug the appliance and keep
the door closed in order to stifle
any flames.
• The microwave oven is intended
to be used built-in.
• This appliance is intended to be
used in household and similar
applications such as:
- staff kitchen areas in shops,
offices and other working
environments;
- by clients in hotels, motels and
other residential type
environments;
- farm houses;
- bed and breakfast type
environments.
Instructions
8
• Do not use corrosive chemicals or
vapors in this appliance.
• Do not use harsh abrasive
cleaners or sharp metal scrapers
to clean the oven door glass
since they can scratch the
surface, which may result in
shattering of the glass.
• The oven should be cleaned
regularly and any food deposits
removed.
• Failure to maintain the oven in a
clean condition could lead to
deterioration of the surface that
could adversely affect the life of
the appliance and possibly result
in a hazardous situation.
1.2 To reduce the risk of fire in the
oven cavity
• Do not overcook food. Carefully
attend appliance when paper,
plastic, or other combustible
materials are placed inside the
oven to facilitate cooking.
• Remove wire twist-ties from paper
or plastic bag before placing
bag in oven.
• If material inside of the oven
ignite, keep oven door closed,
turn oven off, and disconnect the
power cord, or shut off power at
the fuse or circuit breaker panel.
• Do not use the cavity for storage
purposes. Do not leave paper
products, cooking utensils, or
food in the cavity when not in use.
Instructions
9
EN
1.3 To reduce the risk of injury to
persons
• Do not overheat the liquid.
• Stir the liquid both before and
halfway through heating it.
• Do not use straight-sided
containers with narrow necks.
• After heating, allow the container
to stand in the microwave oven
for a short time before removing
the container.
• Use extreme care when inserting
a spoon or other utensil into the
container.
• Clean ventilation hoods
frequently. Grease should not be
allowed to accumulate on hood
or filter.
• When flaming foods under the
hood, turn the fan on.
• Suitable for use above both gas
and electric cooking equipment.
1.4 To reduce the risk of injury to
persons grounding installation
Power voltage
Danger of electrocution
• Electric Shock Hazard Touching some of
the internal components can cause
serious personal injury or death. Do not
disassemble this appliance.
• Electric Shock Hazard.
• Improper use of the grounding can result
in electric shock.
• Do not plug into an outlet until appliance
is properly installed and grounded.
• This appliance must be grounded. In the
event of an electrical short circuit,
grounding reduces the risk of electric
shock by providing an escape wire for
the electric current.
• This appliance is equipped with a cord
having a grounding wire with a
grounding plug.
• The plug must be plugged into an outlet
that is properly installed and grounded.
• Consult a qualified electrician or
serviceman if the grounding instructions
are not completely understood or if
doubt exists as to whether the appliance
is properly grounded.
• If it is necessary to use an extension
cord, use only a 3-wire extension cord.
Instructions
10
1.5 Radio interference
Operation of the microwave oven may
cause interference to your radio, TV or
similar equipment.
When there is interference, it may be
reduced or eliminated by taking the
following measures:
1. Clean door and sealing surface of the
oven.
2. Reorient the receiving antenna of radio
or television.
3. Relocate the microwave oven with
respect to the receiver.
4. Move the microwave oven away from
the receiver.
5. Plug the microwave oven into a different
outlet so that microwave oven are on
different branch circuits.
This equipment generates, uses and can
radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference
to radio communications.
However, there is no guarantee that
interference will not occur in a particular
installation.
If this equipment does cause harmful
interference to radio or television reception,
which can be determined by turning the
equipment off and on, the user is
encouraged to try to correct the
interference by one or more of the following
measures:
1. Reorient or relocate the receiving
antenna.
2. Increase the separation between the
equipment and receiver.
3. Connect the equipment into an outlet on
a different circuit.
4. Consult the dealer or an experienced
radio/TV technician for help.
Instructions
11
EN
1.6 Appliance purpose
• This appliance is intended for cooking
food in the home environment. Every
other use is considered inappropriate. It
cannot be used:
• in employee kitchens, shops, offices
and other working environments.
• in farms/agritourism establishments.
• by guests in hotels, motels and
residential environments.
• in bed and breakfast establishments.
• The appliance is not designed to
operate with external timers or with
remote-control systems.
1.7 Identification plate
• The identification plate bears the
technical data, serial number and brand
name of the appliance. Do not remove
the identification plate for any reason.
1.8 Disposal
This appliance must be disposed of
separately from other waste
(Directives 2002/95/EC, 2002/
96/EC, 2003/108/EC). The appliance
does not contain substances in quantities
sufficient to be considered hazardous to
health and the environment, in accordance
with current European directives.
To dispose of the appliance:
• Cut the power supply cable and remove
it along with the plug (if present).
• Deliver the appliance to the appropriate
recycling centre for electrical and
electronic equipment waste, or return it
to the retailer when purchasing an
equivalent product, on a one for one
basis.
Our appliances are packed in non-
polluting and recyclable materials.
• Deliver the packing materials to the
appropriate recycling centre.
Power voltage
Danger of electrocution
• Disconnect the main power supply.
• Disconnect the power cable from the
electrical system.
Plastic packaging
Danger of suffocation
• Do not leave the packaging or any part
of it unattended.
• Do not let children play with the
packaging plastic bags.
Instructions
12
1.9 This user manual
This user manual is an integral part of the
appliance and must therefore be kept in its
entirety and within the user’s reach for the
whole working life of the appliance.
• Read this user manual carefully before
using the appliance.
1.10 How to read the user manual
This user manual uses the following reading
conventions:
1. Use instruction sequence.
• Single use instruction.
Instructions
General information on this user
manual, on safety and final
disposal.
Description
Description of the appliance and its
accessories.
Use
Information on the use of the
appliance and its accessories,
cooking advice.
Cleaning and maintenance
Information for proper cleaning and
maintenance of the appliance.
Installation
Information for the qualified
technician: Installation, operation
and inspection.
Safety instructions
Information
Advice
Description
13
EN
2 Description

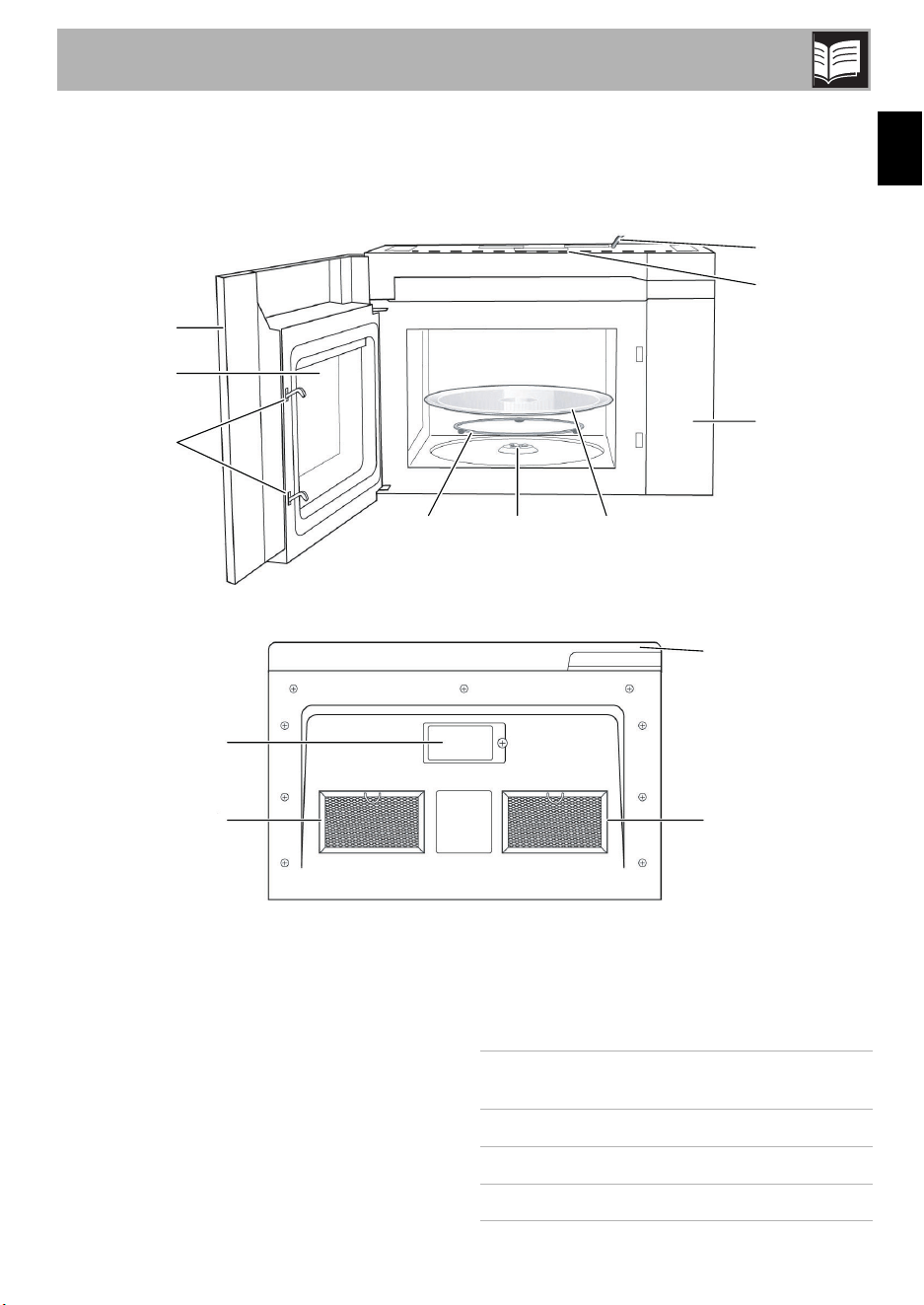

2.1 Names of Oven Parts and Accessories
1 Door
2 Window
3 Interlock System
4 Control Panel
5 Turntable Ring Assembly
6 Turntable Coupler
7 Glass Turntable
8 Top Grille
9 Power Chord
10 Surface Lights
11 Grease Filters
2.2
Specifications
1
2
3
8
567
9
4
10
11 11
1
Model:
TM038K6BH-
P0HA
Rated Voltage: 120V~60 Hz
Rated Input Power: 1500 W
Rated Output Power: 1000 W
Use
14
3 Use
Remove the oven and all materials from the
carton and oven cavity.
Your oven comes with the following
accessories:
• Glass tray
• Turntable ring assembly
• Instruction Manual
3.1 Turntable Installation
• Never place the glass tray upside down.
The glass tray should never be restricted.
• Both glass tray and turntable ring
assembly must always be used during
cooking.
• All food and containers of food are
always placed on the glass tray for
cooking.
• If glass tray or turntable ring assembly
cracks or breaks, contact your nearest
authorized service center.
3.2 Utensils
See the instructions on “Materials you can
use in microwave oven or to be avoided in
microwave oven”. There may be certain
non-metallic utensils that are not safe to use
for microwaving. If in doubt, you can test the
utensil in question following the procedure
below.
Utensil Test:
1. Fill a microwave-safe container with
1 cup of cold water (250 ml) along with
the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty
utensil is warm, do not use it for
microwave cooking.
4. Do not exceed 1 minute cooking time.
Caution
Personal Injury Hazard
It is hazardous for anyone other than a
competent person to carry out any service
or repair operation that involves the
removal of a cover which gives protection
against exposure to microwave energy.
Use
15
EN
3.3 Materials you can use in microwave oven
Utensils Remarks
Browning dish
Follow manufacturer's instructions. The bottom of browning dish must be at least
3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable
to break.
Dinnerware
Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or
chipped dishes.
Glass jars
Always remove lid. Use only to heat food until just warm. Most glass jars are not
heat resistant and may break.
Glassware
Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not
use cracked or chipped dishes.
Oven cooking bags
Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow
steam to escape.
Paper plates and cups
Use for short-term cooking/warming only. Do not leave oven unattended while
cooking.
Paper towels
Use to cover food for reheating and absorbing fat. Use with supervision for a
short-term cooking only.
Parchment paper Use as a cover to prevent splattering or a wrap for steaming.
Plastic
Microwave-safe only. Follow the manufacturer's instructions. Should be labeled
“Microwave Safe”. Some plastic containers soften, as the food inside gets hot.
“Boiling bags” and tightly closed plastic bags should be slit, pierced or vented
as directed by package.
Plastic wrap
Microwave-safe only. Use to cover food during cooking to retain moisture. Do
not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
Use
16
3.4 Materials to be avoided in microwave oven
3.5 Operation Instructions
1 Sensor
2 Popcorn
3 Sensor Reheat
4 Power Level
5 Kitchen Timer
6 Defrost
7 Turntable ON/OFF
8 Light ON/OFF
9 Vent Fan HI-LO-FF
10 Clock
11 Number Pads
12 STOP/Cancel
13 START/+30 Sec
14 Display Screen
Utensils Remarks
Aluminum tray May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal
handle
May cause arcing. Transfer food into microwave-safe dish.
Metal or metal- trimmed
utensils
Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties May cause arcing and could cause a fire in the oven.
Paper bags May cause a fire in the oven.
Plastic foam
Plastic foam may melt or contaminate the liquid inside when exposed to high
temperature.
Wood Wood will dry out when used in the microwave oven and may split or crack.
1
6 7 8 9 10 1314
2 3 4 5 1211
Use
17
EN
Power Level
Power On
When the microwave oven is electrified, the
screen will display “12:00 PRESS CLOCK
ENTER TIME “. The buzzer will ring once.
Press number keys to set clock or press
to exit clock setting mode.
If there is no operation within 5 minutes, the
oven will enter waiting state.
Clock Setting
The clock can be set in 12-hour mode.
1. In waiting state, press once.
The screen will display “12:00 PRESS
CLOCK ENTER TIME”.
2. Press the number keys and enter the
correct time. For example, time is 10:12
now, please press “1,0, 1, 2” in turn.
3. Press button to
confirm the clock.
Kitchen Timer
1. Press once, “ENTER
TIME” will blink in the display.
2. Press the number keys and enter the timer
time (the maximum value is 99:99).
3. Press to confirm
setting. The kitchen time will start counting
down.
Time Cook
1. In waiting state, press the number keys to
set the cooking time (the maximum value
is 99:99).
2. Press repeatedly to
adjust the power level. The default
power is PL-HI.
3. Press to start
microwave.
Speedy Cooking
1. In waiting state, instant cooking at 100%
power level can be started by select a
cooking
time from 1 to 9 minutes by
pressing number pads1 to 9.
2. In waiting state, instant cooking at 100%
power level with 30 seconds' cooking
time can be started by pressing
. Each press on the
same button will increase cooking time
by 30 seconds. The maximum cooking
time is 99 minutes and 99 seconds.
Level 109876543210
Power
100% 90% 80% 70% 60% 50% 40% 30% 20% 10% 0%
Display
PL-HI PL-90 PL-80 PL-70 PL-60 PL-50 PL-40 PL-30 PL-20 PL-10 PL-0
STOP/Cancel
CLOCK
START/+30 Sec
KITCHEN TIMER
START/+30 Sec
POWER LEVEL
START/+30 Sec
START/+30 Sec
Use
18
Popcorn
1. Press “Popcorn” repeatedly until the
number you wish appears in the display.
• “1”SET:
approximate 3.2 ounces.
• “2”SET: approximate 1.75 ounces.
For example, press “Popcorn” once, “3.2”
appears in the screen.
2. Press to cook.
Defrost
1. Press once, the screen will
display “MEAT”.
2. Press repeatedly to
choose the desired function. And
“MEAT”, “POULTRY”, “FISH”, or
“BREAD” will display in turn.
3. Press to confirm the
function. The screen will display
“ENTER WEIGHT”.
4. Press the number keys to set the weight
of the food.
5. Press to start
defrosting.
Defrost programs:
Sensor Reheat
1. Press once, the
screen will display “BEVERAGE”.
2. Press repeatedly
until the menu you wish appears in the
display.
3. Press to confirm.
4. Press the number key “1-3” to set the
weight of the food (for the menus “Dinner
Plate, Pizza, Casserole”, please skip this
step).
5. Press to start sensor
cook mode. The appliance starts
sensing. The microwave is operating
during sensing. When sensing is
complete, beeps will sound and the
calculated cook time will start to count
down.
Sensor Reheat programs:
Press button Food Weight range
1 Meat 0.1 - 6.0 lbs
2C-1
0.1 - 6.0 lbs
3
C-2
0.1 - 6.0 lbs
4Bread
0.1 - 6.0 lbs
START/+30 Sec
DEFROST
DEFROST
START/+30 Sec
START/+30 Sec
Do not open the door during the
sensing process, or the program
will be cancelled.
Program no. Menu Quantity
1 Beverage 1 - 3 cups
2 Dinner Plate 1 plate
3 Pizza 1 - 4 slices
4 Sopu/Sauce 1 - 3 cups
5 Casserole 10.5 oz
SENSOR REHEAT
SENSOR REHEAT
START/+30 Sec
START/+30 Sec
Use
19
EN
Sensor
1. Press
once, the screen will
display “POTATO”.
2. Press
repeatedly until the
menu you wish appears in the display.
3. Press to start sensor
cook mode. The appliance starts
sensing. The microwave is operating
during sensing. When sensing is
complete, beeps will sound and the
calculated cook time will start to count
down.
Sensor Reheat programs:
Multi-Stage Cooking
Example: Defrost the Poultry for 2.0 lbs and
then cook with 80% microwave power for
5 minutes
1.
In waiting state, press number keys to set
the microwave cooking time to
5 minutes
.
2. Press repeatedly to
set the power level of PL-80.
3. Press twice and then the
screen will display “Poultry”.
4. Press to confirm the
menu.
5. Press number keys to set the weight for
2.0 lbs.
6. Press to start
cooking.
Do not open the door during the
sensing process, or the program
will be cancelled.
Program no. Menu Quantity
1 Potato 1 - 4 potatoes
2 Fresh Vegetable 6/16 oz
3
Frozen
8/16 oz
4 Frozen Dinner 10/20 oz
5Rice1 - 2 cups
6 Frozen Breakfast 8 - 12 oz
7Meat9 - 19 oz
SENSOR
SENSOR
START/+30 Sec
Two stages can be maximumly set.
If you set defrost function, it will
work automatically in the first stage.
POWER LEVEL
DEFROST
START/+30 Sec
START/+30 Sec
Use
20
Operating the ventilation fan
1. Press once to start
ventilation fan, the screen will display
“HIGH”. The oven will return to waiting
state after 2 seconds.
2. Press twice, the
screen will display “LOW”. The oven will
return to waiting state after 2 seconds.
3. Press thrice to turn
off the ventilation fan, the screen will
display “OFF”. The oven will return to
waiting state after 2 seconds.
Turning the light ON/OFF
The appliance is equipped with a cooking
surface light, to light the surface underneath
the appliance. With the
button you can set two brightness levels.
Turning the turntable ON/OFF
• To turn the turntable off, press
once. The
screen will display “OFF” for 2 seconds.
• Press again to
turn the turntable on. The screen will
display “ON” for 2 seconds.
Display Brightness
HI High
LO Low
OFF Off
VENT HI-LO-OFF
VENT HI-LO-OFF
VENT HI-LO-OFF
LIGHT ON/OFF
For best cooking results, leave the
turntable on. It can be turned off for
large dishes.
TURNTABLE ON/OFF
TURNTABLE ON/OFF
Cleaning and maintenance
21
EN
4 Cleaning and maintenance
Be sure to unplug the appliance from the
power supply.
1. Clean the cavity of the oven after using
with a slightly damp cloth.
2. Clean the accessories in the usual way in
soapy water.
3. The door frame and seal and
neighbouring parts must be cleaned
carefully with a damp cloth when they
are dirty.
4. Do not use harsh abrasive cleaners or
sharp metal scrapers to clean the oven
door glass since they can scratch the
surface, which may result in shattering of
the glass.
5. Use care when cleaning the vent-hood
filter. Corrosive cleaning agents, such as
lye-based oven cleaners, may damage
the filter.
Troubleshooting
22
5 Troubleshooting
If the malfunction shows again, contact the Service Center.
Problem Possibile cause Solution
Oven will not start.
Electrical cord for oven is not plugged
in.
Plug into the outlet.
Door is open. Close the door and try again.
Wrong operation is set. Check instructions.
Arcing or sparking.
Materials to be avoided in microwave
oven were used.
Use microwave-safe cookware only.
The oven is operated when empty. Do not operate with oven empty.
Spilled food remains in the cavity. Clean cavity with wet towel.
Unevenly cooked foods.
Materials to be avoided in microwave
oven were used.
Use microwave-safe cookware only.
Food is not defrosted completely. Completely defrost food.
Cooking time, power level is not
suitable.
Use correct cooking time, power level.
Food is not turned or stirred. Turn or stir food.
Overcooked foods.
Cooking time, power level is not
suitable.
Use correct cooking time, power level.
Undercooked foods.
Materials to be avoided in microwave
oven were used.
Use microwave-safe cookware only.
Food is not defrosted completely. Completely defrost food.
Oven ventilation ports are restricted.
Check to see that oven ventilation ports
are not restricted.
Cooking time, power level is not
suitable.
Use correct cooking time, power level.
Improper defrosting.
Materials to be avoided in microwave
oven were used.
Use microwave-safe cookware only.
Cooking time, power level is not
suitable.
Use correct cooking time, power level.
Food is not turned or stirred. Turn or stir food.
Installation
23
EN
6 Installation

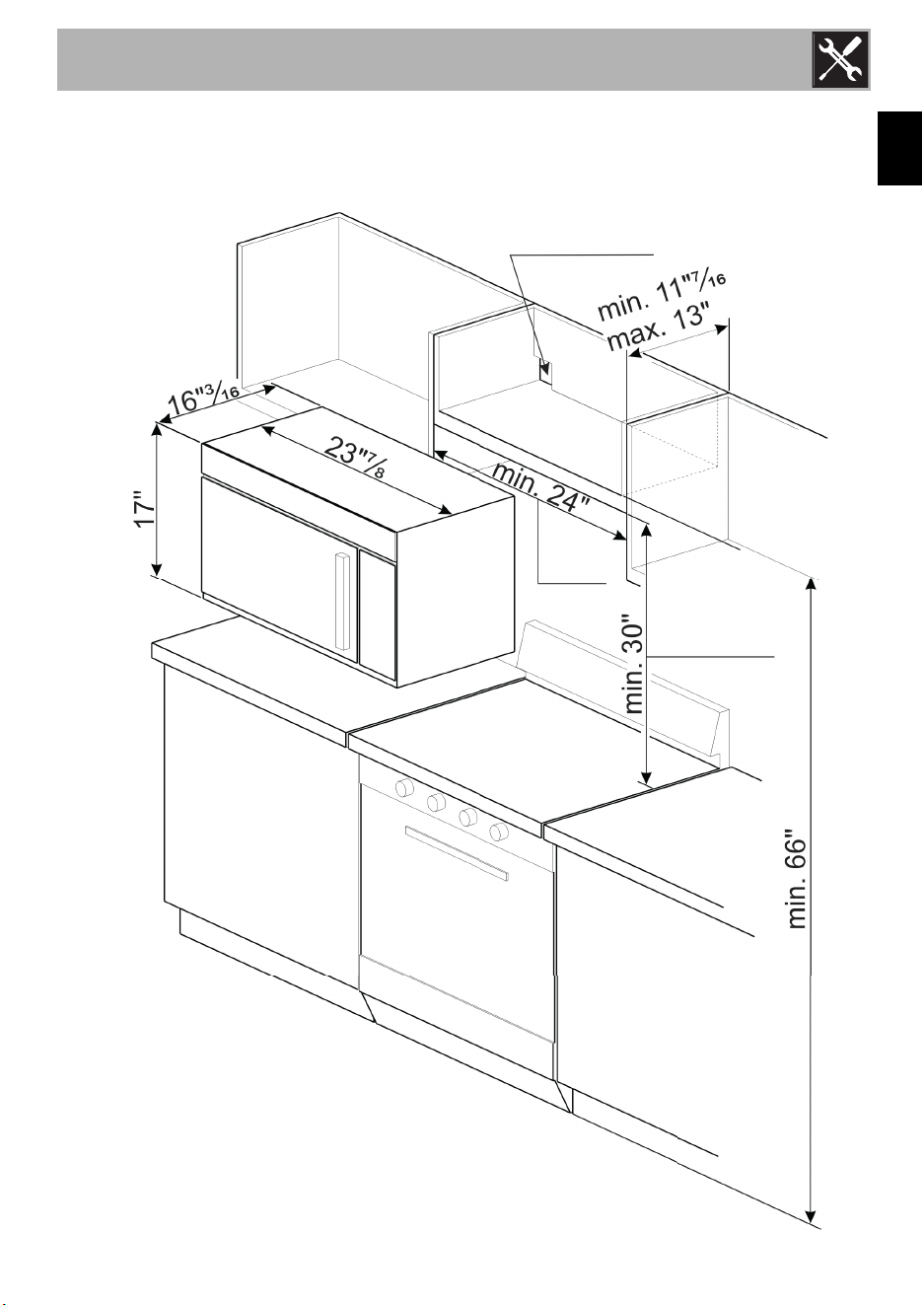

Technical drawing
Clearance from
bottom of cabinet
to cooking surface
of worktop
cabinet
opening
width
Earthed socket
Inside cabinet
above the oven
24
The manufacturer reserves the right to make any changes deemed useful for improvement of its products without prior
notice. The illustrations and descriptions contained in this manual are therefore not binding and are merely indicative.
Le fabricant se réserve le droit d'apporter toute modification jugée utile pour l'amélioration de ses produits sans
préavis. Les illustrations et descriptions figurant dans ce manuel ne sont donc pas contraignantes et sont simplement
indicatives.
El fabricante se reserva el derecho de realizar cualquier cambio que considere útil para la mejora de sus productos
sin previo aviso. Por lo tanto, las ilustraciones y descripciones contenidas en este manual no son vinculantes y son
meramente indicativas.
SMEG S.p.A.
Via Leonardo Da Vinci, 4
42016 San Girolamo di
Guastalla (RE)
ITALY
www.smeg.com
