Drwg. 1
BULLETIN NO.
54-07-1300
SERVICE PARTS LIST

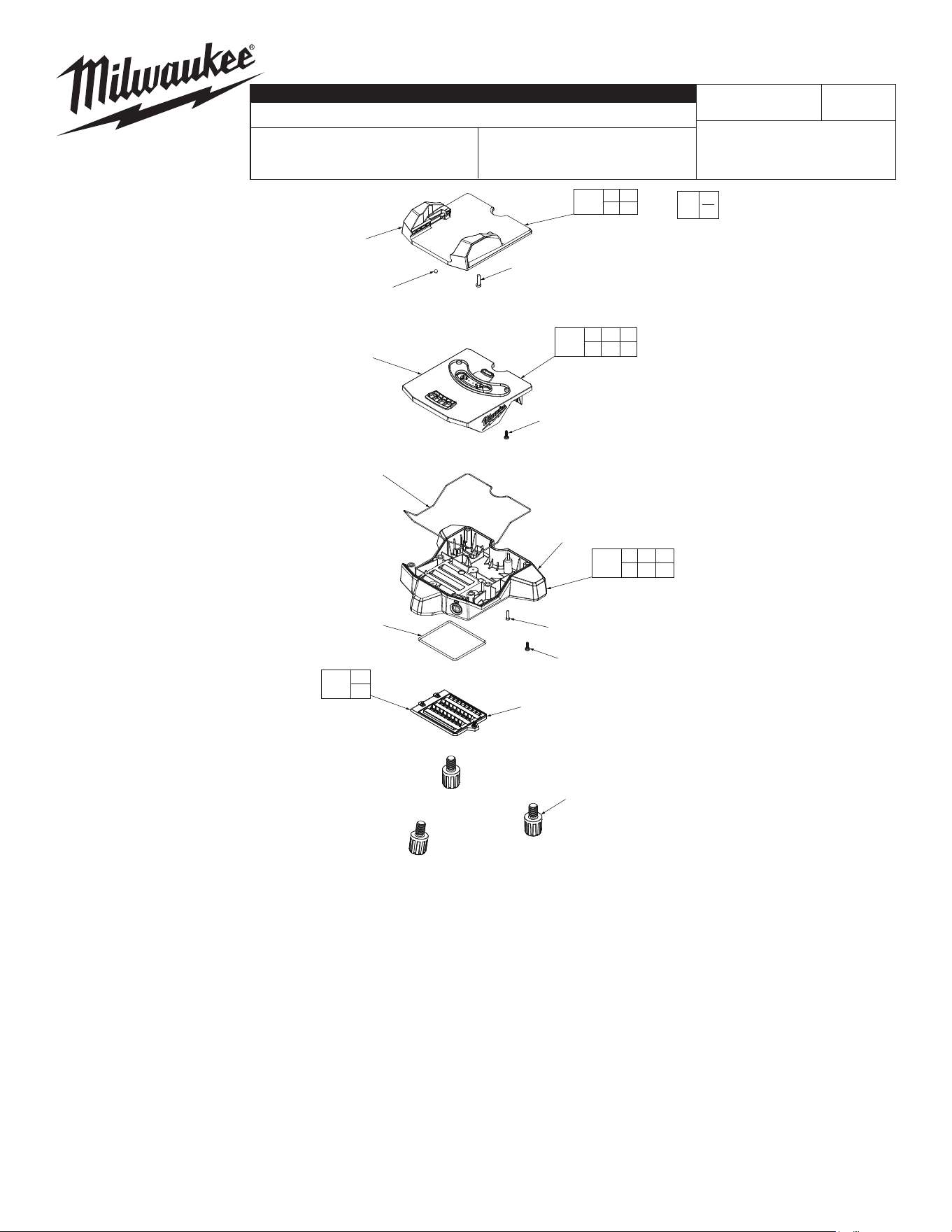

FIG. PART NO. DESCRIPTION OF PART NO. REQ.
4 28-60-0010 Feet (Set of 3) (1)
8 --------------- M2.6 x 8mm Plastite Fastener (3)
9 --------------- Bottom Housing Assembly (1)
10 --------------- Main Gasket (1)
14 --------------- Top Plate Assembly (1)
15 --------------- 4mm Ball (10)
24 --------------- Battery Door Gasket (1)
25 --------------- Retaining Ring (1)
26 --------------- M3 Philips Screw (1)
28 --------------- M2.5 x 12mm PH T8 Screw (1)
29 --------------- M2.5 x 6mm Plastite Fastener (7)
30 31-03-0500 Swivel Plate Service Assembly (1)
32 31-50-0993 Top Plate Service Assembly (1)
33 31-50-0994 Bottom Housing Service Assembly (1)
34 12-20-1001 Service Nameplate (not shown) (1)
35 31-21-0012 Battery Door Service Assembly (1)
CATALOG NO. 48-35-1314
22-80-1314
REVISED BULLETIN
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
Wireless Laser Alignment Base w/Remote
STARTING
SERIAL NO.
DATE
Nov. 2023
WIRING INSTRUCTION
P21A
P25A
0
00
EXAMPLE:
Component Parts (Small #)
Are Included When Ordering
The Assembly (Large #).
14
16
15
(10x)
27
(2x)
15 16
27
30
4
(3x)
8
(3x)
10
9
24
8 14 15
28 29
32
29
(7x)
28
3
9 10 24
28 29
33
3
34
35
CATALOG NO. 48-35-1314
Wireless Laser Alignment Base
CATALOG NO. 22-80-1314
Laser Base Remote
FIG. PART NO. DESCRIPTION OF PART NO. REQ.

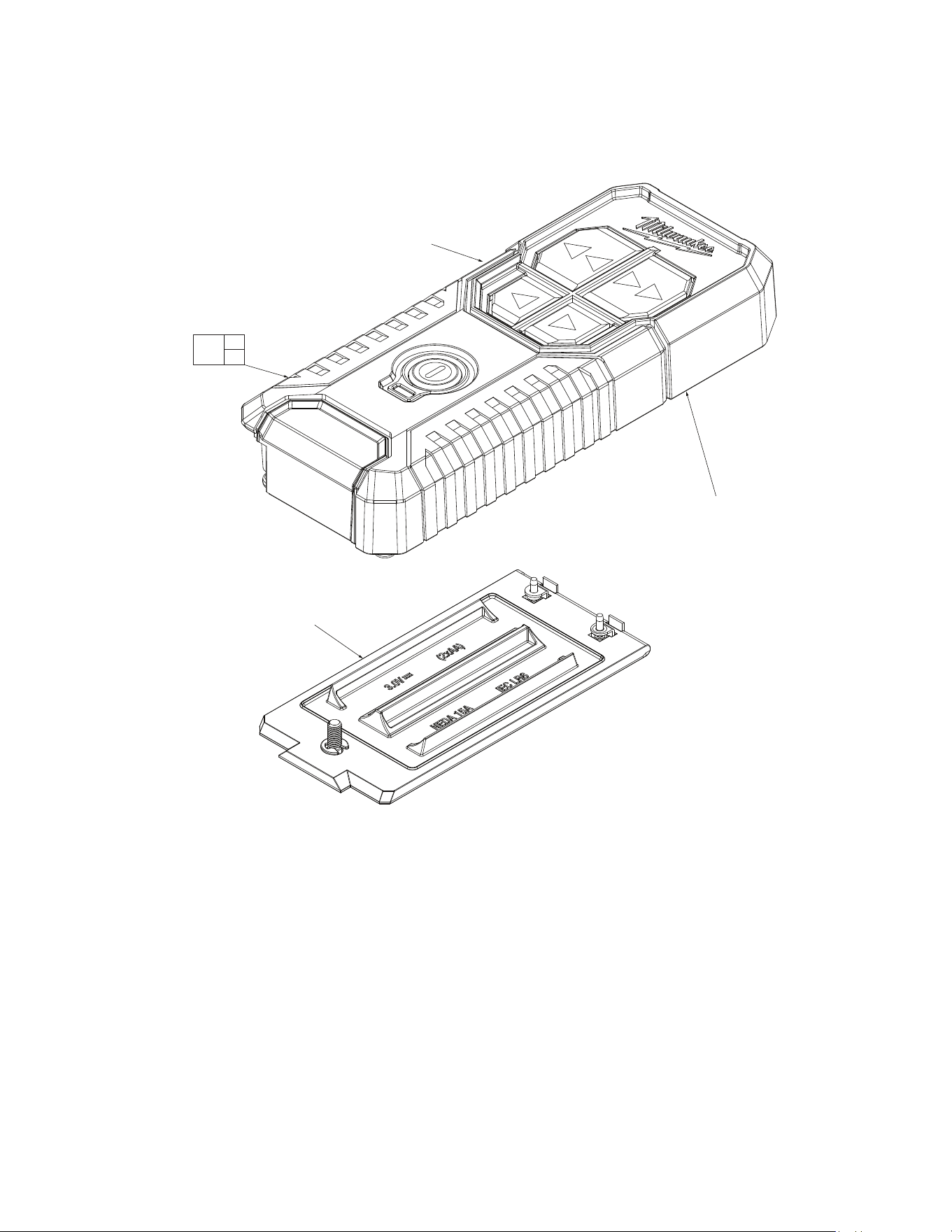

25 --------------- Remote Assembly (1)
26 31-21-0014 Battery Door Service Assembly (1)
27 12-20-1002 Service Nameplate (not shown) (1)
28 14-20-0801 Remote Service Assembly (1)
25
26
25
27
28
27
