User Manual
Ultra T10 Smart Treadmill
SF-T724082
EN
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US.
1
Important Safety Information
When using an electrical appliance, basic precautions should always be followed, including the
following:
Read all instructions before using (this appliance).
DANGER –To reduce the risk of electric shock:
Always unplug this appliance from the electrical outlet immediately after using and before
cleaning.
WARNING – To reduce the risk of burns, fire, electric shock, or injury to persons:
1. An appliance should never be left unattended when plugged in. Unplug from outlet when not
in use, and before putting on or taking off parts.
2. This appliance is not intended for use by persons with reduced physical, sensory, or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety. Keep
children under the age of 13 away from this machine.
3. Use this appliance only for its intended use as described in this manual. Do not use
attachments not recommended by the manufacturer.
4. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it
has been dropped or damaged, or dropped into water. Please contact Customer Service at
support@sunnyhealthfitness.com.
5. Do not carry this appliance by supply cord or use cord as a handle.
6. Keep the cord away from heated surfaces.
7. Never operate the appliance with the air openings blocked. Keep the air openings free of lint,
hair, and the like.
8. Never drop or insert any object into any opening.
9. Do not use outdoors. Household use only.
10. Do not operate where aerosol (spray) products are being used or where oxygen is being
administered.
11. To disconnect, turn all controls to the off position, then remove plug from outlet.
12. CAUTION: Risk of Injury to Persons – To Avoid Injury, use extreme caution when stepping onto
or off of a moving belt. Read Instruction Manual Before Using.
13. Connect this appliance to a properly grounded outlet only. See Grounding Instructions.
14. REMOVE CONTROL BOX (OR KEY, OR SAFETY PIN, AS APPLICABLE) WHEN NOT IN USE, AND
STORE OUT OF REACH OF CHILDREN.
15. Do not operate under blanket or pillow. Excessive heating can occur and cause fire, electric
shock, or injury to persons.
SAVE THESE INSTRUCTIONS
2
Caution: The user is cautioned that changes or modifications not expressly approved by
the party responsible for compliance could void the user's authority to operate the
equipment.
This device contains license-exempt transmitter(s)/receiver(s) that comply with
Innovation, Science and Economic Development Canada’s license-exempt RSS(s) and
Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1) This device may not cause interference.
2) This device must accept any interference, including interference that may cause
undesired operation of the device.
NOTE: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum
distance of 20cm between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
3
Important Safety Information
We thank you for choosing our product. To ensure your safety and health, please use this
equipment correctly. It is important to read this entire manual before assembling and using the
equipment. Safe and effective use can only be achieved if the equipment is assembled,
maintained, and used properly. It is your responsibility to ensure that all users of the equipment
are informed of all warnings and precautions.
1. Before starting any exercise program, you should consult your physician to determine if you
have any medical or physical condition that could put your health and safety at risk or prevent
you from using the equipment properly. Your physician’s advice is essential if you are taking
medication that affects your heart rate, blood pressure, or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest,
irregular heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea. If
you do experience any of these conditions, you should consult your physician before
continuing with your exercise program.
3. Keep children and pets away from the equipment.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet.
To ensure safety, the equipment should have at least 240cm (8 feet) of free space behind it
and 60cm (2 feet) on each side. Do not place the treadmill on any surface that blocks air
openings. To protect the floor or carpet from damage, place a mat under the treadmill.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of
the equipment can only be maintained if it is regularly examined for damage and/or wear and
tear.
6. Always use the equipment as indicated. If you find any defective components while
assembling or checking the equipment, or if you hear any unusual noises coming from the
equipment during exercise, discontinue use of the equipment immediately and do not use
until the problem has been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may
become entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 300 lbs (135 kg).
10. This equipment is not suitable for therapeutic use.
11. To avoid bodily injury and/or damage to the product or property, proper lifting and moving are
required.
12. Your product is intended for use in cool and dry conditions. You should avoid storage in
extreme cold, hot, or damp areas as this may lead to corrosion and other related problems.
13. This equipment is designed for indoor and home use only; it is not intended for commercial
use!
4
6
Important Operating Information
1. Insert the power plug directly into the socket.
2. Read the manual before operating the equipment.
3. Changes in speed do not occur immediately. Set your desired speed using the adjustment keys on the
main console. The speed will increase gradually.
4. While on the treadmill, move with caution as distractions may cause you to lose balance and stray from
walking in the center of the belt. This may result in serious injury.
5. This unit starts at a very low speed. To begin use, hold onto the handrails, and stand on the side rails
while it starts up, then step onto the belt once it is in motion.
6. Always hold the handrail when making changes in the settings.
7. A safety key is provided for emergency use. The machine will function only if the safety key is inserted
into the computer console. In case of emergency, remove the safety key to immediately stop the belt
and shut off the treadmill. The display screen will reset once the safety key is reinserted.
8. The console control keys are precisely set and require very little finger pressure to use. To avoid
damaging these keys, do not use excessive pressure when operating these controls.
9. This equipment is designed for adult use only! Children should not be allowed to use or play near this
equipment. When present, children should always be supervised by an adult.
10. Women who are pregnant or nursing should consult a physician before attempting to begin any
exercise program.
11. Always stay hydrated during and after exercise.
IMPORTANT NOTE:
The running belt must be lubricated before the first use! Please see
Page 16
for instructions on
how to properly apply lubricant.
Statement of Purpose
The treadmill is a cardio workout machine that provides indoor running at various speeds.
Waste Disposal
Sunny Health & Fitness products are recyclable. At the end of its useful life please dispose of this article
correctly and safely (local refuse sites).
EU Declaration of Conformity
You can find the declaration of conformity at the following link:
https://sunnyhealthfitness.com/pages/declaration-of-conformity
Technical Data
Connectivity: Bluetooth LE
Frequency Range: 2400~2483.5Mhz
Transmitting Power: 0dBm
5
Pre-Assembly Check List

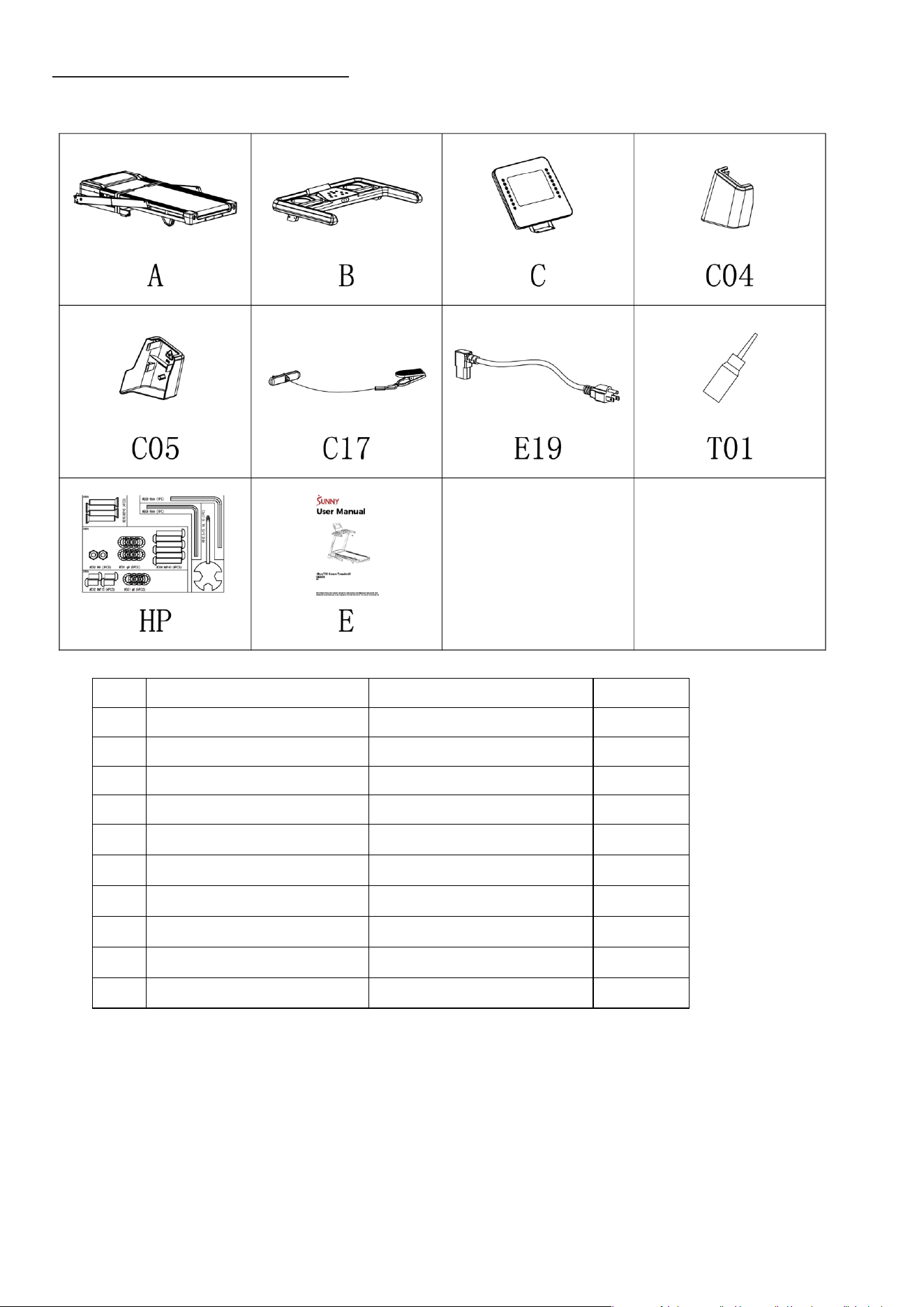

When you open the carton, you will find the following parts:
No.
Description
Spec.
Qty
A
Main Frame
1
B
Panel Connecting Bracket
1
C
Console Assembly
1
C04
Left Upright Tube Cover
1
C05
Right Upright Tube Cover
1
C17
Safety Key
1
E19
Power Wire
1
T01
Lubricant Oil
1

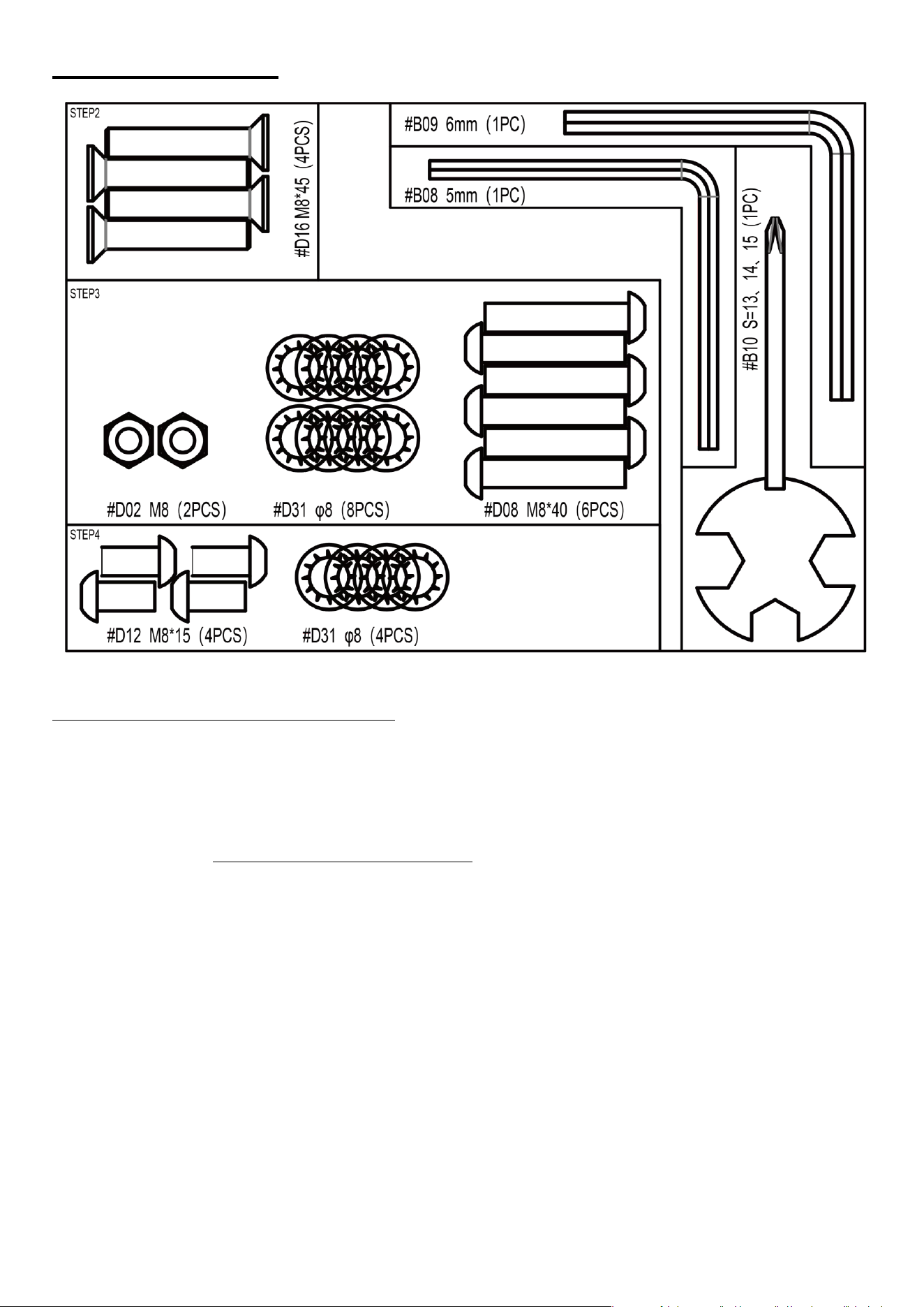

HP
Hardware Package
1
E
Manual
1
7

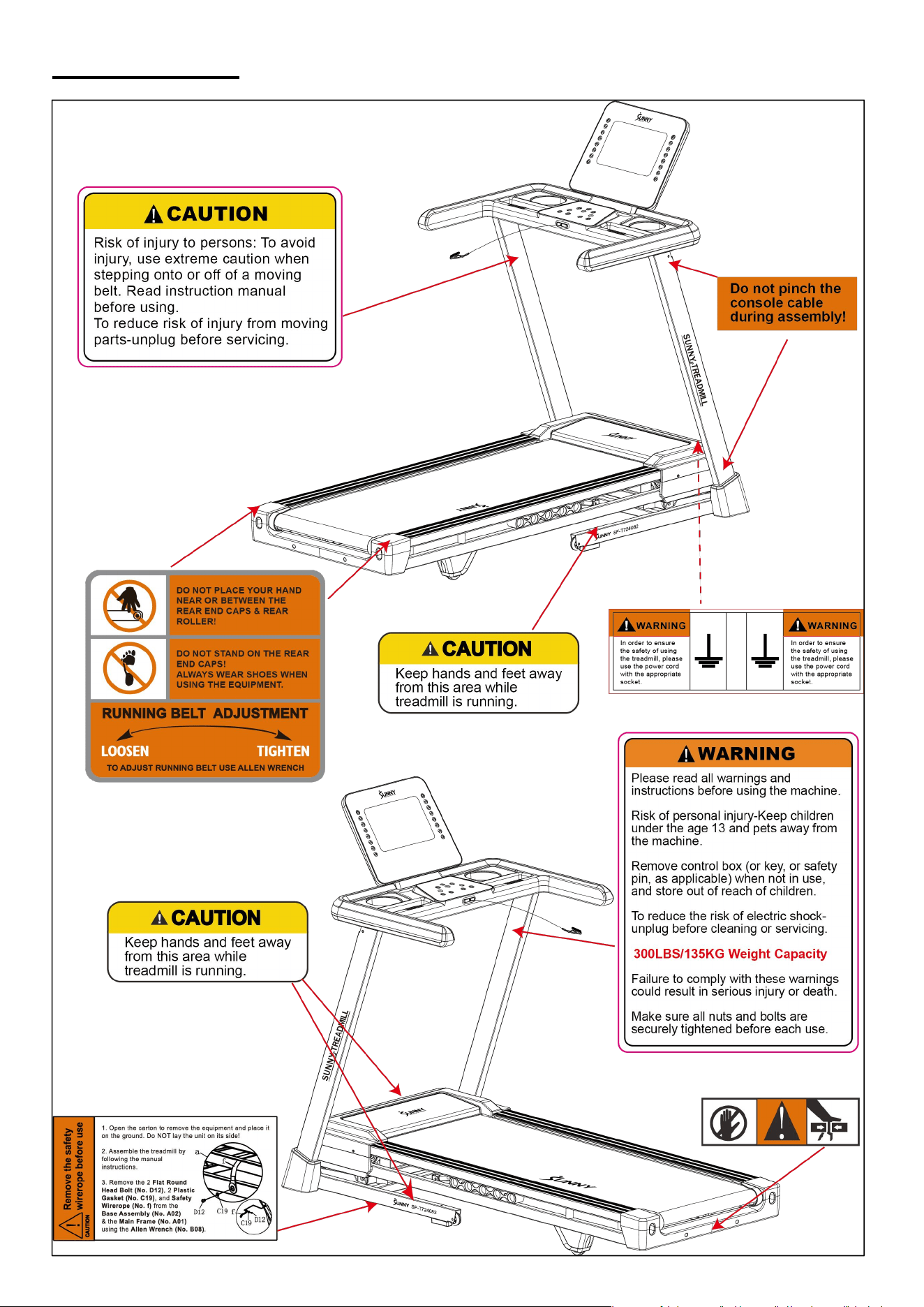

Warning Labels
8

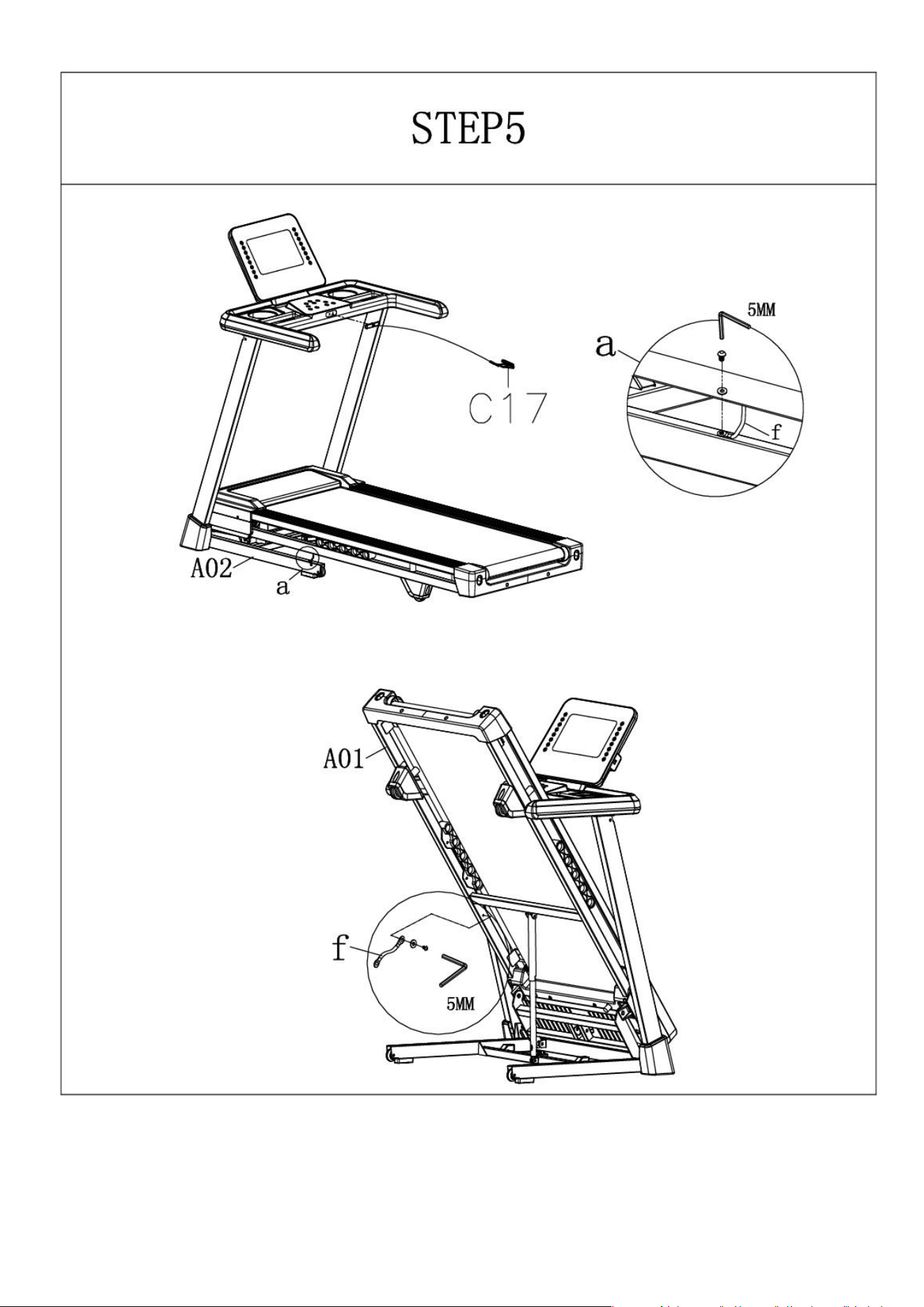

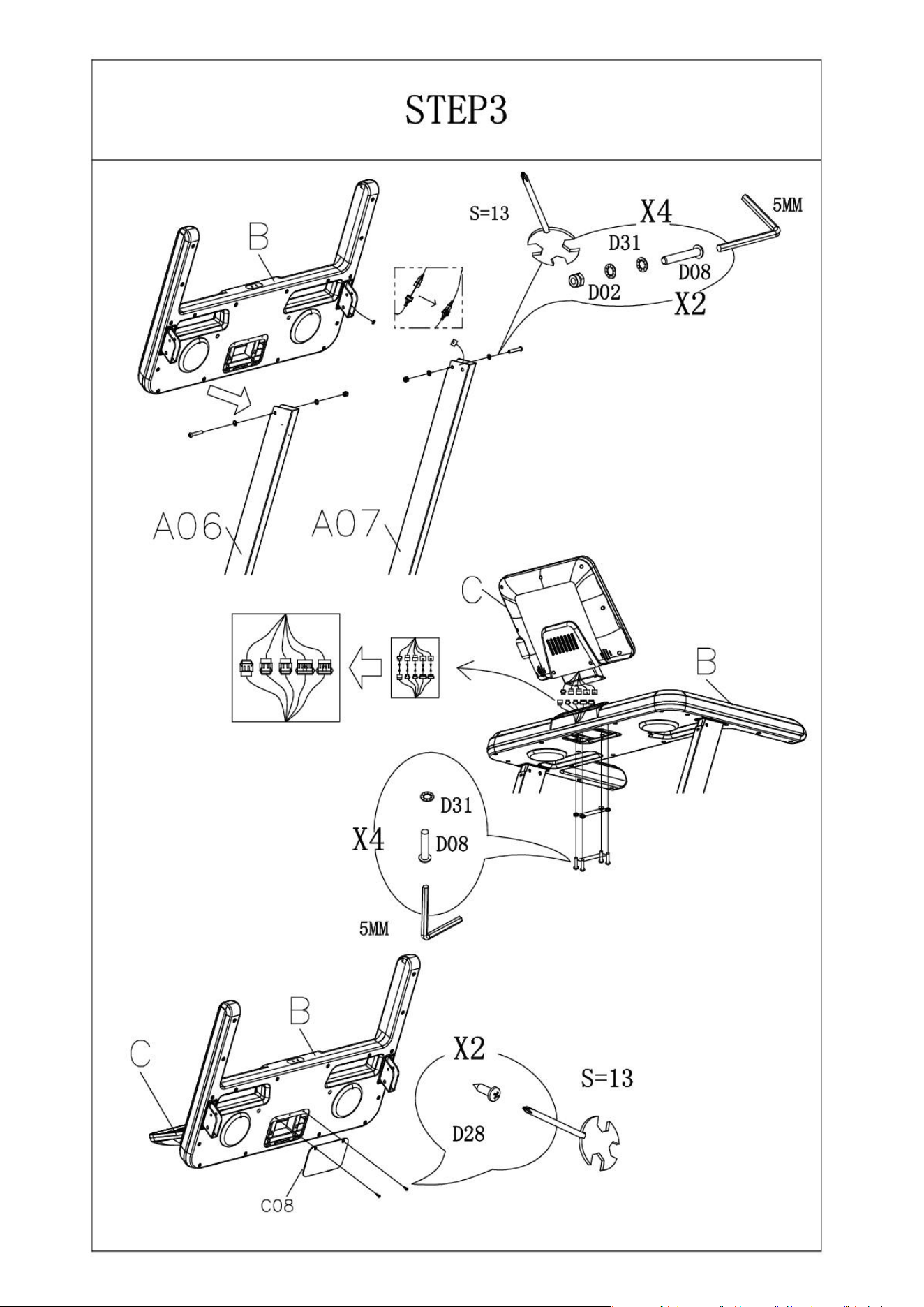

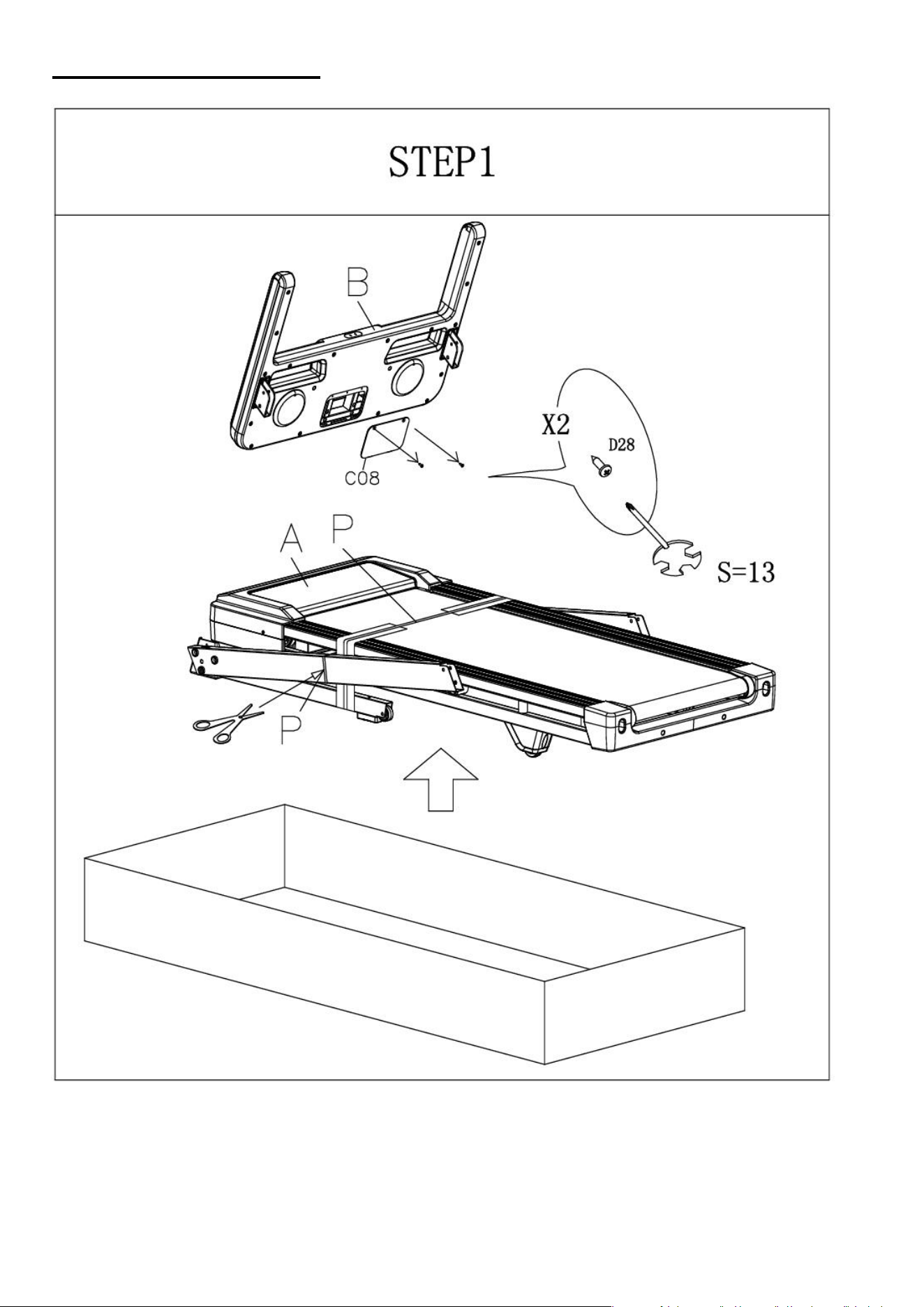

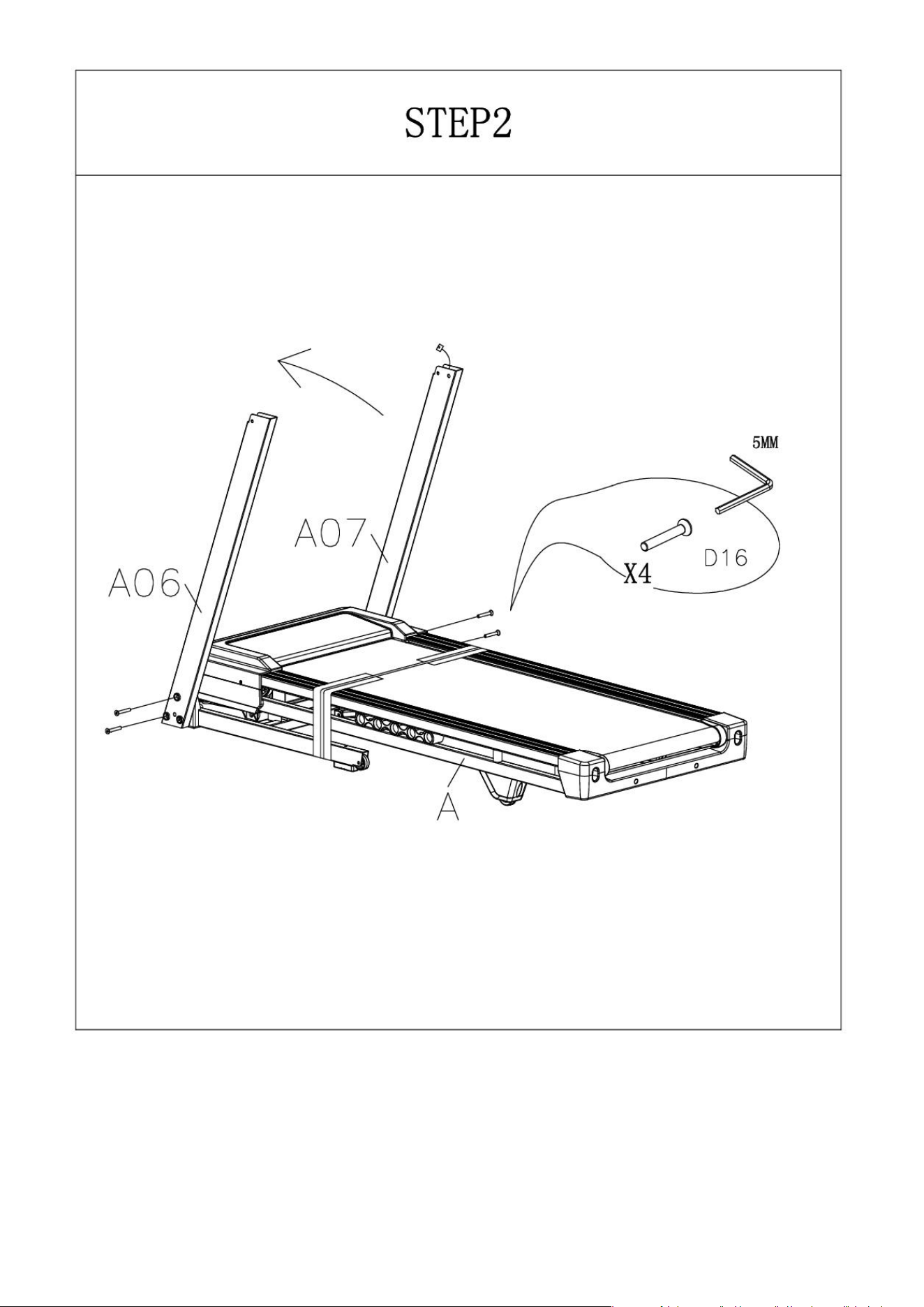

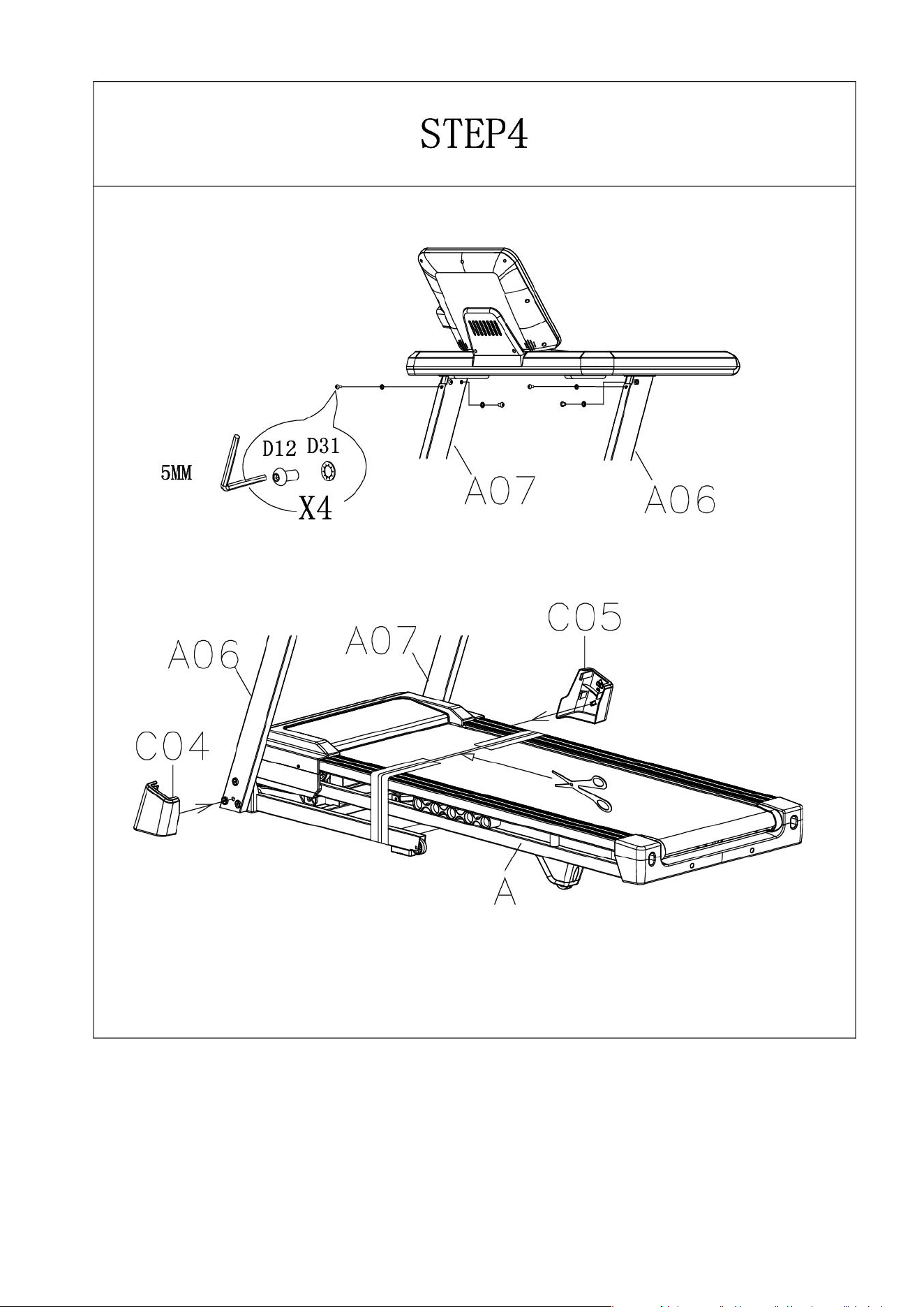

Assembly Instructions
.
9
10
11
12
13

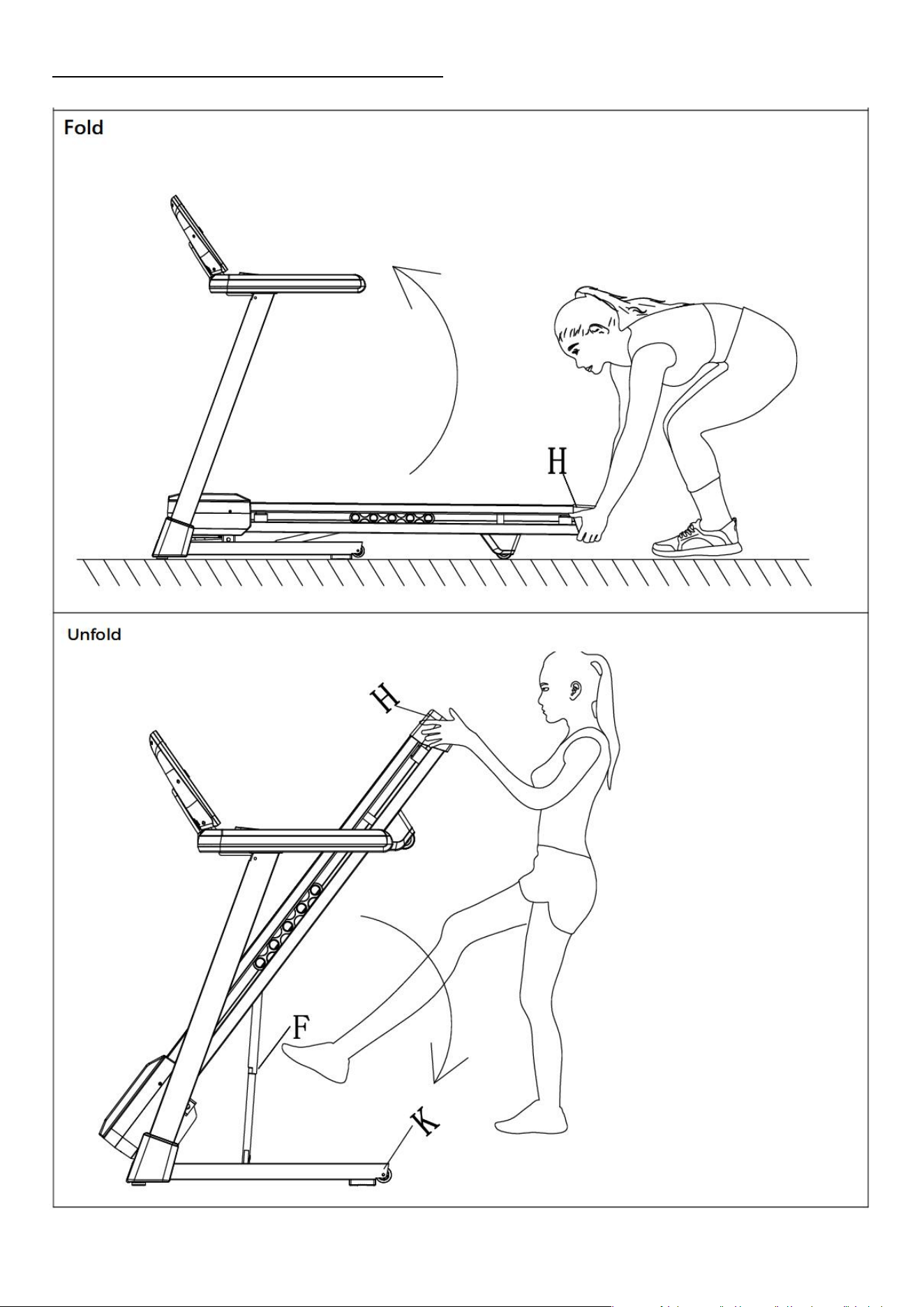

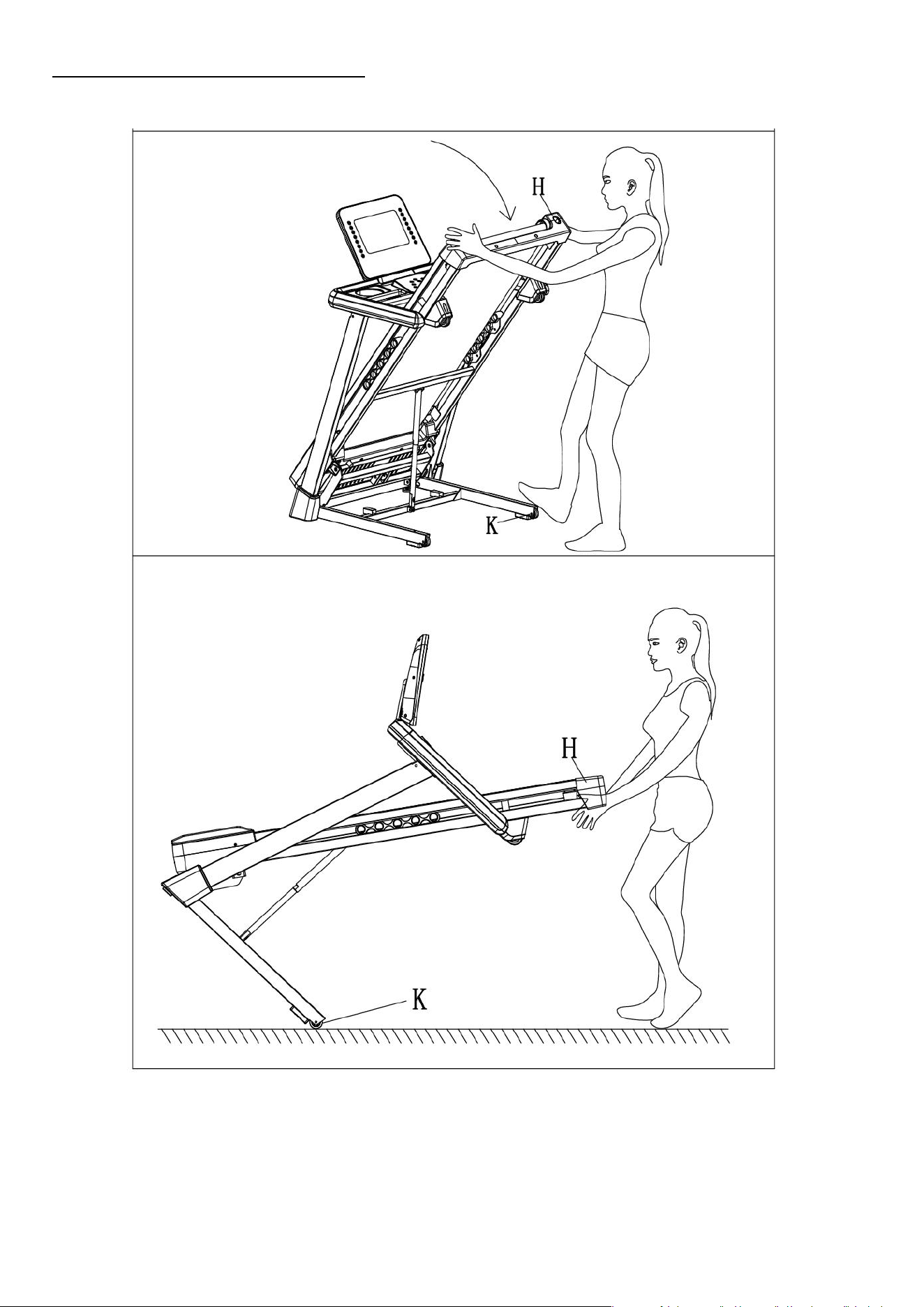

How to Fold/Unfold the Machine
14
How to Move the Machine
15

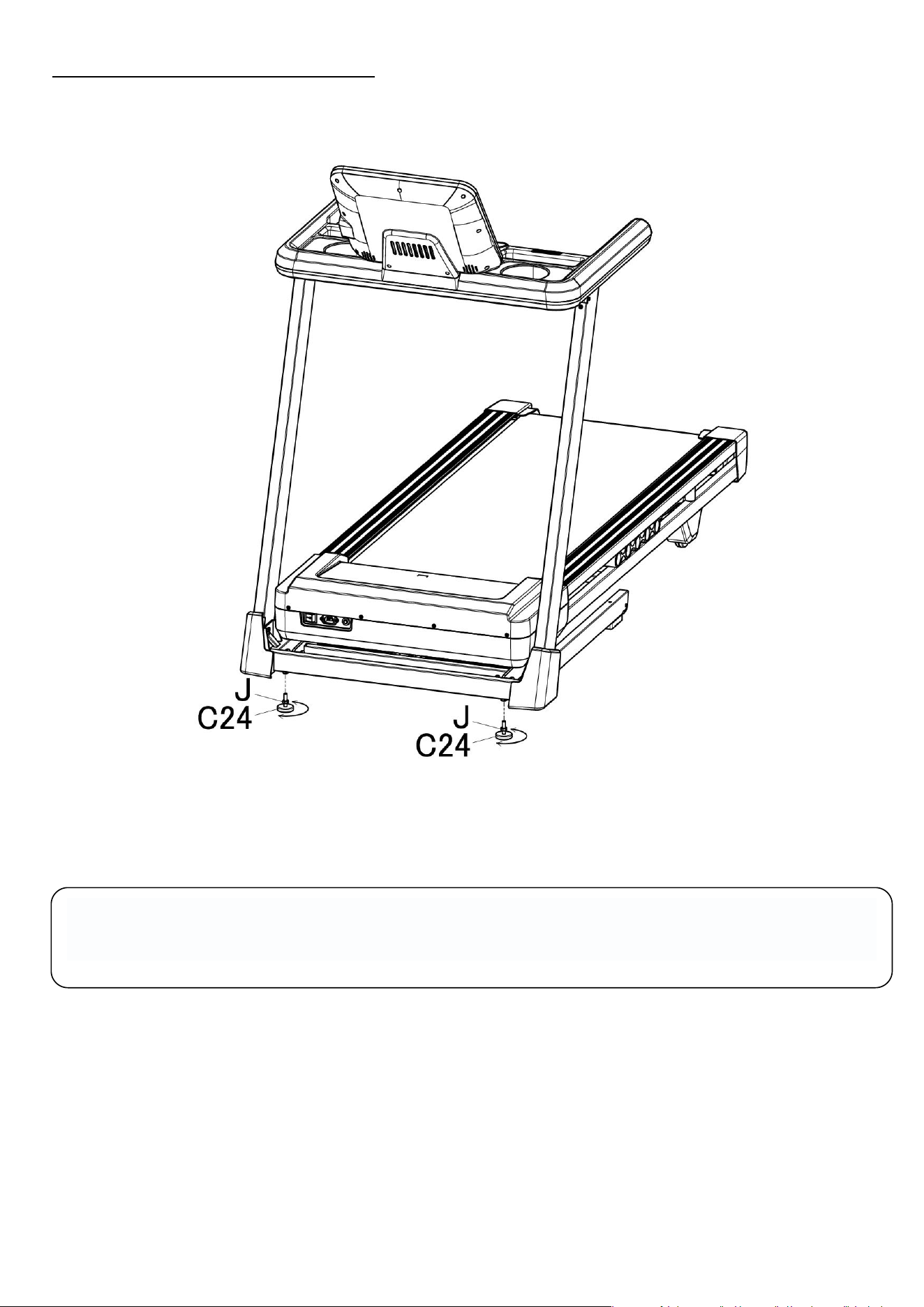

How to Adjust the Balance
Adjustment method: Place the machine on the ground, rotate Adjustable Foot Pad to
raise or lower the footpad until the machine is level.
16
Lubricating the Treadmill
IMPORTANT NOTE:
You will need to lubricate your treadmill before the first use.
RUNNING BELTS & TREADMILL LUBRICANT:
Lubricating the Running Board and Running Belt is essential as the friction affects the life span and
operations of the treadmill. Inspect the Running Belt and Running Board regularly. If you find any
wear on the Running Board, please contact us at: support@sunnyhealthfitness.com.
WARNING:
Always unplug the treadmill from the electrical outlet before cleaning, lubricating, or
repairing the unit.
HOW TO LUBRICATE:

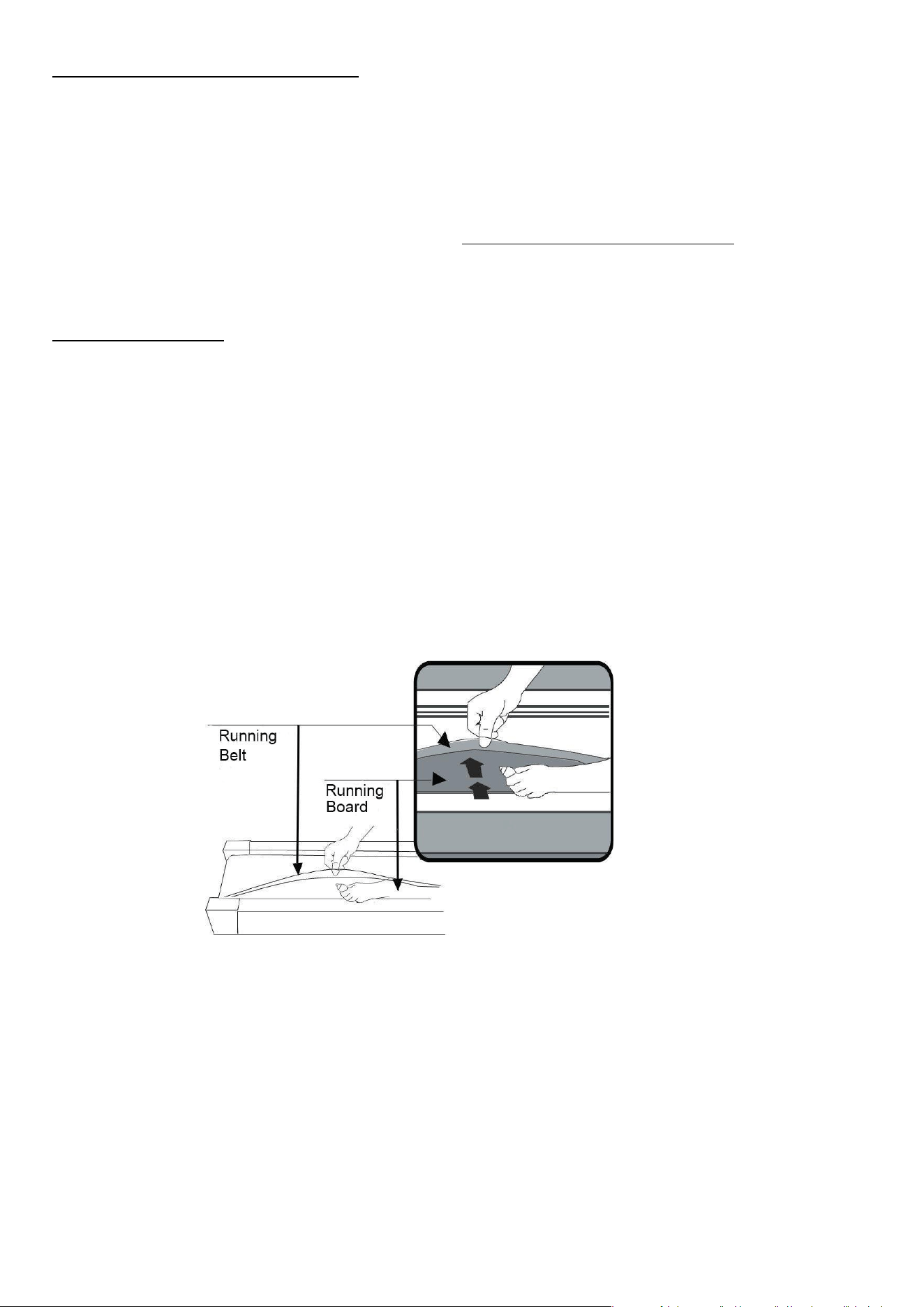

1.To apply lubricant, lift one side of the Running Belt and apply oil to the middle of the Running
Board. Next, start the treadmill and place it at the lowest speed setting and allow the oil to spread
over the Running Board. Repeat this process for the other side.
2. The moving parts should turn freely and quietly. Abnormal moving parts will affect the safety of the
equipment. Inspect and tighten bolts regularly.
3. To better maintain the treadmill and prolong its lifespan, it is suggested that maintenance be done
on a regular basis.
4. DO NOT LOOSEN OR MAKE ANY ADJUSTMENTS TO THE RUNNING BELT WHILE APPLYING
LUBRICANT. A loose Running Belt will result in the runner sliding off during use, while too tight of a
Running Belt will negatively affect the motor’s performance and create more friction between the
roller and Running Belt. The most suitable tightness for the Running Belt is when it is pulled out
50-75mm from the Running Board.
The following timetable is recommended:
Light user (less than 3 hours/ week)
every six months
Medium user (3-5 hours/ week)
every three months
Heavy user (more than 5 hours/ week)
every two months
17
Maintenance & Care
General cleaning will help prolong the life and performance of your treadmill. Keep the
unit clean and maintained by dusting the components on a regular basis. Clean both
sides of the Running Belt to prevent dust from accumulating underneath. Keep your
running shoes clean so that dirt from your shoes does not wear the Running Board and
Running Belt. Clean the surface of the Running Belt with a clean, damp cloth. Keep
liquids away from electrical parts and Running Belt.
To better maintain the treadmill and prolong its life, it is suggested that the treadmill be
powered off for 10 minutes every 2 hours and fully powered off whenever not in use.

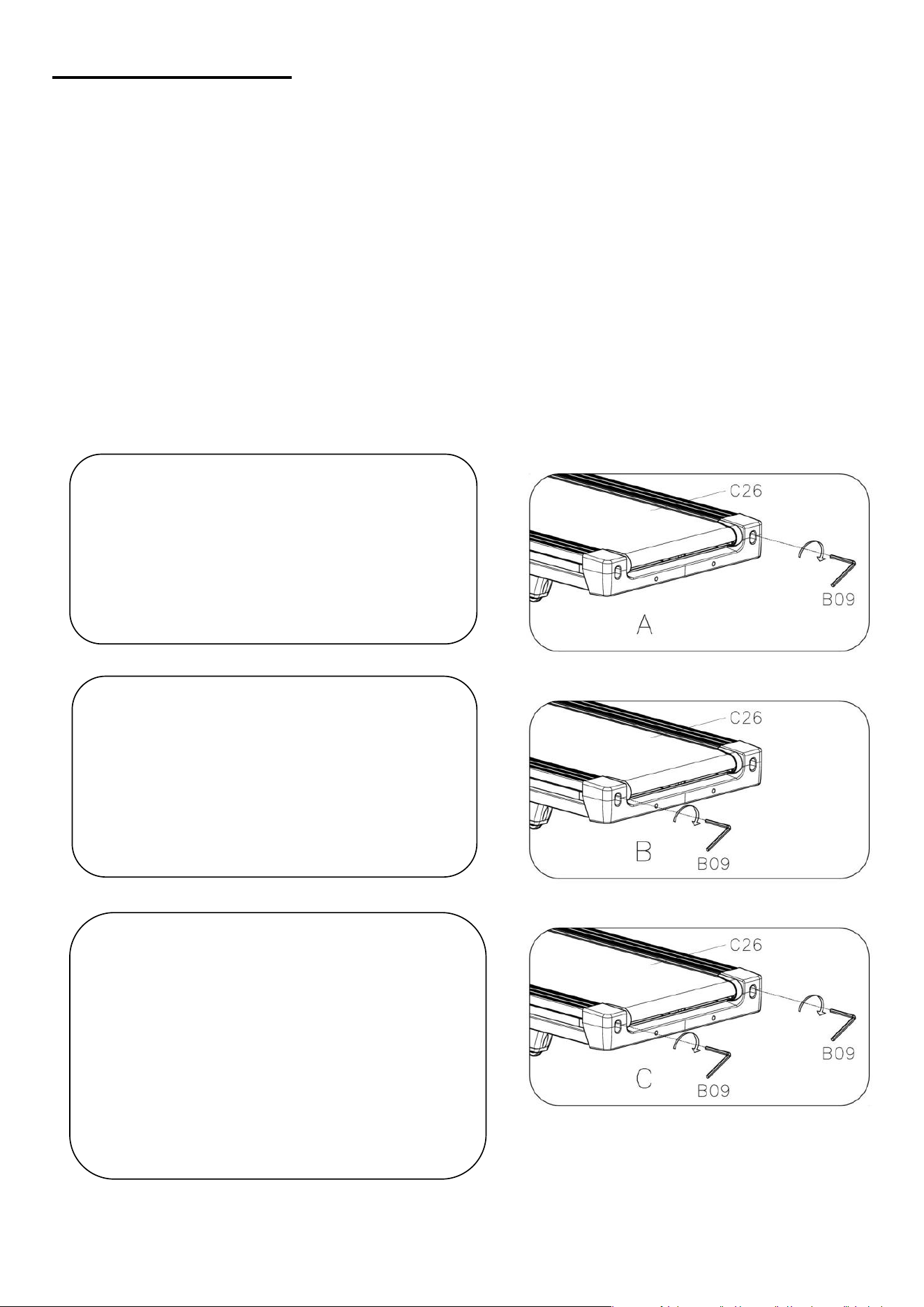

CENTERING THE RUNNING BELT:
Place the treadmill on level ground and set it at 6-8KM/H(3-5MPH) to check if the
Running Belt drifts from the center.
If the Running Belt moves to the right,
turn the right adjusting bolt ¼ turn
clockwise
, then turn the left adjusting bolt
¼ turn
counter-clockwise
. If the Running
Belt does not move, repeat this step until it
centers. Refer to Figure A.
If the Running Belt moves to the left,
turn the left adjusting bolt ¼ turn
clockwise
, then turn the right adjusting
bolt ¼ turn
counter-clockwise
. If the
Running Belt does not move, repeat this
step until it centers. Refer to Figure B.
Over time, the Running Belt will loosen. To
tighten the Running Belt, turn the left &
right adjusting bolts one full turn
clockwise
, check the tension of the
Running Belt. Continue this process until
Running Belt is at the correct tension.
Make sure to adjust both sides equally to
ensure correct belt alignment. Refer to
Figure C.
18
Important Electrical Information
WARNING: This treadmill requires a power source of (12 amps (100-120V) in order to
properly operate. For your safety, as well as the safety of others, please verify that the
power source is correct before plugging in the equipment. Any power source above or
below this level could cause significant damage to the equipment and/or user.
GROUNDING METHODS:
This product must be grounded. Grounding provides a path of the least resistance for
electrical current to reduce the risk of electric shock. The plug must be plugged into an
appropriate outlet that is properly installed and grounded in accordance with all local
codes and ordinances. Ensure that the product is connected to an outlet which contains
the same configuration as the plug. Do not use an adapter for this product.
This product is for use on a nominal 120V circuit and has a grounding plug that looks like

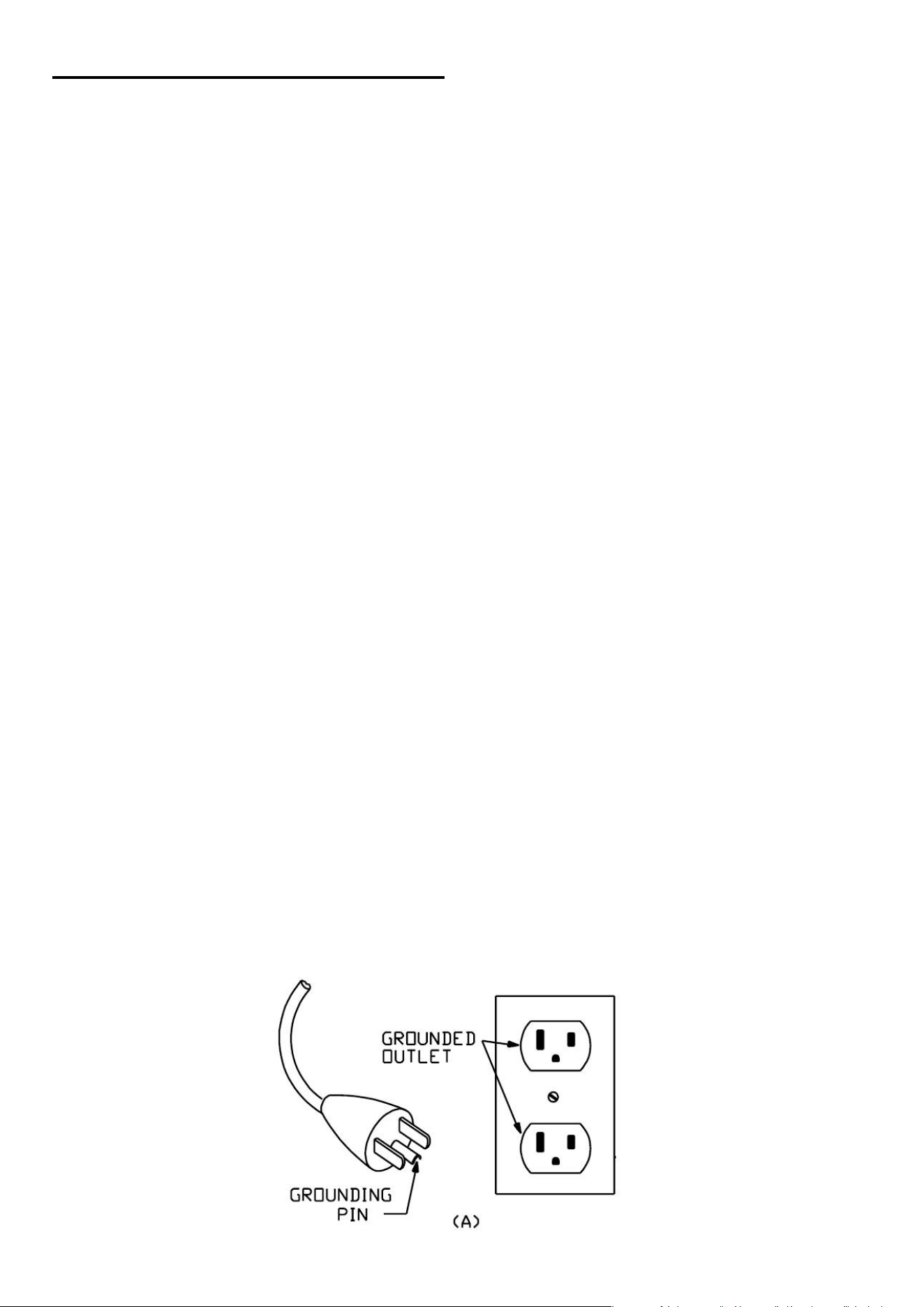

the plug illustrated in sketch A.
DANGER:
Improper connection of the equipment can result in a risk of electric shock. Check with a
qualified electrician or serviceman if you are unsure whether the product has been
properly grounded. Do not modify the plug provided with this product. If it will not fit the
outlet, have a proper outlet installed by a qualified electrician.
WARNING!
1. NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. Route
the power cord away from all moving parts of the treadmill, including the elevation
mechanism and transportation wheels.
2. NEVER operate the treadmill using a generator or UPS power supply.
3. NEVER remove any cover on the treadmill without first disconnecting power cord.
4. NEVER expose the treadmill to rain or moisture. This treadmill is not designed for
outdoor use or use in any high humidity environment.
GROUNDING METHOD
19
The Display Console
Quick Start:
1.
Insert the pin end of the Safety Key into the holes on the Console Top Cover.
2.
Press the START button and the system will automatically display a 3-second
countdown. Once the countdown reaches zero, the Running Belt will start at the initial
default speed of 1.0KM/H or 0.6MPH.
3.
To adjust the speed, you can use the SPEED +/- buttons on the Console Top Cover or
the QUICK SPEED buttons 3, 4, 5, 6, 7, 8, 9 KM/H or MPH on Panel Top Cover.
4.
To adjust the incline, you can use the INCLINE ∧/∨ buttons on the Console Top Cover
or the QUICK INCLINE buttons 0, 2, 4, 6, 8,10, 12 on Panel Top Cover.
*NOTE: The maximum speed on this treadmill is 19.2KM/H(12.0MPH).
20

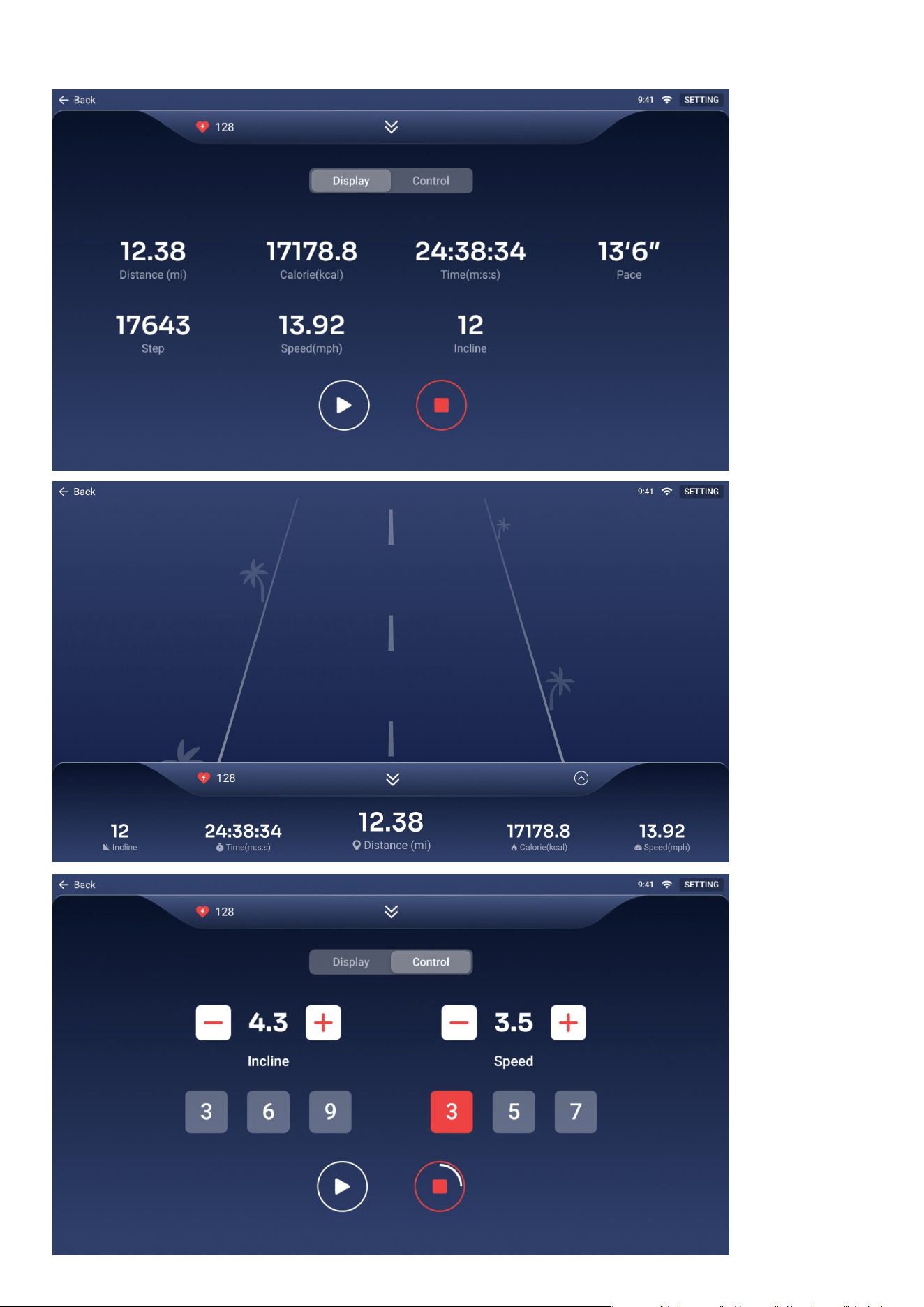

Window Display:
DISTANCE: Displays the distance traveled
TIME: Displays the time elapsed
CALORIES: Displays the number of calories
21
DISTANCE: Displays the distance.
TIME: Displays the time.
CALORIES: Displays the calories.
INCLINE: Displays the incline from 0 to 15 level.
SPEED: The speed range is 1.0-19.2KM/H(0.6-12MPH). 1.0KM/H(0.6MPH) is the default
running speed.
PULSE: When the runner holds both hands on the pulse sensors (located on the handles)
or connect a wireless heart rate monitor, the system will calculate the runner’s heart rate
and display it in this window. The pulse range is 50-200 beats/min.
STEP: Displays the step.
PACE: Displays the real-time pace per KM/MILE.
NOTE:
1. This data is for reference only and should not be used for medical purposes.
2. Distance and calories and steps will not count when no one is running on the
treadmill.

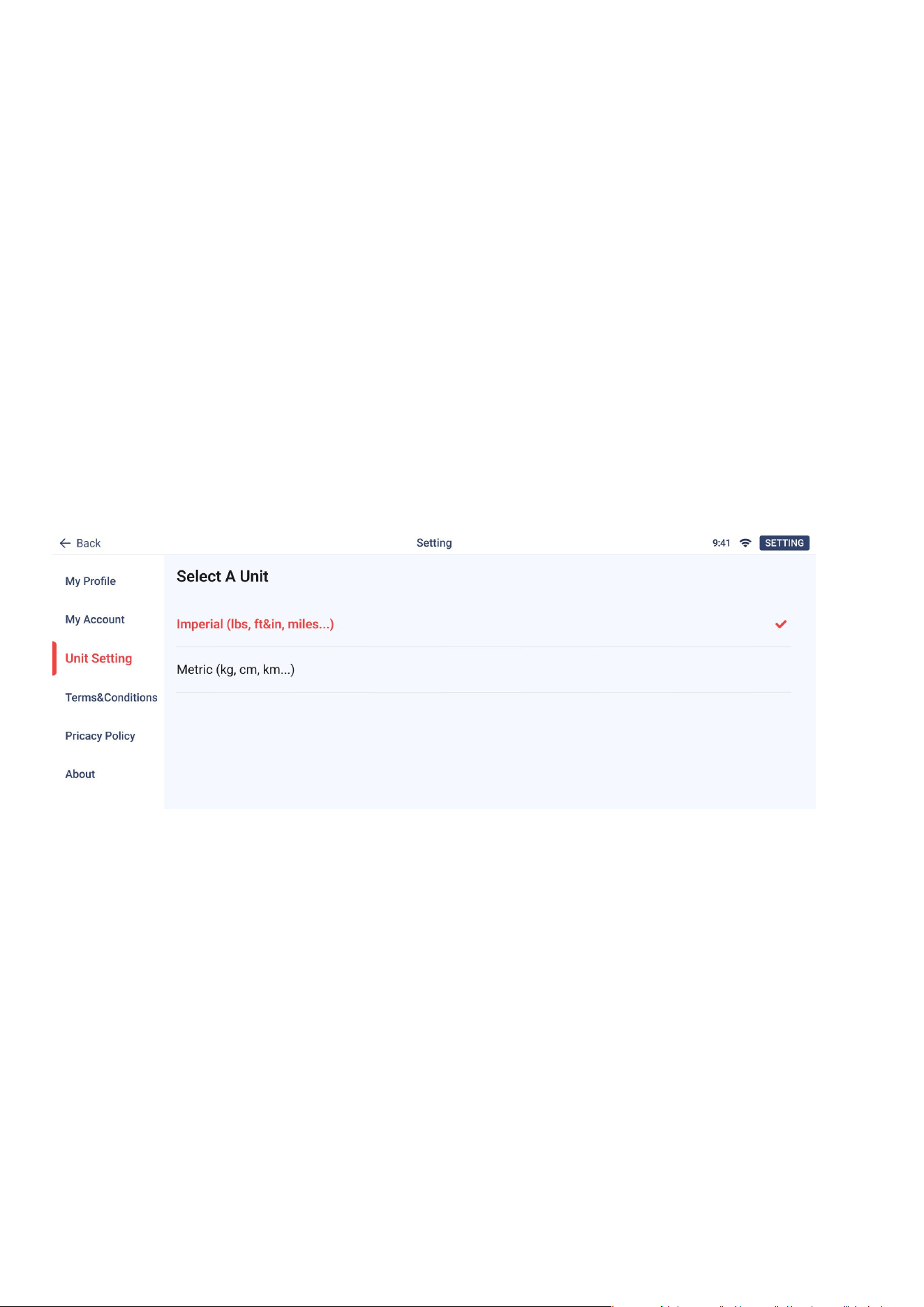

HOW TO CHANGE BETWEEN METRIC AND IMPERIAL SYSTEM:
Click on your avatar (on the bottom left corner), go to Settings => Unit Settings and select
Metric or Imperial system.
Console Function Keys:
START: To start the treadmill, insert the pin end of the Safety Key into the holes on the
Console Top Cover and then press the START button. This treadmill requires the Safety
Key to be inserted to start. 1.0KM/0.6 MPH is the default start speed.
STOP/PAUSE: This button has functions to PAUSE and STOP. When in use, press this
button once to PAUSE your workout and the current workout data will still be shown.
Press this button again to STOP your workout session and all data will be reset to the
initial setting.
SPEED +/–: Press the +/- buttons to increase or decrease the speed in increments of 0.1
KM/H or MPH. Pressing and holding either of these buttons for a duration of over ½ a
second will increase or decrease the speed continuously.
3, 4, 5, 6, 7, 8, 9 (QUICK SPEED): These buttons are preset to 3, 4, 5, 6, 7, 8, 9 KM/H or MPH
speeds for convenience.
INCLINE ∧/∨: Press these buttons to adjust incline level. When the treadmill is running,
press the ∧/∨ buttons to increase or decrease the incline level. Pressing and holding
either of these buttons for duration of over ½ a second will increase or decrease the
incline level continuously.
The incline levels range from -6-15.
22
0, 2, 4, 6, 8, 10, 12 (QUICK INCLINE): These buttons are preset to 0, 2, 4, 6, 8, 10, 12 incline
level for convenience.
Lubrication Reminder:
Your treadmill needs lubrication maintenance every 300km (188 Miles). Please read the
LUBRICATING THE TREADMILL instructions on
Page 16
to learn the proper steps to
lubricate your treadmill. Apply the lubricant to the middle of the Running Board on both
sides.
Treadmill Functions
Safety Lock Function:
Removing the Safety Key from the Console while the treadmill is running will cause it to
stop immediately. Once the treadmill reaches a full stop, the window of the console will
be display “The safety key of this device has been removed” and the speaker will beep 3
times. To start the treadmill again, insert the pin end of the Safety Key into the Console
and press the START button.
Power Save Function:
When the treadmill has been inactive for 10 minutes, it will enter Power Saving Mode.
While the treadmill is in this mode, the window display of the Console will be turned off.
To turn it back on, press any button.
POWER ON:
Flick the power switch to this symbol to turn on the treadmill.
POWER OFF:
Flick the power switch to this symbol to turn the treadmill off at any time. This includes
during exercise.
SAFETY NOTE:
We recommend that you maintain a slow speed at the beginning of a session and hold
the Left & Right Handlebar Foam handrails until you have become familiar with the
treadmill.
Insert the pin end of the Safety Key into the Console and attach the opposite end
(containing the safety clip on it) to your clothing before starting your workout. To end
your workout, press the STOP button or remove the Safety Key and the treadmill will
stop immediately.
23
Exercise Instructions
Getting Started:
Before starting any exercise program, you should consult your physician to determine if
you have any medical or physical conditions that could put your health and safety at risk
or prevent you from using the equipment properly.
Be aware of your body’s signals. Incorrect or excessive exercise can damage your health.
Stop exercising immediately if you experience any of the following symptoms: pain,
tightness in your chest, irregular heartbeat, shortness of breath, lightheadedness,
dizziness, or feelings of nausea.
Get to know your treadmill. Before attempting to use the treadmill take some time to
stand alongside and familiarize yourself with the controls.
1.
Once you get on, you can stand with your feet on the Side Rails and stabilize yourself
by holding onto the handrails.
2. Next, attach the clip end of the Safety Key to your clothes and insert the pin end of the
key into the holes on the Console Top Cover.
3. Press the START button to start the treadmill.
4.
The treadmill will start at the system default setting speed of 1KM/H(0.6MPH). When
you feel comfortable, you may slowly increase this speed.
5.
When you are finished with your exercise, press the STOP button to stop the treadmill
or you can remove the pin end of the to stop the treadmill.

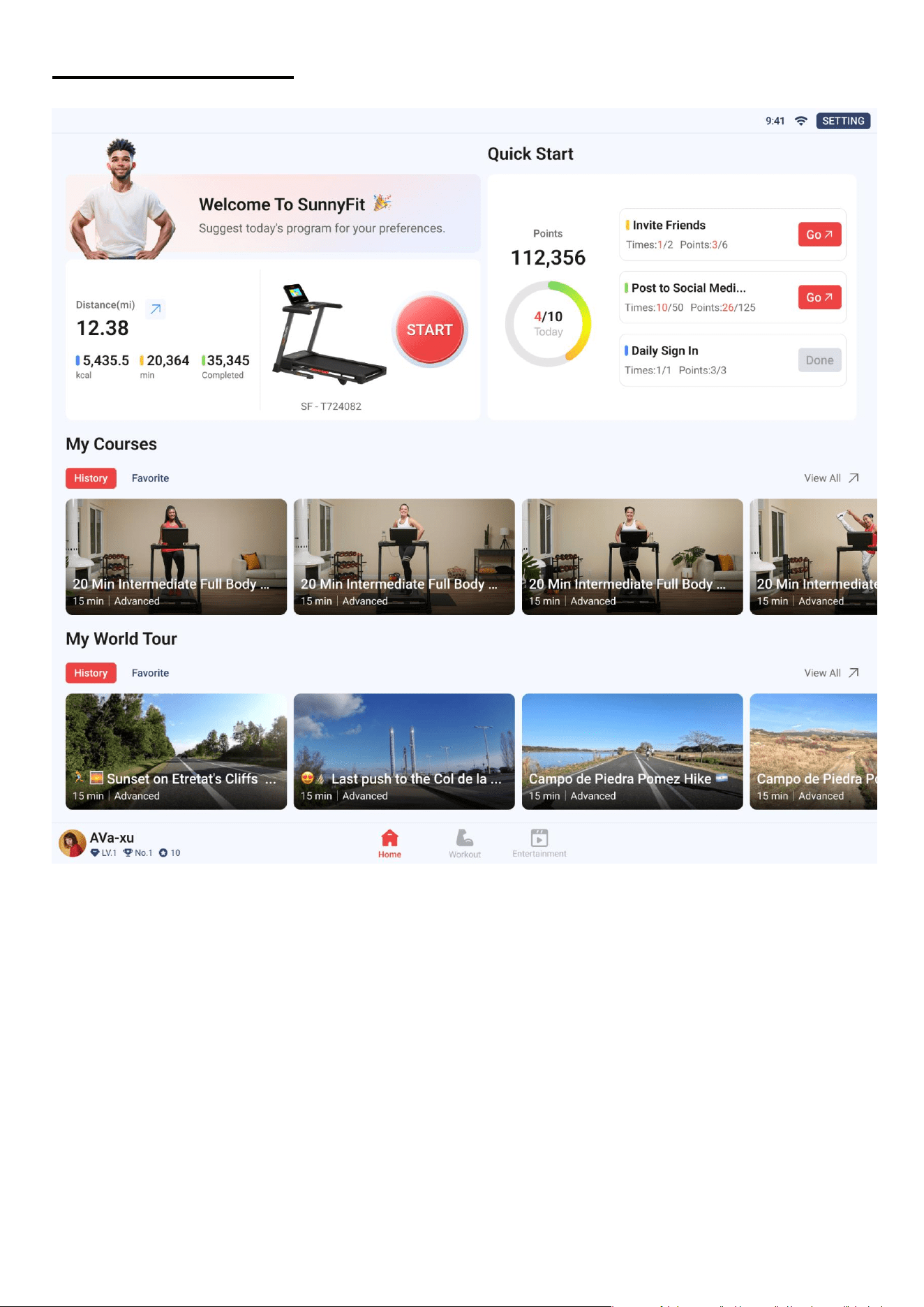

APP CONNECTION:
Connect Smart Equipment to SunnyFit App:
1. Scan to download SunnyFit from the app store:
2. Ensure that the Bluetooth function is turned on from your mobile device.
3. If this is your first time using the SunnyFit app, follow the in-app instructions to
register for your free SunnyFit account and log in.
4. Begin any workout activity that matches your smart equipment, then follow the
onscreen prompts to search for and connect to your smart equipment.
5. When connected, your stats and records will be displayed at the end of your
course/session and recorded in your account profile!
App Troubleshooting:
If you are having trouble connecting your smart equipment, visit
www.sunnyfit.com/guide or scan the QR code below:
24
Troubleshooting
PROBLEM
ERROR DESCRIPTION
SUGGESTED ACTION
E01
Communication error
1.Ensure the signal wires are connected well
2.Replace the signal wires
3.Replace the controller
4.Replace the driver
E02
Stall protection
1.Ensure the motor wires are connected well
2.Replace the motor
3.Replace the driver
E03
No speed sensor
signal
1.Ensure the speed wires are connected well
2.Replace the speed wire
3.Replace the driver
E04
Incline self-check fail
1.Ensure the incline wires are connected well
2.Replace the incline motor
3.Replace the driver
E05
Overcurrent
protection
1.Lighten the load
2.Check transmission parts, add lubricating oil
3.Replace the motor
4.Replace the driver
E06
Motor break
1.Ensure the motor wires are connected well
2.Replace the motor
E08
Storage fault
1.Check storage chip
2.Replace the driver
E09
Location fault
1.Put the treadmill horizontally
2.Replace the driver
E10
Movement
overcurrent
1.Replace the motor
2.Check transmission parts, add lubricating oil
E11
Overvoltage
1.Stop use, check external wire
E14
Undervoltage
1.Stop use, check external wire
25

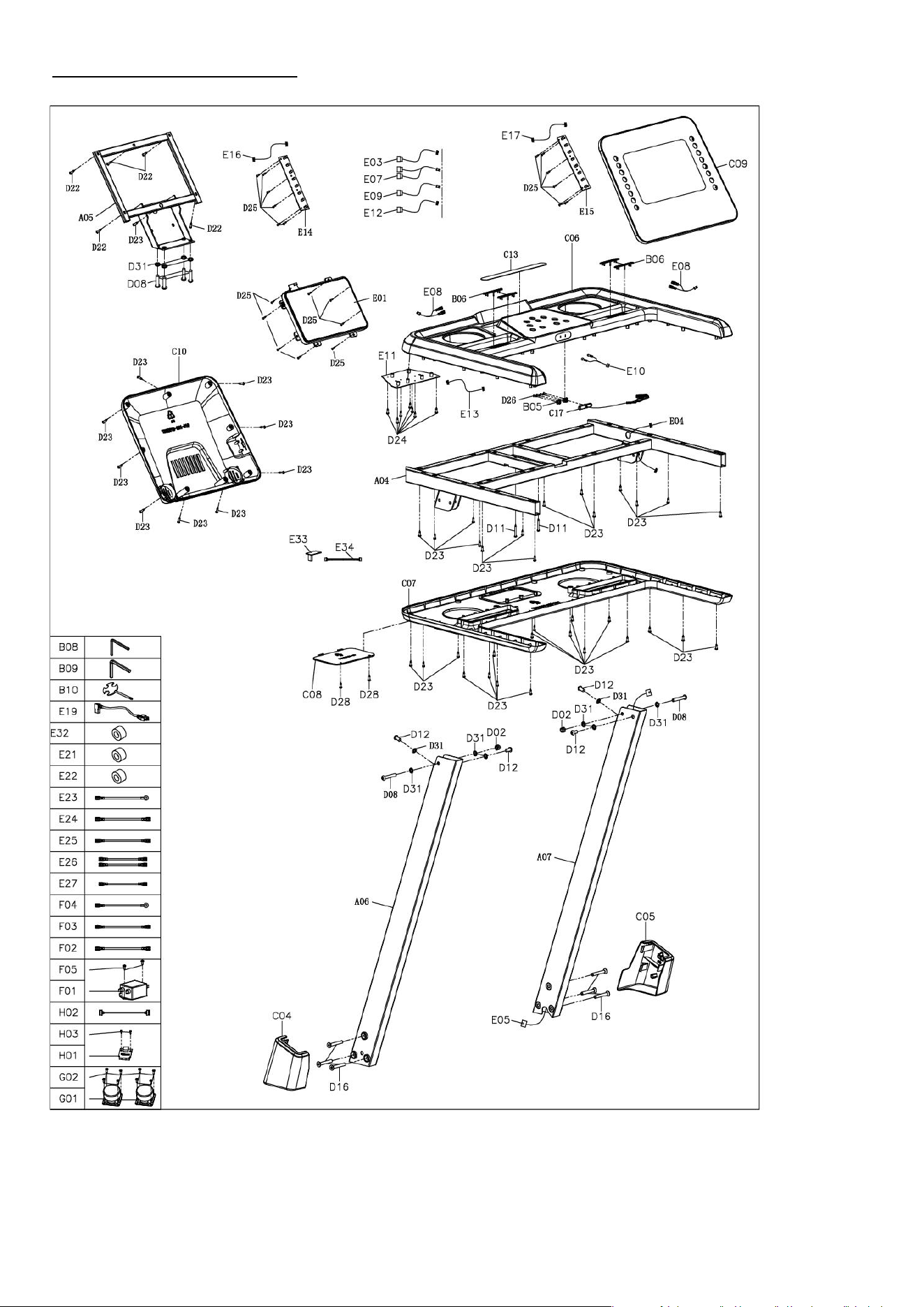

Exploded Diagram 1
APP CONNECTION:
Connect Smart Equipment to SunnyFit App:
2. Scan to download SunnyFit from the app store:
26

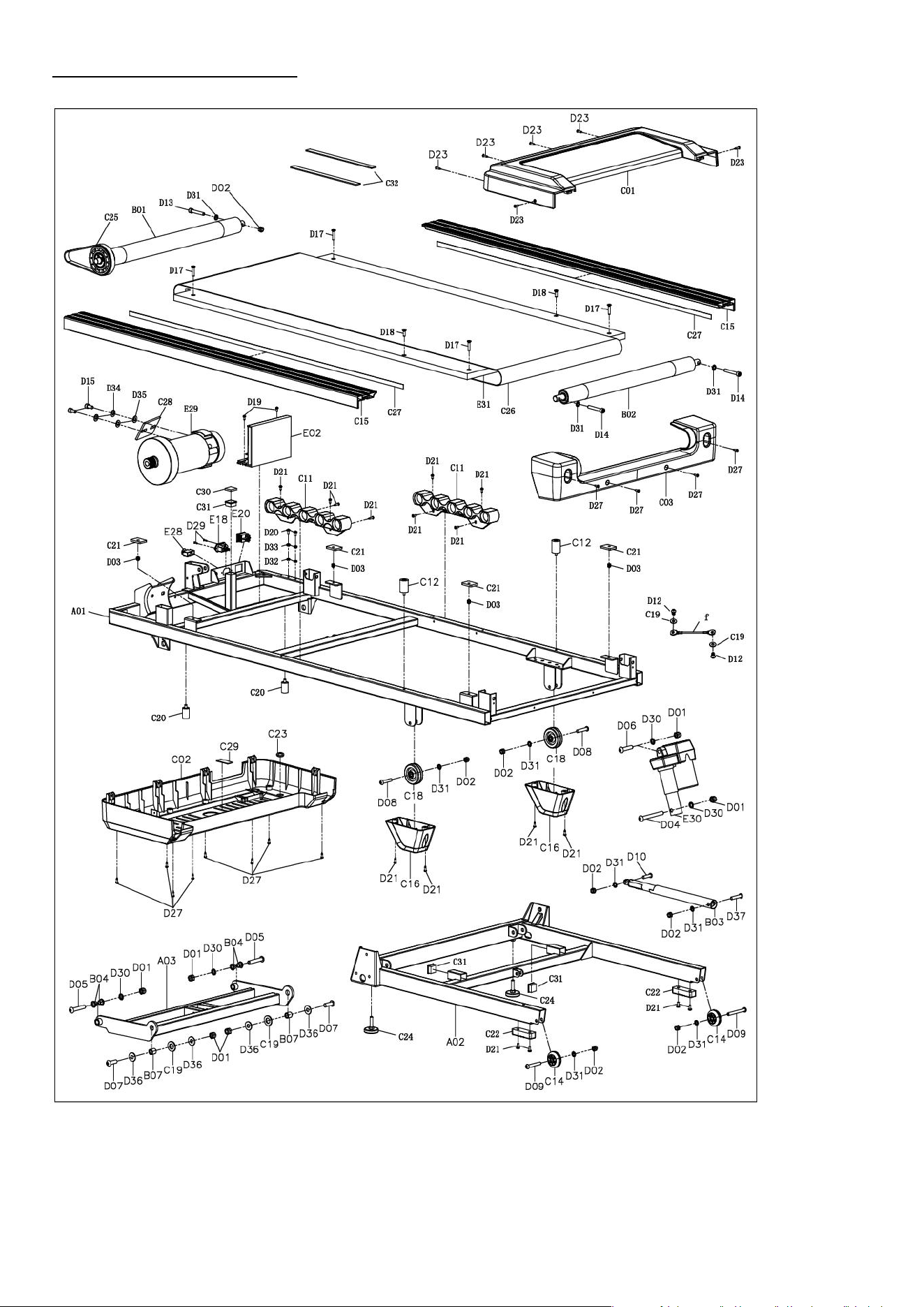

Exploded Diagram 2
27
Parts List
No.
Description
Specification
Qty.
No.
Description
Specification
Qty.
A01
Main Frame
1
C24
Adjustable Foot Pad
2
A02
Base Assembly
1
C25
Motor Belt
1
A03
Incline Assembly
1
C26
Running Belt
1
A04
Console Base Bracket
1
C27
EVA Pad
10*1.0*1100
2
A05
Panel Fixed Bracket
1
C28
EVA Pad
90*90*5.0
1
A06
Left Upright Tube
1
C29
EVA Pad
50*20*2.0
1
A07
Right Upright Tube
1
C30
EVA Pad
25*25*5.0
1
B01
Front Roller
1
C31
Square Plug
3
B02
Rear Roller
1
C32
EVA Pad
10*1.0*1100
2
B03
Air Cylinder
1
D01
Nut
M10
6
B04
Incline Assembly Bushing
4
D02
Nut
M8
9
B05
Safety Block
2
D03
Nut
M6
4
B06
Hand Pulse Sheet
4
D04
Bolt
M10*90
1
B07
Sleeving
2
D05
Bolt
M10*55
2
B08
Allen Wrench
5mm
1
D06
Bolt
M10*40
1
B09
Allen Wrench
6mm
1
D07
Bolt
M10*30
2
B10
Cross Wrench
S=13
1
D08
Bolt
M8*40
8
C01
Motor Top Cover
1
D09
Bolt
M8*35
2
C02
Motor Bottom Cover
1
D10
Bolt
M8*30
1
C03
Rear Cover
1
D11
Screw
ST4.2*40
2
C04
Left Upright Tube Cover
1
D12
Flat Round Head Bolt
M8*15
6
C05
Right Upright Tube Cover
1
D13
Bolt
M8*60
1
C06
Console Top Cover
1
D14
Bolt
M8*55
2
C07
Console Bottom Cover
1
D15
Cylindrical Head Bolt
M8*12
2
C08
Console Small Cover
1
D16
Bolt
M8*45
6
C09
Panel Top Cover
1
D17
Bolt
M6*32
4
C10
Panel Bottom Cover
1
D18
Bolt
M6*25
2
C11
Cushion
2
D19
Bolt
M5*15
2
C12
Black Cushion
2
D20
Bolt
M5*12
2
C13
Silicone Pad
1
D21
Head with Pad Bolt
M5*12
16
C14
Transportation Wheel
2
D22
Screw
ST4.2*20
5
C15
Side Rail
2
D23
Screw
ST4.2*12
48
C16
Square Plus
2
D24
Screw
ST2.9*8
7
C17
Safety Key
1
D25
Screw
ST2.9*6
20
C18
Roller
2
D26
Head with Pad Screw
ST2.5*6
4
C19
Plastic Gasket
Φ30*3
6
D27
Pan Head with Pad Tapping Screw
ST4.2*12
12
C20
Cylindrical Cushion
4
D28
Screw
ST4.2*12
2
C21
Rubber Cushion
4
D29
Countersunk Head Screw
ST2.9*8
2
C22
Foot Pad
2
D30
Locking Washer
Φ10
4
C23
Ring Protective Plug
1
D31
Locking Washer
Φ8
21
28
Parts List
No.
Description
Specification
Qty.
No.
Description
Specification
Qty.
D32
Locking Washer
Φ5
2
E21
Magnetic Ring
1
D33
Spring Washer
Φ5
2
E22
Magnetic Ring
1
D34
Spring Washer
Φ8
2
E23
Grounding Wire
1
D35
Flat Washer
Φ8
2
E24
AC Single Line
Brown 350
1
D36
Big Washer
Φ10
4
E25
AC Single Line
Blue 350
1
D37
Bolt
M8*45 L20
1
E26
AC Single Line
Brown 200
2
E01
Console
1
E27
AC Single Line
Blue 200
1
E02
Control Board
1
E28
Overload Protector
1
E03
Upper Signal Wire
1
E29
Motor
1
E04
Bottom Signal Wire1
1
E30
Incline Motor
1
E05
Bottom Signal Wire2
1
E31
Running Board
1
E06
N/A
-
E32
Magnetic Ring
1
E07
Hand Pulse Top Signal Wire
1
E33
Adapter Board
1
E08
Hand Pulse Bottom Signal Wire
2
E34
Board Wire
1
E09
Safety Key Top Connecting Wire
1
F01
Filter
1
E10
Safety Key Bottom Connecting
Wire
1
F02
AC Single Line
Brown
1
E11
Bottom Button Board
1
F03
AC Single Line
Blue
1
E12
Button Board Top Signal Wire
1
F04
Grounding Wire
1
E13
Button Board Bottom Signal
Wire
1
F05
Pan Head Tapping Screw
ST4.2*12
2
E14
Left Button Board
1
H01
USB Module
1
E15
Right Button Board
1
H02
USB Connecting Wire
1
E16
Left Button Board Connecting
Wire
1
H03
Pan Head Tapping Screw
ST2.9*8
2
E17
Right Button Board Connecting
Wire
1
G01
Speaker
2
E18
Power Socket
1
G02
Pan Head Tapping Screw
ST2.9*8
8
E19
Power Wire
2050mm
1
f
Safety Wirerope
1
E20
Square Switch
1
Version 1.0
29
Register
Register your product and verify warranty terms:
Sunnyhealthfitness.com/warranty
Download
Track your fitness progress & join FREE workout courses!
Download SunnyFit App today!
Follow
Find us on social media
Contact
Get in touch with us for any questions
1-877-90SUNNY (877-907-8669)
support@sunnyhealthfitness.com
www.sunnyhealthfitness.com
