BEWS18125BLC
BEWS18125BLP
Original instructions
2
2
Important!
This appliance is not intended to be used or cleaned by persons with
reduced physical, sensory or mental capabilities, or lack of experience
or knowledge, unless they have been given instructions concerning the
safe use of the appliance by a person legally responsible for their safety.
They should be supervised whilst using the appliance.
Children shall not use, clean or play with this appliance, which when not
in use should be secured out of their reach.
It is essential that you read the instructions in this manual before
assembling, operating and maintaining the product.
Subject to technical modifications.
3
3
BEWS18125BLC
1
BEWS18125BLP
1
2
6
5
BEWS18125BLC BEWS18125BLP
BEWS18125BLC
BEWS18125BLP
15
14
9
13
10
4
3
11
12
7
8
12

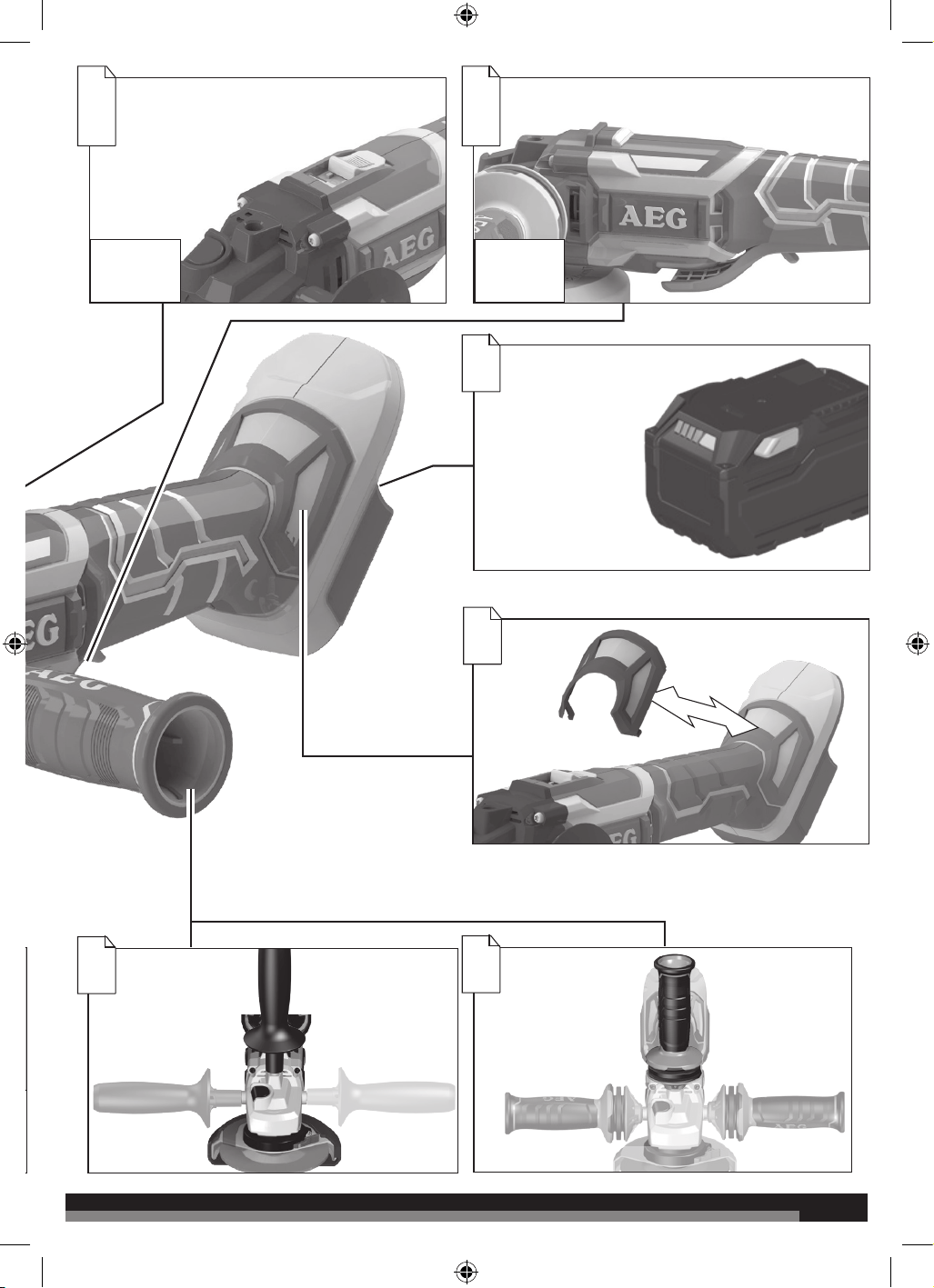

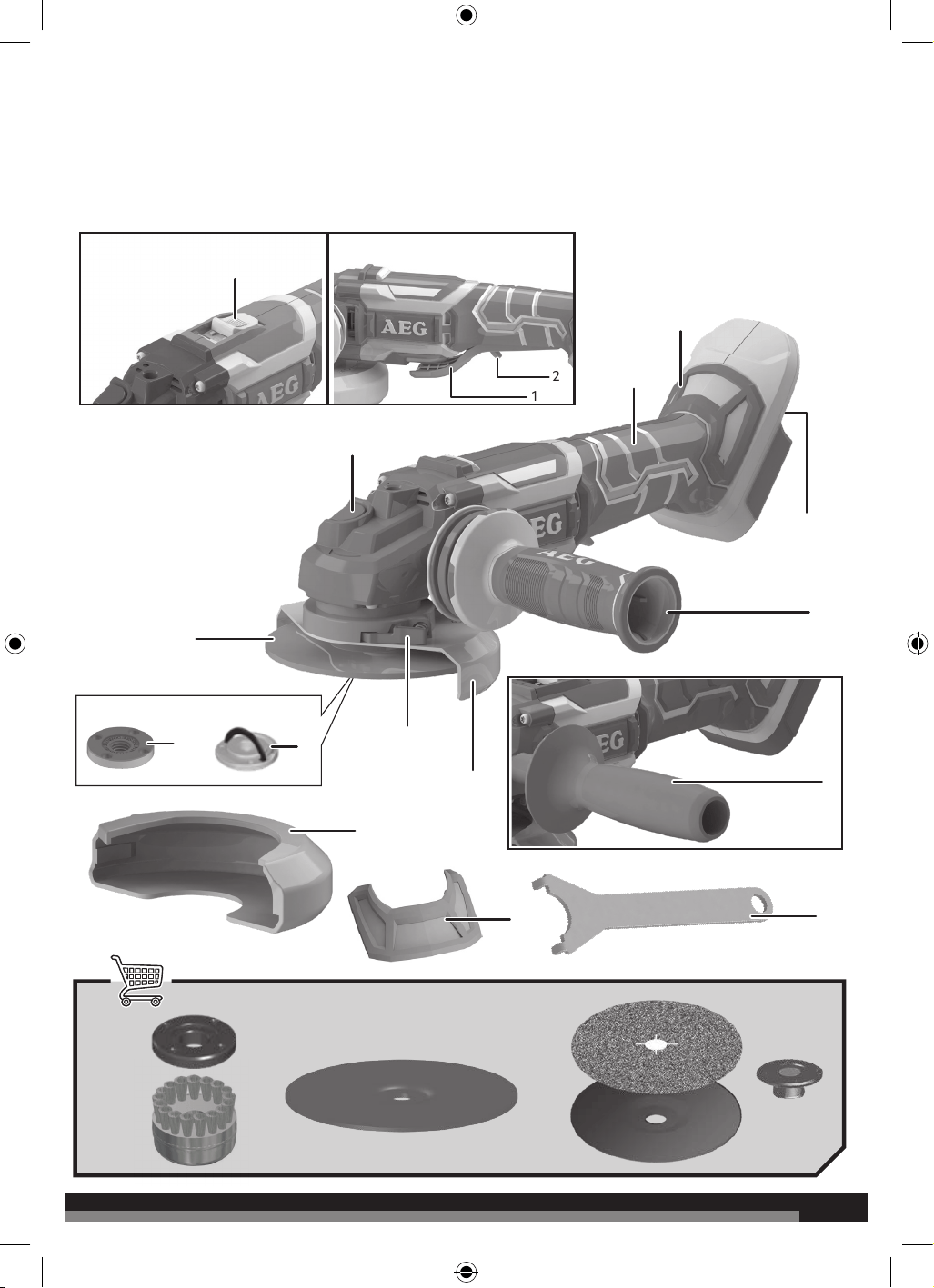

1. On/Off switch
2. Safety lock lever
3. Spindle lock button
4. Grinding wheel
5. Standard outer flange nut
6. Fixtec nut
7. Wheel guard lock lever
8. Half tool-less wheel guard
9. Anti-vibration auxiliary handle
10. Auxiliary handle
11. Handle, insulated gripping surface
12. Dust cover
13. Battery port
14. Toolless cutting guard
15. Wrench

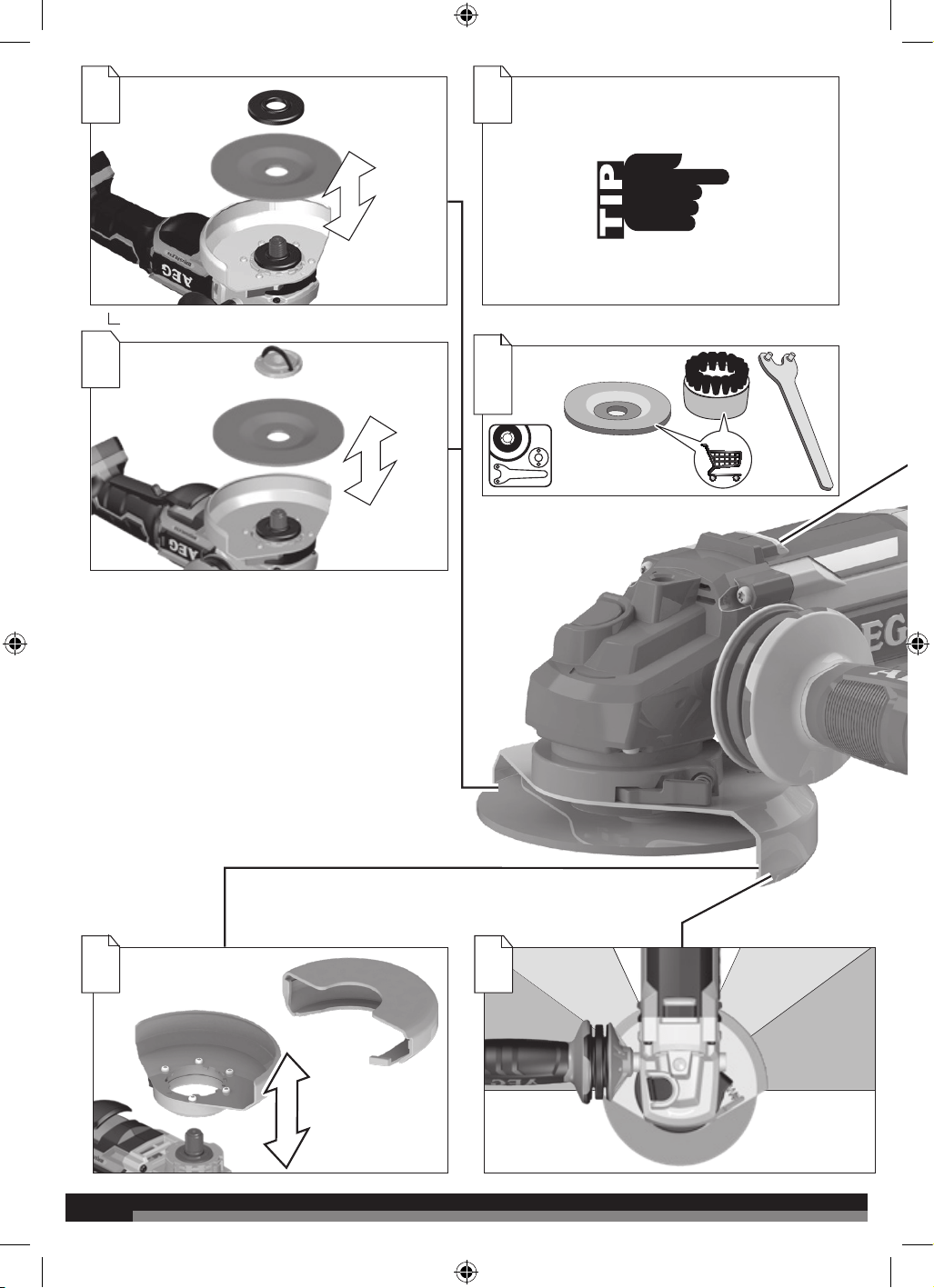

4
4
10
27
8
9
23
16
15
24
25
26
17
18
19

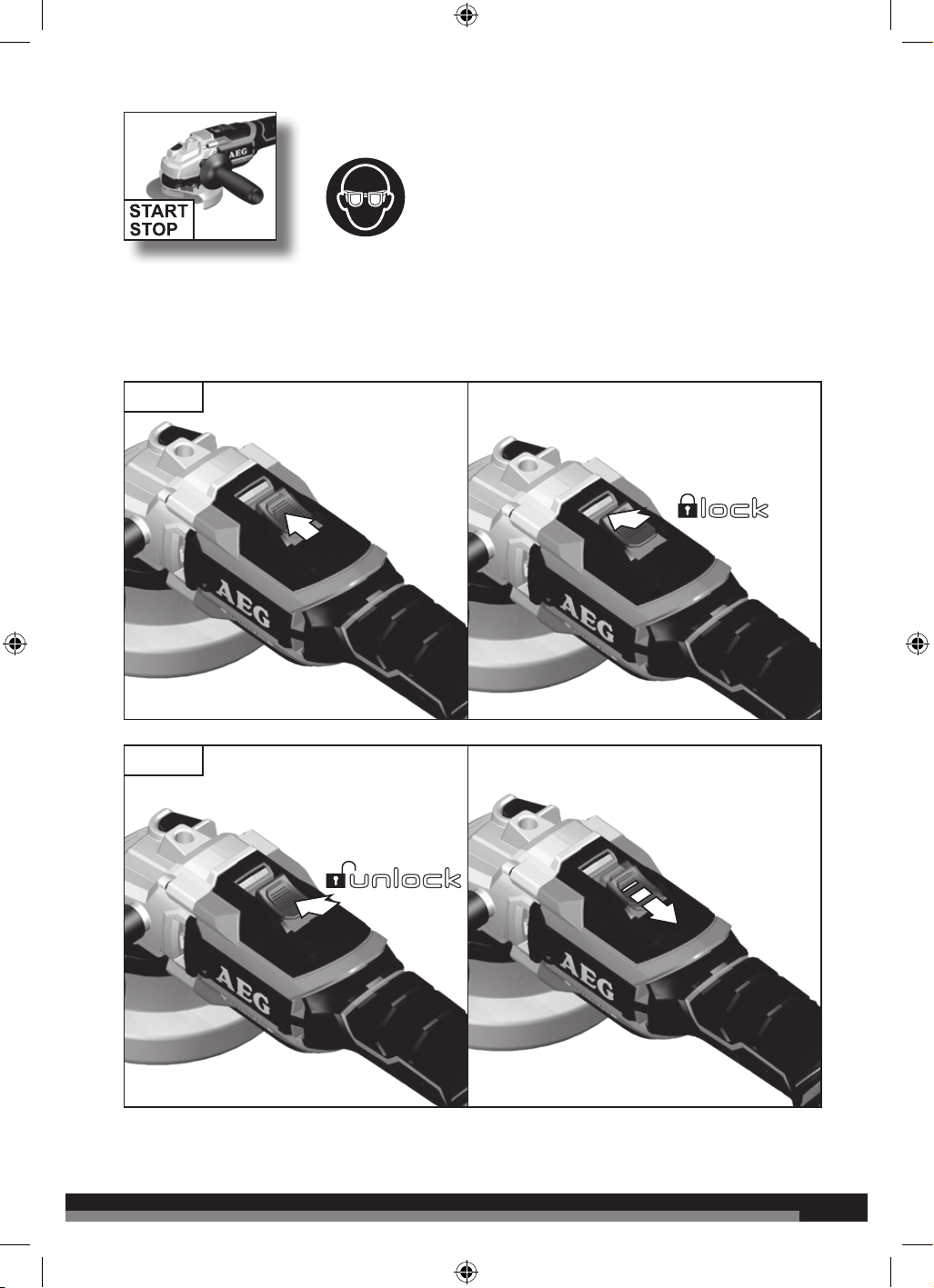

START
STOP
BEWS18125BLC
20
21
22
START
STOP
BEWS18125BLP
6
BEWS18125BLC
7
BEWS18125BLP
12
11
BEWS18125BLC
14
13
BEWS18125BLP
5
5
10
27
8
9
23
16
15
24
25
26
17
18
19
START
STOP
BEWS18125BLC
20
21
22
START
STOP
BEWS18125BLP
6
BEWS18125BLC
7
BEWS18125BLP
12
11
BEWS18125BLC
14
13
BEWS18125BLP

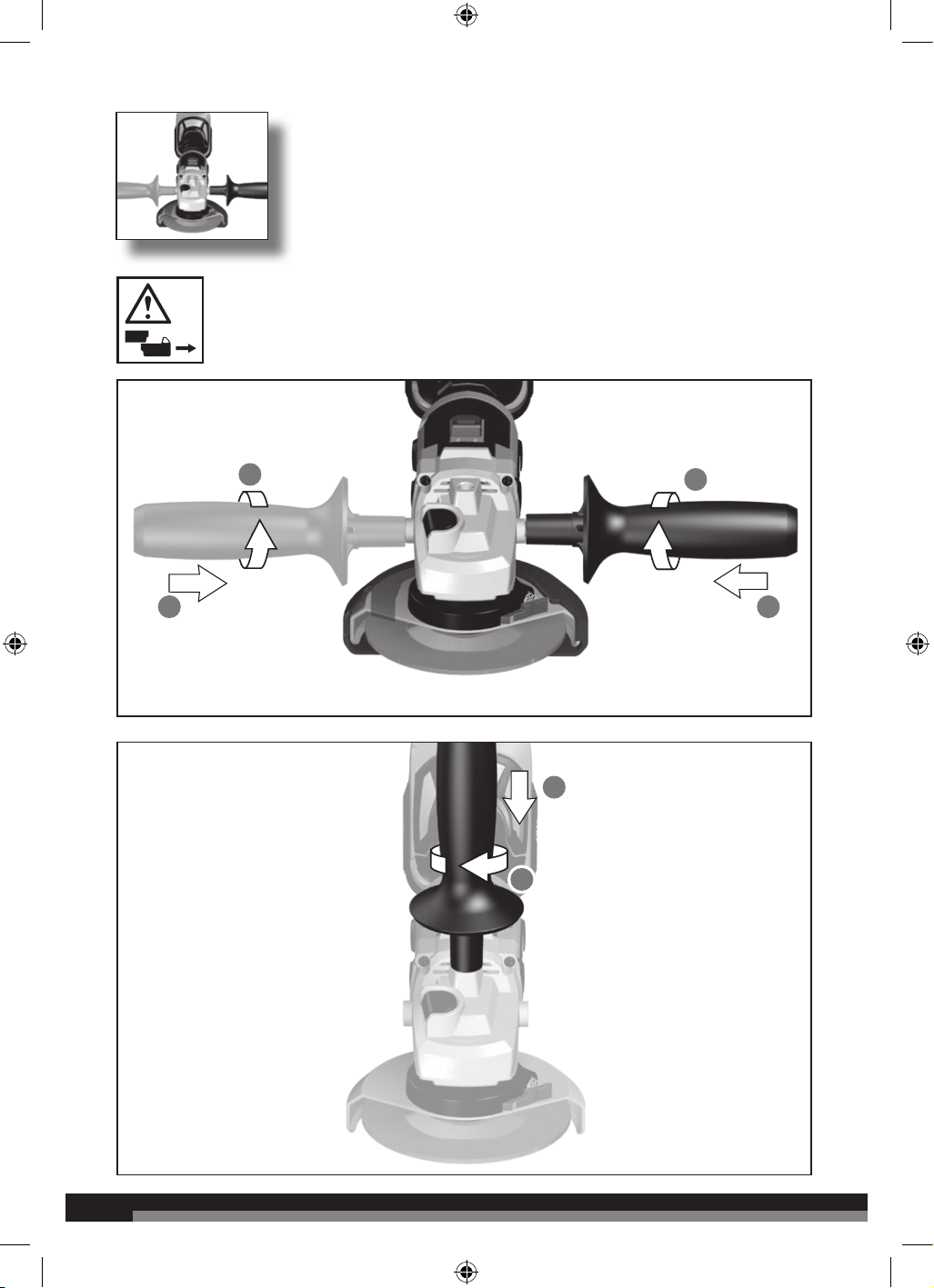

6
6
BEWS18125BLC
2
2
2
1 1

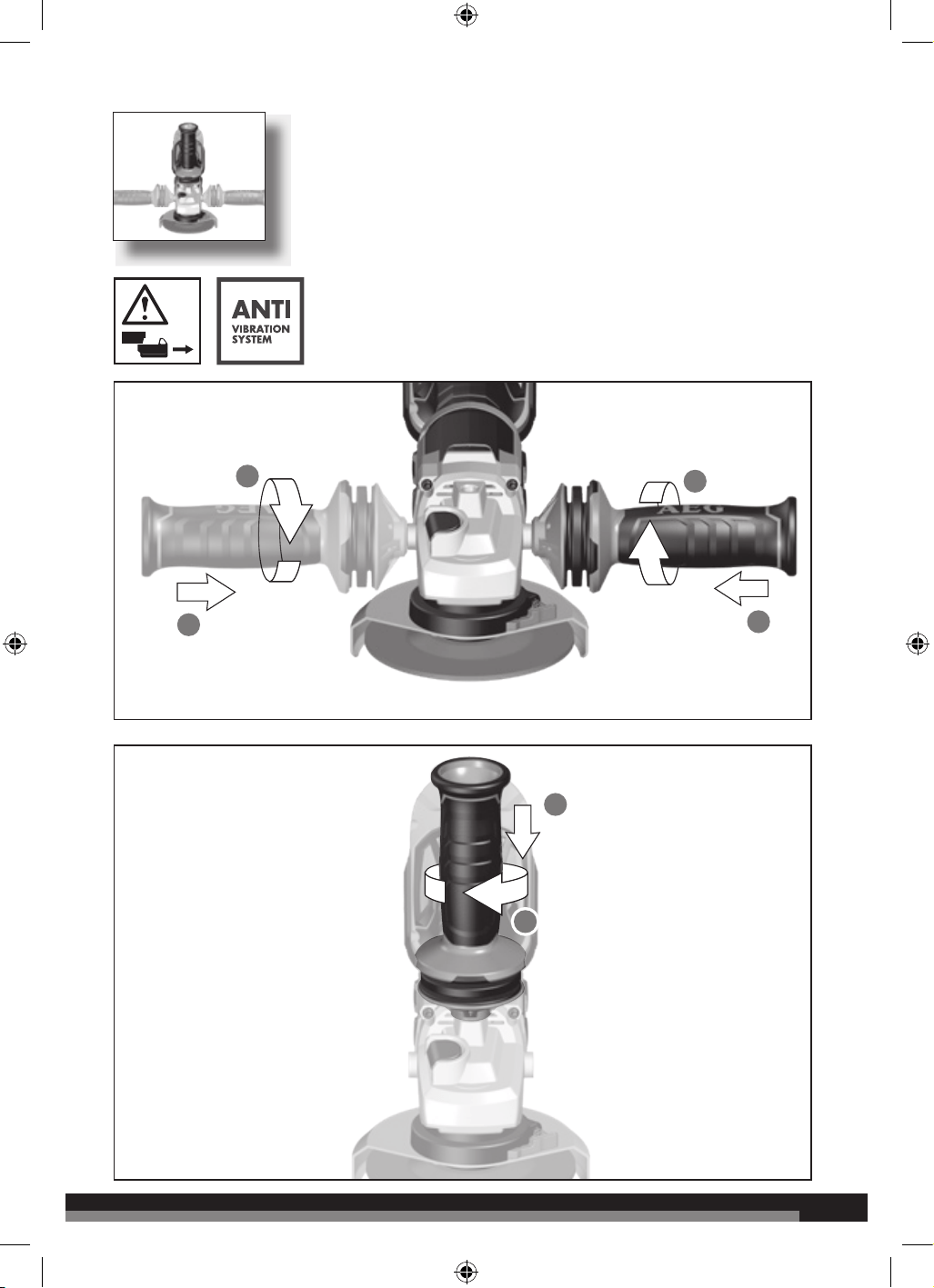

1
7
7
2
2
2
1
1
1
BEWS18125BLP

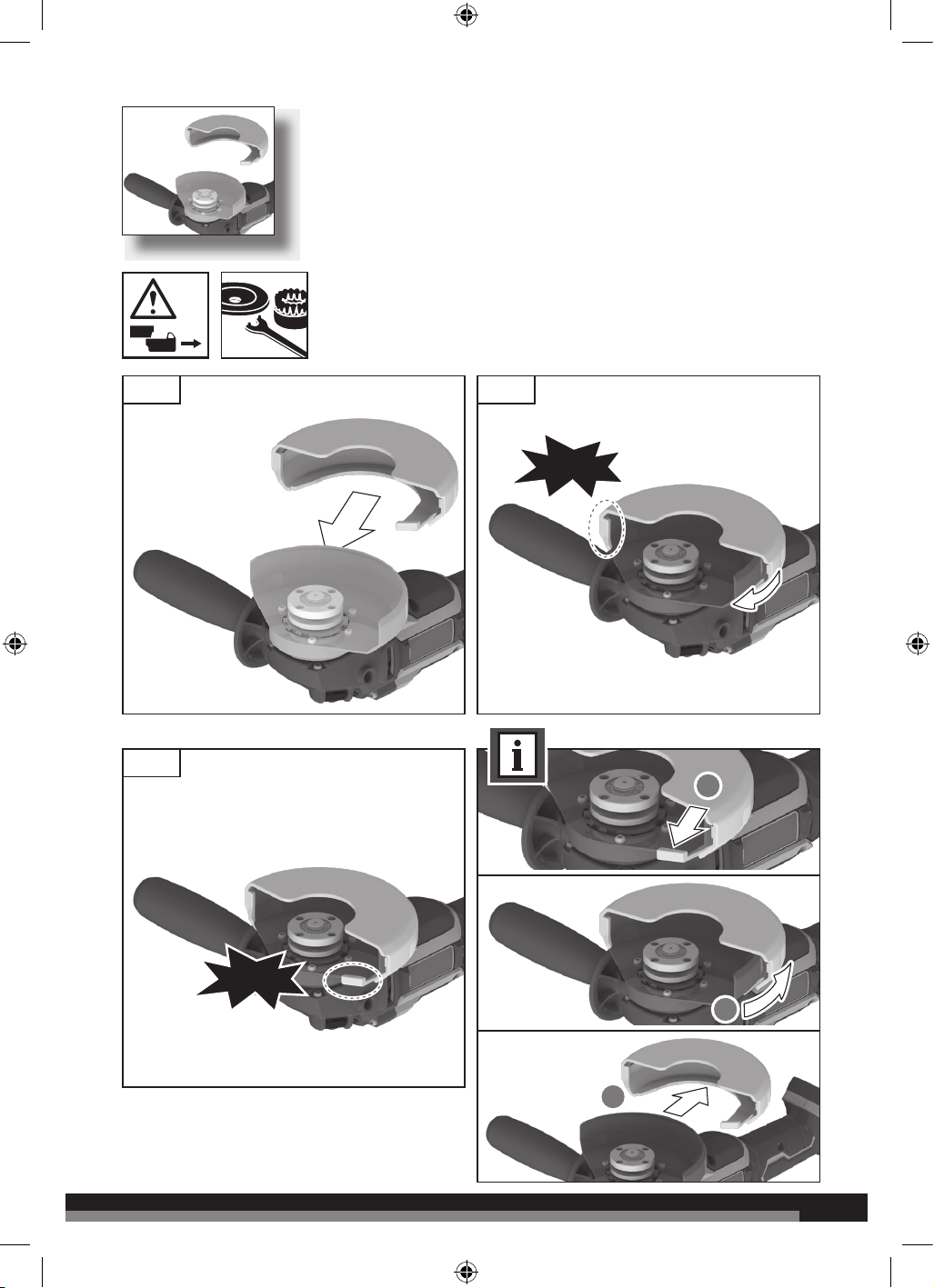

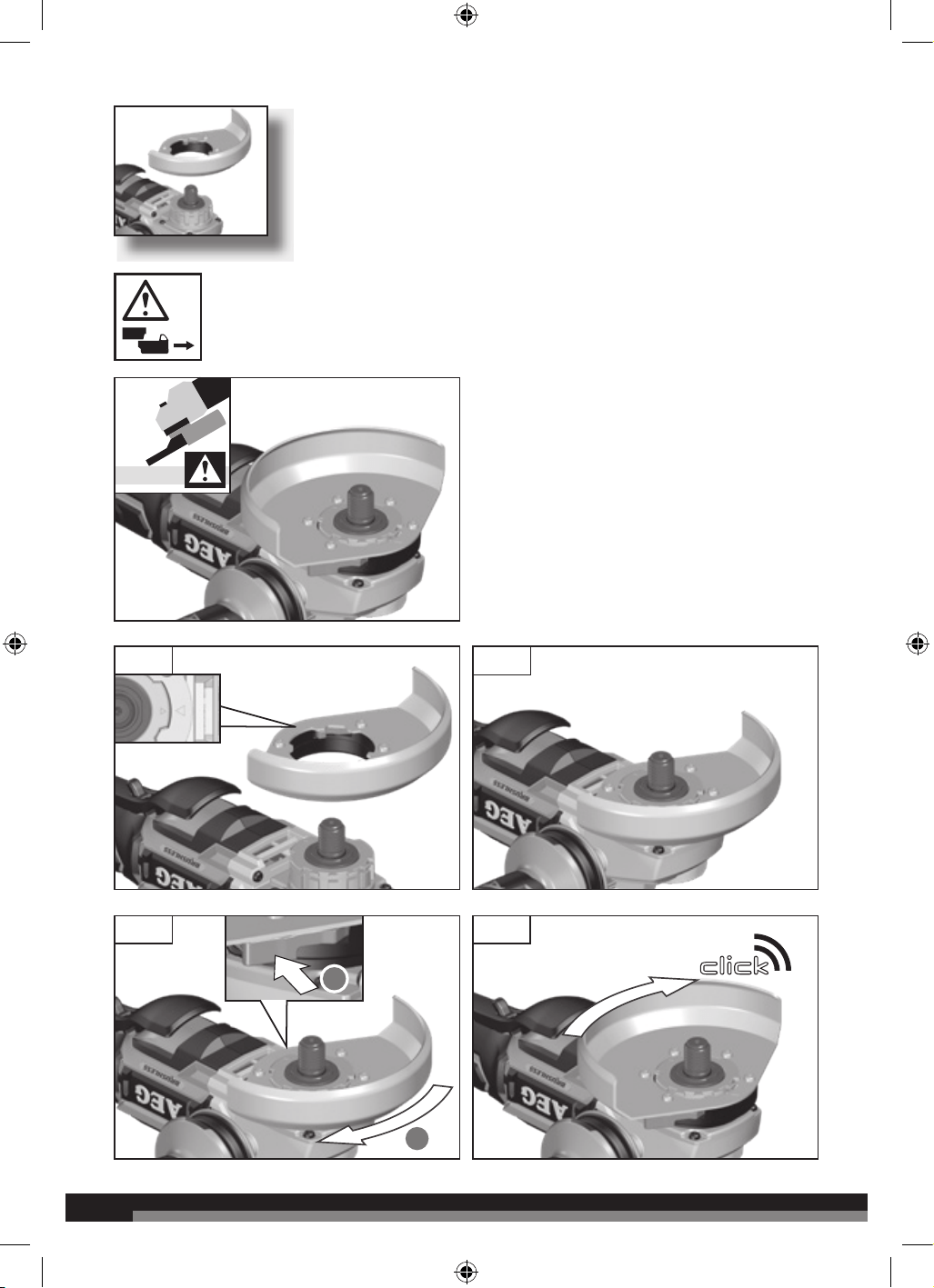

8
8
1.
2.
3. 4.
2
1
9
9
click
1. 2.
click
3.
2
3
1
10
10

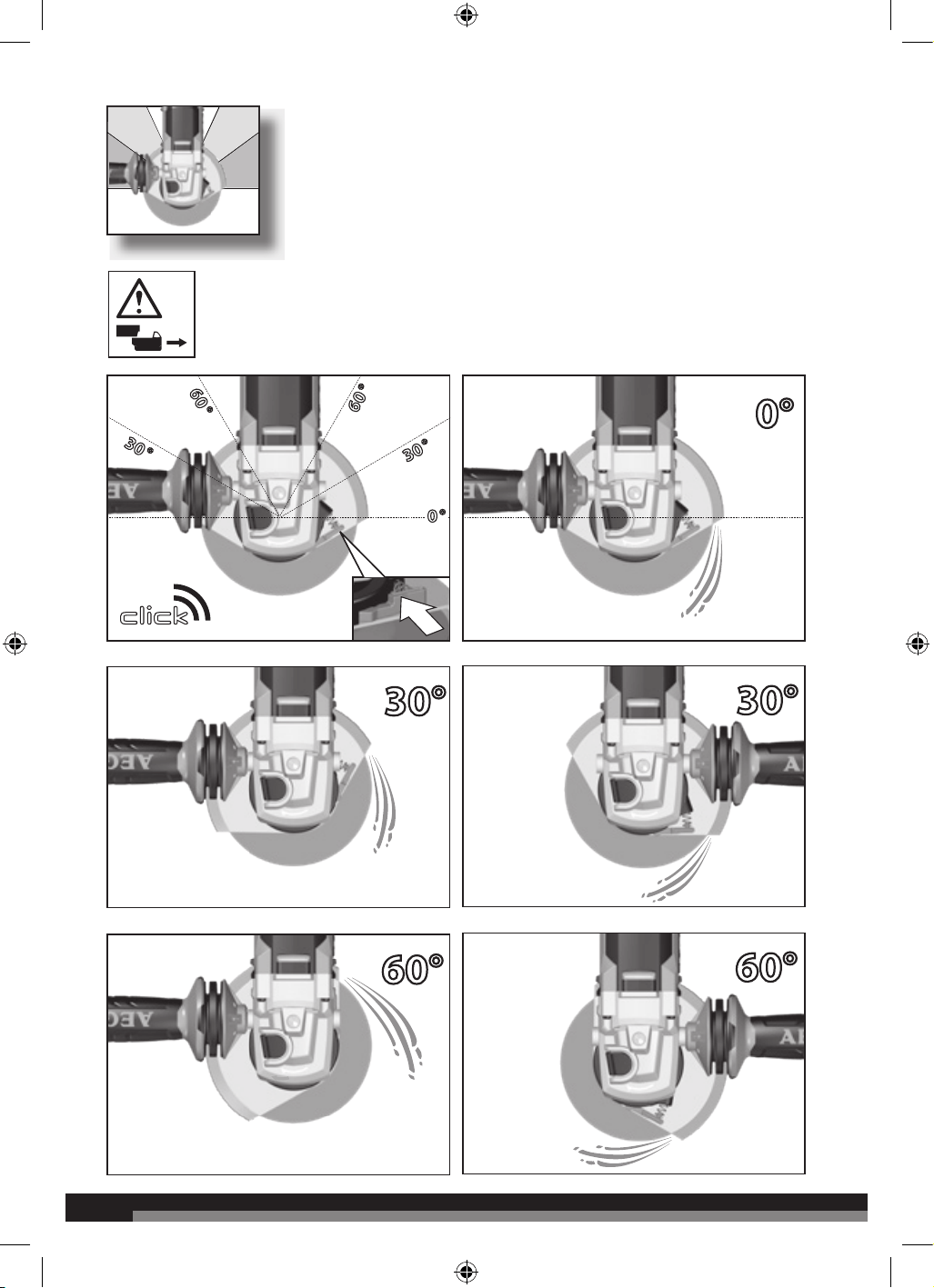

0°
30°
30°
60°
60°
30
°
60
°
30
°
60
°
0
°
11
11
< 6 mm
> 6 mm
2.
1.
3. 4.
5.
BEWS18125BLC

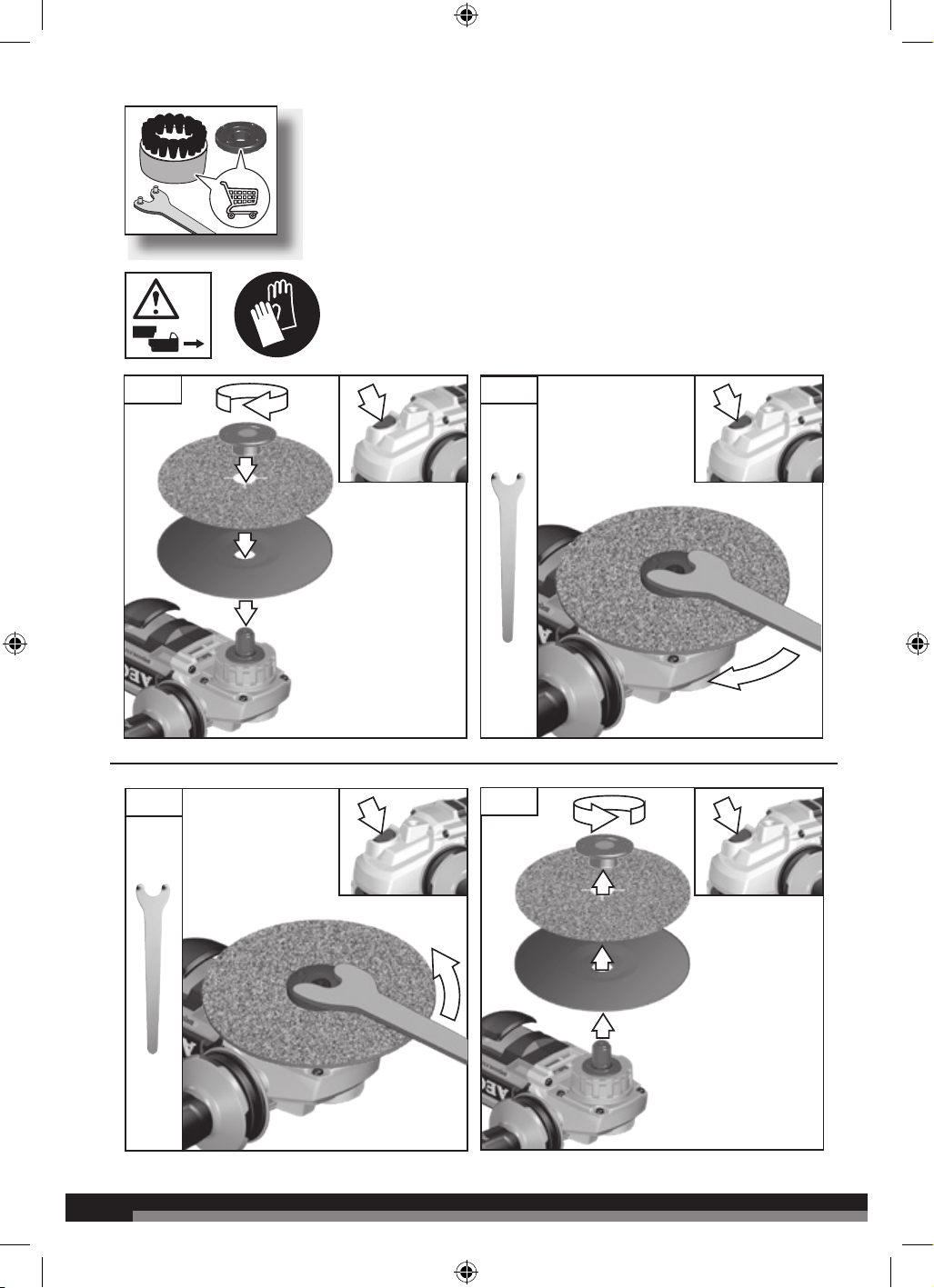

WARNING:
Always check the spindle lock button is fully released before switching on
the tool!
After using the spindle lock to tighten / loosen the abrasive disk, it is
possible that the button may stick in the lock position. Whilst this will not
damage the tool it may cause the tool or battery protection to operate and
remove power to the tool. Turn o the switch, remove the battery then
carefully rock the disk back and forth to release the spindle lock button.
NOTE:
If the battery protection has also activated, simply remove the battery pack
from the tool and replace it, thus resetting the protection.

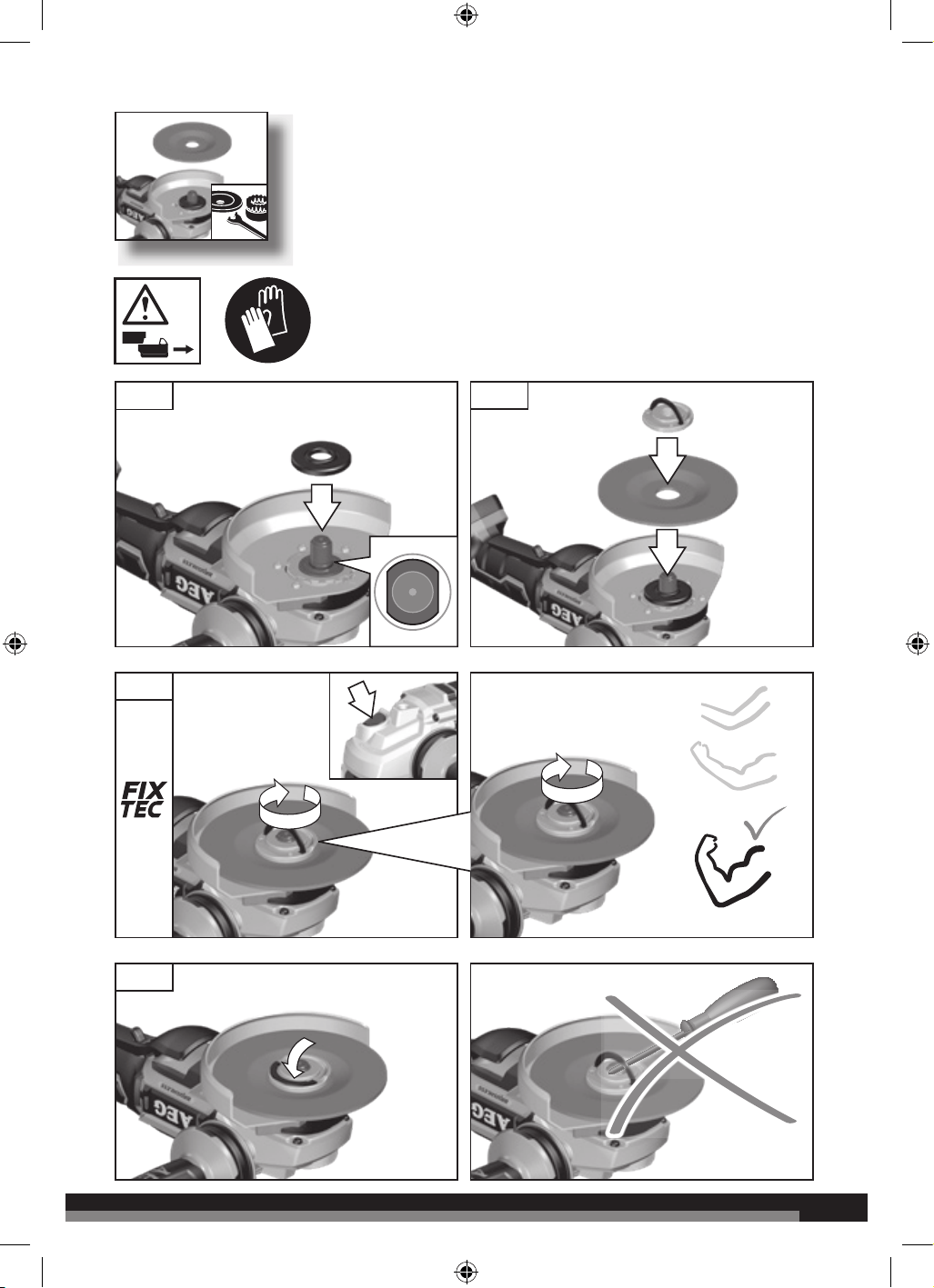

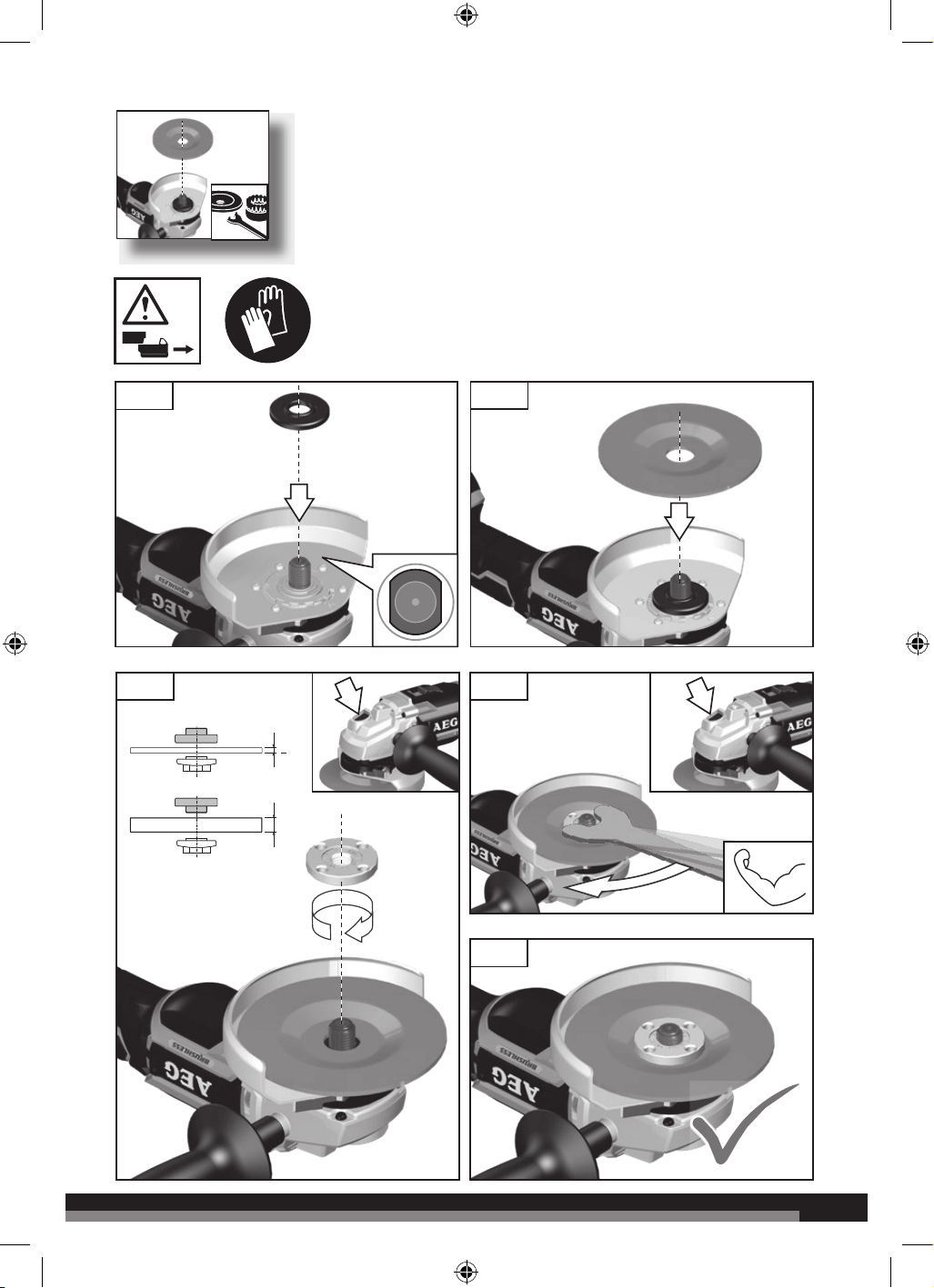

The flange nut must be
securely tightened before
the machine is started.

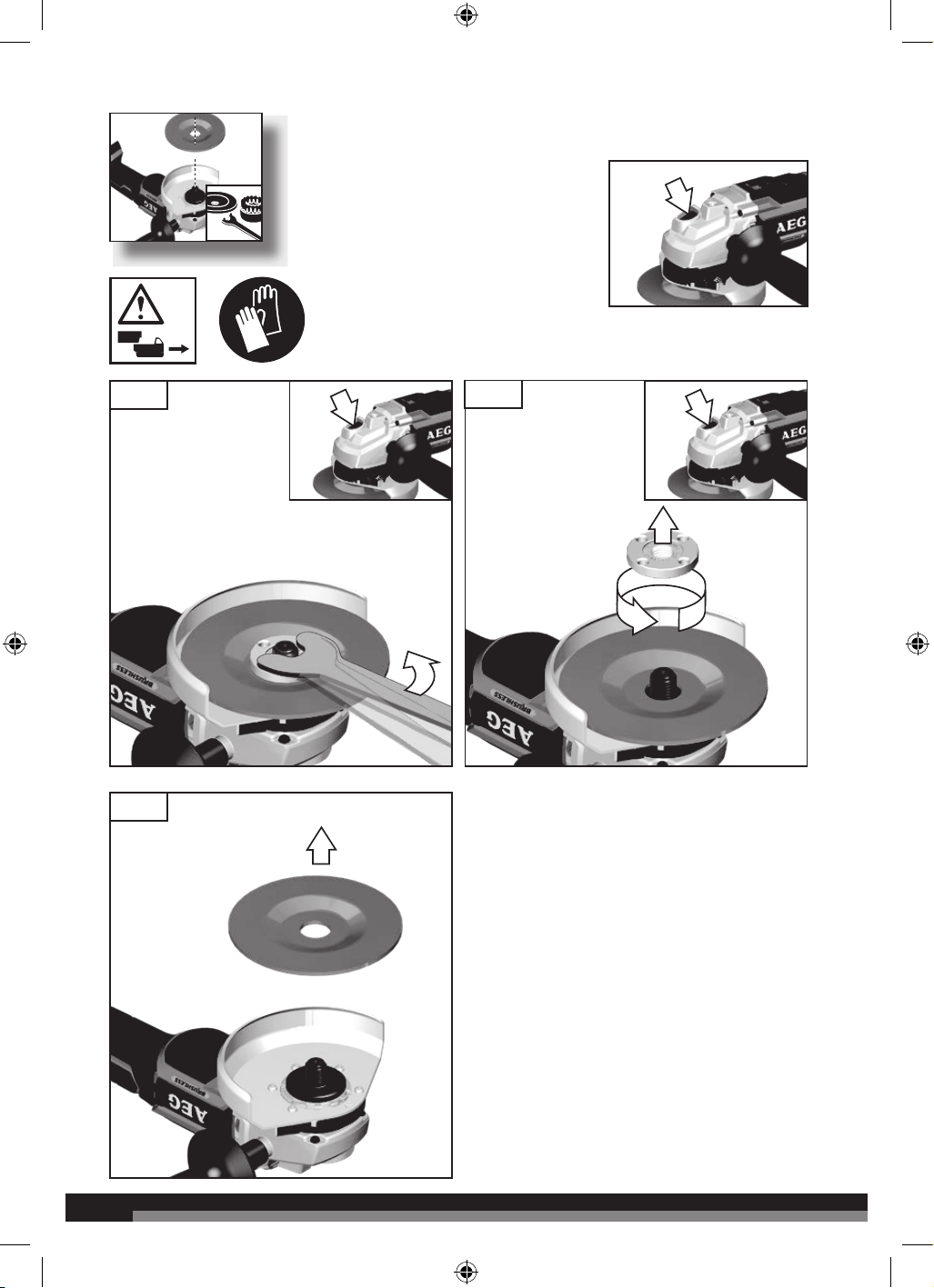

12
12
2.
3.
1.
BEWS18125BLC
13
13
2.
1.
3.
4.
BEWS18125BLP
The flange nut must be
securely tightened before
the machine is started.
WARNING:
Always check the spindle lock button is fully released before switching on
the tool!
After using the spindle lock to tighten / loosen the abrasive disk, it is
possible that the button may stick in the lock position. Whilst this will not
damage the tool it may cause the tool or battery protection to operate and
remove power to the tool. Turn o the switch, remove the battery then
carefully rock the disk back and forth to release the spindle lock button.
NOTE:
If the battery protection has also activated, simply remove the battery pack
from the tool and replace it, thus resetting the protection.

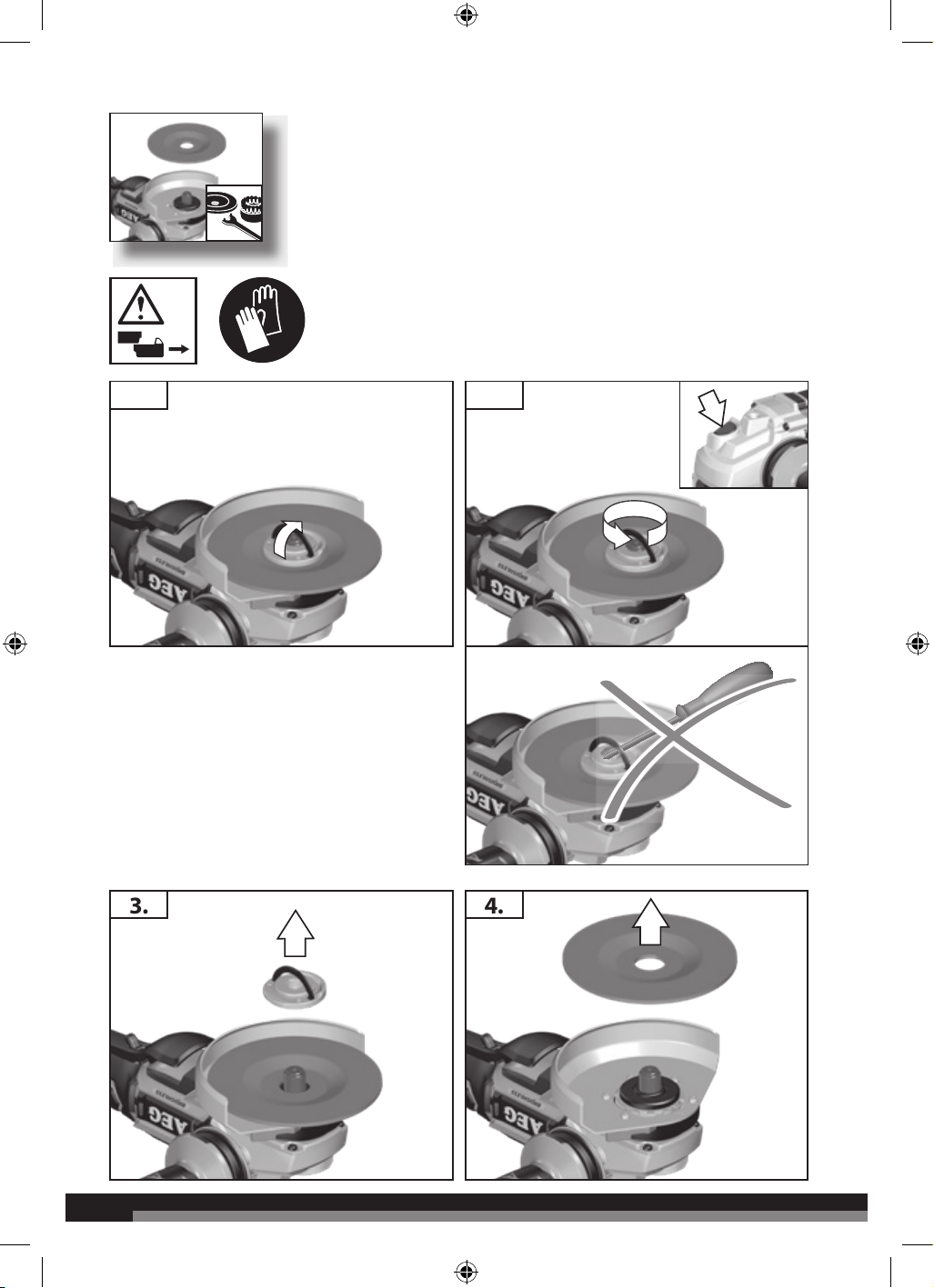

14
14
2.1.
3. 4.
BEWS18125BLP

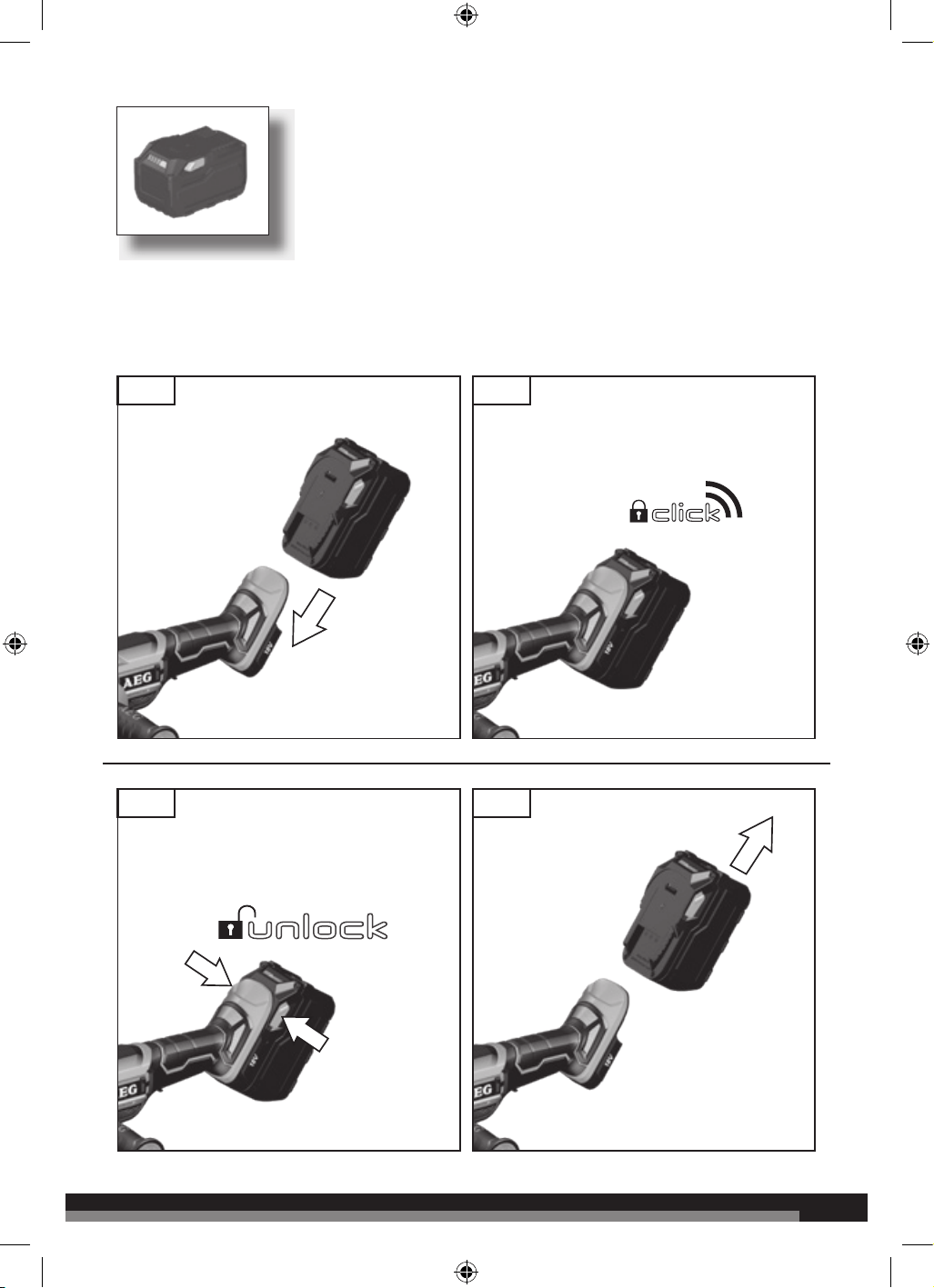

15
15
1.
1.
2.
2.
Remove the battery pack
before starting any work on
the product.

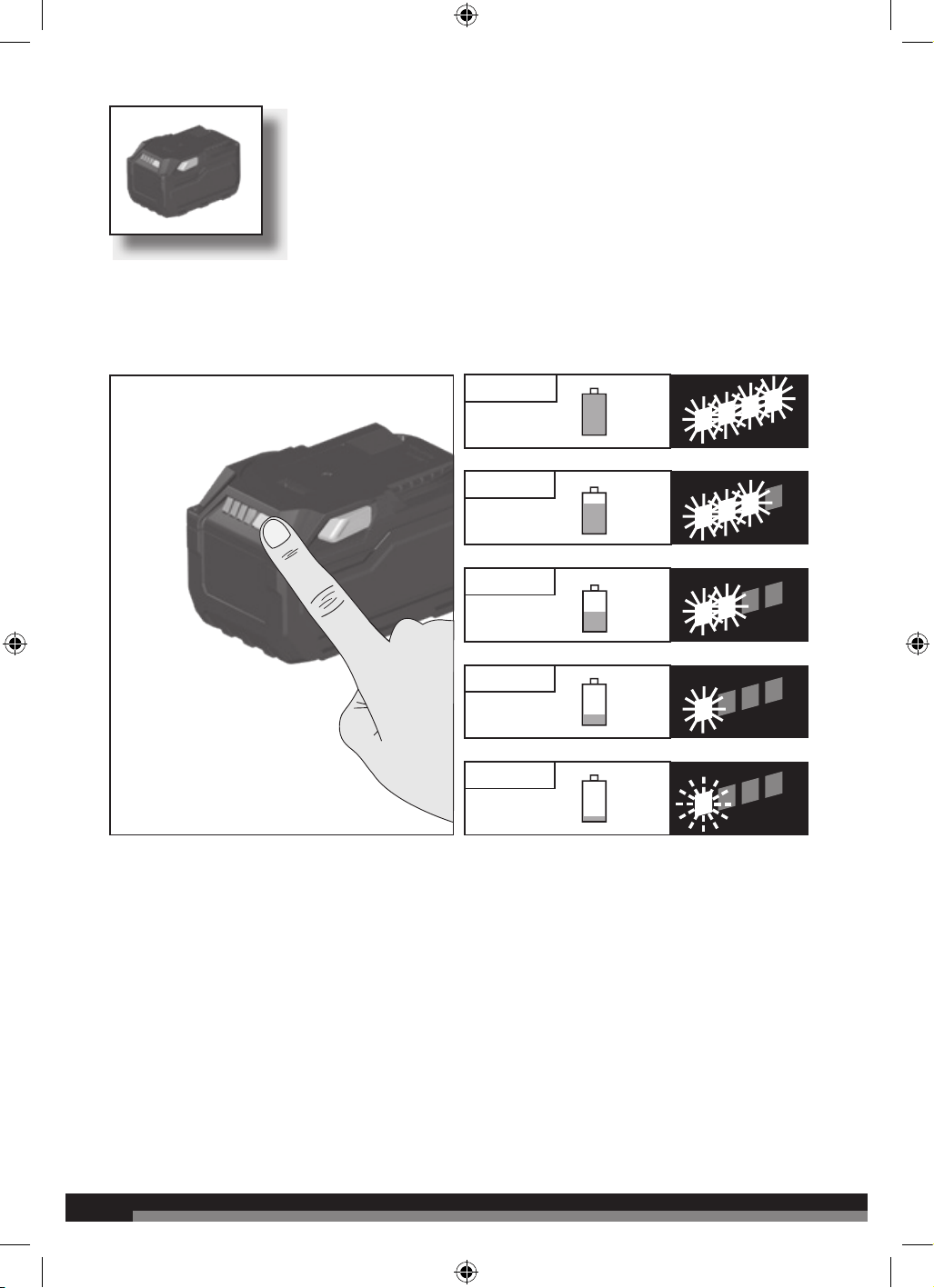

16
16
78-100 %
33-54 %
55-77 %
10-32 %
<10 %
17
17

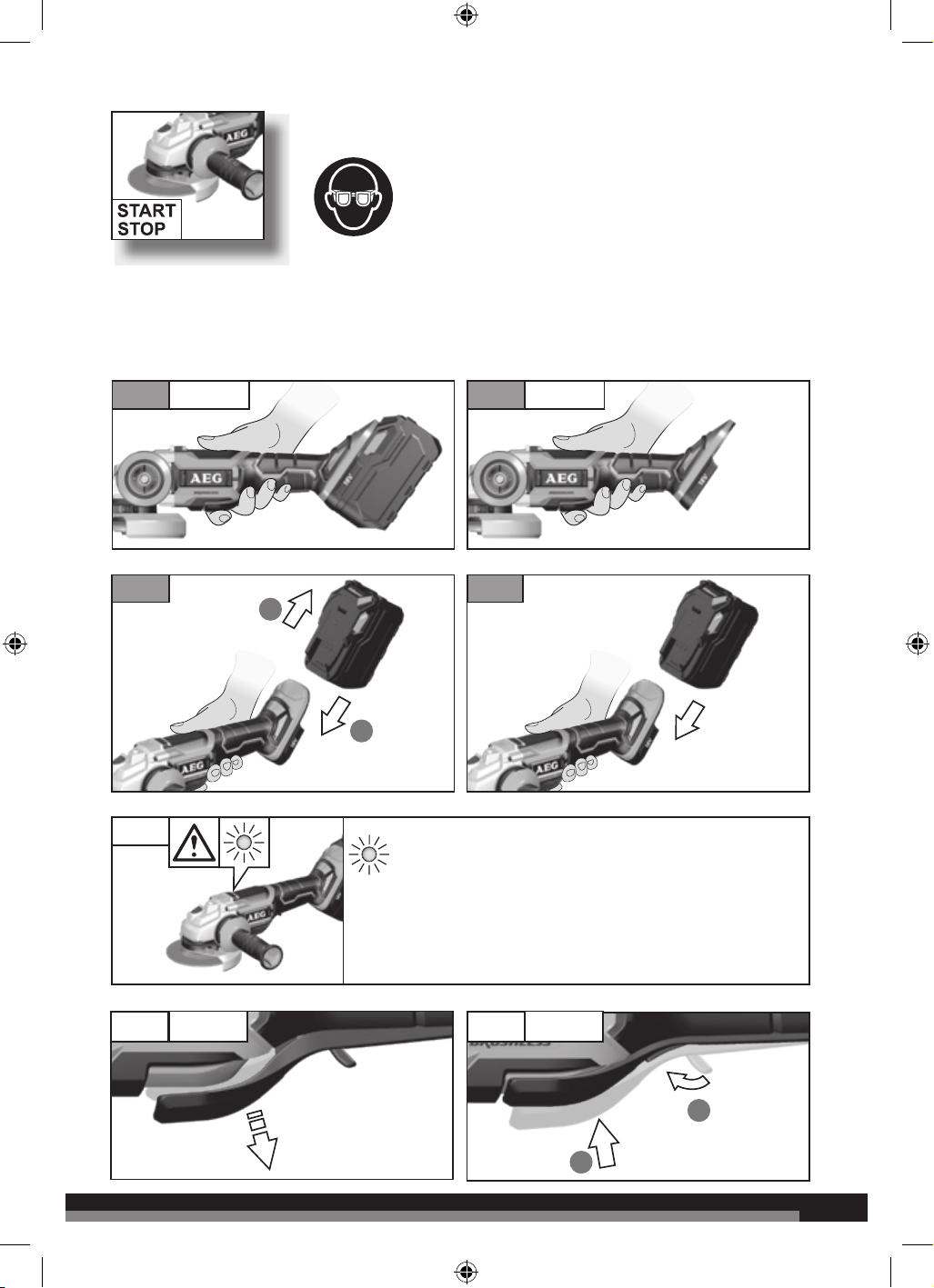

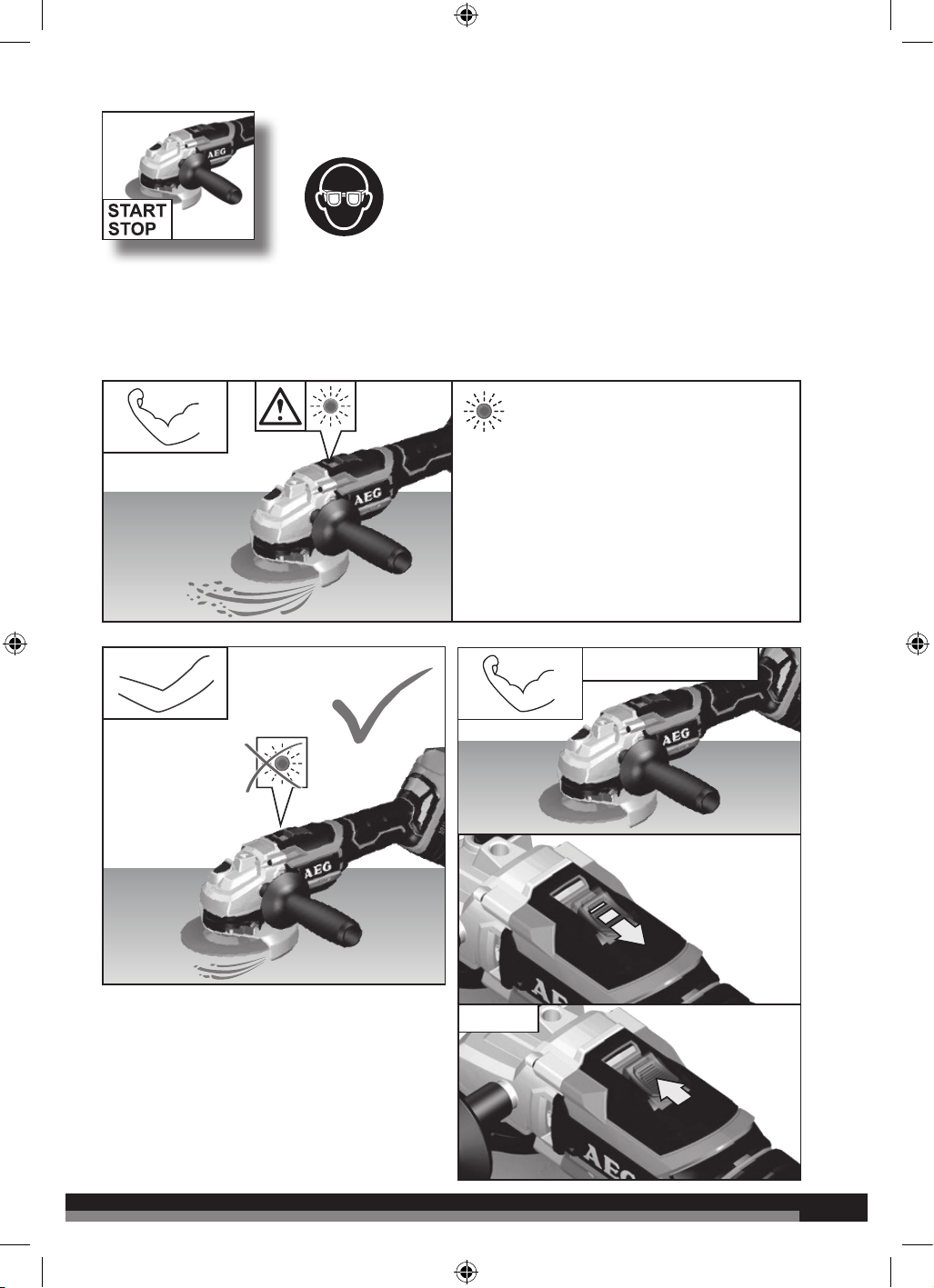

Start
Stop
BEWS18125BLC

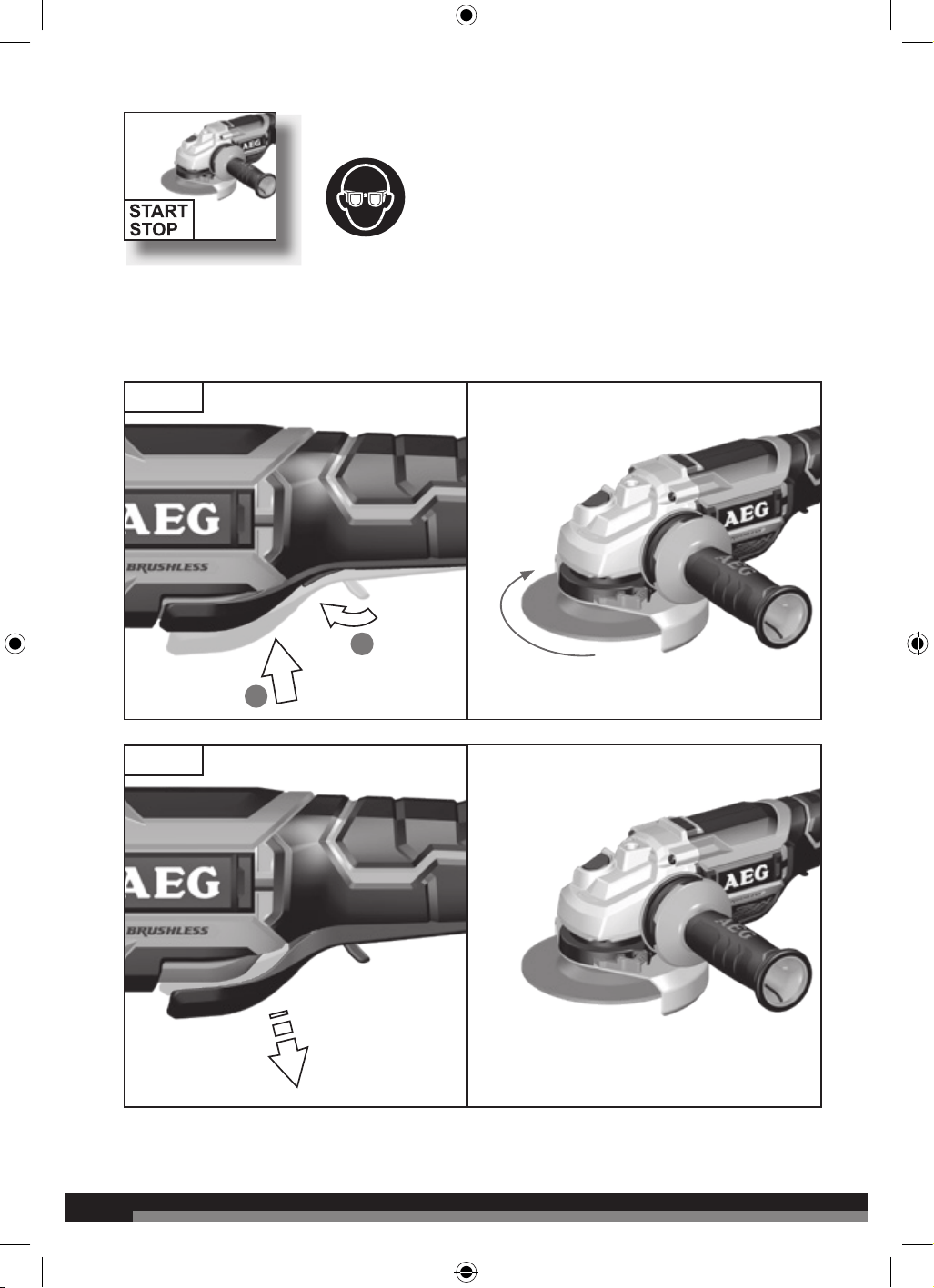

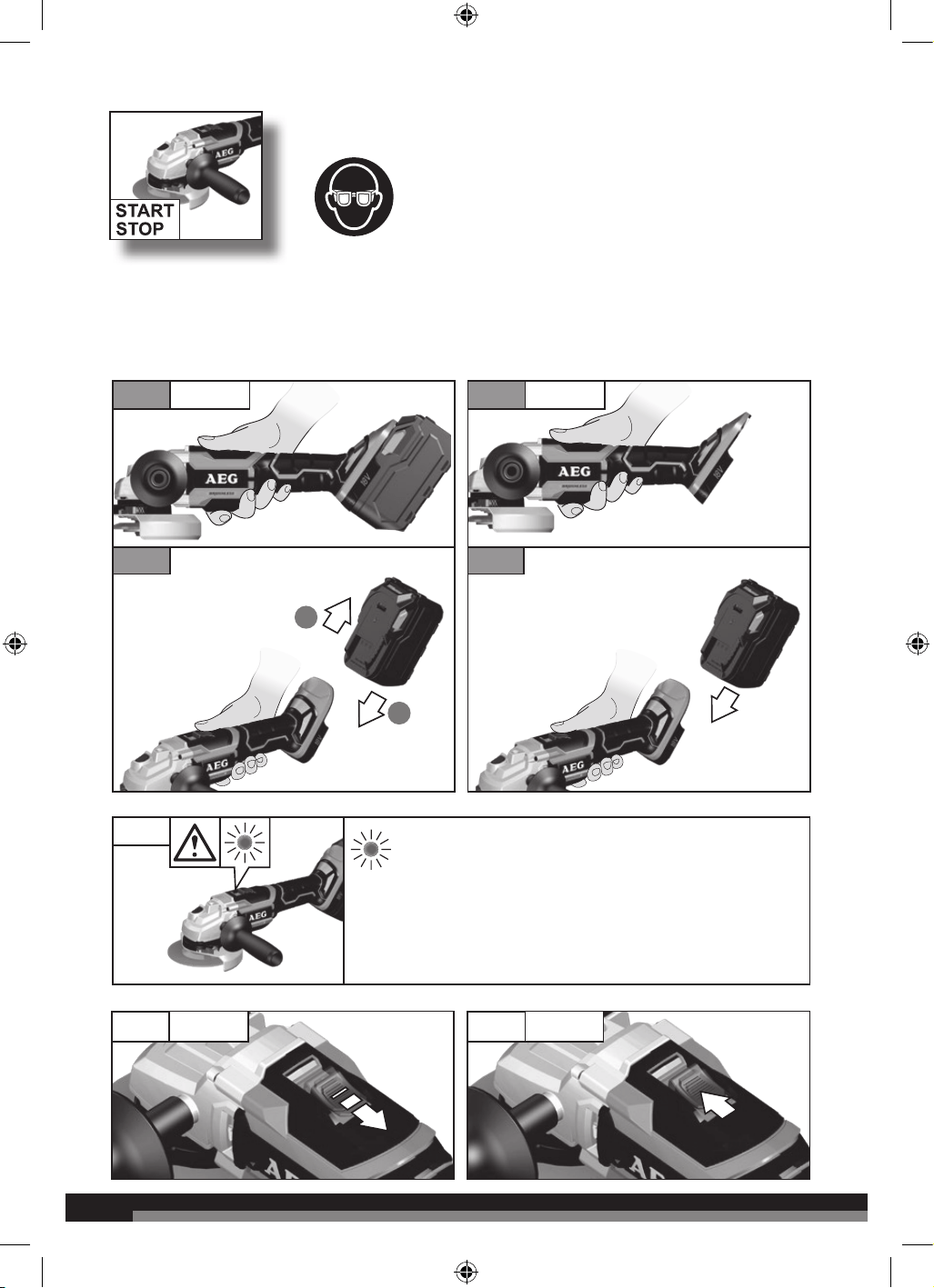

18
18
2.
Start Start
1 A 1 B
StartStop
4.3.
2 A 2 B
Steady Red
2
1
BEWS18125BLC
19
19
Start
Electronic brake
Flashing Red (Overload)
BEWS18125BLC
20
20
Start
Stop
2
1
BEWS18125BLP
21
21
2.
Start Start
1 A 1 B
2 A 2 B
StartStop
4.3.
Steady Red
2
2
1
1
BEWS18125BLP

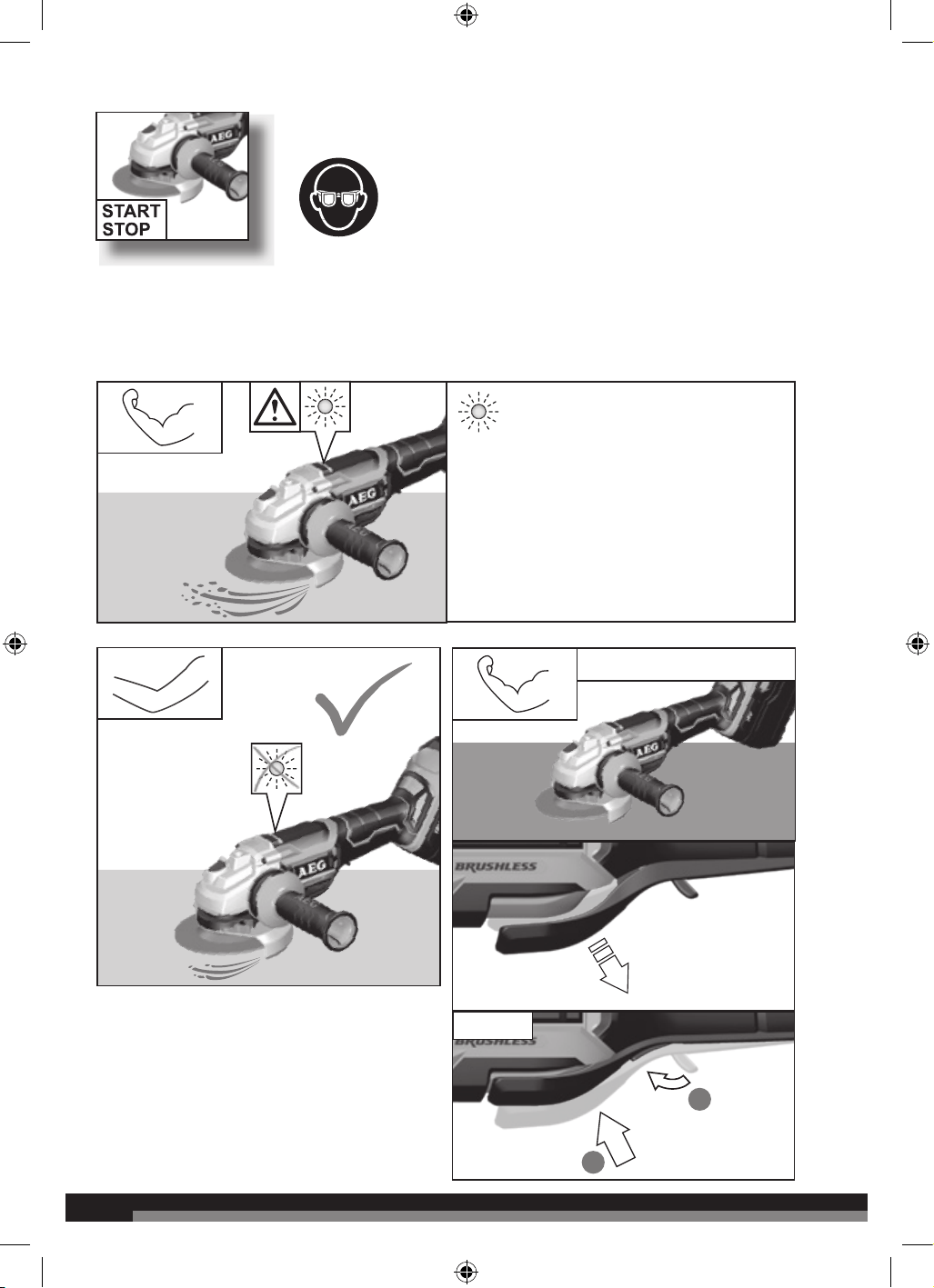

22
22
Start
Flashing Red (Overload)
Electronic brake
2
1
BEWS18125BLP
23
23

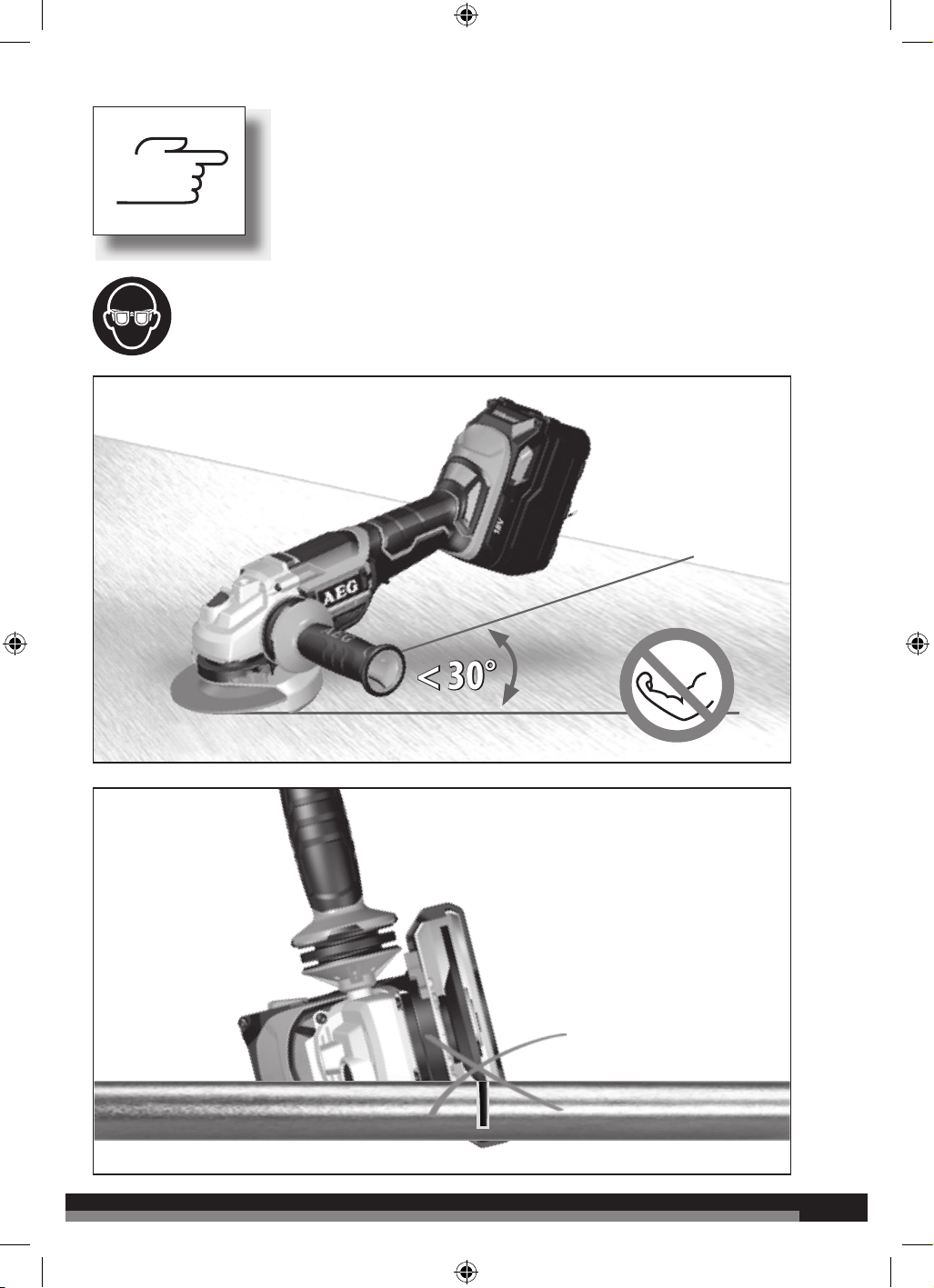

TIP
< 30°

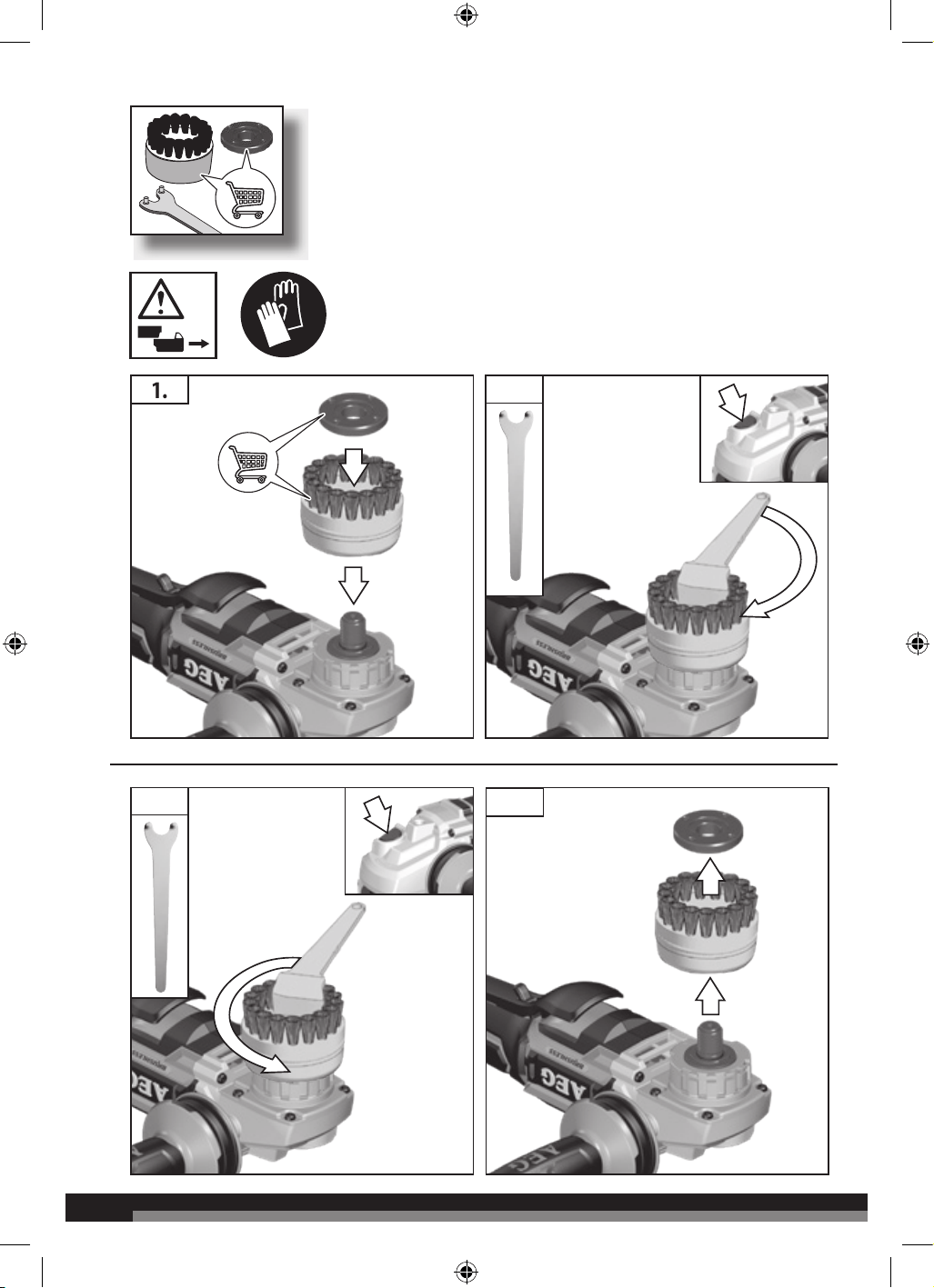

24
24
1.
2.
1. 2.
Accessory

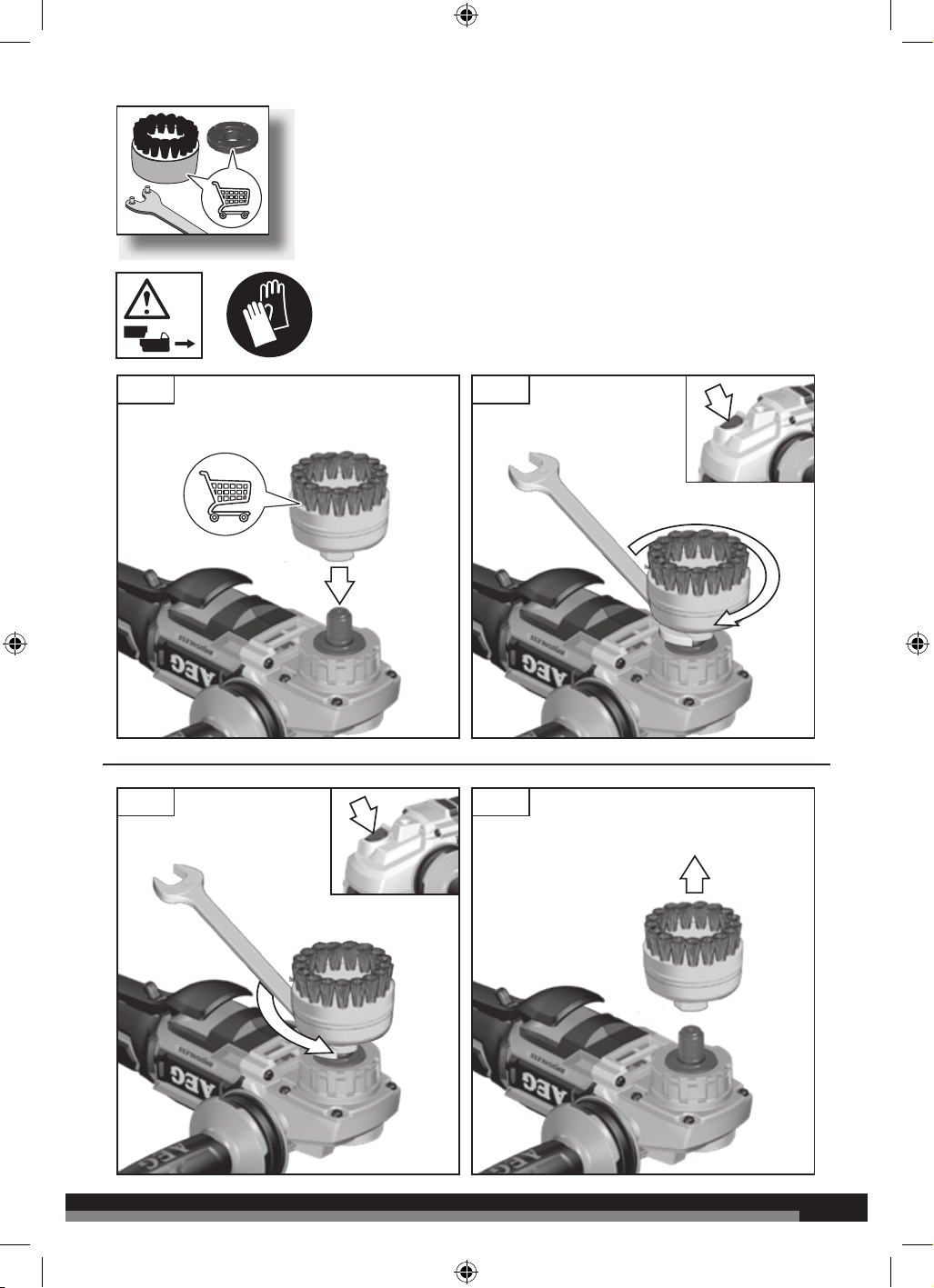

25
25
1.
2.
2.
1.
Accessory
26
26
1.
2.
2.
1.
Accessory
27
27
2
1
1
2.
1.
click

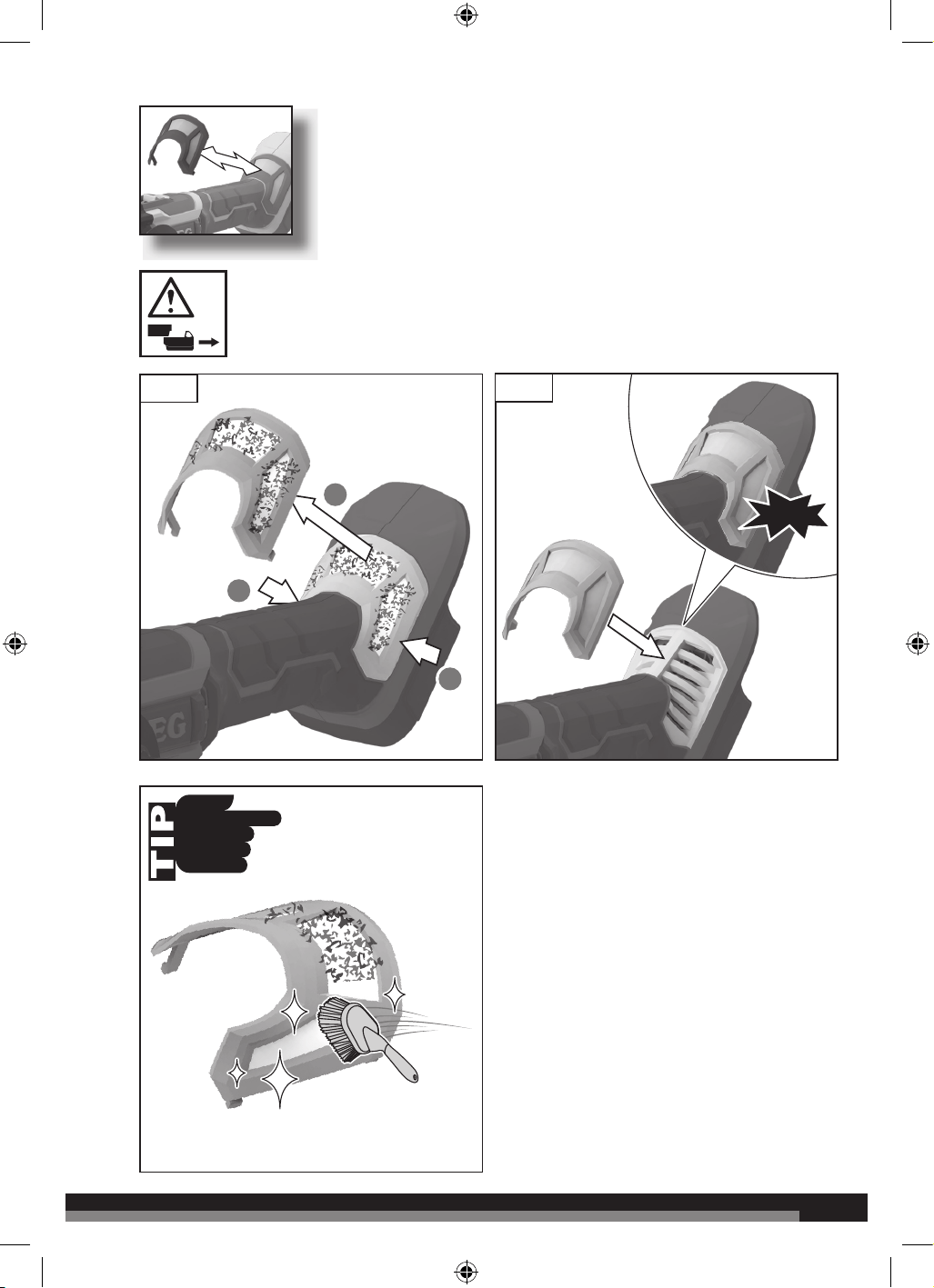

Remove and brush the dust cover after every 5 hours of work. (Sooner in
dusty environments)
If over current protection is frequent, check if there is any blockage at the
vents. Clean as necessary and try again.
28
28
BATTERY AND CHARGER
Compatible battery pack
(not included)
Compatible charger
(not included)
L1815R
L1820R
L1825R
L1830R
L1840R
L1850R
L1860R
L1860B
L1860R-X5
L1890R
AL18G
AL1218G
BL1218
BLK1218
BL18DP-X5
BL18DP2-X5
Use AEG 18V battery and charger only
WARNING! Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may result in electric
shock, fire and/or serious injury. Save all warnings and instructions
for future reference.
ANGLE GRINDER SAFETY WARNINGS
Safety Warnings Common for Grinding, Wire Brushing or
Abrasive Cutting-O Operations:
a. This power tool is intended to function as a grinder, wire
brush or cut-off tool. Read all safety warnings, instructions,
illustrations and specifications provided with this power
tool. Failure to follow all instructions listed below may result in
electric shock, fire and/or serious injury.
b. Operations such as sanding or polishing are not
recommended to be performed with this power tool.
Operations for which the power tool was not designed may
TECHNICAL DATA CORDLESS ANGLE GRINDER
BEWS18125BLC
BEWS18125BLP
Rated voltage 18V
Rated speed 11000 min
-1
Thickness of grinding wheel 6 mm
Grinding wheel diameter 125 mm
Thread of work spindle M14
Weight - not including battery pack 2.1 kg
Measured values determined according to EN 60745. Typically, the A-weighted noise levels of the tool are:
A-weighted sound pressure level L
p
= 83 dB(A)
Uncertainty K 3 dB(A)
A-weighted sound power level L
W
= 94 dB(A)
Uncertainty K 3 dB(A)
Wear ear protectors.
The vibration total values (triaxial vector sum) determined according to EN 60745:
Vibration emission value
Surface grinding: Vibration emission value a
h,AG
= 9.4 m/s
2
Uncertainty K 1.5 m/s
2
For other applications, e.g. Abrasive Cutting-O Operations or Wire Brushing other vibration values could occur.
TYPE OF DISCS/WHEELS
Designation Type
Straight cutting-off wheels not reinforced 41
Straight and depressed-centre cutting-off wheels, reinforced 41
Depressed-centre grinding wheels reinforced 27
WARNING
The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and
may be used to compare one tool with another. It may be used for a preliminary assessment of exposure. The declared vibration emission level
represents the main applications of the tool. However if the tool is used for dierent applications, with dierent accessories or poorly maintained,
the vibration emission may dier. This may significantly increase the exposure level over the total working period.
An estimation of the level of exposure to vibration should also take into account the times when the tool is switched o or when it is running but
not actually doing the job. This may significantly reduce the exposure level over the total working period.
Identify additional safety measures to protect the operator from the eects of vibration such as: maintain the tool and the accessories, keep the
hands warm, organisation of work patterns.
29
29
create a hazard and cause personal injury.
c. Do not use accessories which are not specifically designed
and recommended by the tool manufacturer. Just because
the accessory can be attached to your power tool, it does not
assure safe operation.
d. The rated speed of the accessory must be at least equal to
the maximum speed marked on the power tool. Accessories
running faster than their rated speed can break and fly apart.
e. The outside diameter and the thickness of your accessory
must be within the capacity rating of your power tool.
Incorrectly sized accessories cannot be adequately guarded or
controlled.
f. Threaded mounting of accessories must match the grinder
spindle thread. For accessories mounted by flanges, the arbour
hole of the accessory must fit the locating diameter of the
flange. Accessories that do not match the mounting hardware
of the power tool will run out of balance, vibrate excessively and
may cause loss of control.
g. Do not use a damaged accessory. Before each use inspect
the accessory such as abrasive wheels for chips and cracks,
backing pad for cracks, tear or excess wear, wire brush for
loose or cracked wires. If power tool or accessory is dropped,
inspect for damage or install an undamaged accessory. After
inspecting and installing an accessory, position yourself and
bystanders away from the plane of the rotating accessory
and run the power tool at maximum no-load speed for one
minute. Damaged accessories will normally break apart during
this test time.
h. Wear personal protective equipment. Depending on
application, use face shield, safety goggles or safety glasses.
As appropriate, wear dust mask, hearing protectors, gloves
and shop apron capable of stopping small abrasive or
workpiece fragments. The eye protection must be capable
of stopping small abrasive or workpiece fragments. The eye
protection must be capable of stopping flying debris generated
by various operations. The dust mask or respirator must be
capable of filtrating particles generated by your operation.
Prolonged exposure to high intensity noise may cause hearing
loss.
i. Keep bystanders a safe distance away from work area.
Anyone entering the work area must wear personal
protective equipment. Fragments of workpiece or of a broken
accessory may fly away and cause injury beyond immediate
area of operation.
j. Hold the power tool by insulated gripping surfaces only,
when performing an operation where the cutting tool may
contact hidden wiring. Contact with a “live” wire will also make
exposed metal parts of the power tool “live” and could give the
operator an electric shock.
k. Never lay the power tool down until the accessory has come
to a complete stop. The spinning accessory may grab the
surface and pull the power tool out of your control.
l. Do not run the power tool while carrying it at your side.
Accidental contact with the spinning accessory could snag your
clothing, pulling the accessory into your body.
m. Regularly clean the power tool’s air vents. The motor’s fan will
draw the dust inside the housing and excessive accumulation of
powdered metal may cause electrical hazards.
n. Do not operate the power tool near flammable materials.
Sparks could ignite these materials.
o. Do not use accessories that require liquid coolants. Using
water or other liquid coolants may result in electrocution or
shock.
Kickback and Related Warnings
Kickback is a sudden reaction to a pinched or snagged rotating wheel,
backing pad, brush or any other accessory. Pinching or snagging
causes rapid stalling of the rotating accessory which in turn causes
the uncontrolled power tool to be forced in the direction opposite of
the accessory’s rotation at the point of the binding.
For example, if an abrasive wheel is snagged or pinched by the
workpiece, the edge of the wheel that is entering into the pinch point
can dig into the surface of the material causing the wheel to climb
out or kick out. The wheel may either jump toward or away from
the operator, depending on direction of the wheel’s movement at
the point of pinching. Abrasive wheels may also break under these
conditions.
Kickback is the result of power tool misuse and/or incorrect operating
procedures or conditions and can be avoided by taking proper
precautions as given below.
a. Maintain a firm grip on the power tool and position your
body and arm to allow you to resist kickback forces. Always
use auxiliary handle, if provided, for maximum control over
kickback or torque reaction during start-up. The operator
can control torque reactions or kickback forces, if proper
precautions are taken.
b. Never place your hand near the rotating accessory. Accessory
may kickback over your hand.
c. Do not position your body in the area where power tool
will move if kickback occurs. Kickback will propel the tool in
direction opposite to the wheel’s movement at the point of
snagging.
d. Use special care when working corners, sharp edges etc. Avoid
bouncing and snagging the accessory. Corners, sharp edges or
bouncing have a tendency to snag the rotating accessory and
cause loss of control or kickback.
e. Do not attach a saw chain, woodcarving blade or toothed saw
blade. Such blades create frequent kickback and loss of control.
Safety Warnings Specific for Grinding and Abrasive Cutting-O
Operations:
a. Use only wheel types that are recommended for your power
tool and the specific guard designed for the selected wheel.
Wheels for which the power tool was not designed cannot be
adequately guarded and are unsafe.
b. The guard must be securely attached to the power tool and
positioned for maximum safety, so the least amount of wheel
is exposed towards the operator. The guard helps to protect
the operator from broken wheel fragments, accidental contact
with wheel and sparks that could ignite clothing.
c. Wheels must be used only for recommended applications. For
example: do not grind with the side of cut-off wheel. Abrasive
cut-off wheels are intended for peripheral grinding, side forces
applied to these wheels may cause them to shatter.
d. Always use undamaged wheel flanges that are of correct
size and shape for your selected wheel. Proper wheel flanges
support the wheel thus reducing the possibility of wheel
breakage. Flanges for cut-off wheels may be different from
30
30
grinding wheel flanges.
e. Do not use worn down wheels from larger power tools. Wheel
intended for larger power tool is not suitable for the higher
speed of a smaller tool and may burst.
Additional Safety Warnings Specific for Abrasive Cutting-O
Operations:
a. Do not “jam” the cut-off wheel or apply excessive pressure. Do
not attempt to make an excessive depth of cut. Overstressing
the wheel increases the loading and susceptibility to twisting or
binding of the wheel in the cut and the possibility of kickback
or wheel breakage.
b. Do not position your body in line with and behind the rotating
wheel. When the wheel, at the point of operation, is moving
away from your body, the possible kickback may propel the
spinning wheel and the power tool directly at you.
c. When wheel is binding or when interrupting a cut for any
reason, switch off the power tool and hold the power tool
motionless until the wheel comes to a complete stop. Never
attempt to remove the cut-off wheel from the cut while the
wheel is in motion otherwise kickback may occur. Investigate
and take corrective action to eliminate the cause of wheel
binding.
d. Do not restart the cutting operation in the workpiece. Let
the wheel reach full speed and carefully re-enter the cut.
The wheel may bind, walk up or kickback if the power tool is
restarted in the workpiece.
e. Support panels or any oversized workpiece to minimize the
risk of wheel pinching and kickback. Large workpieces tend
to sag under their own weight. Supports must be placed under
the workpiece near the line of cut and near the edge of the
workpiece on both sides of the wheel.
f. Use extra caution when making a “pocket cut” into existing
walls or other blind areas. The protruding wheel may cut gas or
water pipes, electrical wiring or objects that can cause kickback.
Safety Warnings Specific for Wire Brushing Operations:
a. Be aware that wire bristles are thrown by the brush even
during ordinary operation. Do not overstress the wires by
applying excessive load to the brush. The wire bristles can
easily penetrate light clothing and/or skin.
b. If the use of a guard is recommended for wire brushing, do
not allow any interference of the wire wheel or brush with the
guard. Wire wheel or brush may expand in diameter due to work
load and centrifugal forces.
ADDITIONAL SAFETY WARNINGS
Dust and splinters must not be removed while the machine is running.
Never reach into the danger area of the tool when it is running.
Always use the auxiliary handle.
Always use the protecting cap when roughing-down and separating.
Immediately switch o the machine in case of considerable vibrations
or if other malfunctions occur. Check the machine in order to find out
the cause.
Always use and store the grinding disks according to the
manufacturer’s instructions.
When grinding metal, flying sparks are produced. Take care that no
persons are endangered. Because of the danger of fire, no combustible
materials should be located in the vicinity (spark flight zone). Do not
use dust extraction.
Due care should be taken that no sparks or sanding dust flying from
the workpiece come into contact with you.
The adjusting nut must be tightened before starting to work with the
machine.
The workpiece must be fixed if it is not heavy enough to be steady.
Never lead the workpiece to the grinding disk with your hand.
For accessories intended to be fitted with threaded hole wheel, ensure
that the thread in the wheel is long enough to accept the spindle
length.
For cutting or separating use a closed protection cap, available as an
accessory.
Do not dispose of used battery packs in the household refuse or
by burning them. AEG Distributors oer to retrieve old batteries to
protect our environment.
Do not store the battery pack together with metal objects (short
circuit risk).
Use only System GBS chargers for charging System GBS battery
packs. Do not use battery packs from other systems.
Never break open battery packs and chargers and store only in dry
rooms. Keep dry at all times.
Battery acid may leak from damaged batteries under extreme load
or extreme temperatures. In case of contact with battery acid wash
it o immediately with soap and water. In case of eye contact rinse
thoroughly for at least 10 minutes and immediately seek medical
attention.
ADDITIONAL BATTERY SAFETY WARNINGS
WARNING! To reduce the risk of fire, personal injury, and product
damage due to a short circuit, never immerse your tool, battery pack
or charger in fluid or allow a fluid to flow inside them. Corrosive or
conductive fluids, such as seawater, certain industrial chemicals, and
bleach or bleach containing products, etc., can cause a short circuit.
RESIDUAL RISKS
Even when the product is used as prescribed, it is still impossible
to completely eliminate certain residual risk factors. The following
hazards may arise and the operator should pay special attention to
avoid the following:
■ Injury caused by thrown-off particles
– Metal or abrasive particles may enter the eyes and cause
severe permanent damage. Wear goggles approved for
grinding operations whenever you use the product.
■ Injury caused by vibration
– Limit exposure. See Risk Reduction.
■ Injury caused by dust
– Wear appropriate dust control mask with filters suitable for
protecting against particles from the material being worked
on and abrasive particles from the grinding disc. Do not eat,
drink, or smoke in the work area. Ensure adequate ventilation.
■ Injury from contact with the grinding disc
– The disc and workpiece will become hot during use. Wear
gloves when changing discs or touching workpiece. Keep
hands away from the grinding area at all times. Clamp the
workpiece whenever possible.
■ Injury caused by noise
– Prolonged exposure to noise will increase the risk of hearing
damage, and the effects are cumulative. When using power
31
31
tools for any extended period of time, wear hearing protection.
WARNING! Injuries may be caused or aggravated by prolonged
use of a tool. When using any tool for prolonged periods, ensure you
take regular breaks.
RISK REDUCTION
It has been reported that vibrations from handheld tools may
contribute to a condition called Raynaud’s Syndrome in certain
individuals. Symptoms may include tingling, numbness and blanching
of the fingers, usually apparent upon exposure to cold. Hereditary
factors, exposure to cold and dampness, diet, smoking, and work
practices are all thought to contribute to the development of these
symptoms. There are measures that can be taken by the operator to
possibly reduce the eects of vibration:
■ Keep your body warm in cold weather. When operating the
product, wear gloves to keep the hands and wrists warm. It is
reported that cold weather is a major factor contributing to
Raynaud’s Syndrome.
■ After each period of operation, exercise to increase blood
circulation.
■ Take frequent work breaks. Limit the amount of exposure per day.
If you experience any of the symptoms of this condition, immediately
discontinue use and see your doctor about these symptoms.
SPECIFIED CONDITIONS OF USE
The angle grinder is intended to be used only by adults who have
read and understood the instructions and warnings in this manual
and can be considered responsible for their actions. The angle grinder
is designed for grinding and cutting metals and cutting concrete. Only
appropriate grinding or cutting discs and related guards (grinding
guard or cutting guard) as described in the product specification
section of this manual should be fitted to the angle grinder. The angle
grinder is designed for handheld use; it is not to be mounted onto a
fixture or workbench.
Do not use the product in any way other than those stated for
intended use.
BATTERIES
Battery packs which have not been used for some time should be
recharged before use.
Temperatures in excess of 50°C (122°F) reduce the performance of
the battery pack. Avoid extended exposure to heat or sunshine (risk
of overheating).
The contacts of chargers and battery packs must be kept clean.
For an optimum life-time, the battery packs have to be fully charged,
after used.
To obtain the longest possible battery life remove the battery pack
from the charger once it is fully charged.
For battery pack storage longer than 30 days:
Store the battery pack where the temperature is below 27°C and away
from moisture.
Store the battery packs in a 30% - 50% charged condition.
Every six months of storage, charge the pack as normal.
TRANSPORTING LITHIUM BATTERIES
Lithium-ion batteries are subject to the Dangerous Goods Legislation
requirements.
Transportation of those batteries has to be done in accordance with
local, national and international provisions and regulations.
■ The user can transport the batteries by road without further
requirements.
■ Commercial transport of Lithium-Ion batteries by third parties is
subject to Dangerous Goods regulations. Transport preparation
and transport are exclusively to be carried out by appropriately
trained persons and the process has to be accompanied by
corresponding experts.
When transporting batteries:
■ Ensure that battery contact terminals are protected and insulated
to prevent short circuit.
■ Ensure that battery pack is secured against movement within
packaging.
■ Do not transport batteries that are cracked or leaking.
Check with forwarding company for further advice.
BATTERY PACK PROTECTION
The battery pack has overload protection that protects it from being
overloaded and helps to ensure long life. Under extreme stress the
battery electronics switch o the machine automatically. To restart,
switch the machine o and then on again. If the machine does not
start up again, the battery pack may have discharged completely. In
this case it must be recharged in the battery charger.
LED INDICATOR
LED Status
Flashing Overload protection is activated. To
reactivate tool, remove battery and
reinsert to reset.
On Kickback protection is activated. Tool
will start without having to remove the
battery.
MAINTENANCE
The ventilation slots of the machine must be kept clear at all times.
Use only AEG accessories and AEG spare parts. Should components
need to be replaced which have not been described, please contact
one of our AEG service agents (see our list of guarantee/service
addresses).
If needed, an exploded view of the tool can be ordered. Please state
the Article No. as well as the machine type printed on the label and
order the drawing at your local service agents or directly at:
Techtronic Industries Australia Pty Ltd
PO Box 1065
Mount Waverley VIC 3149
Tel. no. 1300 234 797
Australia
Techtronic Industries N.Z. Limited
PO Box 12-806
Penrose AUCKLAND 1642
Tel. no. 0800 234 797
New Zealand
32
32
SYMBOLS
Safety alert
n
Rated speed
V
Volts
Direct current
Regulatory Compliance Mark (RCM). Product meets
applicable regulatory requirements.
Please read the instructions carefully before starting
the machine.
Always wear goggles when using the machine.
Always wear gloves when using the machine.
Remove the battery pack before starting any work
on the machine.
Accessory - Not included in standard equipment,
available as an accessory.
Do not dispose of electric tools together with
household waste material. Electric tools and
electronic equipment that have reached the end of
their life must be collected separately and returned
to an environmentally compatible recycling facility.
33
33
34
34
35
35
Techtronic Industries Australia Pty Ltd
31 Gilby Road, Mount Waverley, VIC 3149
Melbourne, Australia
Techtronic Industries N.Z. Limited
2 Landing Drive, Mangere
Auckland, 2022, New Zealand
www.aegpowertools.com.au
www.aegpowertools.co.nz
961096412-01A
